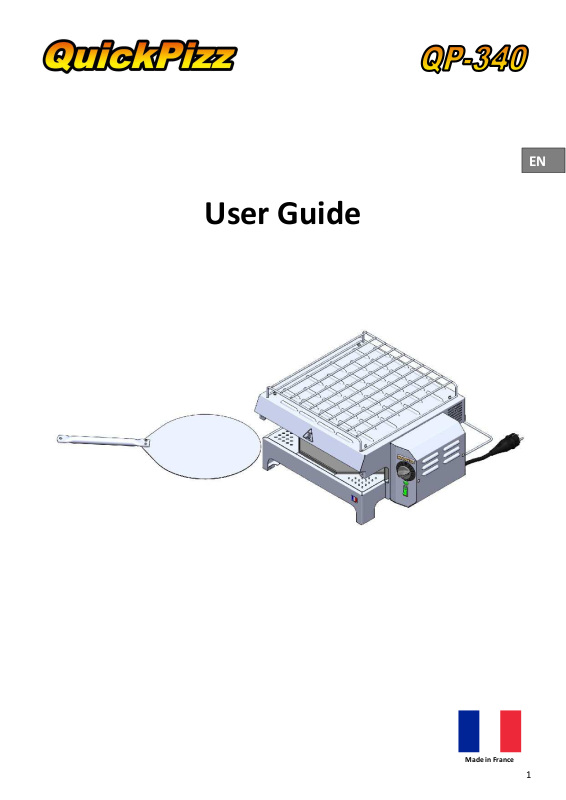

Made in France
EN
User guide
User Guide
1
Please read these instructions carefully before using this appliance.
Congratulations on buying this QuickPizz QP
-
340 appliance made in France.
EN
User guide
You have chosen an appliance that combines the best technical qualities with user-friendliness.
The company QuickPizz reserves the right to modify at any time, in the interest of the consumer, the
characteristics or components of its products.
An incorrect use may cause damage to the appliance and/or injure the user. Ensure you follow the
following safety instructions. Use this appliance only for the purpose for which it was designed; we
decline all responsibility in the event of damage due to a poor use or handling.
1. Check that the mains voltage corresponds to that indicated on the appliance.
2. A distance of at least 15 cm with the partitioning or wall is necessary (safety gauge).
3. Only plug the appliance into an earthed plug.
4. The safety instructions do not by themselves completely eliminate all dangers and suitable
accident prevention measures must always be taken.
5. Never leave the appliance on without surveillance. Keep out of the reach of children or
incompetent persons.
6. Unwind the power cable fully.
7. Check the power cable regularly and never use the appliance if this or the appliance show signs
of damage.
8. If the power cable is damaged, it must be replaced by a qualified person to avoid any danger.
9. Keep the power cable far from all hot points or objects and always take care to unplug it after
each use.
10. In the event of the use of an electric extension cord, ensure it is adapted to the current
consumed. This extension must have at least the following characteristics: HO7RNF 3x1.5mm².
11. The temperature of the accessible surfaces may be high when the appliance is on.
12. Never immerse the appliance in water or any other liquid, for any reason whatsoever. Never
put it in the dishwasher.
13. If the appliance falls in water, unplug it immediately. Have it checked by an expert before any
other use to avoid any risk of electrification.
14. Never try to open the appliance.
15. Always unplug the appliance before cleaning it.
16. Always place the appliance in a dry environment.
17. Place the appliance on a fixed, steady work surface at a good height.
18. Never put the appliance on an inflammable surface.
19. Never cover the appliance or obstruct the ventilation holes.
20. Never place the appliance near to inflammable objects or products.
21. Never switch the appliance on without having placed the base in the space provided for this
purpose.
22. Keep the appliance and its power cable out of the reach of children under the age of 8.
23. Never move the appliance when it is on or when the cooking surface is still hot.
2
Mains voltage:
AC 220
– 240V 50 / 60 Hz
This appliance complies with the Low Voltage Directive
2006/95/CE
replaced by
2016.
This a
ppliance complies with directive DEEE
2012/19/CE.
Y
our appliance contains a number of recoverable or recyclable materials.
Take it to a collection point so it can be processed.
Appliance:
QP-340 x
x 1 pc
EN
User guide
Accessories: Base in lava stone x x 1pc
Heat maintenance grill x 1pc
Safety gauge x 1pc
User guide x 1pc
Power: Heating of the base: 1900W
Cooking mode: 2785W
Protection index: IPX3
Weight: 12.4 Kg
Dimensions: 498 x 401 x 278 mm
Dimensions with the safety gauge: 498 x 553 x 278 mm
Directive 2014/35/UE at the 20 April 2016.
And Directive CEM 2004/108/CE replaced by Directive 2014/30/UE at the 20 April
This appliance complies with directive RoHS 211/65/UE.
Help protect the environment!
3
EN
User guide
Our appliances are guaranteed 24 months from the invoice date to the end consumer.
Defects that obviously come from a manufacturing defect are taken care of.
According to our choice the warranty service takes the form of a repair or a standard exchange
depending on the problem encountered.
In all cases, the material under warranty can only be returned in its original packaging with all of the
accessories supplied (grill, paddle, base …etc).
The base being removed from the appliance and placed as originally in the compartment provided
for this purpose in the bottom of the box.
All damage caused by poor installation, poor maintenance or poor use are excluded from the
warranty.
The warranty ends in the event of intervention, repair or modification by persons not authorised by
QuickPizz.
4
Heat your
QP-340
for approximately 15 minutes to burn the traces of manufacturing oil of the metallic parts.
Only use the appliance for cooking fresh or frozen products such as:
Carefully remove the appliance and its accessories from its packaging.
EN
User guide
Pizzas, flame-grilled tarts…
Installation/assembly:
Insert the safety gauge into the 2 holes of the feet at the back of the appliance.
Place your QP-340 on a flat, non-inflammable surface and at a distance of at least 15 cm from the walls
or partitions.
Place the lava stone delicately in its housing.
Control the voltage and the frequency of the power grid; these must correspond with the values
indicated on the rating plate.
Ensure that the switch and the timer are correctly positioned on 0.
Check the absence of damage on the power cable, if necessary, it must be replaced by the manufacturer
or a person of similar qualification to avoid all dangers.
After having unwound the power cable completely, plug it into a 16 A socket minimum and earthed.
First use:
Smoke and an unpleasant smell may be given off for a few moments.
5
Control and display elements
Front
Back
6
5
4
7
8 7
1
2
3
EN
User guide
1 Timer 0 to 3 min
2 Base heating warning light
3 Switch
4 Indentification plate
5 Thermostat
6 Power cable output
7 Grill
8 Safety gauge
6
Type of pizza base
R
églage thermostat
Thin pre
-
cooked
4
Fresh base
5
Very thick base
5,5 ~6
EN
User guide
Advice for turning on and using:
Check that the timer (1) is correctly on the 0 position.
Adjust the thermostat (5) to position 5.
Put the switch (3) on position 1.
The switch lights up: the base is heating (approximately 15 minutes when the base is cold).
When the set temperature adjusted on the thermostat (5) is reached, the heating warning light (2) comes
on.
Position the pizza to cook with the help of the paddle provided onto the base and put the timer (1) on 2min
~ 2min30
When the time is up, (the timer (1) is back on the 0 position) the emitters stop.
Immediately remove the pizza from the appliance with the help of the paddle.
If the heating warning light remains on, it is possible to put the next pizza in and reset the timer (1).
If the warning light turns off, wait a few minutes for it to come on again before putting in the next pizza.
When finished, turn off the appliance (the switch (3)).
Depending on the results obtained, the adjustment time of the timer may be slightly increased or decreased.
For the position of the thermostat (heating of the base (5)) we recommend the following settings:
(5)
base
Cleaning:
Unplug the appliance.
Let the appliance cool down completely before any intervention.
Brush the base without removing it from its housing, do not wet the base, do not immerse it.
Clean the bodywork with the help of a sponge (non-abrasive) or a cloth imbued with a special STAINLESS
STEEL product.
Do not immerse the appliance; do not clean the appliance with a jet of water.
The quartz emitters found on the upper part must not be cleaned.
7
EN
User guide
QuickPizz
32 Rue de la Menelle
54540 Pierre Percée
France
Fax : +33 (0) 3 29 42 60 95
