QL7180 DSP Data Sheet

• • • • • •

Combining Embedded DSP Blocks, Performance, Density

and Embedded RAM

1.0 Device Highlights

Clock Network

• 9 global clock networks

• 1 dedicated, 8 programmable

• 16 I/O (high drive) networks:

2 banks per I/O

• 20 Quad-net networks: 5 per quadrant

Programmable I/O

• High performance enhanced I/O:

less than 3 ns Tco

• Programmable slew rate control

• Programmable I/O standards

• LVTTL, LVCMOS, PCI, GTL+, SSTL2,

and SSTL3

• 8 independent I/O banks

• 3 register configuration: Input, Output, OE

Parameterized IP

• Free parameterized IP administered with a

DSP Wizard

• Supports multiple and hierarchical IP

instantiations

High Speed Customizable Logic

• 0.25u, 5 layer metal CMOS process

• 2.5 V Vcc, 2.5 / 3.3 V drive capable I/O

• 512 programmable I/O

• 4,032 Logic Cells

• 660,000 max system gates

• Muxed based architecture,

non-volatile technology

• Completely customizable for any

digital applications

Dual Port SRAM

• 36 blocks of dual-port SRAM

• 2,304 bit dual port high performance

SRAM Blocks

• Total of 82,900 bits

• RAM / ROM / FIFO Wizard for automatic

configuration

• Configurable and cascadable

• Array sizes of 2, 4, 9, and 18

• < 3 ns access times, 300+ MHz FIFO

Applications

• Signal processing operators

• Signal processing functions

• Networking / communications for VoIP

• Speech / voice processing

• Channel coding

QL7180 QuickDSPTM Data Sheet Rev B

Figure 1: Embedded QuickDSP Block Diagram

•

QL7180 DSP Data Sheet

2.0 AC Characteristics at Vcc = 2.5V, TA=25° C (K=1.00)

The AC Specifications, Logic Cell diagrams and waveforms are provided below.

Figure 2: QuickDSP Logic Cell

Table 1: Logic Cells

Symbol Parameter

Logic Cells 1

tPD Combinatorial delay: time taken by the combinatorial circuit to output 0.257

tSU

tCLK

tCWHI Clock High Time: the length of time that the clock stays high 0.46

tCWLO Clock Low Time: the length of time that the clock stays low 0.46

tSET

tRESET

tSW

tRW

Setup time: the amount of time the synchronous input of the flip flop must be stable before the active clock edge

Hold time: the amount of time the synchronous input of the flip flop must be stable after the

thl

active block edge Clock to out delay: the amount of time the synchronous input of the flip flop must be stable

after the active block edge

Set Delay: amount of time between when the flip flop is ”set” (high) and when Q is consequent “set” (high)

Reset Delay: amount of time between when the flip flop is ”reset” (low) and when Q is consequent “reset” (low)

Set Width: length of time that the SET signal remains high (low if active low)

Reset Width: length of time that the RESET signal remains high (low if active low)

Propagation

delay (ns)

0.22

0.255

0.18

0.09

0.3

•

www.quicklogic.com

•

Figure 3: Logic Cell Flip Flop

QL7180 DSP Data Sheet

Figure 4: Logic Cell Flip Flop Timings - First Waveform

Figure 5: Logic Cell Flip Flop Timings - Second Waveform

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

Figure 6: QuickDSP Global Clock Structure

Table 2: QuickDSP Clock Performance

Macro

I/O

Skew

Symbol Parameter Propagation delay (ns)

Input Register Cell Only

tGCKP Global clock pin delay

GCKB Global clock buffer delay

Clock Performance

Global Dedicated

1.51 ns 1.59 ns

2.06 ns 1.73 ns

0.55 ns 0.14 ns

Table 3: QuickDSP Input Register Cell

Figure 7: Global Clock Structure Schematic

•

www.quicklogic.com

•

Figure 8: QuickRAM Module

Table 4: RAM Cell Synchrono us Write Timing

QL7180 DSP Data Sheet

Symbol Parameter

Propagation

delay (ns)

RAM Cell Synchronous Write Timing 1

TSWA

THWA

TSWD

THWD

TSWE

THWE

TWCRD

WA Setup Time to WCLK: the amount of time the WRITE ADDRESS

must be stable before the active edge of the WRITE CLOCK

WA Hold Time to WCLK: the amount of time the WRITE ADDRESS must

be stable after the active edge of the WRITE CLOCK

WD Setup Time to WCLK: the amount of time the WRITE DA TA must be

stable before the active edge of the WRITE CLOCK

WD Hold Time to WCLK: the amount of time the WRITE DATA must be

stable after the active edge of the WRITE CLOCK

WE Setup Time to WCLK: the amount of time the WRITE ENABLE must

be stable before the active edge of the WRITE CLOCK

WE Hold Time to WCLK: the amount of time the WRITE ENABLE must

be stable after the active edge of the WRITE CLOCK

WCLK to RD (WA=RA) [5]: the amount of time between the active

WRITE CLOCK edge and the time when the data is available at RD

0.675

0.654

0.623

4.38

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

Figure 9: RAM Cell Synchronous Write Timing

Table 5: RAM Cell Synchronous & Asynchronous Read Timing

Symbol Parameter

Propagation

delay (ns)

RAM Cell Synchronous Read Timing 1

TSRA

THRA

TSRE

THRE

TRCRD

RA Setup Time to RCLK: the amount of time the READ ADDRESS must

be stable before the active edge of the READ CLOCK

RA Hold Time to RCLK: the amount of time the READ ADDRESS must

be stable after the active edge of the READ CLOCK

RE Setup Time to RCLK: the amount of time the READ ENABLE must

be stable before the active edge of the READ CLOCK

RE Hold Time to RCLK: the amount of time the READ ENABLE must be

stable after the active edge of the READ CLOCK

RCLK to RD [5]: the amount of time between the active READ CLOCK

edge and the time when the data is available at RD

0.686

0.243

4.38

RAM Cell Synchronous Read Timing

RPDRD

RA to RD [5]: amount of time between when the READ ADDRESS is

input and when the DATA is output

2.06

•

www.quicklogic.com

•

QL7180 DSP Data Sheet

Figure 10: RAM Cell Synchronous & Asynchronous Read Timing

QL7180 QuickDSPTM Data Sheet Rev B

Figure 11: QuickDSP Cell I/O

•

QL7180 DSP Data Sheet

Figure 12: QuickDSP Input Register Cell

Table 6: Input Register Cell

Symbol Parameter

Input Register Cell Only 1

tISU

tIH

tICLK

tIRST

tIESU

tIEH

Input register setup time: the amount of time the synchronous input of the flip flop must be stable before the active clock edge

Input register hold time: the amount of time the synchronous input of the flip flop must be stable after the active clock edge

Input register clock to Q: the amount of time taken by the flip flop to output after the active clock edge

Input register reset delay: amount of time between when the flip flop is “reset”(low) and when Q is consequently “reset” (low)

Input register clock enable setup time: the amount of time “enable” must be stable before the active clock edge

Input register clock enable time: the amount of time “enable” must be stable after the active clock edge

Propagation

delay (ns)

3.12

1.08

0.99

0.37

•

www.quicklogic.com

•

Table 7: Standard Input Delays

Symbol Parameter

QL7180 DSP Data Sheet

Propagation

delay (ns)

Standard Input Delays

tSID (LVTTL) LVTTL input delay: Low Voltage TTL for 3.3V applications 0.34

tSID (LVCMOS2)

tSID (GTL+) GTL+ input delay: Gunning Transceiver Logic 0.68 tSID (SSTL3) SSTL3 input delay: Stub Series Terminated Logic for 3.3V 0.55 tSID (SSTL2) SSTL2 input delay: Stub Series Terminated Logic for 2.5V 0.607

To get the total input delay and this delay to tISU 1

LVCMOS2 input delay: Low Voltage CMOS for 2.5V and lower applications

0.42

QL7180 QuickDSPTM Data Sheet Rev B

Figure 13: QuickDSP Input Register Cell Timing

•

QL7180 DSP Data Sheet

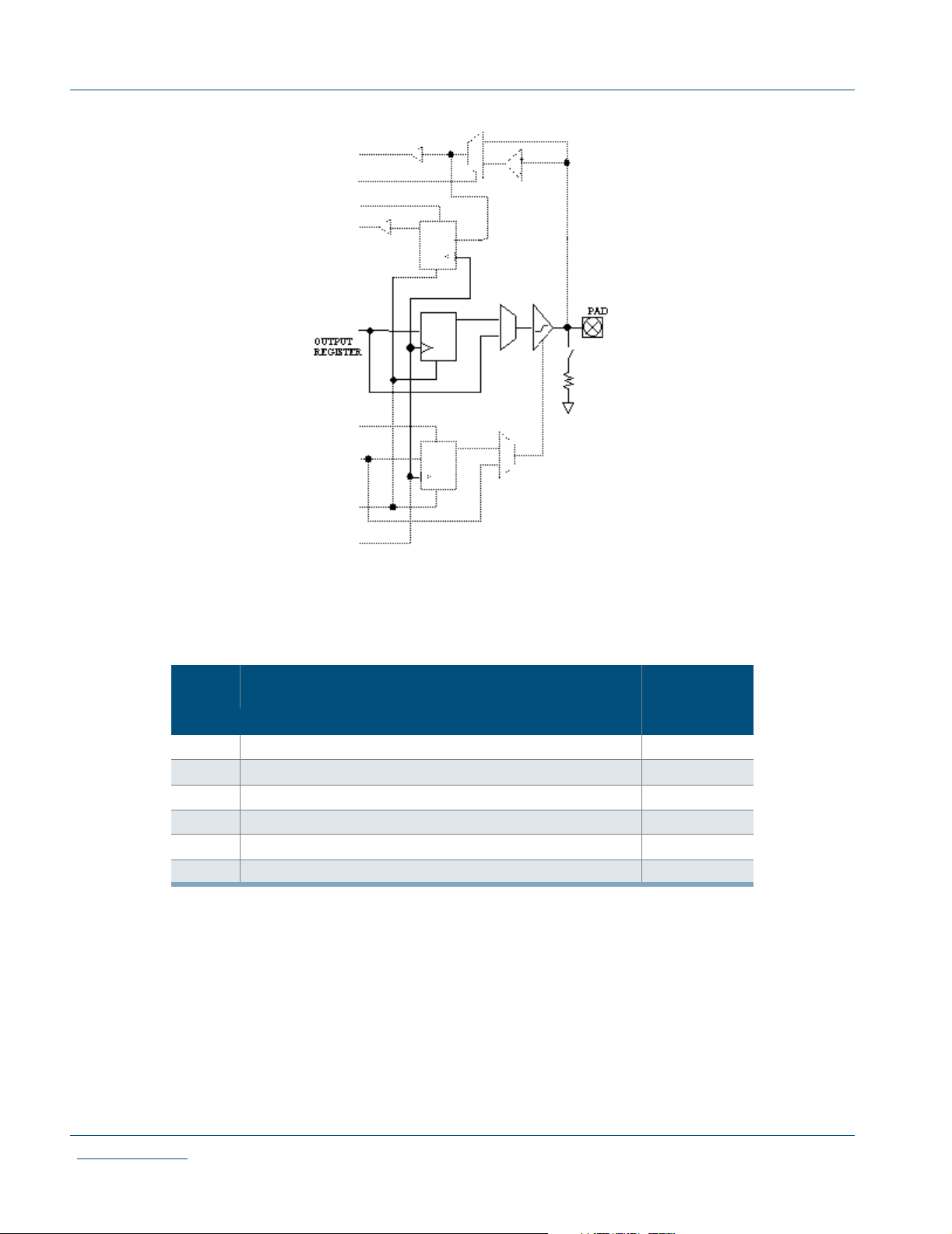

Figure 14: QuickDSP Output Register Cell

Table 8: QuickDSP Output Register Cell

Symbol Parameter

Output Register Cell Only 1

TOUTLH Output Delay Low to High (10% of H)

TOUTHL Output Delay High to Low (90% of H)

TPZH Output Delay Tri-state to High (10% of Z)

TPZL Output Delay Tri-state to Low (90% of Z)

TPHZ Output Delay High to Tri-State

TPLZ Output Delay Low to Tri-State

Propagation

delay (ns)

0.40

0.55

3.07

2.53

•

www.quicklogic.com

•

Figure 15: QuickDSP Output Register Cell Timing

Table 9: VCCIO = 3.3 V

Fast Slew Slow Slew

QL7180 DSP Data Sheet

Rising Edge

Falling Edge

Rising Edge

Falling Edge

2.8 V/ns 1.0 V/ns

2.86 V/ns 1.0 V/ns

Table 10: VCCIO = 2.5 V

Fast Slew Slow Slew

1.7 V/ns 0.6 V/ns

1.9 V/ns 0.6 V/ns

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

3.0 DC Characteristics

The DC Specifications are provided in the tables below.

Table 11: Absolute Maximum Ratings

VCC Voltage

Voltage

CCIO

Voltage

REF

Input Vo ltage

Latch-up Immunity

Symbol Parameter Military Industrial Commercial Unit

VCC Supply Voltage

VCCIO I/O Input Tolerance Voltage

TA Ambient Temperature

TC Case Temperature 125

K Delay Factor

-0.5 to 3.6V

-0.5 to 4.6V

2.7V

-0.5V to V

CCIO

±100 mA

+0.5V

Table 12: Operating Range

Min Max Min Max Min Max

2.3 2.7 2.3 2.7 2.3 2.7 V

2.3 3.6 2.3 3.6 2.3 3.6 V

-55 -40 85 0 70 °C

-4 Speed Grade

-5 Speed Grade 0.42 1.92 0.43 1.80 0.46 1.76 n/a

-6 Speed Grade 0.42 1.35 0.43 1.26 0.46 1.23 n/a

-7 Speed Grade 0.42 1.22 0.43 1.14 0.46 1.11 n/a

0.42 2.3 0.43 2.16 0.47 2.11 n/a

DC Input Current

ESD Pad Protection

Storage Temperature

Maximum Lead

Temperature

±20 mA

±2000V

-65°C to +150°C

300°C

°C

LVCMOS2 n/a n/a -0.3 0.7 1.7 V

•

www.quicklogic.com

•

Table 13: DC Input and Output Levels

REF

MINVMAXVMIN

LVTTL n/a n/a -0.3 0.8 2.0 V

GTL+ 0.88 1.12 -0.3 V

PCI n/a n/a -0.3 0.3xV SSTL2 1.15 1.35 -0.3 V SSTL3 1.3 1.7 -0.3 V

REF

MAX

-2.0 V

-0.18 V

-0.2 V

MIN

+2.0 V

REF

0.5xV

+0.18 V

REF

+2.0 V

REF

MAX

-0.3 0.4 24. 2.0 -2.0

CCIO

-0.3 0.7 1.7 2.0 -2.0

CCIO

-0.3 0.6 n/a 40 n/a

CCIO

-0.5 0.1xV

CCIO

+0.3 0.74 1.76 7.6 -7.6

CCIO

+0.3 1.10 1.90 9 -8

CCIO

MAX

MIN

0.9xVC1.5 -0.5

OLIOH

mA mA

4.0 Pin Descriptions

Pin Function Description

TDI/RSI

TRSTB/RRO

TMS T est Mode Select for JT A G Hold HIGH during normal operation. Connect to VCC if not used for JT A G

TCK Test Clock for JTAG

TDO/RCO

I/GCLK

I/O Input/Output pin Can be configured as an input and/or output VCC Power supply pin Connect to 2.5V supply

VCCIO Input voltage tolerance pin

GND Ground pin Connect to ground PLLIN PLL clock input Clock input for PLL DEDCLK Dedicated clock pin Low skew global clock GNDPLL Ground pin for PLL Connect to GND INREF Differential reference voltage Connect to reference voltage or ground if used for non-differential input PLLOUT PLL output pin Dedicated PLL output pin. Otherwise may be left unconnected

IOCTRL Highdrive input

Test Data In for JTAG /RAM init. Serial Data In

Active low Reset for JTAG /RAM init. reset out

Test data out for JTAG /RAM init. clock out

High-drive input and/or global network driver

QL7180 DSP Data Sheet

Table 14: Pin Descriptions

Hold HIGH during normal operation. Connects to serial PROM data in for RAM initialization. Connect to VCC if unused

Hold LOW during normal operation. Connects to serial PROM reset for RAM initialization. Connect to GND if unused

Hold HIGH or LOW during normal operation. Connect to VCC or ground if not used for JTAG

Connect to serial PROM clock for RAM initialization. Must be left unconnected if not used for JTAG or RAM initialization

Can be configured as either or both

Connect to 3.3 volt supply if 3.3 volt input tolerance is required, otherwise connect to 2.5V supply

Can be used as highdrive input or clock to I/O register within the same bank. Tied low or high if unused

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

4.1 Recommended Unused Pin Terminations for the QuickDSP devices

All unused, general purpose I/O pins can be tied to VCC, GND or HIZ (high impedance) internally using the Configuration Editor. The option is given in the right-bottom corner of the Configuration window. The use the Configuration Editor go to: TOOLS/CONFIGURATION PINS.

The rest of the pins should be terminated at the board level in the following manner:

Table 15: Recommended Unused Pin Terminations

Signal Name Recommended Termination

Unused PLL output pins must be connected to either VCC or GND so that their associated input

PLLOUT<x>

IOCTRL<y> Any unused pins of this type must be connected to either VCC or GND. CLK/PLLIN<x> Any unused clock pins should be connected to VCC or GND.

PLLRST<x>

INREF<y> If an I/O bank does not require the use of INREF signal the pin should be connected to GND.

buffer nev er floats . Utilized PLL output pins that route the PLL cloc k outside of the chip , do not need to be tied to either VCC or GND.

If a PLL module is not used, then the associated PLLRST<x> must be connected to VCC, under normal operation use it as needed.

NOTE:

x -> number, y -> alphabetical character

QL 7180 - 4 PS672 C

QuickLogic device

QuickDSP device part number

Speed Grade 4 = Quick 5 = Fast 6 = Faster 7 = Fastest

Figure 16: Ordering Information

Operating Range C = Commercial I = Industrial M = Military

Package Code PT280 = 280-pin FPBGA PS484 = 484-pin BGA (1.0mm) PS672 = 672-pin BGA (1.0mm) PB516 = 516-pin BGA (1.27mm)

•

www.quicklogic.com

•

5.0 280 PBGA Pinout Diagram

Top

QuickDSP

QL7180-4PT280C

QL7180 DSP Data Sheet

Bottom

Pin A1 Corner

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

6.0 280 PBGA Pinout Table

Table 16: 280 PBGA Pinout Table

280 PBGA Function 280 PBGA Function 280 PBGA Function 280 PBGA Function 280 PBGA Function 280 PBGA Function

A1 PLLOUT<3> C10 A2 GNDPLL<0> C11 VCCIO<E> F1 INREF<G> K17 I/O<D> R5 GND U14 IOCTRL

A3 I/O<F> C12 I/O<E> F2 IOCTRL<G> K18 I/O<C> R6 GND U15 VCCIO A4 I/O<F> C13 I/O<E> F3 I/O<G> K19 TRSTB R7 VCC U16 I/O A5 I/O<F> C14 I/O<E> F4 I/O<G> L1 I/O<H> R8 VCC U17 TDO A6 IOCTRL<F> C15 VCCIO<E> F5 GND L2 I/O<H> R9 GND U18 PLLRST<2> A7 I/O<F> C16 I/O<E> F15 VCC L3 VCCIO<H> R10 GND U19 I/O A8 I/O<F> C17 I/O<E> F16 IOCTRL<D> L4 I/O<H> R11 VCC V1 PLLOUT<2>

A9 I/O<F> C18 I/O<E> F17 I/O<D> L5 VCC R12 VCC V2 GNDPLL<3> A10 CLK<7> C19 I/O<E> F18 I/O<D> L15 GND R13 VCC V3 GND A11 I/O<E> D1 I/O<G> F19 I/O<D> L16 I/O<C> R14 VCC V4 I/O<A> A12 I/O<E> D2 I/O<G> G1 I/O<G> L17 VCCIO<C> R15 GND V5 I/O<A> A13 I/O<E> D3 I/O<F> G2 I/O<G> L18 I/O<C> R16 I/O<C> V6 IOCTRL<A> A14 IOCTRL<E> D4 I/O<F> G3 IOCTRL<G> L19 I/O<C> R17 VCCIO<C> V7 I/O<A> A15 I/O<E> D5 I/O<F> G4 I/O<G> M1 I/O<H> R18 I/O<C> V8 I/O<A> A16 I/O<E> D6 I/O<F> G5 VCC M2 I/O<H> R19 I/O<C> V9 I/O<A> A17 I/O<E> D7 I/O<F> G15 VCC M3 I/O<H> T1 I/O<H> V10 CLK<1>

A18 PLLRST<1> D8 I/O<F> G16 I/O<D> M4 I/O<H> T2 I/O<H> V11 A19 GND D9 CLK<8> G17 I/O<D> M5 VCC T3 I/O<A> V12 I/O

B1 PLLRST<0> D10 I/O<E> G18 I/O<D> M15 VCC T4 I/O<A> V13 I/O

B2 GND D11 I/O<E> G19 I/O<D> M16 INREF<C> T5 I/O<A> V14 INREF

B3 I/O<F> D12 I/O<E> H1 I/O<G> M17 I/O<C> T6 IOCTRL<A> V15 I/O

B4 I/O<F> D13 INREF<E> H2 I/O<G> M18 I/O<C> T7 I/O<A> V16 I/O

B5 I/O<F> D14 I/O<E> H3 I/O<G> M19 I/O<C> T8 I/O<A> V17 I/O

B6 INREF<F> D15 I/O<E> H4 I/O<G> N1 IOCTRL<H> T9 I/O<A> V18 GNDPLL<2>

B7 I/O<F> D16 I/O<D> H5 VCC N2 I/O<H> T10 I/O<A> V19 GND

B8 I/O<F> D17 I/O<D> H15 VCC N3 I/O<H> T11

B9 TMS D18 I/O<D> H16 VCC N4 I/O<H> T12 I/O W2 PLLRST<3> B10 CLK<6> D19 I/O<D> H17 I/O<D> N5 VCC T13 I/O W3 I/O<A> B11 I/O<E> E1 I/O<G> H18 I/O<D> N15 VCC T14 I/O W4 I/O<A> B12 I/O<E> E2 I/O<G> H19 I/O<D> N16 I/O<C> T15 I/O W5 I/O<A> B13 IOCTRL<E> E3 VCCIO<G> J1 I/O<G> N17 I/O<C> T16 I/O W6 I/O<A> B14 I/O<E> E4 I/O<F> J2 I/O<G> N18 IOCTRL<C> T17 VCCPLL<2> W7 I/O<A> B15 I/O<E> E5 GND J3 VCCIO<G> N19 IOCTRL<C> T18 I/O W8 I/O<A> B16 I/O<E> E6 VCC J4 I/O<G> P1 I/O<H> T19 I/O W9 TDI

B17 VCCPLL<1> E7 VCC J5 GND P2 I/O<H> U1 I/O<A> W10 B18 GNDPLL<1> E8 VCC J15 VCC P3 IOCTRL<H> U2 I/O<A> W11 I/O

B19 PLLOUT<0> E9 VCC J16 I/O<C> P4 INREF<H> U3 VCCPLL<3> W12 I/O

C1 I/O<F> E10 GND J17 VCCIO<D> P5 VCC U4 I/O<A> W13 I/O

C2 VCCPLL<0> E11 GND J18 I/O<D> P15 GND U5 VCCIO<A> W14 IOCTRL

C3 I/O<F> E12 VCC J19 I/O<D> P16 I/O<C> U6 INREF<A> W15 I/O

C4 I/O<F> E13 VCC K1 VCC P17 I/O<C> U7 I/O<A> W16 I/O

C5 VCCIO<F> E14 GND K2 TCK P18 I/O<C> U8 I/O<A> W17 I/O

C6 IOCTRL<F> E15 GND K3 I/O<G> P19 I/O<C> U9 VCCIO<A> W18 I/O

C7 I/O<F> E16 I/O<D> K4 I/O<G> R1 I/O<H> U10 CLK<0> W19 PLLOUT<1>

C8 I/O<F> E17 VCCIO<D> K5 GND R2 I/O<H> U11 VCCIO

C9 VCCIO<F> E18 INREF<D> K15 GND R3 VCCIO<H> U12 I/O

CLK<5>/PLLI

N<3>

E19 IOCTRL<D> K16 I/O<C> R4 I/O<H> U13 I/O

CLK<4>DEDC

LK/PLLIN<0>

CLK<3>/PLLI

N<1>

W1 GND

CLK<2>/PLLI

N<2>

•

www.quicklogic.com

•

7.0 484 PBGA Pinout Diagram

Top

QuickDSP

QL7180-4PS484C

QL7180 DSP Data Sheet

Bottom

20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

22 21

Pin A1

Pin A1 Corner

•

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

8.0 484 PBGA Pinout Table

Table 17: 484 PBGA Pinout Table

484 PBGA Function 484 PBGA Function 484 PBGA Function 484 PBGA Function 484 PBGA Function 484 PBGA Function

A1 I/O<A> C18 I/O<G> F13 I/O<G> J8 VCC M3 I/O P20 I/O<E> A2 PLLRST<3> C19 I/O<F> F14 VCCIO<G> J9 GND M4 CLK<3>/PLLIN<1> P21 I/O<E> A3 I/O<A> C20 GNDPLL<0> F15 I/O<G> J10 VCC M5 I/O P22 I/O<E> A4 I/O<A> C21 I/O<F> F16 VCCIO<G> J11 VCC M6 VCCIO R1 I/O A5 I/O<A> C22 I/O<F> F17 I/O<G> J12 GND M7 CLK<1> R2 INREF A6 I/O<H> D1 I/O<A> F18 I/O<F> J13 VCC M8 VCC R3 I/O A7 I/O<H> D2 I/O<A> F19 I/O<F> J14 GND M9 VCC R4 I/O A8 IOCTRL<H> D3 I/O<A> F20 IOCTRL<F> J15 VCC M10 GND R5 I/O

A9 I/O<H> D4 I/O<A> F21 I/O<F> J16 I/O<F> M11 GND R6 I/O A10 I/O<H> D5 I/O<A> F22 IOCTRL<F> J17 VCCIO<F> M12 GND R7 I/O A11 I/O<H> D6 I/O<H> G1 I/O<A> J18 I/O<F> M13 GND R8 GND A12 TCK D7 I/O<H> G2 I/O<A> J19 I/O<F> M14 GND R9 VCC A13 I/O<G> D8 I/O<H> G3 I/O<A> J20 I/O<F> M15 GND R10 VCC A14 I/O<G> D9 I/O<H> G4 I/O<A> J21 I/O<F> M16 GND R11 GND A15 I/O<G> D10 I/O<H> G5 I/O<A> J22 I/O<F> M17 I/O<E> R12 VCC A16 I/O<G> D11 I/O<H> G6 I/O<A> K1 TDI M18 I/O<E> R13 VCC A17 I/O<G> D12 I/O<G> G7 GND K2 I/O<A> M19 I/O<E> R14 VCC A18 I/O<G> D13 I/O<G> G8 I/O<H> K3 I/O<A> M20 CLK<7> R15 GND A19 I/O<F> D14 I/O<G> G9 I/O<H> K4 I/O<A> M21 CLK<5>/PLLIN<3> R16 I/O<D> A20 GND D15 IOCTRL<G> G10 I/O<H> K5 I/O<A> M22 TMS R17 VCCIO<E> A21 PLLOUT<3> D16 I/O<G> G11 I/O<G> K6 VCCIO<A> N1 I/O R18 I/O<E> A22 I/O<F> D17 I/O<G> G12 GND K7 I/O<A> N2 I/O R19 I/O<E>

B1 I/O<A> D18 I/O<F> G13 I/O<G> K8 VCC N3 I/O R20 I/O<E>

B2 GND D19 VCCPLL<0> G14 I/O<G> K9 VCC N4 I/O R21 I/O<E>

B3 GNDPLL<3> D20 I/O<F> G15 I/O<G> K10 GND N5 I/O R22 I/O<E>

B4 GND D21 I/O<F> G16 GND K11 GND N6 I/O T1 I/O

B5 I/O<A> D22 I/O<F> G17 VCCIO<F> K12 GND N7 I/O T2 I/O

B6 I/O<H> E1 IOCTRL<A> G18 I/O<F> K13 GND N8 VCC T3 I/O

B7 I/O<H> E2 I/O<A> G19 I/O<F> K14 VCC N9 VCC T4 I/O

B8 INREF<H> E3 I/O<A> G20 I/O<F> K15 VCC N10 GND T5 I/O

B9 I/O<H> E4 I/O<A> G21 INREF<F> K16 I/O<F> N11 GND T6 VCCIO B10 I/O<H> E5 I/O<A> G22 I/O<F> K17 I/O<F> N12 GND T7 GND B11 I/O<H> E6 I/O<H> H1 I/O<A> K18 I/O<F> N13 GND T8 I/O<C> B12 I/O<G> E7 I/O<H> H2 I/O<A> K19 I/O<F> N14 VCC T9 I/O<C> B13 I/O<G> E8 I/O<H> H3 I/O<A> K20 I/O<F> N15 VCC T10 TRSTB B14 I/O<G> E9 I/O<H> H4 I/O<A> K21 I/O<F> N16 I/O<E> T11 GND B15 I/O<G> E10 I/O<H> H5 IOCTRL<A> K22 I/O<F> N17 VCCIO<E> T12 I/O<C>

B16 I/O<G> E11 VCC H6 VCCIO<A> L1 B17 I/O<G> E12 I/O<G> H7 I/O<H> L2 CLK<0> N19 I/O<E> T14 I/O<D>

B18 I/O<G> E13 I/O<G> H8 GND L3 CLK<2>/PLLIN<2> N20 I/O<E> T15 I/O<D> B19 PLLRST<0> E14 I/O<G> H9 VCC L4 I/O<A> N21 I/O<E> T16 GND B20 I/O<F> E15 IOCTRL<G> H10 VCC L5 I/O<A> N22 I/O<E> T17 I/O<E> B21 I/O<F> E16 I/O<G> H11 VCC L6 I/O<A> P1 I/O T18 I/O<E> B22 I/O<F> E17 INREF<G> H12 GND L7 GND P2 I/O T19 I/O<E>

C1 I/O<A> E18 I/O<G> H13 VCC L8 GND P3 I/O T20 I/O<E>

C2 I/O<A> E19 I/O<F> H14 VCC L9 GND P4 I/O T21 IOCTRL<E>

C3 VCCPLL<3> E20 I/O<F> H15 GND L10 GND P5 I/O T22 I/O<E>

C4 PLLOUT<2> E21 I/O<F> H16 I/O<F> L11 GND P6 VCCIO U1 IOCTRL

C5 I/O<A> E22 I/O<F> H17 I/O<F> L12 GND P7 I/O U2 I/O

C6 I/O<H> F1 I/O<A> H18 I/O<F> L13 GND P8 VCC U3 IOCTRL

C7 I/O<H> F2 INREF<A> H19 I/O<F> L14 VCC P9 GND U4 I/O

C8 I/O<H> F3 I/O<A> H20 I/O<F> L15 VCC P10 VCC U5 I/O

C9 IOCTRL<H> F4 I/O<A> H21 I/O<F> L16 CLK<6> P11 GND U6 I/O<C> C10 I/O<H> F5 I/O<A> H22 I/O<F> L17 VCCIO<F> P12 VCC U7 VCCIO<C> C11 I/O<H> F6 VCCIO<A> J1 I/O<A> L18 I/O<F> P13 VCC U8 I/O<C> C12 I/O<H> F7 VCCIO<H> J2 I/O<A> L19 CLK<8> P14 GND U9 VCCIO<C> C13 I/O<G> F8 I/O<H> J3 I/O<A> L20 I/O<F> P15 VCC U10 I/O<C> C14 I/O<G> F9 VCCIO<H> J4 I/O<A> L21 I/O<F> P16 I/O<E> U11 VCCIO<C> C15 I/O<G> F10 I/O<H> J5 I/O<A> L22 I/O<F> P17 I/O<E> U12 VCCIO<D> C16 I/O<G> F11 VCCIO<H> J6 I/O<A> M1 I/O P18 I/O<E> U13 I/O<D>

CLK<4>

DEDCLK/PLLIN<0>

N18 I/O<E> T13 I/O<D>

•

www.quicklogic.com

•

QL7180 DSP Data Sheet

Table 17: 484 PBGA Pinout Table (Continued)

484 PBGA Function 484 PBGA Function 484 PBGA Function 484 PBGA Function 484 PBGA Function 484 PBGA Function

C17 I/O<G> F12 VCCIO<G> J7 I/O<A> M2 I/O P19 I/O<E> U14 VCCIO<D> U15 I/O<D> V13 I/O<D> W11 I/O<C> Y9 I/O<C> AA7 I/O<C> AB5 I/O U16 VCCIO<D> V14 I/O<D> W12 I/O<D> Y10 I/O<C> AA8 INREF<C> AB6 I/O<C> U17 VCCIO<E> V15 I/O<D> W13 I/O<D> Y11 I/O<D> AA9 I/O<C> AB7 I/O<C> U18 I/O<E> V16 INREF<D> W14 I/O<D> Y12 I/O<D> AA10 I/O<C> AB8 IOCTRL<C> U19 I/O<E> V17 I/O<D> W15 I/O<D> Y13 I/O<D> AA11 I/O<C> AB9 I/O<C> U20 IOCTRL<E> V18 I/O<E> W16 I/O<D> Y14 I/O<D> AA12 I/O<D> AB10 I/O<C> U21 I/O<E> V19 I/O<E> W17 I/O<D> Y15 IOCTRL<D> AA13 I/O<D> AB11 I/O<C> U22 INREF<E> V20 I/O<E> W18 I/O<E> Y16 I/O<D> AA14 I/O<D> AB12 I/O<D>

V1 I/O V21 I/O<E> W19 I/O<E> Y17 I/O<D> AA15 I/O<D> AB13 I/O<D> V2 I/O V22 I/O<E> W20 I/O<E> Y18 I/O<E> AA16 I/O<D> AB14 I/O<D> V3 I/O W1 I/O W21 I/O<E> Y19 PLLOUT<0> AA17 I/O<D> AB15 I/O<D> V4 I/O W2 I/O W22 I/O<E> Y20 PLLRST<1> AA18 I/O<D> AB16 IOCTRL<D> V5 I/O W3 I/O Y1 I/O Y21 I/O<E> AA19 I/O<E> AB17 I/O<D> V6 I/O<C> W4 I/O Y2 I/O Y22 I/O<E> AA20 GNDPLL<1> AB18 I/O<D> V7 I/O<C> W5 I/O Y3 VCCPLL<2> AA1 TDO AA21 I/O<E> AB19 I/O<E> V8 I/O<C> W6 I/O<C> Y4 I/O<C> AA2 PLLOUT<1> AA22 I/O<E> AB20 GND

V9 I/O<C> W7 I/O<C> Y5 I/O<C> AA3 GND AB1 I/O AB21 VCCPLL<1> V10 I/O<C> W8 I/O<C> Y6 I/O<C> AA4 I/O AB2 GNDPLL<2> AB22 I/O<E> V11 I/O<C> W9 I/O<C> Y7 I/O<C> AA5 I/O<C> AB3 PLLRST<2> V12 VCC W10 I/O<C> Y8 IOCTRL<C> AA6 I/O<C> AB4 I/O

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

9.0 516 PBGA Pinout Diagram

Top

QuickDSP

QL7180-4PB516C

Bottom

PIN A1 CORNER

•

www.quicklogic.com

•

QL7180 DSP Data Sheet

10.0 516 PBGA Pinout Table

Table 18: 516 PBGA Pinout Table

516 PBGA Function 516 PBGA Function 516 PBGA Function 516 PBGA Function 516 PBGA Function 516 PBGA Function

A1 GND C7 I/O<F> E13 I/O<F> H21 VCC M15 GND R23 I/O<C> A2 I/O<F> C8 INREF<F> E14 I/O<F> H22 VCC M16 GND R24 I/O<C> A3 I/O<F> C9 I/O<F> E15 I/O<E> H23 I/O<D> M21 VCCIO<D> R25 I/O<C> A4 I/O<F> C10 I/O<F> E16 VCC H24 IOCTRL<D> M22 VCC R26 I/O<C> A5 I/O<F> C11 I/O<F> E17 CLK<6> H25 IOCTRL<D> M23 I/O<D> T1 I/O<H> A6 I/O<F> C12 I/O<F> E18 I/O<E> H26 I/O<D> M24 I/O<D> T2 I/O<H> A7 IOCTRL<F> C13 CLK<7> E19 I/O<E> J1 I/O<G> M25 I/O<D> T3 I/O<H> A8 I/O<F> C14 I/O<E> E20 I/O<E> J2 I/O<G> M26 I/O<D> T4 I/O<H>

A9 I/O<F> C15 I/O<E> E21 I/O<E> J3 I/O<G> N1 TCK T5 I/O<H> A10 I/O<F> C16 I/O<E> E22 I/O<E> J4 I/O<G> N2 I/O<H> T6 VCC A11 I/O<F> C17 I/O<E> E23 GNDPLL<1> J5 I/O<G> N3 I/O<G> T11 GND A12 I/O<F> C18 I/O<E> E24 I/O<E> J6 VCCIO<G> N4 I/O<G> T12 GND A13 I/O<E> C19 I/O<E> E25 I/O<D> J21 VCCIO<D> N5 I/O<G> T13 GND A14 I/O<E> C20 I/O<E> E26 I/O<D> J22 I/O<D> N6 GND T14 GND A15 I/O<E> C21 I/O<E> F1 IOCTRL<G> J23 I/O<D> N11 GND T15 GND A16 I/O<E> C22 I/O<E> F2 I/O<G> J24 I/O<D> N12 GND T16 GND A17 I/O<E> C23 I/O<E> F3 I/O<G> J25 I/O<D> N13 GND T21 VCC A18 IOCTRL<E> C24 I/O<E> F4 I/O<G> J26 I/O<D> N14 GND T22 VCC A19 IOCTRL<E> C25 I/O<E> F5 I/O<F> K1 I/O<G> N15 GND T23 I/O<C> A20 I/O<E> C26 I/O<E> F6 GND K2 I/O<G> N16 GND T24 I/O<C> A21 I/O<E> D1 I/O<G> F7 VCCIO<F> K3 I/O<G> N21 GND T25 I/O<C> A22 I/O<E> D2 I/O<G> F8 VCC K4 I/O<G> N22 I/O<D> T26 I/O<C> A23 I/O<E> D3 I/O<F> F9 VCCIO<F> K5 I/O<G> N23 I/O<D> U1 I/O<H> A24 I/O<E> D4 I/O<F> F10 GND K6 GND N24 I/O<D> U2 I/O<H> A25 PLLRST<1> D5 GNDPLL<0> F11 VCC K21 GND N25 I/O<D> U3 I/O<H> A26 GND D6 I/O<F> F12 VCCIO<F> K22 I/O<D> N26 I/O<D> U4 I/O<H>

B1 I/O<F> D7 I/O<F> F13 GND K23 I/O<D> P1 I/O<H> U5 I/O<H>

B2 PLLRST<0> D8 I/O<F> F14 VCCIO<E> K24 I/O<D> P2 I/O<H> U6 GND

B3 I/O<F> D9 I/O<F> F15 VCC K25 I/O<D> P3 I/O<H> U21 GND

B4 I/O<F> D10 I/O<F> F16 VCC K26 I/O<D> P4 VCC U22 I/O<C>

B5 I/O<F> D11 I/O<F> F17 GND L1 I/O<G> P5 I/O<H> U23 I/O<C>

B6 I/O<F> D12 I/O<F> F18 VCCIO<E> L2 I/O<G> P6 VCCIO<H> U24 I/O<C>

B7 IOCTRL<F> D13 TMS F19 VCC L3 I/O<G> P11 GND U25 I/O<C>

B8 I/O<F> D14 I/O<E> F20 VCCIO<E> L4 I/O<G> P12 GND U26 I/O<C>

B9 I/O<F> D15 I/O<E> F21 GND L5 VCC P13 GND V1 I/O<H> B10 I/O<F> D16 I/O<F> F22 I/O<E> L6 VCC P14 GND V2 IOCTRL<H> B11 I/O<F> D17 I/O<E> F23 I/O<D> L11 GND P15 GND V3 IOCTRL<H> B12 I/O<F> D18 I/O<F> F24 I/O<D> L12 GND P16 GND V4 I/O<H>

CLK<5>/PLLI

B13 B14 I/O<E> D20 I/O<E> F26 I/O<D> L14 GND P22 I/O<C> V6 VCCIO<H>

B15 I/O<E> D21 I/O<E> G1 I/O<G> L15 GND P23 VCC V21 VCCIO<C> B16 I/O<E> D22 I/O<E> G2 INREF<G> L16 GND P24 I/O<C> V22 I/O<C> B17 I/O<E> D23 VCCPLL<1> G3 I/O<G> L21 VCC P25 I/O<C> V23 I/O<C> B18 INREF<E> D24 I/O<E> G4 I/O<G> L22 I/O<D> P26 TRSTB V24 IOCTRL<C> B19 I/O<E> D25 I/O<E> G5 I/O<G> L23 I/O<D> R1 I/O<H> V25 I/O<C> B20 I/O<E> D26 I/O<D> G6 VCCIO<G> L24 I/O<D> R2 I/O<H> V26 I/O<C> B21 I/O<E> E1 I/O<G> G21 VCCIO<D> L25 I/O<D> R3 I/O<H> W1 INREF<H> B22 I/O<E> E2 I/O<G> G22 I/O<D> L26 I/O<D> R4 I/O<H> W2 I/O<H> B23 I/O<E> E3 I/O<G> G23 I/O<D> M1 I/O<G> R5 VCC W3 I/O<H> B24 I/O<E> E4 VCCPLL<0> G24 I/O<D> M2 I/O<G> R6 VCC W4 I/O<H> B25 I/O<E> E5 I/O<F> G25 I/O<D> M3 I/O<G> R11 GND W5 VCC B26 PLLOUT<0> E6 I/O<F> G26 INREF<D> M4 I/O<G> R12 GND W6 VCC

C1 I/O<F> E7 I/O<F> H1 I/O<G> M5 I/O<G> R13 GND W21 VCC

C2 I/O<F> E8 VCC H2 I/O<G> M6 VCCIO<G> R14 GND W22 I/O<C>

C3 I/O<F> E9 I/O<F> H3 IOCTRL<G> M11 GND R15 GND W23 I/O<C>

C4 PLLOUT<3> E10 I/O<F> H4 I/O<G> M12 GND R16 GND W24 I/O<C>

C5 I/O<F> E11 I/O<F> H5 I/O<G> M13 GND R21 VCC W25 INREF<C>

C6 I/O<F> E12 VCC H6 VCC M14 GND R22 I/O<C> W26 I/O<C>

Y1 I/O<H> AA17 GND AB19 VCC AC21 I/O AD23 I/O AE25 PLLRST<2>

Y2 I/O<H> AA18 VCCIO AB20 I/O AC22 TDO AD24 GND AE26 I/O

N<3>

D19 CLK<8> F25 I/O<D> L13 GND P21 VCCIO<C> V5 I/O<H>

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

Table 18: 516 PBGA Pinout Table (Continued)

516 PBGA Function 516 PBGA Function 516 PBGA Function 516 PBGA Function 516 PBGA Function 516 PBGA Function

Y3 I/O<H> AA19 VCC AB21 I/O AC23 PLLOUT<1> AD25 I/O AF1 I/O<A> Y4 I/O<H> AA20 VCCIO AB22 GNDPLL<2> AC24 I/O AD26 I/O AF2 I/O<A> Y5 I/O<H> AA21 GND AB23 I/O AC25 I/O AE1 GND AF3 I/O<A>

Y6 VCCIO<H> AA22 VCCPLL<2> AB24 I/O<C> AC26 I/O<C> AE2 GND AF4 I/O<A> Y21 VCCIO<C> AA23 I/O<C> AB25 I/O<C> AD1 I/O<A> AE3 I/O<A> AF5 I/O<A> Y22 I/O<C> AA24 I/O<C> AB26 I/O<C> AD2 PLLOUT<2> AE4 I/O<A> AF6 IOCTRL<A> Y23 I/O<C> AA25 I/O<C> AC1 I/O<A> AD3 PLLRST<3> AE5 I/O<A> AF7 I/O<A> Y24 I/O<C> AA26 I/O<C> AC2 I/O<A> AD4 I/O<A> AE6 I/O<A> AF8 I/O<A> Y25 I/O<C> AB1 I/O<H> AC3 I/O<A> AD5 I/O<A> AE7 INREF<A> AF9 I/O<A> Y26 IOCTRL<C> AB2 I/O<H> AC4 I/O<A> AD6 I/O<A> AE8 I/O<A> AF10 I/O<A> AA1 I/O<H> AB3 I/O<A> AC5 I/O<A> AD7 I/O<A> AE9 I/O<A> AF11 I/O<A>

AA2 I/O<H> AB4 GNDPLL<3> AC6 I/O<A> AD8 IOCTRL<A> AE10 I/O<A> AF12 AA3 I/O<H> AB5 VCCPLL<3> AC7 I/O<A> AD9 I/O<A> AE11 I/O<A> AF13 I/O

AA4 I/O<A> AB6 I/O<A> AC8 I/O<A> AD10 I/O<A> AE12 CLK<0> AF14 I/O AA5 I/O<A> AB7 I/O<A> AC9 I/O<A> AD11 I/O<A> AE13 I/O AF15 I/O AA6 GND AB8 I/O<A> AC10 I/O<A> AD12 TDI AE14 I/O AF16 I/O

AA7 VCCIO<A> AB9 I/O<A> AC11 I/O<A> AD13 AA8 VCC AB10 I/O<A> AC12 I/O<A> AD14 I/O<A> AE16 I/O AF18 I/O

AA9 VCCIO<A> AB11 VCC AC13 I/O<A> AD15 I/O AE17 I/O AF19 IOCTRL

AA10 GND AB12 I/O<A> AC14 CLK<1> AD16 I/O AE18 I/O AF20 IOCTRL AA11 VCC AB13 I/O<A> AC15 I/O AD17 I/O AE19 I/O AF21 I/O

AA12 VCCIO<A> AB14 AA13 GND AB15 VCC AC17 I/O AD19 I/O AE21 I/O AF23 I/O

AA14 VCCIO AB16 I/O AC18 I/O AD20 I/O AE22 I/O AF24 I/O AA15 VCC AB17 I/O AC19 I/O AD21 I/O AE23 I/O AF25 I/O AA16 VCC AB18 I/O AC20 I/O AD22 I/O AE24 I/O AF26 I/O

CLK<3>/PLLI

N<1>

AC16 I/O AD18 INREF AE20 I/O AF22 I/O

CLK<4>DEDC

LK/PLLIN<0>

AE15 I/O AF17 I/O

CLK<2>/PLLI

N<2>

•

www.quicklogic.com

•

11.0 672 PBGA Pinout Diagram

Top

QuickDSP

QL7180-4PS672C

QL7180 DSP Data Sheet

Bottom

26 25 24 23 22 21 20 19 18 17 16 15 14 1 3 12 11 10 9 8 7 6 5 4 3 2 1

Pin A1 Corner

A B C D E F G H I J K L M N O P Q R S T U V W Y AA AB AC AD AE AF

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

12.0 672 PBGA Pinout Table

Table 19: 672 PBGA Pinout Table

672 PBGA Function 672 PBGA Function 672 PBGA Function 672 PBGA Function 672 PBGA Function 672 PBGA Function

A2 I/O<F> C10 I/O<F> E17 I/O<E> G24 I/O<D> K5 I/O<G> M12 GND A3 I/O<F> C11 I/O<F> E18 I/O<E> G25 I/O<D> K6 I/O<G> M13 GND A4 I/O<F> C12 I/O<F> E19 I/O<E> G26 I/O<D> K7 I/O<G> M14 GND A5 I/O<F> C13 I/O<F> E20 I/O<E> H1 I/O<G> K8 I/O<G> M15 GND A6 I/O<F> C14 I/O<E> E21 PLLRST<1> H2 I/O<G> K9 I/O<G> M16 VCC A7 I/O<F> C15 I/O<E> E22 GND H3 I/O<G> K10 GND M17 VCC A8 I/O<F> C16 I/O<E> E23 I/O<E> H4 I/O<G> K11 VCC M18 I/O<D> A9 I/O<F> C17 IOCTRL<E> E24 I/O<E> H5 I/O<G> K12 VCC M19 I/O<D>

A10 I/O<F> C18 I/O<E> E25 I/O<D> H6 I/O<G> K13 VCC M20 I/O<D> A11 I/O<F> C19 I/O<E> E26 I/O<D> H7 VCCIO<G> K14 GND M21 I/O<D> A12 I/O<F> C20 I/O<E> F1 I/O<G> H8 I/O<F> K15 VCC M22 I/O<D> A13 CLK<7> C21 I/O<E> F2 I/O<G> H9 I/O<F> K16 VCC M23 I/O<D>

CLK<5>/PLLI

A14 A15 I/O<E> C23 I/O<E> F4 I/O<F> H11 I/O<F> K18 I/O<D> M25 I/O<D>

A16 I/O<E> C24 I/O<E> F5 GND H12 I/O<F> K19 I/O<D> M26 I/O<D> A17 I/O<E> C25 I/O<D> F6 I/O<F> H13 CLK<8> K20 I/O<D> N1 I/O<G> A18 I/O<E> C26 I/O<D> F7 I/O<F> H14 CLK<6> K21 I/O<D> N2 I/O<G> A19 I/O<E> D1 IOCTRL<G> F8 I/O<F> H15 I/O<E> K22 I/O<D> N3 I/O<G> A20 I/O<E> D2 I/O<G> F9 I/O<F> H16 I/O<E> K23 I/O<D> N4 I/O<G> A21 I/O<E> D3 I/O<F> F10 I/O<F> H17 I/O<E> K24 I/O<D> N5 I/O<G> A22 I/O<E> D4 I/O<F> F11 I/O<F> H18 I/O<E> K25 I/O<D> N6 I/O<H> A23 IOCTRL<E> D5 I/O<F> F12 I/O<F> H19 I/O<E> K26 I/O<D> N7 VCCIO<G> A24 I/O<E> D6 I/O<F> F13 I/O<F> H20 VCCIO<D> L1 I/O<G> N8 I/O<G> A25 I/O<E> D7 I/O<F> F14 I/O<E> H21 I/O<D> L2 I/O<G> N9 GND

B1 I/O<G> D8 I/O<F> F15 I/O<E> H22 I/O<D> L3 I/O<G> N10 GND B2 VCCPLL<0> D9 I/O<F> F16 I/O<E> H23 I/O<D> L4 I/O<G> N11 GND B3 I/O<F> D10 I/O<F> F17 I/O<E> H24 I/O<D> L5 I/O<G> N12 GND B4 I/O<F> D11 I/O<F> F18 I/O<E> H25 I/O<D> L6 I/O<G> N13 GND B5 I/O<F> D12 I/O<F> F19 I/O<E> H26 I/O<D> L7 VCCIO<G> N14 GND B6 I/O<F> D13 I/O<F> F20 I/O<E> J1 I/O<G> L8 I/O<G> N15 GND B7 IOCTRL<F> D14 I/O<E> F21 GNDPLL<1> J2 I/O<G> L9 I/O<G> N16 VCC B8 I/O<F> D15 I/O<E> F22 PLLOUT<0> J3 IOCTRL<G> L10 VCC N17 VCC B9 I/O<F> D16 I/O<E> F23 I/O<E> J4 I/O<G> L11 GND N18 I/O<D>

B10 I/O<F> D17 I/O<E> F24 I/O<D> J5 I/O<G> L12 VCC N19 I/O<D> B11 I/O<F> D18 I/O<E> F25 I/O<D> J6 I/O<G> L13 VCC N20 VCCIO<D> B12 I/O<F> D19 I/O<E> F26 I/O<D> J7 VCCIO<G> L14 GND N21 VCC B13 TMS D20 I/O<E> G1 I/O<G> J8 GNDPLL<0> L15 VCC N22 NC B14 I/O<E> D21 I/O<E> G2 INREF<G> J9 GND L16 GND N23 I/O<D> B15 I/O<E> D22 I/O<E> G3 I/O<G> J10 I/O<F> L17 VCC N24 I/O<D> B16 I/O<E> D23 I/O<E> G4 I/O<G> J11 I/O<F> L18 I/O<D> N25 I/O<D> B17 I/O<E> D24 I/O<E> G5 PLLRST<0> J12 I/O<F> L19 I/O<D> N26 I/O<C> B18 I/O<E> D25 I/O<D> G6 I/O<G> J13 I/O<F> L20 VCCIO<D> P1 I/O<H> B19 INREF<E> D26 I/O<D> G7 I/O<F> J14 GND L21 I/O<D> P2 TCK B20 I/O<E> E1 I/O<G> G8 VCCIO<F> J15 I/O<E> L22 I/O<D> P3 I/O<H> B21 I/O<E> E2 I/O<G> G9 VCCIO<F> J16 I/O<E> L23 I/O<D> P4 I/O<H> B22 I/O<E> E3 I/O<F> G10 I/O<F> J17 I/O<E> L24 I/O<D> P5 VCC B23 I/O<E> E4 I/O<F> G11 VCCIO<F> J18 GND L25 I/O<D> P6 I/O<H> B24 I/O<E> E5 I/O<F> G12 I/O<F> J19 I/O<E> L26 I/O<D> P7 VCCIO<H> B25 I/O<E> E6 I/O<F> G13 VCCIO<F> J20 VCCIO<D> M1 I/O<G> P8 I/O<H> B26 I/O<D> E7 I/O<F> G14 VCCIO<E> J21 I/O<D> M2 I/O<G> P9 I/O<H>

C1 I/O<G> E8 I/O<F> G15 I/O<E> J22 INREF<D> M3 I/O<G> P10 VCC C2 I/O<F> E9 IOCTRL<F> G16 VCCIO<E> J23 IOCTRL<D> M4 I/O<G> P11 VCC C3 PLLOUT<3> E10 I/O<F> G17 I/O<E> J24 IOCTRL<D> M5 I/O<G> P 12 GND C4 I/O<F> E11 I/O<F> G18 VCCIO<E> J25 I/O<D> M6 I/O<G> P13 GND C5 I/O<F> E12 I/O<F> G19 VCCIO<E> J26 I/O<D> M7 I/O<G> P14 GND C6 I/O<F> E13 I/O<F> G20 VCCPLL<1> K1 I/O<G> M8 I/O<G> P15 GND C7 I/O<F> E14 I/O<E> G21 I/O<E> K2 I/O<G> M9 I/O<G> P16 GND C8 I/O<F> E15 I/O<E> G22 I/O<E> K3 I/O<G> M10 VCC P17 GND C9 INREF<F> E16 I/O<E> G23 I/O<D> K4 I/O<G> M11 VCC P18 GND

P19 I/O<D> T20 VCCIO<C> V22 I/O<C> Y24 I/O<C> AB26 I/O<C> AE3 I/O<A>

N<3>

C22 I/O<E> F3 I/O<G> H10 I/O<F> K17 GND M24 I/O<D>

•

www.quicklogic.com

•

QL7180 DSP Data Sheet

Table 19: 672 PBGA Pinout Table (Continued)

672 PBGA Function 672 PBGA Function 672 PBGA Function 672 PBGA Function 672 PBGA Function 672 PBGA Function

P20 VCCIO<C> T21 I/O<C> V23 I/O<C> Y25 I/O<C> AC2 I/O<H> AE4 I/O<A> P21 I/O<C> T22 I/O<C> V24 I/O<C> Y26 I/O<C> AC3 I/O<A> AE5 I/O<A> P22 I/O<C> T23 I/O<C> V25 I/O<C> AA1 I/O<H> AC4 GND AE6 I/O<A> P23 I/O<C> T24 I/O<C> V26 I/O<C> AA2 I/O<H> AC5 I/O<A> AE7 INREF<A> P24 I/O<C> T25 I/O<C> W1 I/O<H> AA3 I/O<H> AC6 I/O<A> AE8 I/O<A> P25 I/O<C> T26 I/O<C> W2 INREF<H> AA4 I/O<A> AC7 I/O<A> AE9 I/O<A> P26 TRSTB U1 I/O<H> W3 I/O<H> AA5 PLLOUT<2> AC8 I/O<A> AE10 I/O<A>

R1 I/O<H> U2 I/O<H> W4 I/O<H> AA6 GND AC9 I/O<A> AE11 I/O<A> R2 I/O<H> U3 IOCTRL<H> W5 I/O<H> AA7 VCCPLL<3> AC10 I/O<A> AE12 I/O<A> R3 I/O<H> U4 I/O<H> W6 I/O<H> AA8 I/O<A> AC11 I/O<A> AE13 TDI

R4 I/O<H> U5 I/O<H> W7 VCCIO<H> AA9 I/O<A> AC12 I/O<A> AE14

R5 I/O<H> U6 I/O<H> W8 I/O<A> AA10 I/O<A> AC13 I/O<A> AE15 I/O R6 I/O<H> U7 I/O<H> W9 I/O<A> AA11 I/O<A> AC14 I/O AE16 I/O R7 I/O<H> U8 I/O<A> W10 I/O<A> AA12 I/O<A> AC15 I/O AE17 I/O R8 I/O<H> U9 I/O<A> W11 I/O<A> AA13 I/O<A> AC16 I/O AE18 I/O

R9 I/O<H> U10 GND W12 I/O<A> AA14 I/O AC17 I/O AE19 IOCTRL R10 VCC U11 VCC W13 CLK<1> AA16 I/O AC18 I/O AE20 IOCTRL R11 VCC U12 VCC W14 I/O AA17 I/O AC19 I/O AE21 I/O R12 GND U13 GND W15 I/O AA18 I/O AC20 I/O AE22 I/O R13 GND U14 VCC W16 I/O AA19 I/O AC21 I/O AE23 I/O R14 GND U15 VCC W17 I/O AA20 I/O AC22 TDO AE24 I/O R15 GND U16 VCC W18 I/O AA21 I/O AC23 I/O AE26 I/O<C> R16 VCC U17 GND W19 GNDPLL<2> AA22 PLLRST<2> AC24 I/O AF2 I/O<A> R17 VCC U18 I/O<C> W20 VCCIO<C> AA23 I/O AC25 I/O<C> AF3 I/O<A> R18 I/O<C> U19 I/O<C> W21 I/O AA24 I/O<C> AC26 I/O<C> AF4 IOCTRL<A> R19 I/O<C> U20 I/O<C> W22 I/O<C> AA25 I/O<C> AD1 I/O<H> AF5 I/O<A> R20 I/O<C> U21 I/O<C> W23 I/O<C> AA26 I/O<C> AD2 I/O<H> AF6 I/O<A> R21 I/O<C> U22 I/O<C> W24 I/O<C> AB1 I/O<H> AD3 I/O<A> AF7 I/O<A> R22 I/O<C> U23 IOCTRL<C> W25 IOCTRL<C> AB2 I/O<H> AD4 I/O<A> AF8 I/O<A> R23 I/O<C> U24 INREF<C> W26 I/O<C> AB3 I/O<A> AD5 I/O<A> AF9 I/O<A> R24 I/O<C> U25 I/O<C> Y1 I/O<H> AB4 I/O<A> AD6 I/O<A> AF10 I/O<A> R25 I/O<C> U26 I/O<C> Y2 I/O<H> AB5 I/O<A> AD7 I/O<A> AF11 I/O<A> R26 I/O<C> V1 I/O<H> Y4 I/O<H> AB6 PLLRST<3> AD8 I/O<A> AF12 I/O<A>

T1 I/O<H> V2 I/O<H> Y5 I/O<A> AB7 I/O<A> AD9 IOCTRL<A> AF13 CLK<0>

T2 I/O<H> V3 I/O<H> Y6 I/O<H> AB8 I/O<A> AD10 I/O<A> AF14

T3 I/O<H> V4 I/O<H> Y7 I/O<A> AB9 I/O<A> AD11 I/O<A> AF15 I/O

T4 I/O<H> V5 I/O<H> Y8 VCCIO<A> AB10 I/O<A> AD12 I/O<A> AF16 I/O

T5 I/O<H> V6 I/O<H> Y9 VCCIO<A> AB11 I/O<A> AD14 I/O AF17 I/O

T6 I/O<H> V7 VCCIO<H> Y10 I/O<A> AB12 I/O<A> AD15 I/O AF18 I/O

T7 VCCIO<H> V8 GNDPLL<3> Y11 VCCIO<A> AB13 I/O<A> AD16 I/O AF19 I/O

T8 I/O<H> V9 GND Y12 I/O<A> AB14

T9 I/O<A> V10 I/O<A> Y13 VCCIO<A> AB15 I/O AD18 I/O AF21 I/O T10 VCC V11 I/O<A> Y14 VCCIO AB16 I/O AD19 I/O AF22 I/O T11 GND V12 I/O<A> Y15 VCC AB17 I/O AD20 I/O AF23 INREF T12 VCC V13 GND Y16 VCCIO AB18 I/O AD21 I/O AF24 I/O T13 GND V14 I/O Y17 I/O AB19 I/O AD22 I/O AF25 I/O T14 VCC V15 I/O Y18 VCCIO AB20 I/O AD23 I/O T15 GND V16 I/O Y19 VCCIO AB21 PLLOUT<1> AD24 I/O T16 I/O V18 GND Y20 I/O AB22 GND AD25 I/O T17 VCC V19 I/O<C> Y21 I/O AB23 I/O AD26 I/O<C> T18 I/O<C> V20 VCCIO<C> Y22 VCCPLL<2> AB24 I/O AE1 I/O<H> T19 I/O<C> V21 I/O<C> Y23 I/O<C> AB25 I/O<C> AE2 I/O<A>

CLK<3>/PLLI

N<1>

AD17 I/O AF20 I/O

CLK<4>

DEDCLK/PLLI

N<0>

CLK<2>/PLLI

N<2>

QL7180 QuickDSPTM Data Sheet Rev B

•

QL7180 DSP Data Sheet

•

www.quicklogic.com

•

QuickLogic QL7180 DSP DATA SHEET

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 Device Highlights

3.0 DC Characteristics

4.0 Pin Descriptions

4.1 Recommended Unused Pin Terminations for the QuickDSP devices

5.0 280 PBGA Pinout Diagram

6.0 280 PBGA Pinout Table

7.0 484 PBGA Pinout Diagram

8.0 484 PBGA Pinout Table

9.0 516 PBGA Pinout Diagram

10.0 516 PBGA Pinout Table

11.0 672 PBGA Pinout Diagram

12.0 672 PBGA Pinout Table
