Quickie Xenon SA Directions For Use Manual

Directions for use

Xenon SA

Wheelchair

000690678.01

IF YOU ARE VISUALLY IMPAIRED, THIS DOCUMENT CAN BE

VIEWED IN PDF FORMAT AT WWW.SUNRISEMEDICAL.COM OR

ALTERNATIVELY IS AVAILABLE ON REQUEST IN LARGE TEXT.

ENGLISH

Rev.2.0

2

XENON SA

Foreword

Dear Customer,

We are very happy that you have decided in favour of a
high-quality product from SUNRISE MEDICAL.

This owner's manual will provide numerous tips and ideas
so that your new wheelchair can become a trustworthy
and reliable partner in your life.

Maintaining close ties to our customers means a lot to us
at Sunrise Medical. We like to keep you up-to-date about
new and current developments at our company. Keeping
close to our customers means: fast service, as little red
tape as possible, working closely with customers. When
you need replacement parts or accessories, or if you just
have a question about your wheelchair – we are there for
you.

We want you to be satisfied with our products and
service. At Sunrise Medical we are constantly working to
develop our products further. For this reason, changes
can occur in our palette of products with regard to form,
technology and equipment. Consequently, no claims can
be construed from the data or pictures contained in this
user’s manual.

The management system of SUNRISE MEDICAL is
certified to EN ISO 9001, ISO 13485 and ISO 14001.

As the manufacturer, SUNRISE MEDICAL,
declares that the lightweight wheelchairs
conform to the 93/42/EEC guideline.

Please contact your local, authorised SUNRISE
MEDICAL dealer if you have any questions concerning
the use, maintenance, or safety of your wheelchair.

In case there is no authorised dealer in your area, or you
have any questions, contact Sunrise Medical either in
writing or by telephone.

Sunrise Medical
Thorns Road
Brierley Hill
West Midlands
DY5 2LD
England
Phone: [phone]
Fax: [phone]
www.SunriseMedical.com

IMPORTANT:

DO NOT USE YOUR WHEELCHAIR UNTIL THIS
MANUAL HAS BEEN READ AND
UNDERSTOOD.

Use

Wheelchairs are exclusively for a user who is unable to
walk or has limited mobility, for their own personal use,
when self-propelling and being moved by a third party
(pushed by attendant) within the home and outdoors.

The maximum weight limit (includes both the user
and any weight of accessories fitted to the
wheelchair) is marked on the serial number label,
which is affixed to the crossbar or stabiliser bar
below the seat.

Warranty can only be taken on if the product is used
under the specified conditions and for the intended
purposes.
The intended lifetime of the wheelchair is 5 years.
NO NON-STANDARD PARTS are to be fitted, other than
those officially approved by Sunrise Medical.

Area of Application.

The variety of options as well as the modular design
means that it can be used by those who cannot walk or
have limited mobility because of:

• Paralysis

• Loss of extremity (leg amputation)

• Extremity defect deformity

• Joint contractures/joint injuries

• Illnesses such as heart and circulation deficiencies,

disturbance of equilibrium or cachexia as well as for
elderly people who still have strength in the
upper body.

When considering provision, please also note the body
size, weight, physical and psychological constitution, the
age of the person, living conditions and environment.

ENGLISH

Rev.2.0

3

XENON SA

3.1 Denitions of words used in this manual

Word Definition

DANGER!

Advice to the user of Potential Risk
of serious injury or death if the
advice is not followed

WARNING!

Advice to the user of a potential risk
of injury if the advice is not followed

CAUTION!

Advice to user that potential
damage to equipment may occur if
the advice is not followed

NOTE: General advice or best practice

Reference To Additional
Documentation

NOTE:

Please keep a note of your local service agent’s address
and telephone number in the space provided.
In the event of a breakdown, contact them and try to give
all relevant details so they can help you quickly.

Dealer signature and stamp

Definitions

NOTE:

The wheelchairs shown and described in this user guide
may not correspond in every detail exactly to your own
model. However, all instructions are completely relevant,
regardless of possible detail differences.
The manufacturer reserves the right to alter without
notice any weights, measurements or other technical
data shown in this manual. All figures, measurements
and capacities shown in this manual are approximate and
do not constitute specifications.

1.0 General safety notes and driving
restrictions 5

2.0 Transportability 7

3.0 Warranty 9

4.0 Wheelchair components 10

5.0 Handling 11

6.0 Quick Release Wheels 12

7.0 Options 12

Step Tubes 12
Wheel locks 12
Footplate 14
Seating 16
Castors 18
Backrest 19
Headrests 19
Wheel alignment 20
Frame adjustment 20
Single Post Height-Adjustable Armrests 21
Push handles 22
Crutch holder 23
Anti tips 23
Stabilising bar 24
Transit wheels 24
Lap strap 25

8.0 Daily Checks 27

9.0 Tyres and mounting 27

10.0 Maintenance and Care 27

11.0 Trouble shooting 28

12.0 Disposal / Recycling of Materials 28

13.0 Nameplate 29

14.0 Technical data 29

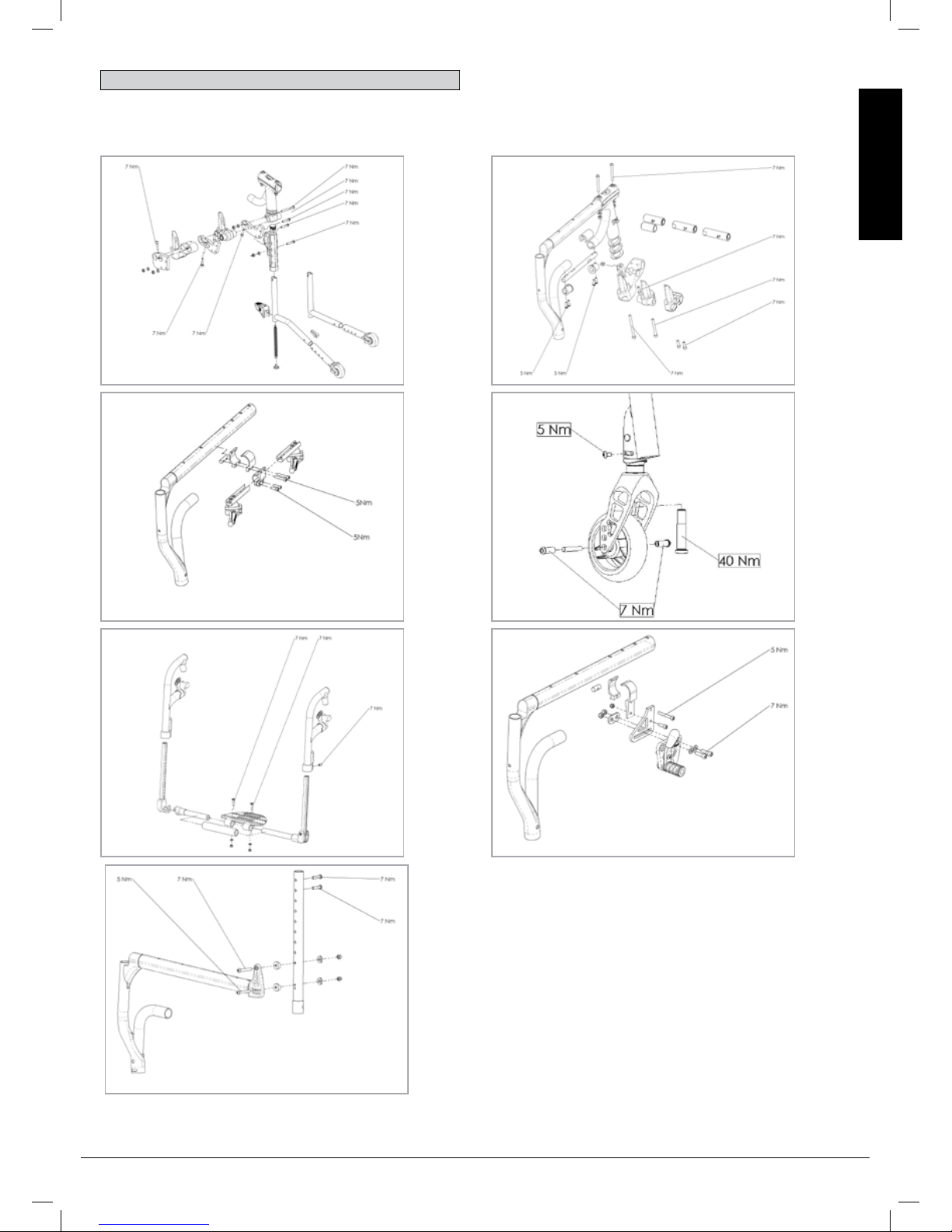

15.0 Torque Settings 35

Table of Contents

ENGLISH

Rev.2.0

4

XENON SA

1.0 General safety notes and driving restrictions

The engineering and construction of this wheelchair has
been designed to provide maximum safety. International
safety standards currently in force have either been
fulfilled or exceeded in parts. Nevertheless, users may put
themselves at risk by improperly using their wheelchairs.
For your own safety, the following rules must be strictly
observed.

Unprofessional or erroneous changes or adjustments
increase the risk of accident. As a wheelchair user, you
are also part of the daily traffic on streets and pavements,
just like anyone else. We would like to remind you that
you are therefore also subject to any and all traffic laws.
Be careful during your first ride in this wheelchair. Get to
know your wheelchair.

Before each use, the following should be checked:

• Quick-release axles on the rear wheels

• Velcro on seats and backrests

• Tyres, tyre pressure and wheel locks.

Before changing any of the adjustments of this
wheelchair, it is important to read the
corresponding section of the
user’s manual.

It is possible that potholes or uneven ground could
cause this wheelchair to tip over, especially when riding
uphill or
downhill. When riding over a step or up an incline
frontally, the
body should be leaning forward.

DANGER!

NEVER exceed the maximum load of 125 kg for driver •

plus any items carried on the wheelchair. Please note
the weight information for lighter weight options, which
are quoted separately. If you exceed the maximum
load, this can lead to damage to the chair, or you may
fall or tip over, lose control and may lead to serious
injury of the user and other people.

Your wheelchair has not been designed for •
transportation in a vehicle. DO NOT sit on the
wheelchair during any transportation in a vehicle;
always use a properly secured vehicle seat!!
Only permanently installed seats and safety belts will •
offer sufficient protection in hazardous situations.
To avoid falls and dangerous situations, you should first •
practice using your new wheelchair on level ground with
good visibility.
This wheelchair should be used exclusively to convey •
one person at a time. Any other use does not comply
with the intended purpose.
When getting on or off the wheelchair, do not use the •
footboards. These should be flipped up beforehand and
swung to the outside as far as possible.
Depending on the diameter and setting of the castors, •
as well as the centre of gravity setting of the
wheelchair, the castors may begin to wobble at high
speeds. This can lead to the castors being blocked and
the wheelchair may tip over. Therefore, please make
sure that the castors are adjusted correctly (see the
Chapter "Castors").
In particular, do not travel on an incline without brakes, •
travel at a reduced speed. This product has been tested
to a maximum speed of 10kph. At higher speeds,

depending on the configuration and/or physique/

physical capabilities of the user, there may be
unexpected castor wobble. This can lead to injury of the
user.
Explore the effects of changing the centre of gravity on •
the behaviour of the wheelchair, for example on
inclines, slopes, all gradients or when overcoming
obstacles. Do this with the secure aid of a helper.
We recommend that novice users use anti-tip tubes.•
Anti-tip tubes should prevent the chair tipping over •
backwards unintentionally. Under no circumstances
should they take the place of transit wheels, and be
used to transport a person in a wheelchair with the rear
wheels removed.
With extreme settings (e.g. rear wheels in the most •
forward position) and less than perfect posture, the
wheelchair may tip over even on a level surface.
Lean your upper body further forward when going up •
slopes and steps.
Lean your upper body further back when going down •
slopes and steps.
Do not hang heavy items such as shopping bags or •
backpacks, on the push handles, head rest or backrest
of the wheelchair.
These can change the tipping point and there is a risk •
of tipping backwards.
When reaching for objects (which are in front of, to the •
side or behind the wheelchair) make sure that you do
not lean too far out of the wheelchair, as if you change
the centre of gravity there is a risk of tipping or rolling
over.
Only use your wheelchair properly. For example, avoid •
travelling against an obstacle without braking (step,
kerb edge) or dropping down gaps.
Only attempt stairs with the help of an attendant. There •
is equipment available to help you, e.g. climbing ramps
or lifts, please use them. If there is no such equipment
available, then the wheelchair must be tipped and
pushed over the steps (2 helpers).

Fig. A

ENGLISH

Rev.2.0

5

XENON SA

In general, any anti-tip tubes fitted must be set •
beforehand, so that they cannot touch the steps, as
otherwise this could lead to a serious tumble.
Afterwards the anti-tip tubes must be set back to
their correct position.
Make sure that the attendant only holds the •
wheelchair using securely mounted parts (e.g. not
on the footrests or the sideguards).
When using the lifting ramp make sure that the anti-•
tip tubes fitted are positioned outside the danger
area.
Secure your wheelchair on uneven ground or when •
transferring (e.g. into a car) by using the wheel
locks.
For high amputees you must use anti-tip tubes.•
Before setting off, check that your tyre pressure is •
correct. For rear wheels it should be at least 3.5 bar
( 350 kPa). The max. pressure is indicated on the
tyre.
The knee-lever brakes will only work if there is •
sufficient tyre pressure and if the correct setting has
been made (see the Chapter on "Wheel locks").
The wheel locks are not intended to brake your •
wheelchair. They are only there to ensure that your
wheelchair does not begin rolling unintentionally.
When you stop on uneven ground, you should
always use the wheel locks to prevent such rolling.
Always apply both wheel locks; otherwise, your
wheelchair could tip over.
The wheel locks have not been designed to be used •
as brakes for a moving wheelchair.
Always make use of elevators and ramps. If these •
are not available, you should request the help of an
attendant. They should only grip the wheelchair at
securely mounted parts. If anti-tip tubes are fitted
these must be folded away. A wheelchair should
never be lifted with an occupant; it should only be
pushed.
If the seat and back sling are damaged, you must •
replace them immediately.
Do not lift or carry the wheelchair by the backtubes •
or the pushhandles.
Do not fit any unauthorized electronic equipment, •
powered or mechanically operated mobility drives,
hand-bike or any other device that changes the
intended use or the structure of the wheelchair.
Any combination with other medical devices requires •
the approval of Sunrise Medical.
Be careful with fire, in particular with burning •
cigarettes. Seat and back slings can be set alight.
If and whenever possible, during a journey in a •
specially fitted vehicle for disabled people, vehicle
occupants should use the seats in the vehicle and
the appropriate restraint system. This is the only way
to ensure that occupants will have the maximum
protection if there is an accident. When using safety
elements offered by SUNRISE MEDICAL and using
a specially designed safety system, lightweight
wheelchairs can be used as a seat when being
transported in a specially fitted vehicle. (See the
Chapter on "Transportation").

Always make sure that the quick-release axles on •
the rear wheels are set properly and lock in. If the
button on the quick-release axle is not pressed in,
the rear wheel cannot be removed.
In particular when using lightweight metal handrims, •
fingers will easily become hot when braking from a
high speed or on long inclines.
If the wheelchair is subject to direct sunlight for a •
long period of time, then parts of the wheelchair (e.g.
frame, legrests, brakes and sideguard) may become
hot (>41°C).
To avoid hand injuries do not grab in between the •
spokes or between the rear wheel and wheel lock
when driving the wheelchair.
When using the chair outside, always wear leather •
gloves which will increase your grip and protect the
fingers from dirt and overheating.
Do not use the wheelchair on slopes > 10°.•
The Dynamic safe slope is dependant on the chair •
configuration, the users abilities and the style of
riding. As the users abilities and style of riding cannot
be pre-determined then the max safe slope cannot
be determined. Therefore this must be determined by
the user with the assistance of an attendant to
prevent tipping. It is strongly recommended that
inexperienced users have Ant-tips fitted.
Do not use your wheelchair on muddy or icy ground.•
Do not use your wheelchair where pedestrians are •
not allowed.
With all moving parts there is a natural risk of finger •
traps. Please handle with care
The wheelchair should not be used in heavy rain, •
snow, slippery, or unsound surfaces.
Do not use the wheelchair in hazardous •
environments.

NOTE :

The effect of the knee-lever brake as well as the •
general driving characteristics are dependant on tyre
pressure. The wheelchair is significantly lighter and
easier to manoeuvre when the rear wheels are
pumped up correctly and both wheels have the same
pressure.
Make sure that your tyres have sufficient tread!•
Please note that you are subject to any and all traffic •
laws when driving in public traffic.
When it is dark, please wear light clothing or clothing •
with reflectors, so that you can be seen more easily.
Make sure that the reflectors on the side and back of
the wheelchair are clearly visible. We would also
recommend that you fit an active light.
Always be careful with your fingers when working or •
adjusting the wheelchair!
The products shown and described in this manual •
may not be exactly the same in every detail as your
own model. However, all instructions are still entirely
relevant, irrespective of detail differences.
The manufacturer reserves the right to alter without •
notice any weights, measurements or other technical
data shown in this manual. All figures,
measurements and capacities shown in this manual
are approximate and do not constitute specifications.

Lifetime

The expected lifetime of this product is 5 years.•

ENGLISH

Rev.2.0

6

XENON SA

ENGLISH

Rev.2.0

7

XENON SA

2.0 Transportability

DANGER!

There is a risk of serious injury or death if this if this
advice is ignored!

Transportation of your wheelchair within a vehicle:

A wheelchair secured in a vehicle will not provide the
equivalent level of safety and security as a vehicle
seating system. It is always recommended that the user
transfers to the vehicle seating. It is recognised that this
is not always practical for the user to be transferred and
in these circumstances, where the user must be
transported whilst in the wheelchair, the following advice
must be followed:

1. Confirm that the vehicle is suitably equipped to
transport a passenger in a wheelchair, and ensure the

method of access/egress is suitable for your wheelchair

type. The vehicle should have the floor strength to take
the combined weight of the user, the wheel chair and
accessories.

2. Sufficient space should be available around the
wheelchair to enable clear access to attach, tighten and
release the wheelchair and occupant tie down restraints
and safety belts.

3.The occupied wheelchair must be located in a forward
facing position and secured by the wheelchair tie down
and occupant restraint straps (WTORS tie downs meeting

the requirements of ISO 10542 or SAE J2249) in

accordance with the WTORS manufacturer’s instructions.

4. The wheelchair’s use in other positions within a vehicle
has not been tested e.g. transportation in a side facing
position must not be carried out under any circumstances
(Fig. A).

Fig.A

5. The wheelchair should be secured by a Tie Down
Restraint system, conforming to ISO 10542 or SAE

J2249 with non-adjustable front straps and adjustable
rear straps, which typically use Karabiner clips/S hooks

and tongue and buckle fittings. These restraints generally
comprise of 4 individual straps that are attached to each
corner of the wheelchair.

6. The tie-down restraints should be fitted to the main
frame of the wheelchair as indicated in the diagram on
the following page, and not to any attachments or
accessories, e.g. not around the spokes of wheels,
brakes or footrests.

7. The tie–down restraints should be attached as close
as possible at an angle of 45 degrees and tightened
securely in accordance with the manufacturer’s
instructions.

8.Alterations or substitutions must not be made to the
wheelchair securement points or to structural and frame
or components without consulting the manufacturer.
Failure to do so will invalidate the ability of a Sunrise
Medical wheelchair to be transported within a vehicle.

9. Both pelvic and upper torso restraint belts must be
used to restrain the occupant to reduce the possibility of
head and chest impacts with the vehicle components and
serious risk of injury to the user and other vehicle
occupants. (Fig B) The upper torso restraint belt should
be mounted to the vehicle “B” pillar - failure to do so will
increase the risk of serious abdominal injuries to the
user.

10. A head restraint suitable for transportation (see label
on headrest) must be fitted and suitably positioned at all
times during transportation.

Fig.B

PE LV I C

RESTRAINT

BELT

UPPER TORSO

RESTRAINT

BELT

ENGLISH

Rev.2.0

8

XENON SA

Occupant Restraints Instruction:

1. The pelvic restraint belt must be worn low across the
front of the pelvis so that the angle of the pelvic belt is
within the preferred zone of 30 to 75 degrees to the
horizontal.
A steeper (greater) angle within the preferred zone is
desirable i.e. closer to, but never exceeding 75degrees.
(Fig C)

2. The upper torso restraint belt must fit over the shoulder
and across the chest as illustrated Fig d and e
Restraint belts must be adjusted as tightly as possible
consistent with user comfort.
Restraint belt webbing must not be twisted when in use.
The upper torso restraint belt must fit over the shoulder
and across the shoulder as illustrated in Fig D and E.

3. The attachment points to the chair are the inner front
side frame just above the castor, and the rear side frame.
The straps are fitted around the side frames at the
intersection of the horizontal and vertical frame tubes.
(See Figs G - H)

4. The tie down symbol (Fig F) on the wheelchair frame
indicates the position of the wheelchair restraint straps.
The straps are then tensioned after the front straps have
been fitted to secure the wheelchair.

Transportability – positioning of wheelchair tie down
restraints on wheelchair

The wheelchair secured with front wheelchair tie down
restraints. (Fig. G).
Position of the rear wheelchair tie down restraint, (Fig H).

11. Postural supports (lap straps, lap belts) should not be
used or relied on for occupant restraint in a moving
vehicle unless they are labelled as meeting the
requirements specified in ISO 7176-19:2001 or SAE

J2249.

12. The safety of the user during transportation depends
upon the diligence of the person securing the tie-down
restraints and they should have received appropriate

instructions and/or training in their use.

13. Wherever possible remove and stow safely away
from the wheelchair all auxiliary equipment, for example:
Crutches, Loose cushions and Tray Tables.

14. Articulating/elevating leg rest should not be used in

the elevated position when the wheelchair and user are
being transported and the wheelchair is restrained using
Wheelchair Transport and Occupant Restraints.

15. Reclining backrests should be returned to an upright
position.

16. The manual brakes must be firmly applied.

17. Restraints should be mounted to the vehicle “B” pillar
and should not be held away from the body by wheelchair
components such as armrest or wheels.

Transportability Cont..

Fig.D

Fig.E

Fig.C

PREFERED

ZONE

Fig.F

Fig. G

Fig. H

3.0 Warranty

Warranty

THIS DOES NOT AFFECT YOUR LEGAL RIGHTS IN
ANY WAY.

Warranty conditions

1) Repair or replacement is carried out by the authorised
Sunrise Medical dealer.

2) To fulfil the guarantee conditions, should servicing
need to be carried out on your wheelchair under this
agreement, contact the designated Sunrise Medical
customer service agent immediately, with precise details
on the type of difficulty. Should you be using the
wheelchair outside the area covered by the designated
Sunrise Medical customer service agent, the work will be
carried out under “guarantee conditions” by another
agency as designated by the manufacturer.

3) Should any part of the wheelchair require repair or
replacement, as a result of a specific manufacturing or
material defect, within 24 months (5 years on frame and
cross brace) from the date on which the possession of
the product was transferred to the original purchaser, and
subject to it remaining within that ownership, the part or
parts will be repaired or replaced completely free of
charge if returned to the authorised service agent.

NOTE:

This guarantee is not transferable.

4) The guarantee also covers all repaired or replaced
parts for the remaining period of the guarantee for the
wheelchair.

5) For spare parts which are fitted after the start of the
original guarantee, we give a further 24-months
guarantee.

6) Consumable parts are normally excluded from the
guarantee, except in the case that premature wear of the
part is the direct result of a manufacturing fault. These
parts include, amongst others, upholstery, tyres, inner
tubes and similar parts.

7) The above warranty conditions apply to all product
parts for models purchased at full retail price.

8) Under normal circumstances, no responsibility will be
accepted where the wheelchair has required repair or
replacement as a direct result of:

a) The product or part has not been maintained or
serviced in accordance with the manufacturer’s

recommendations as shown in the User Instructions and/

or the Service Instructions. Accessories have been used
which are not specified as original accessories.

b) The wheelchair or a part of the wheelchair was
damaged through neglect, accident or improper use.

c) Alterations to the wheelchair or parts, which are not in
accordance with the manufacturer’s specifications or the
carrying out of repairs before informing the customer
service agent.

ENGLISH

Rev.2.0

9

XENON SA

1. Push handles

2. Back sling

3. Sideguard

4. Seat sling

5. Footrest

6. Castors

7. Footplate

8. Fork

9. Quick-release axle

10. Wheel locks

11. Handrim

12. Rear wheel

13. Folding backrest

4.0 Wheelchair components

2

1

11

9

12

6

8

7

5

10

13

4

3

ENGLISH

Rev.2.0

10

XENON SA

5.0 Handling

Folding up

First remove the seat cushion from the wheelchair and
flip up the (platform) footplate. Take hold of the sling or
the seat tubes (Fig. 4.1) in the middle, from the back, and
pull it upwards until the folding bracket (Fig. 4.2) clicks
into place.

Transportation

To move the mobility aid, the folded wheelchair should be
lifted by holding the front part of the cross-brace and the
push handles.

Unfolding

Push the release lever of the folding bracket (Fig. 4.3)
downwards and push both frame halves apart. Then
press on the seat tube (see figure). Your wheelchair is
then unfolded. Now snap the seat tubing into position in
the seat saddle. This can be facilitated by slightly tipping
your wheelchair to the side, as this means that the weight
is taken off one of the rear wheels. Be careful not to get
your fingers caught in the cross-tube assembly. Fit
the seat cushion. (Fig. 4.4).

Getting into your wheelchair on your own (Fig. 4.5)

• Push the wheelchair to a wall or a solid piece of

furniture

• Apply the brakes

• Flip the footplates up

• The user can lower themselves into the wheelchair

• Fold the foot plates back downwards and position

your feet in front of the heel loops.

Getting out of your wheelchair on your own (Fig. 4.6)

• Apply the brakes

• Fold the footplates upwards with your foot

• With one hand on the armrest, the person should bend

slightly forward, to bring the body weight to the front of
the seat, and then with both feet firmly on the ground

and one foot behind the other, push up into the upright
position

Fig. 4.1

Fig. 4.6

Fig. 4.5

Fig. 4.4

Fig. 4.3

Fig. 4.2

ENGLISH

Rev.2.0

11

XENON SA

6.0 Quick Release Wheels

Quick-release axles on rear wheel

The rear wheels are equipped with quick-release axles.
The wheels can thus be installed or removed without
using tools. To remove a wheel, simply depress the quick­release button on the axle and pull the wheel off the axle.
(Fig. 5.1).

Quick release for quads/tetraplegics

Please flip up the release lever (1). The take out the quick

release axles and/or the wheels.
When the wheels/quick release axles have been put on

the chair again, please flip the release lever down.
Please do always ensure that the release mechanism is
closed and fully locked before starting to use the wheel
chair (Fig. 5.2).

CAUTION!

Hold the quick-release button on the axle depressed
when inserting the axle into the frame to mount the
rear wheels. Release the button to lock the axle in
place. The quick-release button should snap back to
its original position.

Step Tubes

Step tubes are used by attendants to push a wheelchair
over an obstacle. Simply step on the tube to push a
wheel chair, for example, over a kerb or step, (Fig. 6.1).

Wheel locks

CAUTION!

Braking power can be affected by incorrect fitting and
adjustment of the wheel locks, as well as tyre pressure
which is too low.

Wheel locks

Your wheelchair is equipped with two wheel locks. They
are applied directly against the tyres. To engage, press
both wheel-lock levers forward against the stops. To
release the wheel, pull the levers back to their original
positions.

Braking power will decrease with:

• Worn tyre tread

• Tyre pressure that is too low

• Wet tyres

• Improperly adjusted wheel locks.

The wheel locks have not been designed to be used as
brakes for a moving wheelchair. The wheel locks should
therefore never be used to brake a moving wheelchair.
Always use the handrims for braking. Make sure that the
interval between the tyres and wheel locks complies with
given specifications. To readjust, loosen the screw and set
the appropriate gap. Then re-tighten the screw
(Fig. 6.2 and 6.3).

3.0 mm

Fig. 6.3

Fig. 6.2

Fig. 6.1

Fig. 5.1

7.0 Options

CAUTION!

After each adjustment of the rear wheels, check the wheel
lock gap and re-adjust if necessary.

Fig. 5.2

1

ENGLISH

Rev.2.0

12

XENON SA

Wheel lock lever extension

The longer lever helps to minimize the effort needed to set
the wheel locks.
The wheel lock lever extension is screwed to the wheel
locks. By raising this, it can be flipped forward (Fig. 6.4).

CAUTION!

Mounting the wheel lock too close toward the wheel
will result in a higher effort to operate. This might
cause the wheel lock extension lever to break!

WARNING!

Leaning onto the wheel lock extension lever while
transferring will cause the lever to break! Splashing water
from tires might cause the wheel lock to malfunction.

Compact wheel lock

Compact wheel locks are underneath the seat sling and
are operated by pulling the wheel locks towards the rear,
in the direction of the tyre. For the wheel locks to operate
correctly, they must be pulled fully against the stops, (Fig.

6.5).

CAUTION!

Incorrect mounting of the wheel lock will result in a higher
effort to operate.

Drum brakes

Drum brakes permit safe and convenient braking for an
attendant. They can also be applied with the aid of a
locking lever (1).
The locking lever must snap audibly into place.
Performance of the drum brakes is not dependent on the
air pressure inside the tyres.
The wheelchair cannot be pushed when the drum brakes
are set.

WARNING!

Drum brakes should only be adjusted by authorized
dealers.

Fig. 6.4

Fig. 6.5

Fig. 6.6

1

ENGLISH

Rev.2.0

13

XENON SA

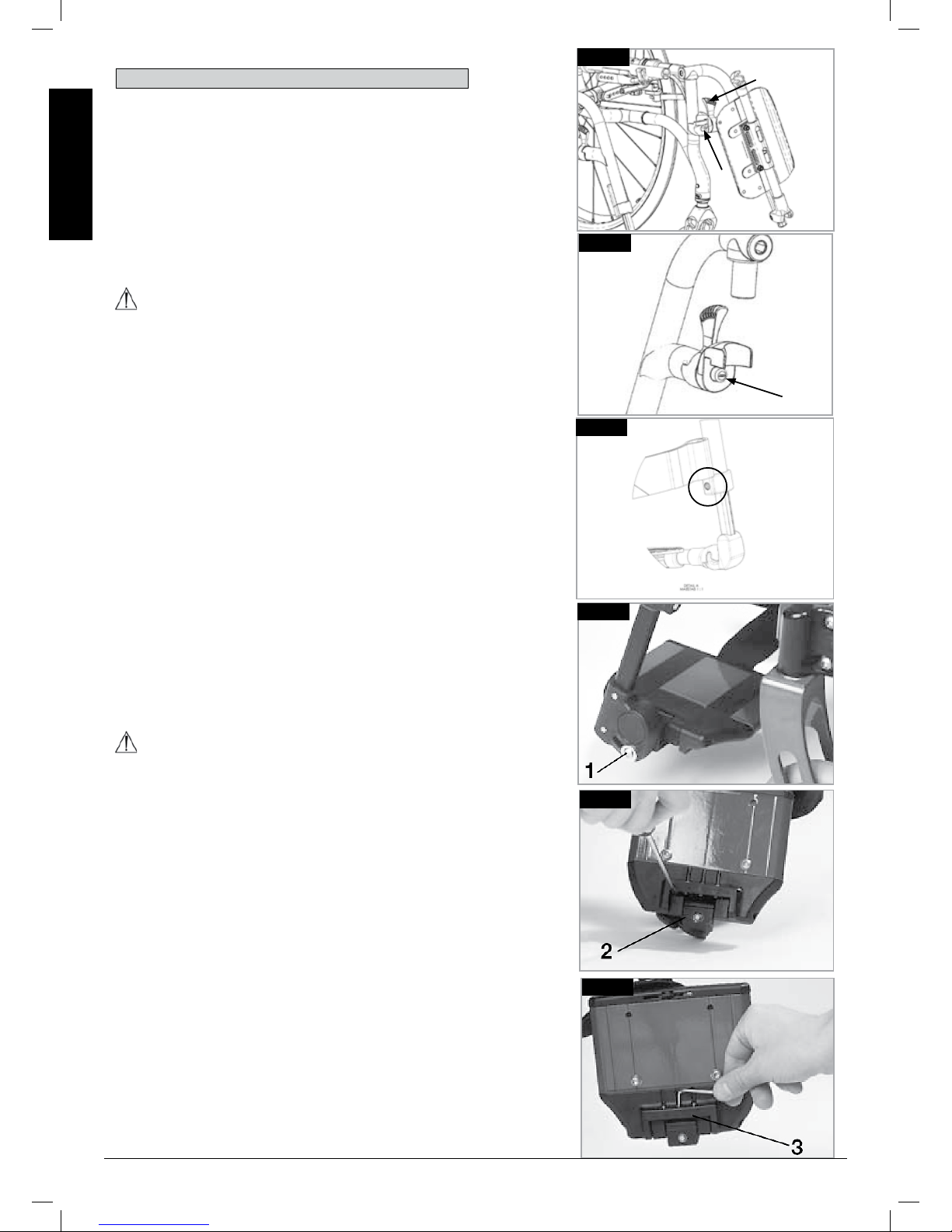

Footplate

Various footboards are available on the Xenon SA. These
can be flipped up to make it easier to transfer to/from the

chair. They are described individually.

Footrest and swing away latch

When fitting the footrests these are fitted in the swung­away position (Fig. 6.7). Then simply turn them inwards
until the interlock engages (1). To remove the footrests,
use the lever (2) and swing the footrest outwards and lift
off. Check that the footrest is correctly engaged.

WARNING!

The footrests are not designed to be used to lift or
carry the wheelchairs with an occupant.

Hanger play adjustment

In case of play the hanger (Fig. 6.8) can be adjusted in
the field. The hanger pin (1) is tapered and the play can
be reduced when the pin is unscrewed slightly.
Take the hanger off the chair in using the release
mechanism.
Use an screw driver and turn the pin (1) in the front
carefully to the left. Then test the hanger on the chair. If

the hanger mechanism is not working/catching anymore,

please undo the task slightly.
If the play is still too large and the performance not
accepted, please repeat the task.

Lower leg lengths

By undoing the clamp screw (Fig. 6.9), you can adjust the
lower leg length. Loosen the clamp screw, adjust the tube
with the footboard to the desired position.
Tighten clamp screws again (see the page on torque).
Ensure that the plastic push joint is located under the
clamp screw in the correct position.

WARNINGS!

Do not stand on the footboard!
When transferring, do not stand on the footboard, there is
a risk of tipping over and injury.

Platform Footplates

The footboard can be flipped up to make it easier to
transfer to and from the chair.
The footboard can also be tilted to six different angles
relative to a level surface.
Tighten screw (1) firmly on the outer side.
By removing the clips (2) the footplate can be adjusted to
three different positions toward both the front and rear.
Loosen the adjustment screw (3) to change the horizontal
position of the footplate.
For this purpose, the footplate must be flipped up.
(Fig. 6.10, 6.11 and 6.12).
When finished, make sure that all screws have been
properly tightened (see the page on torque).
A minimum interval of 2.5 centimetres from the ground
should always be maintained.

Fig. 6.10

Fig. 6.11

Fig. 6.12

Fig. 6.8

Fig. 6.9

Fig. 6.7

1

2

1

ENGLISH

Rev.2.0

14

XENON SA

Width Adjustment of the footrests

If the footrest width needs to be adjusted, please undo
the screw (1), set the desired width, by positioning 1, 2 or
3 spacers (2) from outer to the inner side and then refit
the screws, (Fig. 6.13).

Lightweight footrest

The footrest angle can be adjusted by loosening the
screws (2). Side protection panels can be fitted to the
footrest using the mounting holes (3). These prevent the
feet slipping off accidentally, (Fig. 6.14). Make sure that
after any adjustment work, all screws are tightened
correctly (see the page on torque).

Width adjustment

To adjust the width of the footrest please open the screw
(2). Then you can slide in and out the tubes in the holder
to adjust the width of the footboard (Fig. 6.14).
Please make sure that the screws are tightened with the
correct torque.

High-mount footrest

(Fig. 6.15 - 6.16)

The footplates can be flipped up to facilitate getting in
and out of your wheelchair.
The footplates can be adjusted within their angle of
inclination, relative to a level surface. Loosen the screws
(1 to 2). Then set the footplates to the desired angle.
Afterwards, tighten all screws. After adjustment, always
make sure that all screws are tightened properly (see the
page on Torque). In order to avoid the wheelchair tipping
over, make sure that the minimum interval of 2.5 cm
between the foot rest tubing and the ground is maintained
(with horizontal seat).

Elevating legrest - standard

To ip up:

Pull the footrest upwards and adjust to the desired height.
When doing this, the footrest clicks audibly into place
(Fig. 6.17).

To lower:

Briefly take the load off the footrest by lifting the lower leg
and then push the release lever.
In this way you can swing the footrest downwards. As
soon as you let go of the lever, the footrest will click back
into place.

WARNING!

There is a risk of trapping fingers when moving the •
footrest up or down.
Do not put your fingers in the adjusting mechanism •
between the frame and the moving parts of the
footrest.
The footrests are not designed to be used to lift or •
carry the wheelchairs with an occupant.
When getting into or out of the chair, never stand on•

the footboards.

Fig. 6.13

1

2

Fig. 6.17

Fig. 6.14

2

2

3

3

Fig. 6.15

1

2

Fig. 6.16

3

4

ENGLISH

Rev.2.0

15

XENON SA

Seating

Seat sling

Use the Velcro straps under the sling to tighten/loosen the

seat sling.

Adjusting the seat height

To change the seat height, please release the Allen
screws (1) with an Allen key. Take the axle bracket (2) out
of the axle stem (3) and remove or add the spacer (4).
Then refit the axle bracket (2) into the axle stem (3) and
re-tighten the screws (1), (Fig. 6.18 and 6.19).
Tighten the 2 Allen screws to 7 Nm (Fig. 6.20).

NOTE:

An adjustment to the castor angle may be necessary
when adjusting the rear seat height.

COG Setting

To carry out COG adjustment, there are basically 2
different options. Fine adjustment can be carried out
directly on the axle bracket, as this has an asymmetrical
shape. By turning it, you can achieve different settings. To
make an adjustment in larger steps, you must change the
position of the whole axle stem on the frame.

Changing the axle stem / Center of gravity

Using the quick-release axles, take the wheels out of the

axle plug / sleeve.

Undo both screws (1) and remove these completely. Fit
the axle stem in the desired position on the frame, put the
screws back into the perforated plate and then re-tighten
the screws. When moving the axle stem, also move the
seat saddle on the frame, (change the axle stem and the
seat saddle). Make sure that the left and right sides are
fitted in the same positions. Use the given torque of 7 Nm

(Fig. 6.20/6.21).

Fig. 6.18

1

1

Fig. 6.21

Fig. 6.19

2

3

4

Fig. 6.20

ENGLISH

Rev.2.0

16

XENON SA

Rotate the axle bracket (Standard)

Using the quick-release axles, take the wheels out of the

axle plug / sleeve.

Undo the screws (1) and remove the axle brackets (2) on
both sides of the wheelchair. Rotate the axle bracket by
180° and refit it into the axle bracket (3) on the opposite
side. Please note that the axle bracket has an
asymmetrical shape. The adjustment offers changes in
the centre of gravity in 2 cm steps. Always use the given
torque (Fig. 6.22).

In addition, the standard axle bracket offers a second
position for fitting the quick-release adapter. When the
wheelchair is delivered, this position is covered with a
sleeve. To use this position, please undo the two screws
(2). Then swap the quick-release adapter (3) and the
sleeve and re-tighten both Allen screws (2) (Fig. 6.22).
Please note that the key surfaces on the quick-release
adapter should always point inwards and select the
wheelbase as desired (see width adjustment of the rear
wheelbase). Always use the given torque For centre of
gravity adjustment, please see the technical specifications
section at the end of these Directions for use.

Rotate the axle bracket (lightweight)

Using the quick-release axles, take the wheels out of the

axle plug / sleeve.

Undo the screw (1) and remove the axle brackets (2) on
both sides of the wheelchair. Rotate the axle bracket by
180° and refit it into the axle bracket (3) on the opposite
side. Please note that the axle bracket has an
asymmetrical shape. The nut surface (4) must always
face outwards. The adjustment offers changes in the
centre of gravity in 2 cm steps. Always use the given

torque (Fig. 6.23/6.24).

Fig. 6.22

1

Fig. 6.23

1

Fig. 6.24

2

3

4

3

2

4

ENGLISH

Rev.2.0

17

XENON SA

Castors

Setting the Castor, Castor adapter & Castor
fork

If the wheelchair veers slightly to the right or left, or the
castors flutter, it may be caused by one or more of the
following:

• Forward and/or reverse wheel motion has not been set

properly.

• The castor angle has not been adjusted properly.

• Castor and/or rear wheel air pressure is

incorrect; the wheels do not turn sufficiently freely.

The optimum adjustment of the castors is required so that
the wheelchair runs in a straight line.
Castors should always be adjusted by an authorised
dealer. The castor plates must be re-adjusted, and the
wheel receiver must be checked every time the rear wheel
position has been altered.

Adjusting the castor adapter

To ensure that both forks are set parallel, simply count the
teeth visible on both sides. After setting the castor fork,
the teeth will guarantee a secure position, allowing an
adjustment of 16° in 2° increments (Fig. 6.25).
Use the flat side on the front of the castor fork to check for
a right-angled position to the ground.

The patented design allows the castor fork to be turned,
so that it can be reset at right-angles to the ground when
the seat angle is changed.

Setting the directional stability

Release the Allen screws (1) on the underside of the fork.
You can then remove the screws (2). You can now turn
the black socket (3) left or right.
Left – chair pulls to the left
Right – chair pulls to the right
Then re-tighten the screw (2). Please set a 90° angle from
the fork to the floor.
Then re-tighten the screw (1). (Fig. 6.26).

Fig. 6.26

2

3

1

+8°

-8°

Fig. 6.25

ENGLISH

Rev.2.0

18

XENON SA

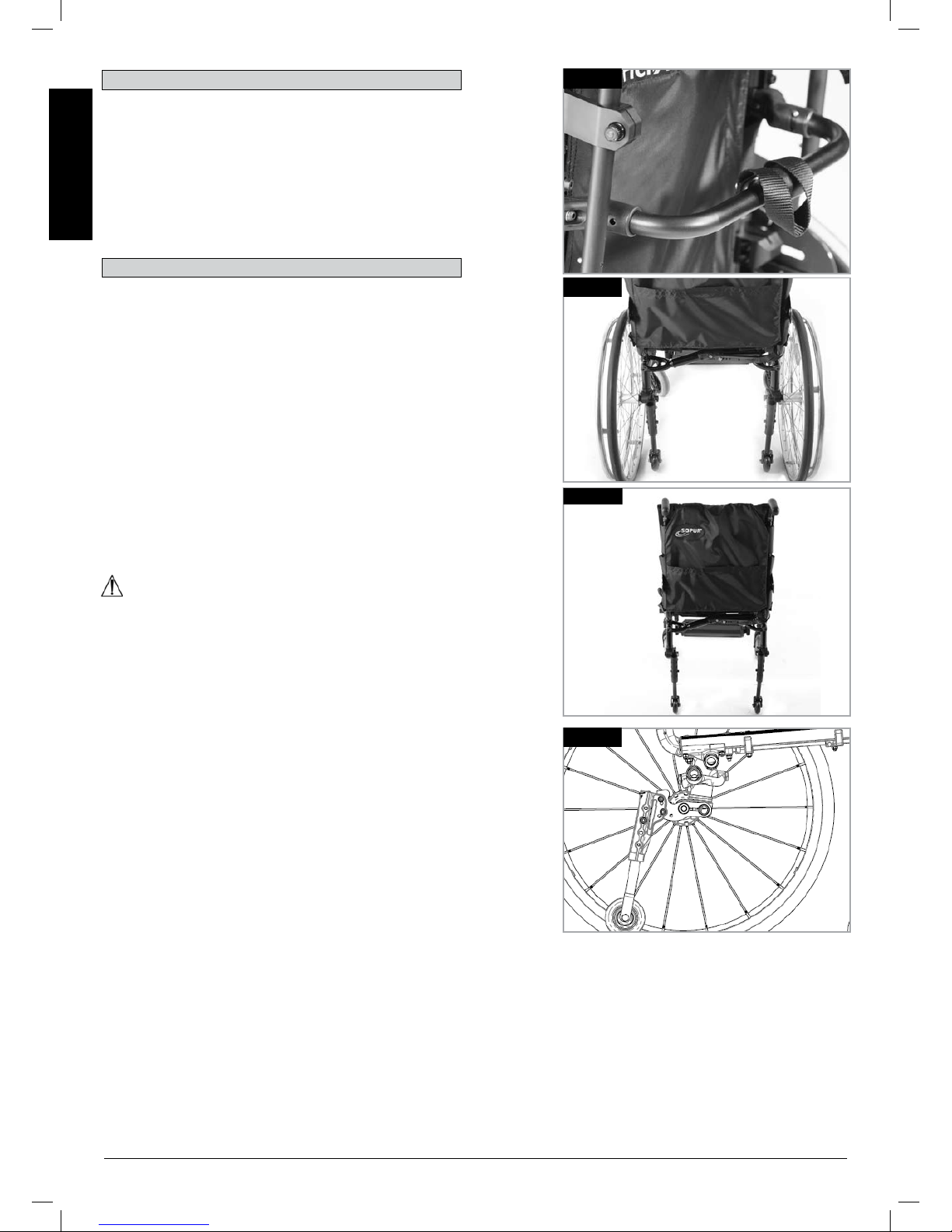

Backrest

To adjust the back angle, please undo the Allen screw (1)
and remove it. Set the desired position and then refit the
screw in this position and tighten it to the given torque
(Fig. 6.27).

Folding backrest

To make it easier to transport the wheelchair, the top half
of the backrest can folded down.
To do this, press both levers (1) and fold the backrest
down. When folding the backrest back up, please make

sure that both sides are firmly interlocked (Fig. 6.28/6.29)

Adjustable back-sling

The adjustable back-sling can be adjusted for tension by
using several straps. The back sling upholstery can be
accessed from the inside via an opening and can be
padded to suit individual tastes, (Fig. 6.30).

Height-adjustable backrest

The backrest may be set to various back heights, in 2.5
cm steps (3 adjustment ranges: 25-30 cm, 30-40 cm,
40-45 cm).
Release the screw (1) and set the backrest to the desired
height Then tighten the screws again (see
the page on torque).

CAUTION!

Please take into account the altered centre of gravity
when setting the angle of the backrest.

Headrests

The headrest (Fig. 6.31) can be raised and moved hori­zontally both forwards and backwards.
To do this, loosen the screw (1,2 or 3).
Now you can adjust to the desired position. Tighten
screws again (see the page on torque).

Fig. 6.27

1

Fig. 6.28

Fig. 6.29

1

Headrests

Fig. 6.31

3

1

Fig. 6.30

1

1

2

ENGLISH

Rev.2.0

19

XENON SA

Wheel alignment

Adjusting the wheel alignment

NOTE: To achieve the very best movement, the rear

wheels must be adjusted to their optimum position. This
means correctly adjusting the wheel alignment. To do this,
measure [the distance between] both wheels front and
rear to ensure that they are parallel to one another. The
difference between both measurements should not
exceed 5 mm. The parallel setting can be adjusted by
loosening the screws (1) and rotating the axle adapter (2).
When finished, make sure that all screws have been
properly tightened, (Fig. 6.32). See the page on torque.

WARNING!

Be careful, there is a risk of tipping when adjusting the
centre of gravity of the seat!

Adjusting the rear wheelbase width

The rear wheelbase is defined as the distance between
the upper side of the rear wheels and the backrest tubes
and is factory set (1.25 cm). This must be increased if
more space is to be created between the tyres and the
optional height-adjustable armrests.

NOTE: When adjusting the rear wheelbase, set first one
wheel and then the other. When adjusting the rear
wheelbase, move the quick-release adapter (3) in a
telescopic manner into the axle bracket (2) or out of the
camber tube. Loosen the screw (1) on the rear axle
bracket. Move the axle adapter in or out, until the desired
wheelbase is achieved. Tighten the screws to 7 Nm.
Repeat the procedure on the right side of the wheelchair

and set the same gap on the left side (Fig. 6.32/6.33).

Please contact your approved repair service or
authorized dealer to check this adjustment

In General: Adjust or correct the eccentric bushing when
the folding performance or the rolling performance gets
worse over time (Fig. 6.34)!

1.) Unscrew the both screws (no. 1) on the left hand side
and on the right hand side as well

2.) Adjust respectively correct the eccentric bushing (no.

2) with an open-end wrench (size 26mm)

3.) Turn the eccentric bushing with the open-end wrench
60dree to the inside or to the outside. The position mark
(no. 3) helps you to find the right position.

4.) Tighten both screws (no. 1) on each side of the chair

Fig. 30Fig. 6.32

1

2

Fig. 6.33

1

2

3

Frame adjustment

Fig. 6.34

1

3

2

ENGLISH

Rev.2.0

20

XENON SA

Single Post Height-Adjustable Armrests

DANGER!

Neither the sideguards nor the armrests are to be
used for lifting or carrying the wheelchair.

1. Fitting

a. Push the outer armrest rails down into the receiver
which is mounted on the wheelchair frame.
b. The armrest will automatically lock into place.

2. Height adjustment
a. Turn the release lever for height adjustment (2) to the
second stop point.
b. Push the armpad up or down to reach the desired
height.
c. Set the lever back to the interlocked position against
the armrest rails.
d. Push the armpad (4) until the rails click into place
securely.

3. Remove the armrest
a. Operate the lever 3 and lift the whole arm.

4. Insert armrest
a. Put the armrest back in the receiver, until the arm clicks
into place.

Mounting Components For The Armrest
Receiver

Adjusting the armrest receiver
To tighten or loosen the fit of the outer armrest rails in the
receiver:

1. Loosen the four set screws for the receiver (D) on the
sides of the receiver.

2. Leave the armrest in the receiver (E) and push the
receiver together, until the desired adjustment is achieved.

3. Tighten the four screws (D). (144 in-lbs, 16.3 Nm)
Position Adjustment

1. Loosen the two clamp screws (10) until the clamp is
loose.

2. Push the armrest receiver to the desired position.

3. Tighten.
(Fig. 6.36, 6.37, 6.38 and 6.39).

1. Outer armrest rails

2. Height adjustment of the locking lever

3. Locking lever

4. Armrest Pad

5. Transfer bar

6. Sideguard

7. Receiver

8. Adjustment clamp

9. Parts to adjust the receiver

10. Clamp screws

Fig. 6.36

Fig. 6.37

Fig. 6.38

1

E

Fig. 6.35

1

2
3

6

4
5

9

7

Sideguards

ENGLISH

Rev.2.0

21

XENON SA

Sideguard with clothes protector

The clothes protector prevents clothes getting dirty from spray
water, (Fig. 6.39).
You can set the position in relation to the rear wheel by
moving the sideguard.
To do this, remove the screws (1 and 2).
After setting to the desired position, re-tighten the screws (see
the page on torque).

WARNING!

Neither the sideguards nor the armrests are to be used for lifting
or carrying the wheelchair.

Standard sideguard, flip-up, removeable with
short or long armrests (Fig. 6.40 / Fig. 6.41)

Sideguard, flip-up, removable with short or long armrests,
height-adjustable

The sideguard with rounded off front edges will allow you to get
up close to a table. The armrest can be height-adjusted as
follows.
Push the lever (1) upwards and move the armrest (2) to the
desired height. Release the lever and press the armrest (2)
downwards until you hear it click into place. Always check that
the sideguards are correctly engaged.
To flip the armrest up, pull the lever (3) so that the sideguard is
released.

Height-adjustable push handles

These handles are secured with pins to prevent them from
sliding out unintentionally. By releasing the tension lever (1) the
height of the push handles (2) can be set individually. If the lever
is moved, listen to make sure that it clicks into place. The push
handle can easily be set to the desired position. The nut on the
tension lever determines how tightly the push handles are
clamped into place. If the nut is loose after adjust ing the tension
lever, the push handle will also be too loose. Turn the push
handle from side to side before use to make sure that it is
clamped into place securely.

CAUTION!

After adjusting handle height, always clamp the tension lever (1)
securely into place. If the lever is not secure, injuries could result
when ascending stairs. (Fig. 6.42).

CAUTION!

If the height-adjustable push handles are not fitted properly,
there is a risk that these will develop "play" or that they move out
of position. Please make sure that the relevant screws are
tightened correctly.

Folding push-handles

If the folding push handles are not required, they can be flipped
downwards by pushing the button (1). When they are required
again, flip the push handles up, until they click into place. (Fig.

6.43).

Fig. 6.39

1

2

Fig. 6.42

1

2

Fig. 6.43

1

Push handles

Fig. 6.40

2

1

Fig. 6.41

3

Sideguards (continued)

ENGLISH

Rev.2.0

22

XENON SA

Crutch holder

Crutch holder (Fig. 6.44)

This device permits crutches to be transported directly

on the wheelchair. It has a Velcro loop to fasten

crutches or other aids.

WARNING!

Never try to use or even remove the crutches or other
aids while moving.

Anti tips

WARNING!

Sunrise Medical recommends anti-tip tubes are fitted for
all chairs.
When fitting anti-tip tubes, use a torque of 7 Nm (2).

Anti-tip tubes prevent the wheelchair from tipping
backwards, providing additional safety for new users and
for users familiarising themselves with the operation of the
wheelchair.

Plug in Type

Slotting the anti-tip tubes into the clamp:

Press the rear button on the adapter for the anti-tip •
tube in such a way that both release pins are pulled
inwards.
Slot the anti-tip tubes (1) into the anti-tip tube adapter.•
Rotate the anti-tip tubes downwards, until the release •
pin clicks into place in the clamp.
Fit the second anti-tip tube in the same way.•

Adjusting the anti-tip tubes

To achieve the correct ground clearance of approx. 1“ to
2“ (2.5 cm to 5.0 cm), the anti-tip tubes must be set higher
or lower.

Push the release lever for the anti-tip tube in such a •
way that both release pins are pulled inwards.
Move the inner tube upwards or downwards in the •
height-adjustment holes.
Release the button. •
Fit the second anti-tip tube in the same way. •
Both wheels must be at the same height. (Fig. 6.45).•

Fig. 6.45

1

Swing-away Type

Push down on the top of the anti-tip tube, (1), to bring
them into position, (Fig. 6.46).
A 30 - 50 mm gap should be maintained between the
anti tip wheels and the ground.
The anti-tips can also be swung into a forwards
position. The anti-tips must always be in the forward
position when negotiating large obstacles, (such as
kerbs), to prevent them from interfering with the
manoeuvre.

DANGER!

If the anti-tip tubes are not fitted, or have been fitted
incorrectly, there is a risk of tipping over and of injury.

Fig. 6.46

1

2

Fig. 6.44

2

ENGLISH

Rev.2.0

23

XENON SA

Stabilising bar

Folding stabilising bar

This bar is used to stabilise the backrest. To be able to
fold the wheelchair, the release lever must be pushed
inwards (Fig. 6.47) or released and the stabilising must be
flipped downwards.
When unfolding the wheelchair, please make sure that the
stabilising bar is locked into position.

Transit wheels

Transit wheels

Transit wheels should be used whenever your wheelchair
would be too wide if the rear wheels were fitted (Fig.

6.48).
After the rear wheels have been removed with the aid of
the quick-release axles, the transit wheels can
immediately be used to continue riding, (Fig. 6.49).
The transit wheels are mounted so that they are
approximately 3 cm above the ground when not in use.
They are therefore, out of the way when riding,
transporting, or when tipping to pass over obstacles, (Fig.

6.50).
Make sure that the transit wheels are always mounted in
position "B".
This will ensure that the wheelchair has a stable base.

DANGER!

Without rear wheels, your wheelchair has no wheel •
locks.
There is a risk of the chair tipping backwards.•

Fig. 6.47

Fig. 6.48

Fig. 6.49

Fig. 6.50

B

ENGLISH

Rev.2.0

24

XENON SA

Lap strap

WARNINGS!

Before using the wheelchair make sure that the pelvic •
restraint belt is fitted.
The pelvic restraint belt must be checked on a daily •
basis to ensure it is free from any obstruction or
adverse wear.
Always make sure that the lap strap is correctly •
secured and adjusted prior to use.

DANGER!

If the strap is too loose, this could cause the user of the
wheelchair to slip down and risk suffocation or serious
injury.

The pelvic restraint belt is fitted to the wheelchair as
shown in Fig. 6.51 to 6.60. The seat belt comprises two
halves. They are fitted using the existing seat stay
retaining bolt fitted through the eyelet on the belt. The belt
is routed under the rear of the side panel. (Fig. 6.51).

Adjust the lap belt to suit the user’s needs as follows:

Adjust the belt position so that the buckles are in the
centre of the seat. (Fig. 6.52).

Feed free belt back through male buckle and slide
adjusters.
Ensure belt is not looped at male buckle, (Fig. 6.53)

Feed free belt through slide adjusters and male buckle to
provide more belt length, (Fig. 6.54 to 6.56).

Fig. 6.51

Fig. 6.52

Fig. 6.54

Fig. 6.55

Fig. 6.53

Fig. 6.56

ENGLISH

Rev.2.0

25

XENON SA

Lap strap (continued)

When fastened check space between the lap belt and
user. When correctly adjusted it should not be possible to
insert more than the flat of the hand between the pelvic
restraint belt and the user, (Fig. 6.57).

The lap belt should be fxed so that the belt sits at an
angle of 45 degrees across the users pelvis. The user
should be upright and be as far back as possible in the
seat when correctly adjusted. The pelvic restraint belt
should not allow the user to slip down in the seat,.(Fig.

6.58).

To fasten buckle:

Firmly push male buckle into female buckle, (Fig. 6.59).

To release buckle:
Press the RED button in the centre of the buckle then pull
the two halves gently apart, (Fig. 6.60).

NOTE: If you have any questions on the use and
operation of the pelvic restraint belt, the please contact
your wheelchair dealer, carer or attendant.

WARNINGS!

The pelvic restraint belt must only be fitted or adjusted •
by an approved Sunrise Medical dealer / agent.

The lap belt must be checked on a daily basis to •
ensure it is adjusted correctly and it is free from any
obstruction or adverse wear.
Sunrise Medical does not recommend the •
transportation of a person in a vehicle with the pelvic

restraint belt as a restraint system.

See the transit brochure from Sunrise Medical
for further information on transportation.

Maintenance:

Check lap belt and securing components at regular
intervals for any sign of fraying or damage. Depending on
usage, it may need to be replaced.

WARNING!

The pelvic restraint belt should be adjusted to suit the end
user as detailed above. Sunrise Medical also
recommends that the length and fit of the belt is checked
on a regular basis to reduce the risk of the end user
inadvertently re-adjusting the belt to an excessive length.

Fig. 6.57

Fig. 6.58

Fig. 6.59

Fig. 6.60

ENGLISH

Rev.2.0

26

XENON SA

8.0 Daily Checks

CAUTION!

As the user, you are the first person to notice any possible
defects. We therefore recommend that before each use,
you check the items in the following list:

Check for correct tyre pressures.•
Check that the brakes work correctly.•
Check that all removable parts are secure, e.g. •
armrest, footrest, quick-release axle etc.
Check for visible damage e.g. on the frame, backrest, •
seat sling and back sling, wheels, footplate etc.

If there is any damage or malfunction, please contact your
authorised dealer.

9.0 Tyres and mounting

WARNING!

Always make sure that you maintain the correct
tyre pressure (min. 3.5 bar) as this can have an effect on
wheelchair performance.

If the tyre pressure is too low, rolling resistance will
increase, requiring more effort to move the chair forward.
Low tyre pressure also has a negative impact on
maneuverability.

WARNING!

If the tyre pressure is too high, the tyre could burst.

The correct tyre pressure for a given tyre is printed on the
surface of the tyre (min. 3.5 Bar).
Tyres can be mounted the same way as an ordinary
bicycle tyre.
Before installing a new inner tube, you should always
make sure that the base of the rim and interior of the tyre
are free of foreign objects.
Check the pressure after mounting or repairing a tyre.
It is critical to your safety and to the wheelchair’s
performance that regulation air pressure be maintained
and that tyres are in good condition.

10.0 Maintenance and Care

• Check the tyre pressure every 4 weeks. Check all tyres

for wear and damage.

• Check the brakes approximately every 4 weeks to make

sure that they are working properly and are easy to use.

• Change tyres as you would an ordinary bicycle tyre.

• All of the joints that are critical to using your wheelchair

safely are self-locking nuts. Please check every three
months to make sure that all bolts are secure (see the
section on torque). Safety nuts should only be used once
and should be replaced after use.

• Please use only mild household cleansers when your

wheelchair is dirty. Use only soap and water when
cleaning the seat upholstery.

• If your wheelchair should ever get wet, please dry it

afterwards.

• A small amount of sewing-machine oil should be applied

to quick-release axles approximately every 8 weeks.
Depending on the frequency and type of use, we
recommend taking your wheelchair to your authorised
dealer every 6 months to have it inspected by trained
personnel.

CAUTION !

Sand and sea water (or salt in the winter) can damage
the bearings of the front and rear wheels. Clean the
wheelchair thoroughly after exposure.

The following parts can be removed and sent back to the

manufacturer/dealer for repair:

• Rear wheels

• Armrest

• Footrest holder

• Anti-Tip tubes

These components are available as spare parts. For
further information, please see the spare parts catalogue.

Hygiene measures when being re-used:

Prior to the wheelchair being re-used, it must be carefully
prepared. All surfaces which come into contact with the
user must be treated with a disinfection spray.

To do this, you must use a disinfectant from the DGHM
list, e.g.Antifect Liquid (Schülke & Mayr) for rapid alcohol­based disinfection for medical products and medical
devices, which must be disinfected quickly.
Please take into account the manufacturer's instructions
for the disinfectant you are using.

In general, a complete disinfection cannot be guaranteed
on seams. We therefore recommend that you dispose of
seat and back slings to avoid microbacterial contamination
with active agents according to § 6 infection protection
law.

ENGLISH

Rev.2.0

27

XENON SA

11.0 Trouble shooting

Wheelchair pulls to one side

• Check tyre pressure

• Check to make sure wheel turns easily (bearings,

axle)

• Check the castor angle

• Check to make sure both casters are making proper

contact with the ground

Casters begin to wobble

• Check the castor angle

• Check to make sure all bolts are secure;

tighten if necessary (see the section on torque)

• Check to make sure both casters are making proper

contact with the ground

Wheelchair / Cross-tube assembly does not snap into
position in the seat saddle

• Chair is still new, i.e., the seat or

backrest upholstery is still very stiff. This will improve

with time

Wheelchair is difficult to fold up

• Adjustable backrest upholstery is too stiff. Loosen

it accordingly.

Wheelchair squeaks and rattles

• Check to make sure all bolts are secure;

tighten if necessary (see the section on torque)

• Apply small amount of lubrication to spots where

movable parts come in contact with one another

Wheelchair begins to wobble

• Check angle at which castors are set

• Check tyre pressure

• Check to see if rear wheels are adjusted differently

12.0 Disposal / Recycling of Materials

NOTE: If the wheelchair has been made available to you

as part of a charity or medical loans scheme, then it may
not belong to you. If it is no longer required, then follow
the instructions to return it as given by the organisation
that made the wheelchair available to you.

In the following section, there is a description of the
materials used on the wheelchair, in view of the disposal
or recycling of the wheelchair and its packaging.
There may also be special local regulations in force with
regard to disposal or recycling, these must be taken into
account when disposing of your wheelchair. (This can
include the cleaning or decontamination of the wheelchair
prior to disposal).

Aluminium: Castor forks, wheels, sideguards for the
chassis, armrest frame, footrest, push handles

Steel: Fixing points, quick-release axle
Plastic: Handles, tube stoppers, castors, footplates,

armpads and 12” wheel/tyre

Packaging: Plastic bags made of soft polyethylene,
cardboard

Upholstery: Woven polyester with PVC coatings and

expanded combustion modified foam.

Disposal or recycling should be done through a licensed
agent or authorised place of disposal. Alternatively your
wheelchair may be returned to your dealer for disposal.

ENGLISH

Rev.2.0

28

XENON SA

13.0 Nameplate

The nameplate is located on either the cross-tube
assembly or the transverse frame tube, as well as on a
label in the owner’s manual. The nameplate indicates the
exact model designation and other technical
specifications. Please provide the following pieces of
information when ever you have to order replacement
parts or to file a claim:

14.0 Technical data

Overall width:

With standard wheels including hand rims, close mount:

• in combination with aluminium sideguard:

SW + 170 mm

• in combination with plastic clothes protector:

SW + 190 mm

• With extra-narrow hand rim fitting, overall width is

reduced by 20 mm.

• With standard wheels including hand rims and 4°
Cambers: SW + 250 mm
Overall length:
910 mm with seat depth 480 mm

Overall height:

1120 mm with backrest height 450 mm

Folded dimensions:

• with rear wheels approximately 270 mm

• without rear wheels approximately 250 mm

Weight in kg:

• Overall from 8.5 kg

• Transportation (without footrest, wheels, sideguard) 6 kg

• Sideguard (unit) 1.3 kg

• Wheels (unit) 2.2 kg

80 cm

89 cm

48 cm

105 cm

81 cm

43 cm

37.5 cm

48 cm

Product Name/SKU Number.

Maximum safe slope with anti-tips fitted,
Depends on wheelchair setting, posture and
physical capabilities of the user.

Seat width.

Depth (maximum).

Load Maximum.

CE Mark

User's Guide.

Crash Tested

Date of manufacture.

Serial number.

SAMPLE

Xenon SA

Xenon SA

ENGLISH

Rev.2.0

29

XENON SA

Maximum weight limit:

Xenon SA up to a load of 125 kg

Seat heights:

The choice of frames, forks and castors as well as the size of the rear wheel (610 mm (24")), (635 mm
(25")); determines what seat heights are possible.

Table of Minimum and Maximum Values

Parameter min. max. Parameter min. max.

Overall length
with footrest

990 mm 1150 mm Seat surface

angle

0° 15°

Overall width 480 mm 760 mm Effective seat

depth

340 mm 500 mm

Folded length N/A N/A Effective seat

width

320 mm 460 mm

Folded width 270 mm 310 mm Seat height at the

front edge

430 mm 570 mm

Folded height N/A N/A Backrest angle 75° 108°

Total weight 9.8 kg - Back height 250 mm 475 mm

Weight of
the heaviest
individual part

- 2.1 kg with 610
mm (24") rear
wheel

Distance from
the footrest to the
seat

220 mm 500 mm

Static stability ­downhill

10° 10° Angle from leg to

seat

100° (80°
hanger)

110° (70°
hanger)

Static stability

- uphill (with anti­tip tube)

10° 10° Distance from the

armrest to the
seat

N/A N/A

Static stability ­sidewards

10° 10° Front position of

the armrests

N/A N/A

Dynamic stability

- uphill power
consumption

N/A N/A Handrim diameter 540 mm 567 mm

Overcoming
obstacles

N/A N/A Horizontal axle

position

- 20 mm + 130 mm

The wheelchair conforms to the following standards:

1. Requirements and test methods for static, impact and fatigue strengths (ISO 7176-8)

2. Flammability resistance of upholstered parts in accordance with ISO 7176-16 (EN 1021-1/2)

Technical Data (continued)

ENGLISH

Rev.2.0

30

XENON SA

Technical Data (continued)

Castor Fork Seat height front / mm Seat height rear / mm

76 mm (3")

98 x 32

420 420 - 370

430 430 - 370

440 440 - 37

111 x 32

430 430 - 370

440 440 - 370

450 450 - 370

111 x 45

420 420 - 370

430 430 - 370

440 440 - 370

450 450 - 370

123 x 45

430 430 - 370

440 440 - 370

450 450 -370

460 460 - 370

138 x 45

440 440 - 370

460 460 - 370

470 470 - 370

480 480 -370

174 x 45

470 470 - 370

480 480 - 370

500 500 - 370

510 510 - 380

520 520- 390

Castor Fork Seat height front / mm Seat height rear / mm

102 mm (4")

98 x 32

430 430 - 370

440 440 - 370

450 450 - 370

111 x 32

440 440 - 370

450 450 - 370

460 460 - 370

111 x 45

430 430 - 370

440 440 - 370

450 450 - 370

460 460 - 370

123 x 45

440 440 - 370

450 450 - 370

470 470 - 370

480 480 - 370

138 x 45

460 460 - 370

470 470 - 370

480 480 - 370

490 490 - 370

174 x 45

480 480 - 370

490 490 - 370

500 500 - 380

520 520 - 400

530 530 - 410

ENGLISH

Rev.2.0

31

XENON SA

Technical Data (continued)

Castor Fork

Seat height

front / mm

Seat height

rear / mm

127 mm (5")

98 x 32

440 430 - 370

450 440 - 370

460 450 - 370

111 x 32

450 440 - 370

470 450 - 370

480 460 - 370

111 x 45

440 430 - 370

450 440 - 370

470 450 - 370

480 460 - 370

123 x 45

450 440 - 370

470 450 - 370

480 470 - 370

490 480 - 370

138 x 45

470 460 - 370

480 470 - 370

500 480 - 370

510 490 - 370

174 x 45

490 480 - 370

500 490 - 370

520 500 - 380

530 520 - 400

540 530 - 410

Castor Fork

Seat height

front / mm

Seat height

rear / mm

152 mm (6")

111 x 45

440 440 - 370

450 450 - 370

470 470 - 370

480 480 - 370

123 x 45

470 470 - 370

480 480 - 370

490 490 - 370

500 500 - 370

138 x 45

480 480 - 370

490 490 - 370

510 510 - 390

520 520 - 400

174 x 45

500 500 - 380

520 520 - 400

530 530 - 410

540 540 - 420

550 550 - 430

ENGLISH

Rev.2.0

32

XENON SA

Technical Data (continued)

Castor Fork

Seat height

front / mm

Seat height

rear / mm

178 mm (7")

123 x 45

480 480 - 370

490 490 - 370

500 500 - 380

510 510 - 390

138 x 45

490 490 - 370

510 510 - 390

520 520 - 400

530 530 - 410

174 x 45

520 520 - 400

530 530 - 410

540 540 - 420

560 560 - 440

570 570 - 450

Castor Fork

Seat height

front / mm

Seat height

rear / mm

76 mm (3")

FROGLEG

450 450 - 370

470 470 - 370

480 480 - 370

102 mm (4")

FROGLEG

460 460 - 370

480 480 - 370

490 490 - 370

127 mm (5")

FROGLEG

480 480 - 370

490 490 - 370

500 500 -380

152 mm (6")

FROGLEG

490 490 - 370

500 500 - 380

520 520 - 400

178 mm (7")

FROGLEG

510 510 - 390

520 520 - 400

530 530 - 410

ENGLISH

Rev.2.0

33

XENON SA

Technical Data (continued)

Centre of Gravity Matrix

Standard clamp

Passive clamp

Lightweight clamp

ENGLISH

Rev.2.0

34

XENON SA

15.0 Torque Settings

NOTE: If no specific torque information is given, the generic torque value for M6 screws is 7.0 Nm

ENGLISH

Rev.2.0

35

XENON SA

Sunrise Medical GmbH & Co. KG
Kahlbachring 2-4

69254 Malsch/Heidelberg

Deutschland

Tel.: [phone]
Fax: [phone]

www.SunriseMedical.de

Sunrise Medical
Thorns Road
Brierley Hill
West Midlands
DY5 2LD
England
Phone: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical S.L.
Polígono Bakiola, 41

48498 Arrankudiaga – Vizcaya

Spain
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical S.A.
17, rue Mickael Faraday

ZAC de la Vrillonnerie

37170 CHAMBRAY LES TOURS
France
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical S.r.l.

Via Riva, 20 - Montale

29122 Piacenza
Italia
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical A.G.
Lückhalde 14
3074 Muri bei Bern
Switzerland
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical AS
Dynamitveien 14B
1400 SKI
Norway
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical AB
Britta Sahlgrens gata 8A

421 31 Västra Frölunda

Sweden
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical B.V.

Groningenhaven 18-20
3433 PE Nieuwegein
Netherlands
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

G2 A/S
Graham Bells Vej 21-23 A

8200 Arhus N
Denmark
Tel.: [phone]
Fax: [phone]
www.G2.dk

Australia
Sunrise Medical Pty. Ltd.
6 Healey Circuit
Huntingwood,
New South Wales 2148
Tel.: [phone]
Fax: [phone]
www.SunriseMedical.com

Sunrise Medical Poland Sp. z o.o.
ul. Elektronowa 6,
94-103 Łódź
Polska
Telefon: + 48 42 209 36 67
Fax: + 48 42 209 35 23
E-mail: [e-mail]
Sunrise-Medical.pl

OM_Xenon SA_EU_EN_Rev.2.0_31_10_2012
