Instructions for Use

Quickie Tango

Powered Wheelchair

034202.UK

IF YOU ARE VISUALLY IMPAIRED, THIS DOCUMENT CAN BE VIEWED IN
PDF FORMAT AT WWW.SUNRISEMEDICAL.COM OR ALTERNATIVELY IS

AVAILABLE ON REQUEST IN LARGE TEXT.

FOR FURTHER INFORMATION ON THE FULL SPECIFICATION AND OPTIONS AND ACCESSORIES

PLEASE REFER TO THE ORDER FORM.

ALL INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTIFICATION. PLEASE CONSULT SUNRISE

MEDICAL WITH ANY QUERIES YOU MAY HAVE.

WARNING!

DO NOT USE YOUR WHEELCHAIR UNTIL
THIS MANUAL HAS BEEN READ AND
UNDERSTOOD.

User Information

Intended use power wheel chairs:

Power wheelchairs are exclusively for a user who is unable
to walk or has limited mobility, for their own personal use
in- and outdoor.
When an Attendant Control Module is fitted, the Power
Wheelchair may be operated by an assistant on behalf of
the user.
When a Dual Control Module is fitted the Power
Wheelchair may be operated by the user, or control may
be switched to an assistant to operate on behalf of the
user.

The maximum weight limit (includes both the user and any
weight of accessories fitted to the wheelchair) is marked
on the serial number label, which is affixed to the chassis
of the chair.

The chair serial number is affixed also to the front page of
the owners manual supplied with the wheelchair.

Warranty can only be taken on if the product is used under
the specified conditions and for the intended purposes.

The intended lifetime of the wheelchair is 5 years. Please
DO NOT use or fit any 3rd party components to the
wheelchair unless they are officially approved by Sunrise
Medical.

Area of application

The variety of fitting variants as well as the modular
design mean that it can be used by those who cannot
walk or have limited mobility e.g. because of:

• Paralysis

• Loss of extremity (leg amputation)

• Extremity defect deformity

• Joint contractures/joint injuries

• Strokes and brain injuries

• Neurological disabilities (e.g. MS, Parkinson…)

• Illnesses such as heart and circulation deficiencies,

disturbance of equilibrium or cachexia as well as for
elderly people who still have the strength in the upper
bo dy.

• Persons who are mentally and physically able to control

an input device to operate the chair and its functions in a
safe way.

When considering provision, please also note the body
size, weight including the distribution of body weight, the
user’s physical and psychological constitution, the age of
the user, their living conditions and their environment.
If in doubt a health care professional should be involved
to ensure the user is not exposed to unacceptable risks.

Sunrise Medical is ISO 9001 certified, which ensures
quality at all stages of the development and production of
this wheelchair.

Sunrise Medical declares under its sole responsibility that
this product is in conformity with the requirements of the

directive 93/42/EEC amended by 2007/47/EEC.”

Sunrise Medical declares that this product fulls the
performance requirements for a “Crash Test” to
ISO 7176-19.

The Serial Number and other important information may
be found on a label situated on the right-hand side, main
frame of the product.

BACK UPHOLSTERY

CONTROL LEVER

HEIGHT/WIDTH

ADJUSTABLE ARMRESTS

STABILISING

BAR

BATTERY BOX

DRIVE WHEEL

MOTORS

CASTORS

FOOTRESTS

CUSHION

HAND CONTROL

MODULE

JOYSTICK

Due to its modular design, simplicity and wide range of adjustments, the Quickie Tango is a perfect

choice for easy service, refurbishment and recycle requirements.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change

specications and design without notice. Further, not all features and options offered are compatible with

all congurations of the wheelchair.

All dimensions are approximate and may be subject to change.

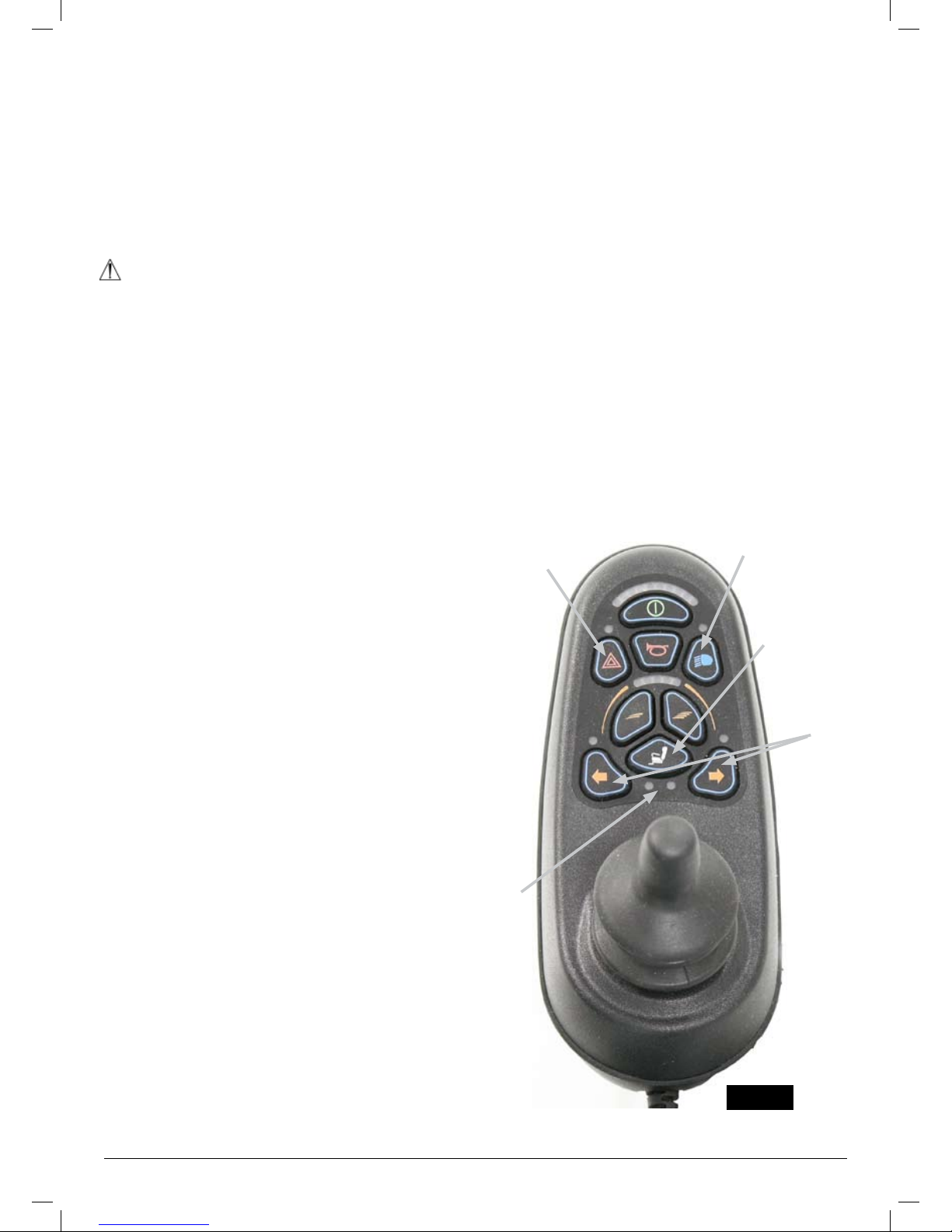

7.0 VR2 Control System (Fig.7.1): 26

7.1 On/Off button: .......................................................26

7.2 Battery Level Indicator: ........................................26

7.3 Locking/unlocking the wheelchair: .....................26

7.4 Operating the control joystick: ...........................27

7.5 Maximum speed/prole indicator: ...................... 27

7.6 The horn button: ...................................................27

7.7 Speed/Prole decrease button: ...........................27

7.8 Speed/Prole increase button: ............................27

7.9 Actuator button and LEDs: ..................................27

7.10 VR2-L ................................................................... 28

7.11 Charging and programming socket: ................. 29

7.12 VR2 dual control unit: ........................................ 29

7.13 Control button and indicator: ............................29

7.14 Actuator button and LED: ..................................29

7.15 Maximum speed button and indicator: ............. 30

7.16 Quickie Direct Actuator Control Box: ...............30

8.0 Troubleshooting The VR2 Hand Control: 31

9.0 Batteries and Charging: 33

9.1. Battery & Charger Specication: ....................... 33

9.2 Electrical fuses: ...................................................33

9.3 Batteries (Fig. 9.1 - 9.9): .......................................33

9.4 General battery information: ............................... 35

9.5 Maintenance-free batteries: .................................35

9.6 Battery care: ..........................................................35

9.7 Maintenance-free battery care plan: ...................35

9.8 General charger information: ..............................36

9.9 Charger Specication: ........................................ 36

9.10 Charger safety features: .................................... 36

9.11 Procedure for connecting the charger

and charging: ......................................................36

9.12 Charger safety and caution notes: ...................36

9.13 The range of your vehicle: .................................37

9.14 Common battery statements: ............................37

10.0 Adjustments: 38

10.1 Adjustment of the footrest (Fig. 10.1): ............ 38

10.2 Width Adjustment of the footrests: ...................38

10.3 Adjustment of the armrests: .............................. 38

10.4 Seat depth adjustments: ...................................38

10.5 Control Adjustment (Fig. 10.6): ........................39

10.6 Dual/Attendant control: ...................................... 39

10.7 Parallel swing-away control (Fig.10.7): ............39

10.8 Programming: ....................................................39

11.0 Cleaning: 40

11.1 Cleaning General: ...............................................40

11.2 Cleaning seating: ................................................ 40

11.3 Cleaning control system: ................................... 40

11.4 Speciality controls: .............................................40

12.0 Shipping & Storage Requirements: 40

12.1 Storage temperature & humidity: .....................40

12.2 Special shipping requirements: .......................40

12.3 Medium to long term storage: ..........................40

13.0 Disposal: 41

14.0 Specifications: 41

15.0 Guarantee: 42

16.0 Service History: 42

17.0 Performance checks: 43

1.0 Your Wheelchair: 7

2.0 How to use this manual: 7

2.1 Introduction: ...........................................................7

2.2 Guarantee: ...............................................................7

2.3 Warranty conditions: ..............................................7

3.0 Label Explantation / Word definitions: 8

3.1 Denitions of words used in this manual: ...........8

4.0 Safety: 10

4.1 General Warnings: ................................................10

4.2 Features and options: ..........................................10

4.3 Preliminary checks: ..............................................10

4.4 Emergency braking: .............................................10

4.5 Kerbs, (Fig 4.1): ....................................................10

4.6 Tyres: .....................................................................11

4.7 Freewheel device, (Fig.4.2): .................................11

4.8 Transportation in vehicles: ..................................11

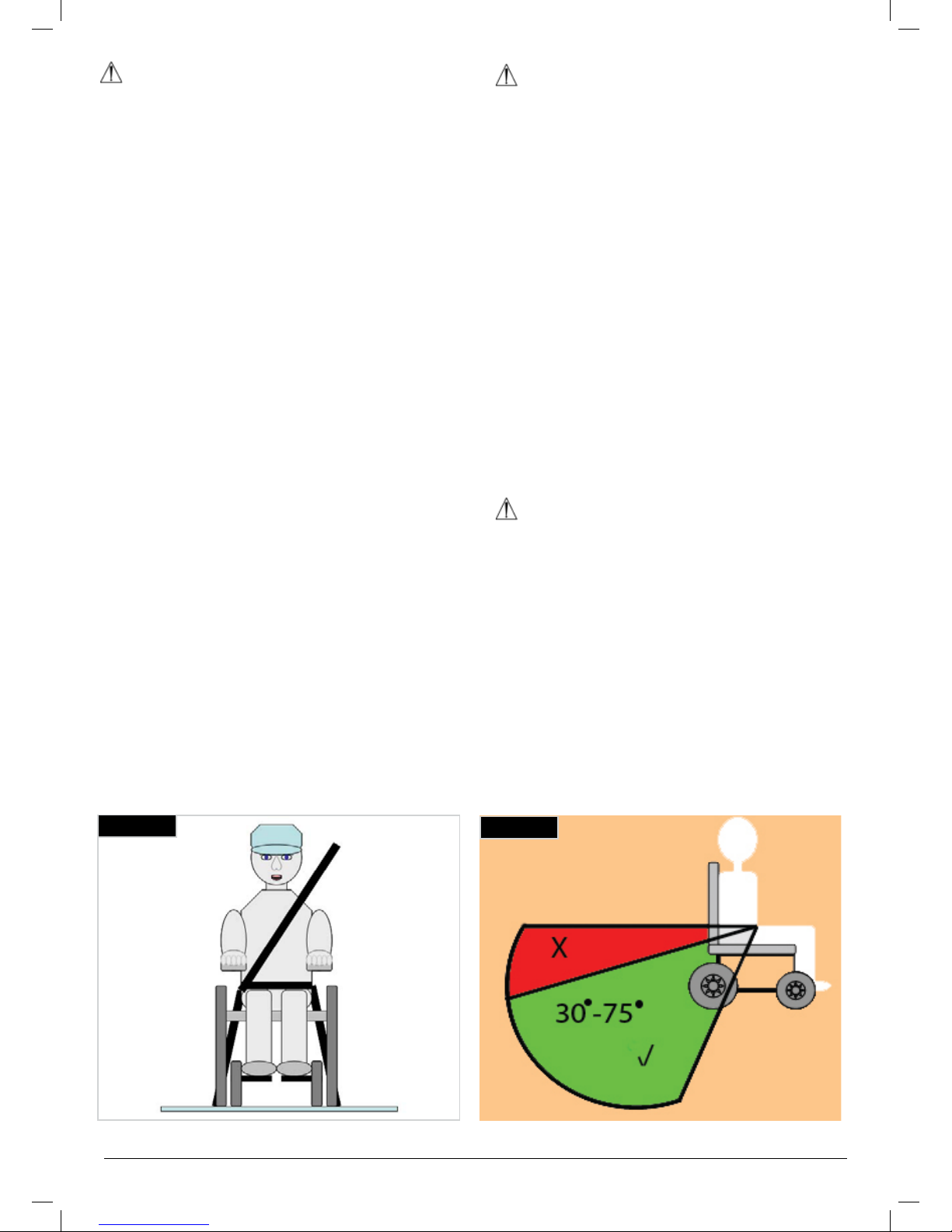

4.9 Occupant Restraint Instruction: ..........................12

4.10 Transportability - Positioning of

Tie down Restraints on the Wheelchair: ..........13

4.11 EMC - Radio transmitting devices: ...................14

4.12 Sharp turns: ........................................................15

4.13 Weight limit: ........................................................15

4.14 Hot surfaces: .......................................................15

4.15 Road caution: ......................................................15

4.16 Adverse conditions: ...........................................15

4.17 Ramps: ................................................................15

4.18 Transfer to and from the chair: .........................15

4.19 Anti tips: ..............................................................15

4.20 Use on a slope: ...................................................16

4.21 Gradients: ascents: ............................................16

4.22 Gradients: descents: .........................................16

4.23 Lap belt: ...............................................................16

5.0 Assembly: 19

5.1. Footrest (Fig. 5.0-5.1): ........................................19

5.2. Armrest (Fig. 5.2): ...............................................19

5.3. Anti-tip wheels (Fig.5.3): ....................................19

5.4. Kerb climber (Fig. 5.4): ........................................19

5.5. Batteries (Fig.5.5): ..............................................20

5.6. Wheels (Fig.5.6 & 5.7): .......................................20

5.7. Fitting The Lap Belt : ...........................................21

5.8 Crutch Holder, (Fig.5.11): .....................................21

5.9 Lights and indicators, (Fig.5.12): ........................21

6.0 Using The Wheelchair: 22

6.1 Preparing for stowed transportation: ................22

6.2 To use the wheelchair again: ...............................22

6.3 Mechanical Fixed Reclining back (-3° to 12°): ..22

6.4 Manual Reclining back (-3° to 30°)

with gas strut: (Fig.6.2): .......................................22

6.5 Powered Reclining back (-3° to 30°) .................22

6.6 Fixed Seat Tilt: ......................................................23

6.7 Manual seat tilt: ....................................................23

6.8 Powered seat tilt: ..................................................23

6.9 Powered Height-adjustable legrests: .................24

6.10 Manual Height-adjustable footrests: ...............24

6.11 Slopes (Fig.6.8): .................................................24

6.12 Transfers (Fig.6.9): ............................................24

6.13 Freewheel device (Fig. 6.6): ...............................25

6.14 Tyre pressure: ....................................................25

6.15 Blank: ...................................................................25

6.16 Mounting a kerb or step (Fig. 6.11): ..................25

6.17 Dismounting the kerb (Fig. 6.12): ......................25

Quicki e Tango 7

1.0 Your Wheelchair:

We at Sunrise Medical want you to get the best out of your
TANGO wheelchair. This Owner’s Manual will familiarise
you with the chair and its features. It contains hints on
everyday usage and general care in addition to information
on the high quality standards which we adhere to and
details about the guarantee.

Your wheelchair should be delivered fully configured
for your use; there are a wide range of components and

adjustments available on the Tango. For further information

about these you should contact your Sunrise Medical
authorised dealer.

Your wheelchair will reach you in excellent condition having
been personally inspected before leaving our factory.

Following the guidelines for maintenance and cleaning

your wheelchair will maintain its first class condition and
give you complete satisfaction.
The Tango has been designed for use by an individual on
a daily basis. It is suitable for both indoor and outdoor use
(Class B). It is only intended for use as a pavement vehicle,
but may also be used when crossing between pavements.

This vehicle has been designed for a single occupant
of limited mobility up to the weight of 125Kg (dependant
on options chosen for your chair) who has the cognitive,
physical and visual ability to control the vehicle safely on
a maximum slope of 18% (10°). If you are in any doubt
as to the suitability of the power chair, contact your local
Sunrise Medical approved supplier for clarification, prior to
commencing use.

It is very important to read the relevant section of the owner’s

manual when making any minor adjustments. Consult the

Technical Manual or your local Sunrise Medical authorised

dealer for more complex adjustments.

If you have any queries about the use, maintenance
or safety of your wheelchair, please contact your local
approved Sunrise Medical service agent. If you do not
know of an approved dealer in your area or have any other
questions please write or telephone:

Sunrise Medical LTD.
Sunrise Business Park
High Street, Wollaston
West Midlands DY8 4PS
England

Phone: [phone]

Fax: [phone]

2.0 How to use this manual:

2.1 Introduction:

Please keep a note of your local service agent’s address
and telephone number in the space below.
In the event of a breakdown, contact them and try to give
all relevant details so they can help you quickly.
The wheelchairs shown and described in this manual may
not be exactly the same in every detail as your own model.
However, all instructions are still entirely relevant, irrespective
of detail differences.

NOTE: The manufacturer reserves the right to alter without
notice any weights, measurements or other technical data
shown in this manual. All figures, measurements and
capacities shown in this manual are approximate and do
not constitute specifications.

2.2 Guarantee:

The guarantee form is included in the Sunrise Pack. Please
fill in the relevant details and return to us to register your
entitlement.

THIS IN NO WAY AFFECTS YOUR STATUTORY

RIGHTS.

2.3 Warranty-Repair-Service conditions:

1) The repair or replacement will be carried out by an

authorised Sunrise Medical dealer/service agent.

2) To apply the warranty conditions, should your wheelchair
require attention under these arrangements, notify the
designated Sunrise Medical service agent immediately
giving full information about the nature of the difficulty.
Should you be operating the wheelchair away from the
locality of the designated Sunrise Medical service agent,

work under the “Warranty Conditions” will be carried out by

any other service agent designated by the manufacturer.

3) Should any part of the wheelchair require repair or
replacement, as a result of a specific manufacturing or
material defect, within twenty four months from the date
on which the possession of the wheelchair was transferred

to the original purchaser, and subject to it remaining within

that ownership, the part or parts will be repaired or replaced
completely free of charge if returned to the authorised
service agent.
If you are unsure who your local servicing agent is:
Please contact Sunrise Medical using the contact details
opposite.

Dealer signature and stamp

8 Quicki e Tango

4) Any repaired or replaced part will benefit from these
arrangements for the balance of the warranty period
applicable to the wheelchair.

5) Parts replaced after the original warranty has expired
are covered for a further twelve months.

6) Items of a consumable nature will not generally be

covered during the normal warranty period, unless such
items have clearly suffered undue wear as a direct result
of an original manufacturing defect. These items include
amongst others upholstery, tyres, inner tubes and similar
parts. On powered products this will also include batteries,
motor brushes etc

7) The above warranty conditions apply to all wheelchair

parts for models purchased at full retail price.

8) Under normal circumstances, no responsibility will be
accepted where the wheelchair has required repair or
replacement as a direct result of:

a) The wheelchair or part not having been maintained
or serviced in accordance with the manufacturer’s
recommendations, as stated in the Owner’s Manual

and/or Service Manual. Or failing to use only the

specified original equipment parts.

b) The wheelchair or part having been damaged by
neglect, accident or improper use.

c) The wheelchair or part having been altered from the
manufacturer’s specifications, or repairs having been
attempted prior to the service agent being notified.

3.0 Label Explantation / Word definitions:

3.1 Denitions of words used in this manual:

Word Definition

DANGER!

Advice to the user of Potential Risk

of serious injury or death if the

advice is not followed

WARNING!

Advice to the user of a potential risk

of injury if the advice is not followed

CAUTION!

Advice to user that potential
damage to equipment may occur if
the advice is not followed

NOTE: General advice or best practice

RWD Rear Wheel Drive

Reference To Additional
Documentation

FREEWHEEL LEVER DECALS

RIGHT-HAND

DECAL

LEFT-HAND

DECAL

Fig.3.1

Quicki e Tango 9

WARNING! – DO NOT TOUCH - HOT

WARNING! – DANGER OF FINGER ENTRAPMENT

THE POWER TILT MODULES ARE FACTORY FIT TED FOR

OPTIMUM STABILITY AND FOR CONFORMANCE TO STRICT

STANDARD REQUIREMENTS. CHANGING THE FITTED POSITION

OF THE MODULE CAN REDUCE THE STABILITY OF THE

PRODUCT, THEREFORE DO NOT CHANGE THIS SETTING

BATTERY LABEL

WARNING! INSTRUCTIONS AND CIRCUIT DIAGRAM

ATTACHED TO JOYSTICK

WARNING! DO NOT DRIVE YOUR WHEELCHAIR ON A

SLOPE WITH THE BACKREST RECLINED

Fig.3.2

Fig.3.3

10 Quickie Tango

10 Quickie TANG O

Ref: P19093

4.0 Safety:

If you follow the instructions given in this manual, you will

enjoy many trouble-free years of use:

WARNING!

This vehicle is not designed for use on the road except •
for crossing from one kerb to another.
Load data always refers to one single person as •
operator.
The wheelchair is authorised for use by one person or •
one seated person and their attendant if using a Dual
or Attendant control unit.

WARNINGS!

4.1 General Warnings:

Always ensure that your wheelchair is switched off •
before attempting to mount or dismount.
Always ensure that you are able to operate all controls •
from a comfortable position. Paying attention to your
posture is essential to ensure your continued comfort
and well being.
Always make sure that you can be seen clearly, •
especially if you intend using your wheelchair in poor
light.
This wheelchair has been built to match the needs of •
a particular user. If used by another user then it may

need to be adjusted and reprogrammed.

Do not let children or others use your wheelchair. •
Do not lift or hoist the wheelchair by any detachable •
parts such as leg rests, arm rests etc.

CAUTION!

4.2 Features and options:

Some of the options shown in this manual may not be
available in your country and may also restrict the overall
physical limits of the standard product (e.g. max. speed,
user weight limit, etc.). Those limitations are marked on
the order form, in the technical manual and in this owner’s
manual.

For further information please consult your Sunrise

Medical authorised dealer.

DANGER!

4.3 Preliminary checks:

You should not try to manoeuvre at full speed. •
If you have to make a sudden turn, slow down first •

using the joystick or the speed control knob.

This is very important if you are going down a hill. •
Lack of attention to this point may result in your •
overturning the wheelchair.
Always check that the wheelchair is switched off •
before trying to get in or out.
Always check that you can operate all the controls •
from a comfortable seated position. It is essential to
pay attention to posture in order to assure comfort
and well-being.
Always check that the freewheel device is switched •
off before setting the chair in motion.
Always check that you can be seen clearly, especially •
if you are using the wheelchair in conditions of low
visibility.

WARNING!

4.4 Emergency braking:

If power is cut by means of the ON/OFF button, braking

will be immediate and total. This method of stopping is not
recommended except for emergencies, since the stop will
be extremely sudden.

4.5 Kerbs, (Fig 4.1):

Always cross the road as rapidly as possible, since •
other vehicles may appear.
Do not attempt to climb or to descend from, a kerb of •
more than 100 mm. height.
Do not attempt to ascend high kerbs, steep slopes or •
cambers due to the risk of falling out of the chair or
tipping over.
Do not attempt to ascend any kerb in the vicinity of a •
drain cover, uneven surfaces, or gravel covering.
Do not attempt to descend a kerb of more than 50 mm •
in forward position.
Do not attempt to climb or descend any kerb at an •
oblique angle. Approach only at an angle of 90° with
at least 500mm run-up.

Fig.4.1

Quicki e Tango 11

4.8 Transportation in vehicles:

This product is suitable to use as a seat in vehicles as per

certificate ISO / NP 7176-19: 2001, and using the restraint
system Unwin (4 point WWR / ATF / K / R)

DANGER!

A wheelchair secured in a vehicle will not provide the
equivalent level of safety and security of a vehicle seating
system. It is always recommended that the user transfers
to the vehicle seating. It is recognised that this is not
always practical for the user to be transferred and in these
circumstances where the user must be transported whilst
in the wheelchair the following advice should be followed:

Confirm that the vehicle is suitably equipped to •
transport a passenger in a wheelchair, and ensure

the method of access/egress is suitable for your

wheelchair type. The vehicle should have the floor
strength to take the combined weight of the user, the
wheel chair and accessories.
Sufficient space should be available around the •
wheelchair to enable clear access to attach, tighten
and release the wheelchair and occupant tie down
restraints and safety belts.
The occupied wheelchair must be located in a forward •
facing position and secured by the wheelchair tie
down and occupant restraint straps (WTORS tie
downs) meeting the requirements of ISO 10542

or SAE J2249, in accordance with the WTORS
manufacturers’ instructions, (Fig. 4.3).

The wheelchair’s use in other positions within a •
vehicle has not been tested e.g. transportation in a
side facing position must not be carried out under any

circumstances. (Fig. 4.3).

4.6 Tyres:

The tyres of a wheelchair suffer wear depending on how
much the chair is used. Check them regularly, especially
for inflation pressure, according to the service instructions
in this manual.

WARNING!

NEVER inflate the tyres with the air hose of a service
station.

WARNING!

4.7 Freewheel device, (Fig.4.2):

Also see Fig.3.1

Only use this function to push the chair manually from •
one spot to another.
Keep in mind that while the freewheel system is in •
operation, the chair is without a braking system.
Disengaging the motor causes an error message to •
appear in the control, which is indicated when the
LED display flashes rapidly.

For safety reasons the wheelchair can no longer be •
moved using the joystick.

Do not operate the freewheel device whilst seated in •
the wheelchair.
The freewheel device should only be operated by a •
person who has the strength and agility to be able
to fully manoeuvre the wheelchair safely, during
freewheel.

Fig. 4.2

Fig.4.3

12 Quickie Tango

DANGER!

The wheelchair should be secured by a Tie Down •
Restraint system, conforming to ISO 10542 or SAE

J2249 with non-adjustable front straps and adjustable
rear straps, which typically use Karabiner clips/S

hooks and tongue and buckle fittings. These restraints
generally comprise of 4 individual straps that are
attached to each corner of the wheelchair.
The tie-down restraints should be fitted to the main •
frame of the wheelchair as indicated by the diagrams
in the section, Transportability Positioning of Tie down
Restraints on the Wheelchair, (next page), and not to
any attachments or accessories, e.g. not around the
spokes of wheels, brakes or footrests.
The tie–down restraints should be attached as close •
as possible at an angle of 45 degrees and tightened
securely in accordance with the manufacturer’s
instructions.
Alterations or substitutions must not be made to the •
wheelchair tie down points or to structural and frame
or components without consulting the manufacturer.

Failure to do so will invalidate the ability of a Sunrise

Medical wheelchair to be transported within a
vehicle.
Both pelvic and upper torso restraint belts must be •
used to restrain the occupant to reduce the possibility
of head and chest impacts with the vehicle components

and serious risk of injury to the user and other vehicle
occupants. (Fig.4.4) The upper torso restraint belt
should be mounted to the vehicle “B” pillar - failure

to do so will increase the risk of serious abdominal

injuries to the user.

DANGER!

A head restraint suitable for transportation (see label •
on headrest) must be fitted and suitably positioned at
all times during transportation.
Postural supports (lap straps, lap belts) should not be •
used or relied on for occupant restraint in a moving
vehicle unless they are labelled as meeting the

requirements specified in ISO / NP 7176-19: 2001 or
SAE J2249

The safety of the user during transportation depends •
upon the diligence of the person securing the tie-down
restraints and they should have received appropriate

instructions and/or training in their use.

Wherever possible remove and stow safely away from •
the wheelchair all auxiliary equipment, for example:
Crutches, Loose cushions, Tray Tables, etc.

Articulating/elevating leg rest should not be used •

in the elevated position when the wheelchair and
user are being transported and the wheelchair is
restrained using Wheelchair Transport and Occupant
Restraints.
Reclining backrests should be returned to an upright •
position.
The manual brakes must be firmly applied.•

DANGER!

4.9 Occupant Restraint Instruction:

The pelvic restraint belt must be worn low across the •
front of the pelvis so that the angle of the pelvic belt

is within the preferred zone of 30 to 75 degrees to the

horizontal.
A steeper (greater) angle within the preferred zone is •

desirable i.e.closer to, but never exceeding 75degrees.
(Fig.4.5).

Fig.4.4

Fig.4.5

Quicki e Tango 13

4.10 Transportability - Positioning of Tie down
Restraints on the Wheelchair:

The Tie Down Label indicates the position of the fixing
points for the tie down restraints on the wheelchair,

The wheelchair secured with front and rear wheelchair tie

down restraints (Fig 4.9).

Position of the Front tie down label and bracket,
(Fig.4.10).

The upper torso restraint belt must fit over the •
shoulder and across the chest as illustrated Fig 4.6
and Fig 4.7.
Restraint belts must be adjusted as tightly as possible •

consistent with user comfort.
Restraint belt webbing must not be twisted when in •
use.

Restraints should be mounted to the vehicle “B” •

pillar and should not be held away from the body by
wheelchair components such as armrest or wheels,

(Fig.4.6).
The tie down symbol (Fig.4.8) on the wheelchair •

frame indicates the position of the wheelchair restraint
straps. The straps are then tensioned after the front
straps have been fitted to secure the wheelchair.
The attachment points to the chair are the brackets on •

the front side frames, (Fig.4.10) and the brackets on
the rear of the frame, (Fig.4.12).
The straps are attached to the brackets as shown in •
Fig.11 for front and Fig.13 for rear.

Fig.4.6

Fig.4.7

Fig.4.8

Fig.4.9

Fig.4.10

14 Quickie Tango

Position of the Rear tie down restraint, (Fig.4.13).

WARNING!

4.11 EMC - Radio transmitting devices:

When operating two-way radio, walkie-talkies, C.B.,
amateur radio, public mobile radio and other powerful
transmitting devices the wheelchair should be brought to
a halt and turned off. The operation of cordless, mobile
telephones and cell phones including hands-free devices
is permitted but if abnormal operation of the wheelchair is
encountered then the chair must be brought immediately
to a halt and turned off.

Note: the electrical systems of the wheelchair may disturb
the performance of alarm systems in retail shops.

Position of the Front tie down restraint., (Fig.4.11).

Position of the Rear tie down label & bracket, (Fig.4.12).

Fig.4.11

Fig.4.13

Fig.4.12

Quicki e Tango 15

DANGER!

4.12 Sharp turns:

Full speed turns should not be attempted. If you need to
turn sharply you must reduce your speed with the joystick

or speed setting. This is particularly important when
travelling across or down a slope. Disregarding this advice
could lead to your wheelchair tipping over.

DANGER!

4.13 Weight limit:

The user plus items carried should never exceed a •
total weight of 125 kgs.
Never use this chair for weight training if the total •
weight (user plus additional weights) exceed a total
weight of 125 kgs.
Exceeding the weight limit is likely to damage the •

seat, frame or fasteners and may cause severe injury

to you or others from chair failure
Exceeding the weight limit will void the warranty •
Wheelchair motors:

4.14 Hot surfaces:

WARNING!

After prolonged use, the motors will produce heat, which
is radiated through the motors’ outer casing. Do not touch
the motors’ outer casing for at least 30 minutes after using
the wheelchair, to allow it to cool.

WARNING!

Not only motors can become hot during the operation of
the chair, the upholstery material and armrests may heat
up when standing in the sun.

DANGER!

4.15 Road caution:

Please show the utmost consideration for the other •
traffic on the road.
Remember that the last thing a car or lorry driver •
expects to see is a wheelchair backing off the kerb
into the road.
If in any doubt, do not risk crossing the road until you •
are certain that it is safe.
Always cross the road as quickly as possible; there •
may be other traffic.

WARNING!

4.16 Adverse conditions:

Please be aware that when driving your wheelchair in
adverse conditions, e.g. on wet grass, mud, ice, snow or
other slippery surfaces, you may experience a reduction
in the grip and traction of your wheelchair. We recommend
you take extra precautions in these conditions, particularly
on hills and slopes; your wheelchair could become

unstable or skid causing possible injury. Extreme

variances in temperature may trigger the self protect
mechanism in the control system. If this occurs the control
system will temporarily shut down to prevent damage to
the electronics or the chair.

WARNING!

4.17 Ramps:

When using a ramp, please ensure that it is capable •
of taking the combined weight of the power chair and
yourself.
If a ramp is being used to load a chair into a vehicle, •
please ensure the ramp is properly secured to the
vehicle.
Always approach the ramp head-on and exercise •
caution.
Please ensure your ramp is suitable for the product •
you are transporting.

WARNING!
Maximum ramp angle is 10° (18%)

4.18 Transfer to and from the chair:

Sunrise Medical recommend that you consult your
healthcare professional for assistance in developing your
personal front or side transfer technique to best suit your

needs and avoid any personal injury.

WARNING!

4.19 Anti tips:

Make sure that anti tips are not damaged or worn •
before using your chair.
Check the anti tips are functioning correctly on a •
regular basis.
Attendants must be aware of the location of the anti •
tips to prevent feet being trapped underneath causing

injury.

Attendants - Do not stand on the anti tips, this could •
cause the wheelchair to become unstable.

16 Quickie Tango

WARNING!

4.20 Use on a slope:

Your wheelchair has been designed and tested to allow its
use on slopes or gradients of up to 10° (18%).

Before attempting to climb or descend a slope or a •
kerb, caution should be taken when using weight shift

options (e.g. powered recline) of the seat and/or your

body for a counter balance weight.
To improve stability lean forward when driving uphill, •
with the seat and back in an upright position.
Alternatively sit in an upright position when travelling •
in a forward, downhill direction or recline the seat
backwards. We strongly recommend that you return
back to an upright lowered position before attempting
to climb or descend a slope.

Failure to do this may cause the wheelchair to become •

unstable.
If you are in any doubt about the capabilities of your •
wheelchair on a slope then do not attempt to drive

up or down the slope/kerb; try to find an alternative

route.

WARNING!

4.21 Gradients: ascents:

When going uphill, keep the chair moving. •
Steer by moving the joystick from side to side. •

If you have stopped on a hill, you should start slowly. •
On a RWD chair, if necessary lean forward to prevent •
the tendency for the front wheels to lift.

WARNING!

4.22 Gradients: descents:

On descents, it is important not to let the wheelchair •
accelerate beyond its normal level of ground speed.
It is safer to proceed slowly down steep descents •
(below the speed of 5kph) and stop, if any anxiety
arises regarding directional control.
If the chair picks up speed, centre the control to slow •
it or to stop all forward movement, then restart slowly
and do not allow the speed to increase.

WARNING!

4.23 Lap belt:

Before using your wheelchair ensure the Lap belt is worn

and correctly adjusted before use.

The lap belt is fitted to the wheelchair as shown in the
fitting instructions in section 5 .7. It is important that the
belt is secured around the back of the wheelchair. The
straps can be fed between the armrest and backrest.

Adjust the belt position so that the buckles are in the
centre of the seat. See section 5 .7.

Adjust the lap belt to suit the user’s needs as follows:

To increase the belt length:

Feed the belt through slide adjusters and male buckle to
provide more belt length, (Fig.4.14).

To reduce the belt length:

Feed the belt back through male buckle and slide
adjusters, (Fig.4.15).

Fig.4.14

Fig.4.15

Quicki e Tango 17

Ensure that there is no excess belt material looping out of

the male buckle, (Fig.4.16)

When fastened check space between the lap belt and

the user, when correctly adjusted it should be possible to

insert the flat of the hand between the lap belt and the

user, (Fig.4.17).

Generally the Lap Belt should be fixed so that the straps
sit at an angle of approximately 45°, and when correctly

adjusted should not allow user to slip down in the seat,
(Fig.4.18).

To fasten buckle:

Firmly push the male buckle into female buckle,
(Fig.4.19).

To release belt:

Press the exposed sides of the male buckle and push

towards the centre whilst gently pulling apart, (Fig.4.20).

WARNING!

Do not rely on the lap belt only when the wheelchair and
occupant are transported in a vehicle, use the separate
occupant lap and diagonal restraints provided in the

vehicle, (Fig 4.7).

Fig.4.19

Fig.416

Fig.4.17

Fig. 4.18

Fig.4.20

18 Quickie Tango

WARNING!

Advice to Client

The lap belt must be checked on a daily basis to ensure it

is adjusted correctly and it is free from any obstruction or

adverse wear.

DANGER!

Failure to make sure that the lap belt is secure and adjusted
prior to use could cause serious injury to the user. E.g. too

loose a strap may allow the user to slip down in the chair
and risk suffocation.

WARNING!

Maintenance:

Check lap belt, and securing components; at regular •
intervals for any sign of fraying or damage.
Replace if necessary.•
Clean the lap belt with warm soapy water and allow •
to dry.

The lap belt should be adjusted to suit the end user as •

detailed above.
Sunrise Medical also recommend that the length and •
fit of the belt is checked on a daily basis to reduce the

risk of the end user inadvertently re-adjusting the belt

to an excessive length.
If in doubt about the use and operation of the seat •
belt then ask your healthcare professional, wheelchair
dealer, carer or attendant for assistance.

WARNINGS!

The rider plus item should never exceed a total weight •
of 125 kg.
Before you use the chair, carefully check the •
functionality.
If you discover any chair malfunction, take it to be •
repaired or reset. Your dealer can help you to find the
fault and correct it.
Make sure batteries are charged. Do not use the chair •
when battery is low. The chair may come to a sudden,
unexpected stop.
Be aware that there is a point during every transfer •
when the wheelchair seat is not below you.
Use extra care when you drive your chair in reverse. •
If one of the wheels hits an obstacle, you could lose
control of the chair or fall out.
Never use your chair on a slope unless you are sure •
you can do so without losing traction.
Lift the chair only by non-detachable parts of the main •
frame.
Never short-circuit electrical connections as you could •
cause an explosion.
Do not use this chair if any of the tyres are under or •
over-inflated.
When using mobile phones you should switch off the •
chair to avoid causing electromagnetic radiation.

Quicki e Tango 19

5.0 Assembly:

5.1. Footrest (Fig. 5.0-5.1):

The footrests can be swung away by pulling the release
lever back towards the seat and pushing the hanger
outwards. To remove the footrest, activate the release
lever, rotate the footrest approximately 90° outwards and
then pull it out upwards. To refit the footrest follow the
reverse procedure and the lock engages automatically
when swung inward.

5.2. Armrest (Fig. 5.2):

Slide the armrest tube into the receiver of the wheelchair
and turn the lever to the right to secure it. If you require a
different individually fixed armrest height, you can set this

using the adjusting screw on the connecting tube.

Fig.5.0

Fig.5.1

5.3. Anti-tip wheels (Fig.5.3):

These are mounted when the wheelchair leaves the
factory. The anti-tip wheel tube is welded to the motor
retaining plate of the wheelchair frame.
Note: Anti-tips wheels may interfere with kerbs when

mounting or dismounting. Follow the instructions in
sections 6.13 & 6.14.

WARNING!

Never use the wheelchair without the anti-tip wheels
fitted.

5.4. Kerb climber (Fig. 5.4):

The left and right mounting plates for the Kerb •
Climber Tube (1) are fixed onto the inside of the
frame using the mounting plates, nuts and bolts
provided.
Next fit the Kerb Climber Tube, starting on the left •
hand side and fitting the end of the tube into the
round socket on the left-hand mounting plate.
Then fit the right-hand end into the square socket on •
the right mounting plate and pass the quick release
pin through it (2).

Fig.5.3

Fig.5.4

Fig.5.2

1

1

2

20 Quick ie Tango

5.5. Batteries (Fig.5.5):

Also see Chapter 9.0 for detail.

Remove the Battery cover by gently levering out the •
plastic clips with a flat bladed screwdriver.
Undo the the Velcro® securing strip.•
Undo the GREY plug that connects the two batteries •
together.
Remove the battery nearest to you by sliding it out.•
Go to the front of the wheelchair and locate the power •

module just beneath the centre of the seat pan.

Disconnect the middle plug.•
Return to the rear of the wheelchair and slide the •
second battery out.

5.6. Wheels (Fig.5.6 & 5.7):

If it is necessary to remove the wheels, to repair a
damaged tyre for example, proceed as follows:

WARNING!

All wheels are safety critical items. If you are unsure about
performing these tasks, please contact your approved
Sunrise Medical dealer.

Front castor wheel (Fig.5.6):

Use a 6 mm. Allen wrench & 13.0mm spanner to •

remove the wheel axle from the fork.
Remove the damaged wheel.•
When the wheel has been repaired, follow the reverse •
procedure to refit.
Tighten the axle to a torque of 19 Nm.•

Rear drive wheel (Fig.5.7):

Loosen the 4 studs with a 5.0mm. Hexagonal socket •
wrench, (Allen Key) and 13.0mm spanner.
Elevate the wheel using blocks.•
Remove the studs & damaged wheel. •
When it has been repaired, follow the reverse •
procedure to refit.
Tighten the 4 studs to a torque of 25Nm•

Note: The rear wheels are designed as separate rims
and can be disassembled to simplify changing the tube
or tyre.

Fig.5.6

Fig.5.7

Fig.5.5

Quicki e Tango 21

WARNING!

The Lap Belt is a safety critical item. If you are unsure
about fitting it, please contact your approved Sunrise
Medical dealer.

5.7. Fitting The Lap Belt :

1) Remove Lap belt from bag, (Fig.5.8).

2) Fix the lap belt to the backrest bracket using the hole
provided, (Fig.5.9).

3) The Lap Belt should look like this when fitted,

(Fig.5.10),

Fig.5.9

Fig.5.8

Fig.5.10

5.8 Crutch Holder, (Fig.5.11):

WARNING!

Ensure that the crutch is securely fastened to the •
crutch holder.
Ensure that the crutch is not interfering with the •
mechanisms of the chair.
Ensure that the crutch does not protrude from the •
chair.
Do not attempt to remove the crutch whilst the chair •
is in motion.
Always come to a complete stop and turn off the power •
to the controls before attempting to remove the crutch.
This will avoid accidentally operating the chair.

5.9 Lights and indicators, (Fig.5.12):

Ensure that the lights and indicators are functioning
correctly and lens are clean before going outdoors at
night.
Lights assemblies can become very hot - Care must be
taken if removing them for repair.

NOTE: Please contact your local Sunrise medical
approved servicing agent for any warranty, service or
repair work required.

Fig.5.11

Fig.5.12

22 Quick ie Tango

6.0 Using The Wheelchair:

WARNING!

Parts of the wheelchair are heavy. Please use correct
lifting techniques.
If you are unsure about lifting or removing any assemblies,
or performing any other task requiring physical effort, get
someone to help you who can manage the task.

6.1 Preparing for stowed transportation:

Remove the batteries as described in section 5.5 and
Chapter 9.0
To lift the batteries please use the handles on the webbing
cradle surrounding the batteries.
Ensure that the cushion, back, kerb climber are removed
or folded & foot plates are flipped up or removed.
To lift the chair please use the upper parts of the side
frame tubes.

6.2 To use the wheelchair again:

Reverse the above procedure ie;
Put the cushion, kerb climber, backrest & foot rests back
in place.
Refit the batteries.

WARNING!

Never lift the wheelchair by the armrests or foot rests,
since they are detachable parts and harm could be done
to the user or to the wheelchair.

6.3 Mechanical Fixed Reclining back (-3° to 12°):

(Fig. 6.1):
The backrest can be adjusted in 3° increments by

removing the two star knobs. To reposition, choose the
required back angle, insert the two star knobs again and
tighten.

6.4 Manual Reclining back (-3° to 30°) with gas strut:
(Fig.6.2):

The backrest angle can be adjusted without tools by
pressing the lever as shown in fig 6.2. To fix the required
back angle just release the lever. The gas strut offers

some force to support the upwards movement.

6.5 Powered Reclining back (-3° to 30°)

(Fig. 6.3):
The backrest can be adjusted through the joystick or the
Quickie Direct Actuator Control.

Press the actuator mode button to swap into the actuator

mode. Moving the joystick forwards brings the backrest
forward, moving the joystick backwards moves it into the
opposite direction. A left or right joystick movement will

select other seat actuator functions. Press the actuator
mode button again to return to drive mode.

WARNINGS!

Reclining backs:

For safety reasons never remove the anti-tip wheels.•

In order to avoid any malfunction in the cable, you •
must ensure that the cables are not completely taut.

When adjusting the back angle, be careful not to get •

your fingers caught.

Fig.6.1

Fig.6.2

Fig.6.3

Quicki e Tango 23

6.6 Fixed Seat Tilt:

The seat can be tilted and set manually within a range of

0° to 9° (Fig.6.4).

Undo the 2 studs.•
Move the seat to the desired tilt angle.•
Replace and tighten the 2 studs.•

6.7 Manual seat tilt:

The manual seat tilt option allows tilt up to 25°, (Fig.6.5).
To operate the tilt;

Squeeze the tilt actuator lever located on the back •
brace.
Use the push handles to move the seat to the desired •
tilt angle.
Let the lever go.•
The seat tilt locks in place automatically. •

Fig.6.4

TILT

ADJUSTER

STUDS

6.8 Powered seat tilt:

The seat can tilt up to 25 degrees by operating it through

your control system or the Quickie Direct Actuator

Control.

CAUTION!

Operating the powered tilt greater than 9 degrees from
its lowest position will bring the chair into ‘creep mode’,
allowing slow speed driving only.

To operate the powered tilt:
Push the mode button to select actuator mode.

Operate the joystick left or right to select the actuator

required (actuator 1 or actuator 2). Selection is indicated

via the lighting of the orange LED adjacent to the desired

actuator number.

Operate the joystick in the forward or rearward direction to

move the tilt forward or backward.

Release the joystick when the desired angle is reached.

To return to drive mode, press the actuator button again.

Once the seat is fully tilted or in its lowest position do not

hold the joystick in its operat ing position as this could

damage the actuator.

Fig.6.5

SEAT TILT

ACTUATOR

LEVER

24 Quickie Tang o

6.9 Powered Height-adjustable legrests:

The legrests can be adjusted via the joystick.

Press the actuator mode button to select Actuator Mode.

Moving the joystick forwards brings the legrests up,
moving the joystick backwards brings them down.
A left or right joystick movement will select other seat

actuator functions.
Press the actuator mode button again to return to drive
mode.

6.10 Manual Height-adjustable footrests:

To Operate:

Loosen the actuator wheel to free the leg rest. •
Grip the leg rest & move it to the required position. •
Tighten the actuator wheel . •
The leg rest will now be locked in the chosen •
position.

WARNING!

Keep hands clear of the adjustment mechanism •

between the frame and moving parts of the footrest

during adjustment.

Leg rests must not be used for lifting or carrying the •
wheelchair under any circumstances.

6.11 Slopes (Fig.6.8):

The following instructions explain how to manoeuvre
correctly on steep ramps and slopes, especially in the
course of descent.

WARNING!

If your chair has a powered seat tilt, powered recline •
or manual recline back, we strongly recommend that
you bring the backrest into an upright position and set
the seat tilt to the level position.
If you stop on an incline, start off slowly and, if •
necessary, lean forward to counteract the tendency of
the front wheels to rise.
On descents it is important not to allow the wheelchair •
to exceed normal speed. Indeed, the safest course is
to go down steep hills slowly and to stop immediately
if you have any doubts about the steering.

If the chair gathers speed, move the joystick to its •

central position to slow down, or stop completely.
Start off again slowly and do not allow speed to •
increase. Make sure the automatic brakes are
engaged.
Climbing or descending a slope with the automatic •
brakes disengaged can be dangerous.

6.12 Transfers (Fig.6.9):

Always position the wheelchair close to the place where
the transfer will be carried out. It is important

that the controller is turned OFF, so that the wheelchair

will not move throughout the procedure.
The wheelchair is highly stable owing to its weight. Do not
stand up on the footrests at any time during the transfer.

Fig.6.8

Fig.6.9

Fig. 6.6

Fig. 6.7

Quicki e Tango 25

6.13 Freewheel device (Fig. 6.10):

Push the lever on each motor inwards so that it is in the
freewheel position. Each drive wheel will turn freely. If you
wish to push the wheelchair with the motors off, you should
follow this procedure with both wheels. When the levers
are pushed outwards, the drive wheel will automatically

connect with the propulsion mechanism. Follow this

procedure with both wheels.

6.14. Tyre pressure:

It is important to check inflation pressure regularly, along
with the state of wear of the tyres. The maximum pressure

recommended for the front wheels is 36 psi (2.5 bars),
while for the rear wheels it is 40 psi (2.7 bars).

WARNING!

Never inflate the tyres with a service station air pump. It is
recommended that you use a manual pump or a pressure
regulator (manometer).

6.15 Blank

6.16 Mounting a kerb or step (Fig. 6.11):

Always approach a kerb at 90 degrees,
Approach the kerb (step) head on driving forwards slowly
and steadily and always at a 90 degrees angle.

As the kerb climber or castor makes contact with the kerb
(step), the wheelchair should be moving slowly. Small
kerbs can be climbed from a standstill.

Apply sufficient power to the motors to lift the front of the
chair up onto the kerb (step) and then apply slightly more
power and speed so that the drive wheels climb the kerb
(step) smoothly and without hesitation. As far as possible,

keep the joystick in the straight forward position.

In accordance to the ground clearance, the maximum
obstacle height possible to climb is 5 cm (10 cm with kerb
climber).

WARNING!

The approach speed and process can vary depending on
your wheelchair performance and castor wheel choice.

6.17 Dismounting the kerb (Fig. 6.12):

Reverse the chair slowly and carefully until both rear •
wheels are on the edge of the kerb, again in a 90
degrees position to the kerb.
Reverse as slowly as possible off the kerb with the •
rear wheels. You will feel more secure if you can lean
forward, but if you can’t, don’t worry, the wheelchair
is extremely stable. As long as you stay within its
limitation, you will be quite safe.
The front of the chair will naturally follow down the •
kerb as you continue to drive slowly backwards.

Fig. 6.10

Fig. 6.12

Fig. 6.11

26 Quick ie Tango

7.0 VR2 Control System (Fig.7.1):

Your wheelchair is controlled by the Joystick. This

regulates the power & speed of the wheelchair.

The Joystick determines the speed and direction of the

wheelchair.

7.1 On/Off button:

The On/Off button applies power to the control system

electronics, which in turn supply power to the wheelchair’s
motors.

WARNING!

Do not use the on/off button to stop the wheelchair unless

there is an emergency. (If you do you may shorten the life
of the wheelchair drive components).

7.2 Battery Level Indicator:

The battery gauge shows you that the wheelchair is
switched on. It also indicates the status of the wheelchair.

Refer to Fig.7.1.

7.3 Locking/unlocking the wheelchair:

The VR2 control system can be locked to prevent
unauthorised use. The locking method is via a sequence of

key presses and joystick movements as detailed below.

To lock the wheelchair;

While the control system is switched on, depress and •
hold the On/Off button.
After 1 second the control system will beep. Now •
release the On/Off button.
Deflect the joystick forwards until the control system •

beeps.

Deflect the joystick in reverse until the control system •

beeps.

Release the joystick, there will be a long beep.•
The wheelchair is now locked.•

To unlock the wheelchair;

Use the On/Off button to switch the control system on. •
The maximum speed/profile indicator will be rippling

up and down.

Deflect the joystick forwards until the control system •

beeps.

Deflect the joystick in reverse until the control system •

beeps.

Release the joystick, there will be a long beep.•
The wheelchair is now unlocked.•

WARNING!

To avoid unexpected or unintentional movement of
the wheelchair and to conserve battery power, it is
recommended that the control system is switched Off

when drive or seating adjustments are not being used.

Battery level indicator

On/Off button

Horn

Maximum
Speed
Profile
indicator

Speed or
Profile
buttons

Joystick

Fig. 7.1

Quicki e Tango 27

7.4 Operating the control joystick:

When engaging the main On/Off button, allow a few
seconds prior to moving the joystick. This allows the
system to self check. If you move the joystick too soon,

the battery level indicator display will not illuminate until

the joystick is released.
If the joystick is off centre at the time of switching on, after

5 seconds a system error will occur.
Whilst this is not harmful to your wheelchair, you will need
to switch off and then back on to clear the system.
Note: This is a safety feature to prevent unintended
movement.

Proportional control summary:

Steering.

To steer the chair simply move the joystick knob in the
desired direction. The further you move the joystick from

the central position, the faster the wheelchair will travel in

the direction the joystick is pushed.

Look ahead while you drive, not at the controls.

Stopping.

When the joystick returns to its central position, the brakes

will activate automatically.

Braking Distance.

On flat ground, braking distance is approximately equal to
the length of the wheelchair. Going downhill the braking
distance may be slightly longer.

Forward/Reverse.

WARNING!

It is important that you stop the wheelchair before you
change direction from forward to reverse.

WARNING!

Always turn the controller off before you transfer in or out
of the wheelchair.

7.5 Maximum speed/prole indicator:

This is a gauge which shows the maximum speed setting
for the wheelchair or if the control system is programmed
for drive profile operation, the selected drive profile. This
gauge also indicates if the speed of the wheelchair is
being limited or if the control system is locked.

7.6 The horn button:

The horn will sound while this button is depressed.

7.7 Speed/Prole decrease button:

This button decreases the maximum speed setting or, if the
control system is programmed for drive profile operation,
selects a lower drive profile.

7.8 Speed/Prole increase button:

This button increases the maximum speed setting or, if the
control system is programmed for drive profile operation,
selects a higher drive profile.

Remember that only with practice will you become a

competent driver. Find a safe, hazard free environment to

practice controlling the wheelchair and familiarise yourself
with the controls and functions.

7.9 Actuator button and LEDs:

Depending on whether your wheelchair is fitted with one
or two actuators the operation of this button will differ.

Wheelchairs with one actuator:

Depressing the actuator button will enter actuator

adjustment mode. This will be indicated by the illumination
of both actuator LED’s. Actuator adjustment can then be
made by deflecting the joystick forwards or backwards. To

re-enter drive mode, depress either actuator button.

Wheelchairs with two actuators:

Depressing the actuator button will enter actuator

adjustment mode. Depressing the button once illuminates
the left LED, and deflection of the joystick will adjust the

actuator motor connected to that channel. If the right button
is depressed the associated LED will be illuminated, and

deflection of the joystick will adjust the actuator motor

connected to the other channel.
To re-enter drive mode, depress the selected actuator
button, as indicated by the associated LED.
It is also possible to select the other actuator by left or

right movements of the joystick.

28 Quicki e Tango

7.10 VR2-L

There are common controls between the VR2 and the
VR2-L control systems where a control differs it will be
described below. All common controls can be found on
the previous page.

Lights and indicators:
The wheelchair can be equipped with lights and indicators.
Where lights are not factory fitted, they may be fitted as an
optional extra by an approved Sunrise Medical authorised
dealer.

WARNING!

Ensure that the lights and indicators are functioning
correctly and lenses are clean before going outdoors at
night.

Indicators:
To turn on the wheelchairs indicators operate the required
button either left or right, the associated LED will also
illuminate continuously.
If the LED flashes rapidly either a total short circuit, a
single lamp open circuit or a total open circuit in the left or
right indicator circuit has been detected.
Depress the indicator button to turn off the indicator and
the associated LED.

Main lights:
To turn on the wheelchairs lights operate this button, the
associated LED will illuminate continuously.
If the LED flashes a short circuit in the lighting circuit has
been detected.
Depress the light button to turn off the lights and the
associated LED.

Hazard warning lights:
To turn on the wheelchairs hazard warning lights operate
this button, the associated LED will flash at the same rate.
The left and right turn indicator LEDs will also flash.
If the LED flashes rapidly either a total short circuit, a
single lamp open circuit or a total open circuit in the entire
indicator circuit has been detected.
Depress the hazard warning button to turn off the lights
and the associated LED.

Actuator button and LEDs:
Depending on whether your wheelchair is fitted with one
or two actuators the operation of this button will differ.

Wheelchairs with one actuator
Depressing the actuator button will enter actuator

adjustment mode. This will be indicated by the illumination
of both actuator LED’s. Actuator adjustment can then be
made by deflecting the joystick forwards or backwards. To

re-enter drive mode, depress either actuator button.

Wheelchairs with two actuators
Depressing the actuator button will enter actuator

adjustment mode. Depressing the button once illuminates
the left LED, and deflection of the joystick will adjust the

actuator motor connected to that channel. If the right button
is depressed the associated LED will be illuminated, and

deflection of the joystick will adjust the actuator motor

connected to the other channel.

To re-enter drive mode, depress the selected actuator
button, as indicated by the associated LED.
It is also possible to select the other actuator by left or

right movements of the joystick.

LIGHTSHAZARD

LIGHTS

INDICAT O RS

ACTUATOR

BUTTON

ACTUATOR

LED’S

Fig. 7.2

Quicki e Tango 29

7.11 Charging and programming socket:

(Fig.9.10)

WARNING!

This socket should only be used for programming and •
charging the wheelchair.
This socket should not be used as a power supply for •
any other device.
Connection of other electrical devices may damage •
the control system or affect the EMC performance of
the wheelchair.

See Section 9.0 about charging.

The programming socket will enable an approved Sunrise
Medical authorised dealer to re-programme your chair
and also gain useful information when tracing any faults.
When the chair leaves the factory, the parameters of the
controller are set to default.
To programme the controller you need a special
programming device (handheld or PC software), which is
available to your Sunrise Medical authorised dealer.

WARNING!

Programming the controller of the wheelchair is only
allowed through authorised personnel trained by Sunrise
Medical. Incorrect controller settings could cause driving
outside the safe limits and could result in damage or

injury.

Note: Sunrise Medical does not accept responsibility
for damages which result from unexpected movement
or stopping of the wheelchair due to inappropriate
programming or unauthorised use of the wheelchair.

7.12 VR2 dual control unit:

7.13 Control button and indicator:

This shows which joystick has control. If the red wheelchair
light is on the wheelchair occupants joystick has control. If

the green attendant light is on the dual attendant systems

joystick has control. The button is used to transfer control
between the two choices, (Fig.7.4).

7.14 Actuator button and LED:

All VR2 dual attendant systems have an actuator button
fitted as standard. If the VR2 is programmed with no

actuators then this button has no function, (Fig.7.4).

Wheelchairs with one actuator:

Depressing the actuator button once will enter actuator

adjustment mode. This will be indicated by the illumination
of both actuator LED’s. Actuator adjustment can then be
made by deflecting the joystick forwards and backwards.

To re-enter drive mode, depress either the actuator button
or the speed button.

Wheelchairs with two actuators:

Depressing the actuator button will enter actuator

adjustment mode. Depressing the button once illuminates
the left LED and deflection of the joystick forwards or
backwards will adjust the actuator connected to that

channel. Selection between the two actuators is achieved

by deflecting the joystick to the left and right. As the actuator

selected changes so will the LED which illuminates. Left
for actuator 1 and right for actuator 2.
To re enter drive mode, depress either the actuator button
or the speed button.

Control panel

Joystick

VR2 Dual Control Unit

Fig. 7.3

Control
button &
Indicator
LED’s

Actuator

button

Speed

indicator

Maximum

speed button

Fig. 7.4

VR2 Dual Control Unit

30 Quick ie Tango

7.15 Maximum speed button and indicator:

This shows the maximum speed setting for the wheelchair
when the dual attendant system has control. There are
five settings - setting 1 is the slowest speed and setting 5
is the highest speed. The speed setting is changed with

the speed button, (Fig.7.4).

If the control system is programmed for drive profile

operation, then the dual attendant system speed adjuster
will only adjust the speed within the selected profile.

Changing between drive profiles can only be achieved

using the VR2 main joystick.

WARNING!

To avoid unexpected or unintentional movement of
the wheelchair and to conserve battery power, it is
recommended that the control system is switched Off

when drive or seating adjustments are not being used.

Note: Always move the chair with care.
If the programming of the attendant drive profile (s) needs

adjustments to make it more convenient for the attendant
and/or the person sitting in the wheelchair, please contact

your Sunrise Service agent for adaptation.
If the direction of movement of the directional attendant
control needs to be altered, please contact your authorised
Sunrise Medical dealer for adaptation.

WARNING!

Do not attempt to program the wheelchair yourself.
Always consult a qualified health care professional.
Contact your Sunrise medical approved dealer for details.

7.16 Quickie Direct Actuator Control Box:

The direct actuator switches can operate any factory
approved actuator. Operation is dependent on what
options are fitted to your wheelchair. To operate the leg
rest, seat tilt or backrest recline;
Push the toggle switch for the relevant actuator forward

until you reach the required angle/height.

Release the toggle switch and the actuator will stop.

When the actuator reaches its maximum/minimum position

do not hold the toggle switch in its operating position as

this could damage the actuator. (Fig. 7.5).

Fig. 7.5

Quicki e Tango 31

8.0 Troubleshooting The VR2 Hand Control:

Always consult your Sunrise Medical authorised dealer
when a diagnostic fault has appeared on your hand
control.

The battery gauge and maximum speed/profile indicator
show the status of the control system, (Section 7.0,
Fi g. 7.1).

Battery Gauge is steady - This indicates that everything
is OK.

Battery Gauge flashes slowly - The control system is
functioning correctly but the batteries need charging as
soon as possible.

Battery Gauge steps up - The wheelchair batteries are
being charged. You will not be able to drive the wheelchair
until the charger is disconnected and you have switched
the control system off and on again.

Battery Gauge flashes rapidly (even with the joystick

released)
The control system safety circuits have operated and
the control system has been prevented from moving the
wheelchair.

This indicates a system trip. i.e. the VR2 has detected a
problem somewhere in the wheelchairs electrical system.

Switch off the control system.•
Make sure that all connectors on the wheelchair and •
the control system are mated securely.
Check the condition of the battery.•
If you can’t find the problem, try the self help guide on •
the next page.
Switch on the control system again and try to drive •
the wheelchair.
If the safety circuits operate again, switch off and do •
not try to use the wheelchair.
Contact your Sunrise Medical authorised dealer.•

Self help guide, (Fig.8.1).

See next page.
If a system trip occurs you can find out what has happened
by counting the number of bars on the battery gauge that
are flashing.
Go to the number on the list which matches the number of
flashing bars and follow the instructions.
Slow or sluggish movement - If the wheelchair does not
travel at full speed or does not respond quickly enough
and the battery condition is good, check the maximum

speed setting. If adjusting the speed setting does not

remedy the problem then there may be a non hazardous
fault. Consult your Sunrise Medical authorised dealer.

Speed/Profile Indicator ripples up and down - This

indicates the control system is locked, refer to section 7.3

for details on how to unlock the control system.

Speed/Profile Indicator flashes - This indicates that the
speed of the wheelchair is being limited for safety reasons.
The exact cause will depend on the build of the chair but
usually indicates that the seat is elevated.

Actuator LED flashes - This indicates that the actuators
may be inhibited in one or both directions.

32 Quicki e Tango

Fault code Possible cause

An excessive voltage has been applied to the control system. This is usually caused by a poor
battery connection. Check the battery connections.

+ S

S = Speed indicator LED’s

A communication fault is indicated. Make sure that the joystick cable is securely connected

and not damaged.

+ A

A = Actuator LED’s
An actuator trip is indicated. If more than one actuator is fitted, check which actuator is not
working. Check the actuator wiring.

Fault code Possible cause

The batteries need charging, or there is a bad connection to the battery. Check the connections to
the battery. If the connections are good, try charging the batteries.

The left hand motor has a bad connection. Check the connections to the left hand motor.

The left hand motor has a short circuit to a battery connection. Contact your Sunrise Medical
authorised dealer.

The right hand motor has a bad connection. Check the connections to the right hand motor.

The right hand motor has a short circuit to a battery connection. Contact your Sunrise Medical
authorised dealer.

The wheelchair is being prevented from driving by an external signal. One possibility is that the
battery charger is plugged in.

A joystick fault is indicated. Make sure that the joystick is in the centre position before switching on

the control system.

A control system fault is indicated. Make sure the control system connections are secure.

The parking brakes have a bad connection. Check the parking brake and the motor connections.
Make sure that the control system connections are secure.

Fig. 8.1

Quicki e Tango 33

9.0 Batteries and Charging:

WARNING!

Please read the owner’s manual supplied with the charger
carefully. The general procedures and effects for the
interference with the chair and the batteries remain valid.

WARNING!

Do not expose any part of the battery to direct heat (i.e.
naked flame, gas fire).

WARNING!

When charging always place your charger on a hard
surface in a room with good ventilation.

WARNING!

You should not charge your batteries in outdoor
conditions.

9.1. Battery & Charger Specication:

Batteries:

24 V (2x12 V) / 40 Ah., Gel Type-maintenance-free
Dimensions: 197 x 165 x 170 mm
Capacity at the discharge time 34 Ah/5 h
Optional 24 V (2x12 V) / 50 Ah., Gel Type-MF

Dimensions: 197 x 165 x 170 mm
Optional 24 V (2x12V) / 50Ah Gel Type MF

Dimensions: 228 x 139 x 235mm

Charger:

Connector: 3 pin “Cannon” type

Charger: 24 Vd.c. 8 A

9.2 Electrical fuses:

To prevent the wheelchair from becoming overloaded,
fuses been built into the battery looms. The fuses
automatically isolate the battery from the wheelchair
wiring and control systems in the event of an electrical
short circuit.
If you suspect that the fuses have blown, contact your
Sunrise Medical authorised dealer as soon as possible,
who will carry out a full diagnostic to determine the cause
of the original the fault.

WARNING!

Do not attempt to change the fuses yourself.
Do not attempt to by-pass the fuse as this would be very
dangerous.
Contact your Sunrise Medical authorised dealer as soon
as possible.

9.3 Batteries (Fig. 9.1 - 9.9):

Also see next page.
The batteries are installed under the Battery Box Cover
located at the rear of the wheelchair.
To remove the batteries:

Remove the Battery cover by gently levering out the •
plastic clips with a flat bladed screwdriver.
Undo the the Velcro® securing strip.•
Undo the GREY plug that connects the two batteries •
together.
Remove the battery nearest to you by sliding it out.•
Go to the front of the wheelchair and locate the power •

module just beneath the centre of the seat pan.

Disconnect the middle plug.•
Return to the rear of the wheelchair and slide the •
second battery out.

DANGER!

Do not short circuit the battery terminals. Remember that

spanners or jewelry are conductive and if dropped across
the battery terminals may cause severe burns and/or

explosion!

WARNING!

Batteries are heavy. Use correct lifting techniques •
when removing them from the wheelchair and from
the battery boxes.
Always use the handles or straps provided to lift the •
batteries.

To refit the batteries please reverse the above procedure.

Fig. 9.1

34 Quic kie Tango

Fig. 9.2

Fig. 9.4

Fig. 9.6

Fig. 9.8

Fig. 9.3

Fig. 9.5

Fig. 9.7

Fig. 9.9

SIDE CLIPS

INNER CLIPS

Quicki e Tango 35

9.4 General battery information:

Batteries are the power source for almost all of the modern
mobility products available today. The design of batteries
used in mobility products is significantly different to the
batteries used to start a car for example. Car batteries are
designed to release a large amount of power over a short
period of time, whilst mobility batteries (commonly called
deep cycle batteries) release their power evenly, over a
long period of time. Therefore, due to the lower production
volumes and increased technological requirements,
mobility batteries are typically more expensive.
Commonly two 12 volt batteries are used together in a
mobility product, giving a total voltage of 24 volts. The
size of the battery (e.g. its available power) is expressed

in amps per hour e.g. 80 A/hr. The higher the number, the

bigger the battery size, weight and, potentially, the greater
the distance you can travel. Sunrise Medical only fit as
standard maintenance-free batteries into these types of
wheelchairs.

9.5 Maintenance-free batteries:

This type of battery uses a method of carrying the
electrolyte commonly referred to as ‘gel’, that is held within
the battery case. As the name implies, no maintenance
is required other than regular charging. You can safely
transport this type of battery without fear of acid spilling.

Furthermore, they are approved for transportation on

aircraft, trains and ships.

9.6 Battery care:

Below is set out a battery care plan for maintenance-free
batteries. This has been agreed between Sunrise Medical
and the battery manufacturers, to enable you to get the
best out of your batteries. If a different care plan is followed,
this may result in lower than expected performance from
your mobility vehicle.

9.7 Maintenance-free battery care plan:

Only use an approved Sunrise Medical charger •
compatible with the vehicle to be charged.
Charge your batteries every night, regardless of the •
amount of use your mobility device has had during the
day.
Do not interrupt the charging cycle.•
If your mobility device is not required for use, it should •
remain connected to the charger until required. This
will not damage your batteries, as long as the mains

socket/plug is left switched on. Turning the mains
socket/plug off, but leaving the mains cable plugged

in will eventually deplete your battery charge.
If you leave your vehicle for an extended period (more •
than 15 days) charge the batteries fully and then
disconnect the main battery lead.

Failure to allow for recharge will damage the batteries •

and can lead to shortened distances and premature
failure.
Do not top up the charge of your batteries during the •
day. Wait until the evening for a full overnight charge.
As a general rule, maintenance-free batteries take •
longer to fully charge than lead acid batteries.
The battery terminals need to be checked regularly for •
signs of corrosion. If any corrosion is apparent, then
clean the terminals completely (a wire brush is ideal)
and re-grease the terminal using Vaseline petroleum

jelly, not ordinary grease. Ensure that the terminal nut

and bolt, cable clip and exposed cable are completely

covered with jelly.
Following all the points above should result in a •

healthier battery, greater range for the vehicle user
and a longer life for your batteries.
Return the batteries back to Sunrise Medical or directly •
to the battery manufacturer for recycling, when they
no longer hold charge.

BATTERY CONNECTOR

CONTROLLER CONECTOR

YELLOW

YELLOW

RED

RED

BLACK

LABEL

LABEL -

BATTERY WIRING DIAGRAM

Fig. 9.10

36 Quick ie Tango

9.8 General charger information:

The external charger has been designed to charge two
12 V Gel type batteries connected in series (= 24 V).

9.9 Charger Specication:

WARNING!

Only use chargers for cyclic batteries, Gel-Type with

24V/8A output nominal max.

For more information about the charger

operation, consult the instructions provided with
the charger.

Note: If the charger is not connected to the control it does
not output charge voltage.

WARNING!

It is possible that the charger’s metallic box may slightly
raise in temperature due to use.

9.10 Charger safety features:

The chargers have features which prevent hazards or
accidents occurring as a result of connecting batteries the
wrong way round, overheating caused by fault conditions
or attempting to charge wrong voltage batteries.

The majority of charger sizes are electrically double

insulated and no earth connection is required. Some
larger sizes may be electrically earthed and this will be
clearly stated on the label.
The 3 pin UK mains input plug contains a replaceable fuse.
The rating of this fuse is shown on the charger label.

WARNING!

Always replace with the same type and size of fuse as

specified. Fitting of different fuses can result in damage to

the charger or failure of the charger to operate properly.

If your charger has been specified for use in Continental
Europe it will contain a European two pin plug which does
not have a fuse. In this case the fuse is located in the
fascia panel of the charger.

9.11 Procedure for connecting the charger and
charging:

The wheelchair can be charged via the charger socket •
at the front of the VR2 remote control, (Fig. 9.11).
Ensure the VR2 is s• witched off.

First, connect the charger to the VR2.•

Then, connect the charger to the mains supply by •
means of the mains plug and switch on.
Do not leave the charger connected to the battery •
with the mains disconnected or switch ed off. This
could result in damage to your battery being caused
by deep discharge over a period of time.
Always switch off at the mains before disconnecting •
the batteries.

9.12 Charger safety and caution notes:

WARNING!

The charger is designed for indoor use. Do not use •
outdoors or expose to rain, snow, spray or moisture.
When buying replacement batteries or charger always •
consult your Sunrise Medical service agent.
The charger may be used with other brands of Gel •

type batteries, subject to written confirmation from the

Technical Department of Sunrise Medical.

Fig. 9.11

Quicki e Tango 37

9.13 The range of your vehicle:

The batteries give the chair a range of approximately 25
kilometres. Most manufacturers of mobility products state
the range of their vehicles either in the sales literature or
within the Owner’s Manual. The range stated sometimes
differs from manufacturer to manufacturer even though
the battery size is the same. Sunrise Medical measure
the range of their vehicles in a consistent and uniform
manner, but variances still occur due to motor efficiencies
and overall product load weight.

The range figures are calculated to I.S.O. Standard 7176.

Part 4: Wheelchair Energy Consumption Theoretical
Range.

This test is carried out in controlled conditions with new, fully
charg ed batteries, on a level test surface and a user weight of
100 kg. The range figures stated should be seen as a
theoretical maximum and could be reduced if any single,
or combination, of the following circumstances occur:

User weight heavier than 100 kg.•
Batteries whose age and condition are less than •
perfect.
The terrain is difficult e.g. very hilly, sloping, muddy •
ground, gravel, grass, snow and ice.
The vehicle climbs kerbs regularly.•
The ambient temperature is very hot or very cold.•
Incorrect tyre pressures in one or more tyres.•

Lots of start/stop driving.•

Also thick pile carpets within the home can affect •
range.
Use of additional power consumption options (e.g. •
light, actuators, etc.).

The battery sizes available on each Sunrise Medical
product should give sufficient range to cope with the

majority of customer’s lifestyles.

9.14 Common battery statements:

Over the years, battery technology has moved forward
but, unfortunately, some of the advice given on battery
care has not. This has resulted in a number of confused
and at times contradictory instructions on the ‘best’ way to
care for your batteries.
This section will help to dispel some of these myths and
legends.

To reduce the risk of damage to electric plug and cord,
pull by the plug rather than the cord when disconnecting
the charger. Make sure the cord is located so that it will

not be stepped on, tripped over or otherwise subjected

to damage or stress. An extension cord should not be
used unless absolutely necessary. Use of an improper
extension cord could result in a risk of fire and electric
shock. If any extension cord must be used, make sure the
pins on the plug of the extension
cord are the same number, size and shape as those of
the plug on the charger; and that the extension cord is
properly wired and in good electrical condition.

38 Quick ie Tango

Fig. 10.1

Seat width adjustment (Fig. 10.4):

To adjust the width between the armrests, use a size 10.0

mm spanner to loosen the hexagonal bolts on the armrest
adapter retainers, which are located on the side frame
below the armrests, and pull the armrests outwards or
inwards to achieve the desired position. Tighten the bolts
securely. Make sure that the bolts are secured with the
locking-nuts.

10.4 Seat depth adjustments:

(Fig. 10.5). Remove the 2 bolts on the backrest brackets

1 for each side of the frame, using a 5.0mm Allen key
and 13.0mm spanner. Move the backrest into the seat
depth position required. Put the bolts back and tighten
them up. To compensate for the armrest position, use a

combination of the bolt adjustment under each armpad

and swapping the armrest retainers from left to right, to
achieve a forward or rearward bias.

There are 4 Seat depths; 42.5, 45, 47.5, 50mm.
The Four adjustments are:

42.5mm: Armrest retainer forward biased and •
armpad fixed fully forwards.
45mm: Armrest retainer forward biased and armpad •
fixed in the fully backwards position.

47.5mm: Armrest retainer rearward biased and •

armpad fixed fully forwards.
50mm: Armrest retainer rearward biased and armpad •
fixed in the fully backwards position.

10.0mm
Bolts

Fig. 10.4

10.0 Adjustments:

10.1 Adjustment of the footrest (Fig. 10.1):

To adjust the height of a footrest:

Loosen the screw, using a 4.0mm Allen key and set the
footrest at the height desired, then tighten the screw in
the hole.

Note: Make sure that the screws are tightened securely.

10.2 Width Adjustment of the footrests:

To adjust the width between the footrests, use a size

10.0 mm spanner to loosen the hexagonal bolts on the

adjustable footrest frame. These are located at the front of

the seat frame. Pull the footrests outwards or inwards to
achieve the desired position. Tighten the bolts securely.
Make sure that the bolts are secured with the locking­nuts.

10.3 Adjustment of the armrests:

Height adjustment (Fig. 10.3):

Set the screw in the hole of the armrest tube that
corresponds with the desired height. Turn the handle
clockwise to tighten.

Screw on
Inside

Handle

Fig. 10.3

Fig. 10.2

WIDTH

ADJUSTEMENT

BOLTS

Quicki e Tango 39

10.5 Control Adjustment (Fig. 10.6):

The control can be adjusted to various positions by

pushing it along the armrest. The control can be moved
by turning the lever below the arm pad anti-clockwise,
reposition the controller and secure by turning the lever
clockwise to tighten.

WARNING!

Do not replace the joystick knob with any unauthorised •

item. It may cause hazardous operation and loss of
control of the chair.

It is important that the joystick boot is replaced if it is •

torn or brittle; failure to do so could cause substance
damage to the controller and unexpected movement
of the chair.
Ensure that you always have comfortable access to •
the controls whilst the chair is moving and make sure
that the controller is fixed securely to the chair.

10.6 Dual/Attendant control:

WARNING!

Ensure that you set the speed of the attendant control •
to a speed that you can comfortably follow.
Always turn off the power to the controller when leaving •
the user in the chair. (See sections 7.11 - 7.15).

10.7 Parallel swing-away control (Fig.10.7):

WARNING!

Before adjusting the swing-away arm, switch off the •

controller to avoid accidental displacement of the

joystick which would cause unwanted movement of

your wheelchair.
Keep your fingers and clothing, etc. clear while •
operating the swing-away mechanism.
Be aware that the width of your chair has increased •
if the swing-away arm is out and you may not get
between certain obstacles.
Do not hang any items on or over the parallel swing-•
away remote assembly as this could damage the
swing-away mechanism.
When transferring to and from the wheelchair do not •
use the remote as a means of support.
Keep fingers, clothing, etc. clear of the swing-away •
mechanism at all times.

Ensure the power is switched off while adjusting the •

parallel swing-away arm.
Only operate the wheelchair at low manoeuvring •
speed when the parallel swing-away is in use,

(Fig.10.6).

10.8 Programming:

When the chair leaves the factory, the parameters of the
controller are set to default. However, if any alterations
are required, then you should contact your dealer, where
a specialist can carry out this work.

Note: A programmer or a PC-based software program
with the appropriate connecting lead are required to
program the wheelchair.

WARNING!

Never attempt to programme the wheelchair yourself.

WARNING!

Programming the controller of the wheelchair is only
allowed through authorised personnel trained by Sunrise
Medical. Incorrect controller settings could cause driving
outside the safe limits and could result in damage or

injury.

Fig. 10.6

Fig. 10.7

Fig. 10.5

40 Quick ie Tango

11.0 Cleaning:

11.1 Cleaning General:

The wheelchair should be wiped over once per week •
with a slightly damp, not wet, cloth and any fluff or
dust that has accumulated around the motors should
be blown or dusted away.
Make sure that you dry all parts of your wheelchair if it •
becomes wet or damp after cleaning or if it is used in
a wet or damp atmosphere.
It is important that should the wheelchair be used •
by more than one person it is cleaned thoroughly to
ensure there is no cross infection. You should use
a proprietary disinfectant for this task. Please pay
attention to the manufacturer`s instructions of the
disinfectant you are using.

Inspect the upholstery/seating for tears, dents, •

wearing or slackening of upholstery particularly near
to metal as this could result in poor posture or lower
levels of comfort and pressure relief.

11.2 Cleaning seating:

All parts/accessories such as swing-away trays should be

cleaned with a damp cloth.
All lateral supports, headrest, armrests, side-guards, calf
pads, lap belts and kneepads should be cleaned with a
damp cloth.

CAUTION!

Do not use a hose or a pressure washer to clean

your chair.

11.3 Cleaning control system:

Clean the control system and the joystick with a cloth

dampened with diluted detergent. Be careful when

cleaning the joystick.

CAUTION!

Never use abrasive or spirit based cleaners.

11.4 Speciality controls:

Ensure that joysticks (all variants) are cleaned with a

mild disinfectant and a cleaning cloth to avoid any cross
infection possibilities.

WARNING:

Ensure the controller is switched off before cleaning.

12.0 Shipping & Storage Requirements:

12.1 Storage temperature & humidity:

Storage Temperature: Min: - 40ºC Max: 65ºC

Relative Humidity ( non-condensing): Min:5% Max: 95%

12.2 Special shipping requirements:

The wheelchair may be transported by road, rail, sea or
air and the batteries conform to IATA regulations.

CAUTION!

Before you travel, please contact the appropriate carrier.
The travel operator will be able to supply details of any

special requirements/instructions.

Ensure that any detachable parts are secured with •
your mobility aid or separately packed and labelled
so they do not get lost during loading and unloading.
Take this Owner’s Manual with you.•
The carrier will need to refer to the following •
sections.

How to lock/unlock the Joystick, • (Section 7.3).
How to disconnect the batteries, •
(Section 9.3, Fig.9.1 to 9.9).
How to disconnect the drive,• (Section 6.10).

12.3 Medium to long term storage:

When storing your wheelchair for long periods of time (in
excess of one week), follow these simple instructions:

Fully charge the wheelchair for at least 24 hours.

Disconnect the batteries or battery boxes.

WARNING!

Never store your wheelchair;

Outside.•
In direct sunlight, (plastic parts may discolour).•
Near a source of direct heat.•
In a damp environment. •
In a cold environment.•

With the batteries/battery boxes connected, (even if •

the controller is switched off).

Avoiding all of the above will minimise battery deep cycle
discharge and extend battery lifetime.
When returning the wheelchair to use, please reconnect

the batteries/battery boxes and charge the wheelchair for

at least 24 hours before use.

13.0 Disposal:

The symbols below mean that in accordance with local
laws and regulations your product should be disposed
of separately from household waste. When this product
reaches the end of its life, take it to the local collection point
designated by local authorities. The separate collection
and recycling of your product at the time of disposal will
help conserve natural resources and ensure that it is
recycled in a manner that protects the environment.

Ensure you are the legal owner of the product prior to
arranging for the product disposal in accordance with the

above.

Quicki e Tango 41

Model: Quickie Tango

14.0 Specification sheets (EN 12184 & ISO 7176-15)

Sunrise Medical S.L.
Polígono Bakiola, 41
48498 Arrankudiaga – Vizcaya
España
Tel.: [phone]

Fax: [phone]

www.sunrisemedical.com

Operating temperature: - 25°C to 50°C

Storage temperature: -40°C to 65°C

Moisture resistance: IPx4
No restrictions on humidity and air pressure

Maximum occupant mass
(test dummy mass): 125 kg

The wheelchair Quickie

Tango conforms to the
following standards:

a) requirements and test
methods for static, impact
and fatigue strengths

(ISO 7176-8)

b) power and control systems
for electric wheelchairs
requirements and test

methods (ISO 7176-14)

c) climatic test in accordance

with ISO 7176-9

d) requirements for
resistance to ignition in
accordance with

ISO 7176-16

e) the product is specified as
a Class B power chair

f) all materials used on this
product conform to EN1021
parts 1 and 2.

ISO 7176-15 MIN. MAX. COMMENTS

Overall length (Inc. Leg rest) 1070mm 110 0mm 70° hangers

Overall width 580mm 600mm (12.”-14” wheels)

Total mass (with batteries) 85kg 100kg

Mass of the heaviest part - 16.5kg Heaviest removable part

Static stability downhill - 20° 3° tilt + 3° recline

Static stability uphill - 14° 3° tilt + 3° recline

Static stability sideways - 18° 3° tilt + 3° recline

Energy consumption (max. range) - 25km 6kph motor & 100kg user

Dynamic stability uphill - 10° Max. Safe Slope = 10°

(18%)

Obstacle climbing (with kerb climber) 50mm (100mm)

Max. speed forward 6kph

Min. brake distance from max. speed - - Depends on programming

Seat plane angle (set with tools) 0° 9° 3° Increments

Effective seat depth 425mm 500mm 25mm increments

Effective seat width (400m m) 500mm (Using pads)

Seat surface height at front edge - 450mm @ 3°Seat angle

Back rest angle -3° 12° Set with tools

Back rest height 450mm 500mm 25mm increments

Footrest to seat distance 290mm 460mm

Leg to seat surface angle 110° -

Armrest to seat distance 270mm 355mm 7mm increments

Front location of armrest structure 370mm 390mm

Min. turning radius 900mm 70° Hanger

Nominal battery voltage 24V

Battery cut-off voltage 16V

Battery fusible links - 150A In-line fuse on each battery

Quickie direct actuator control box

fusible link

- 6.3A 5x20mm Schurter fuse

Mass of test dummy - 125kg

EN 12184 MIN. MAX. COMMENTS

Max. kerb height 50mm (100mm) (With kerb climber)

Ground clearance 80mm 90mm 12” - 14” wheels

Turning space/Reversing width 1300 mm -

Speed control operation force 2N

Direction control operation force 1N

42 Quickie Tango

15.0 Guarantee:

SUNRISE MEDICAL guarantees this product for two
years as from the date indicated on the invoice, receipt

or delivery note. For products containing batteries, the
battery warranty is 6 months. This warranty covers parts

in need of replacement, labour and transport.

In warranty claims the user must submit the product and
the purchase invoice as proof of delivery date.

This warranty does not cover:

NORMAL WEAR AND TEAR, e.g. on upholstery, tyres,
inner tubes, rims, wheels, fabric, etc.
ACCIDENTS, e.g. bent structures, scratches, flat tyres,
etc.
IMPROPER USE and damage caused by users who
weigh more than the weight limit indicated in the user’s
manual.

LACK OF MAINTENANCE and failure to follow the

conservation instructions in the user’s manual.

MODIFICATIONS or REPAIRS carried out by persons not

authorised by Sunrise Medical.
PRODUCTS WITH NO INVOICE OR SERIAL NUMBER
(when appropriate).

Life Expectancy
We estimate a life expectancy of 5 years for this product,
provided that:
It is used in strict accordance with the intended use as set
out in this document.
All service and maintenance requirements are met.
The estimated life expectancy can be exceeded if the
product is carefully used and properly maintained.
The life expectancy can also be considerably reduced by
extreme or incorrect usage.

The fact that we estimate a life expectancy for this product
does not constitute an additional warranty.

Servicing Agents Only:

Any parts required should be obtained from Sunrise
Medical only either through our web site or by direct contact
with our Customer Service or Service department.
Do not used unauthorized parts or carry out unauthorised
modifications.

16.0 Service Advice-Service History:

This section is designed to assist you in keeping a record
of any service and repairs to your wheelchair. The service
Agent will complete this section and return the manual to
you.

NOTE: Please contact your local Sunrise medical
approved servicing agent for any warranty, service or
repair work required.

Model
Serial Number

Year

1 2 3 4

Service dates
Controller
On/Off switch
Output plug
Operation

Dynamic braking

Programmable conguration

Batteries
Physical Damage
Connections
Discharge tests
Wheels/Tyres
Wear
Pressure
Bearings
Whel nuts
Motors
Wiring
Noises
Connections
Brakes
Brushes
Freewheel Device
Chassis
Condition
Steering
Upholstery
Seat
Back
Armrests
Electric's
Condition of loom
Connections
Test run
Forward
Reverse

Emergency stop

Left run
Right run

Up/Down slope

Over obstacle
Parking brake

DEALER STAMP

Quicki e Tango 43

17.0 Performance checks:

After performing any maintenance or repairs on the
wheelchair you must make sure that it is functioning
correctly before it is used.

Visually inspect the wheelchair to make sure the •
legrests, armrests etc are correctly positioned and
attached to the wheelchair and all fasteners are
sufficiently tightened.
Make sure that the backrest is correctly fitted and •

adjusted.

Make sure that all of the cushions are in place.•
Switch on the hand control – Do the lights flash? This •
signifies that there is a fault in the electronic system.
Refer to section 8.0 for basic troubleshooting.
Perform the parking brake check.•
Operate all of the electric options, including lights •
and indicators (if fitted) to make sure that they work
co r rectl y.
Drive the wheelchair in each of the drive profiles, (if •
installed), to make sure the wheelchair performs as it
did before.

WARNING!

If you are in any doubt about the performance requirements
of your wheelchair contact your Sunrise Medical authorised
dealer.

NOTE: Only the tasks in the GREEN boxes below should
be attempted by the user. If you are in any doubt, please
contact your Sunrise Medical authorised dealer.

17.1 Re-use

Due to its construction the Tango is ideal for inside use
(low seat height, compact dimensions) as well as outside

use, (lights, 40Ah/50Ah batteries, etc.).

Its high level of flexibility, due to the number of possible

adjustments, and the modular platform technology

(modular construction system) make the Tango ideal for
re-use.
Individual modules (seat tilt in space, backrest angle

adjustment) can be fitted and removed very quickly and

within the seating system there are a range of possibilities

so that individual adjustments can be made to suit the end

user.
Optional mounting of the operating unit on the left or right
side of the chair, with the possibility of changing later, and

adjustable distance from the backrest.

Maintenance and Inspection Schedule

Daily

Weekly

Quarterly

Six month

Annually

Check battery level indicator and charge if necessary.

¯

Check the joystick of the hand control is not bent or damaged.

¯

Ensure all removable parts are securely fastened.

¯

Check lapstrap for wear and make sure the buckle is operational.

¯

Parking brake test.

¯

Check tyres and inflate.

¯

Ensure the fasteners on the seat depth adjustment are tight,

¯

Ensure all cables and connectors are sound and are tidy and out of the way.

¯

Clean wheelchair and upholstery.

¯

Battery terminal inspection – Remove any corrosion and apply Vaseline.

¯

Check upholstery, seating, headrests, armpads and calfpads for wear.

¯

Complete inspection, safety check and service should be made by a
Sunrise Medical authorised dealer.

¯

Ref: P19093

OM_TANGO_EU_EN_Rev1.0_23_02_2011

Sunrise Medical GmbH & Co.KG
Kahlbachring 2-4

69254 Malsch/Heidelberg

Germany

Tel.: [phone]
Fax: [phone]

www.sunrisemedical.com

Sunrise Medical Limited
High Street Wollaston
West Midlands DY8 4PS
England

Tel.: [phone]

www.sunrisemedical.com

Sunrise Medical S.L.
Polígono Bakiola, 41
48498 Arrankudiaga – Vizcaya
España
Tel.: [phone]

Fax: [phone]

www.sunrisemedical.com

Sunrise Medical S.A.
13, Rue de la Painguetterie

37390 Chanceaux sur Choisille
France
Tel.: [phone]
Fax: [phone]

www.sunrisemedical.com

Sunrise Medical Srl
Via Riva 20, Montale
29100 Piacenza (PC)
Italy

Tel.: [phone]
Fax: [phone]

www.sunrisemedical.com

Sunrise Medical A.G.
Lückhalde 14

3074 Muri bei Bern

Switzerland
Tel.: [phone]

Fax: [phone]

www.sunrisemedical.com

Sunrise Medical AS
Rehabsenteret
1450 Nesoddtangen
Norway

Tel.: [phone]
Faks: [phone]

www.sunrisemedical.com

Sunrise Medical AB
Britta Sahlgrens gata 8A

421 31 Västra Frölunda

Sweden

Tel: [phone]
Fax: [phone]

www.sunrisemedical.com

Sunrise Medical B.V.
Groningenhaven 18-20
3433 PE Nieuwegein
Nederlands

Tel.: [phone]
Fax: [phone]

www.sunrisemedical.com

G2 A/S
Graham Bells Vej 21-23 A

8200 Arhus N
Denmark

Tel.: [phone]
Fax: [phone]

www.G2.dk
