Quickie QM-7 Series Service Manual
©2012 Sunrise Medical Inc.
120938 Rev B
Quickie QM-7 Series Service Manual Contents
C
Introduction and Basic Setup
Motor - Drive Gear engaged 0.2
Motor - Free-wheel 0.2
Section 1
Multimeter Tutorial 1.1
The Multimeter 1.1
The Probes 1.1
The Ports 1.1
Multimeter Symbol Defi nition 1.2
Health and Safety 1.3
Battery Safety 1.3
Battery Chargers 1.5
EMI Warnings 1.5

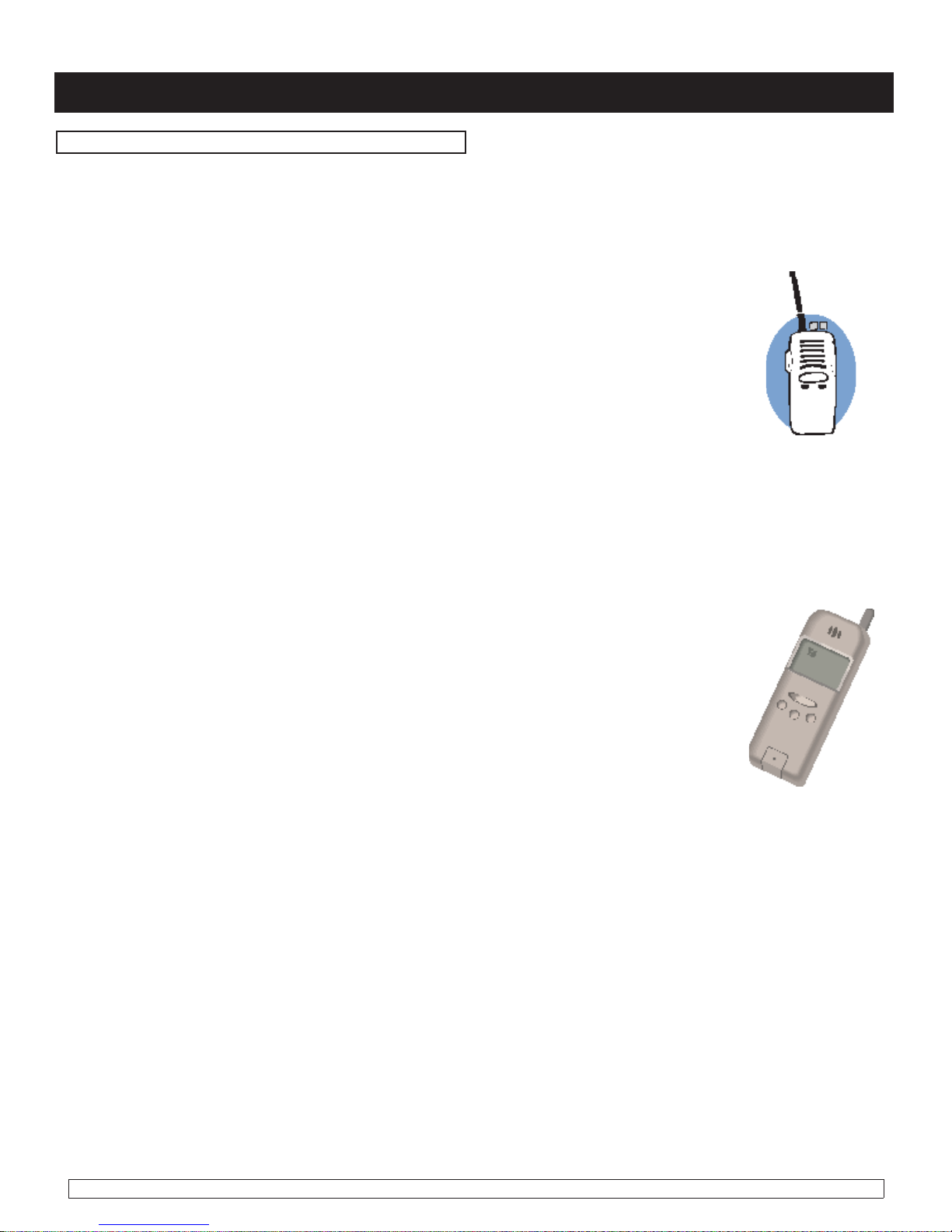

Sources of EMI 1.6
Cautions for circuit boards 1.7
Battery Types 1.8
Battery Size 1.8
Battery Installation 1.8

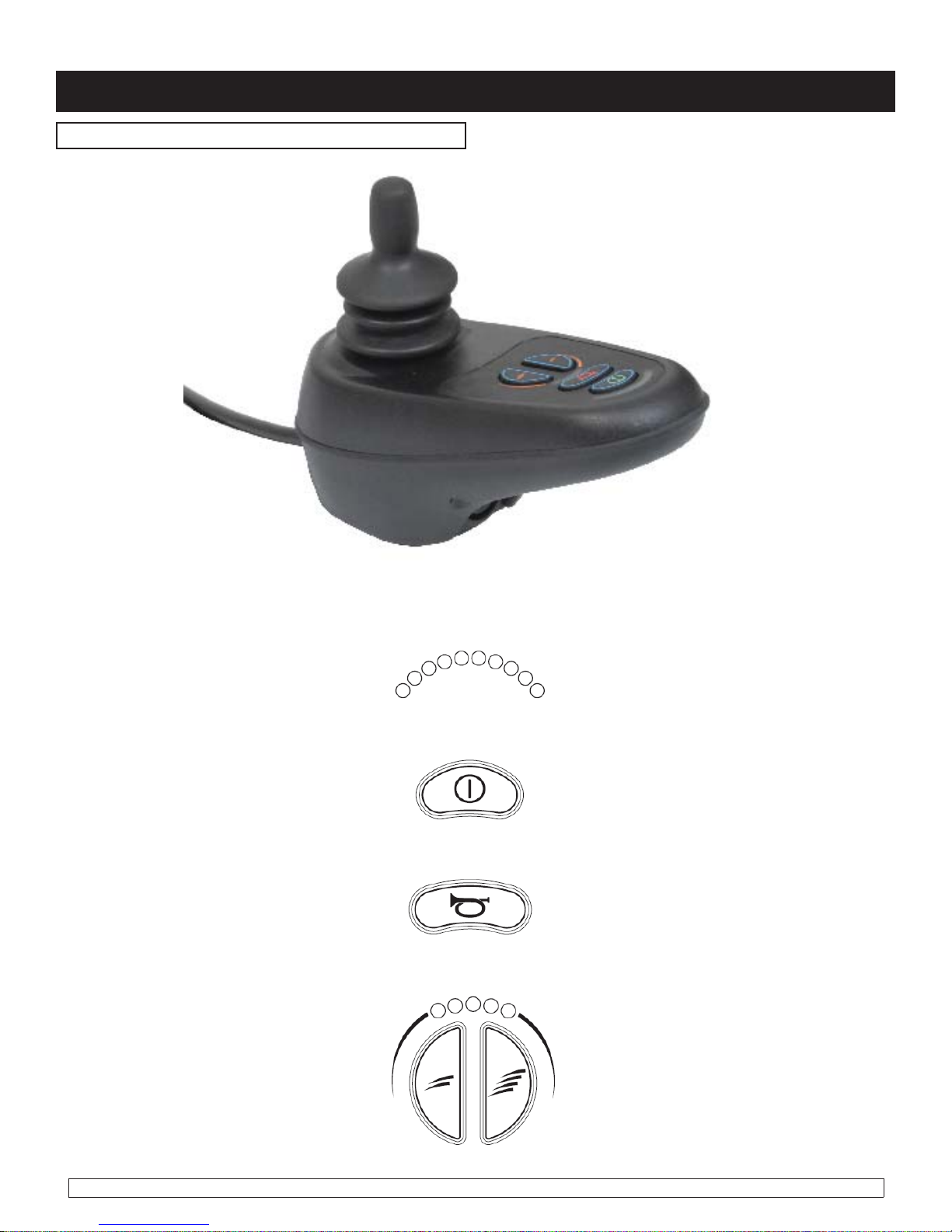

VR2 Remote Controller 1.9
VR2 Plugs and Connectors 1.10
R-NET LED Remote Controller 1.11
R-NET Remote Controller w/Display 1.12
R-NET Plugs and Connectors 1.13
QM-7 Series Modules 1.14
Section 2

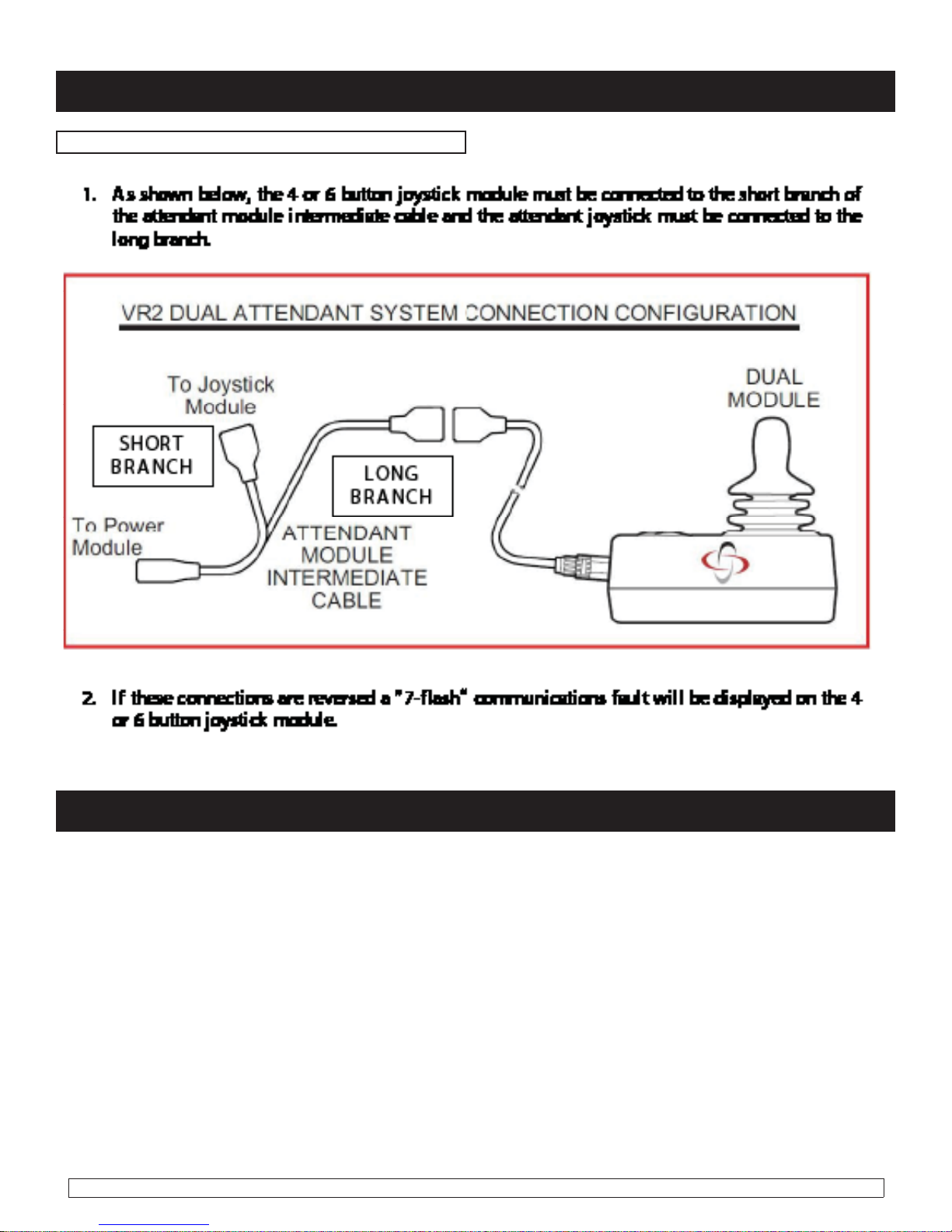

VR2 Dual Attendant System 2.1
Basic Tool List

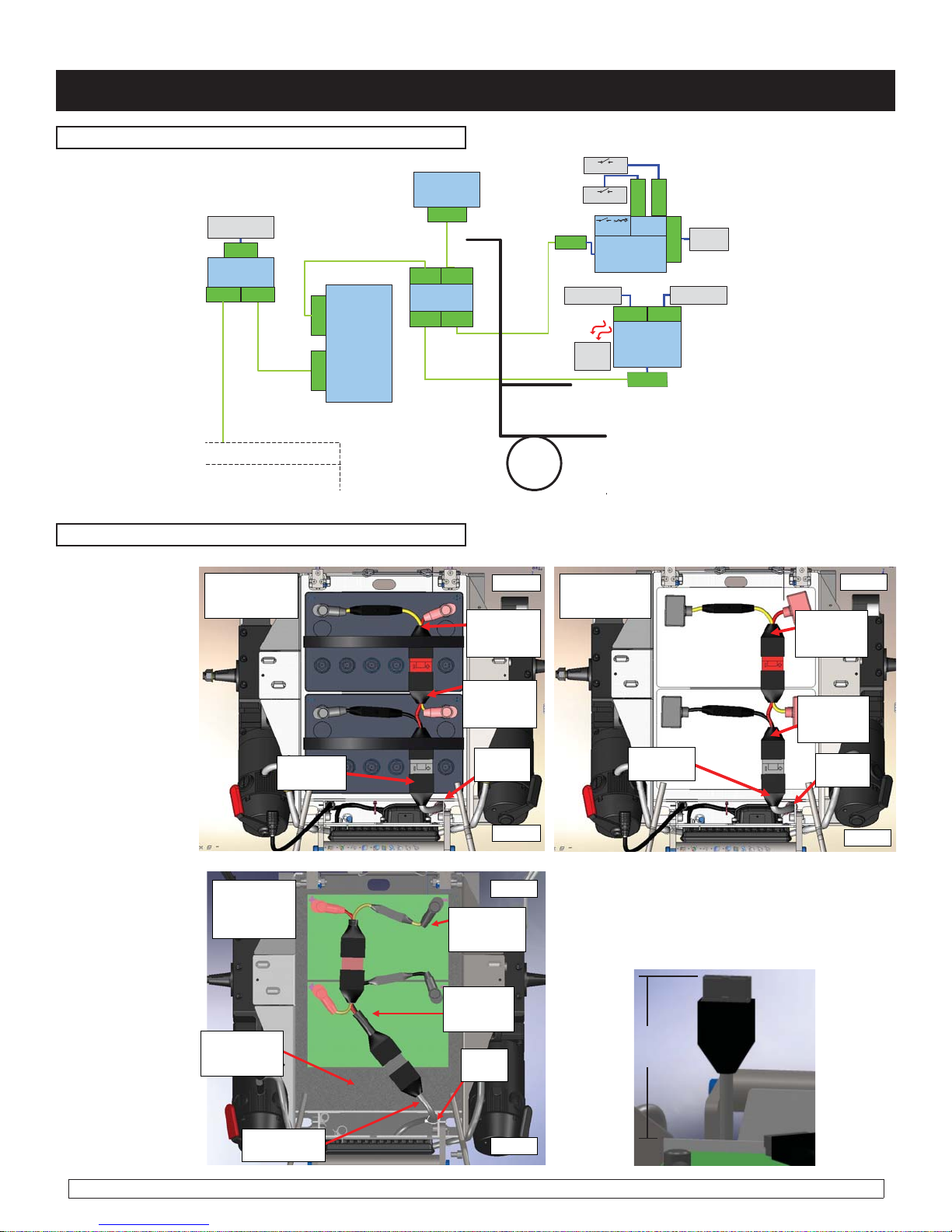

VR2 Main Wiring Diagrams 2.2
Power Module Connections VR2 2.2
Power Module Connections R-Net 2.3
Switch Operating System VR2 & R-NET 2.4

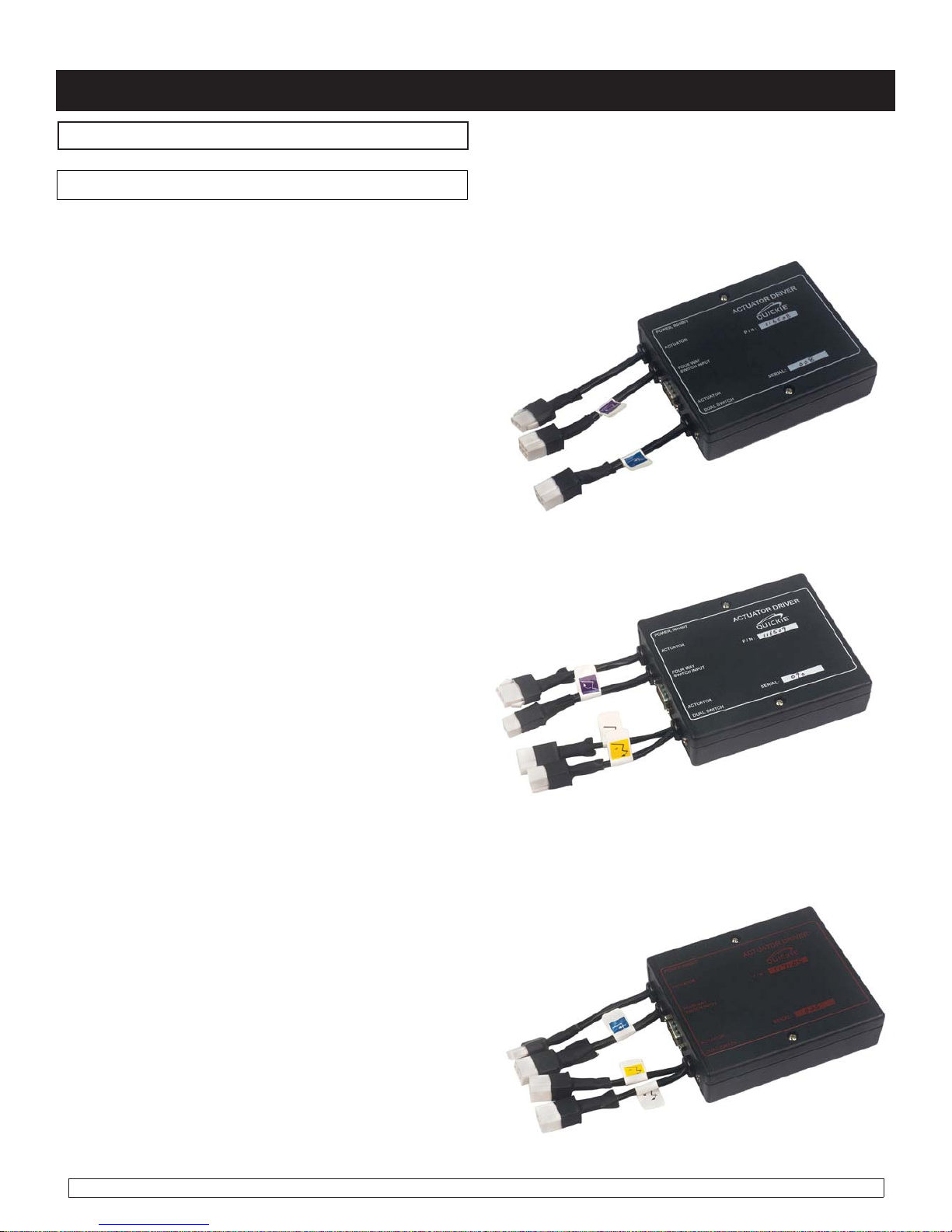

3 Axis Actuator Drivers VR2 and R-NET 2.5
2 Axis Actuator & Thru-Drive VR2 and R-NET 2.6
R-NET Multi Actuators 2.7
R-NET Specialty Controls 2.8
Batteries 2.8
Section 3
VR2 Troubleshooting 3.1
No power: Battery Diagnostics 3.1
Battery Servicing and Replacement 3.1
Battery Tests 3.1
Battery Connection Test 3.2
Check Battery Wire Harness 3.2
VR2 Remote Controller Display 3.3
The Maximum Speed Indicator Ripples 3.3
How to Lock or Unlock the Wheelchair 3.3
The Maximum Speed Indicator Flashes 3.3
Battery Gauge is Steady 3.3
Battery Gauge Flashes Slowly 3.3
Battery Gauge Steps Up. 3.3
Battery Gauge Blinks Every 2.5 Seconds 3.3
Battery Gauge Flashes Rapidly 3.3

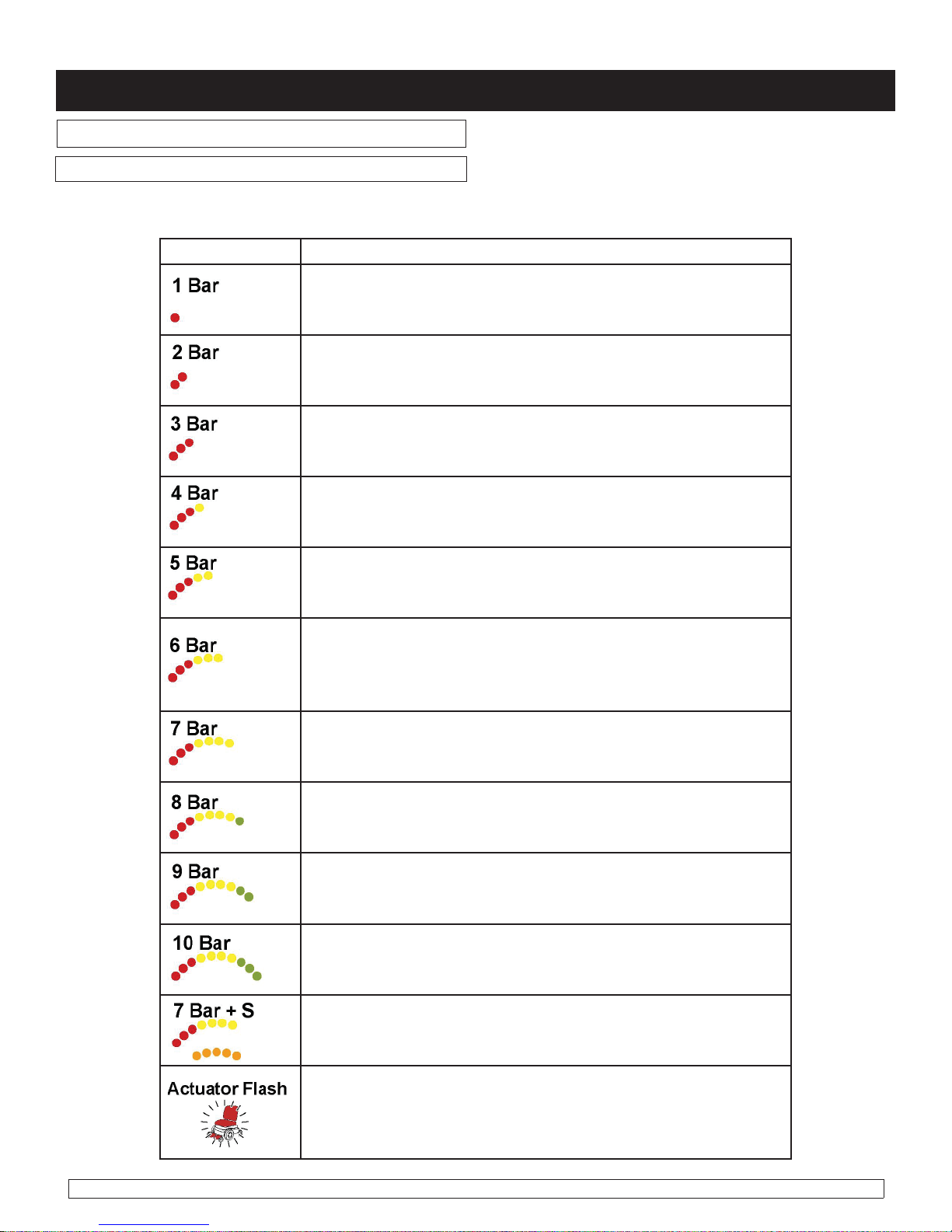

Troubleshooting with VR2 Diagnostic Codes 3.4
One Bar - Low Battery Voltage 3.4
Two Bars - Left Motor Disconnected 3.4
Three Bars - Left Motor Wiring Trip 3.5
Four Bars- Right Motor Disconnected 3.5
Five Bars - Right Motor Wiring Trip 3.6
Six Bars - Charger Connected 3.7
Seven Bars - Possible Joystick Trip 3.7
Seven Bars + Speed Profile Indicator error 3.7
Eight Bars - Possible Control System Trip 3.7
Nine Bars - Solenoid Brake Trip 3.8
Ten Bars - High Battery Voltage 3.8
Battery Fault 3.8
Section 4
R-net Troubleshooting 4.1
Chair Will Not Power Up 4.1
Battery Voltage Tests 4.3

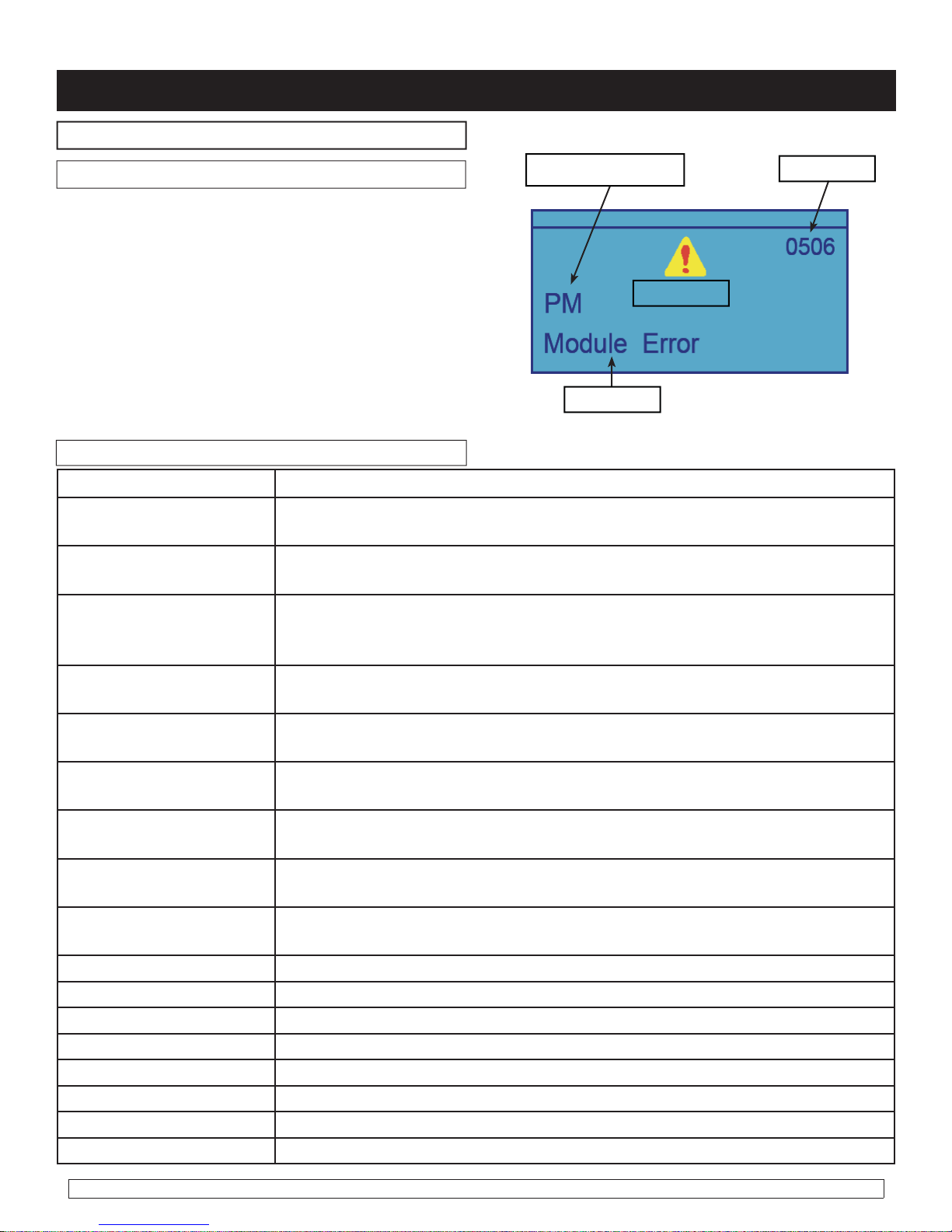

R-net Fault Codes 4.4
Fault Codes for Hand Control or Omni 4.4
Table 1- Error Codes & Corrective action 4.4
Table 1- R-NET Error Codes (Cont.) 4.5
Fault Codes from LED Battery Gauges 4.6
Table 2- Hand control Fault Codes 4.6
Example of R-10 Fault Isolation 4.7
Power Chair Will Not Drive Full Speed 4.7
Chair Won't Drive in Creep Speed When Tilted 4.9
Tilt/Lift Will Not Operate 4.10
Section 5
Battery Testing with R-NET Controller 5.1
Section 6
Motor/Gearbox Inspection 6.1

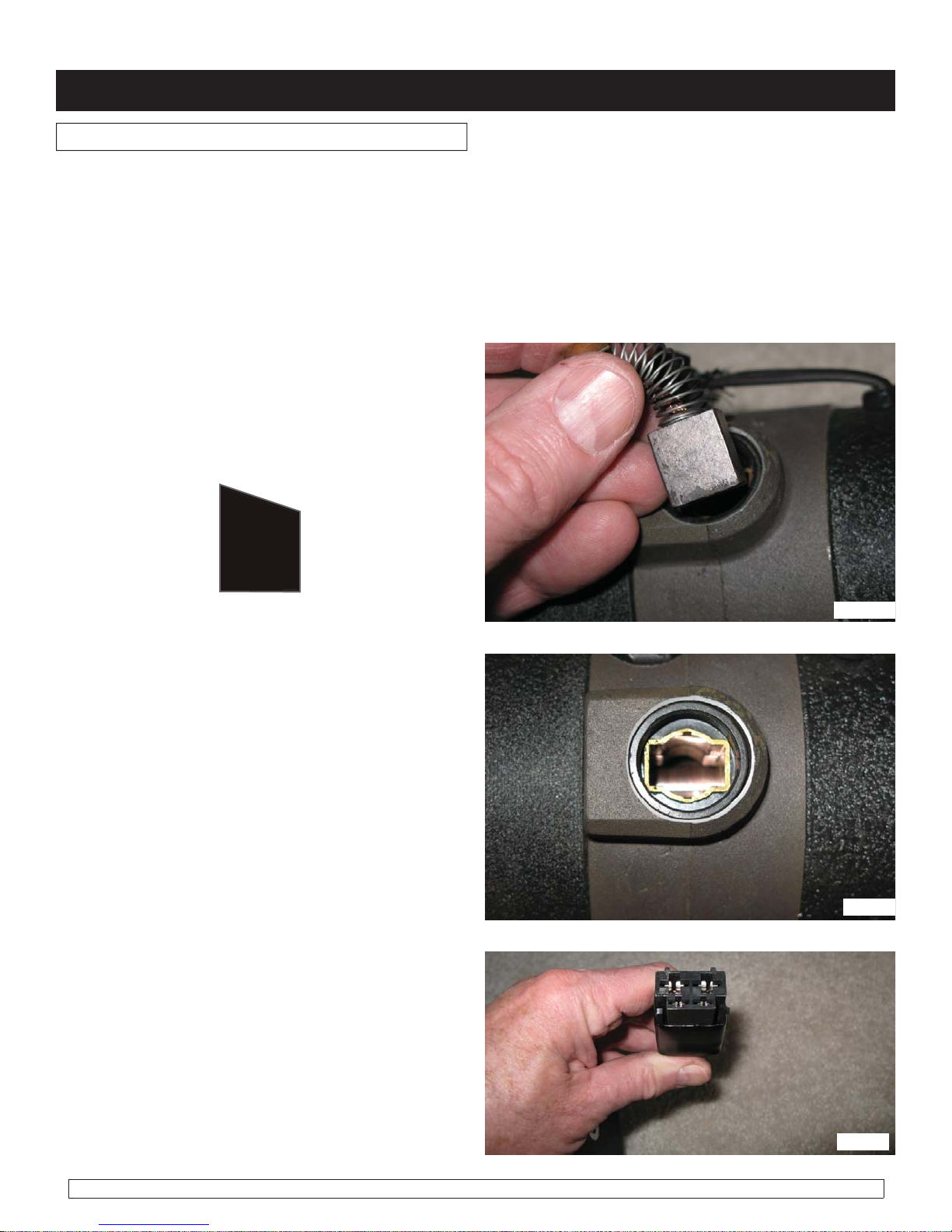

Motor Brush Inspection 6.2
Measure Resistance 6.3
Section 7
Removal Procedures 7.1
Battery Access/Removal 7.1
Battery Installation 7.2
Motor and Gearbox Removal 7.3
Removal for units with Mechanical Brake 7.4

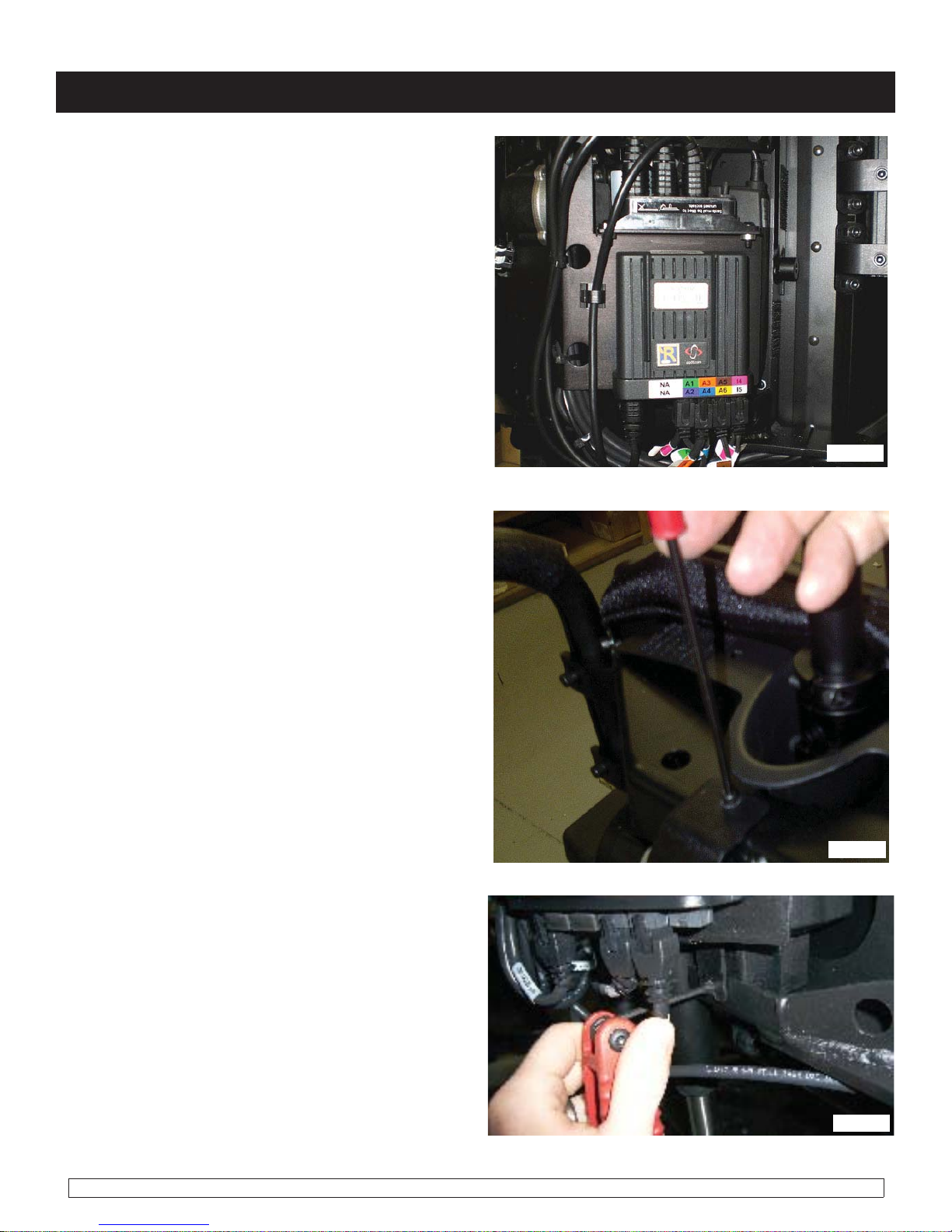

Control Module Remova

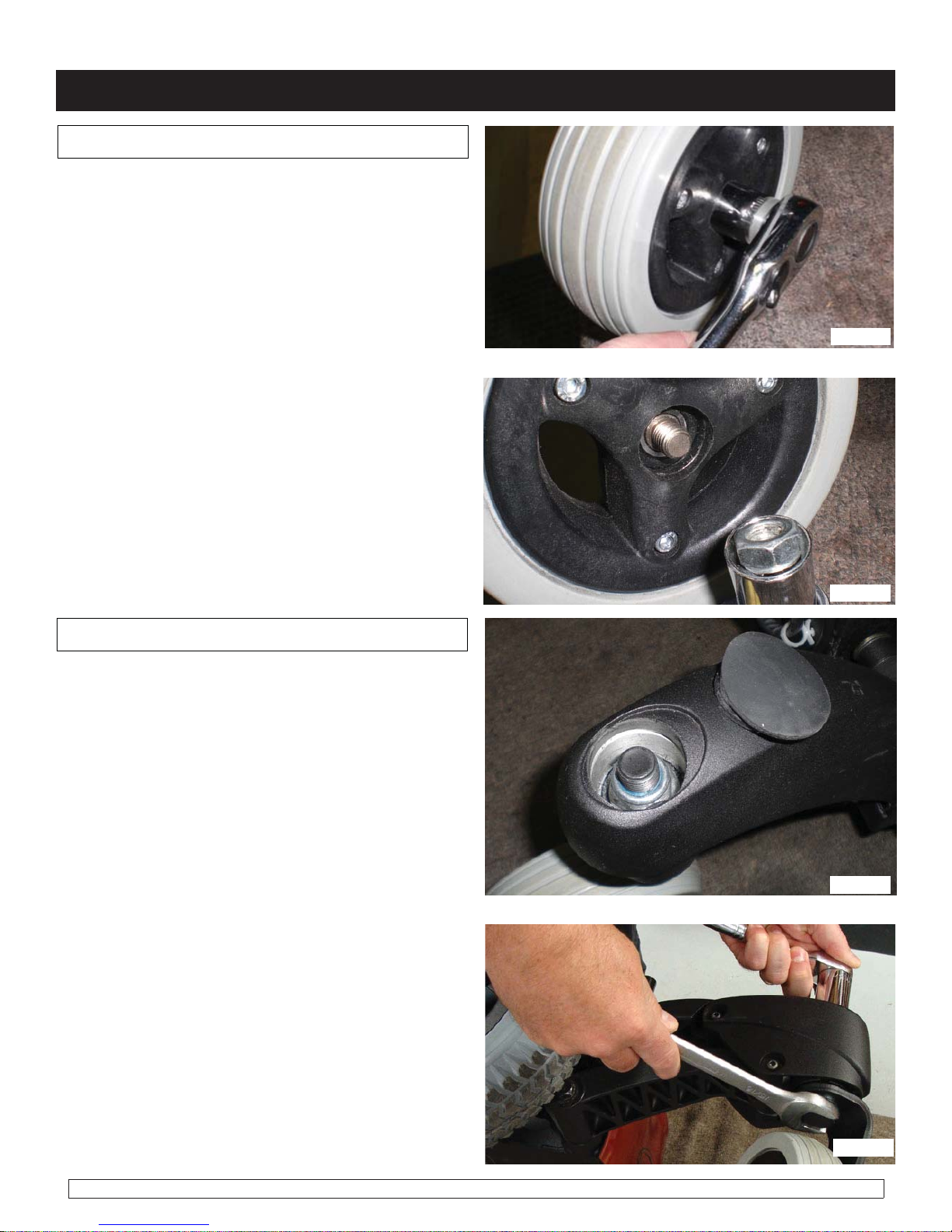

Front and Rear Caster Wheel Removal 7.6
Front and Rear Caster Stem Removal 7.6
Gas Spring Removal 7.7
Tilt Actuator Removal 7.9
Recline Actuator Removal 7.10
Gas Strut Removal 7.12
Shear Actuator Removal 7.15
Elevate Actuator Removal 7.15
Adjustment procedures 8.1

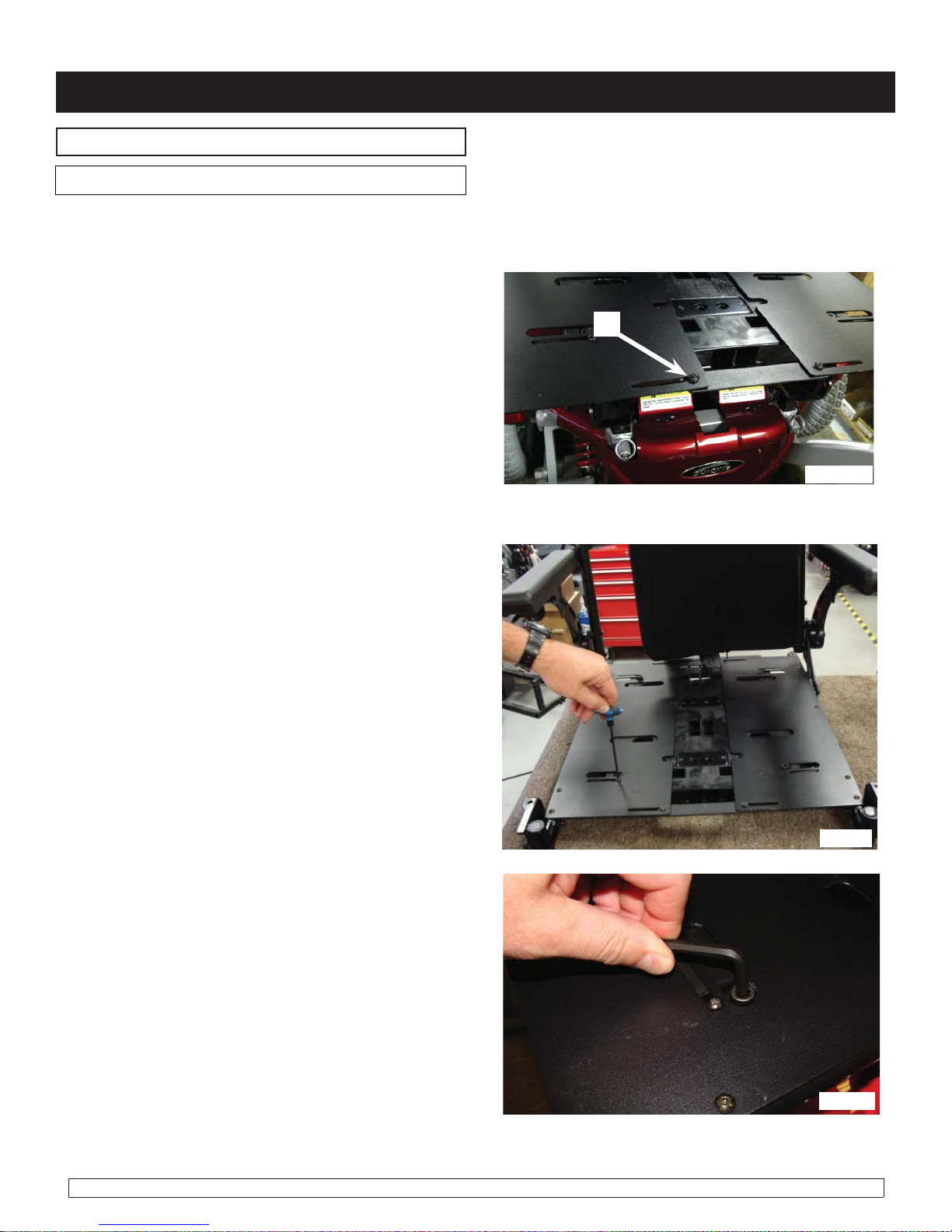

Seat/Back Width adjustment 8.1
Legrest adjustment 8.3
Long or Short Center-Mount adjustment 8.3
Powered Center-Mount Legrest adjustment 8.4
Back-rest Angle Adjustment 8.5
Seat-Height Adjustment 8.6
Front Bracket Seat height adjustment 8.6
Rear Bracket Seat height adjustment 8.7
Recline - Adjustments and Procedures 8.7
Seat-back Angle adjustment 8.7
Pivot point adjustment 8.7
Seat-back depth adjustment 8.8
Cantilevered Armrest adjustments 8.9
Reference and Options 9.1
Non-expandable 3-Axis controls 9.1
Powered elevating or articulating legrest 9.2
VR2/R-Net Control 9.2
The Multi Axis box 9.2
Reference: Inhibit scheme 9.3
Reference: R-NET Joystick & Omni Display Symbols 9.4
Reference: Seat Height Adjustment Matrix 9.5
l 7.4
Section 8
Section 9
PAGE 2
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Introduction
Please read and follow instructions in this service manual before attempting to troubleshoot or repair
this product for the first time. If anything in this Service Manual is not clear, or if you require additional
Technical assistance, contact Sunrise Medical at: (800) 333-4000 option 2, then option 1.
Safely troubleshooting and/or repair of this product depends on your diligence at following the
instructions within this manual. Sunrise Medical is not responsible for injuries or damage resulting
from a person’s failure to exercise good judgement and/or common sense.
This Service Manual is intended as a troubleshooting guide for the Quickie QM-7 Series of products.
Photographs and content may differ from the actual products in some cases due to changes in
specifications and other factors.
This Service Manual is intended for use by persons with a basic working knowledge and the skills
required to service and maintain a Power Wheelchair. Persons without a general working knowledge
and expertise in the servicing of this product should not carry out troubleshooting procedures. This
can result in personal safety issues, problems with future servicing, and/or damage to the unit.
Parts, configuration, and/or specifications of Products included in this Service Manual
are subject to change without prior notice.
There are warning symbols used in this document that are
intended to focus attention on any hazard that could effect the
safety of the individual troubleshooting the Power Wheelchair
covered by this Service Manual.
For up-to-date parts, and the latest version of this Service Manual go to:
www.sunparts.us
and click on the Service Manuals tab
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 0.1
Basic Setup
When setting up the components of the chair, complete the following checklist to ensure proper and
safe operation of the equipment.
Check :
□ Are the batteries fully charged?
a. Test battery voltage with D.C. meter across the terminals of batteries. The measurement should
be above 12 volts D.C. (Note: a fully charged battery is between 12.9 and 13.1 VDC)
b. If not, fully charge the batteries.
□ Are all necessary power components installed and connected ?
a. Input device? (normally Joystick)
b. Cable from Joystick to the Bus Line
c. Control Module; for the QM-7 series located at back of chair behind shroud
d. Are batteries installed correctly? (refer to Section 1 of this manual
□ Are all necessary connections fastened and fully engaged?
a. Battery connectors to the batteries
b. Cable between Joystick and the Control
c. Both Motor Connectors to the Control Module.
□ Is the Drive Gear engaged? See (fi gures .2.1 and .2.2)
a. With the power off, the chair should not move if pushed from behind.
b. If the chair moves when pushed, the drive gear needs to be engaged on both motors.
c. Does Display light up when Power On/Off switch is depressed?
If no - Follow checklist a second time, then refer to the section on Diagnostics.
If yes – The Power Wheelchair is ready to drive!
Motor - Drive Gear engaged Motor - Free-wheel
PAGE 0.2
JANUARY 2012 SUNRISE MEDICAL
fig. .2.2
fig .2.1
QM-7 SERIES SERVICE MANUAL
Section 1
Multimeter Tutorial
The Multimeter
For Powerchairs, the multimeter is one of the
most useful tools in the toolbox (fi gure .3.1). It
can be used to check wires, shorts, voltages,
resistance, and all manner of electrical circuits.
This tutorial is designed to help clarify the symbols and socket options. This Section is meant to
be a General tutorial and may not apply to all of
the specifi c options on the meter in use. Please
consult your user's manual, to avoid errant readings.
The Probes
Probes are found on various multimeters (fi gure
3.2). The Probes connect the meter to the circuit.
Simply touch them to the directed area with the
Mulitmeter on the correct settings, and read the
display. Carefully follow instructions for placement of the probes to avoid errant reads.
Fig .3.1
The Ports
1. The Common Port. (fi gure .3.3)
Generally, the black probe plugs in here
(negative) and as the name suggests, it’s the
common element to all of the testing circuits.
Think of it as the ground rail.
2. Voltage, Resistance and Continuity port.
This is a commonly used option. Connect
the red (positive) probe to this port when
fi nding voltage readings, resistance readings
or when checking wire continuity. This is explained in more detail later in the tutorial.
3. Current up to 400mA.
This port is used for “counting electrons” in
a circuit, and thus their rate of fl ow (current
being the fl ow of electrons). You’ll notice that
this side is “fused”, so that you don’t end up
melting the meter’s circuits.
4. Current up to 10A.
Same as above, except it can take more current, as the name suggests.
Fig. 3.2
Fig. 3.3
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 1.1
Section 1
Multimeter Symbol Defi nition
AC - ALTERNATING CURRENT - Use this when you want to test
something that has AC current running through it. Typically you'd
want to test the voltage of an inverter (for cold cathodes or neons),
or a similar device
DC- DIRECT CURRENT. This is the type of electrical power
produced by a battery. With a battery connector, the black wire(s)
should be connected to the negative(-) terminal of the battery
and should be considered the common ground. The red wire(s)
should be connected to the positive(+) terminal of the battery and
is considered the “hot” lead.
Voltage- This means Voltage or Potential Difference. It will
measure the potential difference between the two probes. To
measure voltage, connect the positive probe to a port that is
marked “V” or Voltage. Note: “mV” means milli-volts = .001 Volt
Current- Since current is measured in Amps and the readout
value is in amps, the symbol "A" is used. On this setting the unit
measures current that is fl owing through the part of the circuit
between the two probes (the meter itself). Typically, you need to
plug the positive terminal into a port marked “A” or Current. You
need to put the meter “In Series” in the circuit to use this feature
correctly.
Resistance- This symbol represents Resistance and is measured
in Ohms. You can use this setting to measure the resistance
between two points; for example across a piece of wire or a
resistor (to check its value). If you don’t have a continuity check,
then this can be used to check for shorts. Any value below 0.05
Ohms constitutes a short, meaning that whatever the probes are
attached to is connected electrically.
Continuity- A commonly used function. By putting a current
through the two terminals (the same as the Ohm-meter function)
it can be determined if the resulting value is within the “contact”
range, this is signifi ed with a beep. Found on some multimeters,
it allows a check for shorts without taking your eyes off your work.
Other meters signify this with a small fl ashing light.
PAGE 1.2
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 1
Health and Safety
Health and Safety
While working on powered mobility products, it is essential to observe
good working practices. Below are a series of safety guidelines and
recommendations. Please note that these precautions are intended to serve
only as a guide, not to supersede or replace any safety statute, NHS or other
safety regulations.
General
• Always wear suitable protective clothing when handling batteries.
• Always wear suitable eye protection when drilling or inspecting.
• When safe to do so, wear protective gloves when handling the running
gear or batteries, as these parts are exposed to paths, parks etc.
• If the drive wheels have to be raised off the fl oor, always use a pair
of axle stands to secure the vehicle.
Battery Safety
• Use extra caution when working with batteries.
• Always make sure that the batteries are disconnected from the device
before commencing work.
• Always check that the battery charger is disconnected from the device
/batteries before commencing work.
• Do not smoke while working on this device.
• Keep batteries away from all sources of ignition.
• Do not place objects on top of the batteries.
• Always keep someone close to your work area so that they may come
to your assistance if needed.
• Always wear personal protection when handling batteries, including,
eye/face protection and gloves.
• Make sure there is easy access to soap and water in case of acid
spills.
• Avoid touching eyes or unprotected parts of the body while working on
batteries.
• Remember that non-sealed batteries can contaminate any packaging,
housing, or boxes they may have been transported in so handle all
packaging with care, especially during disposal.
• If battery acid should come into contact with bare skin or clothing, be
sure to wash contacted area immediately, using plenty of soap and
water. If battery acid enters the eyes, fl ush with running cold water for
as long as possible while medical help is being sought.
• When the tops of batteries are exposed, take extra care when working
on or around the terminals.
• Do not allow metal tools to drop on to or touch the exposed terminals
of the batteries or other exposed connections, as this could cause a
short circuit, which may result in an explosion.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 1.3
Section 1
Health and safety (cont.)
If mishandled batteries can be dangerous and hazardous.
• All mobility batteries, whether wet type or gel/sealed type, contain
lead and sulfuric acid. Both of these materials are toxic and in the
case of sulfuric acid, highly corrosive. Additionally, when batteries are
charged, they produce hydrogen gas which is “highly” fl ammable and
can cause explosion. This is why proper handling is mandatory at all
times.
• Battery explosion - This is frequently the result of too low an acid/
electrolyte level in the battery, which allows high concentrations of
hydrogen to build up. This is possible with all batteries if improper
charging or battery failure occurs, but not common in gel/sealed
batteries.
• < KEEP SPARKS AND FLAMES AWAY FROM BATTERIES >
• Burns - dropping a wrench or screwdriver across battery terminals
results in sparks, and intense heat. Improper assembly of battery
boxes or battery box wiring may short the battery through the wiring
and produce a possible electrical fi re.
• Electronic damage - batteries that are improperly wired can short out
electronic chair components resulting in expensive repairs.
• Pollution - improper disposal of batteries could damage the
environment. All batteries should be disposed of through a reliable
battery recycler.
POS = PbO2
NEG = Pb
ACID = H2SO2
As battery discharges, the sulfate from the electrolyte forms on the plates.
As battery recharges, the sulfate is driven back into the electrolyte
PAGE 1.4
JANUARY 2012 SUNRISE MEDICAL
Battery Charge Cycle Illustration
Typical Flooded Battery
POS = PbSO4
NEG = PbSO4
ACID = H2O
QM-7 SERIES SERVICE MANUAL
Section 1
Health and Safety (cont.)
• Remove personal items of jewelry, such as rings, watches, chains
etc. before working on batteries. Such items could cause short
circuits resulting in serious burns.
• Batteries are constructed of heavy materials. Therefore moving
batteries requires appropriate lifting techniques. Safety footwear
should also be worn. In addition, disposal of old batteries requires
compliance to state laws. Contact your local authority for their
recommendations.
Battery Chargers
• Remember battery chargers are connected to household current.
• Always observe all guidelines and laws relating to electrical
equipment.
• Never operate the battery charger in wet or damp conditions.
• If you think that the charger has been exposed to water or excessive
dampness, do not use it. Return the unit to the dealer/supplier for
inspection/replacement.
• If you think the battery charger is defective or is visibly damaged,
return the unit to the dealer/supplier for inspection.
EMI Warnings
• EMI means electromagnetic (EM) interference (I). EMI comes from
radio wave sources, such as radio transmitters and transceivers. A
“transceiver” is a device that both sends and receives radio wave
signals.)
• There are a number of sources of intense EMI in our daily
environment. Some of these are obvious and easy to avoid. Others
are not, and the user may not be able to avoid them.
• Powered wheelchairs, although tested in accordance with EMC
guidelines, may be susceptible to electromagnetic interference (EMI)
emitted from sources such as, radio stations, TV stations, amateur
radio (HAM) transmitters, two-way radios, and cellular phones.
• EMI can also be produced by conducted sources or electro-static
discharge (ESD).
What effect can EMI have?
1. EMI can, without warning, can cause a power chair to:
• Release its electronic brakes
• Move by itself
• Move in unintended directions.
If any of these occur, severe injury could result.
2. EMI can damage the control system of a power chair, resulting in a
safety hazard and/or costly repairs.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 1.5
Section 1
Sources of EMI
1. Hand-Held Transceivers: Antenna is usually mounted directly on the unit.
These include:
• Citizens band (CB) radios
• “Walkie-talkies”
• Security, fi re and police radios
• Cellular phones
• Lap top computers with phone or fax
• Other personal communication devices
Note - These devices can transmit signals while they are on, even if not in use.
The wheelchair should be switched off when not in use.
2. Medium-Range Mobile Transceivers: include two-way radios used in police
cars, fi re engines, ambulances and taxi cabs. The antenna is usually mounted
on the outside of the vehicle.
3. Long-Range Transceivers: These include commercial radio and TV broadcast
antenna towers, amateur (HAM) radios, and alarm systems.
NOTE- The following are Not likely to cause EMI problems: Lap-top computers
(without phone or fax), cordless phones, TV sets or AM/FM radios, CD or tape
players.
EM energy rapidly becomes more intense as you get closer to the source. For
this reason, EMI from handheld devices is of special concern. A person using
one of these devices can bring high levels of EM energy very close to a power
chair without the user’s knowledge.
Immunity level
The level of EM is measured in volts per metre (V/m). Every power wheelchair
can resist EMI up to a certain level. This is called its “immunity level”. The higher
the immunity level, the less the risk of EMI. It is believed that a 20 V/m immunity
level will protect the power wheelchair user from the more common sources of
radio waves.
For the QM-710, the confi guration tested and found to be immune to at least 20
V/m is: a right-handed mounted joystick system, 18” seat width, 18” seat depth,
dual-post height-adjustable armrests, fi xed tapered legrests with one-piece solid
footplate and Gp 24 gel cell batteries.
The following dealer installed speciality input devices have an unknown effect on
the immunity level because they have not been tested with the Quickie control
systems:
• Breath Control (“Sip n Puff”)
• Tri-Switch Head Array
• Proximity Head Array
• Proportional Mini-Joystick/Chin Control
• Buddy Button
• Wafer Board
PAGE 1.6
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 1
Cautions for circuit boards
To help prevent Electro Static Discharge (ESD) the following proper
handling techniques should be followed:
ESD:
• Do not place Printed Circuit Boards or their containers near
sources of strong electrical fi elds (such as above a CRT).
• To avoid the occurrence of static charge or discharge due to
friction, keep the Printed Circuit Boards separate from one another and do not stack them directly on top of one another if not
protected by antistatic bags.
• Store each Printed Circuit Board in an antistatic bag with an
external cushioning bubble-wrap layer until assembled to
wheelchair. Antistatic bag must have metal content to protect
the printed circuit board. Gray bag protects from ESD, pink bag
or bubble wrap does not protect as well.
• Always wear an ESD preventive wrist or ankle strap when han-
dling electronic components. Connect one end of the strap to
an ESD jack or an unpainted metal component on the system
(such as a captive installation screw).
• Handle Printed Circuit Boards by the edges only; avoid touch-
ing the Printed Circuit Board and connector pins.
• Place any removed Printed Circuit Board on an antistatic sur-
face or in a static shielding bag.
• Avoid contact between the Printed Circuit Boards and clothing.
The wrist strap only protects the card from ESD voltages on the
body; ESD voltages on clothing can still cause damage.
• Make sure that the Printed Circuit Board power is off by dis-
connecting the seating harness prior to attaching or removing
printed circuit board.
Printed Circuit Board Flexing:
• The printed circuit board has surface-mount components that
may break when the board is fl exed. To minimize the amount
of board fl exing, observe the following precautions:
• Hold the printed circuit board only by the edges.
• Do not place the printed circuit board on a hard surface.
• Tighten board mounting screws only hand tight (torque12.4
in lbs/1.4Nm) in a cross pattern to reduce stress on mounting
holes and PCB board material.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 1.7
•
Batteries installed incorrectly can blow the
fuse for this system. Pay careful attention
to install the battery harness across both
batteries instead of to each of the batteries
individually. See Section 7 for correct
Battery Removal and/or Installation
Section 1

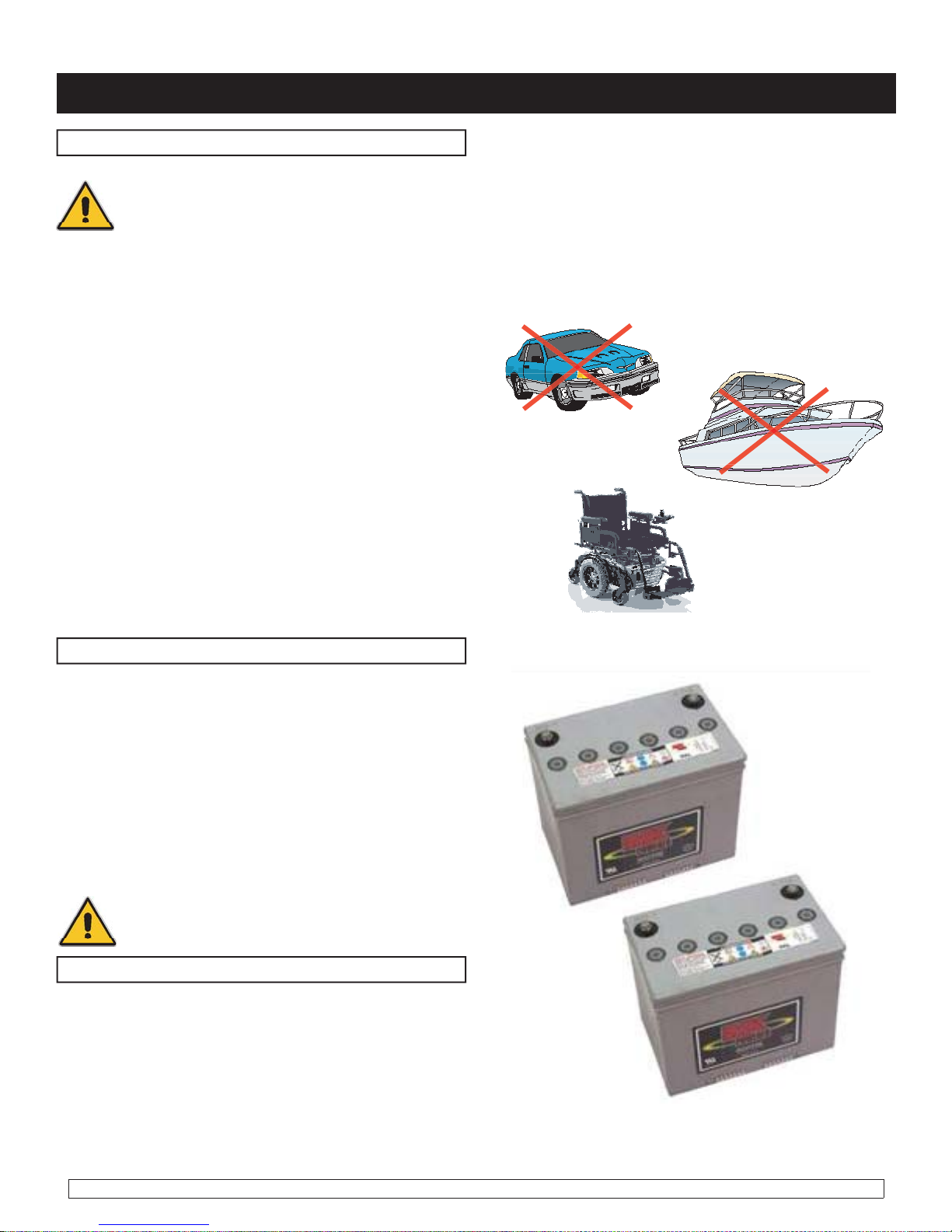

Battery Types
IT IS THE RESPONSIBILITY OF THE INSTALLER TO KNOW WHAT KIND OF BATTERIES TO
INSTALL IN A CUSTOMER’S WHEELCHAIR!
• Deep-cycle batteries used in wheelchairs
are designed to be discharged and
recharged on a regular basis.
• Starting or automotive type batteries use a
rapid burst of power to start an engine and
are quickly recharged by an alternator or
generator. They are rated by cold cranking
amps, a measure that has no relevance to
wheelchair application.
• Marine and RV batteries frequently are
not deep-cycle as they are often used for
starting engines.
• Only use Deep-Cycle sealed type
batteries in a wheelchair.
Battery Size
• Batteries function as a power wheelchair’s
fuel tank. The larger the group size, the
farther the wheelchair will go.
• Use the size specifi ed by the wheelchair
manufacturer. Never use undersized
batteries
• This chair uses either 22NF, or GRP 24
Batteries. Flat-top batteries help lower the
seat to fl oor height.
Battery Installation
•
Batteries installed incorrectly can blow the
fuse for this system. Pay careful attention
to install the battery harness across both
batteries instead of to each of the batteries
individually. See Section 7 for correct
Battery Removal and/or Installation
PAGE 1.8
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
VR2 Remote Controller
Section 1
VR2 Controller Buttons
Battery Gauge
A series of ten LED’s, which indicate
charge level, and is also used for
determining fault codes.
Horn Key- Activates a warning horn.
On/Off Key- Press to power on or off
the power chair or Controller.
Speed/Profile indicator- A series of
five LED’s, which display speed and
profile settings
Speed Decrease. Used to decrease
the Speed/ Profile setting.
QM-7 SERIES SERVICE MANUAL
Speed Increase. Used to Increase
the Speed/ Profile setting.
JANUARY 2012SUNRISE MEDICAL
PAGE 1.9
VR2 Plugs and Connectors
Joystick 4pin connector
Section 1
Charger Port
4 = Red (+)
3 = Black (-)
2 = Blue
1 = White
Motor Plug Port
Motor Brakes
_
+
VR2 Controller
PAGE 1.10
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
2
Charger port
On-Board Charger - Used to power Switchcontrolled actuators and Actuator Inhibit.
1
3
1 = 24 Vdc
2 = 0 Vdc
3 = INHIBIT 1/
PROGRAMMER
M1 = LEFT SIDE MOTOR
M2 = RIGHT SIDE MOTOR
JSM = JOYSTICK MODULE
INH-2 = INHIBIT 2
A1 = ACTUATOR 1
A2 =ACTUATOR 2
OBC = ON BOARD
CHARGER
+ - =BATTERY
1 = 24 Vdc (POS)
2 = 0 Vdc (NEG)
3 = Inhibit 1/
Programmer
R-NET LED Remote Controller
Section 1
On/Off Key- Press to
power on or off the power
chair or Controller.
Speed down button
*
2nd function Tilt down.
Horn Key- Activates a
warning horn.
Mode Button
Used to change modes
Speed up button
*
2nd function Tilt Up
*NOTE: If unit is set-up with elevate, 2nd function could be elevate up or down.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 1.11
R-NET Remote Controller w/Display
On/Off Key- Press to power
on or off the power chair or
Controller.
Mode Button
*
Used to change modes
Section 1
Horn Key- Activates a
warning horn.
Profile Key- Set
*
function Profiles
Speed up button
*
Speed down button
*
2nd function Tilt down.
Speed Pot. - Adjust Min.
and Maximum Speed
settings.
NOTE: Speed buttons do not affect speed on joysticks with Pots.
*NOTE: 2nd function setup per configuration and is changeable using the Dealer PC
Programmer with dongle.
2nd function Tilt Up
Toggle.
Up to power up chair
Down to change profiles
PAGE 1.12
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
R-NET Plugs and Connectors
Section 1
Charger Port
Jacks
Pinout for Rnet Harness
12
3
Motor
4
Motor Plug Port
+
Rnet Controller
4 = Red (+)
3 = Black (-)
2 = Blue wire
1 = White wire
_
Brakes
1 = 24 Vdc (POS)
2
On-Board Charger - Used to power Switchcontrolled actuators and Actuator Inhibit.
1
3
M1 = LEFT SIDE MOTOR
M2 = RIGHT SIDE MOTOR
INH-2 = INHIBIT 2
A1 = ACTUATOR 1
A2 =(NOT USED)
OBC = ON BOARD
CHARGER
+ - =BATTERY
2 = 0 Vdc (NEG)
3 = Inhibit
1 = 24 Vdc
2 = 0 Vdc
3 = INHIBIT 1/
PROGRAMMER
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 1.13
QM-7 Series Modules
OMNI (BOTTOM)
User Jack 2 User Jack 1
* *
Port 2 “D” Type Port 1 “D” Type
*
Section 1
*NOTE: User Jacks and Ports may be used
for assignable buttons.
*
On/Off
Input
Sip and Puff
Port
ISM (Intelligent Seating Module)
ACTUATOR
2
1
CHANNELS
1 3 5
Inhibit
4
Left
Lights
3
4
Actuator
Channel
Seat
Function
1 Backrest
2 Tilt
3Lift
4 Left ELR
5 Right ELR
6 Not used
4
2
3
1
2 4 6
Right
Lights
PAGE 1.14
JANUARY 2012 SUNRISE MEDICAL
Inhibit
5
QM-7 SERIES SERVICE MANUAL
Lights Function
1Ground
2 Lights
3 Indicator
4 Brake/Horn
VR2 Dual Attendant System
Section 2
This list of tools will be needed to accomplish
all of the tasks given in this Technical Manual
• Multimeter - Voltage/Resistance/Current
• Metric socket Set
• SAE Socket Set
• Open-end Wrenches (SAE and Metric)
• 3.5-8mm fl at screwdriver
• Number 0-2 Phillips screwdriver
• Vise Grips
• Adjustable Plyers
• Hex Head Wrenches (SAE and Metric)
Basic Tool List
• Hammers small and large
• Soft Hammer (Rubber and/or Plastic)
• Cutter for zip-tie
• Needle nose pliers
• Wire Strippers
• Shrader valve
• Tie-Wraps short/Medium/Long
Specialty Tools:
• DTT Programmer with 2 provided Cables
• R-NET In-Line programmer
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 2.1

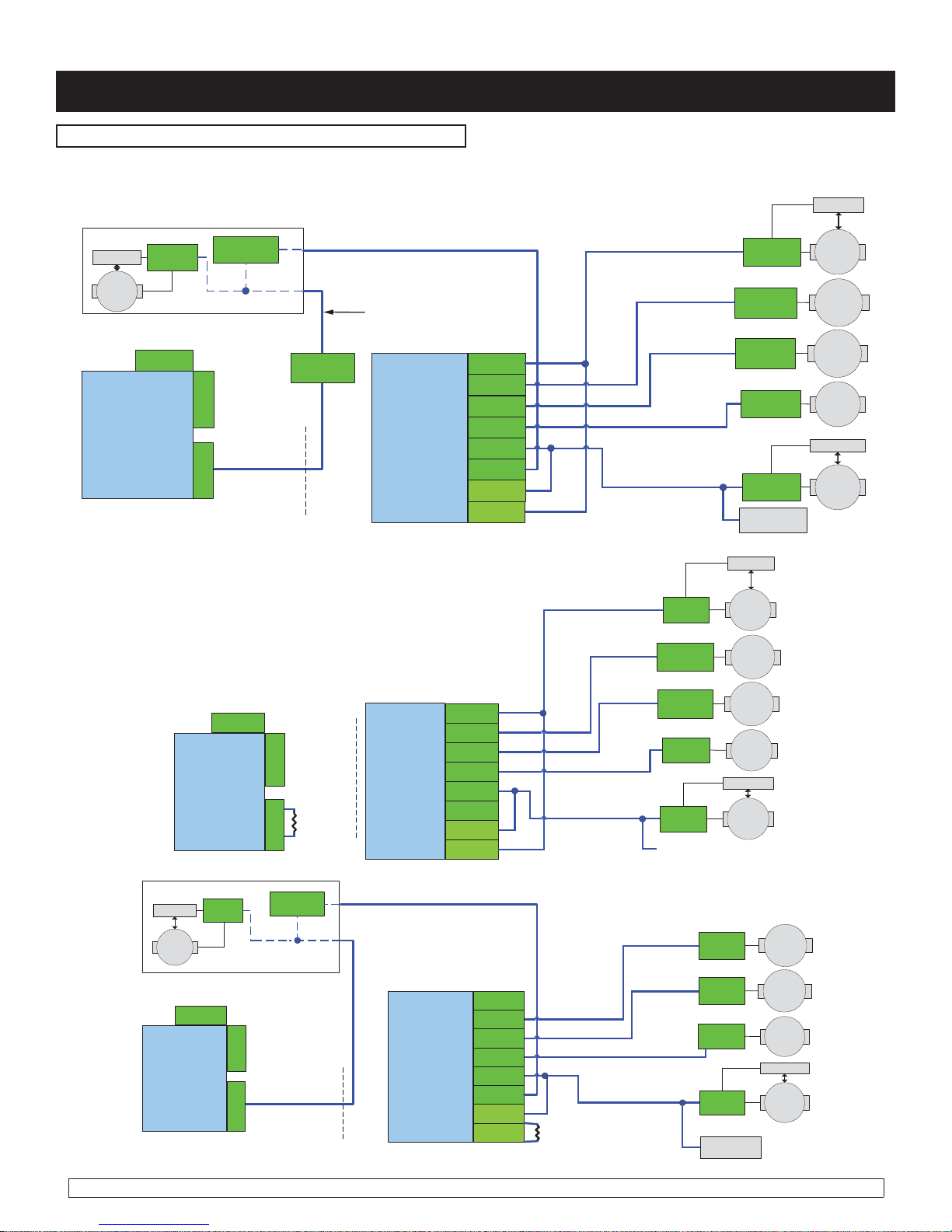

VR2 Main Wiring Diagrams
Section 2
SEAT
BASE
4-Way
Tyco Bus
VR2 BUS
SPLITTER
BUS EXT
Drive
Left
Red
4-Way
Tyco Bus
Tyco Bus
4-Way
Tyco Bus
Power Module
4-Way
Intech
Motor
Fuse
Black
Battery
4-Way
VR2-90
2-Way
Intech Battery
2-way
SB50
Black
2-way
SB50
Red
Red
Hand Control
Hand Control
2-Way PGD
Actuator
Inhibit2
Inhibit3
4-Way
Intech
Motor
Fuse
Black
Battery
VR2
Attendant
VR2
2-Way P GD
3-Way P GD
Charger
Drive
Right
Oboard
Charger
Inhibit
SHORTING
PLUG
(7.5 KOhm)
SHORTING PLUG
FOR DRIVE-ONLY
VR2-90
NOTE: HARNESS 108277-100 IS INCLUDED IN RETRO ASSEMBLY 110842
Power Module Connections VR2
SEAT
4-Way
Tyco Bus
BASE
4-Way
Tyco Bus
Power Module
VR2-90
MBL
TILT
4-Way
Tyco Bus
Power Module
Drive Only
Tilt without Lift
Power Module BUS Connections - VR2
VR2-90
SEAT
BASE
SEAT
4-Way
Tyco Bus
MBL
LIFT
4-Way
Tyco Bus
4-Way
Tyco Bus
BASE
Power Module
VR2-90
Lift without Tilt
Tyco Bus
MBL
TILT
MBL
LIFT
Tyco Bus
Tyco Bus
Power Module
Tilt with Lift
4-Way
4-Way
4-Way
SEAT
BASE
VR2-90
PAGE 2.2
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Power Module Connections R-Net
External 3rd Party
Wireless Devices
Bluetooth Modu le
4-Way
PGD Bus
4-Way
PGD Bus
SEAT
BASE
Section 2
4-Way
R-net Bus
2-Way PGD
Actuator
R-Net EL-90
SEAT
BASE
4-Way
R-Net Bus
4-Way
R-Net Bus
Power Module
EL-90
No Lift or Ti lt
Drive
Left
MBL
TILT
4-Way
R-Net Bus
4-Way
R-Net Bus
Power Module
EL-90
Tilt without Lift
Red
SEAT
BASE
Power Module
R-Net EL-90
4-Way
Intech
Motor
Fuse
Black
Battery
2-Way
Intech Battery
2-way
SB50
Black
2-way
SB50
Red
4-Way
R-Net Bus
MBL
LIFT
4-Way
R-Net Bus
4-Way
R-Net Bus
Power Module
Red
EL-90
Inhibit2
Inhibit3
4-Way
Intech
Fuse
Black
Battery
SEAT
Motor
BASE
Inhibit
2-Way P G D
3-Way P G D
Charger
SHORTING PLUG FOR
Drive
Right
SHORTING
(7.5 KOhm)
DRIVE-ONLY
4-Way
R-net Bus
MBL
TILT
MBL
LIFT
4-Way
R-Net Bus
4-Way
R-net Bus
Power Module
EL-90
PLUG
SEAT
BASE
Power Module BUS Connections - R-Net
Lift without Tilt
QM-7 SERIES SERVICE MANUAL
Lift with Tilt
JANUARY 2012SUNRISE MEDICAL
PAGE 2.3
Switch Operating System VR2 & R-NET
Section 2
Switch-Drive
Tilt-only
2-Way PGD
Actuator
Power Module
Inhibit3
Switch-Drive
Lift-only
Inhibit2
ACTUATOR ADAPTOR
Inhibit
2-Way P G D
3-Way P G D
Charger
4-Way Amp
Mate-N-Loc
HARNESS
6-Way
Mini-Fit J r.
Mini-Fit J r.
ACTUATOR
HARNESS
Buddy Button
Switch
Buddy Button
Switch
SEAT
Switch
6-Way
Seat Tilt
BASE
3.5 mm Stereo
Phone Jack
Dual-Toggle
Single Actuator
Driver
3.5 mm Stereo
Phone Jack
SEAT
Power Module
PAGE 2.4
2-Way PGD
Actuator
Inhibit2
Inhibit3
JANUARY 2012 SUNRISE MEDICAL
Inhibit
2-Way P G D
3-Way P G D
Charger
4-Way Amp
Mate-N-Loc
QM-7 SERIES SERVICE MANUAL
ACTUATOR
HARNESS
ACTUATOR ADAPTOR
HARNESS
Switch
Seat Lift
Mini-Fit J r.
Mini-Fit Jr.
6-Way
6-Way
BASE
3.5 mm Stereo
Phone Jack
Dual-Toggle
Single Actuator
Driver
3 Axis Actuator Drivers VR2 and R-NET
Section 2
3-AXIS ACTUATOR DRIVER - TILT
2-Way PGD
Actuator
Inhibit2
Power Module
Inhibit3
Inhibit
2-Way P GD
3-Way P GD
Charger
POWER/INHIBIT
HARNESS
3-Way Molex
Mini-Fit J r.
HARNESS
6-Way
Mini-Fit J r.
ACTUATOR
SHORTING PLUG
(Use in place of tilt for legs only)
BASE SEAT
POWER/INHIBIT
3-Way Molex
Mini-Fit J r.
6-Way
Mini-Fit J r.
Mini-Fit J r.
3-Axis Actuator Driver
6-Way
ACTUATOR
ACTUATOR
HARNESS
ACTUATOR
HARNESS
6-Way
Mini-Fit J r.
HARNESS
DB9
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
Switch Controls
Switch
Seat Tilt
Right/
Extend
ELR
Left/Lift
ELR
2-Way PGD
Actuator
Inhibit2
Power
Module
Inhibit3
Inhibit
2-Way P G D
3-Way P G D
Charger
POWER/INHIBIT
HARNESS
Switch
Seat Lift
6-Way
Mini-Fit Jr.
3-Way Molex
Mini-Fit J r.
POWER/INHIBIT
HARNESS
3-Way Molex
ACTUATOR
HARNESS
3-Way Molex
Mini-Fit Jr.
Mini-Fit J r.
3-AXIS ACTUATOR DRIVER - LIFT
6-Way
Mini-Fit J r.
3-Axis Actuator Driver
6-Way
Mini-Fit J r.
ACTUATOR
HARNESS
6-Way
Mini-Fit J r.
ACTUATOR
HARNESS
DB9
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
Switch Controls
Right/
Extend
ELR
Left/Lift
ELR
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 2.5
Section 2
2 Axis Actuator & Thru-Drive VR2 and R-NET
Switch
6-Way
Mini-Fit Jr.
ACTUATOR
HARNESS
2-Way PGD
Actuator
Inhibit2
Power Module
Inhibit3
Inhibit
2-Way P GD
3-Way P GD
Charger
POWER/INHIBIT
HARNESS
2-AXIS ACTUATOR DRIVER
Power Module
Seat Lift
2-Way PGD
Actuator
Inhibit2
3-Way Molex
Mini-Fit J r.
POWER/INHIBIT
DRIVE-THRU
HARNESS
Inhibit
2-Way P G D
3-Way P G D
Charger
HARNESS
3-Way Molex
3-Way Molex
Mini-Fit J r.
4-Way Amp
Mate-N-Loc
Mini-Fit J r.
6-Way Mini-
6-Way Mini-
Fit Jr.
2-Axis Actuator Driver
Fit Jr.
Mini-Fit J r.
6-Way
ACTUATOR
HARNESS
SEAT
BASE
3.5 mm
Phone Jack
DB9
Switch
Seat Tilt
6-Way Mini-
Fit Jr.
Switch
Seat Tilt
Dual Toggle
Switch Controls
Inhibit3
2-Way PGD
Actuator
Inhibit2
Power Module
Inhibit3
6-Way
Mini-Fit J r.
ACTUATOR
ADAPTOR HARNESS
DRIVE-THRU
HARNESS
Inhibit
2-Way P G D
3-Way P G D
Charger
4-Way Amp
Mate-N-Loc
ACTUATOR ADAPTOR
HARNESS
ACTUATOR
HARNESS
SEAT
BASE
Switch
Seat Lift
ACTUATOR
HARNESS
Thru-Drive
Tilt-only
6-Way
Mini-Fit Jr.
6-Way
Mini-Fit J r.
Thru-Drive
Lift-only
PAGE 2.6
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
R-NET Multi Actuators
2-Way P GD
3-Way P GD
Charger
4-Way Amp
Mate-N-Loc
Inhibit
POWER/INHIBIT
HARNESS
Switch
6-Way
Mini-Fit Jr.
Seat Lift
2-Way PGD
Actuator
Inhibit2
Power Module
EL-90
Inhibit3
3-Way Molex
Mini-Fit Jr.
Section 2
R-NET MULTI-ACTUATOR
DRIVE-THRU
HARNESS
ACTUATOR
PWR/INHIBIT LIFT
2-Way PGD
A1
Actuator
2-Way PGD
A2
Intellegent
Seating
Module
(ISM)
Inhibit4
Inhibit5
A3
A4
A5
A6
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Inhibit
2-Way PGD
Inhibit
ACTUATOR
HARNESS W/INHIBIT
ACTUATOR
HARNESS
ACTUATOR
HARNESS
ACTUATOR
HARNESS
RECLINE HARNESS
W/LEVEL SWITCH
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
Seat-back
angle switch
Switch
Tilt
Right/
Extend
ELR
Left/Lift
ELR
Seat
Shear
Pot
Seat
Recline
R-NET MULTI-ACTUATOR W/O LIFT
2-Way PGD
Actuator
Switch
Seat Lift
Power
Module
EL-90
Power
Module
EL-90
Mini-Fit Jr.
2-Way PGD
Actuator
Inhibit2
Inhibit3
Inhibit2
Inhibit3
6-Way
2-Way P GD
Charger
2-Way P GD
Charger
Inhibit
3-Way P GD
ACTUATOR PWR/
INHIBIT ADAPTER
Inhibit
3-Way P GD
SHORTING
(7.5 KOhm)
4-Way Amp
Mate-N-Loc
PLUG
Intellegent
Seating
Module
(ISM)
Inhibit4
Inhibit5
Intellegent
Seating
Module
(ISM)
2-Way PGD
A1
Actuator
2-Way PGD
A2
Actuator
2-Way PGD
A3
Actuator
2-Way PGD
A4
Actuator
2-Way PGD
A5
Actuator
2-Way PGD
A6
Actuator
2-Way PGD
Inhibit
2-Way PGD
Inhibit
DRIVE-THRU
HARNESS
A1
A2
A3
A4
A5
A6
Inhibit4
Inhibit5
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Actuator
2-Way PGD
Inhibit
2-Way PGD
Inhibit
Switch
ACTUATOR
HARNESS W/INHIBIT
ACTUATOR
HARNESS
ACTUATOR
HARNESS
ACTUATOR
HARNESS
RECLINE HARNESS
W/LEVEL SWITCH
6-Way
Mini-Fit Jr.
6-Way
Mini-Fit J r.
6-Way
Mini-Fit J r.
6-Way
Mini-Fit Jr.
6-Way
Mini-Fit Jr.
Seat-back
Tilt
Right/
Extend
ELR
Left/Lift
ELR
Seat
Shear
Pot
Seat
Recline
R-NET MULTI-ACTUATOR W/O TILT
6-Way
Mini-Fit Jr.
6-Way
Mini-Fit Jr.
6-Way
Mini-Fit Jr.
6-Way
Mini-Fit Jr.
Seat-back
angle switch
SHORTING PLUG
(7.5 KOhm)
ACTUATOR
HARNESS
ACTUATOR
HARNESS
ACTUATOR
HARNESS
RECLINE HARNESS
W/LEVEL SWITCH
Right/
Extend
ELR
Left/Lift
ELR
Seat
Shear
Pot
Seat
Recline
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 2.7
Section 2
Battery
Harness
Low
g
g
g
R-NET Specialty Controls
External 3rd Party
Devices
9-Way "D"
Connector
Output Modle
4-Way
4-Way
PGD Bus
PGD Bus
SEAT
BASE
Batteries
Group 24 Type
FLUSH
TERMINAL
BATTERIES
Ext. Switch
Attendant Contr ol
4-Way PGD
Bus
4-Way
4-Way
PGD Bus
PGD Bus
Connector Block
4 X CAN
4-Way
Bus
4-Way PG D
Intellegent
Seating
Module
(ISM)
Bus
4-Way PG D
PGD Bus
4-Way
PGD Bus
4-Way
PGD Bus
Specialty Input
Infrared
Device(s)
Ext. Switch
Device
Switch/Pot
Option
Joystick
9-Way "D"
Connector
Universal Specialty
Control Interface
3.5 mm
Phone Jack
Remote
Switch Option
OMNI
4-Way PGD
Bus
9-Way "D"
Connector
R-NET Input and Output
BUS Connections
Front
Battery
POST
TERMINAL
BATTERIES
Harness
h
Hi
3.5 mm
Phone Jack
3-Way Neutrik
Rig ht
or Left
Hand
Mount
Oboard
Charger
Charge Port
Specialty Input
Device
Rig ht
or Left
Hand
Mount
Battery
Harness
Hi
h
Front
Group 22 Type
TERMINAL
BATTERIES
Group 22
Battery
Spac er
GP 22
FLUSH
Harness
Power
Harness
Power
Cable
Battery
Harness
Hi
Battery
Harness
Low
Cable
Tie
Tie
h
Back
Front
Back
Battery
Harness
Low
Power
Harness
Cable
Tie
Back
Leave at least 120mm from top of
Battery box, and secure with cable
tie as shown in (figure 4.3.4) when
replacing Power Harness.
120
mm
PAGE 2.8
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 3
VR2 Troubleshooting
No power: Battery Diagnostics
Note: For access to batteries, refer to beginning of Section 7 (Battery Access/ removal)
Battery Servicing and Replacement
Batteries should last an average of 1 to 1.5 years.
Listed below are some Factors that may effect battery performance:
• Maintenance - Poor maintenance.
• Charging - Improper charging shortens battery life.
• Chair Components - Malfunctioning electronics, bad motors, electric brakes, and
corroded wiring are also capable of degrading the battery performance.
A routine test of deep-cycle wheelchair batteries should follow these guidelines:
1. Never replace just one battery at a time. This will create an imbalance when charging and
ultimately damage both batteries.
2. Check batteries for a voltage difference. A voltage difference of more than .4 volts D.C. is a
good indicator of a bad battery.
3. Voltage test - A dead battery cannot be effectively tested, yet many people mistakenly try to do
just that. Any battery that reads 11.0 volts or less is technically dead.
To perform any testing, especially a load test:
A. Batteries must be charged
B. The top charge must be taken from fully charged batteries if charge rate has just fi nished.
Battery Tests
• Load Test - This test can only be done on fully charged batteries and can only diagnose one
type of problem, (an internal short.)
• Capacity/Discharge T est - This is the only accurate way to test a deep-cycle battery for adequate
running time. The problem with this test is that it is time consuming.
• Current / Voltage check with a regular interval check - Another way of truly knowing how much
time your battery will last, but it is also time consuming.
Note: The voltmeters on load testers are not accurate enough to establish a state of charge.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 3.1
Section 3

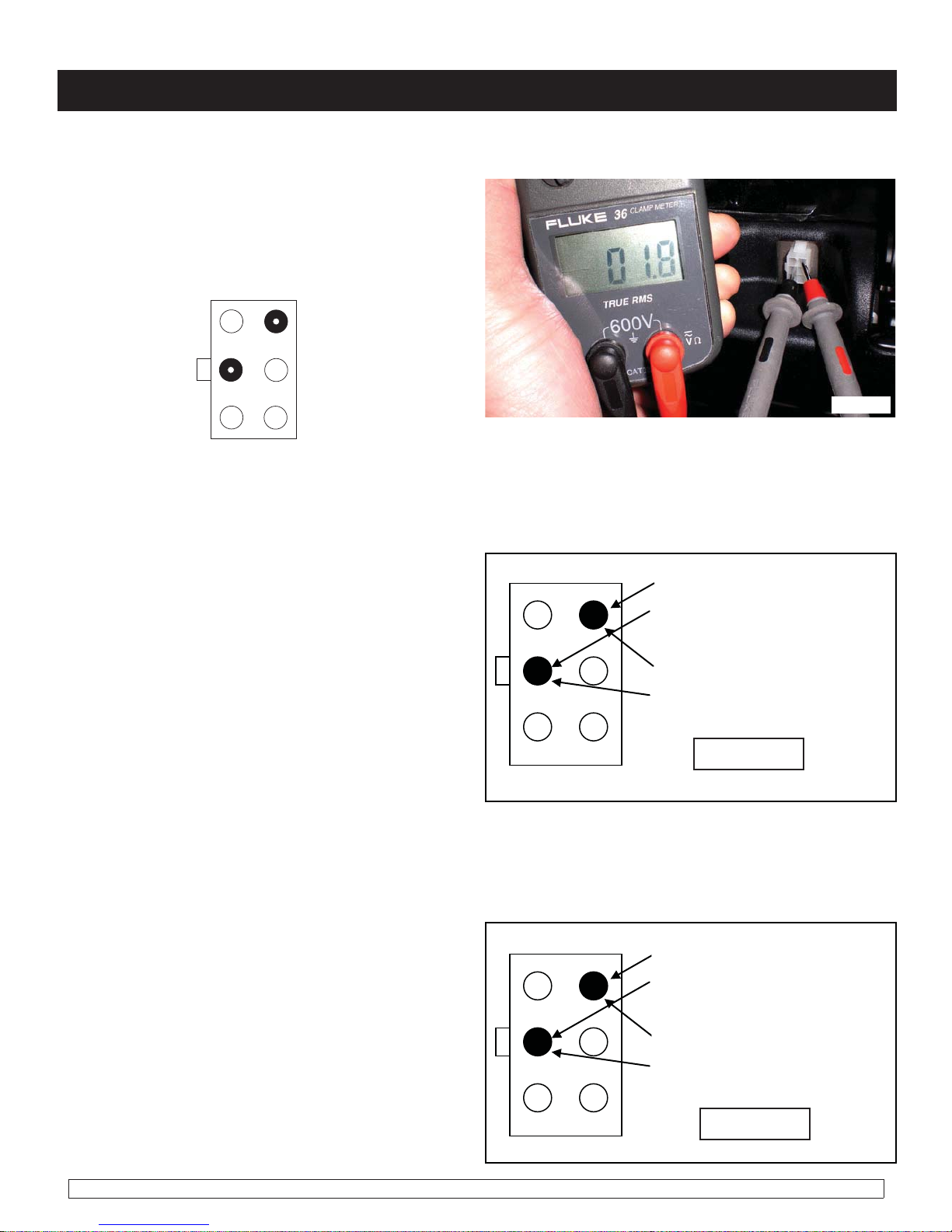

Battery Connection Test
1. Check that the female VR2 Bus plug on
the chair has voltage. Set the meter to DC volts
and measure pins 4 (using the red lead of the
meter) and 1 (using the black lead of the meter)
as shown in (fig 3.2.1)
2. If the voltage meter reads full voltage, then
replace the joystick module
If the voltage meter reads zero voltage, measure
the corresponding pins on the VR2 controller as
shown in (fig 3.2.2).
If the voltage meter reads full voltage, then
replace the jumper cable. If the voltage meter
reads zero, then measure the Battery Connector
as shown in (fig 3.2.3). If the voltage meter reads
full voltage, replace the controller, or proceed to
the next step.
Fig 3.2.1
Fig 3.2.2
Fig 3.2.3
Note: For access to batteries, refer to beginning of Section 7 (Battery Access/ removal)
Check Battery Wire Harness
1. Check that the battery wire harness has the
correct polarity. Set the meter to dc volts and
measure the connector with the red lead on the
positive terminal, and the black lead on the negative terminal as shown in (figure 3.2.4). If the
voltage is absent Replace the Main Battery wire
Harness. If the polarity is reversed correct battery wiring.
Fig 3.2.4
PAGE 3.2
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 3
VR2 Remote Controller Display
The Maximum Speed Indicator Ripples
How to Lock or Unlock the Wheelchair
Maximum Speed Indicator Ripples. This Indicates that the wheelchair is locked. To unlock the
wheelchair, deflect the joystick forwards until the control system chirps. Then deflect the joystick in
reverse until the control system chirps. Release the joystick, there will be a long beep. The wheelchair
is now unlocked. To lock the wheelchair, while the control system is switched on, depress and hold
the on/off button. After 1 second, the control system will chirp. Now release the on/off button, deflect
the joystick forwards until the control system chirps, and deflect the joystick in reverse until the control
system chirps. Release the joystick, there will be a long beep. The wheelchair is now locked.
The Maximum Speed Indicator Flashes
This indicates that the chair is charging . The chair will be ready to drive as soon as the charger is
unplugged.
Battery Gauge is Steady
This indicates that all is well.
Battery Gauge Flashes Slowly
The control system is functioning correctly, but you should charge the battery as soon as possible. At
22 V, the red light starts to blink. Each bar represents a .5V value. The controller requires 18V to start
and a minimum of 16V to work once started
Battery Gauge Steps Up.
Indicates the wheelchair batteries are being charged with the offboard charger. You will not be able
to drive the wheelchair until the charger is disconnected and you have reset the control system by
switching off the power and then powering up again.
Battery Gauge Blinks Every 2.5 Seconds
The control system has "gone to sleep" because the wheelchair has not been driven for a period of
time. The time period depends on the programming of the system. To re-start, reset the system by
switching off the power and then powering up again.
Battery Gauge Flashes Rapidly
Make sure the Joystick is completely released (Joystick should be centered and/or nothing is pushing
the gimbale out of center). The control system safety circuits have been activated and the control
system has been prevented from moving the wheelchair. This indicates a system trip, i.e. the VR2
has detected a problem somewhere in the wheelchair's electrical system. Please refer to this Section
(VR2 Controller Diagnostics).
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 3.3
Section 3
Troubleshooting with VR2 Diagnostic Codes
One Bar - Low Battery Voltage
This code could indicate discharged batteries,
failed batteries, or poor battery connections.
Begin by recharging the batteries and then refer
to 3.2 to check batteries and connections.
Two Bars - Left Motor Disconnected
1. Check that the batteries are fully charged
and in good condition. Check all cables and
connections. Check the connections to the left
motor, look for a loose or damaged connector.
Fig 3.4.1
2. Otherwise, check the brushes on the left
motor Using a Flat head screwdriver (figure
3.4.1) remove the brush cap to access the brush
(figure 3.4.2). Refer to section 6 (Motor Brush
Inspection). Ensure brush is not excessively
worn, (brush need to be at least 1/2" long) note
taper (figure 3.4.3) on brush for re-installation
(figure 3.4.4) Replace as required.
Fig 3.4.3
Fig 3.4.2
Fig 3.4.4
PAGE 3.4
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 3
3. Use the meter to check the resistance across
the two bottom contacts (thicker wires) on the
4-pin motor connector as shown in (figure 3.4.5).
If the meter reads between 0 to 1.5 ohms, then
replace the controller. If none of the above
corrects the problem, replace the left motor.
Three Bars - Left Motor Wiring Trip
1. Check that the batteries are fully charged
and in good condition; and check all cables and
connections. Check the connections to the left
motor, look for a loose or damaged connector.
Fig 3.4.5
2. Measure the resistance from the bottom
contact of the red thick wire on the 4-pin left
motor connector to each of the top contacts of the
connector (figure 3.5.1). Measure the resistance
from the bottom contact of the black thick wire on
the 4-pin left motor connector to each of the top
contacts of the connector (figure 3.5.2). If all of
the readings are open, then replace the controller.
If any of the readings are short, then replace the
left motor.
Four Bars- Right Motor Disconnected
1. Check that the batteries are fully charged
and in good condition; and check all cables and
connections. Check the connections to the right
motor, look for a loose or damaged connector.
2. Use the meter to check the resistance across
the two bottom contacts of the thicker wires on
the 4-pin motor connector as shown in (figure
3.5.3). If the meter reads between 0 to 1.5 ohms,
then replace the controller. If none of the above
corrects the problem, replace the right motor.
Test 1
Test 3
Fig 3.5.1
Test 2
Fig 3.5.2
Test 4
Fig 3.5.3
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 3.5
Section 3
3. Otherwise, check the brushes on the Right
motor (figure 3.6.1). Using a Flat head screwdriver
remove the brush cap to access the brush. Refer
to section 6 (Motor Brush Inspection). Ensure
brush is not excessively worn, (brushes need
to be at least 1/2" long) note taper on brush for
re-installation (figure 3.6.2) Replace as required
(figure 3.6.3.
Fig 3.6.2
Fig 3.6.1
Five Bars - Right Motor Wiring Trip
1. Check that the batteries are fully charged
and in good condition; and check all cables and
connections. Check the connections to the right
motor, look for a loose or damaged connector.
2. If the reading is short, (resistance is less than
10 K ohms) on any of the readings, proceed to
check the 4-pin motor connector. Measure the
resistance from the bottom contact of the red thick
wire on the 4-pin right motor connector to each of
the top contacts of the connectors see (figure
3.6.4). Measure the resistance from the bottom
contact of the black thick wire on the 4-pin right
motor connector to each the top contacts of the
connector (below right). If all of the readings are
open, (figure 3.6.5) then replace the controller. If
any of the readings are short, then replace the
right motor.
Test 1
Test 3
Fig 3.6.3
Fig 3.6.4
Test 2
Fig 3.6.5
Test 4
PAGE 3.6
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 3
Six Bars - Charger Connected
The onboard batteries are being charged with the off-board charger. You will not be able to drive the
wheelchar until the charger is disconnected. You will have to reset the control system by switching
off the power and then powering up again. The On-Board charger has no indication that the chair
is charging, and the chair will not move until complete. If the condition still exists after the charger
has been diconnected, and the chair has been switched off and then powered up again, the Joystick
module may be defective.
Seven Bars - Possible Joystick Trip
A joystick trip is indicated. Make sure that the joystick is in the center position before switching on the
control system. Check that the batteries are fully charged and in good condition, examine the joystick
for damage. This fault can also be caused by a joystick that fails to center itself due to being dirty,
bent or broken. If this is the case, replace the joystick module.
Note: If replacing the joystick does not resolve the issue, replace the cable connecting the joystick to
the controller.
Seven Bars + Speed Profile Indicator error
Inspect the wiring between joystick module and controller. Replace a jumper or joystick module that
has damaged wiring. If the problem persists replace the controller.
Eight Bars - Possible Control System Trip
Controller Fault - A control system trip is indicated. Make sure that all connections are secure. Check
that the batteries are fully charged and in good condition, and check all joystick connections and
cables. If this does not correct the problem,disconnect the power to the controller for 2 minutes, replug
in to reboot the module. If the condition still exits, then replace the controller.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 3.7
Section 3
Nine Bars - Solenoid Brake Trip
The parking brakes have a bad connection.
Make sure that the motor is in the locked/
engaged position. Check the parking break and
motor connections. Make sure the control system
connections are secure. Measure the two small
contacts on the four-pin motor connector (figure
3.8.1).
(figure 3.8.2) shows Motor in locked (Drive)
position, for Testing in Nine bar state.
Fig 3.8.1
Ten Bars - High Battery Voltage
An excessive voltage has been applied to the
control system. This is usually caused by a
poor battery connection. Check the battery
connections.
Battery Fault
Check that the batteries are fully charged, at the
correct voltage, and in good condition. Take a
voltage reading from pin 1 and pin 2 of the charger
port of the VR2 controller, see (figure 3.8.3) If the
meter reads more than 30 volts, then check the
charger. Otherwise, replace your controller.
PAGE 3.8
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
fig. 3.8.2
Fig .3.8.3
2
1
3
R-net Troubleshooting
Section 4
Chair Will Not Power Up
1. Check for battery voltage at the hand control
using a Multimeter. Connect the Multimeter
between the two outside pins (figure 4.1.2), pin 1
is positive (+), pin 2 is negative (-).
2. If full battery voltage is present, replace the
following components in this order:
a. Communication Cable
b. Hand control
c. Control module. (refer to the Control Module
Replacement section of this manual.)
d. Retest as necessary.
2
1
3
Fig. 4.1.1
Fig. 4.1.2
3. If battery voltage is not present, (figure 4.1.3)
then replace the batteries.
If battery voltage is low (figure 4.1.4) then recharge
the batteries and retest
Fig. 4.1.3
QM-7 SERIES SERVICE MANUAL
Fig. 4.1.4
JANUARY 2012SUNRISE MEDICAL
PAGE 4.1
Section 4
Note: The connector shown in (figure 4.1.3) is mated incorrectly . The connectors are designed
to visually indicate when they are not mated correctly. If yellow is showing between the halves
(A), push them closer together until only black is visible. Retest as necessary.
4. Verify that the bus cables are correctly mated
A
between the hand control and the control module
(figure 4.2.1).
fig 4.2.1
Note: For the next step, locate the power connector plug. It is a large 2-pin connector between
left and right motor cable.
5. Disconnect the power connector from the
control module, and use a Multimeter to check for
battery voltage at the connector. If a good voltage
is present, with batteries fully charged, (figure
4.2.2), then replace the control module. Retest
as necessary.
PAGE 4.2
JANUARY 2012 SUNRISE MEDICAL
fig 4.2.2
QM-7 SERIES SERVICE MANUAL
Section 4
Note: For access to batteries, refer to beginning of Section 7 (Battery Access/ removal)
Battery Voltage Tests
6. Verify that battery voltage is present at each
connector leading to the batteries (fi gure. 4.3.1).
7. If battery voltage is not present, as shown
in (figure 4.3.2)use a Multimeter and measure
for continuity across the fusible links connected
to positive (+) terminal of each battery (fi gure.
4.3.2). Normal resistance is less than 1 ohm.
If open, replace the defective battery harness.
Retest as necessary. .
fig. 4.3.1
8. If the above tests pass, replace the wiring
harness leading from the batteries to the control
module. Retest as necessary..
Note: If replacing the power harness, It is important to position the lead as shown below
9. When replacing the harness it becomes
necessary to cut the cable tie to fully remove
the harness from the chair. Please note power
harness plugin (figure 4.3.3) and leave 120mm
120
mm
Cable Tie
from top of Battery box. You must then secure
the wire with a cable tie where shown on (figure
4.3.4) this will protect the cable from damage, and
allow enough slack to plug into the batteries.
fig. 4.3.3
fig. 4.3.4
fig. 4.3.2
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 4.3
R-net Fault Codes
Section 4
Fault Codes for Hand Control or Omni
Identifi ed Module
Trip Code
The R-Net control used on this power chair
is constantly monitoring for conditions that can
cause unsafe or erratic operation. When a fault
is displayed, refer to the fault code table shown
below for a list of corrective actions.
The following identifi es which module of the
control system has registered the problem.
• PM-Power Module (Control Module)
• JSM-Joystick Module/Omni Module
Trip Text
• ISM-Intelligent Seating/lighting Module
Table 1- Error Codes & Corrective action
Trip Text Corrective Action
Joystick Error Ensure that the joystick is centered upon power up. If it is centered,
replace the hand control.
Low Battery Recharge the batteries. After charging, perform the Battery Testing
section of this manual.
High Battery Verify that the battery charger is not defective. Leave the chair on for a
few minutes to drain off the excess charge. Check the condition of the
battery charger.
M1 Brake Error Verify left motor is connected to the control module. Disengage Micro-
switch. Complete the Motor & Gearbox Inspection (section 6)
M2 Brake Error Verify right motor is connected to the control module. Disengage
Microswitch. Complete the Motor & Gearbox Inspection (section 6)
M1 Motor Error Verify that the left motor is connected to the control module. Complete the
Motor and Gearbox Inspection section of this manual.
M2 Motor Error Verify that the right motor is connected to the control module. Complete
the Motor and Gearbox Inspection section of this manual.
Inhibit Active Cycle power. Check all cable connections. If this does not correct the
fault, contact Sunrise Technical Service for assistance.
Joystick Cal Error Calibrate the joystick. If the error is still present, the hand control may be
defective.
Latched Timeout A latch function has exceeded it's preset time.
Brake Lamp Short N/A
Left Lamp Short N/A
Right Lamp Short N/A
L Ind Lamp Short N/A
R Ind Lamp Short N/A
L Ind Lamp Failed N/A
R Ind Lamp Failed N/A
PAGE 4.4
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 4
Table 1- R-NET Error Codes (Cont.)
Trip Text Corrective Action
Over-current This fault occurs when the limits of an actuator circuit is exceeded.
Perform Tilt Will Not Operate troubleshooting section of this manual to
test the end of travel limit switches.
Overtemp. (Acts) This error indicates that the Intelligent Seating Module (ISM) has become
excessively warm. Note: An ISM is only required when there are more
than 2 actuators and may not be mounted on this power chair. Allow the
unit to cool. If the error repeats, the actuator may be defective or over
loaded.
Overtemp. (Lamps) Note: This fault can only occur if an Intelligent Seating Module is used on
this power chair and connected to external lights.
DIME Error This error indicates that one or more of the modules are not compatible.
Remove the last module installed and retest. Recycle the power. If this
error persists, Contact Sunrise Technical Service for assistance.
Memory Error Recycle the power. Verify that cables are correctly mated. If a module
has been replaced recently, it may be defective. If error persists, contact
Sunrise Technical Service for assistance.
PM Memory Error Recycle power. Verify cables are correctly mated. If a module has been
replaced recently, that module may be defective. If error persists, contact
Sunrise Technical Service for assistance.
Bad Cable Inspect and replace the defective cable(s).
Bad Settings Verify that programming agrees with installed equipment. If all settings
are correct, the control module may be defective. If error persists, contact
Sunrise Technical Service for assistance.
Module Error Recycle power. Verify that cables are correctly mated. If a module has
been replaced recently, it may be defective. If error persists, contact
Sunrise Technical Service for assistance.
System Error Recycle power. Verify that cables are correctly mated. If a module has
been replaced recently, it may be defective. If error persists, contact
Sunrise Technical Service for assistance.
SID Detached The Omni has detected that a specialty control has become disconnected.
Recheck all cables. If the error is still present, replace the specialty
control.
User Switch Detached Indicates that a user switch has become disconnected. Find the
disconnected switch and reconnect.
Gone to Sleep The predetermined sleep time has been exceeded due to inactivity by the
user.
Charging This indication is present when the battery charger is connected. There
may also be an error in the control module. If error persists, contact
Sunrise Technical Service for assistance.
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 4.5
Section 4
Fault Codes from LED Battery Gauges
Table 2- Hand control Fault Codes
Note: On hand controls that contain LED battery gauges, they will display the fault code by illuminating
various LEDs . Refer to table below for corrective action
Bar Indication Corrective Action
The battery needs charging or there is a bad connection
to the battery. Check the connections to the battery. If the
connections are good, recharge the battery.
Verify that the left motor is connected to the control
module. Complete the Motor and Gearbox Inspection
section of this manual.
The left motor has a short circuit to a battery connection.
Contact Sunrise Medical Technical Service for
assistance.
The right motor has a bad connection. Complete the Motor
and Gearbox Inspection section of this manual.
The right motor has a short circuit to a battery connection.
Contact Sunrise Medical Technical Service for
assistance.
The wheelchair is being prevented from driving by an
external signal. Verify that the battery charger is not
connected. Contact Sunrise Medical Technical Service
for assistance.
Ensure that the joystick is centered upon power up. If it is
centered, replace the hand control, and or cable.
A control system fault is indicated. Make sure that
all connections are secure. Contact Sunrise Medical
Technical Service for assistance.
The parking brakes have a bad connection. Complete the
Motor and Gearbox Inspection section of this manual.
Verify that the battery charger is not defective. Leave the
chair on for a few minutes to drain off the excess charge.
Check the condition of the battery charger.
A communication fault is indicated. Make sure that joystick
cable is securely connected and not damaged.
An Actuator trip is indicated. If more than one actuator is
fi tted, check which actuator is working correctly. Check the
actuator wiring.
PAGE 4.6
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 4
Example of R-10 Fault Isolation
1. In this example, the right motor has been
disconnected. (fi gure.4.7.1). The hand control
displays the fault and the power chair will not
operate.
2. To troubleshoot this problem, refer to Table 1,
Error Codes.
3. From this error we see that the problem is
being recorded in the PM (Control Module).
4. The hand control tells us that motor 2 (M2) has
the error and it is with the brake circuit. Motor 2
is the right motor.
5. Table 1 informs us to, “Verify that the right motor
is connected to the control module. Complete the
Motor and Gearbox Inspection section of this
manual.”
6. The next step is to complete the Motor and
Gearbox Inspection section of this manual and
retest.
fig. 4.7.1
Power Chair Will Not Drive Full Speed
An external micro-switch is mounted next to the actuator in the rear of the lift system. This microswitch is closed when the tilt is lowered. The closing of this micro-switch sends a signal to the control
module through the 6-pin connector located on the back of the tilt. The presence of this signal informs
the control module that the tilt is less than 20 degrees and that maximum speed should be used. If
the tilt is more than 20 degrees, the switch opens and invokes “creep” speed. Creep speed is a
predetermined speed programmed at time of manufacture. Creep is indicated by a “turtle” on either
the hand control or Omni.
1. “Creep” speed as indicated by the turtle on the
hand control (A) fi gure 4.7.2). If the turtle symbol
persists after a power down, proceed to step 2.
A
2. Tilt the seating system to the rear, enough to
gain access to the micro switch and proceed to
Step 3.
QM-7 SERIES SERVICE MANUAL
fig. 4.7.2
JANUARY 2012SUNRISE MEDICAL
PAGE 4.7

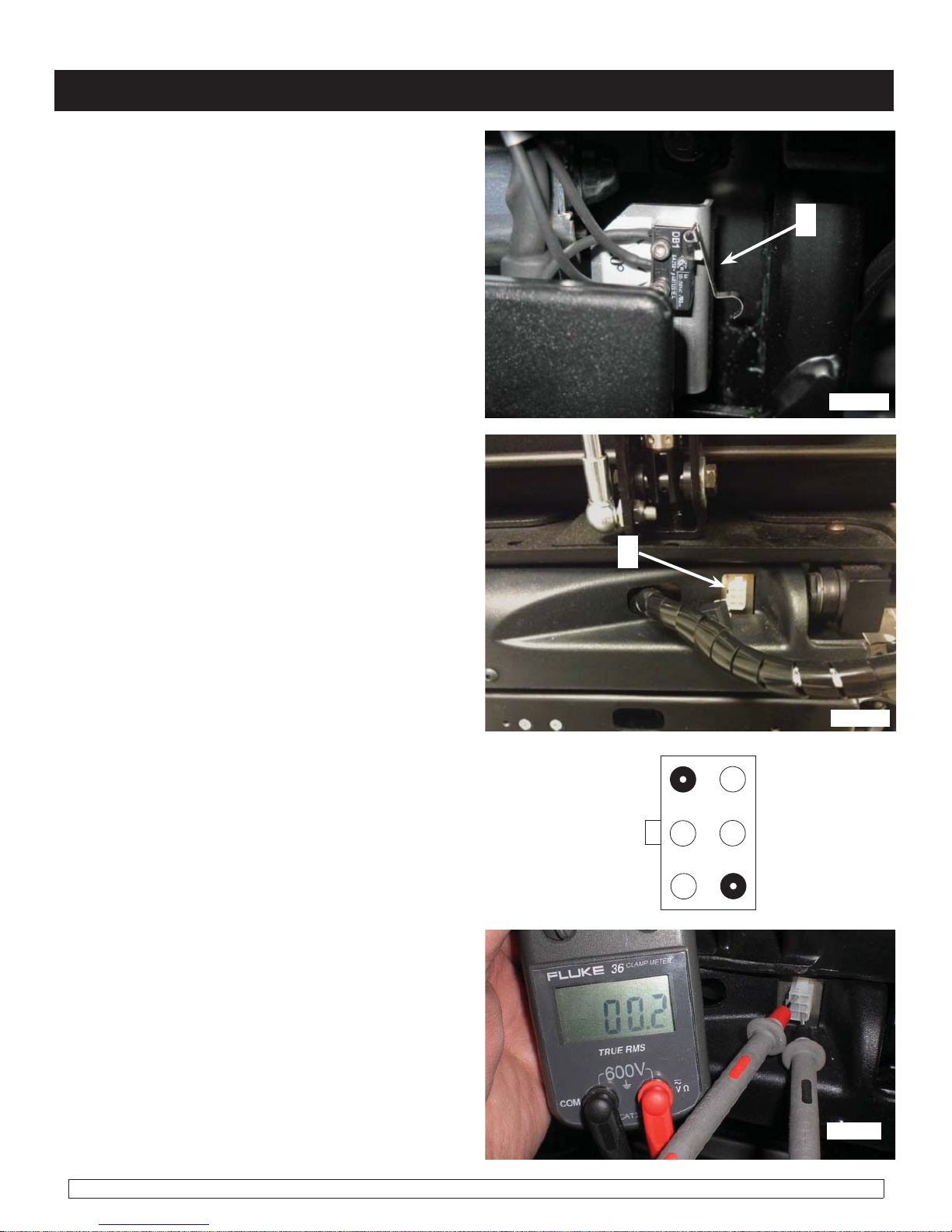

Section 4
3. Locate the creep micro-switch mounted at the
rear of the actuator (A) (fi gure 4.8.1).
Note: The creep micro-switch may be seen from
the top of the seating system on the right rear of
the actuator. It may be necessary to remove the
seat pan to access the switch.
4. Manually operate the creep micro-switch while
observing the hand control or Omni for the turtle
symbol to go on and go off with the micro-switch
operation. If the symbol changes, the problem
is in the programming. Contact Sunrise Medical
Technical Service for assistance. If the symbol
does not change, proceed to step 5.
5. Lower the tilt system.
A
fig. 4.8.1
6. Locate the 6-pin connector (B) at the rear of the
tilt unit (fi gure 4.8.2).
7. Disconnect the connector leading to the control
module.
8. Test the micro-switch wiring by performing the
following test.
a. Ensure that the seat is in the full down position.
(No Tilt)
b. Use Multimeter and measure continuity between
the indicated pins (fi gure 4.8.3) on the 6-pin
connector mounted on the tilt. When seating is
in the untilted position, the indication should be
closed (Resistance) (fi gure 4.8.4).
c. If it is open, (No Resistance) replace the microswitch assembly. Refer to Tilt Actuator and MicroSwitch Removal section of this manual.
d. Retest as necessary.
B
fig. 4.8.2
fig. 4.8.3
9. If the test in step 8 passes, replace in this
order:
a. Cable leading from tilt to control module.
b. Control module
10. Retest as necessary
PAGE 4.8
JANUARY 2012 SUNRISE MEDICAL
fig. 4.8.4
QM-7 SERIES SERVICE MANUAL
Section 4
Chair Won't Drive in Creep Speed When Tilted
An external micro-switch is mounted next to the actuator in the rear of the lift system. This micro-switch
is closed when the tilt is lowered. When micro-switch is closed, it sends a signal from the control
module through the 6-pin connector. The presence of this signal informs the control module that the
tilt is less than 20 degrees and that maximum speed can be used. If the tilt is more than 20 degrees,
the switche opens and invokes “creep” speed. Creep speed is a predetermined speed programmed
at time of manufacture. Creep is indicated by a “turtle” on either the hand control or Omni.
1. Tilt the seat all the way back and observe the
hand control or Omni to see if the turtle symbol
(A) is displayed.
2. If the turtle is displayed (fi gure 4.9.1), when
seating is horizontal, contact Sunrise Technical
Service for assistance. The programming for the
power chair is incorrectly set.
3. If the turtle is not shown when the the seat is
at full tilt, Use the hand control and tilt the seating
system just beyond 20 degrees.
4. Locate the 6-pin connector (B) on the rear of
the tilt (fi gure 4.9.2)
A
fig. 4.9.1
B
5. Disconnect the 6-pin connector leading to the
control module by pressing down on the top of
connector as shown in (fi gure 4.9.3)
QM-7 SERIES SERVICE MANUAL
fig. 4.9.2
fig. 4.9.3
JANUARY 2012SUNRISE MEDICAL
PAGE 4.9
Section 4
6. Test the micro-switch with the following test.
a. Ensure that the tilt is beyond 20 degrees tilt.
b. Use Multimeter and measure continuity between
the indicated pins (fi gure 4.10.1) on the 6-pin
connector mounted on the tilt. When seat is tilted
the indication should be open (fi gure 4.10.2).
c. If it is closed, check parts manual for availability
of the micro-switch assembly. Refer to MicroSwitch Removal, and Tilt Actuator removal
subsections in section 7 of this manual.
d. Retest as necessary.
Tilt/Lift Will Not Operate
The tilt actuator used in the tilt system receives
power through a 6-pin connector located at the
rear of the tilt See "B" (Figure 4.8.2). The actuator
also contains micro-switches that open at the
end of their stroke to prevent stressing of the tilt
system. Around these micro switches are diodes
that allow reverse power to fl ow to the actuator
when reversing direction.
fig. 4.10.1
fig. 4.10.2
1. Select tilt on the hand control (fi gure. 4.10.3).
Operate the joystick and listen closely to the
control module for a click. This click indicates
that the control module is closing the power relay
inside and supplying power to the tilt actuator.
If no click is heard, replace the control module.
Refer to Control Module Removal in section 7 of
this manual. Retest as necessary. If click is heard
proceed to step 3.
2. Verify that tilt is selected on the hand control.
Operate the joystick and listen closely to the tilt
actuator. If the actuator appears to be running but
the tilt is not moving, replace the tilt actuator. Refer
to Micro-Switch Removal and Tilt Actuator removal
section of this manual. Retest as necessary.
3. If tilt will still not operate, locate the 6-pin
connector on the rear of the tilt See "B"
(fi gure 4.8.2).
4. Disconnect the 6-pin cable leading to the
control module.
fig. 4.10.3
5. Select tilt on the hand control and place a
rubber band around the joystick to hold it displaced
(fi gure 4.10.4).
PAGE 4.10
JANUARY 2012 SUNRISE MEDICAL
fig. 4.10.4
QM-7 SERIES SERVICE MANUAL
Section 4
Warning: Use caution in the next step. Do not short the leads of the Multimeter together or
damage may occur to the control module.
6. At the 6-pin connector on the cable leading to
the control module, verify that battery voltage is
present between the indicated pins (fi gure 4.11.1).
Note: The polarity of the voltage is not important
since it is reverses when the opposite direction is
selected.
7. If voltage is not present, replace the cable
leading to the control module. If this does not
solve the problem, replace the control module.
Refer to Control Module Removal section of this
manual. Retest as necessary.
fig. 4.11.1
8. At the 6 pin connector (B) (fi gure 4.11.2) on
the rear of the tilt, check continuity between the
indicated pins (fi g. 4.11.3).
B
fig. 4.11.2
Voltage to
1 to 3 ohms
the actuator
fig. 4.11.3
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 4.11
Section 4
Note: If the tilt actuator does not operate, it is only possible to check for one condition. Pick
the condition below that best describes the position of the tilt system.
9. Example 1, Tilt in mid-stroke. Measure
continuity between the pins indicated (fi gure
4.12.2) this is the resistance through the actuator
motor windings (Figure 4.12.1). If this reading is
not correct, replace the tilt actuator and retest.
fig. 4.12.1
fig. 4.12.2
Note: The value recorded in one direction is the forward resistance through a diode and will
vary with the type of Multimeter used. This value is not important, as long as there is continuity
in one direction only. The value recorded in the other direction is across the open contact of
the end of stroke micro-switch and should be open.
10. Example 2, Tilt in full down position (Figure
4.12.3). If the readings are not correct, replace
the tilt actuator. Refer to Tilt Actuator and MicroSwitch Removal section this manual. Retest as
necessary.
Positive probe here
Negative probe here
Continuity between pins
Negative probe here
Positive probe here
Open between pins
*SEE NOTE*
fig. 4.12.3
Note: The value recorded in one direction is the forward resistance through a diode and will
vary with the type of Multimeter used. This value is not important, as long as there is continuity
in one direction only. This value may even be high. The value recorded in the other direction
is across the open contact of the end of stroke micro-switch and should be open.
11. Example 3, Tilt in full up position (fi gure
4.12.4). If the readings are not correct, replace
Positive probe here
Negative probe here
Open between pins
the tilt actuator. Refer to Tilt Actuator and MicroSwitch Removal section this manual. Retest as
necessary.
Negative probe here
Positive probe here
Continuity between pins
PAGE 4.12
JANUARY 2012 SUNRISE MEDICAL
*SEE NOTE*
fig. 4.12.4
QM-7 SERIES SERVICE MANUAL
Section 5
Battery Testing
Note: The QM-710 power chair uses either (2) 22NF, or GRP 24 batteries connected in series.
The circuit is protected by a non-serviceable fusible link in each battery harness. Prior
to performing any test, the battery terminals should be clean and tight. For Access to the
Batteries, Refer to Section 7: Battery Access/Removal.
1. Check for initial battery voltage at the joystick
using the battery charger connector. Connect the
Multimeter to the two outside pins (fi gure 5.1.1).
Pin 1 is positive (+) and pin 2 is negative (-). Fully
charged batteries are typically 25.6 VDC for the
pair, or 12.8 VDC each. Discharged batteries are
24 VDC or less for the pair.
2. Load test the batteries using either a commercial
load tester or the following procedure.
fig. 5.1.1
Note: V oltage greater than 26 to 28 VDC indicates the batteries are either over-charged, or have
just been disconnected from the battery charger, and contain a surface charge. If the batteries
are not freshly charged and voltage is excessive, inspect battery charger.
Warning: Failure to disengage the gearbox in the next step can cause unexpected operation
of the power chair.
To use the power chair’s motors as a load tester,
complete the following steps:
a. Disengage the motor/gearbox so the motors
can run in freewheel (fi gure. 5.1.2).
b. Connect the Multimeter to the joystick and
record the voltage (fi gure. 5.1.3). If the voltage
fig. 5.1.2
indicates a surface charge, run the motors for
a few minutes to dissipate the surface charge.
Note: in this example, a small surface charge is
present.
c. After the voltage has stabilized, record the
voltage. Typical value for a fully charged pair of
batteries is 25.6 VDC (12.8 VDC each).
QM-7 SERIES SERVICE MANUAL
fig. 5.1.3
JANUARY 2012SUNRISE MEDICAL
PAGE 5.1
Section 5
d. Operate the power chair at high speed by
operating the joystick in a high-speed profi le. The
motors should put approximately a 5 to 10 amp
load on the batteries.
e. Continue to operate the motors for 60 seconds.
Record the readings and compare them to the
following:
i. During the fi rst 5 seconds, normal voltage
drop should be approximately .5 to .6 VDC.
ii. During the remaining portion of the 60
seconds, the voltage should stabilize, dropping
no more than an additional .1 to .2 VDC.
iii. At the end of the 60 seconds, release the
joystick.
f. At the end of a 5 minute rest, note the voltage
recorded on the Multimeter. Normal indication at
the end of a 5 minute rest is typically the starting
voltage, or no more than .1 VDC less.
fig. 5.2.1
Notes:
• A rapid drop of approximately 1.5 or more during the fi rst 5 seconds indicates a shorted cell
in one or both of the batteries. The battery terminals should be checked to ensure that they are
tight and clean, and then the test should be repeated. If the terminals are tight, the batteries
should be replaced. Refer to Battery Removal section of this manual.
• A slow drop of more than .8 volts during the fi rst few seconds indicates a weakened pair
of batteries. Evaluate the age of the batteries and the use they have received, and consider
replacing them.
• If the voltage does not return to .1 VDC of the starting voltage at the end of the 5 minute
test, evaluate the age of the batteries and the use they have received, and consider replacing
them.
PAGE 5.2
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 5
3. The individual voltage of each battery may
also be checked using a Multimeter. Connect the
Multimeter to the battery connector (fi gure 5.3.1).
Note: Refer to Battery Removal (Section 7).
Compare the values to the following.
a. 12.8 VDC indicates a fully charged battery.
b. The battery readings should be similar. Newer
batteries typically read within .1 to .2 VDC.
c. 13 VDC or more indicates an overcharged
battery, or one that has a surface charge from
being recently removed from the charger. Verify
correct operation of the battery charger if the
batteries have not recently been removed from
charge.
d. 11.9 to 12 VDC indicates a discharged battery.
Recharge as necessary.
e. Less than 11.9 VDC indicates an excessively
discharged battery.
f. Values larger than 13 VDC indicate either an
overcharged battery or one that has just been
removed from charge, as in the example (fi gure
5.1.1)
fig. 5.3.1
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 5.3
Section 6
Motor/Gearbox Inspection
Note: This procedure may be done with or
without removing the motor from the power
chair. If the motor/gearbox is to be removed
from the power chair, refer to Motor and Gearbox
Removal, Section 7 of this manual. Consider
replacing any motor/gearbox assembly that
does not pass the following inspections.
1. Inspect the output shafts for signs of grease
leakage (fi gure. 6.1.1).
2. Inspect the the gearbox release arm to the
motor/gearbox assembly. Ensure that it is tight
and not damaged (fi gure. 6.1.2).
3. Manually operate each gearbox release lever
to ensure that they operate easily and fully engage
and/or disengage
fig. 6.1.1
fig. 6.1.2
4. Locate the motor brush access on both sides
of the motor (fi gure 6.1.3)
Caution: Use care not to damage the brush
cap with excessive force in the next step.
fig. 6.1.3
Note: When removing the brush assemblies, remove one brush assembly at a time. Note its
orientation so that it can be inserted into the brush holder the same way it was removed.
5. Remove the brush by using a common
screwdriver to unscrew the plastic cap. Be careful
not strip out the slot (fi gure. 6.1.4).
QM-7 SERIES SERVICE MANUAL
fig. 6.1.4
JANUARY 2012SUNRISE MEDICAL
PAGE 6.1
Section 6
Motor Brush Inspection
Note: Disconnect the motor connector from the control module fi rst, if the motor/gearbox
assembly is undergoing the following procedure.
Note: When replacing brush assemblies, always replace the brushes on both motors. Break
in the brush assemblies prior to delivering the power chair to the customer by releasing the
gearbox assembly and operating the motor for 20 to 30 minutes, alternating between forward
and reverse.
6. Inspect the brush assembly (fi gure. 6.2.1).
Replace any brush assembly less than ¼ inch
long. Ensure that the lead to the brush and spring
has not over heated and that the ends of the brush
are sharp and clean. Note the taper of the brush
(fi gure 6.2.2) for re-installation.
Fig 6.2.2
7. Inspect the motor’s commutator (fi gure 6.2.3).
Verify that it is clean, not overheated, and does
not show signs of excessive arcing. Normal color
is bright copper to dull brown copper. Contact
Sunrise Medical Technical Service if in doubt of
its condition.
8. Inspect the motor connector at both the motor
end and the control module end for signs of over
heating (fi gure. 6.2.4).
fig. 6.2.1
fig. 6.2.3
PAGE 6.2
JANUARY 2012 SUNRISE MEDICAL
fig. 6.2.4
QM-7 SERIES SERVICE MANUAL
Section 6
Measure Resistance
9. Measure the resistance of the park brake
assembly by connecting a Multimeter to the small
pins of the 4-pin connector (fi gure. 6.3.1). Normal
resistance is approximately 12 to 15 ohms.
10. Measure the resistance through the motor
brush assembly and motor by connecting a
Multimeter to the large pins of the 4-pin connector
(fi gure. 6.3.2). Normal resistance is approximately
.5 to .9 ohms.
fig. 6.3.1
Note: New brush readings may be different than those recorded above. The new brush
assemblies should be run-in prior to measuring their resistance. Contact Sunrise Technical
Service if the readings are either signifi cantly higher or lower than those recorded above.
QM-7 SERIES SERVICE MANUAL
fig. 6.3.2
JANUARY 2012SUNRISE MEDICAL
PAGE 6.3
Section 7
Removal Procedures
Battery Access/Removal
1. For Access to Batteries, locate the left and Right
thumbscrews that hold the seating assembly to the
base (fi gure. 7.1.1) . Remove the thumbscrews.
Lift and pivot the Seating system rearward.
fig. 7.1.1
Please refer to, and follow the Health and Safety Section for Battery safety and handling
procedures in in front of this Service manual
2. Remove cushion and Pivot the entire Seat/
Back frame assembly to the fl at working surface
for access to battery cover under the front of the
seat (fi gure. 7.1.2)
3. To Expose the Batteries, Lift and pivot the
battery access cover under the front of the seat
Frame assembly. (fi gure. 7.1.3)
4. Disconnect the 2 Batteries as shown in (fi gure
7.1.4). Disconnect the main Battery lead from the
power base. You may now lift the batteries out of
the battery box by using the attached lifting strap
(*Remember to use proper lifting techniques, the
batteries are heavy.). To remove the harness from
the battery posts, use an open end wrench.
fig. 7.1.2
fig. 7.1.3
QM-7 SERIES SERVICE MANUAL
fig. 7.1.4
JANUARY 2012SUNRISE MEDICAL
PAGE 7.1
Section 7
Battery Installation
5.Re-attach the harness to the Battery posts with
an open end wrench as shown in (fi gure 7.2.1). It
is recommended to tighten the Battery Harness
hardware to a maximum torque of 60in-lbs
6. It is important to follow the basic hardware
stackups shown below when re-attaching
the harness to the battery posts for a reliable
connection.
fig. 7.2.1
Option 1 Post on top
Std washer
Nut
Option 2 Post on top
Bolt
Lock washer
7. Lift the batteries into the battery box and
reconnect the Batteries to each other as shown in
(fi gure 7.2.5). Then reconnect the Battery harness
to the power base. (A) (fi gure 7.2.6)
Option 3 Flat top
fig. 7.2.5
A
Batteries installed incorrectly can blow the fuse for this system. Pay careful attention to install
the battery harness across both batteries instead of to each of the batteries individually. Refer
to Battery Wiring Diagram in Section 2 for reference.
PAGE 7.2
JANUARY 2012 SUNRISE MEDICAL
fig. 7.2.6
QM-7 SERIES SERVICE MANUAL
Section 7
Motor and Gearbox Removal
1. The Motor must be disconnected from power
before removal. For controller access, remove the
controller cover/shroud from the back of the chair
with an M4 Hex Key locating the two attachment
screws. (fi gure.. 7.3.1).
2. Locate and disconnect main power from
the control module by disconnecting the power
harness from the batteries.
fig. 7.3.1
3. Locate and disconnect the appropriate Motor
Lead, from the control module. (M1 , M2 or both)
(fi gure.. 7.3.2).
4. Remove the wheel assembly by using a 5/8"
deep socket wrench to remove the 3 bolts that
hold the wheel and rim in place (fi g. 7.3.3).
M1
M2
fig. 7.3.2
fig. 7.3.3
5. To separate the Motor from the Motor Bracket,
use a 5mm Hex key to remove the 6 M6 Socket
head Cap screws shown in (fi gure. 7.3.4) .
QM-7 SERIES SERVICE MANUAL
fig. 7.3.4
JANUARY 2012SUNRISE MEDICAL
PAGE 7.3
Section 7
Removal for units with Mechanical Brake
1. The process for units with a Mechanical Brake
is exactly the same as the standard confi guration,
except there are 2 brackets located with the
motor, the mechanical brake bracket, shown in
(fi gure 7.4.1) and the standard motor bracket.
The mechanical brake bracket is removed fi rst by
taking out the 3 longer screws next to the wheel
and then the remaining 3 screws holding the
motor to the motor bracket are removed.
Caution: Make sure the Main power is disconnected by disconnecting main battery harness
before performing the next set removal procedures.
fig. 7.4.1
Control Module Removal
1. For controller access, remove the controller
cover/shroud from the back of the chair with an
M4 Hex Key locating the two attachment screws.
(fi gure 7.4.2).
2. Locate and carefully disconnect all Power,
Plugs, and/or connectors that are attached to the
controller. (fi gure 7.4.3).
fig. 7.4.2
PAGE 7.4
JANUARY 2012 SUNRISE MEDICAL
fig. 7.4.3
QM-7 SERIES SERVICE MANUAL
Section 7
3. Use 4 mm Hex Key to remove left and right
screws/washers attaching the controller to the
Battery Box (fi gure 7.5.1).
4. Once all bolts and washers have been removed,
Separate the module from the backing plate and
remove it. (fi gure 7.5.2)
fig. 7.5.1
5. To re-install the controller reverse the previous
steps. (fi gure 7.5.3)
fig. 7.5.2
fig. 7.5.3
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 7.5
Section 7
Front and Rear Caster Wheel Removal
1. Use a 17 mm socket to remove the Locknut
holding the wheel to the caster shaft, and remove
the wheel (fi gure 7.6.1, and 7.6.2).
fig. 7.6.1
Front and Rear Caster Stem Removal
1. To remove or replace the Caster Stem, Use a
Flat Head Screwdriver to remove the Caster cap
as shown in (fi gure 7.6.3)
2. Using a 24mm Socket for the Locknut on top of
the stem, and an open end 24mm wrench for the
bottom of the stem assembly, remove the locknut,
washer, and caster stem from the Caster Arm.
(fi gure 7.6.4)
fig. 7.6.2
fig. 7.6.3
PAGE 7.6
JANUARY 2012 SUNRISE MEDICAL
fig. 7.6.4
QM-7 SERIES SERVICE MANUAL
Section 7
Gas Spring Removal
Note: The shocks used in this power base are pre-adjusted at the factory. Please refer to
Section 9- Suspension overview.
1. Remove the wheel assembly by using a 5/8"
deep socket wrench to remove the 3 bolts that
hold the wheel and rim in place (fi gure 7.7.1).
Before removing the Gas Spring, raise the center
of the chair with a lift so that the suspension can
come all of the way down.
fig. 7.7.1
2. For Gas Spring Removal, Remove the Lower
holding bolt (A). using a 5mm Hex key (fi gure
7.7.2)
3. Remove the top holding Bolt with a 6mm hex
(fi gure 7.7.3)
A
fig. 7.7.2
QM-7 SERIES SERVICE MANUAL
fig. 7.7.3
JANUARY 2012SUNRISE MEDICAL
PAGE 7.7

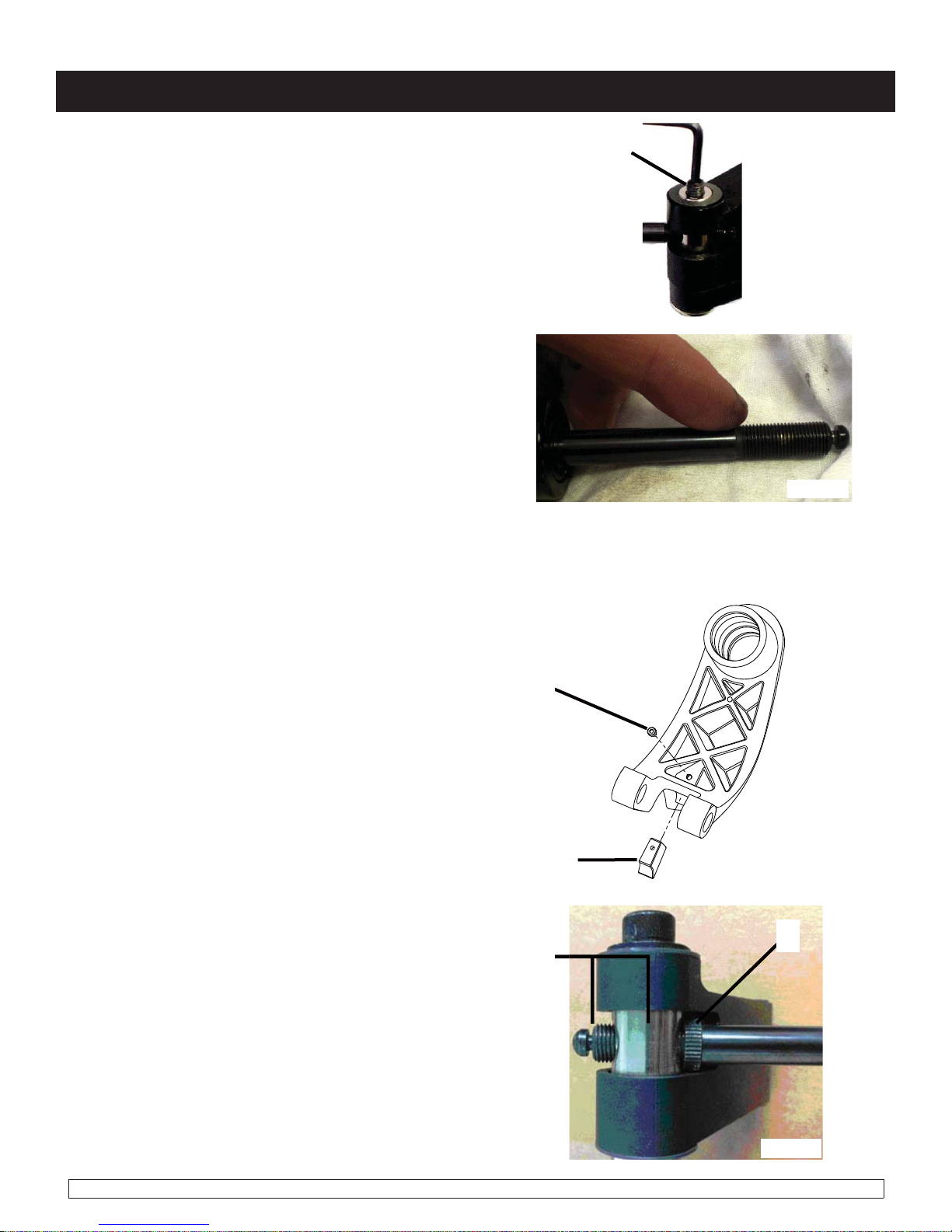

Section 7
4. Once the top holding bolt is removed, loosen
the set screw (A) as shown by using a 4mm Hex
wrench (fi gure 7.8.1)
5. Once set screw is loosened, the gas spring
shaft can be unscrewed and removed from the
securing point as shown in (fi gure 7.8.2)
Note: A Gas spring replacement kit is available. Those Parts should be used in the following
steps. Be sure to replace any screws or bolts that have been loosened and/or removed,
especially threaded items that include a patch.
A
fig. 7.8.1
fig. 7.8.2
6. Remove the Bronze Anti Pitch Insert (B). Using
an M5 Hex wrench, remove the Socket Head Cap
Screw (C) in the Rear Caster Arm. The insert can
be pushed out from the back by using a hole that
has been created in the part. Be sure to replace
with a new part from the Kit before re-assembly.
7. To re-install the Gas Spring, Reverse the
previous procedures. Be sure to adjust the the
Gas Springs threaded shaft to the correct distance
of 12-13mm for required installation clearance
(C) as shown in (fi gure 7.8.3). and then tighten
the Jam Nut (D) to secure the shaft at the correct
distance, and replace the gas spring insert.
C
B
E
D
PAGE 7.8
JANUARY 2012 SUNRISE MEDICAL
fig. 7.8.3
QM-7 SERIES SERVICE MANUAL
Section 7
Tilt Actuator Removal
1. Remove the seating system to expose the
actuator. Disconnect the 6-pin connector by
Pushing down on tab (fi gure 7.9.1)
fig. 7.9.1
Caution: The actuator wires are fragile. Use caution when removing. Do not remove the bullet
connector
2. Note the connections leading to the Tilt Actuator,
Separate and label the those wires. Reverse the
procedures to replace it and retest as necessary.
(fi gure 7.9.2).
3. Use two 13 mm wrenches and remove the nuts
at both ends of the actuator. See (fi gure 7.9.3).
which shows one end. Remove both pins from
the tilt actuator.
fig. 7.9.2
QM-7 SERIES SERVICE MANUAL
fig. 7.9.3
JANUARY 2012SUNRISE MEDICAL
PAGE 7.9

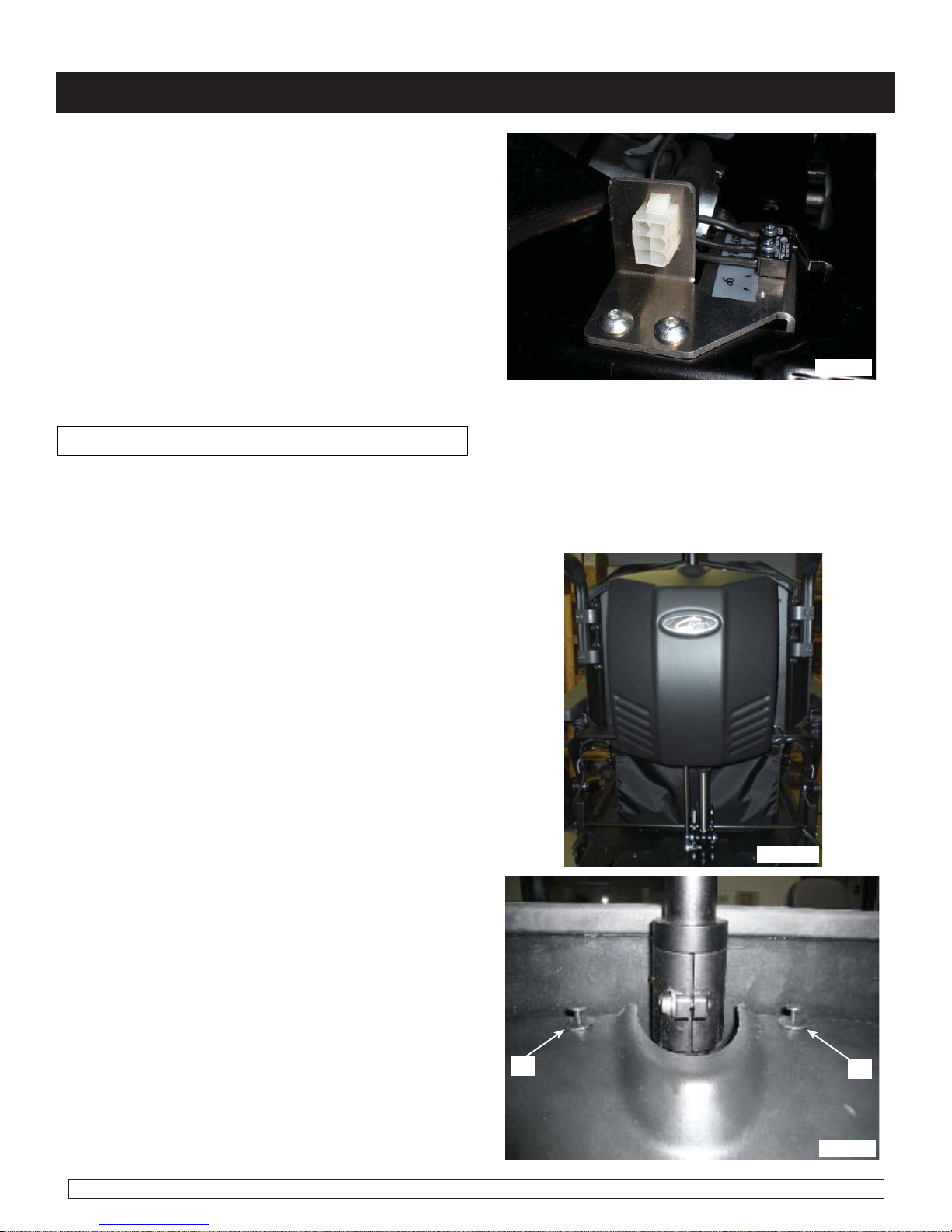

Section 7
4. Remove the actuator and micro-switch assembly
as one part if the entire assembly is to be replaced
(fi gure 7.10.1).
5. Reverse the previous procedure to install
the actuator and micro-switch assembly. Retest
as necessary.
fig. 7.10.1
Recline Actuator Removal
Note: In order to remove either the recline or the shear actuator, the ISM box and mount must
be removed. The gas strut must also be unbolted on one end, and swung out of the way.
Complete the following steps in order to remove and replace the recline actuator.
1. Locate and Remove the rear shroud (fi gure
7.10.2) by using a fl at head screw driver to lift the
small head of the fasteners (F) (fi gure 7.10.3)
PAGE 7.10
JANUARY 2012 SUNRISE MEDICAL
F
QM-7 SERIES SERVICE MANUAL
fig. 7.10.2
F
fig. 7.10.3
Section 7
2. Remove the rear Recline shroud. This will
allow access to the ISM control Module.
(fi gure 7.11.1)
3. Use a 9/64" Hex wrench to remove the socket
head cap screws that attach the ISM mount to the
recline structure (fi gure 7.11.2).
fig. 7.11.1
4. Use the same wrench to loosen (Do not
Remove) the bottom two socket head cap screws.
(fi gure 7.11.3)
QM-7 SERIES SERVICE MANUAL
fig. 7.11.2
fig. 7.11.3
JANUARY 2012SUNRISE MEDICAL
PAGE 7.11
Section 7
5. Locate and disconnect the two main leads to
the actuators(fi gure 7.12.1)
Recline Actuator lead is shown on left, and Shear
actuator lead is shown on Right.
fig. 7.12.1
Caution: During the next steps, the gas strut will be detached. It is under pressure. Once the
recline actuator is detached from it's mount, the gas Strut will be allowed to fully extend.
Gas Strut Removal
6. Locate the top Gas Strut attachment bolt (fi gure
7.12.2) Use a pair of needle nose pliers and a 1/2"
box-end wrench to remove the gas strut from it's
upper mount. (fi gure 7.12.2)
fig. 7.12.2
Note: You do not have to fully disconnect the gas strut. Once the top mount is disconnected,
rotate the gas strut down and out of the way to work on the other components.
PAGE 7.12
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 7
7. Prior to removal of the recline actuator,
observe the position of the top and bottom bracket
to ensure that it is mounted in the same position
during re-assembly. One side of the top bolt for
the Recline actuator is accessed as shown in
(fi gure 7.13.1). The nut and washer are found on
the other side as shown in (fi gure 7.13.2)
fig. 7.13.1
8. Use a 1/4" Hex wrench and a 9/16" open-end
wrench and remove the top bolt that holds the
recline actuator to the back structure.
(fi gure 7.13.3)
fig. 7.13.2
fig. 7.13.3
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 7.13
Section 7
9. Use a 9/16" socket and ratchet to remove the
bolts that attach the bottom of the recline actuator
(fi gure 7.14.1)
10. Once the bolt is removed, the same technique
may be used to remove the lower recline actuator
mount.
10. Unplug all of the connectors to the recline
actuator (fi gure 7.14.2)
fig. 7.14.1
11. The recline actuator can now be replaced with
a new actuator.
12. To reinstall the Recline Actuator, the gas strut
must be reattached before the bottom recline
actuator bolts are re-installed. Once the gas strut
is connected, pull on the back to compress the
gas strut to position the end of the recline actuator.
Insert the bolts and nuts and tighten. To complet
the installation of the Recline actuator, reverse the
previous steps.
fig. 7.14.2
Caution: Attaching the recline actuator may require 2 people, one to compress the gas strut
and one to insert the bolts into the bottom recline actuator mount.
PAGE 7.14
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 7
Shear Actuator Removal
Note: In order to remove the Shear actuator, the Gas strut and Recline actuator must be
removed fi rst. Refer to the previous pages for details.
1. Once the recline actuator is removed, locate
the ISM control box on the back of the chair and
disconnect it by unplugging the 6-Pin connector.
(fi gure 7.15.1)
2. Using a 7/16" open-end wrench and a 3/16"
hex wrench, remove the top and bottom mounts
(fi gure 7.15.1)
3. Lift the actuator out of the back shroud by
pulling the top mount out towards the back of the
chair, and then remove the Shear Actuator from
the bottom mount. (fi gure 7.15.2)
4. Reverse the process to reinstall a new Shear
Actuator.
Elevate Actuator Removal
1. Locate the ISM control box on the back of the
chair and disconnect all of the wires that connect
to the Lift Module. (fi gure 7.15.3) Remove/
unattach the the lift module from the base.
fig. 7.15.1
fig. 7.15.2
QM-7 SERIES SERVICE MANUAL
fig. 7.15.3
JANUARY 2012SUNRISE MEDICAL
PAGE 7.15
Section 7
2. To remove the actuator, (fi gure 7.16.1) there
are 2 sets of attaching hardware, remove both
sets of bolts. A 3mm key is utilized or ratchet to
remove plate (fi gure 7.16.2)
fig. 7.16.1
3. The Second actuator bolt can be located as
shown in (fi gure 7.16.3) To remove, use a 13mm
open end wrench on nut and slip bolt out of
assembly.
fig. 7.16.2
fig. 7.16.3
PAGE 7.16
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 8
Adjustment procedures
Seat/Back Width adjustment
Note: The same procedure is used for the 18" - 22" wide seating system
ASAP II Seating 16” - 20” wide is shown.
The ASAP II seating system is fully adjustable
to allow changes from 16” to 20” or 18” – 22”.
This requires a frame weldment and seat pan
plates adjust for seat growth. The picture shown
in (figure 8.1.1) has a seat width of 20” . This
detail shows how easy it is to change back to
16” wide.
To make seating width adjustments follow the
following steps:
1. Have 3mm – 4mm – and 5mm Hex keys
available for the adjustments.
2. Loosen (do not remove) all of the M5 Button
Head Cap bolts (A) (figure 8.1.1). with a 4mm
Hex key, or a T-handle Hex key so that the
plates can slide for adjustment.
A
fig. 8.1.1
3. Using a 5mm Hex key, remove the socket
head cap screws (figure 8.1.2) that attach the
left and right wings to the seat frame.
4. Remove the 5mm socket head bolts with a
Hex key that are used to hold the bottom of the
seat pan in place (figure 8.1.3) – totally remove
from its position so that seat pan plates can slide
for adjustment.
QM-7 SERIES SERVICE MANUAL
fig. 8.1.2
fig. 8.1.3
JANUARY 2012SUNRISE MEDICAL
PAGE 8.1
Section 8
5. Remove the nut, and bolt that secures the
rear towel bar using a 4mm Hex Key and a
13mm open end wrench or ratchet as shown in
(figure 8.2.1).
6. Loosen the Back bracket on the chair to allow
for changes to the seat width. (figure 8.2.2).
fig. 8.2.1
fig. 8.2.2
NOTE: It is recommended to use the back width to accommodate the user, for example – 16
with 16 wide – 18 with 18” wide. If, however there is a ½ “ adjustment needed, the brackets in
(figure 8.2.2) show that a ½” change equals a 1” accomadation to the user .
7. Using a 5mm Hex Key and either a 13mm
open end wrench or ratchet., Remove the nuts
and bolts from the back bracket attached to the
back cane assembly (figure 8.2.3) and adjust as
necessary.
fig. 8.2.3
PAGE 8.2
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 8
8. After checking alignment, symmetry, and
measurement of the final adjustment change,
(figure 8.3.1) the nuts and bolts can be retightened in the reverse order of the steps listed.
Make sure all bolts are tightened to appropriate
specifications.
Legrest adjustment
Long or Short Center-Mount adjustment
fig. 8.3.1
1. To perform a Legrest adjustment (figure
8.3.2) the following tools are required: A 5mm
Hex Key, and a 13mm open end wrench and/or
ratchet.
2 Loosen all 3 sets of bolts/nuts as shown in
(figure 8.3.2) and (figure 8.3.3) using the 5mm
hex key and 13mm open-end wrench or ratchet.
Move the footrest extension, and calfpads to the
desired fit locations. Double-check fit with client
before fully tightening the hardware.
fig. 8.3.2
QM-7 SERIES SERVICE MANUAL
fig. 8.3.3
JANUARY 2012SUNRISE MEDICAL
PAGE 8.3

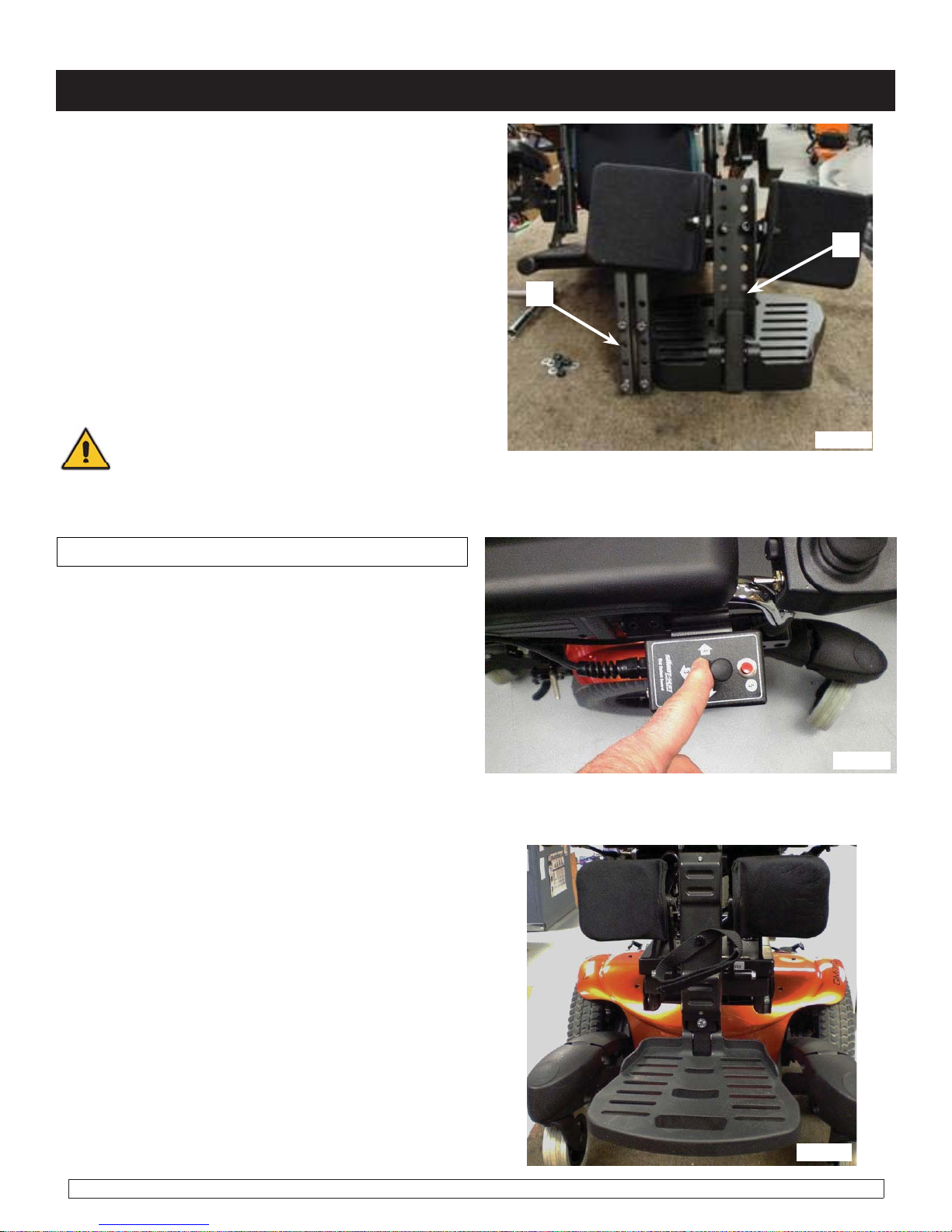

Section 8
3. There are 5 sets of holes as seen on the
front bars (A), and 6 sets of holes as seen on
the centerpost (B) (figure 8.4.1) Bolts can go
through any of these holes to give adjustability
of up to 6 inches from top to bottom. To extend
the front arms further, simply loosen 5mm
size SHCS screws and move the bars further
forward, then retighten.
A
4. Once desired height is achieved, Reset
placement of bolts then tighten with 5mm Hex
key and 13mm wrench. Tighten to correct
torque specifications (figure 8.4.1)
Caution: Allow at least 2" of Ground Clearance when making adjustments to the legrest, and
footplate assembly.
B
fig. 8.4.1
Powered Center-Mount Legrest adjustment
1. To perform Legrest adjustments (figure 8.4.2)
Operation of the 4-way switch is detailed below.
fig. 8.4.2
NOTE: It is also possible to perform these operations with the thru Drive using the joystick.
2 Right Command (2) - Controls the raising and
lowering of the leg on the center mount.
3. Reverse Command (3) - Operates both raising
and lowering Center Mount, plus extension of
the legrest (figure 8.4.3)
PAGE 8.4
JANUARY 2012 SUNRISE MEDICAL
fig. 8.4.3
QM-7 SERIES SERVICE MANUAL

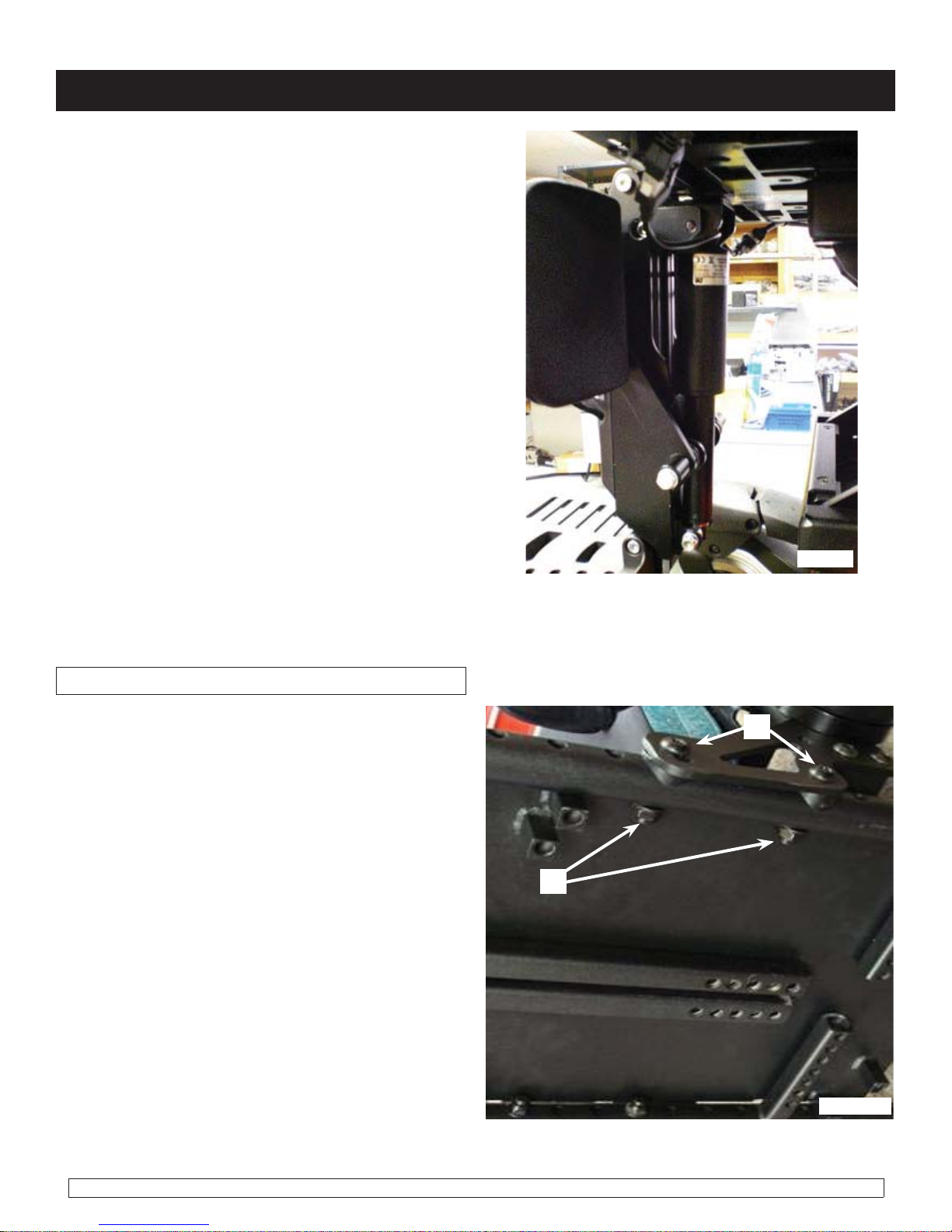

Section 8
4. Left Command (4) - Operates extension of
leg outward and inward. Actuator is shown,
(fig 8.5.1)
Back-rest Angle Adjustment
1 Make sure you have the right tools- 5mm
Hex Key, and 13mm open end wrench and/or
ratchet.
2. Loosen the 2 BHCS bolts (A) (figure 8.6.1)
with a 5mm Hex key and use 13mm open end
Wrench for the nuts (B).
fig. 8.5.1
A
B
QM-7 SERIES SERVICE MANUAL
fig. 8.5.2
JANUARY 2012SUNRISE MEDICAL
PAGE 8.5

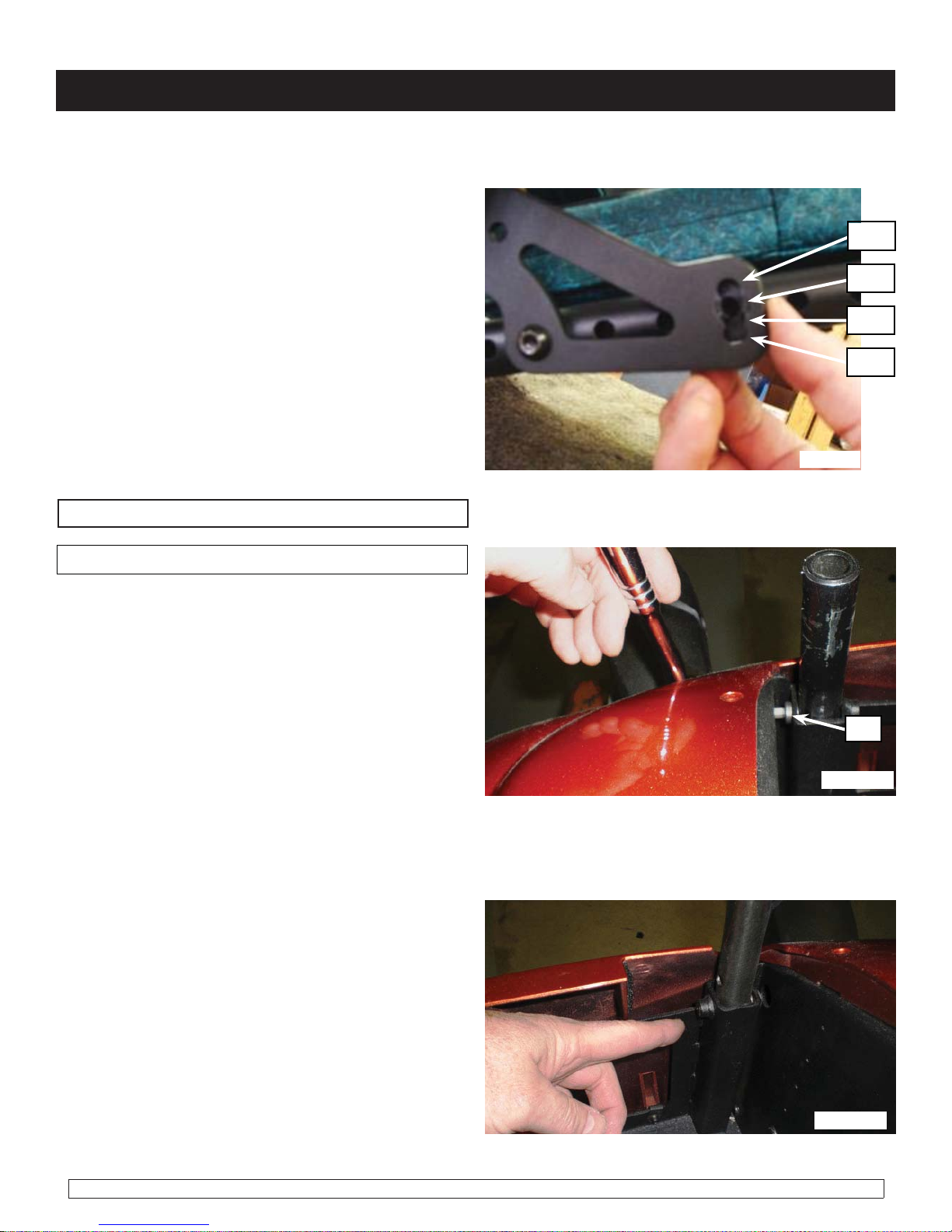

Section 8
Note: Take care not to lose the saddles, or plastic washers between Bracket and seat rail
while performing the next step.
3. To make a small angle change to one of four
possible settings, (-4°, 0, 4°, 8°) pull bolt out and
change the position of the front edge bracket.
(figure 8.6.1) Then re-attach the nut and tighten
bolt into place. make sure plastic saddles and
washers are in place behind the bracket.
fig. 8.6.1
Seat-Height Adjustment
-4°
0°
4°
8°
Front Bracket Seat height adjustment
1 The QM-710 has 4 Seat-height positions.
Use a 6mm Hex Key or 6mm socket to remove a
single threaded bolt (A) on each side and adjust
the seat height. (figure 8.6.2)
A
fig. 8.6.2
Note: Please reference "Seat Height Adjustment Matrix" in Section 9 of this manual for correct
adjustment of both the Front and Rear Brackets.
2. Once you have the correct seat height reinsert the threaded bolt. Make sure that the
other front bracket has been adjusted the same
amount before tightening the bolts. (figure 8.6.3)
PAGE 8.6
JANUARY 2012 SUNRISE MEDICAL
fig. 8.6.3
QM-7 SERIES SERVICE MANUAL
Section 8
Rear Bracket Seat height adjustment
1 The adjustment can be done by removing the
rear shroud (See rear shroud removal section 8)
and the Bluetooth module, if present.
The rear bolts are inserted on the inside of
brackets and are adjusted to 1" increments.
(figure 8.7.1)
2. Once you have the correct seat height, on
both sides, re-insert the threaded bolt and
tighten (figure 8.7.2)
fig. 8.7.1
Recline - Adjustments and Procedures
Seat-back Angle adjustment
1 The upright seat-back angle is set by the
programming. To adjust the upright Seat-back
angle, request a programming file from Sunrise
Technical Services. No mechanical procedures
are required.
Pivot point adjustment
1 The pivot point (seat/back height) may be
moved up in the seat/back bracket. The factory
setting is 4" measured from the top of the seatpan to the pivot point. This may be adjusted up
in 3/4" increments (figure 8.7.3)
fig. 8.7.2
Note: If the pivot point is raised, the gas strut and Recline actuator must be raised an equal
amount, refer to step 4.
QM-7 SERIES SERVICE MANUAL
fig. 8.7.3
JANUARY 2012SUNRISE MEDICAL
PAGE 8.7
Section 8
2. Use a 7/16" socket and ratchet to remove
the bolts holding pivot point (A). Raise it to the
desired location.(figure 8.8.1)
A
fig. 8.8.1
Note: If the pivot point is raised, it is suggested to replace the back pan with a larger pan to
decrease the gap from the bottom of the back to the seat-pan.
3. Re-insert and tighten the bolts securing the
pivot point. (figure 8.8.1)
4. As the pivot point is raised, the recline
actuator and gas strut must be raised an equal
amount. Do this by removing the mounting bolts
(B) to raise the units. (figure 8.8.2)
B
B
Seat-back depth adjustment
6. Seat-back depth is adjusted by moving the
mounting brackets to the front or the rear, in the
seat-pan track. (figure 8.9.1)
7. Loosen the two mounting bolts (C) and slide
the bracket to the desired location. There are
recessed holes in track for Seat depth as well.
(figure 8.8.3)
fig. 8.8.2
C
PAGE 8.8
JANUARY 2012 SUNRISE MEDICAL
C
QM-7 SERIES SERVICE MANUAL
fig. 8.8.3

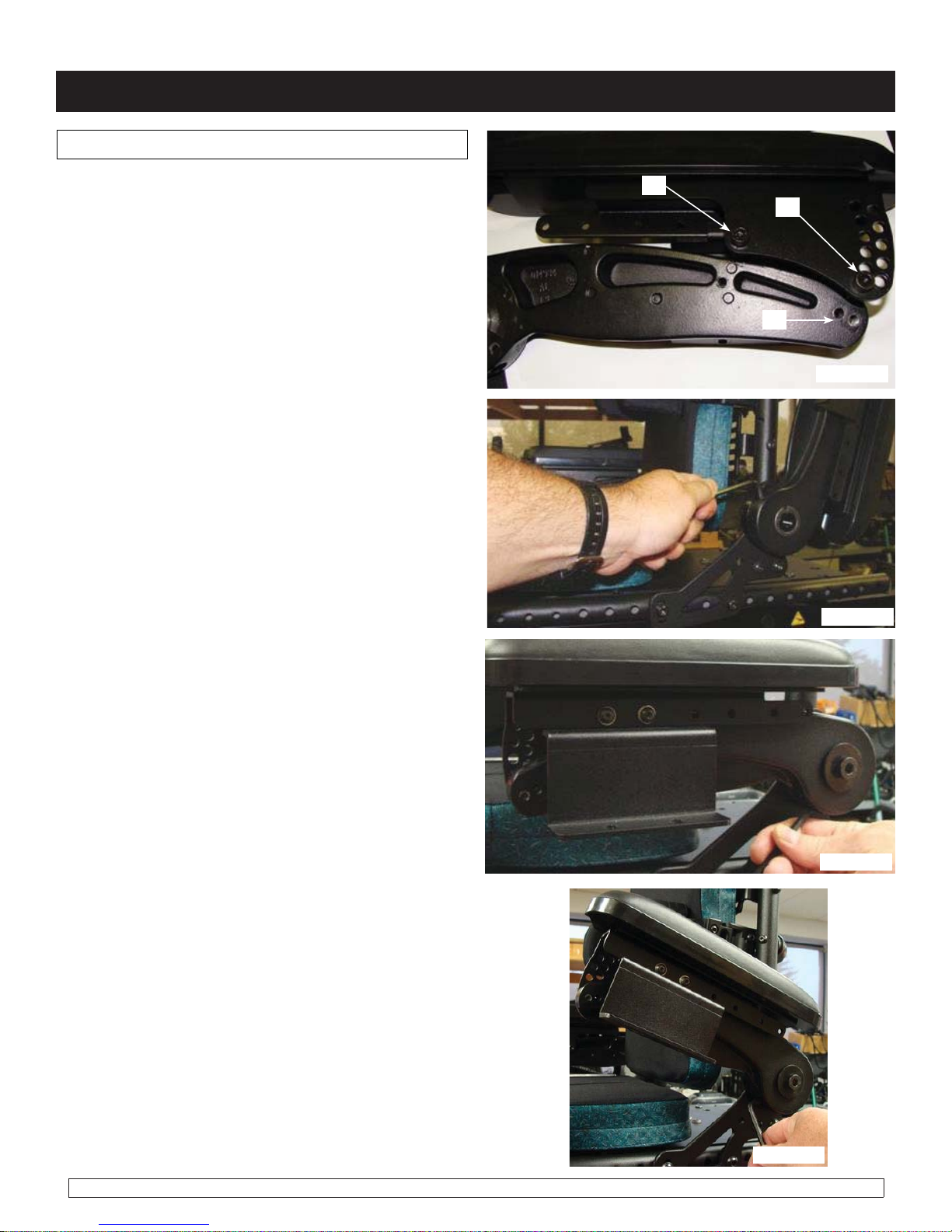

Section 8
Cantilevered Armrest adjustments
1. The Kids Cantilevered Armrest angle adjust
range is from 0° to 40° in 5° increments. To adjust
the armrest angle up or down, loosen the pivot
bolt (A) and unscrew the 5mm bolt (B) using a
Hex key (figure 8.9.1) Adjust as necessary, using
either the inside or outside bolt hole (C) and then
re-tighten bolts to specifications.
2. Height adjustment for the armrest also utilizes
the 5mm Hex Key. Loosen the bolt as shown in
(figure 8.9.2) and move the armrest up or down.
Once desired height is acheived, re-tighten the
bolts on both sides to specifications
A
B
C
fig. 8.9.1
3. For User-in-chair angle adjustments, Loosen
the set screw with a 5mm Hex Key as shown in
(figure 8.9.3). adjust the armrest angle and then
tighten the set screw at desired angle.
(figure 8.9.4.
fig. 8.9.2
fig. 8.9.3
QM-7 SERIES SERVICE MANUAL
fig. 8.9.4
JANUARY 2012SUNRISE MEDICAL
PAGE 8.9

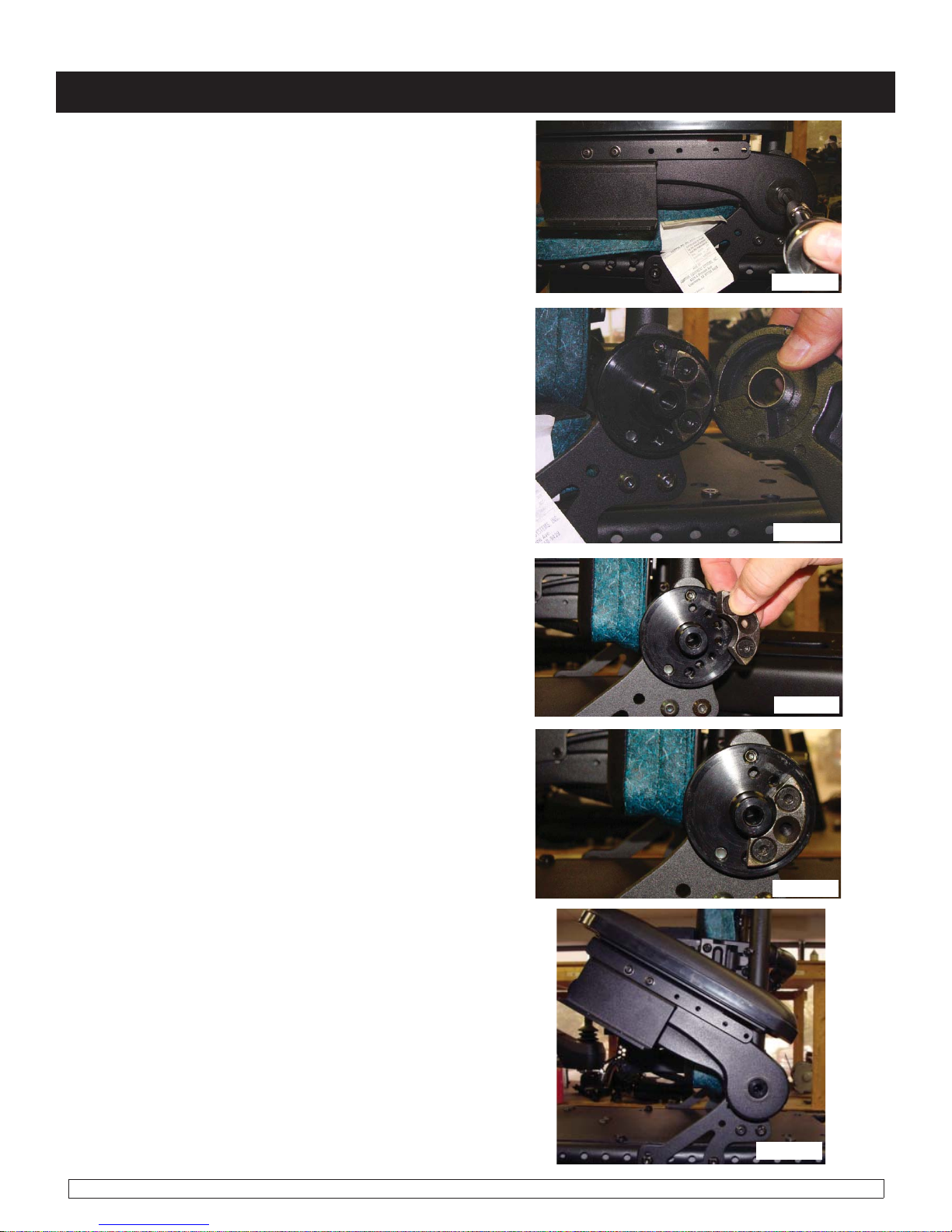

Section 8
3. For Extreme angle adjustments, remove the
outside shell of the armrest casing using a 7mm
Hex Key on the bolt as shown in (figure 8.10.1)
and (figure 8.10.2)
fig. 8.10.1
fig. 8.10.2
4. For Extreme angle adjustments, remove the
outside shell of the armrest casing using a 7mm
Hex Key on the bolt as shown in (figure 8.10.3)
5. Remove the flathead socket screws holding
the insert block in place and adjust as shown.
The block can be set from 17° forward, or 15°
rearward. Block placement in (figure 8.10.4),
yeilds the result seen in (figure 8.10.5)
fig. 8.10.3
fig. 8.10.4
fig. 8.10.5
PAGE 8.10
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 9
Reference and Options
Non-expandable 3-Axis controls
1. 2-Axis box 4.5 and 7.0 AMP box used for Lift
and Tilt (figure 9.2.1)
fig. 9.2.1
2. 3-Axis 7.0 AMP box used for Tilt and power
legrests (figure 9.2.2)
3. 3-Axis 4.5 AMP box used for Lift and power
legrests, and for HD Tilt (figure 9.2.3)
fig. 9.2.2
QM-7 SERIES SERVICE MANUAL
fig. 9.2.3
JANUARY 2012SUNRISE MEDICAL
PAGE 9.1
Section 9
Powered elevating or articulating legrest
VR2/R-Net Control
The actuator buttons can operate any factory
approved actuator. Operation is dependent on
what options are fitted to your wheelchair. To
operate the legrests, seat tilt, seat lift or back
rest recline follow the following steps
1. For VR2, Push one of the actuator buttons
that has the seat icon on it to select actuator
mode
2. Operate the joystick in the forward or
rearward direction to move the desired actuator
up or down.
3. Release the joystick when the desired angle
is reached.
4. To return to drive mode press the actuator
button again or Mode for R-Net.
fig. 9.2.1
fig. 9.2.2
The Multi Axis box
(figure 9.2.1) has 3 settings available – with
Toggling occurring in each of these settings. On
this example below hitting the blue will cause
combined legrest to extend – hitting yellow
button will extend left mounted actuator and
orange for right mounted actuator. Simply touch
the switch for Right Leg and the leg will either
extend outward or retract inward – once fully
extended or retracted it is recommended to let
go of switch.
(figure 9.2.2) shows all connectors to actuator
are 6 pin molex connectors. The lead (A) going
back for power connects to the control module
as shown below via OBCport (figure 9.2.3)
The test for power can be done quite simply by
removing connector from actuator and hooking
up Multi meter to pins shown.
(figure 9.2.4)
connection prior to depression of switch.
(figure 9.2.5) shows depression switch and what
meter will read.
A
fig. 9.2.3
fig. 9.2.4
PAGE 9.2
JANUARY 2012 SUNRISE MEDICAL
fig. 9.2.5
QM-7 SERIES SERVICE MANUAL
Reference: Inhibit scheme
Section 9
QM-7 SERIES SERVICE MANUAL
JANUARY 2012SUNRISE MEDICAL
PAGE 9.3
Section 9
Reference: R-NET Joystick & Omni Display Symbols
PAGE 9.4
JANUARY 2012 SUNRISE MEDICAL
QM-7 SERIES SERVICE MANUAL
Section 9
Reference: Seat Height Adjustment Matrix
CHAIR
QM710 QM715 QM720
XXX
XX
X
XX
XX
XXX
XX
X
XX
XX
XXX
XX
X
XX
XX
XXX
XX
X
XX
XX
QM710 QM715 QM720
XXX
XX
X
XX
XX
XXX
XX
X
XX
XX
XXX
XX
X
XX
XX
XXX
XX
X
XX
XX
Configuration
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
No Module
Tilt Module
Tilt Module - HD
Lift Module
Lift/Tilt Combo
STFH (in)
17.3 1 / A
18.3 1 / A
18.6 1 / A
18.8 1 / A
21.2 1 / A
18.3 2 / A
19.3 2 / A
19.6 2 / A
19.3 3 / A
20.3 3 / A
16.1 2 / B
17.1 1 / A
17.4 1 / A
17.6 1 / A
20.0 1 / A
17.1 3 / B
18.1 2 / A
18.4 2 / A
18.1 4/ B
19.1 4 / B
Front/Rear
Post
Position
Packer
Bracket
Position
1st hole
N/A
N/A
N/A
N/A
1st hole
N/A
N/A
1st hole
2nd hole
1st hole
N/A
N/A
N/A
N/A
1st hole
N/A
N/A
1st hole
2nd hole
STFH Position
STFH (in)
Front/Rear
Post
Position
Packer
Bracket
Position
ASAP II
18.3 2 / B
19.3 2 / B
19.6 2 / B
19.8 2 / B
22.2 2 / B
19.3 3 / B
20.3 3 / B
20.6 3 / B
20.3 4 / B
21.3 4 / B
1st hole
1st hole
2nd hole
Power Recline Seati ng
17.1 3 / C
18.1 2 / B
18.4 2 / B
18.6 2 / B
21.0 2 / B
18.1 4 / C
19.1 3 / B
19.4 3 / B
19.1 5 / C
20.1 5 / C
2nd hole
N/A
N/A
N/A
N/A
N/A
N/A
1st hole
1st hole
N/A
N/A
N/A
N/A
1st hole
N/A
N/A
1st hole
STFH (in)
19.3 3 / C
20.3 3 / C
20.6 3 / C
20.8 3 / C
20.3 4 / C
21.3 4 / C
21.6 4 / C
21.3 5 / C
18.1 4 / D
19.1 3 / C
19.4 3 / C
19.6 3 / C
22.0 3 / C
19.1 5 / D
20.1 4 / C
20.4 4 / C
20.1 6/ D
21.1 6 / D
Front/Rear
Post
Position
Packer
Bracket
Position
1st hole
N/A
N/A
N/A
1st hole
N/A
N/A
1st hole
1st hole
N/A
N/A
N/A
N/A
1st hole
N/A
N/A
1st hole
2nd hole
STFH (in)
20.3 4 / D
21.3 4 / D
21.6 4 / D
21.8 4 / D
21.3 5 / D
19.1 5 / E
20.1 4 / D
20.4 4 / D
20.6 4 / D
20.1 6 / E
21.1 5 / D
21.4 5 / D
21.1 6 / D
+3Low +1 +2
Front/Rear
Post
Position
Packer
Bracket
Position
1st hole
N/A
N/A
N/A
1st h
1st hole
N/A
N/A
N/A
1st hole
N/A
N/A
2nd hole
Seat
Frame
Angle
(deg)
0°
ole
3°
6°
9°
0°
3°
6°
9°
FRONT POST
POSITIONS
1
2
3
4
5
6
FRONT VIEW BASE
REAR POST
POSITIONS
A
B
C
D
E
FRONT VIEW
PACKER POSITIONS
QM-7 SERIES SERVICE MANUAL
1ST HOLE
2ND HOLE
JANUARY 2012SUNRISE MEDICAL
PAGE 9.5
Loading...
