Quickie®Iris
User
Instruction
Manual &
Warranty
Supplier:
This manual must be given to the rider of this wheelchair.
Rider:
Before using this wheelchair read this entire manual and
save for future reference.
❏ WITH TRANSIT OPTION
❏ WITHOUT TRANSIT OPTION
931134 Rev. A
I. Introduction
3
SUNRISE LISTENS
Thank you for choosing a Quickie wheelchair. We want to hear your questions
or comments about this manual, the safety and reliability of your chair, and the service you receive from your supplier. Please feel free to write or call us at the address
and telephone number below:
SUNRISE MEDICAL
Customer Service Department
7477 East Dry Creek Parkway
Longmont, CO 80503
(303) 218-4500
(800) 333-4000
Let us know your address. This will allow us to keep you up to date with information
about safety, new products and options to increase your use and enjoyment of this
wheelchair.
FOR ANSWERS TO YOUR QUESTIONS
Your authorized supplier knows your wheelchair best, and can answer most of your
questions about chair safety, use and maintenance. For future reference, fill in the
following:
Supplier: _______________________________________________________________________________
Address: _______________________________________________________________________________
______________________________________________________________________________________
Telephone: _____________________________________________________________________________
Serial #: ________________________________________ Date/Purchased: ________________________
931134 Rev. A
II. Table of Contents
5
G. Positioning Belts ............................................................................... 24
H. Power Drive ...................................................................................... 24
I. Push Handles.................................................................................... 24
J. Quick-Release Axles ........................................................................... 25
K. Rear Axles ........................................................................................ 25
L. Rear Wheel Locks............................................................................... 25
M. Modified Seat Systems........................................................................ 26
N. Transit Option................................................................................... 26
IX. SET-UP AND ADJUSTMENTS .................................................................... 27
A. Swing-Away Hangers and Footrests....................................................... 27
B. Heavy-Duty, Lift-Off Footrests (optional)............................................... 28
C. Contracture Footrest (optional)............................................................ 28
D. Articulating Legrest (optional) ............................................................ 29
E. Elevating Legrest (optional)................................................................ 29
F. Caster Forks Assembly ........................................................................ 30
G. Dual-Post Armrest.............................................................................. 31
H. Height-Adjustable Armrests (optional).................................................. 31
I. Adjustable Locking Flip-Up Armrests..................................................... 32
J. Anti-Tip Tubes - Rear ......................................................................... 33
K. Anti-Tip Tubes - Front ........................................................................ 34
L. Tilt-In-Space Mechanism .................................................................... 34
M. Height-Adjustable Back with Adjustable Stroller Handle .......................... 35
N. Stroller Handle Extension.................................................................... 36
O. Reclining Back .................................................................................. 36
P. Frame Depth ..................................................................................... 37
Q. Frame Width ..................................................................................... 38
R. Seat Pan .......................................................................................... 38
S. Cushion Installation........................................................................... 38
T. Rear Axle ......................................................................................... 39
U. Carriage ........................................................................................... 40
V. Wheel Locks...................................................................................... 43
W. Check Out ......................................................................................... 43
X. TROUBLESHOOTING ............................................................................... 44
XI. MAINTENANCE...................................................................................... 45
XII. SUNRISE LIMITED WARRANTY................................................................. 47
II. Table of Contents
931134 Rev. A
4
I. INTRODUCTION..................................................................................... 3
II. TABLE OF CONTENTS.............................................................................. 4
III. YOUR CHAIR AND ITS PARTS .................................................................. 6
IV. NOTICE - READ BEFORE USE ................................................................... 7
A. Choose the Right Chair & Safety Options............................................... 7
B. Review This Manual Often ................................................................... 7
C. Warnings.......................................................................................... 7
V. GENERAL WARNINGS............................................................................. 8
A. Weight Limit..................................................................................... 8
B. Weight Training................................................................................. 8
C. Getting to Know Your Chair................................................................. 8
D. To Reduce The Risk of an Accident ....................................................... 8
E. Safety Checklist................................................................................. 9
F. Changes & Adjustments ...................................................................... 9
G. Environmental Conditions ................................................................... 9
H. Terrain............................................................................................. 10
I. Street Use ........................................................................................ 10
J. Motor Vehicle Safety .......................................................................... 10
K. When You Need Help .......................................................................... 11
VI. WARNINGS: FALLS & TIP-OVERS ............................................................. 12
A. Center of Balance .............................................................................. 12
B. Dressing or Changing Clothes .............................................................. 12
C. Wheelies .......................................................................................... 13
D. Obstacles ......................................................................................... 13
E. Reaching or Leaning .......................................................................... 14
F. Moving Backward............................................................................... 14
G. Ramps, Slopes & Sidehills ................................................................... 15
H. Transfers .......................................................................................... 16
I. Curbs & Steps ................................................................................... 16
J. Stairs............................................................................................... 17
K. Escalators ......................................................................................... 17
VII. WARNINGS: FOR SAFE USE (ATTENDANTS) ............................................... 18
A. Tilt Use ............................................................................................ 18
B. Descending a Curb or Single Step......................................................... 18
C. Climbing a Curb or Single Step ............................................................ 19
D. Climbing Stairs.................................................................................. 19
E. Descending Stairs .............................................................................. 19
F. Maintenance ...................................................................................... 20
G. Transit Use ....................................................................................... 20
VIII. WARNINGS: COMPONENTS & OPTIONS ..................................................... 22
A. Anti-Tip Tubes................................................................................... 22
B. Armrests .......................................................................................... 22
C. Stroller Handle.................................................................................. 22
D. Fasteners.......................................................................................... 23
E. Footrests.......................................................................................... 23
F. Pneumatic Tires................................................................................. 23
931134 Rev. A
IV. Notice– Read Before Use
7
IV. NOTICE– READ BEFORE USE
A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS
Sunrise provides a choice of many wheelchair styles to meet the needs of the wheelchair rider. However, final selection of the type of wheelchair, options and adjustments
rests solely with you and your health care advisor. Choosing the best chair and set-up
for your safety depends on such things as:
1. Your disability, strength, balance and coordination.
2. The types of hazards you must overcome in daily use (where you live and work,
and other places you are likely to use your chair).
3. The need for options for your safety and comfort (such as anti-tip tubes,
positioning belts, or special seating systems).
B. REVIEW THIS MANUAL OFTEN
Before using this chair you, and each person who may assist you, should
read this entire manual and make sure to follow all instructions. Review the warnings
often, until they are second nature to you.
C. WARNINGS
The word “WARNING” refers to a hazard or unsafe practice that may cause severe
injury or death to you or to other persons. The “Warnings” are in four main sections,
as follows:
1. V– GENERAL WARNINGS
Here you will find a safety checklist and a summary of risks you need to be
aware of before you ride this chair.
2. VI– WARNINGS– FALLS & TIP-OVERS
Here you will learn how to avoid a fall or tip-over while you perform daily
activities in your chair.
3. VII– WARNINGS– FOR SAFE USE
Here you will learn about practices for the safe use of your chair
4. VIII– WARNINGS– COMPONENTS & OPTIONS
Here you will learn about the components of your chair and options you can
select for safety. Consult your authorized supplier and your health care advisor
to help you choose the best set-up and options for safe use.
NOTE– Where they apply, you will also find “Warnings” in other sections of this manu-
al. Heed all warnings in this section. If you fail to do so a fall, tip-over or loss
of control may occur and cause severe injury to the rider or others.
III. Your Chair and Its Parts
931134 Rev. A
6
III. YOUR CHAIR AND ITS PARTS
QUICKIE IRIS
1. Backpost
2. Dual-post, height-adjustable armrest
3. Wheel locks
4. Swing-away footrest
5. Heel loop
6. Aluminum footplate
7. Push handle
8. Tilt-in-space mechanism release lever
9. Rear anti-tip tube
10. 12" Rear wheel
11. Carriage
12. Caster fork
13. Caster tire
14. Tilt indicator
15. Adjustable seat pan
16. Rocker arm
17. Hanger receiver
18. Seat rail
19. Adjustable stroller handle hinge
1
16
2
3
4
5
6
7
8
9
10
11
12
13
14
15
19
18
17
931134 Rev. A
V. General Warnings
9
E. SAFETY CHECKLIST
Before Each Use Of Your Chair:
1. Make sure the chair rolls easily and that all parts work smoothly. Check for
noise, vibration, or a change in ease of use. (They may indicate low tire pressure, loose fasteners, or damage to your chair).
2. Repair any problem. Your authorized supplier can help you find and correct the
problem.
3. Check to see that both quick-release rear axles are locked. When locked, the
axle button will “pop out” fully. If not locked, the wheel may come off and
cause you to fall.
4. If your chair has anti-tip tubes, lock them in place.
NOTE– See “Anti-Tip Tubes” (Section VIII) for times you should not use them.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
F. CHANGES & ADJUSTMENTS
1. If you modify or adjust this chair, it may increase the risk of a tip-over UNLESS
you make other changes as well.
2. Consult your authorized supplier BEFORE you modify or adjust your chair.
3. We recommend that you use anti-tip tubes until you adapt to the change, and
are sure you are not at risk to tip over.
4. Unauthorized modifications or use of parts not supplied or approved by Sunrise
may change the chair structure. This will void the warranty and may cause a
safety hazard.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
G. ENVIRONMENTAL CONDITIONS
1. Use extra care if you must ride your chair on a wet or slick surface. If you are
in doubt, ask for help.
2. Contact with water or excess moisture may cause your chair to rust or
corrode. This could cause your chair to fail.
a. Do not use your chair in a shower, pool or other body of water. The chair
tubing and parts are not water-tight and may rust or corrode from the inside.
b. Avoid excess moisture (for example, do not leave your chair in a damp bath-
room while taking a shower).
c. Dry your chair as soon as you can if it gets wet, or if you use water to clean it.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
V. General Warnings
931134 Rev. A
8
V. GENERAL WARNINGS
A. WEIGHT LIMIT
NEVER exceed the weight limit of 250 pounds for the standard IRIS or
350 pounds for heavy duty option, for combined weight of rider and items
carried. If you do exceed the limit, damage to your chair, a fall, tip-over or
loss of control may occur and cause severe injury to the rider or others.
B. WEIGHT TRAINING
NEVER use this chair for weight training if total weight (rider plus equipment) exceeds 250 pounds or 350 pounds for heavy duty option. If you do
exceed the limit, damage to your chair, a fall, tip-over or loss of control may
occur and cause severe injury to the rider or others.
C. GETTING TO KNOW YOUR CHAIR
Every wheelchair is different. Take the time to learn the feel of this chair
before you begin riding. Start slowly, with easy, smooth strokes. If you are
used to a different chair, you may use too much force and tip over. If you use
too much force, damage to your chair, a fall, tip-over or loss of control may
occur and cause severe injury to the rider or others.
D. TO REDUCE THE RISK OF AN ACCIDENT
1. BEFORE riding, you should be trained in the safe use of this chair by your
health care advisor.
2. Practice bending, reaching and transfers until you know the limit of your ability. Have someone help you until you know what can cause a fall or tip-over
and how to avoid doing so.
3. Be aware that you must develop your own methods for safe use best suited to
your level of function and ability.
4. NEVER try a new maneuver on your own until you are sure you can do it safely.
5. Get to know the areas where you plan to use your chair. Look for hazards and
learn how to avoid them.
6. Use anti-tip tubes unless you are a skilled rider of this chair and are sure you
are not at risk to tip over.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
931134 Rev. A
V. General Warnings
11
K. WHEN YOU NEED HELP
For The Rider:
Make sure that each person who helps you reads and follows all warnings and instructions that apply.
For Attendants:
1. Work with the rider’s doctor, nurse or therapist to learn safe methods best suited to your abilities and those of the rider.
2. Tell the rider what you plan to do, and explain what you expect the rider to do.
This will put the rider at ease and reduce the risk of an accident.
3. Make sure the chair has push handles. They provide secure points for you to
hold the rear of the chair to prevent a fall or tip-over. Check to make sure push
handle grips will not rotate or slip off.
4. To prevent injury to your back, use good posture and proper body mechanics.
When you lift or support the rider or tilt the chair, bend your knees slightly and
keep your back as upright and straight as you can.
5. Remind the rider to lean back when you tilt the chair backward.
6. When you descend a curb or single step, slowly lower the chair in one easy
movement. Do not let the chair drop the last few inches to the ground. This
may damage the chair or injure the rider.
7. To avoid tripping, unlock and rotate anti-tip tubes up, out of the way. ALWAYS
lock the rear wheels and lock anti-tip tubes in place if you must leave the rider
alone, even for a moment. This will reduce the risk of a tip over or loss of control of the chair.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
V. General Warnings
931134 Rev. A
10
H. TERRAIN
1. Your chair is designed for use on firm, even surfaces such as concrete, asphalt
and indoor floors and carpeting.
2. Do not operate your chair in sand, loose soil or over rough terrain. This may
damage wheels or axles, or loosen fasteners of your chair.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
I. STREET USE
In most states, wheelchairs are not legal for use on public roads. Be alert to
the danger of motor vehicles on roads or in parking lots.
1. At night, or when lighting is poor, use reflective tape on your chair
and clothing.
2. Due to your low position, it may be hard for drivers to see you. Make eye contact with drivers before you go forward. When in doubt, yield until you are sure
it is safe.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
J. MOTOR VEHICLE SAFETY
As indicated on the front cover of this user manual, identify whether your chair has
been manufactured with the Transit Option installed.
If your chair is not
equipped with the Transit Option:
If your chair is not
equipped with Transit Option, this wheelchair does not
meet federal standards for motor vehicle seating.
1. NEVER let anyone sit in this chair while in a moving vehicle.
2. ALWAYS secure the rider with proper motor vehicle restraints. In an accident or
sudden stop the rider may be thrown from the chair. Wheelchair seat belts will
not prevent this, and further injury may result from the belts or straps.
3. NEVER transport this chair in the front seat of a vehicle. It may shift and interfere with the driver.
4. ALWAYS secure this chair so that it cannot roll or shift.
5. Do not use any chair that has been involved in a motor vehicle accident.
If your chair is equipped with the Transit Option:
See section VIII, Part N: Transit Option and section VII, Part G: Transit Use.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
931134 Rev. A
VI. Warnings: Falls & Tip-Overs
13
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
C. WHEELIES
Because of the ability to adjust the center of gravity and changes in center of
gravity that will result from operating the tilt in space feature of this chair, as
a user, do not perform wheelies in the IRIS wheelchair.
Doing a “wheelie” means: balancing on the rear wheels of your chair, while
the front casters are in the air. It is dangerous to do a "wheelie" as a fall or
tip-over may occur.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
D. OBSTACLES
Obstacles and road hazards (such as potholes and broken pavement) can
damage your chair and may cause a fall, tip-over or loss of control.
To avoid these risks:
1. Keep a lookout for danger – scan the area well ahead of your chair as you ride.
2. Make sure the floor areas where you live and work are level and free of obstacles.
3. Remove or cover threshold strips between rooms.
4. Install a ramp at entry or exit doors. Make sure there is not a drop off at the
bottom of the ramp.
5. To Help Correct Your Center Of Balance:
a. Lean your upper body FORWARD slightly as you go UP over an obstacle.
b. Press your upper body BACKWARD as you go DOWN from a higher to a lower
level.
6. If your chair has anti-tip tubes, lock them in place before you go UP over an
obstacle.
7. Keep both of your hands on the handrims as you go over an obstacle.
8. Never push or pull on an object (such as furniture or a doorjamb) to propel
your chair.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
VI. Warnings: Falls & Tip-Overs
931134 Rev. A
12
VI. WARNINGS: FALLS & TIP-OVERS
A. CENTER OF GRAVITY
The point where this chair will tip forward, back, or to the side depends on
its center of gravity and stability. How your chair is set up, the options you
select and the changes you make may affect the risk of a fall or tip-over.
1. The Most Important Adjustments Are:
a. The position of the rear wheels. The more you move the rear wheels forward,
the more likely your chair will tip over backward.
b. The position of the carriage.
2. The Center Of Gravity Is Also Affected By:
a. A change in the set-up of your chair, including:
• The seat height and seat angle.
• Backrest angle.
b. A change in your body position, posture or weight distribution.
c. Riding your chair on a ramp or slope.
d. The use of a back pack or other options, and the amount of added weight.
3. To Reduce The Risk Of An Accident:
a. Consult your doctor, nurse or therapist to find out what axle and
caster position is best for you.
b. Consult your authorized supplier BEFORE you modify or adjust this chair. Be
aware that you may need to make other changes to correct the center of
balance.
c. Have someone help you until you know the balance points of your chair and
how to avoid a tip-over.
d. Use anti-tip tubes.
e. Never allow the presence of a second occupant climbing or standing on a
component of the chair.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
B. DRESSING OR CHANGING CLOTHES
Your weight may shift if you dress or change clothes while seated in this
chair.
To reduce the risk of a fall or tip-over:
1. Rotate the front casters until they are as far forward as possible.
This makes the chair more stable.
2. Lock anti-tip tubes in place. (If your chair does not have anti-tip tubes, back it
up against a wall and lock both rear wheels).
931134 Rev. A
VI. Warnings: Falls & Tip-Overs
15
G. RAMPS, SLOPES & SIDEHILLS
Riding on a slope, which includes a ramp or sidehill, will change the center
of balance of your chair. Your chair is less stable when it is at an angle. Antitip tubes may not prevent a fall or tip-over.
1. Do not use your chair on a slope steeper than 10%. (A 10% slope means: one
foot in elevation for every ten feet of slope length.)
2. Always go as straight up and as straight down as you can. (Do not “cut the
corner” on a slope or ramp.)
3. Do not turn or change direction on a slope.
4. Always stay in the CENTER of the ramp. Make sure ramp is wide enough that
you are not at risk that a wheel may fall over the edge.
5. Do not stop on a steep slope. If you stop, you may lose control of your chair.
6. NEVER use rear wheel locks to try to slow or stop your chair. This is likely
to cause your chair to veer out of control.
7. Beware Of:
a. Wet or slippery surfaces.
b. A change in grade on a slope (or a lip, bump or depression). These may
cause a fall or tip-over.
c. A drop-off at the bottom of a slope. A drop-off of as small as 3/4 inch can
stop a front caster and cause the chair to tip forward.
8. To Reduce The Risk Of A Fall Or Tip-Over:
a. Lean or press your body UPHILL. This will help adjust for the change in the
center of balance caused by the slope or sidehill.
b. Keep pressure on the handrims to control your speed on a down slope.
If you go too fast you may lose control.
c. Ask for help any time you are in doubt.
9. Ramps At Home & Work - For your safety, ramps at home and work must meet
all legal requirements for your area. We recommend:
a. Width: At least four feet wide.
b. Guardrails: To reduce the risk of a fall, sides of ramp must have guardrails (or
raised borders at least three inches high).
c. Slope: Not more than a 10% grade.
d. Surface: Flat and even, with a thin carpet or other non-skid material.
(Make sure there is no lip, bump or depression.)
e. Bracing: Ramps must be STURDY. You may need bracing so ramps do not
“bow” when you ride on them.
f. Avoid A Drop Off: You may need a section at the top or bottom to smooth
out the transition.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
VI. Warnings: Falls & Tip-Overs
931134 Rev. A
14
E. REACHING OR LEANING
If you reach or lean it will affect the center of balance of your chair. This
may cause you to fall or tip over. When in doubt, ask for help or use a device
to extend your reach.
1. NEVER reach or lean if you must shift your weight sideways or rise up off the seat.
2. NEVER reach or lean if you must move forward in your seat to do so. Always
keep your buttocks in contact with the backrest.
3. NEVER reach with both hands (you may not be able to catch yourself to prevent a fall if the chair tips).
4. NEVER reach or lean to the rear unless your chair has anti-tip tubes locked in
place.
5. DO NOT reach or lean over the top of the seat back. This may damage one or
both backrest tubes and cause you to fall.
6. If You Must Reach Or Lean:
a. Do not lock the rear wheels. This creates a tip point and makes a fall or tip-
over more likely.
b. Do not put pressure on the footrests.
NOTE– Leaning forward puts pressure on the footrests and may cause the chair to tip
if you lean too far.
c. Move your chair as close as you can to the object you wish to reach.
d. Do not try to pick up an object from the floor by reaching down between
your knees. You are less likely to tip if you reach to the side of your chair.
e. Rotate the front casters until they are as far forward as possible. This makes
the chair more stable.
NOTE– To do this: Move your chair past the object you want to reach, then back up
alongside it. Backing up will rotate the casters forward.
f. Firmly grasp a rear wheel or an armrest with one hand. This will help to pre-
vent a fall if the chair tips.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
F. MOVING BACKWARD
Use extra care when you move your chair backward. Your chair is most stable
when you propel yourself forward. You may lose control or tip over if one of
the rear wheels hits an object and stops rolling.
1. Propel your chair slowly and smoothly.
2. If your chair has anti-tip tubes, make sure to lock them in place.
3. Stop often and check to be sure your path is clear.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
931134 Rev. A
VI. Warnings: Falls & Tip-Overs
17
J. STAIRS
1. NEVER use this chair on stairs UNLESS you have someone to help you. Doing so
is likely to cause a fall or tip-over.
2. Persons who help you should read and follow the warnings “For Attendants”
(Section V, Part K), and “For Safe Use” (Section VII).
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
K. ESCALATORS
NEVER use this chair on an escalator, even with an attendant. If you do, a
fall or tip-over is likely.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
VI. Warnings: Falls & Tip-Overs
931134 Rev. A
16
H. TRANSFER
It is dangerous to transfer on your own. It requires good balance and agility.
Be aware that there is a point during every transfer when the wheelchair seat
is not below you. To Avoid A Fall:
1. Work with your health care advisor to learn safe methods.
a. Learn how to position your body and how to support yourself during a transfer.
b. Have someone help you until you know how to do a safe transfer on your own.
2. Lock the rear wheels before you transfer. This keeps the rear wheels from rolling.
NOTE– This will NOT keep your chair from sliding away from you or tipping.
3. Make sure to keep pneumatic tires properly inflated. Low tire pressure may
allow the rear wheel locks to slip.
4. Move your chair as close as you can to the seat you are transferring to.
If possible, use a transfer board.
5. Rotate the front casters until they are as far forward as possible.
6. If you can, remove or swing footrests out of the way.
a. Make sure your feet do not catch in the space between the footrests.
b. Avoid putting weight on the footrests as this may cause the chair to tip.
7. Make sure armrests are out of the way and do not interfere.
8. Transfer as far back onto the seat surface as you can. This will reduce the risk
that the chair will tip or move away from you.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
I. CURBS & STEPS
1. Each person who helps you should read and follow the warnings “For Safe Use”
(Section VII) and “For Attendants” (Section V, Part K).
2. Do not try to climb or descend a curb or step alone.
3. Unlock and rotate anti-tip tubes up, out of the way, so they do not interfere.
4. Do not try to climb a high curb or step UNLESS you have help. Doing so may
cause your chair to exceed its balance point and tip over.
5. Go straight up and straight down a curb or step. If you climb or descend at an
angle, a fall or tip-over is likely.
6. Be aware that the impact of dropping down from a curb or step can damage
your chair or loosen fasteners.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
931134 Rev. A
VII. Warnings: For Safe Use (Attendants)
19
C. CLIMBING A CURB OR SINGLE STEP
Follow these steps to help the rider climb a curb or single step going FORWARD:
1. Stay behind the chair.
2. Face the curb and tilt the chair up on the rear wheels so that the front casters
clear the curb or step.
3. Move forward, placing the front casters on the upper level as soon as you are
sure they are past the edge.
4. Continue forward until the rear wheels contact the face of the curb or step. Lift
and roll the rear wheels to the upper level.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
D. CLIMBING STAIRS
1. Use at least two attendants to move a chair and rider up stairs.
2. Move the chair and rider BACKWARD up the stairs.
3. The person at the rear is in control. He or she tilts the chair back to its
balance point.
4. A second attendant at the front should firmly grasp the hanger receiver or frontmost part of the seat rail and lift the chair up and over one stair at a time.
5. The attendants move to the next stair up. Repeat for each stair, until you reach
the landing.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
E. DESCENDING STAIRS
1. Use at least two attendants to move a chair and rider down stairs.
2. Move the chair and rider FORWARD down the stairs.
3. The person at the rear is in control. He or she tilts the chair to the balance
point of the rear wheels and rolls it to the edge of the top step.
4. A second attendant stands on the third step from the top and grasps the hanger receiver or frontmost part of the seat rail. He or she lowers the chair one
step at a time by letting the rear wheels roll over the stair edge.
5. The attendants move to the next stair down. Repeat for each stair, until you
reach the landing.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
VII. Warnings: For Safe Use (Attendants)
931134 Rev. A
18
VII. WARNINGS: FOR SAFE USE (ATTENDANTS)
Before you assist a rider, be sure to read the warnings “For Attendants” in
Section V, Part K and follow all instructions that apply. Be aware that you will
need to learn safe methods best suited to your abilities.
A. TILT USE
In preparation to operate the tilt:
• Always verify that the arms of the rider are stable on the armrests or within
the armrests.
• Always verify that the legs of the rider are stable on the footrest/legrest.
• Never place hands, feet or foreign objects into the tilt mechanism.
• Never push or propel the chair with the seat tilted in a forward position.
• Never add chair accessories that are not specifically designed for the IRIS.
• Never exceed a tilted position that aligns the backrest parallel to the ground.
B. DESCENDING A CURB OR SINGLE STEP
Follow these steps to help a rider descend a curb or single step going
BACKWARD:
1. Stay at the rear of the chair.
2. Several feet before your reach the edge of the curb or step, turn the chair
around and pull it backward.
3. While looking over your shoulder, carefully step back until you are off the curb
or stair and standing on the lower level.
4. Pull the chair toward you until the rear wheels reach the edge of the curb or
step. Then allow the rear wheels to slowly roll down onto the lower level.
5. When the rear wheels are safely on the lower level, tilt the chair back to its
balance point. This will lift the front casters off the curb or step.
6. Keep the chair in balance and take small steps backward. Turn the chair around
and gently lower front casters to the ground.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
931134 Rev. A
VII. Warnings: For Safe Use (Attendants)
21
Do not use the chair as a seat in a motor vehicle without the use of the “transit locking
pin” for chairs with the heavy duty package and users who weigh more than 250 lbs.
To locate the Transit Locking Pin
The locking transit pin is located on the internal plate of the carriage (F) in the
gripper clip (E).
To use the pin:
1. Bring the tilt down near to the horizontal position.
2. Take the pin out of its receptacle (E).
3. Insert the pin from the inside through the carriage plates and the rocker (D).
4. To take off, pull the pin out and store it back
into the receptacle (E).
NOTE– To obtain a copy of SAE J2249 Wheelchair Tie
down and Occupant Restraint Systems for Use in
Motor Vehicles, please contact: SAE
International, 400 Commonwealth Drive,
Warrendale, PA 15096 • (412) 776-4970.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
VII. Warnings: For Safe Use (Attendants)
931134 Rev. A
20
F. MAINTENANCE
1. Inspect and maintain this chair strictly per chart in section XI. Maintenance.
2. If you detect a problem, make sure to service or repair the chair before use.
3. At least once a year, have a complete inspection, safety check and service of
your chair made by an authorized supplier.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others. For additional maintenance
information see Section XI: Maintenance.
G. TRANSIT USE
Refer also to section VIII, part N and section V, part J for additional transit option
and motor vehicle warnings.
1. If possible and feasible, the rider should transfer to the Original Equipment Manufacturer
vehicle seat and use the vehicle restraint.
2. If the wheelchair is used for transport, it must
be used in a forward-facing seating position.
3. The rider must not weigh more than 250 lbs
with the standard frame and not weigh more
than 350 lbs with the heavy duty option.

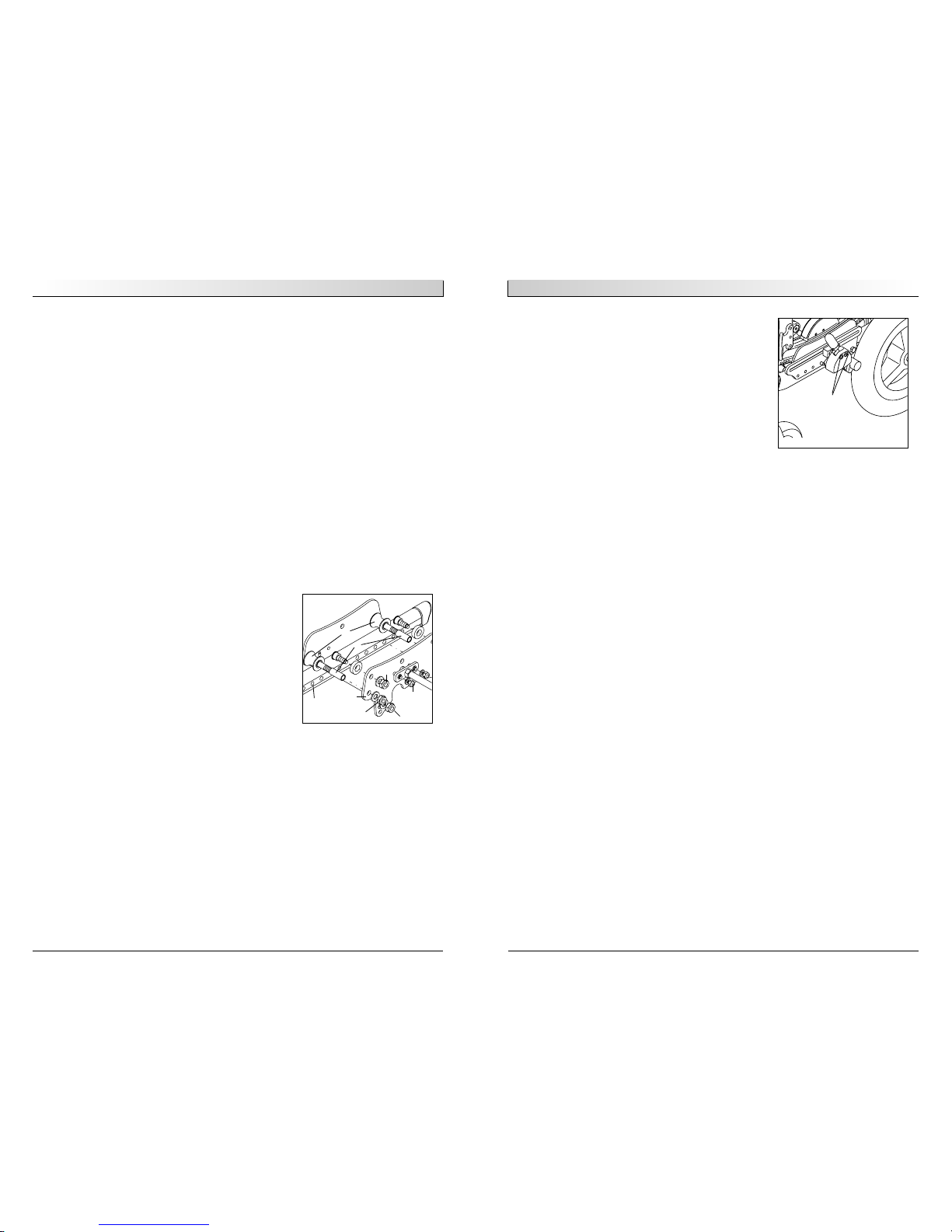

4. The figure to the right shows the locations of
the wheelchair securement points, front (A) and
back (B).
5. Use only with Wheelchair Tie down and
Occupant Restraint Systems (WTORS) that have
been installed in accordance with the manufacturer’s instructions and SAE J2249.
6. Attach WTORS to securement points in accordance with the manufacturer’s instructions and
SAE J2249.
7. Attach occupant restraints in accordance with
the manufacturer’s instructions and SAE J2249.
8. The use of the “transit locking pin” (C) is
required during transit on a chair with the heavy duty package and for users
who weigh more than 250 lbs.
A
B
C
D
F
E
931134 Rev. A
VIII. Warnings: Components & Options
23
D. FASTENERS
Many of the screws, bolts and nuts on this chair are special high-strength
fasteners. Use of improper fasteners may cause your chair to fail.
1. ONLY use fasteners provided by an authorized supplier (or ones of the same
type and strength, as indicated by the markings on the heads).
2. Over- or under-tightened fasteners may fail or cause damage to chair parts.
3. If bolts or screws become loose, tighten them as soon as you can.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
E. FOOTRESTS
Footrests will not bear the weight of this chair
1. At the lowest point, footrests should be AT LEAST 2 1/2 INCHES off the ground.
If set too LOW, they may “hang up” on obstacles you can expect to find in normal use. This may cause the chair to stop suddenly and tip forward.
2. To Avoid A Trip Or Fall When You Transfer:
a. Make sure your feet do not “hang up” or get caught in the space between
the footrests.
b. Avoid putting weight on the footrests, as the chair may tip forward.
3. NEVER lift this chair by the footrests. Footrests detach and will not bear the
weight of this chair. Lift this chair only by non-detachable parts of the main
frame.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
F. PNEUMATIC TIRES
Proper inflation extends the life of your tires and makes your chair easier to use.
1. Do not use this chair if any of the tires is under- or over-inflated. Check weekly
for proper inflation level, as listed on the tire sidewall.
2. Low pressure in a rear tire may cause the wheel lock on that side to slip and
allow the wheel to turn when you do not expect it.
3. Low pressure in any of the tires may cause the chair to veer to one side and
result in a loss of control.
4. Over-inflated tires may burst.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
VIII. Warnings: Components & Options
931134 Rev. A
22
VIII. WARNINGS: COMPONENTS & OPTIONS
A. ANTI-TIP TUBES (OPTIONAL)
Anti-tip tubes can help keep your chair from tipping over backward in most
normal conditions.
1. Sunrise Recommends Use Of Anti-Tip Tubes:
a. UNLESS you are a skilled rider of this chair and are sure you are not at risk
to tip over.
b. Each time you modify or adjust your chair. The change may make it easier to
tip backward. Use anti-tip tubes until you adapt to the change, and are sure
you are not at risk to tip over.
2. When locked in place (in the “down” position) anti-tip tubes should be
BETWEEN 1 1/2 to 2 inches off the ground.
a. If set too HIGH, they may not prevent a tip-over.
b. If set too LOW, they may “hang up” on obstacles you can expect in normal
use. If this occurs, you may fall or your chair may tip over.
3. Keep Anti-Tip Tubes Locked In Place UNLESS:
a. You have an attendant, or
b. You have to climb or descend a curb, or overcome an obstacle, and can safe-
ly do so without them. At these times, make sure anti-tip tubes are up, out
of the way.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
B. ARMRESTS
Armrests will not bear the weight of this chair.
1. NEVER lift this chair by its armrests. They may come loose or break.
2. Lift this chair only by non-detachable parts of the main frame.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.
C. STROLLER HANDLE
1. Always keep hands away from the locking mechanism located at the bottom of
the back canes when folding the back down or pulling it back up.
2. Always keep fingers away from the interior of the hinge when readjusting the
adjustable stroller handle (page 6, item 19).
931134 Rev. A
VIII. Warnings: Components & Options
25
J. QUICK-RELEASE AXLES
1. Do not use this chair UNLESS you are sure that both quick-release rear axles are
locked. An unlocked axle may come off during use and cause a fall.
2. An axle is not locked until the quick-release button pops out fully. An unlocked
axle may come off during use, resulting in a fall, tip-over or loss of control and
cause severe injury to the rider or others.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
K. REAR AXLES
A change in set-up of the rear wheels will affect the center of balance of
your chair.
1. The farther you move the rear axles FORWARD, the more likely it is that your
chair will tip over backward.
2. Consult your doctor, nurse or therapist to find the best rear axle set-up for your
chair. Do not change the set-up UNLESS you are sure you are not at risk to tip
over.
3. Adjust the rear wheel locks after you make any change to the rear axles.
a. If you fail to do so, the locks may not work.
b. Make sure lock arms embed in tires at least 1/8 inch when locked.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
L. REAR WHEEL LOCKS
Rear wheel locks are NOT designed to slow or stop a moving wheelchair.
Use them only to keep the rear wheels from rolling when your chair is at a
complete stop.
1. NEVER use rear wheel locks to try to slow or stop your chair when it is moving.
Doing so may cause you to veer out of control.
2. To keep the rear wheels from rolling, always set both rear wheel locks when you
transfer to or from your chair.
3. Low pressure in a rear tire may cause the wheel lock on that side to slip and
may allow the wheel to turn when you do not expect it.
4. Make sure lock arms embed in tires at least 1/8 inch when locked. If you fail to
do so, the locks may not work.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
VIII. Warnings: Components & Options
931134 Rev. A
24
G. POSITIONING BELTS (OPTIONAL)
Use positioning belts ONLY to help support the rider’s posture. Improper use
of these belts may cause severe injury to or death of the rider.
1. Make sure the rider can not slide down in the wheelchair seat. If this occurs, the
rider may suffer chest compression or suffocate due to pressure from the belts.
2. The belts must be snug, but must not be so tight that they interfere with
breathing. You should be able to slide your open hand, flat, between the belt
and the rider.
3. A pelvic wedge or a similar device can help keep the rider from sliding down in
the seat. Consult with the rider’s doctor, nurse or therapist to find out if the
rider needs such a device.
4. Use positioning belts only with a rider who can cooperate. Make sure the rider
can easily remove the belts in an emergency.
5. NEVER Use Positioning Belts:
a. As a patient restraint. A restraint requires a doctor’s order.
b. On a rider who is comatose or agitated.
c. As a motor vehicle restraint. In an accident or sudden stop the rider may be
thrown from the chair. Wheelchair seat belts will not prevent this, and further
injury may result from the belts or straps.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
H. POWER DRIVE
Do not install a power drive on any Quickie wheelchair. If you do:
1. It will affect the center of balance of your chair and may cause a fall or tip-over.
2. It will alter the frame and void the warranty.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
I. PUSH HANDLES
When you have a attendant, make sure that this chair has push handles.
1. Push handles provide secure points for an attendant to hold the rear of this
chair, to prevent a fall or tip-over. Make sure to use push handles when you
have an attendant.
2. Check to make sure push handle grips will not rotate or slip off.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
931134 Rev. A
IX. Set-up & Adjustment
27
IX. SET-UP & ADJUSTMENT
NOTE– Setting the wheelchair on a table or on a flat
surface, such as a workbench, helps make these procedures easier.
NOTE ON TORQUE SETTING– A torque setting is the
optimum tightening which should be made on a particular fastener. A torque wrench which measures in./lbs.
should be used when tightening fasteners on Quickie
wheelchairs. Unless otherwise noted, use a torque setting of 60 in./lbs. When setting up this wheelchair.
A. SWING-AWAY HANGERS AND FOOTRESTS
60°, 70°, 70°V OR 90°
1. Installation
a. Place swing-away pivot saddle (A) into the
receiver (B) on front frame tube with the
footrest facing outward from frame.
b. Rotate the footrest inward until it locks into
place on locking bolt (C).
2. Removal
a. To remove footrest, push release latch (D)
toward the frame.
b. Rotate footrest outward and lift.
3. Height Adjustment with Extension Tube
a. Remove both bolts (E) in the hanger frame tube.
b. Reposition footrest height.
c. Re-tighten all bolts (E).
4. Height Adjustment, Front Mount
a. Loosen and remove the retaining bolt (F) in the
frame tube.
b. Position footplate upward or downward in
predrilled holes on hanger tube.
c. Reinsert bolt (F) and tighten.
A
B
C
E
F
D
VIII. Warnings: Components & Options
931134 Rev. A
26
M. MODIFIED SEAT SYSTEMS
Use of a seat system not approved by Sunrise may alter the center of balance
of this chair. This may cause the chair to tip over.
1. Do not change the seat system of your chair UNLESS you consult your
authorized supplier first.
2. Use of a non-validated system (wheelchair base and seating), as a seat in
a motor vehicle could result in increased risk of severe injury or death in a
vehicular mishap.
• Only a complete system (wheelchair base and seating) can be validated for
use as a seat in a motor vehicle.
• The seating provided may or may not be appropriate for use as a seat in a
motor vehicle in combination with this wheelchair base.
• Before using this system as a seat in a motor vehicle, you should verify that
the seating manufacturer has validated the seating in combination with this
wheelchair base.
• Before using this system as a seat in a motor vehicle, you should read and
comply with all instructions for use provided by both Sunrise Medical and
the seating manufacturer as well as the instructions for use of any other
component or accessory manufacturer.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
N. TRANSIT OPTION
1. Use only Wheelchair Tiedown and Occupant Restraint Systems (WTORS) which
meet the requirements of SAE J2249 Recommended Practice - Wheelchair
Tiedown and Occupant Restraint Systems For Use in Motor Vehicles. Do not use
WTORS designed to rely on the wheelchair structure to transfer occupant
restraint loads to the vehicle.
2. The wheelchair has been dynamically tested in a forward-facing mode for a 30
mph frontal impact test. The wheelchair must be forward-facing during transport.
3. In order to reduce the potential of injury to vehicle occupants, wheelchairmounted accessories, such as trays and respiratory equipment, should be
removed and secured separately.
4. Postural supports and positioning devices should not be relied on for occupant
restraint.
5. Do not alter or substitute wheelchair frame parts, components or seating.
6. Sudden stops or impacts can structurally damage your chair. Chairs involved in
such incidents should be replaced.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.
931134 Rev. A
IX. Set-up & Adjustment
29
IX. Set-up & Adjustment
931134 Rev. A
28
D. ARTICULATING LEGREST (OPTIONAL)
1. Installation or Removal
To install or remove Articulating Legrest (ALR) see
instructions for Swing-away Footrest installation.
2. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest
will automatically lock in place.
b. To lower legrest, while seated in chair, press
release lever (A) down and lower Legrest to
desired position. Legrest will automatically lock
in place.
3. Height Adjustment of the Calf Pad
a. Rotate the tube clamp (B) towards the outside.
b. Slide it up or down.
c. Rotate it back in the desired indented position.
4. Height Adjustment with Extension Tube
a. Remove the bolt (C) in the hanger frame tube.
b. Reposition footrest height.
c. Align the tube clamp with the selected bolt.
d. Re-tighten the bolt (C).
E. ELEVATING LEGREST (OPTIONAL)
1. Installation or Removal
To install or remove Elevating Legrest (ELR) see
instructions for Swing-away Footrest installation.
2. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest
will automatically lock in place.
b. To lower legrest, while seated in chair, press
release lever (D) down and lower legrest to
desired position. Legrest will automatically lock
in place.
3. Height Adjustment of the Calf Pad.
a. Loosen the retaining nut (E) located at the
back of the calf pad bracket assembly.
b. Slide the calf pad bracket assembly up or down.
c. Tighten it in the desired position.
4. Height Adjustment with Extension Tube
a. Loosen both bolts (F) in the hanger frame tube.
b. Reposition footrest height.
c. Re-tighten all bolts (F).
A
D
E
B
C
F
B. HEAVY-DUTY, LIFT-OFF FOOTRESTS (OPTIONAL)
1. Installation
Slide pivot saddle (A) into receiver (B) on front frame
tube until it locks into place.
2. Removal
To remove footrest, push release latch (C) while lifting
up footrest from receiver.
3. Height-Adjustment, Front Mount
a. Loosen and remove the retaining bolt (D) in the
footrest mounting bracket.
b. Position footplate upward or downward in
predrilled holes on hanger tube.
c. Reinsert bolt and tighten.
C. CONTRACTURE FOOTREST (OPTIONAL)
1. Lateral Mount
Can be mounted laterally as shown in illustration (E).
2. Center Mount
Can be mounted in the center as shown in illustration
(F).
3. Height Adjustment
a. Loosen and remove the retaining bolt (G) in the
footrest mounting bracket.
b. Slide the lower tube upward or downward to the
desired position until predrilled holes on hanger tubes are aligned.
c. Reinsert bolt and tighten.
4. Footrest Angle Adjustment
a. Loosen the retaining bolt (H) in the adjustment
locking joint.
b. Position footrest foreword or rearward in desired
angle.
c. Retighten the bolt.
5. Footplate Angle Adjustment
a. Loosen the retaining bolt (I) in the footplate
locking joint.
b. Position footplate upward or downward in
desired angle.
c. Retighten the bolt.
I
A
B
C
D
E
F
G
H
931134 Rev. A
IX. Set-up & Adjustment
31
IX. Set-up & Adjustment
931134 Rev. A
30
G. DUAL-POST ARMRESTS
1. Installation or Removal
a. The assembly is held securely in place when the
securing lever (A) is facing outside.
b. Pull front securing lever (A) forward to release.
c. Insert or remove armrest.
d. Return securing lever to locked position.
2. Height-Adjustment (optional)
a. Release the upper securing lever (C).
b. Set armrest at desired height.
c. Return securing lever to locked position.
d. Move armrest up or down to allow armrest to
snap into place.
3. Flip Back (optional)
a. Release the front securing lever only (A).
b. Flip the armrest back, it remains attached to
the rear receiver.
c. To detach armrest completely pull rear securing
lever (B) up.
d. Move armrest down into place.
e. Return securing lever to locked position.
H. HEIGHT-ADJUSTABLE ARMREST (OPTIONAL)
1. Installation
a. Slide the outer armpost (1) down into the
receiver (2) mounted to the wheelchair frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Release the upper securing lever (10).
b. Slide armrest pad up or down to desired height.
c. Return lever to locked position.
d. Push arm pad until upper armpost locks firmly
into place.
3. Removing Armrest
a. Pull the release lever back (3).
b. Slide armrest out from the receiver (2).
4. Replacing Armrest
a. Slide armrest back into receiver (2).
b. Push down firmly until the release lever (3)
locks back in place.
G
C
A
A. Front release Latch
B. Rear release Latch
C. Upper Securing Lever
D. Armrest Panel
E. Rear Receiver
F. Front receiver
G. Armrest Pad
D
B
E
F
1
1. Outer armpost
2. Standard receiver
3. Armrest release lever
4. Armrest pad
5. Transfer bar
6. Side panel
7. Outer armpost tension adjustment set screws
8. Inner armpost
9. Receiver adjustment bolts
10. Upper release Lever
Dual Post Armrest
Height-Adjustable Armrest
2
3
4
5
6
7
8
9
10
F. CASTER/FORKS ASSEMBLY
1. Installation
a. Remove dust cover (A) from caster housing. Pry
dust cover off using a back and forth motion.
b. Caster assembly holds one nut (B) and one
washer (immediately below the nut). Remove
nut and washer.
c. Insert caster stem (C) into caster housing (D)
and place washer on stem.
d. Replace nut (B) on caster stem and tighten until
all play is removed; then loosen approximately
1/8 turn, yet still allowing for free rotation.
e. Replace dust cover to caster housing.
2. Caster Angle Adjustment
For optimum performance, the caster housing should
always be at a 90° angle to the floor (perpendicular to
the ground). This adjustment is made with an eccentric
(offset) attachment bolt mechanism.
a. To change the angle, place the chair on a flat
surface (such as a table).
b. Remove the bolt nuts from the back side of the
caster plate. The caster plate is slotted at the
top and bottom for adjustment.
c. Place a large right triangle against the table
surface and the front surface of the caster bearing housing to align the caster stem rotational
axis perpendicular to the floor surface.
d. Rotate the eccentric washers (E) independently
until they fall into position.
e. When the alignment is correct, retighten the
two retaining bolts.
f. Repeat the process for the other caster.
NOTE– Use a torque setting of 100 in.-lbs. When set-
ting-up caster plate.
3. Height Adjustment
a. Loosen and remove bolt (F).
b. Set axle at desired height using pre-set holes in
the fork.
c. Replace and tighten bolt.
d. Repeat on other side.
NOTE– The frame must be kept horizontal when height
is adjusted. Refer to matrix in the ordering
guide for proper setting.
A
B
C
D
E
F
931134 Rev. A
IX. Set-up & Adjustment
33
IX. Set-up & Adjustment
931134 Rev. A
32
J. ANTI-TIP TUBES- BACK
Anti-tip tubes are recommended for all wheelchairs.
NOTE– Use a torque setting of 350 in.-lbs. When set-
ting-up anti-tip tubes.
1. Inserting Anti-Tip Tubes Into Receivers
a. Press the rear anti-tip release pin (A) on the
anti-tip tube so that both release pins are
drawn inside.
b. Insert the anti-tip tube into the receiver (B).
c. Turn the anti-tip tube down until release pin
protrudes through the receiver mounting hole.
d. Insert second anti-tip tube the same way.
2. Turning Anti-Tip Tubes Up
Turn anti-tip tubes up when being pushed by attendant, overcoming obstacles or climbing curbs.
a. Press the rear anti-tip tube release pin (A).
b. Hold pin in and turn anti-tip tube up (C).
c. Release pin.
d. Repeat with second anti-tip tube.
e. Remember to return anti-tip tubes to down
position after completing maneuver.
3. Adjusting Anti-Tip Tube Wheel
The anti-tip tube wheels may have to be raised or lowered to achieve proper ground clearance (1-1/2" to 2").
a. Press the anti-tip wheel release pin (D) so that
the release pin is drawn inside.
b. Raise or lower to one of the three or four pre-
drilled holes.
c. Release pin (D).
d. Adjust the second anti-tip tube wheel the same
way. Both wheels should be at exactly the same
height.
4. Height adjustment of the receivers
a. Remove anti-tip tubes (E) from anti-tip
receivers (B).
b. Remove bolts (F) from anti-tip tube receiver.
c. Reposition bracket to desired height. The receiver
can be positioned up or down as needed.
d. Reinsert bolts (F) and tighten.
e. Repeat with second anti-tip tube receiver. Both
brackets should be at exactly the same height.
f. Replace anti-tip tubes.
A
B
C
D
B
E
F
5. Adjusting Armrest Receiver Fit
To tighten or loosen the fit of the outer armpost in the
receiver:
a. Loosen all four bolts (9) on the sides of the
receiver (2).
b. With the armrest in the receiver, squeeze the
receiver to achieve the desired fit.
c. Tighten all four bolts (9).
6. Adjusting Inner Armpost Fit
a. Two set screws are installed in the outer armpost
(7).
b. Turn the set screws in or out until the desired
fit is achieved.
I. ADJUSTABLE LOCKING FLIP-UP ARMRESTS
1. Flip up and down
a. Release the upper securing lever (B).
b. Flip the armrest back, it remains attached to
the back post.
c. Move armrest down into place.
d. The lever (B) locks itself in position automati-
cally.
2. Height Adjustment
a. Loosen bolts (C, D) and remove flip-back tube.
b. Loosen bolts (E, F) and remove clamp (J).
c. Move the clamp (J) up or down to the desired
position.
d. Tighten bolts (E, F).
e. Install the flip-back tube back in place and
tighten bolts (C,D).
f. Repeat the process for the other armrest.
3. Angle-Adjustment
a. Loosen bolt (D).
b. Set armrest at desired angle using preset holes
in armrest angle plate.
c. Tighten bolt.
4. Length-Adjustment (optional)
a. Remove foam grip or armpad (A) from armrest.
b. Loosen screw (G) in the adjustable flip-up tube.
c. Reposition the sleeve (I) at the desired length.
d. Re-tighten the screw (G).
e. Put foam grip or armpad back in place.
G
C
A
J
A. Armrest Pad
B. Upper Securing Lever
H. Flip-back tube
I. Sleeve
J. Clamp
D
B
E
F
Adjustable Locking Flip-Up
H
I
931134 Rev. A
IX. Set-up & Adjustment
35
IX. Set-up & Adjustment
931134 Rev. A
34
2. Tilt-stops Adjustment
Adjustments can be made to limit the amount of tilt
(rotation) that the chair provides by using the tiltstops (A).
a. Loosen and remove the retaining screw (B).
b. Locate the tilt-stops to the desired limit either
anterior or posterior.
c. Each half of tilt stop assembly should plug into
directly opposing holes on the rocker (C), then
secure in place by tightening the screw (B).
3. Cable Adjustment
NOTE– Do not use lubricants on the components or
assembly.
a. Loosen and remove nuts (D) and remove bracket
assembly (E).
b. Loosen the jam nut (F).
c. Rotate the cable adjuster (G) until slack
is removed from the cable. Make sure the
plunger pin can fully extend and retract
after adjustment.
d. Tighten jam nut (F).
e. Reinstall the bracket assembly (E).
f. Install and tighten nuts (D).
M. HEIGHT-ADJUSTABLE BACK WITH ADJUSTABLE
STROLLER HANDLE (OPTIONAL)
1. Angle Adjustment
a. Loosen rear bolt (F).
b. Loosen and remove front bolt (G).
c. Set backrest at desired angle using pre-set holes.
d. Replace and tighten the front bolt (G).
e. Tighten rear bolt (F).
f. Repeat on other side.
IMPORTANT NOTE– The adjustment on each side of the
chair should be exactly equal.
NOTE– Use a torque setting of 240 in.-lbs. When setting-
up the angle adjustment of the stroller handle.
B
A
C
F
D
G
E
G
F
H
I
K ANTI-TIP TUBES- FRONT
Anti-tip tubes are recommended for all wheelchairs.
NOTE– Use a torque setting of 100 in.-lbs. When set-
ting-up anti-tip tubes.
1. Inserting Anti-Tip Tubes Into Receivers
a. Press the front anti-tip release pin (A) on the
anti-tip tube so that both release pins are
drawn inside.
b. Insert into the anti-tip tube receiver (B).
c. Turn the anti-tip tube down until release pin is
through the receiver mounting hole.
d. Insert second anti-tip tube the same way.
2. Turning Anti-Tip Tubes Up
See Turning Anti-tip Tubes Up section J-2.
3. Adjusting Anti-Tip Tube Wheel
See adjusting Anti-Tip Tube Wheel section J-3.
L. TILT-IN-SPACE MECHANISM
The tilt-in-space mechanism is installed by Sunrise.
Two cable/trigger mechanisms positively lock the chair
in place from -5º to 60º depending on the set-up. The
Quickie IRIS has the capability to provide from 0º to
5º of forward tilt. DO NOT ATTEMPT TO MAKE THIS
ADJUSTMENT. This adjustment must be done by an
authorized supplier.
1. Tilt Operation
a. Depressing both triggers (C) at the same time
disengages the locking mechanism and allows
the seat and back to rotate in space. Releasing
the triggers positively locks the rockers in place.
b. The approximate degree of tilt the seat is at
can be seen on the tilt indicator (D).
c. To lock out the tilting function, insert the lock-
ing pin (E) into the trigger holder.
A
B
C
D
E
931134 Rev. A
IX. Set-up & Adjustment
37
IX. Set-up & Adjustment
931134 Rev. A
36
P. FRAME DEPTH
1. Back adjustment
a. Loosen and remove the front bolt (F) located in
front of back mounting plate and use it to
secure the angle of the backrest using position
G in the saddle (underneath the side rail).
b. Loosen and remove the rear bolt (H) from the
back mounting plate.
c. Repeat both steps on the other side.
d. Slide the backrest along the seat rail to the
desired position.
e. Replace and tighten the rear bolt (H).
f. Remove the front bolt from position G and
insert it in its original location.
g. Repeat on the other side.
IMPORTANT NOTE– The adjustment on each side of the
chair should be exactly equal.
NOTE– Use a torque setting of 240 in.-lbs. When set-
ting-up back depth adjustment.
2 Hanger Receiver Adjustment
a. Loosen and remove both socket head screws (A)
from the seat rail.
b. Slide the hanger receiver (B) in the seat rail to
the desired position.
c. Replace and tighten the socket head screws.
d. Repeat on the other side.
IMPORTANT NOTE– These adjustments may also require
re-positioning the carriage over the base frame, refer to
matrix in the ordering guide for recommended location.
NOTE– Use a torque setting of 240 in.-lbs. When set-
ting-up hanger receiver.
A
B
2. Angle Adjustment of the Stroller Handle
Depress both black push buttons (H) at the same time.
This disengages the stroller handle and allows it to
rotate freely. Releasing the push buttons positively locks
the adjustable stroller handle in the desired position.
3. Height Adjustment
a. Remove both bolts (I) from the backrest tube
(one on each side).
b. Reposition backrest height.
c. Re-tighten both bolts (I) in the desired location.
4. Flip-Down Back Function
a. To fold the back down, pull-up the back release
pins (A) and push the backrest forward.
b. To lock it back in position, lift the backrest
firmly until it locks in its original position.
N. STROLLER HANDLE EXTENSION (OPTIONAL)
Installation
a. Press button (B) on the stroller handle so that
release pins are drawn inside the tube.
b. Insert the tube into the back tube receiver (C)
until the release pin protrudes through the
receiver mounting hole.
O. RECLINING BACK
The dual trigger reclining mechanism is installed by
Sunrise.
1. To Recline or Raise Backrest
a. Depress both triggers (D) at the same time.
Releasing the triggers positively locks the back-
rest in place within its 60° range.
b. To lock out the adjustment system, insert the
locking pin (E) into the trigger holder. Always
lock the dual trigger reclining mechanism
securely in place after positioning the backrest.
A
B
C
D
E
G
H
I
F
G
H
F
H
931134 Rev. A
IX. Set-up & Adjustment
39
IX. Set-up & Adjustment
931134 Rev. A
38
T. REAR AXLE
1. To Mount and Remove Rear Wheels (optional)
Do not use this chair UNLESS you are sure both quickrelease axles are locked. An unlocked axle may come
off during use and cause a fall.
NOTE– Axle is not locked until the quick-release but-
ton (A) pops out fully.
2. To Install Wheel
a. Depress quick-release button (A) fully. This will
release tension on ball bearings at other end.
b. Insert axle through hub of rear wheel (B).
c. Keep pressure on button (A) as you slide axle
(C) into axle sleeve (D).
d. Release button to lock axle in sleeve. Adjust
axle if it does not lock.
e. Repeat steps on other side.
3. To Remove Wheel
a. Depress quick-release button (A) fully.
b. Remove wheel by sliding axle (C) out of axle
sleeve (D).
c. Repeat steps on other side.
4. Rear Wheel Axle Adjustment
Tight axle sleeves should be maintained for proper performance of the wheelchair.
a. To adjust the axle you will need a 3/4" wrench
to turn the outside axle nuts.
b. You will also need a 1/2" wrench (E) to lodge
the ball bearings (F), on the opposite end of
the axle, and prevent the axle from turning.
c. Turn the outside axle nut counter-clockwise to
tighten.
d. There should only be zero to ten thousandths of
an inch (.010) of play.
5. Weight Distribution
Weight distribution between the front and rear wheels
is primarily adjusted by moving the rear axles forward
or rearward on the frame.
Moving the axles REARWARD provides better forward
and rearward tipping stability.
Q. FRAME WIDTH
The frame of the IRIS is built to accommodate growth
from 14" to 22" wide using the existing components.
Moving one hole position on each side of the strut provides a 1" frame width change.
1. Width Adjustment
a. Remove the bolts (C) from one side of the strut
tubes (D) for all strut tubes.
b. Slide the adjustable extension (E) to the
desired width according to the matrix in the
ordering guide.
c. Replace and tighten the bolts in all strut tubes.
d. Repeat on the other side.
IMPORTANT NOTE– The adjustment on each side of the
chair should be exactly equal and the alignment of the
holes must remain horizontal.
NOTE– Use a torque setting of 200 in.-lbs. When set-
ting-up frame width.
R. SEAT PAN
The seat pan of the IRIS is designed to accommodate
depth adjustment.
Depth adjustment
a. Loosen and remove all bolts (F).
b. Adjust the seat pan to the desired depth.
c. Replace and tighten all bolts.
S. CUSHION INSTALLATION
a. Place cushion on seat pan with hook material
side down. The beveled edge of the cushion
should be in front.
b. Press firmly into place.
A
B
C
D
E
F
C
E
D
D
F
931134 Rev. A
IX. Set-up & Adjustment
41
1. Adjustment
a. Loosen rear bolt (B).
b. Loosen and remove front bolt (A) from the car-
riage on each side.b.
c. Set the carriage at desired range setting using
one of the 3 holes.
d. Replace and tighten all bolts.
IMPORTANT NOTE– The adjustment on each side of the
chair should be exactly equal.
NOTE– Use a torque setting of 350 in.-lbs. When set-
ting-up carriage.
2. Range and setting
a. Location C: -5° to 50°
b. Location D: 0° to 55°
c. Location E: 5° to 60°
3. Top Roller Adjustment
Tools recommended: (1) 1/4" open-end wrench and
(1) 9/16" open-end wrench.
IMPORTANT NOTE– Remove the rider from the chair
before performing this maintenance.
NOTE– It is highly recommended to adjust all 4 of the
top rollers at the same time.
a. Loosen the cam nut (F).
b. Use a 1/4" wrench to rotate the eccentric cam
bolt (G) clockwise until the top roller (H) just
makes contact with the rocker (I).
c. While holding the 1/4" wrench, tighten the 9/16"
nut (F) to approximately 120 in-lbs of torque to
lock the assembly into place. Although the top
roller should be touching the rocker, there should
be NO CONTACT PRESSURE of the top roller
against the rocker when the assembly is in the
tightened condition. The top roller should be able
to rotate by applying mild finger pressure.
NOTE– Use a torque setting of 120 in.-lbs. when setting-
up top roller.
4. Top Roller Replacement
NOTE– It is highly recommended to replace both top
rollers within each carriage assembly at the
same time. Do not use lubricants anywhere on
the assembly.
a. Loosen both plunger pin bracket nuts (J).
b. Loosen and remove both bottom roller nuts (K)
and both chassis fastener nuts (L).
IX. Set-up & Adjustment
931134 Rev. A
40
Moving the axles FORWARD shifts more of the rider’s
weight onto the REAR wheels, providing the following
benefits: the front end of the wheelchair becomes
lighter, thus reducing the turning effort, and with a
shorter wheelbase the turning radius is reduced.
6. Axle Adjustment
a. Remove both wheels from the chair.
b. Remove the bolts (A) from the axle plate (B).
c. Reposition the axle plate in desired position.
d. Insert and tighten bolts (A).
e. Repeat on the other side.
IMPORTANT NOTE– The adjustment on each side of the
chair should be exactly equal.
IMPORTANT NOTE– Do not attempt to make this
adjustment. This adjustment must be done by an
authorized supplier only.
NOTE– Use a torque setting of 350 in.-lbs. When set-
ting-up the axle plate.
7. Axle Height Adjustment
a. Loosen and remove bolts (A).
b. Set axle at desired height using pre-set holes in
the axle plate (B).
c. Replace and tighten bolts.
d. Repeat on other side.
IMPORTANT NOTE– The adjustment on each side of the
chair should be exactly equal.
IMPORTANT NOTE– Do not attempt to make this
adjustment. This adjustment must be done by an
authorized supplier only.
NOTE– Use a torque setting of 350 in.-lbs. When set-
ting-up the axle plate.
NOTE– The frame must be kept horizontal when height
adjustments are made. Refer to matrix in the
ordering guide for proper setting.
U. CARRIAGE
The carriage of the standard IRIS can be adjusted to
preset the range of tilt from –5° to 50° from 0° to
55° or from 5° to 60°.
IMPORTANT NOTE– Do not attempt to make this
adjustment. This adjustment must be done by an
authorized supplier only.
E
C
D
G
H
I
F
A
B
J
O
O
P
P
K
M
L
Q
N
N
A
B
931134 Rev. A
IX. Set-up & Adjustment
43
IX. Set-up & Adjustment
931134 Rev. A
42
V. WHEEL LOCKS
Quickie IRIS wheelchairs are standard with wheel locks.
Wheel locks are installed at Sunrise.
Adjustment
a. Loosen the screws (F). Do not attempt to
remove one screw at a time.
b. Slide assembly toward rear wheel until clamp
embeds into tire to prevent wheel movement,
when in locked position.
c. Tighten screws.
W. CHECK-OUT
Once the wheelchair is assembled and adjusted, it
should roll smoothly and easily. All accessories should
also perform smoothly. If you have any problems, follow these procedures:
1. Review assembly and adjustment sections to
make sure the chair was properly prepared.
2. Review troubleshooting guide.
3. If your problem persists, contact your authorized supplier. If you still have a problem after
contacting your authorized supplier, contact
Sunrise customer service. See the introduction
page for details on how to contact your authorized supplier or Sunrise customer service.
c. Slide the inner carriage plate (M) off the fas-
teners, towards the center of the chair.
d. Loosen and remove both eccentric cam nuts (N).
e. Remove old top rollers (O) from the eccentric
cam bolts (P) and replace with new top rollers.
f. Reinstall the eccentric cam bolts (P) onto the
inner carriage plate (M), installing nuts (N)
only finger tight.
g. Reinstall the carriage plate (M) onto the frame
assembly (Q). Replace and tighten the nuts (K, L).
h. Ensure that the plunger pin is centered and
engaged into a rocker hole and tighten plunger
pin bracket nuts (J).
i. Adjust the top roller assemblies per number 3:
Top Roller Adjustment.
j. Repeat on the other side of chair as necessary.
NOTE– Use a torque setting of 120 in.-lbs. When set-
ting-up top roller.
5. Bottom Roller Replacement
NOTE– It is highly recommended to replace both bot-
tom rollers within each carriage assembly at the
same time. Do not use lubricants anywhere on
the assembly.
a. Loosen both plunger pin bracket nuts (J).
b. Loosen both eccentric cam nuts (N).
c. Loosen and remove both bottom roller nuts (K)
and both chassis fastener nuts (L).
d. Slide the inner carriage plate (M) off the fas-
teners, towards the center of the chair.
e. Remove old bottom rollers (R) from the roller
bushings (S) and replace with new bottom
rollers.
f. Reinstall the carriage plate (M) onto the frame
assembly (Q). Replace and tighten the nuts (K, L).
g. Ensure that the plunger pin is centered and
engaged into a rocker hole and tighten plunger
pin bracket nuts (J).
h. Adjust the top roller assemblies per number 3:
Top Roller Adjustment.
i. Repeat on the other side of chair as necessary.
NOTE– Use a torque setting of 350 in.-lbs. when tight-
ening bottom roller nuts (K).
F
J
S
R
K
M
L
Q
N
931134 Rev. A
XI. Maintenance
45
X. Troubleshooting
931134 Rev. A
44
XI. MAINTENANCE
A. INTRODUCTION
1. Proper maintenance will improve performance and extend the useful life
of your chair.
2. Clean your chair regularly. This will help you find loose or worn parts
and make your chair easier to use.
3. Repair or replace loose, worn, bent or damaged parts before using this chair.
4. To protect your investment, have all major maintenance and repair work done by
your authorized supplier.
If you fail to heed these warnings your chair may fail and cause severe injury
to the rider or others.
1. Inspect and maintain this chair strictly per maintenance chart.
2. If you detect a problem, make sure to service or repair the chair
before use.
3. At least once a year, have a complete inspection, safety check and
service of your chair made by an authorized supplier.
B. MAINTENANCE CHART
X. TROUBLESHOOTING
You will need to adjust your chair from time to time for best performance (especially if
you alter the original settings). This chart gives you a first solution, then a second and
a third if needed. You may need to look farther to find the best solution for a specific
problem.
NOTE– To keep track of your progress, make only ONE change at a time.
Weekly
3 Months
6 Months
Annually
✓ Tire inflation level
✓ Wheel locks
✓ All fasteners for wear and tightness
✓ Armrests
✓ Axle and axle sleeves
✓ Quick-release axles
✓ Wheels, tires and spokes
✓ Casters
✓ Anti-tip tubes
✓ Frame
✓ Rollers
✓ Tilt cables and plunger
✓ Rocker arm
✓ Service by authorized supplier
CHECK...
SYMPTOMS
Left turn in chair
Right turn in chair
Looseness in chair
Sluggish turning
Squeaks and rattles
Caster flutter
✓✓✓✓
Make sure tire pressure is correct and equal in both rear tires and
front caster tires, if pneumatic.
✓✓✓✓
Make sure all nuts and bolts are snug.
✓✓
Make sure all spokes and nipples are tight on radial spoke wheels.
✓
Use Tri-Flow Lubricant (Teflon™-based) between all modular frame
connections and parts.
✓✓ ✓ ✓
Check for proper caster plate adjustment. See instructions for caster
plate adjustment.
✓
Add a spacer washer between the plastic saddle and the caster
plate on the top of the left caster plate.
✓
Add a spacer washer between the plastic saddle and the caster
plate on the top of the right caster plate.
✓
Add a spacer washer between the plastic saddle and the caster
plate on the bottom right caster plate retaining bolts.
✓
Add a spacer washer between the plastic saddle and the caster
plate on the bottom left caster plate retaining bolts.
✓✓ ✓
Make sure both front casters touch the ground simultaneously. If
they do not, add the proper spacers between the bottom bearing
of the caster plate and fork stem nut until they do. Make sure you
check for this problem on a flat surface.
SOLUTIONS
XI. Maintenance
931134 Rev. A
46
C. MAINTENANCE TIPS
1. Axles & Axle Sleeves:
Check axles and axle sleeves every six months to make sure they are tight.
Loose sleeves will damage the axle plate and will affect performance.
2. Tire Air Pressure:
Check air pressure in pneumatic tires at least ONCE A WEEK. The wheel locks will not
grip properly if you fail to maintain the air pressure shown on tire sidewall.
D. CLEANING
1. Paint Finish
a. Clean the painted surfaces with mild soap at least once a month.
b. Protect the paint with a coat of non-abrasive auto wax every three months.
2. Axles and Moving Parts
a. Clean around axles and moving parts WEEKLY with a slightly damp
(not wet) cloth.
b. Wipe off or blow away any fluff, dust or dirt on axles or moving parts.
NOTE– You do not need to grease or oil the chair.
3. Rocker arm and Carriage Assembly
a. Wipe the rocker arm’s lower convex surface WEEKLY with a slightly damp (not
wet) cloth.
b. Check the plunger on each side weekly, dismantle and clean if needed.
See Section (L) (3) Cable Adjustment.
E. STORAGE TIPS
1. Store your chair in a clean, dry area. If you fail to do so, parts may rust
or corrode.
2. Before using your chair, make sure it is in proper working order. Inspect and
service all items on the “Maintenance Chart”.
3. If stored for more than three months, have your chair inspected by an
authorized supplier before use.
XII. SUNRISE LIMITED WARRANTY
A. FOR LIFETIME
Sunrise warrants the frame and quick-release axles of this wheelchair against defects
in materials and workmanship for the life of the original purchaser.
The expected life of this frame is five years.
B. FOR ONE (1) YEAR
We warrant all Sunrise-made parts and components of this wheelchair against defects
in materials and workmanship for one year from the date of first consumer purchase.
C. LIMITATIONS
1. We do not warrant:
•Tires and tubes, upholstery, armrests and push-handle grips.
•Damage from neglect, misuse or from improper installation or repair.
•Damage from exceeding weight limit of 250 pounds (or 350 pounds for heavy
duty option).
2. This warranty is VOID if the original chair serial number tag is removed
or altered.
3. This warranty applies in the USA only. Check with your supplier to find out if
international warranties apply.
D. WHAT WE WILL DO
Our sole liability is to repair or replace covered parts. This is the exclusive remedy for
consequential damages.
E. WHAT YOU MUST DO
1. Obtain from us, while this warranty is in effect, prior approval for return
or repair of covered parts.
2. Return the wheelchair or part(s), freight pre-paid, to Sunrise Mobility Products
Division at: 2842 Business Park Avenue, Fresno, CA 93727-1328.
3. Pay the cost of labor to repair, remove or install parts.
F. NOTICE TO CONSUMER
1. If allowed by law, this warranty is in place of any other warranty (written or
oral, expressed or implied, including a warranty of merchantability, or fitness for
a particular purpose).
2. This warranty gives you certain legal rights. You may also have other rights that
vary from state to state.
Record your serial number here for future reference:
___________________________________________
931134 Rev. A
XII. Sunrise Limited Warranty
47
Sunrise Medical, Inc.
7477 East Dry Creek Parkway • Longmont, Colorado • 80503 USA
(800) 333-4000
In Canada (800) 263-3390
© 2003, Sunrise Medical, Inc. 6.03
931134 Rev A
Loading...
