User
Manual
MODEL: HPI 8i
HPI8i
User Manual
User Manual
HPI Series
HPI8i
1
Contents
Safety Precautions ............................1
General Description ............................3
Getting The Best From Your HPI 8i ................4
Flying the HPI 8i ..............................6

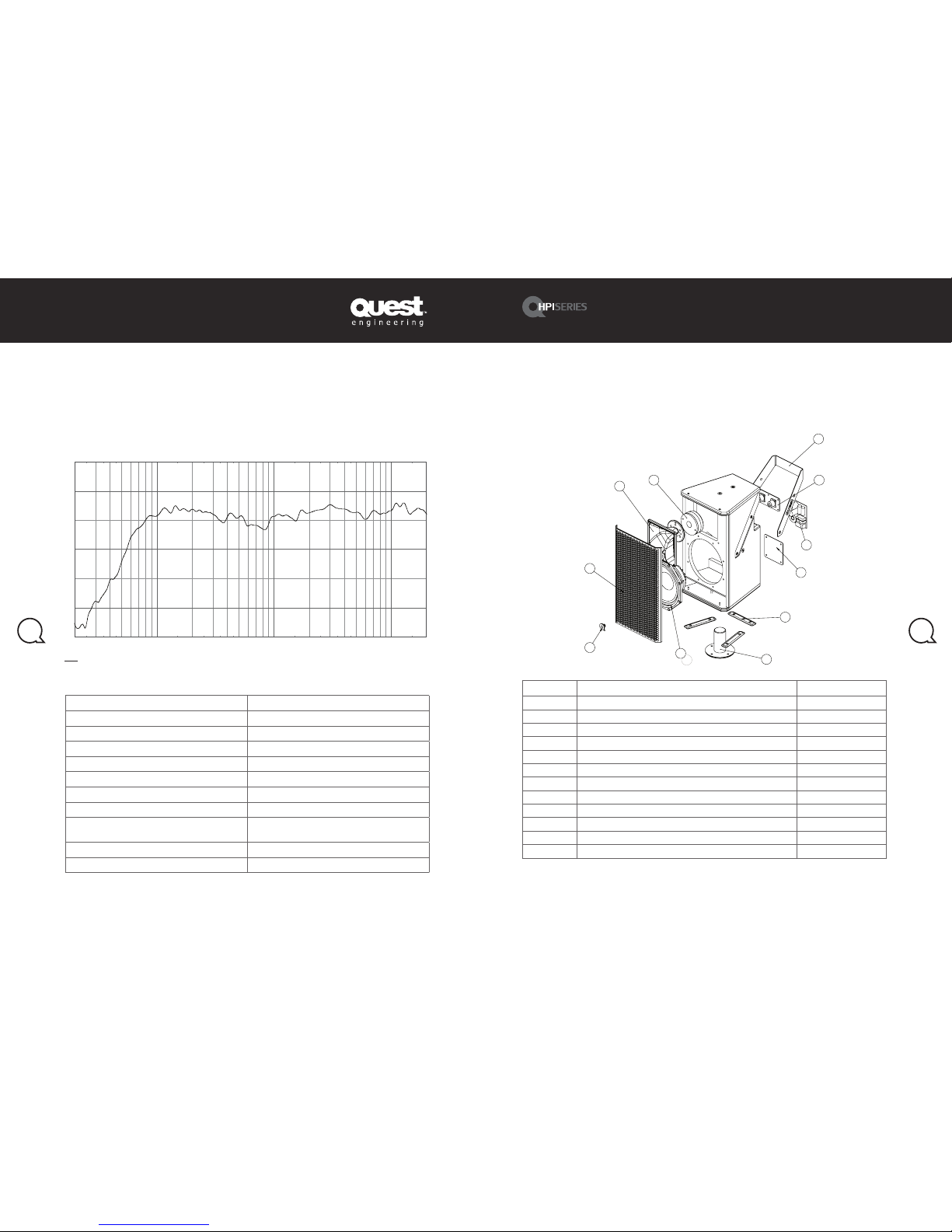

HPI 8i Specifications ...........................8
HPI 8i Reference Diagram .......................9
Safety Precautions
• Be sure to read the instructions in this section carefully before use.
• Make sure you observe the instructions in this manual as the conventions of safety symbols and
messages are very important.
• We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first
and understand the safety symbols and messages so you are thoroughly aware of any risks.
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious personal injury.
WARNING
User Manual HPI Series
HPI 8i
HPI 8i
User Manual
User Manual HPI Series
HPI 8i
HPI8i
User Manual
User Manual
HPI Series
HPI8i
2 3
WARNING
When the Unit is in Use
• Turn down the amplifier before switching
on the amplifier. If there is no sound,
check the speaker connections. Speakon
connectors must be locked in place.
• Should any of the following irregularities
be found during use, immediately switch
off the amplifier power, disconnect the
power supply plug from the AC outlet and
contact your nearest Quest dealer:
• If you detect smoke or a strange smell
coming from the unit,
• If the unit falls and the unit case is
damaged,
• If it is malfunctioning (no HF or low
frequency output).
Make no further attempt to operate the unit if
it is found to be in any of the above conditions
as this may cause fire or electric shock.
When Installing the Unit
• Do not expose the unit to rain or an
environment where it may be exposed to
water or other liquids, as doing so may
result in damage to the bass driver or
corrosion of the steel protective grill.
• Do not cut, kink, otherwise damage
nor modify the speaker cable. Also use
speaker cable of at least 1.5mm core
diameter. In addition, avoid locating the
speaker cables close to heaters, high
traffic areas or locations where the cables
can be damaged.
• Avoid installing or mounting speaker
boxes in unstable locations and when
flying, use the hardware designed for the
speaker box and fix securely to a solid
wall. Failing to do so may result in the
unit falling, causing personal injury and/or
property damage.
• Be sure to ground to the safety ground
(earth) terminal to avoid electric shock.
Never ground to a gas pipe as a
catastrophic disaster may result.
• Never hang a speaker box from only
one rigging point. Use multiple points
and attach a safety line to a point strong
enough to take the weight of the speaker
box.
General Description
The HPI 8i is a full frequency range
multi-purpose 2-way passive speaker system
designed for the live sound touring and
permanent installation market.
It is suited to full range front-of house sound
for short and mid throw applications in both
stand alone applications, as part of a small
array or distributed system. Its versatility
means it can also be configured in multiple
numbers as a multi-way system with sub
bass enhancement or individually as part of
a compact portable full range system with
single sub bass enhancement. (See HPI
Series bass speaker systems).
The HPI 8i requires no special system
processor and can be installed in a vertical
or horizontal installation with the horn flare
rotated to give the appropriate HF dispersion.
Features
The HPI 8i has a number of features designed
to increase performance and versatility for a
professional sound installation environment.
A great deal of attention was paid to the
details of the design to make the HPI 8i both
sonically excellent and functionally suited
to all aspects of mobile and permanently
installed sound reinforcement.
High Powered Purpose Designed
Components
A high powered 25mm exit 1.4” diaphragm
high frequency driver matched to a Quest
designed asymmetrical horn flare delivers a
hi fidelity high frequency response with a long
throw capability.
The high efficiency 8” neodymium magnet
mid-bass transducer has been designed to
function in a relatively large volume enclosure
to maximize upper bass frequency output.
The cone geometry and driver dynamic
parametersare also engineered to give a
smooth frequency response into the vocal
range.
Good vocal and midrange response makes
the HPI-8i an exceptional performer when it
comes to vocal projection and reproduction of
acoustic instrumentation.
Functional Design
Not just stylish, but practical, an integrated
carry handle also doubles as part of the
rigging system and also serves to give the
casing more strength and rigidity.
The recessed input panel allows for protection
of the plastic Speakon connectors and also
aids a visually tidy installation.
Solid Build Construction
Built for a touring environment, the HPI 8i is
well suited to all professional applications.
The timber casing is reinforced birch ply with
a heavy gauge power-coated steel grill. Like
all Quest products, it is “built tough for a
tough world”.
WARNING
Flying the box from one insert must not be attempted!
Improper installation may result in damage, injury or death.
HPI 8i
User Manual
User Manual HPI Series
HPI 8i
HPI8i
User Manual
User Manual
HPI Series
HPI8i
4 5
Connections
Two Neutric Speakon model NL-4 connectors
are mounted in a recessed panel on the
rear surface of the box. This allows the
speaker box to be set flat against a wall
without physical interference to the speaker
connector.
• The connector input is wired pin 1+
and pin 1-
• Pin 2 is not connected
Take care when inserting the Speakon
connector twisting the connector until it
locks into place. Reverse the procedure to
disconnect.
Getting The Best From Your HPI 8i
Speaker cables
Speaker cable needs to be as heavy gauge
as conveniently possible for low-loss results.
Light gauge cable (below 1.5mm) will create
extra resistance and waste amplifier power.
This particularly applies to long speaker
runs. The amplifier’s damping factor statistic
(“punch” for the non technical) is greatly
diminished, so keep your speaker cables
short and as heavy gauge as practical.
Speaker Placement as a Single Box
or in Arrays
The HPI 8i is intended for use as a single
speaker, distributed system or as part of a
multiple speaker setup with or without sub
bass reinforcement. It can also be installed
in small arrays of up to three boxes per
array for very wide coverage applications.
When a group of point source speaker boxes
are placed together, it is possible to have
“interference effect” between the boxes
causing uneven frequency response. This
can be particularly noticeable in the mid-high
frequency area. If you intend to set up the
HPI 8i as part of a multiple box array, see the
section ‘Flying the HPI 8i’.
Suitable Amplification
The HPI-8i is an 8 ohm enclosure and can be
connected in multiple parallel connections
to an amplifier channel that can operate
at speaker impedances of 4 ohms. A third
speaker box can be connected in parallel if
the amplifier can operate into loads of less
than 4 ohms.
The HPI 8i is a mid power level high efficiency
system, so ultra high power is not necessary
to obtain high sound pressure levels. The
recommended power range per amplifier
channel is 350-450 watts RMS into an 8 ohm
load or up to 900 watts RMS into a 4 ohm
load. The HPI-8i is ideal for use with the
Quest QA1004-2004 or QM1000P amplifiers.
Setting the QA amplifier’s high pass filter
at 35Hz is recommended for full range
applications. If you are intending to add
sub bass speakers or use for mainly vocal
reproduction, the high pass filter can be
set to 80Hz. * The 80 Hz Hi pass is also
recommended if the HPi 8i speakers are
to be driven hard with full frequency
dance music program over long durations.
When positioning the speaker system on a
stage, make sure the HF horn at the top of
the speaker box is above the heads of the
audience. At full power the output of the HPI
8i is very high and hearing damage can result
from short to medium term exposure.
For best results when the HPI 8i is used as a
front of house speaker, consider angling the
box forward slightly to direct the HF horn to
cover the audience area. The HF horn should
be aimed away from the ceiling and focused
on the intended area of coverage. This will
minimize HF reflections, lower the reverberant
field in the room and give better intelligibility.

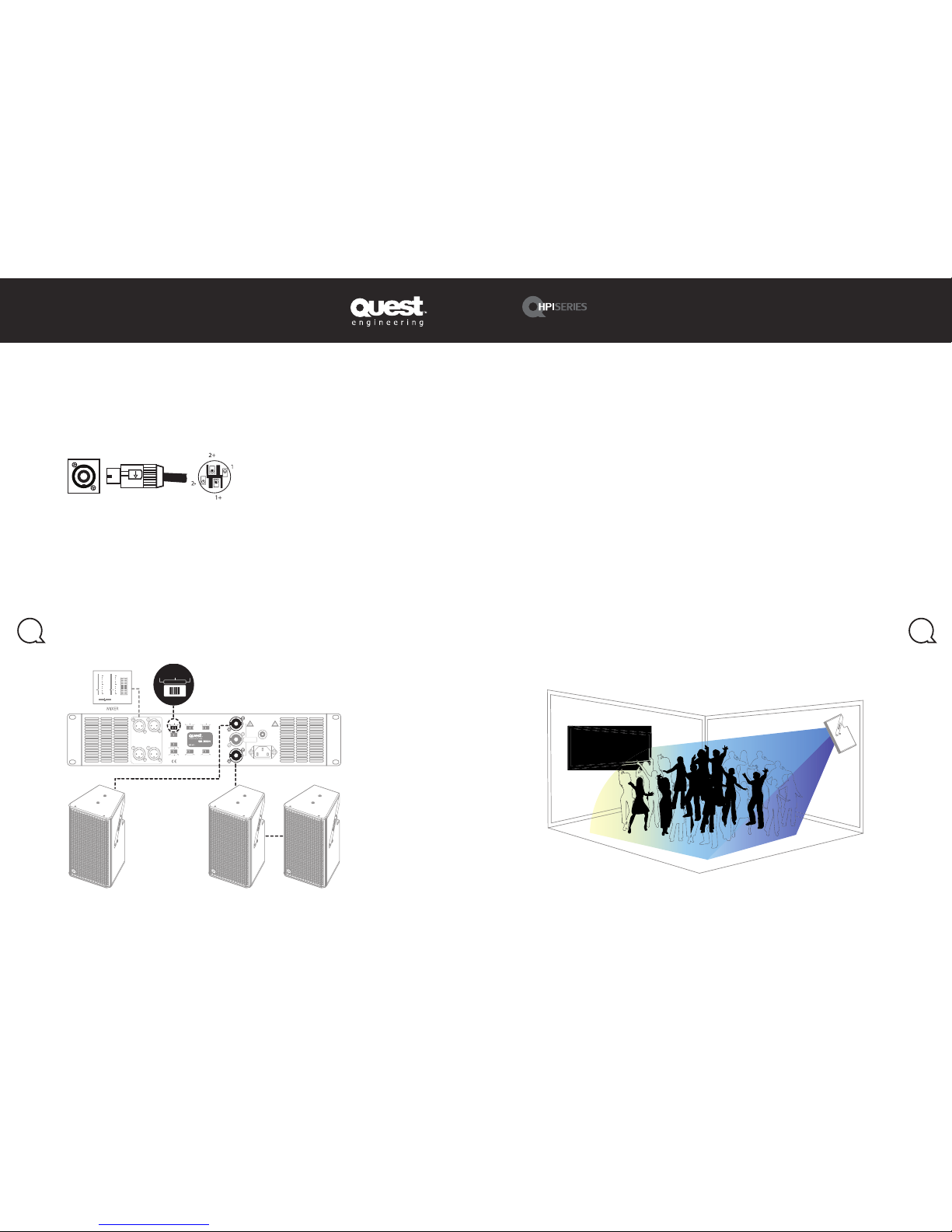

Ideal HPI 8i Flown ConfigurationRecommended HPI 8i Amplifier Configuration
OUTPUTASSIGNMENT
PIN1+:
PIN1-:
SIGNAL
GROUND
LINKA
LINKB
INPUTA
INPUTB
PushToReset
~
220 240V10A50/60Hz
OUTPUTA
OUTPUTB
BR
IDGE
PIN1:
PIN2:
PIN3:
SIGNALG ND
SIGNAL +
SIGNAL -
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
OFF 80Hz 110Hz
LOWPASS-A
26dB
32dB1.4V
GAIN
STEREOPARALLEL BRIDGE
MODE
OFF 35Hz 80Hz
HIGHPASS-B
OFF 80Hz 110Hz
LOWPASS-B
ON OFF
LIMITER
LIFT GROUND
GROUND
DESIGNED BY QUEST ENGINEERING,AUSTRALIA
MODEL:
OFF 35Hz 80Hz
HIGHPASS-A
OFF 35Hz 80Hz
HIGHPASS-A
10
1
1 2
5
10
1
5
Reducing low
frequency output will
make more amplifier
power available
for clean vocal
reproduction for full
range sound, set the
high pass filter to 35Hz
HPI 8i
User Manual
User Manual HPI Series
HPI 8i
HPI8i
User Manual
User Manual
HPI Series
HPI8i
6 7
The HPI 8i can be flown in a permanent
installation by attaching the designed flying
hardware. The HPI-8i can be wall mounted
or hung in a flown installation using the flying
fitting accessory. For more information, see
the Quest HPI flying hardware manual.
Before suspending any speaker system
always inspect all components (enclosure,
rigging frames, eyebolts, track fittings, etc.)
for cracks, deformations, corrosion, missing,
loose or damaged parts that could reduce
strength and safety of the array. Do not
suspend the speaker system until the correct
preparation of the installation site has been
taken to avoid health risks during and after
the completion of the installation. A licensed
Professional Engineer must approve the
placement and method of attachment to
the structure prior to the installation of any
overhead object.
Flying the HPI 8i

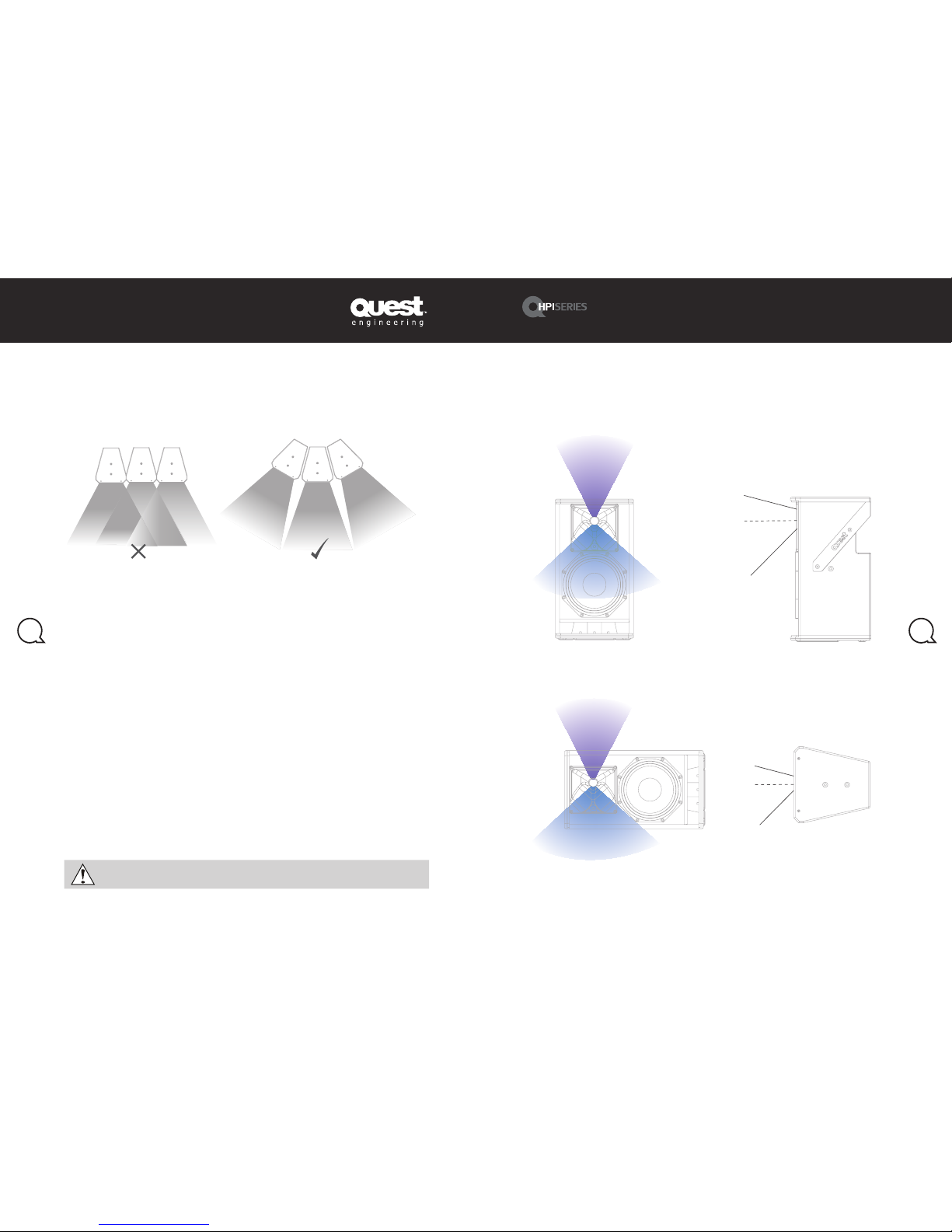

Rotating the Horn Flare
The asymmetrical horn flare can be rotated
through three separate planes of dispersion
depending on the speaker box requirement
and installation environment. The planes
are suited to either vertical or horizontal
installations.
Good coverage of audiences often requires
wide dispersion at the base of the horn flare
to cover close listeners and a focused narrow
dispersion at the top of the flare to beam to
the back of the room.
The HPI 8i horizontal horn covers both
“short-throw” and “long-throw” requirements
in a single system. For the majority of
installations (where the box is installed
vertically), the asymmetrical horn should be
used as supplied and will not need to be
rotated.
For horizontal installation rotate 45 degrees
so the arrow is pointing at the floor side so
as to have the “beaming” facility at the top of
the horn.
WARNING
Ensure the box is securely located. If any doubt about the physical
stability, tie the box down with ratchet straps to a secure base.
HPI 8i Vertical Side
HPI 8i Vertical Front
HPI 8i Wave Guide Examples
HPI 8i Horizontal Side
HPI 8i Horizontal Front
45˚
30˚
+
1
5
˚
-4
5
˚
+15˚
-45˚
45˚
30˚
HPI 8i
User Manual
User Manual HPI Series
HPI 8i
HPI8i
User Manual
User Manual
HPI Series
HPI8i
8 9
HPI 8i Specifications
Power Handling 400W RMS
Frequency Response 75 – 20kHz (+/-3dB)
Sensitivity 91.5dB @ 1kHz
Maximum SPL @ 1m 119dB
Impedance 8 ohms
Connections and Wiring 2x Speakon NL4 - 1+/1- (2+/2- through)
Woofer 8” High Power Mid-Bass Woofer
Tweeter 1” Exit Ferrite Compression Driver
Directivity Asymmetric +15/-45 Vertical
30/45 Horizontal
Dimensions 449 x 250 x 250 mm
Weight 8.9 kg Net
F: HPI 8i - Frequency Response - 143mV
Typical Frequency Reponse
Technical Specifications
HPI 8i Reference Diagram
No. Description Spare Part
1 Woofer (neodynium, 2’ VC, 200Wrms) T8007
1bis Recone kit for RT8007 RT8007
2 Compression driver (ferrite, 1” exit, 25Wrms) T1011
3 Asymmetric Horn Flares HWGHPI8i
4 Complete grill (includes foam) HGHPI8i
5 Metal handle for HPI8i HHHPI8i
6 Connection Plate HCP8i
7 Manufacturer Plate HMP8i
8 Rotative Q-badge (with spring) HQB25
9 Top hat plate HTHP2
10 Rubber skids 137mm HSK137
11 Passive Filter Network for HPI 8i HXHPI8i
1
3
4
5
6
7
8
9
10
11
2
1bis
Frequency (Hz)
100 1k 10k
100
80
60
20 50 200 500 2k 5k 20k
110
90
70
50
20
(dB) Level, So und pressure
www.questaudio.net
Register Your Product
Thank you for choosing Quest. Please take the time
to complete your product registration card which is
included with the packaging.
Registering your Quest Engineering product will:
• CONFIRM YOUR WARRANTY
• REGISTER YOUR PRODUCT
• PROTECT YOUR NEW PRODUCT
REGISTER ONLINE:
www.questaudio.net/registration
Loading...
