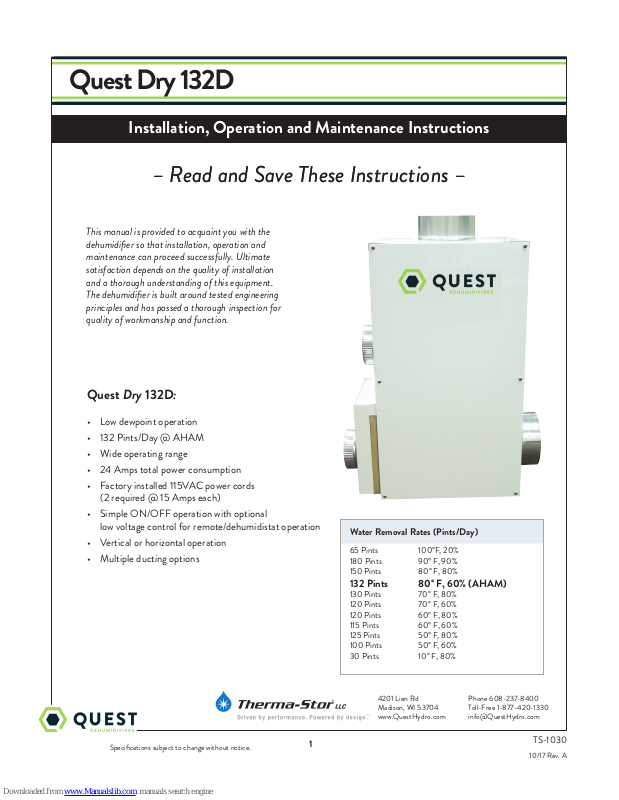

Quest Engineering Dry 132D Installation, Operation And Maintenance Instructions

– Read and Save These Instructions –

This manual is provided to acquaint you with the
dehumidifier so that installation, operation and
maintenance can proceed successfully. Ultimate
satisfaction depends on the quality of installation
and a thorough understanding of this equipment.
The dehumidifier is built around tested engineering
principles and has passed a thorough inspection for
quality of workmanship and function.

– Read and Save These Instructions –

Quest Dry 132D:

• Low dewpoint operation

• 132 Pints/Day @ AHAM

• Wide operating range

• 24 Amps total power consumption

• Factory installed 115VAC power cords
(2 required @ 15 Amps each)

• Simple ON/OFF operation with optional
low voltage control for remote/dehumidistat operation

• Vertical or horizontal operation

• Multiple ducting options

Water Removal Rates (Pints/Day)

65 Pints 100°F, 20%
180 Pints 90° F, 90%
150 Pints 80° F, 80%

132 Pints 80° F, 60% (AHAM)

130 Pints 70° F, 80%
120 Pints 70° F, 60%
120 Pints 60° F, 80%
115 Pints 60° F, 60%
125 Pints 50° F, 80%
100 Pints 50° F, 60%
30 Pints 10° F, 80%

4201 Lien Rd Phone [phone]
Madison, WI 53704 Toll-Free 1-877-420-1330
www.QuestHydro.com [e-mail]

Specifications subject to change without notice.

1

TS-1030

10/17 Rev. A

Quest Dry

Quest Dry 132D

Installation, Operation and Maintenance Instructions

Installation, Operation and Maintenance Instructions

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

2

www.QuestHydro.com

[e-mail]

Table of Contents

Safety Precautions ..................................................................3

1. Specifications .................................................................. 4

2. Installation ........................................................................5

2.1 Electrical Requirements ..........................................5

2.2 Ducting Options ......................................................5

a. Inside Drying Space with

Single Reactivation Outlet Duct ........................5

b. Inside Drying Space with

Isolated Reactiation Duct ...................................5

c. Outside Drying Space .........................................5

3. Operation ........................................................................5

3.1 How the Quest DRY 155 Works ............................5

3.2 Controlling the Quest Dry 132D ...........................6

4. Maintenance ...................................................................6

4.1 Air Filters ..................................................................6

4.2 Blower Motors and Rotor Drive Motor .................7

4.3 Desiccant Rotor Cassette Assembly .....................7

5. Service ..............................................................................7

5.1 Warranty ...................................................................7

5.2 Technical Description ..............................................7

a. Main Components ...............................................7

b. Control Circuit .................................................... 8

c. Safety Components ............................................ 8

5.3 Normal Operation .................................................. 8

5.4 Troubleshooting ....................................................... 8

6. Wiring Diagram ..............................................................10

7. Service Parts List ............................................................ 11

Warranty ................................................................................12

Serial No. __________________________________
Purchase Date ______________________________
Dealer’s Name ______________________________

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

3

www.QuestHydro.com

[e-mail]

Safety Precautions

Read the installation, operation and maintenance instructions carefully before installing and operating
this device. Proper adherence to these instructions is essential to obtain maximum benefit from your
Quest Dry 132D.

READ AND SAVE THESE INSTRUCTIONS

The Quest Dry 132D can be installed in a variety of locations to meet the owner’s needs as listed below. In all cases, keep the following cautions
in mind:

• The Quest Dry 132D is designed to be installed INDOORS ONLY.

• If used near water, the unit should be plugged into GFCI circuits

• DO NOT use the Quest Dry 132D as a bench or table

• Avoid discharging the process air directly at people

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety

• The appliance shall be installed in accordance with national wiring regulations

• Please allow one foot of clearance for the inlets and outlets of the unit

• Never operate a unit with a damaged cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a
similarly qualified person in order to avoid a hazard

• In order to avoid hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility

• DO NOT operate the Quest Dry 132D at an altitude higher than
32,000 ft (10,000m)

• Reactivation outlet air MUST be discharged into a location that can tolerate high temperature, moist air.

• If the reactivation outlet ductwork passes through a cold space, the duct must be insulated to prevent condensation from forming inside
the duct.

• Le Quest Dry 132D est conçu pour être installé SEULEMENT À L’INTÉRIEUR.

• Lorsqu’utilisée près d’une zone d’eau, l’unité doit être branchée sur des circuits DDFT.

• N’UTILISEZ PAS le Quest Dry 132D comme banc ou table.

• Évitez d’évacuer l’air de procédé directement vers les gens.

• Cet appareil ne doit pas être utilisé par des personnes dont les capacités physiques, sensorielles ou mentales sont limitées (y compris les
enfants) ou des personnes sans expérience ni connaissances pertinentes pour l’utilisation de l’appareil à moins d’avoir été formées sur
l’utilisation de l’appareil par une personne responsable de leur sécurité.

• L’appareil doit être installé suivant les règlementations nationales en matière de câblage.

• Veuillez s’il vous plaît prévoir une distance d’un pied entre l’unité et les entrées et arrivées.

• N’utilisez jamais un appareil présentant un cordon d’alimentation endommagé. Si le cordon d’alimentation est endommagé, celui-ci doit
être remplacé par le fabricant, par son agent de service ou par une personne compétente pour éviter tout risque.

• Pour éviter tout risque relié à la réinitialisation accidentelle de l’interrupteur magnétothermique, cet appareil ne doit pas être alimenté par
un dispositif de commutation externe telle une minuterie ni être branché à un circuit qui est régulièrement allumé et éteint par l’appareil.

• N’utilisez pas le Quest Dry 132D à plus de 32 800 pieds d’altitude (10 000 m).

• Les sorties d’air de réactivation DOIVENT être évacuées vers un emplacement pouvant tolérer de hautes températures et un air humide.

• Si les conduits de sortie d’air de réactivation traversent un espace froid, ceux-ci doivent être isolés pour éviter la formation de condensation
à l’intérieur de la canalisation.

The Quest Dry 132D supports multi-position operation and multiple ducting options. In EVERY case the Reactivation Outlet air MUST be
ducted out of the drying space and to a location tolerant of high temperature moist air (usually outside).

1-877-420-1330

4

www.QuestHydro.com

[e-mail]

Quest Dry 132D Installation, Operation and Maintenance Instructions

1. Specifications

Part Number: 4037900

Power: 2 Circuits; 12Amps, 115VAC each

24 Amps total power consumption

Kilowatts: 2.8 (66 KWh/Day)

Capacity
per Day: 132 Pints (80°F 60%RH)

Blower: 385 CFM Process Ariflow @ 0” ESP

75 CFM Reactivation Airflow @ 0”ESP

Temperature
Range: 10°F to 120°F*

Filters: Process Filter Size: 16” X 20” X 2”

Reactivation Filter Size: 12” X 12” X 1”

Reactivation
Duct: 6” (Start collars included)

Process
Duct: 8” (Start collars included)

External Static 0-0.4” WC Process
Pressure: 0-0.25” WC Reactivation

Warranty: 1 Year Parts and Labor

*Low temperature performance is dependent on reactivation air source. Supplying warmer reactivation air will significantly
increase water removal.

Dimensions :
Unit Shipping

Width 20” 25”
Height 36” 47”
Depth 20” 24”
Weight 105 Lb 125 Lb

Accessories:

4026859 6” Metalized Polyester Flex-Duct 25’ (for Reactivation)
4020128 6” Insulated Flex-Duct 25’ (for Reactivation)

Process Air Fiter Replacement:

4021475 16” x 20” x 2” MERV 11 Filter (Standard)

Reactivation Air Filter Replacement:

4026315 12” x 12” x 1” MERV 8 Filter

1-877-420-1330

5

www.QuestHydro.com

[e-mail]

Quest Dry 132D Installation, Operation and Maintenance Instructions

2. Installation

2.1 Electrical Requirements

The Quest Dry 132D draws a total of 24 Amps at 115VAC. For convenience,
this can be supplied by two standard 15 Amp outlets on separate circuits (cords
provided). The Quest Dry 132D also allows for the connection of low voltage

remote dehumidistat controls (sold separately).

2.2 Ducting Options

a. Inside Drying Space with Single Reactivation Outlet Duct

(Simplest Hookup)

• Reactivation air exhausts moisture, makeup air infiltrates uncontrolled
into space

• Creates a slight negative pressure on drying space

• Works well if infiltrating air is conditioned and drying space is not
“tight”

b. Inside Drying Space with Isolated Reactivation Duct

• Requires reactivation air to be ducted into and out of drying space.

• Works well on tightly sealed drying spaces.

• Keeps separation between air inside and air outside of drying space.

c. Outside Drying Space

• Requires process air to be ducted out from and back into drying space

• Works well if drying space is too small for mounting unit inside.

• Reduces heat load on drying space.

3. Operation

The Quest Dry 132D comes complete and can be plugged in and turned on.
Connected this way, the Quest Dry 132D will run continuously. With the addition
of a high or low voltage humidistat or a duty cycle timer, the ON/OFF switch will
act as an override.

Note: Check for airflow at all inlets and outlets. DO NOT run unit if no airflow is
detected.

3.1 How the Quest Dry 132D works

Your Quest Dry 132D has two separate air streams that run through it –
Process (Fig. 1) and Reactivation (Fig. 2).

Note: Check for airflow at all inlets and outlets. DO NOT run unit if no airflow is
detected.

Drying Space

Conditioned Space

Moist Air

Drying Space

Conditioned Space

Moist Air

Conditioned Space

Drying Space

Moist Air

Figure 2.2
Single Reactivation Outlet duct

Figure 2.3
Isolated Reactivation Outlet Duct

Figure 2.4
Outside Drying Space

1-877-420-1330

6

www.QuestHydro.com

[e-mail]

Process Air Stream:

P1 – 385 CFM of air enters (8” duct) the top
of the machine and...

P2 – ...water vapor from incoming air is
deposited on the desiccant wheel.

P3 – 385 CFM of dry air exits (8” duct) the
machine.

Reactivation Air Stream:

R1 – 75 CFM of air enters (6” duct) the lower­side of the machine and...

R2 – passes over the heater coils.

R3 – Water vapor is picked up from the
desiccant wheel by the hot air and...

R4 – ...75 CFM of wet air exits (6” duct) the
machine.

3.2 Controlling the Quest Dry 132D

a. Continuous Operation

The Quest Dry 132D is shipped ready to plug in and run. After plugging both cords into separate 120VAC
15A circuits, switch it on using the power switch. Connected this way, it will run continuously regardless of the
ambient humidity

b. External Control

The Quest Dry 132D includes terminals to connect a low-voltage (24VAC) external control, such as a
humidistat or duty cycle timer. This must be a dry contact control – no power should be connected to the
terminals. When the terminals are electrically connected and the power switch is switched on, the unit will
run. When the terminals are not electrically connected, the unit will not run. Remove the factory-installed
jumper before installing an external control. If the jumper is not removed, the Quest Dry 132D will operate
continuously as described in 3.2 (a)

IMPORTANT: Line-voltage controls that interrupt power to the unit may not be used with the Quest Dry 132D. The unit uses
an internal thermal cutout that may be reset inadvertently if power to the unit is disconnected

4. Maintenance

4.1 Air Filters

The Quest Dry 132D is equipped with two pleated fabric air filters that must be checked regularly. The larger process filter
is 16”X20”X2” and is located at the 8” duct inlet. The smaller reactivation filter is 12”X12”X1” and is located at the 6” duct
inlet.

Operating the unit with dirty filters will reduce its capacity and eciency, and could cause the heater to cut out on
thermal overload.

DO NOT operate the unit without the filters as the desiccant wheel inside the unit will become clogged and require
disassembly to clean.

Quest Dry 132D Installation, Operation and Maintenance Instructions

REQUIRED 6” Duct

Reactivation Outlet

OPTIONAL 6” Duct

Reactivation Inlet

OPTIONAL 8” Duct

Process Outlet

OPTIONAL 8” Duct

Process Inlet

Reactivation Air Stream

Process Air Stream

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

7

www.QuestHydro.com

[e-mail]

1A

1B

1C

3A

3B

3C

3D

2

4A

4B

4C

4D

4E

4F

GRN 24 WHT 23

CORD 1 CORD 2

BLK BLKWHT

BLK ORG 12

BRN

WHT 4

ORG 6

BLU

BLU 26

BLK

BLK

WHT

TERMINAL BLOCK

ROTOR MOTOR

1234

REGEN

CAPACITOR

PROC THERM

OL 140°F

MAIN POWER SWITCH

PROC BLOWER

PROC CAP

RELAY 1

BLK 1

BLK 2

VIO 27

VIO 14

BLK 3

BRN 5

BLK 16

ORG 31

YEL 20

RED 18

VIO 15

VIO 27

BLK 2

BLK 10

VIO 14

WHT 13

WHT 22

WHT 23BLU 21

BLU 25

YEL 19

VIO 33

ORG 30

YEL 32

BLK 17BLK 1

BLU 29

BLU 21

TERMINAL BLOCK

WHT 22

BLK 28

WHT 23

Cassette Removal Instructions

4 0

6 1

RELAY 2

4 0

6 1

LOW-V RELAY

4 0

6 1

24 VAC
TRANSFORMER

GRN

TERMINAL BLOCK

EXTERNAL
CONTROL

3A
BREAKER

4.2 Blower Motors and Rotor Drive Motor

All motors on the 132DD are permanently lubricated and do not require maintenance.

4.3 Desiccant Rotor Cassette Assembly

The cassette can be easily removed to inspect and/or clean the seals and rotor. Reverse these steps to reinstall the
cassette.

Step 1: Remove three #10 screws holding reactivation duct in place (1A, 1B, 1C) using 5/16” hex driver.
Push duct section (1D) in toward wheel

Step 2: Unplug wheel drive motor wires (2)

Step 3: Remove four ¼” screws holding cassette in place (3A-3D) using #3 Phillips driver

Step 4: Remove six #10 screws holding reactivation inlet cover in place (4A-4F) using 5/16” hex driver.

Remove reactivation inlet panel

Step 5: Lift cassette up and out of cabinet to avoid tearing lower reactivation gasket

Step 6: Installation is reverse of removal

5. Service

5.1 Warranty

A warranty certificate has been enclosed with this unit; read it before any repair is initiated. If a warranty repair is required,
call the factory first at 1-877-420-1330 and select Service for warranty claim authorization and technical assistance.

5.2 Technical Description

a. Main Components

The Quest Dry 132D produces airflow using two permanent split capacitor (PSC) blower motors. A shaded-pole
gear motor rotates the desiccant rotor via a pulley and belt. Heat for reactivation is generated by a two-stage
nichrome heating element powered by two separate branch circuits. The heating elements cannot be energized
individually – both cords must be plugged in for them to operate.

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

8

www.QuestHydro.com

[e-mail]

b. Control Circuit

The blowers, rotor motor, and heating elements are operated by a line- and low-voltage control circuit. One
branch circuit (Circuit 1) delivers power to the process blower, control transformer, and a 1270W heating
element through one line-voltage relay (Relay 1) and a control relay. A separate branch circuit (Circuit 2)
delivers power to the reactivation blower, rotor motor, and a 1360W heating element through a second line­voltage relay (Relay 2). Circuit 1 provides power to the coil for Relay 2 and Circuit 2 provides power to the Relay
1 coil. Because of this latching between the two circuits, the unit cannot operate unless both cords are plugged in.
With both cords plugged in, turning on the power switch energizes the Relay 2 coil. This energizes all of the loads
on Circuit 2, as well as the Relay 1 coil, which energizes all of the loads on Circuit 1. If either cord is unplugged, all
loads are de-energized.

The control transformer provides power for a low-voltage (24 VAC) control relay. This relay’s coil is energized
when electrical contact is made between the external control terminals, which energizes the loads on Circuit 1
(and Circuit 2 as a result).

c. Safety Components

Three thermal cutout switches allow for safe operation of the 132D. Two of these cutouts are located in the
heater. If the reactivation inlet temperature is too high or if there is insucient reactivation airflow, the
automatically-resetting heater cutout opens and all loads are de-energized. Once the temperature drops by a
few degrees F, the switch closes again and the loads are re-energized. The second heater cutout has a higher
temperature limit and only trips if the automatically-resetting switch hasn’t opened. This higher cutout will hold
itself open (preventing the unit from operating) until both cords are unplugged and the unit is allowed to cool.
The third cutout is located in the process inlet and senses the air temperature of the air entering the process side.
If this temperature exceeds 140°F, the switch opens and all loads are de-energized. The switch resets (and all
loads are re-energized) once the process inlet air temperature drops to 100°F.

A 3A resettable circuit breaker is wired in series with the control transformer secondary coil. This protects the
transformer if the low voltage relay coil becomes shorted.

5.3 Normal Operation

1. The 132D is connected to two 110-120VAC branch circuits

2. The power switch is turned on

3. If there is continuity across the external low-voltage control terminals, the rotor motor, reactivation blower, process
blower, hour meter, indicator lamp, and both heating elements are energized

4. If there is no continuity across the low-voltage control terminals, all loads are de-energized

5. If either cord is unplugged, all loads are de-energized

6. If any thermal cutout opens, all loads are de-energized

7. If the high heater cutout opens, all loads remain de-energized until both cords are unplugged and the unit is allowed
to cool

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

9

www.QuestHydro.com

[e-mail]

5.4 Troubleshooting

Each cord must be plugged into a separate branch circuit. Plugging both cords into the same circuit will likely cause the
branch circuit protector (e.g. fuse or breaker) to trip.

Neither blowers, rotor motor, nor heater operating

1. Cord(s) unplugged

2. Unit turned o

3. No continuity across low-voltage control terminals

4. Thermal cutout(s) tripped. Unplug unit and allow to cool. Identify and correct problem before plugging unit back in

5. Defective relay(s)

6. Wiring fault inside device

Blowers and heater operating, rotor not turning

1. Rotor unplugged

2. Belt broken or not properly tensioned. Adjust or replace belt

3. Pulley not fixed to driveshaft. Tighten or replace set screw

4. Rotor is obstructed from rotating. Check bearings and confirm rotor turns freely

5. Defective gear motor

Rotor motor and heater operating, blower(s) not operating

1. Defective blower or blower capacitor

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

10

www.QuestHydro.com

[e-mail]

PROCESS BLOWER

GRN 24 WHT 23

CORD 1 CORD 2

BLK BLKWHT

BLK ORG 12

BRN

BLU

BLU

RED

RED

WHT 9 WHT 9

WHT 4

BLK 8 BLK 8

BLU 7

ORG 6

ORG 6

BLU

BLU 26

BLK

BLK

WHT

TERMINAL BLOCK

CIRCUIT 1

CIRCUIT 2

HEATER

THERM OL 1

176°F

HEATER

THERM OL 2

302°F

1360W

1270W

ROTOR MOTOR

1234

1234

REGEN

CAPACITOR

REGEN BLOWER

PROC THERM

OL 140°F

MAIN POWER SWITCH

PROC BLOWER

PROC CAP

RELAY 1

BLK

YEL

YEL

BLK 1

BLK 2

VIO 27

VIO 14

WHT

WHT

BLK 3

BRN 5

BLU

BRN

BLK 16

ORG 31

YEL 20

RED 18

VIO 15

VIO 27

BLK 2

BLK 10

VIO 14

WHT 13

WHT 22

WHT 23BLU 21

BLU 7

BLU 25

BLU 25

YEL 19

VIO 33

ORG 30

YEL 32

BLK 17BLK 1

BLU 29

BLU 21

TERMINAL BLOCK

WHT 22

BLK 28

WHT 23

1

2

3

4

LINE

LINE

ROCKER

SWITCH POLE 1

ROCKER

SWITCH

POLE 2

NEUTRAL

24VAC COM

NEUTRAL

RELAY 1

CONTACT

LOW-V
RELAY

CONTACT

1270W HEATER

1360W HEATER

HEATER

CUTOUT 1

RELAY 2 COIL

PROCESS

CAPACITOR

HEATER

CUTOUT 2

PROCESS

CUTOUT

RELAY 2

CONTACT

REGEN

CAPACITOR

RELAY 1 COIL

ROTOR MOTOR

REGEN BLOWER

BLU

BLK

BRN

BLU

BLK

BRN

4 0

6 1

RELAY 2

4 0

6 1

LOW-V RELAY

4 0

6 1

24 VAC
TRANSFORMER

GRN

TRANSFORMER

PRIMARY

EXTERNAL
CONTROL

TRANSFORMER

SECONDARY

3A BREAKER

LOW-V
RELAY

COIL

TERMINAL BLOCK

EXTERNAL

CONTROL

3A
BREAKER

1 2

6. Wiring diagram

1-877-420-1330

11

www.QuestHydro.com

[e-mail]

Quest Dry 132D Installation, Operation and Maintenance Instructions

1

2

3

9

10

11

12

13

8

4 5

6

7. Service Parts List

Item Part No. Description

1 4025076 FAN, MOTORIZED IMPELLER, PROCESS AIR

2 403523507 CAPACITOR, RUN, 15 MFD, 370V, DRY, PROCESS AIR

3 4019652 COLLAR, 6” 2 PLACES

4 4026315 FILTER, AIR, 12 X 12 X 1, REACTIVATION AIR

5 4026798 FAN, MOTORIZED IMPELLER, REACTIVATION AIR

6 4037807 HEATER KIT, DESICCANT

8 4026898 THERMAL OVERLOAD, PROCESS AIR

9 403523511 CAPACITOR, RUN, 8 MFD, DRY, REACTIVATION AIR

10 1970010 RELAY SPST 110VAC COIL 2

11 4026773 MOTOR, DESICCANT WHEEL

12 4026795 BELT, DRIVE, QUEST DESICCANT

13 4026772 WHEEL, DESICCANT

15 4021475 FILTER, AIR, 16 X 20 X 2, PROCESS AIR

16 4026194 SWITCH, ROCKER, DPST, ONOFF

17 4025043 PLATE, SKID

18 4032315 CORD 2 PLACES

Not 4026922 GASKET AND BELT REPLACEMENT KIT
Shown 4036559 3A CIRCURT BREAKER

4022484 RELAY, SPST, 24VAC COIL
4022487 TRANSFORMER, 120V/24V, 40VA

18

1

2

3

9

10

11

12

14

13

8

4

5

6

17

16

15

18

16

Quest DRY 132D Installation, Operation and Maintenance Instructions

1-877-420-1330

12

www.QuestHydro.com

[e-mail]

Quest Dry 132D Installation, Operation and Maintenance Instructions

Quest Dry 132D Dehumidifier Limited Warranty

Warrantor:

Therma-Stor LLC
4201 Lien Rd
Madison, WI 53704
Telephone: [phone]

Who Is Covered: This warranty extends only to the original end-user of the Quest Dry 132D dehumidifier, and may not
be assigned or transferred.

One Year Warranty: Therma-Stor LLC warrants that, for one (1) year the Quest Dry 132D dehumidifier will operate free
from any defects in materials and workmanship, or Therma-Stor LLC will, at its option, repair or replace the defective
part(s), free of any charge.

End-User Responsibilities: Warranty service must be performed by a Servicer authorized by Therma-Stor LLC. If the
end-user is unable to locate or obtain warranty service from an authorized Servicer, the end-user should call Therma­Stor LLC at the above number and ask for the Therma-Stor Service Department., which will then arrange for covered
warranty service. Warranty service will be performed during normal working hours.

The end-user must present proof of purchase (lease) upon request, by use of the warranty card or other reasonable and
reliable means. The end-user is responsible for normal care. This warranty does not cover any defect, malfunction, etc.
resulting from misuse, abuse, lack of normal care, corrosion, freezing, tampering, modification, unauthorized or improper
repair or installation, accident, acts of nature or any other cause beyond Therma-Stor LLC’ reasonable control.

Limitations and Exclusions: If any Quest Dry 132D Dehumidifier part is repaired or replaced, the new part shall be
warranted for only the remainder of the original warranty period applicable thereto (but all warranty periods will be
extended by the period of time, if any, that the Quest Dry 132D Dehumidifier is out of service while awaiting covered
warranty service).

UPON THE EXPIRATION OF THE WRITTEN WARRANTY APPLICABLE TO THE QUEST DRY 132D
DEHUMIDIFIER OR ANY PART THEREOF, ALL OTHER WARRANTIES IMPLIED BY LAW, INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL ALSO EXPIRE. ALL
WARRANTIES MADE BY THERMA-STOR LLC ARE SET FORTH HEREIN, AND NO CLAIM MAY BE MADE
AGAINST THERMA-STOR LLC BASED ON ANY ORAL WARRANTY. IN NO EVENT SHALL THERMA-STOR
LLC, IN CONNECTION WITH THE SALE, INSTALLATION, USE, REPAIR OR REPLACEMENT OF ANY
QUEST DRY 132D DEHUMIDIFIER OR PART THEREOF BE LIABLE UNDER ANY LEGAL THEORY FOR
ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES INCLUDING WITHOUT LIMITATION WATER
DAMAGE (THE END-USER SHOULD TAKE PRECAUTIONS AGAINST SAME), LOST PROFITS, DELAY, OR
LOSS OF USE OR DAMAGE TO ANY REAL OR PERSONAL PROPERTY.

Some states do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or
limitation of incidental or consequential damages, so one or both of these limitation may not apply to you.

Legal Rights: This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
