Quectel UMTS<E EVB User Manual

UMTS<E EVB

User Guide

UMTS/HSPA/LTE Module Series

Rev. UMTS<E_EVB_User_Guide_V2.0 Date: 2017-01-12

www.quectel.com

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

Our aim is to provide customers with timely and comprehensive service. For any assistance, please contact our company headquarters:

Quectel Wireless Solutions Co., Ltd.

Office 501, Building 13, No.99, Tianzhou Road, Shanghai, China, 200233 Tel: +86 21 5108 6236 Email: info@Quectel.com

Or our local office. For more information, please visit:

http://www.Quectel.com/support/salesupport.aspx

For technical support, or to report documentation errors, please visit:

http://www.Quectel.com/support/techsupport.aspx Or email to: Support@Quectel.com

GENERAL NOTES

QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS‟ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION. ALL INFORMATION SUPPLIED HEREIN IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

COPYRIGHT

THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF QUECTEL CO., LTD. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT ARE FORBIDDEN WITHOUT PERMISSION. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL OR DESIGN.

UMTS<E_EVB_User_Guide Confidential / Released 1 / 44

UMTS/HSPA/LTE Module Series

Revision

Date

Author

Description

1.0

2015-03-03

Huik LI

Initial

1.1

2015-06-10

Radom XIANG

Deleted +5V adapter parts in EVB accessories

2.0

2017-01-12

Allen WANG

1. Added applicable modules of the EVB: EC25, EC21, EC20 R2.0, FC20 series and EG95

2. Added the description of UMTS<E TE-A interface (Chapter 4.2)

3. Added the description of Wi-Fi & Ethernet TE-A interface (Chapter 4.3)

4. Added the description of digital audio codec board interface (Chapter 4.5.1)

5. Added the description of SD card interface (Chapter 4.7)

6. Added a Wi-Fi antenna and two codec boards into EVB accessories

7. Added procedures for power on/off Wi-Fi modules in Chapter 5

Quectel

Confidential

UMTS<E EVB User Guide

About the Document

History

UMTS<E_EVB_User_Guide Confidential / Released 2 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

Table Index

TABLE 1: KEY FEATURES ................................................................................................................................. 9

TABLE 2: INTERFACES OF UMTS<E EVB ................................................................................................... 11

TABLE 3: ACCESSORIES LIST ........................................................................................................................ 14

TABLE 4: PIN DEFINITION OF J801 ................................................................................................................ 21

TABLE 5: PIN DEFINITION OF J601 ................................................................................................................ 25

TABLE 6: PIN DEFINITION OF J602 ................................................................................................................ 27

TABLE 7: PIN DEFINITION OF J702 ................................................................................................................ 28

TABLE 8: PIN DEFINITION OF J401 ................................................................................................................ 31

TABLE 9: PIN DEFINITION OF J402 ................................................................................................................ 31

TABLE 10: DESCRIPTION OF SWITCHES AND BUTTONS ........................................................................... 32

TABLE 11: DESCRIPTION OF STATUS INDICATION LEDS ........................................................................... 33

TABLE 12: PIN DEFINITION OF J803, J804, J805 AND J806 ......................................................................... 35

TABLE 13: INDICATION OF D206 AND D208 .................................................................................................. 39

TABLE 14: RELATED DOCUMENTS ................................................................................................................ 43

TABLE 15: TERMS AND ABBREVIATIONS ...................................................................................................... 43

UMTS<E_EVB_User_Guide Confidential / Released 5 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

Figure Index

FIGURE 1: UMTS<E EVB INTERFACE OVERVIEW (UNIT: MM) ................................................................. 11

FIGURE 2: UMTS<E EVB TOP VIEW .......................................................................................................... 13

FIGURE 3: EVB KIT ACCESSORIES ............................................................................................................... 14

FIGURE 4: UMTS<E EVB KIT ACCESSORIES ASSEMBLY ....................................................................... 16

FIGURE 5: POWER SUPPLY FOR UMTS<E EVB ....................................................................................... 17

FIGURE 6: POWER INTERFACE ..................................................................................................................... 18

FIGURE 7: POWER PLUG DESIGN ................................................................................................................. 18

FIGURE 8: CONNECTION BETWEEN UMTS<E TE-A AND EVB ............................................................... 19

FIGURE 9: SIMPLIFIED FC20 TE-A INTERFACE SCHEMATIC ...................................................................... 20

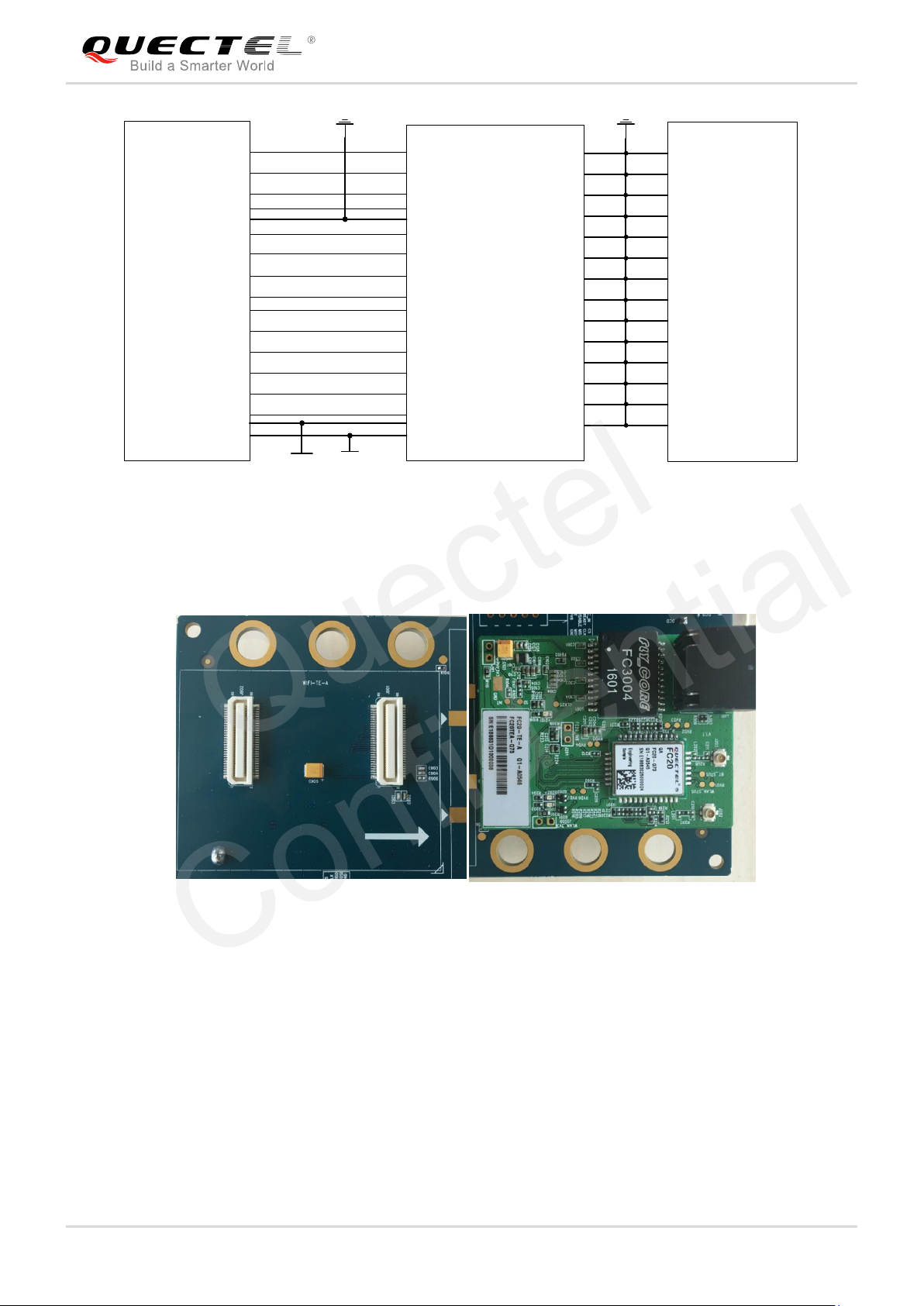

FIGURE 10: CONNECTION BETWEEN FC20 TE-A AND EVB ....................................................................... 20

FIGURE 11: REFERENCE CIRCUIT DESIGN FOR USB DEVICE INTERFACE ............................................. 21

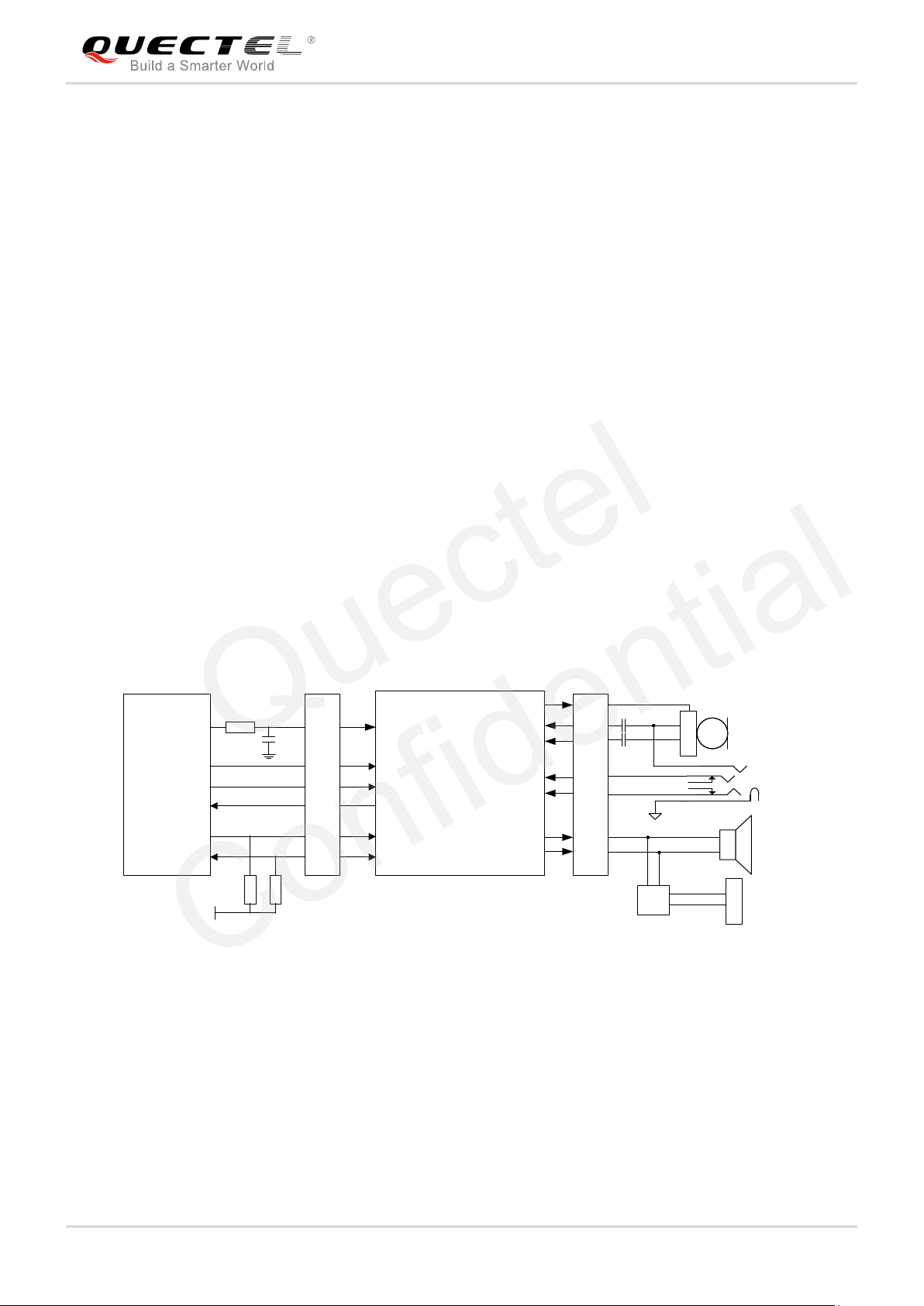

FIGURE 12: DIGITAL AUDIO CODEC CIRCUIT .............................................................................................. 22

FIGURE 13: CONNECTION BETWEEN CODEC BOARD AND EVB .............................................................. 23

FIGURE 14: REFERENCE CIRCUIT DESIGN FOR LOUD SPEAKER INTERFACE J603 ............................. 23

FIGURE 15: REFERENCE CIRCUIT DESIGN FOR EARPHONE INTERFACE J601 ..................................... 24

FIGURE 16: PIN ASSIGNMENTS OF J601 ...................................................................................................... 24

FIGURE 17: SKETCH OF AUDIO PLUG .......................................................................................................... 25

FIGURE 18: REFERENCE CIRCUIT DESIGN FOR HANDSET INTERFACE J602 ........................................ 26

FIGURE 19: PIN ASSIGNMENTS OF J602 ...................................................................................................... 26

FIGURE 20: SIMPLIFIED INTERFACE SCHEMATIC FOR USIM CARD CONNECTOR J702 ........................ 27

FIGURE 21: PIN ASSIGNMENTS OF J702 ...................................................................................................... 28

FIGURE 22: SIMPLIFIED INTERFACE SCHEMATIC FOR SD CARD INTERFACE J701............................... 29

FIGURE 23: PIN ASSIGNMENTS OF J701 ...................................................................................................... 29

FIGURE 24: UART BLOCK DIAGRAM ............................................................................................................. 30

FIGURE 25: PIN ASSIGNMENTS OF J401 ...................................................................................................... 30

FIGURE 26: PIN ASSIGNMENTS OF J402 ...................................................................................................... 31

FIGURE 27: S901 SWITCH .............................................................................................................................. 32

FIGURE 28: S201 SWITCH AND S301/S302/S303 BUTTONS ....................................................................... 32

FIGURE 29: STATUS INDICATION LEDS ........................................................................................................ 33

FIGURE 30: TEST POINTS J803, J805 AND J806 ........................................................................................... 34

FIGURE 31: TEST POINT J804 ........................................................................................................................ 35

FIGURE 32: USB PORTS ................................................................................................................................. 39

FIGURE 33: QCOM WINDOW CONFIGURATION WHEN CONNECTING USB PORT .................................. 40

FIGURE 34: USB SERIAL PORT ...................................................................................................................... 40

FIGURE 35: QCOM WINDOW CONFIGURATION WHEN CONNECTING USB SERIAL PORT .................... 40

FIGURE 36: CONFIGURATIONS FOR FIRMWARE UPGRADE ..................................................................... 41

UMTS<E_EVB_User_Guide Confidential / Released 6 / 44

UMTS/HSPA/LTE Module Series

Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a mobile while driving (even with a handsfree kit) causes distraction and can lead to an accident. You must comply with laws and regulations restricting the use of wireless devices while driving.

Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it is switched off. The operation of wireless appliances in an aircraft is forbidden, so as to prevent interference with communication systems. Consult the airline staff about the use of wireless devices on boarding the aircraft, if your device offers an Airplane Mode which must be enabled prior to boarding an aircraft.

Switch off your wireless device when in hospitals, clinics or other health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

Cellular terminals or mobiles operating over radio frequency signal and cellular network cannot be guaranteed to connect in all conditions, for example no mobile fee or with an invalid USIM/SIM card. While you are in this condition and need emergent help, please remember using emergency call. In order to make or receive a call, the cellular terminal or mobile must be switched on and in a service area with adequate cellular signal strength.

Quectel

Confidential

UMTS<E EVB User Guide

1 Introduction

This document describes how to use the evaluation board of UMTS<E modules and Wi-Fi modules. It is an assistant tool for engineers to develop and test Quectel UMTS, LTE and Wi-Fi modules.

1.1. Safety Information

The following safety precautions must be observed during all phases of the operation, such as usage, service or repair of any cellular terminal or mobile incorporating UMTS<E and Wi-Fi modules. Manufacturers of the cellular terminal should send the following safety information to users and operating personnel, and incorporate these guidelines into all manuals supplied with the product. If not so, Quectel assumes no liability for the customer‟s failure to comply with these precautions.

UMTS<E_EVB_User_Guide Confidential / Released 7 / 44

UMTS/HSPA/LTE Module Series

Your cellular terminal or mobile contains a transmitter and receiver. When it is ON, it receives and transmits radio frequency energy. RF interference can occur if it is used close to TV set, radio, computer or other electric equipment.

In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your phone or other cellular terminals. Areas with potentially explosive atmospheres include fuelling areas, below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles such as grain, dust or metal powders, etc.

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 8 / 44

UMTS/HSPA/LTE Module Series

1.

1)

UGxx contains UG35, UG95 and UG96.

2.

2)

EC2x contains EC25, EC21, EC20 and EC20 R2.0.

3.

3)

FC20 series (hereinafter FC20 simply) includes both FC20 and FC20-N.

Features

Implementation

Power Supply

DC supply: 4.5~5.5V, typically: 5V VBAT: 3.8V for J103

UMTS<E TE-A Interface

Support Quectel UMTS<E modules: UC20/UGxx/EC2x/EG95

NOTES

Quectel

Confidential

UMTS<E EVB User Guide

2 General Overview

Quectel supplies UMTS<E EVB for designers to develop applications based on Quectel UMTS<E modules and Wi-Fi modules. This EVB can test basic functionalities of these modules.

2.1. Applicable Modules

UMTS<E EVB is applicable to the following module models.

 UC20  UGxx 1)  EC2x 2)  FC20 series 3)  EG95

2.2. Key Features

The following table describes the detailed features of UMTS<E EVB.

Table 1: Key Features

UMTS<E_EVB_User_Guide Confidential / Released 9 / 44

UMTS/HSPA/LTE Module Series

Wi-Fi & Ethernet TE-A Interface

Support Quectel Wi-Fi modules: FC20

SD Interface

Support SD card

USIM Card Interface

Support USIM/SIM card insertion detection Support USIM/SIM card: 3.0V and 1.8V

Audio Interfaces

 One digital audio codec board interface

Support Realteck ALC5616 and TI Codec TLV320AIC3104

 Three analog interfaces used for loud speaker, earphone and

handset

UART Interfaces

Two UART interfaces:  COM1: serial interface for data communication

Max baud rate: 460,800bps;

 COM2: serial interface for debug purpose

Max baud rate: 3Mbps

USB Interface

USB 2.0

Signal Indication

5 LEDs are available for signal indication

KEY Interfaces

Power Switch (S201), PWRKEY (S302), RESET (S303), PWRDWN_N (S301), BT Function Switch (S901)

Physical Characteristics

Size: 146.4mm × 115.0mm

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 10 / 44

UMTS/HSPA/LTE Module Series

COM1 (MAIN)

J201

J801

S201

S303

Micro USB

interface

J702

Power supply

Power switch

RESET

D209

J401

S302

PWRKEY

D205 D207

D208 D206

FC20 TE-A

EC2x TE-A

SD card

GND

J302

J103

USIM/SIM

card

connector

J402

COM2 (DBG)

VBAT

J805

J902

J901

60Pin

J102

J101

100Pin

J701

J806

J804

S901

S301

PWRDWN_N

J501

60Pin

J803

J601

Earphone

Test Points

UGxx TE-A

EG95 TE-A

UC20 TE-A

Codec board

interface

Handset

J602

Test Point

146.4

115

Interface

Reference No.

Description

Power Supply 1)

J201 (bottom side)

The power jack on the EVB. Supply voltage typically: +5V

J801

USB_VBUS supplies voltage typically: +5V

Power Switch

S201

Control power supply VBAT ON/OFF

Quectel

Confidential

UMTS<E EVB User Guide

2.3. Interface Overview

Figure 1: UMTS<E EVB Interface Overview (Unit: mm)

Table 2: Interfaces of UMTS<E EVB

UMTS<E_EVB_User_Guide Confidential / Released 11 / 44

UMTS/HSPA/LTE Module Series

PWRKEY S302

Power key (push button) Used to turn on/off the UMTS<E module

J302

Jumper is used to connect PWRKEY to GND

PWRDWN_N

S301

Used to turn off the UMTS<E module

2)

RESET

S303

Reset button (push button). It is used to reset the UMTS<E module

BT Function Switch

S901

Switched to the left: connect FC20's BT interface (UART, PCM) to EC2x modules, for testing the BT function of FC20. Switched to the right: connect the main UART and codec board interfaces on EVB to UMTS<E module, for testing

the module's main UART functions, and the codec„s PCM

function.

Micro USB

J801

USB device interface

Audio

J501

Codec board interface

J603

Used for loud speaker Used to test the analog audio function of UMTS<E module

J601

Used for earphone Used to test the analog audio function of UMTS<E module

J602 (bottom side)

Used for handset Used to test the analog audio function of UMTS<E module

USIM

J702

USIM card connector

COM1

J401 (bottom side)

Main UART port

COM2

J402 (bottom side)

Debug UART port

Status Indication LEDs

D209, D205, D207, D208, D206

D209 is VBAT ON/OFF indicator. D205 is used for indicating whether the UMTS<E module is powered on. D207 is used for indicating whether UMTS<E module is in sleep mode. D208 and D206 are used for indicating the network status of UMTS<E module.

UMTS<E TE-A Interface

J101, J102

Connectors of UMTS<E TE-A

Wi-Fi & Ethernet TE-A Interface

J901, J902

Connectors of Wi-Fi & Ethernet TE-A

SD Card

J701

SD card connector

VBAT

J103

Jumper used for VBAT voltage test

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 12 / 44

UMTS/HSPA/LTE Module Series

1.

1)

The power supply information in above table is for UMTS<E modules. For the detailed

information of power supply for Wi-Fi modules, please refer to Chapter 4.1 and Chapter 4.3.

2.

2)

This function is only supported by UG35, UG95 and UG96 modules.

Test Points

J803, J804, J805, J806

Test pins

NOTES

Quectel

Confidential

UMTS<E EVB User Guide

2.4. Top View of EVB

The top view of the UMTS<E EVB is shown as following figure.

Figure 2: UMTS<E EVB Top View

UMTS<E_EVB_User_Guide Confidential / Released 13 / 44

UMTS/HSPA/LTE Module Series

USB to UART converter cable

Bolts and

nuts

Driver disk

RF cables

Codec boards

USB cable

Earphone

GNSS

Antenna

Main

Antennas

Wi-Fi

Antenna

Items

Description

Quantity

Cables

USB to UART converter cable

1

USB cable

1

RF cables

4

Antennas

Main Antennas

2

Quectel

Confidential

UMTS<E EVB User Guide

2.5. EVB Kit Accessories

All accessories of the UMTS<E EVB kit are listed as below.

Table 3: Accessories List

UMTS<E_EVB_User_Guide Confidential / Released 14 / 44

Figure 3: EVB Kit Accessories

UMTS/HSPA/LTE Module Series

The main antenna can also be used for diversity reception.

GNSS Antenna (passive)

1

Wi-Fi Antenna

1

Audio

Earphone

1

Disk

USB 2.0 to RS232 driver and USB driver disk

1

Codec Boards

ALC5616 and TLV320AIC3104 codec boards

2

Others

Bolts and nuts for fixing EVB

1

Instruction Sheet

A sheet of paper giving instructions for EVB connection, details of EVB accessories, etc.

1

NOTE

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 15 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

3 EVB Kit Accessories Assembly

The following figure shows the EVB Kit accessories assembly.

Figure 4: UMTS<E EVB Kit Accessories Assembly

UMTS<E_EVB_User_Guide Confidential / Released 16 / 44

UMTS/HSPA/LTE Module Series

J201

S201

Power supply

Power switch

Step-down converter

U201

TPS54319

J103

VBAT

Power supply for

UMTS<E module

1.8V

3.3V

U301

LDO

U303

LDO

J801

USB

interface

2.85V

U302

LDO

Power supply for

Wi-Fi module

Power supply for

SD Card

Quectel

Confidential

UMTS<E EVB User Guide

4 Interface Application

This chapter describes the hardware interfaces of UMTS<E EVB, shown as follows:

 Power interface  UMTS<E TE-A interface  Wi-Fi & Ethernet TE-A interface  USB interface  Audio interfaces  USIM card interface  SD card interface  UART interfaces

It also provides information about the buttons, switch, status indication LEDs and test points to help customers use the UMTS<E EVB.

4.1. Power Interface (J201/J801)

The UMTS<E EVB can be powered by an external power adapter through connecting with the power jack (J201) or USB receptacle (J801) on the EVB. The power adapter connects to a step-down converter which can provide the supply voltage (VBAT) required for operating the EVB and the module.

The following two figures show the simplified power supply schematic and the power interface of Quectel UMTS<E EVB.

Figure 5: Power Supply for UMTS<E EVB

UMTS<E_EVB_User_Guide Confidential / Released 17 / 44

UMTS/HSPA/LTE Module Series

5V DC power supply

Inner contact

Outer contact

Quectel

Confidential

UMTS<E EVB User Guide

Figure 6: Power Interface

Before connecting the power supply, customers have to select a proper DC power adapter to supply power for the UMTS<E EVB, and the power plug design of the adapter is shown as below.

Figure 7: Power Plug Design

4.2. UMTS<E TE-A Interface

The UMTS<E TE-A interface supports UC20/UGxx/EC2x/EG95 modules, and includes two BTB connectors named J101 and J102, respectively. UMTS<E TE-A is connected to the EVB via the two connectors. With UMTS<E modules, customers can easily design wireless communication products.

The following figure shows the connection between UMTS<E TE-A and EVB.

UMTS<E_EVB_User_Guide Confidential / Released 18 / 44

UMTS/HSPA/LTE Module Series

J101

J102

Quectel

Confidential

UMTS<E EVB User Guide

Figure 8: Connection between UMTS<E TE-A and EVB

4.3. Wi-Fi & Ethernet TE-A Interface

The Wi-Fi & Ethernet TE-A interface supports FC20 modules, and includes two BTB connectors named J901 and J902, respectively. Wi-Fi & Ethernet TE-A (FC20 TE-A) is connected to the EVB via the two connectors. The interface allows customers to easily test the Wi-Fi function of EC2x modules or to develop applications with Wi-Fi function.

The following two figures show the connection between FC20 TE-A and EVB.

UMTS<E_EVB_User_Guide Confidential / Released 19 / 44

UMTS/HSPA/LTE Module Series

J901 FC20 TE-A

16

18

24

22

SGMII_RX_M

SGMII_RX_P

SGMII_TX_M

16 18

22

GND

28

32

38

36

SGMII_TX_P

SGMII_INT_N

SGMII_RST_N

28

36

38

VDD_1V8

SGMII_MDIO_DAT SGMII_MDIO_CLK

SGMII_RX_M SGMII_RX_P

SGMII_TX_M SGMII_TX_P

SGMII_INT_N

SGMII_RST_N

SGMII_MDIO_DAT SGMII_MDIO_CLK

VDD_3V3_FC20

24

32

SDIO_CMD

SDIO_CLK

SDIO_D0

SDIO_D1

SDIO_D2

SDIO_D3

42

46

50

52

54

56

46

50

52

54

56

42

SDIO_CMD

SDIO_CLK

SDIO_D0

SDIO_D1

SDIO_D2

SDIO_D3

GND

J902

1

2

3

4

27

28

29

30

43

44

57

58 59

60

1

2

3

4

27

28

29

30

43

44

57

58 59

60

GND

J902

J901

Quectel

Confidential

UMTS<E EVB User Guide

Figure 9: Simplified FC20 TE-A Interface Schematic

Figure 10: Connection Between FC20 TE-A and EVB

UMTS<E_EVB_User_Guide Confidential / Released 20 / 44

UMTS/HSPA/LTE Module Series

Pin No.

Pin Name

Function

1

USB_VBUS

Used for USB connection detection and power supply for EVB

2

USB_DM

USB serial differential bus (minus)

3

USB_DP

USB serial differential bus (positive)

4

USB_ID

USB ID bus for host or device

5

GND

GND for USB interface

Quectel

Confidential

UMTS<E EVB User Guide

4.4. USB Interface (J801)

Quectel UMTS<E module provides a USB interface which complies with USB 2.0 standard for high-speed (480Mbps), full-speed (12Mbps) and low-speed (1.5Mbps) functions. The interface is used for AT command communication, data transmission, firmware upgrade and GNSS NEMA output.

The UMTS<E EVB provides a Micro-USB interface J801 for connection with a host device. The USB data lines USB_DP and USB_DM are connected directly to the UMTS<E module. The USB_VBUS line can be used for USB connection detection and EVB power supply.

The following figure is a reference circuit design for the USB device interface.

Figure 11: Reference Circuit Design for USB Device Interface

Table 4: Pin Definition of J801

UMTS<E_EVB_User_Guide Confidential / Released 21 / 44

UMTS/HSPA/LTE Module Series

PCM_IN

PCM_OUT

PCM_SYNC

PCM_CLK

I2C_SCL

I2C_SDA

U101

ALC5616/TLV3104

UMTS<E Module

VDD_EXT

4.7K

BCLK

LRCK

DACDAT1 ADCDAT1

SCL SDA

MIC_BIAS

IN2P

IN2N

LOUDL/P

LOUDR/N

R

C

HPO_R

HPO_L

J601

J602

speaker

J603

NCP2823

2

4

5 3

1

6

J602 MIC

BTB CON

J501 J501

Quectel

Confidential

UMTS<E EVB User Guide

4.5. Audio Interfaces

Quectel UMTS<E EVB provides one digital audio codec board interface (PCM) J501 and three analog audio interfaces J601, J602 and J603. This chapter gives a detailed introduction on these audio interfaces.

4.5.1. Digital Audio Codec Board Interface (J501)

The UMTS<E EVB supports two different kinds of external digital audio codecs named ALC5616 and TLV320AIC3104. The codec circuit is assembled on an independent small board which can be interconnected with EVB by the BTB connector J501.

Customers can select different codecs according to their own application demands, and also can use AT command to switch between codecs. For example, AT+QDAI=3 is used to switch codec from TLV320AIC3104 to ALC5616, and AT+QDAI=5 is used to switch codec from ALC5616 to TLV320AIC3104. For more details about the AT commands, please refer to document [4] and document [5].

The following figure shows a reference circuit design for digital audio codecs, and Figure 13 shows the connection between codec board and EVB.

UMTS<E_EVB_User_Guide Confidential / Released 22 / 44

Figure 12: Digital Audio Codec Circuit

UMTS/HSPA/LTE Module Series

Codec board

EVB

LOUDL/P

LOUDR/N

Differential layout

Amplifier

circuit

10pF

33pF

Close to speaker

GND

ESD

Codec

FB

C1

C2

J603

U101

ALC5616/T

LV3104

NCP2823

BTB CON

J501

Quectel

Confidential

UMTS<E EVB User Guide

Figure 13: Connection between Codec Board and EVB

4.5.2. Analog Audio Interfaces (J603/J601/J602)

4.5.2.1. Loud Speaker Interface (J603)

Audio interface J603 is designed for loud speaker and the following figure shows a reference design of loud speaker with an external Class-D audio amplifier.

Figure 14: Reference Circuit Design for Loud Speaker Interface J603

UMTS<E_EVB_User_Guide Confidential / Released 23 / 44

UMTS/HSPA/LTE Module Series

SPK_L

MIC_N

MIC_P

75pF

GND GND

AGND

Close to Socket

Differential layout

15pF

10pF

33pF

GND

AGND

Codec ALC5616 TLV3104

Close to Socket

AGND

ESD

Audio Jack

22uF

U101

J601

1

4

5 3

2

SPK_R

10pF

33pF

22uF

6

MIC_P

0R

NM_0R

33pF

GND

AGND

0R

NM_0R

10pF

4.7uF

BTB CON

J501

Quectel

Confidential

UMTS<E EVB User Guide

4.5.2.2. Earphone Interface (J601)

Audio interface J601 is designed for earphones. The names of corresponding pins on EVB are shown in Figure 16. A reference circuit designs for earphone interfaces J601 is shown as following figure.

Figure 15: Reference Circuit Design for Earphone Interface J601

Figure 16: Pin Assignments of J601

UMTS<E_EVB_User_Guide Confidential / Released 24 / 44

UMTS/HSPA/LTE Module Series

2

1

MIC

GND

SW

SPK_R

SPK_L

3

4

32Ω

Pin No.

Pin Name

Description

1

MIC

Microphone input

2

AGND

Dedicated GND for audio

3

SPK_R

Right channel of stereo audio output

4

SPK_L

Left channel of stereo audio output

5, 6

NC

Not connected

Quectel

Confidential

UMTS<E EVB User Guide

Table 5: Pin Definition of J601

The following figure shows the sketch design of audio plug which suits for the audio jack on UMTS<E EVB.

Figure 17: Sketch of Audio Plug

4.5.2.3. Handset Interface (J602)

Audio interface J602 is designed for handsets. The names of corresponding pins on EVB are shown in Figure 19. A reference circuit design for handset interfaces J602 is shown below.

UMTS<E_EVB_User_Guide Confidential / Released 25 / 44

UMTS/HSPA/LTE Module Series

ESD

33pF

ESD

ESD ESD

33pF33pF

33pF33pF33pF

10pF10pF10pF

10pF 10pF 10pF

IN2P IN2N

LOUDL/P

LOUDR/N

FB

J602

U101

Codec

ALC5616

TLV3104

4 1

3 2

BTB CON

J501

1

2

3

4

Quectel

Confidential

UMTS<E EVB User Guide

Figure 18: Reference Circuit Design for Handset Interface J602

UMTS<E_EVB_User_Guide Confidential / Released 26 / 44

Figure 19: Pin Assignments of J602

UMTS/HSPA/LTE Module Series

USIM card connector

USIM_VDD

USIM_CLK

USIM_DATA

USIM_RST

USIM_GND

J101

J702

C1

C7

C2

C3

Push-Push

USIM_VDD

USIM_DATA

USIM_RST

USIM_CLK

12

10

8

6

USIM_PRE.

GND

USIM_PRESENCE

14 CD2

CD1

Pin No.

Pin Name

Function

1

MICN

Negative microphone input

2

SPKN

Negative loud speaker output

3

SPKP

Positive loud speaker output

4

MICP

Positive microphone input

Quectel

Confidential

UMTS<E EVB User Guide

Table 6: Pin Definition of J602

4.6. USIM Card Interface (J702)

The UMTS<E EVB has a 6-pin push-push type USIM card (3V or 1.8V) connector J702. The following figure shows the simplified interface schematic for J702.

Figure 20: Simplified Interface Schematic for USIM Card Connector J702

UMTS<E_EVB_User_Guide Confidential / Released 27 / 44

UMTS/HSPA/LTE Module Series

C1C2C3 C5C6C7

C1C2C3

C5C6C7

CD2CD1

Pin No.

Signal Name

I/O

Function

C1

USIM_VDD

PO

USIM card power supply, provided by UMTS<E EVB

C2

USIM_RST

DO

USIM card reset

C3

USIM_CLK

DO

USIM card clock

C5

GND

/

Ground

C6

VPP

/

Not connected

C7

USIM_DATA

I/O

Data line, bi-directional

CD1

GND

USIM card insertion detection

CD2

USIM_PRESENCE

I

USIM card insertion detection. Support low level detection.

Quectel

Confidential

UMTS<E EVB User Guide

The following figure shows the pin assignments of J702.

Table 7: Pin Definition of J702

Figure 21: Pin Assignments of J702

UMTS<E_EVB_User_Guide Confidential / Released 28 / 44

UMTS/HSPA/LTE Module Series

SD card

connector

DAT2

CMD

CD/DAT3

VDD

J101

J701

1

2

4

3

SD1_DATA2

SD1_DATA3

SD1_CMD

29

28

33

GND

CLK

DAT0

DAT1

5

6

8

7

SD1_CLK

SD1_DATA1

SD1_DATA0

32

31

30

VSS

VDD_3V3

1 2 3 4 5 6 7 8

Quectel

Confidential

UMTS<E EVB User Guide

4.7. SD Card Interface (J701)

The UMTS<E EVB provides an SD card interface that supports maximally 32GB micro SD card. With the SD card interface, customers can easily enhance the memory capacity of modules.

The following figure shows the simplified interface schematic for J701.

Figure 22: Simplified Interface Schematic for SD Card Interface J701

Figure 23: Pin Assignments of J701

UMTS<E_EVB_User_Guide Confidential / Released 29 / 44

UMTS/HSPA/LTE Module Series

J101

UMTS<E

Module

RS232

Level Match

3.0V/1.8V

Level Translator

COM1

DB9

J401

RS232 3.0V

1.8V

U403

U401

RS232

Level Match

3.0V/1.8V

Transistor Level

Translator

COM2

DB9

J402

RS232 3.0V

U402

1.8V

1

2345

12345

67

89

Quectel

Confidential

UMTS<E EVB User Guide

4.8. UART Interfaces (J401/J402)

The UMTS<E EVB offers two UART interfaces: COM1 (Main UART port J401 and J402) and COM2 (Debug UART port).

COM1 of UMTS<E EVB is intended for the communication between the module and the host application. It can be used for data transmission and AT command communication.

COM2 supports 115,200bps baud rate. It can be used for Linux console and log output.

The following figure shows the block diagram of UART on UMTS<E EVB.

Figure 24: UART Block Diagram

The following two figures show the pin assignments of J401 and J402.

UMTS<E_EVB_User_Guide Confidential / Released 30 / 44

Figure 25: Pin Assignments of J401

UMTS/HSPA/LTE Module Series

1 2 3 4

5

6 7 8 9

Pin No.

Signal Name

I/O

Description

1

RS232_DCD

DO

Data carrier detection

2

RS232_RXD

DI

Receive data

3

RS232_TXD

DO

Transmit data

4

RS232_DTR

DI

Data terminal ready

5

RS232_GND

/

GND

6

NC / Not connected

7

RS232_RTS

DI

Request to send

8

RS232_CTS

DO

Clear to send

9

RS232_RI

DO

Ring indicator

Pin No.

Signal Name

I/O

Description

2

RS232_RXD

DI

Receive Data

3

RS232_TXD

DO

Transmit data

Quectel

Confidential

UMTS<E EVB User Guide

Table 8: Pin Definition of J401

Table 9: Pin Definition of J402

Figure 26: Pin Assignments of J402

UMTS<E_EVB_User_Guide Confidential / Released 31 / 44

UMTS/HSPA/LTE Module Series

S901

S201

S302

S303

S301

Reference No.

Description

S201

Control power supply VBAT ON/OFF

S901

Switched to the left: connect FC20's BT interface (UART, PCM) to EC2x modules, for testing the BT function of FC20. Switched to the right: connect the main UART and codec board interfaces

Quectel

Confidential

UMTS<E EVB User Guide

4.9. Switches and Buttons

The UMTS<E EVB includes two switches (S201 and S901) and three buttons (S301, S302 and S303), as shown in the following figures.

Figure 27: S901 Switch

Figure 28: S201 Switch and S301/S302/S303 Buttons

Table 10: Description of Switches and Buttons

UMTS<E_EVB_User_Guide Confidential / Released 32 / 44

UMTS/HSPA/LTE Module Series

1)

This function is only supported by UG35, UG95 and UG96 modules.

D209 D205 D207

D208 D206

on EVB to UMTS<E module, for testing the module's main UART functions, and the codec„s PCM function.

S302

Used to turn on/off the UMTS<E module

S303

Used to reset the UMTS<E module

S301

Used to turn off the UMTS<E module 1)

Reference No.

Description

D209

Indicates the power supply for UMTS<E module is ready Bright: VBAT ON Extinct: VBAT OFF

D205

Indicates the operation status of UMTS<E module

NOTE

Quectel

Confidential

UMTS<E EVB User Guide

4.10. Status Indication LEDs

The UMTS<E EVB comprises five status indication LEDs (D209, D205, D207, D208 and D206). The following figure shows the positions of these LEDs.

Figure 29: Status Indication LEDs

Table 11: Description of Status Indication LEDs

UMTS<E_EVB_User_Guide Confidential / Released 33 / 44

UMTS/HSPA/LTE Module Series

J806 J803

J805

1

2

3 4

5

6

7

8

9

10

1

2

3 4

5

6

7

8

9

10

1

2

3 4

5

6

7

8

9

10

Bright: the module is powered on Extinct: the module is powered down

D207

Indicate the sleep status of UMTS<E module Bright: the module is in sleep mode Extinct: the module is not in sleep mode

D208, D206

Indicate the network status of UMTS<E module, for detailed information please refer to document [2].

Quectel

Confidential

UMTS<E EVB User Guide

4.11. Test Points

The UMTS<E EVB provides a series of test points for some signals. They can help customers to obtain the corresponding waveform. The following two figures show test points J803, J804, J805 and J806.

Figure 30: Test Points J803, J805 and J806

UMTS<E_EVB_User_Guide Confidential / Released 34 / 44

UMTS/HSPA/LTE Module Series

J804

1

2

3

4

5

6

7

8

9

10

J803 Pin No.

Pin Name

Description

1,3,5

DTR_TEST

Data terminal ready test pins

2

POWER_EN

VBAT enable pin

4

PWRKEY_3.0V

PWRKEY_3.0V test pin

6

RESET_3.0V

RESET_3.0V test pin

7

VDD_EXT

Connected directly to VDD_EXT of UMTS<E module

8

POWER_OFF_3.0V

Used to power off UGxx modules

9

SPI_MRDY

RESERVED

10

SPI_SRDY

RESERVED

J804 Pin No.

Pin Name

Description

1

VDD_3.0V

3.0V power supply from U302

2

PCM_SYNC

Connected directly to PCM_SYNC of UMTS<E module

3

VDD_1V8

1.8V power supply from U301

4

PCM_IN

Connected directly to PCM_IN of UMTS<E module

Quectel

Confidential

UMTS<E EVB User Guide

Figure 31: Test Point J804

Table 12: Pin Definition of J803, J804, J805 and J806

UMTS<E_EVB_User_Guide Confidential / Released 35 / 44

UMTS/HSPA/LTE Module Series

5

I2C_SDA

Connected directly to I2C_SDA of UMTS<E module

6

PCM_OUT

Connected directly to PCM_OUT of UMTS<E module

7

I2C_SCL

Connected directly to I2C_SCL of UMTS<E module

8

PCM_CLK

Connected directly to PCM_CLK of UMTS<E module

9

CLK_OUT

RESERVED

10

GND

Ground

J805 Pin No.

Pin Name

Description

1

WAKE_IN

Connected directly to WAKE_IN of UMTS<E module

2

SPI_CS_N

Connected directly to SPI_CS_N of UMTS<E module

3

AP_READY

Connected directly to AP_READY of UMTS<E module

4

SPI_CLK

Connected directly to SPI_CLK of UMTS<E module

5

W_DISABLE_N

Connected directly to W_DISABLE# of UMTS<E module

6

SPI_MISO

Connected directly to SPI_MISO of UMTS<E module

7

USB_BOOT

Connected directly to USB_BOOT of UMTS<E module

8

SPI_MOSI

Connected directly to SPI_MOSI of UMTS<E module

9

VDD_1.8V

Connected to VDD_1.8V via a resistor

10

GND

Ground

J806 Pin No.

Pin Name

Description

1

CTS_1.8V_UART

Connected directly to voltage translator

2

RTS_1.8V_UART

Connected directly to voltage translator

3

RXD_1.8V_UART

Connected directly to voltage translator

4

RXD_3.0V

Connected directly to voltage translator

5

TXD_1.8V_UART

Connected directly to voltage translator

6

TXD_3.0

Connected directly to voltage translator

7

DTR_1.8V

Connected directly to DTR of UMTS<E module

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 36 / 44

UMTS/HSPA/LTE Module Series

8

DTR_3.0V

Connected directly to voltage translator

9

RI_1.8V

Connected directly to RI of UMTS<E module

10

GND

Ground

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 37 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

5 Operation Procedures Illustration

This chapter introduces how to use the UMTS<E EVB for testing and evaluation of Quectel UMTS<E modules and Wi-Fi modules.

5.1. Power on UMTS<E and Wi-Fi Modules

 Power on UMTS<E module

1. Connect the UMTS<E TE-A to the connectors (J101 and J102) on EVB.

2. Insert a USIM card into the USIM card connector on EVB, and connect the antennas to UMTS<E TE-A.

3. Connect the EVB to a 5V power adapter, or connect the EVB to PC via USB cable.

4. Switch S201 to ON state, then D209 will be light. Press the S302 (PWRKEY) for at least 100ms, then

the UMTS<E module will be powered on and D205 (STATUS) will be light.

 Power on Wi-Fi module

1. Make sure the EC2x module is powered on, if there is a need to test the Wi-Fi function of EC2x modules.

2. Connect the FC20 TE-A to the connectors (J901 and J902) on EVB, and connect the Wi-Fi antenna to FC20 TE-A.

3. Connect the FC20 TE-A to PC via Ethernet cable.

4. Send AT+QWIFI=1 command to EC2x module to enable power supply for FC20 module. For more details, please refer to document [3]. Before sending the command, please make sure the EVB has been connected to PC via USB cable.

The following table shows the UMTS<E module‟s network status which can be judged by D206 and D208.

UMTS<E_EVB_User_Guide Confidential / Released 38 / 44

UMTS/HSPA/LTE Module Series

Status Indication LEDs

State

Network Status

D206 NET_STATUS

Flicker slowly (200ms ON/1800ms OFF)

Network searching

Flicker slowly (1800ms ON/200ms OFF)

Idle mode

Flicker slowly (125ms ON/125ms OFF)

Data is being transferred over 2G/3G/4G networks

Always ON

Voice calling

D208 NET_MODE

Always ON

Registered on 3G network successfully (UC20/UGxx) Registered on 4G network successfully (EC2x/EG95)

Always OFF

Others

Quectel

Confidential

UMTS<E EVB User Guide

Table 13: Indication of D206 and D208

5.2. Communication Via USB or UART Interface

5.2.1. Communication via USB Interface

1. Power on the UMTS<E module according to the procedures mentioned in Chapter 5.1.

2. Connect the EVB and the PC with USB cable through USB interface, and then run the driver disk on PC to install the USB driver. For details about USB driver installation, please refer to document [1]. The USB port numbers can be viewed through the PC Device Manager, shown as following figure.

Figure 32: USB Ports

3. Install and then use the QCOM tool provided by Quectel to realize the communication between the UMTS<E module and the PC. The following figure shows the QCOM window configuration: select correct “COM port” (USB AT Port which is shown in above figure) and set correct “Baudrate” (such as 115,200bps). For more details about QCOM tool usage and configuration, please refer to document [6].

UMTS<E_EVB_User_Guide Confidential / Released 39 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

Figure 33: QCOM Window Configuration When Connecting USB Port

5.2.2. Communication via UART Interface

1. Run the driver disk on PC to install the USB-to-RS232 driver.

2. Connect the Main UART interface to PC with the USB-to-UART converter cable (USB-to-RS232 cable), and the USB serial port number can be viewed through the PC Device Manager, shown as the following figure.

Figure 34: USB Serial Port

3. Install and then use the QCOM tool provided by Quectel to realize the communication between the UMTS<E module and the PC. The following figure shows the QCOM window configuration: select correct “COM port” (USB Serial Port) and set correct “Baudrate” (such as 115,200bps). For more details about QCOM tool usage and configuration, please refer to document [6].

Figure 35: QCOM Window Configuration When Connecting USB Serial Port

UMTS<E_EVB_User_Guide Confidential / Released 40 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

5.3. Firmware Upgrade

Quectel UMTS<E module upgrades firmware via USB port by default, please follow the procedures below to upgrade firmware.

1. Install and open the firmware upgrade tool QFlash on PC and then power on the UMTS<E module according to the procedures mentioned in Chapter 5.1.

2. Click the “COM Port” dropdown list and select the USB DM port.

3. Click the “Load FW Files” button to choose the firmware package.

4. Click the “Start” button to upgrade the firmware.

Figure 36: Configurations for Firmware Upgrade

5.4. Reset UMTS<E Modules

The emergency reset option is only used in case of emergency. For example, the software does not respond for more than 5s due to some serious problems.

Press the button S303 for more than 150ms then release it to reset UMTS<E module. However, this may causes the loss of information stored in the memory as the reset module has been initialized.

UMTS<E_EVB_User_Guide Confidential / Released 41 / 44

UMTS/HSPA/LTE Module Series

Quectel

Confidential

UMTS<E EVB User Guide

5.5. Power off UMTS<E and Wi-Fi Modules

 Power off UMTS<E module

There are two ways to power off UMTS<E module.

One way is to execute AT command AT+QPOWD. This is the best and the safest way. The module will log off from the network and save data before shutdown, but it will be powered on again after shutdown. For more details about the AT command, please refer to document [4] and document [5].

The other way is to press down S302 for at least 0.6s, the UMTS<E module will be shut down.

 Power off Wi-Fi module

AT+QWIFI=0 command can be used to power off FC20 modules. For more details, please refer to

document [3].

UMTS<E_EVB_User_Guide Confidential / Released 42 / 44

UMTS/HSPA/LTE Module Series

SN

Document Name

Remark

[1]

Quectel_UC20&UC15&EC25&EC21&EC20_Windows_ USB_Drivers_Installation_Guide

Windows USB drivers installation guide for UC20, EC25, EC21 and EC20; Install USB drivers of these modules in Windows XP/Vista 7/8

[2]

Quectel_xx_Hardware_Design

Hardware design for UC20, UG95, UG96, EC25, EC21, EC20 and EC20 R2.0

[3]

Quectel_FC20_Series_Hardware_Design

FC20 series hardware design

[4]

Quectel_WCDMA_UGxx_AT_Commands_Manual

AT commands manual for Quectel WCDMA UGxx modules

[5]

Quectel_xx_AT_Commands_Manual

AT commands manual for UC20, EC25,

EC21, EC20 and EC20 R2.0

[6]

Quectel_QCOM_User_Guide

User guide for QCOM tool

Abbreviation

Description

AGND

Analogue Ground

COM

Cluster Communication Port

BTB

Board to Board

DC

Direct Current

DI

Digital Input

DO

Digital Output

EVB

Evaluation Board

Quectel

Confidential

UMTS<E EVB User Guide

6 Appendix A References

Table 14: Related Documents

Table 15: Terms and Abbreviations

UMTS<E_EVB_User_Guide Confidential / Released 43 / 44

UMTS/HSPA/LTE Module Series

GND

Ground

GNSS

Global Navigation Satellite System

I/O

Input/Output

LED

Light Emitting Diode

LTE

Long Term Evolution

MIC

Microphone

NC

Not Connected

PC

Private Computer

PCB

Printed Circuit Board

PCM

Pulse Code Modulation

PO

Power Output

RF

Radio Frequency

SD

Secure Digital

SIM

Subscriber Identity Module

UART

Universal Asynchronous Receiver & Transmitter

UMTS

Universal Mobile Telecommunications System

USB

Universal Serial Bus

USIM

Universal Subscriber Identity Module

VBAT

Voltage of Battery

Quectel

Confidential

UMTS<E EVB User Guide

UMTS<E_EVB_User_Guide Confidential / Released 44 / 44

Quectel UMTS<E EVB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About the Document

Contents

Table Index

Figure Index

1 Introduction

1.1. Safety Information

2 General Overview

2.1. Applicable Modules

2.2. Key Features

2.3. Interface Overview

2.4. Top View of EVB

2.5. EVB Kit Accessories

3 EVB Kit Accessories Assembly

4 Interface Application

4.1. Power Interface (J201/J801)

4.3. Wi-Fi & Ethernet TE-A Interface

4.4. USB Interface (J801)

4.5. Audio Interfaces

4.5.1. Digital Audio Codec Board Interface (J501)

4.5.2. Analog Audio Interfaces (J603/J601/J602)

4.5.2.1. Loud Speaker Interface (J603)

4.5.2.2. Earphone Interface (J601)

4.5.2.3. Handset Interface (J602)

4.6. USIM Card Interface (J702)

4.7. SD Card Interface (J701)

4.8. UART Interfaces (J401/J402)

4.9. Switches and Buttons

4.10. Status Indication LEDs

4.11. Test Points

5 Operation Procedures Illustration

5.2. Communication Via USB or UART Interface

5.2.1. Communication via USB Interface

5.2.2. Communication via UART Interface

5.3. Firmware Upgrade

6 Appendix A References
