ZK601 Hardware Specification
ZK601 Hardware Specifications
GSM/GPRS/LTE CAT.M1&NB1 GPS
Intelligent Terminal
Version: 1.00
ZK601 Hardware Specification
Document Title
ZK601 Hardware Specification
Version
1.00
Author
Xin Yang
Date
2019-08-05
Note 1: T-Panel 201 is Model Name for sales. ZK601 is a model name for T-Panel 201 in
company inside.
Note 2: This manual is a Worldwide version. The operation frequency band of the product will
be different for different countries.Details please consult Queclink.
ZK601 Hardware Specification
Contents
0. Revision History ............................................................................................................... 1
1. Introduction .................................................................................................................... 2
2. Special Note .................................................................................................................... 2
3. Basic Specification ............................................................................................................ 2
4. Hardware Description ....................................................................................................... 3
4.1. Hardware Block Diagram .......................................................................................... 3
4.2. Internet RF Specification .......................................................................................... 3
4.2.1. ZK601 (GSM&GPRS) RF specification ....................................................... 3
4.2.2. ZK601 (LTE CAT.M1&CAT.NB1) RF specification ....................................... 4
4.3. GPS Specification ..................................................................................................... 4
4.4. BLE Specification ..................................................................................................... 5
4.5. NFC Specification .................................................................................................... 5
4.6. Other Parameters .................................................................................................... 5
5. Hardware Interface Description ......................................................................................... 6
5.1. ECU Interface .......................................................................................................... 6
5.2. Debug Interface ...................................................................................................... 6
5.3. Dual Brake Interface ................................................................................................ 7
5.4. Accelerator Interface ............................................................................................... 7
5.5. Front Light Interface ................................................................................................ 7
5.6. LED Display ............................................................................................................. 8
5.7. Audio Codec ........................................................................................................... 8
5.8. Battery Charging Management ................................................................................. 8
6. User Guide ...................................................................................................................... 9
6.1. Guiding .................................................................................................................. 9
ZK601 Hardware Specification
1
0. Revision History
Version
Date
Author
Description of Change
1.00
2019-08-05
Xin Yang
Initial Version
ZK601 Hardware Specification
2
1. Introduction
ZK601 software function development mainly involves electric control unit (ECU), @Track
Air Protocol, instrument display, headlight control, acceleration, brake, key on panel, voice
broadcast and Bluetooth. ZK601 device is designed to connect to the scooter to enable
remotely lock/unlock, to track the position information and to report the status of the
scooter. By using the accelerator or brake, the user can increase or decrease the speed of
the scooter. By using the key on the panel, the user can turn on the headlight, switchover
the speed-up mode or end using the scooter. All the information will be reported to the
backend sever to facilitate the basic functions of the scooter.
2. Special Note
LoT must be powered on again by pressing power button or charging if it is powered down
unexpectedly.
3. Basic Specification
Item
Specification
Dimension
Length*Width*Height: 149mm*47mm*51mm
Input Power
DC: 36V±5V( withstand 60V for less than 2 seconds)
Backup Battery
Li-Polymer, 750mAh
IP Grade
IP67
Operating Temperature
-20℃ ~ +60℃
Power Consumption
Active: 36V@ 21mA
Sleep: 36V@ 5mA
Shut-down: 36V@ ≤100uA
ZK601 Hardware Specification
3
4. Hardware Description
4.1. Hardware Block Diagram

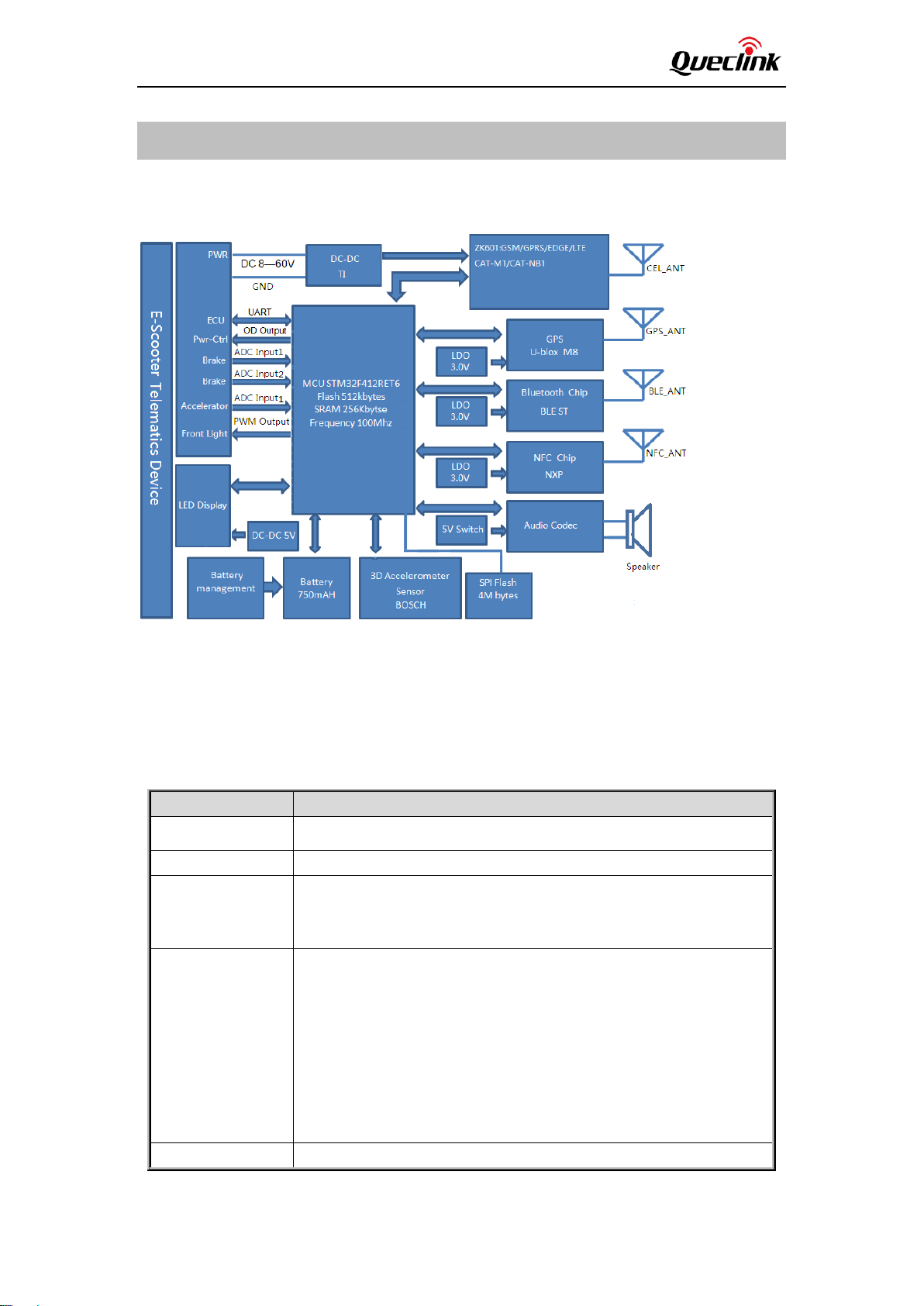

Following is the Hardware Block Diagram of ZK601:
4.2. Internet RF Specification
The ZK601 supports GSM/GPRS/EDGE/ LTE CAT-M1/ CAT-NB1 for selection.
4.2.1. ZK601 (GSM&GPRS) RF specification
Item
ZK601 (GSM&GPRS) RF specification
Applicable Region
Worldwide
Technology
GSM&GPRS&EDGE
Operation Band
GSM:
US:GSM850/ PCS1900
EU: EGSM900/ DCS1800
GSM/GPRS/EDGE
Features
GPRS:
Support GPRS multi-slot class 33
Max 107kbps (DL)/Max 85.6kbps (UL)
EDGE:
Support EDGE multi-slot class 33
Max 296kbps (DL)/Max 236.8kbps (UL)
CSD:
CSD transmission rates: 14.4kbps non-transparent
RF Output Power
Class 4 (33dBm±2dB) for GSM850 and EGSM900
ZK601 Hardware Specification
4
Class 1 (30dBm±2dB) for DCS1800 and PCS1900
Class E2 (27dBm±3dB) for GSM850 and EGSM900 8-PSK
Class E2 (26dBm±3dB) for DCS1800 and PCS1900 8-PSK
Receive Sensitivity
GSM850: -109.5dBm (typ.)
EGSM900: -108.5dBm (typ.)
DCS1800: -110dBm (typ.)
PCSM1900: -108dBm (typ.)
Transmit Mode
TCP
Antenna
Internal only
4.2.2. ZK601 (LTE CAT.M1&CAT.NB1) RF specification
Item
ZK601 (LTE CAT.M1&CAT.NB1) RF Specification
Applicable Region
Worldwide
Technology
LTE CAT.M1&CAT.NB1:
Operation Band
LTE-FDD:
US: B2/B4/B5/B12/B13/B/B25
EU: B1/B3/B8/B20/B28
LTE Features
Support LTE Cat.M1 and LTE Cat.NB1
Cat.M1: Max. 375kbps (DL)/375kbps (UL)
Cat.NB1: Max. 32kbps (DL)/70kbps (UL)
RF Output Power
LTE-FDD: 23dBm±2.7dB
Receive Sensitivity
LTE-FDD: -107 dBm (typ.) for CAT.M1, -117 dBm (typ.) for
CAT.NB1
Transmit Mode
TCP
Antenna
Internal only
4.3. GPS Specification
Item
GPS Specification
GPS Chipset
U-blox M8
Receive Type
u-blox All-In-One GPS receiver
Receive Sensitivity
(GPS+GLONASS)
Tracking & Navigation: -167 dBm
Reacquisition: -160 dBm
Cold Start: -148 dBm
Hot Start: -157 dBm
Position Accuracy (CEP)
GPS<2.5m
GPS+GLONASS<2.5m
BEIDOU<3m
GLONASS<4m
TTFF(Open
Sky/GPS+GLONASS)
Could Start: 26S average
Hot Start: < 1s
Antenna
Internal only
ZK601 Hardware Specification
5
4.4. BLE Specification
Full Bluetooth 4.1 or higher integration from ST.
The minimum communication distance is 15 meters regardless of device orientation.
Item
BLE Specification
Frequency
2.4GHz RF transceiver compatible with Bluetooth low energy
(BLE)
Receive Sensitivity
-88dBm
RF Output Power
Up to 10dBm
Antenna
Internal only
4.5. NFC Specification
Item
NFC Specification
Frequency
Contactless communication at 13.56MHz
Read Range
<2cm
Support Protocol
ISO/IEC 15693
Antenna
Internal only
4.6. Other Parameters
Item
Specification
MCU
STM32F411RET6:
Core: Cortex – M4
Flash memory: 512K bytes
Ram: 128k bytes
Frequency: Up to 100Mhz
G-Sensor
Mode Type: 3D accelerometer
Acceleration Range: ±2/±4/±8/±16g
Audio Codec
I2S/PCM serial port
24-bit, 8 to 96 kHz sampling frequency
95 dB signal to noise ratio
1.25W@8Ω/5V or 1.8W@4Ω/4.2V mono class D speaker driver
ZK601 Hardware Specification
6
5. Hardware Interface Description

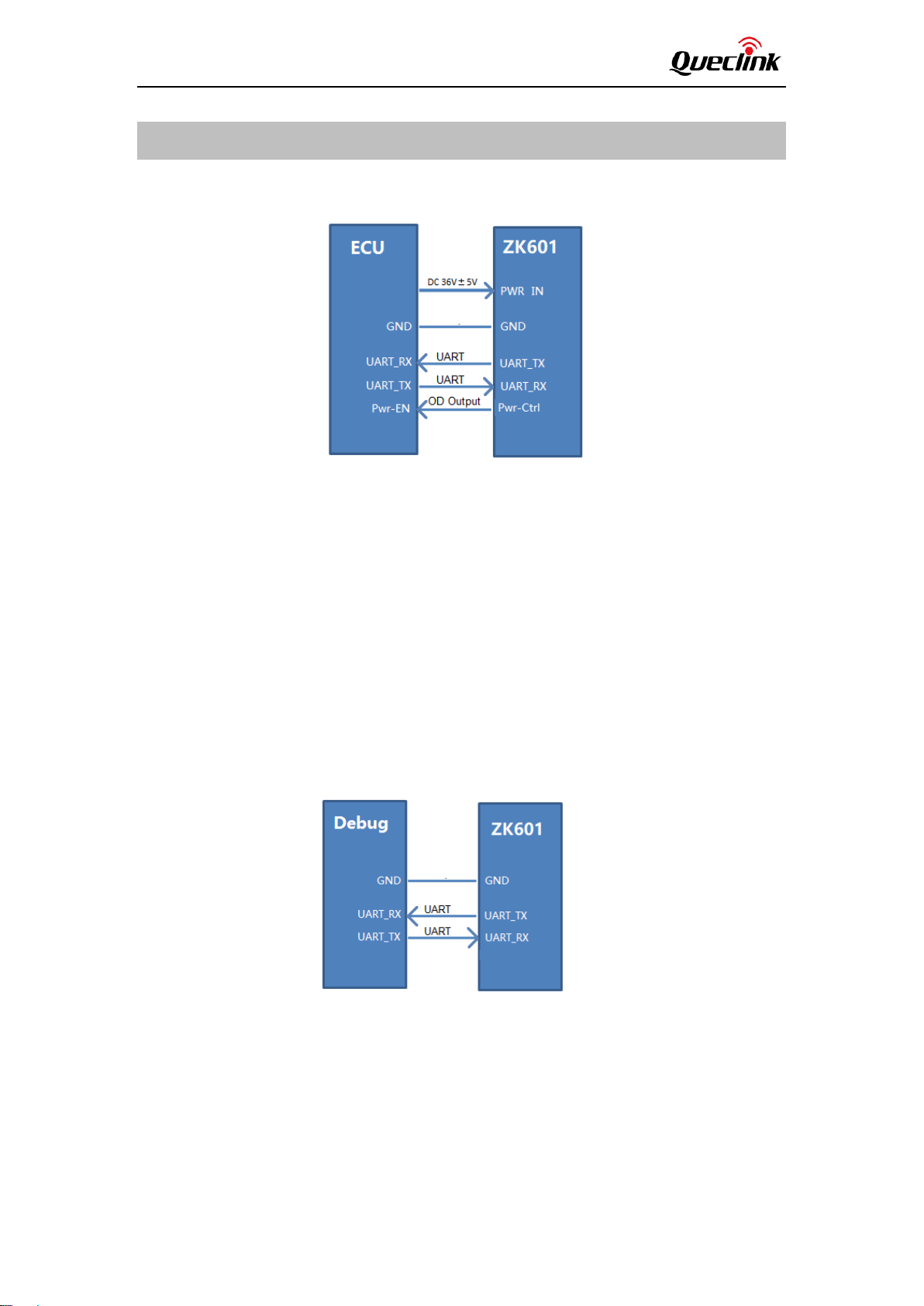

5.1. ECU Interface
Power Input:
• Wide range input: 36V±5V DC
• Short-circuit protection
• Soft-start timer
• Smart Power Management
UART Interface:
• Baud rate auto adaption, support 9600bps, 19200bps,115200bps
• 3.3V and 5V TTL level compatible
Power Control Wire
• To activate ECU
• OD drain output, compatible with external pull-up voltage 3V-36V
5.2. Debug Interface
Main Features:
• For purpose of configuration/firmware upgrade of MCU
• 3.3V and 5V TTL level compatible
ZK601 Hardware Specification
7

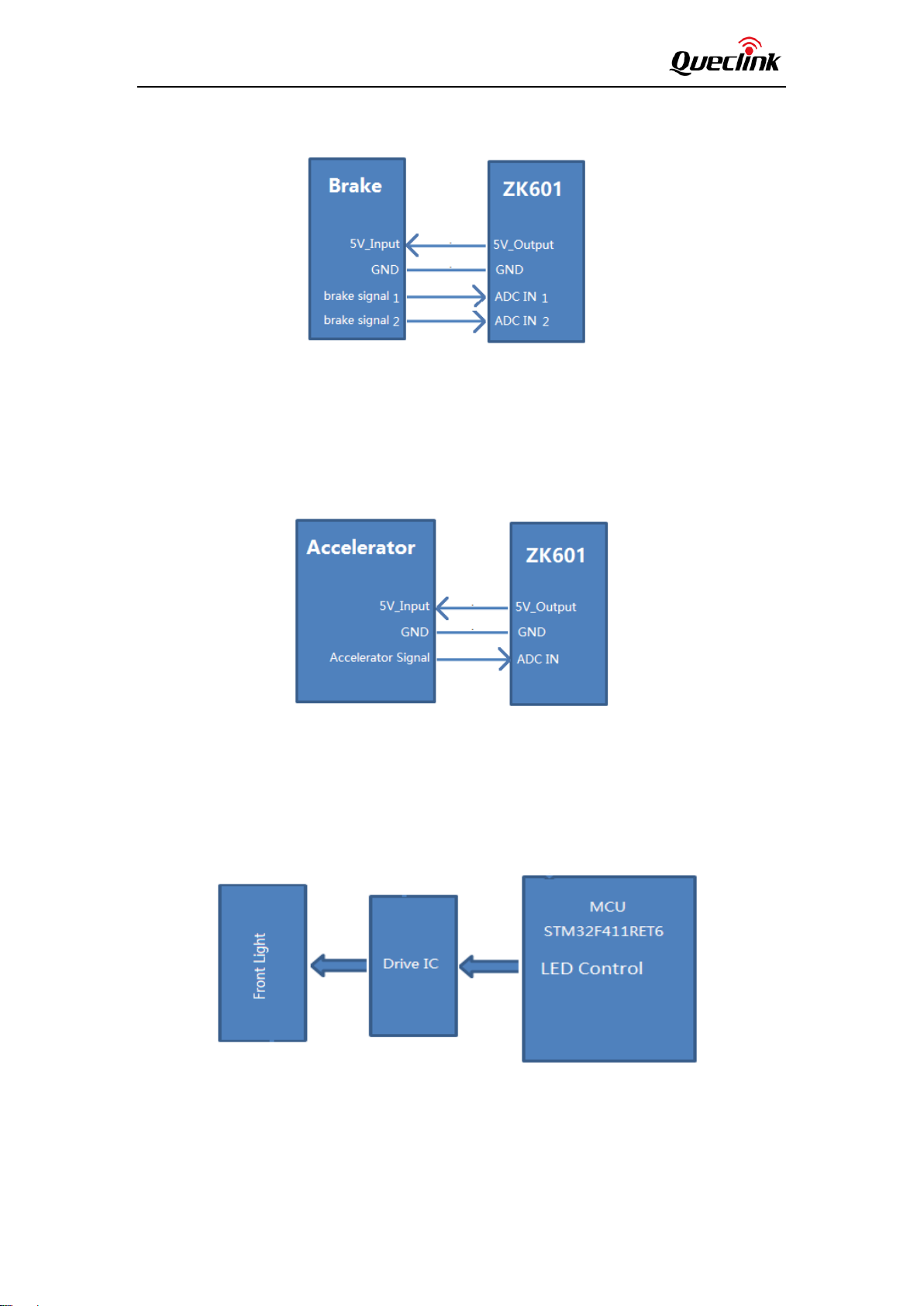

5.3. Dual Brake Interface
Main Features:
• The power 5V for the brake HALL sensor is controllable
• HALL output voltage 1-4V, sensitivity: 1.2mV/G
5.4. Accelerator Interface
Main Feature:
• The power 5V for the brake HALL sensor is controllable
• HALL output voltage 1-4V, sensitivity: 1.2mV/G
5.5. Front Light Interface
Main Feature:
• Drives LED strings up to 12V
• Switch current limit: 0.4A
• PWM dimming frequency: 20KHz~1MHz (this function is reserved)
ZK601 Hardware Specification
8

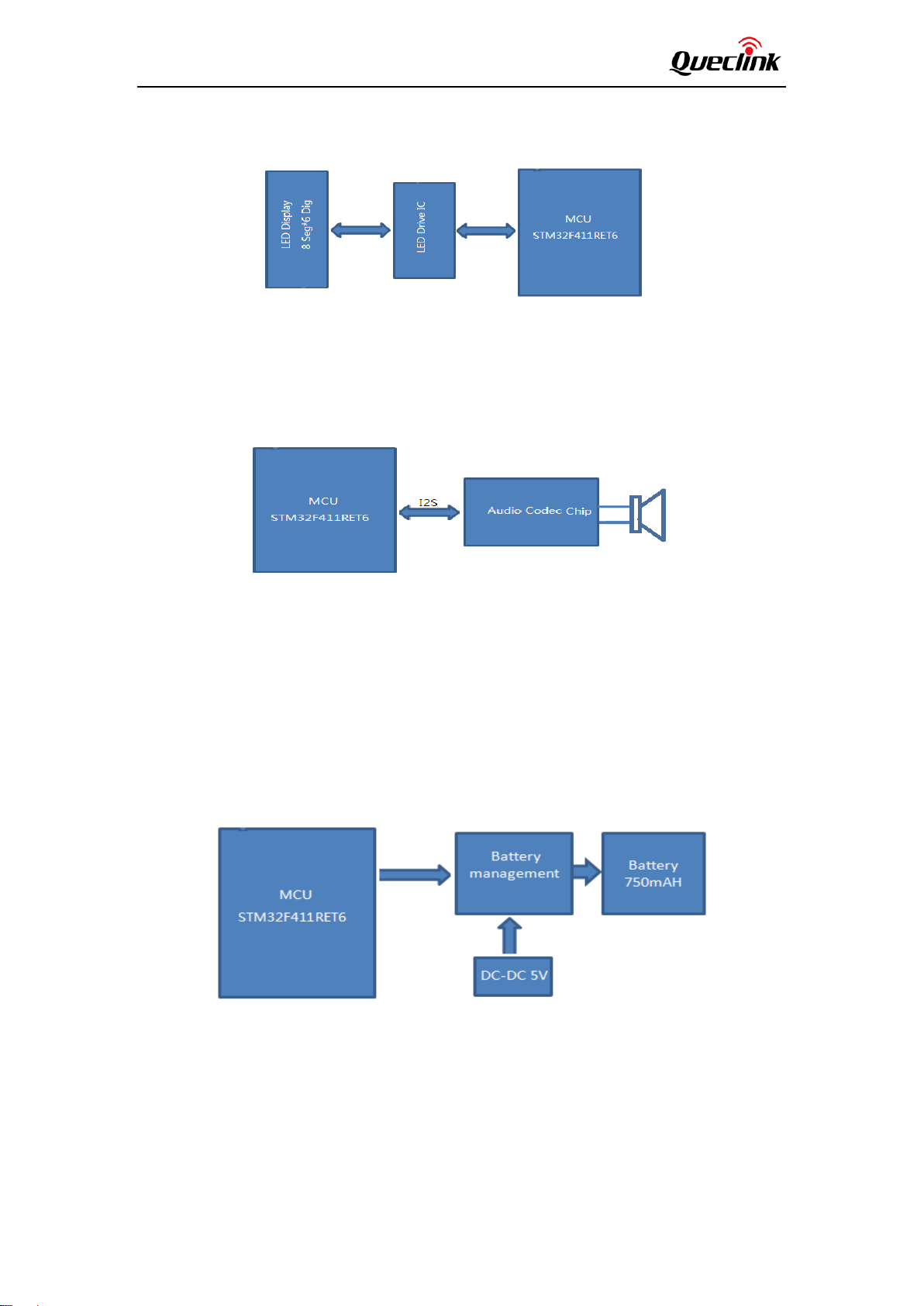

5.6. LED Display
• Drive LED SEG up to 50mA@5V, Drive up LED GRID to 200 mA@5V
• Display mode: 8seg*6dig
• Refresh Rate: 450KHz
5.7. Audio Codec
Main Feature:
• High performance and low power multibit delta-sigma audio ADC and DAC
• I 2S/PCM master or slave serial data port
• 24-bit, 8 to 96 kHz sampling frequency
• Signal to noise ratio: 95 dB, THD+N: -85 dB
• 1.25W@8Ω/5V or 1.8W@4Ω/4.2V mono class D speaker driver
5.8. Battery Charging Management
Main Feature:
• Integrated dynamic power path management
• Supports up to 0.3A charge current
• Supports short-circuit and chip thermal protection
• Support battery temperature detection during charging
• Status indication - Charging/Done
ZK601 Hardware Specification
9
6. User Guide
6.1. Guiding
1. Connect ZK601 to Scooter with 5 Pin Serial port Cable.
2. To charge Scooter to activate ZK601.
3. ZK601 uploads the GPS data or the status of Scooter to Server.
4. ZK601 receives command from Server to control Scooter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modification not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
ZK601 Hardware Specification
10
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio
peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)
approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques
de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
ce matériel est conforme aux limites de dose d'exposition aux rayonnements,
CNR-102 énoncée dans un autre environnement.cette eqipment devrait être installé
et exploité avec distance minimale de 20 entre le radiateur et votre corps.
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provide with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
Loading...
