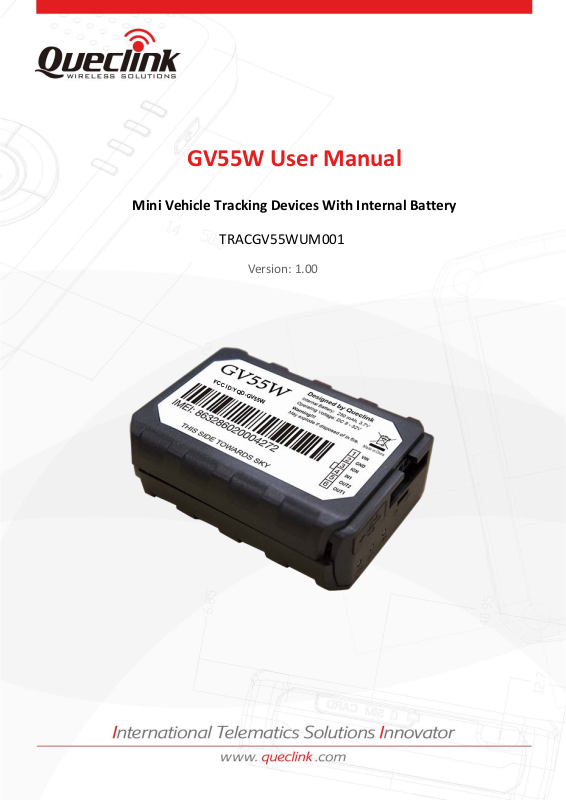

GV55W User manual
Mini Vehicle Tracking Devices With Internal Battery
GV55W User Manual
T
RACGV55WUM001
V
ersion: 1.00
FCC ID:YQD-GV55W
RACGV3SUM001 - 0 -
T
Page 2
GV55W User Manual
D
ocument Title
R
evision
ate
D
S
tatus
D
ocument Control ID
eneral Notes
G
Q
ueclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has not
undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of the
customer or the customer’s system integrator. All specifications supplied herein are subject to
change.
G
V55W User Manual
1
.00
18-02-08
20
Re
lease
T
RACGV55WUM001
opyright
C
T
his document contains proprietary technical information which is the property Queclink
Wireless Solutions Co., Ltd. The copying of this document and giving it to others and the using or
communication of the contents thereof, are forbidden without express authority. Offenders are
liable to the payment of damages. All rights are reserved in the event of grant of a patent or the
registration of a utility model or design. All specifications supplied herein are subject to change
without notice at any time.
TRA
CGV55WUM001 - 1 -
Page 3
GV55W User Manual
Co
ntents
ontents ............................................................................................................................................ 2
C
Table Index ........................................................................................................................................ 3
Figure Index ....................................................................................................................................... 4
0. Revision History ............................................................................................................................. 5
1. Introduction .................................................................................................................................. 6
1.1. Reference............................................................................................................................. 6
1.2. Terms and Abbreviations ..................................................................................................... 6
2. Product Overview .......................................................................................................................... 7
2.1. Check Parts List .................................................................................................................... 7
2.2. Parts List .............................................................................................................................. 7
2.3. Interface Definition ............................................................................................................. 8
2.4. GV55W User Cable Color ..................................................................................................... 9
3. Getting Started ............................................................................................................................ 10
3.1. Open the Case ................................................................................................................... 10
3.2. Close the Case ................................................................................................................... 10
3.3. Install a SIM Card ............................................................................................................... 11
3.4. Install the Internal Backup Battery .................................................................................... 11
3.5. Switch ON the Backup Battery .......................................................................................... 12
3.6. Power Connection ............................................................................................................. 12
3.7. Ignition Detection .............................................................................................................. 13
3.8. Digital Input ....................................................................................................................... 14
3.9. Digital Outputs................................................................................................................... 14
3.10. Device Status LED ............................................................................................................ 16
3.11. Motion Sensor Direction ................................................................................................. 18
TRA
CGV55WUM001 - 2 -
Page 4
GV55W User Manual
T
able Index
BLE 1. GV55W PROTOCOL REFERENCE ................................................................................ 6
TA
TABLE 2. TERMS AND ABBREVIATIONS .................................................................................... 6
TABLE 3. PARTS LIST ................................................................................................................. 7
TABLE 4. DESCRIPTION OF 6 PIN CONNECTIONS ..................................................................... 8
TABLE 5. GV55W USER CABLE COLOR DEFINITION .................................................................. 9
TABLE 6. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ....................................... 13
TABLE 7. ELECTRICAL CHARACTERISTICS OF DIGITAL INPUT .................................................. 14
TABLE 8. ELECTRICAL CHARACTERISTICS OF DIGITAL OUTPUTS ............................................ 15
TABLE 9. DEFINITION OF DEVICE STATUS AND LED ................................................................ 17
TRA
CGV55WUM001 - 3 -
Page 5
GV55W User Manual
Fig
ure Index
GURE 1. APPEARANCE OF GV55W .......................................................................................... 7
FI
FIGURE 2. 6PIN CONNECTOR ON GV55W .................................................................................. 8
FIGURE 3. OPENING THE CASE ................................................................................................. 10
FIGURE 4. CLOSING THE CASE .................................................................................................. 10
FIGURE 5. SIM CARD INSTALLATION ......................................................................................... 11
FIGURE 6. BACKUP BATTERY INSTALL ATIO N ............................................................................. 11
FIGURE 7. SWITCH AND ON/OFF POSITION ............................................................................. 12
FIGURE 8. TYPICAL POWER CONNECTION ............................................................................... 13
FIGURE 9. TYPICAL IGNITION DETECTION ................................................................................ 13
FIGURE 10. TYPICAL DIGITAL INPUT CONNECTION .................................................................... 14
FIGURE 11. DIGITAL OUTPUT INTERNAL DRIVE CIRCUIT ............................................................ 15
FIGURE 12. TYPICAL CONNECTION WI T H R E LAY ........................................................................ 15
FIGURE 13. TYPICAL CONNECTION WITH LED ............................................................................ 16
FIGURE 14. GV55W LED ON THE CASE ....................................................................................... 17
FIGURE 15. MOTION SENSOR DIRECTION .................................................................................. 18
TRA
CGV55WUM001 - 4 -
Page 6
GV55W User Manual
0.Rev
ision History
R
evision
1
.00 2018-02-08 Alan Zhao Initial
D
ate
A
uthor
D
escription of Change
TRA
CGV55WUM001 - 5 -
Page 7
GV55W User Manual
1.I
ntroduction
GV55W is a powerful GPS locator designed for vehicle or asset tracking. It has superior receiver
sensitivity, fast TTFF (Time to First Fix) and supports Dual-Band GSM frequencies
850/1900, its location can be monitored in real time or periodically tracked by a backend
server or other specified terminals. GV55W has multiple input/output interfaces that can be
used for monitoring or controlling external devices. Based on the integrated @Track
protocol, the GV55W can communicate with a backend server through the GPRS network to
transfer reports of emergency, geo-fence boundary crossings, low backup battery or
scheduled GPS position as well as many other useful functions. Users can also use GV55W to
monitor the status of a vehicle and control the vehicle by its external relay output. System
Integrators can easily set up their tracking systems based on the full-featured @Track protocol.
1.1. Reference
Ta
ble 1. GV55W Protocol Reference
S
Do
N
[1
cument name
] GV55W @Track Air Interface Protocol The air protocol interface between GV55W and
R
emark
backend server.
1.2. Terms and Abbreviations
Ta
A
bbreviation
GND Analog Ground
A
A
IN Analog Input
IN Digital Input
D
OUT Digital Output
D
G
ND Ground
MIC Microphone
R
XD Receive Data
XD Transmit Data
T
SP
KN Speaker Negative
KP Speaker Positive
SP
D
escription
ble 2. Terms and Abbreviations
TRA
CGV55WUM001 - 6 -
Page 8
GV55W User Manual
2.P
roduct Overview
2.1. Check Parts List
efore starting, check all the following items have been included with your GV55W. If anything is
B
missing, please contact your supplier.
FCC ID:YQD-GV55W
Figure 1. Appearance of GV55W
2.2. Parts List
Ta
ble 3. Parts List
Name Picture
G
V55W Locator 63mm*50mm*21.8mm
FCC ID:YQD-GV55W
ser Cable
U
TRA
CGV55WUM001 - 7 -
Page 9
GV55W User Manual
D
ATA_CABLE_W (Optional)
2.3. Interface Definition
G
V55W has a 6PIN interface connector. It contains the connections for power, and I/O. The
sequence and definition of the 6PIN connector are shown in the following figure:
igure 2. 6PIN Connector on GV55W
F
Table 4. Description of 6 PIN Connections
I
ndex Description
1
VIN
2
GND GND
R
emark
External DC power input, 12/24V
3 IGN Ignition input, positive trigger
IN1 Digital input, negative trigger
4
OUT2 Open drain, 150mA max
5
OUT1 Open drain, 150mA max, with latch circuit
6
TRA
CGV55WUM001 - 8 -
Page 10
GV55W User Manual
2.4. GV55W User Cable Color
ble 5. GV55W User Cable Color Definition
Ta
Definition
V
IN Red 1
G
ND Black 2
IG
N White 3
IN
1 Orange 4
T2 Green 5
OU
Color PIN No. Cable
OU
T1 Blue 6
TRA
CGV55WUM001 - 9 -
Page 11
GV55W User Manual
3.Ge
tting Started
3.1. Open the Case
gure 3. Opening the Case
Fi
Insert the triangular-pry-opener into the gap of the case as shown above, and push the opener
up until the case unsnaps.
3.2. Close the Case
FCC ID:YQD-GV55W
Fi
gure 4. Closing the Case
Place the cover on the bottom. Gently slide the cover until it snaps.
TRA
CGV55WUM001 - 10 -
Page 12
GV55W User Manual
3.3. Install a SIM Card
the case and ensure the unit is not powered (unplug the 6Pin cable and switch the internal
Open
battery to OFF position). Slide the holder right to open the SIM card. Insert the SIM card into the
holder as shown below with the gold-colored contact area facing down. Take care to align the cut
mark. Close the SIM card holder. Close the case.
Figure 5
. SIM Card Installation
3.4. Install the Internal Backup Battery
Figure 6
. Backup Battery Installation
There is an internal backup Li-ion battery.
TRACGV55
WUM001 - 11 -
Page 13
GV55W User Manual
3.5. Switch ON the Backup Battery
o use the GV55W backup battery, the switch must be in the ON position. Switch and ON/OFF
T
position are shown below.
igure 7. Switch and ON/OFF position
F
Note:
1. The switch must be in the “OFF” position when shipped on an aircraft.
2. When the switch is in the “OFF” position, the battery cannot be charged or discharged.
3. To reset the device: Remove the external DC power and switch off the backup battery. Then
supply the external power and switch on the backup battery.
3.6. Power Connection
PWR (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this device is from V.
The device is designed to be installed in vehicles that operate on 12/24V vehicle without the need for external
transformers.
8-32
n
TRA
CGV55WUM001 - 12 -
Page 14
GV55W User Manual
Figure 8. Typical Power Connection
3.7. Ignition Detection
Table 6. Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
Figure 9. Typical Ignition Detection
IGN (Pin3) is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown above.
An alternative to connecting to the ignition switch is to find a non permanent power source that
is only available when the vehicle is running. For example, the power source for the FM radio.
IGN signal can be configured for the device to start transmitting information to backend server
when the ignition is on and enter power saving mode when the ignition is off.
TRACGV55WUM001 - 13 -
Page 15
GV55W User Manual
3.8. Digital Input
There is one general purpose digital input on GV55W, i.e. IN1 (PIN3). It is negative trigger.
Table 7. Electrical Characteristics of Digital Input
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open
Th
e following diagram shows the recommended connection of a digital input.
Fi
gure 10. Typical Digital Input Connection
3.9. Digital Outputs
There are two digital outputs on GV55W. Both are of open drain type and the maximum drain
current is 150mA. Each output has built-in overcurrent protection self-recovery PTC fuse.
TRACGV55WUM001 - 14 -
Page 16
GV55W User Manual
Figure 11. Digital Output Internal Drive Circuit
Tab
le 8. Electrical Characteristics of Digital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
Figure 12. Typical Connection with Relay
TRACGV55WUM001 - 15 -
Page 17
GV55W User Manual
gure 13. Typical Connection with LED
Fi
Note:
1. OUT1 will latch the output state during reset.
2. Many modern relays come with a flyback diode pre-ins
talled internal to the relay itself. If the
relay has this diode, ensure the proper relay polarity connected is used. If this diode is not
internal, it should be added externally. A common diode such as 1N4004 will work in most
circumstances.
3.10. Device Status LED
GV55W has three status LEDs that are GSM LED, GPS LED, and PWR LED.
TRACGV55WUM001 - 16 -
Page 18
GV55W User Manual
Fi
gure 14. GV55W LED on the Case
le 9. Definition of Device Status and LED
Tab
LED Device Status LED Status
GSM
(Note 1)
Device is searching GSM network. Fast flashing
(Note 3)
Device has registered to GSM network. Slow flashing
(Note 4)
SIM card needs pin code to unlock. ON
GPS
(Note 2)
GPS chip is powered off. OFF
GPS sends no data or data format error occurs. Slow flashing
GPS chip is searching GPS information. Fast flashing
GPS chip has got GPS information. ON
PWR
(Note 2)
No external power and internal battery voltage is
lower than 3.35V.
No external power and internal battery voltage is in
OFF
Slow flashing
the range of 3.35V~3.5V.
External power in and internal battery is charging. Fast flashing
External power in and internal battery is fully charged. ON
No
te:
1. GSM LED cannot be configured.
2. GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool.
3. Fast flashing is about 60ms ON/780ms OFF.
4. Slow flashing is about 60ms ON/1940ms OFF.
TRACGV55WUM001 - 17 -
Page 19
GV55W User Manual
Queclink
Grace Wang Checked
2018.02.26
3.11. Motion Sensor Direction
GV55W has an internal 3-axis accelerometer supporting driving behavior monitoring, power
conservation and motion detection. The following shows the directions of the motion sensor.
Z
X
FCC ID:YQD-GV55W
Y
Fig
ure 15. Motion Sensor Direction
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your
body.
TRACGV55WUM001 - 18 -
Loading...
