GV35 User manual
GPS Locator GV35
User Manual
TRACGV35UM001
Revision: 1.00
TRACGV35UM001
http://www.queclink.com
sales@queclink.com
GV35 User manual
Document Title
Version
Date
Status
Document Control ID
GV35 User Manual
1.00
2012-05-17
Release
TRACGV35UM001
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided
is based upon requirements specifically provided to Queclink by the customers. Queclink
has not undertaken any independent search for additional relevant information, including
any information that may be in the customer’s possession. Furthermore, system validation
of this product designed by Queclink within a larger electronic system remains the
responsibility of the customer or the customer’s system integrator. All specifications
supplied herein are subject to change.
This device complies with part 15B, part 22 and part 24 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference
(2) this device must accept any interference, including interference that may cause
undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Users must maintain a separation distance of at least 20cm from the EUT to satisfy RF
exposure compliance.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication
of the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the
registration of a utility model or design. All specification supplied herein are subject to
change without notice at any time.
Copyright © Shanghai Queclink Wireless Solutions Co., Ltd. 2012
TRACGV35UM001 - 2 -
GV35 User manual
Contents
1. Introduction...................................................................................................................................7
1.1. Reference.............................................................................................................................7
1.2. T erm s and Abbreviations.....................................................................................................7
2. Product Overview .........................................................................................................................8
2.1. Check Part List....................................................................................................................8
2.2. Parts List..............................................................................................................................9
2.3. Interface Definition.............................................................................................................9
3. Getting Started............................................................................................................................11
3.1. Opening the Case ..............................................................................................................11
3.2. Closing the Case................................................................................................................11
3.3. Installing a SIM Card........................................................................................................12
3.4. Power Connection.............................................................................................................12
3.5. Ignition Detection..............................................................................................................13
3.6. Digital Input......................................................................................................................13
3.7. Digital Output....................................................................................................................14
3.8. Relay .................................................................................................................................15
3.9. Device Status LED............................................................................................................16
TRACGV35UM001 - 3 -
GV35 User manual
Table Index
TABLE 1: GV35 PROTOCOL REFERENCE.........................................................................................7
TABLE 2: TERMS AND ABBREVIA TIONS .........................................................................................7
TABLE 3: PART LIST .............................................................................................................................9
TABLE 4: DESCRIPTION OF 6 PIN CONNECTIONS.......................................................................10
TABLE 5: ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION.................................13
TABLE 6: ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUT.....................................13
TABLE 7: ELECTRICAL CHARACTERISTICS OF DDIGITAL OUTPUT.......................................15
TABLE 8: ELECTRICAL CHARACTERISTICS OF RELAY.............................................................15
TABLE 9: DEFINITION OF DEVICE STATUS AND LE D.................................................................17
TRACGV35UM001 - 4 -
GV35 User manual
Figure Index
FIGURE 1. APPEARANCE OF GV35..............................................................................................8
FIGURE 2. THE 6 PIN CONNECTOR ON THE GV35..................................................................10
FIGURE 3. OPENING THE CASE..................................................................................................11
FIGURE 4. CLOSING THE CASE..................................................................................................11
FIGURE 5. SIM CARD INSTALLATION.......................................................................................12
FIGURE 6. TYPICAL POWER CONNECTION.............................................................................12
FIGURE 7. TYPICAL IGNITION DETECTION............................................................................13
FIGURE 8. TYPICAL DIGITAL INPUT CONNECTION..............................................................14
FIGURE 9. DIGITAL OUTPUT INTERNAL DRI VE CIRCUIT....................................................14
FIGURE 10. TYPICAL CONNECTION WITH LED .......................................................................15
FIGURE 11. TYPICAL CONNECTION WITH RELAY ..................................................................16
FIGURE 12. GV35 LED ON THE CASE..........................................................................................16
TRACGV35UM001 - 5 -
GV35 User manual
Revision History
Revision Date Author Description of change
1.00 2012-5-17 Cid Xu Initial
TRACGV35UM001 - 6 -
GV35 User manual
1. Introduction
The GV35 is a powerful GPS locator designed for vehicle or asset tracking. It has superior
receiver sensitivity, fast TTFF (Time to First Fix) and supports Quad-Band GSM
frequencies 850/900/1800/1900, its location can be monitored in real time or be
periodically tracked by a backend server or other specified terminals. The GV35 has
multiple input/output interfaces that can be used for monitoring or controlling external
devices. Based on the integrated @Track protocol, the GV35 can communicate with a
backend server through the GPRS/GSM network to transfer reports of Emergency,
geo-fence boundary crossings, low backup battery or scheduled GPS position as well as
many other useful functions. Users can also use GV35 to monitor the status of a vehicle
and control the vehicle by its internal relay output. System Integrators can easily setup
their tracking systems based on the full-featured @Track protocol.
1.1. Reference
Table 1: GV35 Protocol Reference
SN Document name Remark
[1] GV35 @Track Air Interface Protocol The air protocol interface between
GV35 and backend server.
1.2. Terms and Abbreviations
Table 2: Terms and Abbreviations
Abbreviation Description
GND Ground
NC Not Connected
IN1 Input Port
PWR External DC power input
OUT1 Output Port
IGN Ignition input
TRACGV35UM001
GV35 User manual
2. Product Overview
2.1. Check Part List
Before starting, check all the following items have been included with your GV35. If
anything is missing, please contact your supplier.
Figure 1. Appearance of GV35
TRACGV35UM001
GV35 User manual
2.2. Parts List
Table 3 : Part List
Name Picture
GV35 Locator 74*49.5*24 mm
User Cable
Relay Inserted spring
Relay Inserted spring Protective sleeve
2.3. Interface Definition
The GV35 has a 6 PIN interface connector. It contains the connections for power and I/O.
The sequence and definition of the 6PIN connector are shown in following figure:
TRACGV35UM001 - 9 -
GV35 User manual
Figure 2. The 6 PIN connector on the GV35
Table 4: Description of 6 PIN Connections
Index Description Comment
1 GND Ground
2 NC
3 IN1 Digital input, negative trigger
4 PWR External DC power input, 9-16V
5 OUT1 Open drain output signal(max drive current is 150mA)
6 IGN Ignition input, positive trigger
TRACGV35UM001 - 10 -
GV35 User manual
3. Getting Started
3.1. Opening the Case

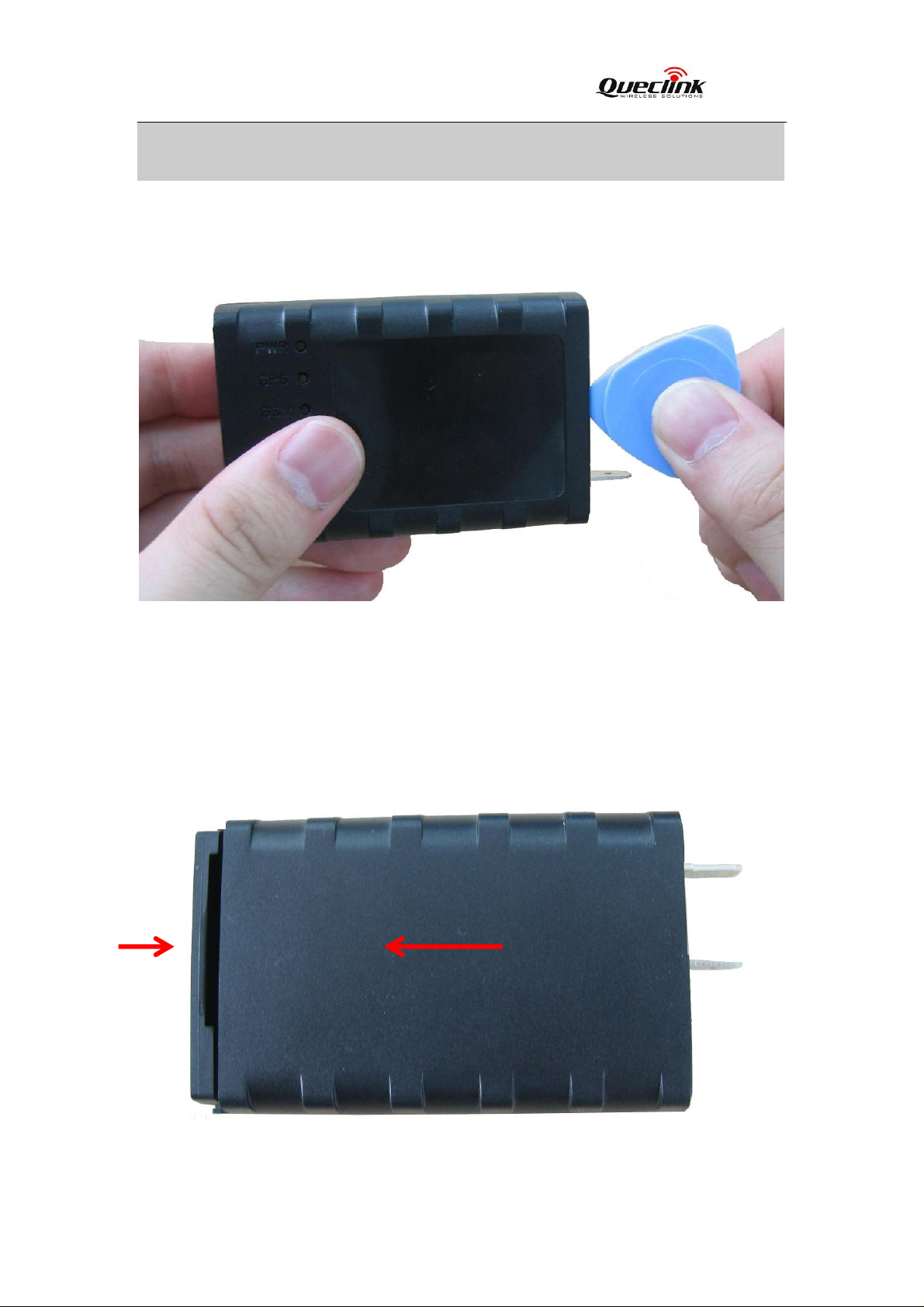

Figure 3. Opening the Case
Insert the triangular-pry-opener into the gap of the case as shown below, push the opener
up until the case unsnapped.
3.2. Closing the Case
TRACGV35UM001
Figure 4. Closing the Case
GV35 User manual
Place the cover on the bottom in the position as shown in the following figure. Slide the
cover follow the direction of the arrow until it snapped.
3.3. Installing a SIM Card
Open the case and ensure the unit is not powered (unplug the 6Pin cable and switch the
internal battery to off position). Slide the holder right to open the SIM card. Insert the SIM
card into the holder as shown below with the gold-colored contact area facing down taking
care to align the cut mark. Close the SIM card holder. Close the case.

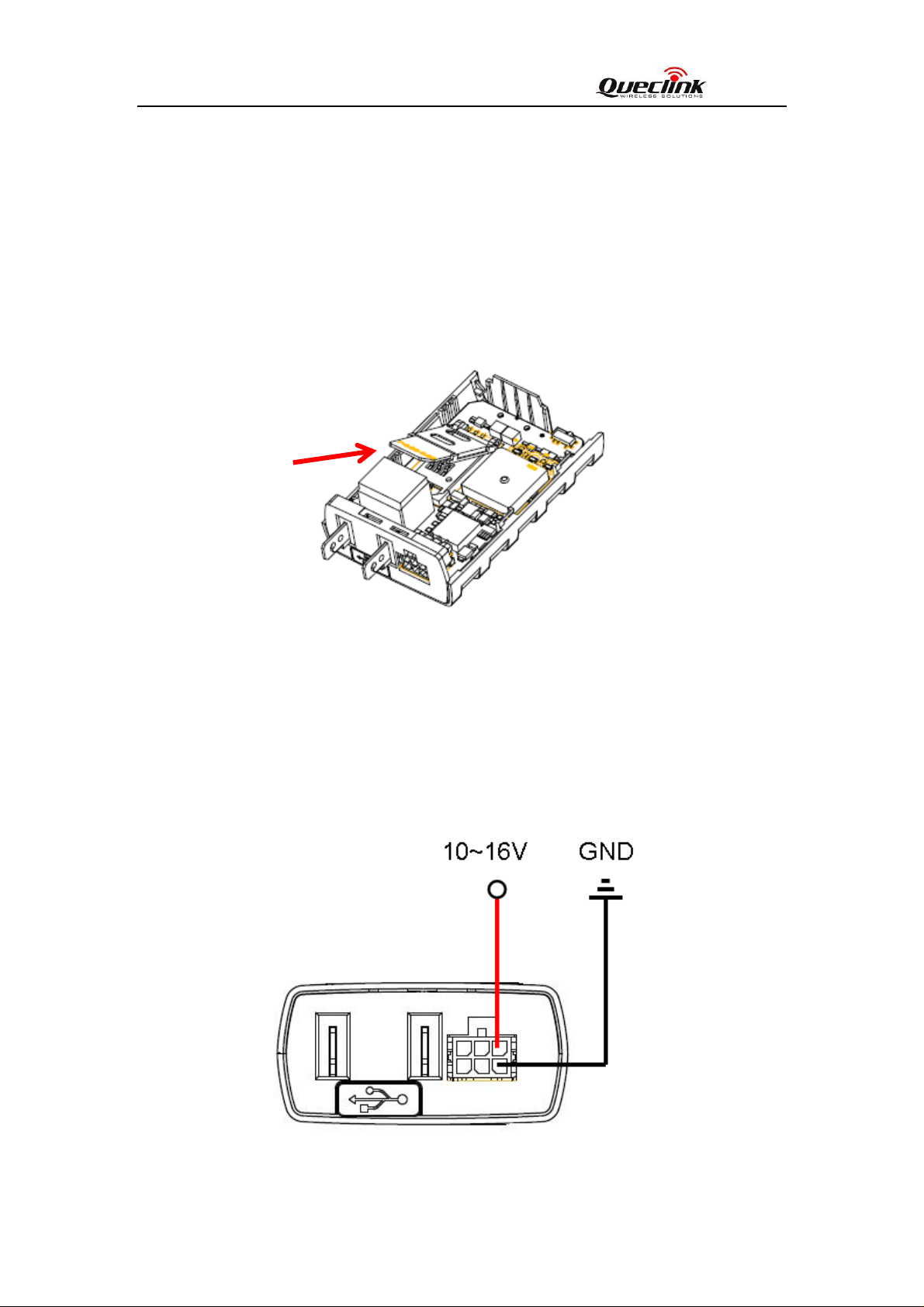

Figure 5. SIM Card Installation
3.4. Power Connection
PWR (PIN4) / GND (PIN1) are the power input pins. The input voltage range for this
device is from 9V to 16V. The device is designed to be installed in vehicles that operate on
12V systems without the need for external transformers.
Figure 6. Typical Power Connection
TRACGV35UM001 - 12 -
GV35 User manual
3.5. Ignition Detection
Table 5: Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 16V
Inactive 0V to 3V or Open
Figure 7. Typical Ignition Detection
IGN (Pin6) is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source
that is only available when the vehicle is running. For example the power source for the
FM radio.
IGN signal can be configured to start transmitting information to backend server when
ignition is on; and enter power saving mode when ignition is off.
3.6. Digital Input
There is a general purpose digital input on GV35. It is negative trigger.
Table 6: Electrical Characteristics of the digital input
TRACGV35UM001 - 13 -
GV35 User manual
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open
The following diagram shows the recommended connection of a digital input.

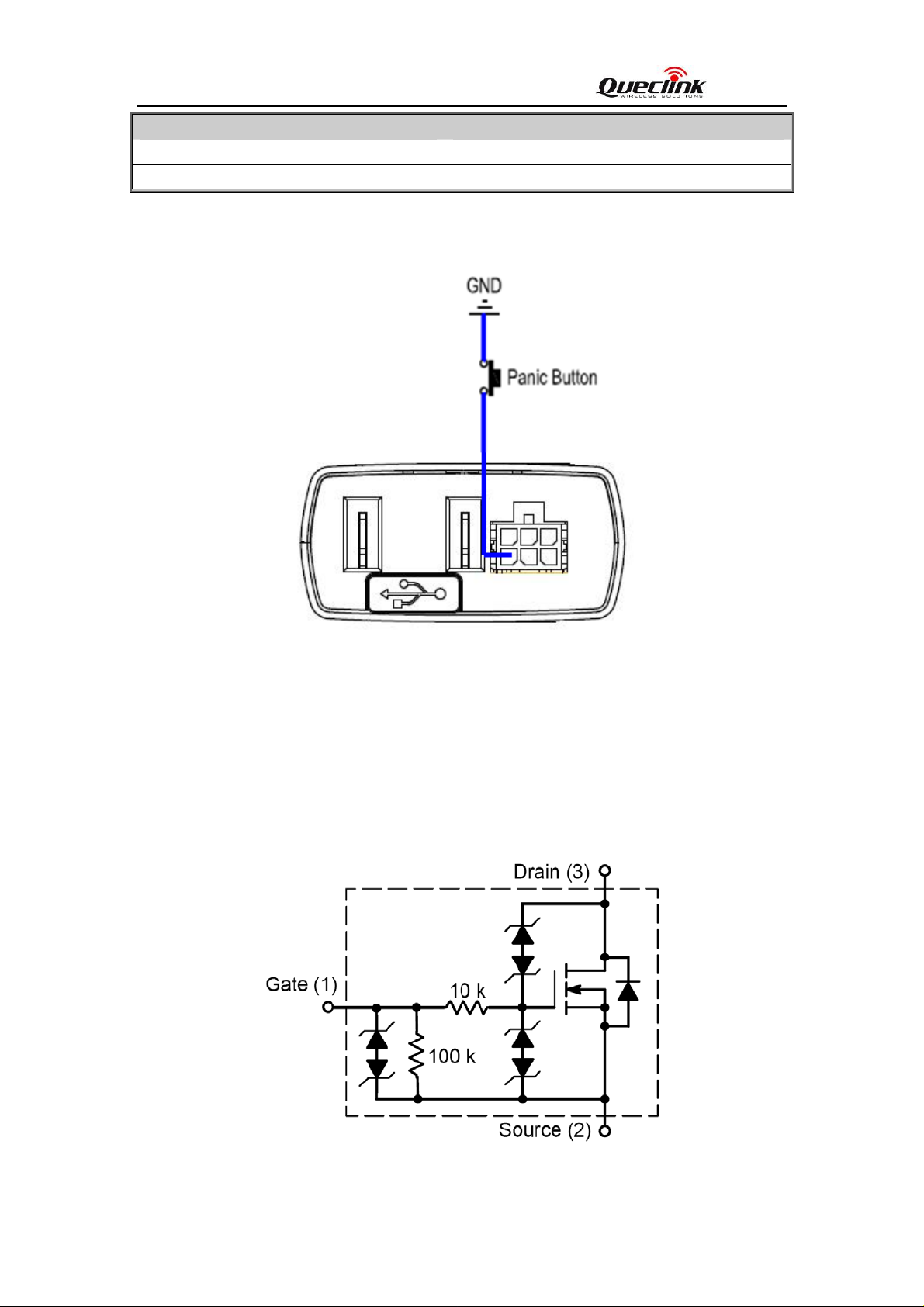

Figure 8. Typical Digital Input Connection
3.7. Digital Output
There is a digital output on GV35 which is open drain type and can latch the output statue
when there is no control. The output has a built-in over current and recovery PTC fuse and
the maximum drain current is 150 mA.
Figure 9. Digital Output Internal Drive Circuit
TRACGV35UM001 - 14 -
GV35 User manual
Table 7: Electrical Characteristics of Ddigital Output
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain

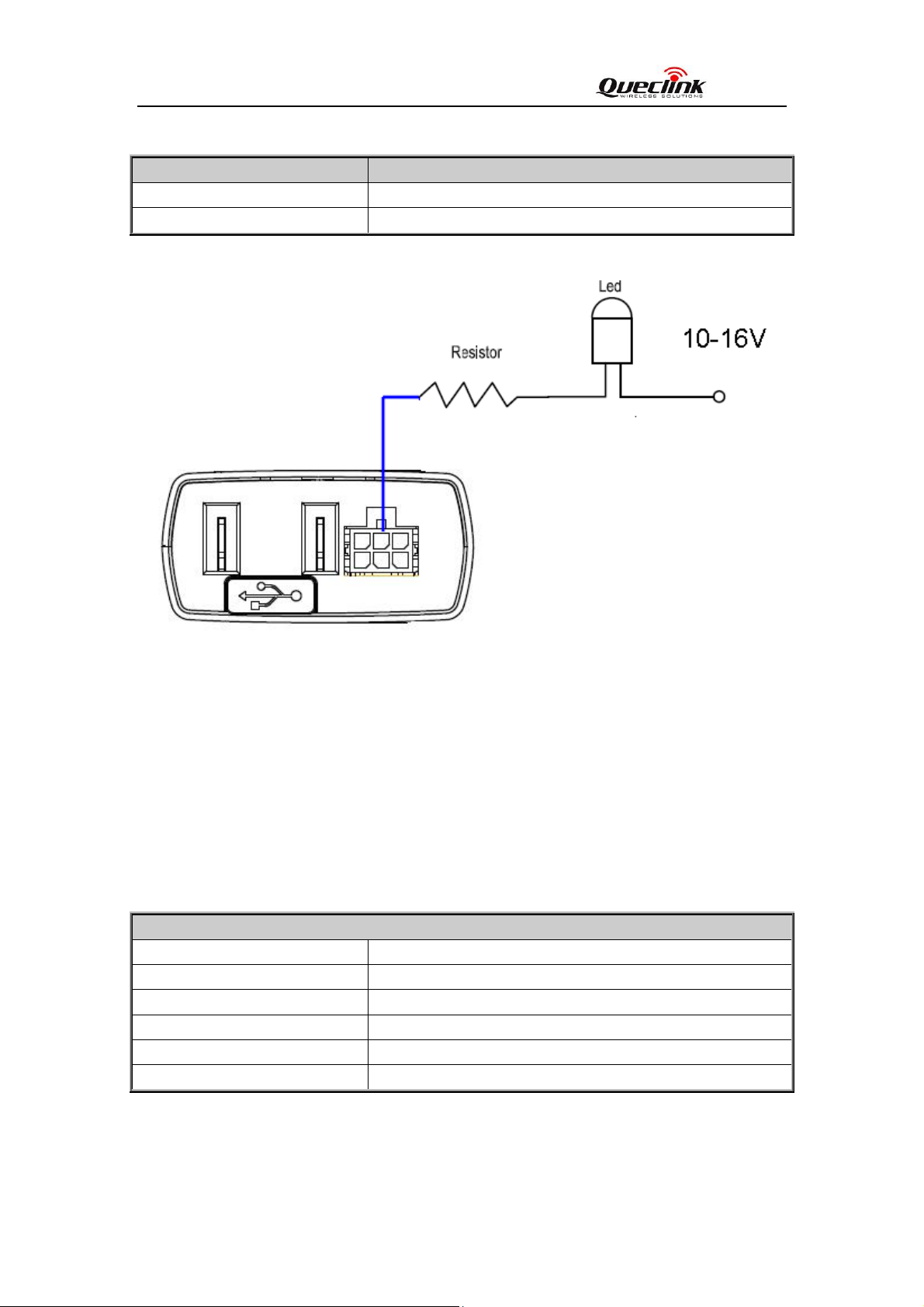

Figure 10. Typical Connection with LED
Note:
1 - OUT1 will latch the output state during reset.
3.8. Relay
There is a built-in relay on GV35. The relay can latch the output statue when
there is no control to relay. The rating load of the relay is 20A/14V..
Table 8: Electrical Characteristics of relay
Electrical Characteristics
Max. Switching Power 280W
Max. Switching Voltage 18VDC
Max. Switching Current 25A
Contact Resistance
Rating Load 20A/14VDC
Initial Insulation Resistance
≤100mΩ
Min. 100MΩ 500VDC
TRACGV35UM001 - 15 -
GV35 User manual
Figure 11. Typical Connection with relay
Note:
1 - Relay will latch the output state during reset.
3.9. Device Status LED
Figure 12. GV35 LED on the Case
TRACGV35UM001 - 16 -
GV35 User manual
Table 9: Definition of Device status and LED
LED Device status LED status
GSM
(note1)
Device is searching GSM network Fast flashing
(Note3)
Device has registered to GSM network. Slow flashing
(Note4)
GPS
(note 2)
GPS chip is powered off OFF
GPS chip is searching GPS info. OFF
GPS chip has gotten GPS info. ON
No power OFF PWR
(note 2)
power in ON
Note:
1 - GSM LED cannot be configured.
2 - GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3 - Fast flashing is about 60ms ON/ 780ms OFF
4 - Slow flashing is about 60ms ON/ 1940ms OFF
TRACGV35UM001 - 17 -
