1. Introduction
The GV300W is a compact GNSS tracker designed for a wide variety of vehicle tracking
applications. It has multiple I/O interfaces that can be used for monitoring or controlling
external devices. Its built-in GNSS receiver has superior sensitivity and fast time to first fix.
Its triple band WCDMA subsystem supports UMTS/HSDPA 850 (Band V)/1900 (Band
II)/2100(Band I) MHz allowing the GV300W's location to be monitored in real time or
periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer
allows driving behavior monitoring, motion detection and extended battery life through
sophisticated power management algorithms. System integration is straightforward as
complete documentation is provided for the full featured @Track protocol. The @Track
protocol supports a wide variety of reports including emergency, geo-fence boundary
crossings, driving behavior, low battery and scheduled GNSS position.
1.1 Reference
Table 1. GV300W Protocol Reference
1.2 Terms and Abbreviations
Table 2. Terms and Abbreviations
TRACGV300WUM001 - 7 -
GV300W User manual
2. Product Overview
2.1. Check Parts List
Before starting, check whether all the following items have been included with your
GV300W. If anything is missing, please contact your supplier.
Figure 1. Appearance of GV300W
TRACGV300WUM001 - 8 -
GV300W User manual
Name
GV300W Locator
80*49*26 mm
User Cable
Extension Cable (Optional)
GPS Antenna (Optional)
DATA_CABLE_W (Optional)
2.2. Parts List
Table 3. Parts List
TRACGV300WUM001 - 9 -
GV300W User manual
Index
Description
Comment
1
MICP
Single end, 2-2.2k microphone, internal bias
2
AGND
Analog ground
3
IGN
Ignition input, positive trigger
4
RXD
UART RXD, RS232
5
TXD
UART TXD, RS232
6
GND
Power and digital ground
7
OUT3
Open drain, 150 mA max
8
OUT2
Open drain, 150 mA max
9
EARP
Differential output, 32 ohm 1/4w speaker
10
EARN
11
PWR
External DC power input, 8-32V
12
IN2
Digital input, negative trigger
13
IN1
Digital input, negative trigger
14
OUT1
Open drain, 150 mA max ,with latch circuit
15
AD1/IN3
Multifunction input, analog or digital input
0-16V
16
AD2
Analog input 0.3-16V
2.3. Interface Definition
The GV300W has a 16 PIN interface connector which contains the connections for power,
I/O, RS232, microphone, speaker, etc. The sequence and definition of the 16PIN connector
are shown in the following figure:
Figure 2. The 16 PIN Connector on the GV300W
Table 4. Description of 16 PIN Connections
TRACGV300WUM001 - 10 -
GV300W User manual
Definition
Color
PIN
No
Cable
PIN
No
Color
Definition
OUT2
Yellow
8
16
Brown/White
AD2
OUT3
Brown
7
15
Green
AD1/IN3
GND
Black
6
14
Blue
OUT1
TXD
White/Black
5
13
Orange
IN1
RXD
Green or Pink
4
12
Orange/Black
IN2
IGN
White
3
11
Red
PWR
AGND
Gray/Black
2
10
Purple/White
EARN
MICP
Gray
1 9 Purple
EARP
2.4. GV300W User Cable Color
Table 5. GV300W User Cable Color Definition
TRACGV300WUM001 - 11 -
GV300W User manual
3. Get Started
3.1. Open the Case
Figure 3. Open the Case
Insert the triangular-pry-opener into the gap of the case as shown above, and push the
opener up until the case is unsnapped.
3.2. Close the Case
Figure 4. Close the Case
Place the cover on the bottom in the position as shown in the figure above. Slide the cover
against the direction of the arrow until it snaps.
TRACGV300WUM001 - 12 -
GV300W User manual
3.3. Install a SIM Card
Open the case and ensure the unit is not powered (unplug the 16Pin cable and switch the
internal battery to the OFF position). Slide the holder right to open the SIM card holder.
Insert the SIM card into the holder as shown below with the gold-colored contact area facing
down. Take care to align the cut mark. Close the SIM card holder. Close the case.
Figure 5. SIM Card Installation
3.4. Install the Internal Backup Battery
Figure 6. Backup Battery Installation
GV300W has an internal backup Li-ion battery.
TRACGV300WUM001 - 13 -
GV300W User manual
3.5. Switch on the Backup Battery
To use the GV300W backup battery, the switch must be in the ON position. The switch on
the case and the ON/OFF position are shown below.

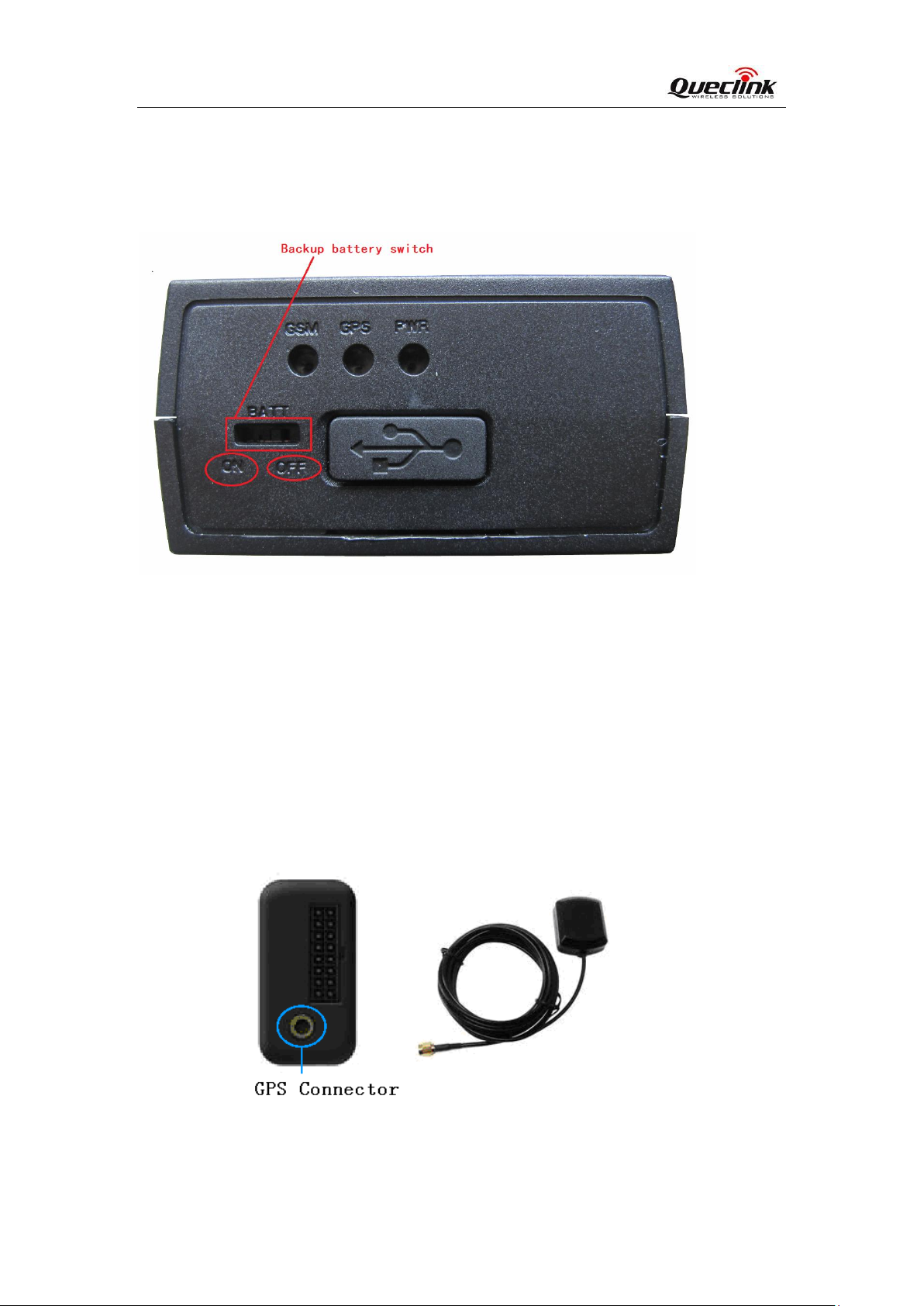

Figure 7. Switch and ON/OFF Position
Note:
1. The switch must be in the “OFF” position when the GV300W is shipped on an aircraft.
2. When the switch is in the “OFF” position, the battery cannot be charged or discharged.
3.6. Install the External GPS Antenna (Optional)
There is a SMA GPS antenna connector on GV300W. The GV300W will automatically detect
and use an external antenna when connected.
Figure 8. GPS Antenna of GV300W
TRACGV300WUM001 - 14 -
GV300W User manual
GPS antenna
Frequency: 1575.42 MHz
Bandwidth
>5 MHz
Beam width
>120 deg
Supply voltage
2.7V-3.3V
Polarization
RHCP
Gain
Passive: 0 dBi min
Active: 15 dB
Impedance
50Ω
VSWR
<2
Noise figure
<3
3.6.1. GPS Antenna Specification
Table 6. GPS Antenna Specification
3.7. Power Connection
PWR (PIN11)/GND (PIN6) is the power input pin. The input voltage range for this device is
from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V
systems without the need for external transformers.
TRACGV300WUM001 - 15 -
Figure 9. Typical Power Connection
GV300W User manual
Logical status
Electrical characteristics
Active
5.0V to 32V
Inactive
0V to 3V or open
Logical status
Electrical characteristics
Active
0V to 0.6V
Inactive
Open
3.8. Ignition Detection
Table 7. Electrical Characteristics of Ignition Detection

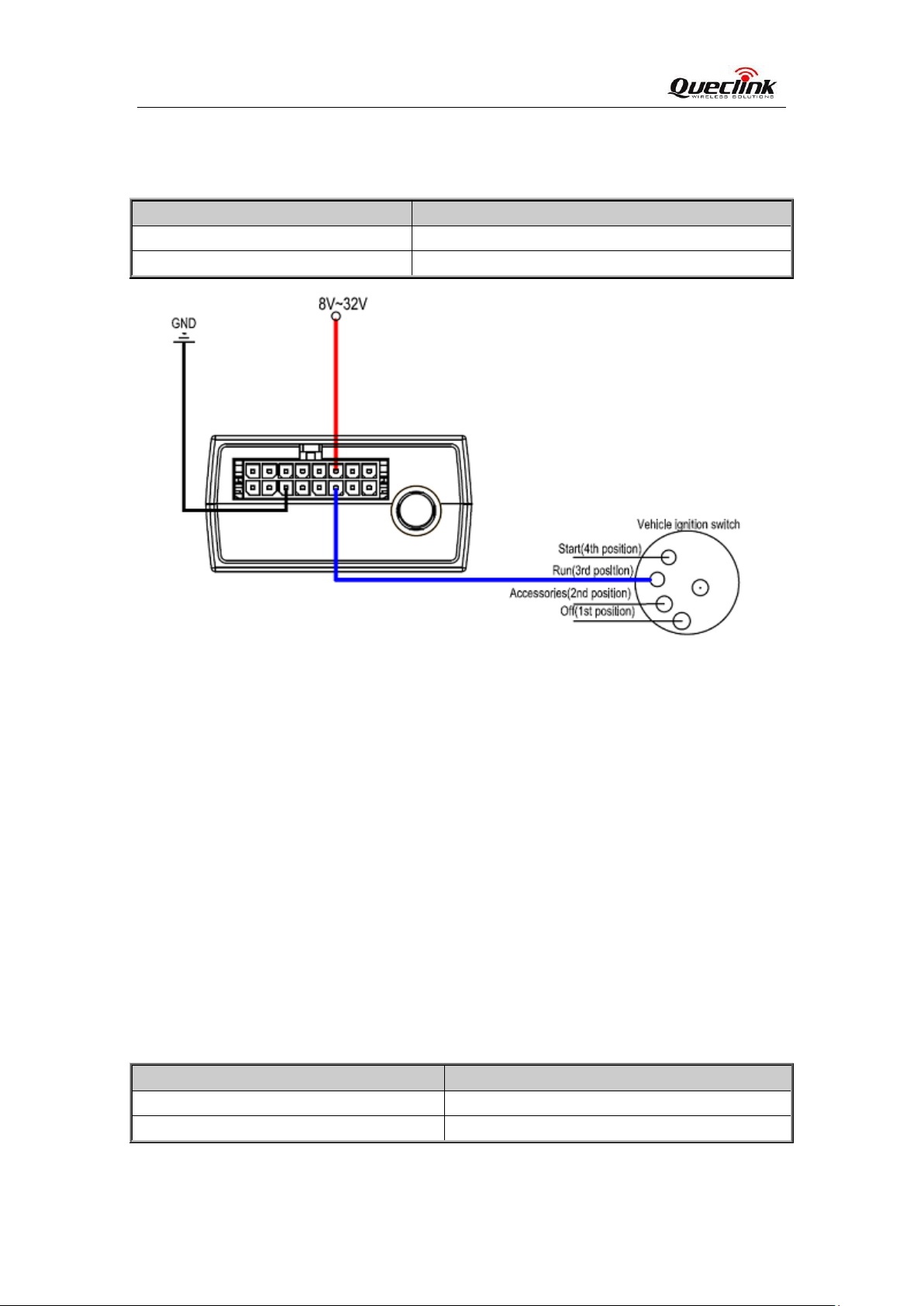

Figure 10. Typical Ignition Detection
IGN (Pin3) is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown above.
An alternative to connecting to the ignition switch is to find a non-permanent power source
that is only available when the vehicle is running, for example, the power source for the FM
radio.
IGN signal can be configured to start transmitting information to the backend server when
ignition is on, and enter the power saving mode when ignition is off.
3.9. Digital Inputs
There are three general purpose digital inputs on GV300W. They are all negative triggers.
Table 8. Electrical Characteristics of the Digital Inputs
The following diagram shows the recommended connection of a digital input.
TRACGV300WUM001 - 16 -
GV300W User manual
Figure 11. Typical Digital Input Connection
3.10. Analog Inputs
There are two analog inputs on GV300W, and the analog input voltage range is from 0 to
16V. The following diagram shows the recommended connection.
Figure 12. Typical Analog Input Connection
Note:
PIN 15 is a multifunction pin: it can be configured as a digital input or an analog input.
TRACGV300WUM001 - 17 -
GV300W User manual
Logical status
Electrical characteristics
Enable
<1.5V @150 mA
Disable
Open drain
3.11. Digital Outputs
There are three digital outputs on GV300W. All are of open drain type and the maximum
drain current is 150 mA. Each output has the built-in over current PTC resettable fuse.
Figure 13. Digital Output Internal Drive Circuit
Table 9. Electrical Characteristics of Digital Outputs
TRACGV300WUM001 - 18 -
Figure 14. Typical Connection with Relay
GV300W User manual
Figure 15. Typical Connection with LED
Note:
1. OUT1 will latch the output state during reset.
2. Many modern relays come with a flyback diode pre-installed internal to the relay itself. If
the relay has this diode, ensure the relay polarity is properly connected. If this diode is not
internal, it should be added externally. A common diode such as a 1N4004 will work in most
circumstances.
3.12. Device Status LED
Figure 16. GV300W LED on the Case
TRACGV300WUM001 - 19 -
GV300W User manual
LED
Device status
LED status
CEL
(Note 1)
Device is searching WCDMA network.
Fast flashing
(Note 3)
Device has registered to WCDMA network.
Slow flashing
(Note 4)
SIM card needs pin code to unlock.
ON
GPS
(Note 2)
GPS chip is powered off.
OFF
GPS sends no data or data format error occurs.
Slow flashing
GPS chip is searching GPS info.
Fast flashing
GPS chip has gotten GPS info.
ON
PWR
(Note 2)
No external power and internal battery voltage is
lower than 3.35V.
OFF
No external power and internal battery voltage is
below 3.5V.
Slow flashing
External power in and internal battery is charging.
Fast flashing
External power in and internal battery is fully charged.
ON
Table 10. Definition of Device Status and LED
Note:
1. CEL LED cannot be configured.
2. GPS LED and PWR LED can be configured to turn off after a period of time by using the
configuration tool.
3. Fast flashing：for CEL LED is about 60 ms ON/780 ms OFF; for GPS LED and PWR LED is
about 100 ms ON/100 ms OFF.
4. Slow flashing: for CEL LED is about 60 ms ON/1940 ms OFF; for GPS LED and PWR LED is
about 600 ms ON/600 ms OFF.
3.13. Serial Port/UART Interface
There are two lines dedicated to the Serial Port/UART interface (TXD and RXD). TXD/RXD are
standard RS232 signal.
TRACGV300WUM001 - 20 -
GV300W User manual
Figure 17. Typical Connection with RS232 Port
3.13.1. Connect with Garmin GPS Set
GV300W can communicate with Garmin GPS set. The following typical connection is using
Queclink AG100 cable.
Figure 18. GV300W Connection with Garmin GPS Set
Note:
Some versions of GV300W can connect with Garmin GPS set by Garmin FMI10/FMI15 cable.
Please consult Queclink for detail information.
TRACGV300WUM001 - 21 -
GV300W User manual
Pin No.
Pin Name
Cable Color
S1-1
TX
Blue/Yellow
S1-2
RX
Blue/Red
S1-3
Power Supply
Red
S1-4
Ground
Black
GV300W
CAN100
Pin No.
Pin Name
Color
Connection
Pin
No.
Pin Name
Color
4
RXD
Green or Pink
←----→
S1-1
TX
Blue/Yellow
5
TXD
White/Black
←----→
S1-2
RX
Blue/Red
11
Power
Red
←----→
S1-3
Power
Supply
Red
6
Ground
Black
←----→
S1-4
Ground
Black
3.13.2. Connect with CAN100 device
GV300W can communicate with CAN100 device. Only for the serial ports of CAN100 device
is RS232. The following picture shows the external interface of CAN100 device. Refer to
Figure 19.
Figure 19. The External Interface of CAN100 Device
The following table 11 shows the definition of CAN100 device’s external interface.
Table 11. External Interface of CAN100 Device
The Following table 12 shows how to connect with the GV300W.
Table 12. CAN100 Device Connect with GV300W
Note:
How to distinguish the CAN100 device’s serial port is RS232 or TTL, Please refer to CAN100
specification.
TRACGV300WUM001 - 22 -
GV300W User manual
RF Exposure Statement:
For the product,under normal use condition is at least 20cm away from the body of the user
the user must keeping at least 20cm distance to the product.
This device complies with Part 15 of the FCC Rules. Its operation is subject to the following
Two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Note:
THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT
This product has been tested and found to comply with the limits for Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This product generates, uses, and can radiate radio frequency energy
and,if not installed and used in accordance with the instructions, may cause harmful interfer
ence to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour
aged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
Is connected.
—Consult the dealer or an experienced radio/TV technician for help.
TRACGV300WUM001 - 23 -
Loading...
