GSM/GPRS/GPS Tracker
User Manual
TRACGL100SUM001
Revision: 1.01
GL100S
http://www.queclink.com
sales@queclink.com
GL100S User Manual
Document Title GL100S User manual
Version 1.01
Date 2011-7-8
Status Release
Document Control ID TRACGL100SUM001
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has
not undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of
the customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of
a utility model or design. All specification supplied herein are subject to change without
notice at any time.
Copyright © Queclink Wireless Solutions Ltd. 2011
TRACGL100SUM001 -1-
GL100S User Manual
Contents
Contents............................................................................................................................................. 2
0. Revision history............................................................................................................................. 2
1. Introduction................................................................................................................................... 2
2. Product Overview.......................................................................................................................... 2
2.1. Appearance.......................................................................................................................... 2
2.2. Buttons/Mini USB Interface Description............................................................................ 6
2.3. LEDs Description................................................................................................................ 6
3. Getting Started...............................................................................................................................2
3.1. Parts List.............................................................................................................................. 2
3.2. Battery Charging..................................................................................................................2
3.3. Install SIM Card.................................................................................................................. 2
3.4. Install Device Into The Holder.......................................................................................... ..7
3.5. Turn on/Turn off.................................................................................................................. 8
4. Troubleshooting and Safety info................................................................................................... 9
4.1. Troubleshooting................................................................................................................... 9
4.2. Safety info......................................................................................................................... 10
TRACGL100SUM001 -2-
GL100S User Manual
0. Revision history
Revision Date Author Description of change
1.01 2011-7-8 Johnson Jiang Initial
TRACGL100SUM001 -3-
GL100S User Manual
1. Introduction
GL100S is a powerful GPS locator which is designed for shoes and assets tracking.
With superior receiving sensitivity, fast TTFF and GSM frequencies
850/900/1800/1900MHz. Its location can be real time or schedule tracked by backend
server or specified terminals. Based on the embedded @Track protocol, GL100S can
communicate with the backend server through GPRS/GSM network, and transfer reports
of emergency, Geo-fencing, device status and scheduled GPS position etc… Service
provider is easy to setup their tracking platform based on the functional @Track protocol.
This device complies with part 15B of the FCC rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference.
(2) this device must accept any interference, including interference that may cause
undesired operation.”
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Warning:
The device include a GSM module,the minimum separation distance between antenna of
the module and human is about 10mm..
TRACGL100SUM001 -4-
GL100S User Manual
2. Product Overview
2.1. Appearance
GL100S device:
GL100S in shoes: (This product insert in bottom of shoes)
TRACGL100SUM001 -5-
GL100S User Manual

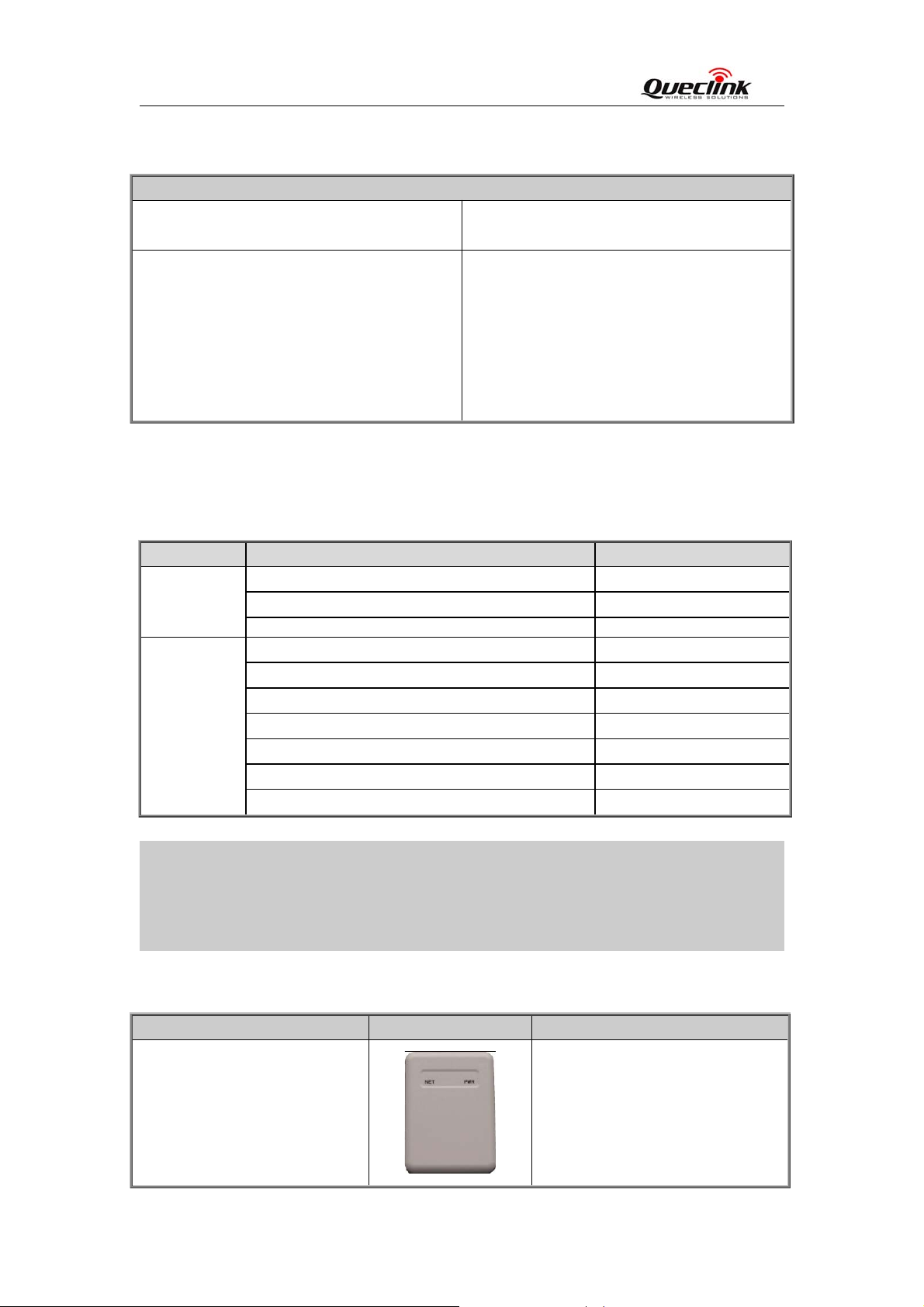

2.2. Buttons/Mini USB Interface Description
Button /Mini USB Interface Description
Power Key z Turn on GL100S
z Turn off GL100S. (If power key is enabled)
Mini USB interface z
Connect a 5V DC adapter can power
GL100S and charge the internal battery
Connect a 3.7V Li-ion or Li-Polymer
z
battery can power GL100S
Backend server developer or administrator
z
can use the Data_Cable to configure
GL100S
2.3. LEDs Description
There are three LED in GL100S, the description as following.
Light Event State
NET light
PWR light Power on and normal Dark
Searching network
Network has been registered Slow flash
Power off Dark
Charger inserted and charging completed Solid
Charger inserted and charging Fast flash
Power key was pressed and prepare to power off Fast flash
Abnormal
Power low alert
Power off
Fast flash
Fast flash
Slow flash
Dark
3. Getting Started
3.1. Parts List
Name Picture Remark
GL100S Locater
TRACGL100SUM001 -6-
The GSM/GPRS/GPS locator.
GL100S User Manual
AC-DC Power Adapter
(Standard accessory)
GL100S Data Cable
It is used to charge the internal
battery of GL100S.
It is the USB data cable which can
be used for firmware upgrading and
configuration.(Please note , it only
for backend server developer or
administrator ,It is not in delivery
list of GL100S)
3.2. Battery Charging
Please connect AC-DC power adapter with GL100S.
z
Insert the AC-DC power adapter into the power socket.
z
During charging, the
z
will be Ever-light.
Charging time is about 5 hours.
z
Note: Before the first time using GL100S, please full charge the battery.
PWR LED is flashing fast. When the battery is full charged, the PWR LED
3.3. Install SIM Card
First, open the cover of SIM card..
z
Then insert the SIM card into the slot of SIM card according to the direction shown.
z
Finally, cover the slot.
z
3.4. Turn on/Turn off
Turn on:
z
TRACGL100SUM001 -7-
GL100S User Manual
Method 1: Press the Power key at least 3 seconds and release it to turn on GL100S. At
the same time, PWR LED will light on.
z Turn off:
Method 1: Press the power key about 2 seconds; PWR LED will fast flash and then turn
off, it indicates that GL100S is turned off. The time of power off is depended on the
quality of network. The maximum time of power off is 90 seconds. It is only valid to
turn off when using internal battery. Please note the end-user can not power off
GL100S when the power key is disabled by protocol.
Note: Before power off one location message need to be send. When in a place the GSM signal
is weak or no GSM network, the equipment will try 90s to send the message. After 90s, it
will power off immediately.
TRACGL100SUM001 -8-
GL100S User Manual
4. Troubleshooting and Safety info
4.1. Troubleshooting
Trouble Possible Reason Solution
After GL100S is turned on, the
Net LED flashes quickly
always.
Messages can’t be reported to
the backend server by GPRS.
Unable to power off GL100S. The function of power key
The SIM card is not inserted. Please insert the SIM card into
GL100S.
The signal is too weak;
GL100S can’t register to the
network.
PIN locked Using SIM card without
TheSIMcardinGL100S
doesn’t support GPRS.
APN is wrong. Some APN
can not visit the internet
directly.
The IP address or port of the
backend server is wrong.
was disabled byAT+GTSFR.
Please move GL100S into
place with good GSM
coverage.
SIM-PIN, or unlock SIM-PIN.
Try a GPRS supported SIM
card.
Ask the network operator for
the right APN.
Make sure the IP address for
the backend server is an
identified address in the
internet.
Enable the function of power
key by AT+GTFKS.
Unable to power off GL100S
if charger connected or using
external battery.
No response from UART when
configure GL100S through
UART
GL100S can’t get successful
GPS fixing.
TRACGL100SUM001 -9-
GL100S is in power saving
mode.
The GPS signal is weak. Please move GL100S to a
Disconnect charger or external
battery,and try again.
Remove the Data_Cable, and
plug it in again. After this
operation, GL100S will exit
from power saving mode for 10
seconds.
Re-try GL100S manager tool
again, it will try to wake up
device.
place with open sky.
It is better to let the top surface
face to sky.
GL100S User Manual
4.2. Safety info
Please do not disassemble the device by yourself.
z
Please do not put the device on the overheating or too humid place, avoid exposure to direct
z
sunlight. Too high temperature will damage the device or even cause the battery explosion.
Please do not use GL100S o n the airplane or near medical equipment.
z
TRACGL100SUM001 -10-
