1. Introduction
CP100 is a powerful GPS Tracker designed for student, pet and asset tracking. With superior
receive sensitivity, fast TTFF (Time to First Fix ) and Dual-band GSM frequencies
850 / 1900MHz, its location can be monitored or periodically reported to a backend server or other
device . Based on the embedded CP100@ Track protocol , the CP100 can communicate with the
backend server through the GPRS/GSM/ WIFI network (or SMS) to report emergency alerts, low
battery and scheduled GPS positions along with several other advanced reporting features. System
Integrators can easily setup their custom tracking platforms to communicate with the CP100 based
on the CP100@Track protocol.
This device complies with part 22 and part 24,part 15.247 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference
(2) this device must accept any interference, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
TRACCP100UM001 - 4 -
CP100 User Manual
2. Product Overview
GSM/GPS/WIFI Specifications
GSM Frequency Dual-Band: 850/1900MHz
GPS Chipset uBlox All-In-One GPS Receiver Sensitive, Fast and
Accurate
GPS Sensitivity Cold start: -147dBm
Reacquisition: -160dBm
Tracking: -160dBm
Position Accuracy Autonomous: < 2.5 m
SBAS: 2.0 m
TTFF (Open Sky) Cold start 29s
Warm start <29s
Hot start <1s
WIFI Chipset MTK MAC/BB WLAN Chip .
WIFI Frequency 2.412G – 2.462GHz .
WIFI Compatible IEEE 802.11g/b Compliant .
User Interfaces
Mini USB Connector Include external power and UART
SIM Card Holder Support 1.8V/3V SIM Card.
Power Button For power on .
Gerneral Specifications
Dimension 69mm* 39.5mm * 17mm
Weight 60g
Backup Battery Li-ion 850mAh , 3.7V
Standby Time Full work 2 hours when power off above one
month in emergency
Charge Voltage 5V DC
External Battery Voltage 3.4 V to 4.2 V DC
TRACCP100UM001 - 5 -
CP100 User Manual
3. Product Overview
3.1. Appearance
3.2. Buttons/Mini USB/SIM-Card Interface Description
Button /Mini USB Interface Description
Power Key z Turn on CP100
SIM-Card Interface z Insert 1.8V/3V SIM-Card
Mini USB Interface z Connect a 3.7V Li-ion or Li-Polymer
battery
z Connect 5V DC adapter can charge
internal battery
z Only Backend server developer or
administrator can use the Data_Cable_M
to configure CP100
3.3. LEDs Description
There are two LEDs in CP100, the description as following.
light Event State
Battery voltage is lower than 3.8v Red Light Solid Low Battery
light
TRACCP100UM001 - 6 -
Battery voltage is higher than 4.0v Dark
Power on and normal Green light Solid Power light
Charging Exception
Bule Light flash quickly
CP100 User Manual
Power key was pressed and prepare to power off Fast flash
Abnormal
Power low alert
Power off or turn off the power light by command
Power Off
On Charging
Charging finished
Fast flash
Slow flash
Dark
Bule Light flash slowly
Blue Light Solid
Greed light flash twice,
On Charging
Power On
then Blue light flash twice,
and the whole process will
be repeated
Greed light flash once,then
Charging finished
Blue light flash once, and
the whole process will be
repeated
TRACCP100UM001 - 7 -
CP100 User Manual
4. Getting Started

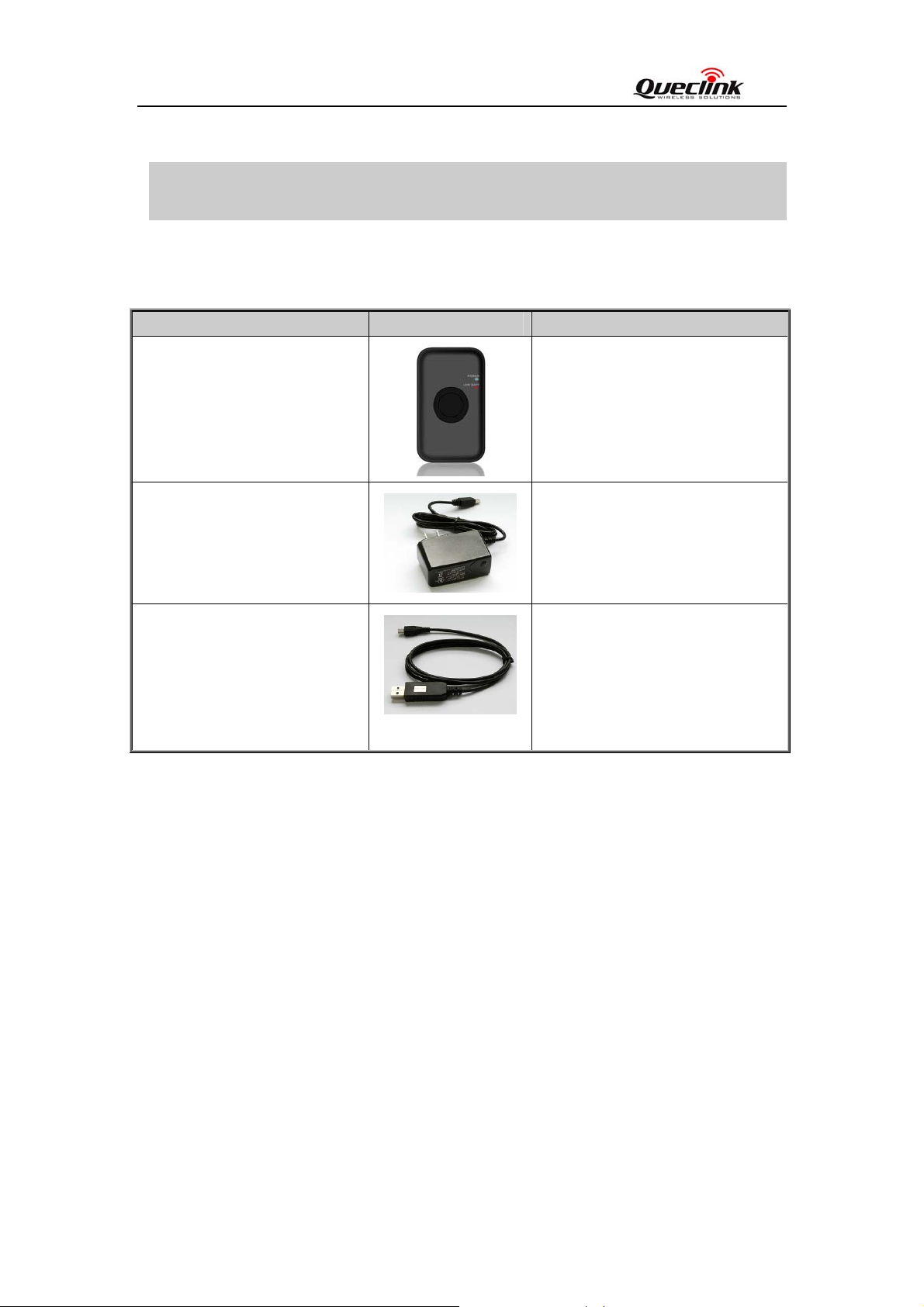

4.1. Parts List
Name Picture Remark
CP100 Locator
AC-DC Power Adapter
(Standard accessory)
The GSM/GPRS/GPS locator.
It is used to charge the internal
battery of CP100.
CP100 Data Cable
(Optional accessory)
It is the USB data cable which can
be used for firmware upgrading and
configuration.(Please note , it only
for backend server developer or
administrator ,It is not in delivery
list of CP100)
4.2. Battery Charging
z Please connect AC-DC power adapter with CP100.
z Insert the AC-DC power adapter into the power socket.
z During charging, the
will be Ever-light.
z You can also charge the battery by USB cable which connects CP100 with the PC.
z Charging time is about 5 hours.
Note: Before the first time using CP100, please full charge the battery.
PWR LED is flashing fast. When the battery is full charged, the PWR LED
4.3. Install SIM Card
z First, open the cover of SIM-card..
z Then insert the SIM card into the slot of SIM card according to the direction shown.
TRACCP100UM001 - 8 -
CP100 User Manual
z Finally, cover the slot.
4.4. Turn on/Turn off
z Turn on:
Method 1: Press the Power key at least 3 seconds and release it to turn on CP100. At
the same time,
z Turn off:
Method 1: Turn off device by manage tool ,use GTRTO ,parameter set to 5 (PWROFF).
Method 2: Turn off device by server command GTRTO, parameter set to 5 (PWROFF).
PWR LED will light on.
TRACCP100UM001 - 9 -
CP100 User Manual
5. Troubleshooting and Safety info
5.1. Troubleshooting
Trouble Possible Reason Solution
After CP100 is turned on, the
PWR LED flashes quickly
always.
Messages can’t be reported to
the backend server by GPRS.
Unable to power off CP100. The function was disabled. Please use manage tool to turn
Charging is abnormal. Please unplug wall charger
from CP100 and check wall
charger.
The SIM card in CP100
doesn’t support GPRS.
APN is wrong. Some APN
can not visit the internet
directly.
The IP address or port of the
backend server is wrong.
Try a GPRS supported SIM
card.
Ask the network operator for
the right APN.
Make sure the IP address for
the backend server is an
identified address in the
internet.
off or by server command.
No response from UART when
configure CP100 through
UART
CP100 can’t get successful
GPS fixing.
CP100 is in power saving
mode.
The GPS signal is weak.
Remove the Data_Cable_M,
and plug it in again. After this
operation, CP100 will exit
from power saving mode for 10
seconds.
Re-try CP100 manager tool
again, it will try to wake up
device.
Please move CP100 to a place
with open sky.
It is better to let the top surface
face to sky.
5.2. Safety info
z Please do not disassemble the device by yourself.
z Please do not put the device on the overheating or too humid place, avoid exposure to direct
sunlight. Too high temperature will damage the device or even cause the battery explosion.
z Please do not use CP100 on the airplane or near medical equipment.
TRACCP100UM001 - 10 -
