GSM/GPRS/GPS Tracker
GV200G
User Manual
TRACGV200GUM001
Revision: 1.01
GV200G User Manual
TRACGV200GUM001 - 1 -
Document T itle
GV200G User Manual
Version
1.01
Date
2012-07-23
Status
Release
Document Control ID
TRACGV200GUM001
Suitable Hardware Version
R101 or above
General Notes
Queclink offers this information as a service to its customers, to support application and
enginee ring effor ts that use the products de signed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has
not undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of
the customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of
a utility model or design. All specification supplied herein are subject to change without
notice at any time.
Copyright © Shanghai Queclink Wireless Solutions Co., Ltd. 2012
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 2 -
Contents
Contents ............................................................................................................................................ 2
Table Index ........................................................................................................................................ 3
Figure Index ...................................................................................................................................... 4
0. Revision History ........................................................................................................................... 5
1. Introduction ................................................................................................................................... 6
1.1. Reference ............................................................................................................................. 6
1.2. Terms and Abbreviations ..................................................................................................... 6
2. Product Overview ......................................................................................................................... 7
2.1. Appearance .......................................................................................................................... 7
2.2. Parts List .............................................................................................................................. 8
3. Interface Description ..................................................................................................................... 9
3.1. SIM Card Interface .............................................................................................................. 9
3.2. Antenna Interface .............................................................................................................. 10
3.2.1. Install Antennas ............................................................................................... 10
3.2.2. GPS antenna specification ............................................................................... 10
3.2.3. GSM antenna specification ............................................................................. 11
3.3. User Interface .................................................................................................................... 12
3.3.1. Interface Definition ......................................................................................... 12
3.3.2. Power Connection ........................................................................................... 13
3.3.3. 5V Output ........................................................................................................ 14
3.3.4. Reset Key ........................................................................................................ 14
3.3.5. I
gnition Detect ................................................................................................. 15
3.3.6. Ignition Control ............................................................................................... 15
3.3.7. Electrical conditions for digital inputs ............................................................ 16
3.3.8. Digital Input without Interrupt ........................................................................ 17
3.3.9. Digital Input with Interrupt ............................................................................. 18
3.3.10. Analog Input .................................................................................................... 18
3.3.11. Digital Output .................................................................................................. 20
3.4. Indicator Light Description ............................................................................................... 22
3.5. Audio Interface .................................................................................................................. 24
3.6. UART Interface ................................................................................................................. 25
4. GV200G_RELAY_Cable ............................................................................................................ 26
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 3 -
Table Index
TABLE 1: REFERENCE .......................................................................................................................... 6
TABLE 2: TERMS AND ABBREVIATIONS
.......................................................................................... 6
TABLE 3: PART LIST
............................................................................................................................. 8
TABLE 4: GPS ANTENNA SPECIFICATION
..................................................................................... 10
TABLE 5: GSM ANTENNA SPECIFICATION
.................................................................................... 11
TABLE 6: THE DEFINITION OF 24 PIN CONNECTOR
.................................................................... 12
TABLE 7: THE DESCRIPTION OF 24 PIN
......................................................................................... 13
TABLE 8: ELECTRICAL CONDITIONS OF IGNITION DETECT
.................................................... 15
TABLE 9: ELECTRICAL CONDITIONS OF IGNITION CONTROL
................................................ 16
TABLE 10: ELECTRICAL CONDITIONS OF NEGATIVE TRIGGER DIGITAL INPUTS
............... 16
TABLE 11: ELECTRICAL CONDITIONS OF POSITIVE TRIGGER DIGITAL INPUTS
................. 17
TABLE 12: ELECTRICAL CONDITIONS OF DIGITAL OUTPUTS
................................................. 20
TABLE 13: DESCRIPTION OF LEDS
.................................................................................................. 23
TABLE 14: THE CHARACTERISTICS OF MICROPHONE
.............................................................. 24
TABLE 15: THE CHARACTERISTICS OF SPEAKER
....................................................................... 25
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 4 -
Figure Index
FIGURE 1: APPEARANCE OF GV200G ............................................................................................... 7
FIGURE 2: SIM CARD INTERFACE ..................................................................................................... 9
FIGURE 3: SIM CARD INSTALLATION .............................................................................................. 9
FIGURE 4: THE ANTENNAS OF GV200G ......................................................................................... 10
FIGURE 5: THE SEQUENCE OF 24 PIN CONNECTOR.................................................................... 12
FIGURE 6: EXAMPLE OF POWER CONNECTION .......................................................................... 14
FIGURE 7: THE KEY OF RESET ......................................................................................................... 14
FIGURE 8: IGNITION DETECTION ................................................................................................... 15

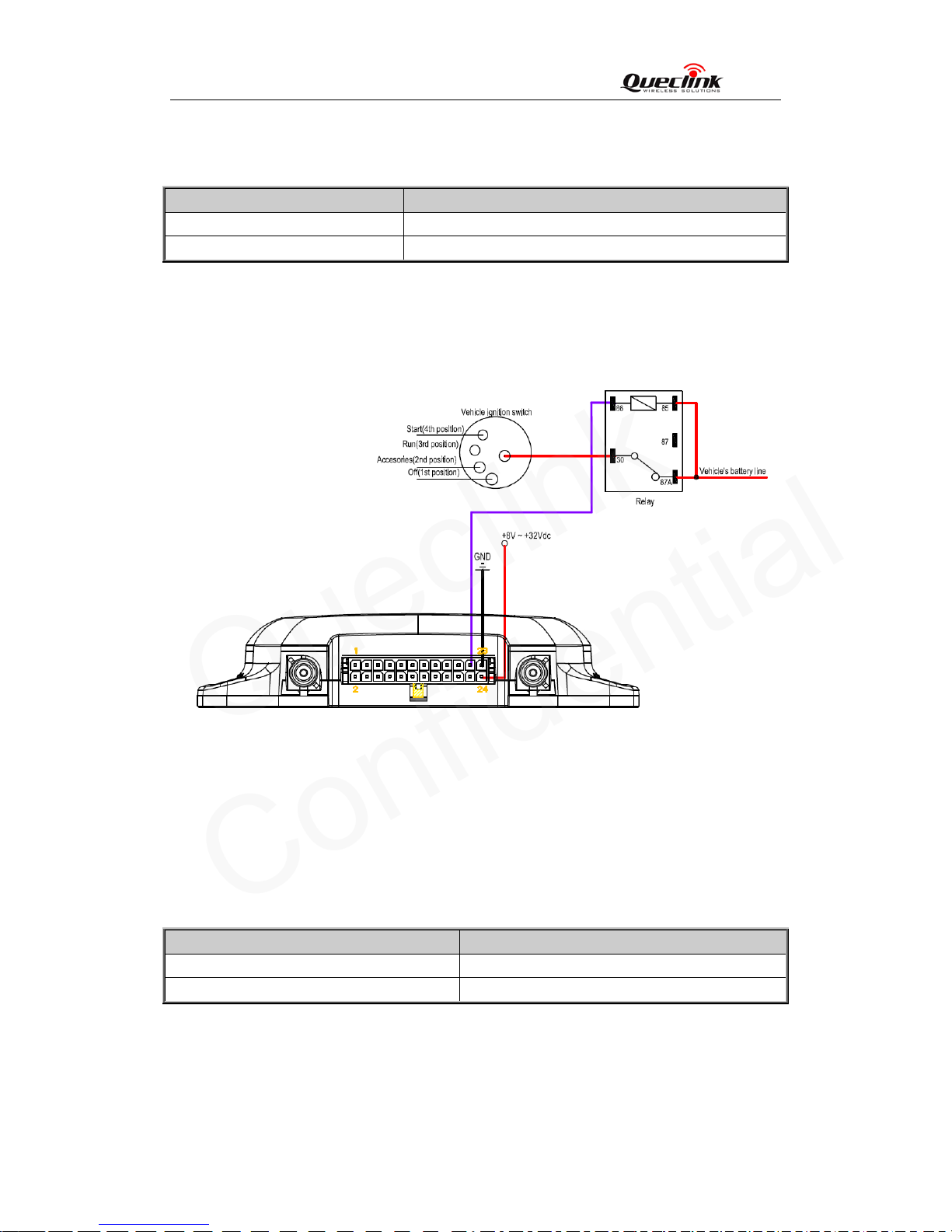

FIGURE 9: EXAMPLE CONNECTION OF IGNITION CONTROL .................................................. 16

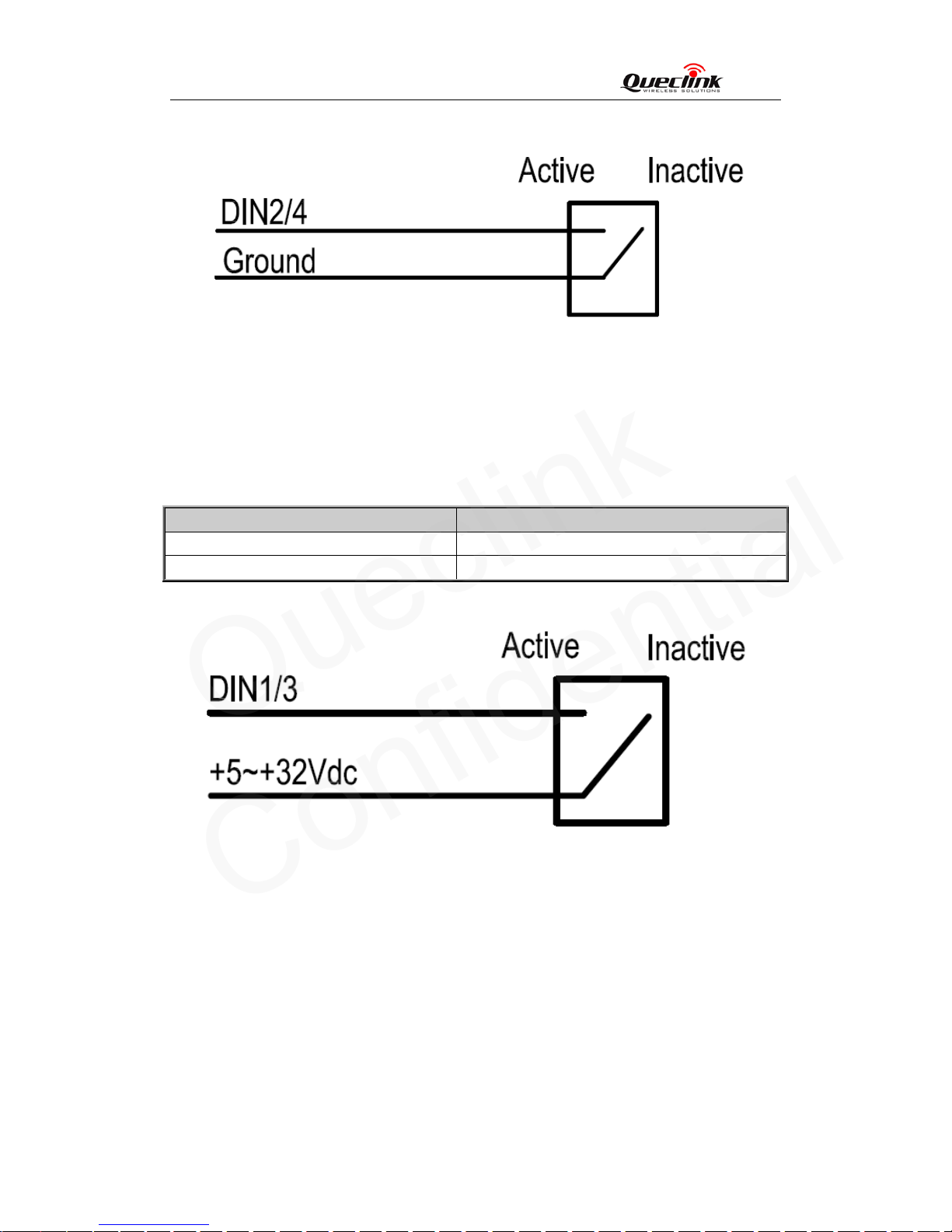

FIGURE 10: EXAMPLE CONNECTION FOR NEGATIVE TRIGGER DIGITAL INPUTS .............. 17
FIGURE 11: EXAMPLE CONNECTION FOR POSITIVE TRIGGER DIGITAL INPUTS ................ 17
FIGURE 12: EXAMPLE CONNECTION OF PANIC BUTTON ......................................................... 18

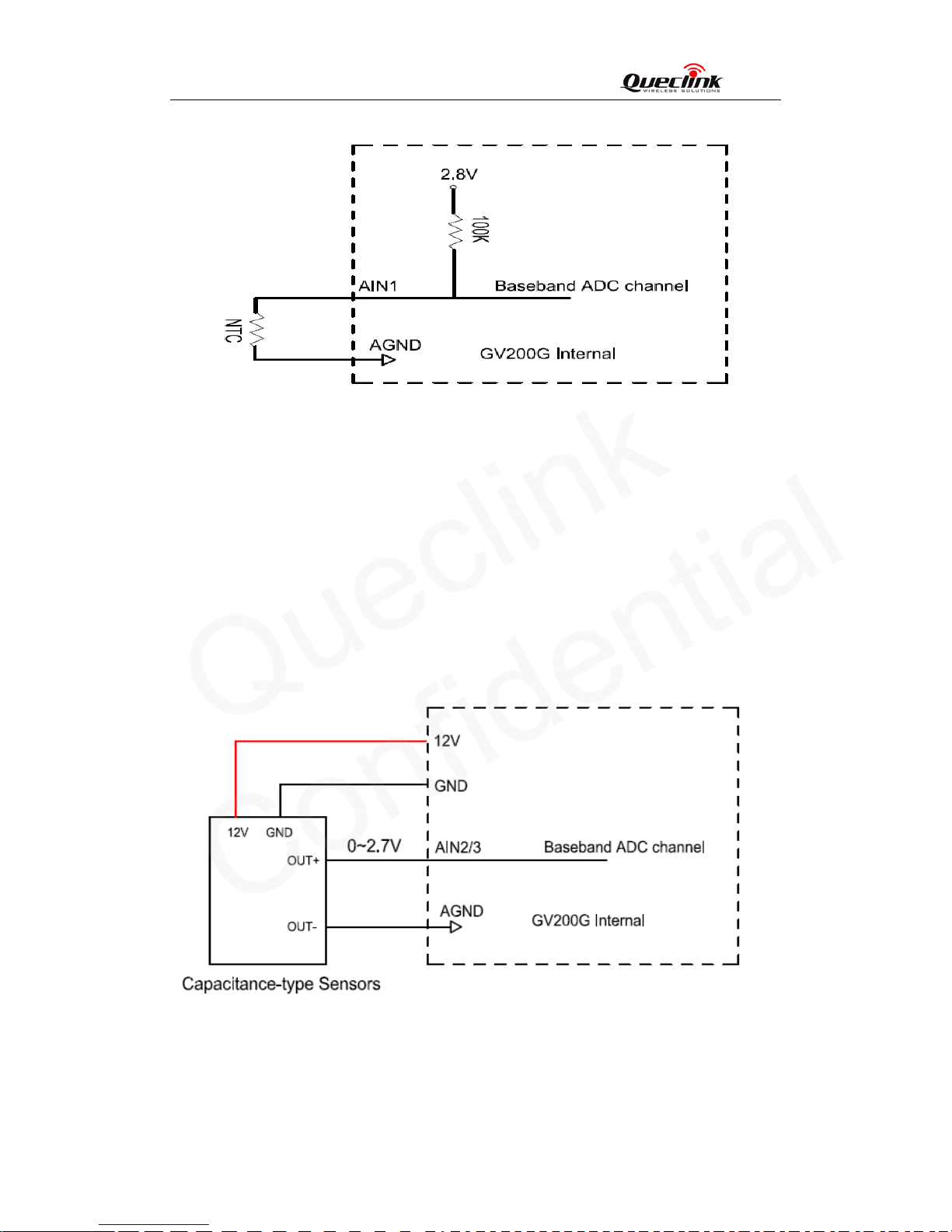

FIGURE 13: AIN1 CONNECT TO NTC RESISTOR ........................................................................... 19
FIGURE 14: AIN2/3 CONNECT TO CAPACIT ANCE-TYPE SENSOR ............................................. 19
FIGURE 15: THE EXAMPLE CONNECTION TO DRIVE A LED ..................................................... 20
FIGURE 16: THE EXAMPLE CONNECTION TO DRIVE A RELAY ................................................ 20
FIGURE 17: LEDS ON GV200G .......................................................................................................... 22

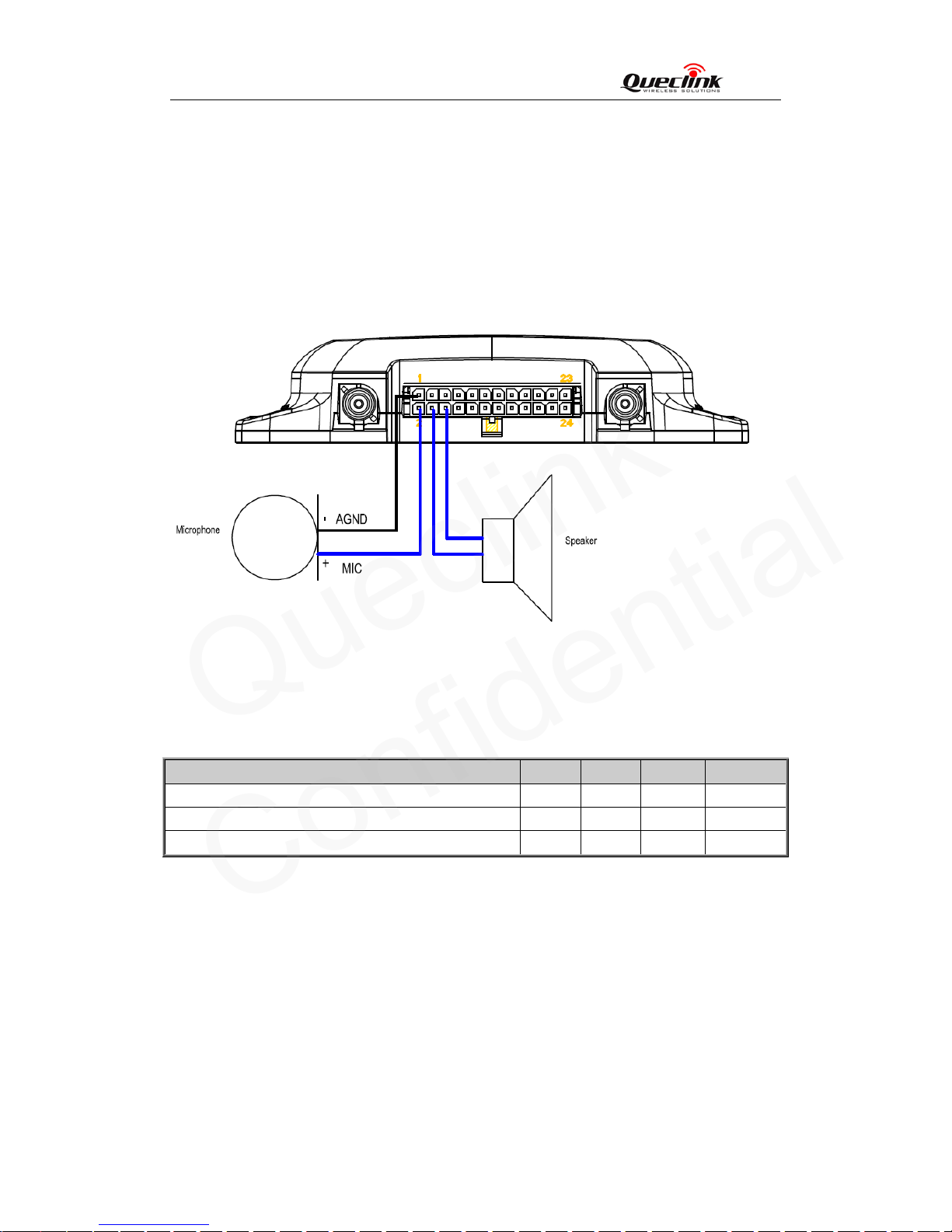

FIGURE 18: EXAMPLE CONNECTION FOR AUDIO ....................................................................... 24
FIGURE 19: THE CONNECTION OF UART1 WITH FEMALE DB-9 .............................................. 25
FIGURE 20: THE CONNECTION OF UART2 WITH EXTERNAL DEVICES .................................. 26
FIGURE 21: THE CONNECTION OF GV200G_RELAY_CABLE WITH EXTERNAL DEVICES .. 26
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 5 -
0. Revision History
Revision Date Author Description of change
1.00 2011-12-22 Leo LEI Initial
1.01 2012-07-23 Leo LE I 1> Modify the introduction of chapter 1;
2> Modify the content of figure 9 and figure 16;
3> Add the description of the internal flyback
diode in chapter 3.3.11;
4> Add Suitable Hardware Version.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 6 -
1. Introduction
The GV200G is a powerful GPS Locator designed for vehicle tracking or asserts tracking.
With superior receiving sensitivity, fast TTFF (Time to First Fix) and Quad-Band GSM
frequencies 850/900/1800/1900, its location can be monitored in real time or periodically
tracked by a backend server or other specified terminals. The GV200G has multiple
input/output interfaces which can be used for monitoring or controlling external devices.
Based on the integrated @Track protocol, the GV200G can communicate with a backend
server through the GPRS/GSM network to transfer reports of Emergency, Geo-fence
boundary crossings, Lower Battery or scheduled GPS position along with many other useful
functions. Users can also use GV200G to monitor the status of a vehicle and control the
vehicle with its external relay output. System Integrators can easily setup their tracking
systems based on the full-featured @Track protocol.
1.1. Reference
Table 1: Reference
SN Document name Remark
[1] GV200G @Track Air Interface Protocol
The air protocol interface between
GV200G and backend server.
1.2. Terms and Abbreviations
Table 2: Terms and abbreviations
Abbreviation Description
AGND Analog Ground
AIN Analog Input
DIN Digital Input
DOUT Digital Output
GND Ground
MIC Microphone
RXD Receive Data
TXD Transmit Data
SPKN Speaker Negative
SPKP Speaker Positive
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 7 -
2. Product Overview
2.1. Appearance
Figure
1: Appearance of GV200G
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 8 -
2.2. Parts List
Table 3: Part List
Name Picture
GV200G Locater
User Cable
GPS Antenna
GSM Antenna
12V DC power supply (Optional)
USB-232 data cable (Optional)
Uart Cable (Optional)
Extend Cable (Optional)
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 9 -
3. Interface Description
3.1. SIM Card Interface
To install the SIM car d
Step 1: Press the yellow button on the right side of SIM card slot to eject the SIM card
holder.
Figure 2: SIM Card Interface
Step 2: Put the SIM card on the SIM card holder.
Step 3: Install the SIM card holder to SIM card slot. Please pay attention to the direction.
Figure 3: SIM Card Installation
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 10 -
3.2. Antenna Interface
3.2.1. Install Antennas
There are two Fakra antenna connectors on GV200G, the blue one for GPS and the purple one
for GSM. Please find the GPS antenna and GSM antenna in package box. Install them to the
correct Fakra connector as following.
Figure 4: The Antennas of GV200G
3.2.2. GPS antenna specification
Table 4: GPS antenna specification
GPS antenna: Frequency: 1575.42MHz
Bandwidth: >5MHz
Beamwidth: >120 deg
Supply voltage: 3.3V
Polarization: RHCP
Gain: Passive: 0dBi minimum
Active: 15dB
Impedance: 50Ω
VSWR:
﹤2
Noise figure:
﹤3
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 11 -
3.2.3. GSM antenna specification
Table 5: GSM antenna specification
GSM antenna specification
Frequency and bandwidth
GSM850: 824MHz to 894MHz
EGSM900: 880MHz to 960MHz
DCS1800: 1710MHz to 1885MHz
PCS1900: 1850MHz to 1990MHz
Direction: Omnidirection
Gain: Passive: >0dBi
Impedance: 50Ω
VSWR: <4
Efficient:
GSM850: >40%
EGSM900: >40%
DCS1800: >30%
PCS1900: >30%
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 12 -
3.3. User Interface
3.3.1. Interface Definition
There is a 24 PIN connector on GV200G. It contains the interface of power, I/O, RS232,
microphone, speaker, etc. The sequence and def ini ti on of the 24 PIN connector are showed in
following figure:
Figure 5: The sequence of 24 PIN connector
Table 6: The definition of 24 PIN connector
1 3 5 7 9 11 13 15 17 19 21 23
AGND AIN1 AIN2 AIN3 RXD2 TXD2 DTR RXD TXD VOUT DOUT1 GND
2 4 6 8 10 12 14 16 18 20 22 24
MIC SPKP SPKN DIN4 DIN3 DIN2 DIN1 DOUT4 GND DOUT3 DOUT2 VIN
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 13 -
Table 7: The description of 24 PIN
Index Color of User
cable
Description Comment
1 Black Analog Ground For microphone and analog inputs
2 Blue Microphone Input MIC+
3 Green
Analog Input 1
(Input range: 0 ～
2.7V)
For resistance-type sensors
4 Blue Speaker Output Differential, Positive
5 Green Analog Input 2 For capacitance-type sensors
6 Blue Speaker Output Differential, Negative
7 Green Analog Input 3
For capacitance-type or resistance-type
sensors
8 White Digital Input 4
Negative Trigger
9 Orange
Receive Data
(UART2, RS232)
Connect to TXD of external device
10 White Digital Input 3
Positive Trigger, With interrupt
11 Orange/Gray
Transmit Data
(UART2, RS232)
Connect to RXD of external device
12 White Digital Input 2
Negative Trigger, with interrupt.
Recommended for panic button
13 Orange/Brown DTR
Data Te rminal Ready.
For waking up UART1 & UART2
14 White
Digital Input 1
(ACC Detect)
Positive Trigger, fixed for ignition
detect
15 Orange
Receive Data
(UART1, RS232)
Connect to TXD of external device
16 Yellow Digital Output 4
Negative Trigger
17 Orange/Gray
Transmit Data
(UART1, RS232)
Connect to RXD of external device
18 Black Ground For 5V output and UART
19 Purple 5V Output VOUT
20 Yellow Digital Output 3
Negative Trigger
21 Yellow Digital Output 1
Negative Trigger
22 Yellow Digital Output 2
Negative Trigger
23 Black Ground Power Ground
24 Red Power (+8V ~ 32V) Power (VIN)
3.3.2. Power Connection
PIN 24 is named as VIN which input voltage range is 8V to 32V DC and can be connected to
vehicle’s battery directly (12V or 24V DC).
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 14 -
Please install the power like following.
Figure 6: Example of power connection
3.3.3. 5V Output
PIN 19 is named as VOUT which can drive a controlled 5V output for user. Please note that if
user wants to drive a 5V output, GV200G must be supplied by external power. In def ault , 5V
output is disabled, user can use AT commend to enabled 5V output. The max drive current of
VOUT is 0.25A.
3.3.4. Reset Key
There is a rese t key on the right si de of SIM Card interface. When the key is pressed, the
device will reboot. Please note that reboot do not change any firmware parameter.
Figure 7: The key of reset
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 15 -
3.3.5. Ignition Detect
The PIN 14 is DIN1 (Positive trigger). Its electrical conditions are:
Table 8: Electrical conditions of ignition detect
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
It is strongly recommended to connect this pin to ignition key to support the power saving
function when the vehicle is off.
Figure 8: Ignition detection
Another easy way is to connect PIN14 to a power output in the fuse box of the vehicle which
is only enabled after the vehicle is ignition on. For example: the power output for radio FM.
3.3.6. Ignition Control
DOUT1/2/3/4 can be used to control ignition key. They are Open-Drain type with no internal
pull-up resistor which also be used to control a relay. It means that the user has to connect a
pull-up resistor or a relay coil between the DOUT1/2/3/4 pin and any posi tive volta ge (32V
max.) to generate a correct output. The DOUT1/2/3/4 pin can drive a continuous current of
0.2A.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 16 -
The electrical conditions of it are:
Table 9: Electrical conditions of ignition control
Logical State Electrical State
Enable <1.5V, drive current is 0.2A
Disable Open or the pull-up voltage (max 32V)
User can use this pin to control a relay output. An example to control the ignition key is
showed in following figure. Please refer to chapter 3.3.11 for the detail information on how to
drive a relay with digital output.
Figure 9: Example connection of ignition control
3.3.7. Electrical conditions for digital inputs
For negative trigger inputs the electrical conditions are:
Table 10: Electrical conditions of negative trigger digital inputs
Logical State Electrical State
Active 0V to 0.8V
Inactive 1.7V to 32V or Open
The example connection is showed as follow:
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 17 -
Figure 10: Example connection for negative Trigger digital inputs
For positive trigger inputs the electrical conditions are:
Table 11: Electrical conditions of positive trigger digital inputs
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
The example connection is showed as follow:
Figure 11: Example connection for positive trigger digital inputs
3.3.8. Digital Input without Interrupt
The DIN1 and DIN4 are digital inputs which do not have interrupt. DIN1 is positive trigger
and DIN4 is negative trigger. The sample rate for this digital input is 2 to 24 se conds. Please
note the high sample rate will also result in high power consumption.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 18 -
3.3.9. Digital Input with Interrupt
DIN2 and DIN3 are digital inputs which have interrupt. DIN2 is negative t ri gge r and DIN3 is
positive trigger.
The example connections are same as showed in chapter 3.3.7.
DIN2 is also recommended to support panic button function and the connection is showed as
follow.
Figure 12: Example connection of panic button
3.3.10. Analog Input
The PIN 3/5/7 are used for analog to digital converter. GV200G can support different type
sensors such as resistance-type and capacitance-type due to the differences between the three
analog inputs. Please note it is an average value based on the sample rate from 2 to 24
seconds, which means the burst on voltage input may not be detected.
3.3.10.1. Resistance-type Sensor
AIN1 (PIN 3) is designed to support some resistance-type sensors and there is an internal
pull-up resistor (100K Ohm) on its channel. Due to the internal pull-up resistor, user can
connect resistance-type sensors directly between analog inputs and AGND. The follow figure
is the example connection of AIN1 with NTC resistor. The recommended value of NTC
resistor is 100K@25℃.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 19 -
Figure 13: AIN1 connect to NTC resistor
3.3.10.2.
Capacitance-type Sensor
AIN2 (PIN 5) and AIN3 ( PIN 7) are designed to support capacitance-type sensors. In default
GV200G only support capacitance-type sensors which voltage range is 0 ~ 2.7V. If user
wants to use the capacitance-type sensors which voltage range is out of 0 ~ 2.7V, a level
transfer board must be used between capacitance-type sensors and GV200G. The follow
figure is the example connection of AIN2/3 with capacitance-type sensors.
Figure 14: AIN2/3 connect to capacitance-type sensor
User also can connect a power source directly to AIN2/3, the voltage limitation is same as
capacitance-type sensor.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 20 -
3.3.11. Digital Output
The outputs are Open-Drain type with no internal pull-up resistor which also be used to
control a relay. It means that the user has to connect a pull-up resistor or a relay coil between
the output pin a nd any positive voltage (32V max.) to generate a correct output. Each output
can drive a continuous current of 0.2A.
The electrical conditions are:
Table 12: Electrical conditions of digital outputs
Logical State Electrical State
Enable <1.5V, drive current is 0.2A
Disable Open or the pull-up voltage (max 32V)
Digital outputs are used for cutting/restoring GND. The example connections are:
Figure 15: The example connection to drive a LED
Figure 16: The example connection to drive a relay
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 21 -
Note: All outputs are internally pulled up to PWR pin by a diode. So no external flyback
diode is needed when the output is connected to an inductive load.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 22 -
3.4. Indicator Light Description
Figure 17: LEDs on GV200G
There are three LEDs in GV200G, the description as follow.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 23 -
Table 13: Description of LEDs
Light Case State
GPS LED If LED switch is set to off by AT+GTCFG, GPS
LED will be off all the time after it has worked for
30 minut es maximum from GV200G was powered
on. In this case, cases for GPS LED listed below
will be ignored.
Always Off
GPS LED will be off if GPS chip is closed.
Off
Checksum of NEMA
packet from GPS chip is
invalid.
Slow flashing
There is no data output from GPS chip when it is
working.
GPS chip is trying to get valid GPS info. Fast flashing
GPS chip has been getting valid GPS info. On
PWR LED If LED switch is set to off by AT+GTCFG, PWR
LED will be off all the time after it has worked for
30 minut es maximum from GV200G was powered
on. In this case, cases for PWR LED listed below
will be ignored.
Always Off
Backup battery is enabled and its voltage is not low
if external power supply is cut.
Off
Backup battery is enabled and its voltage is low if
external power supply is cut.
Slow flashing
Backup battery is enabled and it is in charging by
external power supply.
Fast flashing
Backup battery is enabled and it is fully charged by
external power supply.
On
Backup battery is disabled and external power
supply is connected.
GSM LED GV200G is in searching GSM network state. Fast flashing
GV200G has been registered to GSM network. Slow flashing
SIM card inserted to GV200G
need pin code to
unlock.
On
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 24 -
3.5. Audio Interface
There is a differential output for speaker and a signal-ended microphone on GV200G. Please
note that the PIN 1 is analog ground and should not be used as a power ground. GV200G has
an audio amplifier internally, so it can drive a louder speaker directly. It is recommended to
connect an 8 Ohm speaker to speaker interface, and an electret microphone is also
recommended.
Figure 18: Example connection for audio
Microphone input characteristics
Table 14: The characteristics of Microphone
Parameter Min Typ Max Unit
Working Voltage 1.0 1.5 2.0 V
Working Current 200 500 uA
External Microphone Load Resistance 2.2 k Ohm
Please note there are some recommendations about microphone:
1: Use an electret microphone with a sensitivity of -42±3dB/Pa @ 2V（not less than -44±3dB）
and impedance of 2.2kΩ.
2: Two filter capacitors (10pF (0603) and 33pF (0603)) are recommended to build into
microphone by vendor. These two capacitors could largely suppress coupling TDD noise
from RF interference.
3: MIC /AGND should be a couple of differential traces, not be close to power supply signals.
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 25 -
Speaker output characterist ics
Table 15: The Characteristics of Speaker
Parameter Conditions Min Typ Max Unit
Load Resistance 8 Ohm
Differential output level (
peak to
peak)
0 8.8 V
Rms Output Power Vp = 4.4V, RL = 8 OHM
THD + N < 0.1%
900 mW
3.6. UART Interface
There are two UART interfaces on GV200G which are named as UART1 and UART2.
UART1 is used for configuration and firmware downloading. UART2 is used to communicate
with external devices like CAN Bus module and RFID reader. PIN 13 is a control signal
which is named as data terminal ready (DTR). When the GV200G is sle epi ng, a hi gh le ve l on
DTR will wake up UARTs of GV200G.
Please note the UART interfaces are all RS232 level. For RS232 level , valid signals are plus
or minus 3V to 15V and the -3V to +3V is not a valid level. 3V to 15V correspond with logic
0 of TTL level, -3V to -15V correspond with logic 1.
The example connections of UART1 with female DB-9 and UART2 with external devices are
showed as follow.
Figure 19: The connection of UART1 with female DB-9
Queclink
Confidential
GV200G User Manual
TRACGV200GUM001 - 26 -
Figure 20: The connection of UART2 with external devices
4. GV200G_RELAY_Cable
GV200G_RELAY_CABLE is an assembled harness cable which contains a cut rela y output
and some digital input and outputs. It can easily help the user to install the GV200G in
vehicle with engine cutting function. The diagram of the GV200G_RELAY_CABLE is
showed in following:
Figure 21: The connection of GV200G_RELAY_CABLE with external devices
Queclink
Confidential
Loading...
