Page 1
RFID Card Reader User Guide
For GVXXX-Series Devices
ACCECR100UG002
Revision: 2.00
http://www.queclink.com
Page 2
RFID Card Reader User Guide
ACCECR100UG002 - 1 -
Document Title
RFID Card Reader User Guide
Version
2.00
Date
2012-02-20
Status
Release
Document Control ID
ACCECR100UG002
Page 3
RFID Card Reader User Guide
ACCECR100UG002 - 2 -
Contents
Contents ............................................................................................................................................ 2
0. Revision history ............................................................................................................................ 3
1. General Description ...................................................................................................................... 4
2. Product Specification .................................................................................................................... 5
2.1. Appearance .......................................................................................................................... 5
2.2. Specification ........................................................................................................................ 5
2.3. Parts List .............................................................................................................................. 6
3. Installation ..................................................................................................................................... 7
3.1. Interface Description ........................................................................................................... 7
3.2. Installation Example ............................................................................................................ 7
4. Message Format and Operation .................................................................................................... 9
Page 4
RFID Card Reader User Guide
ACCECR100UG002 - 3 -
0. Revision history
Revision
Date
Author
Description of change
1.00
2012-02-01
Cid Xu
Initial
2.00
2012-02-20
Cid Xu
Added Chapter “Installation”
Page 5
RFID Card Reader User Guide
ACCECR100UG002 - 4 -
1. General Description
This Radio Frequency Card Reader is a front-end device which can be used in Access
Control or other identification fields. It is able to read MIFARE S50 and S70 card, and
can be connected to the GVXXX-Series Devices with RS232 interface.
Page 6
RFID Card Reader User Guide
ACCECR100UG002 - 5 -
2. Product Specification

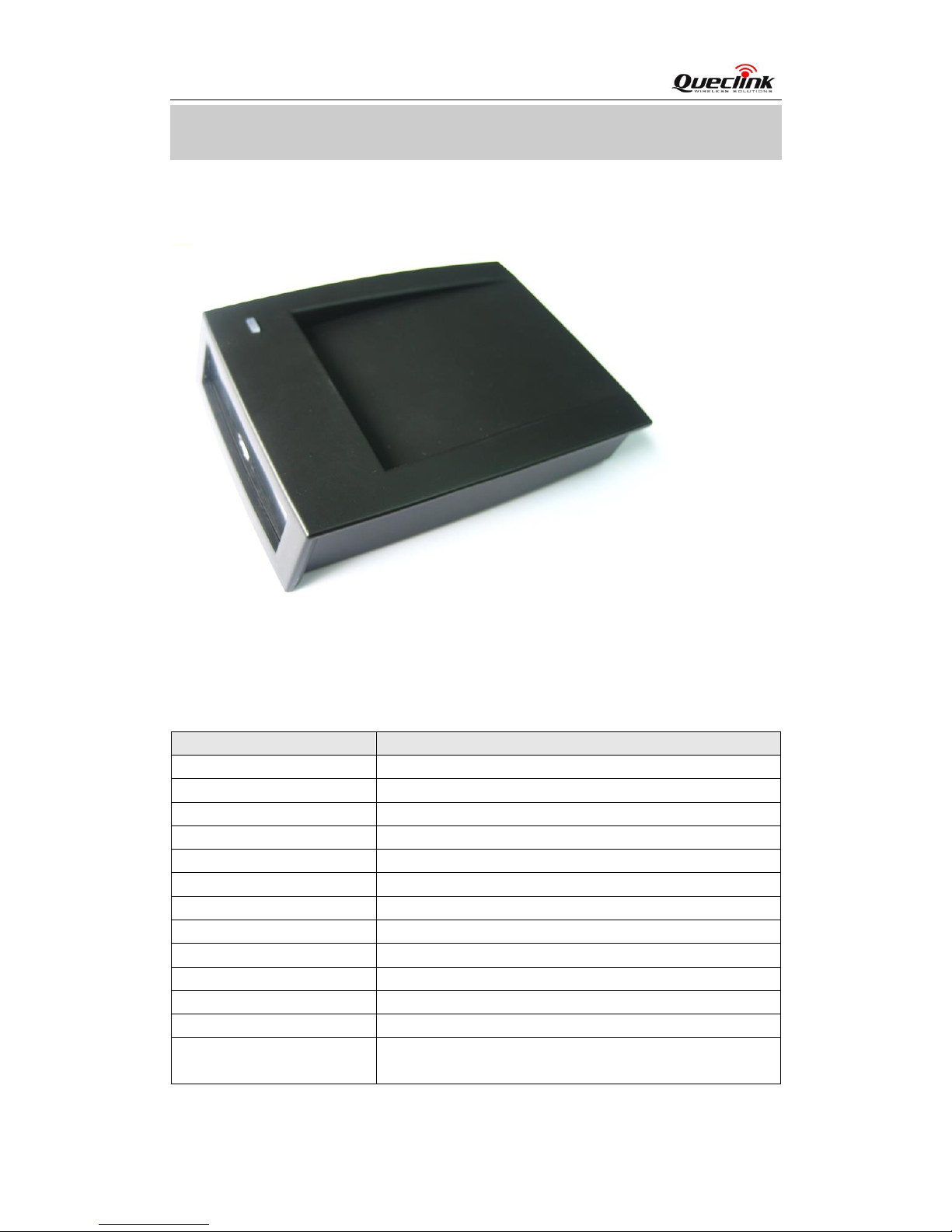

2.1. Appearance
2.2. Specification
Item
Description
Dimensions
25*82*105 mm
Weight
86g
Support Card
MIFARE S50 S70 series
Read-Write Distance
3~5 cm
Read-Write Speed
Less than 1s
Communication
RS-232
Power Supply
12VDC/500MA
Power consumption
Less than 0.3W
Casing Material
ABS
Casing Color
Black
Operating Temperature
-20℃－85℃
Humidity Level
10％－90％(Non-condensing)
LED
Green: Power LED – Slow flash after power on;
Red: Data LED – Flash once after read success;
Page 7
RFID Card Reader User Guide
ACCECR100UG002 - 6 -

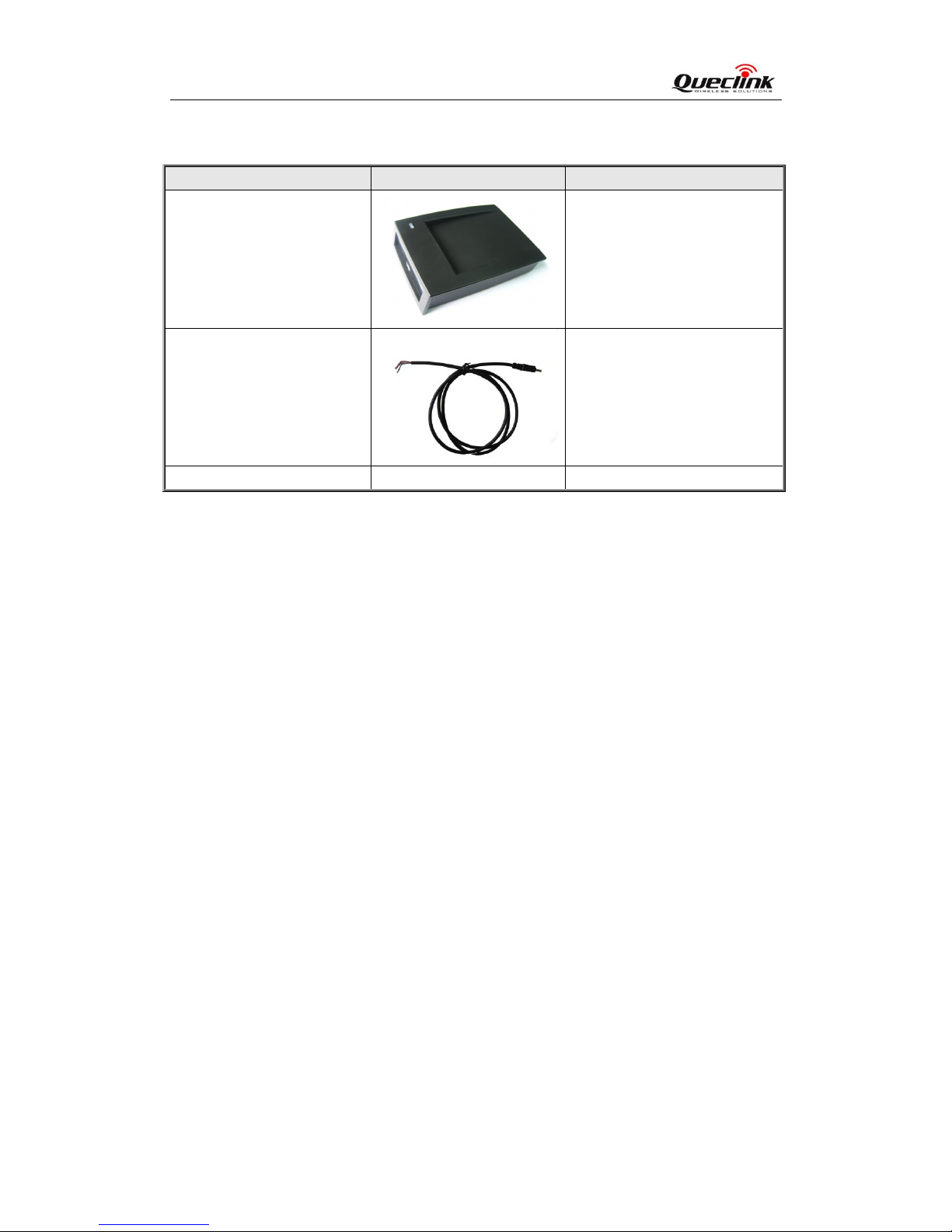

2.3. Parts List
Name
Remark
Card Reader
RFID Card Reader
RFID_Cable
(Standard accessory)
The User cable for Card
Reader
Page 8
RFID Card Reader User Guide
ACCECR100UG002 - 7 -

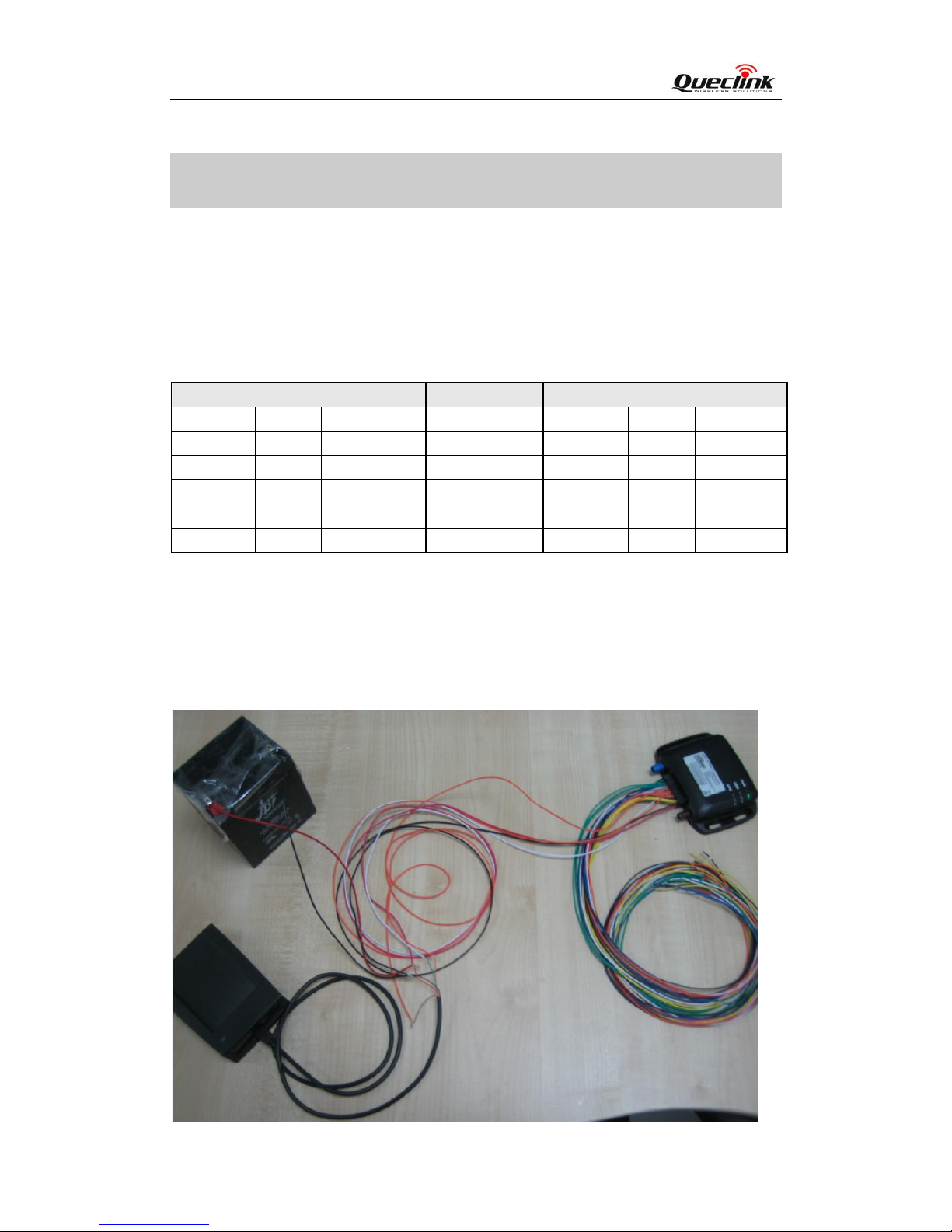

3. Installation
3.1. Interface Description
There are 5 wires on the RFID Card Reader, the description of the wires and sample
connection between Card Reader and GV200 are showed as follow:
RFID CABLE
Connection
GV200
PIN No.
Color
Description
←→
PIN No.
Color
Description
1
Black
Ground
←→
23
Black
GND
2
Brown
Interrupt
←→
12
White
DIN2
3
Orange
Transmit Data
←→
9
Orange
RXD2
4
Green
Receive Data
←→
11
Orange
TXD2
5
Red
Power
←→
24
Red
VIN
3.2. Installation Example
Device Connection Sample
Power Supply (12V DC)
GVXXX Device
RFID Card Reader
Page 9
RFID Card Reader User Guide
ACCECR100UG002 - 8 -

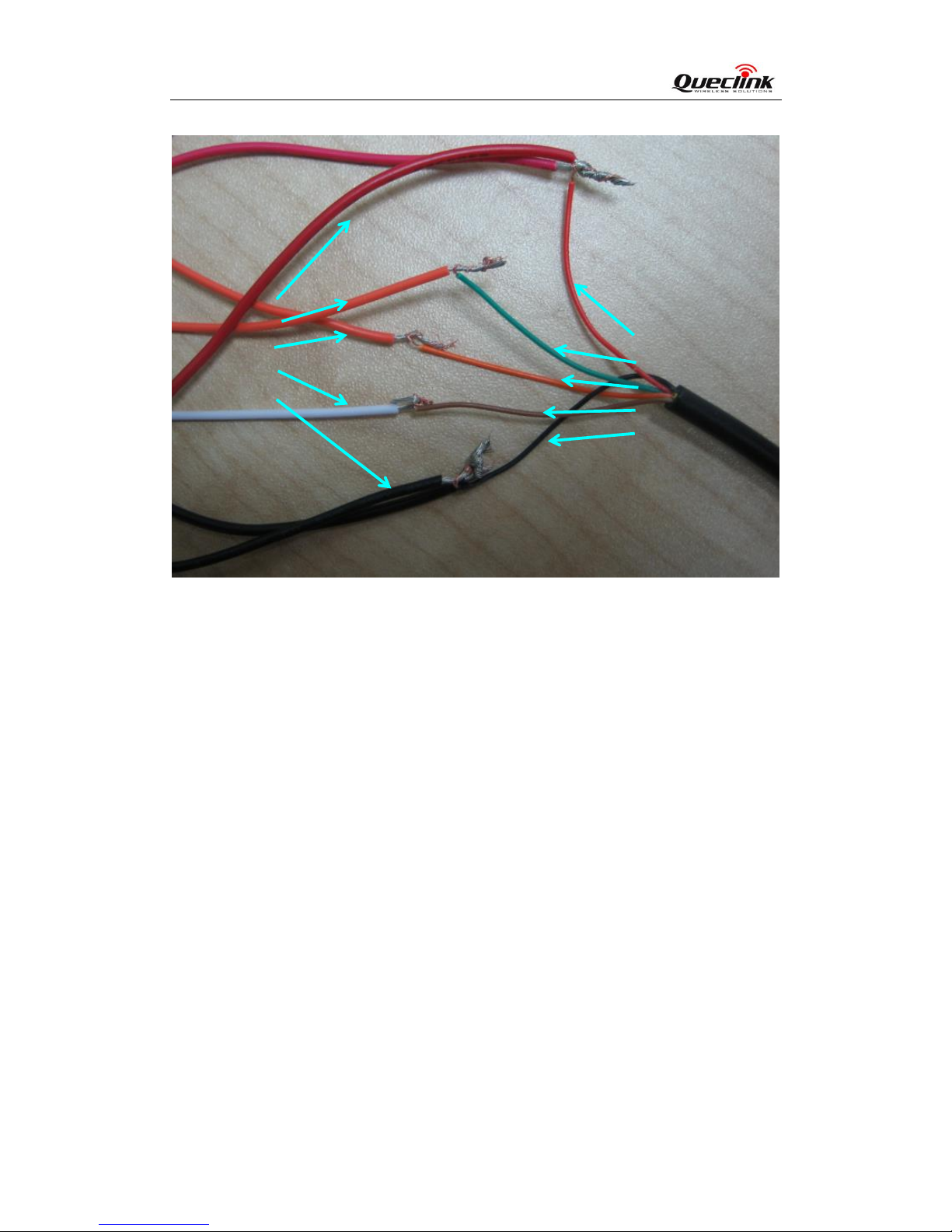

Detail Description
Power Supply (12V DC)
12V DC
Power Supply (12V DC)
Ground
24. VIN
11. TXD2
9. RXD2
12. DIN2
23. GND
5. Power
4. Receive Data
3. Transmit Data
2. Interrupt
1. Ground
RFID Card Reader
GVXXX Device
Page 10
RFID Card Reader User Guide
ACCECR100UG002 - 9 -
4. Message Format and Operation
Reference GVXXX @Track Air Interface Protocol.
