Queclink GL300VC User Manual

CDMA2000-1X Tracker GL300VC
User Manual
TRACGL300VCUM001
Version: 1.00
GL300VC User Manual
Queclink Confidential
Document Title GL300VC User manual
Version 1.00
Date 2015-1-30
Status Release
Document Control ID TRACGL300VCUM001
General Notes
Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change.
Copyright This document contains proprietary technical information which is the property of Queclink Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time.
Copyright © Queclink Wireless Solutions Ltd. 2015
GL300VC User Manual
Queclink Confidential

Contents

Contents ............................................................................................................................................ 2
0. Revision history ............................................................................................................................. 3
1. Introduction .................................................................................................................................. 4
2. Product Overview .......................................................................................................................... 5
2.1. Appearance ........................................................................................................................ 5
2.2. Buttons/Mini USB Interface Description ............................................................................ 5
2.3. LEDs Description ................................................................................................................. 6
2.4. External Power Interface .................................................................................................... 6
2.4.1 External DC Charger Interface .................................................................................. 6
2.4.2 External Battery Interface ........................................................................................ 7
2.5. Ignition Detection ............................................................................................................... 7
2.6. External Input Interface ...................................................................................................... 8
3. Getting Started .............................................................................................................................. 9
3.1. Parts List ............................................................................................................................. 9
3.2. Battery Charging ................................................................................................................. 9
3.3. GL300VC External Cable Interface .................................................................................... 10
3.4. Turn on/Turn off ............................................................................................................... 10
4. Troubleshooting and Safety info ................................................................................................. 11
4.1. Troubleshooting ............................................................................................................... 11
4.2. Safety info ......................................................................................................................... 11
GL300VC User Manual
Queclink Confidential

0. Revision history

Revision Date Author Description of change
1.00 2015/1/30 Abside Yu Initial
GL300VC User Manual
Queclink Confidential

1. Introduction

The water resistant GL300VC is a powerful GPS/GNSS locator designed for lone worker, vehicle, pet and asset tracking applications. The thumb sized button makes this device ideal for applications requiring rapid notification of emergency alert or regular setting of geo-fences based on current location. Its built-in GNSS receiver has superior sensitivity and fast time to first fix. Its CDMA2000-1X allowing the GL300VC's location to be monitored in real time or periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery and scheduled GPS/GNSS position.
GL300VC User Manual
Turn off GL300VC when without charging. (If power key is
Fence ID0, using the current position as the
Polymer battery can power
Backend server developer or administrator can use the
Queclink Confidential

2. Product Overview

2.1. Appearance

2.2. Buttons/Mini USB Interface Description

Button /Mini USB Interface Description
Power Key Turn on GL300VC
enabled)
Function Key Geo-Fence mode
Long press the key to enable/disable Geo-Fence ID0
Geo-Fence in current position mode
Long press the key to enable/disable Geo-Fence ID0. If enable Geo­center of Geo-Fence 0.
SOS mode (default)
Long press the key to active SOS alarm
Mini USB interface Connect a 5V DC adapter can power GL300VC and charge
the internal battery
Connect a 3.7V Li-ion or Li-
GL300VC
Data_Cable_M to configure GL300VC
GL300VC User Manual
<LED on> is 2
Dark
Power off or turn off the power light by
Queclink Confidential

2.3. LEDs Description

There are three LED in GL300VC, the description as following.
LED Event State
CELL LED
GPS LED GPS has fixed Solid
PWR LED Power on and normal Dark
Searching network
Network has been registered Slow flash Power off Dark SIM-PIN Locked Solid Receives a valid protocol command Turn on for 3 seconds
GPS is in fixing Fast flash
GPS is on and GPS data wrong Slow flash
GPS is off Dark
If <LED on> is 0, 150 seconds later after powers on.
<LED on> is 2 Dark
Charger inserted and charging completed Solid
Charger inserted and charging Fast flash
Power key was pressed and prepare to power off Fast flash Abnormal
Power low alert
command <LED on> is 2
Fast flash
Dark
Fast flash
Slow flash
Dark
Dark

2.4. External Power Interface

2.4.1 External DC Charger Interface

The Pin2 on Mini-USB connector are used for charging and named as VCHG pin, It can be connected to a 5V DC power supply to power GL300VC and charge the internal battery.
GL300VC User Manual
Queclink Confidential

2.4.2 External Battery Interface

The Pin 8 on Mini-USB connector is for external battery and named as EXTBAT pin, It can be
connected to 3.7V Li-ion or Li-Polymer battery to power GL300VC.

2.5. Ignition Detection

The Pin 7 on Mini-USB connector is for ignition detection when GL300VC is used in vehicle tracking application, It is named as IGN_IND pin.
GL300VC User Manual
Queclink Confidential
Another easy way is to connect PIN7 to a power output in the fuse box of the vehicle which is only enabled after the vehicle is ignition on. For example: the power output for radio FM.

2.6. External Input Interface

The Pin 5 on Mini-USB connector is a negative trigger input in newer hardware version, It is named as NSW pin. For negative trigger input the electrical conditions are:
Logical State Electrical State
Active 0V to 0.8V
Inactive 1.7V to 32V or Open
An input example is shown as following figures:
GL300VC User Manual
It is used to charge the can be used for firmware
It is the extend cable which include the charger interface
on GL300VC. It also includes the ignition detection
Queclink Confidential
Example of NSW pin connect to a panic button

3. Getting Started

3.1. Parts List

Name Picture Remark
GL300VC Locater
AC-DC Power Adapter (Standard accessory)
The CDMA-1X/GPRS/GPS locator.
internal battery of GL300VC.
GL300VC Data Cable (Optional accessory)
GL300VC External Cable (Optional accessory)

3.2. Battery Charging

Please connect AC-DC power adapter with GL300VC. Insert the AC-DC power adapter into the power socket. During charging, the PWR LED is flashing fast. When the battery is full charged, the PWR
LED will be Ever-light.
You can also charge the battery by USB cable which connects GL300VC with the PC. Charging time is about 5 hours.
Note: Before the first time using GL300VC, please full charge the battery.
It is the USB data cable which
upgrading and configuration.
and external battery interface
interface on the GL300VC.
GL300VC User Manual
Queclink Confidential

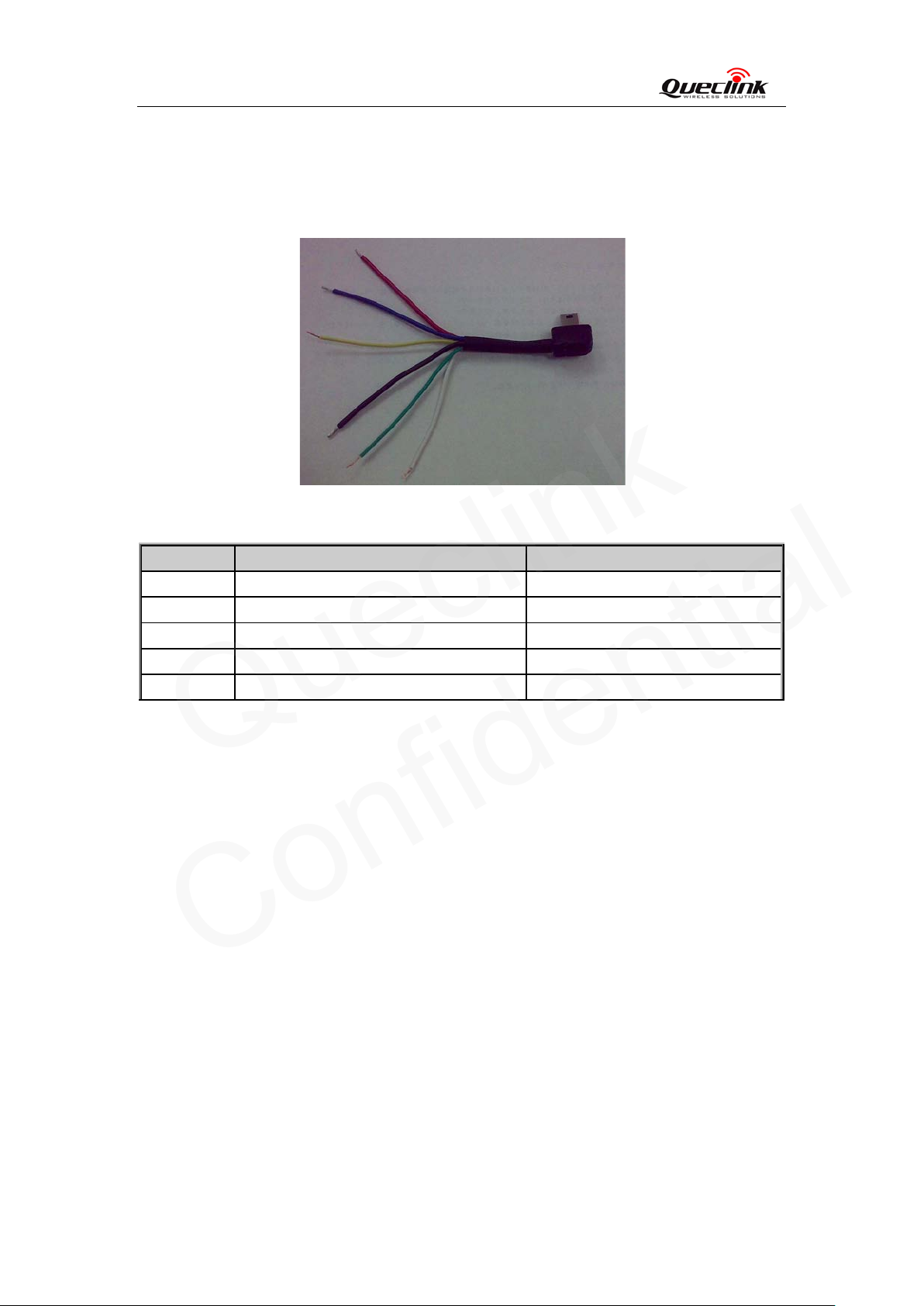

3.3. GL300VC External Cable Interface

GL300VC External Cable is a cable with a Mini USB connector and six wires which
include the external power interface, ignition detect and input interface for GL300VC. Please find the detail description in following table.
Color Name Remark
RED External DC IN (5V) Please refer to 2.4.1 for detail
Black Ground Please refer to 2.4.1 for detail
Blue External Battery IN (DC 3.4V to 4.2V) Please refer to 2.4.2 for detail
White Ignition Detect Please refer to 2.5for detail
Green

3.4. Turn on/Turn off

Turn on: Method 1: Press the Power key at least 3 seconds and release it to turn on
Method 2: Connect device to charger or external battery, and it will turn on
Turn off: Method 1: Press the power key about 2 seconds; PWR LED will fast flash and then
Method 2: If using external battery, device will power turn-off when external
NSWnegative trigger input
GL300VC. At the same time, PWR LED will light on.
automatically, PWR LED will light on.
turn off, it indicates that GL300VC is turned off. The time of power off is depended on the quality of network. The maximum time of power off is 90 seconds. It is only valid to turn off when using internal battery. Please note the end-user can not power off GL300VC when the power key is disabled by protocol.
battery disconnect.
Please refer to 2.6 for detail
TRACGL300VCUM001 - 10 -
GL300VC User Manual
Queclink Confidential

4. Troubleshooting and Safety info

4.1. Troubleshooting

Trouble Possible Reason Solution
After GL300VC is turned on,
the CDMA-1X LED flashes
quickly always.
Messages can’t be reported
to the backend server by
GPRS.
Unable to power off
GL300VC.
The signal is too weak; GL300VC
can’t register to the network.
APN is wrong. Some APN cannot
visit the internet directly.
The IP address or port of the
backend server is wrong.
The function of power key was
disabled by AT+GTSFR.
Please move GL300VC into
place with good CDMA-1X
coverage.
Ask the network operator for
the right APN.
Make sure the IP address for
the backend server is an
identified address in the
internet.
Enable the function of power
key by AT+GTFKS.
No response from UART
when configure GL300VC
through UART
GL300VC can’t get
successful GPS fixing.

4.2. Safety info

Unable to power off GL300VC if
charger connected or using
external battery.
GL300VC is in power saving
mode.
The GPS signal is weak. Please move GL300VC to a
Disconnect charger or external
battery, and try again.
Remove the Data_Cable_M,
and plug it in again. After this
operation, GL300VC will exit
from power saving mode for
10 seconds.
Re-try GL300VC manager tool
again, it will try to wake up
device.
place with open sky.
It is better to let the top
surface face to sky. (The same
surface with indication LED)
Please do not disassemble the device by yourself. Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the battery explosion.
Please do not use GL300VC on the airplane or near medical equipment.
TRACGL300VCUM001 - 11 -
