AirborneDirect™PP

User’s Guide

Ethernet Bridge

T802.11b/g

ABDG-ET Series

WLNG-ET Series

802.11b

ABDB-ET Series

WLNB-ET Series

Document number 100-8007-141G

Quatech, Inc. Confidential

ALL RIGHTS RESERVED. No part of this publication may be copied in any form, by photocopy, microfilm, retrieval system, or by any other means now known or hereafter invented without the prior written permission of Quatech, Inc. This document may not be used as the basis for manufacture or sale of any items without the prior written consent of Quatech, Inc.

AirborneDirect™ is a trademark of Quatech, Inc.

All other trademarks used in this document are the property of their respective owners.

Disclaimer

The information in the document is believed to be correct at the time of print. The reader remains responsible for the system design and for ensuring that the overall system satisfies its design objectives taking due account of the information presented herein, the specifications of other associated equipment and the test environment.

Quatech, Inc has made commercially reasonable efforts to ensure that the information contained in this document is accurate and reliable. However, the information is subject to change without notice. No responsibility is assumed by Quatech, Inc for the use of the information, nor for infringements of patents or other rights of third parties. This document is the property of Quatech, Inc. and does not imply license under patents, copyrights or trade secrets.

Quatech, Inc. Headquarters

QUATECH Inc.. 5675 Hudson Industrial Parkway Hudson, OH 44236 USA

Telephone: 330-655-9000 Toll Free: 800-553-1170 Fax: 330-655-9010 Email: sales@quatech.com

support@quatech.com

Web Site: www.quatech.com

CONTENTS

CHAPTER 1 INTRODUCTION................................................................................................................................1

TTFEATURES AND BENEFITSTT ............................................................................................................................2

SAMPLE APPLICATION..................................................................................................................................3

TTUSING THIS DOCUMENTTT ...............................................................................................................................4

CONVENTIONS............................................................................................................................................. 5

TTTerminology ..........................................................................................................................................5

TTNotes.....................................................................................................................................................5

TTCautions................................................................................................................................................5

RELATED DOCUMENTATION.......................................................................................................................... 6

CHAPTER 2 HARDWARE INSTALLATION........................................................................................................7

TTSTANDARD PACKAGE CONTENTS ..................................................................................................................7

STANDARD PACKAGE HARDWARE DESCRIPTION ............................................................................................ 9

Reset Switch .........................................................................................................................................9

Indicator LEDs.....................................................................................................................................10

Mounting Cradle..................................................................................................................................12

HEAVY-DUTY PACKAGE .............................................................................................................................13

Indicator LEDs.....................................................................................................................................15

SELECTING A LOCATION............................................................................................................................. 16

CONNECTING THE BRIDGE..........................................................................................................................17

CHAPTER 3 INITIAL CONFIGURATION............................................................................................................19

WIRELESS CONFIGURATION........................................................................................................................ 19

VERIFYING YOUR CONNECTIONS ................................................................................................................21

WPA-LEAP SECURITY..............................................................................................................................22

System Requirements.........................................................................................................................22

Computer Resource Requirements ....................................................................................................22

System Implementation Considerations .............................................................................................22

CHAPTER 4 AIRBORNE CONTROL CENTER.................................................................................................25

LAUNCHING THE ACC................................................................................................................................ 25

NAVIGATING AROUND THE ACC ...................................................................................................................27

PERFORMING CONFIGURATION ACTIVITIES..................................................................................................27

SAVING CONFIGURATION CHANGES............................................................................................................ 29

BASIC CONFIGURATION SETTINGS .............................................................................................................. 30

Status Page (Basic Configuration Settings)........................................................................................30

Miscellaneous Settings Page (Basic Configuration Settings).............................................................31

ADVANCED CONFIGURATION SETTINGS....................................................................................................... 41

Services Page (Advanced Configuration Settings).............................................................................41

Security Settings Page (Advanced Configuration Setting).................................................................43

Update Firmware Page (Advanced Configuration Settings)...............................................................45

Reset Page (Advanced Configuration Settings).................................................................................48

CHAPTER 5 TROUBLESHOOTING....................................................................................................................50

TROUBLESHOOTING SUGGESTIONS ............................................................................................................ 50

LED TROUBLESHOOTING ...........................................................................................................................52

APPENDIX A SPECIFICATIONS..........................................................................................................................53

APPENDIX B FCC COMPLIANCE........................................................................................................................59

FCC STATEMENT ..................................................................................................................................59

FCC RF EXPOSURE STATEMENT........................................................................................................ 59

INFORMATION FOR CANADIAN USERS (IC NOTICE)...................................................................................... 59

MANUFACTURER’S DECLARATION OF CONFORMITY ..................................................................................... 60

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page i

Quatech, Inc. Confidential

Contents

INDUSTRY CANADA NOTICE (APPLICABLE TO USE WITHIN CANADA) .............................................................60

AVIS DE CONFORMITE A LA REGLEMENTATION D’INDUSTRIE CANADA............................................................ 61

INDUSTRY CANADA (IC) EMISSIONS COMPLIANCE STATEMENT.....................................................................61

AVIS DE CONFORMITE A LA REGLEMENTATION D’INDUSTRIE CANADA............................................................ 61

EUROPEAN COMMUNITY—CE NOTICE........................................................................................................ 61

......................................................................................................................................................61

.............................................................................................................................................................62

GLOSSARY...............................................................................................................................................................65

INDEX.........................................................................................................................................................................69

Page ii AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Contents

LIST OF FIGURES

Figure 1. Basic Application Involving a LAN Host and Ethernet Client ........................................3

Figure 2. AirborneDirect™ Ethernet Bridge Hardware (standard package).................................9

Figure 3. Indicator LEDs on the AirborneDirect™ Ethernet Bridge............................................10

Figure 4. Mounting Cradle Dimensions......................................................................................12

Figure 5. AirborneDirect™ Ethernet Bridge Hardware (heavy-duty package) ............................13

Figure 6. AirborneDirect™ Heavy-Duty Cable (Evaluation Kit Item)...........................................14

Figure 7. End Cap Pin-out and Connector Location ...................................................................15

Figure 8. Device detection .........................................................................................................25

Figure 9. Device login ................................................................................................................26

Figure 10. Status Page ..............................................................................................................26

Figure 11. ACC Navigation Bar..................................................................................................27

Figure 12. Saved Settings Screen .............................................................................................29

Figure 13. Reset Notice Screen.................................................................................................29

Figure 14. Status Page ..............................................................................................................30

Figure 15. Miscellaneous OEM Settings Page ..........................................................................31

Figure 16. Wireless Network Configuration Page ......................................................................33

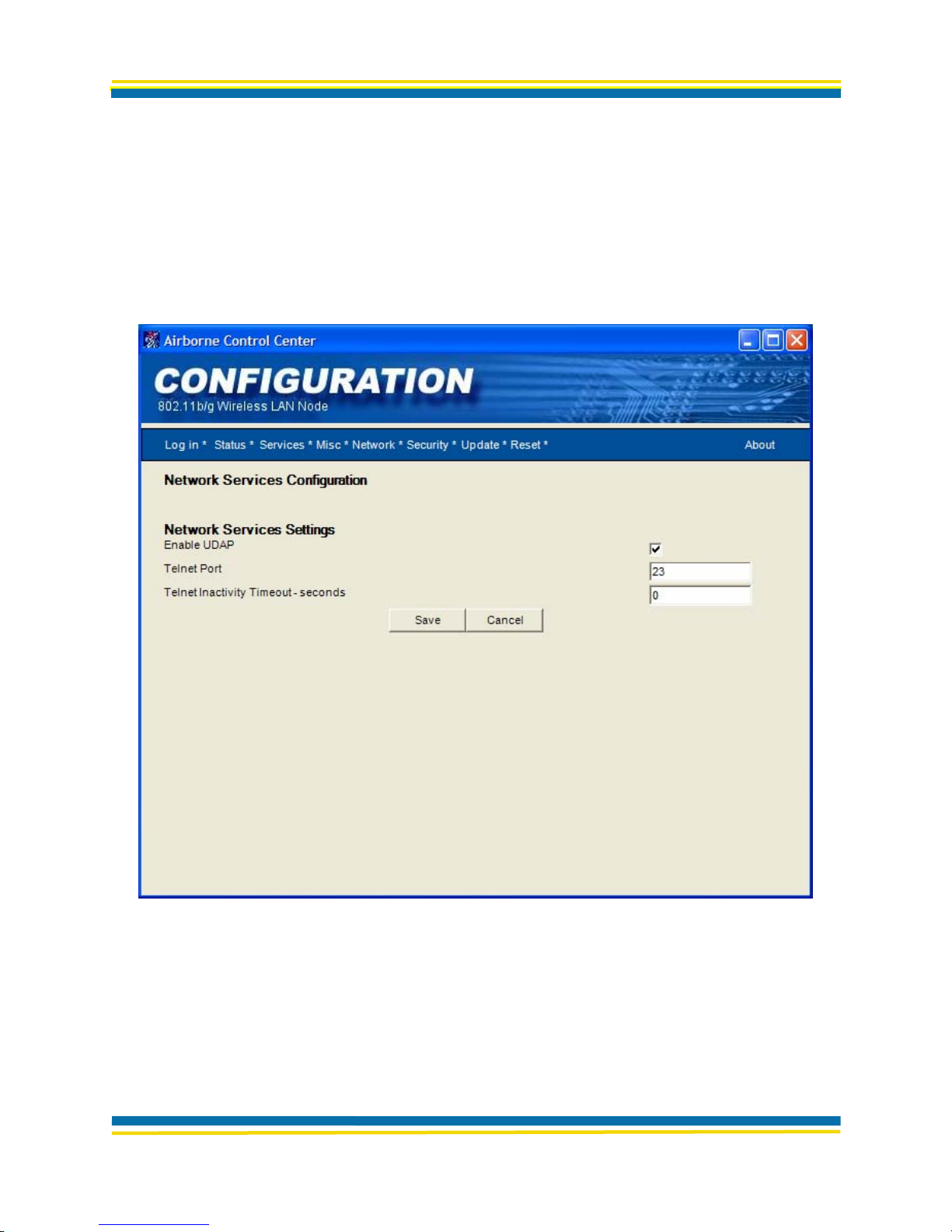

Figure 17. Network Services Page ............................................................................................41

Figure 18. Security Configuration Page .....................................................................................43

Figure 19. Update Firmware Page.............................................................................................45

Figure 20. Precautionary Message ............................................................................................46

Figure 21. Update Complete Message ......................................................................................47

Figure 22. Reset Page ...............................................................................................................48

Figure 23. Confirm Restart..........................................................................................................49

Figure 24. Reset In Progress .....................................................................................................49

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page iii

Quatech, Inc. Confidential

Contents

LIST OF TABLES

Table 1. AirborneDirect™ Ethernet Bridge Features and Benefits ..............................................2

Table 2. AirborneDirect™ Ethernet Bridge Indicator LEDs.......................................................11

Table 3. AirborneDirect™ Heavy-Duty Ethernet Bridge Indicator LEDs .....................................15

Table 4. Recording Information from Your Access Point’s Configuration Application ................20

Table 5. Miscellaneous OEM Settings .......................................................................................32

Table 6. Wireless Network Configuration Settings.....................................................................35

Table 7. Region Country Codes.................................................................................................40

Table 8. Network Services Settings ...........................................................................................42

Table 9. Security Configuration Settings....................................................................................44

Table 10. Troubleshooting Suggestions ....................................................................................50

Table 11. Indicator LED Troubleshooting ..................................................................................52

Table 12. Specifications.............................................................................................................53

Table 13. Heavy-Duty Power Supply Specifications...................................................................58

Table 14. Heavy-Duty DC Specifications....................................................................................58

Page iv AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

CHAPTER 1

INTRODUCTION

TTThis guide describes the AirborneDirect™ Ethernet Bridge from Quatech, Inc. AirborneDirect™

is a fully integrated, 802.11 wireless Local Area Network (LAN) connectivity device designed to provide wireless LAN and Internet connectivity in industrial, scientific, medical, and transportation applications where an existing communications interface already exists. The AirborneDirect™ Ethernet Bridge is well suited to the following applications:



TTPoint-of-sale devices. TTMedical equipment.



TTManufacturing machinery.



TTBar-code readers.



TTTime clocks.



TTScales.



TTData-collection devices.



TTVehicle Diagnostics.



TTTelematics.



TTThe AirborneDirect™ Ethernet Bridge provides true plug-and-play wireless connectivity. By

delivering convenient, easy-to-deploy wireless network connectivity, the Bridge significantly reduces the complexities of wireless system deployment and network implementation. At the same time, users can move equipment without the cost and time associated with wired network drops and environment restrictions. This provides flexibility for seasonal demands, line and staffing changes, and more.

TTThe AirborneDirect™ Ethernet Bridge provides a bridge between the 802.11 wireless LAN and

any Ethernet-ready device with an RJ-45 connector. It acts transparently between the device and a wireless LAN. By integrating AirborneDirect™ into existing and legacy platforms, OEMs can significantly enhance their products by delivering increased value and functionality to their entire customer base.

TTThe AirborneDirect™ Ethernet Bridge opens the world of remote device monitoring and

management (as well as wide-area data collection) to any device, machine, or plant that has an Ethernet connection and a network infrastructure. The development kit provides quick and easy access to the Bridge’s configuration and functions, while providing OEMs with a platform to develop their branded solutions. The Bridge also provides the capability to perform firmware upgrades that allow new features to be added quickly and easily, protecting your investment.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 1

Quatech, Inc. Confidential

Introduction

TTFEATURES AND BENEFITSTT

The key features and benefits of the TTAirborneDirect™ Ethernet Bridge are described in TXTXTable 1XTXT.TT

Table 1. AirborneDirect™ Ethernet Bridge Features and Benefits

Feature Benefit

TTSmall package outlineTT TTEasy to attach to existing equipment; light enough to allow easy

mounting to vertical surfaces.TT

TTExternal antenna connectionTT TTImproved control over deployment by using a standard antenna

connector that provides multiple antenna configurations, including omni-directional wand, patch, and panel solutions.

TTAllows the Bridge to be placed close to the Ethernet link and power

supply, while the antenna can be located remotely from the Bridge for optimum placement and reception. TT

TTIntegrated Ethernet cable and

Simplifies use by requiring no extra cables or connectors.TT

connectorTT

TTIdeal OEM solutionTT TTA complete package for OEMs to easily and quickly integrate the

AirborneDirect™ Ethernet Bridge into their product range.TT

TTFully integrated 802.11 WLAN

module includes radio, baseband, and application processor

TTFull 802.11 compatibility TT TTEliminates cables: provides Intranet or Internet connectivity using

No RF design or network software development needed (accelerates time-to-market while reducing development costs and risks).

industry-standard wireless infrastructure.TT

TTBuilt-in TCP/IP stack, RTOS

and application softwareTT

TTDesigned specifically for

industrial, scientific, medical,

Provides embedded products with LAN and Internet connectivity. Does not require special programming, only simple configuration.TT

TTIndustrial specifications ensure robust and reliable performance in

demanding system environments.TT

and automotive applicationsTT

TTConnectivity options include

Rel iable data transport for Ethernet devices.TT TCP/IP, ARP, ICMP, DHCP, DNS, Telnet, and UDAP

Page 2 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Introduction

SAMPLE APPLICATION

XXFigure 1XX shows a basic application where the TTAirborneDirect™ Ethernet Bridge is exchanging

data wirelessly between an Ethernet client and a LAN host. In this application:



TTThe EthernetTT client can be any device with an Ethernet port that is directly connected to

the

TTAirborneDirect™ Ethernet BridgeTT.

 The LAN host can be a network-based PC or server that requires connection to the

Ethernet Client using the network. The LAN host communicates with the

TTAirborneDirect™ Ethernet BridgeTT over a wireless network connection via an attached

Access Point (AP).

Figure 1. Basic Application Involving a LAN Host and Ethernet Client

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 3

Quatech, Inc. Confidential

Introduction

TTUSING THIS DOCUMENTTT

In addition to this chapter, this guide contains the following chapters and appendixes:

 Chapter 2, Hardware Installation ⎯ describes the AirborneDirect™ Ethernet Bridge

hardware and how to install it.

 Chapter 3, Initial Configuration ⎯ describes how to configure the AirborneDirect™

Ethernet Bridge on your network

 Chapter 4, Using the Airborne Control Center (ACC) ⎯ describes how to use the

Windows-based application to configure, manage, and view the status of the

AirborneDirect™ Ethernet Bridge.

 Chapter 5, Troubleshooting ⎯ provides troubleshooting suggestions in the unlikely event

you encounter a problem using the AirborneDirect™ Ethernet Bridge.

 Appendix A, Specifications ⎯ lists the AirborneDirect™ Ethernet Bridge specifications.  Appendix B, FCC Compliance ⎯ contains FCC compliance information.  Appendix C, Glossary ⎯ defines the terms associated with the AirborneDirect™

Ethernet Bridge and wireless networks in general.

For convenience, an Index appears at the end of this guide.

Page 4 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Introduction

CONVENTIONS

The following conventions are used in this guide:

TTTerminology

In the following chapters, these terms are used:

 “AirborneDirect™ Ethernet Bridge” is used the first time the Bridge is mentioned in a

chapter. Thereafter, the term “Bridge” is used.

 “Ethernet client” refers to the device to which the AirborneDirect™ Ethernet Bridge is

connected and which communicates with the Bridge over an RJ-45 connection.

 “LAN host” refers to a LAN-based computer running a HyperTerminal or Telnet session,

Web Browser, or LAN-based application that communicates with the Bridge via a wireless network connection.

TTNotes

TTA note is information that requires special attention. The following convention is used for notes.

TTCautions

TTA caution contains information that, if not followed, can cause damage to the product or injury to

Note:

TTA note contains information that deserves special attention. TT

the user. The following convention is used for cautions.

Caution

TTA caution contains information that, if not followed, can cause damage to

the product or injury to the user. TT

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 5

Quatech, Inc. Confidential

Introduction

RELATED DOCUMENTATION

In addition to this guide, the following documents are provided on the CD supplied with the AirborneDirect™ Ethernet Bridge:



TTAirborneDirect™ Ethernet Bridge User’s Guide. TTAirborneDirect™ Ethernet Bridge Quick Start Guide.

  Product Briefs and

TTApplication Notes.

These documents are provided as Portable Document Format (PDF) files. To read them, you need Adobe

AcrobatPP

ReaderPP

4.0.5 or higher. For your convenience, Adobe Reader is provided on the Evaluation Kit CD. For the latest version of Adobe Acrobat Reader, go to the Adobe Web site (www.adobe.com).

TTAdditional literature about AirborneDirect™ products and the Airborne WLN Module that powers

them, such as application notes, product briefs, and white papers, can be found on the Quatech Web site:

HHTUTUwww.quatech.comUUTTTTHTTH.

TTQuatech also offers developer documentation for its AirborneDirect™ products. Please contact

Quatech for more information.

Page 6 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

CHAPTER 2

HARDWARE INST ALLATION

TTThis chapter describes the TTAirborneDirect™ Ethernet Bridge. TTTopics in this chapter include:

TTPackage Contents. (below)



TTItems Supplied by the User. (below)



TTHardware Description. (page XX9XX)



TTSelecting a Location. (page XX13XX)



TTConfiguring The Access Point. (page XX16XX)



TTConnecting the Bridge. (page XX17XX)



TTVerifying Your Connections. (page 21XX)



TTSTANDARD PACKAGE CONTENTS

TTBefore beginning the hardware installation, verify that the hardware package contains:

 One AirborneDirect™ Ethernet Bridge with an attached cable and an RJ-45 interface

connector.

 One AC power adapter and cord.  One AirborneDirect™ mounting cradle (mounting hardware is user-supplied).

If you have the AirborneDirect™ Evaluation Kit, you should also have received:

 One Access Point (AP), IEEE 802.11b/g-compliant with DHCP enabled (optional).  An AirborneDirect™ Ethernet Quick Start Guide.  A CD containing this AirborneDirect™ Ethernet Bridge User’s Guide, the

AirborneDirect™ Ethernet Bridge Evaluation Kit Quick Start Guide, product briefs and application notes, Adobe® Reader® for viewing the documents and an Airborne™ Control Center (ACC).

If any item is missing, damaged, or improperly functioning, contact Quatech.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 7

Quatech, Inc. Confidential

Hardware Installation

TTITEMS SUPPLIED BY THE USER

TTThe following items, which are not included in the package contents, are also required:



TTAn Ethernet client, with an RJ-45 jack, that is within the transmit and receive range of the

Access Point to be used with the Bridge.



TTA LAN host running any operating system with TCP/IP (the ACC requires MicrosoftPP

Windows

TTAn IEEE 802.11b/g-compliant Access PointTT with DHCP enabledTT.



XP or Windows 2000).

 Mounting hardware for the AirborneDirect™ bracket mounting.

Other Access Points in the area may interfere with the Bridge’s ability to

Note:

associate with your chosen Access Point (the Bridge will try to associate with the first available “best-quality” AP). If you encounter difficulties with connecting to your chosen AP, either remove power from these Access Points or move to an isolated location, and then perform the setup in Figure 1 on page 3XX.

Page 8 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Hardware Installation

STANDARD PACKAGE HARDWARE DESCRIPTION

XXFigure 2XX identifies the components on the Bridge in its standard packaging. These components

include:

 An external antenna.  An RJ-45 jack and cable attached to the Bridge.  A Reset switch on the bottom of the Bridge.  Three indicator Light Emitting Diodes (LEDs) on the top of the Bridge.  A mounting cradle.

Figure 2. AirborneDirect™ Ethernet Bridge Hardware (standard package)

Reset Switch

The bottom of the AirborneDirect™ Bridge provides access to a Reset Switch. The Reset switch returns all Bridge parameters to their factory default firmware settings. To reset Bridge parameters, press (and hold) this switch for at least 5 seconds after power is applied to the Bridge. To protect against accidental resets, the Reset switch is recessed.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 9

Quatech, Inc. Confidential

Hardware Installation

Indicator LEDs

The Bridge has three indicator LEDs for viewing its current status and its connections (see

XXFigure 3XX). These indicators allow for monitoring and troubleshooting of the Bridge. They also

indicate the Bridge’s power-up status, link, connection, and data-activity status. describes the status of the indicator LEDs.

XXTable 2XX

Figure 3. Indicator LEDs on the AirborneDirect™ Ethernet Bridge

Page 10 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Table 2. AirborneDirect™ Ethernet Bridge Indicator LEDs

LED LED Color Function

Off Bridge is not receiving power.

Bridge failed its Power On Self Test (POST) and is not configured for wireless communication.

Bridge passed its POST but is not configured for wireless communication.

Bridge passed its POST and is configured for wireless communication.

No power, or no wireless TCP session is established and no Ethernet physical connection is detected.

No wireless TCP session is established; an Ethernet physical connection is detected.

An Ethernet physical connection was detected and there is Ethernet traffic present on that connection, but no wireless TCP session is established.

A wireless TCP connection is established but no physical Ethernet connection is detected (i.e., no Ethernet cable is attached to the Bridge).

A wireless TCP session is established, a physical Ethernet connection is detected, and the Bridge is transmitting or receiving data across the wired Ethernet port.

A wireless TCP session is established, a physical Ethernet connection is detected, but there is no active data movement across the wired Ethernet port.

Power

Link

Comm

Red

Amber

Green

Off Bridge is not receiving power. Blinking Red Bridge is searching for an Access Point. Green Wireless network and MAC have associated with an Access Point.

Off

Red

Blinking Red

Amber

Blinking Green

Green

Hardware Installation

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 11

Quatech, Inc. Confidential

Hardware Installation

Mounting Cradle

The Bridge comes with a mounting cradle that allows the Bridge to be installed on a vertical surface, such as a wall (see supplied) excessively to avoid damaging the cradle. When mounting the Bridge vertically, attach the cradle to the vertical surface, and then insert the Bridge into the cradle.

XXFigure 4XX). Be careful not to tighten the mounting hardware (user-

Figure 4. Mounting Cradle Dimensions

Page 12 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Hardware Installation

HEAVY-DUTY PACKAGE

The heavy-duty version of the Bridge is supplied in a Deutsch EEC-325X4B enclosure and is available in both sealed and unsealed versions. The heavy-duty Bridge supports SAE J1455 power specifications (+4.5 to 36 VDC).

Figure 5 identifies the components on the Bridge in its heavy-duty packaging. These components include:

 An external antenna.  A Deutsch 12-pin DTM13-12PA-R008 receptacle for power and signal connections.  A Reset switch.  Four indicator Light Emitting Diodes (LEDs) on the top of the Bridge.

Figure 5. AirborneDirect™ Ethernet Bridge Hardware (heavy-duty package)

Figure 6 shows the universal adapter cable supplied with AirborneDirect™ Heavy-Duty Evaluation Kits.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 13

Quatech, Inc. Confidential

Hardware Installation

Figure 6. AirborneDirect™ Heavy-Duty Cable (Evaluation Kit Item)

Page 14 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Hardware Installation

Indicator LEDs

The Heavy-Duty Bridge has four indicator LEDs for viewing its current status and connections (see Figure 5). These indicators allow for monitoring and troubleshooting of the Bridge. They also indicate the Bridge’s power-up status, link, connection, and data-activity status. Table 3 describes the status of the indicator LEDs.

Table 3. AirborneDirect™ Heavy-Duty Ethernet Bridge Indicator LEDs

Name Description

CONN LINK CFG POST

POST Power on self test completed

CFG Device has a valid IP address

LINK Device has successfully

associated/authenticated with an AP.

CONN TCP/IP connection established with

device.

End Cap Layout

The connectors required to attach to the device are: Ethernet/Power: Deutsch DTM-06-12SSA

RF: RP-SMA (Male)

Note: FACTORY RESET hole is optional, if a sealed enclosure is required.

Figure 7. End Cap Pin-out and Connector Location

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 15

Quatech, Inc. Confidential

Hardware Installation

SELECTING A LOCATION

You can mount the Bridge on a flat surface, such as a desk or table, or on a vertical surface, such as a wall. It can also be mounted on the ceiling. If you mount the Bridge vertically, use the supplied mounting cradle previously described.

Choosing a good location for the Bridge is important because it affects the reliability of the wireless link. The most important considerations are distance from the Access Point and clearance from obstacles.

When considering a location for installing the Bridge, ensure that it:

 Provides sufficient ventilation around the Bridge.  Allows easy access to disconnect the Bridge from the AC wall outlet if necessary.  Does not expose the Bridge to excessive heat, humidity, vibration, or dust.  Conforms to local regulations.

Because radio waves travel in a straight line, the location where you will install the Bridge must provide a clear path to the Access Point that is free of major obstacles. The effects of obstacles, both along and near the path, have a significant bearing on the travel of radio signals and can cause both interference and signal cancellation. Consider the effects of the following common obstacles:

 Trees and large plants

A tree or large plant directly in the path can totally block the signal. With clearance above the trees, there are usually no blocking effects.

 Man-made obstacles

Square or rectangular objects, in or near the path, have rectangular surfaces that can block and interfere with signals over and around them.

 Floor

A floor can interfere with signals if the Bridge is mounted too low. Mount the Bridge so the antenna is high enough to allow adequate clearance from the floor.

Page 16 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Hardware Installation

CONNECTING THE BRIDGE

The following procedure describes how to connect the Bridge:

• Place the Bridge in a dry, clean location near the device to which it will be connected. The

location is required to have an AC power source and be within 300 feet (100 meters) of an IEEE 802.11b/g-compliant wireless LAN Access Point with DHCP enabled. The location should be away from transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators or other equipment that could cause radio-signal interference.

Note:

Do not connect the Bridge to the intended Ethernet client at this time.

• Raise the antenna on the Bridge so it is pointing vertically.

• Connect the supplied power adapter to the Bridge and to a grounded 110/240V, 50-60Hz

AC power source.

• If your Access Point is using WEP or WPA, disable the security. You can re-enable WEP or

WPA after the Bridge has been configured.

• Connect the RJ-45 jack on the Bridge’s Ethernet cable to an RJ-45 jack on your Ethernet-

ready device.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 17

Quatech, Inc. Confidential

Hardware Installation

This page intentionally left blank.

Page 18 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

CHAPTER 3

INITIAL CONFIGURATION

This chapter describes configuring the AirborneDirect™ Ethernet Bridge. Topics in this chapter include:

 Wireless Configuration. (below)  Verifying Your Connections (page 20)  WPA-LEAP Security. (page 20)

WIRELESS CONFIGURATION

After you verify that the indicator LEDs have gone through their power-up sequence, start the configuration application for your Access Point (your Access Point manual should describe this procedure). Then go the appropriate screen in the application and perform the following steps:

Access Point configuration applications vary between models and

Note:

• Find the Service Set Identifier String (SSID)

• Disable Wireless Security

• Find the Bridge’s Internet Protocol (IP) Address

manufacturers. In the following steps, there are suggested screen names where you might find the Access Point settings required to operate the Bridge. The screens in your Access Point’s configuration application may differ from those mentioned below. Refer to the documentation that came with your Access Point to locate the appropriate screens where these settings can be accessed.

Go to the Wireless Settings or equivalent screen in your Access Point’s configuration application that shows the Access Point’s SSID. Record the SSID in Table 4 (on page 20). You will need this information to configure the Bridge.

Go to the Wireless Settings, Security, Encryption, or equivalent screen in your Access Point’s configuration application that shows the WEP/WPA setting. If WEP or WPA is enabled, disable it (you can enable the AP security after the Bridge has been configured).

Go to the Attached Devices or equivalent screen in your Access Point’s configuration application that lists the IP addresses of devices attached to the Access Point. Find the IP address for the Bridge and record it in Table 4 (on page 20). You will need it to access the Bridge with the Airborne Control Center (ACC).

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 19

Quatech, Inc. Confidential

Initial Configuration

If you do not see the Bridge as an attached device, refresh the configuration

Note:

screen (some Access Point programs provide a Refresh button for this purpose). If the Bridge still does not appear, refer to the troubleshooting chapter in this Guide and in the documentation for your Access Point.

Note:

software (see page 25XX) to help determine the Bridge’s IP address.

• Verify the MAC Address

Go to the Attached Devices or equivalent screen in your Access Point’s configuration application that lists the MAC addresses of attached devices. Verify that the MAC address shown for the Bridge matches the one on the label on the back of the Bridge.

• Verify the Dynamic Host Configuration Protocol (DHCP) Name

Go to the Router Status or equivalent screen in your Access Point’s configuration application that shows the Bridge’s DHCP client name. Verify that this name matches the last six characters in the Bridge’s MAC address (AIRBORNExxxxxx) on the label on the back of the Bridge.

Table 4. Recording Information from Your Access Point’s Configuration Application

Parameter Value

Access Point’s SSID

Bridge’s IP address

You can also use the device discovery feature of the Airborne Control Center

If the Bridge is unable to obtain an IP address through DHCP, after the

Note:

acquire limit is exceeded (150 seconds) the bridge will install the fallback IP address (192.168.10.1) and subnet (255.255.255.0).

The bridge can be accessed using this address, after DHCP fails, by the attached host using a different IP address in the same subnet (192.168.10.8).

Page 20 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Initial Configuration

VERIFYING YOUR CONNECTIONS

When the Bridge is powered-up, the indicator LEDs at the top of the Bridge will indicate the status of the Bridge. See Table 2 on page 11 for standard packaging, or Table 3 on page 15 for Heavy-Duty packaging.

If the LEDs indicate a problem with a wired or wireless connection, remove the power source from the Bridge, wait a few seconds, and re-apply power. If the LEDs still do not behave appropriately, see the guidelines in Table 11 on page 52.

Other Access Points in the area may interfere with the Bridge’s ability to

Note:

associate with your chosen Access Point (the Bridge will try to associate with the first available “best-quality” AP). If you encounter difficulties with connecting to your chosen AP, either remove power from these Access Points or move to an isolated location and perform the setup shown in Figure 1 on page 3.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 21

Quatech, Inc. Confidential

Initial Configuration

WPA-LEAP SECURITY

The WPA and LEAP software modules provide advanced security configuration and communication services required by today’s enterprise-class deployments.

Please refer to IEEE standard 802.1x 2001 (section 4) and IEEE standard 802.11i 2004 (section

4) for additional information.

System Requirements

Both WPA and LEAP require radio firmware version 1.1.1.111.8.4 or later. The AP requires WPA support. LEAP must be supported in the AP or a separate authentication server.

Computer Resource Requirements

WPA-PSK

In order to function properly, an Access Point that supports WPA-PSK must be available. The WPA-PSK passphrase installed on the Access Point must match the passphrase configured on the bridge.

LEAP

In order to function properly, a RADIUS server configured for LEAP containing usernames/passwords, and an Access Point that supports LEAP, must be available. The RADIUS server username and password must match the user-leap and pw-leap command values configured on the bridge.

The blank character (space) may not be included in a passphrase or LEAP

Note:

password.

System Implementation Considerations

The bridge must be in infrastructure mode for WPA-PSK or LEAP to operate properly. A bridge configured for WPA-PSK requires a connection to an AP with WPA-PSK enabled. A bridge configured for LEAP requires a connection to an AP with LEAP enabled and connected to a RADIUS server to provide authentication.

Until the bridge is authenticated by either the WPA-PSK enabled AP or the RADIUS server, no IP network communication can proceed.

Symptoms of an unauthenticated client include:

 A bridge configured for DHCP will not obtain host configuration from the DHCP server;

therefore, the IP address will remain 0.0.0.0.

Page 22 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Initial Configuration

 The Link LED turns green when 802.11 association completes. However, if the 802.1x

authentication fails, the bridge becomes disassociated by the AP and the Link LED goes back to flashing red.

 The bridge will not respond to discovery requests.

Once the bridge is authenticated, additional impacts include:

 Roaming

A bridge configured for WPA-PSK can only roam to APs that have WPA-PSK enabled in the same ESS.

A bridge configured for LEAP can only roam to APs that support LEAP, roaming, and are connected to the same RADIUS server.

 Data Throughput and Latency

Round trip latency may increase and overall throughput may decrease, due to the additional steps to encrypt or decrypt data.

 Re-Keying

The session key may expire and the authentication process will be executed again causing streaming data to stop until a new key is authorized.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 23

Quatech, Inc. Confidential

Initial Configuration

This page intentionally left blank.

Page 24 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

CHAPTER 4

AIRBORNE CONTROL CENTER

This chapter describes how to use the Airborne Control Center (ACC) to configure the AirborneDirect™ Ethernet Bridge. The ACC is a user-friendly graphical-user interface (GUI) menu and data display. The interface is intuitive, allowing tasks to be performed simply by pointing and clicking your mouse.

LAUNCHING THE ACC

On the Windows XP Start menu, navigate to the Quatech submenu and click on Airborne Control Center. The ACC scans the local subnet for Airborne devices and displays a list like the one shown in

XXFigure 5XX.

Figure 8. Device detection

Highlight the desired device and click the Select button. The ACC displays the login page for the selected device as shown in

XXFigure 6XX.

Note:

The MAC address for the device you wish to connect to can be found on the label located on the back of the enclosure.

The 802.11b Bridge (ABDB or WLNB models) has a web interface available if the firmware does not contain the optional LEAP feature. The web interface is virtually identical to the ACC interface, so all of the information in this chapter applies to the web interface also. To access the web interface, enter the IP address of the Bridge in the address bar of the browser. The web interface requires Microsoft Internet Explorer 5 or later.

Note:

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 25

The 802.11b/g Bridge (ABDG or WLNG models) have no web interface.

Quatech, Inc. Confidential

Airborne Control Center

Figure 9. Device login

The IP address and telnet port number of the selected device are automatically transferred to the login page. Enter the user name and password (defaults “dpac” and “dpac”) and click on the OK button to login. To select a different device, click the Discover button to reinitiate the device detection scan. The Status page is displayed as shown in

XXFigure 7XX.

Page 26 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Figure 10. Status Page

Quatech, Inc. Confidential

Airborne Control Center

NAVIGATING AROUND THE ACC

A navigation bar appears at the top-right side of every screen in the ACC interface (see XXFigure 8

XX). This bar contains links that correspond to the pages you can access. To go to a page, click

the appropriate link in the navigation bar.

Figure 11. ACC Navigation Bar

PERFORMING CONFIGURATION ACTIVITIES

The ACC allows you to perform a variety of configuration activities. Basic configuration activities consist of the following steps. See “

page

XX33XX.

 Configuring the Bridge for Infrastructure mode

Infrastructure mode prepares the Bridge for use with an Access Point.

 Assigning a Service Set Identifier (SSID) to the Bridge

To allow a connection between the Bridge and an Access Point, the SSID of the two devices must be identical.

XXNetwork Settings PageXX” on

Note:

Point with the best signal, so long as all security settings match.

 Enabling Wireless Security (optional)

Wired Equivalent Privacy (WEP) and WiFi Protected Access (WPA) are security protocols for wireless local area networks (WLANs), defined in the 802.11 standard.

 Choosing Static or DHCP Assignment of IP Address

If DHCP is used, a client name can be assigned to allow identification of specific bridges on a network.

 Assigning user discovery name

The user discovery name identifies the Bridge in Evaluation and Management Utilities (if Enable UDAP is checked in the Services Page).

If the Bridge is configured with an SSID of “any”, it will connect to the Access

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 27

Quatech, Inc. Confidential

Airborne Control Center

Advanced configuration activities consist of the following:

 Changing the user name and administrator password

Lets you change the user name and administrator password for accessing the configuration interface. See “

XXSecurity Settings PageXX” on page XX43XX.

 Restarting the Bridge

Lets you restart (reboot) the Bridge. See “

XXReset PageXX” on page XX48XX.

 Updating Bridge Firmware

Updating Bridge firmware allows you to take advantage of new features as they become available. See “

XXUpdate Firmware PageXX” on page XX45XX.

 Resetting the Bridge

Lets you reset the Bridge to the factory-default settings. See “

 Modifying Device Services Settings

Lets you change port numbers and timeouts for the TCP and telnet ports. See “ Page

XX” on page XX41XX.

XXReset PageXX” on page XX48XX.

XXServices

Page 28 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Airborne Control Center

SAVING CONFIGURATION CHANGES

Some pages have Save and Cancel buttons. If you change parameters on one of these pages, click Save to apply your changes or Cancel to discard them. Once the changes are saved, the ACC displays the screen shown in page to make more changes then click Restart to apply all the changes at one time.

XXFigure 9XX. To continue, click Yes, or you can go to another

The ACC will display

XXFigure 10XX. Wait for the Restart to complete. Once the Restart has

completed, the ACC will redisplay the Status Page.

If the Status Page does not reappear, determine whether the Bridge’s IP

Note:

address changed. If it did, click the Login button on the ACC navigation bar and let the ACC discover the Bridge. Otherwise, try the Bridge’s old IP address again. The ACC may timeout before the Bridge can obtain its DHCP lease.

Figure 12. Saved Settings Screen

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 29

Figure 13. Reset Notice Screen

Quatech, Inc. Confidential

Airborne Control Center

BASIC CONFIGURATION SETTINGS

Status Page (Basic Configuration Settings)

The Status Page is the first page that appears in the ACC. This read-only page shows information about the Bridge. You may need to click the Status button in the navigation bar to update the contents on this page.

This page shows the Bridge’s version number, 802.11 status, network settings, and resources.

Parameters to note on this screen are:

 MAC address is the MAC address of the Bridge.

BSSID is the MAC address of the associated Access Point (AP).



RSSI indicates the receive signal strength in dBm.



Page 30 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Figure 14. Status Page

Quatech, Inc. Confidential

Miscellaneous Settings Page (Basic Configuration Settings)

Airborne Control Center

Figure 15. Miscellaneous OEM Settings Page

Clicking the Misc link in the navigation bar displays the Miscellaneous OEM Settings page. In this page, you can enter the Bridge’s OEM version string and discovery name. This page also lets you specify the OEM user name and password.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 31

Quatech, Inc. Confidential

Airborne Control Center

Table 5. Miscellaneous OEM Settings

Parameter Description Miscellaneous OEM Settings

OEM Version String Specifies the OEM version string to be associated with the Bridge.

Default is oemverstr.

OEM Discovery Name Specifies the OEM discovery name to be associated with the Bridge.

Default is OEM-Cfg1.

OEM Authentication Settings

OEM User Name Specifies the name of the OEM, from 1 to 31 alphanumeric characters.

Name is case-sensitive. Default is oem.

OEM Password Two fields where you type and retype the OEM password, from 1 to 31

alphanumeric characters. Password is case-sensitive. For security, each password character appears as an asterisk. Default is oem.

Page 32 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Airborne Control Center

Network Settings Page (Basic Configuration Settings)

The Network Settings Page allows you to modify the 802.11 wireless network settings, including network identification, security, data rate, and discovery name. You are also able to set Network IP settings for control of the wired LAN, including enabling DHCP, static IP address and associated network settings.

This page actually displays more than one page of information. Use the

Note:

scroll bar to scroll down to see all of the items on the page.

Figure 16. Wireless Network Configuration Page

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 33

Quatech, Inc. Confidential

Airborne Control Center

XXFigure 13. Wireless Network Configuration PageXX (continued)

Page 34 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Airborne Control Center

Table 6. Wireless Network Configuration Settings

Parameter Description Wireless Network Settings

SSID Service Set Identifier that identifies the common service set

for the Bridge and AP. To make this connection, the Bridge and AP must have the same SSID. Default setting is any (this field may not be blank).

Wireless Network Type Specifies the type of network in which the Bridge will be

used:

• Infrastructure – connects to a WLAN using an AP. (default)

• Ad-Hoc – used to connect two peer-to- peer devices.

Ad-Hoc Mode Channel When Wireless Network Type is Ad-Hoc, selects the

channel used for communication. The two peer-to-peer devices must use the same channel. Range is 1 to 14 channels. Default channel is 1.

WLAN Region Code Bridge Operation Region

Specifies the wireless channels allowed. See XXTable 6. Region Country CodesXX on page XX40XX.

Default is US.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 35

Quatech, Inc. Confidential

Airborne Control Center

Wireless Security Settings

Wireless Security Mode

Enables or disables wireless security:

• Disable – Disable any security (default)

• WEP64 – 64-bit key length (11 ASCII

characters)

• WEP128 – 128-bit key length (26 ASCII characters)

• WPA-PSK - WPA with preshared key. Requires preshared key

• WPA-LEAP - WPA with 802.1x (LEAP)

authentication. Requires LEAP username and password

• WPA-LEAP64 - WPA with 802.1x (LEAP)

authentication, and using "WPA Migration Mode" (static 64-bit WEP key is used for broadcast and multicast traffic)

• WPA-LEAP128 - WPA with 802.1x (LEAP)

authentication, and using "WPA Migration Mode" (static 128-bit WEP key is used for broadcast and multicast traffic)

•

WPA-PSK64 - WPA with preshared key, and

using "WPA Migration Mode" (static 64-bit WEP key is used for broadcast and multicast traffic) Requires preshared key.

•

WPA-PSK128 - WPA with preshared key, and

using "WPA Migration Mode" (static 128-bit WEP key is used for broadcast and multicast traffic) Requires preshared key.

WPA Passphrase (Preshared Key)

LEAP Username Configures the WPA-LEAP username.

Page 36 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Configures the Pre-Shared Key used with WPA-PSK security. The input range is 8 to 63 ASCII characters or 64 hex

characters. This key must match the key on the AP.

The LEAP username [1 to 32 characters] must match the LEAP username assigned on the LEAP server. The LEAP username cannot contain spaces.

Quatech, Inc. Confidential

LEAP Password Configures the WPA-LEAP password.

The LEAP password [1 to 32 characters] must match the LEAP password assigned to the LEAP user on the LEAP server.

The LEAP password cannot contain spaces.

Airborne Control Center

Authentication

Default Key Default WEP Key from 1 – 4 if Shared Key or Both is

WEP Key 1 through 4 Up to four WEP key values. These values must be the same

Enable WPA Information Element format compatibility mode

Defines the type of key authentication, if any, to be used:

• Automatic – automatically detects the authentication (default)

• Open System – communicates the key across the network

• Shared Key – allows communication only with devices

with identical WEP settings

selected for Authentication. Default is WEP Key 1.

as the key implemented by the Access Point.

• If WEP Encryption = 64, enter 10 hexadecimal digits for each key.

• If WEP Encryption = 128, enter 26 hexadecimal digits for each key.

Controls the format of the WPA Information Element used in the Association Request management frame. Several brands of Access Points still use the legacy WPA format.

When unchecked, enables the Legacy WPA Information Element format.

When checked, enables the 802.1x WPA Information Element format.

Default is unchecked.

Parameter Description

Advanced Settings

Module MAC Address

Antenna Mode

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 37

Bridge’s MAC address. Default is factory set. Do not change this value; otherwise, unexpected results can occur.

• Ant2 – use primary antenna (J2) (default)

• Diversity – allows the Bridge to select the antenna

receiving the best quality signal.

Quatech, Inc. Confidential

Airborne Control Center

Maximum Transmission Rate

Network IP Settings Enable DHCP Client When checked, enables the Dynamic Host Configuration

DHCP Client Name Bridge’s DHCP client name.

Enable DHCP Fixed Interval Retransmission

DHCP Retransmit Interval

DHCP Acquire Time Limit

Enable DHCP Fallback to fixed IP

Bridge’s maximum wireless transmission rate. The Bridge will attempt the highest specified rate and fallback to a lower rate if necessary. Default is 5.5 Mbps.

Protocol (DHCP). For this parameter to work, the AP or network must support DHCP.

Enables the interval value below.

Configures the DHCP request retransmission interval (in seconds) to use when the DHCP retransmission is set to fixed.

This is an integer with a range of 1-64. Default is 15. Configures the number of seconds that the Module should wait

to acquire its IP configuration using DHCP before applying the DHCP fallback algorithm (if enabled).

This is an integer with a range of 1-255 seconds. Default is 150.

Note: “0” will turn of IP Fallback. Enables the DHCP fallback algorithm.

When the DHCP fallback algorithm is enabled, the Module will apply the configuration from DHCP Fallback IP, Subnet, and Gateway as the static IP configuration, if the DHCP client has not received its IP configuration after DHCP Acquire Time Limit seconds.

unchecked = Disable DHCP fallback algorithm (default)

Enable DHCP Fallback to last DHCP IP.

Save current DHCP IP Address as Fallback DHCP IP Address

DHCP Fallback IP Address

Page 38 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

checked = Enable DHCP fallback algorithm When enabled, use the last good DHCP IP address as the

fallback. Each time the IP address is successfully received via DHCP, the fallback IP address is updated to use the new IP address. It is *not* saved across reboots unless DHCP Fallback Persist is also enabled. This setting is ignored if DHCP Fallback is not enabled. When the DHCP Fallback Auto address is updated, enabling this setting causes the fallback IP address to be saved to NVRAM, so that it is saved across reboots. This setting is ignored if DHCP Fallback and DHCP Fallback Auto are not enabled. Configures the IP address used by the DHCP fallback algorithm.

Default is 192.168.10.1.

Quatech, Inc. Confidential

Airborne Control Center

DHCP Fallback Subnet

DHCP Fallback Gateway

Static IP Address If you use a static IP, each Bridge must have a unique IP

Subnet Mask Bridge’s subnet mask, up to four octets separated by a period.

Default Gateway/Router IP Address

Primary DNS Sets the primary DNS server address for DNS look-ups. If

Configures the Subnet Mask used by the DHCP fallback algorithm.

Default is 255.255.255.0 Configures the gateway address used by the DHCP fallback

algorithm. Default is 0.0.0.0.

address. The IP address must adhere to the network’s subnet mask and fall within the valid range of IP addresses for the network. The Bridge’s static IP address must contain up to four octets separated by a period. If Enable DHCP is checked, this parameter is ignored. Default is 0.0.0.0.

Default is 0.0.0.0.

Bridge’s LAN IP address, up to four octets separated by a period. Default is 0.0.0.0.

DHCP is enabled, the IP address provided by the DHCP server is used. Default is 0.0.0.0.

Secondary DNS Sets the secondary DNS server address for DNS look-ups

when the primary DNS server is unavailable. Default is 0.0.0.0.

Discovery Settings

User Discovery Name Sets the name_device field, which can be retrieved with the

CLI name_device command. Default is Device.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 39

Quatech, Inc. Confidential

Airborne Control Center

Table 7. Region Country Codes

Code Country Channels

US United States 1-11

AT Austria 1-11 AU Australia 1-11 BR Brazil 1-11 CA Canada 1-11 CH Switzerland and Liechtenstein 1-11 CY Cyprus 1-11 CZ Czech Republic 1-11 DE Germany 1-11 DK Denmark 1-11 EE Estonia 1-11

FI Finland 1-11 GB Great Britain 1-11 GR Greece 1-11 HK Hong Kong 1-11 HU Hungary 1-11

IE Ireland 1-11

IS Iceland 1-11

IT Italy 1-11

LT Lithuania 1-11 LU Luxembourg 1-11 LV Latvia 1-11

NL Netherlands 1-11 NO Norway 1-11 NZ New Zealand 1-11 PH Philippines 1-11

PL Poland 1-11

PT Portugal 1-11 SE Sweden 1-11

SI Slovenia 1-11 SK Slovak Republic 1-11 CN China 1-13

ID Indonesia 1-13

IL Israel 1-13

IN India 1-13 KR Korea 1-13 MY Malaysia 1-13 SG Singapore 1-13 BE Belgium 1-13 TH Thailand 1-13 TW Taiwan 1-13

ZA South Africa 1-13

JP Japan Wideband 1-14 FR France 10-13 ES Spain 10-11

Page 40 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Airborne Control Center

ADVANCED CONFIGURATION SETTINGS

Services Page (Advanced Configuration Settings)

The Services Page lets you configure the Bridge’s network services like Telnet and TCP Port settings.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 41

Figure 17. Network Services Page

Quatech, Inc. Confidential

Airborne Control Center

Table 8. Network Services Settings

Parameter Description

Enable UDAP When checked, enables Universal Data Appliance Protocol

(UDAP). This allows the Bridge to be discovered from a LAN-based device that supports the UDAP protocol. Default is checked.

Telnet Port Specifies the port number of the Telnet server.

Default is 23.

Telnet Inactivity Timeout – seconds Specifies the number of seconds of inactivity that must

occur for the Telnet session to timeout. Setting the timeout to 0 disables it. Default is 60.

Page 42 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Airborne Control Center

Security Settings Page (Advanced Configuration Setting)

The Security Settings Page allows management of the authentication-based access services. You can change user names and passwords.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 43

Figure 18. Security Configuration Page

Quatech, Inc. Confidential

Airborne Control Center

Table 9. Security Configuration Settings

Parameter Description

Configuration User Name

Configuration Password

Data Access User Name

Data Access Password

Specifies the user name required to log into the Bridge’s configuration interface, from 1 to 31 alphanumeric characters. User name is case-sensitive. Default is cfg. If you change it, you are prompted for the user name and password at the next transaction (for example, when you move to another page or refresh the current page).

Two fields where you type and then retype the configuration password required to access the Bridge’s configuration interface, from 1 to 31 alphanumeric characters. Password is case-sensitive. For security, each password character appears as an asterisk. Default is cfg. If you change it, you are prompted for the user name and password at the next transaction (for example, when you move to another page or refresh the current page).

Specifies the name required to pass data through the Bridge. The configuration user name can be 1 to 31 alphanumeric characters, and is case-sensitive. Default is user.

Two fields where you type and then retype the password required to pass data through the Bridge, from 1 to 31 alphanumeric characters. Password is case-sensitive. For security, each password character appears as an asterisk. Default is password.

Page 44 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Airborne Control Center

Update Firmware Page (Advanced Configuration Settings)

The Update Firmware Page allows you to update the firmware running on the AirborneDirect™ Ethernet Bridge.

Caution

Updating firmware may cause the Bridge to stop operating if it is not performed properly. Only advanced users should update firmware. If you encounter problems, contact Quatech, Inc.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 45

Figure 19. Update Firmware Page

Quatech, Inc. Confidential

Airborne Control Center

Note:

The firmware must come from Quatech, Inc. as a .bin file and follow the file name format:

DirectEthernet_ x.x.x.x.bin

Where xxxx is the version number of the firmware. For example:

DirectEthernet_4.2.0.12.bin

Caution

bridge or vice-versa.

To update the firmware, the following sequence must be performed:

• Select the Update link on the ACC screen.

• Enter the name of the new firmware version source file. This file must be of type .bin

and have come from Quatech, Inc. If the file is located on your hard drive, click Browse… and locate the source directory and file.

• Verify the correct firmware file has been selected (the file name is displayed in the File to Upload: field). The file’s name structure must be as follows:

 DirectEthernet_x.x.x.x.bin

o Where x.x.x.x is the version number of the firmware.

• Click the Update button.

Do not attempt to load firmware for an 802.11b/g bridge on an 802.11b

• The message shown in

XXFigure 17XX will be displayed. Wait for the upload to complete.

Page 46 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Figure 20. Precautionary Message

Quatech, Inc. Confidential

Airborne Control Center

• The ACC will display the message shown in XXFigure 18XX.

Figure 21. Update Complete Message

• Upon restarting, the Status Page will be displayed. If this does not happen automatically, close the ACC and restart it.

Caution

Updating firmware may cause loss of saved parameters.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 47

Quatech, Inc. Confidential

Airborne Control Center

Reset Page (Advanced Configuration Settings)

The Reset Page allows you restart or reset the Bridge to the factory default values.

Caution

customer changes. If the target AP has WEP or WPA enabled, the AirborneDirect™ unit will not be able to associate (WEP/WPA default is disabled).

Resetting the AirborneDirect™ unit to factory defaults will remove all

Page 48 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Figure 22. Reset Page

Quatech, Inc. Confidential

Airborne Control Center

Restarting the Bridge

When you click the Restart button, you will see the Warning displayed in XXFigure 20XX. Click Yes to complete the Bridge restart or No to stop the process and return to the Reset Page.

Figure 23. Confirm Restart

XXFigure 21XX will be displayed after you have clicked Yes. Click OK to dismiss this informational

dialog. Once the restart has been completed, the ACC will display the Status Page.

Figure 24. Reset In Progress

If the Status Page does not reappear, click the Status link on the

Note:

navigation bar. If it still does not reappear, determine whether the Bridge’s IP address changed. If it did, click the Login link on the navigation bar and log in to the Bridge again. Otherwise, try the Bridge’s old IP address again. The ACC may timeout before the Bridge can obtain its DHCP lease.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 49

Quatech, Inc. Confidential

CHAPTER 5

TROUBLESHOOTING

This chapter provides troubleshooting suggestions you can follow in the unlikely event you encounter a problem using the AirborneDirect™ Ethernet Bridge.

TROUBLESHOOTING SUGGESTIONS

Table 10. Troubleshooting Suggestions

The Bridge cannot find the Access Point.

The Access Point cannot find the Bridge.

You cannot access the Bridge’s configuration interface via the ACC.

Verify that the Link LED is solid green. If it isn’t, refer to “LED Troubleshooting” on the next page.

Click the Refresh button in your Access Point’s configuration application.

If the problem remains, check the Bridge’s physical connections. Then power-down the Bridge, power it up, and check the power-up LED sequence described under “XXVerifying Your ConnectionsXX” on page XX20XX.

Make sure that there is not another AP in the area that may be interfering with your AP.

The Bridge may be associated to another AP. Check the Link LED on the Bridge.

If the problem remains, contact Quatech, Inc.

You may have typed the wrong IP address.

If you typed the correct IP address, your computer may be on a different subnet than the Bridge. Be sure the computer and Bridge are on the same subnet of the same network.

The Bridge cannot associate with an Access Point.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 50

Change the location of the Bridge to improve reception.

If that does not help, launch the ACC, go to the

XXNetwork Settings PageXX, and be sure the SSID

matches that of the Access Point (remember the SSID is case sensitive).

Quatech, Inc. Confidential

Troubleshooting

After changing the Bridge’s static IP address, the ACC stops responding.

You used the ACC to change the Bridge’s configuration settings, but the new settings did not take effect.

You tried to update the firmware, but the new firmware did not take effect.

Once the static IP address is changed and you click Save, the Bridge switches to the new IP address and loses connection with the ACC. To resolve this problem, restart the ACC.

You may not have clicked the Save button on the ACC page. Click this button after making your changes on the page.

You uploaded an incorrect file. Go to the XXUpdate Firmware Page

XX and check the current level. Make

sure the one you will upload has a higher (later) revision level (for more details, see Firmware Page

XX on page XX45XX). Repeat the procedure

XXUpdate

using the appropriate file.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 51

Quatech, Inc. Confidential

Troubleshooting

LED TROUBLESHOOTING

The following table provides LED troubleshooting suggestions.

Table 11. Indicator LED Troubleshooting

If the… Perform These Tasks… Power LED does not turn On.

Power LED turns Red.

Power LED is Amber.

Link LED continues to Blink Red.

Comm LED is Off or Amber.

Check power connector is properly inserted.

Remove power and re-apply. If the Power LED remains Red, contact Quatech, Inc.

Bridge has not established an IP address either through DHCP or Static methods.

DHCP is the default method by which the unit obtains an IP address. Your network must have a DHCP server available when the bridge is poweredup. Most AP/Routers have a DHCP server built-in.

Enable your DHCP server and re-start the module. Bridge has not found an Access Point with which to

associate. Be sure the Access Point you want to use is turned on and has WEP disabled (you can enable WEP after the Bridge has been configured).

If this does not help, be sure there are no nearby devices causing interference. If there are, either turn off or move the device causing the interference or move the Bridge and Access Point to another location.

Be sure an Ethernet device is connected to the Bridge and that the device is turned on.

Comm LED is Red and Link LED is Green but you are unable to pass data.

Page 52 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

No open TCP socket is recognized by the Bridge. Be sure you have an open TCP connection to the bridge and the connection is in data pass mode.

Quatech, Inc. Confidential

APPENDIX A

SPECIFICATIONS

This appendix lists the specifications of the AirborneDirect™ Ethernet Bridge.

Table 12. Specifications

Ethernet Interface – standard package Interface: Connector:

Data Rates:

Ethernet 10Base-T

RJ-45

Flexible, stranded, copper conductor cable

10 Mb/sec

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 53

Quatech, Inc. Confidential

Specifications

Ethernet Interface – Heavy-Duty package Interface: Connector: Data Rates: Pin Assignments:

Ethernet 10Base-T

Deutsch DTM-06-12SSA

10 Mb/sec

Pin No.

1 TXTP+ Transmit+

2 RXTP+ Receive+

3 NC No Connect

4 NC No Connect

5 ON/IGN Device power OBN. Active High (internal

6 VBAT Battery Power Input

Name Description

pull-down).

Default ON

Pulling signal LOW shuts off the internal power supply.

7 GND Ground

8 /F_RESET Factory RESET. Active LOW (internal

pull-up).

Default OFF

Pulling signal low as power is applied will RESET device settings to factory default values.

9 NC No Connect

10 NC No Connect

11 RXTP- Receive-

12 TXTP- Transmit-

Page 54 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Wireless Network Interface

Specifications

Interface (ABDB, WLNB): (ABDG, WLNG):

Frequency:

Channels:

Data Rates (ABDB, WLNB): (ABDG, WLNG):

RF Power (ABDB, WLNB): (ABDG, WLNG):

Security:

IEEE 802.11b DSSS, WiFi compliant

IEEE 802.11b/g, WiFi compliant

(802.11i, 802.11e, 802.11d capable)

2.4 ~ 2.4835 GHz (US, Europe, Canada, Japan)

2.471 ~ 2.497 GHz (Japan)

11 US/Canada 13 Europe 14 Japan 4 France

11, 5.5, 2, 1 Mbps

802.11b mode: 11, 5.5, 2, 1 Mbps

802.11g mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

+16 dBm (typical) Approx 32 mW

+19.3 dBm (typical) Approx. 85 mW peak for B rates

+15 dBm (typical) Approx. 32 mW average for B rates

+21.5 dBm (typical) Approx. 143 mW peak for G rates

+12 dBm (typical) Approx. 16 mW average for G rate

WEP standard encryption, 64/128 bit Key Mapped WEP

WPA-PSK

Cisco LEAP authentication access control

Antenna: Protocols Data Transfer Protocols: Sensitivity (ABDB, WLNB):

(ABDG, WLNG):

Memory:

RP-SMA (Included wand antenna)

TCP/IP, UDP/IP, ARP, ICMP, DHCP, DNS, TFTP and UDAP

TCP/IP and UDP/IP

-82 dBm for 11 Mbps

-86 dBm for 5.5 Mbps

-88 dBm for 2 Mbps

-90 dBm for 1 Mbps

-71 dBm for 54 Mbps

-77 dBm for 36 Mbps

-83 dBm for 18 Mbps

-85 dBm for 11 Mbps

-87 dBm for 1 Mbps

128 K x 8 SRAM, 512 K x 8 Flash. SRAM and Flash are not available to external applications.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 55

Quatech, Inc. Confidential

Specifications

Indicators LEDs (standard): LEDs (heavy-duty):

Power (See Table 13 for Heavy-Duty) Input: Consumption: Power Supply Connector:

Software Configuration: Management:

Operating System Compatibility:

Environmental Operating Temperature:

Power, Link, Comm

Post, Cfg, Link, Conn

110/240 V, 50-60 Hz, external power supply wall wart

2 W max (AC Adaptor)

2.1 mm Barrel Jack

Airborne Control Center

Device Discovery and Configuration, Remote Firmware Upgrade Utility

Any operating system with TCP/IP (the Airborne utilities require Microsoft Windows 2000/XP)

-40º C to 85º C

Storage Temperature:

-40º C to 100º C

Page 56 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

Standard Packaging

Specifications

Enclosure: Dimensions:

Heavy-Duty Packaging

Nylon – Grey

2.58 in. W x 4.03 in. L x 1.90 in. D (65.5 mm x 102.3 mm x 48.2 mm)

Enclosure: Dimensions:

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 57

Plastic

4.63 in. W x 5.24 in. L x 1.43 in. D (117.6 mm x 133.0 mm x 36.2 mm)

Quatech, Inc. Confidential

Specifications

Table 13 and Table 14 list power supply specifications for the Heavy-Duty Bridge.

The standard package Bridge is powered by the included AC adapter. Table 13

Note:

and Table 14 do not apply to the standard package.

Table 13. Heavy-Duty Power Supply Specifications

Parameter Min Max

Normal Operating (J1455 – 12 V system) 9V 16V

Normal Operating (J1455 – 24 V system) 18V 32V

Cold Cranking (J1211) 4.5V

Jumper Start 5 minute (J1455 – 12 V system) 24V

Reverse Polarity (J1455 – 24 V system) -24V

Max. Voltage 36V

Additional filtering is provided to accommodate the ISO 7637 Power Line Immunity and the SAE J1113 Power Line Conducted Emissions requirements.

Table 14. Heavy-Duty DC Specifications

Symbol Parameter Min Typ Max Units

Supply Voltage 4.5 32 V

Supply

Supply Current @ V

Supply

Peak Inrush Current For 25 ms 2.9 A

Inrush

= 12 V 200 350 mA

Supply

Page 58 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

APPENDIX B

FCC COMPLIANCE

This appendix lists FCC compliance information for the AirborneDirect™ Ethernet Bridge.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio / TV technician for assistance.

FCC RF EXPOSURE STATEMENT

To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of a least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

INFORMATION FOR CANADIAN USERS (IC NOTICE)

This device has been designed to operate with an antenna having a maximum gain of 2.7 dB. An antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than required for successful communication.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 59

Quatech, Inc. Confidential

FCC Compliance

MANUFACTURER’S DECLARATION OF CONFORMITY

Trade Name: AirborneDirect™

Serial Bridge

Model Number: ABDB-SE-DP101 ABDB-ET-DP101 WLRG-RA-DP101

Compliance Test Report Number:

Compliance Test Report Date:

Responsible Party (in USA):

Address: 5675 Hudson Industrial Parkway

Telephone Number: (330) 655-9000

If the unit does cause harmful interference to radio or television reception, please refer to your user’s manual for instructions on correcting the problem.

B31211D3 F4AWLNG1

December 11, 2003 July 17, 2006

AirborneDirect™

Ethernet Bridge

Quatech, Inc.

Hudson, Ohio 44236 USA

Airborne Embedded

Radio Module

INDUSTRY CANADA NOTICE (APPLICABLE TO USE WITHIN CANADA)

This device complies with Canadian RSS-210.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s web site: www.hc-sc.gc.ca/rpb

Page 60 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

FCC Compliance

AVIS DE CONFORMITE A LA REGLEMENTATION D’INDUSTRIE CANADA

Pour empêcher toute interférence aux services faisant l’objet d’une licence, cet appareil doit être utilisé à l’intérieur seulement et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal.

L’installateur du présent matériel radio doit s’assurer que l’antenne est située ou pointée de manière à ce que cette dernière n’ émette pas de champs radioélectriques supérieurs aux limites specifées par Santé Canada pour le grand public; consulter le Code de sécurité 6, disponible sur le site Web de Santé Canada, à l’adresse suivante: www.hc-sc.gc.ca/rpb

INDUSTRY CANADA (IC) EMISSIONS COMPLIANCE STATEMENT

This Class B digital apparatus complies with Canadian ICES-003.

AVIS DE CONFORMITE A LA REGLEMENTATION D’INDUSTRIE CANADA

Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.

EUROPEAN COMMUNITY—CE NOTICE

Marking by the symbol:

indicates compliance with the essential requirements of Directive 73/23/EC and the essential requirements of articles 3.1(b), 3.2 and 3.3 of Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

 EN 300 328-2—Electromagnetic compatibility and Radio spectrum Matters (ERM);

Wideband Transmission systems; data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulations techniques.

 EN 301 489-17—Electromagnetic compatibility and Radio Spectrum Matters (ERM);

Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment.

 EN 60950—Safety of information technology equipment, including electrical

business equipment.

Marking by the symbol:

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 61

Quatech, Inc. Confidential

FCC Compliance

indicates that usage restrictions apply.

 To ensure compliance with local regulations, be sure to select the country in which

the access point is installed.

 This product can be used as shown in the following table:

EC DECLARATION OF CONFORMITY

Application of Council Directives: 999/5/EC, 73/23/EEC Manufacturer’s Name: Quatech, Inc. Manufacturer’s Address: 5675 Hudson Industrial Parkway Hudson,OH 44236, USA Importer’s Name: Micro Puissance Importer’s Address: 1, av de Norvege, ZA de courtaboeuf BP79, 91 943 Les Ulis Cedex France Type of Equipment: Information Technology Equipment Equipment Class: Commercial and Light Industry Model: AirborneDirect™ Serial Bridge

AirborneDirect™ Ethernet Bridge

Conforms to Standards: EN 300 328 V1.4.1, EN 310 489-17 V1.2.1, EN 60950-1

First Edition

Year of Manufacture: 2006

Countries Restrictions

France Outdoor use limited to 10 mW e.i.r.p. within the band 2454 to 2483.5 MHz. Italy If used outside of own premises, general authorization is required. Luxembourg General authorization is required for public service. Romania On a secondary basis. Individual license required. Austria, Denmark,

Finland, Germany, Greece, Iceland, Ireland, Liechtenstein, Luxembourg, The Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, The United Kingdom

English Hereby, DPAC Technologies Corp. declares that this AirborneDirect™

Finnish DPAC Technologies Corp. vakuuttaa täten että AirborneDirect™

None.

Serial/Ethernet Bridge is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Serial/Ethernet Bridge tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Page 62 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

FCC Compliance

Countries Restrictions

Dutch

French Par la présente DPAC Technologies Corp. déclare que l’appareil

Danish Undertegnede DPAC Technologies Corp. erklærer herved, at følgende udstyr

German

Swedish Härmed intygar DPAC Technologies Corp. att denna AirborneDirect™

Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ DPAC Technologies Corp. ΔΗΛΩΝΕΙ ΟΤΙ

Italian Con la presente DPAC Technologies Corp. dichiara che questo

Spanish Por medio de la presente DPAC Technologies Corp. declara que el

Hierbij verklaart DPAC Technologies Corp. dat het toestel AirborneDirect™ Serial/Ethernet Bridge in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Bij deze verklaart DPAC Technologies Corp. dat deze AirborneDirect™ Serial/Ethernet Bridge voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

AirborneDirect™ Serial/Ethernet Bridge est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

AirborneDirect™ Serial/Ethernet Bridge overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Hiermit erklärt DPAC Technologies Corp. dass sich dieser AirborneDirect™ Serial/Ethernet Bridge in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet”. (BMWi) Hiermit erklärt DPAC Technologies Corp. die Übereinstimmung des Gerätes AirborneDirect™ Serial/Ethernet Bridge mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)

Serial/Ethernet Bridge står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

AirborneDirect™ Serial/Ethernet Bridge ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ

ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕIΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ

AirborneDirect™ Serial/Ethernet Bridge è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

AirborneDirect™ Serial/Ethernet Bridge cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Portuguese DPAC Technologies Corp. declara que este AirborneDirect™

Serial/Ethernet Bridge está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 63

Quatech, Inc. Confidential

FCC Compliance

This page intentionally left blank.

Page 64 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

This appendix provides a glossary of wireless terminology.

802.11

802.11b

802.11g

Access Point

Ad-Hoc mode Association service

Asynchronous transmission

Authentication

Bandwidth

Basic Service Set (BSS)

Bits per second (bps)

BSSID

Clear channel assessment

Client

Direct Sequence Spread Spectrum (DSSS)

Wireless standards developed by the IEEE that specify an "over-the-air" interface for wireless Local Area Networks. 802.11 is composed of several standards operating in different radio frequencies.

802.11b is the international standard for wireless networking that operates in the 2.4 GHz frequency range (2.4 GHz to 2.4835 GHz) and provides a throughput of up to 11 Mbps.

802.11g is the international standard for wireless networking that operates in the 2.4 GHz frequency range (2.4 GHz to 2.4835 GHz) and provides a throughput of up to 54 Mbps.

An interface between a wireless network and a wired network. Access Points can combine with a distribution system (such as Ethernet) to create multiple radio cells (BSSs) that enable roaming throughout a facility.

A wireless network composed of only stations and no Access Point. An IEEE 802.11 service that enables the mapping of a wireless station to the

distribution system via an Access Point. Type of synchronization where there is no defined time relationship between

transmission of frames. The process a station uses to announce its identify to another station.

IEEE 802.11 specifies two forms of authentication: open system and shared key.

The amount of transmission capacity available on a network at any point in time. Available bandwidth depends on several variables such as the rate of data transmission speed between networked devices, network overhead, number of users, and the type of device used to connect PCs to a network.

A set of 802.11-compliant stations that operate as a connected wireless network.

A measurement of data transmission speed over communication lines based on the number of bits that can be sent or received per second.

Basic Service Set Identifier. A 48-bit identifier used by all stations in a BSS in frame headers. Usually a MAC address.

A function that determines the state of the wireless medium in an IEEE

802.11 network. Any computer connected to a network that requests services (files, print

capability) from another member of the network. Combines a data signal at the sending station with a higher data rate bit

sequence, which many refer to as a “chip sequence” (also known as “processing gain”). A high processing gain increases the signal’s resistance to interference. The minimum processing gain that the FCC allows is 10, and most products operate under 20.

GLOSSARY

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 65

Quatech, Inc. Confidential

Glossary

Disassociation service

Distribution service

GPIO Hot spot

IEEE

Independent Basic Service Set Network (IBSS Network)

Infrastructure mode

LAN application

LEAP

Local Area Network

Medium Access Control Layer

Peer-to-peer network

An IEEE 802.11 term that defines the process a station or Access Point uses to notify that it is terminating an existing association.

An IEEE 802.11 station uses the distribution service to send MAC frames across a distribution system.

General Purpose Input/Output refers to the digital I/O lines. Same as an Access Point (usually found in public areas such as coffee shops

and airports). Institute of Electrical and Electronic Engineers, an international organization

that develops standards for electrical technologies. The organization uses a series of numbers, like the Dewey Decimal system in libraries, to differentiate between the various technology families.

An IEEE 802.11-based wireless network that has no backbone infrastructure and consists of at least two wireless stations. This type of network is often referred to as an “Ad-Hoc network” because it can be constructed quickly without too much planning.

A client setting providing connectivity to an Access Point. As compared to AdHoc mode, whereby PCs communicate directly with each other, clients set in Infrastructure mode all pass data through a central Access Point. The Access Point not only mediates wireless network traffic in the immediate neighborhood, but also provides communication with the wired network. See Ad-Hoc Mode and Access Point.

A software application that runs on a computer (which is attached to a LAN, Intranet or the Internet) and using various protocols, can communicate with the Bridge.

Lightweight Extensible Authentication Protocol developed by Cisco. LEAP provides username/password-based authentication between a wireless client and a RADIUS server. It is one of several protocols used with the IEEE

802.1X standard for LAN port access control. A system of connecting PCs and other devices within the same physical

proximity for sharing resources such as Internet connections, printers, files and drives. When Wi-Fi is used to connect the devices, the system is known as a wireless LAN or WLAN.

One of two sub-layers that make up the Data Link Layer of the OSI reference model. The MAC layer is responsible for moving data packets to and from one network node to another across a shared channel.

A wireless or wired computer network that has no server or central hub or router. All the networked PCs are equally able to act as a network server or client, and each client computer can talk to all the other wireless computers without having to go through an Access Point or hub. However, since there is no central base station to monitor traffic or provide Internet access, the various signals can collide with each other, reducing overall performance.

Page 66 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

RTOS

Service Set Identifier (SSID)

Telnet

TKIP

Transceiver

Transmission Control Protocol (TCP)

Wide Area Network (WAN)

Wi-Fi Wi-Fi Alliance

Wired Equivalent Privacy (WEP)

WLAN

WPA

Glossary

An operating system implementing components and services that explicitly offer deterministic responses, and therefore allow the creation of real-time systems. An RTOS is characterized by the richness of the TTservicesTT it provides, the performance characteristics of those services, and the degree that those performance characteristics can be controlled by the application engineer (to satisfy the requirements of the application).

An identifier attached to packets sent over the wireless LAN that functions as a "password" for joining a particular radio network (BSS). All radios and Access Points within the same BSS must use the same SSID, or their packets will be ignored.

A virtual terminal protocol used in the Internet, enabling users to log into a remote host.

Temporal Key Integrity Protocol and is used in encryption. TKIP is an IEEE

802.11i standard and an enhancement to WEP security. A device for transmitting and receiving packets between the computer and

the medium. A commonly used protocol for establishing and maintaining communications

between applications on different computers. TCP provides full-duplex, acknowledged, and flow-controlled service to upper-layer protocols and applications.

A communication system of connecting PCs and other computing devices across a large local, regional, national or international geographic area. Also used to distinguish between phone-based data networks and Wi-Fi. Phone networks are considered WANs and Wi-Fi networks are considered wireless LANs.

Wi-Fi is a name for 802.11 wireless network technology. A non-profit international association formed in 1999 to certify interoperability

of wireless LAN products based on IEEE 802.11 specification. A security protocol for wireless LANs defined in the IEEE 802.11 standard.

WEP is designed to provide the same level of security as a wired LAN.

Also referred to as a wireless LAN. A type of Local Area Network that uses high-frequency radio waves rather than wires to communicate between nodes and provide network connectivity.

Wi-Fi Protected Access. It addresses all known Wired Equivalent Privacy (WEP) vulnerabilities. WPA uses RC4 for encryption and TKIP for key management. It includes a message integrity mechanism commonly called Michael or MIC.

WPA-LEAP

WPA-PSK

Wi-Fi Protected Access - Light Extensible Authentication Protocol, an implementation based on the IEEE 802.11i 2004 and IEEE 802.1X 2001 standards, which includes the LEAP protocol for initial key assignment.

Wi-Fi Protected Access - Pre-Shared Key, an implementation based on the IEEE 802.11i 2004 and IEEE 802.1X 2001 standards, where the PSK is stored on the client.

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 67

Quatech, Inc. Confidential

Glossary

This page intentionally left blank

Page 68 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

INDEX

Accessing the Web interface, 25 Advanced Configuration Settings, 41 AirborneDirect Ethernet Bridge

features and benefits, 2 hardware description, 9 installation, 17 LEDs, 10 package contents, 7 reset switch, 9 sample application, 3

AirborneDirect Serial Client Bridge

LEDs, 15 Application, 3 Applications, 1

Basic Configuration Settings, 30 Benefits, 2

CLI Commands Descriptions

DHCP Acquire Limit, 38

DHCP Fallback Method, 38 Configuring using the Web interface, 27 CONNECTIONS

VERIFYING, 21 Conventions

manual, 5 Cradle, 12

Installing

AirborneDirect Ethernet Bridge, 17

Items Supplied by the User, 8

LED troubleshooting, 52 LEDs, 10, 15 Location selection, 16

Miscellaneous Settings Page, 31 Mounting cradle, 12

Navigating through the Web interface, 27 Network Settings page, 33

Package contents, 7 Pages in the Web interface

Network Settings, 33 Reset, 48 Services Page, 41 Status, 30

DHCP Acquire Limit, 38 DHCP Fallback Method, 38

Features, 2

Glossary, 65

Hardware description, 9

100-8007-141G AirborneDirect™ Ethernet Bridge User's Guide Page 69

Related documentation, 6 Reset button, 9 Reset page, 48

Sample application, 3 Saving Configuration Changes, 29 Security Settings Page, 43 Selecting a location, 16 Services Page, 41 Software

WPA-LEAP Security, 19, 22

Status page, 30

Troubleshooting

LEDs, 52

Quatech, Inc. Confidential

Index

Update Firmware Page, 45 Using This Document, 4

VERIFYING YOUR CONNECTIONS, 21

Web interface

accessing, 25 configuration activities, 27 navigating through, 27

Web interface pages

Network Settings, 33 Reset, 48 Services Page, 41 Status, 30

WPA-LEAP Security, 19, 22

Page 70 AirborneDirect™ Ethernet Bridge User's Guide 100-8007-141G

Quatech, Inc. Confidential

100-8007-141G Revision 1.41 May 2007

Quatech ABDB-SE-DP101, ABDB-ET-DP101, WLRG-RA-DP101 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
