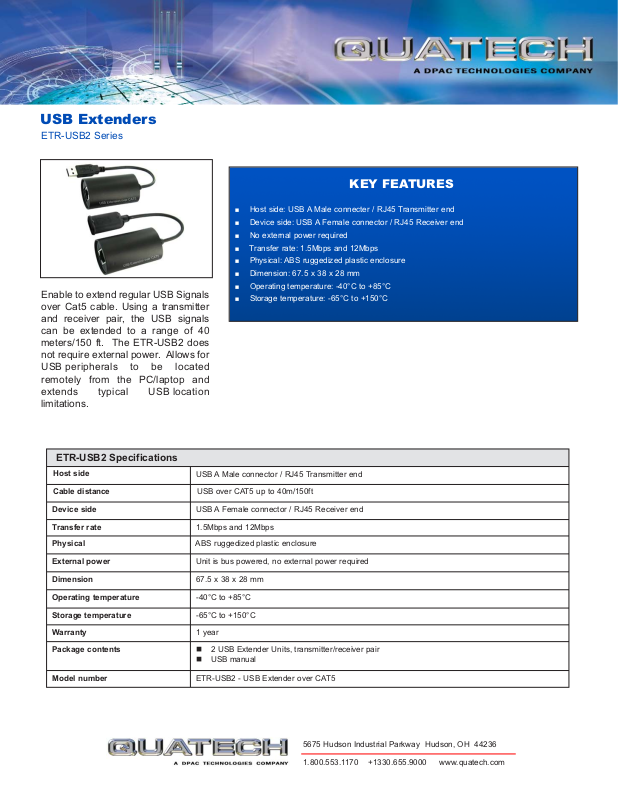

Quatech ETR-USB2 User Manual

KEY FEATURES

 Host side: USB A Male connecter / RJ45 Transmitter end

 Device side: USB A Female connector / RJ45 Receiver end

 No external power required

 Transfer rate: 1.5Mbps and 12Mbps

 Physical: ABS ruggedized plastic enclosure

 Dimension: 67.5 x 38 x 28 mm

 Operating temperature: -40°C to +85°C

 Storage temperature: -65°C to +150°C

Enable to extend regular USB Signals
over Cat5 cable. Using a transmitter
and receiver pair, the USB signals
can be extended to a range of 40
meters/150 ft. The ETR-USB2 does
not require external power. Allows for
USB peripherals to be located
remotely from the PC/laptop and
extends typical USB location
limitations.

5675 Hudson Industrial Parkway Hudson, OH 44236

1.800.553.1170 +1330.655.9000 www.quatech.com

USB Extenders

ETR-USB2 Series

ETR-USB2 Specifications

Host side

USB A Male connector / RJ45 Transmitter end

Cable distance USB over CAT5 up to 40m/150ft

Device side USB A Female connector / RJ45 Receiver end

Transfer rate 1.5Mbps and 12Mbps

Physical ABS ruggedized plastic enclosure

External power Unit is bus powered, no external power required

Dimension 67.5 x 38 x 28 mm

Operating temperature -40°C to +85°C

Storage temperature -65°C to +150°C

Warranty 1 year

Package contents  2 USB Extender Units, transmitter/receiver pair

 USB manual

Model number ETR-USB2 - USB Extender over CAT5
