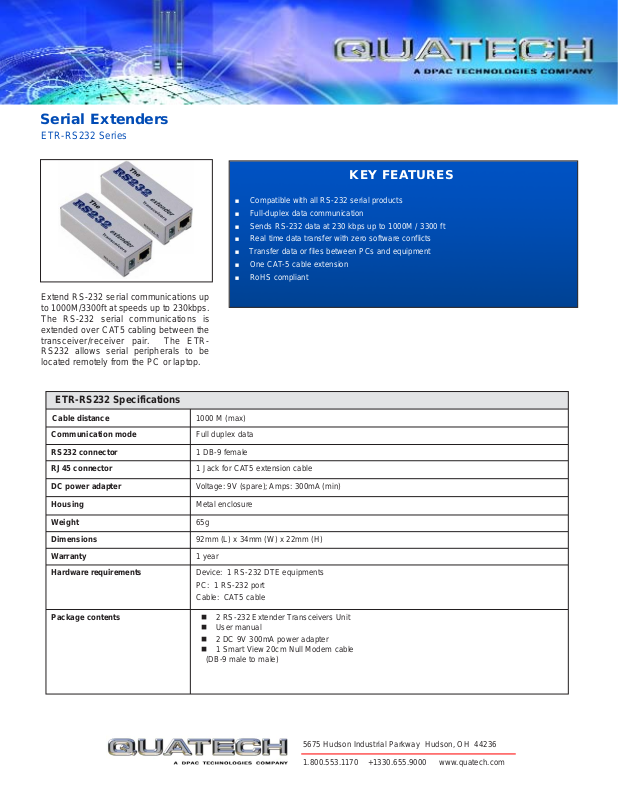

Quatech ETR-RS232 User Manual

KEY FEATURES

 Compatible with all RS-232 serial products  Full-duplex data communication  Sends RS-232 data at 230 kbps up to 1000M / 3300 ft  Real time data transfer with zero software conflicts  Transfer data or files between PCs and equipment  One CAT-5 cable extension  RoHS compliant

Extend RS-232 serial communications up to 1000M/3300ft at speeds up to 230kbps. The RS-232 serial communications is extended over CAT5 cabling between the transceiver/receiver pair. The ETRRS232 allows serial peripherals to be located remotely from the PC or laptop.

5675 Hudson Industrial Parkway Hudson, OH 44236

1.800.553.1170 +1330.655.9000 www.quatech.com

Serial Extenders

ETR-RS232 Series

ETR-RS232 Specifications

Cable distance

1000 M (max)

Communication mode Full duplex data RS232 connector 1 DB-9 female

RJ45 connector 1 Jack for CAT5 extension cable DC power adapter Voltage: 9V (spare); Amps: 300mA(min) Housing Metal enclosure Weight 65g

Dimensions 92mm (L) x 34mm (W) x 22mm (H) Warranty 1 year Hardware requirements Device: 1 RS-232 DTE equipments

PC: 1 RS-232 port Cable: CAT5 cable

Package contents  2 RS-232 Extender Transceivers Unit

 User manual  2 DC 9V 300mA power adapter

 1 Smart View 20cm Null Modem cable

(DB-9 male to male)
