Quasar VV-2003 Operating Instruction

Combination VCR

Operating Instructions

Initial Setup

Model No.

VV-1303/VV-2003

• Initial Setup and Connection Procedures are on pages 8 and 9.

Basic Operation

TV Operation

Timer Operation

Advanced Operation

As an ENERGY STA R® Partner,
Matsushita Electric Corporation of Amer i ca has de ter mined

that this prod uct or product mod el meets the ENERGY STA R®
guide lines for en er gy ef fi cien cy.

Please read these instructions carefully before attempting to connect,
operate, or adjust this product. Please save this manual.
Spanish Quick Use Guide is included.
(Guía para rápida consulta en español está incluida.)

This operating instruction book is designed for use with models VV-1303 and
VV-2003. Illustrations in this manual show the VV-2003. Fea tures may vary, so
please read care ful ly.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

LSQT0712A

For Your Information

Important Safeguards and Pre cau tions

READ AND RETAIN ALL SAFETY AND
OPERATING INSTRUCTIONS. HEED ALL
WARNINGS IN THE MANUAL AND ON UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from power source indicated on unit or

in this manual. If uncertain, have your Electric Utility
Service Company or Video Products Dealer verify
your home power source.

2 POWER CORD PLUG

For safety, this unit has a polarized type plug (one

wide blade), or a three-wire grounding type plug.
Always hold the plug fi rmly and make sure your hands
are dry when plugging in or unplugging the AC power

cord. Regularly remove dust, dirt, etc. on the plug.
POLARIZED PLUG CAUTION:
The plug fi ts into outlet one way. If it cannot be fully
inserted, try reversing it. If it still will not fi t, have an
electrician install the proper wall outlet. Do not tamper
with the plug.
GROUNDING PLUG CAUTION:
The plug requires a three-hole grounding outlet.
If necessary, have an electrician install the proper outlet.
Do not tamper with the plug.

3 POWER CORD

To avoid unit malfunction, and to protect against

electrical shock, fi re or personal injury:

- Keep power cord away from heating appliances and

walking traffi c. Do not rest heavy objects on, or roll
such objects over the power cord.

- Do not tamper with the cord in any way.

- An extension cord should have the same type plug

(polarized or grounding) and must be securely
connected.

- Overloaded wall outlets or extension cords are fi re

hazards.

- Frayed cords, damaged plugs, and damaged or

cracked wire insulation are hazardous and should
be replaced by a qualifi ed electrician.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat

generated during operation. If blocked, heat

build-up may result in a fi re hazard or heat damage to

cassettes.
For your protection:
a. Never cover ventilation slots while unit is ON, or

operate unit while placed on a bed, sofa, rug, or
other soft surface.

b. Avoid built-in installation, such as a book case or

rack, unless properly ventilated.

5 AVOID EXTREMELY HOT LOCATIONS OR

SUDDEN TEMPERATURE CHANG ES

Do not place unit over or near a heater or ra di a tor, in

di rect sunlight, etc. If unit is sud den ly moved from a

cold place to a warm place, mois ture may condense in

unit and on the tape caus ing damage.

6 TO AVOID PERSONAL INJURY

• Never place unit on support or

stand that is not fi rm, level, and adequately strong.
The unit could fall causing serious injury to a child or
adult and damage to the unit.

• Move any appliance and

cart combination with care.
Quick stops, excessive
force, and uneven
surfaces may cause objects to
overturn.

• Carefully follow all operating

instructions.

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

An outside antenna or cable system must be properly grounded to

provide some protection against built up static charges and voltage.
Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada,
part 1 of the Canadian Electrical
Code) provides information
regarding proper grounding
of the mast and supporting
structure, grounding of the
lead-in wire to an antenna
discharge unit, size of grounding
conductors, location of antenna
discharge unit, con nec tion
to grounding electrodes, and
requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR

CIRCUITS

Locate an outside antenna system well away from power lines and

electric light or power circuits so it will never touch these power sources
should it ever fall. When installing antenna, absolutely never touch power
lines, circuits or other power sources as this could be fatal.

USING THE UNIT

Before unit is brought out of storage or moved to a new location,
refer again to the INSTALLATION section of these safe guards.

1 KEEP UNIT WELL AWAY FROM WATER OR MOISTURE,

such as vases, sinks, tubs, etc.

2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT,

unplug unit and have it inspected by a qualifi ed service
technician before use.

3 ELECTRICAL STORMS
During a lightning storm, or before leaving unit unused for

extended periods of time, disconnect all equipment from the
power source as well as the antenna and cable system.

4 WHEN UNIT IS PLUGGED IN

• DO NOT OPERATE IF:

- liquid has spilled into unit.

- unit was dropped or otherwise damaged.

- unit emits smoke, malodors, or noises.
Immediately unplug unit, and have it inspected by a service

technician to avoid potential fi re and shock hazards.

• Never drop or push any object through openings in unit.
Touching internal parts may cause electric shock or fi re
hazard.

• Keep magnetic objects, such as speakers, away from unit to
avoid electrical interference.

5 USING ACCESSORIES
Use only accessories recommended by the manufacturer to

avoid risk of fi re, shock, or other hazards.

6 CLEANING UNIT
Unplug unit. Use a clean, dry, chemically untreated cloth to

gently remove dust or debris. DO NOT USE cleaning fl uids,
aerosols, or forced air that could over-spray, or seep into unit
and cause electrical shock. Any substance, such as wax,
adhesive tape, etc. may mar the cabinet surface. Exposure to
greasy, humid, or dusty areas may adversely affect internal
parts.

NEC - NATIONAL

ELECTRICAL CODE

ELECTRIC
SERVICE
EQUIPMENT

GROUND
CLAMP

ANTENNA LEAD
IN WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING
CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE
GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

SERVICE

1 DO NOT SERVICE PRODUCT YOURSELF
If, after carefully following detailed operating in struc tions, the

unit does not operate properly, do not attempt to open or remove
covers, or make any adjustments not described in the manual.
Unplug unit and contact a qualifi ed service tech ni cian.

2 REPLACEMENT OF PARTS
Make sure the service technician uses only parts specifi ed by

the manufacturer, or have equal safety char ac ter is tics as original
parts. The use of unauthorized substitutes may result in fi re,
electric shock, or other hazards.

3 SAFETY CHECK AFTER SERVICING
After unit is serviced or repaired, request that a through safety

check be done as described in the manufacturer’s service
literature to ensure video unit is in safe operating condition.

2

Safety Precautions/Mesures de sécurité

Warning : To prevent fi re or shock hazard, do not expose this equipment to rain or

Caution : To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Avertissement : Afi n de prévenir tout risque d’incendie ou de chocs électriques, ne pas exposer

Attention : Pour éviter les chocs électriques, introduire la lame la plus large de la fi che dans

FCC WARNING : Any unauthorized changes or modifi cations to this equipment would void the

This video recorder, equipped with the HQ (High Quality) System, is compatible with existing VHS
equipment. Only use those tapes with the
have been tested and inspected for use in 2, 4, 6, and 8 hour VCR machines be used. This television
receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal
of these materials may be regulated in your community due to environmental considerations. For
disposal or recycling information please contact your local authorities, or the Electronics Industries
Alliance: <http://www.eiae.org.

Congratulations

On your purchase of one of the most sophisticated
and reliable products on the market today. Used
properly, it will bring you and your family years of
enjoyment. Please fi ll in the information below. The
serial number is on the tag located on the back of
your unit.

moisture.

cet appareil à la pluie ou à une humidité excessive.

la borne correspondante de la prise et pousser jusqu’au fond.

user’s authority to operate.

mark. It is recommended that only cassette tapes that

This symbol warns the user that uninsulated voltage within the unit
may have suffi cient magnitude to cause electric shock. Therefore, it
is dangerous to make any kind of contact with any inside part of this
unit.
This symbol alerts the user that important literature concerning the
operation and main te nance of this unit has been included. Therefore,
it should be read carefully in order to avoid any problems.

>

Accessories

Remote Control

LSSQ0397 or LSSQ0283

Date of Purchase
Dealer Purchased From

Batteries 2 “AA”

Dealer Address
Dealer Phone No.

Model No.
Serial No.

To order accessories,
call toll free 1-800-332-5368.

Loading the Batteries Prevent Accidental Tape Erasure

To record again.

Cover the hole
with cellophane tape.

Battery replacement caution

• Do not mix old and new batteries.

• Do not mix alkaline with manganese batteries.

Break off the tab to
prevent recording.

Record
Tab

Screwdriver

3

Unit Information

Head Cleaning

Playing older or damaged tapes may eventually
cause video heads to become clogged.

Head Clog Sensor

During playback this screen
appears if clogging is
detected. To clear message
from screen, press PLAY on
the remote or unit.

• Use “dry” type head

cleaning cassette only.

(Part No. NV-TCL30PT is recommended.)

V I DE

O

HEADS MAY

NEED C

LEAN I NG

PL

EASE

I

NSERT HEAD

C

LEAN I NG CASSETTE

REFER TO MANUAL

OR

END : PLAY

• Follow cleaning tape directions carefully.
Excessive use of head cleaning tape can shorten
the video head life.

Features for a Quality Picture

Digital Auto Tracking

Continuously analyzes the signal and adjusts for
optimum picture quality.

Manual Tracking Control (to reduce picture noise)

Use during Playback and Slow Motion mode to
reduce picture noise. Press the 3 or 6 number key
on the remote control or CH on the unit until
the picture clears up. To return to Auto Tracking,
press POWER off, then on again a few seconds
later.

Record/Playback Time

Only use tapes with the mark in this unit.

Tape Speed
Setting

SP
(Standard
Play)

LP
(Long Play)

SLP
(Super Long
Play)

Type of Video Cassette

T60 T120 T160

1 Hour 2 Hours

2 Hours 4 Hours

2 Hours

40 Minutes

5 Hours

20 Minutes

3 Hours 6 Hours 8 Hours

Specifi cations

Display

Picture Tube

VCR

Video Recording
System

Audio Track 1 track

Tuner

Broad cast Channels VHF 2 ~ 13, UHF 14 ~ 69

CA BLE Channels

General

Power Source 120 V AC, 60 Hz

Power
Consumption

Television System EIA Standard NTSC color
Speak er 1 pieces
Op er at ing

Temperature
Op er at ing Humidity 10 % ~ 75 %

Weight

Dimen sions

(W x H x D)

Note

• Designs and spec i fi ca tions are sub ject to change

without no tice.

13 inch measured diagonal
90° defl ection Picture Tube
(VV-1303)
20 inch measured diagonal 90°
defl ection Picture Tube
(VV-2003)

2 rotary heads helical
scanning system

Midband A through I (14 ~ 22)
Superband J through W (23 ~

36) Hyperband AA ~ EEE (37
~ 64) Lowband A-5 ~ A-1 (95
~ 99) Spe cial CABLE chan nel
5A(01) Ultraband 65 ~ 94, 100
~ 125

Power OnApprox. 69 W (VV-1303)

Approx. 110 W (VV-2003)

Power

Approx. 2.5 W

Off

5 °C ~ 40 °C (41 °F ~ 104 °F)

12 Kg (26.4 lbs.) (VV-1303)
23 Kg (50.6 lbs.) (VV-2003)

386 mm (15-3/16″) x 385 mm
(15-3/16″) x 374 mm (14-3/4″)

(VV-1303)

515 mm (20-5/16″) x 505 mm
(19-7/8″) x 474 mm (18-11/16″)

(VV-2003)

DST (Daylight Saving Time)

Unit auto adjusts clock for DST (Daylight Saving
Time.)

■ Spring (First Sunday in April)

DST: ON ➞ Sets clock ahead one hour.

■ Autumn (Last Sunday in October)

DST: OFF➞ Turns clock back one hour.

• If your area does not observe Daylight Saving Time,
select DST: OFF.

• Keep these time changes in mind when programming
the unit for timer recordings.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

4

4

Table of Contents

Important Safeguards and Precautions ................................................ 2

Safety Precautions/Mesures de sécurité............................................... 3

Unit Information....................................................................................... 4

Location of Controls ............................................................................... 6

Connections/Initial Setup (Ready to Play) ............................................ 8

Reset Language, Channels, Clock, Time Zone Adjust....................... 10

Playback a Tape..................................................................................... 12

Record On a Tape.................................................................................. 12

Copy Your Tapes (Dubbing)................................................................. 13

TV Operation.......................................................................................... 14

Picture Adjustment................................................................................ 15

TV Timer Features ................................................................................. 16

Closed Caption System ........................................................................ 18

Timer Recording.................................................................................... 20

Initial Setup

Initial Setup

Basic Operation

TV Operation

Timer Operation

Tape Operation ...................................................................................... 22

Special VCR Features ........................................................................... 26

V-Chip Control Feature ......................................................................... 27

On-Screen Display (OSD) ..................................................................... 30

Before Requesting Service................................................................... 31

Limited Warranty ................................................................................... 32

Customer Services Directory ............................................................... 33

Spanish Quick Use Guide/Guía para rápida consulta........................ 34

Index ....................................................................................................... 36

Advanced Operation

For Your Information

55

Location of Controls

Remote Control Buttons

EJECT

Ejects tape.

POWER

Turns on or off the unit.

DISPLAY

Displays the VCR status and
clock.

TAPE POSITION

Finds out present tape position
and amount of tape remaining.

COUNTER RESET

Resets to “0:00:00” at the
desired position.

RAPID TUNE

Displays the last channel you
were watching.

MUTE

Mutes the sound instantly.

CHANNEL UP/DOWN

Selects a channel.

SELECT UP/DOWN

Controls navigation around
on-screen menu.

ACTION

Displays Main Menu.

STOP

Stops recording or playback.

REC

Records the program.

REWIND/SEARCH

Rewinds tape, and searches
reverse scene.

PLAY

Begins playback.

NIGHT

Color and picture intensity level
are adjusted during night time
use.

SLEEP

Turns off the unit automatically.

TRACKING UP/DOWN

Reduces picture noise during
Playback and Slow Motion.

NUMBER Keys

Selects a channel directly.

ADD/DELETE

Adds or deletes a channel.

SEARCH

Goes directly to the desired
re cord ing. Locates end point of
recording.

VOLUME UP/DOWN

Adjusts volume.

SET/BACK SPACE

Sets a selected menu, or goes
back to correct.

PROGRAM

Displays SET PROGRAM
screen. You can set Timer
Program and On-Timer.

FAST FORWARD/SEARCH

Fast forwards tape, and
searches forward scene.

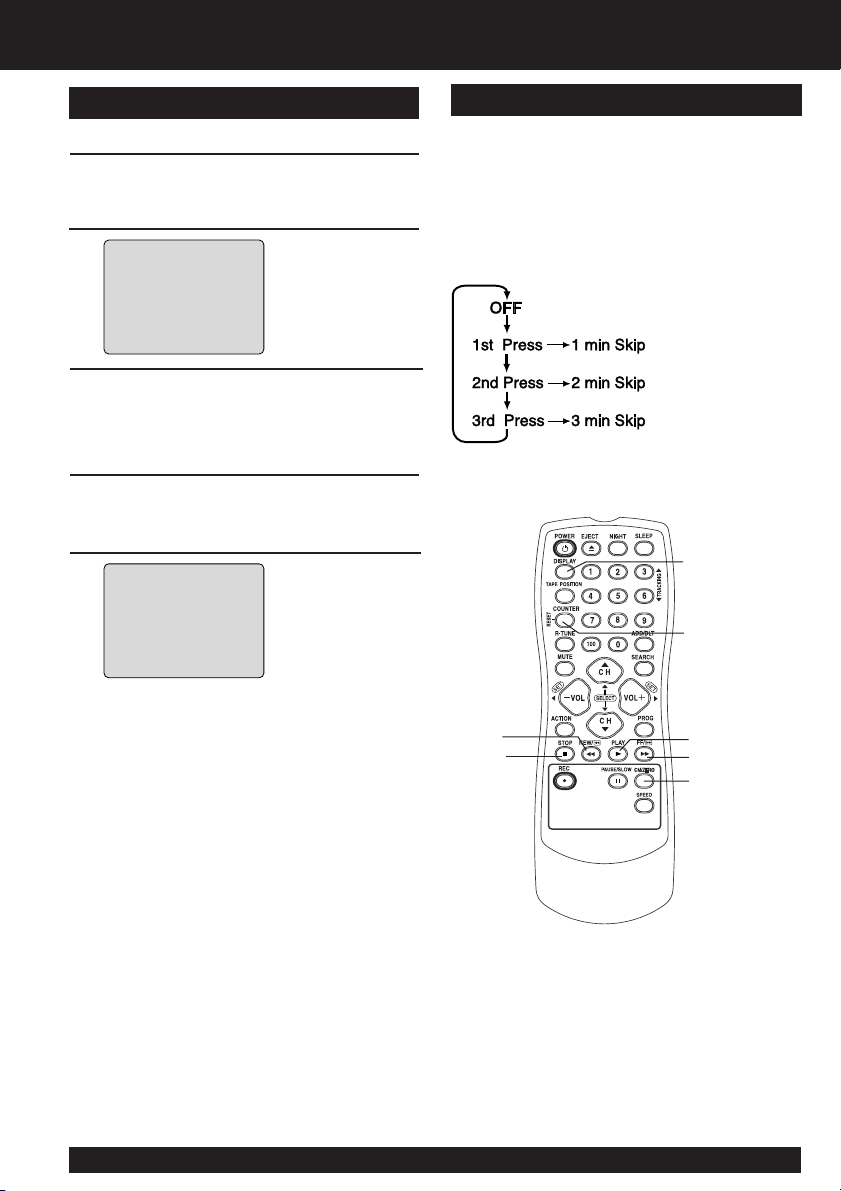

CM SKIP/ZERO SEARCH

In Stop mode, goes to the
counter “0:00:00.” In Play
mode, skips over 1 to 3 minutes
of tape.

SPEED

Selects recording speed.

PAUSE/SLOW

Pauses and slow motion
and frame advance picture.

Note

• When EJECT is pressed, the tape is ejected from Cassette Compartment.
If EJECT is pressed during recording, the unit will not respond to the command.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

6

6

Front View of the Unit and Indicators

POWER

VOL

ACTION

REC

ON TIMER

PROG TIMER

Initial Setup

VIDEO IN AUDIO IN

AUDIO VIDEO IN Jack

For dubbing.

POWER

Turns unit on or off.

VOLUME UP/DOWN

Adjusts volume.

SET/BACK SPACE

Sets a selected menu, or
goes back to correct.

CHANNEL UP/DOWN

Selects a channel.

TRACKING UP/DOWN

Reduces picture noise
during Playback and Slow
Motion.

SELECT UP/DOWN

Controls navigation around
on-screen menu.

STOP

Stops recording or playback.

EJECT

Ejects tape.

ACTION

Press together with REW.

Rear View of the Unit

<Model VV-1303 unit shown>

POWER

CH

VOL

STOP/EJECT REW/

PLAY/REPEAT

ACTION

REWIND/SEARCH

Rewinds tape, and
searches reverse scene.

ACTION

Press together with STOP.

PLAY

Begins playback.

REPEAT

Repeats a recording.

FAST FORWARD/SEARCH

Fast forwards tape, and
searches forward scene.

REC

Records the program.

TIMER

Sets a timer alarm up 60 min.

TIMER

REC

FF/

REC

PROG TIMER

ON TIMER

Built-In
Speaker

PHONES Jack

Connect an
earphone or
headphones.

PROG TIMER
Indicator

Lights when the
unit is set for
Timer Recording.

ON TIMER
Indicator

Lights when the
On-Timer is set.

REC Indicator

Lights during
recording.

Remote Sensor

Easy Grip-Handle

Use when transporting the
unit.

AC Power Plug

When plugged into an AC outlet, the
unit consumes 2.5 W of electric power
in OFF condition.

VHF/UHF

VHF/UHF Antenna Input Terminal

In from your Antenna or Cable (See

page 8).

77

Connections/Initial Setup

(Ready to Play)

Please make all cable or antenna connections before power on.

Connecting

<Model VV-1303 unit shown>

For ANT./Cable
Connect the cable from Antenna/Cable
to the VHF/UHF terminal on the unit.

UNIT (rear view)

VHF/UHF

For DSS/Cable Box
Connect the OUT jack on your cable
box to the VHF/UHF terminal on the unit
with a RF cable.

WARNING:

Overtightening “Nut type” RF coaxial cables
may damage jacks. Finger tighten only.

Initial Setup (Ready to Play)

Press COMBO on the remote for Combo mode.

Plug the unit power cord into AC wall
outlet.

1

Press POWER on the remote or unit.

The unit comes on and auto channel and

2

clock set starts.

• If you use a cable box, turn
it on and set it to the Public
Broadcasting Service (PBS)
channel in your time zone.
If you use a DSS receiver, it
must be turned off.

CH AUTO SET PROCEEDING

VHF/UHF

VHF/UHF

UNIT (rear view)

Cable TV
Converter Box

VHF/UHF

VHF/UHF

VHF/UHF

If AUTO CLOCK SET IS INCOMPLETE screen
appears, set the clock using MANUAL CLOCK

SET procedure on next page.

PLEASE SET CLOCK BY
PRESSING ACTION KEY

IN from
ANT./CABLE

IN from
ANT./CABLE

A

UTO CLOCK SET

MPL

ETE

IS INCO

AUTO CLOCK SET

PROCEEDING

CANCEL : STOP

Settings are made automatically. When
setup is done, this screen appears.

3

2 / 6 / 2003 THU 12 : 00P

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

8

8

DST : O

SETT I NG : CH 1

UTO CLOCK SET

A

MPL

ETED

CO

N

0

Notes

• Function buttons are inoperative during Initial
Setup.

• To remove a cassette during Auto Set, press
EJECT twice on the remote or STOP twice on
the unit. In this case, settings must be made
manually. (See page 10.)

M

• Depending on conditions, Auto Clock Set may
take longer than 30 minutes. If so, press STOP
to stop setup and perform settings manually.

(See page 10.)

VIDEO IN

AUDIO IN

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

REC

ON TIMER

PROG TIMER

Manual Clock Set

If AUTO CLOCK SET was incomplete, manually
set the clock as follows.

Press ACTION on the remote to display
SET CLOCK Menu screen.

1

1 / /

SELECT :
END

: ACT I ON

SET CLOCK

DST

SET

:

: ON

:

Reset all unit Memory Functions

When moving unit to a new location, or if a mistake
was made in the Initial Setup section.

• Make sure a tape is not inserted in the unit.

Initial Setup

Press to select the month and
press

2

select and set the date, year, time, and

to set. In the same manner,

DST. (Daylight Saving Time)

SET CLOCK

2 / 6 /

2003

SET

COMPLETED

SET :
START

: ACT I ON

Press ACTION twice to start CLOCK and
exit.

3

POWER

SELECT/SET

ACTION

:

THU

12

00

PM

DST

: ON

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

TIMER

REC

POWER VOLCHSTOP/EJECT

VIDEO IN

AUDIO IN

Turn the unit

1

Power on.

Press and hold both

2

PLAY/REPEAT and FF on the

FF/

REW/

PLAY/REPEAT

REC

PROG TIMER

ON TIMER

N
IO
T

C
A

unit for more than 5 sec onds.

• The power will shut off.

• Please ignore “NO CASSETTE”
warning.

Do “Initial Setup” on page 8.

3

Note to CABLE System Installer

This reminder is provided to call the CABLE
(Cable TV) System Installers attention to
Article 820-40 of the NEC that provides
guidelines for proper grounding and, in
par tic u lar, specifi es that the cable ground
shall be con nect ed to the grounding system
of the building, as close to the point of cable
entry as practical.

99

Reset Language, Channels, Clock,

M A I N MENU

1

T V

LOCK

CLOC

C H

SELECT :

SET : ACT I ON

Language

2

1) Press to

select language
icon.

M A I N MENU

T V

LOCK

CLOC

C H

SELECT :
SET : ACT I ON

2) Press ACTION

SELECT :
SET : ACT I ON

3) Press

Press ACTION

repeatedly.

MENU

PR I NC I PAL

BLOQUEO

T V

CANAL

ELEG I R :
F I JAR :

REL OJ SAL I R

ACT I O

For Spanish

MEN

TELE

BLOCAGE

HORLOGECANAL

SEL. :
REGLER : ACT I O

For French

M A I N MENU

LOCK

T V

CLOC

C H

For English

to select “EXIT.”

to exit.

LANGUAGE

K

K

N

U

N

K

EX I T

LANGUAGE

EX I T

O L A

H

IDIOMA

BONJOUR

LAN

GU

SORT I E

H

ELL

O

LANGUAGE

EX I T

Press ACTION

MAIN MENU.

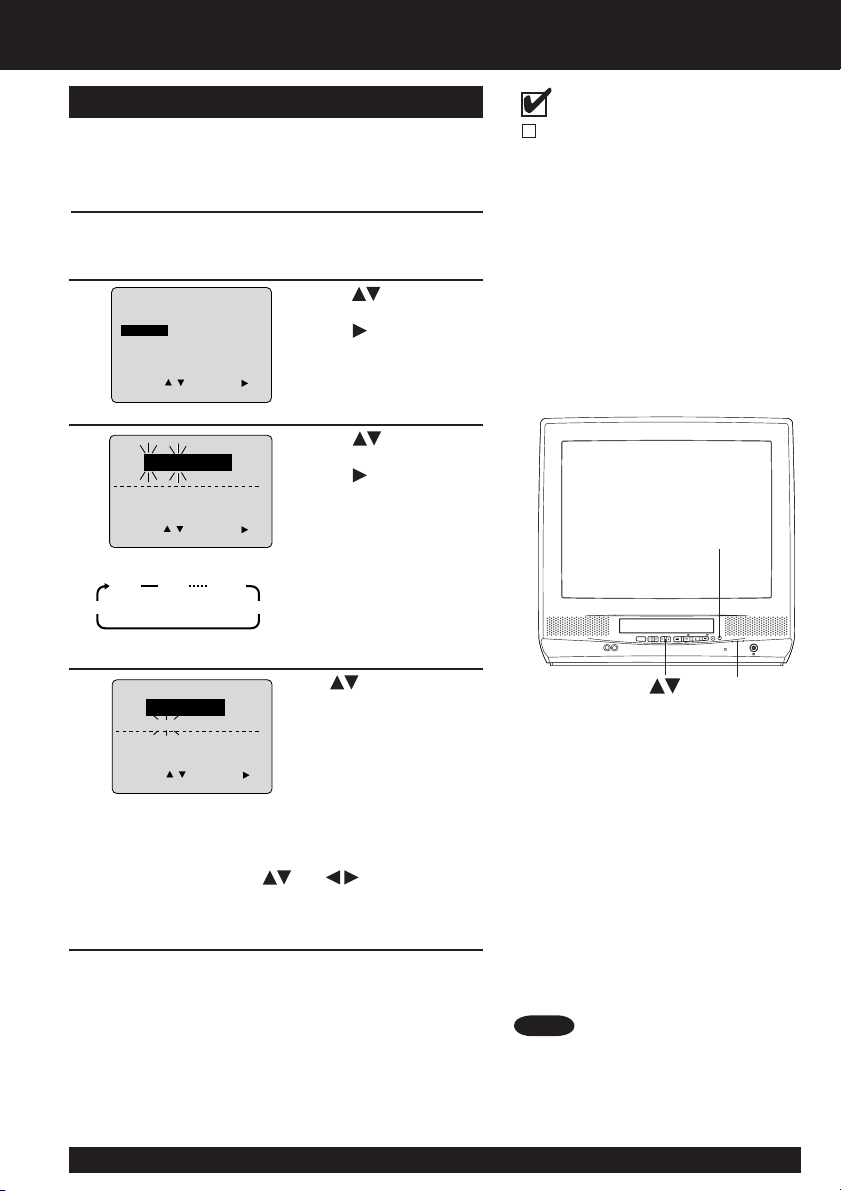

Channels

1) Press to

select “CH.”

M A I N MENU

T V

C H

SELECT :
SET : ACT I ON

2) Press ACTION.

SET UP CHA

ANT

ENNA

: CABLE

AUTO SET
W

EAK S I GNAL D I

SELECT :
END

: ACT I ON

3) Press to select

“ANTENNA,” then
press to set your

E

antenna system
(“TV” or “CABLE”).

4) Press to select

“AUTO SET,” then
press .

• After Channel Auto Set is
fi nished, Clock Auto Set
will be performed. (If clock
is set manually, Clock Auto
Set will not be performed.)

to display

LOCK

LANGUAGE

EX I T

CLOC

K

NNE

L

SPLAY : OFF

SET

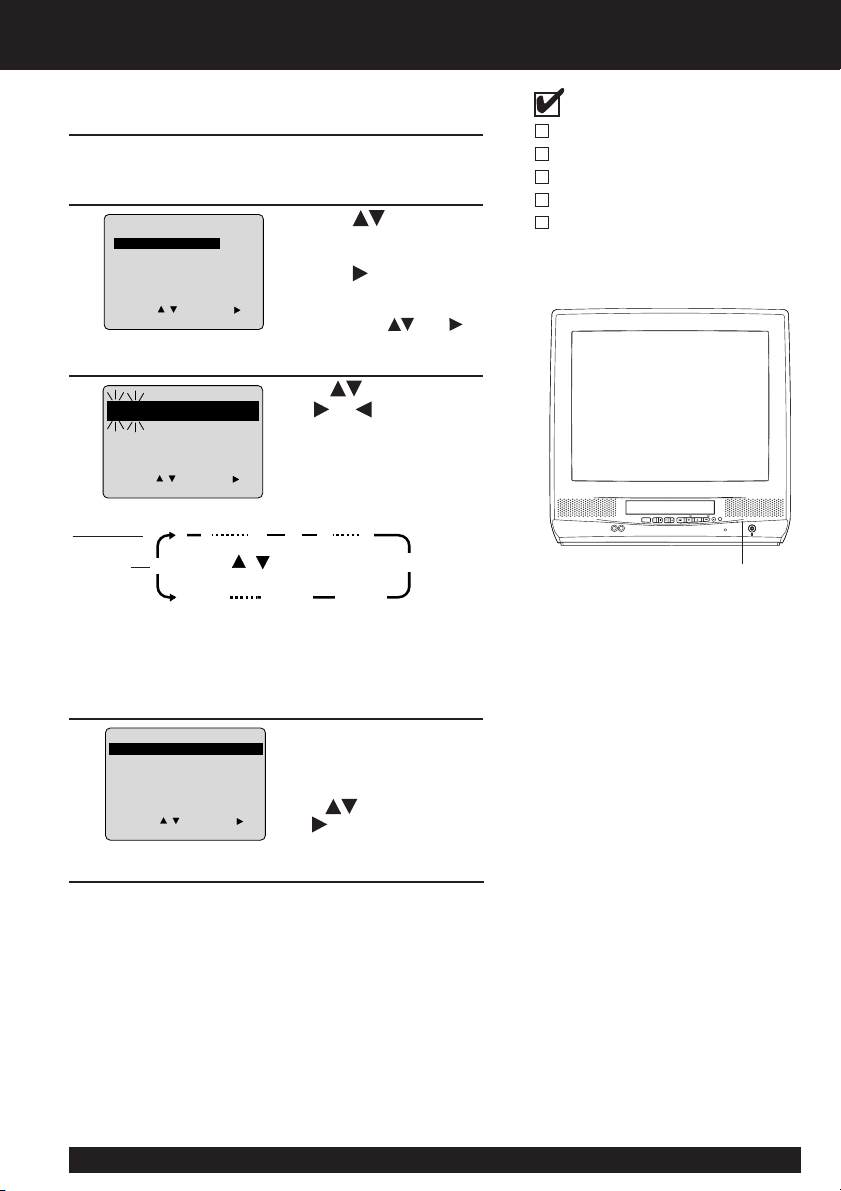

Clock

1) Press to

select “CLOCK.”

M A I N MENU

LOCK

CLOC

K

THU

DST

SET

LANGUAGE

EX I T

JUS

T :

SET

:

:

12

00

: ON

:

0

PM

T V

C H

SELECT :
SET : ACT I ON

2) Press ACTION.

:

SET CLOCK

AUTO CLOCK SET

MANU

AL

T I M

E ZONE AD

SELECT :
END

: ACT I ON

(“TIME ZONE ADJUST” appears

only when auto clock is set.)

3)Press to select

“MANUAL” or “AUTO
CLOCK SET” and

press .

• For Auto Clock Set, select
“AUTO CLOCK SET,” then

press .

SET CLOCK

2 / 6/

2003

SELECT :
START

: ACT I ON

4)Press and

press to select and

set the month, date, year,
time, and DST (Daylight
Saving Time).

5) Press ACTION twice to

start the clock and exit
this mode.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

10

10

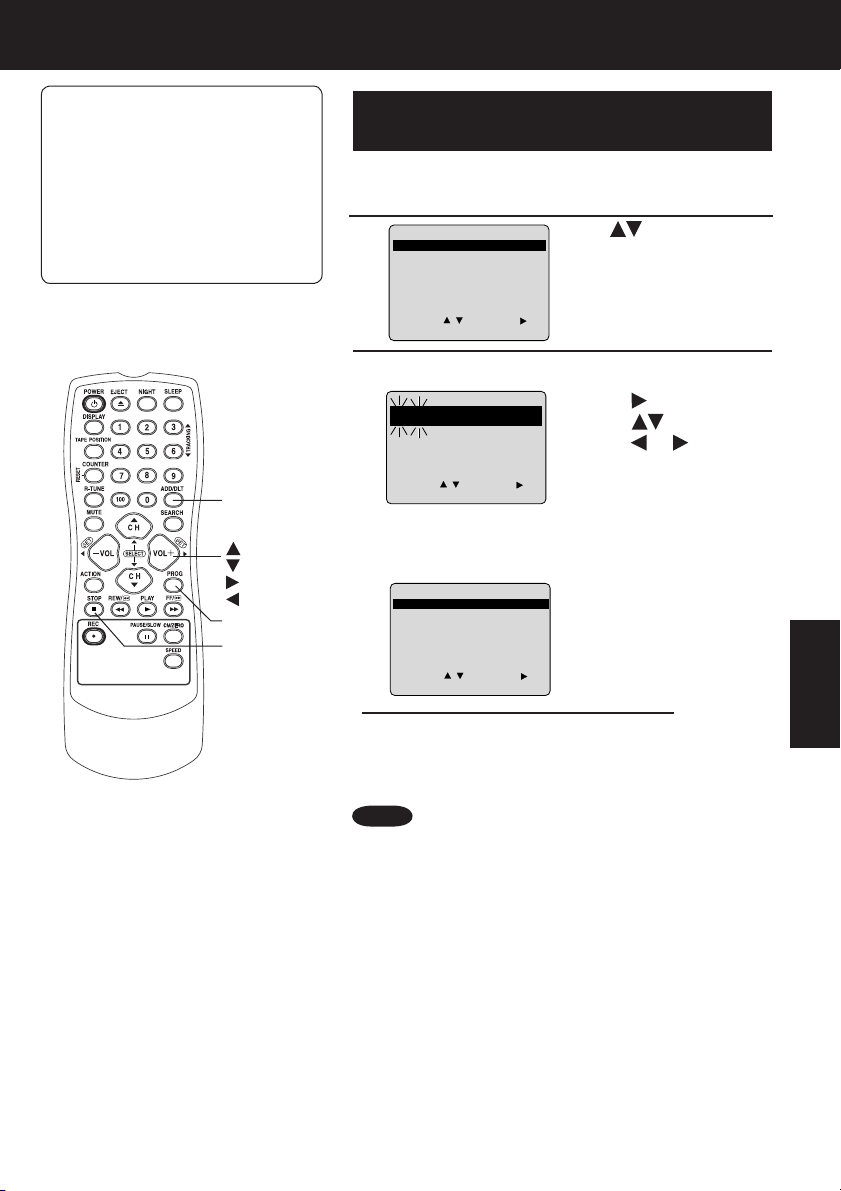

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press to

select “CLOCK.”

M A I N MENU

LOCK

CLOC

LANGUAGE

K

JUS

SET

EX I T

T :

:

0

T V

C H

SELECT :
SET : ACT I ON

2) Press ACTION.

SET CLOCK

AUTO CLOCK SET
MANU

AL

T I M

E ZONE AD

SELECT :
END

: ACT I ON

POWER

ACTION

ACTION key on

the unit

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

Using keys

Basic Operation

3)Press to

select TIME ZONE
ADJUST and

press repeatedly
to select mode.

(See below.)

+

-

1

SET CLOCK

AL

1

JUS

SET

T :

:

0

AUTO CLOCK SET
MANU

T I M

E ZONE AD

SELECT :
END

: ACT I ON

4)Press ACTION

twice to exit.

On Unit

You can operate the
menu screen using
unit buttons. To display
the menu, press
STOP/EJECT and
REW together with no
tape inserted. To exit
the menu, repeat above
with or without tape
inserted until normal
screen appears.

On Remote

: CH UP
: CH DOWN
: VOLUME UP
: VOLUME DOWN

Whenever the menu or program
screen is displayed, CHANNEL
UP/DOWN function as
VOLUME UP/DOWN function

only.

as

On Unit

and

Add or Delete a Channel

+1

To add channel:

Select channel with
number keys and
press ADD/DLT.

C

HANNEL

08 ADDED

To delete channel:

Select channel with

or number keys

CH
and press ADD/DLT.

C

HANNEL

08 DELE T

ED

1111

VIDEO IN

AUDIO IN

POWER

VOL

CH

STOP/EJECT

REW/

PLAY/REPEAT

ACTION

REC

ON TIMER

PROG TIMER

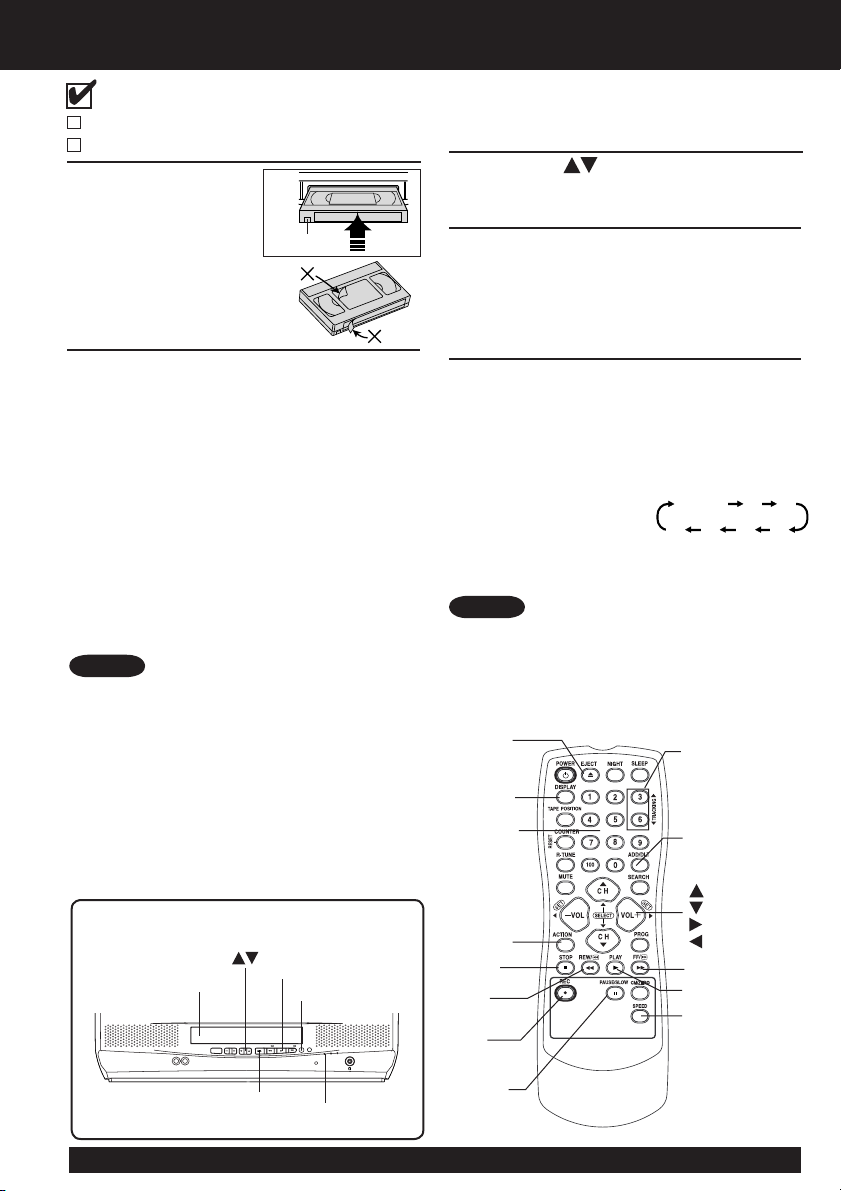

Playback a Tape

Record On a Tape

Check List

Cable or antenna is connected.
Power cord is plugged in.

Insert a cassette.

• The unit power comes

1

on automatically.

Record tab

To prevent tape jam,

remove loose or peeling
labels from tapes.

Press PLAY.

• Playback begins if cassette has no record

2

tab.

Forward/ Reverse scene search

■

➞ Press FF or REW
➞ Press PLAY to release.

Still (Freeze) picture

■

➞ Press PAUSE/SLOW
➞ Press PLAY to release.

Slow Motion picture

■

➞ Hold down PAUSE/SLOW in

Still mode

➞ Press PLAY to release.

Frame by Frame picture

■

➞ Press PAUSE/SLOW in Still mode
➞ Press PLAY to release.

Notes

• These features work best in SLP mode.

• After the unit is in Still or Slow mode for 3 minutes, it
will switch to Stop mode automatically to protect the
tape and the video head.

Insert a cassette with record tab

• The unit power comes on automatically.

1

Press CH or number keys to select a

channel.

2

• For “LINE” input, see bottom of next page.

Press SPEED to select
recording speed (see page 4).

3

SP = Standard Play
LP = Long Play
SLP= Super Long Play

• Selected speed is displayed.

Press REC to start recording.

• To edit out unwanted portions, press

4

PAUSE/SLOW to pause and resume recording.

• You cannot view another channel during
recording.

Stop ➞ Press STOP

■

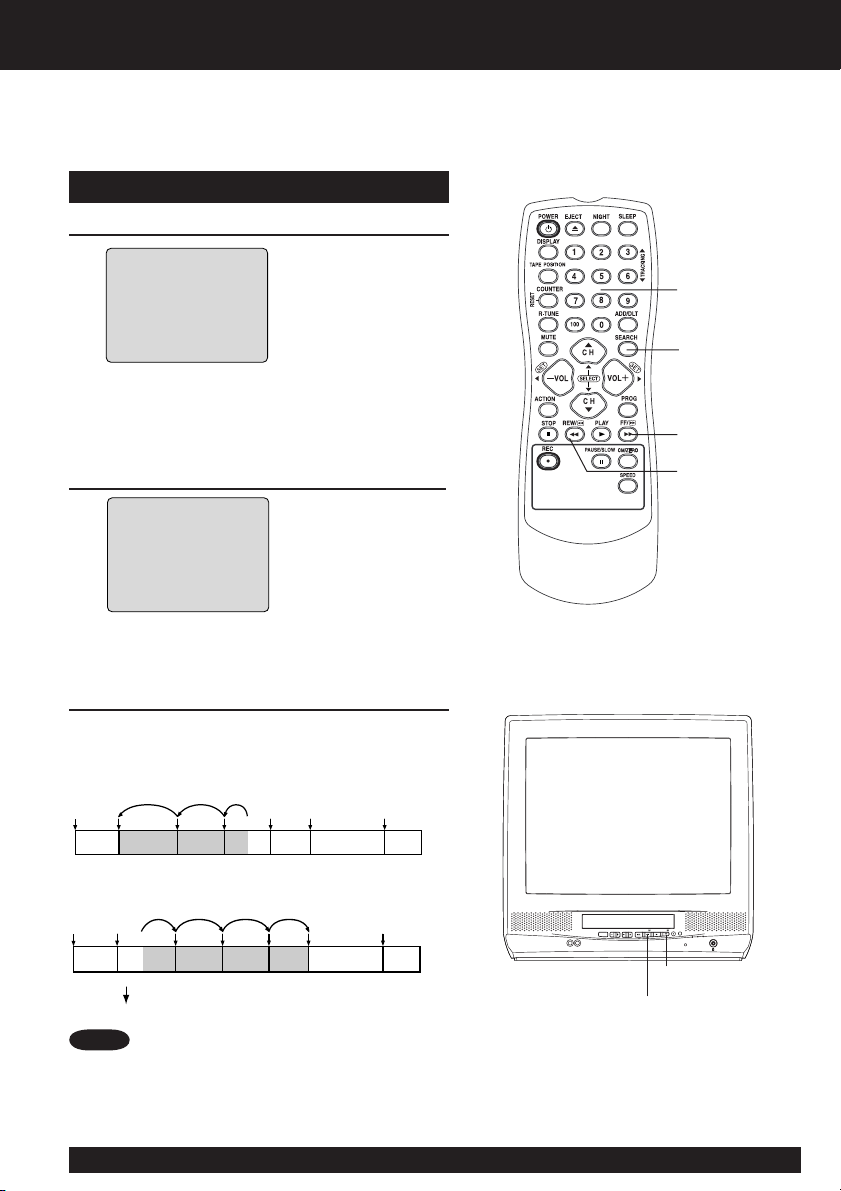

One Touch Recording (OTR)

■

Press REC repeatedly

Normal Rec

0:30 1:00

to set the recording
length (30 min. - 4 hours).

• The unit stops recording at a preset time.

• PROG TIMER indicator lights on the unit.

Notes

• After the unit has been in Rec Pause mode for 5
minutes, it will stop automatically to protect the tape
and the video head.

• The remaining recording time of an OTR can be
displayed by pressing DISPLAY.

EJECT

TRACKING

1:302:003:004:00

Stop ➞ Press STOP

■

Rewind tape ➞ Press REW in Stop mode

■

Fast forward tape

■

Press FF in Stop

➞

mode
Eject tape ➞ Press EJECT on the remote

■

or STOP/EJECT on the unit

You can operate using the
botton on the unit

CH

Insert a cassette.

PLAY

REC

DISPLAY

NUMBER
Keys

ACTION
STOP
REW

ADD/DLT

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

FF
PLAY

SPEED

CH

POWER

VOL

VIDEO IN

AUDIO IN

TIMER

REC

FF/

STOP/EJECT

REW/

PLAY/REPEAT

REC

PROG TIMER

ON TIMER

N

TIO

AC

REC

PAUSE/

Press to stop and/or

■

eject tape.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

12

12

REC Indicator

SLOW

Copy Your Tapes (Dubbing)

Connections you’ll need to make.

Recording (Editing) unit

Playing (Source) VCR

OUT

IN

AUDIO

VID EO

IN FROM ANT.

OUT TO TV

VIDEO IN

AUDIO IN

Basic Operation

Playback (Source)

1

Insert
pre-recorded
tape.

2
3

(Perform operation of steps 4 and 5 on both units at same time.)

4

5

Caution

• Unauthorized exchanging

and/or copying of copyrighted
recordings may be copyright
infringement.

STOP

Press PLAY then
PAUSE at starting

point to put in
Standby mode.

Press PLAY

to start dubbing.

Press STOP

to stop dubbing.

Recording (Editing) unit

Insert blank tape
with record tab.

• Dubbing tapes protected with
Copy Guard will have poor
quality results.

Select “LINE” mode.

See “Selecting Input Mode” below.

Press REC, then
PAUSE/SLOW

immediately to put in
Standby mode.

Press PAUSE/SLOW
to start dubbing.

Press STOP

to stop dubbing.

Selecting Input Mode

Method 1:
Press CH . The display will change as follows.

Method 2:
a Press ACTION for MAIN MENU.
b Press to select “TV,” then press

ACTION for SET UP TV screen.

c Press to select “INPUT SELECT,” and then

press to select “TUNER” or “LINE.”

d Press ACTION twice to exit this mode.

1

3

2

(CABLE)

(TV)

or

125LINE

69

1313

VIDEO IN

AUDIO IN

POWER

VOL

CH

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

REC

ON TIMER

PROG TIMER

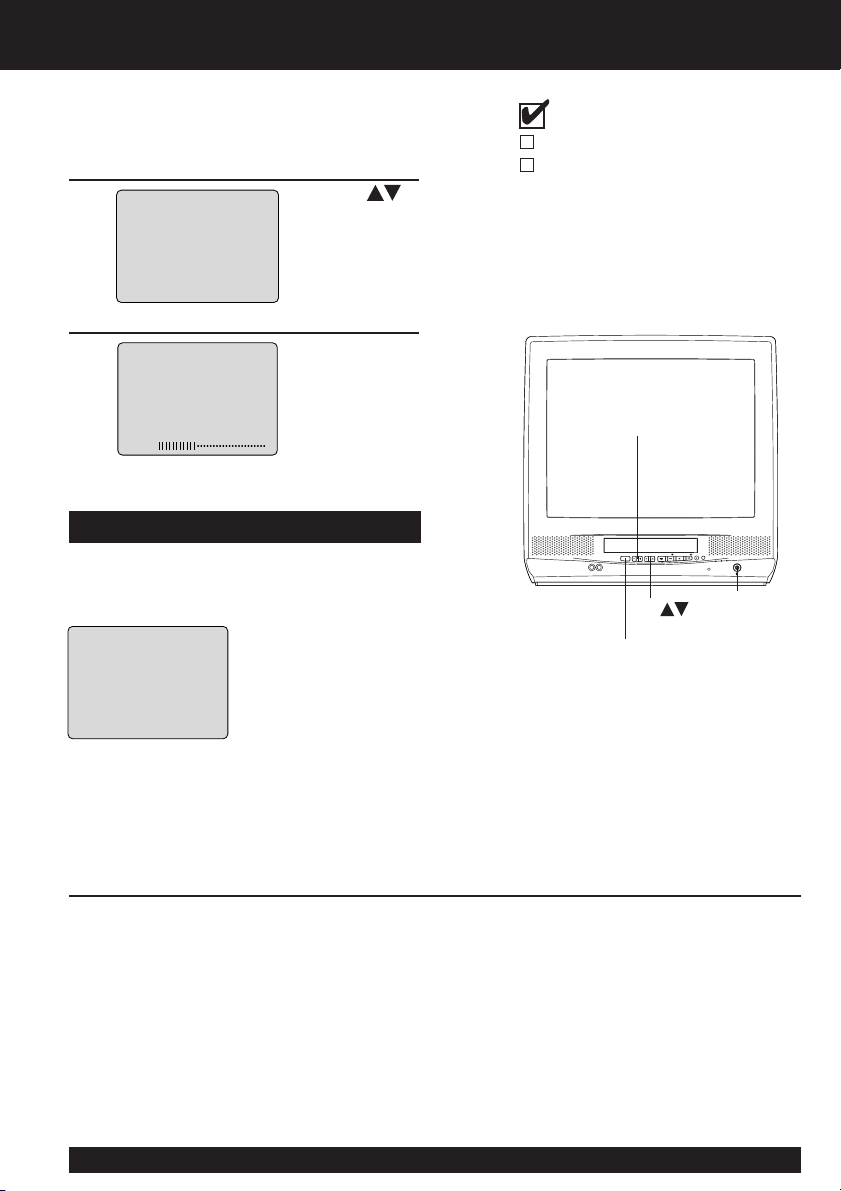

TV Operation

Press POWER on the remote or unit.

1

Use CH

2

CH 08

3

24

NIGHT Mode

Color and picture intensity levels are adjusted so
the screen is easier on your eyes during night time
use.

NIGHT

or number
keys to select

a channel.

Press VOL + or

VOL - to adjust

volume.

Press NIGHT to
set NIGHT mode.

• NIGHT mode may be
selected when watching
TV or playing a tape.

Check List

Cable or antenna is connected.
Power cord is plugged in.

VOL + / VOL

VIDEO IN

AUDIO IN

POWER

CH

POWER

VOL

STOP/EJECT

CH

-

TIMER

REC

FF/

REW/

PLAY/REPEAT

REC

PROG TIMER

ON TIMER

ION

CT

A

PHONES
Jack

Press NIGHT to
cancel.

• Previous settings are
restored.

• NIGHT mode is canceled
when power is turned
off or power failure
occurs.

Using the 100 key

■

When selecting CABLE channels 100 to 125 with the number keys, fi rst press the 100

key, and then enter the remaining two digits.

Rapid Tune

■

Press R-TUNE to display the last channel you were watching.

Audio Mute

■

Press MUTE to instantly mute the sound. Press again to restore the previous sound level.

Phones

■

Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

14

14

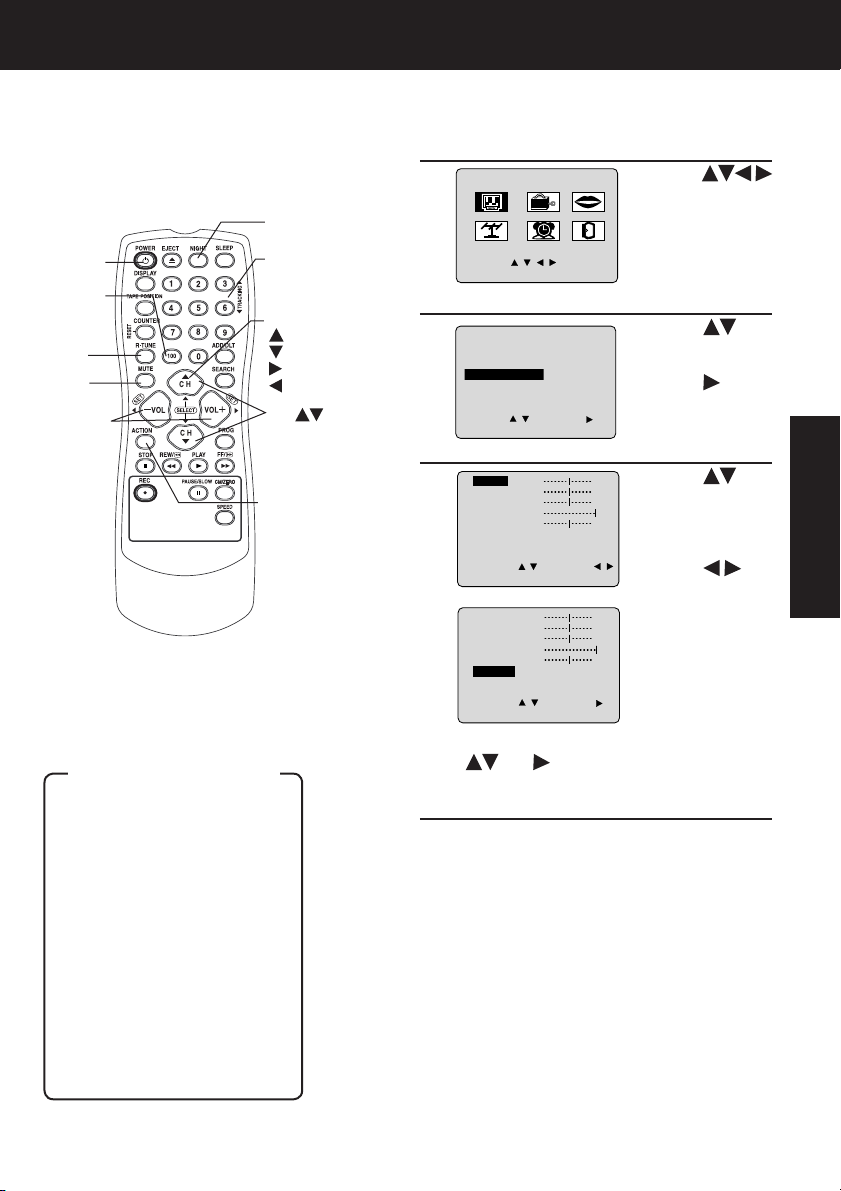

Picture Adjustment

Press ACTION to display MAIN MENU.

1

POWER

100 Key

RAPID
TUNE

MUTE

VOL
UP/DOWN

Picture Adjustment

COLOR Control

■

Adjust color intensity.

TINT Control

■

Adjust for natural fl esh
tones.

BRIGHTNESS Control

■

Adjust picture brightness.

PICTURE Control

■

Adjust picture intensity by
adjusting both contrast and
color level in the proper
balance.

SHARPNESS Control

■

Adjust picture sharpness.

NIGHT

NUMBER
Keys

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

CH

ACTION

1) Press

to select “TV.”

2) Press ACTION

EX I T

to display SET
UP TV screen.

1) Press to

select VIDEO
ADJUST.

2) Press

2

3

M A I N MENU

T V

CLOC

C H

SELECT :
SET : ACT I ON

SET

SELECT

UP TV

CAPT I ON
I NPUT

V I DEO ADJUST

LANGUAGE

LOCK

K

: TUNER

display screen.

SELE

CT :

SET

ADJUST :

SET

:

1) Press to

select an
adjustment
item. (See
below left.)

2) Press

adjust.

:

4

END

: ACT I ON

COLOR

T I NT

R I GHTNESS

B
P I CTUR
SHARPNESS

M

NOR

SELECT :
END

: ACT I ON

COLOR
T I NT

R I GHTNESS

B
P I CTUR
SHARPNESS

M

NOR

SELE

CT :

END

: ACT I ON

E

AL

E

AL

To Reset Picture Controls,
press

All controls return to their factory settings.

and to select and set “NORMAL.”

Press ACTION three times to exit.

5

to

TV Operation

to

1515

TV Timer Features

VIDEO IN

AUDIO IN

POWER

VOL

CH

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

REC

ON TIMER

PROG TIMER

ON-TIMER with Alarm

This unit can be set to automatically power on in one of 2
modes (TV or Playback).
You can also combine the On-Timer with a one minute
alarm that gradually increases in volume.

Press PROG to display SET PROGRAM screen.

1

SET PROGRAM

T I MER PR

ON TIMER

SELECT :
END

: PROG

6

ALARM : O

SELECT :
END

: PROG

OGRAMMING

O

N T I MER

:--

AM CH

N

SET

--

SET

2

3

• Make sure a tape is inserted if Playback mode is selected.

CH02CH

CH01

4

O

6:00AM CH08

ALARM : O

03

N T I MER

N

CH125

1) Press to select “ON

TIMER.”

2) Press

to display ON

TIMER screen.

:

1) Press to select

desired settings.

2) Press

to set the

ON-TIMER TIME or

:

PLAY

ON-TIMER mode.

• ON-TIMER mode
selection order

Press to select
ALARM “ON” or “OFF.”

Check List

The clock is set to the correct time.

TIMER

CH

TIMER

REC

VOL

STOP/EJECT

REW/

PLAY/REPEAT

N
O
I

T
C

A

FF/

REC

PROG TIMER

ON TIMER

ON TIMER
indicator

VIDEO IN

AUDIO IN

CH

POWER

C

ANCEL : ADD / DLT

CT :

SELE
END

: PROG

SET

:

When “ON” is selected, an alarm will gradually increase
in volume for one minute or until canceled by pressing any
button (including VOL + -).
To Make Corrections, use

and to move back

and correct.

Press PROG to set ON TIMER.

• “ON TIMER SET” is displayed.

5

• ON TIMER Indicator lights on the unit.

Note

To Cancel ON-TIMER,

Repeat steps 1 and 2. Then, press ADD/DLT to clear the
time in step 3. Now, press PROG to end.
“ON TIMER END” briefl y appears on-screen.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

16

16

• If no button on the remote or unit
(including a button used to turn
off the alarm) is pressed within 60
minutes after unit turns itself on,
it will turn itself back off.

SLEEP

DISPLAY

ADD/DLT

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

PROG

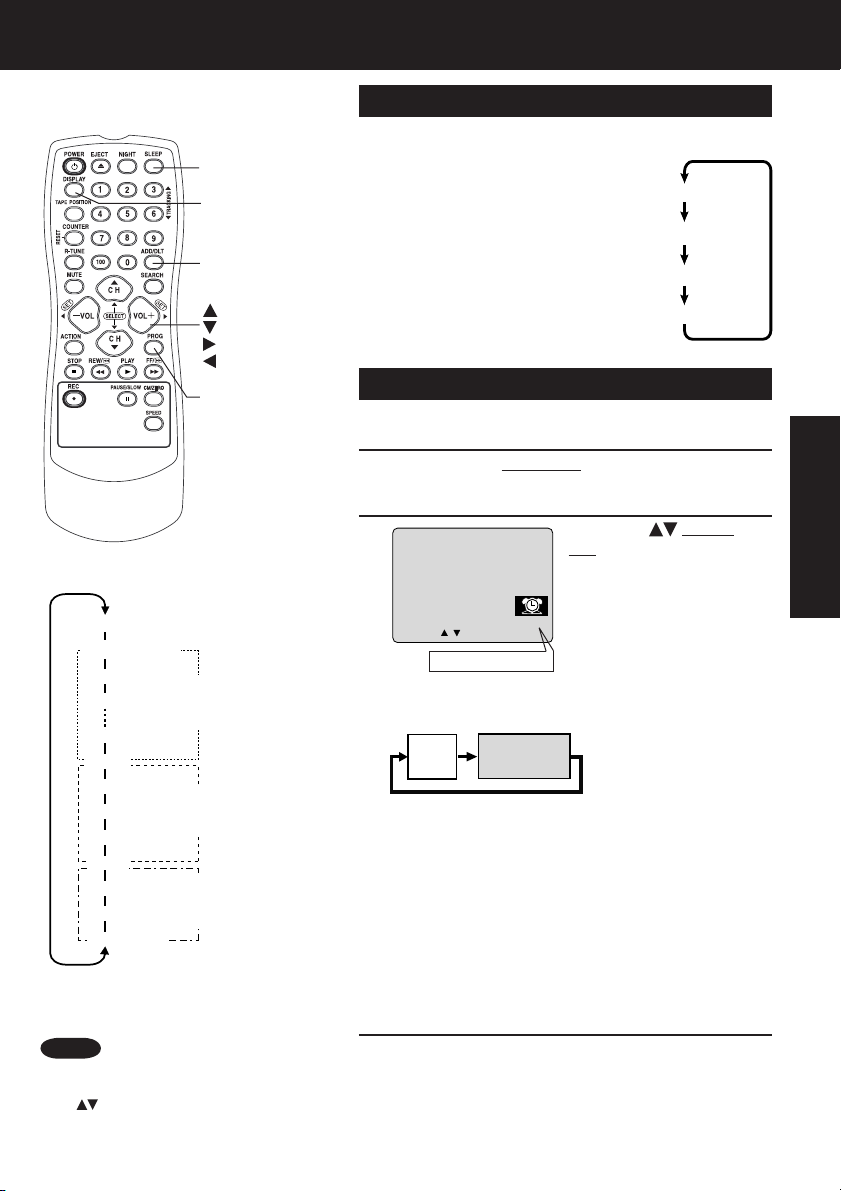

Sleep Timer

This unit can be set for auto power off.

Press SLEEP repeatedly
to set SLEEP TIMER.

• Pressing DISPLAY with sleep timer

set displays remaining time.

Press SLEEP repeatedly until
“SLEEP TIMER 00” appears to
cancel.

SLEEP TIMER 30

SLEEP TIMER 60

SLEEP TIMER 90

SLEEP TIMER 00

Instant Alarm

You can set a timer alarm up to 60 min. Useful when you
are cooking, etc.

Press TIMER on the unit to display the instant
alarm CANCEL/SET screen.

1

TV Operation

00:00

1:00

(one minute)

2:00

One-minute

3:00

increase until 10:00

9:00
10:00
15:00
20:00
25:00
30:00
40:00
50:00
60:00 (Max)

Five-minute
increase until 30:00

Ten-minute increase
until 60:00

Note

• While timer function is in progress, you
can change channels on the unit with

while “CANCEL/SET” screen is

CH
not displayed.

Press CH on the
unit with CANCEL/SET
screen displayed to set
alarm.

(Time changes

in the order shown

00

left.)

2

5 : 20

PM

CANCEL : ADD
SET : CH

/

DLT 02 :

KEY ON UN I T

Remaining Time

• Pressing TIMER repeatedly on the unit will change

display as follows.

INSTANT ALARM

TV

(or LINE)

To cancel, press TIMER then press ADD/DLT on the
remote while CANCEL/SET screen is displayed.

To increase timer in progress, repeat step 2. Time
will be rounded up to next 1, 5, or 10 minute interval.
(See chart left.)

<Example>

• If current time remaining is 12:15, countdown will restart
from 15:00.

• If current time remaining is 9:15, countdown will restart
from 10:00.

Screen Display

TV(or LINE)

Alarm will sound at 0:00.
Press any button to stop.

3

• The volume of the alarm gradually increases for one
minute and then continues to beep until any button is
pressed.

1717

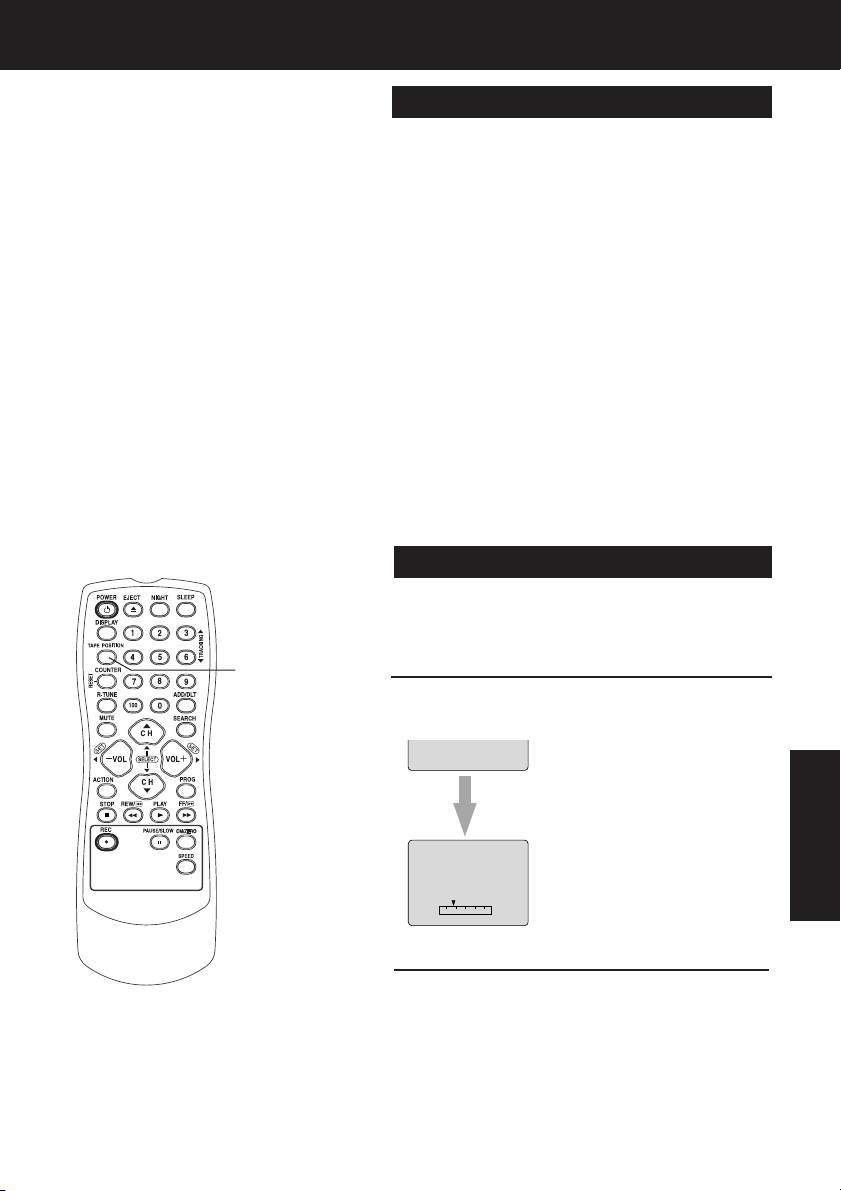

Closed Caption System

Closed Caption is ...

This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes
useful information from TV stations available to everyone.

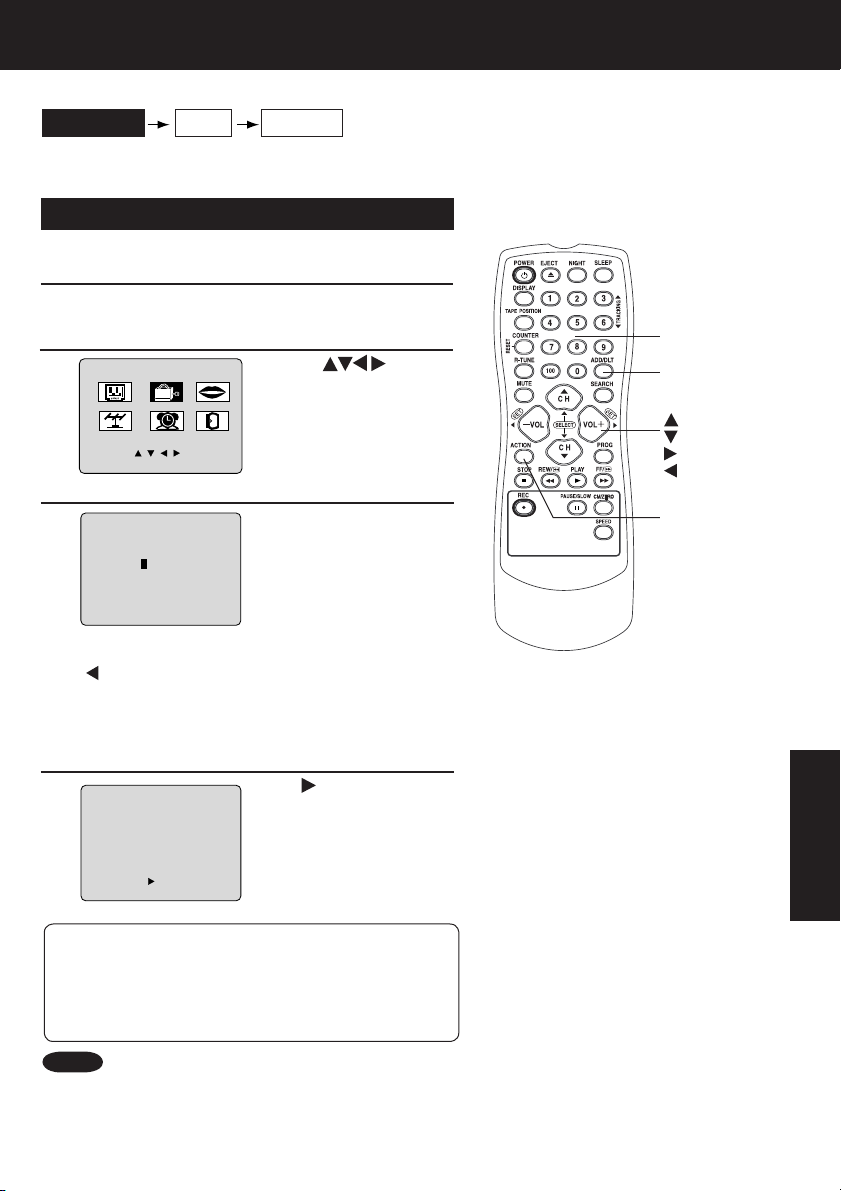

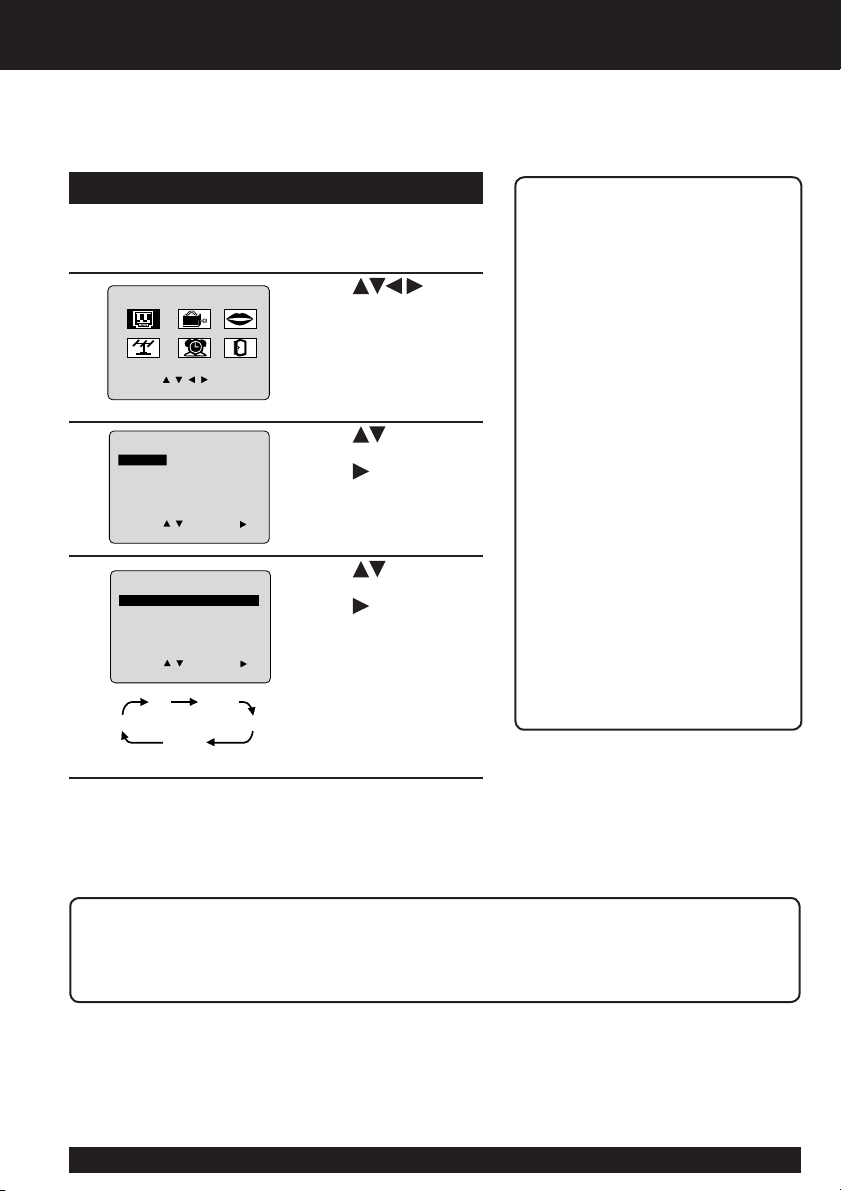

Closed Caption Mode Feature

Press ACTION to display MAIN MENU.

1

1) Press to

select “TV.”

2) Press ACTION to

display SET UP TV

EX I T

screen.

1) Press to select

CAPTION.”

“

2) Press

CAPTION screen.

:

1) Press to select

CAP C1

CAP C1

CAPTION MODE.

2) Press

to select mode.
(See left.)

:

TEXT C1

2

3

4

M A I N MENU

T V

C H

SELECT :
SET : ACT I ON

SET

CAPT I ON

I NPUT

SELECT

V I DEO ADJUST

SELE

CT :

END

: ACT I ON

CAPT I ON

CAPT I ON MODE

CC ON MUTE

CT :

SELE
END

: ACT I ON

OFF

TEXT C2

CAP C2

LOCK

CLOC

K

UP TV

: TUNER

:

CAP C1

LANGUAGE

SET

:

SET

to display

repeatedly

Closed Caption Mode
Selections

Caption Mode: CAP C1 or C2

A narration of selected
TV programs is displayed.
Check TV program listings for CC
(Closed Caption) broadcasts.

Caption Mode: TEXT C1 or C2

The lower half of the screen will
be blocked out. When the TV
station broadcasts information,
such as program listings, it will
appear in this space.

Caption Mode: OFF

Closed Caption / Text narration
will not be displayed.

NOTES :

• The closed caption or text signal
may be broadcast over C1, C2, or
both. Also, text contents can vary
so you may wish to try different
settings.

• While recording one station and
watching another, Captioning will
not be displayed.

Press ACTION three times to
return to the normal screen.

5

Recording and Playing Back a Closed Caption/Text Program

Record: Record normally.

Playback: Start playback. Do above steps to select desired caption mode.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

18

18

Closed Caption/ Text signal, if present, is recorded automatically.

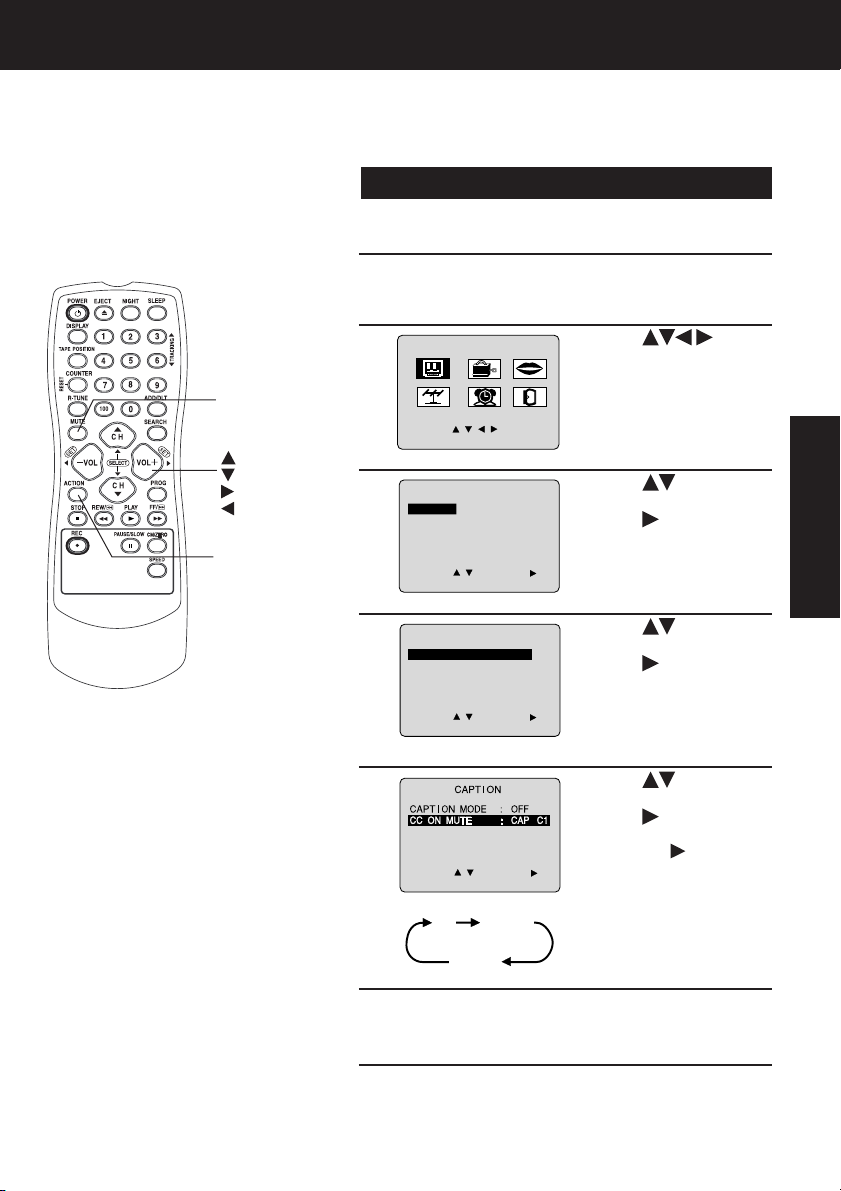

Caption On Mute Feature

Closed Caption narration, if available, is displayed when
MUTE button is pressed.

Press ACTION to display MAIN MENU.

1

MUTE

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

ACTION

2

3

4

5

M A I N MENU

T V

LOCK

CLOC

C H

SELECT :
SET : ACT I ON

SET

CAPT I ON

I NPUT
V I DEO ADJUST

SELE
END

CAPT I ON MODE

CC ON MUTE

SELE
END

SELECT :
END

UP TV

SELECT

CT :

: ACT I ON

CAPT I ON

CT :

: ACT I ON

: ACT I ON

NO

LANGUAGE

K

: TUNER

SET

:

OFF

:

CAP C1

SET

SET

CAP C1

1) Press to

select “TV.”

2) Press ACTION to

display SET UP TV

EX I T

screen.

1) Press to select

“CAPTION.”

2) Press

CAPTION screen.

:

1) Press to select

CAPTION MODE.

2) Press

select “OFF.”

:

1) Press to select

CC ON MUTE.

2) Press repeatedly to

select desired mode.

• Each press of will change
the display as shown left.

:

• The caption may be broadcast
over CAP C1 or C2.

TV Operation

to display

repeatedly to

CAP C2

Press ACTION three times to
return to the normal screen.

6

Press MUTE to mute the sound and display

closed captioning.

7

• To cancel, press MUTE again.

1919

Timer Recording

VIDEO IN

AUDIO IN

POWER

VOL

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

ON TIMER

PROG TIMER

You can set up to 8 programs to be recorded while you are
away.

Press PROG to display SET PROGRAM screen.

1

SET PROGRAM

T I MER PR

2

3

OGRAMMING

ON TIMER

SELECT :

: PROG

--:--

Y

END

DATE START ST

7

FR I

TODA

SET

OPC

--:-- --

- - - - - - - - -- - - - - - - -- - - - - - -

SELECT :
END

: PROG

SET

Example

SELECT / Selection Order

Today’s
Date

Repeat step 3 to set:

• Start time, Stop time

• Channel (or LINE for outside source)

• Speed (SP, LP, SLP)

7

WEEKLY

(SAT)

1) Press to select

TIMER
PROGRAMMING.

2) Press

:

:

screen.

• If a program is already in
memory, press
select an unused program
number.

Press to select

H

and

or to set the

recording DATE.

SP

• 1~31 = One time

• DAILY = MON~FRI

• WEEKLY SUN~SAT
= Same time once a week

2

1

31

WEEKLY

(MON)

WEEKLY

to display

, and to

68 9

DAILY

(SUN)

Check List

Cable or antenna is connected.
Power cord is plugged in.
The clock is set to correct time.
The tape is long enough.
The record tab is in place.

CH

TIMER

REC

POWER

VIDEO IN

AUDIO IN

PROG TIMER indicator

FF/

VOL

STOP/EJECT

REW/

PLAY/REPEAT

REC

PROG TIMER

ON TIMER

N
IO
T

C
A

P DT START

day 9 : 00 p 12 : 00a 08 SP

1

2 -- -- : --

4

3 -- -- : -­4 -- -- : --

CANCEL : ADD / DLT
SELECT :
END

: PROG

STOP CH

-- : -- --

-- : -- --

-- : -- --

SET

Press PROG to

SPD

end the program.

--

--

--

To Enter More Programs,
press

:

and

to select

to set a blank
program number, and
then repeat step 3.

Press PROG twice to exit this mode.

• If you’re using a cable box, make sure that it is tuned

5

to the desired channel and the power is left on for timer
recording.

• PROG TIMER indicator lights on the unit.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

20

20

Cancel a Timer Recording:
(Recording is in progress)

Hold down STOP for a few
seconds to cancel the Timer
Recording.

• Any future daily or weekly recordings
will be performed as programmed.

ADD/DLT

SELECT/SET

:CH UP
:CH DOWN
:VOL UP

:VOL DOWN
PROG
STOP

Review, Replace or Clear Program
Contents :

Repeat steps 1 and 2 on page 20.

(Recording is not in progress)

1

Press to select the

S

PD

SP

desired program.

SP
SP
LP

:

CH

1) Press to display.

08

2) Press

SP

press

program contents.

:

3) Press PROG.

S

PD

Press ADD/DLT.

--

SP
SP
LP

:

to select and

or to set new

2

P DT START

1 day

2
3
4

STOP CH

9 : 00p 12 : 00a 08

8 10 : 00a 12 : 00p
10 8 : 00p 9 : 00p 10
SU

9 : 00p 10 : 00p

CANCEL : ADD / DLT
SELECT :
END

: PROG

125

L

SET

To Replace program...

3

DATE

S

TART

S

8 SAT 9:00

TODA

Y

----------------------------------------------

CT :

SELE
END

: PROG

TOP

P 12: 00A

SET

To Clear program...

P DT START

1 -- -- : --

2
3
4

STOP CH

-- : -- --

8 10 : 00p 12 : 00a
10 8 : 00p 9 : 00p 10
SU

9 : 00p 10 : 00p

CANCEL : ADD / DLT
SELECT :
END

: PROG

125

L

SET

Timer Operation

Press PROG twice to exit this mode.

4

Notes

• 2 minutes before Timer recording is performed, “PLEASE
PREPARE FOR TIMER REC” appears and/or the PROG
TIMER Indicator fl ashes. Be sure a cassette with record tab is
loaded and the unit is in Stop mode.

• If the start times of two programs overlap, the lower numbered
program will have priority.

• If the start time for a Timer Recording comes up during a
normal recording or One Touch Recording (page 12), the Timer
Recording will not be performed.

• If there is a power interruption of more than one minute, the
recording may not be performed or continued.

• If “INCOMPLETE” appears after all items have been set, check
all entries and make necessary corrections.

2121

Tape Operation

VIDEO IN

AUDIO IN

POWER

VOL

CH

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

Search System is ...

Each time a recording is made, an invisible index mark is placed on the tape. When timer recordings are
made, program index and information are also included. These index marks can be used to access or
scan recordings.

Index Search

Go directly to the desired recording.

Press SEARCH in
Playback or Stop
mode to display
INDEX SEARCH
screen, and then
press number keys
to select the recording
number.

• To calculate number, see
below.

Press FF or REW to
start search.

Play begins at
search end.
To search forward
or back 1 index,

press FF or REW

while screen
left is displayed
(10 sec.).

To cancel, press
PLAY.

NUMBER Keys

SEARCH

FF

REW

1

ENTER I NDEX NUMBER : 1

US I

NG 1- 9

FOR
REVERSE SEARCH

I T :

EX

2

FOR
REVERSE SEARCH

I NDEX SEARCH

KEYS

W

ARD SEARCH : FF

SEARCH

I NDEX SEARCH

W

ARD SEARCH : FF

:

REW

:

REW

To calculate the Index Number

■

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

2

34

6157

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

CH

TIMER

REC

VOL

STOP/EJECT

REW/

PLAY/REPEAT

ACTION

REW

FF

FF/

REC

PROG TIMER

ON TIMER

17534 6

2

NOTE: indicates start points of each recording.

POWER

VIDEO IN

AUDIO IN

Note

• If Index Search is started very close to an index mark, that
index mark may not be counted in the search.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

22

22

TAPE
POSITION

Auto Operation Functions

Auto Shut Off

■

No broadcast signal in TV (Only when

Weak Signal Display is set to OFF),
blank tape is Played for 5 minutes

Power turns off

➞

• This feature is canceled if any button is
pressed during above mode.

Auto Playback

■

Insert a tape in Power off mode

Power turns on

➞

• Playback begins if tape has no record tab.

Auto Rewind

■

Tape reaches its end

Rewind ➞ Stop

➞

Playback Auto Eject

■

Tape with no record tab reaches its end

Rewind ➞ Stop ➞ Eject

(Repeat Play is “OFF”)

Tape Position Display

To fi nd out present tape position.

Tape position is displayed for VHS-C Cassettes
type, tapes under 30 minutes, and some other
tapes, but the position is not correct.

Press TAPE POSITION to detect current tape

position.

1

DETECT I NG TAPE POS I T I ON

• “DETECTING TAPE
POSITION” only appears the
fi rst time a cassette is inserted
and it takes several seconds
for correct indication to appear.

• The present tape position
indication is displayed.

Advanced Operation

BEG I N END

Press TAPE POSITION (or wait 5 seconds)
to return to the normal screen.

2

2323

Tape Operation (continued)

Zero Search

To quickly return to a specifi c tape counter location.

Press COUNTER RESET during
playback to display the Counter.

1

Press COUNTER
RESET at the

2

Continue playback, rewind, or fast
forward.

3

Press STOP.

0 : 00 : 00

desired position to
reset to “0:00:00.”

4

Press CM/ZERO in

stop mode to start

5

1 : 23 : 45

ZERO SEARCH.

Commercial Skip

By pressing the CM/ZERO button in Playback
mode you can skip over 1 to 3 minutes of recorded
tape in just a few seconds.

Press CM/ZERO repeatedly to select skip
time in Play mode.

• No indication appears.

DISPLAY

COUNTER
RESET

• Unit goes into FF or REW mode and stops at the last
point the Counter was set to 0:00:00.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

24

24

REW
STOP

PLAY
FF
CM/ZERO

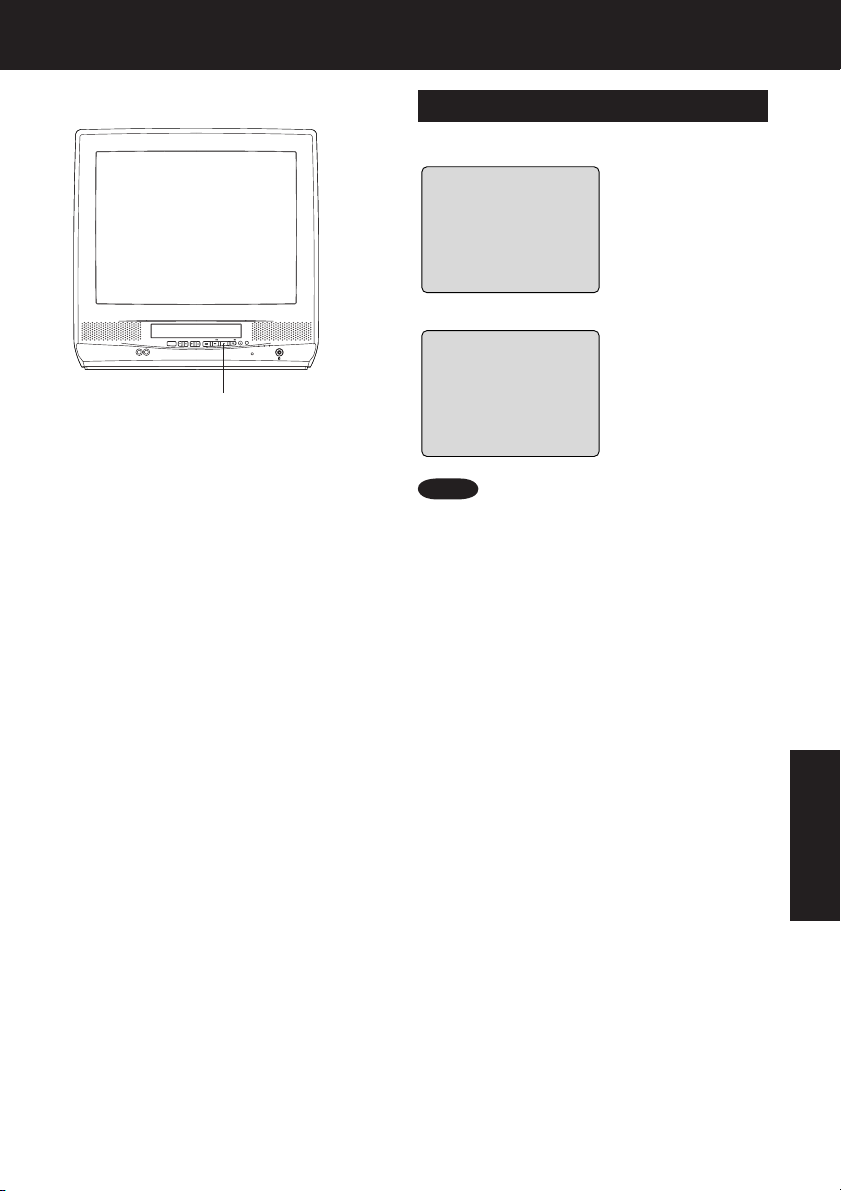

Repeat Play

VIDEO IN

AUDIO IN

POWER

VOL

CH

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

REC

ON TIMER

PROG TIMER

Set to see a recording over and over.

CH

POWER

VOL

VIDEO IN

STOP/EJECT

AUDIO IN

PLAY/REPEAT

PLAY
REPEAT ON

In PLAY mode,

press
PLAY/REPEAT

on the unit to
turn “ON.”

TIMER

REC

FF/

REW/

PLAY/REPEAT

REC

PROG TIMER

ON TIMER

N
IO

T
C
A

PLAY
REPEAT OFF

Repeat above to
turn “OFF.”

Note

• Playback repeats when tape end is reached or
unrecorded portion over 30 seconds is detected.

Advanced Operation

2525

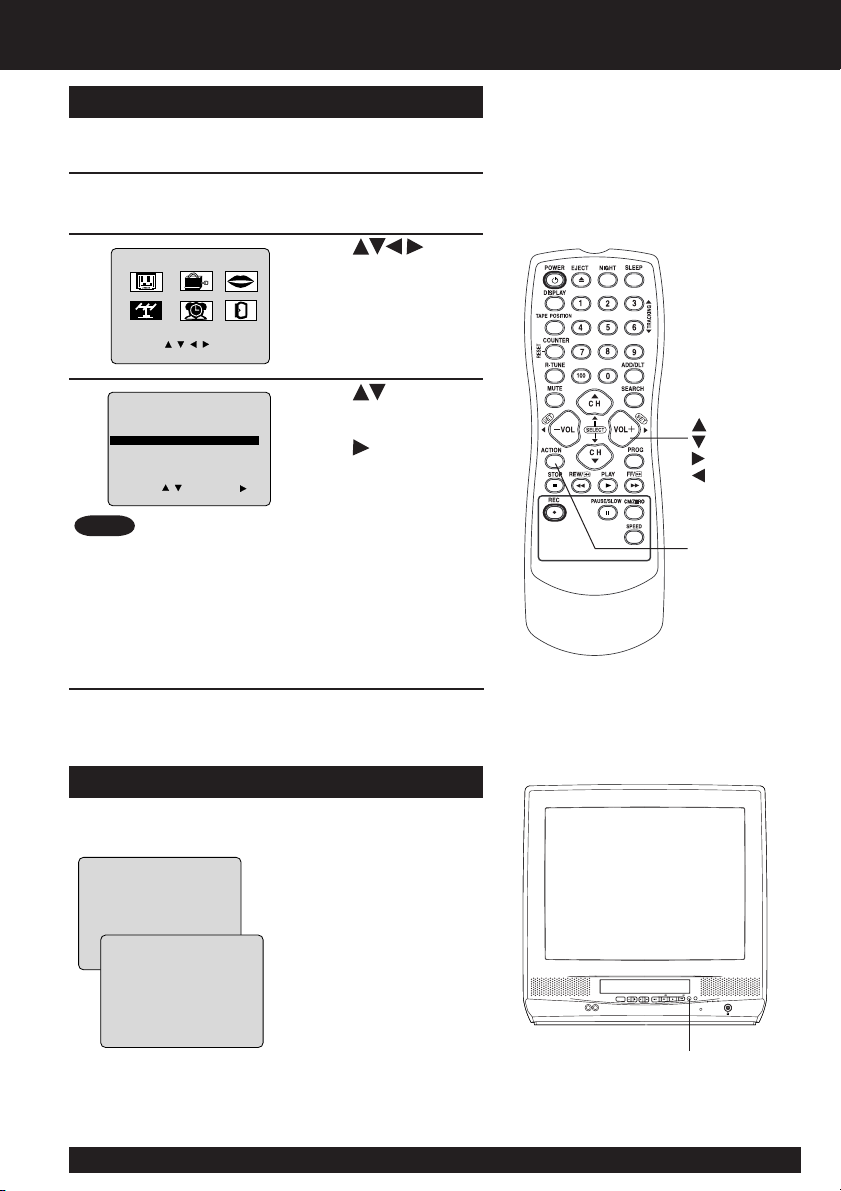

Special VCR Features

VIDEO IN

AUDIO IN

POWER

VOL

CH

STOP/EJECT

REW/

PLAY/REPEAT

FF/

REC

TIMER

ACTION

REC

ON TIMER

PROG TIMER

Weak Signal Display ON/OFF

When “ON” is selected, the picture is displayed even when
a broadcast signal is weak or non-existent.

Press ACTION to display MAIN MENU.

1

1) Press to

select “CH.”

2) Press ACTION to

display SET UP

EX I T

L

CHANNEL screen.

1) Press to select

WEAK SIGNAL
DISPLAY .

2) Press

to set “ON” or

2

3

M A I N MENU

T V

C H

SELECT :
SET : ACT I ON

SET UP CHA

ANT

ENNA

: CABLE

UTO SE

T

A

W

EAK S I GNAL D I

LOCK

CLOC

K

SPLAY : OFF

LANGUAGE

NNE

“OFF.”

SELECT :

SET

END

: ACT I ON

:

Notes

• “ON” = Picture is displayed regardless of signal condition,

“OFF” = Screen turns solid blue when signal is absent or

• If unit is connected to equipment which has blue back feature,
selecting “ON” will have no effect on the other equipment.

and may not always be clearly visible.

weak.

Press ACTION twice to
return to the normal screen.

4

VCR Lock

All operations are prohibited except Timer recording and
tape eject. Useful for families with small children.

In stop mode, hold

VCR L

OCK ACT I VATED

VCR L

OCK OFF

• VCR Lock is canceled automatically after about 24 hours if clock
is set.

down REC on the
unit without a cassette
inserted for 7 seconds
to turn “ON.”
Please ignore NO
CASSETTE warning.

Repeat above with or
without cassette to turn
“OFF.”

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

ACTION

CH

TIMER

REC

POWER

VIDEO IN

AUDIO IN

FF/

VOL

STOP/EJECT

REW/

PLAY/REPEAT

REC

PROG TIMER

ON TIMER

N
IO

T
C
A

REC

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

26

26

V-Chip Control Feature

Process of V-Chip Control Feature

Enter Code

Setup

Blocking

Enter Secret Code

A 4-digit code must be entered to view a blocked program
or change rating settings.

Press ACTION to display MAIN MENU.

1

M A I N MENU

2

T V

LOCK

CLOC

LOCK

----

-

9

K

C H

SELECT :
SET : ACT I ON

3

To Make Corrections

Press
the cursor. Press number
keys to make the correction.

ENTER 4-D I G I T

ENTER : 0
END

: ACT I ON

repeatedly to move

1) Press to select

“LOCK.”

2) Press ACTION to

LANGUAGE

EX I T

display screen.

1) Press NUMBER keys

CODE

to enter your secret
code.

2) Enter same code again

for confi rmation.

• Step 2) not necessary when
changing rating or secret
code.

• Take care that you are not
observed entering the secret
code.

V-Chip Control Feature is...

This unit has a built-in V-Chip Control
which allows you to block unwanted TV
usage based on US MOVIES and US TV
PROGRAMS Ratings.

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP
:CH DOWN
:VOL UP
:VOL DOWN

ACTION

Press to display
US Ratings menu
(see page 28).
Or

Press ACTION

twice to exit.

CONF I RM 4-D I G I T CODE

4

CHANGE
CONT
END

LOCK

****

RECOGN I ZED

****

CODE : ADD / DLT

I

NUE :

: ACT I ON

Changing your secret code

• You will need your current code. Do steps 1 ~ 3.
In step 4, press ADD/DLT to clear current code.
Repeat steps 3 and 4 to enter new code.

Notes

• DO NOT forget your secret code.

• Once ratings are set, restricted tapes or programs cannot be
accessed unless the secret code is entered.

Advanced Operation

2727

V-Chip Control Feature (continued)

If LOCK menu is not displayed, do “Enter Secret
Code” steps on page 27.

Setup US MOVIES Ratings

1

“ON” ➞V-Chip Control is activated.

■

“OFF” ➞V-Chip Control is deactivated.

■

Note

• “NEXT PAGE” displays CANADIAN V-Chip setting
menu. Not necessary except when viewing Canadian
tapes or broadcasts.

2

V I EW NR

3

NR (Not Rated) PROGRAMS

Some movies, such as old movies or foreign
movies usually have no ratings.

V I EW NR

4

Press ACTION to redisplay LOCK menu

and continue with US TV PROGRAMS

5

Ratings Setup (this page). Or, press
ACTION three times to exit.

LOCK

PROGRAMS

G
PG

-

13

PG
R

-

17

NC
X

PROGRAMS

G

PG

-

13

PG
R

-

17

NC
X

: O

NGS

NGS

NEXT PAGE

SET

LOCK

: O

NGS

NGS

NEXT PAGE

SET

? :

UNLOCKED

SET

? :

UNLOCKED

SET

: O

:

:

:

:

US MOVIES

CHANGE SETT I

US TV PROGRAMS

CHANGE SETT I

SELECT :
END

: ACT I ON

US MOVIES

CHANGE SETT I

US TV PROGRAMS : OFF

CHANGE SETT I

SELECT :
END

: ACT I ON

CONTA I NS NO RAT I NG

SELECT :
END

: ACT I ON

GENERAL AUD I ENCE

SELECT :
END

: ACT I ON

1) Press to

FF

FF

select US
MOVIES.

2) Press

“ON” or “OFF.”

1) Press to

select

FF

CHANGE
SETTINGS.

2) Press

display screen.

1) Press to

YES

select
VIEW NR
PROGRAMS?.

2) Press

“YES” or “NO.”

Press to

YES

select and
ratings to be
blocked.
(See ratings chart
next page.)

to set

to

to set

to set

Process of V-Chip Control Feature

Enter Code

Setup

Blocking

Setup US TV PROGRAMS Ratings

LOCK

US MOVIES : O

1

CHANGE SETT I

US TV PROGRAMS

CHANGE SETT I

SELECT :
END

: ACT I ON

“ON” ➞V-Chip Control is activated.

■

“OFF” ➞V-Chip Control is deactivated.

■

NGS

NGS

NEXT PAGE

SET

Note

• “NEXT PAGE” displays CANADIAN V-Chip setting
menu. Not necessary except when viewing Canadian
tapes or broadcasts.

2

V I EW NR

3

LOCK

US MOVIES : O

CHANGE SETT I

US TV PROGRAMS : OFF

CHANGE SETT I

SELECT :
END

: ACT I ON

TV-Y
TV-Y7

-

G

TV
TV-PG
TV-1 4

-

MA

TV

CONTA I NS NO RAT I NG

SELE

CT :

END

: ACT I ON

PROGRAMS

UNLOCKED

FV

S L D

V

S L D

V

S L

V

NGS

NGS

NEXT PAGE

SET

? :

SET

NR (Not Rated) PROGRAMS

Some TV shows, such as news, sports,
weather, bulletins, emergency information
usually have no ratings.

V I EW NR

PROGRAMS

? :

G

MA

ALL

CH I

UNLOCKED

FV

S L D

V

S L D

V

S L

V

LDREN

SET

4

TV-Y

TV-Y7

-

TV

TV-PG

TV-1 4

-

TV

FOR

SELECT :
END

: ACT I ON

Note

• You may select from
standard TV ratings (chart

1), or customize to a specifi c
content rating (chart 2).

1) Press to

select US TV

FF

FF

2) Press

PROGRAMS.

“ON” or “OFF.”

: O

:

1) Press to

CHANGE

select

FF

SETTINGS.

2) Press

:

1) Press

YES

display screen.

to select
VIEW NR
PROGRAMS?.

2) Press

:

YES

“YES” or “NO.”

Press to
select and
ratings to be
blocked.
(See ratings charts

:

next page.)

• Ratings highlighted
in Green will be
blocked. Ratings in
white letters will not
be blocked.

to set

to

to set

to set

Press ACTION three times to exit this
mode.

5

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

28

28

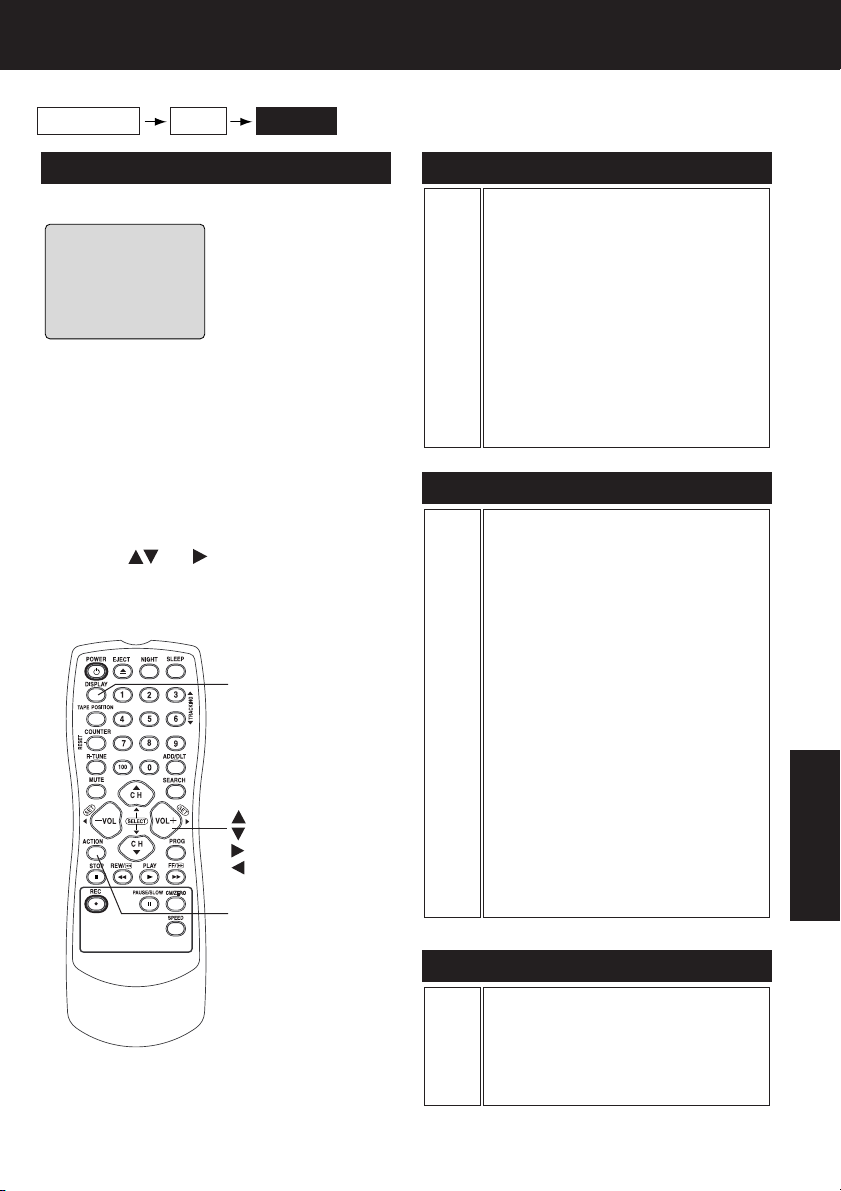

Process of V-Chip Control Feature

Enter Code

Setup

Blocking

Blocking Message

<When V-Chip Control is activated>

• If a program or movie

CH08

exceeds the ratings you
have set, a message

PROGRAM

RAT I NG

EXCEEDED

I NG : PG-1

RAT
ACCESS CODE

ENTER :

3

0-9

To View a Blocked Program / Movie

[Temporarily Deactivate V-Chip Control]

Enter your secret code (ACCESS CODE) in the
Blocking Message screen.

• V-Chip Control is reactivated when power is turned off
or power failure occurs.

[Deactivate V-Chip Control]

Enter your secret code (steps 1-3 page 27). Then,
set US MOVIES and/or US TV PROGRAMS to
“OFF” using
page 28 is retained and will be in effect when
V-Chip Control is activated again.)

and keys. (Ratings set on

will appear on a black
background and sound is

----

muted.

DISPLAY

SELECT/SET

:CH UP

:CH DOWN
:VOL UP
:VOL DOWN

ACTION

US MOVIES RATINGS

G

GENERAL AUDIENCE:

All ages admitted.

PARENTAL GUIDANCE:

PG

Some material may not be suitable for
children.

PG-13

PARENTS CAUTIONED:

Some material may be inappropriate
for children under 13.

R

RESTRICTED:

Children under 17 must be
accompanied by a parent or adult.

NC-17

OVER AGE 17 ONLY:

No one 17 and under admitted.

X

ADULTS ONLY:

US TV PROGRAMS RATINGS: Chart 1

TV-Y

FOR ALL CHILDREN:

Content specifi cally geared to young
viewers ages 2-6.

TV-Y7

FOR AGE 7 AND OLDER:

May contain mild physical or comedic
violence which may frighten children
under 7.

TV-G

GENERAL AUDIENCE:

Contains little or no violence, strong
language, or sexual dialogue or

TV-PG

TV-MA

situations.

PARENTAL GUIDANCE:

May contain infrequent coarse
language, limited violence, some
suggestive sexual dialogue and
situations.

TV-14

PARENTS CAUTIONED:

May contain sophisticated themes,
sexual situations, strong language, and
more intense violence.

MATURE AUDIENCE:

May contain mature themes, profane
language, graphic violence, and sexual
situations.

Advanced Operation

US TV PROGRAMS RATINGS: Chart 2

FV

Fantasy Violence

V

Violence

S

Sexual Situations

L

Adult Language

D

Sexually Suggestive Dialogue

2929

On-Screen Display (OSD)

VCR Status & Clock Display

Press DISPLAY to display or remove

the overlay.

Channel

Function Status

Rec Time
Remaining
(OTR mode
only,
see page

12.)

Current Time

REC

1 2 : 0 0P

0 : 25

NO V-CHIP DATA

Counter

CH08

M

-0 : 1 2 : 3 4
SP

Tape Speed

Warning and Instruction Displays

OSD CAUTION Page

PLEASE SET CLOCK BY
PRESSING ACTION KEY

If you attempt to set or review a Timer Recording, or
set the On-Timer and the Clock is not set...

Blue Screen Display

Whenever a blank section of a tape comes up in
Play mode, or when the selected channel has no
broadcast signal with the Weak Signal Display set
to “OFF” (see page 26), the screen will turn solid
blue.

Channel & Function Display

When a function button is pressed (PLAY, FF, etc.)
or you change channels, the unit mode or channel
number will be displayed.

CH 08

These displays will alert you to a missed
operation or provide further instructions.

8 - 11

CHECK CASSETTE RECORD TAB

TO CANCEL TIMER REC HOLD
DOWN STOP KEY FOR APPROX 3
SEC

NO CASSETTE

PLEASE PREPARE FOR TIM ER
REC

VIDEO HEADS MAY NEED
CLEANING PLEASE INSERT HEAD
CLEANING CASSETTE OR REFER
TO MANUAL END: PLAY

VCR LOCK ACTIVATED

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

30

30

If you press REC, and a cassette is inserted with no
record tab...

If you press STOP during a Timer Recording...

If you press PLAY, FF, REW, or REC without a
cassette inserted...

If the unit is not in Stop mode or a cassette with
record tab is not inserted two minutes before a Timer
Recording is about to begin...

If head cleaning becomes necessary while playing
back a tape...

If you press a function button other than STOP/EJECT or
POWER while the unit is in VCR Lock mode...

3, 12

21

12

20 - 21

4

26

Before Requesting Service

Check the following points once again if you are having trouble with your unit.

Power CORRECTION

No power…

Monitor CORRECTION

No picture or sound...

Poor picture with normal sound...

Poor sound with normal picture... • Adjust VOLUME control. (P.14)
Poor TV reception... • Adjust SHARPNESS and PICTURE controls in the SET UP TV menu. (P.15)
No color or poor color... • Adjust TINT and COLOR controls in the SET UP TV menu. (P.15)
Ghost (multiple) images... • Install a directional antenna.
TV programs cannot be

watched...
Channel cannot be selected... • Only the channel being recorded can be viewed on this unit.

VCR CORRECTION

TV program cannot be
recorded...

Timer recording cannot be
performed…

No playback picture, or the
playback picture is noisy or
contains streaks...

VCR cannot be controlled...

Remote Control CORRECTION

Unit cannot be controlled...

ACTION and PROG buttons
cannot be selected...

Miscellaneous CORRECTION

Video cassette cannot be
inserted...

Video cassette cannot be
removed...

Tape cannot be ejected or
inserted...

Video cassette ejects when a
recording is started, or the power
is turned off for timer recording...

In Stop mode, the VCR motor
(CYLINDER) continues to
rotate...

VCR cannot be controlled... •

If you cannot resolve the problem, please call the Customer Satisfaction Center for
product assistance at 1-800-211-PANA(7262).
To locate an authorized servicenter call toll free 1-800-211-PANA(7262)
or send e-mail to : [e-mail].

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Make sure your antenna system (TV or CABLE), is correctly set. (P.8)

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP TV
menu. (P.15)

• Make sure the selected channel is in unit’s memory. (P.10)

• Make sure your antenna system (TV or CABLE), is correctly set. (P.8)

• Make sure cassette record tab is intact. (P.3)

• Check that clock is set to current time and date.

• Make sure DSS/CABLE box (if used) is left on and tuned to channel to be
recorded.

• Set recording Start/Stop times correctly. (P.20-21)

• Timer recording may not be performed or continued if a power interruption
of more than 1 minute occurs before or during a Timer Recording, even after
power is restored.

• Adjust TRACKING control in either direction. (P.4)

• Try Head Cleaning. (P.4)

• Make sure VCR LOCK is set to off. (P.26)

• Make sure unit is not in a Timer Record operation.

• Aim remote at remote sensor on unit (P.7) so that signal is unobstructed.

• Inspect the remote batteries. (P.3)

• Make sure VCR LOCK is set to off. (P.26)

• Exposing unit remote sensor to direct fl uorescent or outdoor light may cause
signal interference.

• Check remote batteries.

• Insert the cassette window side up; record tab facing you.

• Completely insert Power Plug into an AC outlet.

• Try ejecting or inserting the tape again after turning POWER off, then back on.

• Make sure cassette record tab is intact. (P.3)

• To enable Quick Play mechanism, the VCR cylinder will rotate for about 3
minutes. This reduces response time from Stop to Play mode and from Play to
Rewind Search mode.

Make sure VCR LOCK is set to off. (P.

26)

For Your Information

3131

Limited Warranty

PANASONIC CONSUMER ELECTRONICS
COMPANY, DIVISION OF MATSUSHITA ELECTRIC
CORPORATION OF AMERICA
One Panasonic Way Secaucus, New Jersey 07094

PANASONIC SALES COMPANY, DIVISION OF
MATSUSHITA ELECTRIC OF PUERTO RICO, INC.,
AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial
Park, Carolina, Puerto Rico 00985

Panasonic/Quasar Video Products

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic
Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”)
will, for the length of the period indicated on the chart below, which starts with the date of original
purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or
(b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the
warrantor.

Product

Camcorder One (1) Year (except

DVD/VCR Deck,
A/V Mixer

TV/VCR, TV/DVD,
TV/DVD/VCR
Combination

TV/HDR
Combination

Rechargeable
Batteries
(in exchange for
defective item)

Tape
(in exchange for
defective item)

Memory Cards
(in exchange for
defective item)

CCD Image Sensor)
CCD Image Sensor - 6
(Six) Months

One (1) Year Ninety (90) Days Carry-In or Mail-In 1-800-211-PANA(7262)

One (1) Year (except
CRT)
CRT - Two (2) Years

One (1) Year (except
CRT)
CRT - Two (2) Years

Ten (10) Days Not Applicable Carry-In or Mail-In 1-800-211-PANA(7262)

Five (5) Days Not Applicable Carry-In or Mail-In 1-800-211-PANA(7262)

Ninety (90) Days Not Applicable Carry-In or Mail-In 1-800-211-PANA(7262)

Parts Labor Service Contact Number

Ninety (90) Days

Ninety (90) Days

Ninety (90) Days

Ninety (90) Days

Ninety (90) Days

Ninety (90) Days

Carry-In or Mail-In 1-800-211-PANA(7262)

Carry-In: 21
and Smaller
In-Home or Carry-In:
22

In-Home or Carry-In 1-888-843-9788

″ CRT

″ CRT and Larger

1-800-211-PANA(7262)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period,
there will be no charge for parts. You must carry-in or mail-in your product or arrange for in-home
service, as applicable, during the warranty period.
If non-rechargeable batteries are included, they are not warranted. This warranty only ap plies to
products purchased and serviced in the United States or Puer to Rico. This warranty is extended only to
the original purchaser of a new product which was not sold “as is.” A purchase receipt or other proof of
the original purchase date is required for warranty service.

Carry-In, Mail-in or In-Home Service

For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact
number listed above or visit Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

In-Home service, if applicable, requires clear, complete and easy access to the product by the
authorized servicer and does not include removal or re-installation of an installed product. It is possible
that certain in-home repairs will not be completed in-home, but will require that the product, or parts of
the product, be removed for shop diagnosis and/or repair and then re turned.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

32

32

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on
the picture tube resulting from viewing fi xed images (including, among other things, letterbox pictures
on standard 4:3 screen TV’s, or non-expanded standard 4:3 pic tures on wide screen TV’s, or onscreen
data in a stationary and fi xed location). The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up ad just ments, misadjustment of consumer controls, improper maintenance, power
line surge, lightning damage, modifi cation, or commercial use (such as in a hotel, offi ce, restaurant, or
other business), rental use of the product, service by anyone other than a Factory Servicenter or other
Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY
COVERAGE.” THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone

remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of media or
images, data or other memory or recorded content. The items listed are not exclusive, but are for
illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specifi c legal rights and you may also have other rights which vary from state
to state. If a problem with this product develops during or after the warranty period, you may contact
your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’
s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE
APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR
RESPONSIBILITY.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request, Dealer
Lo ca tions, and all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm,
EST. or send e-mail : [e-mail]
For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your
nearest servicenter by vis it ing our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST)
(Visa, MasterCard, Discover Card, American Express, Check)

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory
Servicenter:

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

Phone [phone] Fax [phone]

As of August 2002

For Your Information

3333

Spanish Quick Use Guide/Guía para rápida consulta

Connexiones/Confi guracion Inicial

Conecte por favor todas las conexiones del
cable o de la antena antes de turing potencia.

Conectando

Para Ant./Cable
Conecte Ant./Cable a la entrada de antena de la
TV (VHF/UHF).

Para Sistema Digital de Satelite
(DSS)/Convertidor de cable
Conecte la salida del convertidor de cable la
“VHF/UHF” con el RF cable.

Realizando Confi guracion Inicial

Presione COMBO para mode del combo.
Tape el cable electrico de la unidad en el

1

enchufe de pared de la CA. POWER de la
prensa en el telecontrol o la unidad. La
unidad se adelanta y comienzo auto del
canal y del reloj.

Si usa convertidor de

CH AUTO SET PROCEEDING

AUTO CLOCK SET

PROCEEDING

CANCEL : STOP

cable, enciendala y
seleccione el Servicio
Publico de Canales de
Television (PBS) en su
horario de uso o tiempo
de su zona. Si utiliza
receptor DSS este debe
de estar apagado.

Ajuste Manual del Reloj

Si el ajuste automático del reloj no se ha
completado, ajuste el reloj manualmente
de la siguiente manera:

1) Presione la tecla ACTION en el
control remoto para visualizar la
pantalla del menú RELOJ.

2) Presione ▲▼ para seleccionar
el mes y

para ajustar. De
la misma forma, seleccione y
ajuste la fecha, año, hora y DST
(Hora de Verano).

3) Presione dos veces la tecla
ACTION para poner el RELOJ
en marcha y salir.

Ajustar de nuevo el reloj

Presione ACTION para exhiba
el menú.

1

MENU

2

PR I NC I PAL

BLOQUEO

TV

CANAL

REL OJ SAL I R

LEG I R :

E
F I JAR : ACT I ON

IDIOMA

Presione

▲▼

para
seleccionar
“RELOJ,” y
luego
presione
ACTION.

F I J

AR RELO

NAR : ACT I ON

FIJAR RELOJ

VERANO:ACT

NAR : ACT I ON

J

F I JAR

F I JAR

:

:

:

Presione

▲▼

seleccionar
“MANUAL”
y luego
presione .

Selecciones se realizaran

M

N

automaticamente cuando

0

la confi guracion termine,
la pantalla siguiente
aparecera.

3

F I JAC I ON AUTOMAT I CA

MANUAL

AJUSTE ZONA HORA : 0

G I R :

ELE
TERM I

2

2 / 6 / 2003 THU 12 : 00P

DST : O

SETT I NG : CH 1

UTO CLOCK SET

A

MPL

ETED

CO

Si “AUTO CLOCK SET IS

A

UTO CLOCK SET

MPL

ETE

IS INCO

PLEASE SET CLOCK BY
PRESSING ACTION KEY

Nota

• Los botones de funciones son inoperantes durante la
Confi guración inicial.

• Para retirar un cassette durante el Ajuste automático, pulse
EJECT dos veces en el control remoto o STOP dos veces en el
VCR. En este caso, los ajustes se deben realizar manualmente.
(Vea la p.10 de Libro de operaciones avanzadas).

• Dependiendo de las condiciones, puede que el Ajuste
automático del reloj tarde más de 30 minutos. En ese caso,
pulse STOP para detener la confi guración y realice los
ajustes manualmente. (Vea la p.10 de Libro de operaciones
avanzadas).

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

34

34

INCOMPLETE” aparece en
pantalla, coloque el tiempo
usando el procedimiento
manual (MANUAL CLOCK
SET), vealo enseguida..

2 / 6/2003 JUE 12 00PM

4

- - - - - - - - -- - - - - - - -- - - - - - -

G I R :

ELE
TERM I

Presione ACTION dos veces
para que el reloj comience a

5

funcionar y salir desde este
modo.

para

Presione

y

▲▼

para
seleccionar
y ajustar la
hora y la
fecha.

Operaciones básicas para la
reproducción

Inserte un casete.

• El videograbador combinado se enciende

1

automáticamente.

Presione PLAY.

• La reproducción comienza

2

automáticamente si el casete no tiene la
lengüeta para prevención de grabación.

Para encontrar una escena en particular

■

Búsqueda hacia adelante ➞ Presione FF

Búsqueda hacia atrás ➞ Presione REW

Para ver una imagen fi ja (congelada) ➞

■

Presione PAUSE/SLOW

Para ver en cámara lenta ➞ Mantenga pulsado

■

el botón PAUSE/SLOW en el modo de imagen
fi ja

Para ver imágenes cuadro a cuadro ➞

■

Presione PAUSE/SLOW en el modo de imagen
fi ja

Para parar ➞ Presione STOP

■

Para rebobinar la cinta ➞ Presione REW

■

Para hacer avanzar la cinta rápidamente ➞

■

Presione FF

Para expulsar la cinta ➞ Presione EJECT

■

en el con trol remoto o STOP/EJECT en el
videograbador combinado

Operaciones básicas para la
grabación

Inserte un casete con la lengüeta
para prevención de grabado.

1

• El videograbador combinado se enciende

automáticamente.

Seleccione el canal.

Presione CH ▲▼ o las teclas

2

numéricas correspondiente.

Seleccione la velocidad de grabación.

Presione SPEED.

3

4

SP = reproducción normal
LP = reproducción larga
SLP = reproducción super larga

• La velocidad seleccionada debe aparecer en la

pantalla.

Comience la grabación.

Presione REC.

• Para editar partes no deseadas de una

grabación, presione PAUSE/SLOW para hacer
una pausa durante la grabación.

• No podrá ver otro canal durante la grabación.

Para parar

■

El videograbador combinado deja

■

➞

Presione STOP.

de grabar a una hora prefi jada.

(Grabación de un toque)

Presione REC repetidamente para

ajustar la hora de grabación (30 min

- 4 horas.)

Grabación normal

0:30 1:00

Grabación con temporizador

Exhiba FIJAR PROGRAMACION.

Presione PROG.

1

F I J

AR

PROGRAMAC I ON

TEMPOR l

2

• Si ya existe un programa en la memoria, presione
▲▼ y
sin usar.

3

• 1 - 31 = Grabación única

• DIARIO = a la misma hora de lunes a viernes

• SEMANAL = a la misma hora una vez a la semana

ZADOR

ENCENDIDO AUTOMATICO

F I JAR

G I R :

ELE
TERM I

NAR : PROG

para seleccionar un número de programa

FECHA INICIO PARADA CA

7

VIE --:--

HOY

- - - - - - - - -- - - - - - - -- - - - - - -

G I R :

ELE
TERM I

NAR : PROG

--:-- --

F I JAR

Fecha de hoy

Repita el paso 3 para ajustar:
hora de comienzo, hora de parada, canal (o LIN EA
para una fuente ex te ri or), velocidad (SP, LP, SLP)

N I

C

P FE I

1

2
3

4

4

Para introducir más programas.
presione ▲▼ y
el número de programa en blanco, y luego
repita los pasos 3 y 4.

PARADA

I 9 : 00

p 12 : 00

ELAR : ADD/DLT

F I JAR

NAR : PROG

a

D

-- -- : -- -- : -- -- --

-- -- : -- -- : -- -- --

-- -- : -- -- : -- -- --

CANC

G I R :

ELE
TERM I

Salga de este modo.

Presione PROG dos veces.

5

• Si está usando un decodifi cador de TV
cable, asegúrese que se encuentra en el
canal deseado y que la alimentación queda
conectada para grabar con temporizador.

• El indicador PROG TIMER se enciende en el
videograbador combinado.

1:302:003:004:00

Exhiba
TEMPORIZADOR.

1) Presione ▲▼

:

para seleccionar.

2) Presione
exhibir.

Ajuste la fecha de
grabación.

SP

1) Presione ▲▼

:

para seleccionar.

2) Presione

para ajustar.

CA VEL

Termine el

08 SP

programa.

Presione PROG.

:

para seleccionar y ajustar

para

o

For Your Information

3535

Index

A

Accessories ...............................................................3

Audio Mute ..............................................................14

Auto Operation Functions........................................23

B

Before Requesting Service......................................31

Blocking Message ...................................................29

Blue Screen Display ................................................30

C

Caption On Mute Feature........................................19

Channel & Function Display ....................................30

Channel (SET UP CHANNEL).................................10

Clock (SET CLOCK)................................................10

Closed Caption Mode Feature.................................18

Commercial Skip .....................................................24

Connections...............................................................8

Copy Your Tapes (Dubbing)....................................13

Customer Services Directory...................................33

D

DST (Daylight Saving Time)......................................4

E

Eject Tape ...............................................................12

Enter Secret Code...................................................27

F

Fast Forward ...........................................................12

Features for a Quality Picture....................................4

Forward Search.......................................................12

Frame by Frame Advance.......................................12

Front Panel Indicators ...............................................7

H

Head Cleaning...........................................................4

I

Important Safeguards and Precautions.....................2

Index Search ...........................................................22

Initial Setup................................................................8

Instant Alarm ...........................................................17

L

Language ................................................................10

Limited Warranty ...............................................32–33

Loading the Batteries.................................................3

Location of Controls...............................................6–7

M

Manual Clock Set ......................................................9

N

NIGHT Mode ...........................................................14

O

ON-TIMER with Alarm.............................................16

One Touch Recording .............................................12

P

Phones ....................................................................14

Picture Adjustment ..................................................15

Playback..................................................................12

R

Rapid Tune..............................................................14

Record.....................................................................12

Record/Playback Speed Settings..............................4

Remote Control Buttons ............................................6

Repeat Play.............................................................25

Reset all unit Memory Functions ...............................9

Reverse Search.......................................................12

Rewind.....................................................................12

S

Selecting Input Mode...............................................13

Sleep Timer .............................................................17

Slow Motion.............................................................12

Spanish Quick Use Guide .................................34–35

Special VCR Features.............................................26

Specifi cations ............................................................4

Still (Freeze) Picture................................................12

Stop .........................................................................12

T

Tape Erasure Prevention...........................................3

Tape Position Display..............................................23

Timer Program Review, Replace, Clear..................21

Timer Recording......................................................20

Timer Recording Cancellation .................................21

Time Zone Adjust ....................................................11

TV Operation ...........................................................14

TV Timer Features.............................................16–17

U

Unit, Front View.........................................................7

Unit, Rear View..........................................................7

Using the 100 key....................................................14

US MOVIES RATINGS............................................29

US TV PROGRAMS RATINGS...............................29

V

V-Chip Control Feature......................................27–29

VCR Lock ................................................................26

VCR Status & Clock Display....................................30

W

Warning and Instruction Displays............................30

Weak Signal Display ON/OFF.................................26

Z

Zero Search.............................................................24

Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus,

LSQT0712A

New Jersey 07094

Panasonic Sales Company (“PSC”),
Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infanteria. Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Printed in Indonesia

LSQT0712A

S0303-0
