Quasar Palmcorder Camcorder VM-L152, VML152D - VHS-C CAMCORDER, VH425 Operating Instructions Manual

Camcorder

Operating Instructions

R

Getting Started

Model No.

VM-L152

Basic Operation

Special Features

Please read these instructions carefully before attempting to operate this product.
Please save this manual.

Guía para rápida consulta en español está incluida.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

For Your Information

LSQT0598A

Things You Should Know

Thank you for choosing Panasonic!

You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring
you years of enjoyment. Please take time
to fill in the information to the right.
The serial number is on the tag located on
the rear side of your Camcorder. Be sure
to retain this manual as your convenient
Camcorder information source.

Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.

Unpack your Camcorder

These accessories are provided in order to set up or use your Camcorder.
1 pc. AC Adaptor (PV-A20)

with DC Power Cable
(page 9)

1 pc. Audio/Video Cable
(LSJA0390) (pages 20, 21)

1 pc. Battery Pack
(PV-BP15) (pages 8, 9)

1 pc. Shoulder Strap
(LSFC0012) (page 11)

1 pc. Lens Cap (LSYK0818)
with Lens Cap Strap
(LSGQ0049) (page 11)

1 pc. CR2025 Clock
Battery (VSBW0004)
(installed in Camcorder)
(page 32)

Battery Charging
Confirmation
Marker

Use this marker as a
reminder to yourself when
the battery is fully charged
or in need of a charge.
This marker performs no
function and is for your
reference only.

2

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Things You Should Know

Safety Precautions

WARNING :TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

Your Compact VHS Camcorder is designed to record and play back in Standard Play (SP)
and Super Long Play (SLP) modes. You can also play a Compact VHS Camcorder

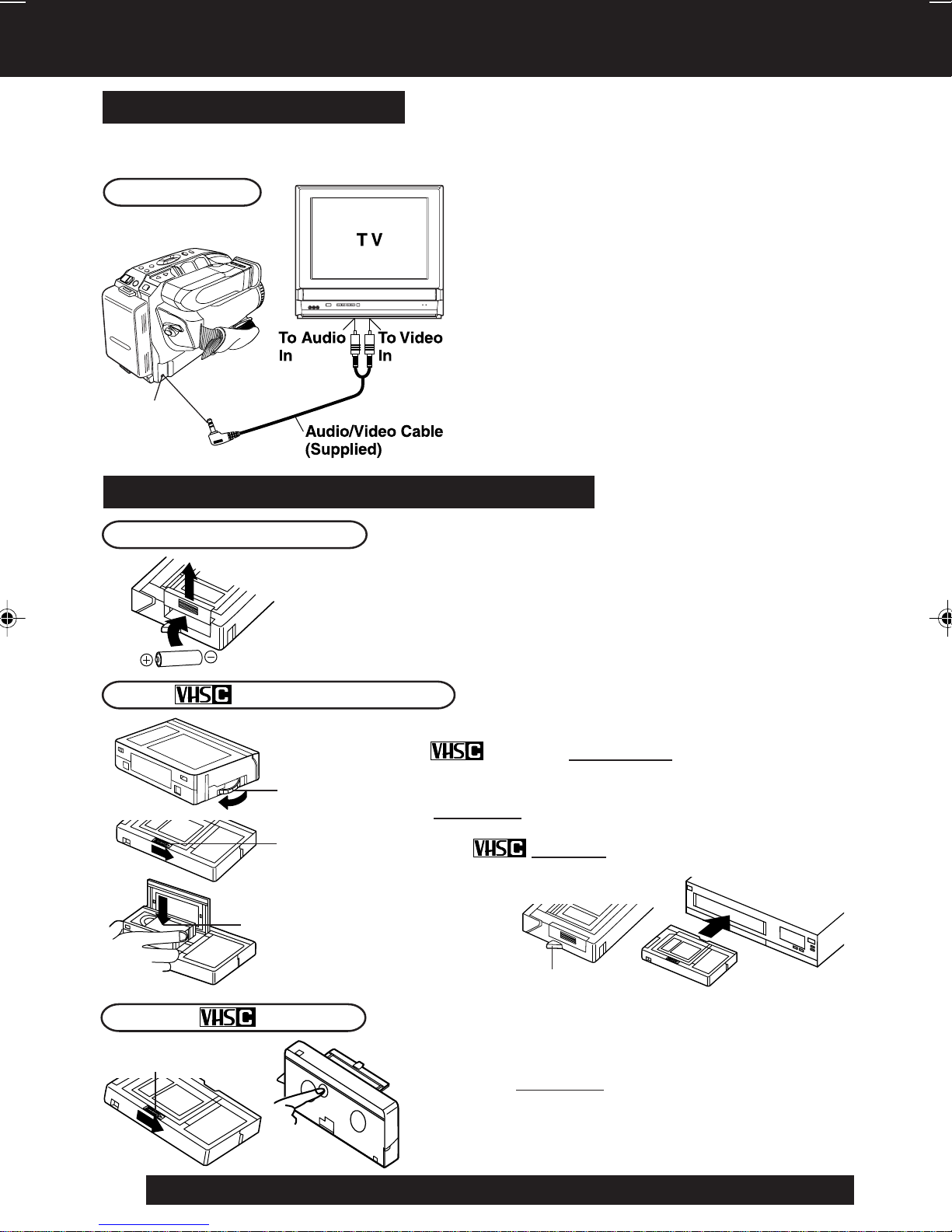

recording on your VHS VCR using the supplied VHS PlayPak.

This Camcorder is equipped with the HQ System to provide excellent video pictures, and
is compatible with standard VHS equipment.
It is recommended that only cassette tapes that have been tested and inspected for use in
VCR machines with the

and/or mark be used.

This symbol warns the user that
uninsulated voltage within the unit may
have sufficient magnitude to cause
electric shock. Therefore, it is
dangerous to make any kind of contact
with any inside part of this unit.

This symbol alerts the user that
important literature concerning the
operation and maintenance of this unit
has been included. Therefore, it should
be read carefully in order to avoid any
problems.

Getting Started

The above markings are located on the appliance’s bottom cover.

FCC Warning: Any unauthorized changes or modifications to this equipment would

void the user’s authority to operate.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with Part 15 and part 18 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when
operated in a residential environment.
If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, use the equipment in another location and/or utilize an electrical
outlet different from that used by the receiver.
If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the
booklet, ‘Something About Interference’ available from FCC local regional offices helpful.

This product may cause interference to radio equipment and should not be installed near maritime
safety communications equipment or other critical navigation or communication equipment operating
between 0.45-30 MHz.

3

Important Safeguards

1. Read Instructions – All the safety and

operating instructions should be read before
the unit is operated.

2. Retain Instructions – The safety and
operating instructions should be retained for
future reference.

3. Heed Warnings – All warnings on the unit
and in the operating instructions should be
adhered to.

4. Follow Instructions – All operating and
maintenance instructions should be followed.

5. Cleaning – Unplug this video unit from the
wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a dry cloth for
cleaning.

6. Attachments – Do not use attachments not
recommended by the video product
manufacturer as they may be hazardous.

7. Water and Moisture – Do not use this video
unit near water – for example near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, and
the like.

8. Accessories – Do not place this video unit
on an unstable cart, stand, tripod, bracket, or
table. The video unit may fall, causing serious
injury to a child or adult, and serious damage
to the unit. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the video unit. Any
mounting of the unit should follow the
manufacturer’s instructions and should use a
mounting accessory recommended by the
manufacturer. An appliance and cart
combination should be moved
with care. Quick stops,
excessive force, and uneven
surfaces may cause the
appliance and cart combination
to overturn.

9. Ventilation – Slots and openings in the
cabinet are provided for ventilation and to
ensure reliable operation of the video unit
and to protect it from overheating. These
openings must not be blocked or covered.
Never place the video unit on a bed, sofa,
rug, or other similar surface, or near or over a
radiator or heat register. This video unit
should not be placed in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.

10. Power Sources – This video unit should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your
home, consult your appliance dealer or local
power company. For video units intended to
be operated from battery power, or other
sources, refer to the operating instructions.

11. Grounding or Polarization – This video unit
may be equipped with either a polarized
2-wire AC (Alternating Current) line plug (a
plug having one blade wider than the other)
or 3-wire grounding type plug, a plug having a
third (grounding) pin.

The 2-wire polarized plug will fit into the
power outlet only one way. This is a safety
feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If
the plug still fails to fit, contact your electrician
to replace your obsolete outlet.
Do not defeat the safety purpose of the
polarized plug.

The 3-wire grounding type plug will fit into a
grounding type power outlet. This is a safety
feature. If you are unable to insert the plug
into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat
the safety purpose of the grounding type plug.

12. Power-Cord Protection – Power-supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them. Paying
particular attention to cords of plugs,
convenience receptacles, and the point where
they exit from the unit.

13. Outdoor Antenna Grounding – If an outside
antenna or cable system is connected to the
video unit, be sure the antenna or cable
system is grounded so as to provide some
protection against voltage surges and built-up
static charges. Part 1 of the Canadian
Electrical Code, in USA Section 810 of the
National Electrical Code, provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the
grounding electrode.

14. Lightning – For added protection of this
video unit receiver during a lightning storm, or
when it is left unattended and unused for long
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system.
This will prevent damage to the video unit due
to lightning and power-line surges.

4

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Important Safeguards

15. Power Lines – An outside antenna system

should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can fall into such power
lines or circuits. When installing an outside
antenna system, extreme care should be taken
to keep from touching such power lines or
circuits as contact with them might be fatal.

16. Overloading – Do not overload wall outlets
and extension cords as this can result in a
risk of fire or electric shock.

17. Objects and Liquids – Never push objects
of any kind into this video unit through
openings as they may touch dangerous
voltage points or short out parts that could
result in a fire or electric shock. Never spill
liquid of any kind onto the video unit.

18. Servicing – Do not attempt to service this
video unit yourself as opening or removing
covers may expose you to dangerous voltage
or other hazards. Refer all servicing to
qualified service personnel.

19. Damage Requiring Service – Unplug this
video unit from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:

a. When the power-supply cord or plug is

damaged.

b. If any liquid has been spilled into, or

objects have fallen onto, the video unit.

c. If the video unit has been exposed to rain

or water.

d. If the video unit does not operate normally

by following the operating instructions.
Adjust only those controls that are covered
by the operating instructions, as an improper
adjustment of other controls may result in
damage and will often require extensive
work by a qualified technician to restore the
video unit to its normal operation.

e. If the video unit has been dropped or the

cabinet has been damaged.

f. When the video unit exhibits a distinct

change in performance – this indicates a
need for service.

20. Replacement Parts – When replacement
parts are required, be sure the service
technician has used replacement parts
specified by the manufacturer or have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.

21. Safety Check – Upon completion of any
service or repairs to this video unit, ask the
service technician to perform safety checks
to determine that the video unit is in safe
operating order.

Getting Started

Precautions

USE & LOCATION

• TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture.
Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for
outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct
splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your
Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your
Camcorder from the power supply before cleaning.

• DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS.

• DO NOT LEAVE THE CAMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE

DAMAGE TO THE INTERNAL PARTS OF THE EVF.

• DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight,
inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your
Camcorder.

• AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm
place, moisture may form on the tape and inside the unit.

• DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.

• STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to
unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which
could be damaged by improper handling or storage.

CARE

• TO CLEAN YOUR CAMCORDER ... Do not use strong or abrasive detergents when cleaning your Camcorder
body.

• TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder
lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.

• TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands
and face are free from any chemical products, such as suntan lotion, as it may damage the finish.

5

Table of Contents

Getting Started

Things You Should Know.............................................................................2~3

Important Safeguards ...................................................................................4~5

Precautions........................................................................................................5

Quick Operation Guide .....................................................................................7

Supplying Power

Cassette Information ......................................................................................10

Before Using (Remove the Sensor tag, Using the Shoulder and Hand Straps, Lens Cap) ....11

Using MENU Mode ..........................................................................................12

Setting the Clock (Time Zone, Auto Daylight Saving Time) .......................................13~14

Built-in Auto Light (Using the Light, Replacing the Bulb) ............................................... 15

Basic Operation

Camera Recording (Basic, Stand-by, Programmed Recording) .................................... 16~18

Playing Back Recordings

(Basic Playback, Visual Search, Still Picture, Tracking, TV/VCR Playback) ...................19~20

Copying your Tapes (dubbing) ......................................................................21

(Battery Charge/Use/Refresh/Care, AC Adaptor, Car Battery Cord)...... 8~9

Special Features

Four-Speed Power Zoom................................................................................22

Backlight ..........................................................................................................22

Focus (Auto/Manual Focus)............................................................................................. 23

High Speed Shutter (Auto/Manual Shutter).................................................................. 24

Auto Fade.........................................................................................................25

Color Digital Fade ...........................................................................................26

Digital Zoom ....................................................................................................27

Digital Electronic Image Stabilization (E.I.S.)...............................................27

MotionSensor ..................................................................................................28

For Your Information

Viewfinder/LCD Monitor Indications .......................................................29~30

Operation Notes (Cleaning EVF) .........................................................................31

Notice ...............................................................................................................31

Replacing Clock Battery.................................................................................32

Palmcorder Accessory System .....................................................................33

Palmcorder Accessory Order Form ..............................................................34

Specifications..................................................................................................35

Request for Service Notice ............................................................................35

Before Requesting Service (Video Head Cleaning) ..............................................36

Limited Warranty.............................................................................................37

Customer Services Directory.........................................................................38

Spanish Quick Use Guide/Guía Para Uso Rápido........................................39

Index.................................................................................................................40

6

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

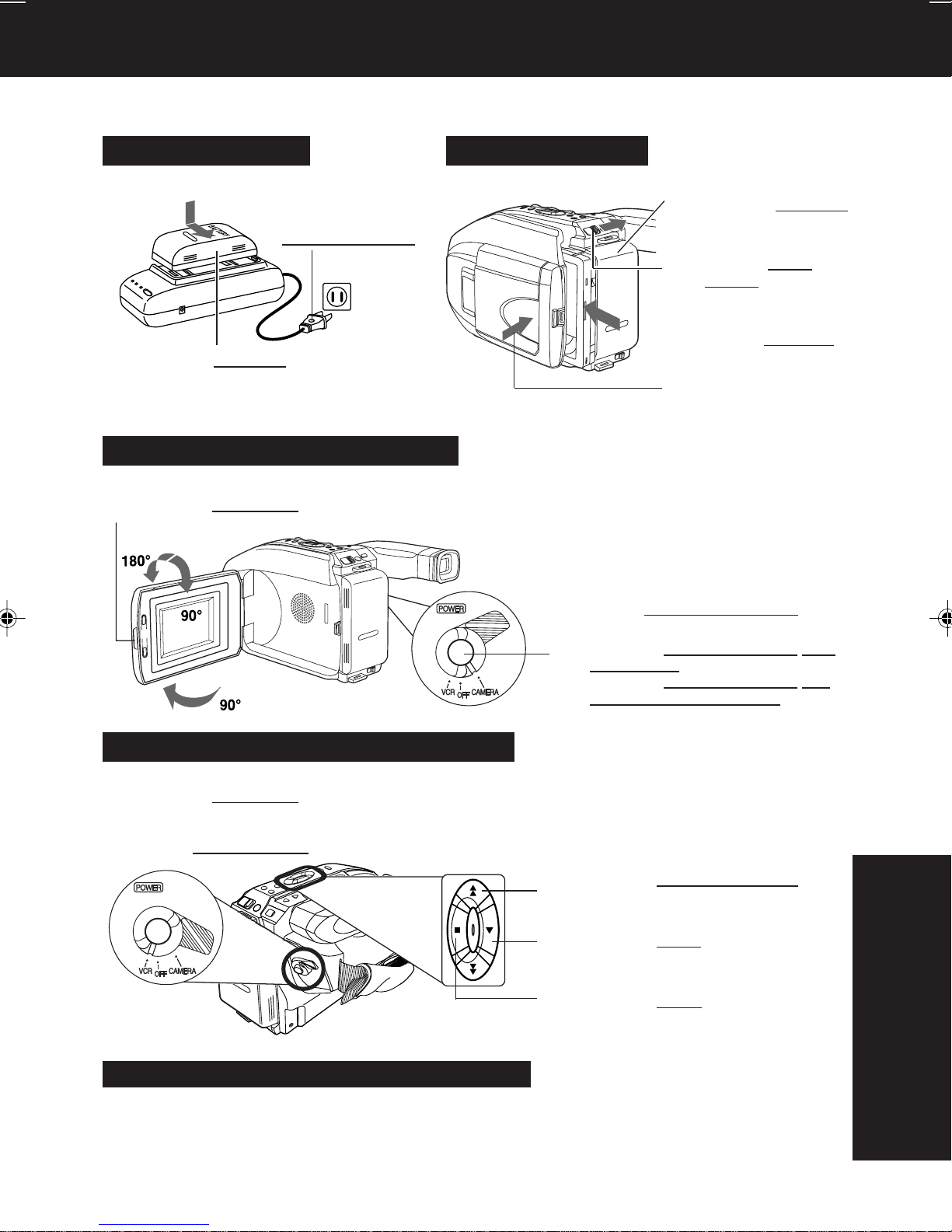

Quick Operation Guide

Charging the Battery Pack

Charge Battery Pack fully before
operation (page 8).

Plug in AC

1

Adaptor.

Insert Battery. CHARGE Lamp

2

flashes, then stays lit when
charging is complete.

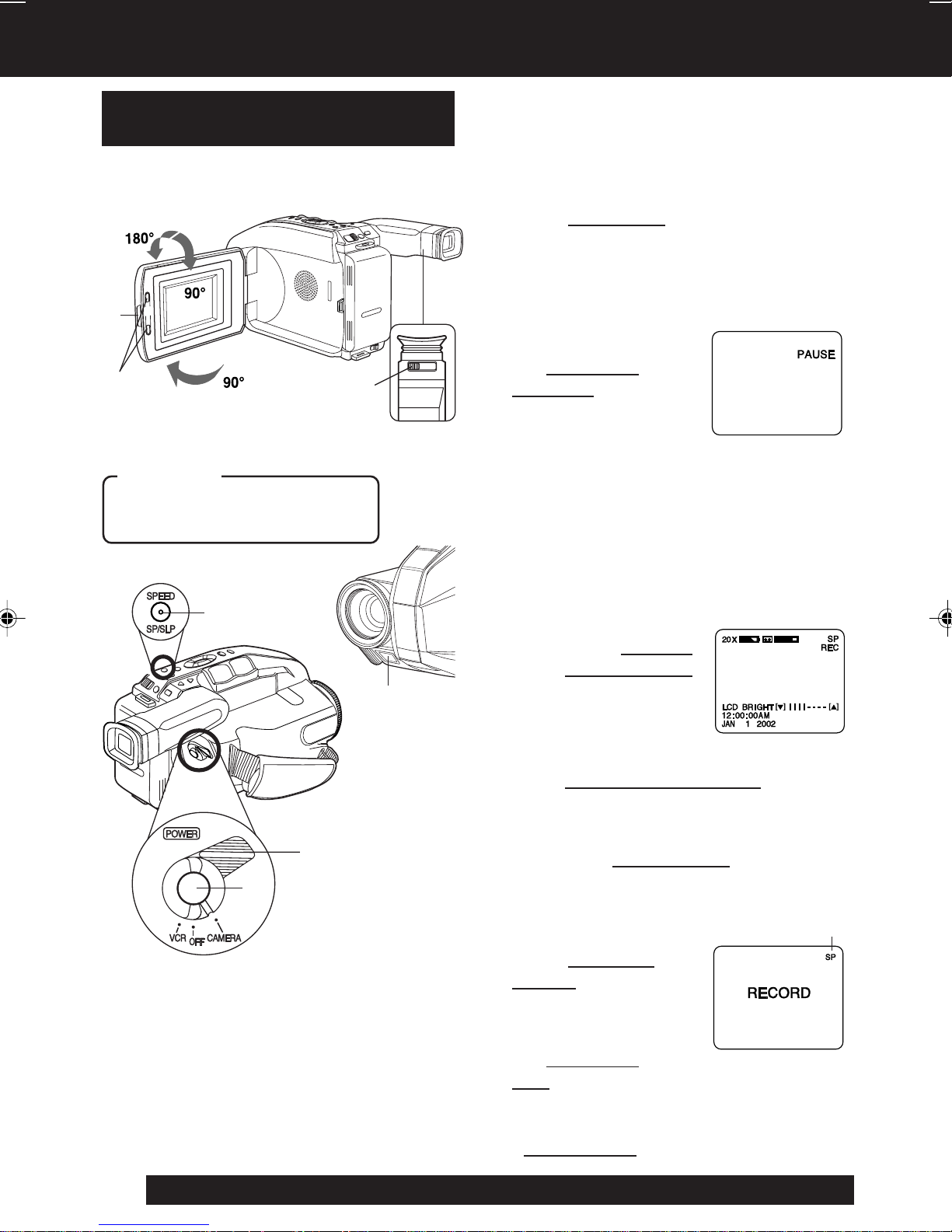

Camera Recording

See page 16.

Press LCD-OPEN to unlock the LCD monitor.

1

Swing it fully open and adjust the angle.

Insert Cassette

Attach fully

1

charged Battery

(page 8).

Slide TAPE

2

EJECT to open

door.

Insert cassette

3

(page 10).

Press here to

Protection Film
Note:

• Remove the Protection Film before use.

4

close door.

Getting Started

Playback using the LCD Monitor

See page 19.

Press LCD-OPEN to unlock the LCD monitor.

1

Swing it fully open and adjust the angle (see above).

Set POWER

2

to VCR.

Set POWER to CAMERA.

2

Press RECORD/PAUSE

3

to start recording.

Press RECORD/PAUSE

again

Press REWIND/SEARCH

3

to rewind tape.

Press PLAY to start

4

playback.

to pause recording.

Press STOP to stop

5

playback.

7

Supplying Power

Charging the Battery Pack

Charge Battery Pack fully before use.

1Plug in AC Adaptor.

POWER Lamp lights.

POWER
Lamp

3

2

1

2Insert Battery.

A Align left side of Battery with left edge of

AC Adaptor.

B Press Battery down and slide in direction

of arrow.

The CHARGE Lamp flashes, then stays lit
when charging is complete.

3Remove Battery.

Slide Battery to the left and lift off.

CHARGE
Lamp

A

B

(Top View)

Using the Battery Pack

A fully charged Battery provides a maximum of about 1 hour 10 minutes of continuous use
(LCD monitor off) or about 55 minutes (LCD monitor on). Actual time may vary due to
operating conditions. Using the Built-in Light decreases operating time.

Note:

• Charging takes about 1 hour.

• While the DC Power Cable (supplied) is connected
to the AC Adaptor, the Battery cannot be charged.

• After charging 5 times, use Battery Refresh feature
as explained below.

• Battery life gradually decreases after repeated use
and recharging. If operation time becomes very
short even after a sufficient charge, discard Battery
properly (pages 9, 31).

a

b

A
B

Battery Refresh

This feature completely discharges
Battery before recharging begins.
Use after every 5 charges for optimum
Battery performance.

REFRESH
Lamp

BATTERY
REFRESH

A

Attach Battery.

a Insert top of Battery into top of mounting

surface.

b Press and snap into place.

B

Remove Battery.

Slide BATTERY RELEASE and remove
Battery.

To use battery refresh, insert Battery on AC
Adaptor (see steps 1~2 above), then press
BATTERY REFRESH.

The REFRESH Lamp lights, then goes out when
discharge is complete. Battery charging will then
start automatically.

BATTERY REFRESH is pressed by mistake,

If
remove Battery from AC Adaptor and reinsert it
for normal charging.

Note:

• Charging takes about 5 hours when Battery
Refresh is used.

• Battery will not operate in extremely high
temperatures.

8

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Supplying Power

Battery Care

Caution:

• Charge only with specified charger.

• Battery can be charged within a temperature range of
10 °C (50 °F) and 35 °C (95 °F).

• Battery is normally warm after charging or just after use.

• Do not use an insufficiently charged or worn-out Battery.

Safety precautions:

• Do not get Battery near, or dispose of in, fire.

• Do not directly connect (short circuit) the positive (+)
and negative (–) terminals.

• Never attempt to disassemble or reassemble Battery.

AC Adaptor

1Connect AC Adaptor DC OUT to

Camcorder DC IN with supplied DC

DC Power Cable

Power Cable.

2Plug in AC Adaptor.

POWER Lamp

DC IN
Connector

DC OUT
Connector

POWER Lamp lights.

Note:

• While the DC Power Cable (supplied) is
connected to the AC Adaptor, the Battery
cannot be charged.

• When not in use, unplug AC Adaptor from
AC outlet. (Adaptor uses 1.2 W of electricity
while plugged in.)

Getting Started

To avoid Battery damage:

• Do not drop or jar Battery.

• Use Battery with specified units only.

• If Battery is used in extremely high
temperatures, a safety device will
automatically prevent operation.

To prolong Battery life:

• While not in use, remove Battery from
the Camcorder and AC Adaptor, and
store in a cool, dark, dry place.

• Keep Battery terminals clean.

CAUTION:

This unit will operate on 110/120/220/240 V AC 50/60 Hz. An AC plug adaptor may be required
for voltages other than 120 V AC. Please contact either a local or foreign electrical parts
distributor for assistance in selecting an alternate AC plug. We recommend using the accessory
power plug adaptor (VJSS0070) in an area which has special AC outlets.

Car Battery Cord (Optional)

1Connect PV-C16 Car Battery Cord

(optional) to

Camcorder DC IN.

2A Start engine first.

B Plug Car Battery Cord into

Cigarette lighter socket.

• If Car Battery cord fuse needs replacing,
use exact current rating (in amps).

Note:

• This cord only works in vehicles equipped
with DC 12 V (negative ground) battery.
Check with your car/truck dealer. Use only
specified car battery cord.

• To avoid blowing the car battery cord fuse,
do step 2 in the proper order.

• Running vehicles must be well ventilated.

• When not in use, disconnect cigarette
lighter plug.

• For personal safety the driver of the vehicle
should not attempt to operate the
camcorder while driving.

DC IN
Connector

Car Battery Cord
(optional)

Cigarette
Lighter
Socket (12 V)

Cigarette
Lighter Plug

9

Cassette Information

Cassette Insertion/Removal

1Turn Tape Wheel in direction of arrow

1

2Attach Battery (page 8).

3

2

3Slide TAPE EJECT to open door.
4Insert cassette as shown.
5Press here to close door.

until there is no slack.

4

5

Record/Playback Time

Use tapes with the mark in this unit.

Tape Speed
Selector Position

SP

(Standard Play)

SLP

(Super Long Play)

• SLP playback may contain more picture noise.

Erase Protection Tab

TC-20

20 minutes

1 hour

Cassette type

TC-30 TC-40

30 minutes

1 hour

30 minutes

• To remove the cassette, slide the TAPE
EJECT switch.

40 minutes

2 hours

Protects tapes from being accidentally
erased.

12

10

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Slide tab type

1To prevent accidental erasing,

break off tab with screwdriver.
(Or, slide tab open.)

2To record again,

cover hole with adhesive tape.
(Or, slide tab closed.)

Before Using

How to remove the Sensor tag

Hand Strap

Sensor tag

Attaching Shoulder Strap

Remove Battery Pack before completing
the following steps:

1Undo strap ends

from buckles.

Getting Started

1 Open the Hand Strap as illustrated

at left.

2 Remove the Sensor tag.

Then, replace the Hand Strap.

Adjust the Length of the
Shoulder Strap

2Thread strap ends through Strap

Rings on Camcorder.

3Re-insert the strap

ends into buckles.

min. 25.4 mm (1 inch)

Lens Cap

Attaching the Lens Cap
Strap:

Thread the Strap through
the Lens Cap attachment
ring as illustrated at left.

3

2

Pull a loop of strap from buckle, then pull
strap tight to shorten or lengthen.

Hand Strap

1

Adjust Hand Strap length to fit your hand as
shown.

Attaching the Lens Cap Cord to the Hand Strap:

Remove the Hand Strap from the front clasp and thread
the Strap through the loop in the Lens Cap Cord.
Reattach the Hand Strap.

11

Using MENU Mode

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA or VCR.

1Press MENU for MENU mode.
2Press UP or DOWN to highlight the

3Press DISPLAY to set selection.
4Press MENU to exit.

Note:

• The Menu mode is canceled if UP/DOWN,

1, 2, 3, 4

DISPLAY, or MENU are not pressed within
5 minutes when Self Demo mode is off.

• The Menu mode is canceled if UP/DOWN,
DISPLAY, or MENU are not pressed within
30 seconds when Self Demo mode is on.

The CAMERA or VCR MENU screen (see below
left) appears when Menu mode is entered.

desired menu item.

MENU Mode (CAMERA) Screen

1
2
3
4
5
6

7
8

MENU Mode (VCR) Screen

1 PROGRAMMED REC (page 18).

Camcorder starts and stops recording at a
preset time.

2 DISPLAY (page 29).

ON : On-screen Display (OSD) screens are

displayed.

3 SHUTTER (page 24).

Select desired shutter speed.

4 STAND-BY RELEASE (page 17).

ON : Enables quick resumption of recording

from Stand-by mode.

5 CLOCK SET (pages 13, 14).

Select to set clock.

6 LIGHT MODE (page 15).

ON/OFF :Light can be set ON or OFF.
ON/OFF/AUTO: Light can be set ON, OFF, or AUTO.

5
2

12

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

7 MOTIONSENSOR (page 28).

ON : Enables MotionSensor recording.

8 VIDEO EFFECTS (pages 25~26).

AUTO FADE :BLACK or WHITE
DIGITAL FADE :TYPE

COLOR

7 types
8 colors

Setting the Clock

Set the following items in order: Time
Zone, Daylight Saving Time, Date,
and Time.

1, 2, 3, 4

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA or VCR.

1Press MENU for MENU mode.

Press UP or DOWN to select CLOCK SET .

[ VCR MODE ][ CAMERA MODE ]

2Press DISPLAY for

CLOCK SET menu.
Press UP or DOWN to
select TIME ZONE, DST,

or DATE/TIME.

Getting Started

3Press DISPLAY for menu of item selected in

step 2.
To change the setting:

TIME ZONE ➔ Go to step 3a on page 14.
D.S.T. ➔ Go to step 3b on page 14.
DATE/TIME ➔ Go to step 3c on page 14.

4Press MENU twice to exit.

13

Setting the Clock

3a

The Camcorder is preset to Eastern time.

[ Time Zone chart ]

3b

Clock will auto-adjust to daylight saving time (DST).

DST: AUTO

Spring (First Sunday in April) :

ahead one hour.

Setting the Time Zone

Press

select local time zone.
Press DISPLAY to
confirm entry.

• When traveling, repeat this operation and
select one of the 8 listed time zones to
set the clock to local time.

Note :

• Clock may lose or gain up to 2 minutes

per month.

• When traveling outside the listed time
zones, set clock to local time manually.

• To adjust or set clock, see “Setting Date
and Time” bottom of page.

Auto Daylight Saving Time

The Camcorder is preset to DST: AUTO .
If DST is not observed in your area, set
to OFF by doing the following.

UP or DOWN to

Autumn (Last Sunday in October) :

back one hour.

3c

Date and time including leap year are
calculated up to DEC 31, 2099.

EXAMPLE :

Setting Date and Time

Press UP or DOWN to

select OFF or AUTO.
Press DISPLAY to
confirm entry.

Note:

• Auto DST does not function if time zone

is set to Hawaii or Samoa (see “Setting
the Time Zone” above).

Press or hold down
DOWN to select hour, then
press DISPLAY to fix.

Repeat for minute, month, day,
and year.

Clock starts when year is
entered and
pressed.

DISPLAY is

UP or

14

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

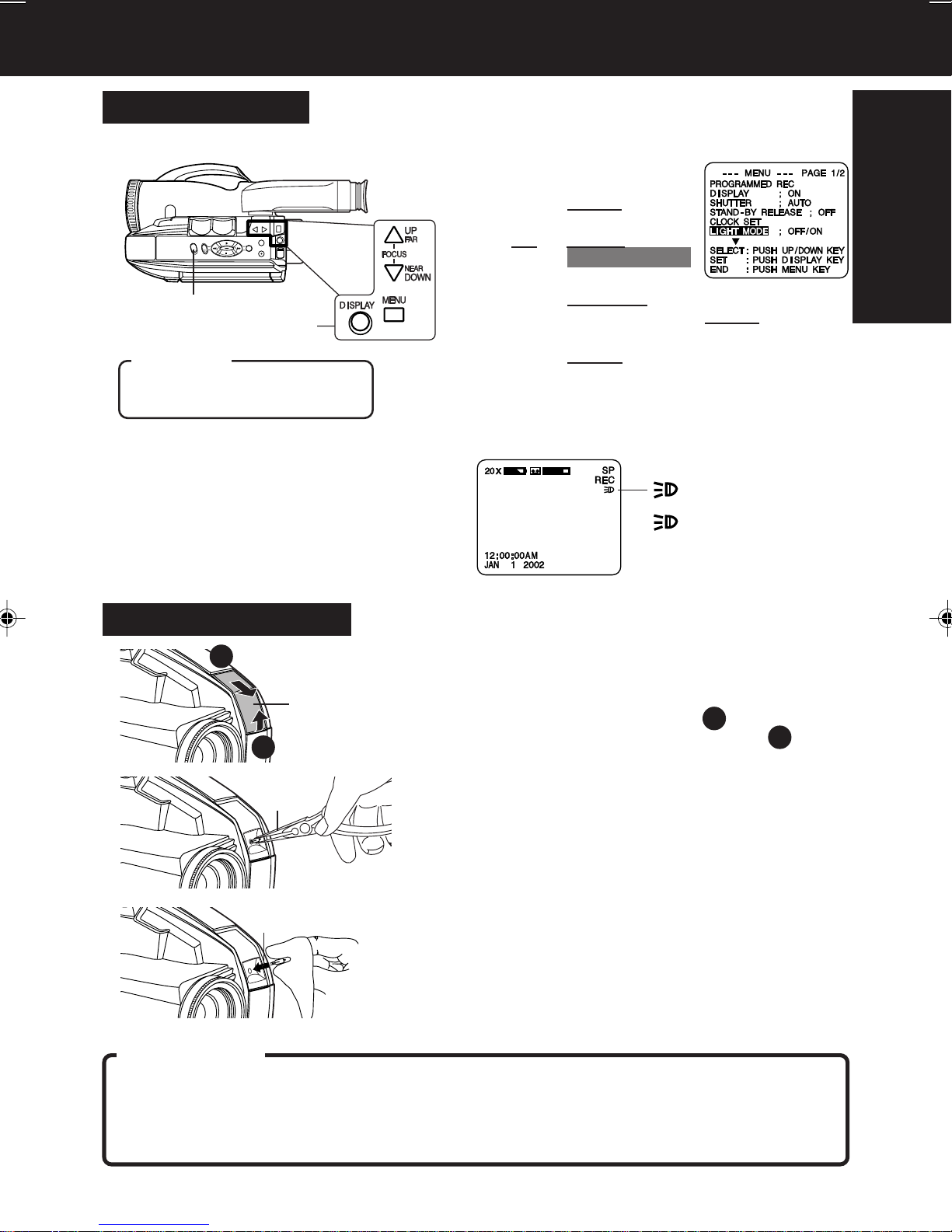

Built-in Auto Light

Using the Light

For recording in dim lighting.

LIGHT

1, 2, 3

CAUTION:
Light becomes hot.
Never cover Light while on.

Note:

• Using Light reduces battery operating time.

• Provide proper ventilation when using
Light extensively in a hot environment.

• Using Light when the Camcorder is
powered by a car battery may shorten
bulb life.

• Set Light to OFF when not in use.

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

1Press MENU for

MENU mode. Press
UP or DOWN to
select LIGHT MODE .

2Press DISPLAY to set OFF/ON or

OFF/ON/AUTO. Press

MENU to exit.

3Press LIGHT repeatedly for Light ON,

OFF, or AUTO.

• In AUTO, light turns itself on/off
according to lighting conditions.

EVF or LCD Monitor

A

A : Light is on.

A : Light mode is auto.

Getting Started

Replacing the Bulb

B

1

A

2

Before you begin...

• Order Part No. VLLW0015 for replacement
bulb.

• Set POWER to OFF.

1Slightly raise portion A of lens cover

to unhook, and slide portion B
forward to remove.

2Using Tweezers or needle-nose pliers,

carefully remove bulb.

•

Take unit to service center if you need
assistance.

3Replace bulb using a clean cloth or

3

tissue. (Do not touch with fingers.)

4Replace lens cover.

Note:

• Handle bulb gently. Excessive force may
cause bulb to crack.

DANGER:

Use only replacement bulb (PART NO. VLLW0015) supplied by Panasonic to reduce risk
of fire.
Handle new bulb with cloth or tissue as skin oils will decrease bulb life.
Remove lens cover and allow bulb to cool before replacing to avoid possible burn hazard.

15

Camera Recording

Recording via EVF or LCD
Monitor

View recording scene on EVF (Electronic
Viewer Finder) or LCD (Liquid Crystal
Display) monitor.

1

3

BRIGHT
ADJUSTMENT

CAUTION :

Rotating partially open LCD
monitor may block cassette door
and damage Camcorder body.

3

VISION
ADJUSTMENT

Before you begin...

• Connect Camcorder to power source.

• Insert cassette with record tab (page 10).

1Press LCD-OPEN to unlock the LCD

monitor. Swing LCD monitor fully open
and adjust viewing angle.

• If you want to record using EVF, close
and lock LCD monitor.

2Set POWER to

CAMERA.

• Be sure POWER
is fully turned to
CAMERA position.

• EVF or LCD monitor
turns on/off by the POWER switch.

• Both EVF and LCD monitor turn on
when LCD is at 180° (see above left).
This allows both you and the subject to
view the recording.

EVF or LCD Monitor

(Record/Pause mode)

4

Built-in
Microphone

2, 6

5

Note:

• When Camcorder is aimed at excessively
bright objects, or bright lights, a vertical
bar may appear in the picture. This is
normal for the CCD pick-up. Try to avoid
this when possible.

• Using LCD monitor reduces battery
operation time. Return LCD monitor to
locked position when not in use.

3LCD: Press BRIGHT

ADJUSTMENT

to adjust LCD
monitor
brightness level.

EVF : Look into EVF and adjust

VISION ADJUSTMENT to your

eyesight.

4Hold down TAPE SPEED for about 1

second to change tape speed to SP/SLP
(page 10).

Tape speed

5Press RECORD/

PAUSE to start or

pause recording.

6Set POWER to

OFF when finished.

• To remove the cassette, slide the

TAPE EJECT switch (page 10).

EVF or LCD Monitor

(Record mode)

16

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Camera Recording

Before you begin...

• Connect Camcorder to power source.

• Insert cassette with record tab (page 10).

b

a

B

c

2, 3, 4

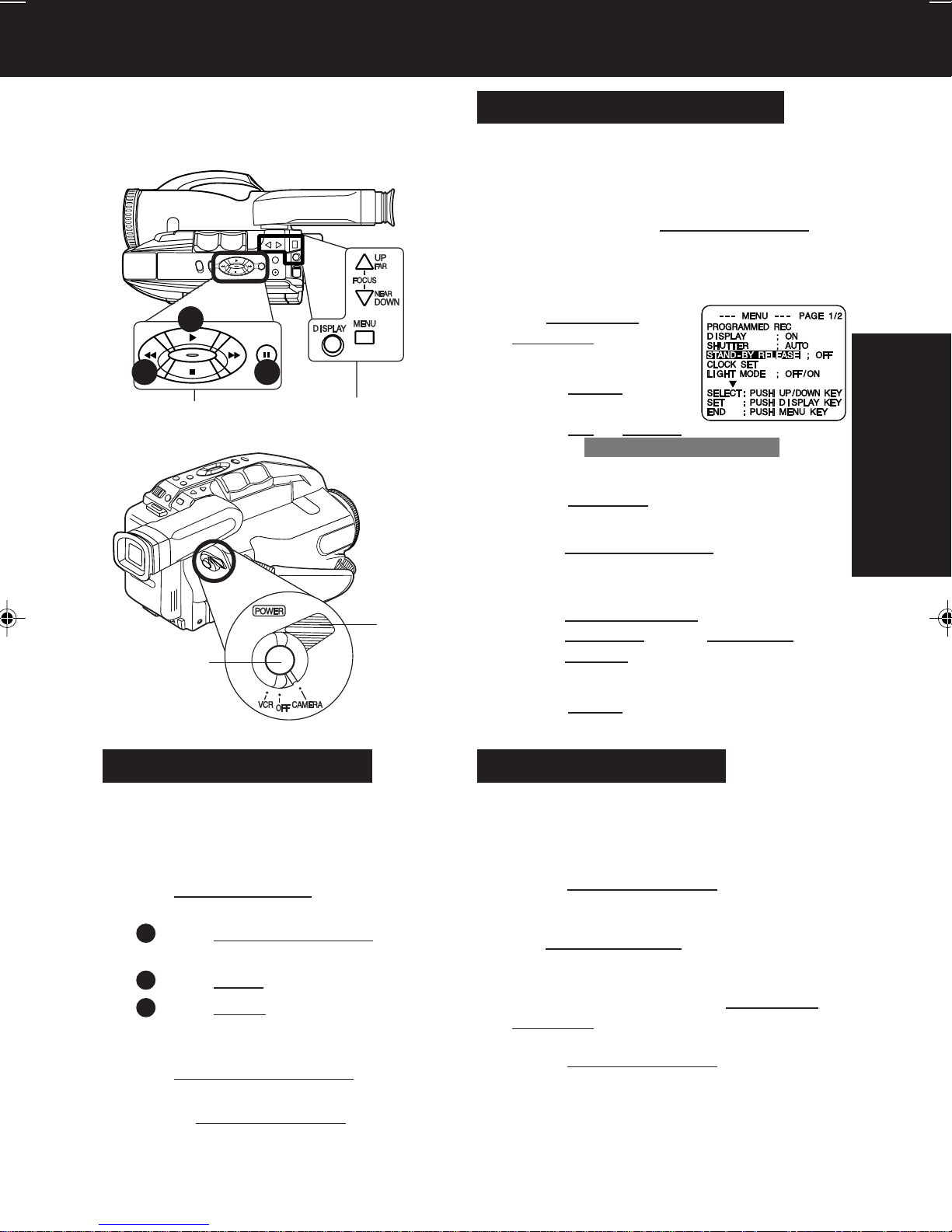

Stand-by Quick Release

If left in RECORD/PAUSE mode for 5
minutes, Camcorder switches to Stand-by
mode to conserve battery. When set to ON,
Stand-by Quick Release lets you resume
recording by pressing
times. Stand-by Quick Release is set to OFF
at the factory.

RECORD/PAUSE two

1Set POWER to

CAMERA.

2Press MENU for

MENU mode.

Press

to select STAND-BY RELEASE .

UP or DOWN

3Press DISPLAY to select ON/OFF.

ON : From Stand-by mode, press

RECORD/PAUSE two times to
resume recording.

Basic Operation

1, b, c,

a, d, D

Manual Easy Editing

For proper continuity when taping from
Stop mode or after attaching a new
Battery.

A, C

ASet POWER to VCR.
Ba Press REWIND/SEARCH to rewind

a few seconds of tape.

b Press
c Press STILL where you want to

continue recording.

PLAY to review recording.

OFF : From Stand-by mode, set

POWER to OFF, then to
CAMERA. Press RECORD/
PAUSE to record.

4Press MENU to exit.

Easy Edit Stand-by

For a smooth transition between scenes if
recording is stopped, and then started within
24 hours.

aPress RECORD/PAUSE to stop

recording.

bSet POWER to OFF and leave cassette

in Camcorder.

cTo resume recording, set POWER to

CAMERA.

CSet POWER to CAMERA.
DPress RECORD/PAUSE to resume

recording.

dPress RECORD/PAUSE to resume

recording.

Note:

• Use Manual Easy Edit (left) if more than 24
hours before recording is resumed.

17

Camera Recording

Programmed Recording

Set a recording start and stop time. Or,
set a 5 or 10 second interval recording
to be done each minute.

1, 2, 3

4

Before you begin...

• Connect Camcorder to power source.
Use AC Adaptor for longer recordings.

• Insert cassette with record tab (page 10).

• Set POWER to CAMERA.

1Press MENU for MENU

mode. Press UP or
DOWN to select

PROGRAMMED REC .

2Press DISPLAY.

(Current time is
displayed.)

Each additional press
of DISPLAY increases

start time by 30 minutes.

3Press DOWN to select

REC TIME .

Press DISPLAY

repeatedly to select one
of the options shown at
left.

To cancel the setup, press MENU twice.

REC TIME :

*1 Record 5 seconds each minute.
*2 Record 10 seconds each minute.

18

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

4Press RECORD/PAUSE

to place Camcorder in
stand-by mode.

Recording will be done as scheduled.

Note:

• Start time may not be set over 24 hours from
current time.

• Camcorder shuts off at tape end, or 12 hours
after Interval Recording starts.

• To cancel, set

POWER to OFF.

Playing Back Recordings

Before you begin...

• Connect Camcorder to power source.

• Insert recorded tape.

1

Speaker

D

3

BRIGHT
ADJUSTMENT

3

STILL

C

A

B

E

Playback on EVF or LCD Monitor

Press LCD-OPEN and swing LCD

1

monitor fully open.

• If you want to playback on EVF, close
and lock LCD monitor.

Set POWER to VCR.

2

• If tape has no record tab, auto
playback begins.

• EVF or LCD monitor turns on/off by
the POWER switch.

Playback function buttons.

3

A REW :Rewind tape.

PLAY :Play tape.

B
C

STOP :Stop tape.

D BRIGHT :
E VOLUME:During playback, adjust

Press “T” :Volume

Press “W” : Volume

Adjust LCD monitor brightness.
volume of speaker.

up (+).
down (-).

Basic Operation

2

Tracking Control

Auto Tracking

Continuously analyzes each recording for
optimum picture quality.

Manual Tracking

Some recordings require manual
adjustment to reduce noise.
Press UP or DOWN until Playback picture
clears up.

Press

DISPLAY to return to Auto Tracking.

Note:

• Using LCD monitor reduces battery
operation time. Return LCD monitor to
locked position when not in use.

Special Effects

Quick Visual Search

Search Speed

• SP (Standard Play) : 3 times normal.

• SLP (Super Long Play) : 9 times normal.

During playback, press:

• FF : fast forward search

• REW : rewind search

Press again or press PLAY for normal play.

Still Picture

Press STILL to freeze picture.
Press again for normal play.

This feature works best in SLP mode (page 10).

Note:

•During search, horizontal noise bars will appear.

Audio is muted.

•To protect video heads and tape, operating

modes will revert as follows after 5 minutes:
Still Stand-by
Stand-by Power off (when Battery Pack is

used).

• Tape auto-rewinds if played or fast forwarded to end.

19

Playing Back Recordings

TV Playback or Viewing

Connect Camcorder to a TV to view
playback or recordings in progress.

Connections

Before you begin...

• Connect Camcorder to power source.

• Make all TV-Camcorder connections.

1Set POWER to:

VCR ➞ view playback.
CAMERA ➞ view picture as it is

2Turn TV ON and set to LINE INPUT.

See TV owner’s manual.

Audio/
Video Out

VCR Playback using PlayPak (Optional)

Load Battery in PlayPak

3Begin playback or recording.

recorded.

Remove Battery lid and insert AA battery.

• Do not reverse polarity.

• Replace battery when tape loading/unloading takes longer
than usual.

Insert Cassette in PlayPak

1Turn cassette Tape Wheel in direction of

arrow to take up any slack.

1

2Slide RELEASE to open cassette lid.

2

• Do not obstruct cassette

3

• Allow PlayPak Load

Remove Cassette

3Insert the cassette with the window up and on

the left, then snap lid shut.

reel while loading.
Detector to fully retract

before using in VHS VCR.

Load Detector

12

20

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

1Slide RELEASE and wait for lid to open.
2Push cassette out through hole in bottom of

PlayPak with your finger.

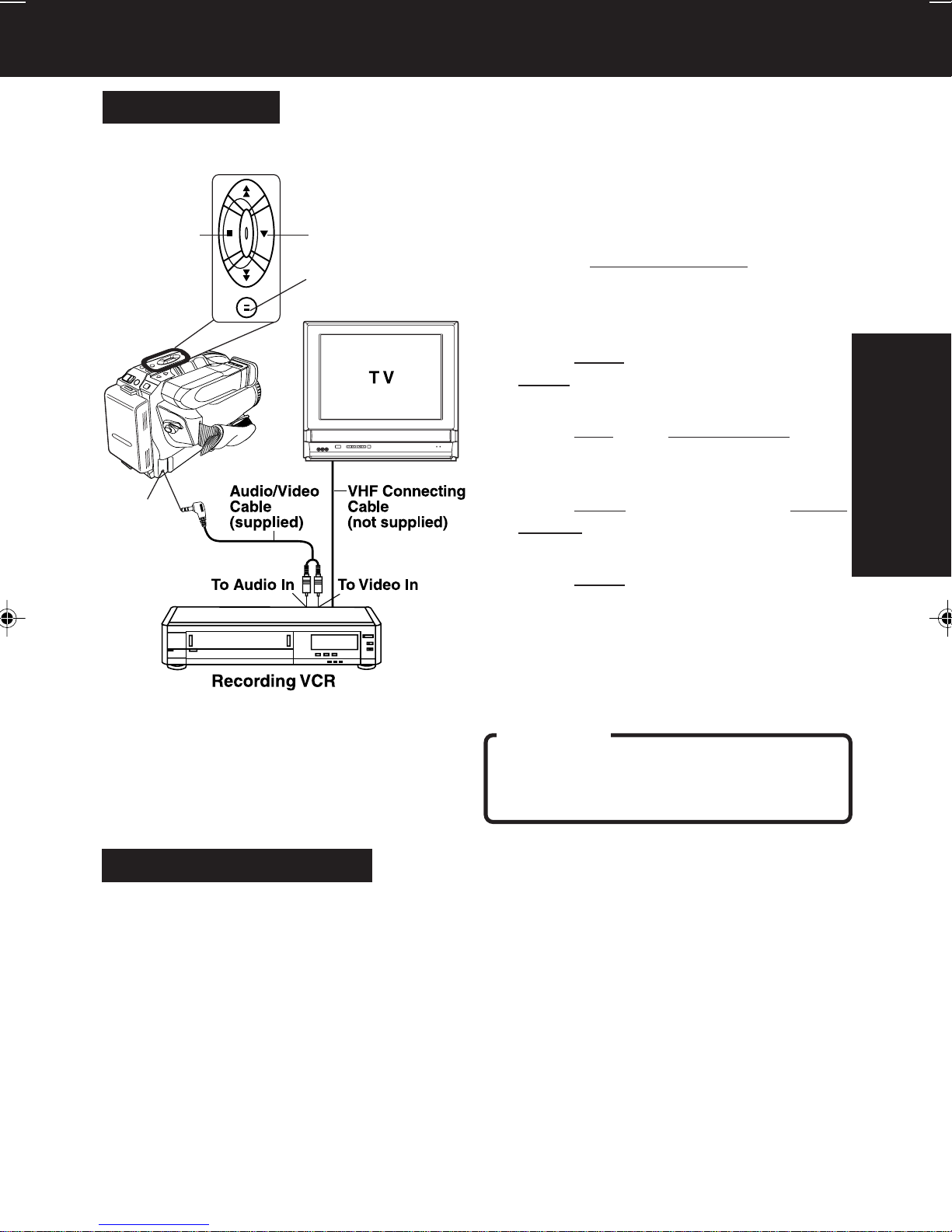

Copying your Tapes (dubbing)

Connections

STOP

Source
(Playing)
Camcorder

Audio/
Video Out

PLAY

STILL

Before you begin...

• Make Camcorder-VCR connections (see left).

• Turn both units on.

• Set VCR input signal to LINE.
Please see VCR owner’s manual.

• Set Camcorder POWER to VCR.

Insert a pre-recorded tape

1

into Camcorder and a blank tape with
record tab into VCR.

Press PLAY on Camcorder, then press

2

STILL at starting point.

Press REC, then STILL/PAUSE on

3

VCR.

Press STILL on Camcorder and STILL/

4

PAUSE on VCR to start copying.

Basic Operation

Monitor with your TV

• Turn TV on and tune to VCR channel
(CH3 or CH4).

• Set TV/VCR Selector on VCR to VCR.

Press STOP on both units to stop

5

copying.

Note:

• Camcorder will only playback tapes
recorded in SP or SLP mode.

• Dubbing may reduce picture quality.

CAUTION:

Unauthorized exchanging and/or copying
of copyrighted recordings may be
copyright infringement.

21

Four-Speed Power Zoom

Zoom in (close up) and out (wide angle) in
one of four speeds ranging from slow (16
seconds) to fast (2 seconds).

T

W

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

Zoom In (“T”)

Zoom Out (“W”)

• Zoom slowly:

Lightly press “T” (telephoto) or “W” (wide
angle) POWER ZOOM button.

• Zoom quickly:

Apply more pressure to the button.

Backlight

Use when subject is darker than
surroundings, in shadowed area, or in front
of the light source.

B.LIGHT

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

Press B.LIGHT while recording to select

the level of backlight compensation.
In normal lighting, press B.LIGHT

repeatedly until no indicator is displayed.

EVF Indications

Press B.LIGHT.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

22

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

Auto Focus

Camcorder automatically focuses on subject even during zooming.
Auto Focus is on when “MF” is not displayed in EVF or LCD monitor.

Press

M.FOCUS to remove “MF” in EVF or LCD monitor if necessary.

Manual Focus

Use Manual Focus (MF) when :

• recording through glass.

• lighting is poor.

• subject is far away with objects in foreground.

• subject has distinct horizontal lines.

• subject is not centered in EVF or LCD monitor.

• subject has a shiny surface.

• subject is slanted.

• subject is bright and flat, like a white wall.

• subject has fast motion, like a golf swing.

EVF or LCD Monitor

Focus

24

1

3

Macro Focus (close-ups)

Special Features

1Press M.FOCUS so “MF” (Manual Focus)

appears in EVF or LCD monitor.

2Hold down “T” (telephoto) on POWER

ZOOM to maximum zoom in.

3Press UP (FAR) or DOWN (NEAR) until

subject is in focus.

• Back away from subject if necessary.

4Hold down “W” (wide angle) on POWER

ZOOM as desired.

• Refocus as needed when aiming at new

scenes.

Auto Focus functions up to 12.7 mm (1/2 inch) from subject.
Hold down “W” on POWER ZOOM to maximum wide angle.

Bring Camcorder up close to the subject.

23

High Speed Shutter

Improves Still or Slow Motion playback
picture of high speed subjects (e.g. a tennis
stroke), when viewed on Camcorder or 3 or
4 head VCR.

Before you begin...

• Connect Camcorder to power source.

• Insert cassette with record tab (page 10).

• Set POWER to CAMERA.

Auto Shutter

In AUTO mode (no indication in EVF or LCD Monitor), shutter speed is auto-adjusted from
1/60 to 1/350 according to subject brightness.

• AUTO mode is selected each time POWER is set to CAMERA.

Manual Selection

The faster the shutter speed, the more light is needed for proper picture and color quality.
High Speed Shutter indication flashes if light is inadequate. Provide additional light.

1Press MENU for MENU mode.

Press UP or DOWN to select SHUTTER .

2Press DISPLAY repeatedly to select

shutter speed.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

24

1, 2, 3

3Press MENU to exit.

Note:

• Shutter speed cannot be set to 1/60 if Digital
E.I.S. feature is set to ON.

• Provide additional halogen or tungsten light
for use indoors or in poor light. Fluorescent
light degrades picture.

• Auto Focus may not function properly if high
speed shutter is used in inadequate light.

• Setting reverts to AUTO each time POWER is
set to CAMERA.

Auto Fade

An interesting way to open and close
scenes.

FADE

1, 2, 3, 4

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

1Press MENU for

MENU mode.

Press UP or DOWN

to select

VIDEO EFFECTS .

2Press DISPLAY for

VIDEO EFFECTS
menu. Press UP or

DOWN to select

AUTO FADE .

3Press DISPLAY for

AUTO FADE ;
COLOR menu.

Press UP or DOWN

to select BLACK or
WHITE.

Special Features

RECORD/
PAUSE

4Press DISPLAY to confirm entry.

Press MENU to exit.

Fade In

BLACKWHITE

Fade Out

Fade In:

In RECORD/PAUSE mode, press FADE

so “FADE” flashes in EVF or LCD monitor.

Press RECORD/PAUSE.

Recording starts as picture and sound
gradually fade in.

Fade Out:

While recording, press FADE so “FADE”

flashes in EVF or LCD monitor.

Press

Picture and sound gradually fade out, and
recording is paused.

If
so “FADE” disappears in EVF or LCD
monitor.

RECORD/PAUSE.

FADE is pressed accidentally, press again

25

Color Digital Fade

Choose from 7 fade effects in 8
different colors.

6

, 2, 3,

1
4, 5

EVF or LCD monitor

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

1Press MENU for MENU

mode.

Press

select VIDEO EFFECTS .

UP or DOWN to

2Press DISPLAY for

VIDEO EFFECTS menu.

Press

DIGITAL FADE .

DOWN to select

3Press DISPLAY for DIGITAL FADE menu.

Press
Press
Press

different types of fades.

• A preview of each fade type is displayed

UP or DOWN to select TYPE .
DISPLAY for TYPE menu.
UP or DOWN to select from 7

as it is selected.

■ For more effects, stop fade in or fade
out at any time (except RANDOM
mode) by pressing FADE.
Then, press FADE to resume fade.

Note:

• Audio is not affected by fade.

• To cancel Digital Fade, do steps 1, 2,

and 5. In step 2, select AUTO FADE.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

26

4Press DISPLAY for DIGITAL FADE menu.

Press
Press
Press

• A preview of each color is displayed as it

DOWN to select COLOR .
DISPLAY for COLOR menu.
UP or DOWN to select from 8 colors.

is selected.

5Press DISPLAY to confirm entry.

Press

MENU twice to exit.

6Press FADE for about 2 seconds to fade

out during recording (selected fade type
flashes). Press FADE again to fade in.

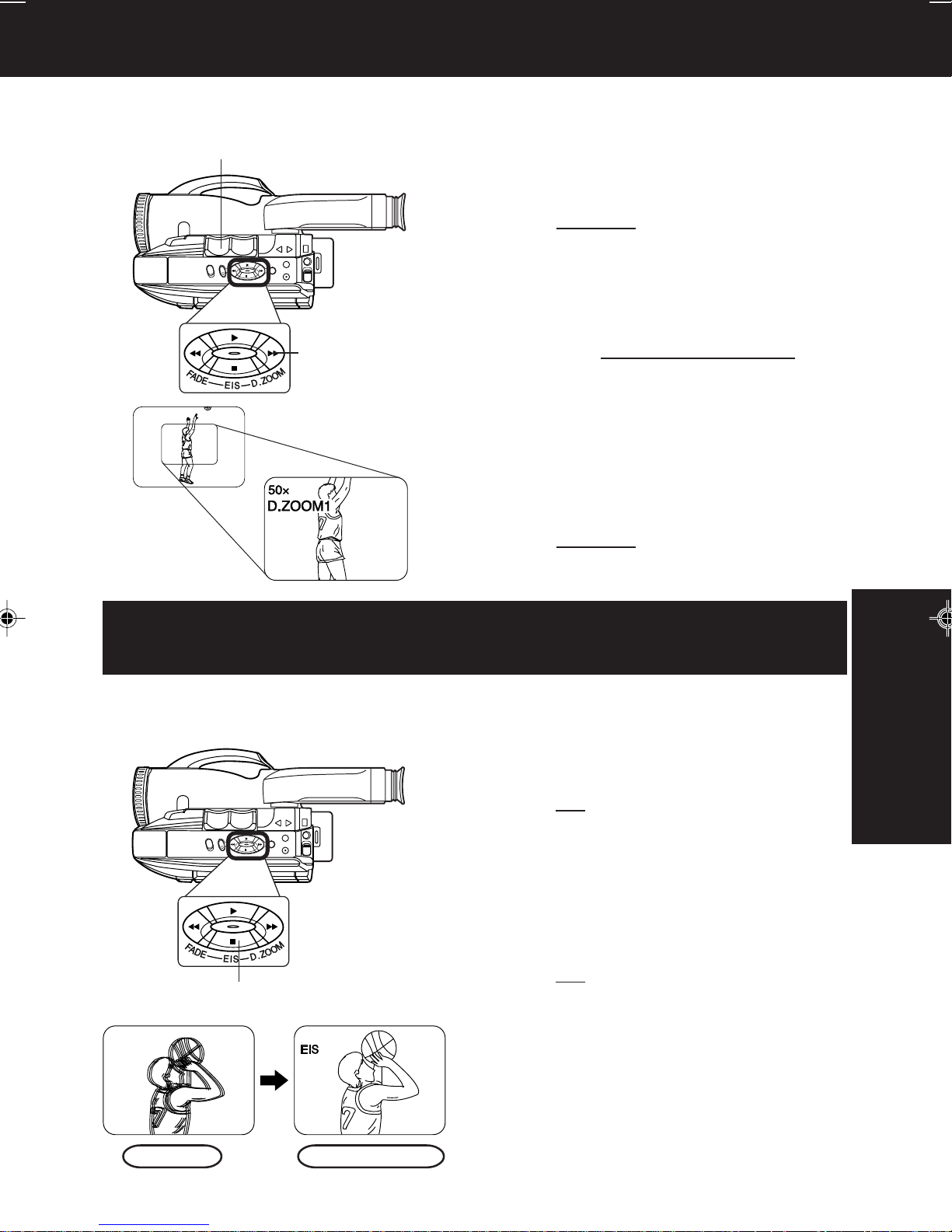

Digital Zoom

Power Zoom magnification is digitally
increased.

2

1, 3

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

1Press D. ZOOM.

once ➞D.ZOOM 1 (150× maximum)
twice ➞D.ZOOM 2 (700x maximum)

The Higher digital magnification levels
may cause picture distortion.

2Hold down “T” on POWER ZOOM.

Digital Zoom starts when normal zoom
reaches maximum (20×).

• Zoom level appears in EVF.

• POWER ZOOM switch controls digital
zoom level.

• Normal zoom resumes when level falls
to 20×.

3Press D. ZOOM to turn off Digital Zoom

so no indication appears.

Digital Electronic Image Stabilization (E.I.S.)

Helps stabilize picture when recording in
unstable situations.

Before you begin...

• Connect Camcorder to power source.

• Set POWER to CAMERA.

1Press EIS to display “EIS” in the EVF.

• Image becomes slightly enlarged and
shutter speed auto-adjusts from 1/80 to
1/350 according to brightness.

• Use High Speed Shutter (page 24) if
needed. Shutter speed setting remains
after EIS is canceled.

2Press EIS again to cancel when not in

use.

E.I.S. may not function during...

• extreme Camcorder movement.

• recording of subjects with distinct horizontal
or vertical stripes.

• low light situations (EIS indicator flashes).

• intense fluorescent lighting situations.

• recording of very fast motion.

NORMAL

1, 2

Digital EIS ON

Special Features

27

MotionSensor

Recording starts automatically if motion
is detected.

1, 2, 3

Before you begin...

• Connect Camcorder to power source.
Use AC Adaptor for longer recordings.

• Insert cassette with record tab (page 10).

• Set POWER to CAMERA.

• Securely position and aim Camcorder.

1Press MENU for

MENU mode. Press
UP or DOWN to select

MOTIONSENSOR .

2Press DISPLAY to select ON.
3Press MENU for MotionSensor stand-by

mode. (If cassette is not inserted, “
will flash.)

”

MotionSensor may mistakenly start
when:

• background is plain, like a white wall,
or has distinct vertical, horizontal, or
slanted stripes, like a venetian blind.

• brightness suddenly changes.

MotionSensor may not start when:

• motion is very slow or fast.

• moving object is very small.

• motion occurs only in 1 corner of
viewing area.

• in poor lighting (in this case,
MOTIONSENSOR flashes).

• background is plain, like a white wall,
or has distinct horizontal or vertical
stripes.

• Recording will start about 3 seconds
after motion is detected.

• Date and time are recorded if displayed
in EVF or LCD monitor (page 14).

• Recording stops about 30 seconds after
motion ceases.

To cancel MotionSensor Mode, set

to OFF.

Note:

• MotionSensor recording starts if Camcorder
is bumped or repositioned.

• This feature is not available during normal
recording.

• While in MotionSensor stand-by, the
following functions are not available: Record/
Pause, Stand-by mode, Digital E.I.S., Video
Effects (Auto/Digital Fade).

POWER

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

28

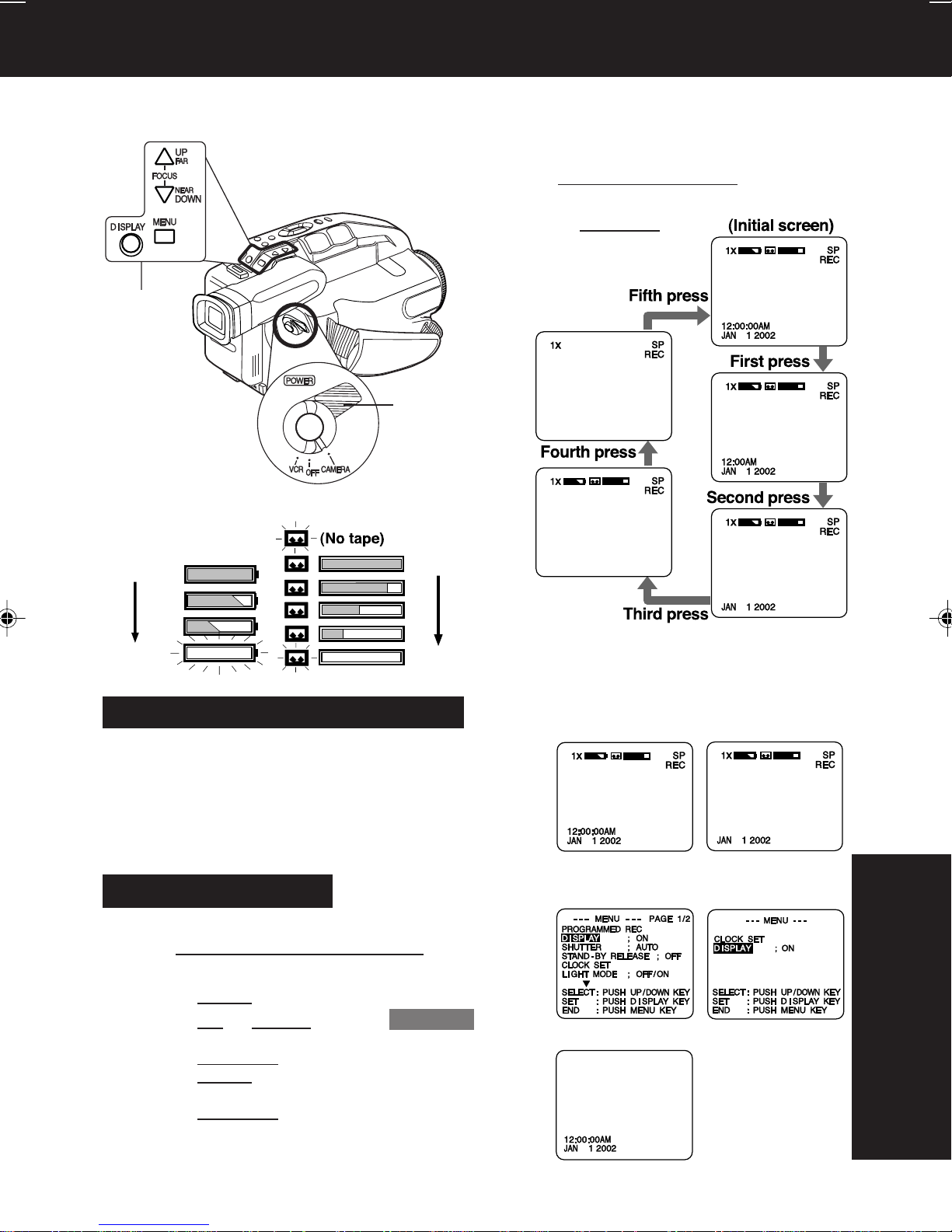

Viewfinder/LCD Monitor Indications

Tape remaining and battery charge level
can be displayed.

2,

B

,

C

,

D

1,

Tape Remaining:Battery Remaining:

Before you begin...

• Connect Camcorder to power source.

1Set POWER to CAMERA.
2Press DISPLAY

repeatedly to select

the following displays.

A

FULL

EMPTY

Recording the Date and Time

FULL

EMPTY

aDo steps 1 and 2 above to select time/date,

date only, or no display.

bStart a recording (page 16).

• Only the Date and/or Time are recorded.

Display-Off Mode

ASet POWER to CAMERA or VCR.
BPress MENU for MENU mode.

Press

CPress DISPLAY to select OFF.

Press

UP or DOWN to select DISPLAY .

MENU to exit.

• Tape remaining indicator operates a few
seconds after tape starts moving.

For Your Information

[CAMERA MODE] [VCR MODE]

DPress DISPLAY repeatedly to remove time/date.

Indications are restored the next time Camcorder is
turned on.

29

V iewfinder/LCD Monitor Indications

CAMERA/VCR mode

1

2345

6
7

8, 9, 10

11

1 Zoom Magnification level (pages 22, 27).
2 Battery Remaining (page 29).

“WARNING LOW BATTERY” appears
and Camcorder shuts off after 15
seconds.

3 Tape Remaining (page 29).

“ ” flashes and “TAPE END”
appears for 5 seconds when:

• End of tape is reached.

“ ” flashes for 1 minute and “CHECK
TAPE” appears for 5 seconds when:

• RECORD/PAUSE is pressed with no
cassette, or cassette has no record tab
in Camera (RECORD) mode.

• PLAY, FF or REW is pressed with no
cassette inserted in VCR mode.

4 10-Second Reminder

Each time a recording is started, a 10
second incremental display (up to 59:50)
lets you monitor how long one scene is
recorded.

0:00 0:10 0:20 . . . . . 59:50

12
13
14
15
16

17
18

6 Digital E.I.S. (page 27).
7 Digital Zoom (page 27).
8 VCR-MODE

“VCR-MODE” appears for 1 minute
when POWER is set to VCR or if
RECORD/PAUSE is pressed in VCR
mode.

9 DEW

If moisture condensation occurs in
unit, “WARNING DEW DETECTED”
appears, and Camcorder will shut off in
15 seconds. Wait until “WARNING” no
longer indicates when Camcorder is
turned on to use.

10 MotionSensor (page 28).
11 Date and Time (pages 13, 14).
12 Operating Mode

• REC (record) • PAUSE

• FF (fast forward) • PLAY

• REW (rewind)

13 Backlight (page 22).
14 Manual Focus (page 23).

(return to 0:00 and continue)

5 TAPE SPEED (pages 10, 16).

(SP=standard play,
SLP=super long play).

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

30

15 Light ON/OFF/AUTO (page 15).
16 High Speed Shutter (page 24).
17 Fade (page 25).
18 Color Digital Fade (page 26).

Operation Notes

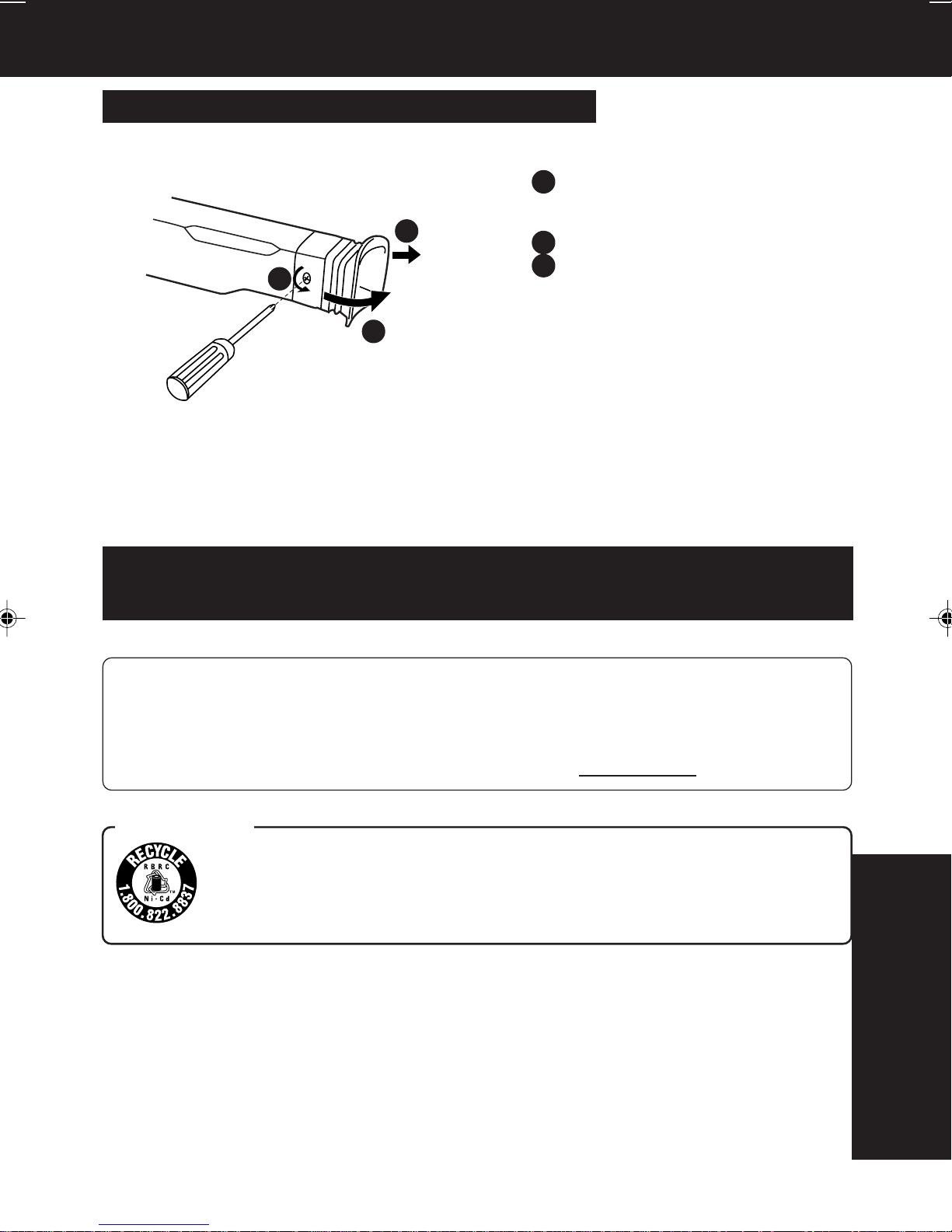

Cleaning EVF (Electronic Viewer Finder)

To Remove

1 A Remove the screw with a Phillips

C

A

B Turn the EVF Eyepiece.
C Pull the EVF Eyepiece.

2 Remove any lint or dust particles

B

with a soft clean cloth being careful
not to scratch the glass surfaces.

3 Replace the EVF Eyepiece and the

screw.

screwdriver.
Turn counterclockwise.

Notice

This product utilizes both a Cathode Ray Tube (CRT) and other components that
contain lead. It also has a fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated in your community due to environmental
considerations. For disposal or recycling information please contact your local
authorities, or the Electronics Industries Alliance: <http://

ATTENTION :

A nickel cadmium battery that is recyclable powers the product you have
purchased. At the end of its useful life, under various state and local laws, it
is illegal to dispose of this battery into your municipal waste stream. Please
call 1-800-8-BATTERY for information on how to recycle this battery.

www.eiae.org.>

For Your Information

31

Replacing Clock Battery

The clock battery is pre-installed. Follow the steps below if replacement becomes
necessary.

WARNING:

Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another
battery may present a risk of fire or explosion.
Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep
away from children. Do not recharge, disassemble or dispose of in fire.

Clock Battery

Tripod Mounting Hole

1

1While pinching the 2 tabs, pull

Battery Tray out.

2Bend middle tab out and remove

Battery.

4

Underside View

2
3

3Snap new Battery (⊕ mark down) into

Battery Tray.

• Do not reverse the polarity.

4Insert Battery Tray so the triangle

marks meet.

Note:

• Keep Battery out of children’s reach.
Swallowing it may be harmful.

• Improper installation, discharge, or
missing battery causes “CLOCK
BATTERY” to appear when DISPLAY is
pressed.

• Battery life is approximately 5 years.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

32

Palmcorder Accessory System

To order instructions, see the Accessory Order Form page.

• The listed standard battery use times are based on continuous recording using this Palmcorder.

Accessory # Figure Description Price

AC Adaptor with
DC Power Cable Call For

PV-A19

PV-A20

HHR-V60A/1B

(Charging of the Nickel Pricing
Cadmium Battery or Nickel
Metal Hydride Battery)

AC Adaptor with
DC Power Cable Call For

(Charging of the Nickel Pricing
Cadmium Battery or Nickel
Metal Hydride Battery)

Up to 6 hr Battery Pack

(Rechargeable Nickel $119.95
Metal Hydride Battery)

Up to 4 hr Battery Pack

HHR-V40A/1B (Rechargeable Nickel $69.95

Metal Hydride Battery)

Up to 2 hr Battery Pack

HHR-V20A/1B

PV-AA6 "AA" Battery Case $20.00

PV-C16 Car Battery Cord $70.00

PV-P1 VHS PlayPak $39.95

(Rechargeable Nickel $59.95
Metal Hydride Battery)

For Your Information

PV-H18A Soft Sided $49.95

Note:

• Prices subject to change without notice.

33

Palmcorder Accessory Order Form

Please photocopy this form when placing an order.

1. Palmcorder Model #

2. Items Ordered

3. Method of payment (check one)
Check or Money Order enclosed (NO C.O.D.SHIPMENTS)

VISA Credit Card #
MasterCard Expiration Date
Discover Customer Signature

QuantityAccessory # Price EachDescription

Subtotal

Your State & Local Sales Tax

Shipping & Handling

Total Enclosed

Total Price

6.95

Make Check or Money Order to: PANASONIC ACCESSORIES

(Please do not send cash)

4. Shipping information (UPS delivery requires complete street address)

Ship To:
Mr.
Mrs.
Ms.

First Last

Street Address

City State Zip

TO OBTAIN ANY OF OUR PALMCORDER ACCESSORIES YOU CAN DO ANY OF THE

FOLLOWING:

VISIT YOUR LOCAL PANASONIC DEALER

OR

CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368

[6 AM-5 PM M-F, 6 AM-10:30 AM SAT, PACIFIC TIME]

OR

MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY

ORDER OFFICE

20421 84th Avenue South Kent, WA. 98032

Phone #:
Day ( )

Night ( )

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

34

Specifications

Power Source: Compact VHS Camcorder: DC 6 V

AC Adaptor: 110/120/220/240 V AC, 50/60 Hz
Battery: Nickel-Cadmium Type DC 6 V

Power Consumption: Compact VHS Camcorder: 6V DC 8.5 W (Max. 11.5 W)

AC Adaptor: 19 W

1.2 W (when not in use.)

Video Signal: EIA Standard (525 lines, 60 fields) NTSC color signal
Video Recording System: 2 rotary heads plus flying erase head. Helical scanning system
Audio: 1 track
Pick-Up System: Sequential color difference field reverse system
Pick-Up Device: One integral color filter Charge Coupled Device (CCD)
Lens: 20:1 zoom lens, F1:1.6 with auto iris control

Focal length: 3.6 mm - 72 mm
4 speed power zoom function

Viewfinder: 10.2 mm (0.4 inch)Electronic Viewfinder
LCD Monitor: 63.5 mm (2.5 inch) Liquid Crystal Display
Minimum Illumination Required: 0.8 lx (F1:1.6) 0.08 footcandles

7 lx (F1:1.6) 0.7 footcandles (EIA Standard)

Operating Temperature: 0 °C~40 °C (32 °F~104 °F)
Operating Humidity: 10 %~75 %
Weight: Compact VHS Camcorder: 1.00 kg

2.20 Ibs.

AC Adaptor: 0.3 kg

0.66 Ibs.

Dimensions: Compact VHS Camcorder:

106 (W) × 125 (H)× 190.5 (D) mm
4-3/16 (W) × 4-15/16 (H)× 7-1/2 (D)inch

AC Adaptor: 68 (W)× 41 (H)× 140 (D) mm
2-11/16 (W) × 1-5/8 (H)× 5-1/2 (D)inch

Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.

Request for Service Notice

Please photocopy this form when making a request for service notice.

Request for Service Notice:

Mail this completed form and your Proof of Purchase along with your unit to:

For Your Information

In the unlikely event this product needs service.

• Please include your proof of purchase.
(Failure to due so will delay your repair.)

• To further speed your repair please provide
an explanation of what is wrong with the unit
and any symptom it is exhibiting.

Panasonic Services Company

1705 N. Randall Road

Elgin, IL. 60123-7847

Attn: Camcorder Repair

35

Before Requesting Service

If a problem arises, you may be able to correct it yourself.
See Symptom and Correction list below.

CorrectionSymptom

No picture in EVF or LCD monitor ...

Video cassette cannot be inserted ...

Video cassette cannot be removed ...
Operation buttons do not work ...
Recording cannot be done ...

Auto Focus does not operate ...

Sound from microphone can’t be monitored ...
Camera picture is too dark ...
No playback picture, or the playback picture

is noisy or contains streaks ...
Top of playback picture waves back and forth

excessively ...

• Connect Power Source. (pp. 8, 9)

• Set POWER to VCR or CAMERA. (pp. 16, 19)

• Check for Dew Indication. (p. 30)

• Use fully charged Battery. (p. 8)

• Firmly connect all needed cables. (p. 9)

• Connect Power Source. (pp. 8, 9)

• Insert cassette, window side facing out. (p. 10)

• Connect Power Source. (pp. 8, 9)

• Check for Dew Indication. (p. 30)

• Make sure record tab is intact. (p. 10)

• Check Battery Indicator. (p. 29)

• Check for Dew Indication. (p. 30)

• Set FOCUS to AUTO. (p. 23)

• Set POWER to CAMERA. (p. 16)

• Set unit to REC or Record/Pause mode.

• Set HIGH SPEED SHUTTER to AUTO. (p. 24)

• Press UP/DOWN button during playback
(Tracking Control). (p. 19)

• A playback signal is not as stable as an off the air
TV signal, so the top of your TV screen may
appear bent or unstable during playback. This is
called, “Horizontal AFC time constant change.” To
correct, slowly turn the TV horizontal hold control.
If your TV does not have this control, or adjusting it
does not help, contact your TV service center.
(Some nominal service charges may be required.)

Video Head Cleaning

Clogged Video Head

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

36

While head cleaning is normally not needed, playing old or
damaged tapes may clog the heads. When playback picture
resembles example at the left, head cleaning is required.

Ideally, head cleaning should be performed by a qualified
service technician. When this is not possible, purchase a
head cleaning cassette. Be sure to follow cleaning cassette
instructions exactly and only use when symptoms occur.

Limited Warranty

PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF MATSUSHITA ELECTRIC
CORPORATION OF AMERICA
One Panasonic Way Secaucus, New Jersey 07094

Panasonic/Quasar Video Products

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company
or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product

Camcorder
DVD/VCR Deck,

A/V Mixer
TV/VCR, TV/DVD,

TV/DVD/VCR
Combination

TV/HDR
Combination

Rechargeable
Batteries
(in exchange for
defective item)

Tape
(in exchange for
defective item)

Memory Cards
(in exchange for
defective item)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no
charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty
period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product
which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

Carry-In, Mail-in or In-Home Service

For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit
Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not
include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed in­home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear
and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing
fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3
pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service
by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT , OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for

lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of
media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED
TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a
problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the
problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses
listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE
NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

One (1) Year (except CCD
Image Sensor)
CCD Image Sensor - 6 (Six) Months

One (1) Year
One (1) Year (except CRT)
CRT - Two (2) Years

One (1) Year (except CRT)
CRT - Two (2) Years

Ten (10) Days

Five (5) Days

Ninety (90) Days

Parts

PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA
ELECTRIC OF PUERTO RICO, INC.,
AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park,
Carolina, Puerto Rico 00985

Limited Warranty

Labor

Ninety (90) Days
Ninety (90) Days

Ninety (90) Days
Ninety (90) Days
Ninety (90) Days

Ninety (90) Days
Ninety (90) Days

Not Applicable

Not Applicable

Not Applicable

Carry-In or Mail-In

Carry-In or Mail-In
Carry-In: 21” CRT and Smaller

In-Home or Carry-In: 22”
CRT and Larger

In-Home or Carry-In

Carry-In or Mail-In

Carry-In or Mail-In

Carry-In or Mail-In

Service

Contact Number

1-800-211-PANA(7262)

1-800-211-PANA(7262)

1-800-211-PANA(7262)

1-888-843-9788

1-800-211-PANA(7262)

1-800-211-PANA(7262)

1-800-211-PANA(7262)

For Your Information

37

Customer Services Directory

For Product Information, Operating Assistance, Literature Request, Dealer Locations,
and all Customer Service inquiries please contact:

1-800-211-PANA (7262),

or send e-mail : [e-mail]

Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your
nearest servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only )
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST)
(Visa, MasterCard, Discover Card, American Express, Check)

Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm, EST.

Product Repairs

MAIL TO :

Please carefully pack and ship, prepaid and insured, to the Elgin Centralized Factory Servicenter.

Customer’s in Puerto Rico, please ship or carry in to location below (“Service in Puerto Rico”).

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter:

Ave. 65 de Infanteria. Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Centralized Factory Servicenter

Panasonic Services Company

1705 N. Randall Road,

Elgin, IL 60123-7847

Attention: Camcorder Repair

Service in Puerto Rico

Phone [phone] Fax [phone]

As of February 2002

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

38

Spanish Quick Use Guide/Guía Para Uso Rápido

Antes de comenzar...

• Inserte un casete con lengüeta para prevención del grabado.

Cargue la batería

Cargue completamente la batería antes
de usarla.

Enchufe el

1

adaptador de CA.

Instale la batería. El indicador de

2

carga (CHARGE) parpadea, luego
queda encendido si ha terminado la
carga. Desmonte la batería.

Grabación con la videocámara

Presione LCD-OPEN para abrir el monitor LCD.

1

Abralo completamente y ajuste el ángulo.

Inserte el casete

Coloque la batería

1

cargada.

Deslice TAPE

2

EJECT para abrir la

compuerta.

Inserte el casete.

3

Presione aquí para

4

cerrar la compuerta.

Reproduzca usando el monitor LCD

Presione LCD-OPEN para abrir el monitor LCD.

1

Abralo completamente y ajuste el ángulo (vea arriba).
Ajuste POWER a VCR.

2

Ajuste POWER a CAMERA.

2

Presione RECORD/PAUSE para

3

comenzar la grabación.
Presione RECORD/PAUSE otra
vez para hacer una pausa en la
grabación.

Presione REWIND/SEARCH para

3

rebobinar la cinta.

Presione PLAY para comenzar la

4

reproducción.

Presione STOP para finalizar la

5

reproducción.

For Your Information

Reproduccion con efectos especiales

Para localizar rapidamente una escena especifica

• Oprimir el botón de localización (SEARCH).

Para congelar una imagen

• Oprimir el botón de pausa/imagen fija (PAUSE/STILL).

• Oprimir nuevamente el botón cuando se desea continuar reproduciendo.

39

Index

A

AC Adaptor....................... 9

Accessories (Optional) ... 33

Accessories (Supplied) .... 2

Audio/Video Cable ... 20, 21

Audio/Video Out ....... 20, 21

Auto Daylight Saving Time

.................................... 14

B

Backlight......................... 22

Battery Pack................. 8, 9

BATTERY RELEASE

Button ........................... 8

Before Requesting Service

.................................... 36

B.LIGHT Button.............. 22

BRIGHT ADJUSTMENT

.............................. 16, 19

Built-in Microphone ........ 16

C

Camera Recording ... 16~18

Car Battery Cord .............. 9

Cassette Information ...... 10

Charging Battery .............. 8

Cleaning EVF ................. 31

Clock Battery.................. 32

Clock Set.................. 13, 14

Copying your Tapes ....... 21

D

DC IN ............................... 9

DC Power Cable .............. 9

Digital E.I.S. ................... 27

Digital Zoom ................... 27

DISPLAY Button. 12, 19, 29

Display-off Mode ............ 29
