Quasar CP-3211, CP-4221 User And Installation Manual
ii
CP-3211 and CP-4221
HD PTZ Dome Camera
User and Installation Guide
Rev H May 2014
DVTEL INC.
65 Challenger Road
Ridgefield Park, NJ 07660
The contents of this guide may not be
reproduced or reprinted in whole or in
part without the express written
permission of DVTEL, Inc.
Table of Contents
i
Table of Contents
1 Document Information .................................................................................................... ix
2 Overview .........................................................................................................................1
2.1 Features .......................................................................................................................... 1
2.2 Package Contents ........................................................................................................... 2
3 Introduction to the Quasar HD PTZ Camera ......................................................................5
3.1 Quasar HD PTZ Indoor Camera Dimensions ................................................................... 5
3.2 Quasar HD PTZ Outdoor Camera Dimensions ................................................................ 5
3.3 Camera Connectors ........................................................................................................ 6
4 System Requirements ......................................................................................................9
5 Installation .................................................................................................................... 11
5.1 Indoor Installation ........................................................................................................ 11
5.2 Outdoor Installation ..................................................................................................... 11
5.3 Power and Ethernet Cable Connection ........................................................................ 12
5.4 Initial Camera Configuration ........................................................................................ 12
5.5 Preparing the Camera for Mounting ............................................................................ 14
5.6 Mounting Instructions .................................................................................................. 14
5.6.1 Ceiling Mount ........................................................................................................... 14
5.6.2 Wall Mount .............................................................................................................. 25
5.6.3 Corner Mount ........................................................................................................... 28
5.6.4 Pole Mount ............................................................................................................... 32
6 Using the DNA Utility to Search and Access the Camera .................................................. 35
6.1 Introduction .................................................................................................................. 35
6.2 Quick Start .................................................................................................................... 36
6.3 Main Screen .................................................................................................................. 36
6.4 Navigation Bar .............................................................................................................. 36
6.5 Context Menu ............................................................................................................... 37
6.6 Configuring Communication Settings on the Quasar Camera ...................................... 38
6.7 Adjusting and Framing-Up the Camera View ............................................................... 41
7 Configuration and Operation .......................................................................................... 43
7.1 Browser-Based Viewer Introduction ............................................................................ 43
7.2 Home Page .................................................................................................................... 45
7.2.1 CP-3211/CP-4221 Camera Home Page .................................................................... 45
7.3 System-Related Settings ............................................................................................... 49
7.3.1 System ...................................................................................................................... 49
7.3.2 Security ..................................................................................................................... 50
Quasar CP-3211/CP-4221 User and Installation Guide
ii
7.3.3 Network .................................................................................................................... 59
7.3.4 DDNS ........................................................................................................................ 65
7.3.5 Mail ........................................................................................................................... 66
7.3.6 FTP ............................................................................................................................ 67
7.3.7 HTTP ......................................................................................................................... 68
7.3.8 Application ............................................................................................................... 69
7.3.9 Motion Detection ..................................................................................................... 76
7.3.10 Network Failure Detection ....................................................................................... 80
7.3.11 Storage Management ............................................................................................... 82
7.3.12 Recording ................................................................................................................. 84

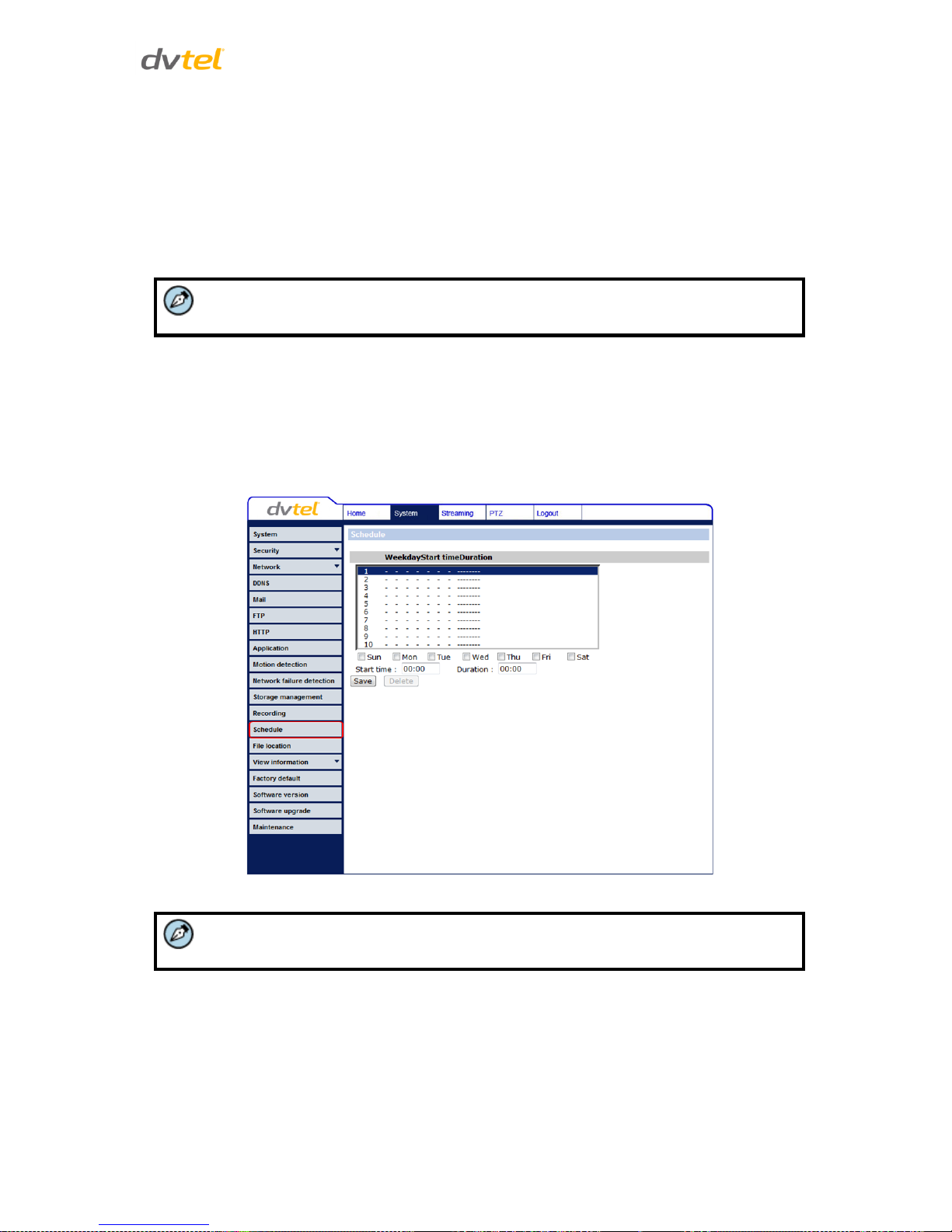

7.3.13 Schedule ................................................................................................................... 85
7.3.14 File Location ............................................................................................................. 86
7.3.15 View Information ..................................................................................................... 87
7.3.16 Factory Default ......................................................................................................... 90
7.3.17 Software Version ...................................................................................................... 91
7.3.18 Software Upgrade .................................................................................................... 92
7.3.19 Maintenance ............................................................................................................ 93
7.4 Video and Audio Streaming Settings ............................................................................ 95
7.4.1 Video Format ............................................................................................................ 95
7.4.2 Video Compression ................................................................................................ 102
7.4.3 Video OCX Protocol ................................................................................................ 104
7.4.4 Video Frame Rate ................................................................................................... 106
7.4.5 Audio ...................................................................................................................... 107
7.5 PTZ Settings ................................................................................................................ 108
7.5.1 Preset ..................................................................................................................... 109
7.5.2 Pattern .................................................................................................................... 109
7.5.3 Auto Pan ................................................................................................................. 110
7.5.4 Sequence ................................................................................................................ 111
7.5.5 Home ...................................................................................................................... 113
7.5.6 Tilt Range ................................................................................................................ 114
7.5.7 Privacy Mask ........................................................................................................... 115
7.5.8 Exposure ................................................................................................................. 116
7.5.9 Camera – WB (White Balance) ............................................................................... 118
7.5.10 Camera – Misc1 (Miscellaneous Settings Menu 1) ................................................ 121
7.5.11 Camera – Misc2 (Miscellaneous Settings Menu 2) ................................................ 125
7.6 Logout ......................................................................................................................... 129
Table of Contents
iii
Appendices ........................................................................................................................ 131
A.1. Technical Specifications .............................................................................................. 132
A.2. Device Search Software .............................................................................................. 135
A.2.1 Initial Camera Configuration .................................................................................. 135
A.2.2 Searching and Accessing the Camera with Device Search ..................................... 136
A.2.3 Configuring Communication Settings of a Quasar Camera .................................... 136
A.3. Internet Security Settings ........................................................................................... 140
A.4. Install UPnP Components ........................................................................................... 142
A.5. Deleting the Existing DCViewer .................................................................................. 144
A.6. Deleting Temporary Internet Files .............................................................................. 145
A.7. Connecting Leads to a Spring Clamp Terminal Block ................................................. 146
A.8. Camera and Mounting Accessories ............................................................................ 147
Contacting DVTEL ............................................................................................................... 154
Quasar CP-3211/CP-4221 User and Installation Guide
iv
List of Figures
Figure 1: Indoor Package Contents ........................................................................................................ 2
Figure 2: Outdoor Package Contents ..................................................................................................... 3
Figure 3: Indoor Camera Dimensions ..................................................................................................... 5
Figure 4: Outdoor Camera Dimensions .................................................................................................. 5
Figure 5: Indoor/Outdoor Connector Locations....................................................................................... 6
Figure 6: Discovered IP Devices ........................................................................................................... 13
Figure 7: Assign IP Dialog Box ............................................................................................................. 13
Figure 8: Ceiling Mounting: Straight Tube + Mount Kit ......................................................................... 23
Figure 9: Swan Tube Mounting ............................................................................................................. 24
Figure 10: Wall Mount: Compact Wall Mount + Mount Kit .................................................................... 26
Figure 11: Wall Mount: Standard Wall Mount + Mount Kit .................................................................... 27

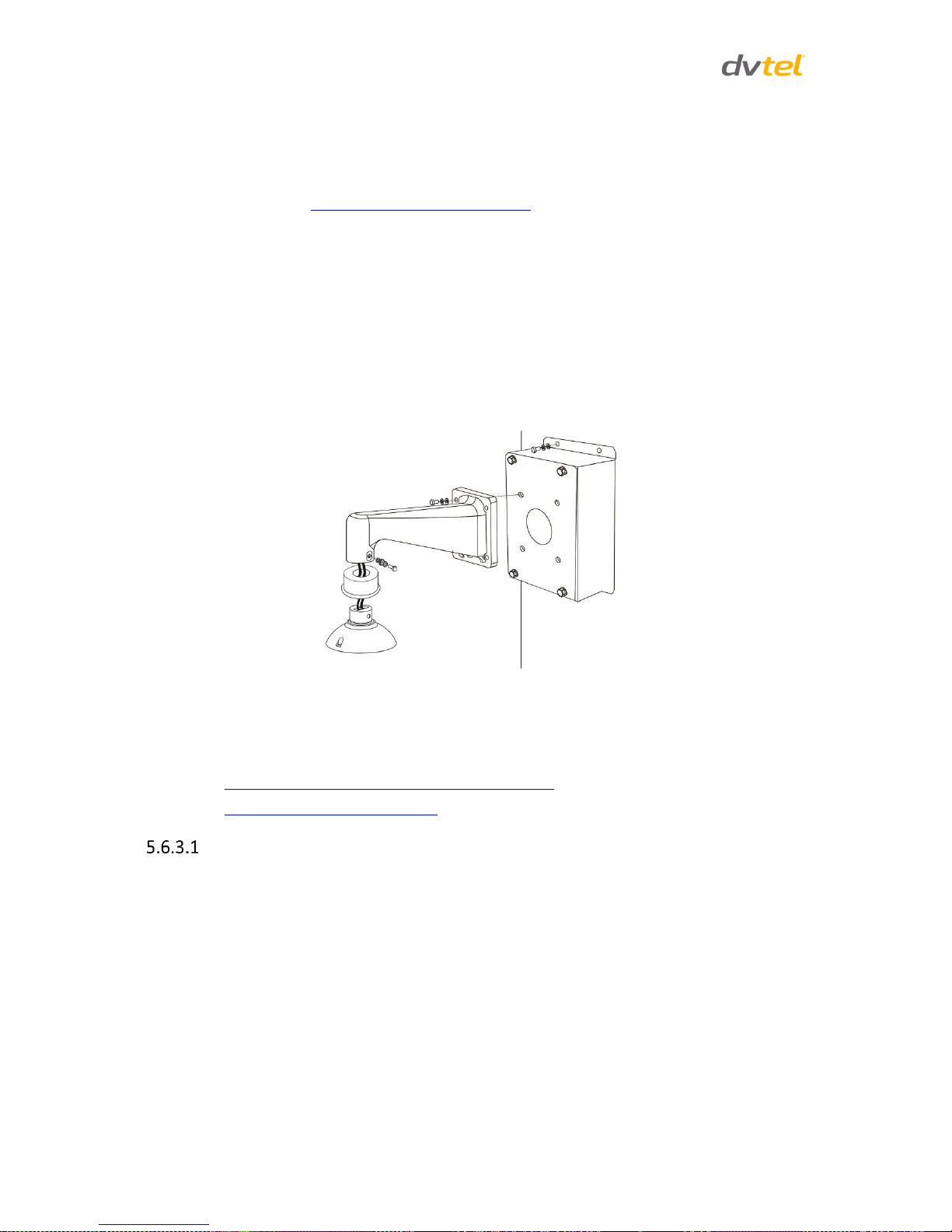

Figure 12: Wall Box Mounting: Wall Box Mount + Standard Wall Mount + Mount Kit .......................... 28
Figure 13: Corner Wall Mounting: Corner Standard/Mini Mounting Plate + Standard Wall Mount +
Mount Kit ............................................................................................................................................... 30
Figure 14: Corner Box Mounting: Corner Thin/Wide Box + Standard Wall Mount + Mount Kit ............ 31
Figure 15: Pole Direct Mounting: Pole Thin/Wide Direct Mounting + Standard Wall Mount + Mount
Kit .......................................................................................................................................................... 33
Figure 16: Pole Box Mounting: Pole Thin/Wide Box + Standard Wall Mount + Hard Ceiling Mount .... 34
Figure 17: DNA Main Screen ................................................................................................................ 36
Figure 18: Context Menu ....................................................................................................................... 37

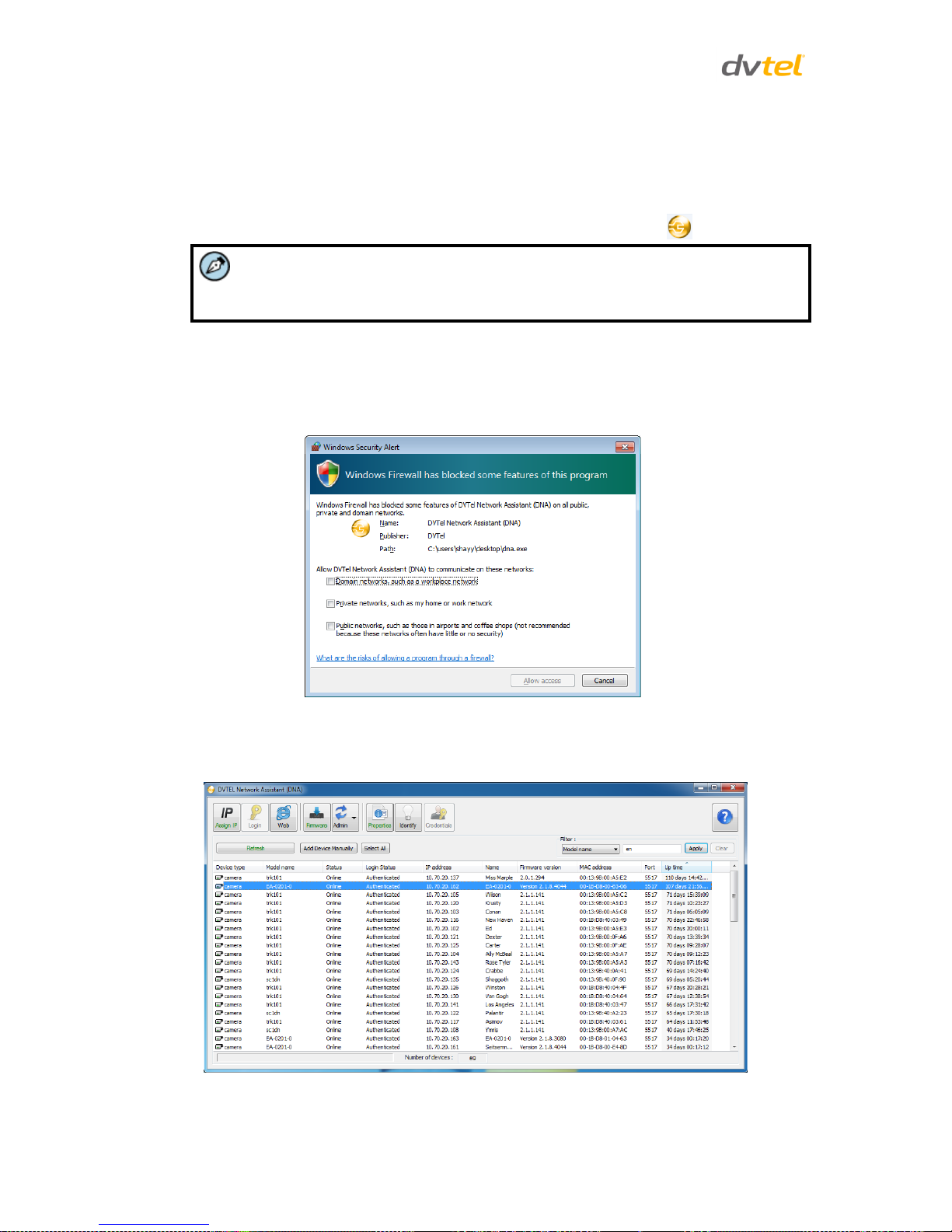

Figure 19: Windows Firewall Screen .................................................................................................... 38
Figure 20: Discovered IP Devices ......................................................................................................... 38
Figure 21: DNA Assign IP – Use DHCP Dialog Box ............................................................................. 39
Figure 22: DNA Assign IP – Static IP Dialog Box ................................................................................. 39
Figure 23: Installing the ActiveX Control ............................................................................................... 40
Figure 24: Security Window .................................................................................................................. 40
Figure 25: Quasar Browser-Based User Interface ................................................................................ 43
Figure 26: Info Pop-Up Screen ............................................................................................................. 45

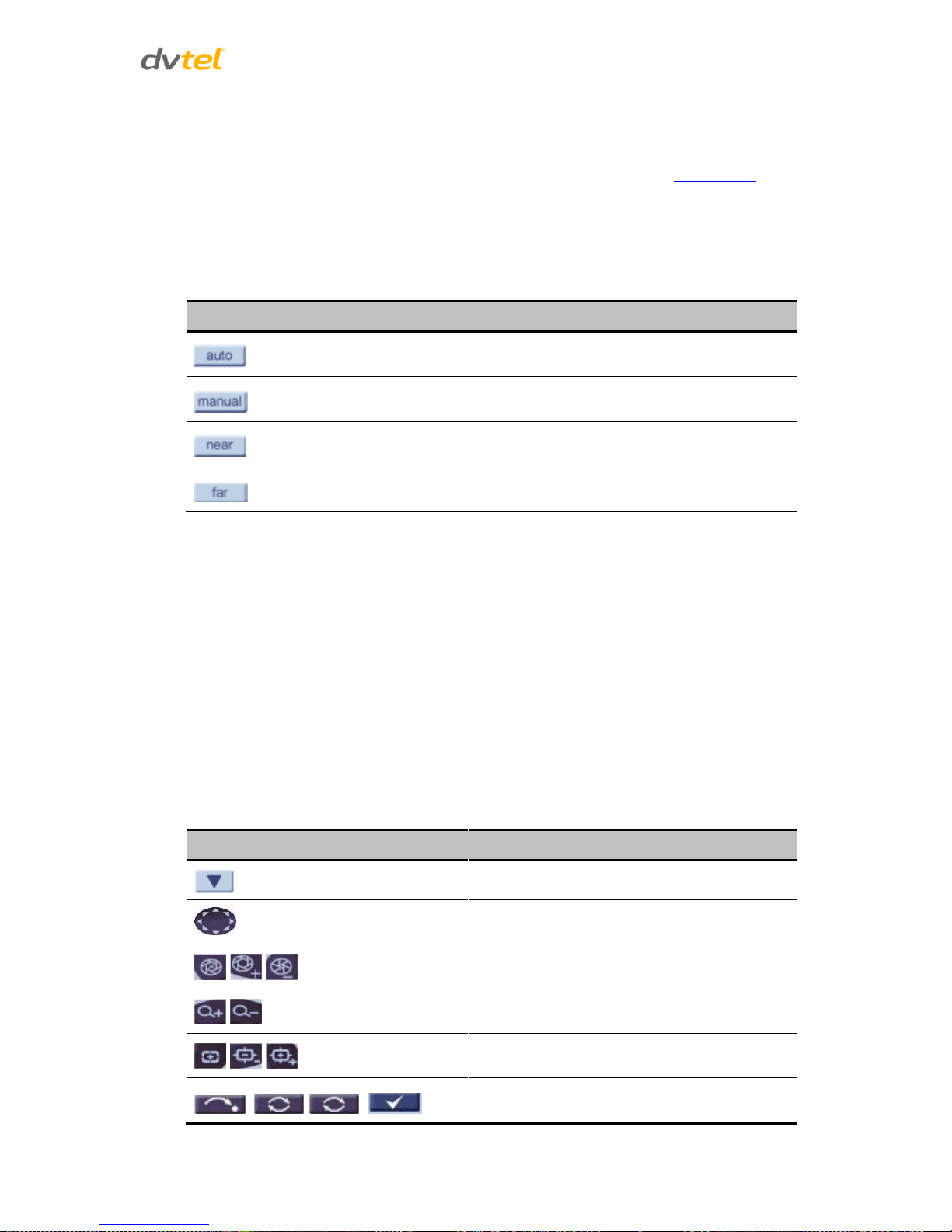

Figure 27: Home Page Function Buttons .............................................................................................. 45

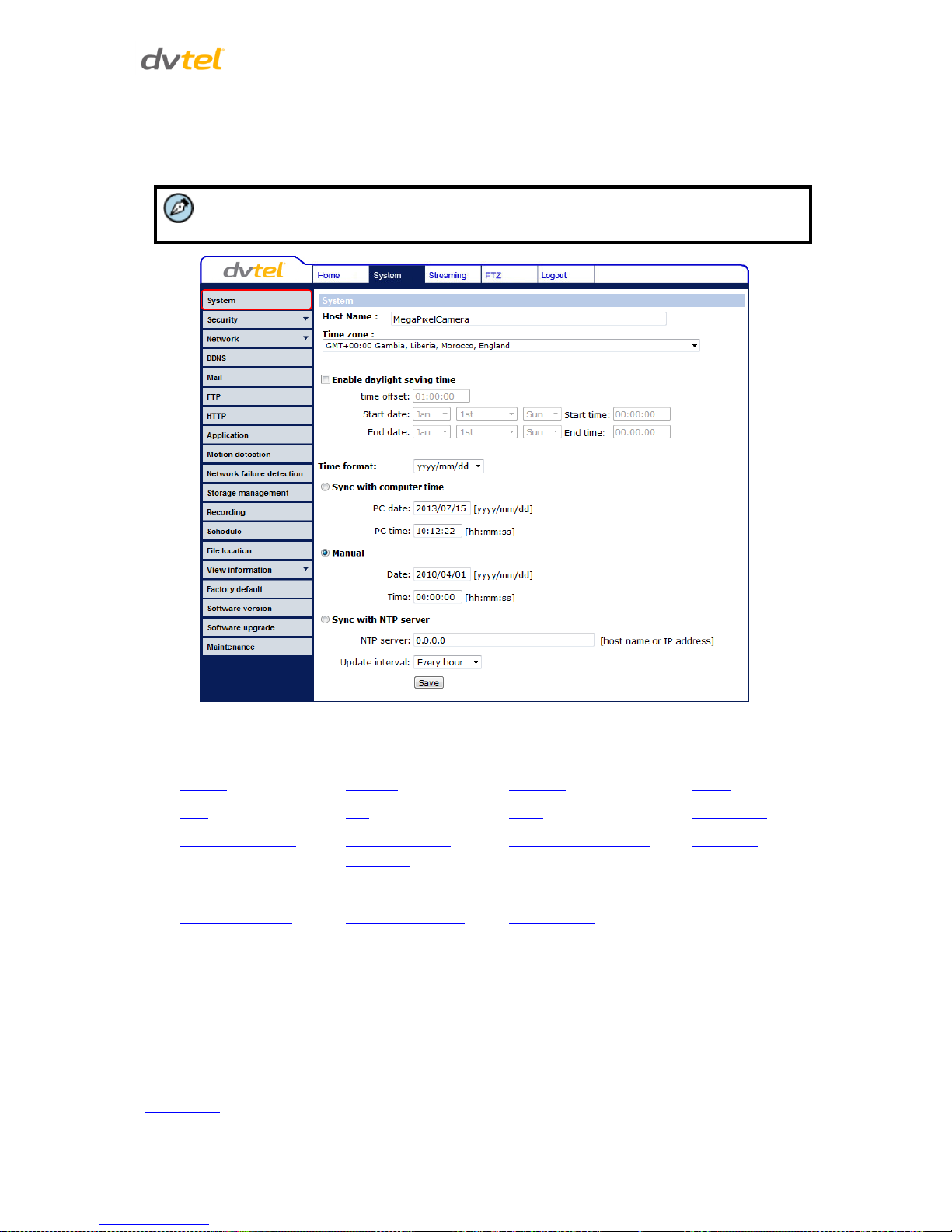

Figure 28: System Screen ..................................................................................................................... 49
Figure 29: System Configuration – Security Screen ............................................................................. 50
Figure 30: System Configuration – User Screen .................................................................................. 51
Figure 31: Editing Password and Privileges ......................................................................................... 52
Figure 32: Modifying Account Authority ................................................................................................ 52
Figure 33: HTTPS Screen ..................................................................................................................... 53

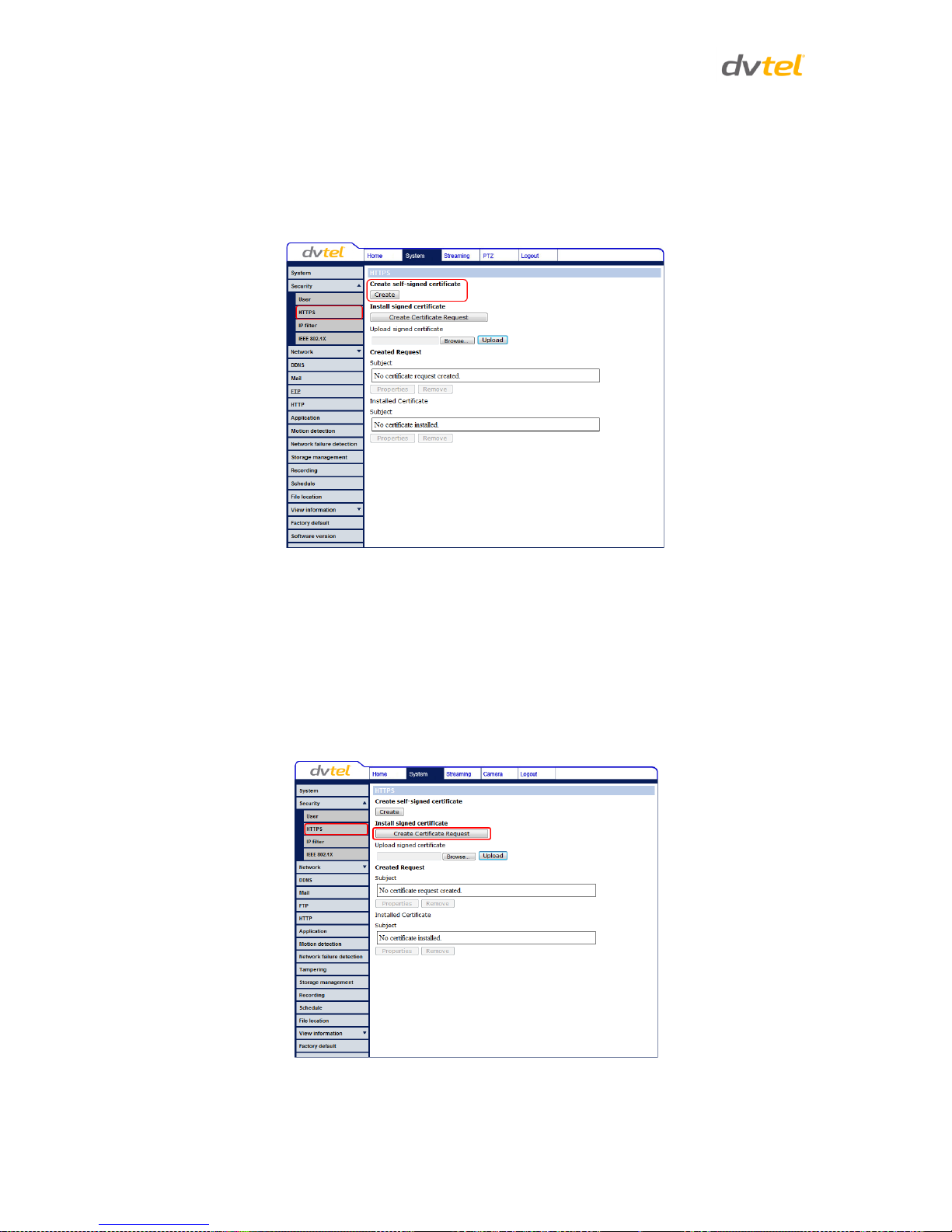

Figure 34: HTTPS Screen – Create Self-Signed Certificate ................................................................. 54
Figure 35: HTTPS Screen – Install Signed Certificate .......................................................................... 54
Figure 36: HTTPS Screen – Upload Signed Certificate ........................................................................ 55
Figure 37: Example of Self-Signed Certificate ...................................................................................... 55
Figure 38: Self-Signed Certificate – Details .......................................................................................... 56
Figure 39: IP Filter Screen .................................................................................................................... 57

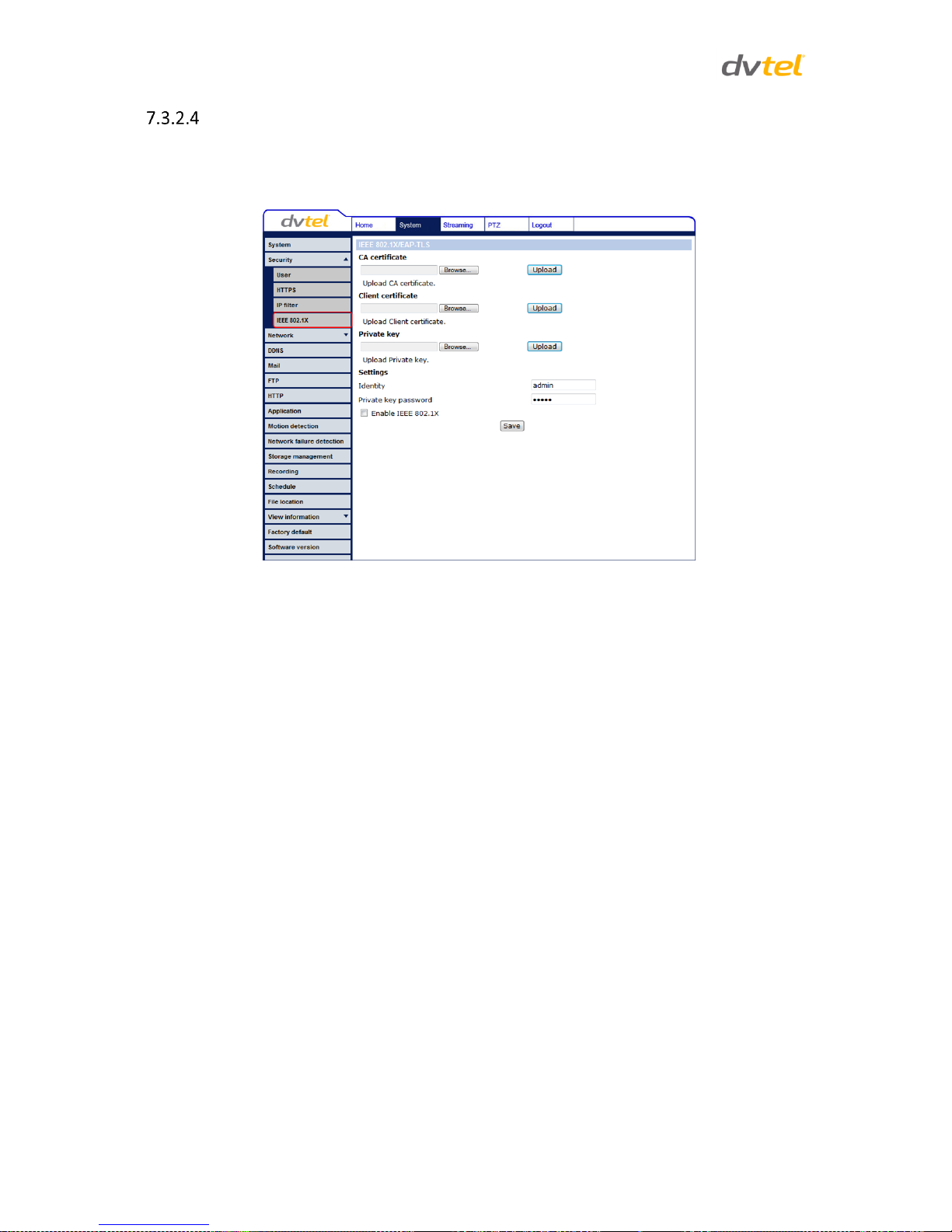

Figure 40: Enabling the IEEE 802.1X Protocol ..................................................................................... 58

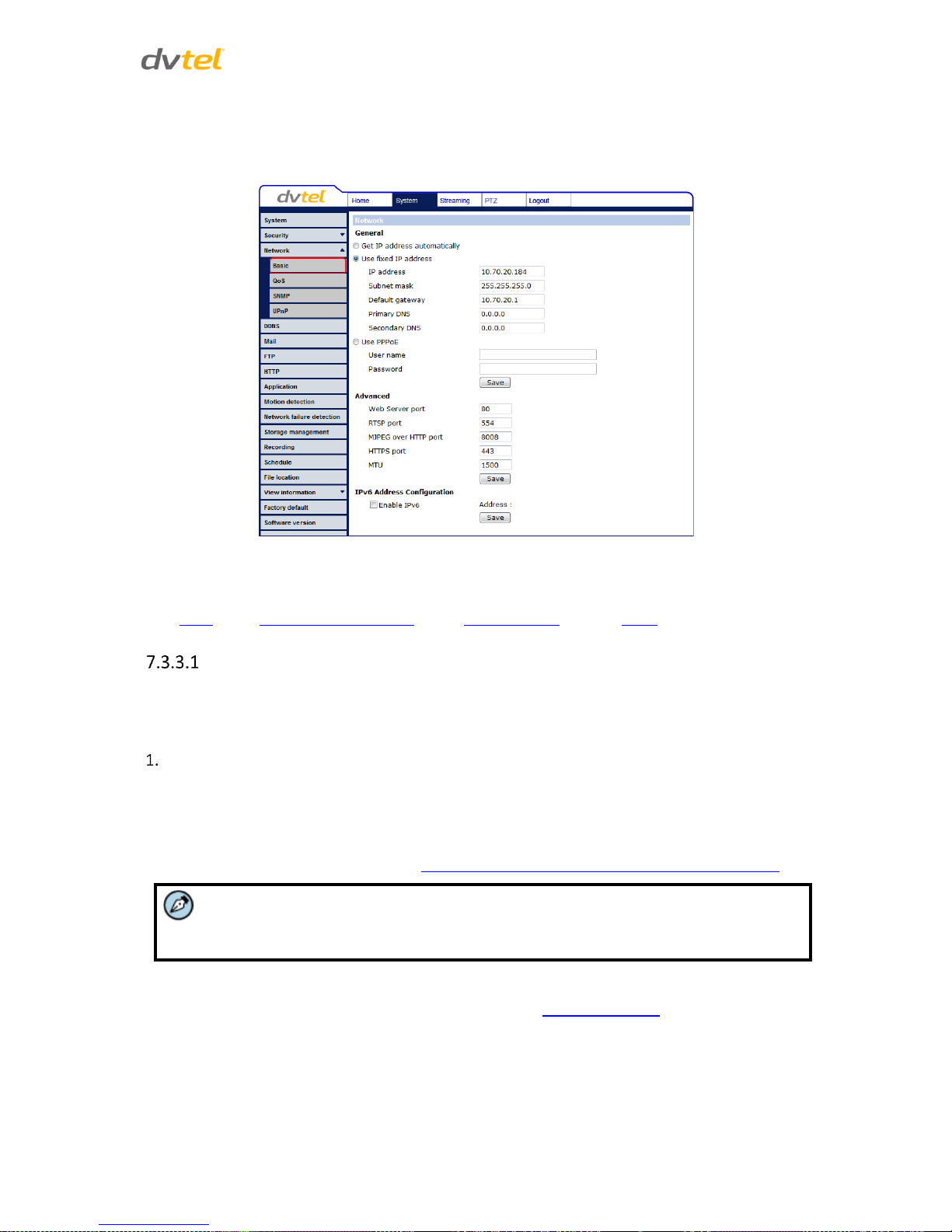

Figure 41: Network Screen ................................................................................................................... 59
Figure 42: Network QoS Screen – DSCP Settings ............................................................................... 61
Figure 43: SNMP Settings Screen ........................................................................................................ 62
Figure 44: Network Screen – UPnP Settings ........................................................................................ 63
Figure 45: Direct Access to Camera with UPnP Enabled ..................................................................... 64
Figure 46: DDNS Screen ...................................................................................................................... 65
Figure 47: Mail Screen – SMTP ............................................................................................................ 66
Figure 48: FTP Screen .......................................................................................................................... 67
Figure 49: HTTP Screen ....................................................................................................................... 68
Figure 50: Application Screen ............................................................................................................... 69
Figure 51: Application Screen – Alarm Pin Selection ........................................................................... 70
Figure 52: Application Screen – By Schedule....................................................................................... 70
Figure 53: Application Screen – Drop-Down Menu Schedule Selection .............................................. 71
Figure 54: Application – Record Stream to SD Card ............................................................................ 72

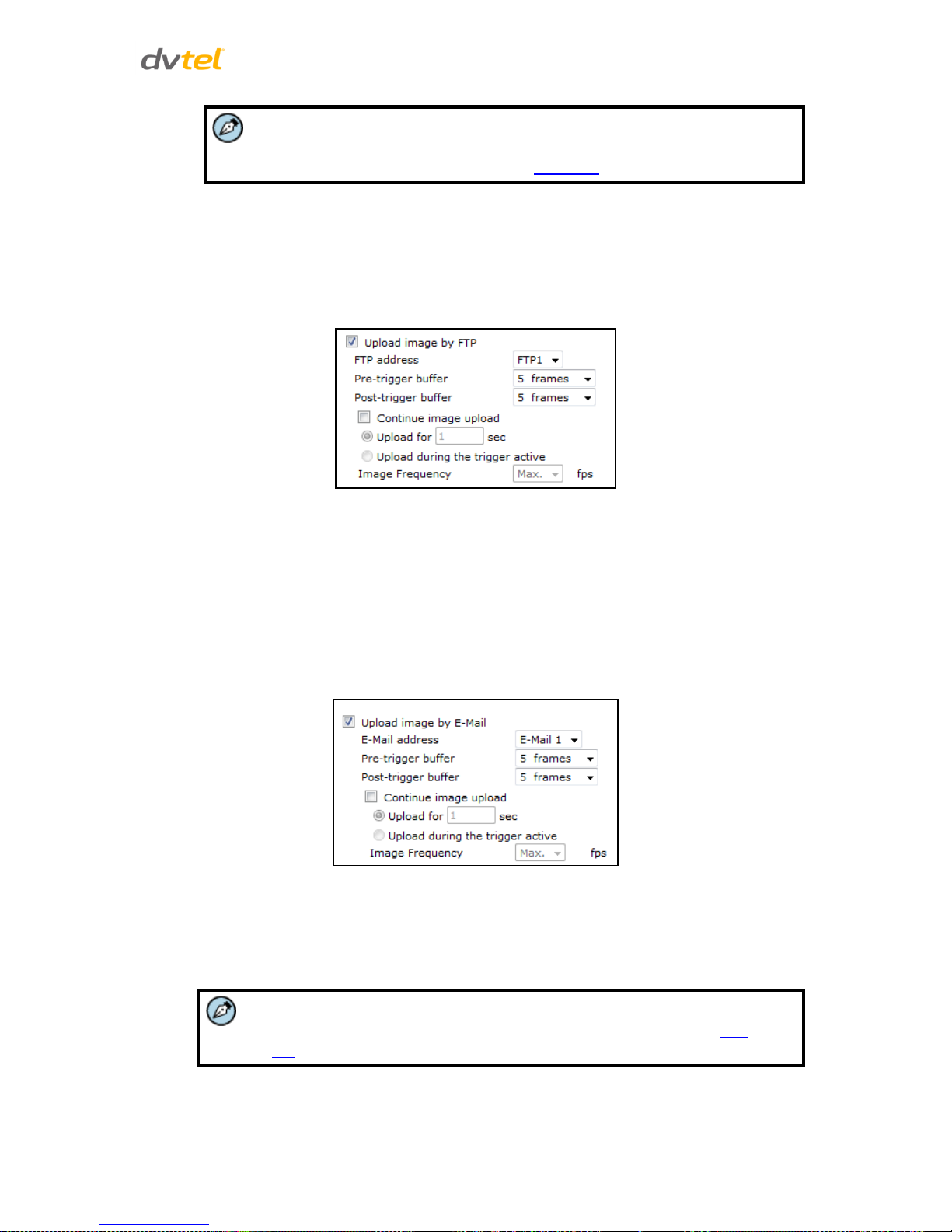

Figure 55: Application –Upload Image by FTP ..................................................................................... 73
Figure 56: Application – Upload Image by E-Mail ................................................................................. 73
Figure 57: Application – PTZ Parameters ............................................................................................. 74
Table of Contents
v
Figure 58: Application – Send HTTP Notification ................................................................................. 75
Figure 59: Motion Detection Screen ..................................................................................................... 76
Figure 60: Motion Detection Screen – with Schedule Drop-Down Menu ............................................. 77
Figure 61: Record Stream to SD Card Option ...................................................................................... 78
Figure 62: Upload Image by FTP Option .............................................................................................. 79
Figure 63: Upload Image by E-Mail Option ........................................................................................... 79
Figure 64: Send HTTP Notification Option ............................................................................................ 80
Figure 65: Network Failure Detection Screen ....................................................................................... 80
Figure 66: Network Failure Detection Screen – Triggered Action ........................................................ 81
Figure 67: Storage Management Screen .............................................................................................. 82
Figure 68: Video File Recording List ..................................................................................................... 83
Figure 69: Selected File Window .......................................................................................................... 84
Figure 70: Recording Screen ................................................................................................................ 84
Figure 71: Schedule Screen.................................................................................................................. 85
Figure 72: File Location Screen ............................................................................................................ 86
Figure 73: System Log Screen ............................................................................................................. 87
Figure 74: User Information Screen ...................................................................................................... 88
Figure 75: User Information – Privileges Screen .................................................................................. 88
Figure 76: Parameter List Screen ......................................................................................................... 89
Figure 77: Factory Default Screen ........................................................................................................ 90
Figure 78: Partial Restore Screen ......................................................................................................... 91
Figure 79: Software Version Screen (all units except CP-4221-301) ................................................... 91
Figure 80: CP-4221-301 Software Version Screen .............................................................................. 92
Figure 81: Upgrade Screen ................................................................................................................... 92
Figure 82: Software Upgrade – In Process ........................................................................................... 93
Figure 83: Maintenance Screen ............................................................................................................ 93
Figure 84: File Download Screen .......................................................................................................... 94
Figure 85: Video Format Screen ........................................................................................................... 95
Figure 86: Video Rotate Type Drop-Down Menu ................................................................................ 100
Figure 87: View-1 (Source) ................................................................................................................. 101
Figure 88: View-2 Image Rotated Vertically (Reversed) ..................................................................... 101
Figure 89: Video Compression Screen ............................................................................................... 102
Figure 90: Video OCX Protocol Screen (all units except CP-4221-301) ............................................ 104
Figure 91: CP-4221-301 Video OCX Protocol Screen ........................................................................ 104
Figure 92: Video Frame Rate Screen ................................................................................................. 106
Figure 93: Audio Parameter Setting Screen ....................................................................................... 107
Figure 94: Preset Point Screen ........................................................................................................... 108
Figure 95: Pattern Line Screen ........................................................................................................... 109
Figure 96: Auto Pan Screen ................................................................................................................ 110
Figure 97: Sequence Screen .............................................................................................................. 111
Figure 98: Sequence Set Screen ........................................................................................................ 112
Figure 99: Home Function Screen ...................................................................................................... 113
Figure 100: Tilt Angle Screen ............................................................................................................. 114
Figure 101: Privacy Mask Screen ....................................................................................................... 115
Figure 102: Exposure Screen (all units except CP-4221-301) ........................................................... 116
Figure 103: CP-4221-301 Exposure Screen ....................................................................................... 117
Figure 104: CP-4221-301 White Balance Screen ............................................................................... 118
Figure 105: White Balance Screen (all units except CP-4221-301) ................................................... 119
Figure 106: CP-4221-301 White Balance Screen ............................................................................... 120
Figure 107: Camera – Misc1 Screen .................................................................................................. 121
Figure 108: Camera – Misc1 Screen .................................................................................................. 123
Figure 109: Camera – Misc2 Screen (all units except CP-4221-301) ................................................ 125
Figure 110: CP-4221-301 Camera – Misc2 Screen ............................................................................ 127
Figure 111: Login Message................................................................................................................. 129
Figure 112: Login Window .................................................................................................................. 129
Figure 113: Device Search Application ............................................................................................... 135
Figure 114: Windows Security Alert .................................................................................................... 137
Figure 115: Device Search Application – Select Browse .................................................................... 138
Figure 116: Device Search Application – Select Install ActiveX Control ............................................ 138
Figure 117: Security Warning Window ................................................................................................ 139
Quasar CP-3211/CP-4221 User and Installation Guide
vi
Figure 118: Command Bar Toolbar – Select Internet Options ............................................................ 140
Figure 119: Internet Options Screen ................................................................................................... 140
Figure 120: Command Bar Toolbar – Internet Options ....................................................................... 141
Figure 121: Schedule Screen ............................................................................................................. 141
Figure 122: Spring Clamp Terminal Block .......................................................................................... 146
Figure 123: Connecting a Wire to a Terminal Block ........................................................................... 146
Revision History
vii
Revision History
Version
Date
Author
Comments
V0.2
Oct. 17, 2012
Tal Inbar
First release
A August 2013
Jonathan Herman
Added CP-3211-181-HPoE and CP-4221201-HPoE models.
Added support for DNA, SNMP v3, Baseline
and High H.264 profiles.
Added System > Schedule page for use by
the Application, Network Failure Detection
and Motion Detection options.
Added Digital Zoom selection option in PTZ
tab.
Formatting and editing corrections.
B-D
October 2013-
January 2014
Alan Singer
Formatting and editing corrections.
E
February 2014
Alan Singer
Added Revision History. Added CP-4221-301
models to Technical Specifications table.
Updated look and feel.
F-G
March 2014
Alan Singer
Updated Main Screen image in sections 5.4,
6.3, and 6.6.
Updated Technical Specifications table.
Corrected MPEG +H.264 and H.264 + H.264
video resolution settings in sections 7.4.1.1
and 7.4.1.2.
Added CP-4221-301 to the following
sections:
7.3.13 (System > Software version)
7.4.3 (Streaming > Video OCX Protocol)
7.5.8 (PTZ > Camera Exposure)
7.5.9 (PTZ > Camera-WB)
7.5.10 (PTZ > Camera-Misc1)
7.5.11 (PTZ > Camera-Misc2)
H
May 2014
Alan Singer
Changed “sensors” to “shutters” in “TV
System” paragraph in section 7.5.11.2.
Document Information
ix
1 Document Information
Document Scope and Purpose
The purpose of this document is to provide instructions and installation procedures for physically
connecting the Quasar CP-3211 and CP-4221 HD PTZ cameras. After completing the physical
installation, additional setup and configurations may be required before video analysis and detection
can commence.
Note:
This document is intended for use by technical users who have a basic
understanding of CCTV camera/video equipment and LAN/WAN network
connections.
Warning:
Installation must follow safety, standards, and electrical codes as well as the laws
that apply where the units are being installed.
Proprietary Rights and Non-Disclosure
This manual is delivered subject to the following restrictions and conditions:
This document contains proprietary information belonging to DVTEL, Inc. This information
is supplied solely for the purpose of assisting explicitly the licensee of the DVTEL units.
No part of this document contents may be used for any other purpose, disclosed to any
third party or reproduced by any means, electronic or mechanical, without the express
prior written permission of DVTEL, Inc.
Trademarks and Copyrights
This manual and its contents herein are owned by DVTEL, Inc. All rights reserved.
DVTEL, the DVTEL logo, Quasar CP-3211 and CP-4221 are trademarks of DVTEL, Inc.
Products and trademarks mentioned herein are for identification purposes only and may be
registered trademarks of their respective companies.
DVTEL, Inc. makes no representations whatsoever about any other products or trademarks
mentioned in the manual.
© DVTEL, Inc. 2014. All rights reserved.
Quasar CP-3211/CP-4221 User and Installation Guide
x
Disclaimer
Users of DVTEL products accept full responsibility for ensuring the suitability and considering the
role of the product detection capabilities and their limitation as they apply to their unique site
requirements.
DVTEL, Inc. and its agents make no guarantees or warranties to the suitability for the users’ intended
use. DVTEL, Inc. accepts no responsibility for improper use or incomplete security and safety
measures.
Failure in part or in whole of the installer, owner, or user in any way to follow the prescribed
procedures or to heed WARNINGS and CAUTIONS shall absolve DVTEL, Inc. and its agents from any
resulting liability.
Specifications and information in this guide are subject to change without notice.
Document Conventions
WARNING and CAUTION notes are distributed throughout this document, whenever applicable, to
alert you of potentially hazardous situations. These may be hazards associated with a task or a
procedure you are carrying out or are about to carry out.
The following document conventions are used throughout this manual:
A Warning is a precautionary message that indicates a procedure or condition where
there are potential hazards of personal injury or death.
A Caution is a precautionary message that indicates a procedure or condition where
there are potential hazards of permanent damage to the equipment and or loss of
data.
A Note is useful information to prevent problems, help with successful installation, or
to provide additional understanding of the products and installation.
A Tip is information and best practices that are useful or provide some benefit for
installation and use of DVTEL products.
General Cautions and Warnings
This section contains information that indicates a procedure or condition where there are potential
hazards. These may be hazards associated with a task or procedure a user is carrying out or about to
carry out. WARNINGS and CAUTIONS are distributed throughout this document, whenever
applicable, to alert the user of potentially hazardous situations.
SAVE ALL SAFETY AND OPERATING INSTRUCTIONS FOR FUTURE USE.
Although the unit is designed and manufactured in compliance with all applicable safety standards,
certain hazards are present during the installation of this equipment.
Document Information
xi
To help ensure safety and to help reduce risk of injury or damage, observe the following:
Warning:
1. The camera covers is an essential part of the product. Do not open or remove
it.
2. Never operate the camera without the cover in place. Operating the camera
without the cover poses a risk of fire and shock hazards.
3. Do not disassemble the camera or remove screws. There are no user
serviceable parts inside the unit.
4. Only qualified trained personnel should service and repair this equipment.
5. Observe local codes and laws and ensure that installation and operation are in
accordance with fire, security and safety standards.
Caution:
To avoid damage from overheating or unit failure, assure that there is sufficient
temperature regulation to support the unit’s requirements (cooling/heating). Operating
temperature should be kept within the specified temperature range for the product.
Quasar CP-3211/CP-4221 User and Installation Guide
xii
Electrical Safety Notice and Warnings
Warning:
1. Read the installation instructions before you connect the unit to a power
source.
2. Electrical safety should always be observed. All electrical connections must be
performed by a certified electrician.
3. Use the supplied power supply and protect against static electricity,
ground faults and power surges.
4. If the unit uses a three-wire power cord, make sure that the product is properly
grounded when in use. NEVER remove or otherwise attempt to bypass the
ground pin of the power cord. Do not operate the unit in the absence of a
suitably installed ground conductor.
5. If you use an extension cord with this system, make sure that the total ampere
rating on the products plugged into the extension cord does not exceed the
extension cord ampere rating.
6. To avoid possible shock hazards or damaging the unit, assure that the positive
and negative of the power leads are properly connected to the terminal block
connector before plugging it into the unit or turning on the power source.
7. In the following situations, the electric power should be turned off immediately
and appropriate repairs, replacements or remedies should be taken if:
The power line or plug (if used) is damaged, frayed or shows
heavy wear.
The unit has been physically crushed or deformed.
The unit has been exposed to water.
The unit has been exposed to, or shows signs of damage from,
fire, intense heat, heavy smoke, fumes, or vapors.
Electrical connections of the unit become abnormally hot or generate
smoke.
The unit has been dropped, damaged or shows signs of loose internal
parts.
The unit does not operate properly.
Document Information
xiii
Minimizing EMI and RFI
When wires run for a significant distance in an electromagnetic field, electromagnetic interference
(EMI) can occur. Strong EMI (e.g. lightning or radio transmitters) can destroy the units and can pose
an electrical hazard by conducting power through lines and into the system. Poor quality or worn
wiring can result in radio frequency interference (RFI). To minimize the effects of EMI and RFI,
consult your reseller.
Site Preparation
There are several requirements that should be properly addressed prior to installation at the site.
The following specifications are requirements for proper installation and operation of the unit:
Ambient Environment Conditions: Avoid positioning the unit near heaters or heating
system outputs. Avoid exposure to direct sunlight. Use proper maintenance to ensure that
the unit is free from dust, dirt, smoke, particles, chemicals, smoke, water or water
condensation, and exposure to EMI.
Accessibility: The location used should allow easy access to unit connections and cables.
Safety: Cables and electrical cords should be routed in a manner that prevents safety
hazards, such as from tripping, wire fraying, overheating, etc. Ensure that nothing rests on
the unit’s cables or power cords.
Ample Air Circulation: Leave enough space around the unit to allow free air circulation.
Cabling Considerations: Units should be placed in locations that are optimal for
the type of video cabling used between the unit and the cameras and external
devices. Using a cable longer than the manufacturer’s specifications for optimal
video signal may result in degradation of color and video parameters.
Physical Security: The unit provides threat detection for physical security systems. In order
to ensure that the unit cannot be disabled or tampered with, the system should be installed
with security measures regarding physical access by trusted and un-trusted parties.
Network Security: The unit transmits over IP to security personnel for video surveillance.
Proper network security measures should be in place to assure networks remain operating
and free from malicious interference. The unit is intended for installation on the backbone
of a trusted network.
Electrostatic Safeguards: The unit as well as other equipment connected to it (relay
outputs, alarm inputs, racks, carpeting, etc.) shall be properly grounded to prevent
electrostatic discharge.
The physical installation of the unit is the first phase of making the unit operational in a security
plan. The goal is to physically place the unit, connect it to other devices in the system, and to
establish network connectivity.
Overview
1
2 Overview
The Quasar CP-3211 and CP-4221 series HD PTZ camera provides real-time video with high-definition
quality at HD 720p or Full HD 1080p, respectively. With 18x, 20x, or 30x optical zoom and high-speed
pan-tilt-zoom functionality, the Quasar HD PTZ camera can quickly cover a wide monitoring area
with a high level of detail. Multiple streams can be run simultaneously, providing an ideal solution
when differing levels of image quality are required. The camera can increase frame rate and level of
detail when events are triggered. In addition, DVTEL's Scene Adaptive Algorithms provide the highest
image quality with the lowest bandwidth and storage requirements.
The Quasar CP-3211 HD PTZ series includes the following models:
CP-3211-180 HD 720p indoor camera with 18x optical zoom
CP-3211-181 HD 720p outdoor camera with 18x optical zoom
CP-3211-181-HPoE, HD 720p, 60W, Ultra PoE with 18x optical zoom
The Quasar CP-4221 HD PTZ series includes the following models:
CP-4221-200 Full HD 1080p indoor camera with 20x optical zoom
CP-4221-201 Full HD 1080p outdoor camera with 20x optical zoom
CP-4221-201-HPoE, Full HD 1080p, 60W, Ultra PoE with 20x optical zoom
CP-4221-301-HPoE, Full HD 1080p, 60W, Ultra PoE with 30x optical zoom
Caution:
If you are using DVTEL Latitude, we recommend that you configure the camera’s
settings via the AdminCenter. This is because the camera’s web-based interface might
be overwritten by Latitude settings. Refer to the Latitude online help for information
regarding configuring camera settings.
2.1 Features
Following are key features of the CP-3211 and CP-4221 cameras:
H.264 and MJPEG compression
HTTP streaming MJPEG
Progressive scan CMOS sensor
Edge motion detection
Motion detection with region of
interest masking
Historical motion-detection levels
detected /recorded at frame levels.
Detection event driven alarms
Alarm input driven events
Relay output actions on alarm
Built-in web application/web server
FTP upload (up to two locations)
Upload alarm images to FTP
Dual HTTP notification server support
(up to two servers)
Send images on alarm to e-mail
E-mail SMTP alarm notification
(up to two e-mails)
MicroSD recording support
Record snapshots to SD card on alarm
Sequential snapshot numbering
SNMP v1/v2/v3 and SNMP traps
Security IP restricted access list
UPnP support
True day/night (ICR)
WDR and ATW
Privacy masks
3DNR image noise reduction
ONVIF support
RTSP support
Multiple users
Group permissions
Supports PoE/24VAC
Tampering detection and notification
Two encoder streams available
Per-user permissions
Vandal-proof IP66 enclosure
Low-lux mode
Backlight compensation
Quasar CP-3211/CP-4221 User and Installation Guide
2
Note:
MJPEG is not supported by Latitude
2.2 Package Contents
Before proceeding, check that the box contains the items listed here. If any item is missing or has
defects, do not install or operate the product and contact your dealer for assistance.
Camera Body
Optical Cover
Hard Ceiling Mount
M4 Screw (×4)
Plastic Anchors (x4)
Quick Start Guide
CD: (Bundled software and
documentation)
Figure 1: Indoor Package Contents
Note:
The self-tapping screws are mainly for softer substrate/material installation such as
wood. For other installation materials such as cement ceilings, it is necessary to predrill and use plastic anchors before fastening the supplied self-tapping screws into
the wall.
Overview
3
Camera Body with
Outdoor Mount Kit
M3 Standard Screw (×1)
M3 Security Screw (×1)*
M5 Standard Screw (×1)
M5 Security Screw (×1)*
Waterproof Gasket
Quick Start Guide
CD: (Bundled software and
documentation)
Optical Cover
Lubricant
Security Torx*
*Optional: For vandal-proof cover only.
Figure 2: Outdoor Package Contents
Introduction to the Quasar HD PTZ Camera
5
3 Introduction to the Quasar HD PTZ Camera
This chapter provides the camera’s dimensions for reference before installation. The definition of
each connector on the camera’s back plate is also specified.
Related Links
Quasar HD PTZ Indoor Camera Dimensions
Quasar HD PTZ Outdoor Camera Dimensions
Camera Connectors
Technical Specifications
3.1 Quasar HD PTZ Indoor Camera Dimensions
The Quasar HD PTZ indoor camera’s dimensions are shown below.
Top View
Side View
Figure 3: Indoor Camera Dimensions
3.2 Quasar HD PTZ Outdoor Camera Dimensions
The Quasar HD PTZ outdoor camera’s dimensions are shown below.
Top View
Side View
Figure 4: Outdoor Camera Dimensions
Quasar CP-3211/CP-4221 User and Installation Guide
6
3.3 Camera Connectors
Following are an illustration and explanation of the connectors located on the Quasar HD PTZ
camera’s back plate.
Indoor Camera
Outdoor Camera
Figure 5: Indoor/Outdoor Connector Locations
Table 1: Indoor/Outdoor Camera Connectors
Callout
Description
1
RJ45 connector
2
Audio I/O connector
3
Alarm I/O connector
4
Factory default reset button
5
Power connector terminal block
6
microSD card slot
Note:
Do not change the Quasar HD PTZ camera’s communication switch from the
original factory settings.
Table 2: Power Connector Pin Designations
Power Connector
Pin
Definition
1
AC 24-
2
FG
3
AC 24+
Introduction to the Quasar HD PTZ Camera
7
Table 3: Audio Connector Pin Designations
Audio Connector
Pin
Definition
1
LINE_OUT
2
GND
3
LINE_IN
Table 4: Alarm I/O Pin Designations
Alarm Connector
Pin
Definition
1
ALARM_OUT_NO_1
2
ALARM_OUT_NC_1
3
ALARM_OUT_COM_1
4
GND 5 ALARM_OUT_NO_2
6
ALARM_OUT_NC_2
7
ALARM_OUT_COM_2
8
GND 9 ALARM_IN_4
10
ALARM_IN_3
11
ALARM_IN_2
12
ALARM_IN_1
System Requirements
9
4 System Requirements
To access the camera via a web browser, ensure that your PC has the proper network connection
and meets system requirements as described below.
Table 5: System Requirements
Item
Minimum System Requirement
Personal Computer
Intel® Pentium® IV, 3 GHz or Intel® CoreTM2 Duo, 2.0 GHz
2GB RAM or more
Operating System
Windows, Windows XP, Windows 7
Browser
Microsoft Internet Explorer 7, 8 or 9 for all units
IE 7, 8, 9, and 10 for CP-4221-301 only
Network Card
10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer
ActiveX control plug-in for Microsoft IE
Installation
11
5 Installation
Follow the instructions below for indoor and outdoor installation of the Quasar PTZ series of
cameras.
5.1 Indoor Installation
This section applies to the following cameras:
CP-3211-180
CP-4221-200
Read the instructions provided in this chapter thoroughly before installing the camera. Following are
additional considerations for indoor installation:
There must be a fuse or circuit breaker at the starting point of the electrical wiring
infrastructure.
For indoor installations, such as industrial applications, the camera must be protected from
hostile external elements (e.g. corrosive environment, metallic dust, extreme temperatures,
soot, moisture, over spray, etc.)
Do not place the camera on or near radiators and heat sources.
All electrical work must be performed in accordance with local regulatory requirements.
5.2 Outdoor Installation
This section applies to the following cameras:
CP-3211-181
CP-3211-181-HPoE
CP-4221-201
CP-4221-201-HPoE
CP-4221-301-HPOE
Read the instructions provided in this chapter thoroughly before installing the camera. Following are
additional considerations for outdoor installation:
For outside wiring installation, always use weatherproof equipment, such as boxes,
receptacles, connectors, etc.
For electrical wiring, use the properly rated sheathed cables for conditions to which the
cable will be exposed (for example, moisture, heat, UV, physical requirements, etc.).
Plan ahead to determine where to install infrastructure weatherproof equipment. Whenever
possible, ground components to an outdoor ground.
Use best security practices to design and maintain secured camera access, communications
infrastructure, tamper-proof outdoor boxes, etc.
All electrical work must be performed in accordance with local regulatory requirements.
Related Links
Power and Ethernet
Cable Connection
Initial Camera
Configuration
Preparing the Camera
for Mounting
Mounting
Instructions
Quasar CP-3211/CP-4221 User and Installation Guide
12
5.3 Power and Ethernet Cable Connection
Power Connection
Make sure the camera’s power cable is properly connected. Refer to Tables 1 to 4: CP Series Camera
Connector Designations. If using Power over Ethernet (PoE Plus), make sure that Power Sourcing
Equipment (PSE) is available on the connected network. All electrical work must be performed in
accordance with local regulatory requirements.
Ethernet Cable Connection
Category 5 Ethernet cable is recommended for network connection. For best transmission quality,
cable length should not exceed 100 meters (328 feet). Connect one end of the Ethernet cable to the
RJ45 port on the Quasar HD PTZ camera and the other end to the network switch or PC.
See Figure 5: Indoor/Outdoor Connector Locations.
Note:
You can use an Ethernet crossover cable to connect the camera directly to a PC.
Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, check the LAN
connection.
Table 6: RJ45 LED Description
RJ-45 Connector
LED
Description
Green
Link light – Indicates a stable network connection
Yellow
Activity light – flashes to indicate network activity
5.4 Initial Camera Configuration
To perform the initial camera configuration:
1. Unpack the camera. Rotate and remove the protective cover.
2. Remove the PE cloth sheet and lens cap. Attach the dome cover to the body.
3. On the camera back plate, plug the Cat 5 cable into the camera’s Ethernet port. If the network
does not use IEEE 802.3at PoE Plus, plug a properly rated 24VAC power supply into the
cameras’ power connector terminal block.
Caution:
Pay attention to the polarity noted in Camera Connectors.
Installation
13
4. Do one of the following:
Run the dna.exe file from the included CD.
Note:
DNA is an enhanced alternative software to Device Search. Either of these
programs may be used. Both are supplied on the included CD.
Click the icon.
Select the unit requiring IP assignment.
Figure 6: Discovered IP Devices
Right-click on the mouse and select the assigned IP or press the Assign IP button to
open the DNA Assign IP screen
In the dialog box that is displayed, enter values for the IP Address, Gateway and
Netmask.
Click Update and wait for OK status to be displayed.
Figure 7: Assign IP Dialog Box
From the Latitude Sidebar, run the Unified Configurator by selecting Applications > Device
Configuration Tool. Then click DVTEL HD Series on the Unified Configurator screen.
5. Disconnect the Ethernet cable. The camera is ready for deployment in a site installation
(mounting).
Note:
1. The camera can be connected to a PC for bench installation via an Ethernet
cross-cable.
2. The camera default IP Address is automatically set by the DHCP server. If using
Latitude, the Address must be set manually.
Quasar CP-3211/CP-4221 User and Installation Guide
14
Tip:
A camera setup adapter, such as Veracity Pinpoint, can be used to connect a
laptop directly to the camera when using PoE.
5.5 Preparing the Camera for Mounting
If you have not already done so, rotate and remove the camera’s protective cover. Remove the PE
cloth sheet and lens cap and attach the dome cover to the body.
5.6 Mounting Instructions
The following are four general methods of mounting the Quasar HD PTZ series cameras.
Ceiling Mount
Wall Mount
Corner Mount
Pole Mount
Note:
Within each general method, there may be several mounting types available as
optional packages. See Camera and Mounting Accessories .
5.6.1 Ceiling Mount
Ceiling mount methods include:
Hard Ceiling Mounting (indoor cameras only)
Recessed Mounting (indoor cameras only)
Indoor Pendant Mounting Kit (indoor cameras only)
Straight Tube Mounting (requires CD-HD-CAPX for indoor installation)
Swan Tube Mounting
Hard Ceiling Mounting (indoor cameras only)
Hard ceiling mounting is the standard installation for a Quasar HD PTZ indoor camera and is supplied
in the standard indoor camera package.
Hard ceiling mount package contents:
Hard Ceiling Mount x1
M4 self-tapping screw x4
Plastic anchors x4
Fixing plate x1
M3 standard screw x4 (3 for fixing plate, 1 for Dome Cover*)
(*) For the Vandal Proof Camera Dome Cover, a security screw is supplied instead of the
standard screw.
Installation
15
Tools required:
Drill
Phillips and flat-head screwdrivers
To install the hard ceiling mount:
1. If you have not already done so, remove the dome cover.
2. Use the hard ceiling mount as a template to mark the mounting surface where the three screw
holes will need to be drilled.
3. In the marked locations, drill each hole using a drill-bit of a slightly smaller diameter than the
supplied screw anchors and fully insert the anchors into drilled holes. You may need to tap
them flush with the wall using a finishing hammer.
4. Attach the Hard Ceiling Mount using three supplied self-tapping screws.
5. Thread cables through the center hole of the mount and connect them to the camera
back plate.
6. Hide the cables inside the ceiling. Alternatively, thread the cables through the gap at the side
of the fixing plate as shown in the figure below.
7. Attach the camera to the hard ceiling mount by turning the camera counter-clockwise.
Loading...
