Quartek DC-715DX User Manual

ENGLISH

DC-715DX

USER’S MANU

A

L

DVD PLAYER

DviX/MPEG-4 - MULTI-CARD READER 6 in 1

USB FRONT PANEL DVD/CD PLAYER

www.quartek-system.com

PLEASE CAREFULLY READ THIS MANUAL BEFORE OPERATING THIS UNIT

TABLE OF CONTENTS

S

AFETY INFORMATION ………………………………………………………………… 4

DVD

PLAYER USER’S MANUAL …………………………………………………….. 5

1 – Types of discs your DVD Player will play ……………………………………………. 5
2 – Front and rear panel illustration …………………………………………………………. 6
3 – Remote controller …………………………………………………………………………….. 7

S

YSTEM CONNECTION …..………………………………………………………….. 9

1 – System connection …………………………………………………………………………….. 9
2 – System connection to a TV set ………………………………………………………… 10
3 – System connection to an Amplifier …………………………………………………… 11

C

HAPTER 1 – BASIC OPERATION ……………………………………………..…… 12

1 – Turn on your DVD player …………………………………………………………………. 12
2 – Place a disc into the tray …………………………………………………………………. 12
3 – Playing discs ………………………………………………………………………………. 12
a – Menu Play …………………………………………………………………………….. 12
b – Title Play …………………………………………………………………………….. 13
c – Sequence Play …………………………………………………………………………….. 13
d – Program Play …………………………………………………………………………….. 13

C

HAPTER 2 – ADDITIONAL OPERATION …………………………………………….. 14

1 – Selecting tracks …………………………………………………………….………………….. 14
2 – Skipping tracks …………………………………………………………….………………….. 14
3 – Multispeed fast motion playback ……………………………………………………….. 14
4 - Multispeed slow motion playback ……………………………………………………….. 15
5 – Freez frame and frame advance ……………………….……………………………….. 15
6 – Using the repeat feature ………………………………….……………………………….. 15
7 - Using the display feature …………………………………………………………………….. 16
8 - Using the search feature ………………………………………………………………….. 16
9 - Using the browse / scan / index feature …………………………………………… 17
10 – Changing the soundtrack …………………………………………………………………… 17
11 – Changing the audio language ……………………………………………………….. 18
12 – Subtitles ……………………………………………………………………………………….. 18
13 – Changing the camera angle …………………………………………………………….. 18
14 – Changing the TV system ………………………………………………………………….. 19
15 – Mute the audio output …………………………………………………………………….. 19
16 – Zoom in the Video Image ……………………………………………………………… 19
17 – Repeat a specific segment on the disc that you define ……………………… 19

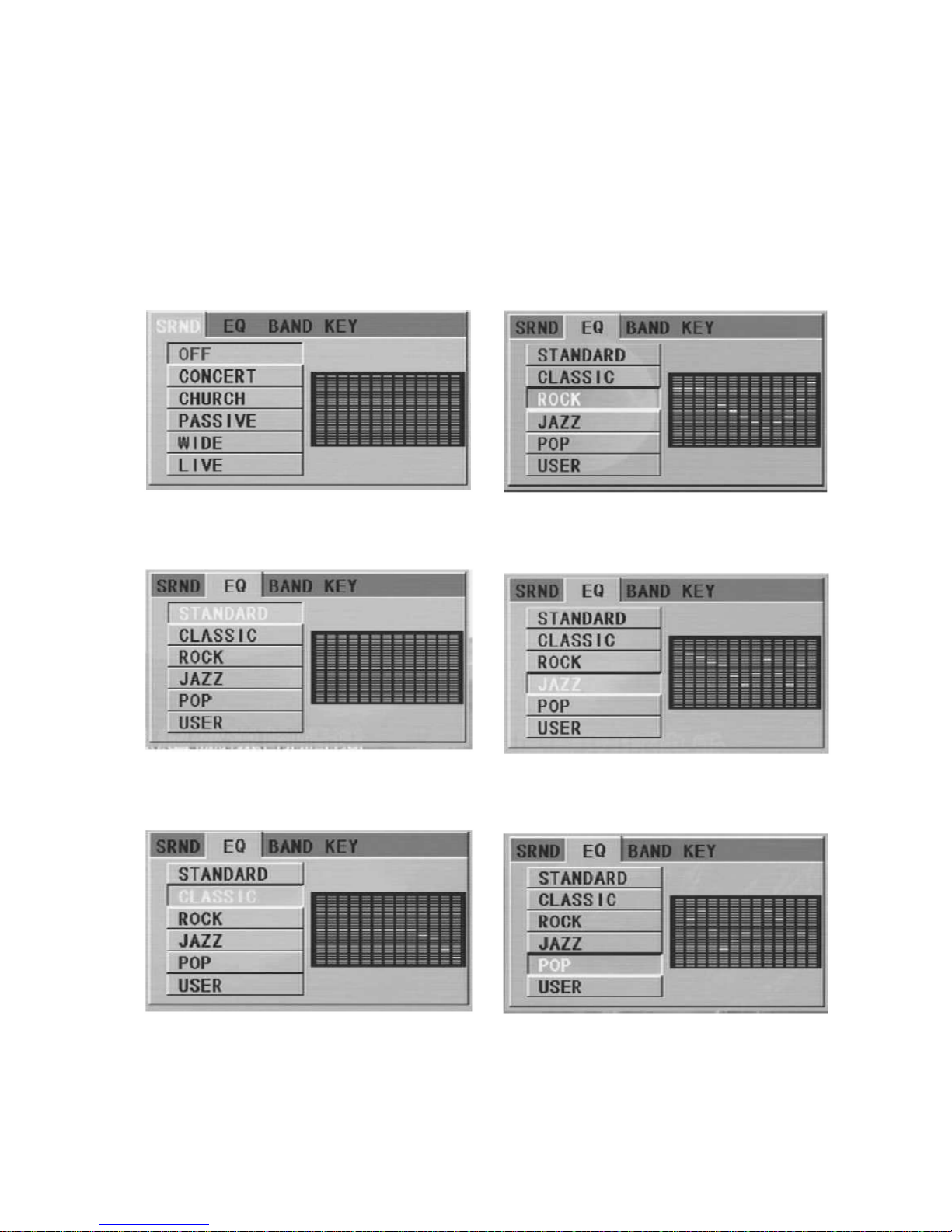

18 – 3D Surround mode …………………………………………………………………….. 20
19 – Volume control …………………………………………………………………………….. 21

C

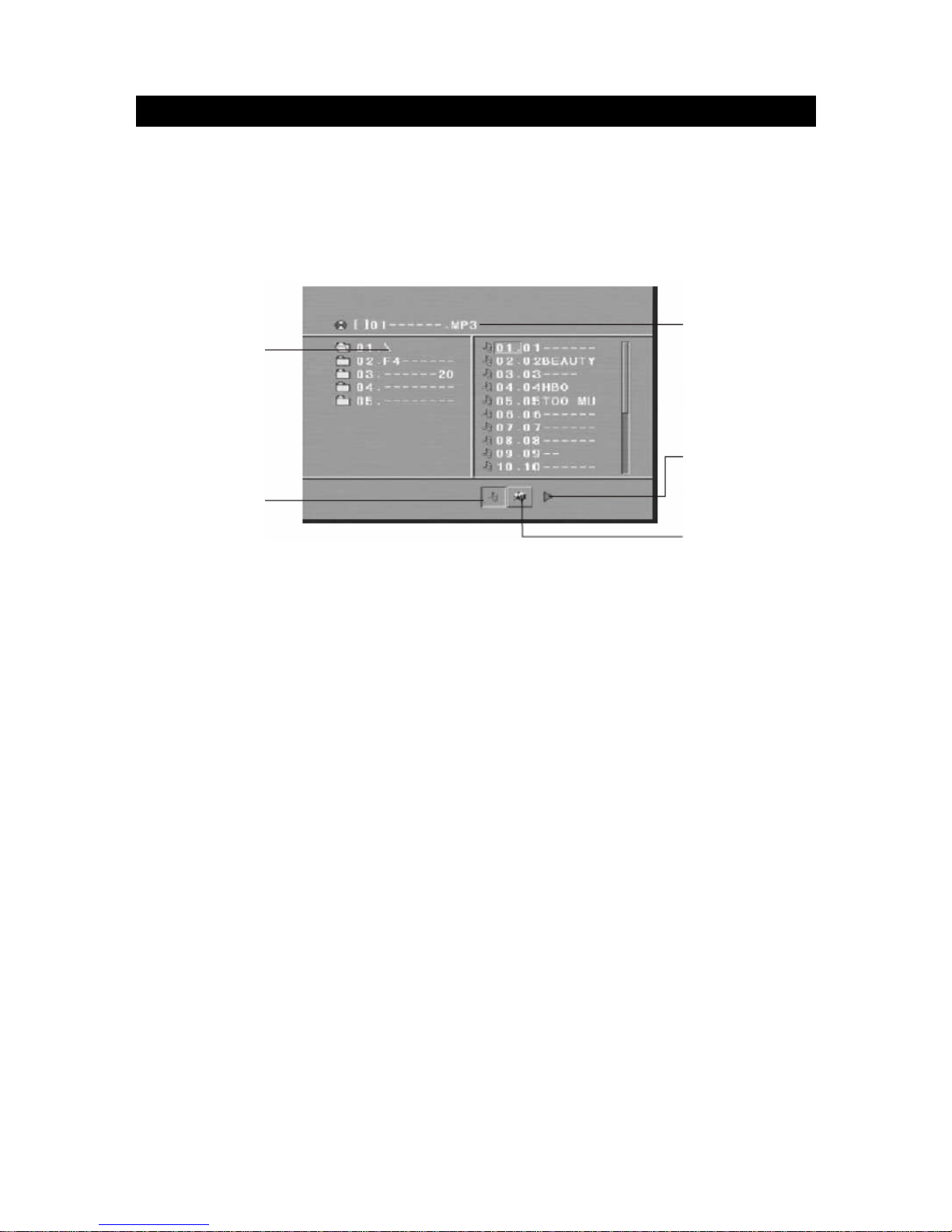

HAPTER 3 – PLAYING MP3 AND JPEG DISCS ………………………………….. 22

C

HAPTER 4 – MPEG-4 AND DIVX ……………………………………………….. 23

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 2/33

CHAPTER 5 – CARD READER AND USB ………………………………………….. 23

C

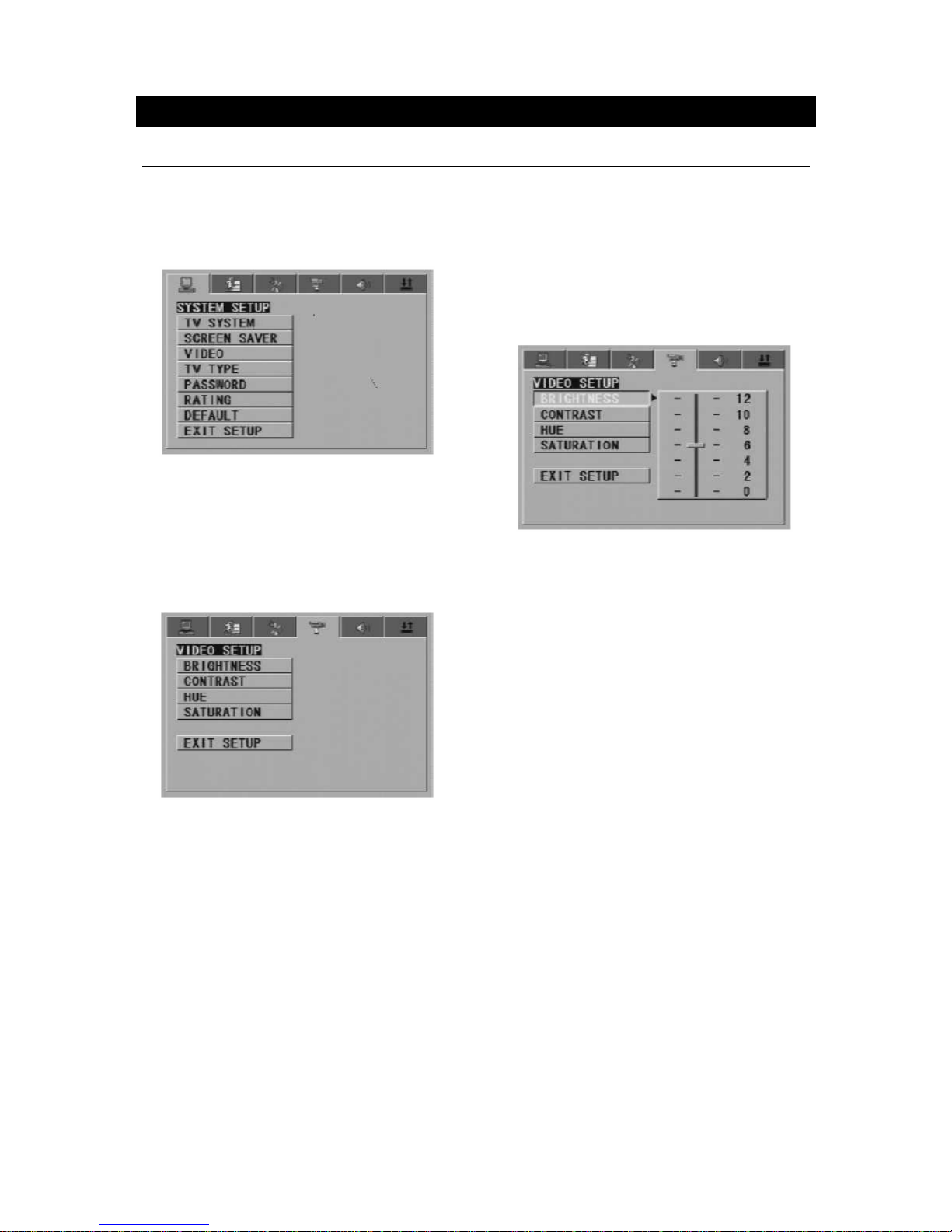

HAPTER 6 – THE SETUP MENU SYSTEM ………………………………………….. 24

1 – General steps of setup menu ……………………………………………………………….. 24
2 – Setup items introduction …………………………………………………………………….. 25
a – System setup …………………………………………………………………………….. 25
b – Language setup …………………………………………………………………………….. 27
c – Audio setup …………………………………………………………………………….. 28
d – Video setup …………………………………………………………………………….. 29
e – Speaker setup …………………………………………………………………………….. 29
f – Digital setup …………………………………………………………………………….. 30

H

OW TO IDENTIFY DISC WITH HUB ………………………………………………… 31

TROUBLE SHOOTING …………………………………………………………………. 32

S

PECIFICATIONS …….…………………………………………………………… 33

ACCESSORIES …………….…………………………………………………… 33
HOW TO CONTACT US …………………………………………………………………. 33

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 3/33

SAFETY INFORMATION

The light flash with an arrowhead symbol, within a n equilatera l tria ngle, is inte nd to alert the u ser to the prese nce
of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within the equilateral triangle is intented to alert the user to the presence of imp ortant
operating and maintenance (servicing) instructions in the literature accompanying the ap p liance.

The digital video disc player employs a laser System.
Use of controls, adjustment or the performance of proced ures other than specified may result here in hazardous radiation
exposure.
Visible laser radiation when open and interlocks defeat ed.
DO NOT STARE INTO BEAM
FCC NOTICE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interferen ce to radio communicati ons. However, this is no guaran tee that interference wi ll not
occur in a particular installation.
If this equipement does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off or on, the user is encouraged to try to correct the interference by one or more of the follow measur es.

- Reorient or relocate the receivi ng antenna,

- Increase the separation between the equipment and receiver,

- Connect the equipment into an outlet on a circuit different from that to which t he receiver is connected,

- Consult the dealer or an experienced radio/TV technician for help.

This product incorporates copyright protection technology that is protected by method claims of ce rtain U.S.
patentes and other intellectual property rights owned by macrovision corporation and other rights owners. Use
of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources su ch as radia tor s, heat regi ste rs, st ove s, or oth er ap paraty s (inc luding amp lifier s) tha t
produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particulary at plugs, convenience receptacles,
and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use cautin when moving the cart/apparatus combination to avoid injury from
tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel . Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spiled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normallu, or has been dropped.

15) “WARNING” To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

16) “CAUTION” These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric

17) shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do
so.

THE MANUFACTURER SAVES HIMSELF THE RIGHT TO MODIFY WITHOUT ANY PRELIMINARY OPINION TECHNICAL

SPECIFICATIONS OF THE PRODUCT

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 4/33

DVD USER’S MANUAL

T

YPES OF DISCS YOUR DVD PLAYER WILL PLAY

Types of discs Diameter Playback Time Data Format Remark

USB & Card

Reader

USB 2.0, MMC SD, MS,

MS-Pro, CF, SMC,

MircoDriver

12cm 74min

MPEG-4

8cm 20min

MPEG-4

1 layer: 12min

12CM

2 layers: 240 min

1 layer: 80min

DVD

8cm

2 layers: 180 min

DVD format disc:
Compressed Digital Audio
Compressed Digital Video

(Moving picture)

SVCD 12cm 45min

MPEG-2
Compressed Digital Audio
Compressed Digital Video

(Moving picture)

Includes:

SVCD,

CVD

12cm 74cm

VCD

8cm 20cm

MPEG-1
Compressed Digital Audio
Compressed Digital Video

(Moving picture)

Include:
VCD2.0,
VCD1.1,

VCD1.0?

DVCD

12cm 74min

CD

8cm 20min

CD-DA: Digital Audio

HD-CD

12cm 74min HD-CD: Digital Audio

MP3/JPEG

12cm 600min Compressed Digital Audio

Note: DVD-R, CD-R, CD-RW discs can be played in this DVD player.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 5/33

FRONT AND REAR PANEL ILLUSTRATION

Front Panel

1. Power (On/Off)

2. VFD

3. Disc Tray

4. Play/Pause Button

5. Stop Button

6. Fast backward

7. Fast farward

8. Eject button

9. Remote receiver

10. USB jack

11. CF/SD/MMC/MS/SMC/MD card jack

Rear Panel

1. 5.1 Channels front (left/right) Audio
Out

2. 5.1 Channels Subwoofer Audio Out

3. YPbPr Component Video Out

4. Composite Video Out

5. 5.1 Channels Surround (left/right)
Audio Out

6. Channels Center Audio Out

7. DownMix left/right Audio Out

8. Coaxial output

9. S-Video output

10. Optical output

11. Scart output (optional)

12. AC 110-240V 5060Hz

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 6/33

REMOTE CONTROLLER

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 7/33

Battery installation

1 – Push downward and outward the leaf spring to
remove the battery compartment cover.
2 – Insert two size AAA batteries according to the “+”
and “-“ markings.
Note:

A – Do NOT mix different types together, or old batteries
with new batteries
B – While the remote con roller will not be used for an

o prevent

move

the remote

the remote

replace

d with th

t
extended period of time, remove the batteries t
possible corrosion.
C – To prevent corrosion resulting in damage, re
exhausted batteries immediately. Where
exhausted batteries imediately. Where
controller doesn’t appear to operate normally,
both of the batteries.
D – Typical life for the batteries provide is
product is about 6 months. The life expectan
according to the use status.

Use of the remote controller

Point the remote controller toward the remote se
y
f
accordingly.
T on the buttons on
t
r

Note

place this equipment in a place exposed to

t source like inverting

oller is used in the

operation of this remote controller may occur.
C – Do not place any object on the remote controller or

e glazed with

nd

– The operating range between the remote controller

replace the batteries with the new ones

.

ce may vary

nsor on

our DVD home theater center. Upon receipt of the signal

rom the remote controller, the equipment will operate

he description in this manual is based
he equipment. You may use the counterparts on the
emote controller to do the same.

:

A – Do not
direct sunlight or strong ligh
fluorescent light, or else, it may interfere with correct
operation of the remote controller.
B – When other similar remote contr
same room, or when this product is used near other
equipment using infrared ray, interference with the

else it may cause unintentional depression of the buttons
and waste the batteries unnecessarily.
D – The front of the chassis should not b
color glass, or else, it may cause interference with normal
operation of the remote controller.
E – Any barrier between the remote controller a
remote sensor will inactivate any operation of the remote
controller.
F
and the equipment shall be no more than 5 meters (16
feet). When the operating

range becomes shorter,

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 8/33

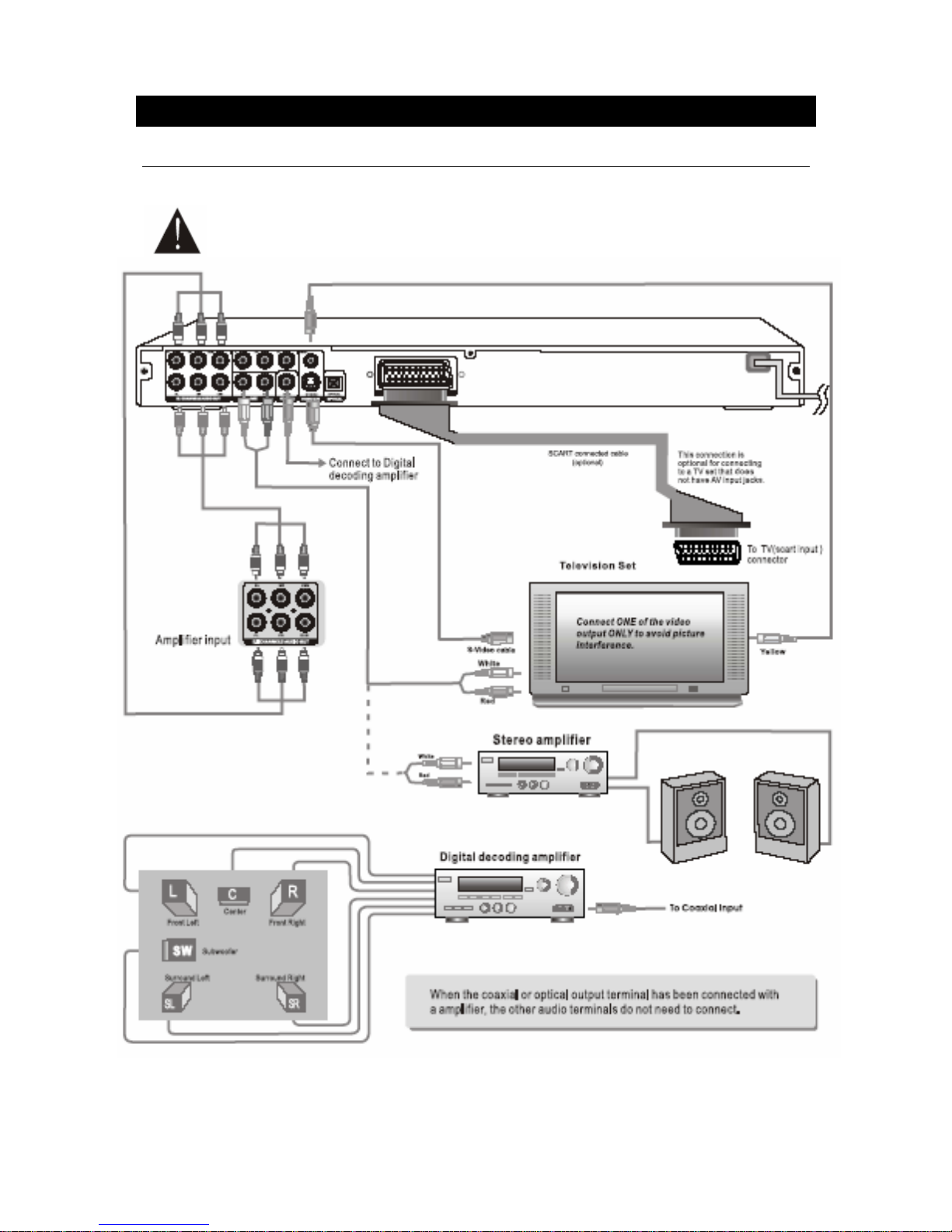

SYSTEM CONNECTION

S

YSTEM CONNECTION

DO NOT Connect the AC power socket to the wall outlet before the system connection is
completed.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 9/33

SYSTEM CONNECTION TO A TV SET

1 – The player is equiped with composite
A/V outputs at the rear of the player. Your
TV will require at least one set of A/V
inputs. The patch cord supplied with the
player will connect the A/V output jack of
your player to your TV’s inputs.
2 – To view the DVD signal, please press
‘AV/TV’ button on the TV or remote contro
of your TV to switch TV’s mode from
broadcast reception mode to one of the
A/V signals, your TV should have more
than one A/V input.

3 – The player is equiped for stereo
playback. To fully realize 2 channel sound,
a Stereo TV or A/V receiver is necessary.
However, a Mono TV may be used
providing the TV one set of A/V inputs.
The A/V inputs on a Mono TV will only
include one Audio input for Mono sound.
You may connect either the Left or Right
audio channel from the DVD Composite
audio output to the Mono TV audio input.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 10/33

SYSTEM CONNECTION TO AN AMPLIFIER

Audio connecting to a stereo Amplifier

Digital audio connection to a digital Amplifier

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 11/33

CHAPTER I - BASIC OPERATION

T

URN ON YOUR DVD PLAYER

Press the power button on the Player or remote controller, and ‘Read’ appears on the TV
screen. If there hasn’t a disc in the DVD player, ‘No Disc’ will be displayed on both the
screen and the VFD.

PLACE A DISC INTO THE TRAY
Press the Open/Close button on the remote controller or the front of the DVD player, and

‘Open’ appears on the screen. Then place a disc gently into the tray with the disc’s label
facing up (double-sided discs have content on both sides, so you can place either side up),
and press the Open/Close button again to close the disc tray, ‘Close’ appears and the player
starts to read. Then the disc starts playing automatically. (

No e O some ce ain type discs,

after reading out the type, the Play or Enter bu on should be pressed to start playing.)

t : f rt

tt

PLAY DISCS
The contents of each disc menu vary according to how the disc was authored and what

features are included. The disc menu will be turned on for you to select, when Menu button
pressed. Also play and pause can be switched with the Pause button on the remote.
Moreover, such as menu play, title play, sequence play, etc., these differe nt play modes are
offered.

Menu Play (compatible with DVD, SVCD, VCD2.0 discs)
1 – Press Menu button

- TV screen displays the DVD root menu when a DVD disc is loaded

- When a SVCD or VCD2.0 disc is loaded, SVCD or VCD2.0 menu will be displayed on the

screen (when PBC is off) – At this moment, press PBC button once to display current PBC
state.

- PBC is initialized on when a SVCD or VCD2.0 disc is loaded.

2 – When a DVD disc is loaded, you can press Arrow buttons to highlight the menu items
you want to choose; as SVCD or VCD2.0, you can press Numeric buttons to select a tra ck to
play.

3 – Press Enter or Play button, you can begin play with the highlighted.
4 – Return when playing: When a DVD disc is playing, press Menu (PBC) button, and you

can return to Root menu; as SVCD, VCD2.0, and PBC is on, press Men u (PBC) button, you
can return to the menu.

5 – Stop:

- When you press Stop button for the first time, the player turns into quasi stop state. At

the same time the OSD appears ‘Quasi Stop’. To begin the title over, press stop twice.

- In quasi stop state, the player remembers where you stopped, when you start playing

the disc again, the DVD player picked up where you left off.

- In stop state, when you press Play, the player enteeers sequence playback mode.

For the disc protection, before you press Open/Close button to eject the disc tray
when playing, please press Stop button at first. After taking out the disc, press
Open/Close again to close the tray.
If you’re not going to use the DVD player for a long time, be sure to remove the
electronic plug.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 12/33

Title Play (compatible with DVD discs only)
1 – During DVD playback, press Title button to display the DVD title content.
2 – Press the Arrow buttons to highlight the title you want to choose, and press Enter. Also
you can press numeric buttons to choose.
3 – The DVD player begins with the chapter 1 of the chosen title.

Sequence Play (compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
1 – When a SVCD or VCD disc is loaded and PBC is on, one PBC button pressed, PBC
switches off. Then the player can play in sequence playback mode; when PBC button
pressed twice, PBC swiches on.
2 – Except for SVCD or VCD discs, in the stote state, when press Play butto n, t he pl ayer t hen
enters sequence playback mode. This feature is effective to all the compatible discs.

Program Play (compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
The Program Playback option allows you to enter the order in which you wwant chapters or
tracks to play, maximum to 16.
1 – Program Menu:

DVD, MP3/JPEG discs: SVCD, VCD, CD, CD-G, HD-CD, DTS-CD

discs:

If PBC is on, this operation will turn PBC off while the chapters / tracks plays in programmed
order.
2 – According to the highlight, use the Numeric buttons to enter the chapters / tr acks in the
order you want them to play. Then press Play or use Arrow buttons to highlight the ‘Play’
item and press enter. The chapters / tracks will play in the programmed order.
You can program maximum 16 titles/chapters/tracks.
3 – According to the direction indicator on the menu, you can press Arrow buttons to
highlight where you want to enter.
4 – During program Playback, if program button pressed, the programmed order and the
contents will be displayed on the screen, and the program playback will be stopped; Also you
can press Stop and Play to resume normal playback.
5 – Notes:

-

To clear the programmed order, use Arrow bu ons to highlight the ‘CLE AR’ item, then
press Enter.

tt

tr r t

-

To modify the programmed order, use Arrow buttons to highlight the modifying item and
enter the new chapter / ack you want to p ogram direc ly.

6 – Meanwhile the program indicator in the VFD illuminate, and the playing chapter/track
also illuminate.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 13/33

CHAPTER II – ADDITIONAL OPERATION

S

ELECTING TRACKS

(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
1 – When playing a DVD disc, press Numeric buttons, on t he menu or title page to select

tracks; During DVD playback, you can input desired title number directly.
2 – As a SVCD or VCD discs, during sequence playback, press numeric buttons to select
tracks. (During program playback and PBC is on, you can only press Prev/Next button to
select).
3 – As for CD, CD-G, HD-CD, DTS-CD discs, press numeric buttons directly to select tracks.
4 – When playing MP3/JPEG discs, press numeric buttons to select different tracks on
current track list.

Notes: To select track from 1 to 10, press corresponding numeric buttons (1-9, 10)
To select tracks above 10, press 10+ button. For example, to select the track 15,

press 10+ and 5 button.

If the selected tracks is not available, the input would be invalid.

S

KIPPING TRACKS

(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
1 – To skip forward to the beginning of the next title/chapter/track on a disc, press Next on

the remote or the front of the player.
2 – To skip backward to the beginning of the preceding title/chapter/track on a disc, press
Prev on the remote or the front of the player.
When playing the last chapter/track on a SVCD or VCD disc with PBC off, pressing Next
button will stop the playback; when playing the first chapter/track, pressing Prev button will
stop the playback; When stop, pressing Next/Prev button will be invalid.
If a DVD disc is loaded, it varies according to how the disc was configured.

MULTISPEED FAST MOTION PLAYBACK

(compatible with DVD, SVCD, DviX, MPEG-4, VCD, CD, DTS-CD, MP3/JPEG discs)
You can search in forward or reverse mode during playback.

1 – Press the F.F button on the remote during playback to search through a disc. Press the
button again on the remote to search at the next speed. Fast Forward playbarck has four
speed : x2, x4, x8, x20. With each, consecutive press of the button, the search speed
increases. If you press the button five times, Fast Forward playba ck cycles back to normal
playback.
During DVD playback, when Fast Forward Playback gets to the beginning of the next
title/chapter, it resumes normal playback; During SVCD or VCD playback with PBC on, when
Fast Forward Playback gets to the beginning of the next track, it resumes normal playback.
Press Play button to resume normal playback.
During CD, HD-CD, MP3 playback, with the speed FF x2, the player has audio output.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 14/33

2 – Press the FR button on the remote during playback to search throu gh a disc. Press the
button again on the remote to search at the next speed. Fast Reverse playbarck has four
speed : x2, x4, x8, x20. With each, consecutive press of the button, the search speed
increases. If you press the button five times, Fast Reverse playback cycles ba ck to normal
playback.
During DVD playback, when Fast Reverse Playback gets to the beginning of the next
title/chapter, it resumes normal playback; During SVCD or VCD playback with PBC on, when
Fast Reverse Playback gets to the beginning of the next track, it resumes normal playback.
Press Play button to resume normal playback.
During CD, HD-CD, MP3 playback, with the speed FF x2, the player has audio output.

MULTISPEED SLOW MOTION PLAYBACK
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG

discs)
Press slow button when pictures moving, you can enter slow motion playback mode.

Press the slow button on the remote during playback. Press the button again on the remote
to play at the next speed. Slow motion playback has six speeds: ½, 1/3, ¼, 1/5, 1/6, 1/7.
with each consecutive press of the button, the play speed decreases. If you p ress the butt on
seven times, slow motion playback cycles back to normal playback.
Press play button to resume normal playback.

FREEZE FRAME AND FRAME ADVANCE
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG

discs)
1 – During CD, CD-G, HD-CD, DTS-CD or MP3/JPEG playback, press pause once to freeze

playback; press the pause button again or Play button to resume norma playback.
2 – During DVD, SVCD or VCD playback, press pause once to freeze playback; Press of the
Pause button again to advance the picture one frame at a time; Press play to resume normal
playback.

USING THE REPEAT FEATURE
(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)

While a disc is playing, press repeat button once, and the repeat banner appears t o showw
current repeat mode.
1 – In SVCD, VCD, CD, CD-G, HD-CD, DTS-CD or MP3/ JPEG sequence playback mo de, press
repeat button again to turn on repeat mode.
Press the button again on the remote to turn to the next repeat mode. There are three
repeat options: Off, Track Repeat, and Disc Repeat. With each consecutive press of the
button, the repeat mode switches. If you press the button four times, repea t mode cycles
back to off.
2 – In DVD playback, press repeat button again to turn on repeat mode.
There are three repeat options: Off, Chapter repeat, and Title repeat. With each co nsecutive
press of the button, the repeat mode switches. If you press the button four times, repeat
mode cycles back to off.
3 – In MP3/JPEG playback, press repeat button again to turn on repeat mode.
There are four repeat options: Off, Track repeat, Directory repeat, and Disc Repeat. With
each consecutive press of the button, the repeat mode switches. If you press the button five
times, repeat mode cycles back to off.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 15/33

USING THE DISPLAY FEATURE

(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, MP3/JPEG discs)
1 – Loading and playing DVDs (two pages)

- Press Display button once to show the first page:

‘Disc type, title */* (the playing title / total titles), chapter */* (th e pla yin g chapt er / t otal
chapters), Elapsed time of the disc’.

- Press the button again to show the second page:

‘Language */* (the serial number of playing language / the amount of optional
languages) or Off, Language type, Auio type, Subtitle */* (the serial number of playing
subtitle / the amount of optional subtitles) or Off, Angle */* (the serial number of playing
angle / the amount of optional angles) or Off’.

- Press the button for the third time, the display menu fades out.

2 – Loading and playing SVCD disc (two pages)

- Press display button once to show the first page:

‘Disc type, track */* (the playing track / total tracks), Mute, PBC, repeat mode, elapsed
time of the playing track’.

- Press the button again to show the second page:

‘Language */* (the serial number of playing language / the amount of optional
languages) or Off, Language type, Auio type, Subtitle */* (the serial number of playing
subtitle / the amount of optional subtitles) or Off, Angle */* (the serial number of playing
angle / the amount of optional angles) or Off’.

- Press the button for the third time, the display menu fades out.

3 – Loading and playing VCDs

- Press display button once to show the page:

‘Disc type, track */* (the playing track / total tracks), Mute, PBC, repeat mode, elapsed
time of the playing track’.

- Press the button again, the display menu fades out.

4 – Loading and playing CD, CD-g, DTS-CD, HD-CD, MP3/JPEG discs:

- Press display button once to show the page:

‘Disc type, track */* (the playing track / total tracks), Mute, repeat mode, elapsed time
of the playing track’.

- Press the button again, the display menu fades out.

USING SEARCH FEATURE

(compatible with DVD, MPEG-4, DviX, SVCD, VCD, CD, HD-CD discs)
You can use Search feature to select a title/chapter/track number or go to a specifi c point in

a title. Firstly, press search (GoTo) button on the remote to bring up the search menu and
enter the edit state; Secondly, press Arrow buttons to highlight the title/chapter/track
number or the time option; Thrirdly, use numeric buttons to enter the title/chapter/track you
want to play or the elapsed time you want to go to in that title; At last, press enter button to
start playback. For example, entering 01:23:56 will start playback one hour, twenty-three
minutes and fifty-six seconds into the title. If the input number is illegal, the error
information INVALID KEY will be displayed on the screen.

Note : This fea ure does not work in Program Play mode t
t

If PBC is on, it will turn off automatically when search playback s arts.
When playing MP3/JPEG discs, search feature does not work.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 16/33

USING THE BROWSE / SCAN / INDEX FEATURE

(compatible with SVCD, VCD discs; the scan feature is also compatible with CD, CD-G, DTS-CD, HD­CD discs)

1 – Press preview button during stop state

- When a SVCD or VCD disc is loaded, the screen displays small pictures or ‘thumbnails’ of

the available tracks. According to the tracks’ sequence on the disc, up to nine thumbnails
are displayed per screen, and each thumbnail plays 3 seconds.

- If PBC is on, it will turn off automatically when browse playback starts.

- To view the next nine thumbnails, press next button to go forward and the Prev

button to go the previous page.

- To exit the digest and resume normal playback from current track, press the play

button.

- Each thumbnail has a number in the corn er. You can select and play a track by press

that number on the remote.

- When a CD, CD-G, DTS-CD, or HD-CD disc is loaded, according to the tracks’sequence on

the disc, each track play 15 sec.

- You can select a track to start Scan playback by press numeric buttons on the

remote.

- To exit the scan playback, and resumes normal playback from the scanning track,

press the play button.

- During normal playback, press preview button to start scan playback from current

track (if the track has played for more than 15 sec, it will start from the next track)
2 – Press the preview button again, that is to press the button during browse playback, the
screen displays big pictures instead of thumbnails. According to the tracks’ sequen ce on the
disc, each picture plays 15 sec.

- You can select a track to start Index playback by press numeric buttons on the remote.

- To exit the digest and resume normal playback from current track, press the play button.

3 – During normal playback, press the preview button to show thumbnails of the currently
selected track.

- if PBC is on, it will turn off automatically when browse playback starts.

- To view the next nine thumbnails, press the next button to go forward and the Prev

button to go to the previous page.

- To exit the digest and resume normal playback from current track, press the play button.

- Each thumbnail has a number in the corner. You can select and play a track by press that

number on the remote.

CHANGING THE SOUNDTRACK

(compatible with SVCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

Press the L/R button to display current soundtrack.
1 – Press the button can switch soundtracks
2 – Press the button again on the remote to turn the next soundtrack.

- When playing a SVCD or VCD disc, there are five soundtracks: stereo (L/R), L/L, R/R, L/L

Auto A/D detect, and R/R Auto A/D detect. With each consecutive press of the button, the
soundtrack cycles back to stereo.

- When playing a CD, CD-G, DTS-CD, HD-C D or MP3 disc, there are three: stereo (L/R),

L/L, R/R.

Notes: Switch to L/L Auto A/D detect or R/R Auto A/D Detect to have various antis rophes (you
can have an antistrophe xith the singing on the disc), according to the contents on the disc).

t

When playing a dual language VCD movie disc, press the L/R button to select the
desired language.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 17/33

CHANGING THE AUDIO LANGUAGE

(compatible with DVD, SVCD discs)
during disc playback, press language on the remote once, and the audio language info

banner appears.
When a DVD or SVCd is recorded with multiple soundtracks, you can use the Language
feature to temporarily change the audio language (the language of the soundtrack).
There are 8 supported languages: English, French, Spanish, Germany, Portuguese, Chinese,
Japanese and Latin. With each consecutive press of the langugage button, the audio
language switches and the corresponding serial number appears on the screen. For example,
‘Language Icon: [1 English DTS 6CH] or [Off]’ (the availability of the languages are disc­dependent).

S

UBTITLES

(compatible with MPEG-4, DviX, DVD, SVCD discs)
Press the subtitle button on the remote once, and the subtitle info banner appears.

When a DVD or a SDVC is recorded with subtitles, you can use the subtitle features to view
subtitles on-screen. By default, subtitles are off. The info banner will display subtitle off.
To display subtitles, press the subtitles button again. The default language with its
corresponding serial number will be displayed in the info banner and subtitles will be
displayed in that language.
There are 8 supported subtitles: English, French, Spanish, Germany, Portuguese, Chinese,
Japanese and Latin. With each consecutive press of the subtitles button, the subtitles
switches. For example, ‘Language Icon: [1 English DTS 6CH] or [Off]’ (the availability of the
subtitles are disc-dependent).
To turn subtitles off, press the subtitles button until subtitle off is displayed.

C

HANGING CAMERA ANGLE

(compatible with DVD discs)
during disc playback, press angle on the remote once, and the angle icon app ears. Somme

DVDs contain multiple angles of a particular scene or sequence, so you can use the angle
feature to view.
Press the angle button again to go to the next camera angl e. If multiple camera angles are
available, the angle icon displays the current angle number and the nu mber angle avalaible.
For example: ‘Angle icon [*/*] or [Off]’; ¼ indicates that angle one is being displayed, and
there are four different angles avalaible. (This feature is disc-dependent. If no additional
camera angles are available, INVALID KEY will be displayed.)

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 18/33

CHANGING THE TV SYSTEM

(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
press P/N button on the remote to display current TV system.

Press P/N button again to change to the next TV system. There offers four systems: NTSC,
PAL60, PAL and AUTO. With each consecutive press of the P/N button, the TV system
switches. If you press the button five times, the TV system cycles back.

Notes: If AUTO TV system selected, it can auto reach the highest definition depends on

the disc.

t

t t

t f t

If it isn’t full screen state (note: Wide screen program would never reach full screen
state) or in black and white, press P/N but on to adapt TV system to th e TV set of
NTSC or PAL.

When playing in different TV sys em, some discs may not have their fea ures

entirely fulfilled in some certain standard.
Au o system o TV se is recommended.

M

UTE THE AUDIO OUTPUT

(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)

pressing the mute button allows you to reduce sound to an inaudible level, and ‘MUTE’ will
be displayed on screen. Press the button again or press the Vol +/- bu tton to return to the
normal condition.

Notes: When mute, the microphone also has no audio output.
If the player playback disc without sound, please try to press Mute button to

resume.

Z

OOM IN THE VIDEO IMAGE

(compatible with MPEG-4, DviX, DVD, SVCD, VCD, JPEG discs)
1 – The zoom function allows you to enlarge or zoom out the video image and to pan though

the image. Press zoom repeatedly to activate the function and choose the required zoom
factor: Zoom1, Zoom2, Zoom3, Zoom1/2, Zoom1/3, Zoom1/4, Zoom Off.

Notes: This feature does not work when the Disc menu appears.

2 – Use the arrow buttons to pan across the screen when the zoom factor is 1, 2 or 3.
R

EPEAT A SPECIFIC SEGMENT ON THE DISC THAT YOU DEFINE

(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3 discs)
1 – During the normal or fast motion playback, press the A-B button once, and ‘REPEAT A-‘

will appears on the screen. This indicates the start of the loop to be repeated.
2 – During the normal or fast motion playback, press A-B again, and ‘REPEAT A-B’ will
appears on the screen. It indicates the end of the loop.
Looping will run from set point A to set point B until you turn off repeat.
3 – Press A-B again to cancel A-B loop mode.

- when playing a SVCD, VCD or CD disc, you can repeat a specific segment only in one

track. When the next track begins, A-B repeat turns off automatically.

- When playing a DVD disc, you can repeat a specific segment only in one title/chapter.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 19/33

3D SURROUND MODE

(compatible with SVCD, VCD, CD, CD-G, HD-CD, MP3 discs)
Press the 3D button on the remote once, and current 3D surround mode info will be

displayed on the screen. Press the arrow buttons to highlight the 3D surround setup menu
items; Press the 3D button again to turn off the menu.

Use the Up/Down arrow buttons and press
Enter to choose surround mode

‘EQ:[STANDARD]’ is highlighted, as the
graph showed below:

‘EQ:[CLASSIC]’ is highlighted, as the graph
showed below:

‘EQ:[ROCK]’ is highlighted, as the graph
showed below:

‘EQ:[JAZZ]’ is highlighted, as the graph
showed below:

‘EQ:[POP]’ is highlighted, as the graph
showed below:

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 20/33

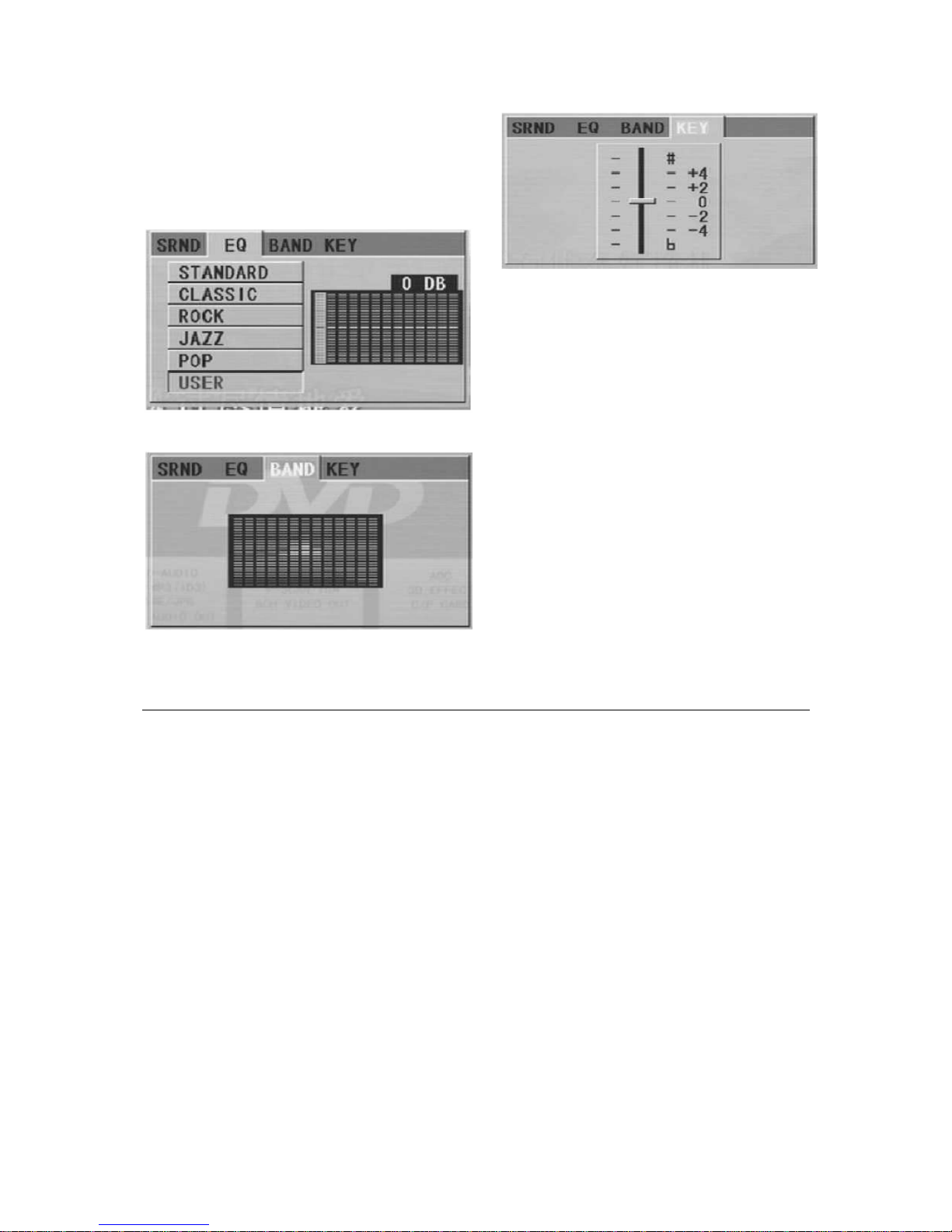

‘EQ:[USER]’ is highlighted, as the graph
showed below, and the graph can vary
according to your settings: Press
Left/Right arrow buttons to highlight the
band you want to tune; Then press
Up/Down arrow buttons to increase or
decrease the value.

Adjust the key:

Notes: When setting SRND, EQ is auto

setup yo Standard.

When setting EQ, SRND is auto

setup to off.

Display the band:

V

OLUME CONTROL

(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)

1 – You can press the volume button on the front of TV set or the amplifier to cont rol the
sound level.
2 – Pressing the Vol+ button on the remote allow you to amplify the sound level;
3 – Pressing Vol- will reduce the sound level.

Notes: During DVD PCM outpu playback, this feature does not work. t

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 21/33

CHAPTER III – PLAYING MP3 AND JPEG DISCS

Place a MP3/JPEG disc into the tray, and the player will auto search the directories saved
MP3/JPEG files. After searching, it will auto go to the first directory saved MP3 files (to the
disc containing both MP3 and JPEG files; To the disc containing single type of files, it will
auto go to the first directory) and play the first song in the directory (“01:” is highlighted).

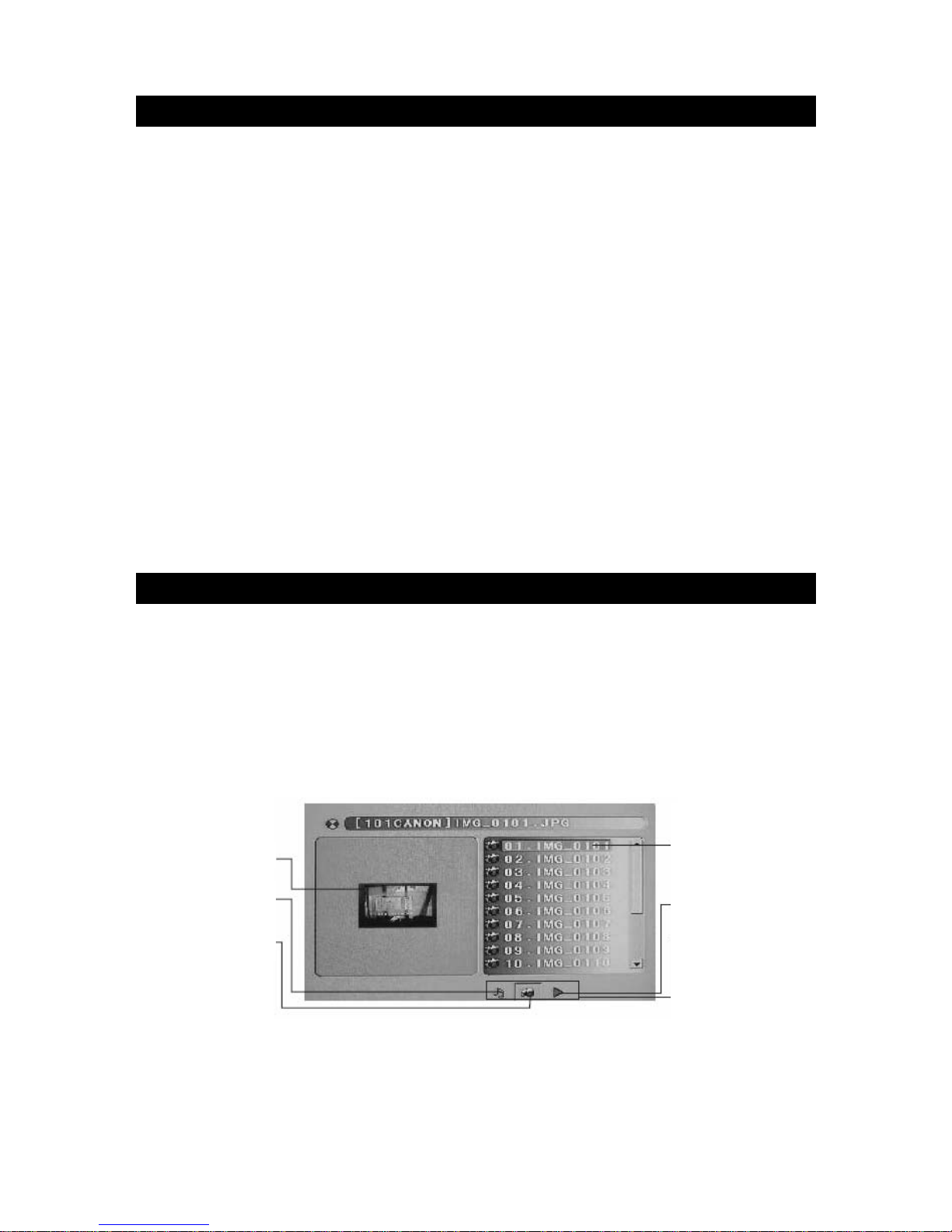

The screen displays as the picture below:

Current MP3/JPEG
file name. If a
JPEG file playing,
the name should
be *.jpg

Current directory
name

File switch region:
Displays the file
type of the playing
and the switchin

g

.

The playing file is
a MP3 music

The playing file is
a JPEG picture

Use the arrow buttons to enter the directory region and hig hlight the desired directory, then
the first track under it starts playback. Also you can use the arrow buttons to enter the file
region and select the file you want to play.

Notes:

1 – Press the left and right arrow buttons, you can activate directory region, file region and file switch
region separately.
2 – The highlight in directory region and file region is shown as the picture above. While it appears a
transparent rectangle in file switch region.
3 – In file switch region, you can press the left and right arrow buttons to switch the highlight, then
press enter; the ‘M’, ‘P’ and ‘G’ button is illustrated in the above picture. For example, if a disc with
MP3 and JPEG files but without any NES files is loaded, the color of the letters ‘M’ and ‘P’ will appears
to white and ‘G’ black. If a MP3 file playing, ‘M’ turns darker.

t t

,

.

t

t t r r t r, r t

,

4 – to the disc with MP3 and JPEG files, when playing a JPEG picture, press the return button to
return to JPEG list.
5 – You can press the numeric buttons to selec the file you wan to play. For example, if you desire
the 15

th

track in current list press the ‘10+’ button once, then press ‘5’, the 15th starts playback.
Notes: when playing a disc with MP3 files, video cannot be output while only digital audio can
6 – When playing JPEG picture, press the program button to choose the pictures swi ched mode.
There are 17 switch mode, press program repeatedly to activate the function and choose the required
switch mode: spread from up to down, spread from down to left, spread from left to right, spread
from right to left, spread from left up to right down, spread from right up to left down, spread from
left to right up, spread from right down to left up, spread from center to up/down, fold from up/down

o cen e , fold f om left/righ to cente ho izon al shutter, vertical shutter, fold from the corners to
the center, random, Play, off.
7 – when a picture playing or pausing press the arrow buttons to change the display angle:
Up: flip vertical
Down: flip horizontal

Left: rotate 90 counter-clockwise

Right: rotate 90 clockwise
8 – when a picture playing or pausing, press the menu button, the screen displays small pictures. Up
to 12 small pictures are displayed per screen. To view the next 12 pictures, press the next button to
go forward and the prev button to go to the previous page. You can also select and play a picture in
full screen by press that number on the remote.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 22/33

CHAPTER IV – MPEG-4 & DVIX

MPEG-4 is an ISO/IEC standard being developed by MPEG (Moving Picture Experts Group).
These standards made interactive video on CD-ROM and Digital Television possible. MPEG-4
will be the result of another international effort involving hundreds of researchers and
engineers from all over the world. MPEG-4 is to be released in November 1998 and will be an
international Standard in January 1999.
MPEG-4 is building on the proven succes of three fields: digital television, interactive
graphics applications (synthetic content) and Wold Wide Web. And it will provide the
standardized technological elements enabling the integration of the production, distribution
and content access paradigms of the three fields.
MPEG-4 is a graphics and video lossy compression algorithm standard. It is based on
MPEG-1 and MPEG-2 and Apple Quicktime technology. Wavelet based MPEG-4 files are
smaller than JPEG or Quicktime files, so they are designed to transmit video with text,
graphics and 2-d and 3-d animation layers. Wavelet technolog y can compress color images
at rates of 20:1 up to 300:1 and grayscale images at 2 to 50:1.
DviX is based on the MPEG-4 compression format. It is a new pay-per-view version of the
DVD movie-on-a-CD format. The discs are cheap to buy. DviX discs are encrypted and can
not be played in normal DVD players or in the DVD-ROM drives in newer computer.
Currently, the version of DviX have DviX 3.11, DviX 4.12 and DviX 5.05.
Support MP4 subtitle, including: English, simplified Chinese, complicated Chinese, Japanese,
Russian, West Europe and Middle Europe languages, but don’t support several subtitles at
the same time.

CHAPTER V – CARD READER AND USB

Card reader support: MMC, SD, MS/MS pro, CF, SMC, Micro Driver.
USB support: USB2.0
Removing the DVD from the tray, then put Card or USB, the player will auto search the
directories saved MP#/JPEG/MPEG-4/MPEG files. After searching, it will auto go to the first
directory saved MP3.
Use the direction buttons to enter the Directory Region and highlight the desired di rectory,
then the first track under it starts playback. Also you can us e the direction buttons to enter
the file region and select the file you want to play. The screen displays as the picture below:

File switch region :
Displays the file
type of the playing
and the switching.

The playing file is a
movie file

Current MP3/JPEG file
name. If a JPEG file
playing, the name should be

Current displaying

The playing file is a
JPEG

p

icture

The playing file is a
music file

Notes: 1 – Udisk - When reading JPEG files, the display speed is slower, because the transmit rate of

system is lower.

:

t
f

- Don’t suppor USB hub, USB keyboard and USB mouse.
2 – Due to the limit o authority, DVD player can’t support Xd card
3 – Microdrive and CF card use the same slot, Microdrive’s consume is less than CF card.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 23/33

CHAPTER VI – SETUP MENU SYSTEM

G

ENERAL STEPS OF SETUP MENU

1 – Press the setup button, the main setup
menu appears.
When the main menu displayed, the DVD
system will auto pause.

2 – Press the left and right arrow buttons
to highlight the icon of the desired page,
then press the down or right arrow button
to activate that page. For example, if you
want to setup the video page, press right
to highlight the video icon, the video page
will be displayed on the screen.

3 – Press the down arrow button to
highlight the desired option. Press Enter or
press right to select, the choices of that
option appear on the right. For example,
press the down arrow button to highlight
the BRIGHTNESS option, then press Enter
to select, the brightness choices appear on
the right.

4 – Press the arrow buttons to highlight
the exit setup option, then press enter or
setup again to exit setup menu

Notes: When setup, he pressing of the
following buttons will turn off the setup
menu, while the choices that have been
changed will be saved: P/N, subtitle, F.F,
F.R, Vol +/-, PBC, Title, Return, Play, Stop,
Resume, Pause/Step, Next, P ev, S. F, S.R,
Zoom, Preview, GoTo, Program, Repeat,
A-B, Angle, Language, Soundtrack, 3D,
Record, Display, Mute, Setup.

t

r

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 24/33

SETUP ITEMS INTRODUCTION

1 – System setup

The system setup options are illustrated bellow:
*

TV SYSTEM

According to the color system of the TV,
you can choose the TV system:

- AUTO: choose this setting if your DVD

player is connected to a multi-system TV

- NTSC: choose this setting if your DVD

player is connected to a NTSC TV

- PAL: choose this setting if your DVD

player is connected to a PAL TV

- PAL60: choose this setting if your DVD

player is connected to a PAL60 TV

The default setting is NTSC.
*

SCREEN SAVER

If the screen saver is on, when your DVD
player is in stop, open or no disc state, or
there is a frame frozen for more than
60sec, the screen saver will be displayed.
This feature can protect the screen from
damage.

- On: choose this setting to activate the

screen saver

- Off: choose this setting to cancel the

screen saver

The default setting is ON.

*

VIDEO

- Interlace-YUV: choose this setting if

your DVD player is connected to a TV with
Y, Cb, Cr video cables

- TV-RGB: choose this setting if your

DVD player is connected to a TV with an
S-Video cable or composite video cables

- P-SCAN: choose this setting if your

DVD player is connected to a progressiv
scan TV with Y, Cb, Cr video cables

- PC-VGA: choose this setting if your

DVD player is connected to a progressiv
scan TV with a VGA video cable

Notes: - When you DVD player output

composite video you can choose
the setting randomly

r

,

- Choose TV-RGB/P-SCAN if your
DVD player is connected to a
progressiv scan TV.
The default setting is TV-RGB.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 25/33

* TV TYPE

- 16:9 (wide screen): choose this setting

if your DVD player is connected to a wide
screen TV. If you choose this setting and
you don’t have a wide screen TV, the
images on the screen may appear
distorted due to vertical compression.

- 4:3 LB (LetterBox): choose this setting

if your DVD player is connected to a
normal ratio TV. You’ll see the movies in
their original aspect ratio (height-to-width
ratio). You’ll see the entire frame of the
movie, but it will take up a smaller portion
of the screen vertically. The movie might
appear with black bars at the top and
bottom of the screen.

- 4:3 PS (Pan&Scan): choose this setting

if your DVD player is connected to a
normal ratio TV. You can fill the movie to
the entire screen of your TV. This might
mean that parts of the picture (the left
and right edges) won’t be seen.

Notes: - The image display ratio is

related to the recorded disc
format. Some disc can no
display images in the aspect ratio
you choose. t

.

- If you play a disc recorded in
4:3 format on a wide screen TV,
black bars will appear on the left
and right side of the screen

- You must adjust the screen
setting depending on the type of
the TV you have.

* PASSWORD

The password option is initialized locked,
and you cannot set the ratings limit or
change the password. In order for the
Ratings feature work, the password mode
must be turned on. If you want to set the
ratings limit, you will need to enter the
default password, which is 0000, the press
enter to confirm. To change the password,
you will be prompted for the old password,
then be prompted for a new. Enter a 4­digit number (this is your password).

*

RATING

The rating feature is a rating limit system,
like movie ratings. It works with DVD discs
that have been assigned a rating. This
helps you control the types of DVDs that
your family watches.

- There are two rating options: NO

ADULT and KID SAFE.

- Select the VIEW ALL option to cancel

the rating limit.

The default setting is VIEW ALL.

Notes:

If the password option is locked
you cannot set the rating limit; the rating
limit does not work when the password
option unlocked.

,

* DEFAULT
Choose this option to resume all the setup
options to default setting.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 26/33

2 – Language setup

The language setup options are illustrated bellow:
* Highlight the OSD language option and
press the arrow buttons to choose the
OSD language you prefer. Press enter to
confirm, and it will display OSD in that
language. There are 8 optional OSD
languages: English, French, Spanish,
Chinese, Japan, Portuguese, German and
Latin.

* Highlight the AUDIO LANG option and
press arrow buttons to choose the audio
language you prefer. Press enter to
confirm. If the disc you are playing has
that language available, it will output
audio in that language. There are 8
optional audio languages: English, French,
Spanish, Chinese, Japan, Portuguese,
German and Latin.

* Highlight the SUBTITLE LANG option and
press arrow buttons to choose the subtitle
language you prefer. Press enter to
confirm. If the disc you are playing has
that language available, it will display
subtitles in that language. There are 8
optional audio languages: English, French,
Spanish, Chinese, Japan, Portuguese,
German and Latin.

* Highlight the MENU LANG option and
press arrow buttons to choose the menu
language you prefer. Press enter to
confirm. If the disc you are playing has
that language available, it will display
menu in that language. There are 8
optional menu languages: English, French,
Spanish, Chinese, Japan, Portuguese,
German and Latin.

Notes: - If your prefered language isn’t available, the disc’s default language will be

played.

- The défault language of your DVD player is English

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 27/33

3 – Audio Setup

The audio setup options are illustrated bellow:
* Highlight the Audio Out and press the
arrow buttons to choose the audio output
mode you prefer. Press enter to confirm.
There are 3 optional audio output modes:
Analog, SPDIF/RAW and SPDIF/PCM.

- ANALOG: From the coaxial output jack

and the optical output jack, no signal is
output.

- SPDIF/RAW: Choose this setting if

your DVD player is connected to a power
amplifier with a coaxial cable or an optical
cable. When playing a disc recorded with
dolby digital, DTS and MPEG audio
formats, the corresponding digital signals
will be output from the coaxial output jack
or optical output jack. This player’s digital
output jacks are designed for a
connection to a dolby digital, DTS or
MPEG receiver or decoder.

- SPDIF/PCM: Choose this setting if y our

DVD player is connected to a 2-channel
digital stereo amplifier. When playing a
disc recorded with dolby digital and MPEG
audio formats, audio signals will be
modulated into a 2-channel PCM signal,
and it will be output from the coaxial
output jack or optical output jack.

* MIC SETUP

There are 2 MIC settings in the MIC
SETUP option: Auto and OFF. When

selecting auto, the player will auto detect
and deal with the input voice. When
selecting off, the player will do nothing
with the mic input. For example, when
playing a VCD2.0 karaoke disc, choose
auto to enable auto A/D detect feature.

*

ECHO

Use the up and down arrow buttons to
move the scroll and adjust the echo.

*

MIC VOL

Use the up and down arrow buttons to
move the scroll and adjust the microphone
volume.

*

KEY

Use the up and down arrow buttons to
move the scroll and adjust the key.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 28/33

4 – Video Setup

The audio setup options are illustrated bellow:
*

BRIGHTNESS

Use the up and down arrow buttons to
move the scroll and adjust the brightness.

*

CONTRAST

Use the up and down arrow buttons to
move the scroll and adjust the contrast.

*

HUE

Use the up and down arrow buttons to
move the scroll and adjust the hue.

*

SATURATION

Use the up and down arrow buttons to
move the scroll and adjust the saturation.

5 – Speaker setup

The speaker setup options are illustrated bellow:
* D

OWNMIX

Use the up and down arrow buttons to
move the scroll and adjust the downmix:

- LT/RT: Choose this setting, it will be

sound like in a movie theatre if the
original movie the disc was recorded from

was encoded in the Pro Logic Dolby
Digital format.

- STEREO: Choose this setting, when

5.1-channel sound playing, two channels
of signals will be output from the left and
right soundtrack. When 2-channel sound
playing, stereo signal will be output.

- VSS: Choose this setting, when a disc

recorded with 5.1-channel sound format
playing, the ficticious surround
soundtracks effect will be heard from the
main soundtrack.

- OFF: Choose this setting to output the

5.1-channel sound.

* SUBWOOFER

There are two setting in this option:
OFF/ON. When ON is chosen, the player
will auto detect the subwoofer input then
output it. When OFF is chosen, the
subwoofer input will not be output.

*

BASS MODE

There are three settings in this option: ALL
LG SPK, ALL SM SPK, MIXED SPK. You can
adjust subwoofer volume in this option.

*

CENTER DELAY

You can adjust center delay in this option.
* Rear Delay

You can adjust the rear delay in this
option.

6 – Digital setup

The digital setup options are illustrated bellow:
* O

P MODE

- LINE OUT: Choose this setting to line

out the input signal. It will be more
suitable for playing in the night time, for
the output volume is low.

- RF MODE: It will be more suitable to

choose this setting for playing in the day
time, for the output volume is high.

* Dynamic Range

When LINE OUT is selected, choose this
setting to adjust the line out ratio and get
different effect. If adjusting to FULL, the
audio signal peak value will be the
minimum; while adjusting to off,
maximum.

Note: This option will be validated when
the DOWNMIX is OFF.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 30/33

* DUAL MONO (LEFT + RIGHT)

Choose this option to setup the L and R
mono output mode. There are four modes
in this option: STEREO, MONO L, MONO R
and MIX MONO. It is mainly used in
karaoke mode.

Reference:

- To protect your DVD player, the

interval between two consecutive Power
button operations must be above 30
seconds.

- No using for a period of time, please

pull out the plug from the electronic
outlet.

- The player should be operated only on

condition that the type of power supply
corresponds to the marking label. Other
wise, it doesn’t work or even be
damaged.

- The player may not be compatible with

some encrypted discs.

- The player stops playback by accident,

please power it on again.

HOW TO IDENTIFY UDISK WITH HUB

The product offert USB Mass Storage Classic Driver only, doesn’t offer USB Hub Class Driver .
That means the DVD player temporarily doesn’t support the uDisk that needs Mass Storage
Class Driver and Hub Class Driver supported at one time. So how should you identify this
kind of uDisk?

You can use PC to identify the uDisk with Hub. Once this uDiskcollects PC, it calls Hub Class
Driver and Mass Storage Class Driver in-order. You can identify if the uDisk is with Hub or
not by checking ‘Hardware Device Manager’. To follow the steps as below:

1 – Firstly, open ‘Hardware Device Manager’. When no uDisk collects with PC, dialog box
shows as below. (To PC, the expanding items of GPIB controller is probably different, but
here in we focus on adding item only).
2 – When insert normal uDisk, ‘Hardware Device Manager’ shows as below: There will be
adding ‘USB Mass Storage Device’ item (as circled in red) in the expan ding items of GPIB
controller, which represents PC’s USB port collects USB Mass Storage Class Device.
3 – When insert a uDisk with Hub, ‘Hardware Device Manager’ shows as below: There will be
adding ‘Generic USB Hub’ item as well as ‘USB Mass Storage Device’ item. which represents
PC’s USB port collects USB Hub and USB Mass Storage Class Device.

Hereby, you can identify if a uDisk is with Hub or not.

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 31/33

TROUBLE SHOOTING

If your DVD player developped a problem, please check below situations before requesting service.

Troubles Solutions

No Power

Check if the power cord has been properly connected to the power outlet.
Check if the main power has been switched on.

Does not play No disc, load a disc.

Disc has been loaded upside down. Place the disc with the label side up.
Disc's region code does not match to the player.
Disc's rating level is higher than the player' s rating level setting
Disc is not correct type for the player.
Disc is damaged or dirty, clean the disc or try another disc.
Moisture may be condensed inside the player. Remove the disc and leave the unit
power on for one or two hours.

No picture

Check if the TV set has power on, use TV remote to select A/V signal for DVD rather
than broadcast .
Check if the system connection is proper and secure.
Check if the connection cables are damaged.
Clean the disc.

Please press OPEN button, then press PROGRAM and ZOOM button to return
factory default status.

Picture noise/
distorted

The disc is dirty or damaged. Clean the disc or try another disc.

Reset the color system of the TV set.

Try by connect player direct to the TV set, without via a VCR for example.
Picture not full
screen

Select the screen format from the player’s SETUP MENU.

Select the screen format from DVD disc menu.
Problem
message
display on
screen

Following message will display when there is a problem with the loaded disc:

- Wrong regional disc: Disc’s region code does not match to the player

- Wrong password: the player’s refuse to play a disc with rating level higher than

the player’s rating level setting, or input the wrong password in setup menu.

- Wrong disc: the player is equiped with automatic disc quality detection software.

When the player detects a problem disc or a damaged disc, the player may keep
playing the disc at lower quality or stop playing, depending on the damage level of the
disc.

Malfunction Should the player develop a malfunction, unplug the player for 30 minutes. After 30

minutes, power on the player and the restore function should reset the player.
Cannot SKIP or
SEARCH

Some discs are programmed that do not allow users to SKIP or SEARCH at some

sections, especially at the beginning WARNING section.

Single Chapter disc cannot apply SKIP function.
No sound or
sound output
not complete

Check if the TV and Amplifier have been switched on, and correctly set.

Check if the TV and Amplifier system connection is secured .

Press AUDIO button to select other audio tracks output of disc.

Check if the MUTE function of the TV o r Amplifier has been activated.

There will be no sound out put during REVERSE PLAY / PAUSE / STEP / SLOW and

SEARCH.
MP3 disc no
sound or noisy

When PC program files or other data files are mixed with MP3 files in the same disc, the

player may play the non -MP3 files with noise or no sound.

Check the disc, if all the files on disc are MP3 files ,Skip the file, try other files.
Remote control
does not
function

Remove the obstacles between the remote control and the player.

Point the remote control to wards the remote sensor on the player.

Check if the batteries of the remote control have been loaded with correct polarities.

Replace the batteries of the remote control if without power
Type of disc DVD / CD-DA / CD-MP3 / CD-R / CD-RW

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 32/33

SPECIFICATIONS

Card reader USB1.1 / MMC / SD / MS/MS Pro / CF / SMC / Micro driver
Video
Formats

DviX3.11, DviX4.12, DviX5.05, MPEG-4, DVD Video, DVD Audio, Super Video CD, Video
CD, CD-DA, HD-CD, OKO, CD-Rom, WMA, USB1.1, HOST 6 in 1 card.

Audio
Formats

MPEG 1, LAYER 1, LAYER 2, LAYER 3

Signal Output Color system: PAL / NTSC

Audio System: DOLBY DIGITAL down mix stereo
DOLBY DIGITAL digital output
Audio DAC 24bit/96KHz
Video output: 1Vpp (at 75 ohm)
Audio output (stereo): 2Vpp

Frequency
response

CD: 20Hz-20KHz (EIAT)
DVD: 20Hz-22KHz (48K)
20Hz-44KHz (96K)

S/N Ration >90dB
THD <0.05%
Output
terminal

Video (composite) output
S-video output
Component Video (YPbCr) output
Digital audio output: coaxial
Down mix (L/R)
Scart (optional)

Power input AC110-240V 50/60Hz

20W (max)

Dimension 430x253x38mm

A

CCESSORIES

REMOTE CONTROL 1

AUDIO VIDEO CABLES ( RED, WHITE, YELLOW) 1
BATTERIES 2

USER’S MANUAL 1
GUARANTEE CARD 1

HOW TO CONTACT US :

GO IN WWW.QUARTEK-SYSTEM.COM, CHOOSE THE COUNTRY WHERE YOU BOUGHT THE PRODUCT,

AND SEND A EMAIL TO THE DISTRIBUTOR

USA TRADEMARK

BAY HARBOR MIAMI FL, 33154 USA

WWW.QUARTEK-SYSTEM.COM

QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 33/33
