Quantum Instruments MS3580 User Manual

METROLOGIC INSTRUMENTS, INC.

MS3580 QuantumT

™

Installation and User's Guide

Copyright

© 2005 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their respective companies.

The QuantumT single-line scanning capabilities. It utilizes the powerful Metrologic QuantumE scan engine to provide an outstanding scan performance on all standard 1D barcode symbologies, including RSS. This fully enclosed scanner includes large easily visible LEDs and a rugged protective boot with an adjustable stand. The QuantumT can be mounted to a countertop, wall or be left free standing for handheld scanning.

Key Product Features

• Fully Automatic Scanning Operation

• Single-Line Mode for Menu Reading

• Custom Configurable Scan Pattern

• User-Replaceable Single Cable Interface to Host (PowerLink Compatible)

• Decoding of All Standard 1D, RSS-14, RSS Limited and Expanded RSS

Bar Codes

• 7 Beeper Tones

• Configurable Depth of Field

• Flash - Upgradeable Firmware

• OPOS and JPOS System Compatible

• CodeGate

• Sunrise 2005 Compliant

QUANTUMT INTERFACE

™

is a hands-free, omnidirectional bar code scanner with optional

®

™

MS3580-9 OCIA and RS232 Transmit/Receive

MS3580-11 IBM 46xx and Full RS232

MS3580-38

RS232 Low Speed USB, Keyboard Emulation Mode or Serial Emulation Mode*

MS3580-40 Full Speed USB

MS3580-41 RS232/Light Pen Emulation

MS3580-47

Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive

MS3580-104 RS232 TTL, Laser Emulation

* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.

Default setting is Keyboard Emulation Mode.

1

INTRODUCTION

Scanner and Accessories

BASIC KIT COMPONENTS

Part No. Description

MS3580 QuantumT Omni \ Single-Line Scanner

00-02026

QuantumT Omni \ Single-Line Scanner Installation and User’s Guide *

00-02407 MetroSelect® Configuration Guide *

* Guides also available for download at www.metrologic.com.

OPTIONAL ACCESSORIES

Part No. Description

AC to DC Power Transformer - Regulated 5.2VDC @ 650 mA output.

45-45593 120V United States and Canada

45-45591 220V-240V Continental European

45-45592 220V-240V United Kingdom

46-46803 220V-240V Australia

46-46983 220V-240V China

54-54000x -3

RS232 PowerLink Cable with Built in Power Jack

2.1 m (7 ft.) straight cord, short strain relief

MVC** Metrologic Voltage Converter Cable ±12VDC to +5.2VDC

** Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s customer service department at

1-800-436-3876

.

2

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part No. Description

54-54002x-3

54-54020x-3

54-54213x-N-3

Keyboard Wedge PowerLink Cable

2.1 m (7 ft.) straight cord, short strain relief

Stand Alone Keyboard PowerLink Cable

2.1 m (7 ft.) straight cord, short strain relief

USB Full Speed Cable, Locking Plus-Power 3 m (10 ft.) straight cord, short strain relief

USB Full Speed Cable, Locking Plus-Power 5 m (17 ft.) straight cord, short strain relief

54-54214x-N-3

This cable is for use with full speed USB (-40) interface only.

54-54235x-N-3

54-54249x-N-3

USB Low Speed Communication Cable, Type A

2.8 m (9.2 ft.) straight cord, short strain relief

Communication Cable, Host End Not Terminated 203 mm (8") straight cord, short strain relief

46-00288 Flex Stand (3")

46-00289 Flex Stand (6")

™

Type A

™

Type A

Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s customer service department at 1-800-436-3876.

3

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

ITEM NO.

1 Red Output Window (Laser Aperture)

DESCRIPTION

2 Pin Hole for Cable Release

3 10-Pin RJ45, Female Socket

4 Speaker

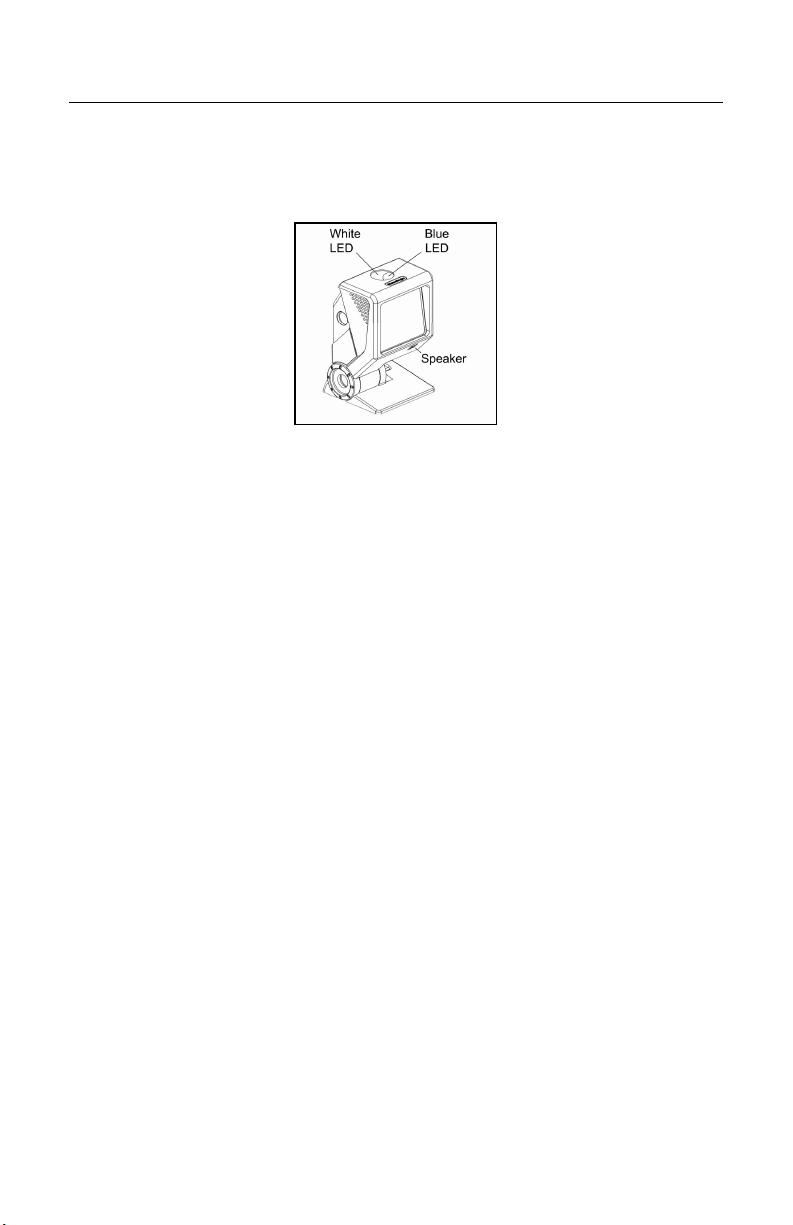

5 Blue and White LED Indicators

6 Button

Protective Boot and Stand Connection

Never remove the protective boot from the MS3580.

7

Removing the protective boot will expose electrical components of the scanner that are highly susceptible to

lectrostatic discharge (ESD).

e

Pedestal Stand

8

The type of stand provided is dependent on the specific MS3540 kit purchased.

4

INTRODUCTION

Caution and Serial Number Labels

Cable Removal

Figure 3.

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code. Therefore, the output window will need occasional cleaning.

1. Spray glass cleaner onto a lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

Figure 2.

1. Locate the small ‘pin-hole’ on the side of the QuantumT near the cable.

2. Bend an ordinary paperclip into the shape shown.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

4. You will hear a faint ‘click’ when the cable lock is released. Pull gently on the strainrelief of the PowerLink cable to remove it from the scanner.

5

INTRODUCTION

Mounting Specifications and Stand Assembly

Pedestal Stand

Figure 4. Pedestal Stand Assembly

Optional Flex Stand

Figure 5. Assembly Components for Optional Flex Stand

Item Description Qty. Item Description Qty

1 MS3580, QuantumT 1 6 Flexible Shaft* 1 2 Pivot Cylinder 1 7 Base Plate Cover 1 3 Bearing Plate 1 8 #8 x 1.00" Wood Screw 4 4 Pole Mount Adapter 1 9 Base Plate 1 5 Flexible Shaft Cover* 1

10 Cable (Not Shown) 1

* Length of the Flexible Shaft and Shaft Cover are Kit Dependent

Kit Number Length of Flexible Shaft and Flexible Shaft Cover

46-00288 3 inches 46-00289 6 inches

6

INTRODUCTION

Mounting Specifications and Stand Assembly

Optional Flex Stand

Figure 6. Mounting Hole Detail for the Flex Stand Base Plate (Optional)

Figure 7. Assembling the Optional Flex Stand

7

INSTALLATION

RS232, RS232 TTL, Light Pen or Laser Emulation

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the MS3580.

3. Connect the 9-pin female end of the PowerLink cable to the host device.

4. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements

of the power supply to make sure the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

5. Connect AC power to the transformer.

6. Turn on the host device.

Figure 8.

When the scanner first receives power, the blue LED will turn on; the scanner will simultaneously emit a beep and flash the white LED.

Plugging the scanner into the serial port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration setting are also required for proper communication to occur.

The MS3580-104 leaves the factory with the Laser Emulation enabled. If the Recall Defaults bar code is scanned while reconfiguring the scanner, laser emulation will no longer be enabled. Scan the Laser Emulation barcode in Section J: Laser Emulation of the MetroSelect Configuration Guide to re-enable the laser emulation interface. This feature is only supported for MS3580-104 models.

Caution To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

8

INSTALLATION

IBM 46xx or OCIA

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the MVC cable into the 10-pin socket on the MS3580.

3. Connect the other end of the MVC cable to the host device.

4. Turn on the host device.

When the scanner first receives power, the blue LED will turn on; the scanner will simultaneously emit a beep and flash the white LED.

Plugging the scanner into the serial port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration setting are also required for proper communication to occur.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

Figure 9.

9

INSTALLATION

Keyboard Wedge

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the MS3580.

3. Disconnect the keyboard from the host device.

4. Connect the “Y” end of the PowerLink cable to the keyboard and the keyboard port on the host PC. If necessary use the male/female adapter cable supplied with the scanner for proper connections.

5. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

6. Connect AC power to the transformer.

7. Turn on the host device.

When the scanner first receives power, the blue LED will turn on; the scanner will simultaneously emit a beep and flash the white LED.

Powering the MS3580 directly from the host device can sometimes cause interference with the operation of the scanner or the computer. Not all computers supply the same current through the keyboard port. For this reason, Metrologic recommends using an external power supply. For additional information contact a Metrologic customer service representative.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

10

Figure 10.

INSTALLATION

Stand-Alone Keyboard

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the MS3580.

3. Connect the other end of the PowerLink cable to the keyboard port on the host device.

4. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

5. Connect AC power to the transformer.

6. Turn on the host device.

When the scanner first receives power, the blue LED will turn on; the scanner will simultaneously emit a beep and flash the white LED.

Figure 11.

Powering the MS3580 directly from the host device can sometimes cause interference with the operation of the scanner or the computer. Not all computers supply the same current through the keyboard port. For this reason, Metrologic recommends using an external power supply. For additional information contact a Metrologic customer service representative.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

11

INSTALLATION

Full Speed or Low Speed USB

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the USB cable into the 10-pin socket on the MS3580.

3. Plug the other end of the USB interface cable into the host device’s USB port.

4. Turn on the host device.

When the scanner first receives power, the blue LED will turn on; the scanner will simultaneously emit a beep and flash the white LED.

As a default, the MS3580-38 leaves the factory with USB Keyboard Emulation Mode enabled.

For information on configuring the MS3580-38 for USB Serial Emulation Mode, please refer to Section P: Low Speed USB in the MetroSelect Configuration Guide (MLPN 00-02407).

Plugging the scanner into the USB port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration setting are also required for proper communication to occur.

Figure 12.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

12

SCANNER OPERATION

Configurable Primary and Secondary Scan Pattern Modes

There are two configurable scan pattern modes available with the MS3580.

• The primary scan pattern mode is the default scan pattern active when the scanner starts.

• The secondary scan pattern mode is activated by pressing the button located on the side of the scanner. This mode is also referred to as the button mode. For additional information on Quantum’s button modes and an example of each, please refer to Configurable Button Functions below.

The scanner returns to the primary scan pattern mode after a double click of the button or if the unit has not scanned a bar code for the duration of a pre-configured time limit.

Each pattern mode can be configured to use one of three scan patterns listed below. Please refer to the MetroSelect Configuration Guide for information on changing the default scan pattern settings.

• all scan lines on (omnidirectional reading)

• single-line (menu reading)

• horizontal raster

If CodeGate is enabled, it will apply to the secondary pattern mode when scanning. For detailed information on CodeGate and the button refer to the Configurable Button Functions.

Configurable Button Functions

The button on the side of the MS3580 can be configured to function in one of four modes.

• Button Click Mode, with CodeGate Enabled (Default)

• Button Click Mode, with CodeGate Disabled

• Button Hold Mode, with CodeGate Enabled

• Button Hold Mode, with CodeGate Disabled

The following pages include examples of how the button will function when the unit has been configured to operate in each of the four button modes.

13

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

B

UTTON CLICK MODE WITH CODEGATE ENABLED

For illustration purposes the unit’s primary scan pattern has been set to all scan lines (omnidirectional reading) and the secondary pattern has been set to single-line (menu reading) with a 5 second button click timeout configured.

1. The primary scan pattern is active when the scanner starts.

2. To activate the secondary scan pattern, press and release the button.

3. To decode and transmit the bar code, press and release the button. The scanner will beep once.

4. To reactivate the primary scan pattern, double click the button or after 5-seconds of no-scanning the unit will automatically reactivate the primary pattern.

14

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

B

UTTON CLICK MODE WITH CODEGATE DISABLED

For illustration purposes the unit’s primary scan pattern has been set to all scan lines (omnidirectional reading) and the secondary pattern has been set to single-line (menu reading) with a 5 second button click timeout configured.

1. The primary scan pattern is active when the scanner starts.

2. To activate the secondary scan pattern, press and release the button.

3. The unit will beep once as it decodes and transmits the bar code.

4. To reactivate the primary scan pattern, double click the button or after 5-seconds of no-scanning the unit will automatically reactivate the primary pattern.

15

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

B

UTTON HOLD MODE WITH CODEGATE ENABLED

For illustration purposes the unit’s* primary scan pattern has been set to all scan lines (omnidirectional reading) and the secondary pattern has been set to single-line (menu reading) with a 5 second button click timeout configured.

1. The primary scan pattern is active when the scanner starts.

2. To activate the secondary scan pattern, press and hold the button.

3. To scan the bar code, align the laser line over the bar code while continuing to hold down the button.

4. To transmit the bar code, release the button. The scanner will beep once.

16

SCANNER OPERATION

Configurable Button Functions

5. To scan and transmit additional bar codes, repeat steps 2 through 4.

6. The primary scan pattern will automatically reactivate after the button is released and no bar code is present in the scan field.

17

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

B

UTTON HOLD MODE WITH CODEGATE DISABLED

For illustration purposes the unit’s* primary scan pattern has been set to all scan lines (omnidirectional reading) and the secondary pattern has been set to single-line (menu reading) with a 5 second button click timeout configured.

1. The primary scan pattern is active when the scanner starts.

2. To activate the secondary scan pattern, press and hold the button.

3. To scan and transmit the bar code, align the laser line over the bar code while continuing to hold down the button. The scanner will beep once to indicate the bar code has been scanned and transmitted.

4. The primary scan pattern will automatically reactivate after the button is released and no bar code is present in the scan field.

18

SCANNER OPERATION

Audible Indicators

When the MS3580 is in operation, it provides audible feedback to indicate the status of the scanner. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone). For instructions on how to change the tone of the beeper, refer to the MetroSelect Configuration Guide (00-02407).

One Beep

When the scanner first receives power the white LED will flash, the blue LED will turn on and the scanner will beep once (the white LED will remain on for the duration of the beep). The scanner is now ready to scan.

When the scanner successfully reads a bar code, the white LED will flash and the scanner will emit a beep (if configured to do so). If the scanner does not beep once and the white light does not flash, then the bar code has not been successfully read.

Razzberry Tone

This is a failure indicator. Refer to Failure Mode Indicators on page 21.

Three Beeps - during operation

When placing the scanner in configuration mode, the white LED will flash while the scanner simultaneously beeps three times. The white and blue LEDs will continue to flash until the unit exits configuration mode. Upon exiting configuration mode, the scanner will beep three times and the white LED will stop flashing.

When configured, 3 beeps can also indicate a communications timeout during normal scanning mode.

When using one-code-programming, the scanner will beep three times: the current selected tone, followed by a short pause, a high tone and a low tone. This tells the user that the single configuration bar code has successfully configured the scanner.

Three Beeps - on power up

This is a failure indicator. Refer to Failure Mode Indicators on page 21.

19

SCANNER OPERATION

Visual Indicators

The QuantumT is equipped with a blue and white LED that indicates the scanner’s state and the status of the current scan when the unit is in operation.

Figure 13. Speaker Location and LED Location

No LEDs

The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer. They are also not illuminated when the laser is turned off for any reason.

Steady Blue

When the laser is active, the blue LED is illuminated. The blue LED will remain illuminated until the laser is deactivated.

Steady Blue and Single White Flash

When the scanner successfully reads a bar code, the white LED will flash and the scanner will beep once. If the white LED does not flash or the scanner does not beep once, then the bar code has not been successfully read.

Steady White and Blue

After a successful scan, the scanner transmits the data to the host device. Some communication modes require that the host inform the scanner when data is ready to be received. If the host is not ready to accept the information, the scanner’s white LED will remain on until the data can be transmitted.

Alternating Blue and White Flashes

This indicates the scanner is in program mode. A razzberry tone indicates that an invalid bar code has been scanned in this mode.

Steady White, Blue Off

This indicates the scanner may be waiting for communication from the host.

20

SCANNER OPERATION

Failure Mode Indicators

Flashing Blue and One Razzberry Tone

This indicates that the scanner has experienced a laser subsystem failure. Return the unit to an authorized service center for repair.

Flashing Blue and White and Two Razzberry Tones

This indicates that the scanner has experienced a motor failure. Return the unit to an authorized service center for repair.

Continuous Razzberry Tone with Both LEDs Off

If, upon power up, the scanner emits a continuous razzberry tone, then the scanner has an electronic failure. Return the unit to an authorized service center for repair.

Three Beeps - On Power Up

If the scanner beeps 3 times on power up, then the nonvolatile memory that holds the scanner configuration has failed. Return the unit to an authorized service center for repair.

21

SCANNER OPERATION

Depth of Field Specifications*

Normal Scan Zone

Specifications are based on a 0.33 mm (13 mil) bar code.

†

Figure 14. MS3580

* All specifications are subject to change without notice.

†

MS3580 shown with pedestal stand.

Normal Depth of Field

22

SCANNER OPERATION

Depth of Field Specifications*

Reduced Scan Zone

Specifications are based on a 0.33 mm (13 mil) bar code.

Figure 15. MS3580† Reduced Depth of Field

* All specifications are subject to change without notice.

†

MS3580 shown with pedestal stand.

23

SCANNER OPERATION

Depth of Field by Bar Code Element Width*

Normal Scan Zone

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E F

mm .13 .15 .19 .25 .33 .66

mils 5.2 5.7 7.5 10 13 26

Figure 16. Normal Scan Zone by Bar Code Element Width

* All specifications are subject to change without notice.

24

SCANNER OPERATION

Depth of Field by Bar Code Element Width*

Reduced Scan Zone

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E F

mm .13 .15 .19 .25 .33 .66

mils 5.2 5.7 7.5 10 13 26

Figure 17. Reduced Scan Zone by Bar Code Element Width

* All specifications are subject to change without notice.

25

SCANNER OPERATION

IR Activation Range*

QuantumT‘s default power save mode turns the laser off after a configured period of non-use. Any movement detected by the IR in the activation area will cause the scanner to exit power save mode. The laser will automatically turn back on preparing the scanner for bar code recognition, decoding and transmission.

Normal

†

is Laser OFF. This power save mode

Figure 18. Normal IR Activation Range

Reduced

Figure 19. Reduced IR Activation Range

*

All specifications are subject to change without notice.

†

Refer to the MetroSelect Configuration Guide (00-02407) for additional information on

configurable power save modes.

26

TROUBLESHOOTING GUIDE

The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited warranty terms on page 46.

Symptoms Possible Cause(s) Solution

All Interfaces

The unit has no LEDs, beeper or motor spin.

The unit has no LEDs and / or beeper.

There are multiple scans upon presentation of code.

The unit powers up but does not beep.

The unit powers up but does not scan and/or beep.

No power is being supplied to the scanner.

Check the transformer, outlet and power strip. Make sure the cable is plugged into the scanner.

Some host systems cannot No power is being supplied to the scanner from host.

supply enough current to power

the MS3580. Use the power

supply included with the

scanner.

The same symbol timeout is set too short.

Adjust the same symbol timeout

for a longer time increment.

The beeper is disabled. Enable the beeper.

No tone is selected. Select a tone.

The unit is trying to scan a particular symbology that is not enabled.

The scanner has been programmed for a character length lock, or a minimum length and bar code being scanned does not satisfy the programmed criteria

UPC/EAN, Code 39, Interleaved

2 of 5, Code 93, Code 128 and

Codabar are enabled by default.

Verify that the type of bar code

being read has been selected

Verify that the bar code that is

being scanned falls into the

criteria.

Typical of Non-UPC/EAN codes.

The scanner defaults to a

minimum of 4 character bar

code.

27

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

All Interfaces

The unit scans a bar code, but locks up after the first scan (the white LED stays on).

The unit scans but the data transmitted to the host is incorrect.

Scanner beeps at some bar codes and NOT for others of the same bar code symbology.

The scanner is configured to support some form of host handshaking but is not receiving the signal.

The scanner’s data format does not match the host system requirements.

The print quality of the bar code is suspect.

The aspect ratio of the bar code is out of tolerance.

The bar code may have been printed incorrectly.

The scanner is not configured correctly for the type of bar code.

If the scanner is setup to support

ACK/NAK, RTS/CTS,

XON/XOFF or D/E, verify that

the host cable and host are

supporting the handshaking

properly.

Verify that the scanner’s data

format matches the format

required by the host.

Make sure that the scanner is

connected to the proper host

port.

The type of printer and/or the

printer settings could be the

problem.

Check the print mode or change

the printer settings. For

example, change to econo mode

or high speed.

Check if it is a check digit,

character or border problem.

Check if check digits are set

properly.

The minimum symbol length setting does not work with the bar code.

28

Check if the correct minimum

symbol length is set.

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

All Interfaces

During power up the unit beeps 3 times.

During power up the unit razzes continuously.

During power up the unit razzes once and the blue LED flashes.

During power up the unit razzes twice and both LEDs flash.

RS232 Only

The unit powers up OK and scans OK but does not communicate properly to the host.

There is a non-volatile RAM failure.

There is a RAM or ROM failure.

There is a VLD failure.

There is a scanner motor failure.

The com port at the host is not working or is not configured properly.

The cable is not connected to the proper com port.

The com port is not operating properly.

Contact a Metrologic service

representative.

Contact a Metrologic service

representative.

Contact a Metrologic service

representative.

Contact a Metrologic service

representative.

Check to make sure that the

baud rate and parity of the

scanner and the communication

port match and that the program

is looking for RS232 data.

29

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

RS232 Only

The host is receiving data but the data does not look correct.

Characters are being dropped.

Keyboard Wedge Only

The unit scans the bar code but there is no data.

The unit scans but the data is not correct.

The unit is not transmitting each character.

The scanner and host may not be configured for the same interface.

The intercharacter delay needs to be added to the transmitted output.

The unit may not be configured correctly.

Check that the scanner and the

host are configured for the same

interface.

Add some intercharacter delay to

the transmitted output by using

the MetroSelect Configuration

MLPN 00-02407).

Guide (

Make sure the scanner is

configured for the appropriate

mode.

Make sure that the proper PC

type (ie. AT, PS2 or XT) is

selected.

Verify correct country code and

data formatting are selected.

Adjust the intercharacter delay.

Increase the interscan code

delay setting. Adjust whether

the F0 break is transmitted. It

may be necessary to try both

settings.

Alpha characters show as lower case.

Everything works except for a couple of characters.

30

The computer is in caps lock mode.

These characters may not be supported by the current country’s key look up table.

Enable caps lock detect setting

of the scanner to detect whether

the PC is operating in caps lock.

Try operating the scanner

in Alt Mode.

DESIGN SPECIFICATIONS

Operational

Light Source: Visible Laser Diode (VLD) @ 650 nm

Laser Power: 1.1 mW

Normal Depth of Field: 19 mm - 273 mm (.75"- 10.75")

Reduced Depth of Field: 19 mm - 146 mm (.75"- 5.75")

Omni Scan

Single-Line

Raster

Scan Speed: 1650 scan lines per second

No. of Scan Lines: 20

Scan Speed: 80 scan lines per second

No. of Scan Lines: 1

Scan Speed: 320 scan lines per second

No. of Scan Lines: 4

Motor Speed: 5000 RPM

Min Bar Width: 0.127 mm (5.0 mil)

MS3580

0.33 mm (13 mil) bar code

Decode Capability:

System Interfaces:

Print Contrast: 35% minimum reflectance difference

No. Characters Read:

Beeper Operation: 7 tones or no beep

Indicators (LED):

Specifications subject to change without notice.

All standard 1-D bar codes including RSS-14, RSS-Expanded, and RSS-14 Limited

RS232, Keyboard Wedge, Stand-Alone Keyboard, Light Pen Emulation, IBM468x/469x, USB (low speed and full speed), Laser Emulation, RS232 TTL, OCIA

Up to 80 data characters Maximum number will vary based on symbology and density.

Blue = laser on, ready to scan

White = good read, decoding

31

DESIGN SPECIFICATIONS

Mechanical

Width: 63 mm (2.48")

Depth: 50 mm (1.97")

Height: 68 mm (2.68")

Weight: 6 oz (170 g)

Electrical

Voltage Supply: 5VDC ± 0.25V

Operating Power: 1.375 W

Standby Power: 1.0 W

Operating Current: 275 mA typical at 5VDC

Standby Current: 230 mA typical at 5VDC

DC Transformers: Class II; 5.2VDC @ 650 mA

Laser Class 1:

EMC: FCC, ICES-003 & EN 55022 Class A

Environmental

Operating Temperature: -20°C to 40°C (-4°F to 104°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 5% to 95% relative humidity, non-condensing

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

Specifications subject to change without notice.

IEC 60825-1:1993+A1:1997+A2:2001 EN 60825-1:1994+A11:1996+A2:2001

MS3580

32

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory default communications protocol.

ERSION

CANNER

S

MS3580

V

IDENTIFIER

COMMUNICATION PROTOCOL(S)

9 OCIA and RS232 Transmit/Receive

11 IBM 46XX and Full RS232C

38

RS232 Low Speed USB, Keyboard Emulation or Serial Emulation

40 Full-Speed USB

41 Full RS232C/Light Pen Emulation

47

104

Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive

RS232, T

ransistor - Transistor Logic (TTL),

Laser Emulation

The MS3580 scanner with built-in PC Keyboard Wedge Interface is designed to be used for keyboard emulation only. Many RS232 programmable functions (e.g. formatting) available in other Metrologic scanners are also available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard wedge.

Keyboard Type

• ** AT (includes IBM® PS2 models 50, 55, 60, 80)

• XT

• IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

• USA ** • German • Spanish

• Belgium • Italian • Swiss

• French • Japan • United Kingdom

** Default setting. For a complete list of default settings, see Default Settings -

Communication Parameters starting on page 34 of this guide. Refer to the

MetroSelect

®

Configuration Guide (MLPN 00-02407) or MetroSet2’s help files

for information on how to change the default settings.

33

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

Many functions of the scanner can be "configured" - that is enabled or disabled. The scanner is shipped from the factory configured to a set of default conditions. The default parameter of the scanner has an asterisk ( * ) in the charts on the following pages. If an asterisk is not in the default column then the default setting is Off or Disabled. Every interface does not support every parameter. If the interface supports a parameter listed in the charts on the following pages, a check mark () will appear.

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

UPC/EAN

Code 128

Code 93

Codabar

Interleaved 2 of 5 (ITF)

MOD 10 Check on ITF

Code 11

Code 39

Full ASCII Code 39

MOD 43 Check on Code 39

MSI-Plessey

MSI-Plessey 10/10 Check Digit

MSI-Plessey MOD 10 Check Digit

Paraf Support

ITF Symbol Lengths

Minimum Symbol Length

Symbol Length Lock

RSS14 Enable

RSS14 ID “]e0”

RSS14 App ID “01”

RSS14 Check Digit

RSS Expanded Enable

* * * * *

*

Variable

4

None

* * *

IBM

RS232

TTL

PEN

46XX

KBW

      

LASER

EMULATION

34

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Expanded ID “]e0”

RSS Limited Enable

RSS Limited ID “]e0”

RSS Limited App ID “01”

RSS Limited Check Digit

Bars High as Code 39

Spaces High as Code 39

Bars High as Scanned

Spaces High as Scanned

DTS/SIEMENS

DTS/NIXDORF

NCR F

NCR S

Poll Light Pen Source

Beeper Tone

Beep/Transmit Sequence

Communication Timeout

Razzberry Tone on Timeout

Three Beeps on Timeout

No Beeps on Timeout

Enter Power Save Mode

*

* * * *

*

Normal

Before

Transmit

None

*

5 mins.

RS232

TTL

      



      

PEN



IBM

46XX

KBW

LASER

EMULATION



Same Symbol Rescan Timeout: 500 msecs Programmable in 50 msec steps (MAX 6.35 seconds)

Intercharacter Delay Programmable in 1 msec steps (MAX 255 msecs)

Number of Scan Buffers

1 msecs

10 msecs in

KBW

      

*

  

1

      

 

35

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Transmit UPC-A Check Digit

*

RS232

TTL

      

PEN

IBM

46XX

KBW

LASER

EMULATION

Transmit UPC-E Check Digit

Expand UPC-E

Convert UPC-A to EAN-13

Transmit Lead Zero on UPC-E

Convert EAN-8 to EAN-13

Transmit UPC-A Number System

Transmit UPC-A Manufacturer ID#

Transmit UPC-A Item ID#

Transmit Codabar Start/Stop Characters

CLSI Editing (Enable)

Transmit Mod 43 Check Digit on Code 39

Transmit Code 39 Stop/Start Characters

Transmit Mod 10/ITF

Transmit MSI-Plessey Check Characters

Parity

Baud Rate

8 Data Bits

7 Data Bits

Stop Bits

Transmit Sanyo ID Characters

*

Space

9600

*

2

     

      

  

 

      

  

 

      

  



 



36

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Nixdorf ID

LRC Enabled

UPC Prefix

UPC Suffix

Transmit AIM ID Characters

STX Prefix

RS232

TTL

 



 



IBM

PEN

46XX

KBW



LASER

EMULATION

ETX Suffix

Carriage Return

Line Feed - disabled by default in KBW

Tab Prefix

Tab Suffix

“DE” Disable Command

“FL” Laser Enable Command

DTR Handshaking Support

RTS/CTS Handshaking

Character RTS/CTS

Message RTS/CTS

XON/XOFF Handshaking

ACK/NAK

Two Digit Supplements

Five Digit Supplements

Bookland

977 (2 digit) Supplemental Requirement

*

 



  

      

as code

39

 



as code

39

as code

39

as code

39

37

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Supplements are not Required

*

RS232

TTL

      

PEN

IBM

46XX

KBW

LASER

EMULATION

Two Digit Redundancy

Five Digit Redundancy

100 msec to Find Supplement Programmable in 100msec steps (MAX 800 msec)

Coupon Code 128

Programmable Code Lengths

Programmable Prefix Characters

Programmable Suffix Characters

Prefixes for individual Code Types

Editing

Inter Scan-Code Delay Programmable (100 µsec steps)

Function/Control Key Support

Minimum Element Width Programmable in 5.6 µsec steps

*

7 avail.

10

avail.

10

avail.

800

µsec

1 msec

      

  

as code

39

 

as code

39

      



 



      



Normal Depth of Field

Reduced Depth of Field

38

      

*

      

UPGRADING THE FLASH ROM FIRMWARE

The MetroSet2 program is a functional component of Metrologic’s new line of Flash- based scanners. This program allows the user of a Metrologic scanner to quickly upgrade to a new or custom version of firmware. It requires the use of a personal computer running Windows 95 or greater and the use of a serial port. The user merely connects the scanner to a serial port on the PC, launches the MetroSet2 program, and blasts off to new software upgrades.

Each MS3580, regardless of the version number or communication protocol, can be upgraded. All RS232 (-41); keyboard wedge (-47); light pen (-41); OCIA (-9); IBM 468X/469X (-11); low speed USB (-38); integrated full speed USB (-40); and RS232 TTL, Laser Emulation (-104) units can be upgraded. To upgrade all units, a power supply and a PowerLink cable (

RS232 units can be upgraded using the standard PowerLink cable (

MLPN 54-54000x-3).

The program guides the user with its simplistic one click approach. The user must first select the file. Once the file is selected and verified, the scanner is ready to be upgraded. Press the “Flash Scanner” button to upgrade the scanner. The unit will go into a “flash mode” – both the blue and white LEDs will be on. The user can follow the progress of the upgrade by watching the screen for details. When the upgrade is complete, the scanner will respond with its normal one beep on power up. If two beeps occur, the scanner did not upgrade properly. Contact a Metrologic service representative for additional assistance.

MLPN 54-54014) are required.

39

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

The MS3580 scanner interfaces terminate to a 10-pin modular socket. The serial # label indicates the interface enabled when the scanner is shipped from the factory.

Figure 20. Bottom View of MS3580 (Stand Removed)

MS3580-47 Keyboard Wedge

and Stand-Alone Keyboard

RS232C and Light Pen Emulation

Pin Function Pin Function

1 Ground 1 Ground 2 RS232 Transmit Output 2 RS232 Transmit Output 3 RS232 Receive Input 3 RS232 Receive Input 4 PC Data 4 RTS Output 5 PC Clock 5 CTS Input 6 KB Clock 6 DTR Input/LTPN Source 7 PC +5V 7 Reserved 8 KB Data 8 LTPN Data 9 +5VDC 9 +5VDC

10 Shield Ground

MS3580-40

Full Speed USB

RS232 Low Speed USB

Pin Function Pin Function

1 Ground 1 Ground 2 RS232 Transmit Output 2 RS232 Transmit Output 3 RS232 Receive Input 3 RS232 Receive Input 4 RTS Output 4 RTS Output 5 CTS Input 5 CTS Input 6 USB D+ 6 D+ 7 V USB 7 V USB 8 USB D- 8 D9 +5VDC 9 +5VDC

10 Shield Ground

MS3580-41

MS3580-38

40

SCANNER AND CABLE TERMINATIONS

MS3580-11 IBM 468X/469X

Pin Function Pin Function

1 Ground 1 Ground 2 RS232 Transmit Output 2 RS232 Transmit Output 3 RS232 Receive Input 3 RS232 Receive Input 4 RTS Output 4 RDATA 5 CTS Input 5 RDATA Return 6 DTR Input 6 Clock In 7 IBM B-Transmit 7 Clock Out

8 IBM A+ Receive 8

9 +5VDC 9 +5VDC

10 Shield Ground

MS3580-104 RS232 TTL, Laser Emulation

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 RTS Output (TTL RS232) / Flip Sense 5 CTS Input (TTL RS232) / Trigger Emulation Output 6 DTR Input (TTL RS232) / Scan Enable 7 Receive (TTL RS232) / Good Read 8 Transmit (TTL RS232) / Scan Data 9 +5VDC

10 Shield Ground

MS3580-9 OCIA

Clock in Return/ Clock out Rtrn

41

9

ype Connector

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

“Standard” PowerLink Cable

MLPN 54-54000

Pin Function

1 Shield Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 DTR Input/Light Pen Source 5 Power/Signal Ground 6 Light Pen Data

7 CTS Input

8 RTS Output 9 +5VDC

USB Power/Communication Cable

MLPN 54-54213

54-54214

x

Pin Function

1 PC +5V/V_USB 2 D3 D+ 4 Ground

Shield Shield

Stand Alone Keyboard PowerLink

Cable

Pin Function

1 PC Data 2 No Connect 3 Power Ground 4 +5VDC PC Power to KB 5 PC Clock 6 No Connect

x

-3 straight

x

-N-3,

-N-3 or 54-54235x-N-3

MLPN 54-54020

x

-3

-Pin D-T

USB Type A

Locking with Power

6-Pin Male Mini-DIN Connector

Non-Locking

95

61

USB

42

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

Keyboard Wedge PowerLink Cable

54-54002x -3

Pin Function

1 Keyboard Clock 2 Keyboard Data 3 No Connect 4 Power Ground 5 +5 Volts DC

5-Pin DIN, Female

Pin Function

1 PC Data 2 No Connect 3 Power Ground 4 +5 Volts DC

5 PC Clock

6-Pin DIN, Male

6 No Connect

Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. According to the termination required, connect the appropriate end of the adapter cable to the PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC.

Keyboard Wedge Adapter Cable

Pin Function

1 PC Clock 2 PC Data 3 No Connect 4 Power Ground

5-Pin DIN, Male

5 +5 Volts DC

Pin Function

1 Keyboard Data 2 No Connect 3 Power Ground 4 +5 Volts DC 5 Keyboard Clock

6-pin Mini DIN, Female

6 No Connect

43

LASER AND PRODUCT SAFETY

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase eye hazard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi d'appareils optiques avec cet équipement laser augmente le risque d'endommagement de la vision.

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.

Attenzione L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di danni alla vista.

44

LASER AND PRODUCT SAFETY

Notices

This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense. Any unauthorized changes or modifications to this equipment could void the user’s authority to operate this device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice This Class A digital apparatus complies with Canadian ICES-003.

Remarque Cet appareil numérique de la classe A, conformé a la norme NMB-003 du Canada.

European Standard

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Funkstöreigenschaften nach EN 55022:1998

Warnung!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen; in diesem fall kann vom Betrieber verlangt werden, angemessene Maßnahmen durchführen.

Standard Europeo

Attenzione

Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.

Attention

Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les mesures adéquates.

45

LIMITED WARRANTY

The MS3580 QuantumT™ scanners are manufactured by Metrologic at its Blackwood, New Jersey, U.S.A. facility. The MS3580 QuantumT scanners have a three (3) year limited warranty from the date of manufacture. Metrologic warrants and represents that all MS3580 QuantumT scanners are free of all defects in material, workmanship and design, and have been produced and labeled in compliance with all applicable U.S. Federal, state and local laws, regulations and ordinances pertaining to their production and labeling.

This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA; Madrid, Spain; or Suzhou, China. To do this, contact the appropriate Metrologic Customer Service/Repair Department to obtain a Returned Material Authorization (RMA) number.

In the event that it is determined the equipment failure is covered under this warranty, Metrologic shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit and return such repaired or replaced Product without charge for service or return freight, whether distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase price.

This limited warranty does not extend to any Product which, in the sole judgment of Metrologic, has been subjected to abuse, misuse, neglect, improper installation, or accident, nor any damage due to use or misuse produced from integration of the Product into any mechanical, electrical or computer system. The warranty is void if the case of Product is opened by anyone other than Metrologic’s repair department or authorized repair centers.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR ARISING OUT OF CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN.

CORPORATE HEADQUARTERS,

ORTH AMERICA

N

Metrologic Instruments, Inc. Metrologic Eria Ibérica, SL

90 Coles Rd. C/Alfonso Gomez, 38-40, 1D Blackwood, NJ 08012-4683 28037 Madrid Customer Service Department Tel: +34 913 751 249 Tel: 1-800-ID-METRO Fax: +34 913 270 437 Fax: 856-228-6673 Email: info@metrologic.com

AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD

MTLG Suzhou Sales Office

BLK A, Room# 03/03-04 No.5 Xinghan Street, Xinsu Industrial Square China-Singapore Suahou Industrial Park, Suzhou, PRC Tel: 86-512-67622550 Fax: 86-512-67622560 Email: info@cn.metrologic.com

46

METROLOGIC EUROPEAN REPAIR CENTER (MERC)

PATENTS

Patent Information

This METROLOGIC product may be covered by one or more of the following U.S. Patents:

U.S. Patent No.; 5,216,232; 5,260,553; 5,340,971; 5,424,525; 5,484,992; 5,525,789; 5,528,024; 5,557,093; 5,616,908; 5,627,359; 5,637,852; 5,661,292; 5,777,315; 5,789,730; 5,789,731; 5,811,780; 5,828,048; 5,844,227; 5,925,870; 6,029,894; 6,098,885; 6,209,789; 6,257,492; 6,286,760; 6,299,067; 6,347,743; 6,412,696; 6,460,767;

No license right or sublicense is granted, either expressly or by implication, estoppel, or otherwise, under any METROLOGIC or third party intellectual property rights (whether or not such third party rights are licensed to METROLOGIC), including any third party patent listed above, except for an implied license only for the normal intended use of the specific equipment, circuits, and devices represented by or contained in the METROLOGIC products that are physically transferred to the user, and only to the extent of METROLOGIC’S license rights and subject to any conditions, covenants and restrictions therein.

Other worldwide patents pending.

47

INDEX

A

AC .......................................2, 8–12

Accessories ...............................2, 3

Adapter........................................ 10

Audible Indicator............. 13, 19–21,

27–30, 39

B

Bar Code ............. 19–21, 27–30, 31

Bar Width.....................................31

Beep..............19, 20, 21, 27–30, 39

Blue LED ............. 19–21, 27–30, 39

Button................................4, 13–18

C

Cable

Communication...2, 8–12, 27–30,

39, 42–43

Keyboard Wedge ...............42–43

Pin Assignments ................42–43

PowerLink .. 2, 5, 8–12, 39, 42–43

Troubleshooting .................27–30

USB ...................................42–43

Caution..........................5, 8–12, 44

Class ...........................................45

CodeGate..........................1, 13–18

Communication .........20, 27–30, 33

Parameters ........................ 34–38

Compliance .............................8–12

Components ..............................2, 4

Configuration.........................19, 21

Default ...............................34–38

Current ........................................32

Customer Service..................46, 50

D

DC ...........................................2, 32

Default Settings ...13, 14, 33, 34–38 Depth of Field

Normal ................... 22, 24, 31, 38

Reduced ..........23, 24, 25, 31, 38

F

Failure

Modes......................................21

FCC.............................................45

48

Firmware..................................... 39

Flash ROM.............................. 1, 39

H

Host ...................................... 27–30

I

IBM ................................... 9, 34–38

Indicator

Audible . 4, 13, 19–21, 27–30, 31,

39

Failure ..................................... 21

Visual .... 4, 19–21, 27–30, 31, 39

Interface...................................... 31

IBM............................ 1, 9, 34–38

Keyboard Wedge1, 10, 30, 34–38

Laser Emulation ........ 1, 8, 34–38

Light Pen ................... 1, 8, 34–38

OCIA ......................... 1, 9, 34–38

RS232 ........... 1, 8, 29, 30, 34–38

RS232 TTL...................... 1, 8, 33

Stand-Alone Keyboard ........ 1, 11

Troubleshooting................. 27–30

USB......................... 1, 12, 34–38

IR Activation Range

Normal..................................... 26

Reduced.................................. 26

K

Keyboard Country Type .............. 33

Keyboard Type............................ 33

Keyboard Wedge ...... 10, 30, 34–38

L

Label

Caution...................................... 5

Serial Number ........................... 5

Laser........................................... 44

Laser Aperture .............................. 4

Laser Emulation ................ 8, 34–38

LED....................................... 19–21

Light Pen........................... 8, 34–38

Light Source................................ 31

M

Maintenance ................................. 5

Manual .............................. 2, 19, 33

INDEX

MetroSet2....................................39

Mode of Operation

Button ......................................18

Primary ..............................13–18

Secondary..........................13–18

Sweet Spot Mode ....................38

Motor Speed................................31

Mounting Specifications ................5

N

Notices ........................................45

O

OCIA .................................9, 34–38

Omnidirectional .....................13–18

Operation.....................................45

P

Patents ........................................47

PC .........................................33, 43

Pin Assignments

Cable .................................42–43

Scanner .............................40–41

Port.............................. 8–12, 27–30

Power ............................2, 8–12, 39

PowerLink................................8–12

Product Safety.............................44

Property....................................... 47

Protocol .......................................33

R

RAM ............................................29

Raster.................................... 13–18

Razzberry Tone............... 19–21, 29

Repair.......................................... 21

Replacement Parts........................3

RMA ............................................46

ROM............................................29

RS232 ...................8, 29, 30, 34–38

RS232 TTL..............................8, 33

S

Scan Lines .................................. 31

Scan Pattern ........................... 1, 31

Horizontal Raster..................... 13

Omnidirectional ................. 13–18

Primary.............................. 13–18

Secondary ......................... 13–18

Single-Line ........................ 13–18

Scan Speed ................................ 31

SELV....................................... 8–12

Single-Line............................ 13–18

Specification

Electrical.................................. 32

Environmental ......................... 32

Mechanical .............................. 32

Operational.............................. 31

Stand-Alone Keyboard................ 11

Storage ....................................... 32

Sweet Spot Mode........................ 38

T

Tone............................................ 19

Tones............................................ 1

Transformer ............................ 2, 32

Troubleshooting .................... 27–30

U

Upgrade ...................................... 39

USB ................................ 12, 34–38

V

Ventilation ................................... 32

Visual Indicator ... 19–21, 27–30, 39

Blue LED ........... 4, 19–21, 27–30

White LED ......... 4, 19–21, 27–30

Yellow LED........ 4, 19–21, 27–30

Voltage.............................. 8–12, 32

Volume........................................ 19

W

Warranty ..................................... 46

Weight......................................... 31

White LED........... 19–21, 27–30, 39

Window ......................................... 4

49

CONTACT INFORMATION AND OFFICE LOCATIONS

CORPORATE HEADQUARTERS N

ORTH AMERICA

USA, New Jersey

Metrologic Instruments, Inc. Metrologic Instruments GmbH Tel: 1-800-ID-METRO Fax: 856-228-6673 Tel: 49-89-89019-0 Fax: 49-89-89019-200 Email: info@metrologic.com Email: info@europe.metrologic.com

SOUTH AMERICA AND CENTRAL AMERICA

Brazil São Paulo

Metrologic do Brasil Ltda. Email: info@de.metrologic.com Tel: 55-11-5182-8226 Fax: 55-11-5182-8315 Email: info@br.metrologic.com

Tel: 49-89-89019-222 Fax: 49-89-89019-173

Outside Brazil São Paulo

Metrologic South America Tel: 55-11-5182-7273 Fax: 55-11-5182-7198 Metrologic Instruments Italia srl Email: info@sa.metrologic.com Tel: +39 0 51 6511978 Fax: +39 0 51 6521337

Email: info@it.metrologic.com

ASIAN HEADQUARTERS

Asia, Singapore

Metrologic Asia (Pte) Ltd Tel: (65) 6842-7155 Fax: (65) 6842-7166 Tel: +33 (0) 1 48.63.78.78 Email: info@sg.metrologic.com Fax: +33 (0) 1 48.63.24.94 Email: info@fr.metrologic.com

China

MTLG Auto ID Instruments (Shanghai) Co., Ltd Tel: 86-2158692780 Fax: 86-21-58692782 Metrologic Eria Ibérica, SL Email: info@cn.metrologic.com Tel: +34 913 272 400 Fax: +34 913 273 829 Email: info@es.metrologic.com Metro (Suzhou) Sales Office Tel: 86-512-67622550 Fax: 86-512-67622560 Metrologic European Repair Center (MERC) Email: info@cn.metrologic.com Metrologic Eria Ibérica, SL Tel: +34 913 751 249 Fax: +34 913 270 437 Guangzhou Sales Office Tel: 86-20-38823476 Fax: 86-20-38823477 Email: info@cn.metrologic.com Metrologic Instruments UK Limited Tel: +44 (0) 1256 365900 Beijing Sales Office Fax: +44 (0) 1256 365955 Tel/Fax: 86 10 82253472 Email: info@uk.metrologic.com Email: info@cn.metrologic.com

Japan, Tokyo

Metrologic Japan Co., Ltd. Tel: 81-03-3839-8511 Fax: 81-03-3839-8519 Email: info@ru.metrologic.com Email: info@jp.metrologic.com

India, Bangalore

Metrologic India Tel: +48 (22) 545 04 30 Tel: +91 80 51256718 Fax: +91 80 51256719 Fax: +48 (22) 545 04 31 Email: info@in.metrologic.com Email: info@pl.metrologic.com

EUROPEAN, MIDDLE EAST & AFRICAN HEADQUARTERS

Germany, Munich

Germany, Austria and Switzerland

Tel: 49-89-89019-0 Fax: 49-89-89019-200

Eastern Europe and Middle East

Italy, Bologna

France, Paris

Metrologic Eria France SA

Spain, Madrid

United Kingdom, Basingstoke

Russia, Moscow

Metrologic Russia

Tel: +7 095 730 7424 Fax: +7 095 730 7425

Poland, Warsaw

Metrologic Instruments Poland Sp.z o.o

50

June 2005

Printed in the USA

00-05090B

Quantum Instruments MS3580 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

MS3580 QuantumT

TABLE OF CONTENTS

INTRODUCTION

Scanner and Accessories

Scanner Components

Caution and Serial Number Labels

Cable Removal

Maintenance

Mounting Specifications and Stand Assembly

Pedestal Stand

INSTALLATION

RS232, RS232 TTL, Light Pen or Laser Emulation

IBM 46xx or OCIA

Keyboard Wedge

Stand-Alone Keyboard

SCANNER OPERATION

Configurable Primary and Secondary Scan Pattern Modes

Configurable Button Functions

Depth of Field Specifications*

Normal Scan Zone

Reduced Scan Zone

Depth of Field by Bar Code Element Width*

Normal Scan Zone

Reduced Scan Zone

IR Activation Range*

Normal

Reduced

TROUBLESHOOTING GUIDE

DESIGN SPECIFICATIONS

Operational

Mechanical

Electrical

Environmental

APPLICATIONS AND PROTOCOLS

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

UPGRADING THE FLASH ROM FIRMWARE

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

Cable Connector Configurations (Host End)

LASER AND PRODUCT SAFETY

LIMITED WARRANTY

PATENTS

INDEX
