Quantum Vision 4.3.2 Quick
Start Guide
This quick start guide provides basic installation and configuration
instructions for Quantum Vision. For more information, see the
Vision User’s Guide
.
About Quantum Vision
Quantum
Quantum Vision
Contents
Quantum Vision Requirements ............... 2
Server Requirements ........................... 3
Server Port Requirements.................... 3
Browser Requirements ........................4
Supported Storage Devices................. 4
Installing Quantum Vision.......................5
Windows Installation .......................... 6
Linux Installation................................. 9
Virtual Appliance Installation............ 12
Updating Quantum Vision .................... 23
Updating the Virtual Appliance ........ 24
Updating the Standard Installer
Version of Vision ............................... 28
Quantum Vision Setup .......................... 30
Logging On to Vision ........................ 30
Discovering Devices........................... 31
Accessing the Console Command Line
(virtual appliance only) ..................... 33
Ta king Next Steps .............................. 36
Quantum® Vision™ provides powerful monitoring, reporting, and analysis
tools for all of the Quantum storage devices in your backup environment.
You can view the status and track the performance of multiple DXi™ disk
backup systems, vmPRO 4000, vmPRO and DXi V-Series virtual devices,
Scalar LTFS devices, and Scalar® libraries using a single flexible interface.
Quantum Vision gives you the following capabilities:
• Identify and initiate software updates for one or more vmPRO
appliances from Vision.
• Receive notification of and initiate a Vision software update using the
Vision GUI (virtual appliance only).
• Provide a per customer charge back report based on individual shares,
partitions, or OST LSU system usage in both print and e-mail versions.
The report includes data size ingested, size of unique data ingested,
and compressed size of unique data ingested.
• Monitor the status and health of up to 300 DXi, Scalar, Scalar LTFS, and
vmPRO devices.
• Visualize data on-demand to track capacity usage, analyze
performance, and identify trends.
• Access a Topology display to view the devices and their relationships.
• Automatically generate reports and graphs, and send them to multiple
recipients.
www.quantum.com
Quantum Vision 4.3.2 Quick Start Guide
• Access the native management interface of any monitored Quantum device.
• View and compare DXi Advanced Reporting graphs for one or more DXi disk backup
systems.
• Generate a Capacity Upgrade Estimate for DXi devices, this is an estimate regarding
when your RAID may need to be expanded.
• Monitor the usage and health of media in Scalar libraries (including Extended Data
Life Management (EDLM) status), change media location, and delete media.
About Quantum Vision 4.3.2
Quantum® Vision™ 4.3.2 provides significant performance improvements and several
bugs fixes, which provide functionality and stability enhancements.
Notational Conventions
The following formats indicate important information:
Note: Notes emphasize important information related to the main topic.
Caution: Cautions indicate potential situations in which data can be lost or
situations in which the software might not function as designed.
Quantum Vision Requirements
This section describes the following hardware and software requirements for Quantum
Vision:
• Server Requirements on page 3
• Server Port Requirements on page 3
• Browser Requirements on page 4
• Supported Storage Devices on page 4
2 Quantum Vision Requirements
Quantum Vision
Server Requirements The Quantum Vision software runs on the Vision server. Before installing the Quantum
Vision software, make sure the Vision server meets the requirements in Tab l e 1
.
Table 1 Vision Server System
Requirements
Server Component System Requirement
Processor Intel or AMD server class
2 CPUs for up to 50 devices
4 CPUs for more than 50 devices
Memory 4 GB for monitoring up to 50 devices
8 GB for monitoring more than 50 devices
Available Disk Space 200 GB for monitoring up to 50 devices
400 GB for monitoring more than 50 devices
Operating System One of the following operating systems:
• Windows Server 2003 32-bit
• Windows Server 2003 R2 64-bit
• Windows Server 2008 32-bit
• Windows Server 2008 R2 64-bit
• Red Hat Enterprise Linux 5 32-bit
• Red Hat Enterprise Linux 5 64-bit
Virtual Appliance • Server system with at least an i7 quad-core Intel
proce
ssor (or AMD equivalent)
2 virtual CPUs for up to 50 devices
4 virtual CPUs for more than 50 devices
• At least one IP address available for use by the Vision
appliance
• One or more ESX4, ESXi4, or ESXi5 servers
• Same memory requirements as that of a
installation
processor
physical server
Additional Software (Windows only) Microsoft NET Framework 2.0 or higher
Note: Quantum Vision supports installation and operation on a virtual machine (VM)
if all other system requirements are met.
Server Port Requirements
Quantum Vision Requirements 3
For correct operation of Quantum Vision, the following firewall ports must be open on
the Vision server:
• Po
rt 80 - Web server (http)
• Po
rt 443 - Web server (https)
• Po
rt 162 - SNMP
Quantum Vision 4.3.2 Quick Start Guide
To enable monitoring of storage devices, the following firewall ports on the Vision server
must allow outgoing traffic:
• Port 80 - Web server (http)
• Port 443 - Web server (https)
• Port 22 - SSH
Note: Ports 80 and 443 are the default web server ports. If you specified different
web server ports when installing the Quantum Vision software, open those
ports in the firewall instead. For more information about specifying the web
server ports during installation, see Installing Quantum Vision on page 5.
Browser Requirements Quantum Vision 4 is designed to run in any modern Web browser that supports the
Adobe Flash Player plug-in. Web browser software is not included with Quantum Vision.
You must obtain and install it separately.
You must install the correct version of the Adobe Flash Player plug-in for your operating
system and browser. Quantum Vision 4.3.2 requires Adobe Flash Player version 11.1 or
higher. To download and install Flash Player, go to: http://www.adobe.co
m
Supported Storage Devices
Caution: Quantum Vision does not support the 64-bit version of the Flash Player
plug-in on Linux. Instead, use the 32-bit Flash Player plug-in and a 32-bit
browser.
To discover and monitor a DXi disk backup system, Scalar tape library, Scalar LTFS, or
vmPRO appliance in Quantum Vision, it must be a supported device. Quantum Vision
supports the following Quantum storage devices:
• DXi8500 disk backup system
• DXi7500 disk backup system
• DXi6802 disk backup system
• DXi6701 and DXi6702 disk backup systems
• DXi6700 disk backup system
• DXi6500 disk backup family
• DXi5500 disk backup system
• DXi4701 disk backup system
• Dxi4600 disk backup system
• DXi4500 disk backup system
• DXi3500 disk backup system
• DXi2500-D disk backup system
• DXi V-Series (DXi V1000 and DXi V4000) virtual backup systems
4 Quantum Vision Requirements
• Scalar i6000 library
• Scalar i2000 library
• Scalar i500 library
• Scalar i80 library
• Scalar i40 library
•Scalar LTFS
• vmPRO 4000 (software/hardware backup solution)
•vmPRO virtual backup system
Installing Quantum Vision
If Quantum Vision 3 is installed on the Vision server, you should uninstall it before you
install any version of Quantum Vision 4.
Quantum Vision
Caution: Installing Vision 4 does not upgrade an existing Vision 3 installation. It is
possible to run both Quantum Vision 3 and Quantum Vision 4
simultaneously on the Vision server. However, this is not the recommended
configuration. For more information about moving from Vision 3 to Vision
4, see the Appendix “Vision Deployment Options” in the
User’s Guide
To install the Quantum Vision software, follow the procedure for the operating system
running on the Vision server:
• Windows Installation on page 6
• Linux Installation on page 9
To update an existing installation of Quantum Vision 4 to the latest version, see
Updating
Note: Before installing Quantum Vision, make sure the operating system on the
Vision 4.3.2 is also available as a VMware appliance in a format that installs within a
vSphere infrastructure. To install Vision as a virtual appliance, see V
Installation on page 12
Note: There is no technical advantage for Vision to be installed on a VM or physical
the Standard Installer Version of Vision on page 28.
Vision server is accessible on the network. For best results, Quantum
recommends configuring the Vision server with a static IP address.
server. Vision may be installed on either a physical server or as a virtual machine
(by OVF or other means) to allow you to comply with your IT standards and
policies.
.
Quantum Vision
irtual Appliance
Installing Quantum Vision 5
Quantum Vision 4.3.2 Quick Start Guide
Windows Installation To install the Quantum Vision software on a server running a Windows operating
system:
Figure 1 Quantum Vision
Setup Wizard (Windows)
1 Downl
oad the Vision installer file: vision-4.3.2-windows-installer.exe. If you do not
have Internet access and have copied Vision to a removable media, insert the media
into the appropriate drive of the Vision server.
2 Browse to the location of the Quantum Vision installer file:
vision-4.3.2-windows-
installer.exe. Double-click the file to begin installation.
The Quantum Vision Setup Wizard displays (see Figure
1).
Figure 2 License Agreement
(Windows)
3 Click Next to continue.
The License Agreement window
displays (see Figure 2).
4 Select I accept the agreement, and then click Next to continue.
6 Installing Quantum Vision
Figure 3 Installation Directory
(Windows)
Quantum Vision
The Installation Directory window displays (see Figure 3).
5 Specify a different location to install the Quantum Vision software, or accept the
default location. Click Next to continue.
Figure 4 Vision Ports
(Windows)
The Vi
sion Ports window displays (see Figure 4).
6 Specify the ports that Quantum Vision will use, or accept the default port values.
Click Next to continue.
Note: On Windows or Linux installed Vision servers, you can change your network
ports using Vision’s Security feature; however, be sure to check your
existing firewall configuration and make sure the appropriate firewall ports
are open.
The Ready to Install window displays (see Figure 5).
Installing Quantum Vision 7
Quantum Vision 4.3.2 Quick Start Guide
Figure 5 Ready to Install
(Windows)
7 Click Next to continue.
Figure 6 Completing the
Quantum Vision Setup Wizard
(Windows)
Wait while the setup wizard installs the software, initializes the database,
and starts
Vision. When the setup wizard is finished, the Completing the Quantum Vision
Setup Wizard window displays (see Figure
6).
8 (Optional) Select the check box to launch Quantum Vision after closing the setup
wizard.
9 Click Fin
10 Remove the Quantum Vision Instal
ish to close the setup wizard.
lers and Documentation CD from the CD-ROM
drive, as needed.
Continue with
8 Installing Quantum Vision
Quantum Vision Setup on page 30.
Quantum Vision
Linux Installation To install the Quantum Vision software on a server running a Linux operating system:
1 Use
one of the following options to install Quantum Vision:
Figure 7 Quantum Vision
Setup Wizard (Linux)
a If you do not have
insert the media into the appropriate drive of the Vision server.
In a terminal window, execute the following commands as root:
umount /media/<device>
mkdir /tmp/VISION
mount /dev/<device> /tmp/VISION/
cd /tmp/VISION/
./setup-linux.bin
b If
you have downloaded the Vision Linux Installer:
vision-4.3.2-linux
In a terminal window, execute the following commands as root:
chmod +x /root/Desktop/vision-4.3.2-lin
If you are in a desktop environment, double-click the installer file.
If you are in a command line environment,
type
./vision-4.3.2-linux-installer.run, and then press <Enter>.
The Quantum Vision Setup Wizard displays (see Figure
Internet access and have copied Vision to a removable media,
-installer.run.
ux-installer.run
7).
2 Click Forward to continue.
The License Agreement window
Installing Quantum Vision 9
displays (see Figure 8).
Quantum Vision 4.3.2 Quick Start Guide
Figure 8 License Agreement
(Linux)
3 Select I accept the agreement, and then click Forward to continue.
Figure 9 Installation Directory
(Linux)
The Installation Directory
window displays (see Figure 9).
4 Specify a different location to install the Quantum Vision software, or accept the
default location. Click Forward to continue.
The Vi
sion Ports window displays (see Figure 10).
10 Installing Quantum Vision
Figure 10 Vision Ports (Linux)
Quantum Vision
5 Specify the ports the Quantum Vision will use, or accept the default port values.
Click Next to continue.
Note: On Windows or Linux installed Vision servers, you can change your network
ports using Vision’s Security feature; however, be sure to check your
existing firewall configuration and make sure the appropriate firewall ports
are open.
Figure 11 Ready to Install
(Linux)
The Ready to Install window displays (see Figure 11).
6 Click Forward to continue.
Wait while the setup wizard installs the software, initializes the database,
and starts
Vision. When the setup wizard is finished, the Completing the Quantum Vision
Setup Wizard window displays (see Figure
12).
Installing Quantum Vision 11
Quantum Vision 4.3.2 Quick Start Guide
Figure 12 Completing the
Quantum Vision Setup Wizard
(Linux)
7 (Optional) Select the check box to launch Quantum Vision after closing the setup
wizard.
Virtual Appliance Installation
8 Click Fin
9 If
you are installing Vision using a removable media:
a In a terminal window
b Remove the media
10 Contin
To install Quantum Vision 4.3.2 as a virtual appliance:
Note: If you have downloaded a Quantum Vision OVA file from the Quantum.com
The following example represents a typical OVF deployment. The actual sequence of
windows that you will see will depend on your system’s configuration. With a basic
knowledge of your system, the selections that you will need to make, such as hosts,
clusters, resource pools, multiple storage destinations, networks, etc. should be
intuitive. This example does attempt to depict where those windows will be displayed.
1 Download the
and have copied Vision to a removable media, insert the media into the appropriate
drive of the Vision server.
ish to close the setup wizard.
, execute the following commands as root:
cd /
umount /tmp/VISION/
from the drive.
ue with Quantum Vision Setup on page 30.
Web site, simply use it as you would an OVF file.
Quantum Vision OVA or OVF file. If you do not have Internet access
2 Start a vSphere Cl
12 Installing Quantum Vision
ient.
Figure 13 Deploying an OVF
Te mplat e
Quantum Vision
3 On the vSphere Client window (see Figure 13), select Deploy OVF Template from
ile menu. The Source window displays.
the F
4 On the Source window do the following (see Figure 14):
Figure 14 Selecting the
Quantum Vision OVF File
a Selec
b Ch
c Cl
t Browse, browse and locate the QuantumVision.ovf file.
oose the file QuantumVision.ovf.
ick Next. The OVF Template Details window displays.
Installing Quantum Vision 13
Quantum Vision 4.3.2 Quick Start Guide
5 On the OVF Template Details window (see Figure 15), make note of any
information you feel you may need. Click Next. The End
window displays.
Figure 15 Viewing the OVF
Template Details
User License Agreement
14 Installing Quantum Vision
Figure 16 Accepting the End
User License Agreement
Quantum Vision
6 On the End User License Agreement window (see Figure 16), click Accept; and
then click Nex
t to continue. The Name and Location window displays.
Installing Quantum Vision 15
Quantum Vision 4.3.2 Quick Start Guide
7 On the Name and Location window (see Figure 17), enter a name for the new
appliance; if necessary, select an Inve
Figure 17 Specifying the
Appliance Name and Location
ntory Location. Click Next.
8 If your configuration has multiple hosts or clusters, select your host or cluster. Click
Next. This window will not display if (as does this deployment) you have only one
host or a single cluster.
16 Installing Quantum Vision
Figure 18 Selecting a Resource
Pool
Quantum Vision
9 If your configuration supports resource pools (see Figure 18), select your resource
pool. Click Next. Thi
capability.
s window will not display if you are not using the resource pool
Installing Quantum Vision 17
Quantum Vision 4.3.2 Quick Start Guide
10 If you have multiple storage destinations (see Figure 19), select your storage
destination. Click Next. Th
device.

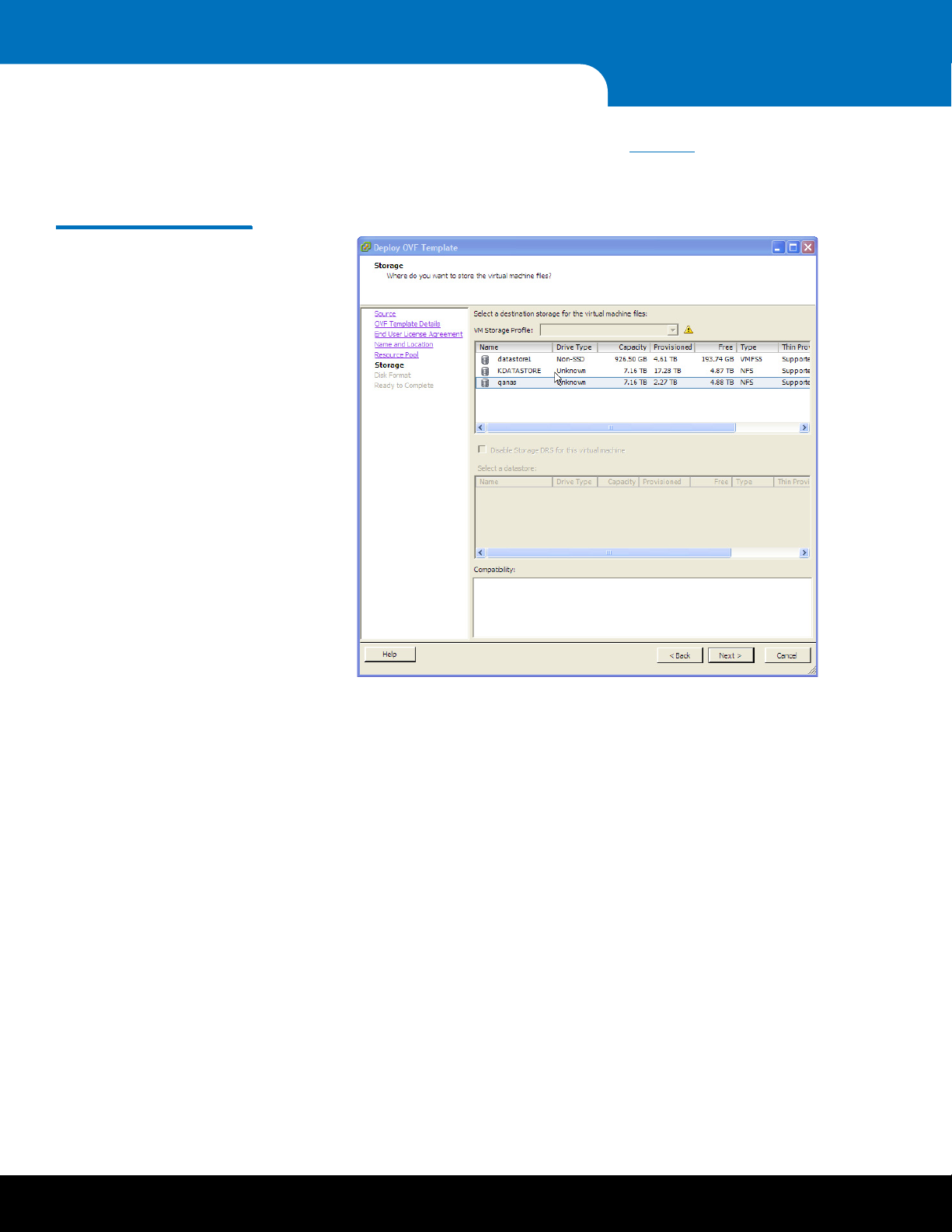

Figure 19 Selecting a Storage
Destination
is window will not display if you have only one storage
18 Installing Quantum Vision
Figure 20 Selecting Thin
Provision
Quantum Vision
11 On the Disk Format window (see Figure 20) make sure that Thin Provision is
selected. Click Nex
t.
12 If you have multiple vSwitches configured in your environment, select the
appropriate network. Click Next. This window will not display if you have a single
vSwitch configuration. The Ready to Complete window displays.
Installing Quantum Vision 19
Quantum Vision 4.3.2 Quick Start Guide
13 On the Ready to Complete window (see Figure 21), check the settings, if they are
correct, click Fin
Figure 21 Completing the
Deployment Task
ish.
Figure 22 Deployment
Completed Successfully
14 The deployment process will take a few minutes.When the Vision appliance has
been deployed, the Deployment Completed Successfully dialog box displays (see
Figure
22). Click Close.
20 Installing Quantum Vision
Figure 23 Selecting Your
Appliance
Quantum Vision
15 On the vSphere Client window, select your appliance’s name (the name you entered
Step 7 on page 16) in the left panel (see Figure 23).
in
16 On the vSphere Client window, click the Launch Virtual Machine Console button
(see Figure
24). Your appliance’s virtual machine console window displays.
Figure 24 Launching the
Appliance’s Virtual Machine
Console
Installing Quantum Vision 21
Quantum Vision 4.3.2 Quick Start Guide
17 On your appliance’s virtual machine console window, click the Power On button
Figure 25). The power on process will take a few minutes.
(see
Figure 25 Powering On the
Appliance
18 When the power on process has completed, your appliance’s console command line
window displays (see Figure
functions by using the console command line. For more information regarding the
availabl
appliance only) on page 33.
e functions and their use, see
26). Occasionally you may need to access a Vision
Accessing the Console Command Line (virtual

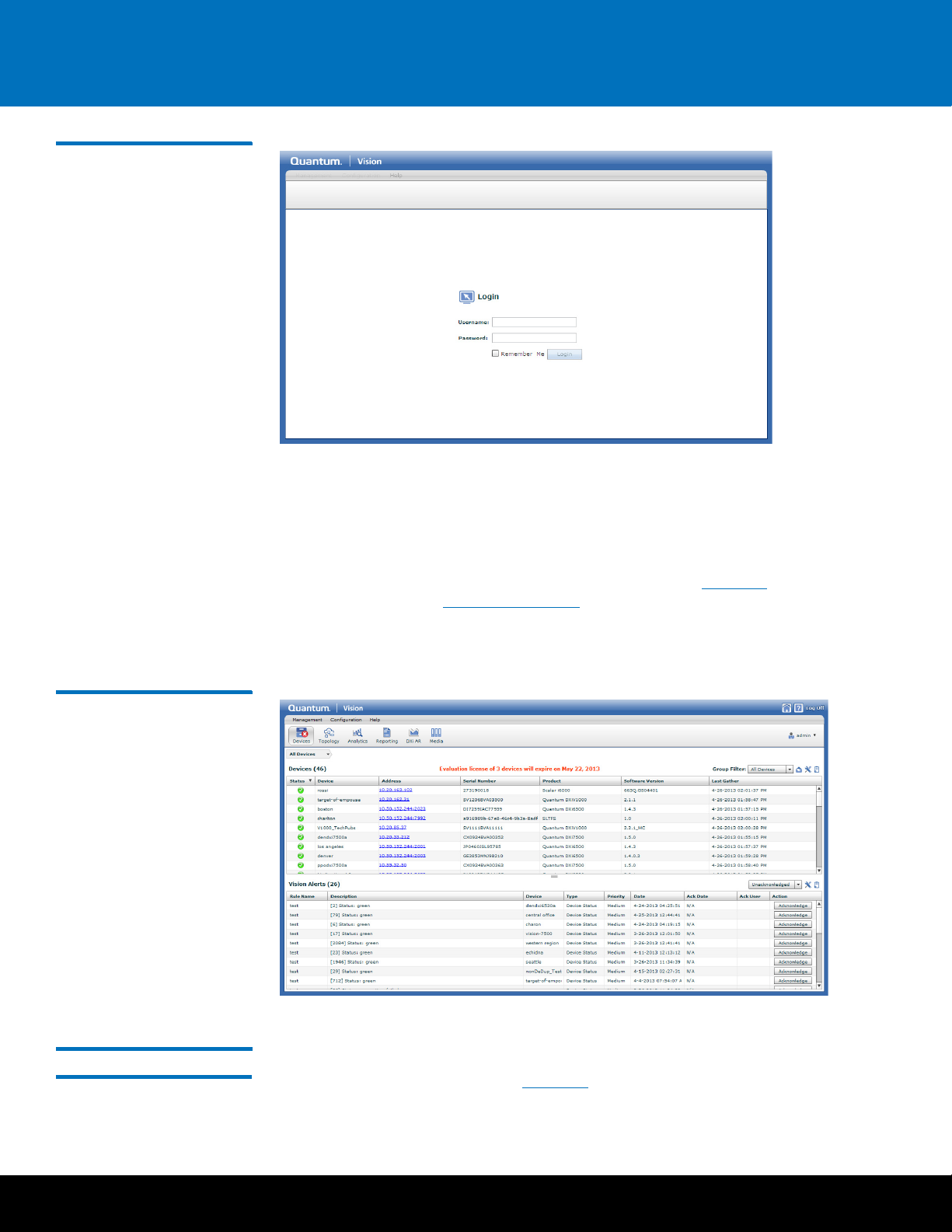

Figure 26 Logging in to Vision
4.2
22 Installing Quantum Vision
Figure 27 Locating Your
Appliance’s IP Address
Quantum Vision
19 When the IP address has been picked up by the system, you can find the IP address
by clicking the vSphere Client Summary tab and then locating the IP Address in the
right panel (see
Figure 27).
For enhanced stability, it is recommended that you replace your DHCP assigned IP
address with a static IP address (A
only) on page 33).
Note: For a Vision appliance, if you need to change your network ports, log on to the
Vision Console Command Line (see
(virtual appliance only) on page 33), and run the net ports command.The net
ports command opens the firewall and updates the ports.
Continue with Quantum Vision Setup on page 30.
Updating Quantum Vision
This sections presents procedures for updating the Quantum Vision Appliance and the
Quantum Vision server that was installed using the standard installer.
•
Updating the Virtual Appliance
• Updating Quantum Vision 4.2.0 virtual appliance to 4.3.2
•
Updating Quantum Vision 4.2.1 virtual appliance to 4.3.2
ccessing the Console Command Line (virtual appliance
Accessing the Console Command Line
•
Updating Quantum Vision 4.3 or 4.3.1 virtual appliance to 4.3.2
• Updating the Standard Installer Version of Vision
Updating Quantum Vision 23
Quantum Vision 4.3.2 Quick Start Guide
Updating the Virtual Appliance
As a precautionary measure, Quantum recommends that you use your vSphere client or
other ESXi management client to take a snapshot of your Vision virtual appliance before
beginning any update.
On the Vi
Vision virtual appliance*. It also allows you to choose whether you want your appliance
to automatically check for updates and notify you when updates are available.
Note: The Software Update feature supports only the Vision virtual appliance
* If you have set your appliance to automatically check for software updates and
updates are available, a notification banner displays to the right of the toolbar (see

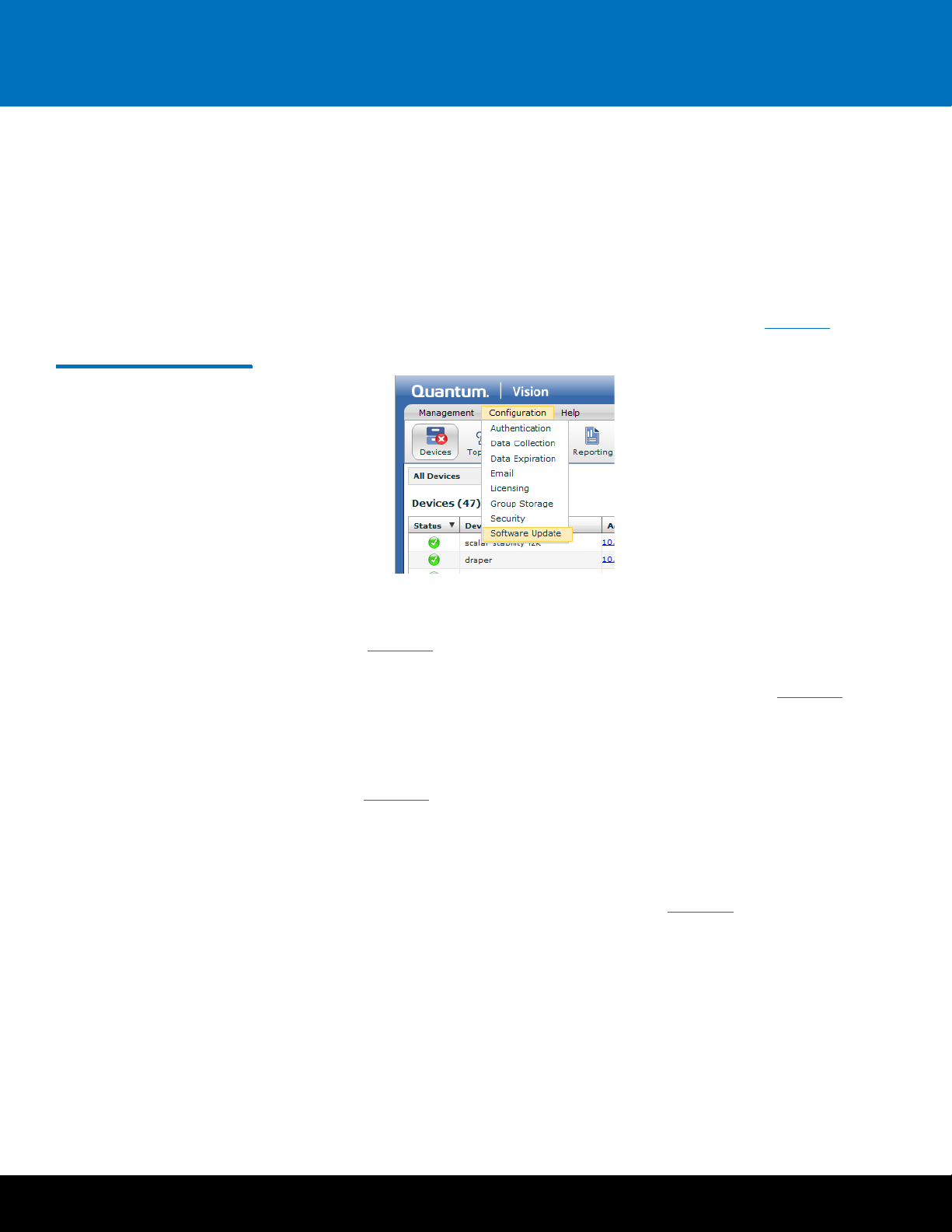

Figure
sion window, the Software Update dialog box allows you to update your
(installations from an OVF). The Software Update feature will not update
Vision when it has been installed using the standard installer.
32).
Updating Quantum Vision 4.2.0 virtual appliance to 4.3.2
To update an existing installation of Quantum Vision 4.2.0 virtual appliance to 4.3.2:
1 Downl
oad the following PostgreSQL 8.4 RPM files (3) and the Vision-install RPM
from the Quantum Web Site at
accessed the Web site, click the Upg
Note: The Vision and PostgresSQL version numbers will change when the
software is updated. You should use the most recent versions.
http://www.quantum.com/vision. Once you have
rade link (see Figure 28).

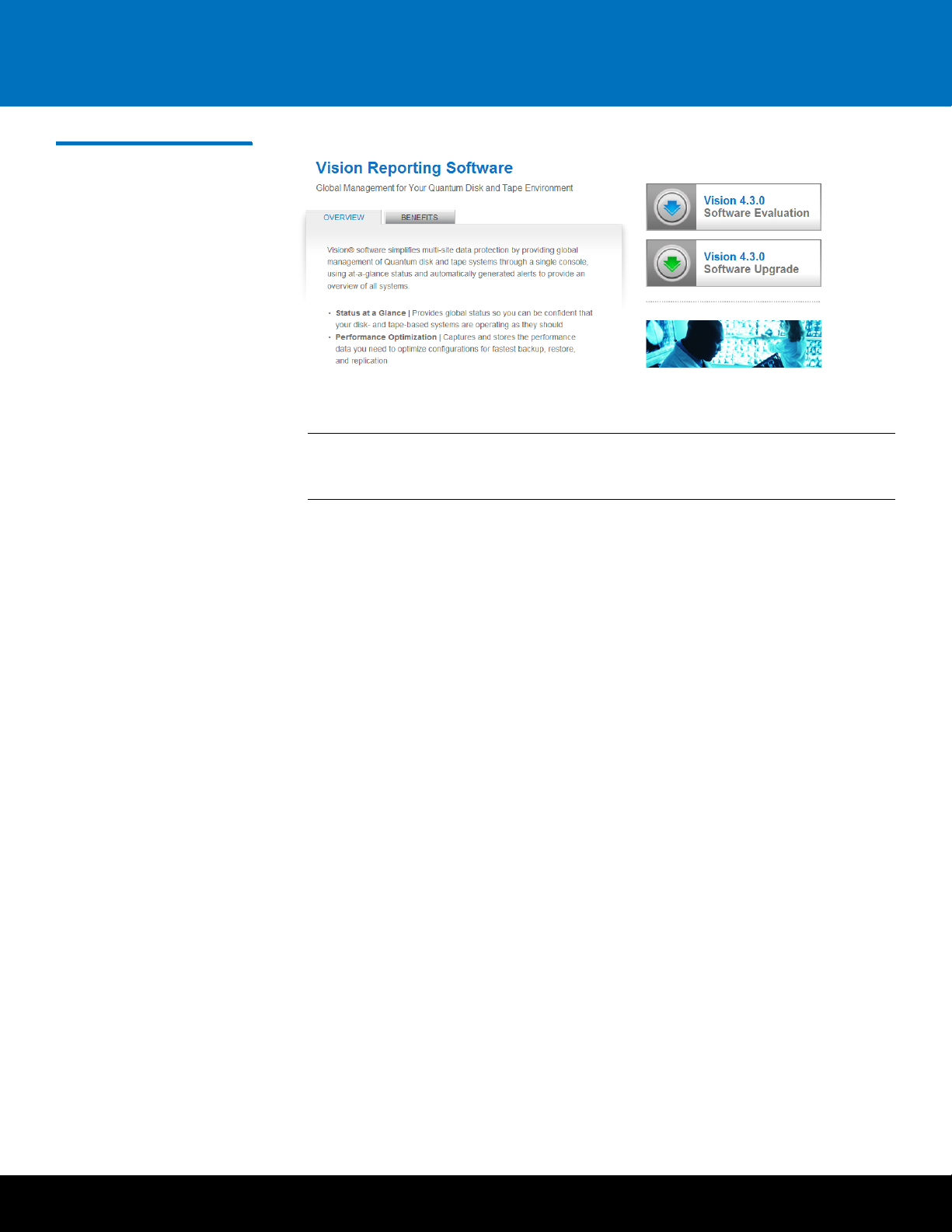

Figure 28 Quantum Vision
Upgrade Link
• postgresql-libs-8.4.13-1.el6_3.x86_64.rpm
• postgresql-8.4.13-1.el6_3.x86_64.rpm
• postgresql-server-8.4.13-1.el6_3.x86_64.rpm
• vision-install-4.3.2-2575.x86_64.rpm
2 Place the RPMs on a server that is on your network and can be accessed from the
appliance by either SCP/SSH or HTTP.
If you have an HTTP server, you can put the RPMs anywhere within the Web server's
directory structure;
be sure to remember the URL; for example,
24 Updating Quantum Vision
Quantum Vision
http://<server>/directory/path/vision-install-4.3.2-
2575.x86_64.rpm.
If you will not be using an HTTP server, place the RPMs anywhere on the server; be
sure to remember the location; for example,
4.3.2-2575.x86_64.rpm For this example, you would use the scp command in
Step 4.
3 Log in to the appliance as the sysadmin user.
• If you are on a Linux/Unix/Mac system, use SSH or a comparable application.
• If you are on a Windows system, use PuTTY or a comparable application.
• If you have a VMware vSphere client, use the appliance's VM console.
Note: For more information on the use of the appliance's VM console, see
Accessing the Console Command Line (virtual appliance only) on
page 33.
4 Based on how you will transfer the RPM files from the server to your appliance, run
the appropriate upgrade command to upgrade the Vision RPM.
Note: The RPMs must be installed one at a time and in the following order:
For this example, you would use the http command in Step 4.
/tmp/vision/updates/vision-install-
1 postgresql-libs-8.4.13-1.el6_3.x86_64.rpm
2 postgresql-8.4.13-1.el6_3.x86_64.rpm
3 postgresql-server-8.4.13-1.el6_3.x86_64.rpm
• If you plan to use SCP, use the scp option of the upgrade command.
At the appliance’s admin command line prompt,
type system upgrade scp, and then press <Enter>.
• If you plan to use HTTP, use the http option of the upgrade command.
At the appliance’s admin command line prompt,
type system upgrade http, and then press <Enter>.
5 Respond appropriately to the prompts presented by the upgrade command. The
upgrade command retrieves and installs the RPM onto the appliance. After the RPM
is installed, you will see a message notifying you that the Vision service is being
restarted. When the Vision service has restarted, the admin application will display
its prompt.
At this point, PostgreSQL is installed, but it is not configured and the service has not
been started. Installing the Vision update rpm will initiate these processes.
6 Based on how you will transfer the RPM files from the server to your appliance, run
the appropriate upgrade command to upgrade the Vision RPM (see
7 Exit the admin application by typing exit at the prompt. At this point your Vision
appliance has been updated to version 4.3.2.
Step 4).
Updating Quantum Vision 25
Quantum Vision 4.3.2 Quick Start Guide
Updating Quantum Vision 4.2.1 virtual appliance to 4.3.2
To update an existing installation of Quantum Vision 4.2.1 virtual appliance to 4.3.2:
1 Download the Vision-install RPM (vision-install-4.3.2-2575.x86_64.rpm) from the
Quantum Web Site at
Web site, click the Upgrade link (see Figure 28).
Note: The Vision version number will change when the software is updated. You
should use the most recent version.
2 Place the RPM on a server that is on your network and can be accessed from the
appliance by either SCP/SSH or HTTP.
If you have an HTTP server, you can put the RPMs anywhere within the Web server's
directory structure; be sure to remember the URL; for example,
http://<server>/directory/path/vision-install-4.3.2-
2575.x86_64.rpm.
If you will not be using an HTTP server, place the RPMs anywhere on the server; be
sure to remember the location; for example,
4.3.2-2575.x86_64.rpm For this example, you would use the scp command in
Step 4.
http://www.quantum.com/vision. Once you have accessed the
For this example, you would use the http command in Step 4.
/tmp/vision/updates/vision-install-
3 Log in to the appliance as the sysadmin user.
• If you are on a Linux/Unix/Mac system, use SSH or a comparable application.
• If you are on a Windows system, use PuTTY or a comparable application.
• If you have a VMware vSphere client, use the appliance's VM console.
Note: For more information on the use of the appliance's VM console, see
Accessing the Console Command Line (virtual appliance only) on
page 33.
4 Based on how you will transfer the RPM file from the server to your appliance, run
the appropriate upgrade command to upgrade the Vision RPM.
• If you plan to use SCP, use the scp option of the upgrade command.
At the appliance’s admin command line prompt,
type system upgrade scp, and then press <Enter>.
• If you plan to use HTTP, use the http option of the upgrade command.
At the appliance’s admin command line prompt,
type system upgrade http, and then press <Enter>.
5 Respond appropriately to the prompts presented by the upgrade command. The
upgrade command retrieves and installs the RPM onto the appliance. After the RPM
is installed, you will see a message notifying you that the Vision service is being
restarted. When the Vision service has restarted, the admin application will display
its prompt.
6 The system should indicate that updates are available. Run the system upgrade
command. At the appliance’s admin command line prompt,
type system upgrade, and then press <Enter>.
26 Updating Quantum Vision
Quantum Vision
7 Exit the admin application by typing exit at the prompt. At this point your Vision
appliance has been updated to version 4.3.2.
Updating Quantum Vision 4.3 or 4.3.1 virtual appliance to 4.3.2
To update an existing installation of Quantum Vision 4.3 or 4.3.1 virtual appliance to
4.3.2:
1 Log
on Vision and access the Vision window.
Figure 29 Configuration Menu
> Software Update
2 On the Vi
The Software Update dialog box displays:
• If updates are available, the di
• If updates are not available, the dialog box displays a Vision server
sion Configuration menu, click Software Update (see Figure 29).
alog box displays with an Update Now button
(see Figure
check for software updates check box and an OK button (see Figure
or select the Vision server should check for software
appropriate, and click OK to apply your settings.
• If you select this check box, a notification banner, which tells you that a
softw
Figure
Now li
30).
updates check box, as
are update is available, displays to the right of the toolbar (see
32). You can also install the software updates by clicking the Update
nk.
should
31). Clear
• If you clear this check box, your Vision server does not
for updates or display available software updates on the notification banner.
Clear this check box to control when your Vision server checks for updates.
o install software updates, click Update Now (see Figure 30).
3 T
Updating Quantum Vision 27
automatically check
Quantum Vision 4.3.2 Quick Start Guide
Figure 30 CSoftware Update
Figure 31 Software Update
Configuration
Figure 32 Software Update
Notification
Updating the Standard Installer Version of Vision
To update an existing installation (standard installer version) of Quantum Vision 4 to the
latest version:
1 Download the
Vision updater from the Quantum Web site at
http://www.quantum.com/vision. Once you have accessed the Web site, click the
Upgrade li
nk (see Figure 33).
28 Updating Quantum Vision
Figure 33 Vision Upgrade Link
Quantum Vision
Make sure you download the correct updater for the operating system running on
the Vision server (Windows or Linux).
Note: If the Vision server is unable to access the Internet, download the updater
on another computer, and then copy it to the Vision server using a USB
flash drive or other removable storage.
2 On the Vision server, stop the Vision service:
• In Windows, use the Se
service.
• In Linux, at a terminal prompt, type service vision stop and press <E
3 On th
4 Click OK.
5 Click Next or Fo
6 Selec
7 If
e Vision server, run the Vision updater.
• For Windows, double-click the updater file you downloaded.
• For Linux, open a terminal window and change to the directory where you
downl
oaded the updater file. Then execute the following command as root:
./<vision_updater_filename>
where <visio
The Quantum Vision Setup Wizard displays.
The License Agreement window
t I accept the agreement, and then click Next or Forward to continue.
The Installation Directory window
you installed Quantum Vision 4 in a directory other than the default location,
specify the location to install the Quantum Vision software. Otherwise, accept the
default location. Click Next or Forward to continue.
n_updater_filename> is the name of the Vision updater file.
rward to continue.
rvices control panel to stop the Quantum Vision
nter>.
displays.
displays.
• In Windows (32-bit), the default location is: \Pr
• In Windows (64-bit), the default location is:
\Program Files (x86)\Quantum Vision\
• In Linux, the default location is: /
Updating Quantum Vision 29
opt/quantum-vision/
ogram Files\Quantum Vision\
Quantum Vision 4.3.2 Quick Start Guide
The Ready to Install window displays.
8 Click Next or Forward to continue.
Wait while the setup wizard updates the software. When the setup wizard is
finished, the Completing the Quantum Vision Setup Wizard window displays.
9 Click Finish to close the setup wizard.
The Quantum Vision software is updated to the latest version.
Note: After the setup wizard is complete, Quantum Vision must update and
convert the database for optimum performance. The update process can
take up to two hours for large configurations. The Quantum Vision Webbased interface will not be available during the update process. The
interface will become available after the update is completed.
10 Close your browser and open it again before accessing Quantum Vision. This clears
the browser cache.
Quantum Vision Setup
After installation is complete, you must set up Quantum Vision to begin monitoring
storage devices. To set up Quantum Vision, perform the following tasks:
• Logging On to Vision
• Discovering Devices
• Accessing the Console Command Line (virtual appliance only)
• Tak i n g N e x t S t e p s
Logging On to Vision Before you can begin setting up Quantum Vision, you must log on to the Web-based
user interface.
To log on to Quantum Vision:
1 Launch a supported Web browser on a workstation that has network access to the
Vision server.
2 In the browser address box, type the IP address of the Vision server, and then press
<Enter>.
The Login window displays (see Figure 34).
If the Login window does not display, verify that the IP address is correct and that
the network path to the Vision server is valid. Also verify that you are using a
supported Web browser and that the correct version of Adobe Flash Player is
installed.
30 Quantum Vision Setup
Figure 34 Login Window
3 Enter the default username and password:
• Username - admin
• P
assword - password
Quantum Vision
Figure 35 The Vision Window
4 Click Login.
After a successful login, the Visi
configuration with
If you are unable to log on, verify that your username and password are correct,
then try again.
Discovering Devices.
on window displays (see Figure 35). Continue Vision
Discovering Devices After you log on to Quantum Vision for the first time, a message appears stating that no
Quantum devices were found (see Figure 36
Quantum Vision Setup 31
).
Quantum Vision 4.3.2 Quick Start Guide
Figure 36 After First Login
A device is a system, such as a Scalar tape library or DXi disk backup system, that is
monitored by Quantum Vision. Before you can use Quantum Vision to monitor a device,
you must first discover the device.
To discover devices:
Figure 37 Discover New Device
Dialog Box
1 On the message box
The Device
Management dialog box displays.
that displays after you first log on to Quantum Vision, click Yes .
Note: If you do not see the message box, on the Management menu, click
Device Management.
2 Click Add.
The Discov
er New Device dialog box displays (see Figure 37).
3 Enter information about the device:
• Device
Name - Enter a name to identify the device. This name displays on all
status and report consoles.
• Device
The IP address can be in IPv4 or IPv6 format.
Address - Enter the IP address or hostname of the device.
If entering a hostname, the Vision
server must be running a name service that will resolve the hostname to an IP
address.
• Device
32 Quantum Vision Setup
Username - Enter the username to use when logging on to the device.
Quantum Vision
Note: The username must have administrator rights on the device.
• Device Password - Enter the password for the device username.
• Gather Ena
configuration data from the device. Clear the check box to disable gathering of
status and configuration data.
Note: The Select Device Groups list is empty because you have not yet added
any user groups. You can associate devices with user groups in a later
procedure in this guide.
4 Click Discover.
5 Click OK.
The device is added to the Device Man
6 (Optional)
Note: A temporary license is included with Quantum Vision. This temporary
license allows you to monitor up to three devices. If you want to add more
than three devices, you must first enter a permanent license key to
authorize the total number of devices you want to monitor.
7 Click the close button (x) to close the Device Management dialog box.
Note: It may take a few minutes for information for the new device to display on
the Status console.
bled - Select the check box to enable gathering of status and
agement dialog box.
Repeat this procedure to add additional devices.
Accessing the Console Command Line (virtual appliance only)
Figure 38 Console Tab
Quantum Vision Setup 33
A limited number of functions are available from your appliance's console command
line. To access the command line, select your appliance in the vSphere client and then
select the Console tab (see Figure 38
). The console window displays.
Quantum Vision 4.3.2 Quick Start Guide
Log on with your appliance’s username and password and you will go to the console
command line (see Figure 39
line, log on with the default username and password: sysadmin/QuantumVision.
Figure 39 Console Login
The following will help you access and use the various commands:
). If this is your first time to access the console command
• To see the list of commands, type
• To log off the console command line, type
• To free the cursor from the console, press <cr
command line, click anywhere inside the console command line window.
• To get help about a specific command, type
<Enter>.
• To execute a command, type <co
<Enter>. Example: to perform a system password reset, type system password
reset, and then press <Enter>.
The following commands are available:
•
admin
• net
• system
• exit
help and press <Enter>.
exit and press <Enter>.
tl+alt>: To return to the console
help <command> and press
mmand> <subcommand> <option> and press
admin
The admin command allows the user to change or reset the system password.
admin password [reset] - This comm
password. The reset option resets the system password to the default password.
and prompts the user to change the system
admin timezone - This
setting. Upon entering this command, the user can select from three choices: 1. US
timezones, 2. non-US timezones, and 3 cancel. Upon entering the desired
selection, a list from which the user can select the appropriate timezone displays.
When the timezone selection has been entered, control returns to the command
line.
34 Quantum Vision Setup
command allows the user to change the system timezone
Quantum Vision
admin backup - This command prompts the user for the server name, the username
and password, and the location in which the database will be archived (on the
server).
admin restore - This command prompts the user for the server name, the username
and password, and the location in which the database is archived. The command
then copies the archive from the server to the appliance, extracts it, and then
restarts the Vision server.
net
The net commands allow the user to choose how IP addresses are assigned and to set
the http ports.
net config [dhcp|static] - The dhcp option allows the user to have DHCP assign IP
addresses. The static option allows the user to manually assign the IP address,
NetMask, and Gateway IP addresses.
net ports - This command allows the user to set the http and https ports.
net dns - This command allows the user to set IP addresses for DNS servers for the
appliance. Enter the DNS server IP address, one at a time, in priority order. Press
<enter> without an IP address when finished.
system
The system commands allow the user to reboot or shutdown the system, restart the
service, or upgrade the appliance.
system reboot - This command allows the user to reboot the system.
system restart service - This command allows the user to restart the service.
system shutdown - This command allows the user to shutdown the system.
system upgrade - This command allows the user to upgrade the Vision appliance
from the Quantum repository. With the repository-based upgrade, the system
upgrade command takes care of locating and downloading the upgrade rpm.
Note: If you are currently running Vision 4.2 or 4.2.1, you will not have access to
the Quantum repository. You will need to use either system upgrade http
or system upgrade scp to perform your upgrade to 4.3.2. When you are
running Vision 4.3 or newer, you will then have access to the Quantum
repository.
system upgrade [scp|http] - This command allows the user to upgrade the version
of Vision running on the appliance.
exit
The exit commands allow the user to exit and log off from the console command line
application.
Quantum Vision Setup 35
Quantum Vision 4.3.2 Quick Start Guide
Taking Next Steps To learn more about using Quantum Vision, see the
Quantum Vision Installers and Documentation CD, or see the online help. (To display the
online help, click the Help button on the upper right of the Vision window.)
See the
other topics:
• Viewing Installed Licenses or Adding a New Licenses
• Adding Users and Groups
• Setting Up Alerts
• Configuring E-mail Settings
• Viewing Device Status
• Running Reports
• Viewing Analytics
Quantum Vision User’s Guide
or the online help to learn more about these and
Viewing Installed Licenses or Adding a New Licenses
The temporary license installed with Quantum Vision authorizes you to monitor up to 3
devices for up to 60 days. To monitor more devices, or to use Quantum Vision for more
than 60 days, you must add a permanent license.
(See Chapter 4 “Vision Configuration” in the
Quantum Vision User’s Guide
Quantum Vision User’s Guide
.)
on the
Adding Users and Groups
Quantum Vision can use users and groups to manage device access. A group is a named
collection of users. When you discover a device, you can assign one or more groups to
the device. Only users who belong to the assigned groups can access the device.
(See Chapter 3 “Vision Management” in the
Quantum Vision User’s Guide
.)
Setting Up Alerts
Alerts are notifications that Quantum Vision sends regarding the status of a device. Alert
rules define the conditions when the alert is generated and specify the recipients of the
alert. With alerts, Quantum Vision can automatically notify users and administrators by
e-mail about important changes in device status. Quantum Vision can also send an email in response to SNMP traps generated by devices.
(See Chapter 3 “Vision Management” in the
Quantum Vision User’s Guide
.)
Configuring E-mail Settings
Use the Vision Email Configuration dialog box to configure settings for the outgoing
e-mail server. Quantum Vision uses this server to send e-mail notifications and reports.
Quantum Vision cannot send notifications and reports until you configure an outgoing
e-mail server.
(See Chapter 4 “Vision Configuration” in the
36 Quantum Vision Setup
Quantum Vision User’s Guide
.)
For assistance, contact the Quantum Customer Support Center:
USA: 1-800-284-5101 (toll free) or +1-720-249-5700
EMEA: +800-7826-8888 (toll free) or +49-6131-3241-1164
APAC: +800-7826-8887 (toll free) or +603-7953-3010
Worldwide: http://www.quantum.com/ServiceandSupport
About Quantum
Quantum is a proven global expert in Data Protection and Big Data
management, providing specialized storage solutions for physical,
virtual and cloud environments. From small businesses to major
enterprises, more than 50,000 customers trust Quantum to help
maximize the value of their data by protecting and preserving it over
its entire lifecycle. With Quantum, customers can Be Certain they’re
able to adapt in a changing world—keeping more data longer,
bridging from today to tomorrow, and reducing costs. See how at
www.quantum.com/BeCertain.
©2014 Quantum Corporation. All rights reserved. Quantum and the Quantum logo are registered
trademarks of Quantum Corporation and its affliates in the United States and/or other countries. All
other trademarks are the property of their respective owners. Protected by Pending and Issued U.S.
and Foreign Patents, including U.S. Patent No. 5,990,810.
Quantum Vision
Viewing Device Status
The Status console displays all monitored Quantum devices. Use the Status console to
view the overall health of all DXi and Scalar devices or to get detailed status information
for a single device. You can also view and acknowledge alert notifications for devices.
(See Chapter 5 “Vision Status” in the
Quantum Vision User’s Guide
.)
Running Reports
Reports present capacity, performance, and configuration information for devices and
media. A report can include information for a specified time period or provide a
snapshot of the device at the time the report is run. You can run reports from the
Reports console at any time. Also, Quantum Vision can generate reports on a recurring
basis and send them to a list of recipients.
(See Chapter 6 “Vision Reporting” in the
Quantum Vision User’s Guide
.)
Viewing Analytics
The Analytics console allows you to quickly visualize and compare key statistics for DXi
and Scalar devices. Use the interactive reports to see, at a glance, if exceptional
conditions exist for any monitored devices. Each report displays information about core
device functionality, such as replication status on DXi disk backup systems or tape alerts
on Scalar libraries. (See Chapter 7 “Vision Analytics” in the
Guide
.)
Quantum Vision User’s
*6-66528-12 A*
37 6-66528-13 Rev B, October 2014
Quantum Vision 4.3.2 Quick Start Guide
38 Quantum Vision Setup
Loading...
