Q10
Quick Guide
Quantum S.p.A
Via L. D’Aragona, 11 - 20132 MILANO
www.qtm.it
23
2
Index
Warning
Precautions and safety
Remote control
Audio/Video switch
Receiver Menu
Settings
Tv List
Diagnostics
First Use
Daily Use
Installation
Installation and Connections
Technical features
Warning
Warranty
EQUIPMENT
Each package contains:
RECEIVER
REMOTE CONTROL
REMOTE INFRARED SENSOR
POWER CAR CABLE
QUICK GUIDE
Page 3
“4
“5
“6
“8
“10
“11
“12
“14
“15
“16
“19
“20
“21
“22
Warning
!
3
CAUTION
This symbol means important instructions. Failure to heed
them can result in serious injury or
death
DO NOT OPERATE ANY
FUNCTION THAT TAKES YOUR
ATTENTION AWAYFROM SAFELY
DRIVING YOUR VEHICLE
Any function that requires your
prolonged attention should only be
performed after coming to a
complete stop.
Always stop your vehicle in a safe
location before performing these
functions. Failure to do so mayresult
in an accident.
USE THIS PRODUCT FOR MOBILE
12/24 Vcc APPLICATIONS AND
NEGATIVE GROUND
DO NOT DISASSEMBLE OR ALTER
THE UNIT
USE THE CORRECT AMPERE
RATING WHEN REPLACING
FUSES
HALT USE IF A PROBLEM
APPEARS
DO NOT USEOLD BATTERIES
Any misuse that diverts from the
designed application may result in
fire, electric shock or other injury.
Doing so may result in accidents or
injuries.
Failure to do so may result in fire or
electric shock
Failure to do so may cause personal
injury or damage to the product.
When inserting batteries in the
remote control, be sure to observe
proper polarity as instructed.
Rupture or chemical leakage from
the battery may cause malfunction
ing, breakage or injury.
!
22
Warranty
WARRANTY VOUCHER
Model .........................
Serial number .........................
Defect found ...........................................................................
.............................
Customer signature
Date _ _ / __ / _ _
Toreturn correctly filled in togetherwith thepurchase receipt
DEALER’S STAMPAND SIGN
Warranty
Dear customer,
thank you for choosing our product, which has been designed and manufactured to the highest quality
standards.
› failures caused by carelessnessor transport.
› failures caused by installationnot in accordance with theinstructions
› failures caused by improper, incorrect ornot in accordance with theinstructions, use of the device
› In theevent you require service, during the warrantyperiod, you shouldfill in and show the present
certificate, together with a valid receipt issued by the dealer, showing the date of purchase of the
product.
• The product is covered by a warranty,for a period of 24 months, whichis testified from a deliverydocument
indicating the dateof purchase of the productand the dealer’s name.
• The customer is entitledto the rights provided forby Legislative Decree n° 24/2002
• The warranty covers the replacement or the repair operation of all the parts found to have manufacturing
defects.
• The warranty does not cover:
• The manufacturer cannot be held responsible for accidental damages to persons, pets,or things, as a consequence of non-conformitywith all the precautions furnishedwith the instructions manual.
IMPORTANT:
Quantum S.p.A. declines all responsibility for any errors or omissions in
this guide and reserves the right to
make changes without priornotice.
The information given in this guide
were correct at the time of going to
print.
4
Precautions and Safety
!
PRECAUTIONS
TEMPERATURE
Be sure the temperature inside the
vehicle is between +45° C a nd 0°C
before turning yourunit on.
The replacement of the fuses must
be of the same amperage. If one
fuse blows more than once, carefully check all electrical connections
to prevent short circuits. Also have
your vehicle’ s voltage regulator
checked.
If you have problems, do not
attempt to repair the unit yourself.
Require assistance at the nearest
retailer or service station.
Installindry,safelocations,away
from dangers and humidity.
Use only in cars with a 12/24 Vcc
negative ground.
Before connecting the device
remove the negative terminal from
the battery to prevent short circuits.
Do not use bolts or nuts related to
any safety system (airbag, etc.), To
make ground connection.
In order to ensure vehicle safety,
the driver’s side screen must be connected to the front video output connector. This will ensure the driver
won’t be able to watch TV while the
vehicle is moving.Iif the handbrake
wire is properly connected, the
driver will be able to watch TV once
the handbrake is pulled. The rear
passenger screens, connected to
the rear video output connectors,
do not fallunder this restriction.
FUSE REPLACEMENT
MAINTENANCE
INSTALL LOCATION
INSTALLATION PRECAUTIONS
VIDEO OUTPUT
SAFETY
CAUTION
WATCHING TV WHILE
DRIVING MAY RESULT IN SERIOUS
ACCIDENTS, INJURIES OR DEATH!
!
21
Warning
!
Q10 complies with:
CAUTION:
E24: according toECE R10-03 Regulation
DiGiTVi: specifications D-Book ver.1.0 - June 2004 and following
updates where applicable
Your receiver is supplied with an operating system and resident programs.
While using the reciever, various softwarescould be downloaded.
You should not make improperly use of any of these softwares wholly or
partly.
Improper use means: duplication, distribution, tampering. In other words,
that the only allowed usage is the one described inthis user manual.

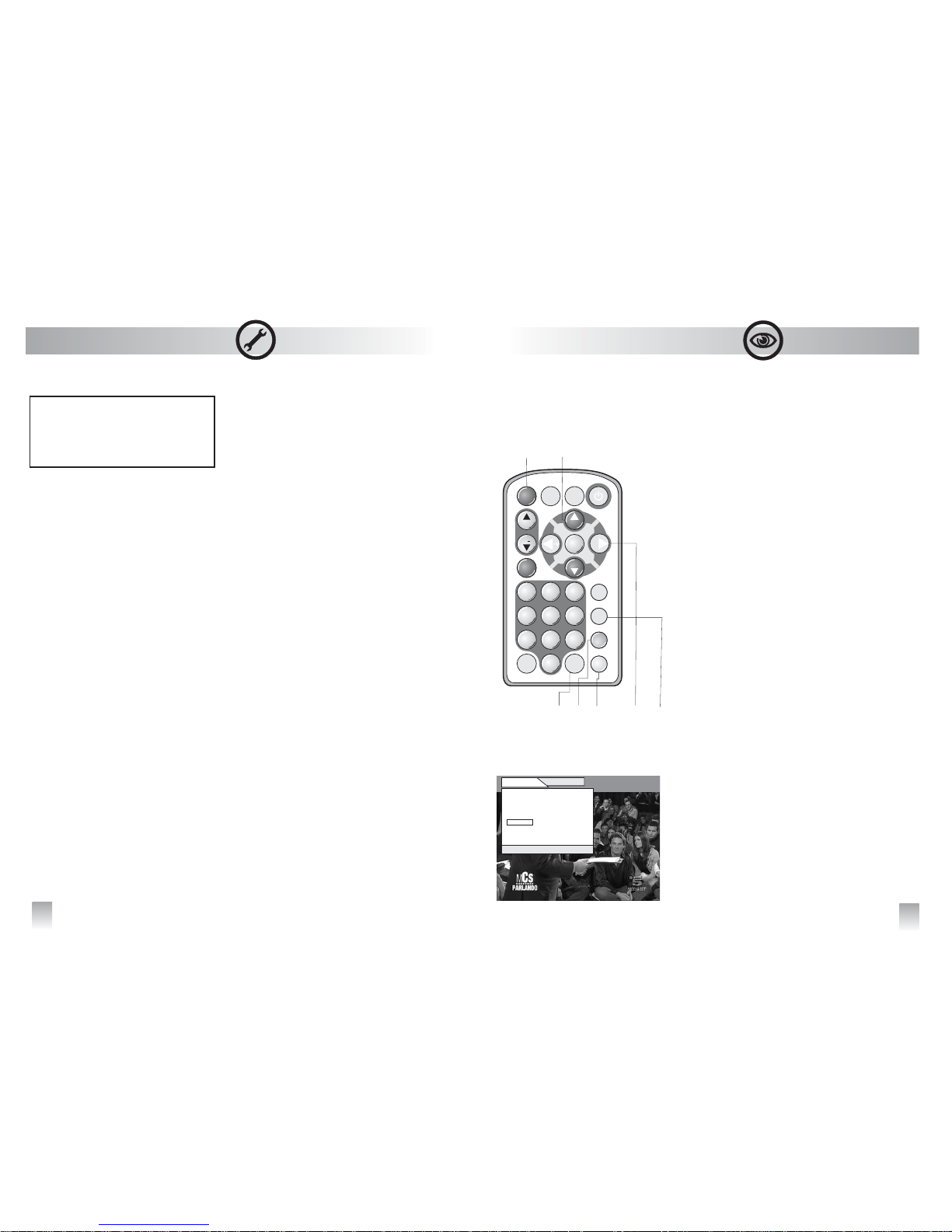

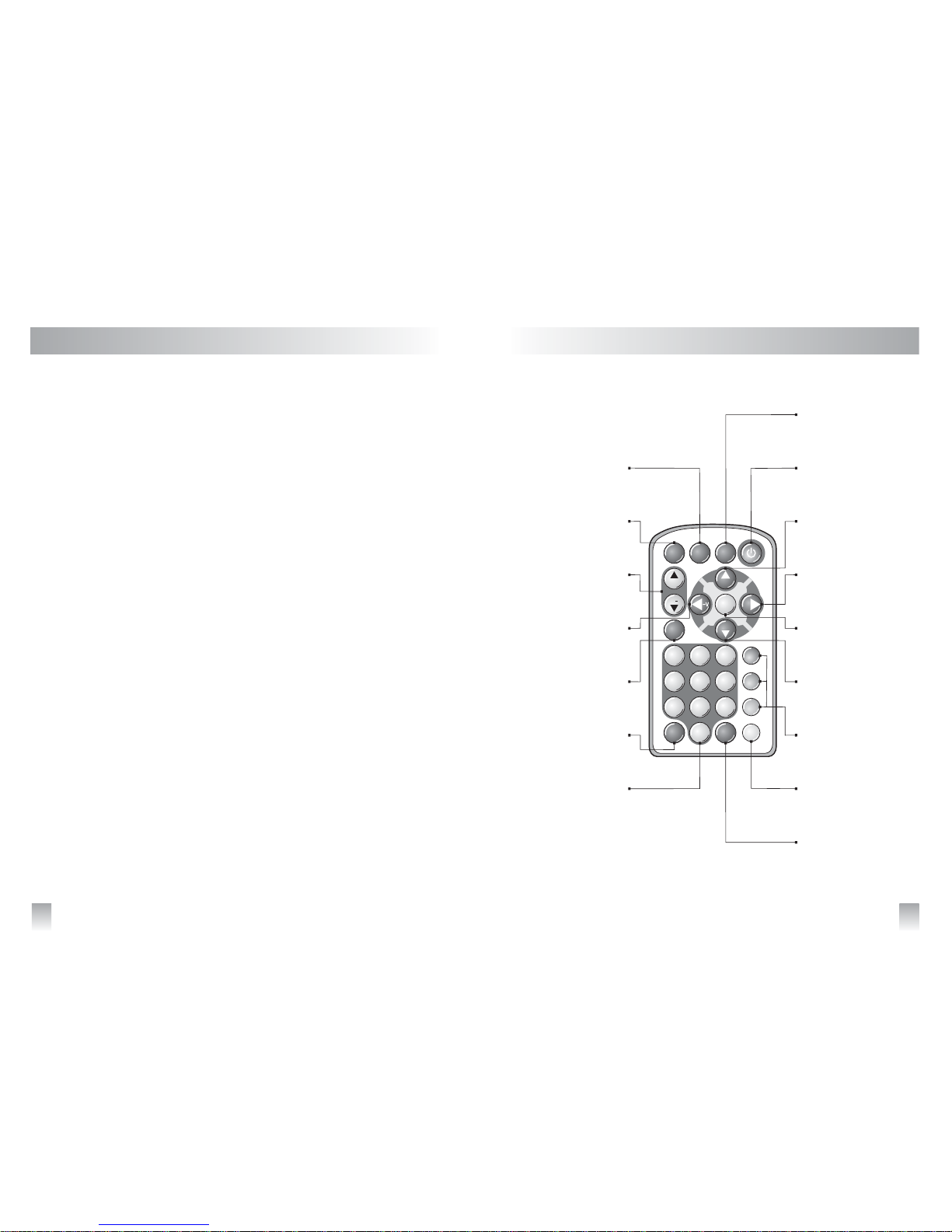

Remote Control
5
i
SCAN
OK
P+
P
V+
CHANNEL
12
3
4
5
6
7
809
EXIT
BACK MUTE
LIST
info
MENU
TV
RADIO
@?!.
abc
ghi jkl
mno
pqrs
tuv
_+ *
wxyz
def
-TV/RADIO -YELLOW
to switch between Tv and
Radio listings
SCAN
to start autoscan
-
to select a function or to
confirm the selection
OK
LIST
to view channel list
-
P+/-
changes channels
-
to view info on program/
navigation button
UP BUTTON
navigation or volume adjust
button
RIGHT BUTTON
EXIT
to exit from the selected
option
-
0…9
alpha/numerical button
-
BACK
to return to the previous page
(where available)
-
MUTE
to switch on/off the audio
input
-RED, BLUE, GREEN
navigation buttons
DOWN BUTTON
navigation button
LEFT BUTTON
navigation or volume adjust
button
-
STAND-BY
to put the unit on stand-by
and to switch to a/v input
Not in use
SEARCH
SEARCH
Technical features
Mobile DVB-T signal reception
Autotracking/Autosearch
Favourite Channels List
2 video for separated monitor
1 audio stereo
Audio/video digital quality
Easy and fast plug-and-play installation
output two
output
1 video input
1 audio stereoinput
DVB-T
Video Decoding and OSD
Audio Decoding
Connections
ISO/IEC 13818-1 MPEG-2 Transport Stream
ETS 300 744 DVB-T Full Compliance
VHF (Band III) / UHF 21-69
DVB-T COFDM 2k/8k supported
7,8 mhZ bandwidth support
ISO/IEC 13818-2 MPEG-2 Video MP@ML Compliance
ISO/IEC 11172-2 MPEG-1 Video Compliance
Resolution: 720x576 for PAL
16:9/4:3, 3:2 Letterbox and Pan/Scan
65K Colour OSD
ISO/IEC 13818-3 MPEG-2 Audio Compliance
ISO/IEC 11172-3 MPEG-1 Audio Compliance
Stereo / MTS
IR Remote Connector
Antenna-In : Fakra type 2x
Audio stereo Output (RCA L/R) 1x
Composite Video Output (RCA) 2x
Stereo Audio Input (RCA L/R) 1x
Composite Video Input (RCA) 1x
Safety and Reliability
Comsuptions
Mechanical Specification
Operation temperature : -5 C ~ +55 C
Storage temperature : -45 C ~ +85 C
0.4 A in full operation powering two antennas
0.35 A in stand by
500 microA when off (car key off)
Dimensions (WxDxH): 125mm x 72mm x 35mm
20
6
First Use
Be sure that every connection has been correctly set
at page
Turnthe unit on
frame will be shown onthe screen .
ress button to the channels n the TV
LIST. The firstchannel n the update TV LIST will
be shown onthe screen.
If at theend of the frame is shown on
the screen, check the connections and the
installation of the receiver, then press in sequence
buttons to restart the
to start the automatic channel
o stop the press EXIT button. Frame
will be shown on the screen. Press to
stop or the button to resumeit.
following installation instructions s 16-17-18-19
Q10 receiver is an automotive grade set top box able to
receive free toair DVB-TTelevision.

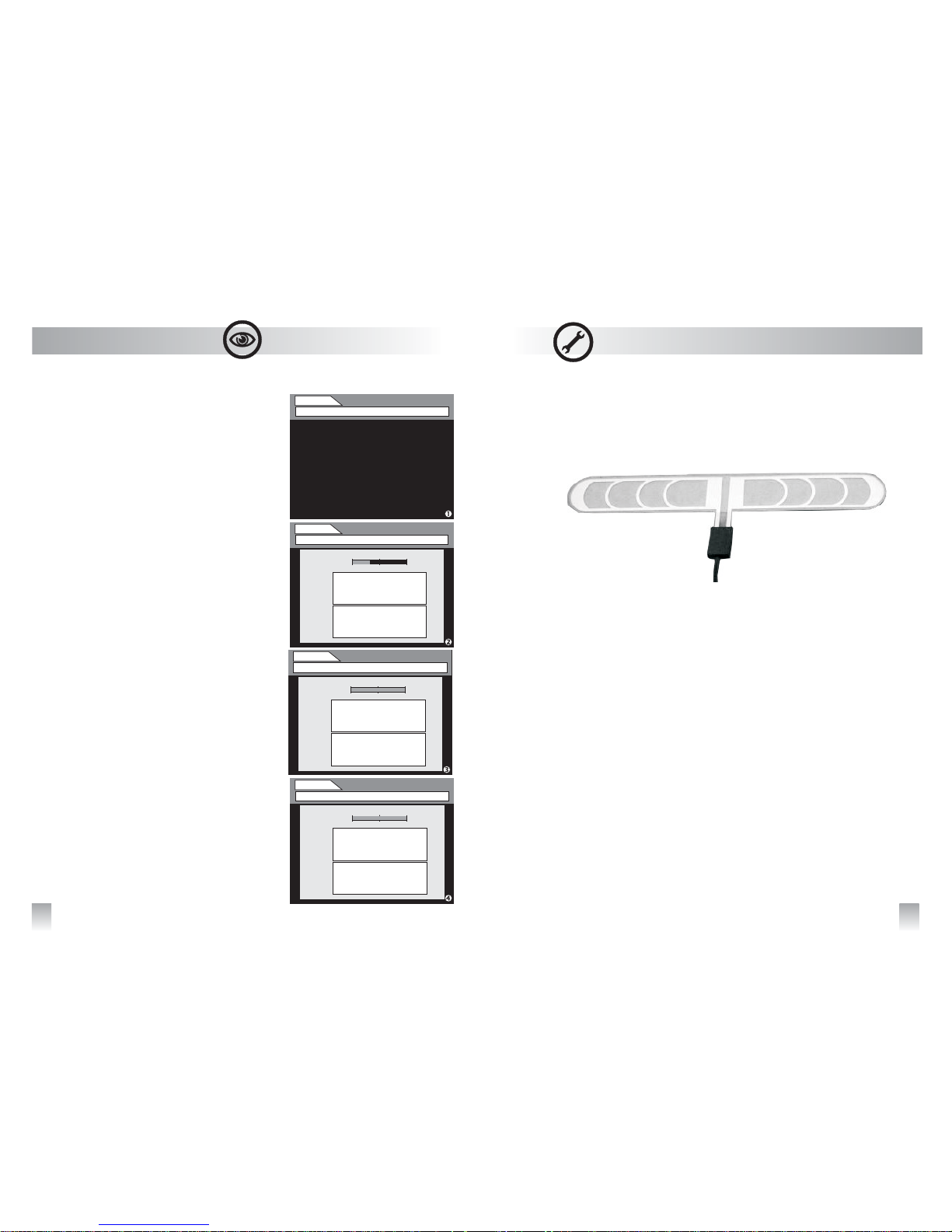

[OK] confirm
search [EXIT]
› P [OK] save o
od
scan phase
overall
[EXIT], [SCAN] and [OK]
scan phase.
v Getting started
• Please wait until
› press [OK] button
search.
Tsearchthe
At the end of the scan phase, frame will be shown
on the screen.
SCAN
[OK] to start search - [EXIT] to quit
SCAN
No services found - [EXIT] to quit
0%
TV
0
RADIO
0
50% 100%
SCAN
[OK] to stop - [EXIT] to continue
0%
TV
12
TV
TV
TV
TV
RADIO
RADIO
RADIO
2
50% 100%
SCAN
[OK] to save - [EXIT] to quit
0%
TV
44
TV 1
TV 2
TV 3
TV 4
RADIO 1
RADIO 2
RADIO 3
RADIO 4
RADIO
3
50% 100%
Installation and Connections
v TECHNICAL FEATURES
+ 5V DC PHANTOM POWERED DVB-T
ANTENNAS
Operation frequencies: 174 - 230 (band III)
470 - 866 (bands IV - V)
Gain: 18 dB Max
Cable type: coaxial 75 ohm
Cable lenght: 5 m
Connector: type FAKRA
Power: +5 Vcc
Consumption: 25mA min - 35 mA max
Temperature range: - 40° <> +85° C
Protection class: IP40
Size (L x B x H): 28 x 2,5 x 1,5cm
TV ANTENNAS
Specifications
19
7
First Use
TUNING
[OK] to start search - [EXIT] to quit
TV LIST
ADD FAVOURITE:[OK] to confirm - [EXIT] to quit
SETTINGS
DIAGNOSTICS
CREATE
SORT
DEL.CHAN
DEL.LIST
v Autotracking and Autosearch
These innovative automatic functions enable the receiver
to still be in tune with the selected channel while on the
move.
TypicalDTT Networks are MultiFrequency Network (MFN);
each TV channel may be transmitted at different
frequencies depending onthe specific geographical area.
Once a specific TV channel has been selected, the
Autotracking andAutosearch functions will tune, track and
in some cases automatically search for a channel where
there isa frequency change or signalloss without the need
of manually startinga new search.
To have the Autotracking and Autosearch functions
performing in the best possible way, it is recommended to
carefully follow theinstructions below:
tune into the available channels
in that specificarea
If the Autosearch function does not permit tuning into all
favourite channels, start the operations described at the
point 1 and2 again but inanother location.
1.Start an autoscan
2.Create a FAVOURITE TV LIST (from menu) -
3. Select theFAVOURITE TV LIST as default
-
by pressing [SCAN]
defi-
ne and organizethe list of your favourite channels
WARNING: channels marked in red are
temporarily not available due to the lack of
network coverage .
WARNING: channels marked in red are
temporarily not available due to the lack of
network coverage .
FAVOURITETV
1 Channel TV
2 Channel TV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
7 Channel TV
TVLIST
[GREEN] to change list
FAVOURITETV
TVLIST
1TV
2
Channel
ChannelTV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
7 Channel TV
[GREEN] to change list
1
1
Installation and Connections
TV ANTENNAS
Recommendations
active antennas
receiver
s
(DVB-T).
v
•
•
• Placing the antenna in the
firstly
;
•
•
INSTALLATION GUIDELINES
Use only amplified with adequate
gain directly powered by the antenna
connector and suitable to the reception of the Digital
Terrestrialsignal
Quantum Antennas, linked together with
Q10 receiver, have been manufactured in order to
optimize the system's functioning.
WARNING: ONLY use Quantum antenna
provided. Use of different antenna or external
power may result in product damage and
might affect thewarranty terms.

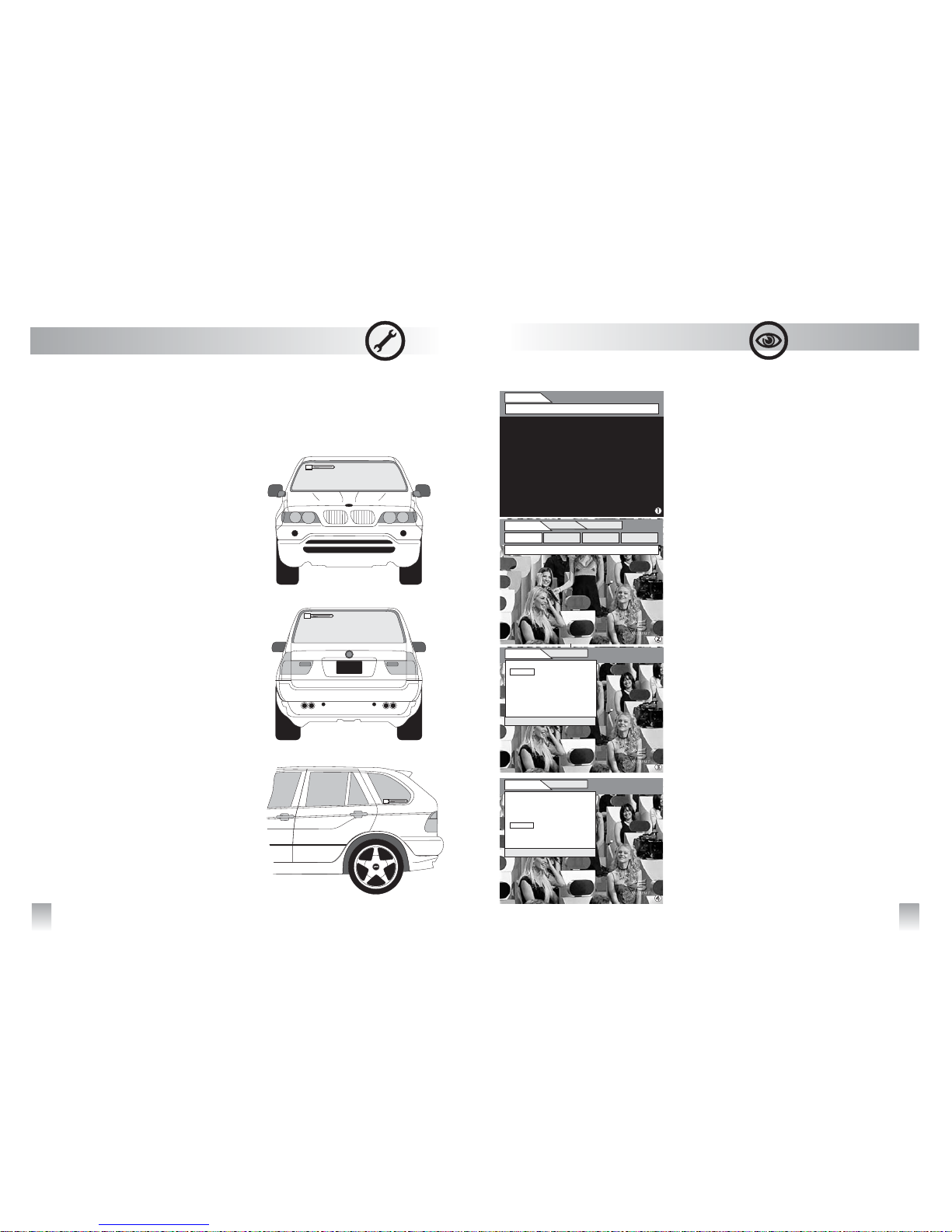

Be sure to position the antennas as far away and
opposing from each other as possible. For example, place the first antenna on the right side of the
wind screen of the vehicle and the second one
on the left side of the rear window or on the left
rear vent wing .
Antennas must be installed as far away from the
metal parts (vehicle's roof or vertical borders of
the wind screen/rearvent wing) aspossible.
bonnet orthe boot (depending on the vehicle) can influence the signal
reception. It's recommend to experiment
where to place the antennas whether on the
higher or the lower partof the window. Thehigher
part usually guarantees more protection from
noises caused bymotorcycles and scooters.
Handle with care the coaxial cable setting in order
to avoid damagesdue to vibration or crushing.
Be sure that the connections have been correctly
set and check the screwingof the connectors. Signal reception's problems are often caused by
incorrect assembly.
18
8
Daily Use
vvHow to switchthe receiver on
How to selecta channel
Depending on the specific car installation, the receiver will
be switched on as soon asthe car key turns on the battery.
In case an external a/v source was previously activated,
please use the [ ] button on the remote control to exit
stand-by mode.
A TV or Radio channel can be selected in three different
modes:
[]and[] [OK]
INFORMATION BAR will be previewed on the screen
tuning.
directly t rough channels without using the
[OK] button.
• DIRECT:select the desired channelby using the numerical buttons
• USING ARROWS:select the desired channelby using the
up/down buttons and press to
confirm the selection.
before the channel
• USING PROGRAM BUTTONS: press [P+] [P-] to
browse h
56
15 Channel TV
rogramP title
TV 12:17
12:00
12:45
SCAN
A/V
OK
P+
P
V+
CHANNEL
12
3
4
5
6
7
809
EXIT
BACK MUTE
LIST
info
MENU
TV
RADIO
@?!.
abc
ghi jkl
mno
pqrs
tuv
_+ *
wxyz
def

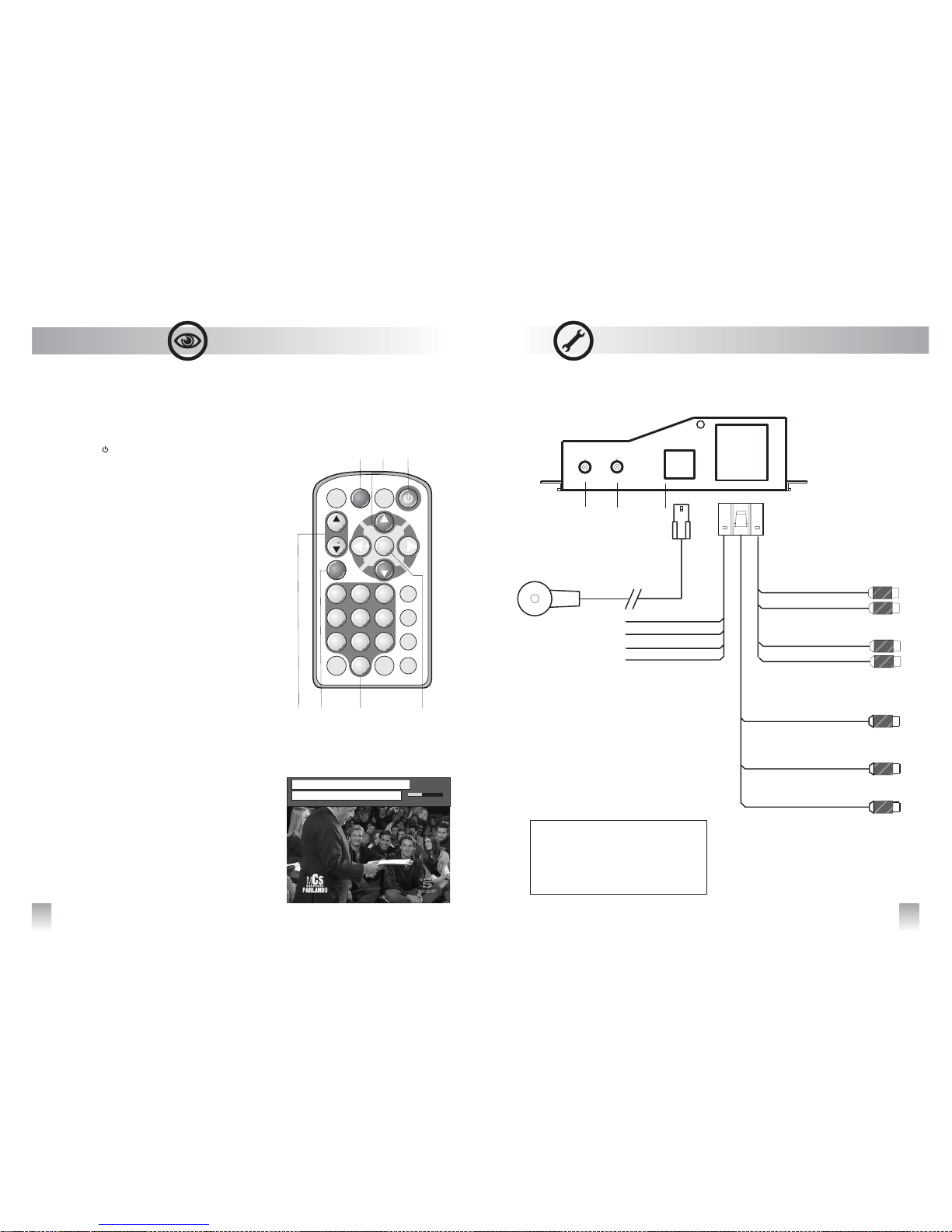

Installation and Connections
FRONT PANEL
WARNING:
+5V PHANTOM POWER IS PRESENT
TO ALL “ANTENNA IN” CONNECTORS
+12/24V KEY - Red
+12/24V BATTERY - Yellow
BRAKE - Green
GND - Black
VIDEO OUT 1 (FRONT)
VIDEO OUT 2 (REAR)
VIDEO IN
AUDIOOUTR(rigth)
AUDIO OUT L (left)
ANTENNA IN 1
ANTENNA IN 2
IR RECEIVER
TO CAR AUDIO
SYSTEM
RJ11 PORT
AUDIOINR(rigth)
AUDIO IN L (left)
17
EXTERNAL
AUDIO SOURCE
EXTERNAL
VIDEO SOURCE
FRONT
MONITOR
REAR
MONITOR
16
Daily Use
v
v
v
v
v
v
How to selecta channel ina TV/Radio List
How to adjustthe volume level
Mute
How to viewprogram info
How to selectthe audio language
How to selectthe audio language
• Press [LIST] to show theTV List
› Press [GREEN] to switch between the general TV LIST
and the FAVOURITE TV LIST if previously preset [see
MENU]
• Press [TV/RADIO] (yellow) to showthe RADIO LIST
› Press the same button toswitch between the Radio List or
the previously selectedTV LIST
• Select the desired channel
:
The volumelevel can beadjusted by using the [VOL+] [VOL-]
buttons
• Press [MUTE] to switch on/offthe audio output
• Press [info] to view the short information about the
selected program
• Press [BLUE] to get detailedinformations
To select the desired language in case of multilanguage
programs follow theinstructions:
• Press [info] + [GREEN] and select the desired
language by usingthe up/down[ ] [ ] buttons
• Press [info] + [GREEN] and select desired subtitle
language by usingthe up/down[ ] [ ] buttons
WARNING in red
due to lackof network coverage
channels marked are temporarily not
available
56
56
channels marked are temporarily not
available
FAVOURITETV
1C TV2hannel
ChannelTV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
7 Channel TV
TVLIST
[GREEN] to change list
1
1
SCAN
A/V
OK
P+
P
V+
CHANNEL
12
3
4
5
6
7
809
EXIT
BACK MUTE
LIST
info
MENU
TV
RADIO
@?!.
abc
ghi jkl
mno
pqrs
tuv
_+ *
wxyz
def
TV
RADIO
Installation
HAVE THE INSTALLATION DONE BY
A QUALIFIED PERSONNEL
DO NOT INSTALL IN LOCATIONS
WITH HIGH MOISTUREOR DUST
MAKE THE CORRECTCONNECTIONS
The installation and wiring of this unit
require specialtechnical skills and experiences. To ensure safety always have
the installation doneby experts
Route the electrical and audio/video
cables and wiring away from moving
parts or sharp/pointed edges. This will
prevent crimping and damage to the
wiring. If wiring passes through a metal
hole, use a rubber grommet to prevent
the wires’ insulation from being cut by
the metal edgeof the hole
Avoid installing the unit in locations with
high incidence of moisture or dust.
Moisture or dust that penetrates into
this unit mayresult in productfailure
Failure to make the proper connections
may result in product damage
USE SPECIFIED ACCESSORYPARTS
ARRANGE THE WIRINGCORRECTLY
USE ONLY IN CARS WITH A 12 / 24
Vcc NEGATIVE GROUND
BEFORE WIRING DISCONNECT THE
CABLE FROM THE NEGATIVE (-)
BATTERY TERMINALS
DO NOT CUT INTO ELECTRICAL
CABLES
DO NOT USE BOLTS OR NUTS IN THE
BRAKE OR STEERING SYSTEM TO
MAKE GROUND CONNECTIONS
DO NOT INSTALL IN LOCATIONS
WHICH MIGHT HINDER VEHICLE
OPERATION, SUCH AS THE
STEERING WHEEL OR GEARSHIFT
Be sure to use only the specified accessory parts. Use of other than designed
accessory parts may damage thisunit or
cause an incorrect functioning of the
appliance
Failure to do so may result infire, electric
shock or other injuries
Failure to do so may result in electric
shock or injuries due toelectrical shock
Never cut awaycable insulation to supply
power to other equipment. Doing so will
exceed the current carrying capacity of
the wire and result infire orelectric shock
Bolts or nuts used for the brake or steering systems (or any other safety-related
system), or tanks should NEVER be used
for installations or ground connections
Doing so may obstruct forward vision or
hamper movement etc., and result in serious accident
WARNING:
Before installing thedevice
read carefully the following instructions
!
9
1510

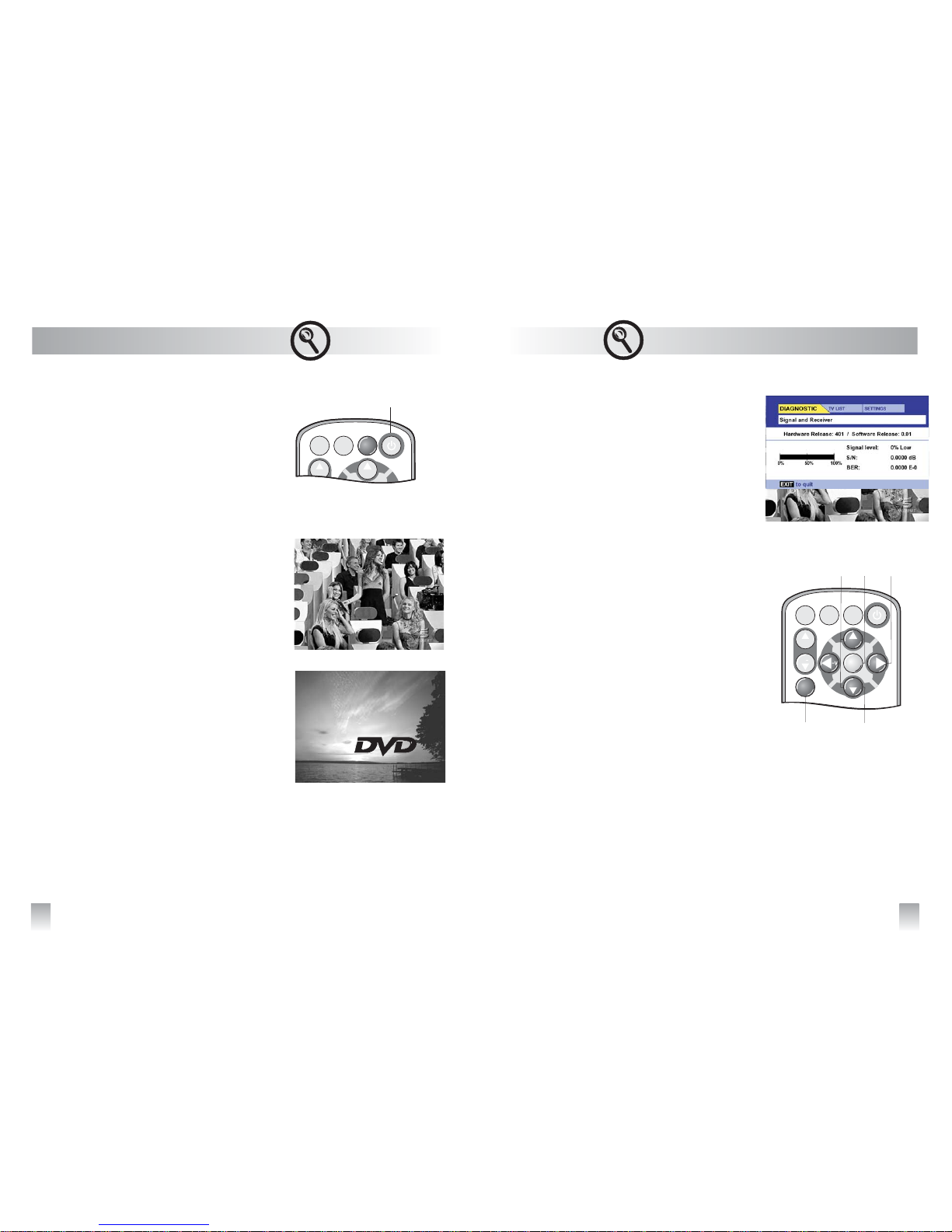

Audio/Video switch
Menu - DIAGNOSTICS
SCAN
A/V
OK
P+
P
V+
CHANNEL
EXIT
info
MENU
LIST
vsDIAGNOSTICS
P NU]
P
Receiver provides thefollowing diagnostics information:
• SIGNAL QUALITY
• RECEIVER INFO
• ress [ME
• Select DIAGNOSTICS by using the right and left
[ ] [ ] buttons
• ress [OK] to confirm the selectionor [EXIT] to can-
cel it.
How to viewthe DIAGNOSTICS:
34
SCAN
A/V
LIST
P+
info
The receiver enables the user to connect an external
audio/video source (e.g. Videogame console, DVD player,
etc..) to an audio/video input (as shown on page 17) using
the remote control
Using the Power button of the remote control the user
may switch from a digital TV signal to an external source
signal and viceversa.
v Audio/video Inputs
sHow to selectaudio/video input:
WARNING: FRONT monitor should be enabled only
once the handbrakecontrol is activated.
14
11

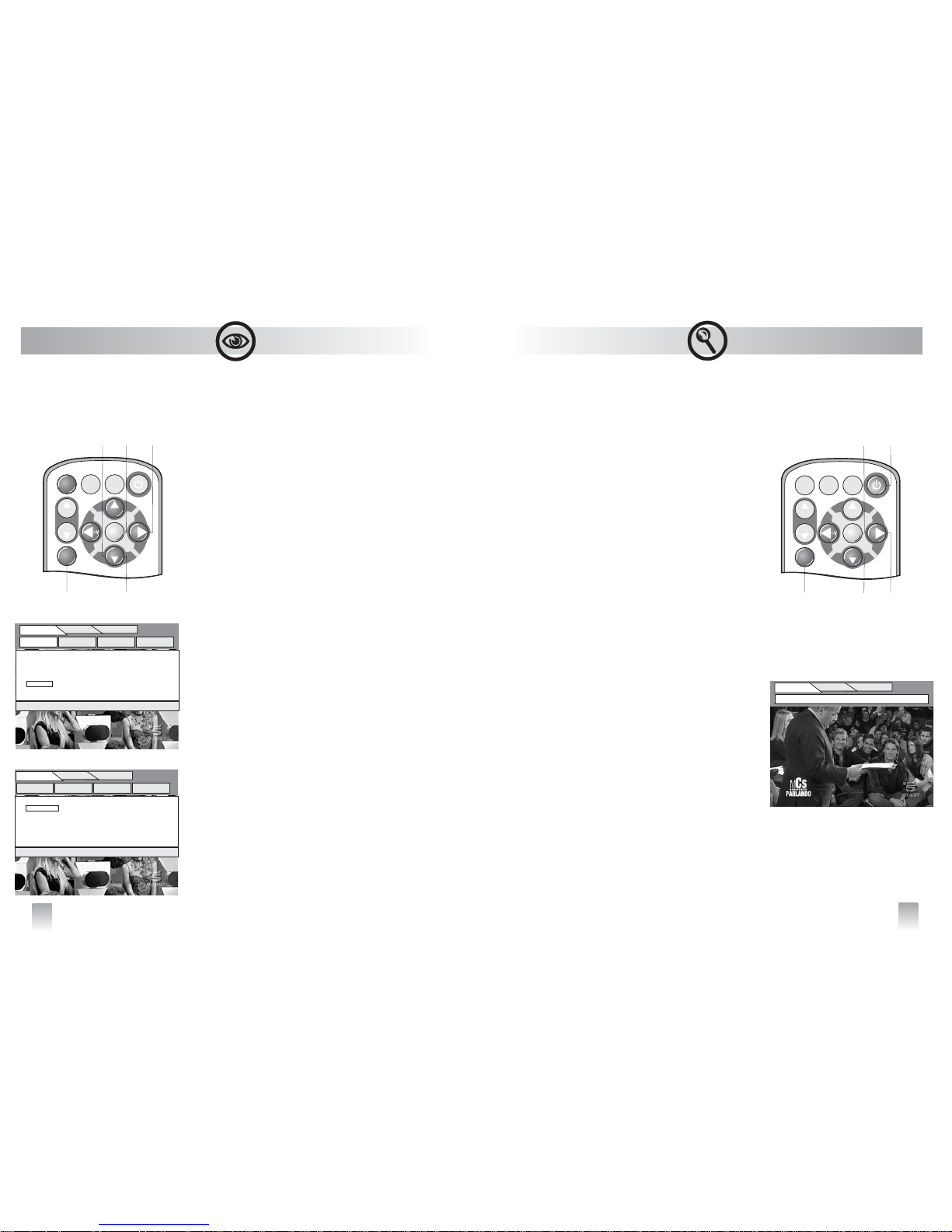

Receiver Menu
v MENU
In the main MENU the sysytem’s info and user’s
preferences can beseen and set.
The following optionsare available:
:
• SETTINGS
• TV LIST
• DIAGNOSTICS
• Press [MENU] on the remote control
v
Sub-menus
How to showthe Menu
SCAN
A/V
OK
P+
P
V+
CHANNEL
EXIT
info
MENU
LIST
SETTINGS
Receiver settings: [OK] to confirm - [EXIT] to quit
DIAGNOSTICS
TVLIST
Menu - TV LIST
v How tomanage the Favourite Tv List
It is possibleto create a personalfavourite TVList.
TV LIST and RADIO LIST include all the tuned channels which
cannot be personalised.
• Press [MENU]
• Select TVLIST and press [OK] to confirm
• Select CREATE and press [OK] to confirm
• Browse the list sequentially by using the up and down
buttons [ ][ ] , or in groups of six channels by using
right and leftbuttons [ ][ ] and select the channel
• Press [OK] to confirm the selection. Atick signal will be
shown next tothe selected channel
• If you want to cancel the selection press again and
the tick will bedeleted
Follow the same procedure as shown in point 1 above and
replace CREATE with DELETE.
• Press [MENU]
• Select TVLIST and press [OK] to confirm
• Select SORTand press [OK] to confirm
• Browse the list sequentially by using the up and down
buttons [ ][ ] or in groups of six channels by
using the right and left buttons[ ][ ] and select
the channel youwant to move
• Browse the list in the same way and click on the position
where you want to move the selected
channel. A tick mark will be shown next to the
selected channel
• Press [OK] to confirm the new positionof the channel
Follow the same procedure as shown in point 1 above and
replace CREATE with ERASE
1. How tocreate the Favourite Tv List:
2. How to delete a channel from the Favourite Tv List:
3. How tosort the Favourite Tv List:
4. How todelete the FavouriteTv List:
ü
ü
56
34
56
34
3
[OK]
mark
SCAN
A/V
OK
P+
P
V+
CHANNEL
EXIT
info
MENU
LIST
[EXIT to quit and save
TV LIST
SETTINGS
DIAGNOSTICS
CREATE
SORT
DELETE
ERASE
1TV
2
Channel
ChannelTV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
ü
ü
[EXIT] to quit and save
1TV01
2
Channel
ChannelTV 02
3 Channel TV 03
4 Channel TV 04
5 Channel TV 05
6 Channel TV 06
3
4
TV LIST
SETTINGS
DIAGNOSTICS
DELETE ERASE ADD
SORT
1312

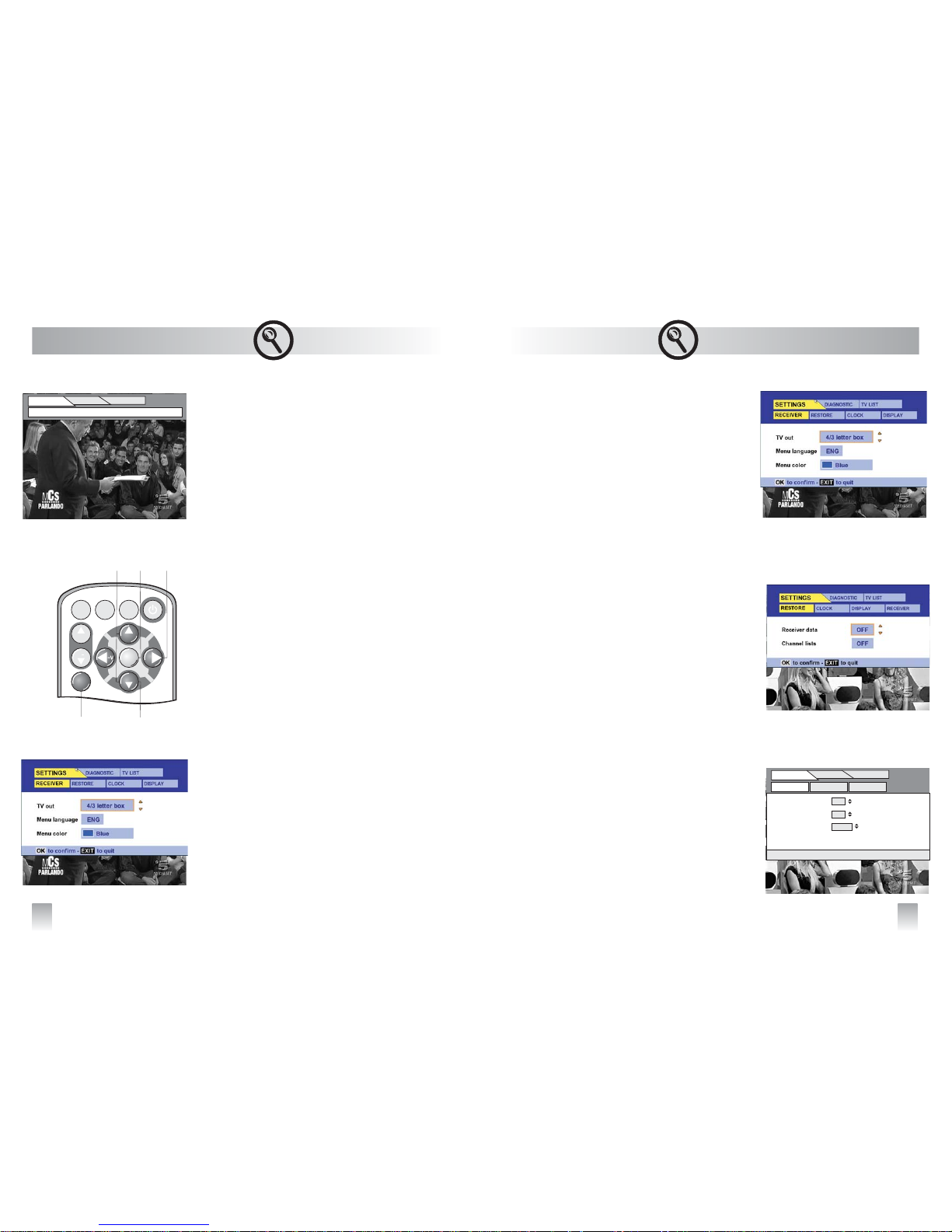

Menu - SETTINGS
RECEIVER
RESTORE
CLOCK
w
w
w
TV OUT
MENU LANGUAGE
MENU COLOR
RECEIVER DATA
CHANNELS LIST
•
Set tv outmode according your screen type :
› 4:3 pan&scan
› 4:3 letter box
› 16:9
•
Toselect the menu language
•
Toset color of menu
This function enables the user to reset the input data
among these datacategories:
•
Toreset settings, system and installationparameters
•
Todelete all the channels lists
It is possible to restore data completely by selecting both
items.
The receiver's clock will be automatically updated through
the TV signal. If desired, one could change the time zone
set at GMT+1by default.
SETTINGS
DIAGNOSTICS
TVLIST
CLOCK
RECEIVER
RESTORE
[OK] to confirm - [EXIT] to quit
Local time 11:23
Greenwich time 09:23
Offset +-01:00
Menu - SETTINGS
SCAN
A/V
OK
P+
P
V+
CHANNEL
EXIT
info
MENU
LIST
vwSETTINGS
.T
This sub-menu showsthe data related to:
• RECEIVER
• RESTORE
• CLOCK
• Press [MENU] to view the mainmenu on the screen
• Select SETTINGSby using the rightand left [ ] [ ]
buttons.
• Press OKto enter this sub-menuand then press it again
till you getthe required item
• Select the desired function firstlyby using the right and
left buttons [ ] [ ] and then theup and down [ ]
[ ] buttons
• Press [OK] to confirm the selectionand to move to
the next functionor [EXIT] to cancel the selection
WARNING: In order to avoid misfunctioning of the
device, BE AWARE of accidentally changing the
parameters. Default settings are normally correct
for standard installation hey can be restored
through the RESTOREfunction
How to navigatethe Settings Menu
s
34
34 5
6
SETTINGS
Receiver settings: [OK] to confirm - [EXIT] to quit
DIAGNOSTICS
TVLIST
Loading...
