Quantum LTO-4 User Manual


/72+DOI+HLJKW7DSH'ULYH
/72
8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH
Quantum LTO-4 Half-Height Tape Drive User’s Guide, P/N 20020140-001, November 2007. Product of USA.
Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication from time to time without notice.
COPYRIGHT STATEMENT
Copyright 2007 by Quantum Corporation. All rights reserved.
Your right to copy this manual is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum Corporation is prohibited by law and constitutes a punishable violation of the law.
TRADEMARK STATEMENT
Quantum and the Quantum logo are registered trademarks of Quantum Corporation.
Other trademarks may be mentioned herein which belong to other companies.

Contents

Preface viii
Chapter 1 Introduction 1
Overview............................................................................................................. 1
Drive Models...................................................................................................... 2
Internal ......................................................................................................... 2
Tabletop ....................................................................................................... 2
Features ............................................................................................................... 3
Chapter 2 Installation Procedures 5
Before Installing the LTO-4 Half-Height Tape Drive .................................. 6
Handling Precautions and Installation Guidelines ............................... 6
Preinstallation Requirements.................................................................... 7
Unpacking and Inspecting the Drive....................................................... 7
Installing the Internal LTO-4 Half-Height Tape Drive ................................ 8
Mounting the Internal Tape Drive ........................................................... 9
Connecting the Internal Drive Interface and DC Power Cables........ 10
Restarting the Internal Tape Drive System........................................... 11
Installing the Tabletop LTO-4 Half-Height Tape Drive............................. 12
Connecting the Tabletop Drive Interface and AC Power Cables ...... 12
LTO-4 Half-Height Tape Drive User’s Guide iii
Restarting the Tabletop Drive System ................................................... 13
Installing the LTO Driver Software...............................................................14
Registering the LTO-4 Half-Height Tape Drive ..........................................14
Chapter 3 Operation 15
Understanding the Front Panel Display....................................................... 15
Using LTO Tape Cartridges ........................................................................... 18
Loading a Tape Cartridge........................................................................ 18
Unloading a Tape Cartridge ................................................................... 18
Write Protecting a Tape Cartridge ......................................................... 18
Tape Cartridge Care and Maintenance ................................................. 19
Cleaning the Tape Drive .................................................................................20
Performing an Emergency Cartridge Eject...................................................22
Chapter 4 Theory 23
Track Layout..................................................................................................... 23
Recording Method ...........................................................................................25
Data Buffer ........................................................................................................ 25
Data Integrity.................................................................................................... 25
Error-correction Code (ECC)...................................................................26
Servo-tracking Faults ............................................................................... 27
Data Compression............................................................................................27
Data Compression Considerations.........................................................28
Intelligent Data Compression ................................................................. 29
Chapter 5 Specifications 31
Physical Specifications ....................................................................................32
Power Specifications........................................................................................ 34
Drive Performance Specifications.................................................................. 35
Environmental Requirements ........................................................................37
Injected Noise Specifications..........................................................................38
Reliability Specifications ................................................................................. 38
Mean Time Between Failures..................................................................39
Mean Time to Replace.............................................................................. 39
LTO Cartridge Specifications ......................................................................... 39
Environmental Considerations............................................................... 39
LTO-4 Half-Height Tape Drive User’s Guide iv
Cartridge Memory....................................................................................40
Cartridge Reliability ................................................................................. 40
Chapter 6 Troubleshooting Guide 41
Installation Best Practices ............................................................................... 41
Following SCSI Best Practices................................................................. 41
Using a Serial-attached SCSI Host Bus Adapter ..................................41
HBA Preinstallation Checks.................................................................... 42
Troubleshooting Suggestions.........................................................................42
Computer Does Not Start ........................................................................ 42
Computer Hardware Does Not Recognize the Tape Drive................ 43
Computer Software Does Not Recognized the Tape Drive................ 48
Drive Does Not Load the Tape Cartridge............................................. 50
Drive Does Not Eject the Tape Cartridge.............................................. 52
Slow Backup Operations ......................................................................... 54
Failed Operations TapeAlert Messages................................................. 56
Appendix A Installation Checklists 63
Internal LTO-4 Half-Height Tape Drive Quick Start ................................. 64
Tabletop LTO-4 Half-Height Tape Drive Quick Start ................................ 65
Appendix B Disposal of Electrical & Electronic Equipment 66
Appendix C Regulatory Compliances 67
Safety Compliances.......................................................................................... 68
Electromagnetic Compatibility (EMC) Compliances ................................. 69
Index 71
LTO-4 Half-Height Tape Drive User’s Guide v

Figures

Figure 1 Internal LTO-4 Half-Height Tape Drive ................................... 2
Figure 2 Acceptable Mounting Orientation............................................. 9
Figure 3 Internal Tape Drive Mounting Holes...................................... 10
Figure 4 Internal Drive Interface and Power Connectors.................... 11
Figure 5 Tabletop Drive Interface and Power Cable Connectors....... 13
Figure 6 Front Panel Display ................................................................... 16
Figure 7 Ultrium Tape Cartridge Write-Protect Switch....................... 19

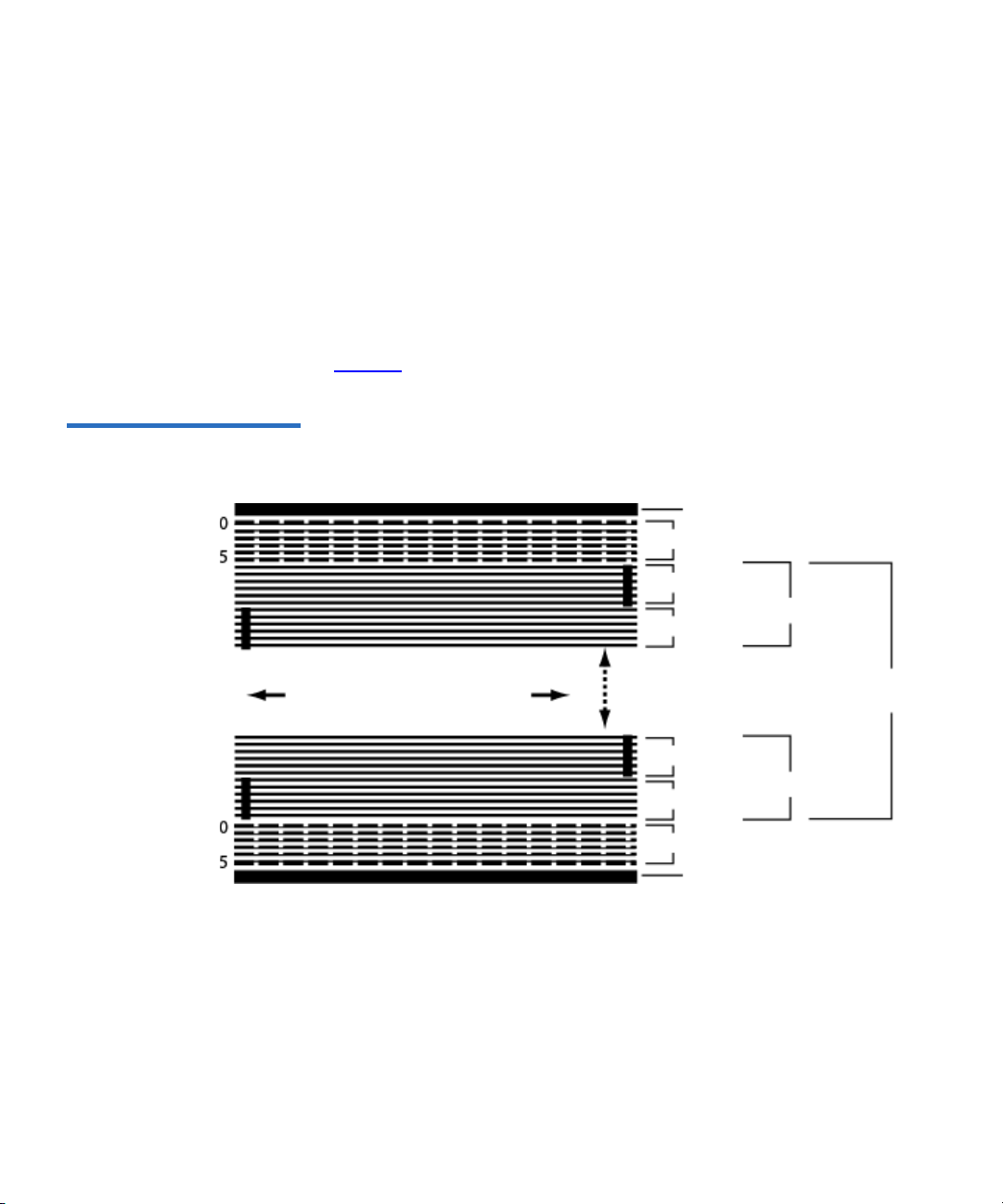

Figure 8 Layout of the Tracks on LTO Ultrium Tapes......................... 24
Figure 9 LTO-4 Half-Height Tape Drive Dimensions.......................... 33
LTO-4 Half-Height Tape Drive User’s Guide vi

Tables

Table 1 Performance Features and Capabilities .................................... 3
Table 2 Front Panel Display Indications............................................... 16
Table 3 Physical Specifications............................................................... 32
Table 4 Voltage and Current Specifications......................................... 34
Table 5 Power Dissipation ...................................................................... 34
Table 6 Drive Performance Specifications............................................ 35
Table 7 Environmental Requirements .................................................. 37
Table 8 Reliability Specifications ........................................................... 38
Table 9 Environmental Tolerances ........................................................ 40
LTO-4 Half-Height Tape Drive User’s Guide vii

Preface

Audience
Purpose
Document Organization
This guide is written for users of the Quantum LTO-4 Half-Height Tape Drive.
This guide provides information about the LTO-4 Half-Height Tape Drive including:
• Installing the drive
• Basic drive operations
• Maintenance
• Specifications
• Troubleshooting
This guide is organized as follows:
Chapter 1, technologies, and summarizes the drive’s key features.
Chapter 2, unpacking tips, and installation instructions.
Chapter 3, drive.
Introduction, provides an overview of LTO and Ultrium
Installation Procedures, describes handling precautions,
Operation, describes the operation and maintenance of the
LTO-4 Half-Height Tape Drive User’s Guide viii
Preface
Chapter 4, Theory, describes the theory of operation behind the drive,
including the technology used in various drive components.
Notational Conventions
Chapter 5,
Chapter 6,
Specifications, provides drive and cartridge specifications.
Troubleshooting Guide provides troubleshooting
procedures you can follow if you encounter a problem with your drive.
Appendix A,
Installation Checklists, provides abbreviated quick-start
checklists for users who are already familiar with the installation procedures.
Appendix B, Disposal of Electrical & Electronic Equipment
, provides instructions for proper disposal of unwanted electrical and electronic equipment.
Appendix C,
Regulatory Compliances, identifies drive compliance
with safety and EMC regulations.
This guide also has an index.
This guide uses the following conventions:
Note: Notes emphasize important information related to the main
topic.
Tech Tip: Tech Tips provide technical information which may be
helpful in performing the procedure.
Caution: Cautions indicate potential hazards to equipment and are
included to prevent damage to equipment.
Warning: Warnings indicate potential hazards to personal safety and
are included to prevent injury.
LTO-4 Half-Height Tape Drive User’s Guide ix
Preface
Related Documents
The following subsection identifies the primary documents that are related to the LTO-4 Half-Height Tape Drive.
Standards Conformance
The Small Computer System Interface is described in standards that include several versions and a number of individual documents. The original Small Computer System Interface Standard, X3.131-1986, is referred to as SCSI-1. SCSI-1 was revised, resulting in the Small Computer System Interface – 2 (X3.131-1994), referred to as SCSI-2. The set of SCSI-3 standards are collectively referred to as SCSI-3. The applicable ANSI standards are as follows:
• INCITS Technical Committee T10 (SCSI Storage Interfaces) Standards:
SCSI Architecture Model – 2 (SAM-2) INCITS 366-2003
SCSI Architecture Model – 3 (SAM-3) INCITS 402-2005
SCSI Architecture Model – 4 (SAM-4) in development
Automation/Drive Interface – Commands (ADC) INCITS 403-
2005
Automation/Drive Interface Commands (ADC-2) in
development
0
Automation/Drive Interface – Transport Protocol (ADT) INCITS
406-2005
Automation/Drive Interface – Transport Protocol – 2 (ADT-2) in
development
Fibre Channel Protocol for SCSI (FCP) INCITS 269-1996
Fibre Channel Protocol for SCSI, Second Version - 2 (FCP-2)
INCITS 350-2003
Fibre Channel Protocol for SCSI, Third Version - 3 (FCP-3)
INCITS 416-2006
Fibre Channel Protocol for SCSI, Fourth Version - 4 (FCP-3) in
development
SCSI-3 Medium Changer Commands (SMC) INCITS 314-1998
SCSI Media Changer Commands – 2 (SMC-2) INCITS 382-2004
LTO-4 Half-Height Tape Drive User’s Guide x
Preface
SCSI Media Changer Commands – 3 (SMC-3) in development
SCSI Parallel Interface – 3 (SPI-3) INCITS 336-2000
SCSI Parallel Interface-4 (SPI-4) INCITS 362-2002
SCSI Parallel Interface-5 (SPI-5) INCITS 367-2003
SCSI-3 Primary Commands (SPC) INCITS 301-1997
SCSI Primary Commands – 2 (SPC-2) INCITS 351-2001
SCSI Primary Commands – 3 (SPC-3) INCITS 408-2005
SCSI Primary Commands – 4 (SPC-4) in development
SCSI-3 Stream Commands (SSC) INCITS 335-2000
SCSI Stream Commands – 2 (SSC-2) INCITS 380-2003
SCSI Stream Commands – 3 (SSC-3) in development
Serial Attached SCSI – (SAS) INCITS 376-2003
Serial Attached SCSI – 1.1 (SAS-1.1) INCITS 417-2006
Serial Attached SCSI – 2 (SAS-2) in development
• INCITS Technical Committee T11 (Device Level Interfaces) Standards
Fibre Channel Arbitrated Loop (FC-AL-2) Amendment 1 INCITS
332.1999/AM1-2003Fibre Channel Generic Services-4 (FC-GS-4) INCITS 387-2004
Fibre Channel Generic Services-5 (FC-GS-5) in development
Fibre Channel Generic Services-6 (FC-GS-6) in development
Fibre Channel - Link Services (FC-LS) in development
Note: The term “SCSI” is used wherever it is not necessary to
distinguish between the versions of SCSI.
LTO-4 Half-Height Tape Drive User’s Guide xi
Preface
Contacts
Quantum company contacts are listed below.
Quantum Corporate Headquarters
To order documentation on the LTO-4 Half-Height Tape Drive or other products contact:
Quantum Corporation P.O. Box 57100 Irvine, CA 92619-7100 (949) 856-7800 (800) 284-5101
Technical Publications
To comment on existing documentation send e-mail to:
doc-comments@quantum.com
Quantum Home Page 0
Visit the Quantum home page at:
0
0
http://www.quantum.com
Customer Support 0
Quantum Global Services provides 24-hour support that can be reached at:
North/South America: (949) 725-2100 or (800) 284-5101
Asia/Pacific Rim: (International Code) + 61 7 3839 0988
Europe/Middle East/Africa: (International Code) + 44 (0) 1256 848748
Send faxes for Global Services to:
North/South America: (949) 725-2176
Asia/Pacific Rim: (International Code) + 61 7 3839 0955
Europe/Middle East/Africa: (International Code) + 44 (0) 1256 848777
LTO-4 Half-Height Tape Drive User’s Guide xii
Send e-mail for Global Services to:
Asia/Pacific Rim: apachelp@quantum.com
Europe/Middle East/Africa: eurohelp@quantum.com
Visit our website:
www.quantum.com/support
Preface
LTO-4 Half-Height Tape Drive User’s Guide xiii

Overview

Chapter 1

1Introduction

This chapter provides an introductory overview of the Quantum LTO-4 Half-Height Tape Drive. Topics include:
Overview
Drive Models
Features
The Quantum LTO-4 Half-Height Tape Drive is a high-performance 16­channel tape drive that complies with the LTO interchange specifications. The drive is suited for mid-range to high-end servers, mainframe systems, and tape library automation systems.
The LTO-4 Half-Height Tape Drive uses Ultrium data cartridges. Its capacity is maximized using intelligent data compression. The drive has a native capacity of 800 Gbytes (1,600 Gbytes assuming 2:1 data compression).
LTO-4 Half-Height Tape Drive User’s Guide 1

Drive Models

Chapter 1 Introduction
Drive Models
The LTO-4 Half-Height Tape Drive has a 5¼-inch half-height form factor with automatic electromechanical cartridge soft load. It is available in two models:
• Internal
• Tabletop

Internal 1

Tabletop 1

Figure 1 Internal LTO-4 Half­Height Tape Drive
The internal model (see figure 1) is a 5¼-inch drive that you can install inside the drive bay of a:
• Computer workstation or server system
• Quantum rackmount drive enclosure
The tabletop model is a 5¼-inch drive that is already mounted inside a stand-alone external drive enclosure with a built-in power supply.
LTO-4 Half-Height Tape Drive User’s Guide 2

Features

Chapter 1 Introduction
Features
Table 1 describes the key performance features and capabilities of the
LTO-4 Half-Height Tape Drive.
Table 1 Performance Features and Capabilities
Feature Description
Cartridge memory Stores pertinent information about the
media to enable fast cartridge loading
Chassis Shock damped and isolated
Data buffering 128 Mbytes for high performance
Head positioner Patented proprietary mechanism for
increased data integrity
Intelligent data compression
Interface Serial-attached SCSI (SAS)
LSI circuitry Custom designed for fast, efficient data
Native data transfer rate Up to 120 Mbytes per second
Read channel Third generation for increased maturity
RISC processors Provide fast, efficient data processing
Analyzes compression factors before recording to maximize performance and capacity
processing
and data integrity
SmartVerify Includes two levels of ECC for extra data
safety and error protection
Supported platforms A wide variety of Windows and UNIX
systems
TapeAlert Monitors and reports drive performance
Tape picking Enhanced implementation for increased
reliability
LTO-4 Half-Height Tape Drive User’s Guide 3
Chapter 1 Introduction
Features
Feature Description
Variable-speed transfer Variable speeds for matching with the host
to:
• Optimize data transfers
• Shorten backup times
• Increase reliability
LTO-4 Half-Height Tape Drive User’s Guide 4
Chapter 2

2Installation Procedures

This chapter provides detailed installation instructions for both the internal and tabletop models of the Quantum LTO-4 Half-Height Tape Drive, including:
Before Installing the LTO-4 Half-Height Tape Drive
Handling Precautions and Installation Guidelines
Preinstallation Requirements on page 7
Unpacking and Inspecting the
• Detailed procedures for:
Installing the Internal LTO-4 Half-Height Tape Drive
Installing the Tabletop LTO-4 Half-Height Tape Drive
Installing the LTO Driver Software
required
Registering the LTO-4 Half-Height Tape Drive
Optionally, experienced users who are familiar with installing the LTO-4 Half-Height Tape Drive can refer to the quick-start checklists in
appendix A
installation instructions, with references to the corresponding detailed procedures in this chapter.
on page 63 of this guide. Each checklist provides abbreviated
Drive on page 7
on page 14, optional/when
, which includes:
on page 8
on page 12
on page 14
LTO-4 Half-Height Tape Drive User’s Guide 5
Chapter 2 Installation Procedures

Before Installing the LTO-4 Half-Height Tape Drive

Before Installing the LTO-4 Half-Height Tape Drive

Handling Precautions and Installation Guidelines 2

Always observe the following precautions and guidelines when handling and installing LTO-4 Half-Height Tape Drives:
• Internal, at all times
• Tabletop, when removed from its free-standing enclosure
Handling Precautions
• Internal drives have exposed components that are sensitive to static electricity. To reduce the possibility of damage from static discharge, the drives are packaged in a protective antistatic bag. Do not remove the drive from the antistatic bag until you are ready to install it.
• Wear an ESD-preventive grounding wrist strap or observe similar ESD precautions when working with the drive. Be sure the wrist strap makes good skin contact. Do not remove the wrist strap until you finish working with the drive.
Also, avoid contact between the drive, other equipment, and clothing. The wrist strap only protects the equipment from ESD voltages on the body; ESD voltages on clothing can still cause damage.
• Before removing the drive from the antistatic bag, touch a grounded metal surface to discharge any static electricity buildup from your body.
(continued)
LTO-4 Half-Height Tape Drive User’s Guide 6
Chapter 2 Installation Procedures
Before Installing the LTO-4 Half-Height Tape Drive

Preinstallation Requirements 2

Handling Precautions (continued)
• Handle the drive by its sides rather than by the top cover to reduce the risk of dropping the drive or damaging it during installation.
• Either lay the drive on a nonconductive surface or put it back inside the protective antistatic bag to reduce the chance of damage from static discharge
Installation Guidelines
Due to the high speed of the LTO-4 Half­Height Tape Drive, do not connect more than one LTO-4 drive to the same channel on a host SCSI adapter.
Before installing the LTO-4 Half-Height Tape Drive, make sure you have:
• A serial SCSI host bus adapter (HBA) installed and properly configured in the host computer
• Interface components, either:
7-pin 1x SATA style interface cable for an internal drive
26-pin SFF-8088 mini-SAS style interface cable for a tabletop
drive
• Backup application software that supports the tape drive. For a list of the backup software applications that have been tested with the LTO­4 Half-Height Tape Drive, please visit our website at:

Unpacking and Inspecting the Drive 2

www.quantum.com/support
Although each LTO-4 Half-Height Tape Drive is inspected and carefully packaged at the factory, damage can occur:
• In shipment
• When being unpacked
LTO-4 Half-Height Tape Drive User’s Guide 7
Chapter 2 Installation Procedures

Installing the Internal LTO-4 Half-Height Tape Drive

Observe the handling precautions listed in Handling Precautions and
Installation Guidelines and carefully unpack and inspect the LTO-4 Half-
Height Tape Drive as follows:
1 Visually inspect the shipping container and notify your carrier
immediately of any damage.
2 Place the shipping container on a flat, clean, stable surface and
carefully remove the contents.
3 Visually inspect the LTO-4 Half-Height Tape Drive and notify your
Quantum representative immediately of any damage.
4 Always save the shipping container and packing materials for any
future reshipment.
Installing the Internal LTO-4 Half-Height Tape Drive
To install the internal LTO-4 Half-Height Tape Drive, complete the following procedures in the order presented:
1 M
ounting the Internal Tape Drive
2 Connecting the Internal Drive Interface and DC Power Cables on
page 10
3 Restarting the Internal
4 Installing the LTO Driver Software
5 Registering the LTO-4 Half-Height Tape Drive
Tape Drive System on page 11
on page 14, if required
on page 14
LTO-4 Half-Height Tape Drive User’s Guide 8
Chapter 2 Installation Procedures
YES YES YES NO
Installing the Internal LTO-4 Half-Height Tape Drive

Mounting the Internal Tape Drive 2

Figure 2 Acceptable Mounting Orientation
You can mount the internal LTO-4 Half-Height Tape Drive either horizontally or vertically, but not upside down (see figure 2
).
IF you mount the drive . . . THEN the . . .
horizontally, base of the drive must be within 15
degrees of horizontal.
vertically, side of the drive should be within 5
degrees of horizontal.
Mount the drive in a 5.25-inch, half-height drive bay as follows:
1 As required:
a Save and close your open files and terminate all running
applications.
b Shut down the workstation or server system.
c Disconnect the system AC power cord from the facility AC
power receptacle.
2 Remove the cover from the workstation or server system.
Note: See your computer manufacturer’s instructions for the
proper procedures to remove the cover.
3 Select an available 5.25-inch half-height bay and, if required, remove
the bay cover.
LTO-4 Half-Height Tape Drive User’s Guide 9
Figure 3 Internal Tape Drive
Lower mounting holes
Upper mounting holes
Mounting Holes
Chapter 2 Installation Procedures
Installing the Internal LTO-4 Half-Height Tape Drive
4 Position the drive in the bay and align either the upper or lower
mounting holes—whichever is appropriate—with the holes in the chassis (see figure 3).
5 Secure the drive using two M3.0 X 5 metric screws on each side.
Caution: Using screws longer than 5 mm can damage the drive.
Do not use screws longer than 5 mm to secure the internal LTO-4 Half-Height Tape Drive.
After mounting the internal LTO-4 Half-Height Tape Drive, proceed to
C
onnecting the Internal Drive Interface and DC Power Cables in the
following subsection.

Connecting the Internal Drive Interface and DC Power Cables 2

As shown in figure 4, the rear panel of the internal LTO-4 Half-Height Tape Drive has connectors for:
• A 7-pin 1x SATA style interface cable
• A serial library interface cable
• The internal drive DC power cable
Connect the interface and DC power cables to the internal drive as follows:
1 Verify that the system is shut down and the AC power cord is
disconnected from the facility AC power receptacle.
2 Attach the internal SAS interface cable to the 7-pin 1x SATA style SAS
connector on the back of the drive.
LTO-4 Half-Height Tape Drive User’s Guide 10
Figure 4 Internal Drive
Serial library port
DC power connector 7-pin 1x SATA style SAS connector
Interface and Power Connectors
Chapter 2 Installation Procedures
Installing the Internal LTO-4 Half-Height Tape Drive
3 If you are installing the internal LTO-4 Half-Height Tape Drive in a
tape library system, connect the RS-422 serial interface cable to the serial library port on the back of the drive. (The serial library port is not used in workstation or server systems.)
4 Connect the internal drive DC power cable to the DC power
connector on the back of the drive.

Restarting the Internal Tape Drive System 2

5 Reinstall the system cover.
6 Reconnect the system AC power cord to the facility AC power
receptacle.
After connecting the interface and DC power cables, proceed to
Restarting the Internal
Tape Drive System in the following subsection.
After connecting the internal drive interface and DC power cables:
1 Restart the workstation or server system.
2 Refer to the operating procedures in chapter 3
to verify that the internal LTO-4 Half-Height Tape Drive comes on and completes the Power On Self Test (POST) functions.
3 As required, proceed to either:
Installing the LTO Driver Software
Registering the LTO-4 Half-Height Tape Drive
on page 14
on page 14
LTO-4 Half-Height Tape Drive User’s Guide 11
Chapter 2 Installation Procedures

Installing the Tabletop LTO-4 Half-Height Tape Drive

Installing the Tabletop LTO-4 Half-Height Tape Drive
The tabletop LTO-4 Half-Height Tape Drive is a compact external drive that connects to the host computer through an external serial-attached SCSI (SAS) port.
Do not attempt to install the LTO-4 Half-Height Tape Drive until you have reviewed Handling Precautions and Installation Guidelines page 6.
To install the tabletop LTO-4 Half-Height Tape Drive, complete the following procedures in the order presented:
1 C
onnecting the Tabletop Drive Interface and AC Power Cables on
page 12
2 C
onnecting the Tabletop Drive Interface and AC Power Cables on
page 12
3 R
estarting the Tabletop Drive System on page 13
on

Connecting the Tabletop Drive Interface and AC Power Cables 2

4 Installing the LTO Driver Software
5 Registering the LTO-4 Half-Height Tape Drive
As shown in figure 5, the rear panel of the tabletop LTO-4 Half-Height Tape Drive has connectors for:
A 26-pin SFF-8088 mini-SAS style interface cable
•The AC power cable
Connect the interface and AC power cables to the tabletop drive as follows:
1 As required:
a Save and close your open files and terminate all running
applications.
b Shut down the workstation or server system.
c Disconnect the system AC power cord from the facility AC
power receptacle.
on page 14, if required
on page 14
LTO-4 Half-Height Tape Drive User’s Guide 12
Figure 5 Tabletop Drive
26-pin SFF-8088 mini-SAS connector
AC power switch
AC power connector
Interface and Power Cable Connectors
Chapter 2 Installation Procedures
Installing the Tabletop LTO-4 Half-Height Tape Drive
2 Attach the external SAS interface cable to the 26-pin SFF-8088 mini-
SAS connector on the back of the drive.
3 Verify that the tabletop LTO-4 Half-Height Tape Drive AC power
switch is set to the off position, and connect the AC power cord to the power connector on the back of the drive.
4 Connect the drive AC power cord to the facility AC power receptacle.
5 Reconnect the workstation or server system AC power cord to the
facility AC power receptacle.
After connecting the tabletop drive interface and AC power cables, proceed to R
estarting the Tabletop Drive System in the following
subsection.

Restarting the Tabletop Drive System 2

After connecting the tabletop drive interface and AC power cables:
1 Set the tabletop LTO-4 Half-Height Tape Drive power switch to the
on position.
2 Restart the workstation or server system.
3 Refer to the operating procedures in chapter 3
to verify that the tabletop LTO-4 Half-Height Tape Drive comes on and completes the Power On Self Test (POST) functions.
LTO-4 Half-Height Tape Drive User’s Guide 13
