Rack Mount Installation Instructions
Precautions
You must consider the following precautions when installing a FastStor unit in a rack system:
1. Maximum recommended ambient temperature is 40º C. Internal temperature of rack should be considered for continued
safe operation.
2. Do not block the product rear vents or otherwise restrict airflow to these vents when unit is installed in rack.
3. Mechanical loading of rack should be considered so that the rack remains stable and unlikely to tip over.
4. Consideration to the overall loading of the branch circuit should be given before installing any equipment in a rack
environment.
5. Ensure that a reliable earthing path is maintained in rack system. This unit is to be connected to Earth ground.
Table of Contents
Precautions................................................................................................................................................................................................. ii
Rack Mounting a Single FastStor .............................................................................................................................................................. 1
Tools Required.................................................................................................................................................................................... 1
Unpacking the Rackmount Kit ...........................................................................................................................................................2
Preparing the Rack.............................................................................................................................................................................. 4
Preparing a Single FastStor for Rack Mounting ................................................................................................................................. 6
Determining Model......................................................................................................................................................................6
Installing Kit Components........................................................................................................................................................... 7
Rack Mounting Dual FastStors..................................................................................................................................................................8
Preparing Dual FastStors for Rack Mounting..................................................................................................................................... 8
Separating the FastStor and Attached Support Box.....................................................................................................................8
Attaching Two FastStor Units ..................................................................................................................................................... 9
Installing the FastStor/Support Box Assembly into the Rack.................................................................................................................. 13
Appendix A: Slide Rail Attachment for Early Model FastStor................................................................................................................14
Appendix B: Rear Mounting Point for Early Model Rack-Ready FastStor............................................................................................. 16
ii FastStor Rack Mount Installation Instructions 62-0125-01
Rack Mounting a Single FastStor
These instructions provide detailed descriptions of the steps you must perform to install a single FastStor in a single slot of your
rack. You’ll need a work surface to assemble the parts on before installing your FastStor(s) in the rack.
Tools Required
• T-8 Torx driver
• #1 philips screwdriver
• #1 flat blade screwdriver
• 3/8” nutdriver or wrench
• 11/32” nut-driver or wrench
62-0125-01 FastStor Rack Mount Installation Instructions 1
Unpacking the Rackmount Kit
Refer to the illustration below while performing the steps that follow:
1. Open the shipping carton and remove the square cardboard tube from the inner tray. Set the cardboard tube on the work
surface.
2. Remove the inner tray from the carton and set it on the work surface.
3. Remove the support box from the carton by lifting the foam support braces out.
4. Remove the foam braces from the support box.
5. Pull the plastic bag off the support box and place the box on the work surface.
6. Remove the square cardboard tube from the inner tray, open it and place the contents on the work surface.
7. Remove the bubble-wrapped package from the inner tray; open it and place the rack mount brackets on the work surface.
8. Remove the bag of hardware from the inner tray, open it and place the contents on the work surface.
2 FastStor Rack Mount Installation Instructions 62-0125-01
9. Verify that you have the components listed in the following table:
FastStor Rackmount Kit Components
Component ID Description Quantity
1 Support box with attached inner slide rail 1
2 Cover, top, support box 1
3 Screw, panhead, slotted, 8-32 x 3/8” 10*
4 Kepnut, 8-32 9*
5 Screw, flathead, philips, 4-40 x ¼” 10
6 Washer, flat, # 8 8*
7 Screw, panhead, philips, 4-40 x ¼” 3
8 Screw, panhead, philips, 10-32 x 3/8” 1
9 Kepnut, 10-32 1
10 Screw, panhead, philips, M6 x 10 x 10mm 8
11 Nut plate 4
12 Cage nut 2
13 Slide/rail assembly; consisting of outer front rail
adapter (9.5”), with attached outer slide rail
14 Rail adapter, outer, rear (17.5”) 2
15 Inner slide rail. 1
17 Cable tie, 7.5” 5
18 FastStor Rackmount Installation Instructions 1
19 Screw, panhead, philips, 8-32 x 3/8” 2
2
Left-hand 1 16 Mounting bracket, rack, with thumb screw
Right-hand 1
The component ID numbers listed in this table will be used throughout the remainder of these instructions in text and illustrations
* Some of these components are factory installed in the assembly.
62-0125-01 FastStor Rack Mount Installation Instructions 3
6
Preparing the Rack

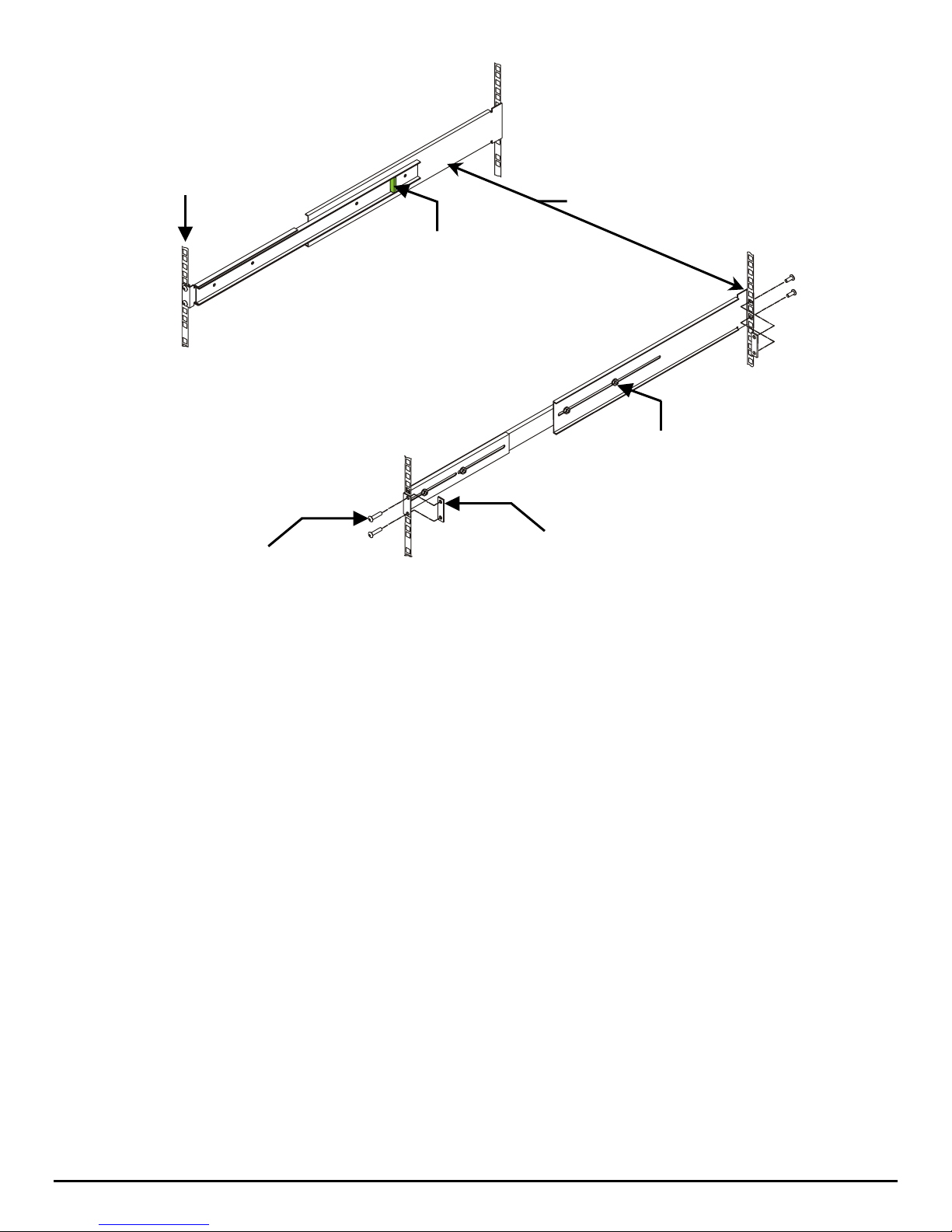

Refer to the following illustration while performing Steps 1and 2:
Line up ends when
installing rails,
approximately as
shown
14 Rear outer rail-adapter
13 Slide/rail assembly
3 8 places
6
4
3
Slide rail
Front outer rail-adapter
Rail Position Detail
1. Verify the alignment of the ends of the two front slide/rail assemblies (#13). The front edge of the slide rail should be aligned
with the notch in the front outer rail-adapter as shown in Rail Position Detail in the illustration. If necessary, adjust the
alignment of each rail assembly by loosening the two panhead screws (#3), reposition the ends of the slide rail until aligned,
then tighten the two screws.
2. Using two slotted, panhead screws (#3), two flat washers (#6), and two Kepnuts (#4) for each assembly, attach the rear outer
rail-adapters (#14) to the front slide/rail assemblies (#13) as shown. Do not fully tighten the screws at this time. Ensure that
the flange on the rear outer rail adapter is facing the same direction as the flange on the front slide/rail assemblies, as shown
in the illustration.
4 FastStor Rack Mount Installation Instructions 62-0125-01
