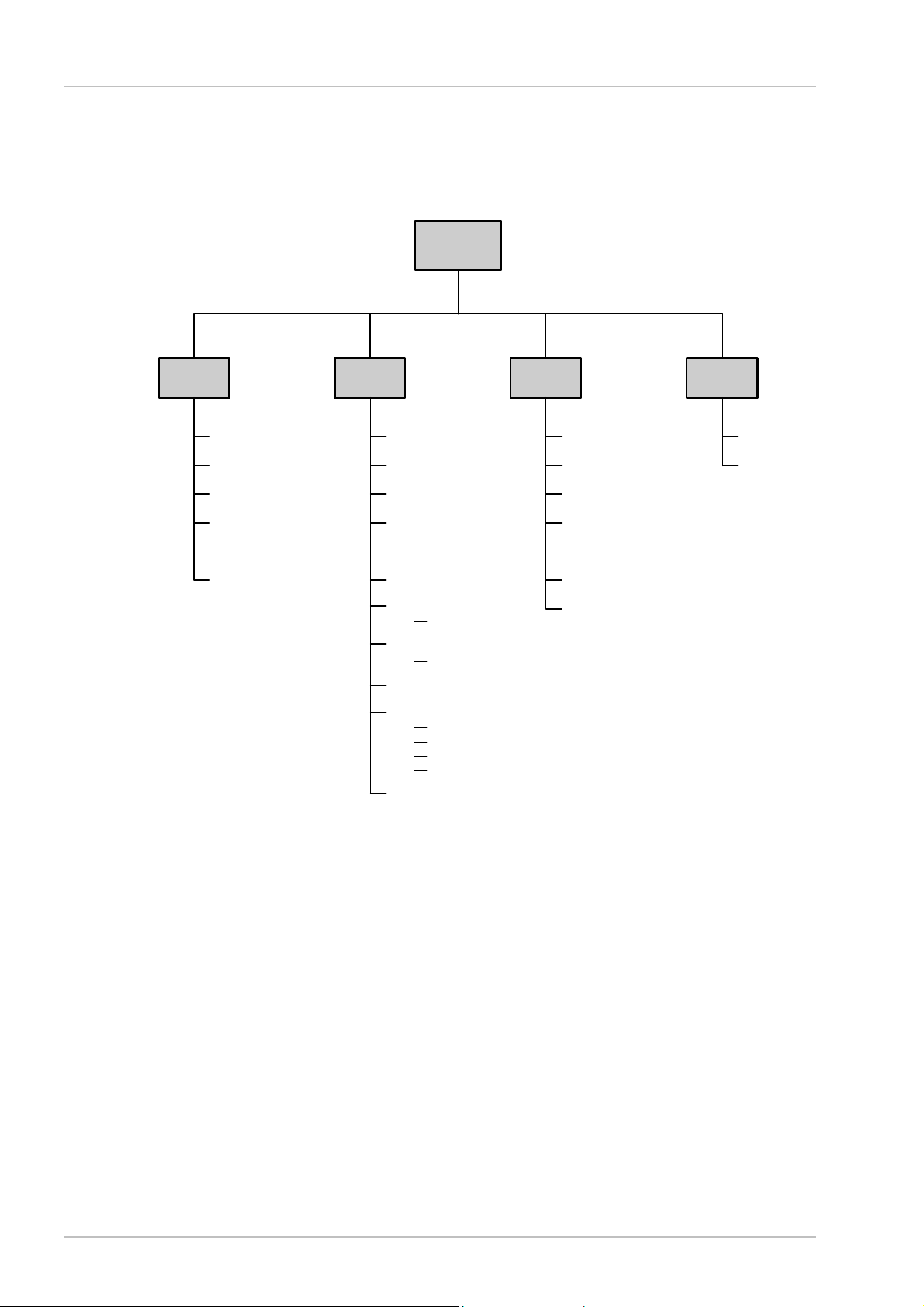

Figure 4: QmBtn Software Menu Structure......................................................................................................................................................................6

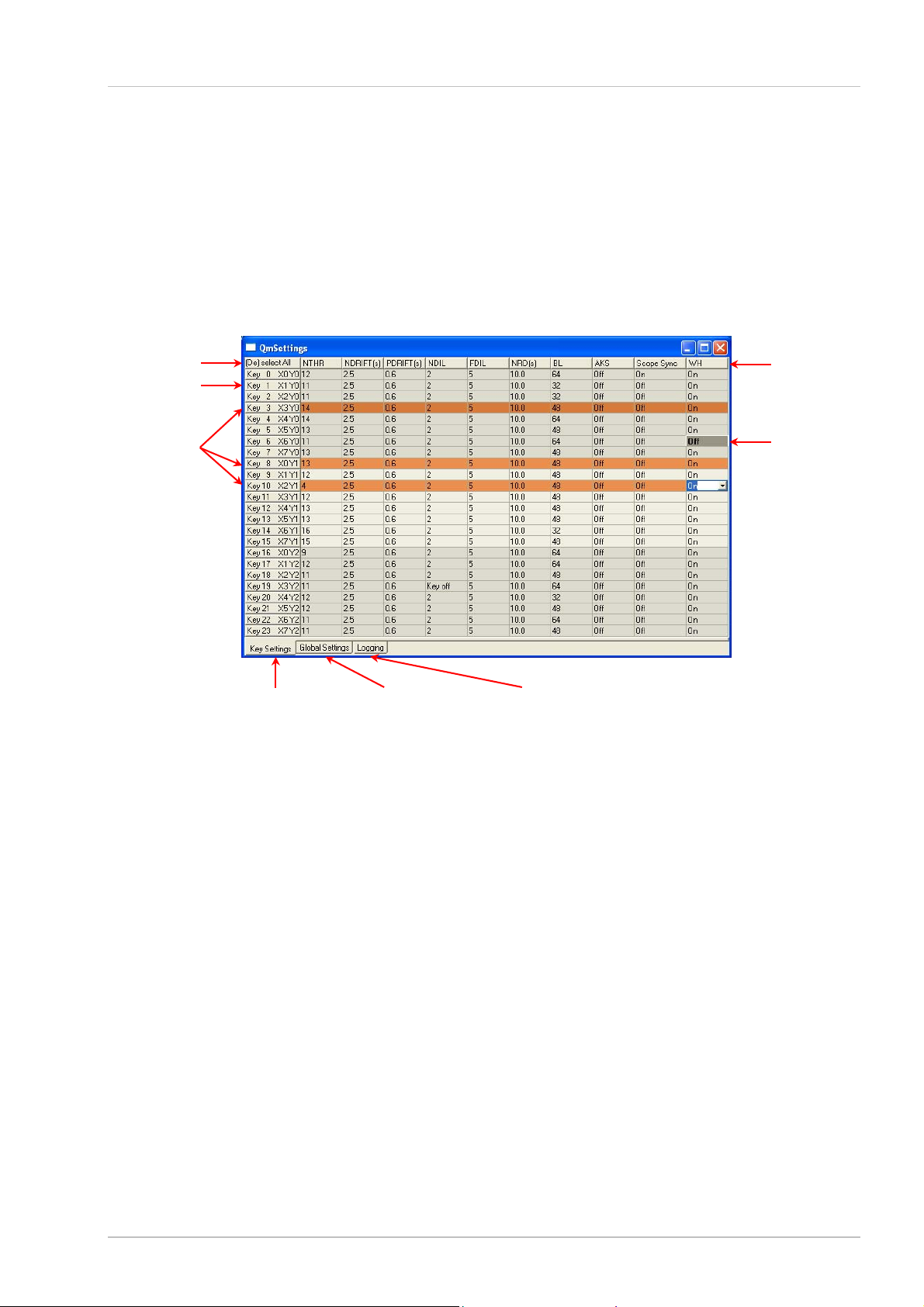

Figure 5: QmSettings Dialog Box – Key Settings.............................................................................................................................................................9
Figure 6: QmSettings Dialog Box – Global Settings ......................................................................................................................................................10
Figure 7: QmSettings Dialog Box – Logging..................................................................................................................................................................11
Figure 8: QmGraph Dialog Box......................................................................................................................................................................................11
Figure 9: E6240 Circuit Diagram....................................................................................................................................................................................12
Figure 10: E6240 Evaluation Assembly .........................................................................................................................................................................13
List of Tables
Table 1: QT6240 IC (32-QFN)........................................................................................................................................................................................13
Table 2: Communications Port (J2)................................................................................................................................................................................14
2 of 17
1 E6240 Overview
1.1 Introduction
This kit is designed for the evaluation and development of applications using the
QT60160/QT60240 IC. The kit includes an evaluation assembly (E6240 – see Figure 1), cables
and QmBtn software. Each E6240 assembly has a serial (USB) interface allowing connection to a
computer for control and data viewing via QmBtn computer software.
This unique IC allows designers to create controls for various applications such a s mobile phones,
remote controls and MP3 players, amongst others.
Refer also to the QT60160/QT60240 datasheet.
1.2 Contents of Kit
1 x E6240 assembly (fitted with a QT60240 IC)
1 x USB-computer cable
2 x sample QT60240 ICs
1 x CD-ROM containing QmBtn software version 3.29 or later, User Manual and other information
E6240 User Manual
Note: you will also need:
a computer with Windows 2000, XP or later
a free USB port
Figure 1: E6240 Evaluation Assembly
3 of 17
E6240 User Manual
2 Setting Up and Using the E6240
2.1 Setting Up
To prepare the E6240 for use, proceed as follows:
1. Using the USB cable provided, connect the E6240 to the computer (see Figure 2). Both LEDs
on the E6240 light constantly to indicate that there is power to the assembly.
2. Install the QmBtn software; either method is acceptable:
a. Put the supplied CD in the CD drive of the computer. Copy the contents of the CD to the
computer. Double-click the QmBtn software to open it.
OR
b. Go to www.qprox.com
Software and then the qmbtn (version 3.28 or later) link for the E6240. A dialog box
appears asking if you want to run or save the file that you are about to download. Click
Run. This automatically downloads the QmBtn software.
If a dialog box appears saying “The publisher could not be verified. Are you sure you want
to run this software?” click Run.
3. QmBtn software is displayed on the computer monitor. One LED is extinguished and the other
flickers continuously to indicate that the software is communicating with the E6240. Refer to
Section 2.2 and Section 3 for information about using the E6240 and QmBtn.
, point to the Support tab and click Download Archive. Click
LED1 and LED2
Connector J2
USB cable to computer
Figure 2: E6240 Connections
2.2 Using the E6240 Assembly
1. Place the E6240 assembly on a level surface.
2. Keeping clear of the E6240, click Recall All on the QmBtn software.
3. Touch any key area on the E6240. Every time a key area is touched the corresponding key
area on the QmBtn software turns blue for the duration of the touch.
4. If the QmBtn software is not detecting, or detection is sporadic, decrease the detection
threshold slightly (NTHR, Section 3.3.2, page 9).
5. Refer to Section 3.3.2, page 9 and Section 3.3.3, page 10 for details of which parameters you
can change.
4 of 17
3 QmBtn Software
3.1 Introduction
QmBtn software is used with the E6240 assembly. With this software you can send commands and
monitor signals in real time.
The program consists of three main areas:
•
the QmBtn dialog box (which opens when the program starts – see Figure 3, page 5)
•
the QmSettings dialog box (which has three tabs, Key Settings, Global Settings and
Logging – see Figure 5, page 9)
•
the QmGraph dialog box (which gives real-time signals for individual keys) – see Figure 8,
page11
3.2 QmBtn Dialog Box
3.2.1 Introduction
The QmBtn dialog box provides the ability to monitor the status of all keys and the overall device in
real time.
E6240 User Manual
Menu Ba
(see Page 6)
Toolba
Allows various
functions of the
E6240 to be
performed
(see Page 8)
Key in
Detection
Keys Area
(see Page 8)
Key Numbe
Key Reference
Level
Status Bar
Shows connection details
and firmware version
(see Page 8)
Key Disabled
(see Page 9)
Figure 3: QmBtn Dialog Box
5 of 17
