Quantum 9530 User Manual

9530/8530 Series Pulse Generator

Operating Manual

QUANTUM COMPOSERS, INC

PO Box 4248

Bozeman, MT 59772

[phone] phone

[phone] fax

www.quantumcomposers.com

Rev 4.8

Contents

1. INTRODUCTION ........................................................................................................................................................ 6

TECHNICAL SUPPORT ................................................................................................................................................................. 6

WARRANTY .............................................................................................................................................................................. 6

PACKAGE CONTENTS .................................................................................................................................................................. 6

2. SAFETY ISSUES .......................................................................................................................................................... 7

3. FRONT PANEL OVERVIEW ......................................................................................................................................... 8

9530 Front Panel ............................................................................................................................................................. 8

DISPLAY LAYOUT AND INDICATORS ................................................................................................................................................ 8

DESCRIPTION OF FRONT-PANEL AREA .......................................................................................................................................... 8

Keypads ............................................................................................................................................................................................ 8

4. PULSE CONCEPTS AND PULSE GENERATOR OPERATIONS ......................................................................................... 9

Counter Architecture Overview ........................................................................................................................................................ 9

System Timer Functions ................................................................................................................................................................... 9

Channel Timer Functions ................................................................................................................................................................ 10

Digital Output Multiplexer .............................................................................................................................................................. 10

Dependent & Independent Timing Events ..................................................................................................................................... 10

NAVIGATING THE 9530 FRONT PANEL ...................................................................................................................................... 10

Selecting Menus ............................................................................................................................................................................. 10

Selecting Menu Items ..................................................................................................................................................................... 11

Numeric Input Mode ...................................................................................................................................................................... 11

Entering Non-Numeric Parameters ................................................................................................................................................ 11

Enabling System Output ................................................................................................................................................................. 11

Enable/Disable Channel Output ..................................................................................................................................................... 11

Rearming the Channel Timers ........................................................................................................................................................ 11

Setting Pulse Timing Parameters .................................................................................................................................................... 11

Setting Pulse Output Parameters ................................................................................................................................................... 12

Using the Output Multiplexer ......................................................................................................................................................... 12

Setting System Internal Rate Parameters ....................................................................................................................................... 12

5. 9530 MENUS ........................................................................................................................................................... 13

9530 MA I N MENU STRUCTURE .............................................................................................................................................. 13

System Mode Menu ....................................................................................................................................................................... 13

Clock/Rate Menu ........................................................................................................................................................................... 13

Counter Menu ................................................................................................................................................................................ 13

System Configuration Menu .......................................................................................................................................................... 14

Store Menu .................................................................................................................................................................................... 14

Recall Menu ................................................................................................................................................................................... 14

Auxiliary Menu ............................................................................................................................................................................... 14

System Information Menu ............................................................................................................................................................. 14

9530 CH A NN E L MENU STRUCTURE ....................................................................................................................................... 15

Channel Menu ................................................................................................................................................................................ 15

Channel Advanced Menu ............................................................................................................................................................... 16

TRIGGER MENU ...................................................................................................................................................................... 16

Trigger Menu ................................................................................................................................................................................. 16

Page 2 9530/8530 Manual Version 4.8

GATE MENU ........................................................................................................................................................................... 16

Gate Menu ..................................................................................................................................................................................... 16

SETTING SYSTEM MODE OF OPERATION ...................................................................................................................................... 17

CLOCK/RATE MENU ................................................................................................................................................................. 17

Setting the Clock Source and Rate .................................................................................................................................................. 18

Setting the Output Reference ......................................................................................................................................................... 18

SYSTEM CONFIGURATION MENU ................................................................................................................................................ 18

Setting System Communication Parameters .................................................................................................................................. 18

Setting Keypad Parameters ............................................................................................................................................................ 19

Setting the Auto Start Mode ........................................................................................................................................................... 19

Setting the Display Decimal Mark ................................................................................................................................................... 19

Setting the Display Brightness ........................................................................................................................................................ 19

STORE MENU ......................................................................................................................................................................... 20

Storing a System Configuration ....................................................................................................................................................... 20

RECALL MENU ........................................................................................................................................................................ 20

Recalling System Configurations .................................................................................................................................................... 20

COUNTER MENU ..................................................................................................................................................................... 20

Using the Counter Function ........................................................................................................................................................... 20

SYSTEM INFORMATION MENU ................................................................................................................................................... 21

Using the System Information Menu ............................................................................................................................................. 21

SETTING CHANNEL MODE OF OPERATION ................................................................................................................................... 21

Channel Menu ................................................................................................................................................................................ 21

Enabling Channel Output ............................................................................................................................................................... 22

Setting the Channel Timing Parameters ......................................................................................................................................... 22

Setting Pulse Output Configuration ................................................................................................................................................ 22

Setting Channel of Operation ......................................................................................................................................................... 23

Delaying the Start of Channel Output ............................................................................................................................................. 23

Setting the Sync Source ................................................................................................................................................................. 23

CHANNEL ADVANCED MENU ..................................................................................................................................................... 23

Configuring the Channel Multiplexer .............................................................................................................................................. 24

Setting Channel Gate Control ........................................................................................................................................................ 24

TRIGGER MENU ...................................................................................................................................................................... 24

Enabling System Trigger ................................................................................................................................................................. 24

GATE MENU ........................................................................................................................................................................... 25

Enabling System Gates ................................................................................................................................................................... 25

6. OPERATING THE 9530/8530 .................................................................................................................................... 26

QUICK START - NORMAL INTERNAL RATE GENERATOR OPERATION ............................................................................................... 26

QUICK START – NORMAL EXTERNAL TRIGGER OPERATION ............................................................................................................... 26

SYSTEM TIMER OVERVIEW ........................................................................................................................................................ 27

Using Continuous Mode ................................................................................................................................................................ 27

Using Single Shot Mode ................................................................................................................................................................. 27

Using System Burst Mode Function ............................................................................................................................................... 27

Using the System Duty Cycle Function ........................................................................................................................................... 27

CHANNEL TIMER OVERVIEW ...................................................................................................................................................... 28

Using Channel Normal Function .................................................................................................................................................... 28

Using Channel Single Shot Function ............................................................................................................................................... 28

Using the Channel Burst Mode ...................................................................................................................................................... 28

Using the Channel Duty Cycle Mode .............................................................................................................................................. 28

EXTERNAL INPUT OVERVIEW ...................................................................................................................................................... 29

Using the External Gate to Control the System ............................................................................................................................. 29

Using the Channel Gating Function................................................................................................................................................ 29

9530/8530 Manual Version 4.8 Page 3

Generate a Pulse on Every Trigger Input........................................................................................................................................ 29

Generate a Burst of Pulses on Every Trigger Input ........................................................................................................................ 30

Start a Continuous Stream of Pulses Using the External Trigger.................................................................................................... 30

7. PROGRAMMING THE 9530/8530 ............................................................................................................................ 31

PERSONAL COMPUTER TO PULSE GENERATOR COMMUNICATION.................................................................................................... 31

RS-232 Interface Overview ............................................................................................................................................................ 31

USB Interface Overview ................................................................................................................................................................ 32

Ethernet Interface Overview ......................................................................................................................................................... 32

PROGRAMMING COMMAND TYPES AND FORMAT ......................................................................................................................... 32

Line Termination ............................................................................................................................................................................ 32

IEEE 488.2 Common Command Format ....................................................................................................................................... 33

SCPI Command Keywords ............................................................................................................................................................. 33

SCPI Command Format ................................................................................................................................................................. 33

SCPI Keyword Separator................................................................................................................................................................ 34

SCPI Optional Keywords ................................................................................................................................................................ 34

SCPI Specific and Implied Channel ................................................................................................................................................ 34

SCPI Parameter Types ................................................................................................................................................................... 34

Error Codes .................................................................................................................................................................................... 35

Programming Examples .................................................................................................................................................................. 35

9530/8530 SCPI COMMAND SUMMARY ................................................................................................................................... 37

IEEE 488.2 COMMON COMMANDS .......................................................................................................................................... 42

8. APPENDIX A – SPECIFICATIONS ............................................................................................................................... 43

9530/8530 Specifications ............................................................................................................................................... 43

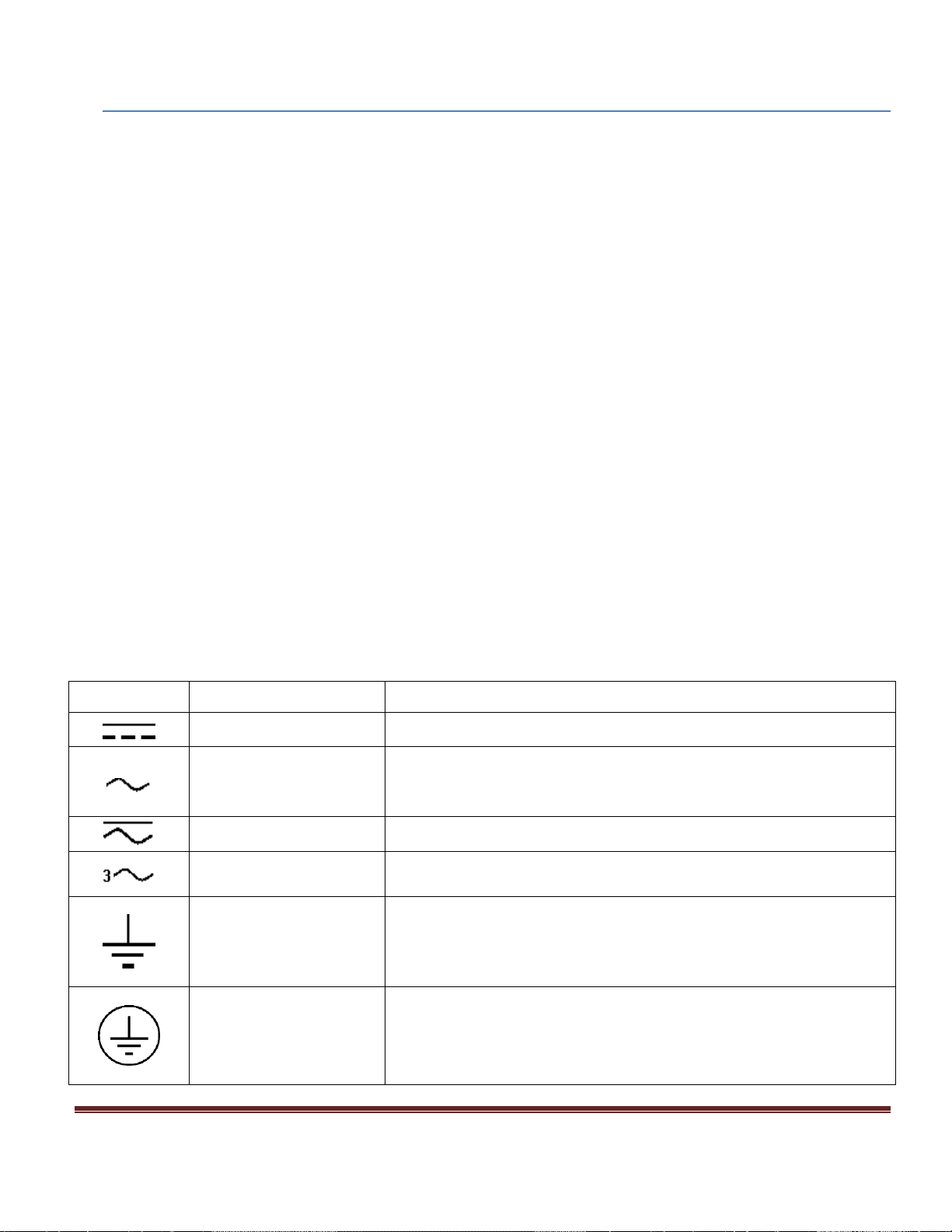

9. APPENDIX B - SAFETY SYMBOLS .............................................................................................................................. 46

Safety Marking Symbols ................................................................................................................................................ 46

10. APPENDIX C - COM ............................................................................................................................................. 48

Ethernet Interface Overview .......................................................................................................................................... 48

11. APPENDIX D - ETHERNET CONNECTIVITY ............................................................................................................ 49

DETERMINING IP ADDRESS ........................................................................................................................................................ 49

TESTING ETHERNET COMMUNICATION ......................................................................................................................................... 51

12. APPENDIX E - DUAL TRIGGER INPUT ................................................................................................................... 54

DT15 DUAL TRIGGER MODULE ................................................................................................................................................ 54

9530 SCPI Dual Trigger Command Summary ............................................................................................................................... 54

IEEE 488.2 Common Commands ................................................................................................................................................... 55

CHANGES IN MENU STRUCTURE CAUSED BY ENABLING THE DUAL TRIGGER FUNCTION .......................................................................... 55

Counter Menu ................................................................................................................................................................................ 55

Channel Advanced Menu ............................................................................................................................................................... 55

Trigger Menu ................................................................................................................................................................................. 55

Gate Menu ..................................................................................................................................................................................... 56

13. APPENDIX F – IMPEDANCE

MATCHING OUTPUTS

............................................................................................... 56

TZ50 Impedance Matching Output Module .................................................................................................................. 56

TTL/ADJUSTABLE OUTPUTS ........................................................................................................................................................... 56

14. APPENDIX G - INCREMENT MODE ....................................................................................................................... 57

Page 4 9530/8530 Manual Version 4.8

Using the Increment System Mode ................................................................................................................................ 57

9530/8530 SCPI Increment Command Summary ......................................................................................................................... 57

CHANGES IN MENU STRUCTURE CAUSED BY ENABLING THE INCREMENTING FUNCTION ......................................................................... 58

System Mode Menu ....................................................................................................................................................................... 58

Channel Advanced Menu ............................................................................................................................................................... 58

Using the Duty Cycle Increment Function ...................................................................................................................................... 59

Using the Burst Increment Function .............................................................................................................................................. 59

15. APPENDIX H - EXTERNAL CLOCK ......................................................................................................................... 60

9530/8530 External Clock Operation ............................................................................................................................ 60

Using the external clock function: ................................................................................................................................................... 61

16. APPENDIX I – 8530 BOARD LEVEL OPTION .......................................................................................................... 61

8530 Board Level Connection Information ..................................................................................................................... 61

8530 BOARD LEVEL OVERVIEW ................................................................................................................................................. 61

DIGITAL CONTROL BOARD CONNECTION INFORMATION .................................................................................................................. 61

DIGITAL OUTPUT BOARD CONNECTION INFORMATION .................................................................................................................... 65

MOUNTING INFORMATION ........................................................................................................................................................ 65

9530/8530 Manual Version 4.8 Page 5

1. Introduction

This manual is a reference designed to familiarize you with the Quantum Composers 9530 series
pulse generator and is arranged so that you can easily find the information you’re looking for.
Generally, each topic has its own section and no section assumes that you’ve read anything else in
the manual.

Technical Support

For questions or comments about operating the 9530 our technical staff can be reached via one
of the following methods:

 Phone - [phone]
 Fax - [phone]
 Internet - www.quantumcomposers.com

Warranty

In addition to a 30-day money back guarantee, the 9530 has a two-year limited warranty from the
date of delivery. This warranty covers defects in materials and workmanship. Quantum
Composers will repair or replace any defective unit. Contact us for information on obtaining
warranty service.

Package Contents

The box you receive should contain the following:

 9530 Pulse Generator
 AC Power Cord*
 User’s Manual on Disk

Contact Quantum Composers [phone] if any parts are missing.

*Note: AC Power Cord for Model 9530/8530 only (not intended for any other use)

Page 6 9530/8530 Manual Version 4.8

2. Safety Issues

Normal use of test equipment presents a certain amount of danger due to electrical shock because it
may be necessary for testing to be performed where voltage is exposed.

An electrical shock causing 10 milliamps of current to pass through the heart will stop most human
heartbeats. Voltage as low as 35 VDC or 35 V
hazardous, as it can produce a lethal current under certain conditions. Higher voltages pose an even
greater threat because such voltage can easily produce a lethal current. Your normal work habits
should include all accepted practices that will prevent contact with exposed high voltage and steer
current away from your heart in case of accidental contact with a high voltage. You will significantly
reduce the risk factor if you know and observe the following safety precautions:

 If possible, familiarize yourself with the equipment being tested and the location of

its high-voltage points. However, remember that high voltage may appear at unexpected
points in defective equipment.

 Do not expose high voltage needlessly. Remove housing and covers only when

necessary. Turn off equipment while making test connections in high- voltage circuits.
Discharge high-voltage capacitors after shutting down power.

 When testing AC powered equipment, remember that AC line voltage is usually

present on power input circuits, such as the on-off switch, fuses, power transformer, etc.

 Use an insulated floor material or a large, insulated floor mat to stand on, and an

insulated work surface on which to place equipment. Make certain such surfaces are not
damp or wet.

 Use the time-proven “one hand in the pocket” technique while handling an instrument

probe. Be particularly careful to avoid contact with metal objects that could provide a good
ground return path.

 Never work alone. Someone should always be nearby to render aid if

necessary. Training in CPR first aid is highly recommended.

AC should be considered dangerous and

RMS

9530/8530 Manual Version 4.8 Page 7

 Vertical Arrow

Indicates there are additional pages to the current
menu.

 Blinking Light

Indicated the unit is actively generating pulses, or
armed and waiting for an external trigger.

 Question Mark

In external PLL oscillator operation mode, this
indicates the internal PLL is not yet locked with the
external clock source.

 “e”

An “e” will appear when the system clock is in external

mode, but not when in external with PLL.

 Menu Keypad

Provides one touch access to the channel, trigger,
gate, and system menus for setting up the appropriate
parameters. The Page button will allow you to page
through the multiple levels of a menu, if multiple levels
exist.

 Arrow Keypad

The up/down arrows are used to increment/decrement
the current cursor parameter (indicated by the blinking
cursor). The position of the cursor controls the step
size for each increment. The right/left arrows move the
cursor to different positions within the current
parameter. The NEXT key selects the next parameter
in the currently displayed menu.

3. Front Panel Overview

9530 Front Panel

Display Layout and Indicators

A 4 line x 20 character vacuum fluorescent display module displays parameters and status
information. The status information is located in the upper-left corner of the display, between the
two brackets. There are four enunciators:

The upper-right side of the display contains the title of the currently displayed menu. The rest of the
display is used for system parameters. The display brightness may be adjusted, allowing the
instrument to be used under various lighting conditions.

Description of Front-Panel Area

Keypads

Two keypad areas provide fast access to various menus and easy editing of system parameters.

Page 8 9530/8530 Manual Version 4.8

*Start source is:

RUN button in Internal Modes

External input in External Trigger modes

*TRG command via Serial access

**Channels are armed by the RUN button. In single shot and burst modes channels may be rearmed

by pressing the RUN button again.

 Continuous

Once started T0 pulses are generated continuously.

 Single Shot

One T0 pulse is generated for each start command.

 Burst

‘N’ T0 pulses are generated for each start command.

 Duty Cycle

Once started T0 pulses cycle on and off continuously.

4. Pulse Concepts and Pulse Generator
Operations

Counter Architecture Overview

System Timer Functions

The System Timer functions as a non-retriggerable, multi-vibrator pulse generator. This means that
once started, depending on the mode, the timer will produce pulses continuously. Before pulses can
be generated, the timer must be armed and then receive a start pulse. Arming the counter is done by
pressing the Run/Stop key. With external trigger disabled, the Run/Stop key also generates the
start command for the counter. With external trigger enabled, the external trigger provides the start
pulse. In either case, once started, the counter operation is determined by the System Mode
Generator. Standard modes include:

The T0 pulse is distributed to all of the start inputs of the Channel Timers and Mode Generators.

9530/8530 Manual Version 4.8 Page 9

Channel Timer Functions

 Normal

A pulse is generated for each T0 pulse.

 Single Shot

One pulse is generated for the first T0 pulse, after

which the output is inhibited.

 Burst

‘N’ number of pulses are generated for the first T0

pulse, after which the output is inhibited.

 Duty Cycle

‘N’ number of pulses are generated for each T0 pulse

after which the output is inhibited for ‘M’ number of
pulses. The cycle is then repeated for each
subsequent T0 pulse.

The Channel Timer functions as a non-retriggerable, delayed, one shot pulse generator. This
means that the timer will only generate one delayed pulse for every start pulse received. Once the
channel timer has started counting, additional start pulses will be ignored until the pulse has been
completed (non-retriggerable). The start pulse for each channel is provided by the internal T0
pulse generated by the internal system timer. Whether or not a pulse is generated for each T0
pulse is determined by the Channel Mode Generator. Standard modes include:

Different modes may be selected for each output, allowing a wide variety of output combinations.
Each output may also be independently disabled or gated (using the external gate input).

Digital Output Multiplexer

The output s of each of the Channel Timers is routed to a set of multiplexers. This allows routing of
any or all Channel Timers to any or all of the units’ outputs. In the normal mode of operation, the
output of the nth Channel Timer is routed to the nth output connector. As an example, if a double pulse
is required on Channel A, one can multiplex the Channel A timer with the Channel B timer, then
adjust each timer to provide the necessary pulses.

Dependent & Independent Timing Events

The 9530 allows the user to control the relationship between the Channel Timers by setting the sync
source for each timer. Independent events are all timed relative to the internal T0 start pulse.

Dependent events may be linked together by setting the sync source to the controlling event. This
allows the instrument to match the timed events and adjustments can be made in one event
without detuning the timing between it and the dependent event.

Navigating the 9530 Front Panel

Selecting Menus

Parameters are grouped in menus, selectable by using the function keys. To select the output
channel parameters press the letter key corresponding to the desired channel. Menus may include a
number of different pages, each page containing up to four parameters. The status block in the
upper-left corner of the display shows a vertical arrow if the current menu contains additional pages.
Press the Page button to select the next page. There may be multiple channel menus depending on
the model. Secondary or advanced menus can be accessed by pressing the letter key of that channel

Page 10 9530/8530 Manual Version 4.8

a second time.

Wid:

Sets the width of the active portion of the pulse.

Dly:

Sets the delay from the sync source to the rising edge of the pulse.

There are also individual menu keys for the gate (GATE), trigger (TRIG), and system (MENU)
menus. Depending on the model, each of these menus may have multiple pages, accessed by
pressing the Page button, or secondary menus, accessed by pressing that particular function
key a second time.

Selecting Menu Items

Within a menu, the blinking cursor indicates the current menu item for editing. The NEXT key will
select a different menu item.

Numeric Input Mode

When the current item is numeric, the system enters the Numeric Input Mode. In this mode data may
be edited using the arrow keypad. The Left and Right arrow keys are used to select a digit to edit.
The selected digit blinks to identify itself as the active digit. The Up and Down arrow keys are then
used to increment or decrement this digit.

Entering Non-Numeric Parameters

When the current item is non-numeric, the Up and Down arrow keys are used to select among
different options for the parameter. If the item is an on-off toggle, the Up arrow enables the item and
the Down arrow disables the item.

Enabling System Output

The Run/Stop key is used to arm the system. With external trigger disabled, the key will arm and
start pulse output. With external trigger enabled, the key will arm the pulse generator. Pulse outputs
then starts after the first valid trigger input. Pressing the Run/Stop key a second time disables the
pulse generator.

Enable/Disable Channel Output

At the top of each channel menu page is a parameter to enable or disable the output of the
channel. Each channel may be individually enabled or disabled.

Rearming the Channel Timers

If there are channels currently running in normal mode, single shot and burst mode channels can be
re-armed without affecting the timing on normal mode channels. The rearming page is located under
the System Menu. Once on the rearming page, pressing the up arrow will rearm the channel timers.

Setting Pulse Timing Parameters

Pulses are defined by a delay, from their sync or start pulse to the active edge, and a width.

*NOTE: If Wid + Dly + 75 ns (the hardware reset time) > T0 period the correct pulse width will

be generated, but at a slower rate.

9530/8530 Manual Version 4.8 Page 11

Out:

Selects between TTL/CMOS mode and Adjustable
mode when both are available on a single output.

Pol:

Sets the voltage polarity of the pulse, active high or

active low.

*Note: All outputs are positive voltage as negative
voltages are not supported

Ampl:

In Adjustable mode the unloaded output voltage is set.
The actual output voltage will depend on the load

impedance. For example: If the load is 50Ω the output

will be 50% of the stated voltage.

-HGFEDCBA-

MUX:

-00000101-

Source:

Sets the reference source for the internal T0 period.

Per:

Sets the internal T0 period.

Setting Pulse Output Parameters

There are two basic types of outputs available on the 9530:

a) TTL/CMOS compatible outputs.

b) Adjustable amplitude outputs.

Using the Output Multiplexer

Each output channel includes a multiplexer which allows routing of any or all of the timer outputs to
the physical output. This allows double pulses and other complex pulse trains to be generated.

The multiplexer is represented by an “n” bit binary number as shown above. “N” is the number of
channels. Each bit represents a channel timer, which is enabled by setting the bit to one. In the
above example, timers A and C are combined on the current output.

Setting System Internal Rate Parameters

The internal T0 period controls the fundamental output frequency of the system. Each channel may

be operated at submultiples of the fundamental frequency by using the channel duty cycle mode.

To set the system Internal Rate press the Menu key, then use the arrow keys

to specify the T0 period.

Page 12 9530/8530 Manual Version 4.8

5. 9530 Menus

Mode: Continuous Mode: Single Shot

Rearm the channels

Mode: Continuous
T0Period

Mode: Duty Cycle
T0Period

Mode: Duty Cycle

On: Set the ‘n’ pulses
Off: Set the ‘m’ pulses

Mode: Burst

‘n’ pulses to produce

Mode: Burst
T0Period

Rearm the channels

Rearm the channels

Rearm the channels

Press the Page Button

Change System Modes

T0Rate:

Source: Ext Osc

Rate: 100 MHz
Level: 0.50 Volts

Ref Out: T0Pulse

Source: Int Source

Press the Page Button

Change Clock Sources

Ref Out: T0Pulse

Level: 0.50 Volts

Source: Ext w/ PLL

Rate: 100 MHz
Level: 0.50 Volts

Ref Out: T0Pulse

Ext Opt: Force Off
Level: 0.50 Volts

T0Rate: T0Rate:

Enable/Disable Counter
T Counts:

Zero the Counter

9530 Main Menu Structure

The following menus can be accessed by pressing the menu button. The first menu will be the
System Mode Menu. By pressing the menu button again the Clock/Rate Menu will come up. As
the menu button is pressed again the next menus will be entered in the order seen below. Once
the last menu is reached pressing the menu button will start the menus over at the System Mode
Menu. All of the values in the fields below are the defaults; this is what the menus will look like
when the system is first powered up, or if a recall 0 command is entered.

System Mode Menu

Clock/Rate Menu

Counter Menu

9530/8530 Manual Version 4.8 Page 13

Interface: RS – 232
Baud Rate: 115200
Echo: Disabled

Auto: Enabled
Mark: .
LCD: 4

Key Rate: 50 ms
Key Volume: 10

Press the Page Button

Change System Serial Interface Modes

Interface: Ethernet

Auto: Enabled
Mark: .
LCD: 4

Key Rate: 50 ms
Key Volume: 10

Interface: USB

Auto: Enabled
Mark: .
LCD: 4

Key Rate: 50 ms
Key Volume: 10

Store#: Choose the location to store the current settings
Name: The name associated with the current location

The action needed to Store the information

Recall#: Choose the location to restore the settings from
Name: The name associated with the current location

The action needed to Recall the information

Screen to let the user know that there maybe updates
on the Quantum Composers website for their unit

Screen to let the user know that there maybe updates
on the Quantum Composers website for their unit

Model: 9530-1011
Serial #: 00001
Firmware: 1.2.3.0
FPGA Ver: 1.2.0

NSID#: FW 1011

FPGA 1011

System Status #: 3

Press the Page Button

System Configuration Menu

Store Menu

Recall Menu

Auxiliary Menu

System Information Menu

Page 14 9530/8530 Manual Version 4.8

Enable/Disable Channel

Wid: Set the desired pulse width

Dly: Set the desired delay from

the sync source

Press the Page Button

Change Channel Output Mode

Enable/Disable Channel
Pol: Active High/Low Output

Out: TTL/CMOS

Enable/Disable Channel
Mode: Normal

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output

Out: Adjustable

Ampl: 5.00 Volts

Enable/Disable Channel
Mode: Normal

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel

Wid: Set the desired pulse width

Dly: Set the desired delay from

the sync source

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Press the Page Button

Change Channel Mode

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Mode: Normal

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Mode: Single Shot

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Mode: Burst
Brst: 5 Pulses

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Enable/Disable Channel
Mode: Duty Cycle
On: 4 Pulses
Off: 3 Pulses

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

9530 Channel Menu Structure

The following menus can be accessed by pressing the button marked for the desired channel. The
first menu will be the Channel Menu. By pressing the button marked for the desired channel again
the channels’ advanced menu will be entered. As the channel button is pressed again the original
channel menu will be revisited.

Channel Menu

9530/8530 Manual Version 4.8 Page 15

Ch: -HGFE DCBA­Mux: -0000 0001-

Press the Page Button

Change Channel Gate Mode

Enable/Disable Channel
Ch Gate: (Gate Menu)

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Disabled

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Pulse Inh.
Logic: Active High/Low

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Output Inh.
Logic: Active High/Low

Mode: Disabled

Change Trigger Mode

Mode: Triggered
Level: 2.50 Volts
Edge: Rising/Falling Edge

Mode: Disabled

Change Gate Mode

Mode: Pulse Inh.
Level: 2.50 Volts
Logic: Active Low/High

Mode: Output Inh.
Level: 2.50 Volts
Logic: Active Low/High

Mode: (Chan Menu)
Level: 2.50 Volts

Channel Advanced Menu

Trigger Menu

By pressing the Trigger button the trigger menu will be entered.

Trigger Menu

Gate Menu

By pressing the Gate button the gate menu will be entered.

Gate Menu

Page 16 9530/8530 Manual Version 4.8

T0 Mode:

Parameters:

Continuous

N/A

Single Shot

N/A

Burst

Brst:

‘N’ number of pulses to generated for each T0
pulse

Duty Cycle

On/Off:

‘N’ number of pulses to generated for each T0
pulse / ‘M’ number of pulses to inhibit for each

T0 pulse

T0Rate:

Source: Ext Osc

Rate: 100 MHz
Level: 0.50 Volts

Ref Out: T0Pulse

Source: Int Source

Press the Page Button

Change Clock Sources

Ref Out: T0Pulse

Level: 0.50 Volts

Source: Ext w/ PLL

Rate: 100 MHz
Level: 0.50 Volts

Ref Out: T0Pulse

Ext Opt: Force Off
Level: 0.50 Volts

T0Rate: T0Rate:

Setting System Mode of Operation

By pressing the Menu button the system mode menu can be accessed. The system Mode menu
sets the T0 system timer mode. The mode may be changed by setting the cursor on the mode row

and pressing the up and down key. By pressing the next button while in this menu will allow the
user to change between setting the mode or the parameter. The menu will show the extra set of
parameters (Brst, On & Off) only when they are applicable.

*NOTE: Any mode may be started by either the RUN/STOP key in the internal trigger mode or

armed by the RUN/STOP key and started by an external trigger in the external trigger
mode. In the single shot and burst modes, (internally triggered) the unit disarms itself
at the end of the pulse train. Pressing the RUN/STOP key after the unit has been
disarmed will generate a new pulse train.

Clock/Rate Menu

9530/8530 Manual Version 4.8 Page 17

Setting the Clock Source and Rate

Source:

Selects the between the internal or external clock source from
which the unit will operate.

Rate:

Sets the T0 period which determines the fundamental output
frequency of the unit.

Level:

When in external mode the level sets the triggering threshold
for the input clock source.

Ref Out:

Selects the source and frequency of the output reference for
synchronizing with the external system components.

Interface: RS–232
Baud Rate: 115200
Echo: Disabled

Auto: Enabled
Mark: .
LCD: 4

Key Rate: 50 ms
Key Volume: 10

Press the Page Button

Change System Serial Interface Modes

Interface: Ethernet

Auto: Enabled
Mark: .
LCD: 4

Key Rate: 50 ms
Key Volume: 10

Interface: USB

Auto: Enabled
Mark: .
LCD: 4

Key Rate: 50 ms
Key Volume: 10

 RS-232

115200

 USB

38400

 Ethernet

115200

The System Clock Parameters can be accessed and changed by entering the Clock/Rate Menu
by pressing the Menu button until that screen is entered. The 9530 has the ability to be synced to

either the internal clock T0 or from an external clock source. When the system is in internal mode
the frequency is set by changing the T0rate. When the system is in external mode the source can
either be with or without PLL, and in either case the input level and frequency must be set.

Setting the Output Reference

System Configuration Menu

Setting System Communication Parameters

The System Communications Parameters can be accessed and changed by entering the System
Configurations Menu by pressing the Menu button until that screen is entered. The 9530 comes
with a standard Ethernet, USB, and RS-232 serial ports. The unit will not respond to computer
commands unless these ports are properly configured. The default Baud Rates for these interfaces
are:

The RS-232 and USB interfaces are Plug-n-Play capable, but the Ethernet requires third party
software to be utilized (see Appendix D).

Page 18 9530/8530 Manual Version 4.8

Interface:

RS-232, Ethernet, or USB

Baud Rate:

Selects the baud rate for the RS-232 serial interface.

Echo:

Selects whether the unit will echo characters back to the host
computer or not.

Key Rate:

Sets the rate at which the keys will repeat when held down.

Key Vol:

Sets the beep volume for the keypad.

Mark:

Selects the format of the decimal mark to either a “.” or a “,”

LCD:

Adjusts the display brightness.

When in the System Configuration menu only the RS-232 baud rate can be changed, the USB
rate must be varied using the SCPI commands via one of the serial interfaces.

Setting Keypad Parameters

The keypad parameters can be set be entering the system configuration menu, and pressing the
Page button. The rate at which a key will repeat itself when held down may be set. This can be
used to provide a controlled rate at which a parameter is incremented. In addition, the volume of
the beep can be controlled for the keypad.

Setting the Auto Start Mode

The auto start feature can be set be entering the system configuration menu, and pressing the
Page button twice. The unit may be configured to automatically start generating pulses after power
up.

Setting the Display Decimal Mark

The display mark feature can be changed be entering the system configuration menu, and pressing
the Page button twice. The unit may be configured to show either a “.” or a “,” when the parameters

need separation like in the width menus.

Setting the Display Brightness

The display brightness feature can be changed be entering the system configuration menu, and
pressing the Page button twice. The unit may be configured to illuminate the display to varying
brightness. Also with a command that can be found in the SCPI command section the display can
be turned off entirely.

9530/8530 Manual Version 4.8 Page 19

Store#: Choose the location to store the current settings
Name: The name associated with the current location

The action needed to Store the information

Recall#: Choose the location to restore the settings from
Name: The name associated with the current location

The action needed to Recall the information

Enable/Disable Counter
T Counts:

Zero the Counter

Store Menu

Storing a System Configuration

The store menu can be accessed by pressing the menu button until that screen is entered. Use the
following procedure to store a complete system configuration:

 Set all parameters to the desired value.
 Select a configuration number and/or a configuration name.

*NOTE: You cannot store to the zero location, as that contains the factory default values.

 Label the configuration as desired.
 From the Store Menu, press the store button (PAGE) or from one of the serial interfaces

type the save command.

Recall Menu

Recalling System Configurations

The recall menu can be accessed by pressing the menu button until that screen is entered. Use the
following procedure to recall a stored or default system configuration:

 Enter the Recall Menu.
 Select a configuration number.
 From the Recall Menu, press the recall button (PAGE) or from one of the serial

interfaces type the recall command.

*Note: Configuration 0 is the factory default settings.

Counter Menu

Using the Counter Function

The counter menu can be found by pressing the menu button until “Cntr” screen is entered. The
Counter function counts the number of T0 pulses output by the system clock. When the system is in

single shot, Burst, or Duty Cycle mode, the T0 count reflects the number of pulses output by the
unit.

Page 20 9530/8530 Manual Version 4.8

Model: 9530-1011
Serial #: 00001
Firmware: 1.2.3.0
FPGA Ver: 1.2.0

NSID#: FW 1011

FPGA 1011

System Status #: 3

Press the Page Button

Enable/Disable Channel

Wid: Set the desired pulse width

Dly: Set the desired delay from

the sync source

Press the Page Button

Change Channel Output Mode

Enable/Disable Channel
Pol: Active High/Low Output

Out: TTL/CMOS

Enable/Disable Channel
Mode: Normal

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output

Out: Adjustable

Ampl: 5.00 Volts

Enable/Disable Channel
Mode: Normal

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel

Wid: Set the desired pulse width

Dly: Set the desired delay from

the sync source

System Information Menu

Using the System Information Menu

The information menu can be found by pressing the menu button until the information screen is
found. The Information Menu provides all of the pertinent version numbers and serial numbers for
the unit. This information should be readily available when contacting customer service for
troubleshooting help.

Setting Channel Mode of Operation

Channel Menu

9530/8530 Manual Version 4.8 Page 21

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Press the Page Button

Change Channel Mode

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Mode: Normal

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Mode: Single Shot

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Mode: Burst
Brst: 5 Pulses

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Enable/Disable Channel
Mode: Duty Cycle
On: 4 Pulses
Off: 3 Pulses

Enable/Disable Channel
Sync Source: T

0

Wait: 0 Pulses

Enable/Disable Channel
Pol: Active High/Low Output
Out: TTL/CMOS

Enable/Disable Channel
Wid: Set the desired pulse

width

Dly: Set the desired delay

from the sync source

Wid:

Sets the channel pulse width.

Dly:

Sets the channel delay until the active edge

Pol:

Sets the pulse polarity, active high or active low

Out:

Selects the output mode, TTL/CMOS or Adjustable

Ampl:

Sets the output voltage when the channel is in Adjustable mode.

Enabling Channel Output

The channel menu can be found by pressing the desired channel button. At the top of each of
the channel menu page is a parameter to enable or disable th e channel. Each channel may be
individually controlled.

Setting the Channel Timing Parameters

To define a pulse requires two parameters: the delay to the active edge and the width of the pulse.

Setting Pulse Output Configuration

The channel output configuration parameters can be changed by entering the channel menu
and pressing the page button to find the output screen. The 9530 supports two types of outputs:
a high speed TTL/CMOS compatible output, and for applications which require different voltage
levels or higher current, an adjustable voltage output. The pulses can also be defined to be
active high or active low.

Page 22 9530/8530 Manual Version 4.8

*Note: All outputs are positive, Active low is a negative going signal not a negative voltage

Mode:

Selects the mode for the current channel. Additional parameters
are provided for the burst and duty cycle modes.

Brst:

Sets the number of pulses in the burst mode to generate before
inhibiting output.

On:

Sets the number of pulses to generate before inhibiting the
output in Duty Cycle Mode.

Off:

Sets the number of pulses to inhibit before repeating the on
cycle in Duty Cycle Mode.

Wait:

Sets the number of T0 pulses to wait until enabling the channel

output.

Sync Source:

Selects the channel sync source.

Ch: -HGFE DCBA­Mux: -0000 0001-

Press the Page Button

Change Channel Gate Mode

Enable/Disable Channel
Ch Gate: (Gate Menu)

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Disabled

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Pulse Inh.
Logic: Active High/Low

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Output Inh.
Logic: Active High/Low

Setting Channel of Operation

To change the channel output modes enter the channel menu and press the page button until
the output mode screen is entered. Each channel may be set independently to operate in one of
four modes: normal, burst, single shot or duty cycle:

Delaying the Start of Channel Output

To change the optional wait parameter, enter the channel menu and press the page button
until the source screen is entered. Within any channel mode, the output of the channel can be
delayed using the wait parameter (within the Channel menu):

Setting the Sync Source

To change the sync source, enter the channel menu and press the page button until the source
screen is entered. Although each channel receives its start pulse from the internal T0 pulse,

logically the start pulse can be assigned such that the delay entered is relative to the T0 pulse or
any other channel pulse. This allows dependent events to link. The unit will not allow a circular
chain of sync sources that would result in a channel triggering itself. The delay entered is relative
to the selected sync source.

Channel Advanced Menu

The channel Advanced Menu can be entered by pressing the desired channel button twice.

9530/8530 Manual Version 4.8 Page 23

MUX:

Enable/Disable the bit field.

Gate:

Enables the Gate input for the channel by setting the
method of output control used with the gating function.

Logic:

Sets the logic level used with the gating function, either
active high or active low.

Mode: Disabled

Change Trigger Mode

Mode: Triggered
Level: 2.50 Volts
Edge: Rising/Falling Edge

Mode:

Selects between disabling/enabling the trigger mode(s).

Level:

Sets the trigger threshold.

Edge:

Selects between rising edge or falling edge as the trigger source
when the trigger mode is enabled.

Configuring the Channel Multiplexer

To define which outputs are fed into the channel multiplexer, the corresponding bit for the desired
channel to add should be set to 1. All desired omitted channels should have the corresponding bit
set to 0.

Setting Channel Gate Control

The channel gate menu can be entered by pressing the page button when in the channel advanced
menu. When the global gate is set to Chan Menu, the channel can then use the gate input with
independent behavior from other channels.

“Pulse Inhibit” method – the gate prevents the channel from being triggered by the channel’s trigger
source pulse. If a pulse has already started when the gate disables the channel, the pulse will
continue normal output but will not restart on the next trigger pulse.

“Output Inhibit” method – the gate leaves the base triggering alone and enables/disables the output
directly. If a pulse has already started when the gate disables the output, the pulse will be cut off.

Trigger Menu

Enabling System Trigger

The trigger menu can be entered by pressing the Trig button. Enable the use of the Trigger input by
the system timer as a trigger source.

Page 24 9530/8530 Manual Version 4.8

Mode: Disabled

Change Gate Mode

Mode: Pulse Inh.
Level: 2.50 Volts
Logic: Active Low/High

Mode: Output Inh.
Level: 2.50 Volts
Logic: Active Low/High

Mode: (Chan Menu)
Level: 2.50 Volts

Mode:

Selects between disabling the Gate inputs and method of output
control.

Level:

Sets the gating threshold.

Logic:

Sets the active logic level.

Gate Menu

Enabling System Gates

The gate menu can be entered by pressing the Gate button. To enable the use of the gate input
trigger inhibit or output control for all channels simultaneously, or on a per channel basis set the
following parameters in the gate menu:

9530/8530 Manual Version 4.8 Page 25

6. Operating the 9530/8530

Pulse Width and Delay

Enter the Channel menus by pressing the letter key. Enter
the required pulse width and delay. Repeat for each output
channel.

T0 Period

Enter the Rate menu by pressing the menu button. Set the
desired pulse period.

*Note: In general the pulse delay + the pulse width + 75 ns for

a hardware reset for any channel must be less than the

T

0

period.

Start

Press the Run/Stop key to start generating pulses.

Stop

Press the Run/Stop key a second time to stop generating
pulses.

System Mode

Enter the System Mode menu by pressing the Menu button
until the System Mode menu is selected. Select Single Shot
mode

Trigger Menu

Enter the Trigger Menu by pressing the Trig button. Select
Triggered.

Level

Press the Next key until the Level parameter is highlighted.
Set the trigger threshold voltage to approximately 50% of the
trigger signal amplitude.

*Note: If the threshold is not set correctly the 9530 will have

trouble syncing with the trigger source.

Edge

Press the Next key until the Edge parameter is highlighted.
Set the unit to trigger off the rising or falling edge as desired.

Pulse Width and Delay

Enter the Channel menus by pressing the letter key. Enter the
required pulse width and delay. Repeat for each output
channel.

Start

Press the Run/Stop key to start generating pulses.

Stop

Press the Run/Stop key a second time to stop generating
pulses.

Quick Start - Normal Internal Rate Generator Operation

The 9530/8530 has a powerful set of functions providing a number of modes of operation for the
internal or “System” rate generator (T0). Most of these functions can be ignored if a simple

continuous stream of pluses is required. Starting from the default settings, which can be restored
by recalling configuration 0, the following parameters need to be set:

Quick Start – Normal External Trigger Operation

To generate a single pulse for every external trigger event, based on the default configuration 0,
the following parameters need to be set:

Page 26 9530/8530 Manual Version 4.8

System Timer Overview

For internal operation, the 9530/8530 contains a timer and mode generator which generates an
internal T0 clock that is used to trigger all the channel timers. System modes are controlled via the
Mode menu.

Using Continuous Mode

The Run/Stop button starts and stops a continuous pulse stream at the rate specified by the Rate
menu. This corresponds to the normal output mode for most pulse generators. To generate a
continuous stream of pulses:

 Within the System Mode menu select Continuous mode.
 Within the Rate menu:

o Select the system oscillator or external clock in frequency.
o Set the desired frequency

Pressing the Run/Stop key will now generate a stream of T0 pulses at a rate specified by the period
parameter.

Using Single Shot Mode

To generate a single pulse with every press of the Run/Stop key:

 Within the System Mode menu select Single Shot mode.

Pressing the Run/Stop key will now generate one pulse.

Using System Burst Mode Function

The Run/Stop button generates a stream of ‘N’ T0 pulses, where the ‘N’ is specified by the Burst

parameter. The rate is specified in the Rate menu. Pressing the Run/Stop button while in the burst
is in process will stop the output. After the burst has been completed, pressing the Run/Stop button
will generate another burst. To generate a burst of pulses set:

 Within the System Mode menu:

o Select mode to be Burst
o Set the Burst parameter to produce the number of pulses desired

Using the System Duty Cycle Function

The Run/Stop button starts a continuous stream of T0 pulses, which oscillates on for ‘N’ pulses and

off for ‘M’ pulses, where ‘N’ and ‘M’ are specified by the On/Off parameters respectively. The rate at

which the pulses are generated is controlled in the Rate menu. To generate a stream of pulses
which will oscillate on for ‘N’ pulses and off for ‘M’ pulses set:

 Within the System Mode menu:

o Set the mode to Duty Cycle.
o Set the On parameter to the number of pulses to produce during the on cycle (‘N’).
o Set the Off parameter to the number of pulses to suppress during the off cycle (‘M’).

 Within the Rate menu:

o Set the Source to either the systems internal oscillator or to external mode.

9530/8530 Manual Version 4.8 Page 27

o Set the desired frequency.

Channel Timer Overview

The output of each channel is controlled by two timers to generate the pulse width and the delay
timing. All channels are simultaneously triggered, depending on the system mode, by the internal T0

pulse, the external trigger, or a trigger provided by a CPU. A given channel may or may not
generate a pulse depending on its own channel mode as described below.

Using Channel Normal Function

The Normal mode generates a continuous string of pulses once the Run/Stop key is pressed. To
use channel normal mode set:

 Within the Channel menu:

o Enable the channel output
o Set the delay desired.
o Set the pulse width desired.
o Set the mode to Normal.

Pressing the Run/Stop button key will now generate a continuous stream of pulses.

Using Channel Single Shot Function

The Single Shot mode generates a single pulse every time the Run/Stop key is pressed. To use the
channels’ single shot mode set:

 Within the Channel menu:

o Enable the channel output.
o Set the delay desired.
o Set the pulse width desired.
o Set the mode to Single Shot.

Using the Channel Burst Mode

The burst mode generates a burst of pulses every time the Run/Stop key is pressed. To use the
channels’ burst mode set:

 Within the Channel menu:

o Enable the channel output.
o Set the delay desired.
o Set the pulse width desired.
o Set the mode to Burst.
o Set the Brst parameter to the number of pulses to produce during the on cycle (‘N’).

Using the Channel Duty Cycle Mode

The channel duty cycle mode will generate a stream of pulses on the channel level which will
oscillate on for ‘N’ pulses and off or ‘M’ pulses. To generate the stated sequence of pulses set:

 Within the Channel menu:

o Enable the channel output.
o Set the delay desired.

Page 28 9530/8530 Manual Version 4.8

o Set the pulse width desired.
o Set the mode to Duty Cycle.
o Set the On parameter to the number of pulses to produce during the on cycle (‘N’).
o Set the Off parameter to the number of pulses to suppress during the off cycle (‘M’).

*Note: Older Quantum Composer pulse generators had a divide-by-’N’ function. The duty cycle mode

is a more general case of this operation. To reproduce the divide-by-’N’ function set the on
cycle to 1 and set the off cycle to ‘N’-1, where ‘N’ is the divide by factor.

External Input Overview

The external inputs may be used to trigger the unit, gate the system timer, or to gate the channel
timers. When using the trigger input the external input acts s a system start pulse. Depending on the
system mode, the result of a trigger input can be a single pulse, a burst of pulses, or the start of a
stream of pulses.

Using the External Gate to Control the System

The external gate may be used to control the output of the unit. To gate the internal system timer
with an external source set:

 Within the Gate menu:

o Choose either Pulse or Channel Inhibit.
o Set the threshold level to ~50% of the incoming gate signal.
o Choose either active High or Low.

 Within the System Mode menu select the desired mode.

Pressing the Run/Stop button will arm the unit. Once the unit is armed it will start generating pulses
once the external gate is in the active state. Pressing the Run/Stop key again will disarm the unit.

Using the Channel Gating Function

Each channel may use the external input to gate or control its output. The gate controls the
triggering of the channel. To use the channel gate set the following parameters:

 Within the Gate menu:

o Set the mode to Chan Menu.

 Within the Advanced Channel menu:

o Set the channel gate parameter to either Pulse Inhibit or Output Inhibit.
o Set the gate logic to either Active High or Active Low.

In Pulse Inhibit mode the gate prevents the channel from being triggered by the channels’ trigger

source. When in Pulse Inhibit mode if a pulse has already started when the gate disables the
channel the pulse will continue normal output, but the output will not restart on the next trigger
pulse. In Output Inhibit mode the gate leaves the base triggering alone and will enable/disable the
output directly. When in Output Inhibit mode if a pulse has already started when the gate disables
the channel the pulse will be immediately cease.

Generate a Pulse on Every Trigger Input

To generate a pulse on every trigger input set the following parameters:

9530/8530 Manual Version 4.8 Page 29

 Within the System Mode menu set the mode to Single Shot mode.
 Within the Trigger menu:

o Select the Triggered mode.
o Set the trigger threshold level to ~50% of the incoming signal.
o Select either rising or falling edge for the unit to trigger on.

Pressing the Run/Stop key will arm the unit. Once the unit is armed it will generate a T0 pulse for

every external trigger received. Pressing the Run/Stop button again will disarm the unit. This mode
corresponds to the normal external trigger mode found on most other pulse generators.

Generate a Burst of Pulses on Every Trigger Input

To generate a burst of pulses on every trigger input set the following parameters:

 Within the System Mode menu:

o Set the mode to Burst.
o Set the number of pulses that is desired for each input signal.
o Press the Page button and set the T0 pulse to the period desired between pulses.

 Within the Trigger menu:

o Select the Triggered mode.
o Set the trigger threshold level to ~50% of the incoming signal.
o Select either rising or falling edge for the unit to trigger on.

Pressing the Run/Stop button will arm the unit. Once the unit is armed it will generate a set of

pulses for every external trigger received. The units’ timer is reset at the end of a burst and will

generate another set of pulses upon receiving a new trigger. Triggers that occur in the middle of a
burst will be ignored. Pressing the Run/Stop key again will disarm the unit.

Start a Continuous Stream of Pulses Using the External Trigger

The external trigger may be used to cause the unit to start generating pulses by setting:

 Within the System Mode menu select Continuous mode.
 Within the Trigger menu:

o Select the Triggered mode.
o Set the trigger threshold level to ~50% of the incoming signal.
o Select either rising or falling edge for the unit to trigger on.

Pressing the Run/Stop button will arm the unit. Once the unit is armed it will start generating pulses
after an external trigger is received. Triggers that occur after the initial trigger will be ignored.
Pressing the Run/Stop key again will disarm the unit.

Page 30 9530/8530 Manual Version 4.8

1

No Connection

2

Tx - Transmit (to computer)

3

Rx - Receive (from computer)

4

DTR - Connected to pin 6

5

Ground

6

DSR - Connected to pin 4

7

RTS - Connected to pin 8

8

CTS - Connected to pin 7

9

No Connection

Baud Rate

4800, 9600 19200, 38400, 57600, 115200*

Data Bits

8

Parity

None

Stop Bits

1

7. Programming the 9530/8530

Personal Computer to Pulse Generator Communication

The 9530/8530 has three standard interfaces which are RS-232, USB, and an Ethernet port. All menu
settings can be set and retrieved over the computer interface using a simple command language. The
command set is structured to be consistent with the Standard Commands for Programmable
Instruments (SCPI). Although due to the high number of special features found in the 9530/8530,
many of the commands are not included in the specification. The syntax is the same for all interfaces.
The amount of time required to receive, process, and respond to a command at a Baud rate of
115200 is 10 ms. Sending commands faster than 10 ms may cause the unit to not respond properly.
It is advised to wait until a response from the previous command is received before sending the next
command.

WARNING: When communicating with the unit (USB, Serial or Ethernet), avoid sending any

commands that include the “*” character as the unit is booting up. This may result in an undesired

lockup of the instrument.

RS-232 Interface Overview

The serial port is located on the back of the 9530 and uses a 9-pin D-type connector with the
following pinout (as viewed from the back of the unit):

The serial port parameters should be set as follows:

*Note: The default baud rate for the RS-232 is 115200.

9530/8530 Manual Version 4.8 Page 31

USB Interface Overview

The USB interface is standard on the 9530. The interface is a Plug-n-Play capable interface. USB
communication is achieved by using a mapped (virtual) COM port on the PC. The driver installation
executable will obtain an unused COM port number, install the USB drivers, and make that COM port
number available for typical RS-232 communication to the pulse generator. HyperTerminal or other
common software may be used.

When communicating through the mapped COM port over USB, the baud rate for the
communication port used by the USB chip must match the baud rate for the COM port on the PC.
Access to the USB port baud rate is done using the SCPI command
:SYSTem:COMMunicate:SERial:USB “n” command; where “n” is the desired communication speed.
This parameter can be accessed via any communication method. The default baud rate for USB is

38400.

USB communication notes:

 The correct drivers must be installed on the on the personal computer before

communication can be accomplished via USB.

 The Baud Rates on the PC and the pulse generator must match for successful

communication.

 The USB port’s Baud Rate on the pulse generator can be set using the SCPI

command SYSTem:COMMunicate:SERial:USB “n”, where “n” can be: 4800, 9600
19200, 38400, 57600, or 115200.

 USB 2.0 specification is used. The USB cable can be removed without “ejecting” the

device in the operating system environment.

Ethernet Interface Overview

An Ethernet interface is also standard on the 9530. Refer to Appendix C included at the end of this
manual for more information about the Ethernet Interface and Operation.

Programming Command Types and Format

The 9530/8530 Pulse Generator uses two types of programming commands: IEEE 488.2 Common
Commands and Standard Commands for Programmable Instruments (SCPI). The format is the same
for all interfaces. HyperTerminal (in Windows) or any other generic terminal program may be used to
interactively test the commands using the RS-232 interface. The format of each type is described in
the following paragraphs.

Line Termination

The pulse generator uses text-style line terminations. When a command is sent to the unit, the
firmware is programmed to read characters from a communication port until it reads the line
termination sequence.

The command string is parsed and executed after reading these characters. These characters ar e

Page 32 9530/8530 Manual Version 4.8

the “carriage return” and “linefeed”. They are ASCII character set values 13 and 10 respectively (hex

*RST <cr><lf>

*RCL 1 <cr><lf>

*IDN? <cr><lf>

SCPI Format

0x0D and 0x0A). All command strings need to have these characters appended.

When the pulse generator responds to a command, whether it is a query or a parameter change, it
also appends its return strings with these characters. Coded applications could use this behavior to
know when to stop reading from the unit. However, if the “echo” parameter is enabled, there will be
two sets of line terminators, one following the echoed command string, and one following the pulse
generator’s response.

*Note: The pulse generator will echo commands on the RS-232 serial port only.

The pulse generator responds to every communication string. If the communication string is a query,
the unit responds with the queried response (or error code) followed by the line terminators. If the
communication string is a parameter change, the response is “ok” (or error code) followed by the line
terminators. For this reason, it is not recommended that multiple commands be stacked together into
single strings as is common with some other types of instruments. It is recommended that the coded
application send a single command in a string and follow immediately by reading the response from
the unit. Repeat this sequence for multiple commands.

IEEE 488.2 Common Command Format

The IEEE 488.2 Common Commands control and manage generic system functions such as reset,
configuration storage and identification. Common commands always begin with the asterisk (*)
character and may include parameters. The parameters are separated from the command
pneumonic by a space character. For Example:

SCPI Command Keywords

The commands are shown as a mixture of upper and lower case letters. The upper case letters
indicate the abbreviated spelling for the command. You may send either the abbreviated version or the
entire keyword. Upper and/or lower case characters are acceptable.

For example, if the command keyword is given as POLarity, then POL and POLARITY are both
acceptable forms; truncated forms such as POLAR will generate an error; polarity, pol, and
PolAriTy are all acceptable as the pulse generator is not case sensitive.

*Note: The unit by default is not case sensitive, but if it is wished to have the system only

respond to capitalized commands see the command list below.

SCPI Command Format

SCPI commands control and set instrument specific functions such as setting the pulse width,
delay, and period. SCPI commands have a hierarchical structure composed of functional
elements that include a header or keywords separated with a colon, data parameters, and
terminators. For example:

9530/8530 Manual Version 4.8 Page 33

:PULSE1:STATE ON <cr> <lf>

:PULSe1:WIDTh 0.000120 <cr> <lf>

:PULSe:POL NORMal <cr> <lf>

SCPI Query Format

:PULSE1:STATE? <cr><lf>

Will return

1<cr><lf>

:PULSE1:WIDTH? <cr><lf>

Will return

0.000120000 <cr><lf>

:PULSE1:POL? <cr><lf>

Will return

NORM <cr><lf>

<Numeric Value>

Accepts all commonly used decimal representation of
numbers including optional signs, decimal points, and
scientific notation:

For Example: 123, 123e2, -123, -1.23e2, .123, 1.23e-2,

1.2300E-01

Any parameter may be queried by sending the command with a question mark appended. For
example:

SCPI Keyword Separator

A colon (:) must always separate one keyword from the next lower-level keyword. A space must be
used to separate the keyword header from the first parameter.

SCPI Optional Keywords

Optional keywords and/or parameters appear in square brackets ( [ ] ) in the command syntax.
Note that the brackets are not part of the command and should not be sent to the pulse generator.
When sending a second level key word without the optional keyword, the pulse generator assumes
that you intend to use the optional keyword and responds as if it had been sent.

SCPI Specific and Implied Channel

Some commands, such as PULSe, allow specifying a channel with an optional numeric keyword
suffix. The suffix will be shown in square brackets [ 1 / 2 ]. The brackets are not part of command
and are not to be sent to the pulse generator. The numeric parameters correspond to the following
channels: 0 = T0, 1 = ChA, 2 = ChB, etc. Only one channel may be specified at a time.

If you do not specify the channel number, the implied channel is specified by the :INSTrument:SELect
command or the last referenced channel.

After power-up or reset (*RST) the instrument will default to channel #1.

SCPI Parameter Types

The following parameter types are used:

Page 34 9530/8530 Manual Version 4.8

<Boolean Value>

Represents a single binary condition that is either true or false.
True is represented by a 1 or ON; false is represented by a 0 or
OFF. Queries return 1 or 0.

<Identifier>

Selects from a finite number of predefined strings.

:PULSE1:STATE ON <cr> <lf>

enables channel A

:PULSE1:POL NORM <cr> <lf>

sets polarity to active high

:PULSE:WIDT 0.020 <cr> <lf>

sets pulse width to 20 ms

:PULSE1:DELAY 0.0023 <cr> <lf>

sets delay to 2.3 ms

:PULSE0:MODE NORM <cr> <lf>

sets system mode to continuous

:PULSE0:PER 0.1 <cr> <lf>

sets period to 100 ms (10 Hz)

:PULSE0:TRIG:MODE DIS <cr> <lf>

disables the external trigger

:PULSE0:STATE ON <cr> <lf>

starts the pulses

:INST:STATE ON <cr> <lf>

alternate form to start pulses

:PULSE1:STATE ON <cr> <lf>

enables channel A

:PULSE1:POL NORM <cr> <lf>

sets polarity to active high

:PULSE:WIDT 0.000025 <cr> <lf>

sets pulse width to 25μs

:PULSE1:DELAY 0 <cr> <lf>

sets delay to 0

Error Codes

The unit responds to all commands with either:

ok <cr><lf> or ?”n “<cr><lf>

Where "n" is one of the following error codes:

1. Incorrect prefix, i.e. no colon or * to start command.

2. Missing command keyword.

3. Invalid command keyword.

4. Missing parameter.

5. Invalid parameter.

6. Query only, command needs a question mark.

7. Invalid query, command does not have a query form.

8. Command unavailable in current system state.

Programming Examples

Example 1)

20 ms pulse width, 2.3 ms delay, 10 Hz internal trigger, and continuous operation.

To start the pulses use either of the following commands:

Example 2)

25μs pulse width, 0 delay, external trigger, and one pulse for every trigger.

9530/8530 Manual Version 4.8 Page 35

:PULSE0:MODE SING <cr> <lf>

sets system mode to single shot

:PULSE:TRIG:MODE TRIG <cr> <lf>

sets system to external trigger

:PULS:TRIG:LEV 2.5 <cr> <lf>

sets trigger level to 2.5 volts

:PULS:TRIG:EDGE RIS <cr> <lf>

set to trigger on rising edge

:PULSE0:STATE ON <cr> <lf>

Arms the instrument

:INST:STATE ON <cr> <lf>

Alternate form if T0 is currently

selected.

*TRG <cr> <lf>

Generates a software external trigger

To arm the instrument in external gate mode, use either of the following com mands:

A software generated external trigger can be generated by using the following command:

Page 36 9530/8530 Manual Version 4.8

Keyword:

Command:

Sub­Command:

Parameter
Range:

Notes:

:INSTrument

The units’ upper level command keyword.

:CATalog ?

Returns a comma separated list of the names of all
channels.
Example: A two channel unit would return T0, CHA,
CHB

:FULL ?

Returns a comma-separated list of the names of all
the channels and their associated number.
Example: a two channel unit would return T0, 0,
CHA, 1, CHB, 2

:COMMands

?

Returns an indentured list of all valid SCPI
commands

:NSELect 0 - 8

Selects a channel using the numeric value

:SELect

T0 / CH[A-H]

Selects a channel using the identifier

:STATe

0/1 or OFF/ON

Enables/Disables the selected channel output. If no
channel has been selected the command is applied
to T

0.

If T0 is selected all outputs are affected.
Enabling T0 is the same as pressing the RUN
button.

Keyword:

Command:

Sub­Command:

Parameter
Range:

Notes:

:DISPlay

Command to change the units’ display settings.

:ENABle

0/1 or OFF/ON

Enables/Disables the display, also locks the
keypad. Once the system is rebooted the display
will default to the on state.

:MODe

0/1 or OFF/ON

Command to enable/disable the automatic display
update function. Setting to 1 will force a display
update when a command is received via serial
communications. Setting to 0 will turn this feature
off. The default setting is 0

*Note: Using this feature will slow down the
communication response.

:BRIGhtness

1 - 8

Command to change the display brightness. 8 is
the brightest setting.

:UPDate ?

Query only. Will force the display to be updated
with the current parameters. This command will
only update the display once for every time the
command is sent.

9530/8530 SCPI Command Summary

9530/8530 Manual Version 4.8 Page 37

Keyword:

Command:

Sub­Command:

Parameter
Range:

Notes:

:PULSe[0]

Command to change the units’ global settings, this

is the same as using the :SPULse command

:COUNter

Subsystem. Contains commands to define the
Counter function.

:STATe

0/1 or OFF/ON

Enables/Disables the counter function

:Clear

TCNTS/GTNTS

Clears the active counter
*Note: Standard units only have the trigger counter.

:COUNt?

TCNTS/GTNTS

Reports the clock pulses output except in single
shot mode, in this case the trigger pulses input on
the channel will be displayed

*Note: GCNTS will only work on units that have the
dual trigger option and the ? must be included in
the Sub-Command.

:STATe

0/1 or OFF/ON

Enables/Disables the output for all channels. This
command is the same as pressing the Run/Stop
button.

:PERiod

50[ns] – 5000[s]

Sets the T0 period. The command should be sent
without units. If for example 50ns is desired the
parameter sent should be 50e-9, or the decimal
equivalent.

:MODe

NORMal/SINGle/

BURSt/DCYCle

Changes the system output mode.

:BCOunter

1-1,000,000

Changes the number of pulses to output when the
system is in burst mode.
*Note: The commas should be omitted.

:PCOunter

1-1,000,000

Changes the number of on pulses to output when
the system is in Duty Cycle mode.
*Note: The commas should be omitted.

:OCOunter

1-1,000,000

Changes the number of off pulses to suppress
when the system is in Duty Cycle mode.
*Note: The commas should be omitted.

:ICLock

Submenu for selecting the clock source

:MODe

INT / EXT / XPL

Changes the source and type of the system clock.
INT is internal, EXT is external, and XPL is external
with phase-locked-loop.

:RATe

10–100[MHz]

Changes the frequency of input clock signal the
unit should expect, has a 1MHz resolution
*Note: This menu is only active in EXT mode.

:LEVel

.02 - 2.5[V]

Choose the input level threshold to trigger on ~
50% of the input potential.

*Note: If the triggering threshold is not set correctly
the unit responses are undetermined.

:OPTion

FORCE / LAST

Allows the user to set the behavior of the
instrument when synchronization to the external
clock is lost and resync'd. "Force" will cause the
unit to disable the channels as soon as the lock is
lost, and "Last" will cause the unit to resume with
whatever the last mode was when resync'd.
*Note: Only applies when ICLock is XPL mode

Page 38 9530/8530 Manual Version 4.8

Keyword:

Command:

Sub­Command:

Parameter
Range:

Notes:

:PULSe[0]

Command to change the units’ global settings, this

is the same as using the :SPULse command

:OCLock

T0 / RATE /
CHAN / AUX1-4 /
DIS

Allows the user to select the clock source to output:
When ICLock is INT:
T0 is the user defined period.
Rate = N/A
CHAN = N/A
AUX1 = 40 MHz
AUX2 = 20 MHz
AUX3 = 10 MHz
AUX4 = 5 MHz

When ICLock is in EXT:
T0 is disabled
RATE = f

output

will be f

input

CHAN = f

output

will be 2x f

input

AUX1 = 2x EXT PLL
AUX2 = 1x EXT PLL
AUX3 = 1/2 EXT PLL
AUX4 = 1/2 EXT

:GATe

Command to change the units’ global gate settings.

:MODe

DIS / PULS /

OUTP / CHAN

Sets the global gate mode for the unit: When in
pulse inhibit mode if the pulse has started before
the gate is seen the output pulse will finish, but any
further pulses will be prevented, In output inhibit
mode if a pulse has started it will be truncated as
soon as the gate signal is seen and will prevent any
further pulses, and when in channel mode each
channel can be setup individually (be aware of
insertion delay for each mode, this is listed in the
appendix)

:LOGic

LOW / HIGH

Choose active Low (will allow pulses when low) or
active High (will allow pulses when high)

:EDGe

RISing / FALLing

Choose the edge of the incoming pulse to trigger
on. (Only used when the option for the gate to be a
second trigger input is enabled)

:LEVel

.20 – 15[V]

Choose the gate level threshold to trigger on, this
should be set to ~ 50% of the input potential

:TRIGger

Command to change the units’ global trigger

settings.

:MODe

DIS / TRIG /

DUAL

Sets the global trigger mode for the unit:
When the unit is set to single pulse each trigger
input will produce a output pulse, When in burst
mode each trigger input will produce a burst of
output pulses, and when in continuous or duty
cycle mode the trigger input will start the pulses
(the trigger will function the same as pressing the
Run/Stop button)

*Note: When in dual trigger mode each channel will
have the option to select which trigger to use.

:EDGe

RISing / FALLing

Choose the edge of the incoming pulse to trigger
on.

:LEVel

.20 – 15[V]

Choose the gate level threshold to trigger on, this

9530/8530 Manual Version 4.8 Page 39

Page 40 9530/8530 Manual Version 4.8

should be set to ~ 50% of the input potential.

Keyword:

Command:

Sub­Command:

Parameter Range:

Notes:

:PULSe[1/2/n]

Command to change the units’ channel

specific settings.

:STATe

0/1 or OFF/ON

Enables/Disables output pulse for selected
channel.

:WIDTh

10[ns] -

999.99999999975[s]

Sets the pulse width for the selected channel.
The command should be sent without units. If
for example 50ns is desired the parameter
sent should be 50e-9, or the decimal
equivalent.

:DELay

-99.99999999975[s]
to

999.99999999975[s]

Sets the delay from the timing reference to
when the pulse is created. The command
should be sent without units. If for example
50ns is desired the parameter sent should be
50e-9, or the decimal equivalent.

:SYNC

T0,CHA,CHB-CHH

Allows the user to select the timing reference
for each channel.

*Note: When in external clock input mode T0
will be the clock input.

:MUX 0-255

Decimal representation of an 8 bit binary
number (example: 255 = 1111 1111)

:POLarity

NORMal /

COMPlement /

INVerted

Normal is active HIGH, Inverted and
Complement are active LOW.

:OUTPut

Command to change the channels’ output

parameters.

:MODe

TTL / ADJustable

Allows the user to select either TTL logic
mode or Adjustable voltage output mode.

:AMPLitude

2.0 to 20[V]

Allows the user to select the voltage potential
for Adjustable output mode.

:CMODe

NORMal / SINGle /

BURSt / DCYCle

Allows the user to select the pattern of outputs
to use on the channel level.

:BCOunter

1 to 1,000,000

When the channel is in Burst mode will allow
user to select the number of pulses to output
with each input clock pulse.
*Note: The commas should be omitted.

:PCOunter

1 to 1,000,000

When the channel is in duty cycle mode will
allow the user to select the number of pulses
to create with each input clock pulse.
*Note: The commas should be omitted.

:OCOunter

1 to 1,000,000

When the channel is in duty cycle mode will
allow the user to select the number of pulses
to suppress with each input clock pulse.
*Note: The commas should be omitted.

:WCOunter

0 to 1,000,000

Allows the user to select how many clock
cycles to wait until the channel should start
creating an output pulse.
*Note: The commas should be omitted.

:CTRIg TRIG / GATE

Sets the Trigger source for the channel
selected.

*Note: For the gate to be used as a trigger
source the unit must have the dual trigger
option.

Keyword:

Command:

Sub­Command:

Parameter Range:

Notes:

:PULSe[1/2/n]

Command to change the units’ channel

specific settings.

:CGATe

DIS / PULS / OUTP

Sets the channel gate mode to Disabled,
Pulse Inhibit mode, or Output Inhibit mode.

*Note: The system global gate mode must be
set to CHAN for this command.

:CLOGic

LOW / HIGH

Set the channel gate to active LOW or active
HIGH.

*Note: The system global gate mode must be
set to CHAN for this command to work.

Keyword:

Command:

Sub­Command:

Sub­Command:

Parameter Range:

Notes:

:SYSTem

Command to change the units’

system settings.

:STATe

? Query Only Command

:BEEPer

Command to change the units’

beeper settings.

:STATe

0/1 or OFF/ON

Command to turn on or off the
systems' beeper.

:VOLume 0 - 100

Command to change the units'
beeper volume.

:COMMunicate

Command to set the
communication settings.

:SERial

Sub-Command to set the serial
interface parameters.

:BAUD

4800 / 9600 / 19200 /

38400 / 57600 /

115200

Command to change the baud
rate for the RS-232 interface.

:USB

4800 / 9600 / 19200 /

38400 / 57600 /

115200

Command to change the baud
rate for the USB interface.

:ECHo

0/1 or OFF/ON

Command to Enable/Disable
the echo function on the RS­232 interface. The Echo
function will cause the unit to
repeat the command received
to the PC.

:KLOCk

0/1 or OFF/ON

Command to lock-out the
keypad.

:AUTorun

0/1 or OFF/ON

When the unit is powered up, if
this command is enabled, the
unit will start pulsing
automatically.

:VERSion

?

Query only. Returns SCPI
version number in the form
YYYY.V for ex. 1999.0

:SERNumber

?

Query only. Returns the serial
number of the unit. The format
returned will be “SER# xxxxx”.

9530/8530 Manual Version 4.8 Page 41

:INFOrmation

?

Query only. Returns model,
serial number, firmware
version, and FPGA version
numbers. The same as the
*IDN? Command.

:NSID

?

Query only. Returns firmware
and FPGA identification
numbers.

:CAPS

0/1 or OFF/ON

The default value is 1, which
means the unit is not case
sensitive. 0 means the
commands sent to the unit
must be capitalized.

*Note: To change this
parameter the unit must be
power cycled before the
command will take effect.

IEEE 488.2 Common Commands

Command:

Parameter Range:

Notes:

*IDN

?

Query only. Returns model, serial number, firmware version, and FPGA
version numbers.

*RCL

1 - 24

RECALL

*RST

RESET. Resets parameters only same as *RCL 0

*SAV

1 - 24

SAVE

*TRG

Creates a soft trigger input.

*TTG

Creates a soft trigger for the trigger input only. Used when the dual trigger
option is enabled.

*GTG

Creates a soft trigger for the gate input only. This command is only active
when the dual trigger option is enabled.

*LBL

?

Used to query the label of the last saved or recalled configuration.

String Value

Command to attach a string label to the current settings. The string must
be in double quotes and no longer than 14 characters. Command must be
followed by a *sav [1/2/n] command to take effect.

*Note: To see the label on the screen a display update or reboot must take
place.

*ARM

0/1 or OFF/ON

Resets all channel counters simultaneously when the channels are in
either single shot or burst mode.

*Note: The system must be in continuous mode (this command is
functionally the same as pressing the Run/Stop button).

Page 42 9530/8530 Manual Version 4.8

8. Appendix A – Specifications

9530/8530 Specifications

INTERNAL RATE GENERATOR

RATE (T0 period) 0.0002 Hz to 10.000 MHz
RESOLUTION 10 ns
ACCURACY 1 ns + .0001 x period
JITTER < 50 ps RMS
SETTLING 1 period
BURST MODE 1 to 1,000,000 pulses
TIMEBASE 100 MHz, low jitter PLL
OSCILLATOR 50 MHz, 25 ppm
SYSTEM OUTPUT MODES Single pulse, burst, duty cycle, external gate/trigger
PULSE CONTROL MODES Internal rate generator, external trigger/gate

PROGRAMMABLE TIMING GENERATOR

CHANNEL OUTPUT MODES Single shot, burst, duty cycle, normal
CONTROL MODES Internally triggered, externally triggered and external

gate. Each channel may be independently set to any of
the modes.

OUTPUT MULTIPLEXER Timing of any/all channels may be multiplexed to any/all

outputs.
WAIT FUNCTION 0 to 1,000,000 pulses
TIMEBASE Same as internal rate generator

DELAYS

RANGE 0-1000 s
ACCURACY 1 ns + 0.0001 x Delay
RESOLUTION 250 ps
PULSE INHIBIT DELAY < 120 ns typical
OUTPUT INHIBIT DELAY < 50 ns typical

SYSTEM EXTERNAL TRIGGER/GATE INPUT(S)

TRIGGER INPUT
FUNCTION Generate individual pulses, start a burst or continuous

stream
RATE DC to 1/ (200 ns + longest active pulse). Maximum of 5

MHz
SLOPE Rising or Falling

9530/8530 Manual Version 4.8 Page 43

GATE INPUT
MODE Pulse inhibit or output inhibit
POLARITY Active high/active low

MODULE SPECIFICATIONS
TTL/ADJUSTABLE DUAL CHANNEL OUTPUT MODULE (Standard)

OUTPUT IMPEDANCE 50 ohm

TTL/CMOS MODE

OUTPUT LEVEL 4.0 V typ into 1 kohm
RISE TIME 3 ns typ (10% - 90%)
SLEW RAT > 0.5 V/ns
JITTER 50 ps RMS channel to channel

ADJUSTABLE MODE

OUTPUT LEVEL 2.0 to 20 VDC into 1 k ohm

1.0 to 10.0 VDC into 50 ohm
OUTPUT RESOLUTION 10 mV
CURRENT 200 mA typical, 400 mA (short pulses)
RISE TIME 15 ns typ @ 20 V (high imp)

25 ns typ @ 10 V (50 ohms)
(10% - 90%)
SLEW RATE >0.1 V/ns
OVERSHOOT <100 mV + 10% of pulse amplitude

TRIGGER/GATE DUAL INPUT MODULE (Standard)

Standard dual channel input module, providing one trigger input and one gate input. May
be used with the dual trigger firmware option to provide two independent trigger sources.

THRESHOLD 0.2 to 15 VDC
MAXIMUM INPUT VOLT. 60 V Peak
IMPEDANCE 1.5 K ohm + 40pF
RESOLUTION 10 mV

TRIGGER INPUT

SLOPE Rising or Falling
JITTER 800 ps RMS
INSERTION DELAY <180 ns
MINIMUM PULSE WIDTH 2 ns

Page 44 9530/8530 Manual Version 4.8

GATE INPUT

POLARITY Active High/Active Low
FUNCTION Pulse Inhibit or Output Inhibit
CHANNEL BEHAVIOR Global w/Individual Channel
PULSE INHIBIT DELAY 120 ns
OUTPUT INHIBIT DELAY 50 ns

STANDARD FEATURES

COMMUNICATIONS USB/RS232
EXTERNAL CLOCK IN 10 to 100 MHz in 1 MHz increments
EXTERNAL CLOCK OUT T0, Rate, Chan, 2x ExtPLL, 1 ExtPLL, ½ ExtPLL, ½ Ext,

GENERAL

STORAGE 24 storage bins
DIMENSIONS 19” x 10” x 1.75”
WEIGHT 8 lbs
POWER 100 - 240 VAC

FUSE (Qty 2) 630 mA, 250 V Time-lag

40 MHz, 20 MHz, 10 MHz, 5 MHz, and Disabled

50/60 Hz <3 A

9530/8530 Manual Version 4.8 Page 45

9. Appendix B - Safety Symbols

Symbol

Publication

Description/Comment

IEC 417, No. 5031

Direct current. Vdc may be used on rating labels.

IEC 417, No. 5032

Alternating current. For rating labels, the symbol is
typically replaced by V and Hz as in 230V, 50Hz. DO NOT
USE Vac.

IEC 417, No. 5033

Both direct and alternating current

IEC 617-2

No. 02-02-06

Three-phase alternating current

IEC 417, No. 5017

Earth (ground) terminal. Primarily used for functional
earth terminals which are generally associated with test and
measurement circuits. These terminals are not for safety
earthing purposes but provide an earth reference point.

IEC 417, No. 5019

Protective conductor terminal. This symbol is specifically
reserved for the protective conductor terminal and no other.
It is placed at the equipment earthing point and is
mandatory for all grounded equipment

Safety Marking Symbols

Technical specifications including electrical ratings and weight are included within the manual. See
the Table of Contents to locate the specifications and other product information. The following
classifications are standard across all QC products:

 Indoor use only
 Ordinary Protection: This product is NOT protected against the harmful ingress of

moisture.

 Class 1 Equipment (grounded type)
 Main supply voltage fluctuations are not to exceed ±10% of the nominal supply voltage.
 Pollution Degree 2
 Installation (overvoltage) Category II for transient overvoltage’s
 Maximum Relative Humidity: <80% RH, non-condensing

 Operating temperature range of 0
 Storage and transportation temperature of -40

 Maximum altitude: 3000 m (9843 ft.)
 This equipment is suitable for continuous operation.

This section provides a description of the safety marking symbols that appear on the instrument.
These symbols provide information about potentially dangerous situations which can result in death,
injury, or damage to the instrument and other components.

o

C to 40

o

C

o

C to 70

o

C

Page 46 9530/8530 Manual Version 4.8

IEC 417, No. 5020

Frame or chassis terminal. Used for points other than
protective conductor and functional earth terminals where
there is a connection to accessible conductive terminals to
advise the user of a chassis connection.

IEC 417, No. 5021

Equipotentiality Used in applications where it is important
to indicate to the operator that two or more accessible
functional earth terminals or points are equipotential. More
for functional rather than for safety purposes

IEC 417, No. 5007

On (Supply) Note that this symbol is a bar, normally applied
in the vertical orientation. It is not the number 1.

IEC 417, No. 5008

Off (Supply) Note that this symbol is a true circle. It is not
the number 0 or the letter O.

IEC 417, No. 5172

Equipment protected by double insulation or reinforced
insulation (equivalent to Class II if IEC 60536)

ISO 3864, No. B.3.6

Background color -

yellow; symbol and

outline - black

Caution, risk of electric shock Generally used only for
voltages in excess of 1000 V. It is permissible to use it to
indicate lower voltages if an explanation is provided in the
manual. Color requirements do not apply to markings on
equipment if the symbol is molded or engraved to a depth
or raised height of 0.5 mm, or that the symbol and outline
are contrasting in color with the background.

IEC 417, No. 5041

Background color -

yellow; symbol and

outline - black

Caution, hot surface Color requirements do not apply to
markings on equipment if the symbol is molded or engraved
to a depth or raised height of 0.5 mm, or that the symbol
and outline are contrasting in color with the background.

ISO 3864, No. B.3.1

Background color -

yellow; symbol and

outline - black

Caution (refer to accompanying documents) used to
direct the user to the instruction manual where it is
necessary to follow certain specified instructions where
safety is involved. Color requirements do not apply to
markings on equipment if the symbol is molded or engraved
to a depth or raised height of 0.5 mm, or that the symbol
and outline are contrasting in color with the background.

IEC 417, No. 5268-a

In-position of bistable push control

IEC 417, No. 5269-a

Out-position of bistable push control

9530/8530 Manual Version 4.8 Page 47

10. Appendix C - COM

Ethernet Interface Overview

*Note: See also Appendix D for more on the Ethernet interface

The Ethernet module used is a “Digi Connect ME” module supplied by Digi Connectware, Inc.
There are several ways to successfully communicate with the pulse generator over Ethernet. The
two most popular methods are raw TCP/IP (such as LabVIEW or programming with VISA libraries)
and by mapping a PC COM port using the Dig i Connectware’s “Realport Drivers”.

Whatever method of Ethernet communication is ultimately desired, the utilities supplied by Digi
Connectware (included on the CD shipped with the Pulse Generator) will be critical to
implementing the communications. Please install the following utilities:

Ethernet Communication Notes:

 The Digi Connectware’s “Digi Device Discovery” can be used to determine what IP

address was assigned by the local DHCP server (if any).

 “Digi Device Discovery” can also be used to open a web interface to the Ethernet

module. Simply double-click on the IP address that is displayed in the Digi Device
Discovery utility.

 Username: “root”
 Password: “dbps”

 If a mapped COM port is the desired communication method, the Digi Connectware’s

“Realport Drivers” setup must be used to install the COM port on the PC. The virtual COM

port is then local to the computer it was installed on. Please refer to the Digi Connectware
documentation supplied on the CD, or call Quantum Composers Technical Support.

 The pulse generator’s SCPI default baud rate on the Ethernet port is 115200 and

should not be changed for communication, whether or not a mapped COM port is used.
The virtual COM port on the PC should be set to a baud rate of 115200.



Echo functionality is not available on th e Ethernet port.

Page 48 9530/8530 Manual Version 4.8

11. Appendix D - Ethernet Connectivity

The Ethernet module used in Quantum Composers’ pulse generators is a “Digi Connect ME”
device manufactured by Digi International, Inc. It supports virtually all practical Ethernet
communication methods. A set of utilities and documentation by Digi is included on the CD
shipped with the pulse generator.
This discussion assumes that the Digi utilities included with your pulse generator and National

Instruments VISA (version 3.3 in this procedure, see National Instruments’ website) are installed.

The procedures discussed have been prepared using Windows XP service pack 2.

Determining IP address

The Digi module has been reset to factory defaults before it left the manufacturing facility. In this
mode, it is ready to be assigned an IP address by the local DHCP server. If a crossover cable is
being used, the Ethernet device will assume a default IP address.

The Digi utility “Digi Device Discovery” can be used to determine the IP address that is currently
assigned to the Ethernet module. Hit “Start, All Programs, Digi Connect, Digi Device Discovery”.

When the utility opens, it scans the LAN looking for Digi Ethernet modules. It may take a minute
after plugging in or powering the Ethernet module before the LAN negotiates the connection with
the Digi module. Hit “Refresh View” in the left column after a minute or so if the utility fails to see
the unit when you start it. When the utility sees the Digi device, it will display it in the list (Figure

1).

Figure 1: Digi Device Discovery utility displaying Digi module discovered on the LAN

Note the IP address for use later. A static IP address can be set using the “Configure network
settings” link in the left hand column. From this point, a web interface can be opened, allowing

access to configuration options for the Digi module. Select “Open web interface” under the device
tasks on the left hand column of the Digi Device Discovery software.
You will be required to enter the following username and password:

 Username: “root”
 Password: “dbps”

9530/8530 Manual Version 4.8 Page 49

The Digi Connect ME Configuration and Management home page will be displayed (Figure 2).

Figure 2: Configuration Home page

From the home page select “Serial Ports” on the left hand side. The serial port configuration page

will be displayed (Figure 3).

Figure 3: Serial Ports page

Select Port 1 from the list of ports. Select TCP Sockets from the list of available profiles and click
on apply at the bottom of the page. The TCP Sockets profile settings will then be displayed. Be

sure that the box next to “Enable Raw TCP access using TCP Port:” is selected and note the port

number. By default the port number is 2101. If any settings were changed click on apply at the

bottom of the Port Profile Settings section. Next, select the “Basic Serial Settings” section located
below the “Port Profile Settings” section. If the product is a 9500+ select 9600 as the baud rate, all

other models need to be set to a baud rate of 115200 (Figure 4).

Page 50 9530/8530 Manual Version 4.8

Figure 4: Baud rate settings

Click on apply after changing the baud rate. Select “Logout” from the bottom of the left hand
column. After logging out power cycle the instrument. Use the Digi Device Discovery software to
see if the IP address of the unit appears again. Once the unit has been identified the unit is ready
for communication.

Testing Ethernet Communication

Ethernet communication to the pulse generator can be tested using a utility that is installed with

National Instruments’ (current) VISA libraries.
After determine the IP address for the unit, “VISA Interactive Control” can be used to send and

receive command strings to and from the pulse generator. Hit “Start, All Programs, National

Instruments, VISA, VISA Interactive Control” (Figure 5).

Figure 5: Typical path to VISA Interactive Control utility

9530/8530 Manual Version 4.8 Page 51

When this utility opens, it displays local resources found. TCPIP resources are typically not
shown in this window. However, the resource string can be successfully entered manually in the
“Resource to Open” field (Figure 6). The resource string for Digi Connect Ethernet Modules in
Quantum Composer pulse generators needs to be formatted as follows:
TCPIP0::<IP address>::2101::SOCKET

Or, for example:

TCPIP0::192.168.1.44::2101::SOCKET
A session window will open allowing access

to communication parameters and read and
write buffer access and control (Figure 6).
Quantum Composer pulse generators
support SCPI formatted command strings.
For these units, command strings and
responses are both terminated with text-style
line terminations, a carriage return and
linefeed pair. These are ASCII characters
number 13 and 10 respectively. They are
represented in this utility (and in many other
contexts) as “\r\n”.

Figure 6: Session window for TCPIP resource

In hexidecimal, these are represented as “0x0D” and “0x0A”, respectively. When sending

command strings to the pulse generator, strings need to be terminated with a carriage return and
linefeed pair. Without this line termination, the pulse generator will not execute commands, but
continue to wait for more characters until it sees this string termination sequence.

Tab over to the “Write” tab (Figure 7).

Page 52 9530/8530 Manual Version 4.8

Figure 7: Commands can be sent to the pulse generator from the "Write" tab buffer

The “Buffer” field can be edited to send any valid command to the pulse generator. Hit “Execute”

to send the “*IDN?” command. Now tab over to the “Read” dialog (Figure 8).

Figure 8: Return string from *IDN? query

Successive iterations between “Write” and “Read” operations can be accomplished from here.
Keep in mind that it is always best to follow each “Write” command immediately with a “Read”

command, whether the commands are generated from a utility such as this, or from a more
complex coded application. The pulse generator is designed to respond to every command line

with either the result of a query (ie, “:pulse1:width?\r\n” could return “0.000100000”), or a simple
“ok\r\n” to acknowledge a successful parameter change. If a “Read” command does not follow

each “Write” command, the read (output) buffer in the pulse generator can overfill and become

corrupt.
Many applications may need a communication mechanism no more sophisticated than what can

be achieved with this simple utility. At the very least, this tool can be used to verify that the pulse

9530/8530 Manual Version 4.8 Page 53

generator and communication hardware are functioning properly. From here, a specific

Keyword:

Command:

Sub­Command:

Parameter Range:

Notes:

:PULSe[0]

Command to change the units’ global settings,

this is the same as using the :SPULse
command

:TRIGger

Command to change the units’ global trigger
settings.

:MODe

DIS / TRIG / DUAL

Sets the unit to dual trigger mode.

:PULSe[1/2/n]

Command to change the units’ channel

specific settings.

application in whatever preferred programming language can be built.
Although Quantum Composers cannot support all programming languages, we do have extensive

experience with many languages, and strive to provide whatever assistance we can. Contact QC
technical support for the latest information on what assistance may be available for your
application.

12. Appendix E - Dual Trigger Input

DT15 Dual Trigger Module

*Note: Dual Trigger Mode and Incrementing mode are mutually exclusive.

This module option allows the “Gate” input to function as a second trigger input. For consistency,
the enabling menu for this option is located under the “Trig” menu structure. Once the dual trigger
mode is enabled, both the “Gate” and “Trig” inputs can act as trigger inputs.

Adjustments for the “Gate” functioning as a trigger input are located under the “Gate” menu
structure. The voltage threshold level and trigger edge for the “Gate” input can be adjusted from this
menu. The “Gate” trigger edge choice is only available when in dual trigger mode.

Once dual trigger functionality is enabled on the unit, each channel can be assigned to either of the
trigger inputs. The default trigger source for each channel is the “Trig” input. The trigger source
selection is accessed in the secondary channel menus. To access this menu, press the button for
the channel of interest twice. Continue to press then the Page button until the menu page with “Ch
Gate:” and “TrigSrc:” appears. Use th e “Next” button to place the cursor on the “TrigSrc” line and
use the up/down arrows to change to the desired trigger source.

9530 SCPI Dual Trigger Command Summary

Page 54 9530/8530 Manual Version 4.8

:CTRIGger

GATE/TRIG

Sets which input is assigned to the channel
trigger

Command:

Parameter Range:

Notes:

*TTG

Trigger-Trigger Input

Generates a software trigger pulse for the TRIG input only. Operation is
the same a receiving an external trigger pulse.

*GTG

Trigger-Gate Input

Generates a software trigger pulse for the GATE input only. Operation is
the same a receiving an external trigger pulse.

Enable/Disable Counter

T Counts:

G Counts:

Zero the Counter

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Dual Trig
Trig Src: Trig

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
Ch Gate: Dual Trig
Trig Src: Gate

Press the Page Button

IEEE 488.2 Common Commands

Changes in Menu Structure Caused by Enabling the Dual Trigger Function

Counter Menu

The counter Menu now shows the option to track the counter counts on the Gate input when
functioning as a trigger.

Channel Advanced Menu

The Channel Advanced menu now shows that the gate is used in the dual trigger mode and only
lets the user select to enable/disable the channel and choose which trigger source to use for that
channel.

Trigger Menu

The Trigger menu now has a third mode selection, Dual Trigger.

9530/8530 Manual Version 4.8 Page 55

Mode: Disabled

Change Trigger Mode

Mode: Triggered
Level: 2.50 Volts
Edge: Rising/Falling Edge

Mode: Dual Trig
Level: 2.50 Volts
Edge: Rising/Falling Edge

Mode: Dual Trig.
Level: 2.50 Volts

Edge: Rising/Falling Edge

TTL/CMOS Mode

Output Level

4.0 Volts typical into 50 Ω

Rise Time

3 ns

Slew Rate

>0.5 V/ns

Jitter – Channel to Channel

<50 ps RMS

Adjustable Mode

Output Resolution

10 mV

Current

200 mA typical, 400 mA max (short pulses)

Slew Rate

>0.1 V/ns

Gate Menu

When the Dual Trigger option is evoked under the Trigger menu the Gate menu changes to allow
the user to only change the level and edge parameters.

13. Appendix F – Impedance
Outputs

Matching

TZ50 Impedance Matching Output Module

This module option allows a user to have a 50 Ω load on the output while maintaining output
amplitude of at least 4 Volts while in the TTL/CMOS mode. All other functionality of the module is
the same as the AT20 modules, including output while using the Adjustable Mode Function of the
channels.

TTL/ADJUSTABLE OUTPUTS

*Note: The TZ50 module has significant overshoot and ringing through high
impedance (see figure).

Page 56 9530/8530 Manual Version 4.8

Figure 9: Overshoot on the Output of TZ50 Module

Keyword:

Command:

Sub­Command:

Parameter Range:

Notes:

:PULSe[0]

Command to change the units’ global

14. Appendix G - Increment Mode

Using the Increment System Mode

*Note: Dual Trigger Mode and Incrementing mode are mutually exclusive.

Also to get the first incremented pulse the :PULSe0:IRESet 1 command must be sent,
otherwise the pulse will not get incremented.

The System Increment modes are a pair of special modes, which allow the delay and width of each
channel to be incremented at the end of a burst of pulses. Each channel is independent and each
may be set with different initial values and different values for the step size for both the delay and the
pulse width.

There are two incrementing modes, Burst Increment and Duty Cycle Increment. In the Burst
Increment mode, each start command or external trigger produces a burst of pulses. At the end of
the burst the appropriate delays and pulse widths are incremented and the instrument is armed for
the next start command. In the DC Increment (Duty Cycle) mode the output is started as with the
normal duty cycle mode. At the end of each cycle the delays and pulse widths are incremented.
This continues for the number of cycles defined by the Cycle parameters. The modes are selected
from the system mode menu. The step sizes are specified in the advanced channel menus.

9530/8530 SCPI Increment Command Summary

9530/8530 Manual Version 4.8 Page 57

settings, this is the same as using the
:SPULse command

:MODe

BINCRement/
DCINCRement/
NORMal/
SINGle/
BURSt/
DCYCle

Sets the T0 mode. Added parameter for
Burst Increment and Duty Cycle Increment
mode.

:CYCLe 1 - 100

Sets the number of cycles to generate in
Duty Cycle Increment mode.

:IRESet 1

Resets the width and delay increment
parameters on all channels.

:PULSe[1/2/n]

Command to change the units’ channel

specific settings.

:IWIDth

GATE/TRIG

-1.000,000,000,00
to

1.000,000,000,00

Sets the pulse width in 10ns increment step
sizes.
*Note: The commas should be omitted.

:IDELay

-1.000,000,000,00
to

1.000,000,000,00

Sets the delay in 10ns increment step sizes.
*Note: The commas should be omitted.

Mode: DC Increment
Cycles: 4 Cycles
T0Period

Mode: DC Increment

On: Set the ‘n’ p ulses

Off : Set the ‘m’ pulses

Mode: Burst Incr

‘n’ pulses to produce

Mode: Burst Incr
T0Period

Rearm the channels

Rearm the channels

Press the Page Button

Change System Modes

Mode: Continuous

Rearm the channels

Mode: Continuous

T0Period

*Note: The update rate for increment mode is:

10 µs + 30 µs per active channel (1 Ch @ 25 KHz to 8 Ch @ 4 KHz)

Changes in Menu Structure Caused by Enabling the Incrementing Function

System Mode Menu

The System Mode menu now shows two more options, one is Burst Increment and the other is
Duty Cycle Increment. The menus below are in addition to the normal menus under the System
Mode.

Channel Advanced Menu

The Channel Advanced menu now has a page where the user can set the Incrementing Width and
Delay for each channel.

Page 58 9530/8530 Manual Version 4.8

Ch: -HGFE DCBA­Mux: -0000 0001-

Enable/Disable Channel
IncW: Set the Incrementing Width

IncD: Set the Incrementing Delay

Press the Page Button

Using the Duty Cycle Increment Function

 In the System Mode menu:

o Set the mode to DCIncrement mode.
o Set the number of on and off pulses that are desired.
o Press the Page button and set the number of cycles to run.
o Set the T0 period.

 In the Channel menu:

o Set the desired pulse width and delay.
o Set the desired Channel Mode.

 In the Channel Advanced menu:

o Set the desired width increment step size.
o Set the desired delay increment step size.

 Via a serial interface send the :PULSe0:IRESet 1 command to initialize the incrementing

mode

Once the Run/Stop button is pressed the unit will generate one set of pulses, ‘N’ on and ‘M’ off.
Pressing the Run/Stop button again will generate a second set of pulses with the width and delay
adjusted by the increments set in the Channel Advanced menu. To reset the width and delay
increments the :PULSe0:IRESet 1 command must be sent to the unit using HyperTerminal.

Using the Burst Increment Function

 In the System Mode menu:

o Set the mode to BurstIncrement mode.
o Set the desired number of pulses.
o Press the Page button and set the T0 period.

 In the Channel menu:

o Set the desired pulse width and delay.
o Set the desired Channel Mode.

 In the Channel Advanced menu:

o Set the desired width increment step size.
o Set the desired delay increment step size.

 Via a serial interface send the :PULSe0:IRESet 1 command to initialize the incrementing

mode

Once the Run/Stop button is pressed the unit will generate one set of pulses. Pressing the
Run/Stop button again will generate a second set of pulses with the width and delay adjusted by
the increments set in the Channel Advanced menu. To reset the width and delay increments the
:PULSe0:IRESet 1 command must be sent to the unit using HyperTerminal.

9530/8530 Manual Version 4.8 Page 59

Parameter:

Minimum

Maximum

Pulse Width

100ps

-

Pulse Amplitude

1V

rms 5Vrms

Current Amplitude

9.8mA

rms

49mA

rms

Input Impedance

102Ω

Frequency

10MHz

100MHz

15. Appendix H - External Clock

9530/8530 External Clock Operation

The 9530 pulse generator has a special external clock circuit that allows for external clock
synchronization when using clock sources that have very narrow pulse widths and amplitudes.
The circuit was designed to be used on the output of a photo-diode or equivalent current
source. The clock function will still operate if a voltage source is used if the parameters stated
below are observed.

Page 60 9530/8530 Manual Version 4.8

*Note: These specifications are preliminary and subject to change.

Using the external clock function:

 Enter the system menu pages and find the clock menu page. Enter the clock source

menu by pressing the page button until the clock source page is reached.

 Select the source to External Osc or External PLL.
 Adjust the threshold level to trigger between 10% and 30% of the High-Z input

amplitude of the external clock source. For example when clock source is connected

to a 1MΩ input of an oscilloscope.

 Adjust the rate to match the frequency of the external clock source.
 A “?” will appear if the system does not lock onto the external clock source when in

External PLL mode. Possible causes are:

o Threshold level not adjusted correctly.
o External clock source not present.
o External clock has excessive jitter.
o Amplitude of external clock is changing.

Figure 1: System Display Screen Shot

16. Appendix I – 8530 Board Level Option

8530 Board Level Connection Information

8530 Board Level Overview

The 8530 is a board level option based on the 9530 series pulse generator. The
specifications, communications, and overall functionality of the 8530 are the same as
described for the 9530 series. The 8530 is available with either 4 or 8 independent outputs
that can be used for synchronizing multiple events. With the 8530 all communications will
take place through USB, Ethernet, or RS-232 as there is no display or keypad for
interactions. The guide for standard SCIP communications with the 8530 unit can be found
above in the 9530 standard manual. As with the 9530, the 8530 is capable of generating
multiple pulses for all applications; but additional setup is required before even basic
pulsing may begin.

Digital Control Board Connection Information

*Note: The Power Input and Power Switch Connector are required connections for the 8530

module to function.

Power Input Connector (J2 - DC In)

9530/8530 Manual Version 4.8 Page 61

Pin Number:

Connection:

Specification:

1 (denoted by arrow on connector)

+5 Volts DC

5V±2%, 1.2 Amp nominal capability

2

Ground

3

Ground

4

+24 Volts DC

24V±6%, 0.8A nominal capability

Pin Number:

Connection:

1 (denoted by arrow on connector)

Clock Out

2

Ground

 The recommended connector is Molex 4 pin female C-grid (Molex #50-57-9404) or

equivalent.

 The recommended contacts are Molex female terminals with gold contacts (Molex #16-

02-0087) or equivalent.

*Note: For an additional cost a recommended power supply and cable can be supplied

Power Switch Connector (J4 – Pwr_Enab)

 The recommended connector is Molex 2 pin female C-grid (Molex #50-57-9402) or

equivalent.

 The recommended contacts are Molex female terminals with gold contacts (Molex #16-

02-0087) or equivalent.

*Note: This is the power enable switch; Short the contacts to turn the unit on and open them to

power down. (This connector will come shorted)

External Clock Input (J6)

 The recommended connector is a male BNC

Internal Clock Output (J15 and J16)

 The recommended connector for J16 is a male BNC
 The recommended connector for J15 is a Molex 2 pin female C-grid (Molex #50-57-

9402) or equivalent.

 The recommended contacts for J15 are Molex female terminals with gold contacts

(Molex #16-02-0087) or equivalent.

Output Board Connection (Mini PCB Card Edge)

 This card edge must be connected to either J1 or J2 on the Output Board

Page 62 9530/8530 Manual Version 4.8

Pin Number:

Connection:

Specification:

1 (denoted by arrow on connector)

+5 Volts DC

5 V±2%

2

+24 Volts DC

24 V±6%

3

N/C 4

Ground

Pin Number:

Connection:

1

Vbus + (+5 Volts DC)

2

Data -

3

Data +

4

Ground

Pin Number:

Connection:

1

N/C

2

Tx - Transmit

3

Rx - Receive

4

DTR - Connected to pin 6

5

Ground

6

DSR - Connected to pin 4

7

RTS - Connected to pin 8

8

CTS - Connected to pin 7

9

N/C

Pin Number:

Connection:

Wire Color:

1

Tx + (Transmit Data +)

Orange/White

Fan Output Connector (J1 – Fan)

 The recommended connector is Molex 4 pin female C-grid (Molex #50-57-9404) or

equivalent.

 The recommended contacts are Molex female terminals with gold contacts (Molex #16-

02-0087) or equivalent.

USB Communications Connector (J3 – USB)

 The recommended connector is a male USB Type B

RS-232 Communications Connector (J5 – RS-232)

 The recommended connector is a male standard density D-Sub 9 pin connector

Ethernet Communications Connector (J7 – Ethernet Module)

 The recommended connector is a male RJ-45 Jack
 The pin out should be 568B or AT&T 258A

9530/8530 Manual Version 4.8 Page 63

2

Tx - (Transmit Data -)

Orange

3

Rx + (Receive Data +)

Green/White

4

N/C

Blue

5

N/C

Blue/White

6

Rx - (Receive Data -)

Green

7

N/C

Brown/White

8

N/C

Brown

Page 64 9530/8530 Manual Version 4.8

Connector Name:

Connector Designator:

Connector Function:

Gate

J6

External Gate Input

Trigger

J7

External Trigger Input

A

J4A

Channel A Output

B

J5A

Channel B Output

C

J4B

Channel C Output

D

J5B

Channel D Output

E (will only be present on 8 channel

models)

J2A

Channel E Output

F (will only be present on 8 channel

models)

J3A

Channel F Output

G (will only be present on 8 channel

models)

J2B

Channel G Output

H (will only be present on 8 channel

models)

J3B

Channel H Output

Digital Output Board Connection Information

Digital Control Board Input (J1 or J2)

 The Output Board must be connected to the Digital Control Board via one of the two

surface mounted Mini Card Edge Connectors

*Note: All other connections, besides to the Digital Control Board, will be made to the Output Board

with male BNC connectors.

Mounting Information

 There are 5 X 6-23 screw holes that should be used to mount the Control Board.
 There are 7 X 6-32 screw holes that should be use to mount the Output Board.

*Note: Each of these mounting holes are connected to Ground
*Note: 4 of the 7 holes on the output board are use to mount the optional 4 channel expansion

board and will come with custom made M-F standoffs if the 8538 is ordered.

9530/8530 Manual Version 4.8 Page 65

4 Channel Model when Digital Board is connected to J1 on the Output Board

Figure 11: Connection Information for the 8534

Page 66 9530/8530 Manual Version 4.8

4 Channel Model when Digital Board is connected to J2 on the Output Board

Figure 12: Connection Information for the 8534

9530/8530 Manual Version 4.8 Page 67

8 Channel Model when Digital Board is connected to J1 on the Output Board

Figure 13: Connection Information for the 8538

Page 68 9530/8530 Manual Version 4.8

8 Channel Model when Digital Board is connected to J1 on the Output Board

Figure 14: Connection Information for the 8538

9530/8530 Manual Version 4.8 Page 69

8530 Board Level Connector Locations

Figure 15: Connector Information for the 8534-8538

Page 70 9530/8530 Manual Version 4.8

Figure 16: Mounting Information for the 8538 4 Channel Expansion Board

9530/8530 Manual Version 4.8 Page 71
