Quantum 6434006V2R0 User Manual
Quantum ATL P7000
Unpacking Instructions
Introduction 3
Selecting an Installation Location 4
Floor Space .....................................................................................................4
Floor Clearance ..............................................................................................4
Floor Strength and Inclination.....................................................................5
Power and Grounding..................................................................................5
Environmental Conditions...........................................................................6
Preparing for the Installation 6
Providing Necessary Tools and Equipment..............................................6
Taking ESD Precautions ...............................................................................6
Unpacking the Library 7
Receiving the Library....................................................................................7
Unboxing the Library ...................................................................................8
Positioning the Library...............................................................................13
Unpacking the Library................................................................................16
Storing the Shipping Materials..................................................................20
Leveling the Library....................................................................................21
Document 6434006-02, Ver. 2, Rel. 0, August 2002 1
Quantum ATL P7000 Unpacking Instructions
Document 6434006-02, Ver. 2, Rel. 0
August 2002
2 6207947-04fN 11
Quantum ATL P7000 Unpacking Instructions
Document 6434006-02, Ver. 2, Rel. 0
August 2002
Introduction 0
The Quantum ATL P7000 is an automated storage and retrieval library
consisting of up to 16 tape drives and up to 679 digital linear tape
(DLT™) cartridges see figure 1
This document explains how to unpack the ATL P7000. Once the
library is unpacked and moved to the desired installation location, set
up the library using the instructions in the Quantum ATL P4000 and
ATL P7000 Tape Libraries User’s Guide.
Figure 1 ATL P7000
Library
.
Introduction 3
Quantum ATL P7000 Unpacking Instructions
Document 6434006-02, Ver. 2, Rel. 0
August 2002
Selecting an Installation Location 0
When choosing an installation site for the ATL P7000, consider the
following requirements:
• Floor space
• Floor clearance
• Floor strength and inclination
• Power and grounding
• Environmental conditions
These requirements are also described in the Quantum ATL P4000 and
ATL P7000 Tape Libraries User’s Guide.
Floor Space 0
Figure 2 Floor Space
Requirements
6 ft 10 in (2.08 m)
Figure 2
29 in (74 cm)
27 in (69 cm)
shows the minimum floor space required by the ATL P7000.
27 in (69 cm)
26 in (66cm)
60 in (152 cm)
9 ft 4 in (2.8 m)
Floor Clearance 0
The library has a floor clearance of 0.75 inch (19 mm). Place the library
on a level, uncarpeted floor free of defects.
4 Selecting an Installation Location
Quantum ATL P7000 Unpacking Instructions
Document 6434006-02, Ver. 2, Rel. 0
August 2002
Floor Strength and Inclination
Power and Grounding
Figure 3 Power Supply
Cord
The floor at the installation site must be rated at 250 lb/ft
0
(1221 kg/m
2
). This is sufficient to support a fully loaded ATL P7000
2
library.
The floor must be level to within 0.25 inch (6.4 mm) over a 6-foot-by-6foot (1.83-meter-by-1.83-meter) area.
For the United States and Canada, one or two UL/CSA certified power
0
cords are furnished. Each uses a 14/3 SJT cord, a 5-20P plug, and an
IEC-C320 C19 female connector (see figure 3
Connects to
wall outlet
Plug:
NEMA 5-20
).
Connect to library
power supply
Connector:
IEC-C320 C19
The library is rated 100-240V~, 50-60Hz, 16A-8A, 1600W.
The library power requirements may require modification of the
facilities existing power capabilities by a qualified electrician. The
required wall outlet for the United States and Canada is rated at 125V
20A (see figure 4
).
Figure 4 Wall Outlet
Neutral
Ground
Line
Wall outlet:
NEMA 5-20R
rated 125V 20A
The dedicated wall outlet and a 20 amp circuit breaker must provide
power to the ATL P7000 only. Outside North America, replace the
2
supplied power cord with a harmonized 3 x 1.5 mm
power cord that
is approved by the country where used, and install the appropriate
wall outlet. More information on the electrical requirements is
provided in the ATL P7000 Pre-Installation Site Survey Instructions.
Caution: The ATL P7000 must be connected to a grounded
electrical outlet.
Selecting an Installation Location 5
Quantum ATL P7000 Unpacking Instructions
Document 6434006-02, Ver. 2, Rel. 0
August 2002
Environmental Conditions
0
The installation site must have the following environmental
conditions:
• Humidity: 20%-80% non-condensing
• Temperature: 15°C-32°C (59°F-90°F)
• Altitude: sea level to 10,000 feet
These environmental conditions apply when the library is in
operation.
Note: For additional library specifications (including
environmental requirements during shipping and storage),
see appendix A in the Quantum ATL P4000 and ATL P7000
Tape Libraries User’s Guide.
Preparing for the Installation 0
Before you begin the installation procedure in this section, make the
following preparations as described in this section:
Providing Necessary Tools and Equipment
Taking ESD Precautions
• Providing necessary tools and equipment for installation
• Taking ESD precautions
Provide the following tools for unpacking the library:
0
•Scissors
• Ratchet with 15/16 inch socket (or 15/16 inch open-end wrench)
Provide the following tools for removing the shipping restraints:
• #2 Phillips® screwdriver
•Tie wrap
Provide the following tools for leveling the library:
• 3/4-inch open-end wrench
• Carpenter’s level
Some components within the ATL P7000 contain static-sensitive parts.
0
To avoid damaging these parts while performing installation
procedures, always observe the following precautions:
• Keep the library turned off during all installation procedures.
6 Preparing for the Installation
Quantum ATL P7000 Unpacking Instructions
Document 6434006-02, Ver. 2, Rel. 0
August 2002
• Keep the library power cord plugged into a grounded power
outlet except when working with AC electrical components.
• Avoid contact with power supplies, EMI filters, and AC electrical
components while the library is connected to a power outlet.
• Use an antistatic wrist strap.
• Keep static-sensitive parts in their original shipping containers
until ready for installation.
• Do not place static-sensitive parts on a metal surface. Place them
inside their protective shipping bag or on an antistatic mat.
• Avoid touching connectors and other components.
Note: Dry climates and cold-weather heating environments have
lower relative humidity and are more likely to produce static
electricity.
Unpacking the Library 0
This section explains how to unpack the library and move it to its final
installation location. The ATL P7000 is shipped in packing materials
designed to protect it from damage during transit. By following these
instructions, you help ensure that the library will continue to be
safeguarded after it arrives at the installation site.
The following are the major steps in this procedure:
• Receiving the library
• Unboxing the library

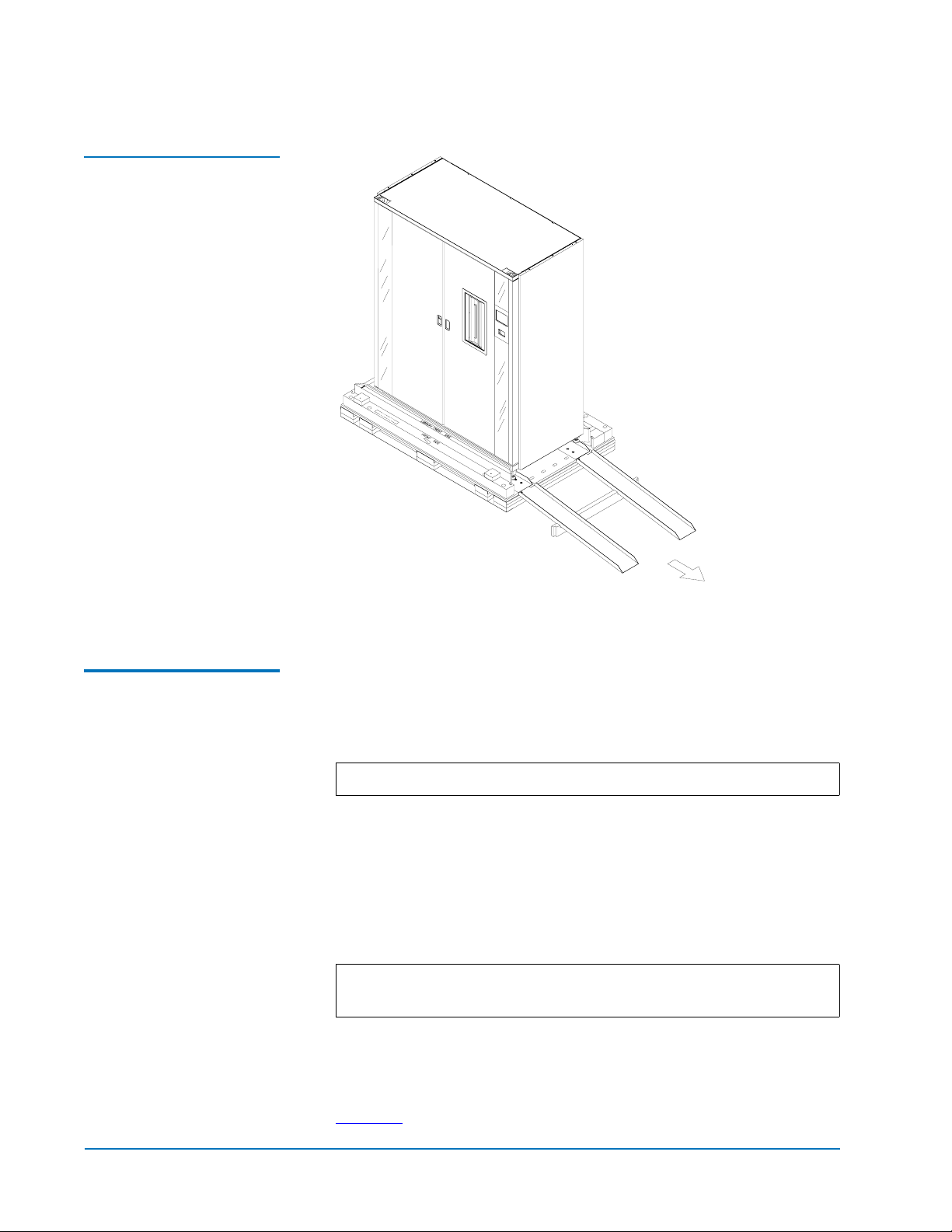

• Positioning the library

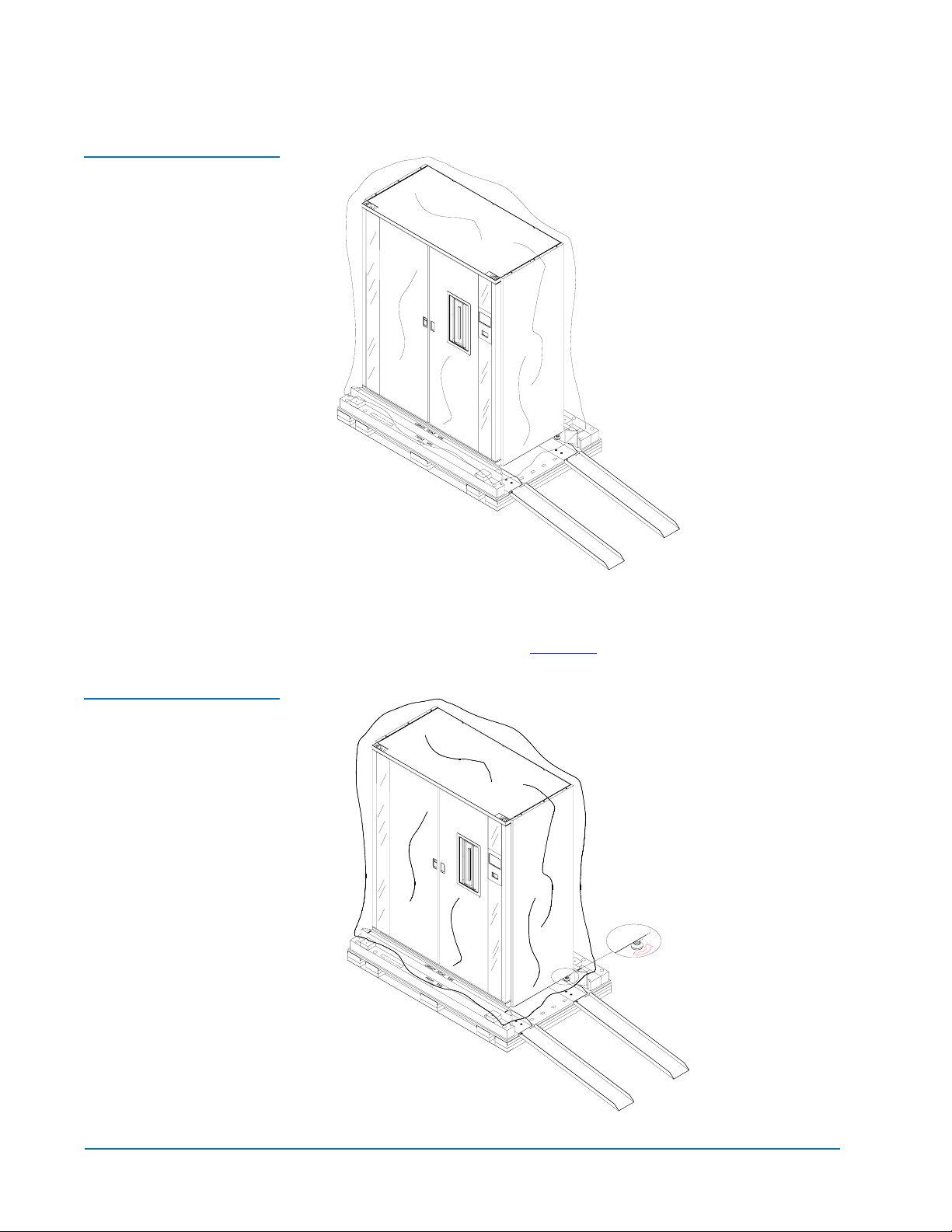

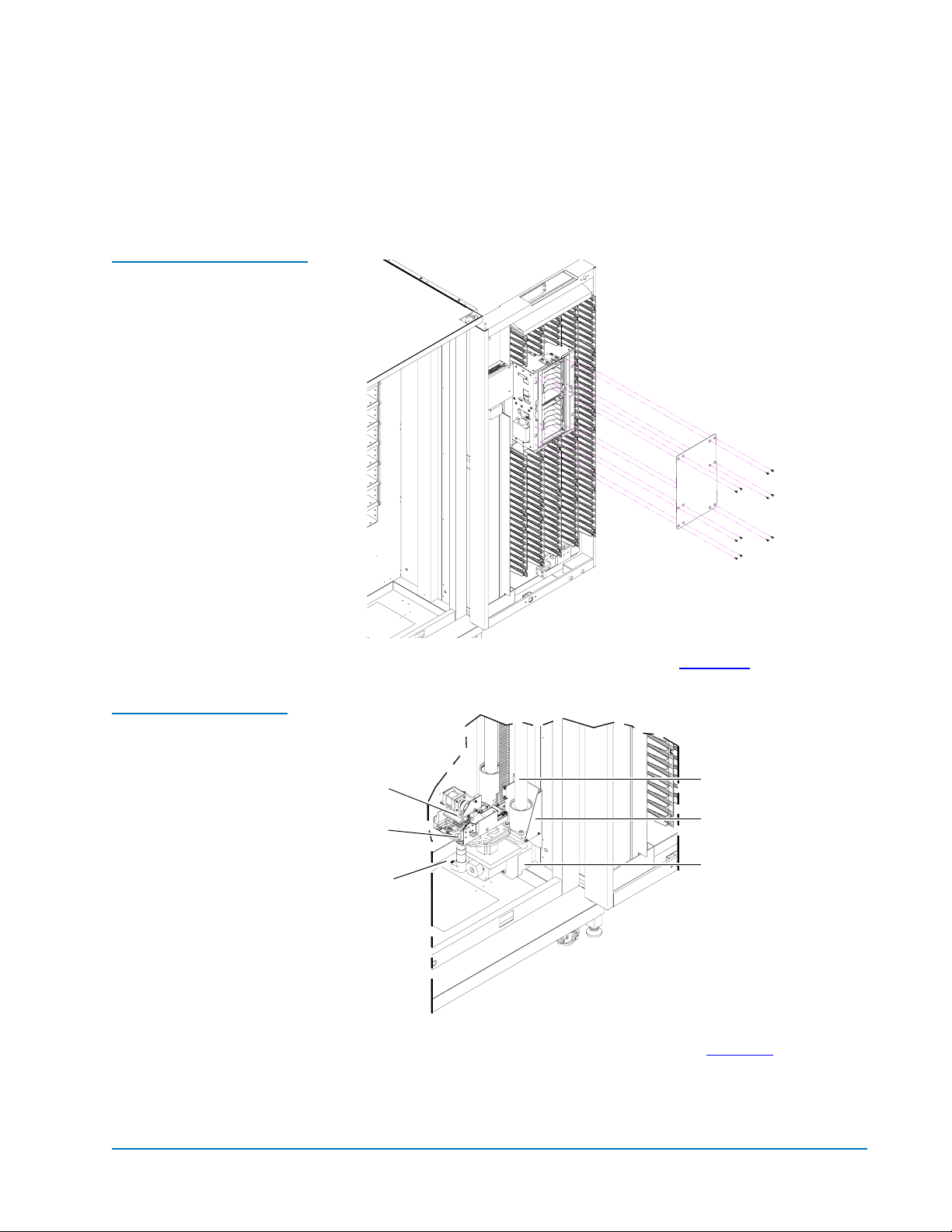

• Unpacking the library
• Leveling the library
Receiving the Library 0
Unpack the library as close to the installation site as possible. Inspect
the shipping pallet and carton for damage that may have occurred
during shipment. Report any damage to the shipper.
Caution: The ATL P7000 with 16 DLT7000 tape drives weighs
approximately 1444 pounds (656 kg). Use at least two
people to move and install the library.
Unpacking the Library 7
