The Zenith in 6-Wheel
Performance
The Quantum® 6000Z utilizes powerful 4-pole
motors for maximum torque and Mid-Wheel 6
design for aggressive outdoor performance and
precision indoor maneuverability. The Quantum
6000Z accepts a broad range of exclusive
seating and electronics options for unmatched
adaptability and rehab capability.
®

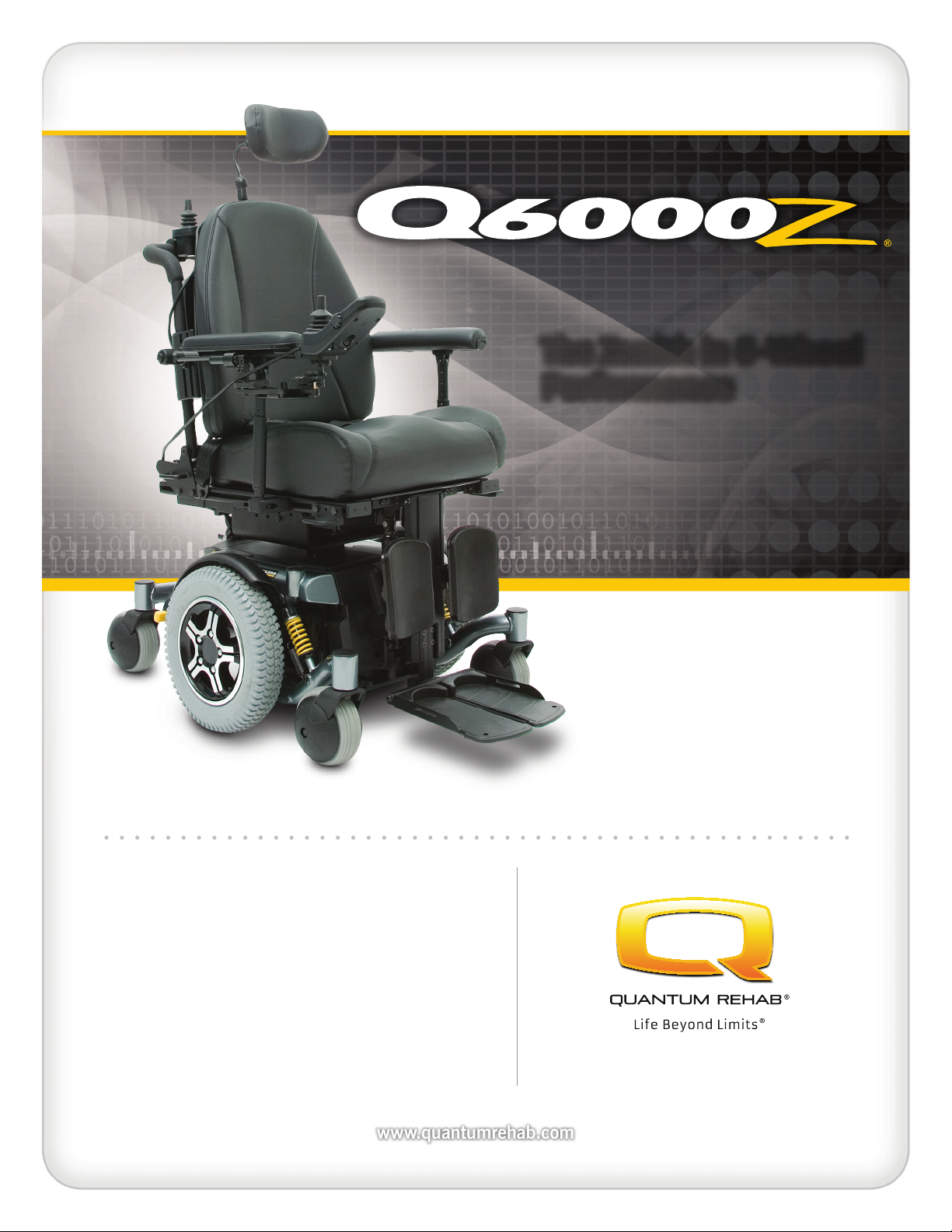

Q6000Z
Power Positioning System and Q-Logic
Drive Controls
®
shown with TRU-Balance
®
DRIVE WHEELS
Specications
Features
Options
Code Coverage
Shroud Colors
LOW IMPACT OMNI-CASTERS
SUSPENSION
MAXIMUM SPEED
BRAKES
GROUND CLEARANCE
TURNING RADIUS
OVERALL SIZE
SEATING
DRIVETRAIN
BATTERIES
RANGE PER CHARGE
BATTERY CHARGER
ELECTRONICS
WEIGHT CAPACITY
BASE WEIGHT
BATTERY WEIGHT
WARRANTY
14” pneumatic or solid
Front: 6” solid Rear: 6” solid
Active-Trac® ATX Suspension with integrated
rear dual-strut suspension and articulating
caster beam
1
Up to 6 mph / Up to 8 mph
Intelligent braking
(electronic, regenerative disc brakes)
3
3.5” at center of frame
3
22.5”
3
Length: 36” Width: 25.875”
Synergy® Seat
Adjustable Width: 10”-24”
Adjustable Depth: 10”-24”
TRU-Balance® Power Positioning System
Adjustable Width: 14”-24”
Adjustable Depth: 14”-24”
TRU-Balance® Lift & Tilt
Adjustable Width: 16”-22”
Adjustable Depth: 16”-22”
High-back Seat (24” x 24” max. dim.)
4-pole, Mid-Wheel 6
Two 12 volt, deep cycle Group 24,
NF-22 or Group 34
1
Up to 20 miles
8A, off-board
70A, PG VR2 controller
100A, Q-Logic EX
300 lbs. maximum (user weight)
147 lbs.
6
Group 24: 53.5 lbs. (each)
NF-22: 38 lbs. (each)
Group 34: 43 lbs. (each)
Lifetime limited warranty on frame;
2-year warranty on electronics;
18-month warranty on drive motor
2
2
®
5
4
▪ Mid-Wheel 6
maximum stability
▪ Compatible with TRU-Balance
®
allows six wheels on the ground for
®
Power Positioning
▪ OMNI-Casters (nylon, spherical-shaped casters)
on front and rear prevent wheel hang-ups
▪ ATX Suspension (Active-Trac
incorporates front OMNI-Casters for enhanced performance
over more varied terrain
®
with extra stability)
▪ 4-pole motors
▪ Articulating vent tray
▪ Compact vent tray
▪ Integrated vent battery
storage compartment
▪ Super low configuration
▪ TRU-Balance® Lift & Tilt
▪ Q-Logic Drive Control System
▪ 8 mph motor package
▪ WC19 transit securement
package7
▪ Accu-Trac Advanced Tracking
Technology
▪ LED light package
▪ TRU-Comfort Seating
System
Q6000Z 3S - SS (Code: K0848)
Q6000Z 3S - C (Code: K0849)
Q6000Z 3SP - SS (Code: K0856)
Q6000Z 3SP - C (Code: K0857)
Q6000Z 3MP - SS (Code: K0861)
Metallic Red
Metallic
Blue
Metallic
Silver
Also Available Q6400Z Series...
Q6400Z 4S - SS (Code: K0868)
Q6400Z 4S - C (Code: K0869)
Metallic
Black
Sunburst
Orange
Q6400Z 4SP - SS (Code: K0877)
Q6400Z 4MP - SS (Code: K0884)
FOOTNOTES:
1) Range and speed vary with user weight, terrain type,
battery charge, battery condition and tire pressure.
2) Optional
3) Due to manufacturing tolerances, this specification can be
subject to variance of + or - 3%
4) Required with 8 mph motor package
5) Group 34 batteries required with super low configuration
6) Battery weight may vary based on manufacturer
7) Please refer to the Transit Securement Package supplement
(part number INFMANU3658) for additional information
