Quantum 1402 User Manual
QUANTUM
SERIES
INNOVATIVE REHAB SOLUTIONS
Including Model: Quantum 1402
1-800-800-8586 (US) 1-888-570-1 113 (Canada)
SAFETY GUIDELINES
WARNING! A Quantum Rehab Specialist or a qualified technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner's manual and on the power chair to identify warnings and important
information. It is very important for you to read them and understand them completely .
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury , component damage, or malfunction. On the product,
this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandator y
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or
in any circumstances. Performing a prohibited action can cause personal injury and/or equipment
damage. On the product, this icon is represented as a black symbol with a red circle and red
slash.
Quick Reference Information
Quantum Rehab Specialist:_____________________________________________________________________
Address:________________________________________________________________________________
Phone Number:___________________________________________________________________________
Purchase Date:____________________________________________________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information available
at the time of publication. We reserve the right to make changes as they become necessary. Any changes to
our products may cause slight variations between the illustrations and explanations in this manual and the
product you have purchased. The latest/current version of this manual is available on our website.
088 609 661
Copyright © 2007
Pride Mobility Products Corp.
INFMANU2669/Rev B/ October 2007
CONTENTS
I. INTRODUCTION................................................................................................................................4
II. SAFETY .................................................................................................................................................5
III. YOUR POWER CHAIR...................................................................................................................17
IV. ASSEMBLY.........................................................................................................................................21
V. COMFORT ADJUSTMENTS........................................................................................................23
VI. DISASSEMBLY .................................................................................................................................29
VII. BATTERIES AND CHARGING ...................................................................................................30
VIII.CARE AND MAINTENANCE .......................................................................................................35
IX. WARRANTY.......................................................................................................................................41
APPENDIX I - SPECIFICATIONS ....................................................................................................... 43
Quantum 1402 www .quantumrehab.com 3
I. INTRODUCTION
SAFETY
WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The power chair you have
purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these
design features will provide you with the conveniences you expect during your daily activities. Once you understand
how to safely operate and care for your power chair, it should give you years of trouble free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair
for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instructional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before
initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional in
using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance
for setup or operation, please contact your Quantum Rehab Specialist. Failure to follow the instructions in
this manual and those located on your power chair can lead to personal injury and/or damage to the
power chair, and may void the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove
or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to
install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery , please contact your Quantum Rehab Specialist immediately.
Where damage has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
INFORMA TION EX CHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the
safety and reliability of your new power chair, and about the service you received from your Quantum Rehab Specialist.
Please notify us of any change of address, so we can keep you apprised of important information about safety , new
products, and new options that can increase your ability to use and enjoy your power chair. Please feel free to
contact us at the address below:
USA: Canada:
Pride Mobility Products Corporation Pride Mobility Products Company
Attn.: Customer Care Department 380 Vansickle Road Unit 350
182 Susquehanna Avenue St. Catharines, Ontario L2R 6P7
Exeter, PA 18643-2694 1-888-570-1 113
customercare@pridemobility.com
1-800-424-8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.
4 www.quantumrehab.com Quantum 1402
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It
is very important for you to read and understand them completely .
Read and follow the information in the owner’s manual.
Do not allow unsupervised children to play near the power chair while the batteries are
charging.
Maximum seating weight.
Keep your hands away from the tires when driving. Be aware that loose fitting clothing
can become caught in drive tires.
Use correct tie-down points for controller harness to prevent the harness from getting
caught in the drive tires or pinched in the seat frame, or damaged when passing through
doorways.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain
and store in a clean and dry condition.
Quantum 1402 www .quantumrehab.com 5
II. SAFETY
Do not lift the mobility vehicle while seated in it.
Do not lift the mobility vehicle while seated in it.
Do not connect an extension cord to the AC/DC conv erter or the battery charger.
Removal of grounding prong can create electrical hazard. If necessary, properly install
an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access.
Wear safety goggles.
Corrosive chemicals contained in battery.
6 www.quantumrehab.com Quantum 1402
II. SAFETY
EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.
Explosive conditions exist!
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive
conditions.
Keep tools and other metal objects away from battery terminals.
Battery Set Configuration:
+ = Positive (Red) Terminal Post
– = Negative (Black) Terminal Post
Connect Red wire to Red Positiv e (+) Terminal Post
Connect Black wire to Black Negative (–) Terminal Post
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and
new batteries. Always replace both batteries at the same time.
Quantum 1402 www .quantumrehab.com 7
II. SAFETY
Battery charger for indoor use only.
Disposal and recycling - Contact your Quantum R ehab Specialist for information on proper
disposal and recycling of your Pride product and its packaging.
Locked and in drive mode.
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Do not place power chair in freewheel mode on a decline.
Do not place power chair in freewheel mode on an incline.
Contains Lead.
8 www.quantumrehab.com Quantum 1402
II. SAFETY
GENERAL GUIDELINES
MANDA T OR Y! Do not operate your new power chair f or the first time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility . Pride provides an extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final selection and
purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is
capable of making such a decision, and his/her healthcare professional (i.e., medical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power
chair to the user and has assisted the prescribing healthcare professional and/or the Quantum Rehab Specialist in
the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to operating your power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of
accessories is available from your Quantum Rehab Specialist to further customize your power chair to better suit
your needs and/or preferences. However, under no circumstances should you modify, add, remove, or disable any
feature, part, or function of your power chair .
WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use
accessories if they have not been tested or approv ed for Pride products.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
! Check for proper tire inflation. Maintain but do not exceed 35 psi (2.4 bar) in each tire if equipped
with pneumatic tires.
! Check all electrical connections. Make sure they are tight and not corroded.
! Check all controller connections to the power base. Make sure they are secured properly .
! Check the brakes. See VIII. “Care and Maintenance.”
! Check battery charge. See VII. “Batteries and Charging.”
NOTE: If you discover a problem, contact your Quantum Rehab Specialist for assistance.
Quantum 1402 www .quantumrehab.com 9
II. SAFETY
Weight Limitations
Your power chair is rated for a maximum weight capacity . Please refer to the specifications table for this limit.
MANDA TOR Y! Stay within the specified weight capacity of your power chair. Ex ceeding the weight
capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage
resulting from failure to observe weight limitations.
WARNING! Do not carr y passengers on your power chair. Carr ying passengers on your power
chair may affect the center of gravity, resulting in a tip or a fall.

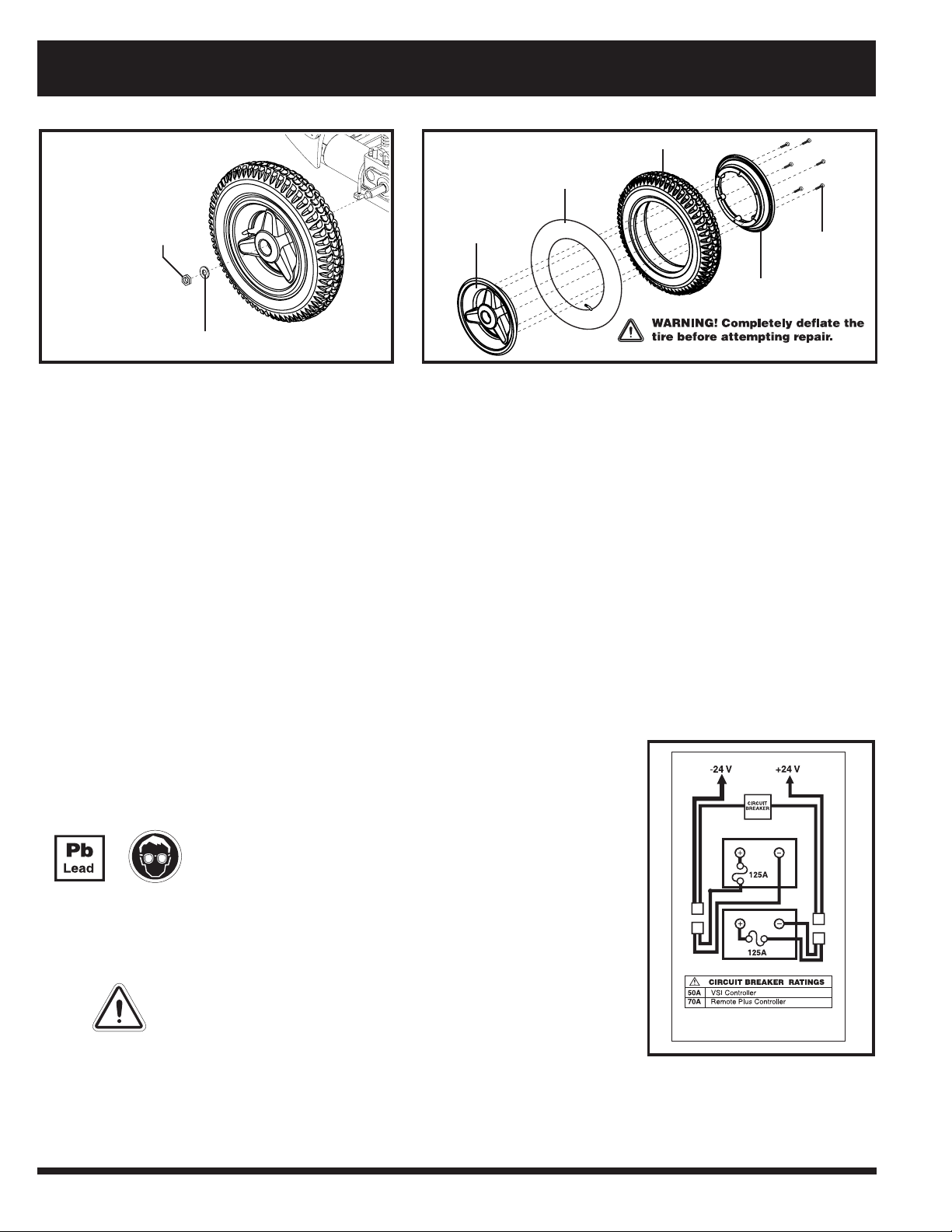

Tire Inflation
If your power chair is equipped with pneumatic tires, you should check or have the air pressure checked regularly.
Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your power chair.
WARNING! It is important that 35 psi (2.4 bar) tire pressure be maintained in pneumatic tires at
all times. Do not underinflate or ov erinflate your tires. Low pressure may result in loss of control,
and overinflated tires ma y burst. Failure to maintain 35 psi (2.4 bar) tire pressure in pneumatic
tires at all times may result in tire and/or wheel failure.
WARNING! Inflate your power chair drive tires from a r egulated air source with an available
pressure gauge. Inflating your tires from an unregulated air source could ov erinflate them, resulting
in a burst tire.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access. Some ramps
may have turning switchbacks (180-degree turns) that require you to have good cornering skills on your power chair.
! Proceed with extreme caution as you approach the downgrade of a ramp or other incline.
! Take wide swings with your power chair’s front wheels around any tight corners. If you do that, the power chair’s
rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.
! When driving down a ramp, keep the power chair’s speed adjustment set to the slowest speed setting to ensure
a safely controlled descent.
! Avoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then accelerate
cautiously. When driving down an incline, set your power chair to the slowest speed setting and drive in the forward
direction only . If your power chair starts to move down the incline faster than you anticipated or desired, allow it to come to
a complete stop by releasing the joystick, then push the joystick forward slightly to ensure a safely controlled descent.
WARNING! When on any sor t of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of
the incline. Drive your power chair straight up the incline. This greatly r educes the
possibility of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! Y ou should not travel up or down a potentially hazardous incline (i.e., areas
cov ered with snow, ice, cut grass, or wet leaves).
WARNING! Never travel down an incline backward. Doing so may cause the power
chair to tip. Always exercise extreme caution when negotiating an incline.
WARNING! If your power chair is equipped with a reclining seatback, do not a ttempt to
negotiate inclines with the seat in a reclined position. Do not attempt to negotiate
obstacles with the seat in a reclined position unless an attendant is present to help
stabilize the chair. Failure to heed may result in the power chair tipping over.
10 www.quantumrehab.com Quantum 1402
II. SAFETY
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any
other specifications presented in this manual. Doing so could cause instability in your power
chair.
In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to
have a maximum slope of 5° (8.7%). Therefore, Pride recommends that the maximum slope of an incline you
attempt to safely ascend or descend on your power chair does not exceed 5° (8.7%). See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° (8.7%) may put your power
chair in an unstable position and cause it to tip.
5 (8.7%)
Figure 1. Maxim um Safe Angle (Ascending and Descending)
Freewheel Mode
Your power chair is equipped with two manual freewheel levers to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode, see III. “Your
Power Chair .”
WARNING! Do not use your power chair in freewheel mode without an attendant present.
WARNING! Do not attempt to personally place your power chair in freewheel mode
while seated on it. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freew heel mode while on an incline or
decline. The chair could roll uncontrollably on its own.
Braking Information
Your power chair is equipped with two powerful brake systems:
! Regenerative — uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop position.
! Disc Park Brake — activates mechanically after regenerative braking slows the vehicle to near stop, or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with rear caster wheels and front anti-tip wheels, excessively high cornering
speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include, but are not
limited to: cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined road
surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to a
paved area – especially at high speed while turning), and abrupt directional changes. High cornering speeds are
not recommended. If you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen
the sharpness of the turn) to prevent your power chair from tipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity.
This greatly reduces the possibility of a tip or fall.
Quantum 1402 www .quantumrehab.com 11
II. SAFETY
Public Streets and Roadways
WARNING! Y ou should not operate your po w er chair on pub lic streets and roadways. Be aware
that it may be difficult for traffic to see you when you are seated on your power c hair. Obey all
local pedestrian traffic r ules. Wait until your path is clear of traffic, and then proceed with
extreme caution.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces
composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will
encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil,
grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
! Reduce your power chair’s speed when driving on uneven terrain and/or soft surfaces.
! A void tall grass that can entangle the running gear.
! A void loosely packed gravel and sand.
! If you feel unsure about a driving surface, avoid that surface.
Inclement Weather Precautions
Exposure of your power chair to inclement weather conditions should be avoided whenever possible. If suddenly
caught up in rain, snow, severe cold or heat while operating your power chair, proceed to shelter at the earliest
opportunity . Thoroughly dry your power chair before storing, char ging, or operating your power chair.
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions, and on icy/slipper y surfaces
can have an adver se ef fect on the electrical system. Maintain and store your power chair in a
dry and clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of upholstered
and non-upholstered items on the power chair, possib ly resulting in skin irritation. Exercise caution
when using your power chair in extremely hot or cold conditions or when exposing your power
chair to direct sunlight for prolonged periods of time.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs, porches, stairs,
etc.). Be sure your power chair is traveling perpendicular to any curb you may be required to navigate. See figure 2.
Figure 2. Correct Curb Appr oac h
12 www.quantumrehab.com Quantum 1402
Figure 3. Incorrect Curb Appr oac h
II. SAFETY
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher
than 2 in. (5 cm) unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or
other obstacle. This may cause the power chair to tip.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators.
Doors
! Determine if the door opens toward or away from you.
! Drive your power chair gently and slowly forward to push the door open. Or drive your power chair gently and
slowly backward to pull the door open.
Elevators
Modern elevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s).
! If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or allow
the rubber door edge to contact the power chair and the door will reopen.
! Use care that pocketbooks, packages, or power chair accessories do not become caught in elevator doors.
Lift/Elevation Product s
If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you closely review the instructions, specifications, and safety information
set forth by the manufacturer of the lift/elevation product before using that product.
WARNING! Never sit on your power c hair when it is being used in connection with any
type of lift/elevation product. Your pow er chair was not designed with such use in mind
and any damage or injury incurred from such use is not the responsibility of Pride.
Motor Vehicle Transport
Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair
should be stowed in the trunk of a car or in the back of a truck or van with batteries removed and properly secured.
WARNING! Do not sit on your power chair while it is in a mo ving vehicle.
WARNING! Always be sure your power chair and its batteries are properly secured when it is
being transported. Batteries should be secured in a upright position and protective caps should
be installed on the battery terminals. Batteries should not be transported with any flammable or
combustible items.
Positioning Belts
Your Quantum Rehab Specialist, therapist(s), and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your power chair safely .
WARNING! If you r equire a positioning belt to safely operate your power chair, make sure it is
fastened securely in order to reduce the possibility of a fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is
your power chair suitable for use as a sea t in any vehic le. Anyone traveling in a vehic le should be
properly belted into seats approved by the vehicle manufacturer.
Quantum 1402 www .quantumrehab.com 13
II. SAFETY
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For
more information about your power chair’s batteries, see VII. “Batteries and Charging.”
MANDA T ORY! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling batteries and wash hands after
handling.
WARNING! Power c hair batteries are heavy . See specifications table. If you are unable
to lift that much weight, be sure to get help. Use proper lifting techniques and avoid
lifting beyond your capacity.
WARNING! Always protect the batteries from freezing and never charge a frozen battery.
Charging a frozen battery may result in damage to the battery.
WARNING! Connect your battery harnesses in the proper manner. RED (+) cables mus t
be connected to positive (+) battery terminals/posts. BLACK (-) cables must be
connected to negative (-) battery terminals/posts. Protective caps should be installed
over all ba ttery terminals. REPLACE cables immediately if damaged.
Removable Parts
WARNING! Do not attempt to lift or mov e a pow er chair by any of its removable parts, including the
armrests, seat, foot riggings, controller , and shrouds.
Preventing Unintended Movement
WARNING! If you anticipate being sea ted in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM)
sources.
Reaching and Bending
Never reach, lean, or bend while driving your power chair . If it is absolutely necessary to reach, lean, or bend while
seated on your power chair, it is important to maintain a stable center of gravity and keep the power chair from
tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending
and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
floor by reaching down between your knees or if you have to reach over the back of
the seat. Mov ements such as these may change your center of gravity and the weight
distribution of the power chair. This may cause your power chair to tip.
WARNING! Keep your hands away from the tires when driving. Be aware that loose
fitting clothing can become caught in drive tires.
14 www.quantumrehab.com Quantum 1402
II. SAFETY
Transfers
Transferring onto and off of your power chair requires a
good sense of balance. Always have an attendant or healthcare professional present while learning to properly transfer yourself.
T o eliminate the possibility of injury , Pride recommends that
you or a trained attendant perform the following tasks before attempting a transfer:
! Turn off the power to the controller.
! Ensure your power chair is not in freewheel mode. See
III. “Your Power Chair.”
! Turn the caster wheels toward the transfer destination to
improve power chair stability during transfer.
! Make sure both armrests are flipped up or removed from
your power chair.
! Flip up the foot platform or move the leg rests aside;
this will help to keep your feet from getting caught on
the foot rigging during the transfer.
! Reduce the distance between your power chair and the
object you are transferring onto.
Figure 4. Ideal Transfer Position
WARNING! Before transferring, position yourself as far back as possible in the power chair seat
to prevent the power chair from tipping forward during transfer.
WARNING! Avoid putting all of your weight on the power chair armrests and do not use the
armrests for weight bearing purposes, such as transfers. Such use may cause the power chair to
tip, resulting in a fall from the power chair and personal injury.
WARNING! Avoid putting all of your weight on the foot riggings. Such use may cause the power
chair to tip.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety
issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescribed or ov er-the-counter medication or
if you have certain physical limitations. Some medications and limitations may impair your ability
to operate your power chair in a safe manner.
Alcohol/Smoking
The power chair user must exercise care and common sense when operating his/her power chair. This includes
awareness of safety issues while under the influence of alcohol or while smoking.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power c hair in a safe manner.
Quantum 1402 www .quantumrehab.com 15
Loading...
