R E H A B P O W E R C H A I R S

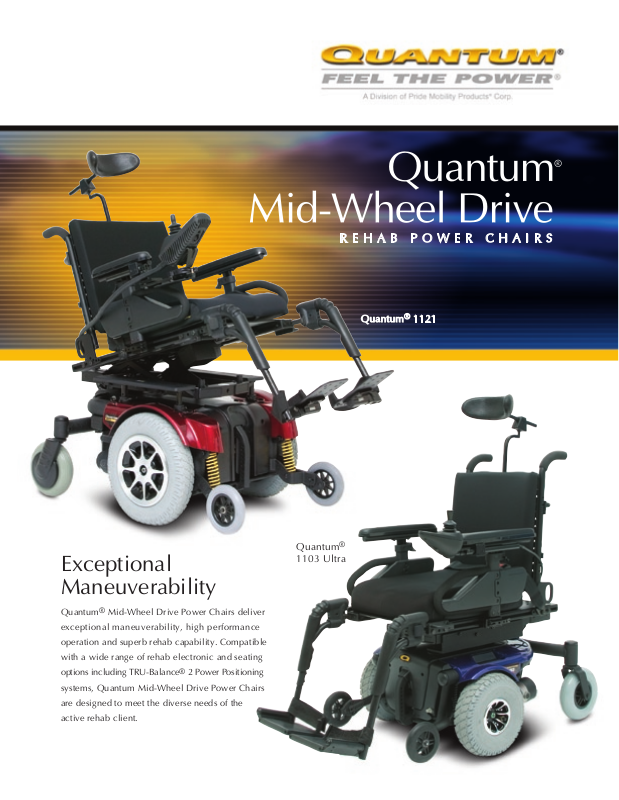

Quantum® 1121

Exceptional
Maneuverability

Quantum® Mid-Wheel Drive Power Chairs deliver

exceptional maneuverability, high performance

operation and superb rehab capability. Compatible

with a wide range of rehab electronic and seating

options including TRU-Balance® 2 Power Positioning

systems, Quantum Mid-Wheel Drive Power Chairs

are designed to meet the diverse needs of the

active rehab client.

Quantum
1103 Ultra

®

1103 Ultra

1121

DRIVE WHEELS

REAR CASTERS:

ANTI-TIPS:

SUSPENSION

MAXIMUM SPEED

BRAKES

GROUND CLEARANCE

TURNING RADIUS

OVERALL SIZE

SEATING

DRIVE TRAIN

BATTERIES

RANGE PER CHARGE

STANDARD BATTERY CHARGER

AVAILABLE

ELECTRONICS

WEIGHT CAPACITY

BASE WEIGHT

BATTERY WEIGHT

WARRANTY

CODE COVERAGE

10”

8” solid
5” solid, adjustable, front-mounted

Active-Trac® Suspension

1

Up to 4 mph

Intelligent Braking
(electronic, regenerative disc brakes)

2.5”

2

20.75”

2

Length: 35.5” Width: 23”

Synergy® Seat
Adjustable Width: 10”-20”
Adjustable Depth: 10”-18”
TRU-Balance® 2 Power Positioning System
Adjustable Width: 14”-20”
Adjustable Depth: 14”-20”
Contoured seating (max. size: 20” x 20”)
Manual recliner
Solid seat pan option

2 motor, mid-wheel drive

Two 12 volt, U-1

1

Up to 15 miles

5A, off-board

50A, PG VSI controller
70A, PG Remote Plus controller

300 lbs.3 maximum (user weight)

92 lbs.

24.5 lbs. (each)

Lifetime limited warranty on frame
2-year warranty on electronics
18-month warranty on drive motor

Q1103 Ultra 2SP - SS

Q1103 Ultra 2SP - C

(Code: K0835)

(Code: K0836)

14”

8” solid
6” solid, adjustable, front-mounted

Active-Trac® Suspension

Up to 5 mph

Intelligent Braking
(electronic, regenerative disc brakes)

3.5”

22.5”

Length: 38.125” Width: 23.8”

Synergy® Seat
Adjustable Width: 10”-20”
Adjustable Depth: 10”-20”
TRU-Balance® 2 Power Positioning System
Adjustable Width: 14”-20”
Adjustable Depth: 14”-20”
Contoured seating (max. size: 20” x 22”)
Manual recliner
Solid seat pan option

2 motor, mid-wheel drive

Two 12 volt, NF-22

Up to 20 miles

8A, off-board

70A, PG VSI controller
70A, PG Remote Plus controller

300 lbs. maximum (user weight)

140 lbs.

38 lbs. (each)

Lifetime limited warranty on frame
2-year warranty on electronics
18-month warranty on drive motor

Q1121 3SP - SS

Q1121 3SP - C

Q1121 3MP - SS

(Code: K0856)

(Code: K0857)

(Code: K0861)

Shroud Colors

Apple Red

QMWD-7-7-08

Candy

Viper

Blue

Onyx
Black

Champagne Sunburst

Orange

(US) 866-800-2002 . (Canada) 888-570-1113 . www.quantumrehab.com

1) Range and speed vary with user weight, terrain type, battery charge/condition and tire pressure.

2) Due to manufacturing tolerances and continual product improvement, this specification

can be subject to variance of + or – 3 %.

3) 200 lbs. with TRU-Balance 2 power positioning systems
