TravelMate 660 series

User’s guide

TravelMate 660 series User’s guide Original Issue: June 2003

Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date, and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number, and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Incorporated.

TravelMate 660 series Notebook computer

Model number : _________________________________ Serial number: ___________________________________ Purchase date: ___________________________________ Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other company's product names or trademarks are used herein for identification purposes only and belong to their respective companies.

iii

First things first

We would like to thank you for making the TravelMate series of notebook computers your choice for your mobile computing needs. We hope you will be happy with your TravelMate as much as we enjoyed making it for you.

Your guides

To help you use your TravelMate, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your computer.

This User’s guide introduces you to the many ways your computer can help you be more productive. This guide provides clear and concise information about the computer, so read it thoroughly.

If you ever need to print out a copy, this User’s guide is also available in PDF (Portable Document Format). Follow these steps:

1 Click on Start, Programs, TravelMate. 2 Click on TravelMate User’s guide. Note: Viewing the file requires Adobe Acrobat Reader

installed. For instructions on how to use Adobe Acrobat Reader, access the Help menu.

English

For more information about our products, services, and support information, please visit our Web site (www.acer.com

Basic care and tips for using your computer

English

Turning your computer on and off

To turn on the computer, simply press the power button on the left of the launch keys found above your TravelMate’s standard keyboard. See “Front view” on page 4 for the location of the power switch.

To turn the power off, do any of the following:

• Use the Windows shutdown command For Windows 2000: Click on Start, Shut Down..., and select Shut

down; then click on OK.

- or For Windows XP: Click on Start, Turn off Computer; then click

Turn Of f .

• Use the power switch

Note: You can also use the power switch to perform power

management functions. See Windows help for more information.

• Use the customized functions for power management You can also shut down the computer by closing the display cover,

or by pressing the sleep hot key (Fn-F4). See the online guide for details.

Note: If you cannot power off the computer normally, press and hold the power switch for more than four seconds to shut down the computer. If you turn of f the computer and want to turn it on again, wait at least two seconds before powering up.

Taking care of your computer

Your computer will serve you well if you take care of it.

• Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator.

• Do not expose the computer to temperatures below 0ºC (32ºF) or above 50ºC (122ºF).

• Do not subject the computer to magnetic fields.

• Do not expose the computer to rain or moisture.

• Do not spill water or any liquid on the computer.

• Do not subject the computer to heavy shock and vibration.

• Do not expose the computer to dust and dirt.

• Never place objects on t op of the co mputer to avoid damag ing the

computer .

• Do not slam the computer display when you close it.

• Never place the computer on uneven surfaces.

Taking care of your AC adapter

Here are some ways to take care of your AC adapter:

• Do not connect the adapter to any other device.

• Do not step on the power cord or place heavy objects on top of it.

Carefully route the power cord and any cables away from personal traffic.

• When unplugging the power cord, do not pull on the cord itself but pull on the plug.

• The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

English

Taking care of your battery pack

Here are some ways to take care of your battery pack:

• Use only batteries of the same kind as replacements. Turn the power off before removing or replacing batteries.

• Do not tamper with batteries. Keep them away from children.

• Dispose of used batteries according to local regulations. Recycle if

at all possible.

Cleaning and servicing

When cleaning the computer, follow these steps:

1 Power off the computer and remove the battery pack. 2 Disconnect the AC adapter.

English

3 Use a soft cloth moistened with water . Do not use liquid or aerosol

cleaners.

4 To clean the display screen, use an LCD cleaning kit. If any of the following occurs:

• The computer has been dropped or the body has been damaged.

• Liquid has been spilled into the product.

• The computer does not operate normally.

Please refer to "Troubleshooting my computer" on page 55.

First things first iii

Your guides iii Basic care and tips for using your computer iv

1 Getting to know your TravelMate 1

A TravelMate tour 3

Front open view 3 Front view 4 Left view 6 Right view 7 Rear view 8

Bottom view 9 Features 11 Indicators 13 Using the keyboard 14

Special keys 14 Launch Keys 20 Touchpad 22

Touchpad basics 22 Storage 24

Hard disk 24

AcerMedia bay 24

Using software 2 5 Audio 27

Adjusting the volume 27 Power management 28 Moving around with your TravelMate 29

Disconnecting from the desktop 29

Moving around 29

Taking the computer home 30

Traveling with the computer 32

Traveling internationally with the computer 32 Securing your computer 34

Using a computer security lock 34

Using the Smart Card 34

Using passwords 40

Content

2 Customizing my computer 43

Expanding through options 45

Connectivity options 45

Upgrade options 50 Using system utilities 53

Notebook Manager 53

Launch Manager 54

viii

BIOS Utility 54

3 Troubleshooting my computer 55

Frequently-asked questions 57 Troubleshooting tips 60 Error messages 61 Requesting service 62

International Traveler’s Warranty (ITW) 62 Before you call 62

Appendix A Specifications 65 Appendix B Notices 71

Index !!!!!!!!!!!!!!!79

1 Getting to know your

TravelMate

Your TravelMate computer combines highperformance, versatility , power management features and multimedia capabilities with a unique style and ergonomic design. Work with unmatched productivity and reliability with your new power computing partner.

A TravelMate tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new TravelMate

computer.

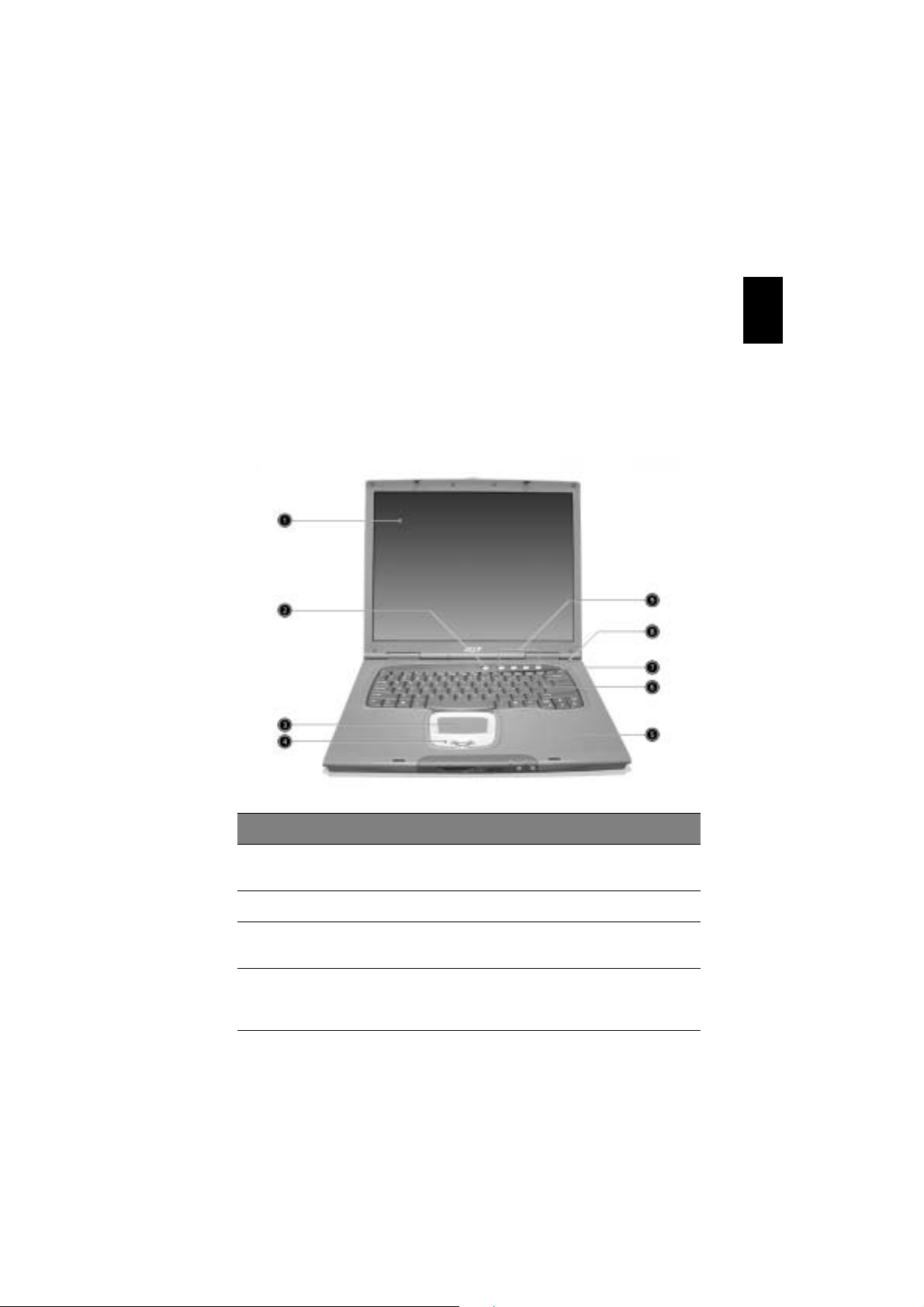

Front open view

English

# Item Description

1 Display screen Also called LCD (liquid-crystal display),

2 Power button Turns on the computer.

3 Touchpad Touch-sensitive pointing device which

4 Click buttons (left,

center and right)

displays computer output.

functions like a computer mouse.

The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.

# Item Description

1 Getting to know your TravelMate4

English

5 Palmrest Comfortable support area for your hands

when you use the computer.

6 Keyboard Inputs data into your computer.

7 Status indicators LEDs (light-emitting diode) that turn on and

off to show the status of the computer, its functions and components.

8 Microphone Internal microphone for sound recording.

9 Launch keys Special keys for launching internet browser,

email program and frequently used programs. See “Launch Keys” on page 20 for more details.

Front view

# Item Description

1 Speaker Outputs sound.

4-in-1 card reader

4-in-1 card reader indicator

4 Infrared port Interfaces with infrared devices (e.g.,

Reads cards from Smart Media, Memory Stick, MultiMedia, and Secure Digital cards.

Displays activity of 4-in-1 memory reader.

infrared printer, IR-aware computer).

# Item Description

Bluetooth button

Bluetooth indicator

InviLink button

InviLink indicator

Starts (optional) Bluetooth functionality.

Indicates that (optional) Bluetooth is enabled.

Opens (optional) wireless connectivity.

Indicates status of (optional) wireless communication.

9 Latch Latch for opening and closing the laptop.

Notes:

1.Four-in-one card reader is a manufacturing option, subject to configuration.

2.Bluetooth button and indicator found on models with Bluetooth only.

3.InviLink button and indicator found on models with wireless LAN only.

English

1 Getting to know your TravelMate6

Left view

# Item Description

1 Four USB 2.0 ports Connect to Universal Serial Bus devices (e.g.,

USB mouse, USB camera).

2 IEEE 1394 port Connects to IEEE 1394 devices.

3 Smart Card slot Slot for Smart Card interface with pre-boot

authentication system.

4 Line-in jack Accepts audio line-in devices (e.g., audio CD

player, stereo walkman).

5 Microphone jack Accepts input from external microphones.

6 Headphone/

Speaker/ Line-out jack

7 PC Card eject button Ejects the PC Card from the slot.

8 PC Card slot Accepts one Type II 16-bit PC Card or 32-bit

Connect to headphones or other line-out audio devices (speakers).

CardBus PC Card.

Right view

# Item Description

1 AcerMedia drive Houses a removable media drive module.

2 AcerMedia indicator Lights up when the AcerMedia drive is active.

3 Eject button Ejects the drive tray.

4 Emergency eject slot Ejects the drive tray when the computer is

turned off. See page 58 for more details.

5 Power jack Connects to an AC adapter.

English

Note: The positions of the AcerMedia indicator, eject button and emergency eject hole may differ depending on the optical drive module installed.

English

1 Getting to know your TravelMate8

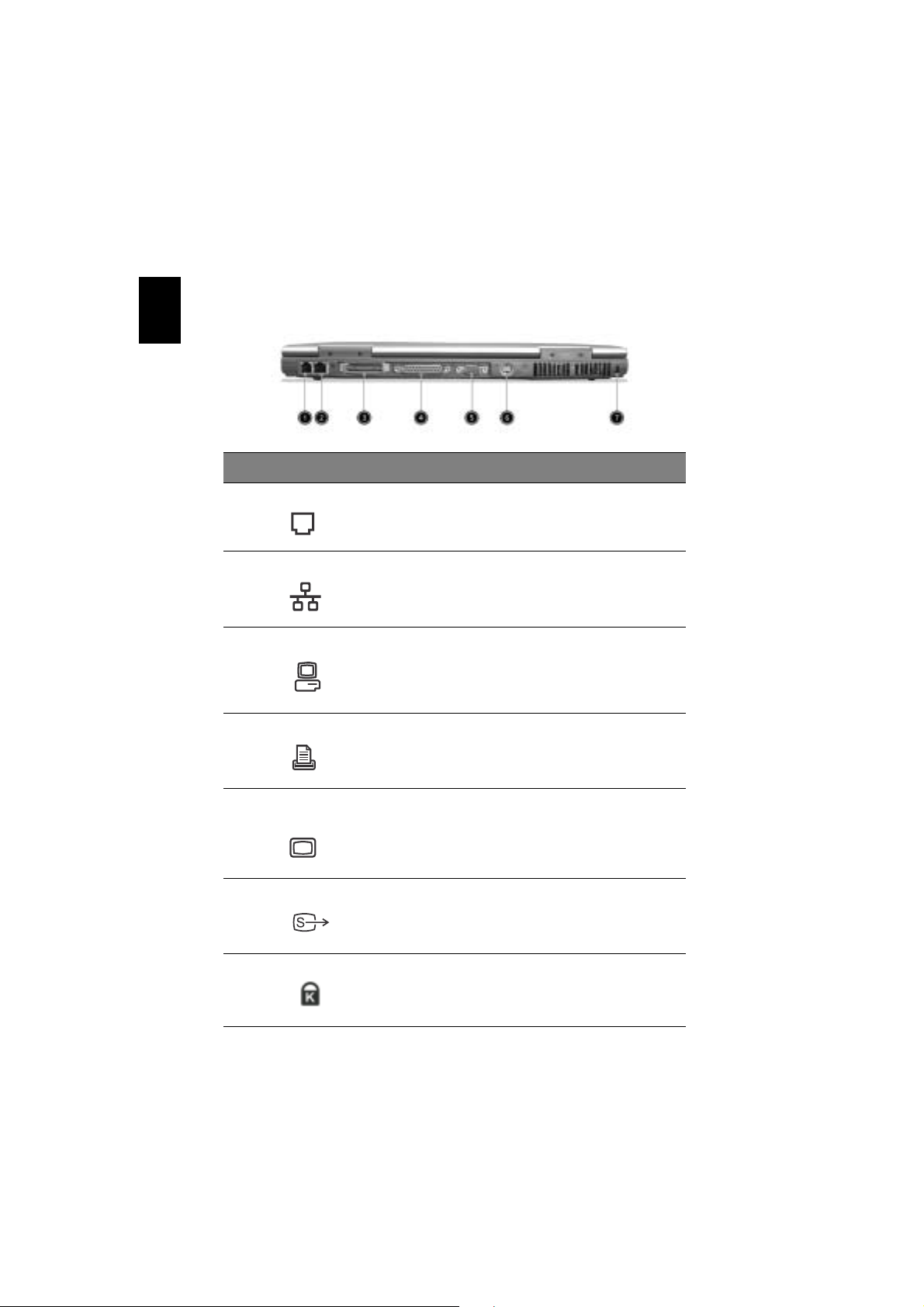

Rear view

# Item Description

1 Modem jack Connects to a phone line.

2 Network jack Connects to an Ethernet 10/100-based

3 Expansion port Connects to I/O port replicator or EasyPort

4 Parallel port Connects to a parallel device (e.g., parallel

5 External display

port

6 S-video Connects to a television or display device

7 Security keylock Connects to a Kensington-compatible

network.

expansion devices.

printer).

Connects to a display device (e.g., external monitor, LCD projector) and displays up to

16.7 million colors and up to 1400x1050 resolution.

with S-video input.

computer security lock.

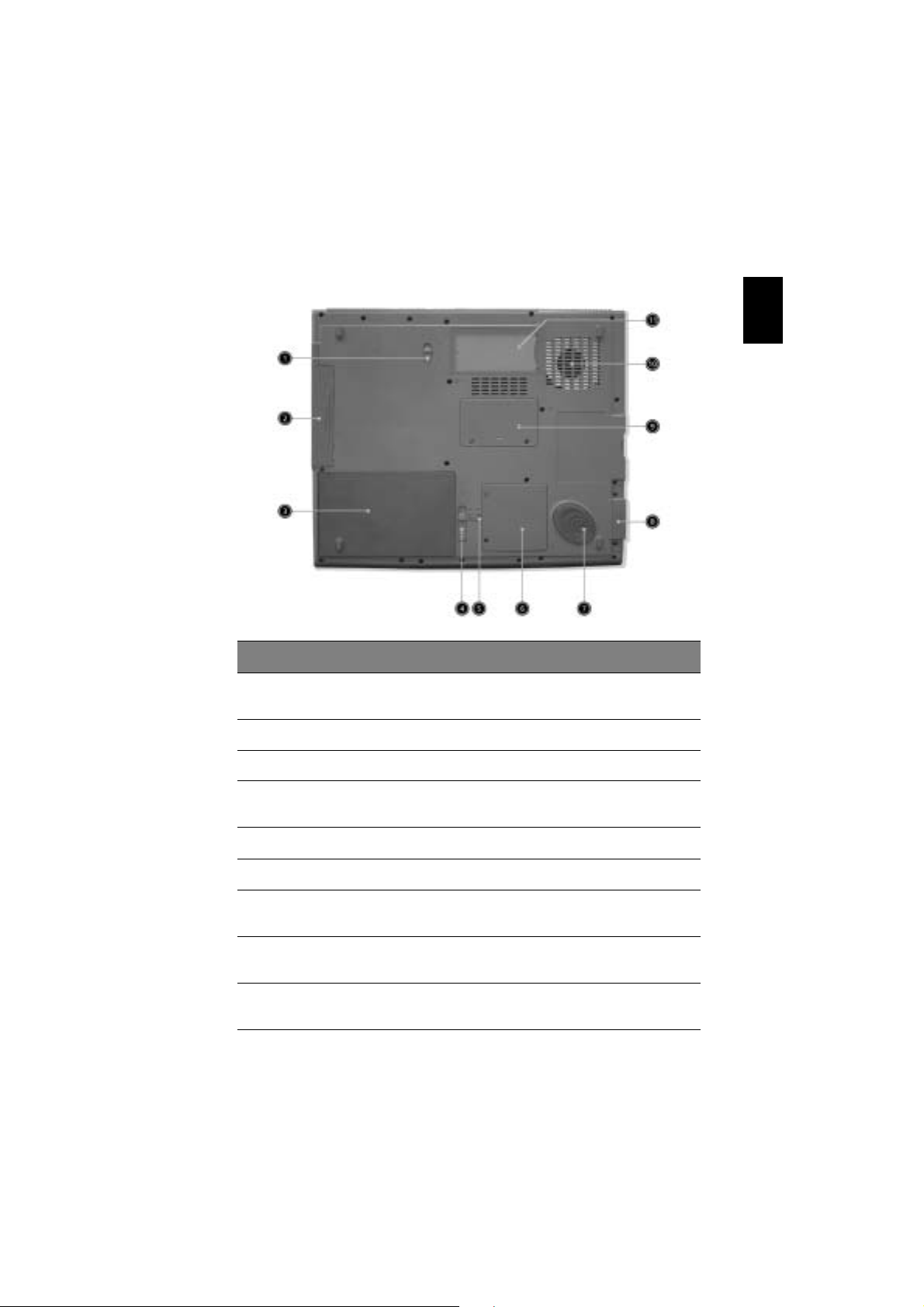

Bottom view

# Item Description

1AcerMedia bay

release latch

Unlatches the AcerMedia drive for removing the optical drive.

English

2 AcerMedia bay Houses an AcerMedia drive module.

3 Battery bay Houses the computer's battery pack.

4 Battery release latch Unlatches the battery to remove the

battery pack.

5 Battery lock Locks the battery in place.

6 Mini-PCI slot Slot for adding mini-PCI cards.

7 Hard disk protector Protects the hard disk from accidental

bumps and vibration.

8 Hard disk bay Houses the computer's hard disk (secured

by a screw).

9Memory

compartment

Houses the computer’s main memory.

1 Getting to know your TravelMate10

# Item Description

English

10 Cooling fan Helps keep the computer cool.

Note: Don’t cover or obstruct the opening of the fan.

11 Personal

identification slot

Insert a business card or similar-sized identification card to personalize your computer.

Features

Below is a brief summary of the computer’s many features:

Performance

• Intel® Pentium® M Processor at 1.3G~1.6G and higher

• Memory upgradeable up to 2 GB with 2 slots (Only one slot for

user accessible)

• Hot swappable Media bay design

• High-capacity, Enhanced-IDE hard disk

• Li-ion main battery pack

• Power management system with ACPI (Advanced Configuration

Power Interface)

• Smart Card interface with pre-boot authentication system for

added security

Display

• Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32-

bit high color up to 1024 x 768 eXtended Graphics Array (XGA) resolution for 14.1”/15” and 1400 x 1050 Super eXtended Graphics Array + (SXGA+) resolution for 15” models (specification varies depending on the model)

• 3D graphics engine

• Simultaneous LCD and CRT display support

• S-video for output to a television or display device that supports S-

video input

• "Automatic LCD dim" feature that automatically decides the best

settings for your display and conserves power

• Dual indenpendent display

English

Multimedia

• 16-bit high-fidelity AC’97 stereo audio

• Built-in dual speakers

• Built-in microphone

• High-speed optical drive (AcerMedia bay)

English

1 Getting to know your TravelMate12

Connectivity

• High-speed fax/data modem port

• Ethernet/Fast Ethernet port

• Fast infrared wireless communication

• Four (4) USB 2.0 (Universal Serial Bus) ports

• IEEE 1394 port

• MiniPCI 802.11b wireless LAN (manufacturing optional)

• Bluetooth ready (manufacturing optional)

• SD/MMC/SM/MS memory slot (manufacturing optional)

Human-centric design and ergonomics

• Internet 4-way scroll button

• Sleek, smooth and stylish design

• Acer FinTouch full-sized curved keyboard

• Ergonomically-centered touchpad pointing device

Expansion

• One type II CardBus PC Card slot

• Upgradeable memory

Indicators

The computer has three easy-to-read status indicators below the display screen, and two on the front of the computer.

The Power and Battery status indicators are visible even when the display is closed.

Icon Function Description

English

Caps lock Lights when Caps Lock is activated.

Num lock Lights when Num Lock is activated.

Media Activity Lights when the disc or AcerMedia is

activated.

Power Lights green when the power is on and

Battery Lights orange when the battery is charging.

orange when the computer is in standby mode.

Using the keyboard

1 Getting to know your TravelMate14

English

The full-sized keyboard includes an embedded numeric keypad, separate cursor keys, two Windows keys and twelve function keys.

Special keys

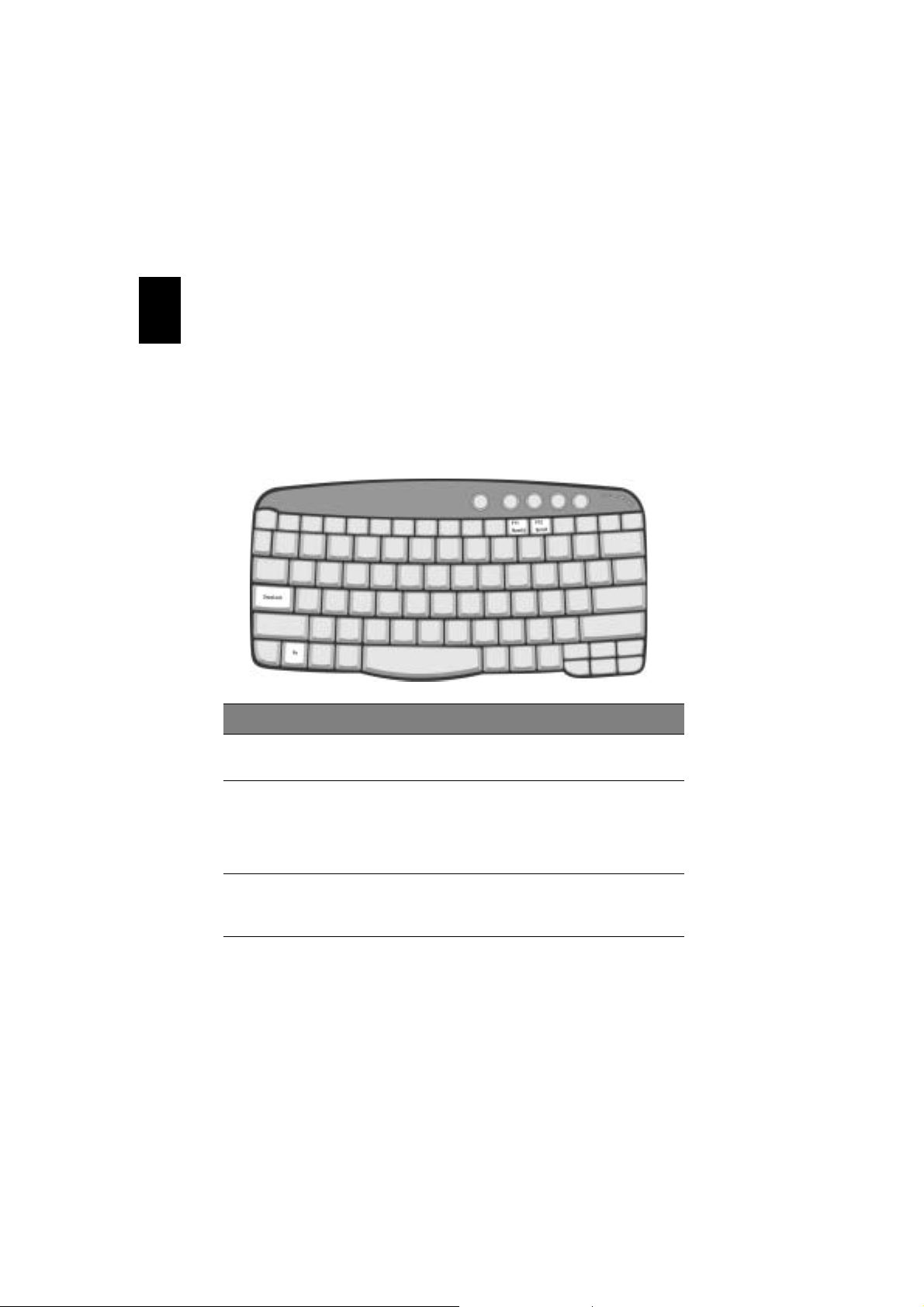

Lock keys

The keyboard has three lock keys which you can toggle on and off.

Lock key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed are in

uppercase.

Num Lock (Fn-F11)

Scroll Lock (Fn-F12)

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

Embedded numeric keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access Num lock on Num lock off

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Type numbers in a normal manner.

Hold Shift while using cursor-control keys.

Hold Fn while using cursor-control keys.

English

Main keyboard keys Hold Fn while typing letters

on embedded keypad.

Note: If an external keyboard or keypad is connected to the computer, the Num Lock feature automatically shifts from the internal keyboard to the external keyboard or keypad.

Type the letters in a normal manner.

English

1 Getting to know your TravelMate16

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Key Description

Windows logo key

Application key Opens a context menu (same as a right-click).

Start button. Combinations with this key perform shortcut functions. Below are a few examples:

+ Tab (Activates next taskbar button) + E (Explores My Computer) + F (Finds Document) + M (Minimizes All)

Shift + + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

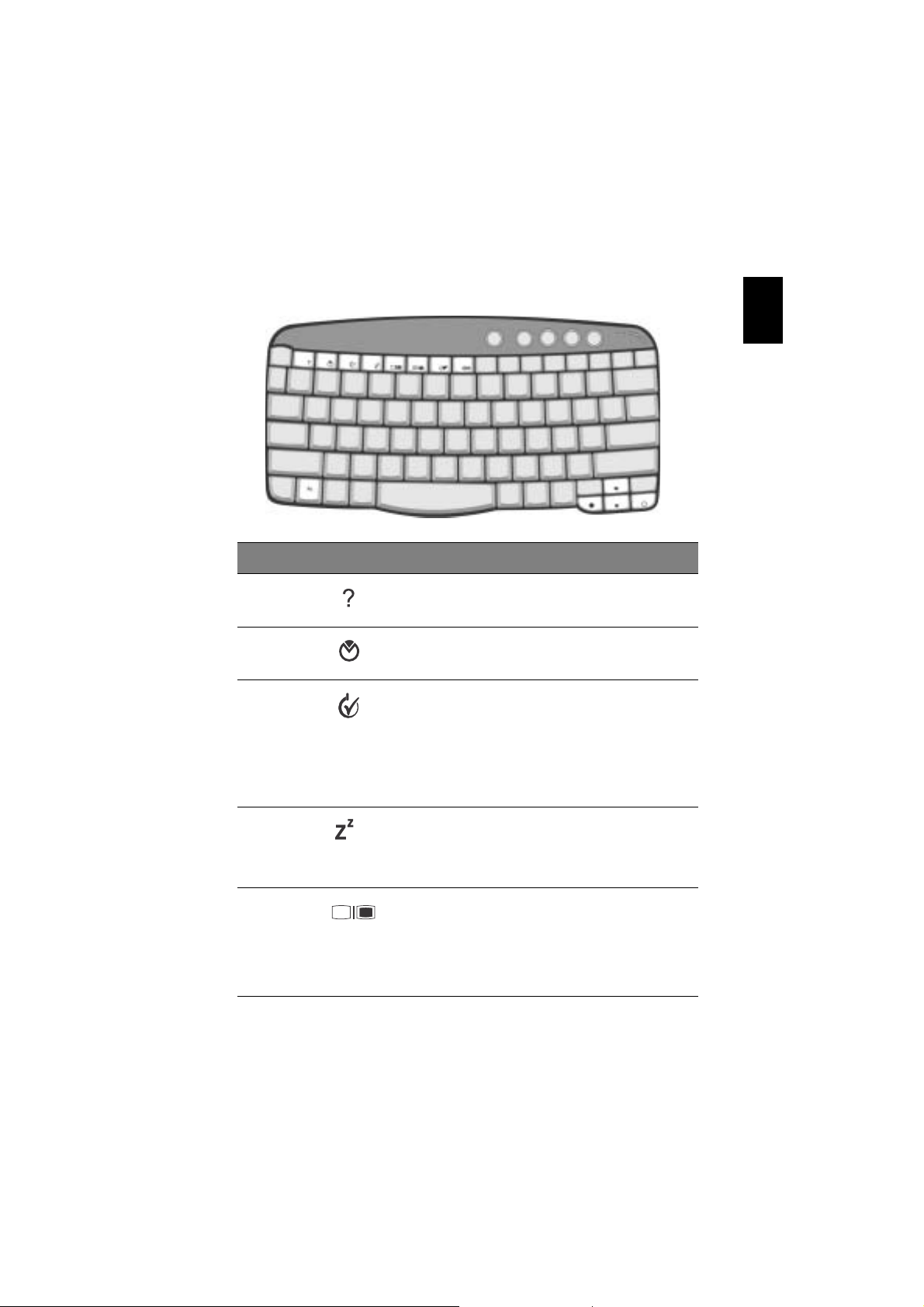

Hot keys

The computer employs hot keys or key combinations to access most of the computer’s controls like screen brightness, volume output and the BIOS Utility.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

Hot key Icon Function Description

Fn-F1 Hot key help Displays help on hot keys.

Fn-F2 Setup Accesses the computer’s

configuration utility.

Fn-F3 Power

management scheme toggle

Switches the power management scheme used by the computer (function available if supported by operating system).

See “Power management” on page 28.

English

Fn-F4 Sleep Puts the computer in Sleep

Fn-F5 Display toggle Switches display output

mode. See “Power management” on

page 28.

between the display screen, external monitor (if connected) and both the display screen and external monitor.

1 Getting to know your TravelMate18

Hot key Icon Function Description

English

Fn-F6 Screen blank Turns the display screen

Fn-F7 Touchpad toggle Turns the internal touchpad

Fn-F8 Speaker toggle Turns the speakers on and off.

Fn-n Volume up Increases the speaker volume.

Fn-p Volume down Decreases the speaker

Fn-o Brightness up Increases the screen

Fn-

Brightness down Decreases the screen

backlight off to save power. Press any key to return.

on and off.

volume.

brightness.

The Euro symbol

If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a European layout, you can type the Euro symbol on your keyboard.

Note for US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type in Windows Millennium Edition and Windows 2000, follow the steps below:

1 Click on Start, Settings, Control Panel. 2 Double-click on Keyboard. 3 Click on the Language tab. 4 Verify that the keyboard layout used for "En English (United

States)" is set to United States-International. If not, select and click on Properties; then select United States-

International and click on OK.

5 Click on OK. To verify the keyboard type in Windows XP, follow the steps below:

1 Click on Start, Control Panel. 2 Double-click on Regional and Language Options. 3 Click on the Language tab and click on Details. 4 Verify that the keyboard layout used for "En English (United

States)" is set to United States-International. If not, select and click on ADD; then select United States-

International and click on OK.

5 Click on OK.

English

To type the Euro symbol: 1 Locate the Euro symbol on your keyboard. 2 Open a text editor or word processor. 3Hold Alt Gr and press the Euro symbol.

Note: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/typography/faq/faq12.htm more information.

for

Launch Keys

1 Getting to know your TravelMate20

English

Located above the keyboard are five buttons. The left-most button is the power button. To the right of the power button are the four launch keys. They are designated as the mail button, the web browser button, and two programmable buttons (P1 and P2).

Launch key Default application

Mail Email application

Web browser Internet browser application

P1 User-programmable

P2 User-programmable

E-Mail Detection

Click right button at the Launch M anager icon on the taskbar and cli ck on E-Mail Detection. In this dialog box, you have the option to enable disable mail checking, set the time interval for mail checking, etc. If you already have an email account, you can fill in User Name, Password and POP3 Sever in the dialog box. The POP3 Sever is the mail sever where you get your email.

Aside from the email checking function, there is a mail button that is used to launch the email application. It is located above the keyboard right below the LCD.

English

Touchpad

1 Getting to know your TravelMate22

English

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Note: When using an external USB mouse, you can press Fn-F7 to disable the touchpad.

Touchpad basics

The following items teach you how to use the touchpad:

• Move your finger across the touchpad to move the cursor.

• Press the left (1) and right (3) buttons located on the edge of the

touchpad to do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touchpad produces similar results.

• Use the 4-way scroll (2) button (top/bottom/left and right) to scroll

a page up, down, left or right. This button mimics your cursor pressing on the vertical and horizontal s croll bars of Windows applications.

Function Left button

Execute Click twice

quickly

Select Click once Tap once

Drag Click and

hold, then use finger to drag the cursor on the touchpad

Access context menu

Right button

Click once

Center buttons

Tap

Tap twice (at the same speed as double-clicking a mouse button)

Tap twice (at the same speed as double-clicking a mouse button) then hold finger to the touchpad on the second tap and drag the cursor

English

Scroll Click and

Note: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad’s responsiveness.

hold the button in the desired direction (up/down/ left/right)

Storage

1 Getting to know your TravelMate24

English

This computer supplies you with the following media storage:

• High-capacity Enhanced-IDE hard disk

• AcerMedia drive

Hard disk

The high-capacity hard disk is the answer to your storage needs. This is where your programs and data are stored.

AcerMedia bay

The AcerMedia bay accepts a wide variety of optional media drive modules for use with your computer. These optional items include:

• CD-ROM drive

• DVD-ROM drive

• DVD/CD-RW drive

• Second hard disk drive

• Second battery

Note: To swap AcerMedia drive modules, see “Swapping AcerMedia drive modules” on page 52

Ejecting the optical (CD or DVD) drive tray

To eject the optical drive tray when the computer is turned on, press the drive eject button.

When the power is off, you can eject the drive tray using the emergency eject hole. See page 58.

Using software

Playing DVD movies

When the DVD-ROM drive module is installed in the AcerMedia bay, you can play DVD movies on your computer.

1 Eject the DVD tray and insert a DVD movie disc; then close the DVD

tray.

English

Important! When you launch the DVD player for the first time, the program asks you to input the region code. DVD discs are divided into 6 regions. Once your DVD drive is set to a region code, it will play DVD discs of that region only. You can set the region code a maximum of five times (including the first time), after which the last region code set will remain permanent. Recovering your hard disk does not reset the number of times the region code has been set. Refer to the table below for DVD movie region code information.

1 Getting to know your TravelMate26

2 The DVD movie will automatically play after a few seconds.

English

Region code Country or region

1 U.S.A., Canada

2 Europe, Middle East, South Africa, Japan

3 Southeast Asia, Taiwan, Korea (South)

4 Latin America, Australia, New Zealand

5 Former U.S.S.R., parts of Africa, India

6 People's Republic of China

Note: To change the region code, insert a DVD movie of a different region into the DVD-ROM drive. Please refer to the online help for more information.

Audio

The computer comes with 16-bit high-fidelity AC’97 stereo audio, and includes a built-in sensitive microphone and dual stereo speakers.

There are audio ports on the rear of the computer. See “Rear view” on page 8 for more information on connecting external audio devices.

English

Adjusting the volume

Adjusting the volume on the computer is as easy as pressing some buttons. See “Hot keys” on page 16 for more informations on adjusting the speaker volume.

Power management

1 Getting to know your TravelMate28

English

This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the serial and parallel ports, and video memory. If no activity is detected for a period of time (called an inactivity timeout), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports ACPI (Advanced Configuration and Power Interface), which allows for maximum power conservation and maximum performance at the same time. Windows handles all power-saving chores for your computer.

Moving around with your TravelMate

This section gives you tips and hints to consider when moving around or traveling with your computer.

Disconnecting from the desktop

Follow these steps to disconnect your computer from external accessories:

1 Save your work in progress. 2 Remove any media, diskette or compact dis c, from the drive(s). 3 Shut down the computer. 4 Close the display cover. 5 Disconnect the cord from the AC adapter. 6 Disconnect the keyboard, pointing device, printer, external

monitor, and other external devices.

7 Disconnect the Kensington lock if you are using one to secure the

computer .

Moving around

“when you are just moving within short distances, for example, from your office desk to a meeting room”

English

Preparing the computer

Before moving the computer, close and latch the display cover to place it in Sleep mode. You can now safely take the computer anywhere you go within the building. To bring the computer out of Sleep mode, open the display; then slide and release the power switch.

If you are taking the computer to a client's office or a different building, you may choose to shut down the computer:

1 Click on Start, Shut Down... or Turn off Computer (Windows

XP).

2 Select Shut down and click on OK, or select Turn Off (Windows

XP).

English

1 Getting to know your TravelMate30

- or you can put the computer in Sleep mode by pressing Fn-F4. Then close

and latch the display. When you are ready to use the computer again, unlatch and open the

display; then slide and release the power switch.

Note: If the sleep indicator is off, the computer has entered Hibernation mode and turned off. If the power indicator is off but the sleep indicator is on, the computer has entered Sleep mode. In both cases, slide and release the power switch to turn the computer back on. Note that the computer may enter Hibernation mode after it is in Sleep mode for a period of time.

What to bring to short meetings

A fully charged battery runs the computer for about 3 hours under most circumstances. If your meeting is shorter than that, you probably do not need to bring anything with you other than the computer.

What to bring to long meetings

If your meeting will last longer than 3 hours or if your battery is not fully charged, you may want to bring the AC adapter with you to plug in your computer in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Sle ep mode. Press Fn- F4 or close the display cover whenever you are not actively using the computer. To resume, open the display (if closed); then slide and release the power switch.

Taking the computer home

“when you are moving from your office to your home or vice versa”

Preparing the computer

After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

• Check if you have removed all media, diskettes and compact discs,

from the drive(s). Failure to remove the media can damage the drive head.

• Pack the computer in a protective case that can prevent the

computer from sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen

What to bring with you

Unless you already have some items at home, bring the following items with you:

• AC adapter and power cord

• The printed user’s guide

• AcerMedia drive module(s)

Special considerations

Follow these guidelines to protect your computer while traveling to and from work:

• Minimize the effect of temperature changes by keeping the

computer with you.

• If you need to stop for an extended period of time and cannot

bring the computer with you, leave the computer in the trunk of the car to avoid exposing the computer to excessive heat.

• Changes in temperature and humidity can cause condensation.

Allow the computer to return to room temperature, and inspect the screen for condensation before turning on the computer. If the temperature change is greater than 18°F (10°C), allow the computer to come to room temperature slowly. If possible, leave the computer for 30 minutes in an environment with a temperature between outside and room temperature.

English

Setting up a home office

If you frequently work on your computer at home, you may want to purchase a second AC adapter for use at home. With a second AC adapter, you can avoid transporting the extra weight to and from home.

English

1 Getting to know your TravelMate32

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor, or mouse.

Traveling with the computer

“when you are moving within a larger distance, for instance, from your office building to a client’s office building or traveling locally”

Preparing the computer

Prepare the computer as if you were taking it home. Make sure that the battery in the computer is charged. Airport security may require you to turn on your computer when bringing it into the gate area.

What to bring with you

Bring the following items with you:

• AC adapter

• Spare, fully-charged battery pack(s)

• AcerMedia drive module(s)

• Additional printer driver files if you plan to use another printer

Special considerations

In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

• Always take the computer as carry-on luggage.

• If possible, have the computer inspected by hand. Airport security

X-ray machines are safe, but do not put the computer through a metal detector.

• Avoid exposing floppy disks to hand-held metal detectors.

Traveling internationally with the computer

“when you are moving from country to country”

Preparing the computer

Prepare the computer as you would normally prepare it for traveling.

What to bring with you

Bring the following items with you:

• AC adapter

• Power cords that are appropriate for the country to which you are

traveling

• Spare, fully-charged battery packs

• AcerMedia drive module(s)

• Additional printer driver files if you plan to use another printer

• Proof of purchase, in case you need to show it to customs officials

• International Traveler’s Warranty passport

Special considerations

Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

• When traveling in another country , check that the local AC voltage

and the AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer .

• If you are using the modem, check if the modem and connector is

compatible with the telecommunications system of the country you are traveling in.

English

1 Getting to know your TravelMate34

Securing your computer

English

Your computer is a valuable investment that you need to take care of. Learn how to protect and take care of your computer.

Security features include hardware and software locks — a security notch, Smart Card and passwords.

Using a computer security lock

A security keylock notch located on the left panel of the computer lets you connect a Kensington-compatible computer security lock.

Wrap a computer security lock cable around an immovable object such as a table or locked drawer handle. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Using the Smart Card

This software includes the following components: PlatinumPAS™, PlatinumSecure™ and PlatinumKey™. Together, they provide you with multiple levels of security.

• PlatinumPAS implements the first security measure at the BIOS level and runs during the BIOS routine check when a computer is powered up or rebooting. If no Smart Card or Emergency Card is detected, the computer will stop booting up to prevent any illegal access to the system.

• PlatinumSecure enhances the secure logon procedure for your Windows at the operating system level. It provides user authentication through its encryption/decryption function usi ng

the Smart Card. If your Smart Card is unavailable, you can use the Emergency Card as a temporary replacement card.

• PlatinumKey auto-authenticate and auto cache with one-click logons to all password-required websites (patent pending), eliminates the overhead costs associated with memorizing and typing user IDs and passwords when surfing the Internet with Microsoft or Netscape web browsers.

A slot for your Smart Card is located on the left panel of the computer. This new security feature helps you boot up your computer with all your settings built right into your Smart Card. You don’t have to remember your password to access your computer.

To remove the Smart Card first press the Smart Card (a) and remove the Smart Card (b) as shown in the illustration below.

English

For more details consult your Smart Card documentation.

Registering your Smart Card

1 Getting to know your TravelMate36

English

Important! Your Acer notebook is equipped with a Smart Card security feature that protects the computer from unauthorized access. If you enable this feature, please make sure that your warranty card is completed and sent back to Acer. This information will be used by Acer service centers to confirm ownership in case your Smart Card "key" is lost or damaged. Registering your notebook with Acer's service center is extremely important when replacing your lost Smart Card "key".

If you have already bypassed the Smart Card registration, please reinstall the application as follows:

1 Insert your System CD and reinstall from it. 2 Follow the onscreen instructions.

To enable the Smart Card security feature, please refer to your Smart Card user manual.

Running PlatinumSecure

PlatinumSecure enhances the secure logon procedure for Windows 2000 or XP at the operating system level. It provides user authentication with an encryption/decryption function using the Smart Card. If your Smart Card is unavailable, the Emergency Card can serve as a temporary replacement for the Smart Card. After installation, the PlatinumSecure icon appears on the Windows desktop.

Double-click on it or click the right mouse button, then select Open from the pop-up menu (or launch it from the PlatinumSecret program group). From the menu that appears, you can directly access three operations: PlatinumSecure Options, Smart Card Manager, and Change Password.

PlatinumSecure Options

Click on the PlatinumSecure Options button to open the Smart Card Options window. It provides great flexibility to meet the various privacy protection needs of many different users.

• Disable Smart Card Authentication When Disable PlatinumPAS is selected, the PlatinumPAS Preboot

Authentication System will be disabled. When Disable PlatinumSecure is selected, the PlatinumSecure

Windows Logon Authentication with the Smart Card will be disabled, which means that the protection of your PC as well as other options under System Lock Option and Password Option will be disabled, too. The Smart Card password is required for this selection.

• System Lock Option When Lock system when the Smart Card is not in use

(default) is selected, if the Smart Card is removed, the PlatinumSecure screensaver comes up and access to the system is locked. When Never lock the system after bootup is selected, there is no protection for the PC after boot up, and Password Option is disabled.

• Password Option When Always enter password when the Smart Card is in use

(default) is selected, the password is required whenever you need to regain access to the system while the Smart Card is inserted. When Auto authenticate when Smart Card is in use is selected, no password is required. All you need to do is insert the Smart Card.

English

1 Getting to know your TravelMate38

Smart Card Manager

The Multiple user support is implemented and managed in Smart Card Manager. Please note that five users can be registered on one PC. If you registered as the Primary User, ONLY you can add/remove other users. If you registered as a regular user, other registered users could add/remove you. All registered users will be able to use the View Smart Card users option.

Change Password

Click the Change Password button, fill in the three fields in the Change Password dialog box, and then close the dialog box by clicking the OK button to change the Smart Card password.

Encrypt/Decrypt

PlatinumSecure can also be used to encrypt/decrypt files except for system files or files that are already encrypted with other applications. Double-click on a file to automatically encrypt/decrypt it. However, if the file is associated with an application, it will be opened with that application instead of being encrypted. Note that the encryption is not recursive, i.e., when you encrypt a folder, only the files immediately under that folder are encrypted. Other files under subfolders are not.

To find the Encrypt/Decrypt commands:

• Right-click on the Start menu,

• Right-click on a folder or icon on your Wind ows desktop, or

• In Windows Explorer, right-click on a selected folder, file, or group

of files.

Running PlatinumKey

PlatinumKey provides one-click logon to all password-required websites. With its unique Smart Card caching technology, you can greatly extend the limited card memory size to unlimited use by storing your private data in an encrypted file either on the Smart Card, or on the 360 Degree Web secure website s erver.

Information in PlatinumKey like the one in My Info and Credit Cards, can be transferred to other application s using the "drag-and-drop" method: simply point the cursor to the field containing the information, press and hold the left mouse button, then drag the cursor to the application and drop the information there.

PlatinumKey also makes it convenient to change your password. There is always a PWD button available, which is equivalent to the Change Password button in PlatinumSecure.

Follow these steps to use PlatinumKey: 1 Open your browser to connect to the Internet. 2 Double-click on the PlatinumKey icon on your Windows desktop. 3 Enter your Smar t Card password and click OK. 4 If PlatinumKey is being used for the very first time, it will ask

"Would you like to link to 360 Degree Web secure website server to backup the information on your Smart Card?" The default answer is Yes, and it will enable you to store your information (excluding the Credit Cards) on the 360 Degree Web secure website server for backup purposes in case the card is lost/stolen. If you choose No, you will only be able to save My Info, Credit Cards and 5 Websites on your Smart Card.

5 Log in to a website where you are already registered. 6 PlatinumKey automatically stores your login data and asks for your

confirmation to automatically log you in the next time you access the site. Click Yes and continue browsing.

7 To close PlatinumKey when you are finished browsing, right-click

on the PlatinumKey icon on your Windows taskbar and sel ect Close PlatinumKey.

English

PlatinumKey provides a list of all the logon pages that you have stored. To go directly to any site on the list either double-click it or select it and click the Go button. Also, you can click the View button to view the selected website information including Web Name, User Name,

1 Getting to know your TravelMate40

Password, and Web URL. Similarly, type the first letter(s) of a site on the list, and the site will be searched and selected.

English

You can Edit and Delete the sites as well as other information, and Save or Cancel the changes you made, by selecting the button corresponding to each command.

Using passwords

Passwords protect your computer from unauthorized access. Setting these passwords creates several different levels of protection for your computer and data:

• Supervisor Password prevents unauthorized entry into the BIOS Utility. Once set, you must key-in this password to gain access to the BIOS Utility. See “BIOS Utility” on page 54.

• User Password secures your computer against unauthorized use. Combine the use of this password with password checkpoints on boot-up and resume from hibernation for maximum security.

• Password on Boot secures your computer against unauthorized use. Combine the use of this password with password checkpoints on boot-up and resume from hibernation for maximum security.

• Hard Disk Password protects your data by preventing unauthorized access to your hard disk. Even if the hard disk is removed from the computer and moved to another computer, it cannot be accessed without the Hard Disk Password.

Important! Do not forget your Supervisor and Hard Disk Password! If you forget your password, please get in touch with your dealer or an authorized service center.

Entering passwords

When a password is set, a password prompt appears in the left-hand corner of the display screen.

• When the Supervisor Password is set, a prompt appears when you press F2 to enter the BIOS Utility at boot-up.

• Type the Supervisor Password and press Enter to access the BIOS Utility. If you enter the password incorrectly, a warning message appears. Try again and press Enter.

• When the User Password is set and the Password on boot

parameter is enabled, a prompt appears at boot-up.

• Type the User Password and press Enter to use the computer. If you enter the password incorrectly, a warning message appears. Try again and press Enter.

• When the Hard Disk Password is set, a prompt appears at boot-up.

• Type the Hard Disk Password and press Enter to use the comp uter .

If you enter the password incorrectly, a warning message appears. Try again and press Enter.

Important! You have three chances to enter a password. If you fail to enter the password correctly after three tries, the system halts. Slide and hold the power switch for four seconds to shut down the computer. Then turn on the computer again, and try again. If you fail to enter the Hard Disk Password, please contact your dealer or an authorized service center.

Setting passwords

You can set passwords using the BIOS Utility.

English

1 Getting to know your TravelMate42

2 Customizing my

computer

After learning the basics of your TravelMate computer, let’s get acquainted with the advanced features of your computer. In this chapter, you will learn how to add options, upgrade components for better performance, and customize your computer.

Expanding through options

Your TravelMate offers you a complete mobile computing experience.

Connectivity options

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. For instructions on how to connect different external devices to the computer, see your online guide for more details.

Fax/data modem

Your computer has a built-in V.90/92 56Kbps AC’97 Link fax/data modem.

Warning! This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack.

English

Start your communications software program.

English

2 Customizing my computer46

Built-in network feature

The built-in network feature allows you to connect your computer to an Ethernet-based (10/100 Mbps) network.

To use the network feature, connect an Ethernet cable from the network jack on the rear of the computer to a network jack or hub on your network.

Fast infrared

The computer’s fast infrared (FIR) port allows you to do wireless data transfer with other IR-aware computers and peripherals such as PDAs (personal digital assistants), mobile phones, and infrared printers. The infrared port can transfer data at speeds of up to four megabits per second (Mbps) at a distance of up to one meter.

Universal Serial Bus

The Universal Serial Bus (USB 2.0) port is a high-speed serial bus which allows you to connect and daisy-chain USB peripherals without taking up precious system resources. Your computer has four ports available.

English

2 Customizing my computer48

IEEE 1394 port

The computer's IEEE 1394 port allows you to connect to an IEEE 1394 supported devices like a video camera or digital camera.

See your video or digital camera's documentation for details.

PC Card slot

The type II CardBus PC Card slot found on the left side of the computer accepts credit-card-sized cards that enhance the usability and expandability of the computer. These cards should have a PC Card logo on them.

PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. Popular PC cards include flash, fax/data modem, LAN, wireless LAN and SCSI cards. CardBus improves on the 16-bit PC card technology by expanding the bandwidth to 32 bits.

Note: Refer to your card’s manual for details on how to install and use the card and its functions.

Inserting a PC Card

Insert the card into the slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

Ejecting a PC Card

Before ejecting a PC Card: 1 Exit the application using the card. 2 Left-click on the PC Card icon on the taskbar and stop the card

operation.

3 Press the slot eject button to pop out the eject button (a); then

press it again to eject the card (b).

English

2 Customizing my computer50

Port expansion devices

Two types of expansion devices are available for your computer:

• I/O replicator - adds serial port and parallel port connections to your computer.

• EasyPort - adds a host of ports for your computer, and allows you to connect and disconnect peripherals from your computer in one quick step.

See your dealer for more information.

Upgrade options

Your computer delivers superior power and performance. However, some users and the applications they use may demand more. This computer allows you to upgrade key components when you need increased performance.

Note: Contact your authorized dealer if you decide to perform a key component upgrade.

Memory upgrade

Memory is expandable to 2 GB (only one slot for user accessible), employing 256/512-MB industry standard soDIMMs (Small Outline Dual Inline Memory Modules). The computer supports DDR (Double Data Rate) RAM.

There are two memory slots on your computer, one of which is occupied by standard memory. You can upgrade memory by installing a memory module into the one available slot, or replacing the standard memory with a higher-capacity memory module.

Installing memory

Follow these steps to install memory: 1 Turn off the computer, unplug the AC adapter (if connected) and

remove the battery pack. Then turn the computer over to access its base.

2 Remove the screws from the memory cover (a); then lift up and

remove the memory cover (b).

3 Insert the memory module diagonally into the slot (a), then gently

press it down (b) until it clicks into place.

English

4 Replace the memory cover and secure it with the screw. 5 Reinstall the battery pack, and reconnect the AC adapter. 6 Turn on the computer.

The computer automatically detects and reconfigures the total memory size.

Swapping AcerMedia drive modules

2 Customizing my computer52

English

Note: The hard disk drive module is not hot-swappable. You have to turn off your computer before you can swap the module.

You can swap the AcerMedia drive with any optional AcerMedia modules. First slide the AcerMedia release latch as shown in the illustration (a). Then remove the optical drive from the AcerMedia bay (b).

Then insert the optional AcerMedia module into the AcerMedia bay until the it click into place.

Using system utilities

Notebook Manager

The computer has a built-in system setup program called Notebook Manager. The Windows-based Notebook Manager allows you to set passwords, the startup sequence of the drives, and power management settings. It also shows current hardware configurations.

To start the Notebook Manager, press Fn-F2 or follow these steps: 1 Click on Start, Programs, then Notebook Manager. 2 Select the Notebook Manager application to run the program.

Click on Help for more information. 

English

Launch Manager

2 Customizing my computer54

English

Launch Manager allows you to set the four launch keys located above the keyboard. See “Launch Keys” on page 21 for the location of the launch key.

You can access the Launch Manager by clicking on Start, Programs, and then Launch Manager to start the application.

BIOS Utility

The BIOS Utility is a hardware configuration program built into your computer’s BIOS (basic input/output system).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run it.

To activate the BIOS Utility, press F2 during the POST (power-on selftest) while the TravelMate logo is being displayed.

3 Troubleshooting my

computer

This chapter instructs you on how to deal with common system problems. Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer. Do not attempt to open the computer by yourself. Contact your dealer or an authorized service center for assistance.

key link: www .acersupport.com

Frequently-asked questions

The following is a list of possible situations that may arise during the use of your computer. Easy answers and solutions are provided for each one.

I slid the power switch and opened the display , but the computer does not start or boot-up.

Look at the Power indicator:

• If it is not lit, no power is being applied to the computer. Check the following:

• If you are running on battery power , it may be low and unable

to power the computer. Connect the AC adapter to recharge the battery pack.

• Make sure that the AC adapter is plugged in properly to the

computer and to the power outlet.

• If it is lit, check the following:

• Is a non-bootable (non-system) diskette in the floppy drive?

Remove or replace it with a system diskette and press Ctrl-AltDel to restart the system.

• The operating system files may be damaged or missing. Insert the startup disk you created during Windows setup into the floppy drive and press Ctrl-Alt-Del to restart the system. This will diagnose your system and make necessary fixes.

English

Nothing appears on the screen.

The computer’s power management system automatically blanks the screen to save power. Press any key to turn the display back on.

If pressing a key does not turn the display back on, two things might be the cause:

• The brightness level might be too low. Press Fn-o (increase) and Fn-m (decrease) to adjust the brightness level.

• The display device might be set to an external monitor. Press the display toggle hot key Fn-F5 to toggle the display back to the computer .

• If the Sleep indicator is lit, the computer is in Sleep mode. Slide and release the power switch to resume.

English

3 Troubleshooting my computer58

Image is not full-screen.

The computer display has a native resolution of 1024 x 768 (XGA) for the 14.1” and 1400 x 1050 (SXGA+) for the 15.0”. If you set the resolution lower than this, the screen expands to fill the computer display. Right-click on your Windows desktop an d select Properties to bring up the Display Properties dialog box. Then click on the Sett ings tab to make sure that the resolution is set to the appropriate resolution. Resolutions lower than the specified resolution are not fullscreen on the computer or on an external monitor.

No audio is heard from the computer.

Check the following:

• The volume may be muted. In Windows, look at the volume control (speaker) icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option.

• The speakers may be turned off. Press Fn-F8 to turn the speakers on (this hot key also turns the speakers off).

• The volume level may be too low. In Windows, look at the volume control icon on the taskbar. You can also use the volume control buttons to adjust the volume. See “Hot keys” on page 17 for more detail.

• If headphones, earphones or external speakers are connected to the line-out port on the computer’s rear panel, the internal speakers automatically turn off.

I want to eject the optical drive tray without turning on the power. I cannot eject the optical drive tray.

There is a mechanical eject button on the optical drive. Simply insert the tip of a pen or paperclip and push to eject the tray.

The keyboard does not respond.

Try attaching an external keyboard to the USB 2.0 connector on the rear of the computer. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

The infrared port does not work.

Check the following:

• Make sure that the infrared ports of the two devices are facing each other (+/- 15 degrees) a maximum of 1 meter apart.

• Make sure there is a clear path between the two infrared ports. Nothing should be blocking the ports.

• Make sure you have the appropriate software running on both devices (for file transfers) or you have the appropriate drivers (for printing to an infrared printer).

• During the POST, press F2 to access the BIOS Utility and verify that the infrared port is enabled.

• Make sure both devices are IrDA-compliant.

The printer does not work.

Check the following:

• Make sure that the printer is connected to a power outlet and that it is turned on.

• Make sure that the printer cable is connected securely to the computer’s parallel port and the corresponding port on the printer.

• During POST, press F2 to access the BIOS Utility and verify that the parallel port is enabled.

English

I want to set up my location to use the internal modem.

To properly use your communications software (e.g., HyperTerminal), you need to set up your location:

1 Click on Start, Settings, Control Panel. 2 Double-click on Modems. 3 Click on Dialing Properties and begin setting up your location.

Refer to the Windows manual.

Troubleshooting tips

3 Troubleshooting my computer60

English

This notebook computer incorporates an advanced design that delivers onscreen error message reports to help you solve problems.

If the system reports an error message or an error symptom occurs, see “Error messages” on page 61. If the problem cannot be resolved, contact your dealer. See “Requesting service” on page 62.

Error messages

If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action.

Error Messages Corrective Action

CMOS Battery Bad Contact your dealer or an authorized service

center.

CMOS Checksum Error Contact your dealer or an authorized service

center.

Disk Boot Failure Insert a system (bootable) diskette into the floppy

drive (A:), then press Enter to reboot.

Equipment Configuration Error

Hard Disk 0 Error Contact your dealer or an authorized service

Hard Disk 0 Extended Type Error

I/O Parity Error Contact your dealer or an authorized service

Press F2 (during POST) to enter the BIOS Utility; then press Esc to exit and reconfigure the computer.

center.

Contact your dealer or an authorized service center.

center.

English

Keyboard Error or No Keyboard Connected

Keyboard Interface Error

Memory Size Mismatch Press F2 (during POST) to enter the BIOS Utility;

Contact your dealer or an authorized service center.

then press Esc to exit and reconfigure the computer.

If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the BIOS Utility.

Requesting service

3 Troubleshooting my computer62

English

International Traveler’s Warranty (ITW)

Your computer is backed by an International Traveler’s Warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers is in this handy booklet. Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel to receive the benefits from our support centers. Place your proof-ofpurchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acer-authorized ITW service site, you can still get in contact with our offices worldwide.

There are two ways to access Acer for technical support and information:

• Internet service worldwide (www.acersupport.com

• T e ch ni cal supp ort numbers in vari ous countries

You can view a list of technical support numbers by following these steps:

1 Click on Start, Settings, Control Panel. 2 Double-click on System. 3 Click on the Support Information button.

)

Before you call

Please have the following information available when you call Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently.

If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

You are required to provide the following information: Name:________________________________________ Address:______________________________________ ______________________________________________ Telephone number:____________________________ Machine and model type:_______________________ Serial number:_________________________________ Date of purchase:______________________________

English

3 Troubleshooting my computer64

Appendix A

Specifications

This appendix lists the general specifications of your computer.

Microprocessor

• Intel® Pentium® M Processor at 1.3~1.6G and higher

• L2 cache 1024KB

• Intel® 855 GM with ICH4-M, support 400Mhz Bus

Memory

• Main memory expandable up to 2 GB

• T wo DDR DIMM slots (Only one slot for user accessible)

• Support 256M, 512M & 1G DDR RAM modules

• 512 KB Flash ROM BIOS

Data storage

• One high-capacity, Enhanced-IDE hard disk

• One 5.25-inch internal removable optical drive (AcerMedia bay)

Display and video

• Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32bit true color up to 1024 x 768 eXtended Graphics Array (XGA) resolution for 14.1”/15” and 1400 x 1050 Super eXtended Graphics Array + (SXGA+) resolution for 15” models (specification varies depending on the model)

• 4X AGP bus with 3D acceleration

• Simultaneous LCD and CRT display support

• Dual independent display

• S-video for output to a television or display device that supports S-

video input

• "Automatic LCD dim" feature that automatically decides the best settings for your display and conserves power

English

Audio

• 16-bit AC’97 stereo audio

• Dual speakers and one internal microphone

• Separate audio ports for headphone-out, line-in and microphone-

in devices

English

Appendix A Specifications68

Keyboard and pointing device

• 84-/85-/88-key Windows keyboard

• Ergonomically-centered touchpad pointing device with 4-way

scroll button

I/O ports

• One type II CardBus PC Card slot

• One RJ-45 jack (Ethernet 10/100)

• One RJ-11 phone jack (V.90/92)

• One DC-in jack for AC adapter

• One parallel port

• One VGA port for external monitor

• One speaker/headphone-out jack (3.5mm mini jack)

• One audio line-in jack (3.5mm mini jack)

• One microphone-in jack

• One IEEE 1394 port

• One S-video TV-out port

• One 100-pin port replicator

• Four USB 2.0 ports

• One FIR port (IrDA)

• One Smart Card slot

• 4-in-1 Card Reader (Manufacture optional)

Weight and dimensions

• 2.76 kg (6.1 lbs) for 14.1” LCD model/ 2.86kg (6.3 lbs) for 15” LCD model

• 330mm (W) x 272mm (D) x 28.9~31.8mm (H)

Environment

• T e mperature

• Operating: 5°C ~ 35°C

• Non-operating: -20°C ~ 65°C

• Humidity (non-condensing)

• Operating: 20% ~ 80% RH

• Non-operating: 20% ~ 80% RH

System

• ACPI support

• DMI 2.0-compliant

• Microsoft Windows operating system

Power

• Battery pack

• Up to 62.16WH capacity Li-ion battery pack

• 5 hrs operation time on main battery with Battery mark 4.0

(Estimated)

• Charging time 3.5 hrs (System on)

• AC adapter

• 75-Watt

• Auto sensing 90~264Vac, 47~63Hz

Options

• 256MB/512MB/1G memory upgrade modules

• Additional Li-Ion battery pack

• Additional AC adapter

• DVD/CD-RW combo (including DVD playback software)

• Acer EasyPort port replicator

• Second HDD drive

• USB Floppy drive

English

Appendix A Specifications70

Appendix B

Notices

This appendix lists the general notices of your computer.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the device and receiver

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

English

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.

Use conditions

This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

English

Appendix B Notices74

Notice: Canadian users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numérique de la classe B respected toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Modem notices

FCC

This equipment complies with Part 68 of the FCC rules. Located on the bottom side of the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - “TBR 21”] for pan-European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

Important safety instructions

Read these instructions carefully. Save these instructions for future reference.

1 Follow all warnings and instructions marked on the product. 2 Unplug this product from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3 Do not use this product near water. 4 Do not place this product on an unstable cart, stand, or table. The product

may fall, causing serious damage to the product.

5 Slots and openings in the cabinet and the back or bottom are provided for

ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

6 This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult your dealer or local power company.

7 Do not allow anything to rest on the power cord. Do not locate this

product where persons will walk on the cord.

8 If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

9 Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

10 Do not attempt to service this product yourself, as opening or removing

covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

11 Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:

a When the power cord or plug is damaged or frayed b If liquid has been spilled into the product c If the product has been exposed to rain or water d If the product does not operate normally when the operating

instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other

English

Appendix B Notices76

controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

e If the product has been dropped or the cabinet has been damaged f If the product exhibits a distinct change in performance, indicating a

need for service.

12 Replace the battery with the same type as the product's battery we

recommend. Use of another battery may present a risk of fire or explosion.

13 Warning! Batteries may explode if not handled properly. Do not

disassemble or dispose of them in fire. Keep them away from children and dispose of used batteries promptly.

14 Use only the proper type of power supply cord set (provided in your

accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Laser compliance statement

The CD or DVD drive used with this computer is a laser product. The CD or DVD drive’s classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1 VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHLL AUSSETZEN

PRODUCTO LÁSER DE LA CLASE I ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE EXPONERSE A LOS RAYOS.

ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN. VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.

VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA SÅTEESEENSTIRRA EJ IN I STRÅLEN

VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I STRÅLEN

ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN

Lithium battery statement

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to local regulations. Recycle if at all possible.

ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til leverandøren.

ADVARSEL Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt batteri enligt fabrikantens instruktion.

VAROITUS

Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

English

VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or colored dots. This has no effect on the recorded image and does not constitute a malfunction.

Macrovision copyright protection notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other

English

Appendix B Notices78

intellectual property rights owned by Macrovision Corporati on and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is inten ded for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Apparatus Claims of U.S. Patent Nos . 4,631 ,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

English

A-Tick notice

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified. The unit shall be connected to Telecommunication Network through a line cord which meets the requirements of ACA Technical Standard TS008. Australian approved mains cord set shall be used with the equipment.

English

FCC RF EXPOSURE INFORMATION ( 802.11b Wireless LAN)

In August 1996 the Federal Communi cations Commission (FCC) of theUnited States with its action in Report and Order FCC 96-326 adoptedan u p d a t e d safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC

regulated transmitters. Those guidelines are consistent with the safety standard

previously set by both U.S. and international standards bodies. The design of thisnotebook computet compl ies with the FCC guidelines andthese international standards. Use only the supplied or an approvedantenna. Unauthorized antennas, modi fications, or attachments couldresult in violation of FCC regulations.

This device was tested for typical lap held operations with the device directly contacted to the human body to the back side of the notebook computer. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Index

AC adapter

caring for v AcerMedia drive 24 audio 27

adjusting the volume 27

troubleshooting 58

battery pack

caring for v BIOS utility 54 brightness

hotkeys 18

caps lock 14

on indicator 13 care

AC adapter v

battery pack v

computer iv CD-ROM

ejecting 25

ejecting manually 58

troubleshooting 58 cleaning

computer v computer

bringing to meetings 30

caring for iv

cleaning v

disconnecting 29

features 3, 11

indicators 13

keyboards 14

moving around 29

performance 11

security 34

setting up a home office 31

taking home 30

traveling internationally 32

traveling on local trips 32

troubleshooting 56

turning off iv

connections

network 46

connectivity options

port expansion devices 50

display

hotkeys 17

troubleshooting 57, 58 DVD 25 DVD movies

playing 25

error messages 61 Euro 18

FAQ. See frequently-asked questions frequently-asked questions 57 front view 3

hard disk 24 help

online services 62 Hibernation mode

hotkey 17 hotkeys 16

IEEE 1394 port 48 indicator lights 13 infrared 46 ITW. See warranty

keyboard 14

embedded numeric keypad 15

hotkeys 16

lock keys 14

troubleshooting 59

Windows keys 16

LEDs 13

memory

installing 51 upgrading 50

messages

error 61

modem 45

network 46 Notebook Manager 53

hotkey 17

notice

DVD copyright protection 77

num lock 14

on indicator 13

numeric keypad

num lock 15

online services 62 options

memory upgrade 50

password 40

types 40

PC Card 48

ejecting 49

inserting 49 ports 45 POST (power-on self-test) 54 printer

troubleshooting 59 problems 57

CD-ROM 58

display 57, 58

keyboard 59

printer 59

startup 57

troubleshooting 56

questions

setting location for modem use

safety

CD-ROM 76

FCC notice 73

general instructions 75

modem notices 74 scroll lock 14 security

keylock 34

passwords 40

smart card 34 service

when to call vi SmartCard 34

PlatinumKey 35

PlatinumPAS 34

PlatinumSecure 34

PlatinumSecure options 37 speakers

hotkey 18

troubleshooting 58 specifications 66 Standby mode

hotkey 17 status indicators 13 storage 24

AcerMedia drive 24

hard disk 24 support

information 62

touchpad 22

hotkey 18

using 22– 23 travel

international flights 32

local trips 32 troubleshooting 56

tips 60

universal serial bus 47

view

left 4, 6

rear 8

right 7 volume

adjusting 27

warranty

International Traveler’s Warran-

ty 62

Windows keys 16

Quanta Computer ZI2WM3B2100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
