Quanta Computer UY3A User Manual

Quanta Computer Inc.

UY3A

Quick Start Guide

The release of this document is controlled by the company. Any extra copy of this document must be written permission by the QUANTA product manager.

Quanta Computer Inc.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTION

2

Quanta Computer Inc.

Unpacking Your Tablet

Check that the following items are included in the box:

Tablet

Adaptor and AC Plug

 Operation temperature of device and ADP is from 0°C to 35°C  If any items are missing or damaged, please contact your dealer immediately.

3

Quanta Computer Inc.

Outlook

Top/Side View

Bottom/Back View

4

Quanta Computer Inc.

Connecting the power adapter

1. Plug the small connector on the adapter into the AC power socket.

2. Insert the adapter plug into a mains micro USB Jack.

5

Quanta Computer Inc.

Turning your Tablet on

Press the Power button on the top of the tablet

1st time to boot the Tablet

You can see the welcome page for friendly setting on the 1st booting up tablet

1. Welcome page

2. Select WiFi

6

Quanta Computer Inc.

7

Quanta Computer Inc.

3. Google Location and service

4. Select date and time

8

Quanta Computer Inc.

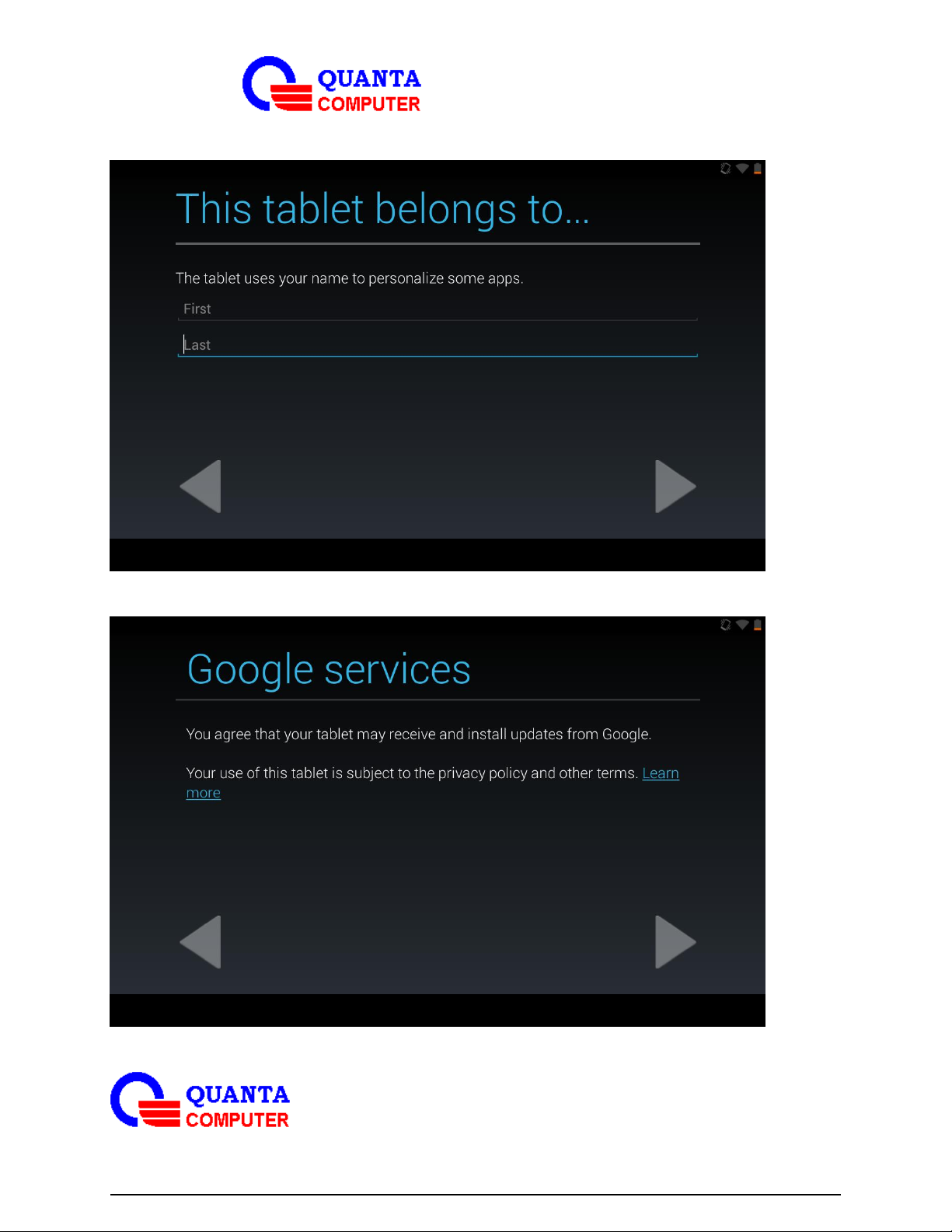

5. Create account for this Tablelet.

6. Google update service

9

Quanta Computer Inc.

7. Setup complete

Choose some apps

10

Quanta Computer Inc.

To put Tablet on suspended mode

1. To press Power button while Tablet is ON

2. The tablet will go to Suspended Mode by Time out setting

To Resume the Tablet from suspended mode

1. To press Power button to resume the Tablet

2. To slide the lock icon in the right to “unlock” the system

11

Quanta Computer Inc.

To update the Tablet Firmware

SD Card update.

Notice to put the signed-shipping-ota-update.zip to MicroSD and insert to Device before excite below steps.

a. Go to App menu, select System Upgrade

12

Quanta Computer Inc.

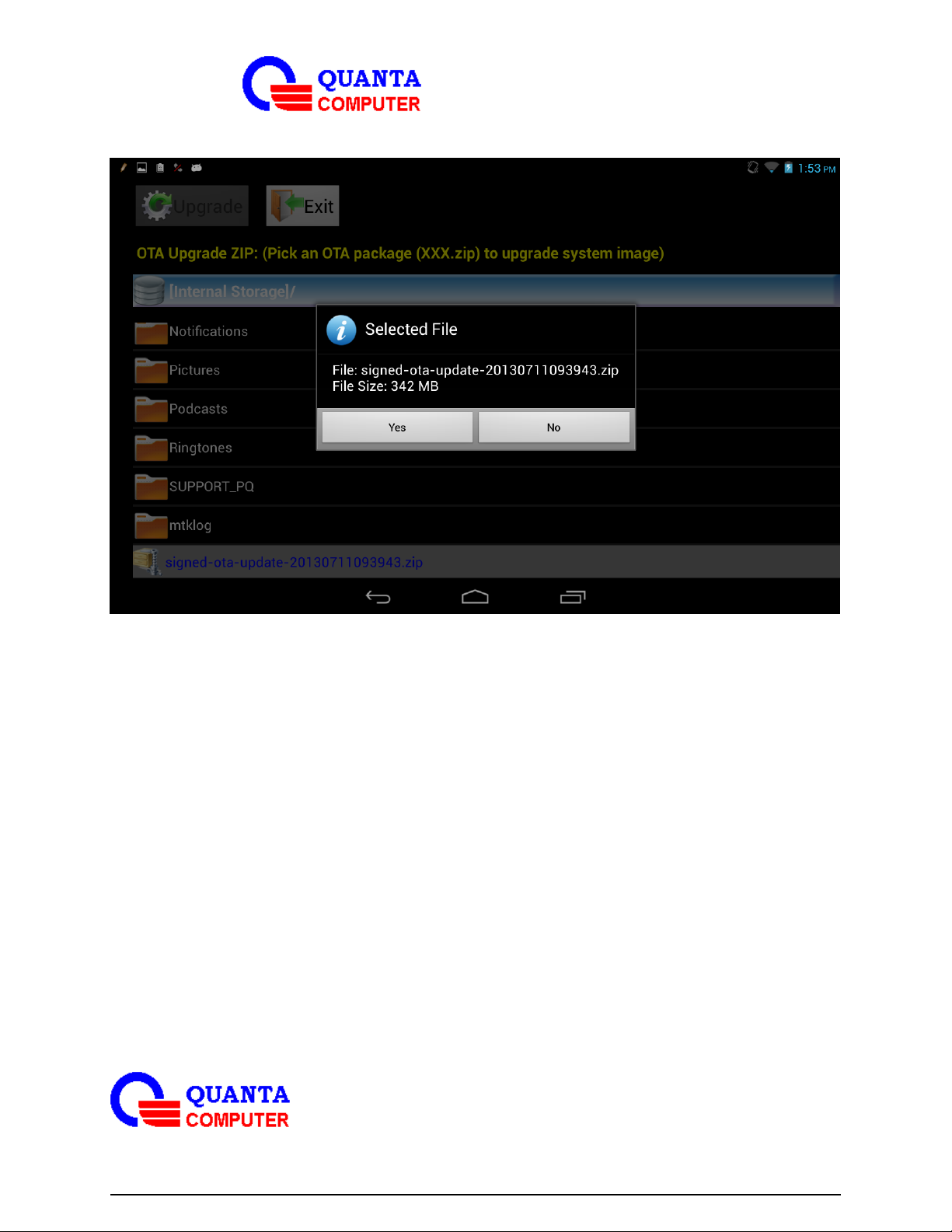

b. Select uSD > signed-shipping-ota-XXXXX.zip > Yes > Upgrade

c. System will reboot as below image, wait for update finish

13

Quanta Computer Inc.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

- EN 60950-1: 2006+A11:2009:+A1:2010+A12:2011

Safety of Information Technology Equipment

- EN 62479: 2010

Safety of Information Technology Equipment

- EN 50332-2: 2003

Safety of Information Technology Equipment

- EN 62209-2: 2010

Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures

-

- EN 62311: 2008

Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz) (IEC 62311:2007 (Modified))

EN 301 489-1 V1.9.2: 2008 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

EN 301 489-3 V1.4.1 2002 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz

EN 301 489-17 V2.2.1 2009 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

- EN 300 328 V1.7.1: 2006

14

Quanta Computer Inc.

Česky

[Czech]

[Jmé no výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Dansk

[Danish]

Undertegnede [fabrikantens navn] erklæ rer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væ sentlige krav og ø vrige relevante krav i direktiv 1999/5/EF.

Deutsch

[German]

Hiermit erklä rt [Name des Herstellers], dass sich das Gerät [Gerä tetyp] in Ü bereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlä gigen Bestimmungen der Richtlinie 1999/5/EG befindet.

Eesti

[Estonian]

Kä esolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüü p = type of equipment] vastavust direktiivi 1999/5/EÜ põ hinõ uetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sä tetele.

English

Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Español

[Spanish]

Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français

[French]

Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Italiano

Con la presente [nome del costruttore] dichiara che questo [tipo di

- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband

Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

-

- EN 300 440-1 V1.6.1: 2010

- Electromagnetic compatibility and Radio spectrum Matters (ERM); Short range

devices; Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part1: Technical characteristics and test methods

-

- EN 300 440-2 V1.4.1: 2010

- Electromagnetic compatibility and Radio spectrum Matters (ERM); Short range

devices; Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part 2: Harmonized EN under article 3.2 of the R&TTE Directive

0700

15

Quanta Computer Inc.

[Italian]

apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un

citiem ar to saistītajiem noteikumiem.

Lietuvių

[Lithuanian]

Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Nederlan

ds [Dutch]

Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentië le eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Malti

[Maltese]

Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

Magyar

[Hungarian]

Alulírott, [gyá rtó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ kö vetelmé nyeknek é s az 1999/5/EC irá nyelv egyé b elõ írá sainak.

Polski

[Polish]

Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami

Dyrektywy 1999/5/EC.

Portuguê s [Portuguese ]

[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposiçõ es da Directiva 1999/5/CE.

Slovensko [Slovenian]

[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

Slovensky [Slovak]

[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

Suomi [Finnish]

[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä ] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja

sitä koskevien direktiivin muiden ehtojen mukainen.

Svenska [Swedish]

Hä rmed intygar [fö retag] att denna [utrustningstyp] stå r I ö verensstä mmelse med de vä sentliga egenskapskrav och övriga relevanta bestä mmelser som framgå r av direktiv 1999/5/EG.

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

16

Quanta Computer Inc.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

This device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1and/or EN 50332-2 standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Logo

Warning statement: A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de l’utilisateur.

CE SAR Compliance

This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general public. These recommendations have been developed and checked by independent scientific organizations through regular and thorough evaluations of scientific studies. The unit of measurement for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the SAR limit is 2.0 W/ kg averaged over 10 gram of tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

The adapter shall be installed near the equipment and shall be easily accessible.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

17

Quanta Computer Inc.

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

18

Quanta Computer Inc.

Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.

Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

19
