Quanta Computer RIH6008 Users manual

DOOR WINDOW

Devices

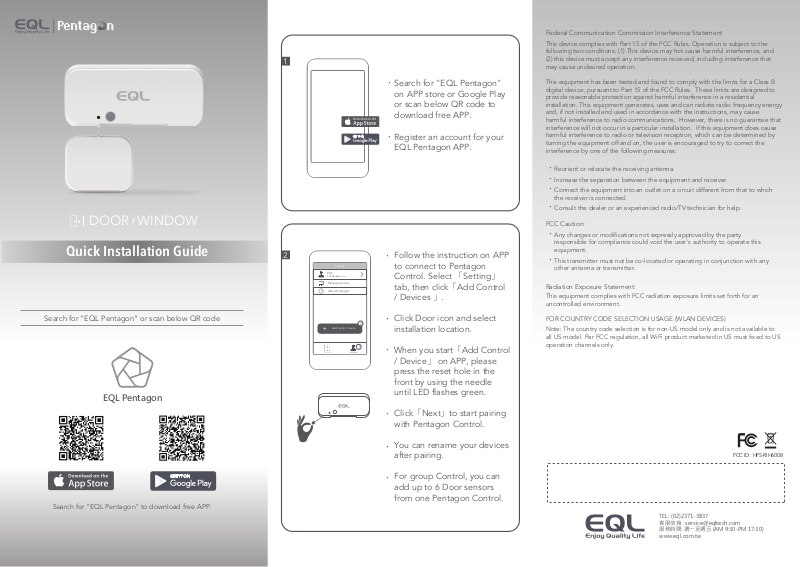

Quick Installation Guide

Search for “EQL Pentagon” or scan below QR code

EQL Pentagon

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and

1

•

Search for "EQL Pentagon"
on APP store or Google Play
or scan below QR code to
download free APP.

•Register an account for your

EQL Pentagon APP.

(2) this device must accept any interference received, including interference that
may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:

.

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

•Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this

2

Settings

EQL

[e-mail]

Manage devices

!

About Pentagon

2

Add Control / Device

1

Settings

Follow the instruction on APP

•

to connect to Pentagon
Control. Select 「Setting」
tab, then click「Add Control
/ Devices 」.

Click Door icon and select

•

installation location.

When you start「Add Control

•

equipment.

•This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.

FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)

Note: The country code selection is for non-US model only and is not available to
all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US
operation channels only.

/ Device」 on APP, please
press the reset hole in the
front by using the needle
until LED flashes green.

Click「Next」to start pairing

•

with Pentagon Control.

You can rename your devices

•

after pairing.

For group Control, you can

•

FCC ID : HFS-RIH6008

add up to 6 Door sensors

Search for "EQL Pentagon" to download free APP.

from one Pentagon Control.

TEL: [phone]

客服信箱 : [e-mail]
服務時間: 週一至週五 (AM 9:30-PM 17:30)
www.eql.com.tw
