FBG-1701 User instruction

FBG-1701 is touch panel controller that consist of CPU board, Carrier board, I/O board, LED
board, speaker and LCD screen with touch panel.

I/O board includes DC power jack, Primary RJ45 10/100/1G Ethernet with POE interface,
Secondary RJ45 10/100/1G Ethernet interface, 2x USB 3.0 interfaces and HDMI interface.
LED board includes LED, LED driver, digital microphone and NFC (NFC tag type 1-4)/Bluetooth
(4.0) controllers. FBG-1701 has the aspect ratio 16:10, operate from either Ethernet POE or DC
(Jack) power (12V to 24Vdc), less than 3W power consumption. Wall mounted brackets are
included to support mounting on the wall.

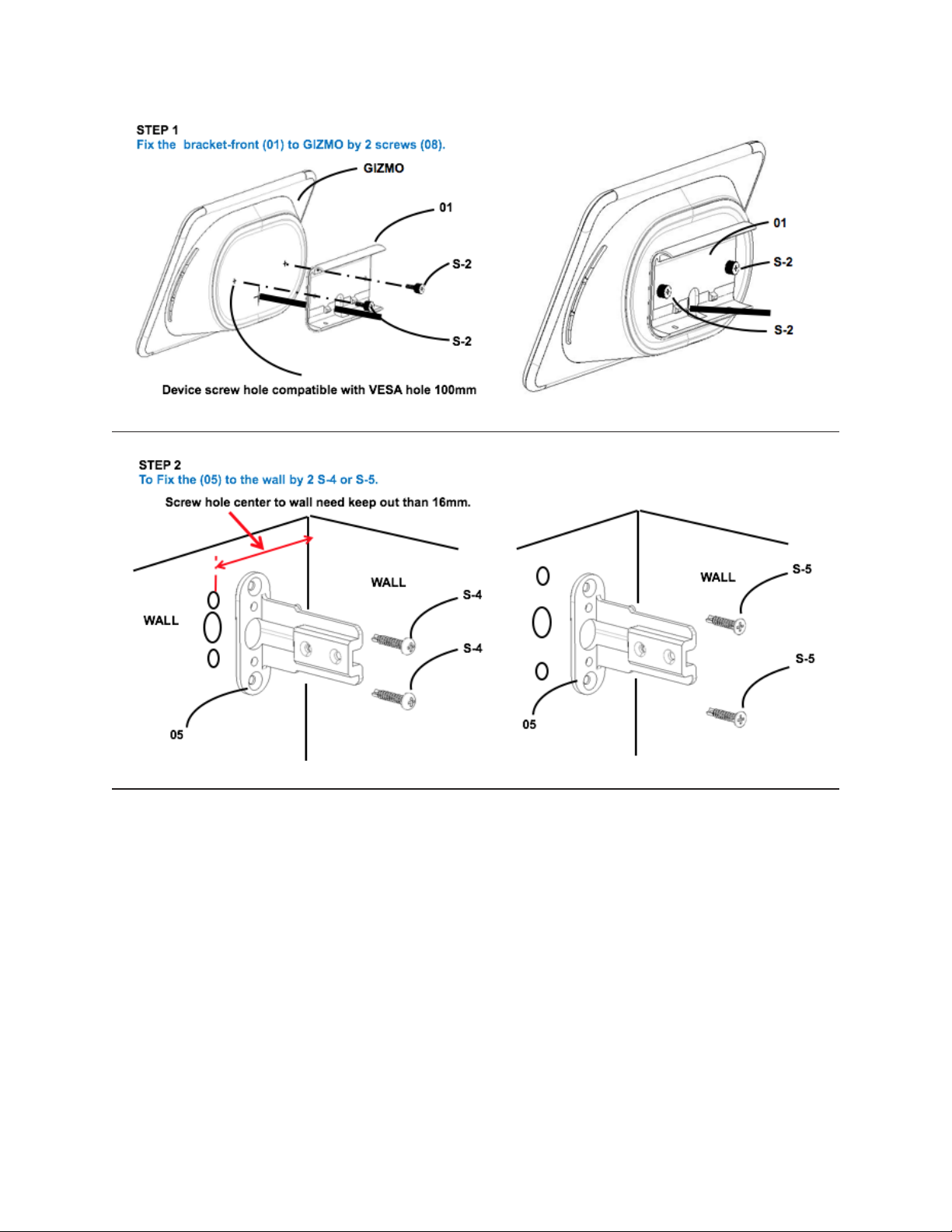

For Wall mount

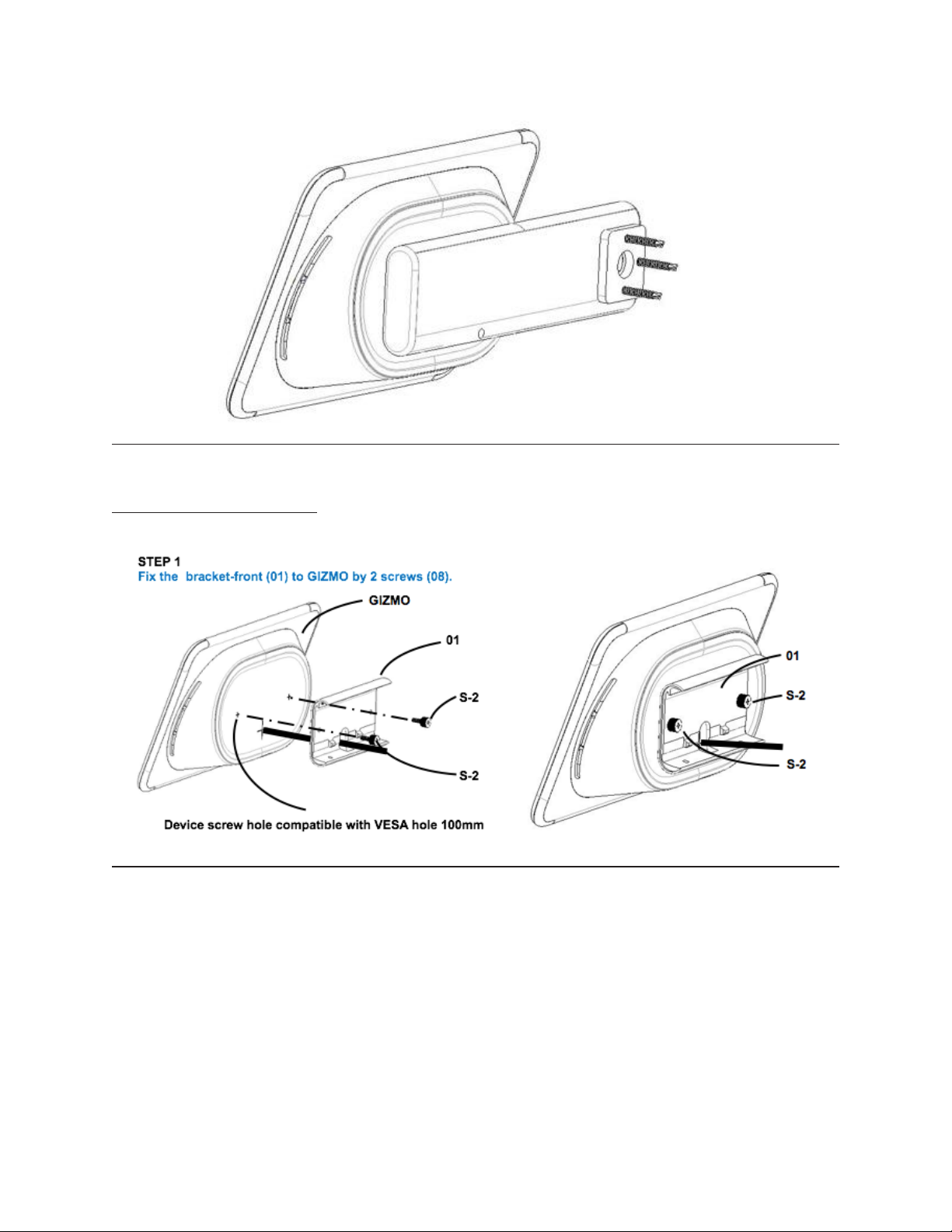

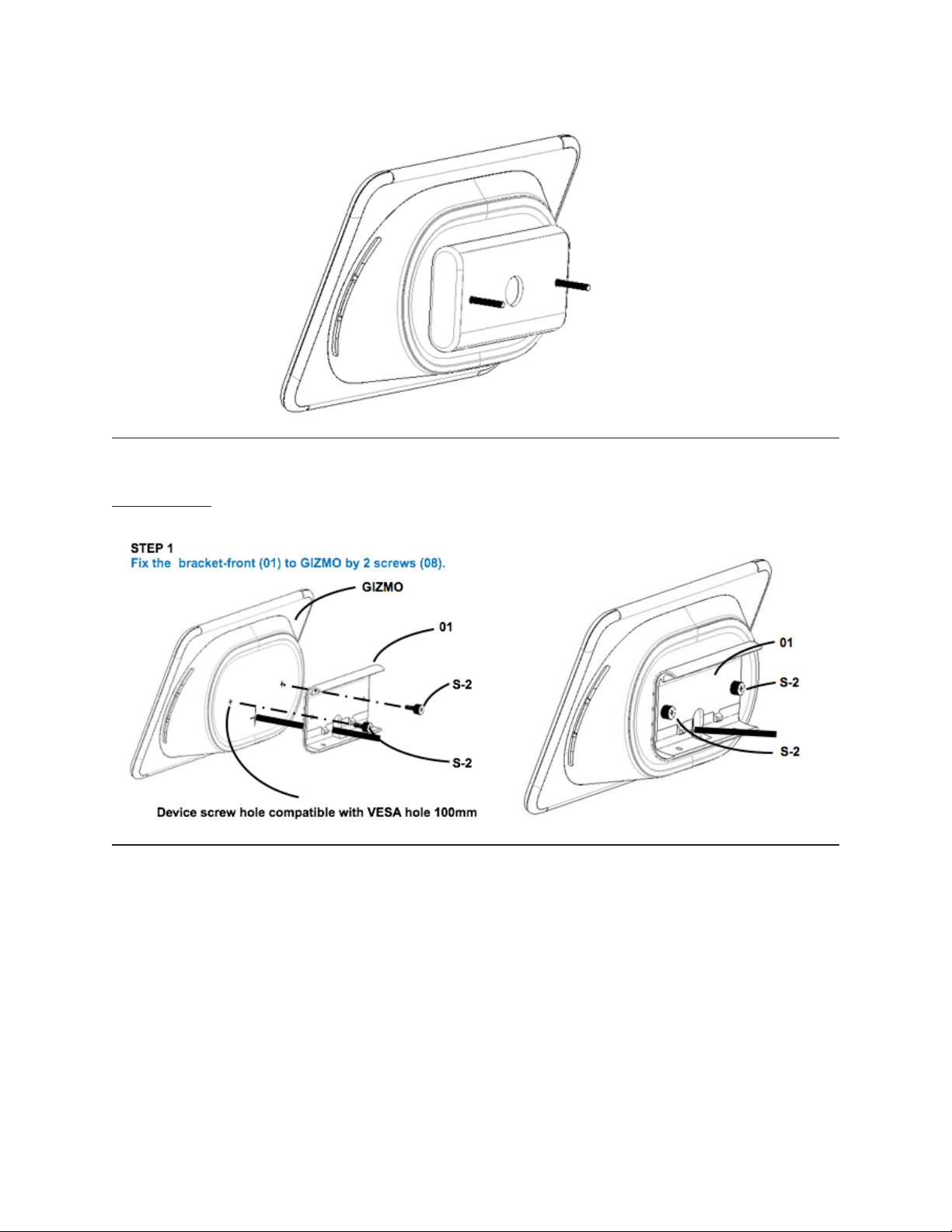

Bracket usuage –Side mount
