Quanta Computer NL User Manual

hiirr

Geenneerraattiioonn

IInntteell PPoowweerreedd CCllaassssmmaattee PPCC

User’s Manual

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

Limitation of Liability

While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein.

CCoonntteennttss

Before You Start .........................................................................................1

Attention: Teachers and Parents.............................................................................1

For Your Safety ...........................................................................................................1

Caring for Your Notebook.......................................................................................2

Regulatory Information .............................................................................. 3

Federal Communications Commission Notice.....................................................3

Modifications................................................................................................................3

Connections to Peripheral Devices........................................................................3

SAR Exposure..............................................................................................................4

Declaration of Conformity .......................................................................................4

European Notice.........................................................................................................4

Attachment Limitations Statement .........................................................................5

Power Cord Requirement ........................................................................................5

Battery Pack Safety.....................................................................................................6

Lithium battery warning / Bridge battery warning...............................................7

Touring the Notebook................................................................................ 9

Front..............................................................................................................................9

Left view .................................................................................................................... 10

Right view.................................................................................................................. 11

Back ............................................................................................................................12

Base............................................................................................................................. 13

Getting Started .........................................................................................14

Installing the Battery................................................................................................ 14

Charging the Battery............................................................................................... 15

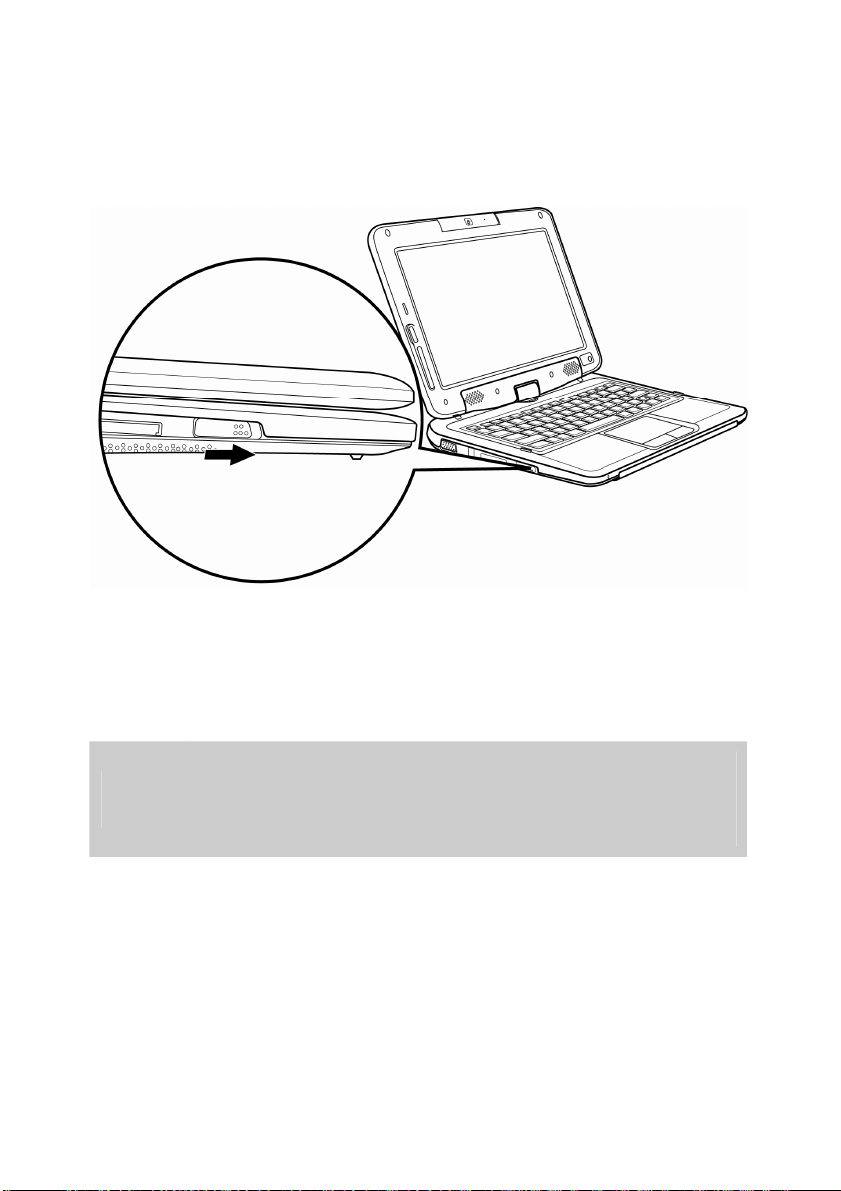

Opening the LCD Panel ......................................................................................... 16

Switching the Power On ........................................................................................ 16

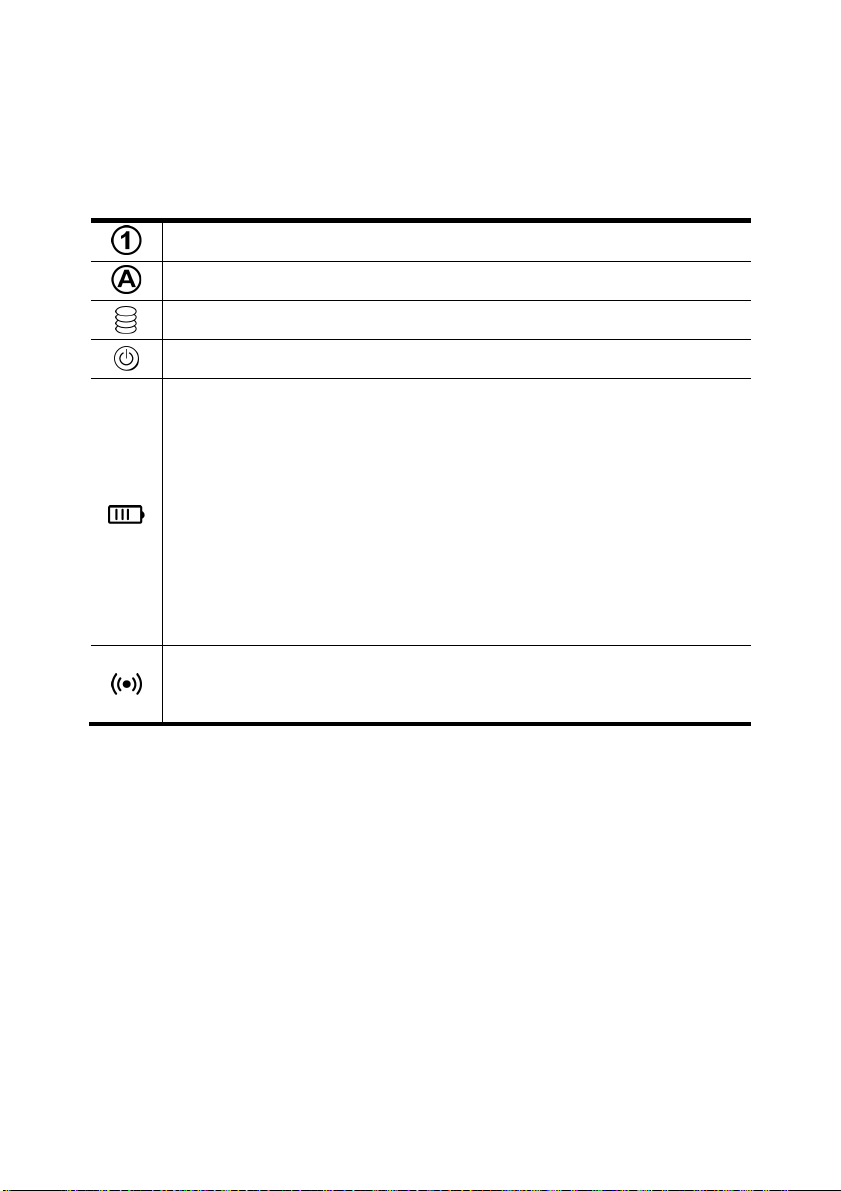

LED Status Indicators.............................................................................................. 18

Using the Notebook.................................................................................. 19

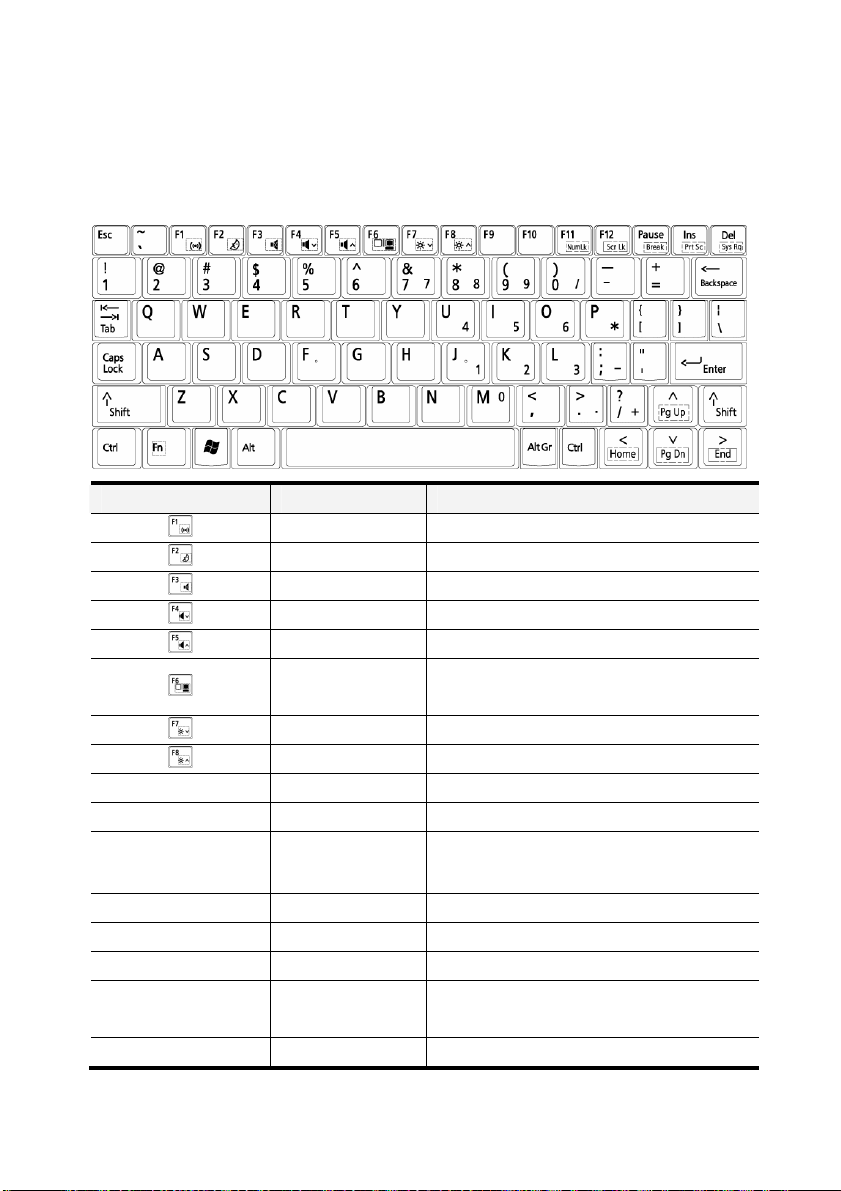

Using the Keyboard................................................................................................. 19

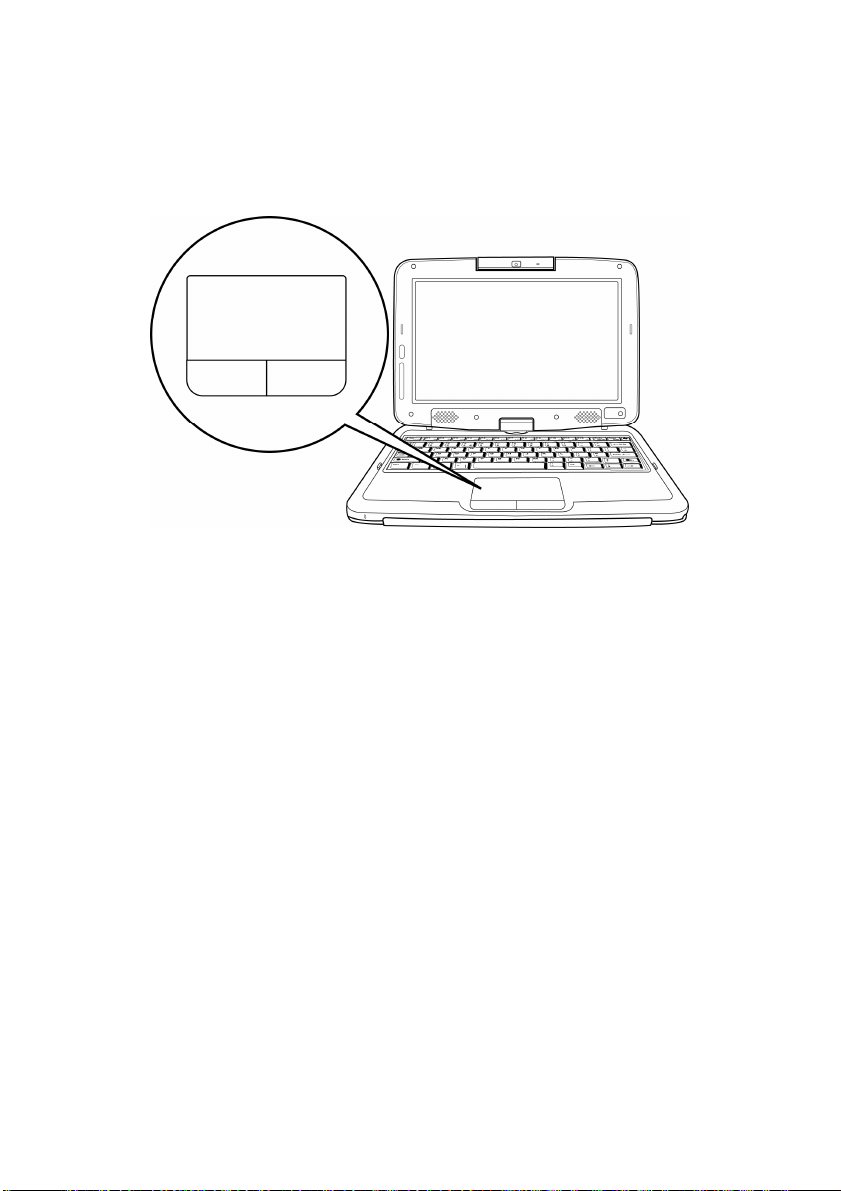

Using the Touch Pad............................................................................................... 20

Using the Touch Screen ......................................................................................... 21

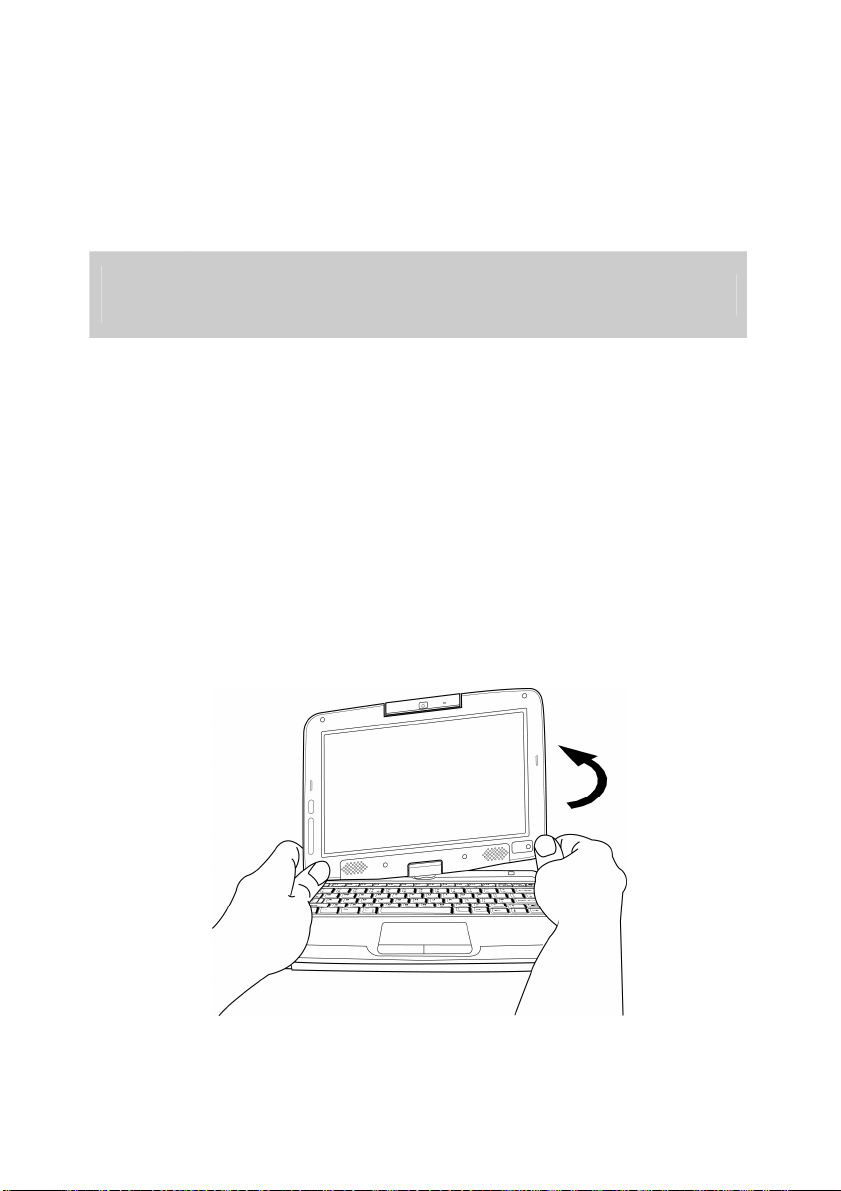

Rotating the Display Panel ..................................................................................... 21

Using the Web Camera.......................................................................................... 24

Conserving the Battery Power ............................................................................. 25

BIOS Setup ................................................................................................26

Entering BIOS Setup................................................................................................ 26

Main Setup................................................................................................................. 26

Advanced Setup........................................................................................................ 27

Security Setup........................................................................................................... 28

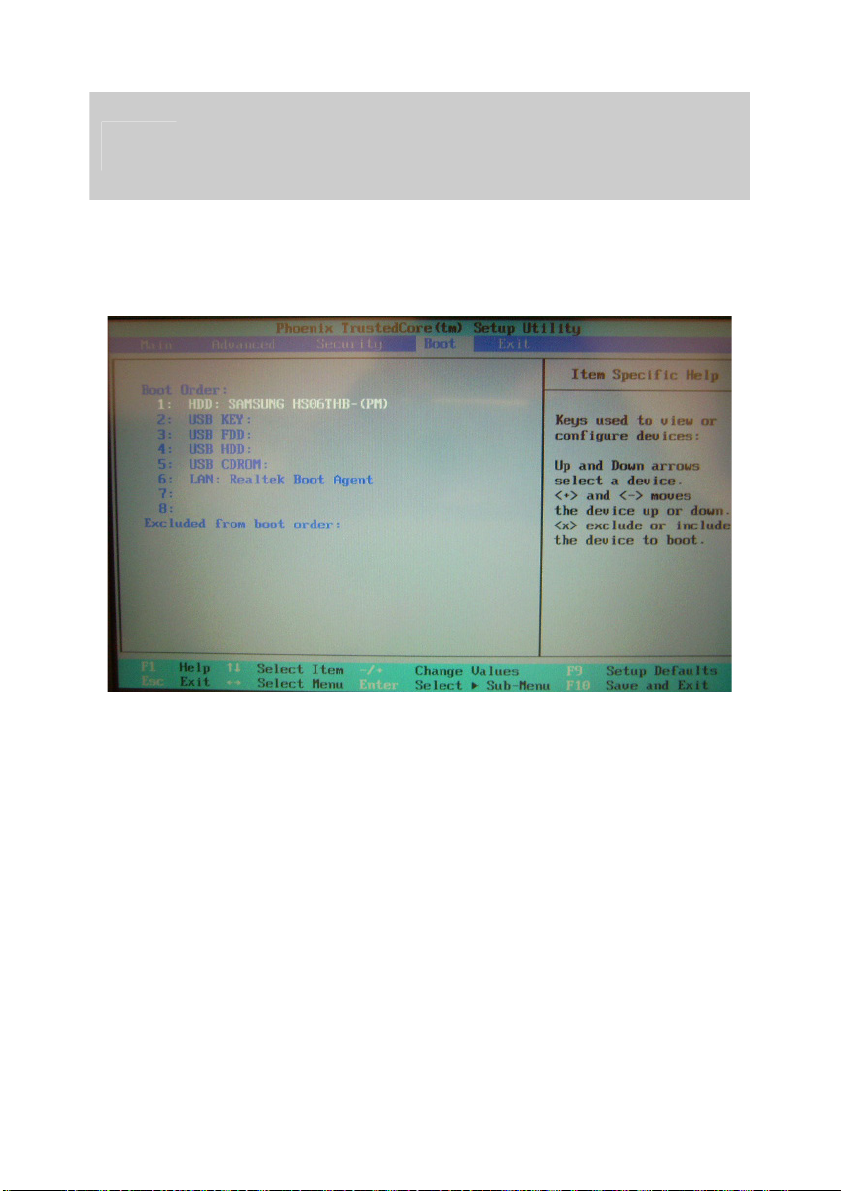

Boot Setup................................................................................................................. 29

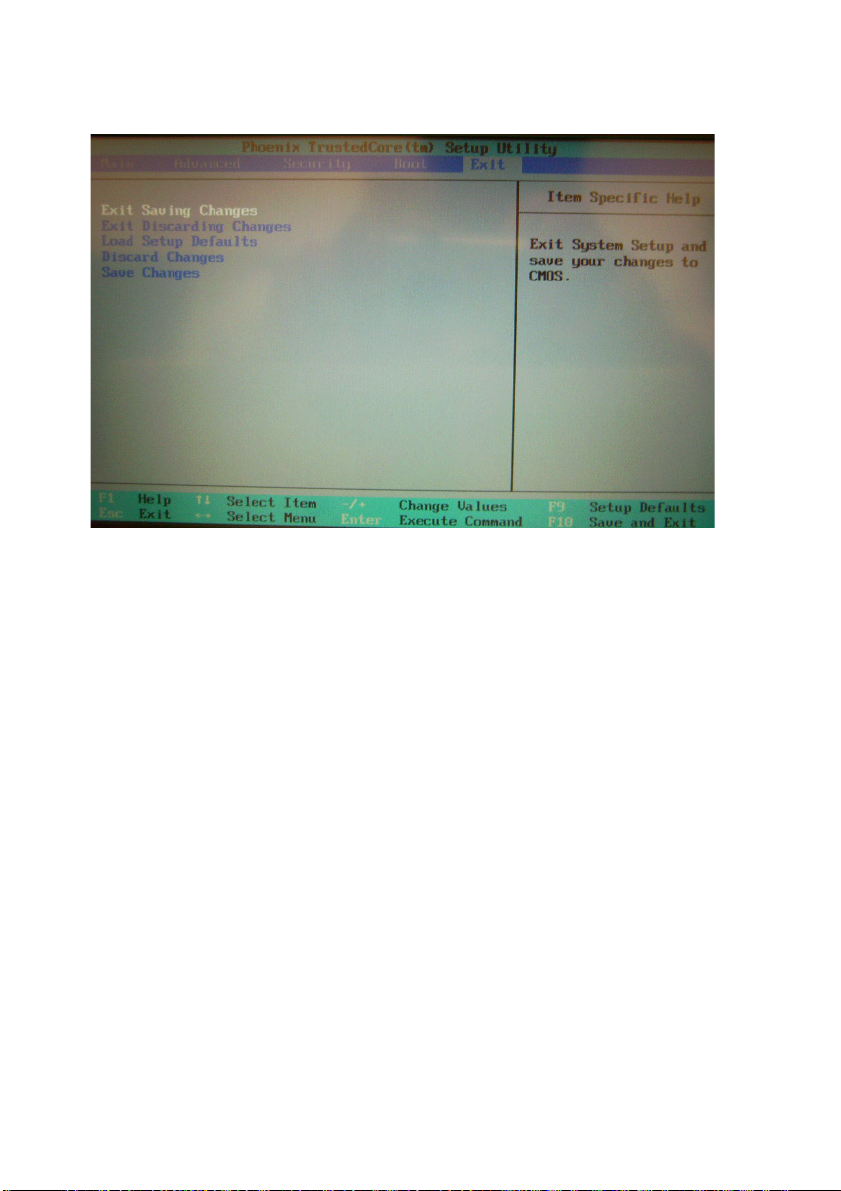

Exit Setup................................................................................................................... 30

Troubleshooting ........................................................................................ 31

Specifications ............................................................................................. 32

Index ........................................................................................................... 33

BBeeffoorree YYoouu SSttaarrtt

Attention: Teachers and Parents

This product is an educational tool designed for school age children, ages 6 and up. Make sure that students understand this product is an educational tool and not a toy.

Students must be supervised by an adult when using this notebook. Explain to students the safe and proper handling of the notebook, power supply, battery pack, and power cord.

Before students take the notebook home, instruct students to keep power cords, small accessories, and loose parts away from younger children at all times. Make sure students understand the warning label on the power cord. Emphasize to students that any damage to the notebook or loose parts should be reported immediately to a teacher or parent.

It is recommended that each session of use does not exceed thirty minutes, and that students should take at least a five minute break between each use.

To ensure the notebook is in good working condition, periodically inspect the notebook, power supply and power cord for damage, and replace if necessary.

For Your Safety

Before using in the classroom or home environment, make sure that students understand the following precautions:

• Do not drop, crush, or step on the notebook.

• Do not place objects or apply heavy pressure on the notebook.

• Do not place on uneven or unstable work surfaces.

• Do not block the openings provided for ventilation, as overheating may

occur.

• Do not use or store the notebook in extreme weather conditions.

• Do not expose to sudden changes in temperature or humidity: keep the

notebook away from heating and A/C vents.

• Do not expose to magnetic fields.

• Do not expose to direct sunlight.

• Do not place near fire or other sources of heat.

• Do not expose to rain or moisture.

• Do not leave the notebook turned on or plugged in when enclosed in a non-

vented container, such as a backpack, as overheating may occur.

Caring for Your Notebook

• Do not spray water or any other cleaning fluids directly on the display.

• Do not clean the notebook when it is plugged into a wall socket.

• Make sure the notebook is turned off before cleaning, and clean with a

slightly damp cloth.

• When you are not using the notebook, keep the LCD panel closed to protect the screen from dust.

• Make sure the touch pad does not come into contact with dirt, liquids, or grease.

• Use the AC adapter whenever an AC wall outlet is available to prolong the battery life and usage cycle.

RReegguullaattoorryy IInnffoorrmmaattiioonn

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Warning

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the Manufacturer may void the user’s authority to operate the equipment.

Connections to Peripheral Devices

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity

This device complies with Part 15 the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

European Notice

Products with the CE Marking comply with both the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) and R&TTE Directive (1999/5/EC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

• EN55022: 2006, CLASS B

• EN61000-3-2: 2006, CLASS D

• EN61000-3-3: 1995+A1: 2001+A2: 2005

• EN55024: 1998+A1: 2001+A2: 2003

• IEC61000-4-2: 2001 ED. 1.2

• IEC61000-4-3: 2006 ED. 3.0

• IEC61000-4-4: 2004 ED. 2.0

• IEC61000-4-5: 2005 ED. 2.0

• IEC61000-4-6: 2006 ED. 2.2

• IEC61000-4-8: 2001 ED. 1.1

• IEC61000-4-11: 2004 ED. 2.0

• EN 300 328-2, EN 300 328-1, EN 301 489-1, EN 301 489-17

(ETSI 300 328, ETSI 301 489) Electro-magnetic Compatibility and Radio Spectrum Matter.

• TBR21 (ETSI TBR21) Terminal Equipment.

• EN60950 (IEC60950) I.T.E. Product Safety

Attachment Limitations Statement

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution

Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

Power Cord Requirement

The power cord supplied with the AC adapter should match the plug and voltage requirements for your local area. Regulatory approval for the AC adapter has been obtained using the power cord for the local area.

However, if you travel to a different area and need to connect to a different outlet or voltage, you should use one of the power cords listed below. To purchase a power cord (including one for a country not listed below) or a replacement AC adapter, contact your local dealer.

U.S. and Canada

• The cord set must be UL/ETL-Listed and CSA-Certified or UL/C-ETL Listed.

• The minimum specifications for the flexible cord are (1) No. 18 AWG, (2)

Type SPT-2, and (3) 2-conductor.

• The cord set must have a rated current capacity of at least 7A.

• The attachment plug must be an earth-grounding type with a NEMA 1-15P

(7A, 125V) configuration.

Japan

• All components of the cord set (cord, connector, and plug) must bear a “PSE” mark and registration number in accordance with the Japanese Dentori Law.

• The minimum specifications for the flexible cord are: (1) 0.75 mm conductors, (2) Type VCT or VCTF, and (3) 3-conductor.

• The cord set must have minimum rated current capacity of 7 A.

• The attachment plug must be a two-pole, grounded type with a Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration.

Other Countries

• The cord set fittings must bear the certification mark of the agency responsible for evaluation in a specific country.

Acceptable agencies are:

• CCC (China)

• The flexible cord must be of a HAR (harmonized) type HO5VVF 3-

conductor cord with a minimum conductor size of 0.03 square inches.

• The minimum specification for the flexible cord for Class II product are:

(1) 2X0.75 mm

• The cord set must have a current capacity of at least 10 A and a nominal

voltage rating of 125 / 250 VAC.

Note: This model IS DESIGNED TO USE WITH THE

Manufacture: LI SHIN INTERNATIONAL ENTERPRISE CORP.

Manufacture: Delta

conductors, (2) 2-conductor cord.

FOLLOWING AC ADAPTER MODEL ONLY

Battery Pack Safety

• The battery pack is intended to use only with this notebook.

• The battery pack is not replaceable by the end user. Only qualified service

technicians should replace the battery pack.

• Do not disassemble the pack.

• Do not dispose of the battery pack in fire or water.

• To avoid risk of fire, burns, or damage to your battery pack, do not allow a

metal object to touch the battery contacts.

• Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte, wash the exposed area with soap and water. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention.

• Do not charge the battery pack if the ambient temperature exceeds 45°C (113°F).

• To obtain a replacement battery, contact your local dealer.

• Do not expose the battery pack to high storage temperatures (above 60°C,

140°F).

• When discarding a battery pack, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries.

• Use only supplied AC Adapter for charging.

Caution: Danger of explosion if battery is incorrectly replaced. Only

qualified service technicians should replace and discard the battery pack. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions or local laws.

Vorsicht: Explisionsgefahr bei unsachgernazen Austausch der Batterie.

Ersatz ur durch denselben oder einem vom Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des Herstellers.

Lithium battery warning / Bridge battery warning

This notebook contains a lithium battery to power the clock and calendar circuitry.

Caution: Danger of explosion if battery is replaced incorrectly.

Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Note: Il y a danger d’xplosion s’il y a remplacement incorrect de la

batterie. Remplacer uniquement avcc unc batterie du meme type ou d’un type recommande par le constructer. Mettre au rebut les batteries usages conformement aux instructions du fabricant.

Vorsicht: Explosionsgefahr bei unsachgemBen Austausch der Batterie

Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 betragt 70dB (A) oder weniger.

Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden. Fur einen Nennstrom bis 6A und einem Gerategewicht groBer 3kg ist eine Leitung nicht leichter als (1) H05VV-F, 3G, 0.75mm einzusetzen.

Die Steckdose muB nahe dem Gerat angebracht und leicht zuganglich sein.

Caution: This part is hot. Be careful.

Vorsicht: Diese Flachewird sehr heiss.

When you see this symbol, be careful as this spot may be very hot. The heat is generated from the CPU.

(2) 2X0.75 mm2 conductors
