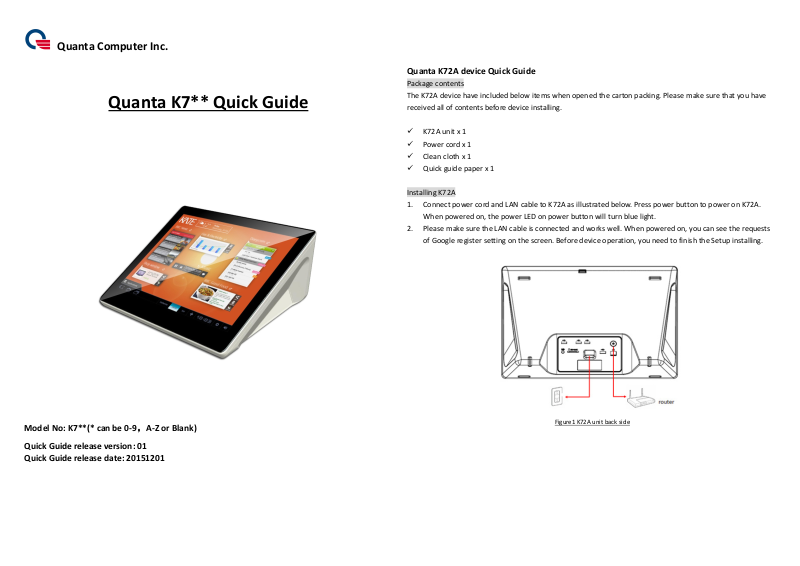

Quanta K7** Quick Guide
Quanta K72A device Quick Guide
Package contents
The K72A device have included below items when opened the carton packing. Please make sure that you have
received all of contents before device installing.
K72A unit x 1
Power cord x 1
Clean cloth x 1
Quick guide paper x 1
Installing K72A
1. Connect power cord and LAN cable to K72A as illustrated below. Press power button to power on K72A.
When powered on, the power LED on power button will turn blue light.
2. Please make sure the LAN cable is connected and works well. When powered on, you can see the requests
of Google register setting on the screen. Before device operation, you need to finish the Setup installing.
Model No: K7**(* can be 0-9，，，，A-Z or Blank)
Quick Guide release version: 01
Quick Guide release date: 20151201
Figure1 K72A unit back side
Quanta Computer Inc.
f panel area, there is a hole
There is a camera module in the middle of Top panel area.
Use volume up and down keys to adjust the volume.
K72A
function
AC in/SD card slot/AC power jack/USB/LAN/Power button
HDMI port and USB Jack port *2 are exclusive option.
K72A
. Adjust view angle upward or downward with the adjust knob on
at I/O plate o
Set
When
language
nter the initia
for next step.
ho
Getting to know K72A
Front side introduction
1. On the top o
2.
3. Volume keys
4. Home/wake-up key
Press the home key to wake up
5. LED light for apps indication
for microphone function.
from standby mode and go back to
home page.
Figure 3
Back side introduction
1. Camera tilt knob
K72A camera only support tilt
the back of the camera.
2.
3.
Figure 2
were displayed
n the back of device.
Initial
1.
up K72A
the device is powered on, you will e
and then press “Start” key
l set-up screen in the beginning. C
ose your
Quanta Computer Inc.
item or you can s
account, you can fill in data at
If you do not have Google account, you can get an account now. Or you can
”
step. Or you can choose
choose
You can finish
Please set up you Date & time
Type in y
Press next step for confirm
2. Select your “Wi-Fi”
kip it and set up in the future.
6.
“Sign in” settings at this step.
3. If you have Google
4.
this
“NO” item for next step.
“Not now” to skip.
7.
8.
.
our name or keep empty for next step.
5. Please finish “Google & location
” settings at this step.
9.
ing “Google services”
Quanta Computer Inc.
device initial
initial Setup process. Now, you can start to enjoy the entertainments which were brought from
, you have just finished
How to use
When
This is
When
to enter
ou can
enter APPS screen.
K72A
10. Press “Finish” to complete
device.
Setup process. Congratulation
K72A device
K72A
1.
2.
you see this screen picture, press “OK”
the default home screen figure
home screen for further operations.
3.
you want to find other installed apps, y
press the
apps icon to
Quanta Computer Inc.
You can search for all Apps item
Key to return last action
When you are in other operation
Key to return Home screen
When you want to find the recent apps
You can press
You can find
which visited before
to enter more setting
WIRELESS & NETWROKS/DEVICE/PERSONAL
on the screen and adjust your settings.
4. This is APPS screen.
5. WIDGETS screen
s in this screen.
8.
9.
this icon
, you can press “Recent” Key.
s.
6. You can press “Back”
7.
during the operations.
s screen, you can also press “Home”
10.
.
“
” settings
Quanta Computer Inc.
K72A device spec list
CPU
System Memory
Embedded Storage
LCD
Touchscreen
I/O ports
K72A
Rockchip RK3188 ,Quad-core Cortex A9 1.6G
DDR3, 2G Bytes
e-MMC 16G Bytes
15.6” TFT LCD N156BGE-E32 with LED Backlight unit, 1366 x 768, eDP I/F
Fortrend 15.6" CAP touch panel, 10 point multi-touch
USB x1 (2.0)
USB x2 (2.0) (replaced with HDMI-in x1)
micro-USB x1 (OTG)
HDMI-in x1 (replaced with USB x2)
Ethernet RJ45 x1
micro-SD x1
PWR Keyx1
3.5mm Headset Jack x1
Internal Mic
AC to DC Power Module
Button/Switch
Indicators
Power
Impedance : 4 Ω
Fo = 140±28 Hz
Frequency : Fo~20k Hz
SPL = 77±3dB@1W,1Meter
Omnidirectional analog x1
Sensitivity : -32dB±3
Output impedance : 2.2k Ω
Frequency: 100 ~ 20k Hz
Embedded; 19V/1.58A
Power Switch x1 with blue LED on rear I/O
Call button with capacitive switch on front panel
Volume key (up/down) with capacitive switch on front panel
Call button Light(White)
Power-on Light(Blue)
Breath Light(Blue/Green/Orange)
Input 100~240V~1.1A, 50/60Hz
WiFi
Bluetooth
NFC
Card Reader
Sensor
Camera
Power Jack x1
802.11b/g/n
Bluetooth 4.0, Compatible with BT3.0, BT2.1+ EDR. Not support Bluetooth
3.0HS.
NFC reader
Micro SD
Compatible with SD3.0, MMC ver4.41
Max. Capacity: 64G Bytes
G-sensor x1
Light Sensor x1
CMOS 1/3.2" Sensor OV5680
5M (2592 x 1944), auto-focused
Up-Down Tilt
Output image format: H.264, VP8, MJPG, YUV
Frame rate: 30fps
Audio Codec
Realtek ALC5639
Class D Amp
Speaker
TI TPA3113D2PWPR
Speaker (L/R) 5 Watt x2
