Operating Instructions EB-GD55
Digital Cellular Phone
Before operating this equipment please read these instructions
completely.
FCC Regulations
Conditions of Use
Operation of this Panasonic mobile phone is subject to the following two
conditions; (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference
that may cause undesired operation.
This Panasonic mobile phone generates, uses and can radiate radio
frequency energy and, if not in stalled and used in accordance with the
instructions, may cause harmful interference to radio communications. If
this device does cause harmful interference to radio or television
reception, which can be determined by turning the device on and off, the
user is encouraged to try to correct the interference by one or more of the
following measures:
1). Reorient or relocate the receiving antenna.
2). Increase the distance between the device and receiver.
3). Connect the device into an outlet on a circuit different from that to
which the receiver is connected.
4). Consult the dealer or an experienced radio/TV technician for help.
The radiated output power of this internal wireless radio is far below the
FCC radio frequency exposure limits. Nevertheless, the wireless radio
shall be used in such a manner that the radio is 2.5 cm or further from the
human body. However, the user of wireless radios may be restricted in
some places or situations, such as aboard airplanes. If you are unsure of
restrictions, you are encouraged to ask for authorization before turning on
the wireless radio. Several restrictions and cautions of using mobile
phone are listed in the Important Information.
Contents
Important Information
Care and Maintenance ･････････････････････････････････････････････････････････ ii
Quick Reference･･･････････････････････････････････････････････････････････････ 1
Location Of Controls････････････････････････････････････････････････････････････ 1
Display Icons ･･････････････････････････････････････････････････････････････････2
Getting Started ････････････････････････････････････････････････････････････････ 3
Basic Operation ･･･････････････････････････････････････････････････････････････ 5
Switching the Phone On/Off ･････････････････････････････････････････････････････ 5
Making a Call･･････････････････････････････････････････････････････････････････ 5
International Dialling････････････････････････････････････････････････････････････ 5
Answering a Call ･･･････････････････････････････････････････････････････････････ 5
Ending a Call ･･････････････････････････････････････････････････････････････････ 5
Emergency Calls･･･････････････････････････････････････････････････････････････ 6
Initially Setting the Time/Date････････････････････････････････････････････････････ 6
Accessing the Phonebook to Dial･････････････････････････････････････････････････ 6
Earpiece Volume Control････････････････････････････････････････････････････････ 6
SIM Lock･･････････････････････････････････････････････････････････････････････ 6
Using the PIN･･････････････････････････････････････････････････････････････････ 7
Setting Alert Type ･･････････････････････････････････････････････････････････････ 7
Key Guard ････････････････････････････････････････････････････････････････････ 7
Phonebook ･･･････････････････････････････････････････････････････････････････ 8
Browsing Phonebook ･･･････････････････････････････････････････････････････････ 8
Creating a Number･････････････････････････････････････････････････････････････ 8
Grouping Phonebook Entries ････････････････････････････････････････････････････ 9
Reviewing the Phonebook･･････････････････････････････････････････････････････ 10
Hot Key Dial Numbers ･････････････････････････････････････････････････････････ 10
My Numbers･･････････････････････････････････････････････････････････････････ 10
Personalising Your Phone
Language ････････････････････････････････････････････････････････････････････ 10
Changing the Ring Tones ･･････････････････････････････････････････････････････ 11
Display Setting････････････････････････････････････････････････････････････････ 12
Profile Mode･･････････････････････････････････････････････････････････････････ 12
User Messages ･･･････････････････････････････････････････････････････････････ 12
Defaults･･････････････････････････････････････････････････････････････････････ 12
Own Menu ･･･････････････････････････････････････････････････････････････････ 13
My Phonebook････････････････････････････････････････････････････････････････ 13
Game (STK)･･････････････････････････････････････････････････････････････････ 14
Text Messages ･･･････････････････････････････････････････････････････････････ 14
Setting the Phone for Short Text Messages･･･････････････････････････････････････ 14
Setting the Message Centre Number ････････････････････････････････････････････ 14
Creating a Text Message･･･････････････････････････････････････････････････････ 15
T9 Text Input ･････････････････････････････････････････････････････････････････ 16
Other Text Modes･････････････････････････････････････････････････････････････ 16
Editing Text ･･････････････････････････････････････････････････････････････････ 17
Receiving Text Messages ･･････････････････････････････････････････････････････ 17
User Messages ･･･････････････････････････････････････････････････････････････ 17
Review ･･････････････････････････････････････････････････････････････････････ 17
Parameters･･･････････････････････････････････････････････････････････････････ 17
Broadcast････････････････････････････････････････････････････････････････････ 18
Key Guard ･･･････････････････････････････････････････････････････････････････ 18
Browser ･････････････････････････････････････････････････････････････････････ 19
Browser Setting･･･････････････････････････････････････････････････････････････19
Browser Menu ････････････････････････････････････････････････････････････････ 20
Phone Menu ･････････････････････････････････････････････････････････････････ 20
Call Service ･･････････････････････････････････････････････････････････････････ 20
･･･････････････････････････････････････････････････････････
･････････････････････････････････････････････････････
10
i
Diverting Calls ････････････････････････････････････････････････････････････････21
Restricting Calls･･･････････････････････････････････････････････････････････････22
Network･･････････････････････････････････････････････････････････････････････22
Application･･･････････････････････････････････････････････････････････････････23
Game････････････････････････････････････････････････････････････････････････23
(STK) ････････････････････････････････････････････････････････････････････････23
Schedule･････････････････････････････････････････････････････････････････････23
Clock ････････････････････････････････････････････････････････････････････････23
Calculator ････････････････････････････････････････････････････････････････････24
Currency ･････････････････････････････････････････････････････････････････････ 25
Records･･････････････････････････････････････････････････････････････････････ 26
Last Dialled Numbers and Redial････････････････････････････････････････････････26
Erase Records････････････････････････････････････････････････････････････････26
In Call Menu･･････････････････････････････････････････････････････････････････ 26
Holding Calls ･････････････････････････････････････････････････････････････････26
Call Waiting･･･････････････････････････････････････････････････････････････････27
Hands Free･･･････････････････････････････････････････････････････････････････27
Accepting/Rejecting a Second Call･･･････････････････････････････････････････････27
Conference ･･････････････････････････････････････････････････････････････････27
Call Transfer･･････････････････････････････････････････････････････････････････27
Menu Structure ･･･････････････････････････････････････････････････････････････28
Trouble Shooting ･････････････････････････････････････････････････････････････ 29
WAP Settings･････････････････････････････････････････････････････････････････ 31
Important Information
Safety Considerations
The following information should be read and understood as it provides
details which will enable you to operate your phone in a manner which is
both safe to you and your environment, and conforms to any legal
requirements regarding the use of cellular phones.
This equipment should only be charged with approved charging
equipment. Other usage will invalidate any approval given to this
apparatus and may be dangerous. Ensure the voltage rating of the
Fast Travel Charger is compatible with the area of use when
travelling abroad.
Switch off your cellular phone when in an aircraft. The use of
cellular phones in an aircraft may be dangerous to the operation of
the aircraft, disrupt the cellular network and may be illegal. Failure
to observe this instruction may lead to the suspension or denial of
cellular phone services to the offender, or legal action or both.
Do not incinerate or dispose of the battery as ordinary rubbish.
The battery must be disposed of in accordance with local
legislation and may be recycled.
It is advised not to use the equipment at a refuelling point. Users
are reminded to observe restrictions on the use of radio equipment
in fuel depots, chemical plants or where blasting operations are in
progress. Never expose the battery to extreme temperatures (in
excess of 60°C) or charge the battery for much longer than
recommended.
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing aids.
i
Care and Maintenance
Pressing any of the keys may produce a loud tone. Avoid holding
the phone close to the ear while pressing the keys.
Extreme temperatures may have a temporary effect on the
operation of your phone. This is normal and does not indicate a
fault.
Do not modify or disassemble the equipment. There are no user
serviceable parts.
Do not subject the equipment to excessive vibration or shock.
Avoid contact with liquids. If the equipment becomes wet
immediately remove the power and contact your dealer.
Do not leave the equipment in direct sunlight or a humid, dusty or
hot area.
Keep metallic items that may accidentally touch the terminals
away from the equipment.
Always charge the battery in a well ventilated area, not in direct
sunlight, between +5°C and +35°C. It is not possible to recharge
the battery if it is outside this temperature range.
When disposing of any packing materials or old equipment check
with your local authorities for information on recycling
ii
Quick Reference -----------------------------------
dKey
Quick Reference
Location of Controls
Receiver
Display
Charger
Connector
Navigation Key: moving up and down through the options
in the display area. In idle mode, pressing to enter Own
Menu. Own Menu is a shortcut to access your favourite
Perform the functions indicated by text shown on the LCD
- - Numeric key pads. Long Press
When you need to dial an extension number, dial the
phone number firstly then long press to add a “P” and
enter the extension number.
Make a call or answer a call. In idle mode, check the last
menus. You can set it in the Personalise.
screen. In idle, long press right soft key to enter Messages,
long press left soft key to enter Profile Mode List.
dialled list.
Phone Jack
Soft Key
Answer Key
Navigation Key
Special Character Keys
Soft Key
to enter a “+” or “P”.
En
1
Selectio
ea
To end a call, return to idle mode, return to previous page
or reject an incoming call. Long press it to switch the phone
on/off.
In idle, long press to activate Browser.
In idle, long press to switch the Mute Mode on and off.
n Ar
Main Display
Right Hand Selection
Display Icons
Status Icons
Left Hand
Status Icons
The status icons are displayed or animated according to the currently
activated functions. The Antenna, Signal and Battery icons are displayed
when the handset is switched on and connected to a network.
is displayed when you are registered to a non-home network –
roaming.
is displayed when call divert is enabled.
is displayed when vibration alert is enabled.
is displayed when all tones or ring volume is off.
flashes when an unread message is stored or lights when
message area is full.
is displayed when Key Guard is enabled.
indicates that it is possible to make emergency calls.
indicates the received signal strength.
indicates the battery level: - low battery.
Indicates the alarm is set.
2
Getting Started
Removing the Battery
Open the battery by moving the
release-latch upward and remove the
battery away. Please see the left
pictures.
Note: Before removing the battery, turn the phone off completely.
Fitting the SIM
The SIM is inserted into the back
of the phone underneath the
battery. Hold the phone in a
horizontal position where the
antenna is on your right hand
side and slide the SIM into the slot, with the metal connectors facing down.
Ensure that the bevelled corner is positioning in the top left corner. Please
see pictures above.
Fitting the Battery
Locate the two lugs at the bottom of the battery into the
back of the phone. Slightly push the battery and click
into place. Please see the left picture.
Charging the Battery
Insert the charger into the base of the phone and connect the travel
charger to the socket-outlet. Then the charger indicator bar will start
scrolling. It is recommended to charge 4 hours before first use.
Battery Level Indicator
While charging Charging complete
Phone on
Phone off
When charging is completed, disconnect the charger from the phone.
LCD Battery
Indicator Off
3

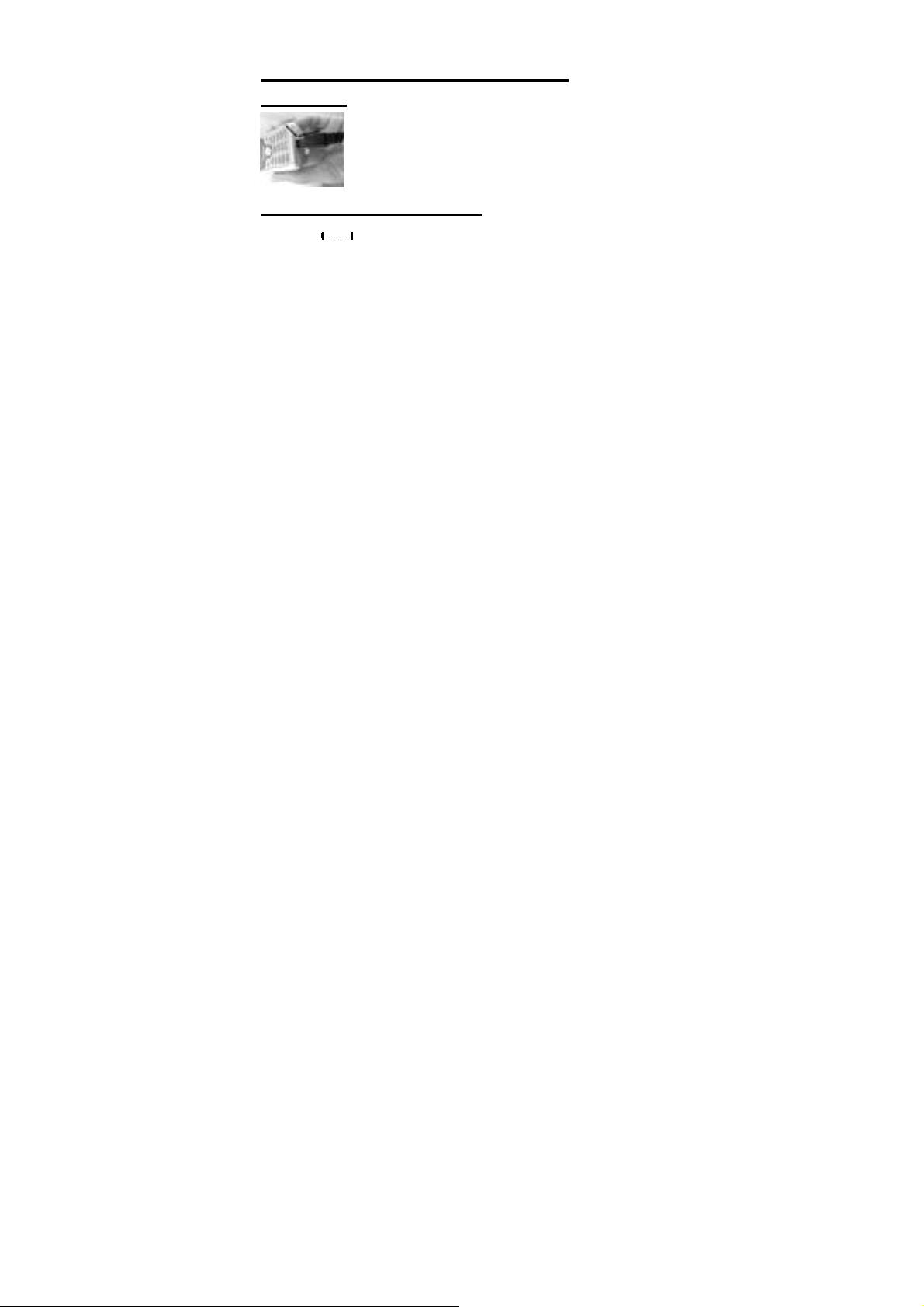

Disconnecting the Fast Travel
Charger
Disconnect the charger from the main power supply.
Pull downward charger plug to release it from the base
of the phone. Please see the picture.
Low Battery Warning
When the battery power is low a warning tone will sound and a LOW
BATTERY ( )message will be displayed. If this occurs during
conversation, finish your call immediately. The power will automatically
shut off after the warning tone. Fully recharge the battery. (Calls can be
made and received while the phone is charging). It is recommended that
the battery is fully discharged to maintain an optimum battery life and
performance. See “Charging the Battery” page 3.
4
Basic Operation -----------------------------------
Basic Operation
Thank you for purchasing this Panasonic digital cellular phone. This
phone is designed to operate on the Global System for Mobile
Communications (GSM), GSM900 or GSM1800 and 1900.
Before operating this phone please read the ‘‘Important Information’’
section - see page i.
Switching the Phone On/Off
Be sure to insert the SIM card and battery beforehand. Long press
to switch the phone on or off.
Making a Call
Ensure that the signal strength meter shows network coverage is
available in the current area.
Enter the area code > phone number >
International Dialling
Idle + Hold until ‘‘+’’ is displayed > Enter a country code > area code
> phone number
Note: Many countries / regions include an initial ‘’0’’ in the area code.
This should, in most cases, be omitted when dialling international
numbers.
Answering a Call
to answer a call or to reject the call.
If a call is not answered, the number of incoming calls missed will be
displayed.
Ending a Call
Press .
5
Emergency Calls
To make an emergency call the antenna symbol must be presented.
Enter 112 or if no SIM is fitted to the phone, press SOS to make an
emergency call.
Initially Setting the Time/Date
You can set time and date displayed on the idle screen.
Idle > Menu > Application > Clock > Clock Setting > Time &
Date > Set to set time and date. Here is a step by step explanation for
your reference. All instructions in this menu will be presented by symbol >.
<Step Instruction> From Idle mode, press Menu and use to
navigate Application, press Select and use again to highlight
Clock. Press Select and use cursor to highlight Clock Set t ing,
press Select and use to select Time & Date. Press and
Set to the editing screen
and use to move cursor to
modify.
You can choose the date and
time format. Enter the digits
for the date and time in the format you like. Enter the digits for the time
using 24 hour clock. Press OK return to the previous page.
Accessing the Phonebook to Dial
You can access to the phonebook to browse or dial numbers.
Idle > Names > (searching a name) >
Earpiece Volume Control
During a call, use to decrease or increase the volume.
SIM Lock.
Once you set this function with your SIM card in it, this phone can only
recognize your SIM. When other SIM card inserts, the phone code is
needed to enter.
6
Idle > Menu > Phone Menu > Security > SIM Lock > Enter 4 – 8 digital
phone code > OK > Set (select On or OFF) > OK.
To set SIM Lock, set “Phone Code” in the Phone Lock menu.
Using the PIN(4 to 8 digits)
The PIN (Personal Identification Number) protects your SIM against
unauthorized use. If you enable the PIN, every time the phone is turned
on you will be prompted to enter the PIN.
The PIN2 controls security for the Fixed Dial and Call Charge metering.
If either PIN/PIN2 is entered incorrectly 3 times the phone will be locked
and then you will need to enter the PUK/PUK2 code. Contact your sevice
provider for the PUK/PUK2 code.
Note: If the PUK/PUK2 code is entered incorrectly 10 times, the SIM
will cease to operate permanently. All information sorted in the SIM w ill be
lost and the SIM will need to replaced. Contact your service provider for
more details.
Enabling/Disabling the PIN
Once you enable the PIN, you have to enter the PIN whenever you switch
the phone on.
Idle > Menu > Phone Menu > Security > Codes > PIN Control >
Enter PIN (Between 4 and 8 digits) > OK > Set (Select On or Off) > OK
Setting Alert Type
When required, the phone can be set up to vibrate or ring when a call is
received. Idle > Menu > Personalise > Alert Type Choose one type
from None, Ring & Vibration, Vibration only or Ring only.
Key Guard
This function can avoid you from pressing the keypad accidentally, such
as in the packet or purse.
Idle > Menu > Key Guard > Yes
After that, there will be a shown on the idle display.
Disable the Key Guard: Idle > Free > OK
7
Phonebook ----------------------------------------
Phonebook
It is possible to store phone numbers in two locations:
One is in the SIM Phonebook. The other one is in the Mobile Phonebook
which means that if you change the SIM, the numbers in the phone will not
lose.
The Mobile Phonebook has an advantaged function that you can group
your phonebook entries together. Details please see Creating a Number
(3B) below.
Browsing Phonebook
You can browse SIM Phonebook and Mobile Phonebook.
1 Idle > Menu > Phonebook > Browse > SIM Phonebook or
Mobile Phonebook
2 Search the name you wish to browse.
3 If you browse SIM Phonebook, press Menu, then Edit, Delete,
Copy to Mobile, Copy All to Mobile, Search will be shown.
Also if you browse Mobile Phonebook, Copy to SIM, Search
will be displayed.
Creating a Number
1 In Idle enter the numbers you would like to save and press Save
2 There is another operation to create a number. Press Idle > Menu
> Phonebook > Create > SIM Phonebook or Mobile Phonebook
3A Choosing SIM Phonebook
3A-1 Enter the Name --- see “Text Input” on page 16. Press
downward to the next screen.
3A-2 Enter Phone numbers with numerical keys. Then press
downward to the next screen.
8
3A-3 Select Location. You can choose a storing
location in SIM or FDN by pressing Set. Press down
arrow key to the next screen.
3A-4 Select Record No. You can choose a location
record number by pressing Set.
3A-5 Press Save.
3B Choosing Mobile Phonebook
3B-1 Enter the Name --- see “Text Input” on page 16. Press
down arrow key to the next screen.
3B-2 Enter the Phone number with numerical keys. Press
downward to the next screen.
3B-3 Select a Group. You can locate phonebook
members in different groups, such as Friends, Family
etc., by pressing Set.
3B-4 Select Melodies. You can define a specific
melody for each person.
3B-5 Press Save.
Grouping Phonebook Entries
The ability to group phonebook entries together such as: Friends,
Colleague, Family, Others, VIP or No Group etc., you can define a
specific melody for each group. In this case, once a member calls, you
can tell that this call is coming from which group.
Reviewing the Numbers from Groups
You can only review and delete group members
in this submenu. Members cannot be grouped
here.
1 Idle > Menu > Phonebook > Group
Setting
2 Use to select a group
3 View the Groups’ members or Delete
the group members.
9
Personalising Your Phone ------------------------
If you haven’t grouped your phonebook, you will
see List Empty.
Reviewing the Phonebook
The Review function in the phonebook menu shows how many locations
are available in the Phonebook.
From Idle > Menu > Phonebook > Review
A summary of the Phonebooks will be
displayed.
Hot Key Dial Numbers
It is a quick access to dial phone numbers from the SIM Phonebook.
Long press any digit key from 1 – 9 to recall the first 9 numbers stored in
the corresponding SIM location. To activate the Hot Key Dial, you need
to switch on this function.
Idle > Menu > Phonebook > Hot Key Dial > On/Off
My Numbers
My Numbers is a convenient part of Phonebook where voice, fax and
data phone number(s) can be stored and viewed. This feature depends
on the SIM card.
Adding Numbers
Idle > Menu > Phonebook > My Numbers > Menu > Edit > enter
Phone Number > Save
Personalising Your Phone
Language
It is possible to change the language that the phone uses for both display
messages and text entry.
10
Idle > Menu > Personalise > Language > (select a preferred language)
Changing the Ring Tones
The ring tones and volumes of the phone can be changed to one of many
pre-defined sounds. Alternatively you can use the Melody Composer to
generate a custom ring tone.
Idle > Menu > Personalise > Tones > Ring Type > (select a
preferred category) > (select a preferred sound)
Composing a Melody
Idle > Menu > Personalise > Tones > Melody Composer > (select
My Music ) > Melody Edit > (select track)
Using the following table as a reference, enter the notes (from the choice
of low, middle and high), rests, and the durations of each, to generate
your composition.
Key
Func. C D E F G A B Rep.
If you want to attach the sub tracks, remember to save your earlier main
track firstly and then press return to the previous page, then press
to select Sub Track and start another editing. Once you finish the sub
Rest Duration Low,
˙
Middle,
High
11
tracks edition, press Menu and Save. Press twice to jump to
previous pages, and select Play to listen to your melody.
After composing the melody, press Menu and you can choose a Tempo
and Instruments. When the
composition is complete
to save it.
Display Setting
You can set Idle Screen、 Greeting、Animation、Contrast and Back
Light.
Greeting
A personalised greeting can be programmed for when the phone is
switching on.
Idle > Menu > Personalise > Display Setting > Greeting > Edit
Use the text entry to add a greeting- see ‘‘Text Input’’ page 16.
Profile Mode
In the Profile Mode, you can choose and customise an appropriate mode
from Headset、Normal、Meeting、Noisy
Idle > Menu > Personalise > Profile Mode > (select a mode) >
Activate > OK
User Messages
There are 10 pre-set common used messages for you to choose and there
are 5 empty space for you to add. Press Select and all these messages
can be edited.
Idle > Menu > Personalise > User Messages > select a preferred entry
Defaults
Any personal settings can be returned to their factory default settings.
Idle > Menu > Personalise > Defaults > Select > Yes
12
Own Menu
It is a shortcut access that you can tick on/off the following options:
Browser, Game, Phonebook, Language, Alert Type, Tones, Idle Screen,
Profile Mode, Alarm, Calculator, Schedule, Received List, Send Message,
Clock Setting and Currency. Once these options are selected, you can
access to the Own Menu selection from Idle by pressing .
My Phonebook
Through this option, you can browse the phonebook name list.
Idle > Menu > Personalise > My Phonebook >
However, you can choose Mobile Phonebook or SIM Phonebook in
this menu after that when returning to Idle, press Names and you can
browse the selected phonebook.
SIM
Mobile
13
Game (STK)/ Text Message -----------------------
Game (STK)
If SIM card provides SIM Tool Kit services, this menu will become the STK
gateway. You can still access to game from Application.
Idle > Menu > Game or Idle > Menu > Application > Game
When you see the mouse, press Numeric al ke y from 1 to 9 to hit the mo use
with the highest speed. Keep in mind that the Cat is not your target.
Example: if you pres 5, you will hit the thing hidden in the 5th hole. This
game will end automatically within a limited period of time. After ending, you
will get a score. This score might be the highest one in the record. Good
luck!
Text Messages
It is possible to receive, display, edit and/or send text messages up to 760
characters (depending on characters or symbols).
Setting the Phone for Short Text
Messages
Before a text can be sent, it is necessary to enter the Message centre
number into Parameters (the Service Provider will supply the Message
Centre number).
The Message Centre number may have been pre-programmed on the
SIM
Setting the Message Centre
Number
Idle > Menu > Messages > Parameters > Message Centre
Enter message centre number in international dial form – see
“International Dialling” page 5.
14
Creating a Text Message
Idle > Menu > Messages > Create Press numeric
key - repeatedly (if required) to enter and
select characters, numbers or special symbols.
to switch “Input Mode”. Press to turn T9 on/off.
Or press to select music. Please note that one
message can only transmit 10 sounds.
Once complete the message, press Menu to Send, Save or Save and
Send. After select Send, enter the destination phone number or
press Names to navigate. Then press OK to send.
Text Mode (abc, ABC and Numeric)
1 / ( ) < = > % ~ € &
a b c 2 ä à ç or A B C 2 Ä
d e f 3 é è or D E F 3 É
g h i 4 ì or G H I 4
j k l 5 or J K L 5
m n o 6 ö ñ ò or M N O 6 Ö Ñ
p q r s 7 ß or P Q R S 7
t u v 8 ü ù or T U V 8 Ü
w x y z 9 æ Ø å or W X Y Z 9 Æ Ø Å
EMS (Enhanced Message Service)
While editing the message, press Menu > Picture &
Sound can insert/add pictures or sound into the
message.
However, only if the receiver’s mobile phone support
this task.
Use to choose the pictures
you want to send and press .
15
Space 0 . , ? ! + - : ¿ ¡ ” ’ ; _
* Γ ∆ Θ Λ Ξ Π Σ Φ Ψ Ω
Long press: space # £ $ ¥ ¤ @ \ §
Short press to turn T9 on or off.
Switch Input Modes
®
Text Input
T9
Using this mode of text entry dramatically reduces the number of key
presses required:
Press a key once for any letter you require on that key. The desired letter
may not be displayed. Continue pressing other keys until the end of a
word is reached; then check that the word has been typed correctly
before continuing on to the next word.
If the combination of letters typed has produced a word which is not the
one you require, press repeatedly until the correct word is displayed.
Continue to the next word.
If the word you require is not in the internal dictionary (i.e. It is a proper
noun or a rarely used word) then it should be entered using the Normal
(ABC) mode.
Other Text Modes
To access any of the other text entry modes use to switch through
until the desired mode.
When using Capital letter mode (ABC), number mode (123), etc., each
time a key is pressed in quick succession it will display the next character
available on that key. Releasing the key, or pressing another key will
enter the currently displayed character and the cursor will move to the
next position.
16
Editing Text
Long press will move cursor up or down one text line (or field in
Phonebook). Pressing will move left or right one character. When the
cursor is moved over a character and another key pressed this will insert
the new character immediately before the selected character.
Pressing Clear will delete the character to the left of the cursor.
Receiving Text Messages
When a Short Text Message is received completely, the message
indicator will flash on the display, with an audible tone.
Idle > Menu > Messages > Received List > Read to read the message.
Use to navigate through the messages and to identify the sender and
the time the message was sent.
Note: If the message indicator is displayed, this means that the message
area is full and you need to delete old messages in order to receive new
messages.
Reply, Forward, Edit and Delete a Message
When a message is received, read the options and follow the prompts to
create a reply and edit new message or forward, delete the message.
User Messages
Default messages can be chosen by you. To create or edit, please see
“User Message” on Personalise page 10.Use to select.
Idle > Menu > Messages > User Messages > select a preferred entry.
Review
Review allows you to check usage of the message area.
Idle > Menu > Messages > Review
Parameters
Idle > Menu > Messages > Parameters
The following parameters can be set:
17
Text Messages/Key Guard ------------------------
Message Centre
Enter or change the Message Centre’s number. Normally the number has
already saved in the SIM, so you may not need to enter it again.
Protocol
The Message Centre may be able to convert the message to the format
specified by the selected protocol.
Lifetime
This is the duration that your message is stored at the Message Centre.
Delivery attempts will be repeated until the message has been delivered
or life time expires.
Report
When your message has been delivered, a confirmation will be received.
Broadcast
You need to specify the ‘topic(s)’ of information and the language that you
wish to receive as broadcasts and tick the “Broadcast” on before you can
receive them.
Idle > Menu > Messages > Broadcast > Topic List > Current to
cycle through the available topics. To add new topics, select <Add Topic>
and select a preferred topic, or select User Defined to create a new
topic.
Note: This function should depend on the Network Service Operator.
Key Guard
The Key Guard function is used to prevent any keys from being
accidentally pressed e.g. when the phone is being carried.
Idle > Menu > Key Guard > Select > Yes to enable “Key Guard”
Emergency calls can still be made - see ‘‘Emergency Calls’’ page 6.
Press 112 and .
Note: When making emergency calls with the ‘‘Key Guard’’enabled,
there will be no visual indication that the number is being dialled
18
Browser --------------------------------------------
Disabling Key Guard
When Free is displayed, press Free > OK.
Browser
The phone’s WAP (Wireless Application Protocol) Browser enables the
you to access Internet services supported by the network, such as news,
weather reports, sport etc.
Browser Setting
Before Internet services can be accessed, you need to subscribe to your
network operator or Internet Service Provider (ISP) to enable the relevant
configuration information. Please contact your network service provider to
ensure that your network setting is right.
Note: Modifying previously entered settings can cause failure of the
Browser.
Idle > Menu > Browser > Sever Setting
There are two servers may be pre-set up on the phone, so use to
select one of the server settings. Otherwise, you have to enter the
essential data (sever name, dial number、call type、login name、
password、IP address、IP port、homepage and linger time) by manual
at the first time.
Those configuration parameters will be given by Network service provider.
Once completing the entry, use to choose one of the setting then
Activate.
The first time that the browser is activated there will be no content stored
so the Home URL content will be displayed (as defined by the network
operator). The Home URL will be recalled from the cache, each time the
browser is activated. (Cache is the phone’s memory that stores content
downloaded in the past).
19
Phone Menu ---------------------------------------
Browser Menu
Starting Browser
Idle > Menu > Browser > Start Browser
Once you have set and activated the browser setting, you can start
browsing the Home page of network operator.
The Browser also contains its own menu which is applicable when
content is currently being displayed (either on-line or off line). To access
the Browser Menu, select the browser icon in the top left of the screen.
This menu has following options: Back, Home, Go to URL, Mark Site,
Book Marks, Inbox, Reload, Settings, About.
Bookmarks
Idle > Menu > Browser > Bookmarks
In this menu, there are 10 empty places for you to enter the favourite
websites. You can also Edit、Erase、Launch the website.
Phone Menu
Call Service
Time/ Charges
Idle > Menu > Phone Menu > Call Service > Time/Charges Use to
select one of the functions: Last Call、All Voice Calls、Cost Left
Last Call function will display the duration and call charge, if available, of
the last call. Times are indicated as: minutes (0-59) and seconds (0-59).
All Voice Calls function displays the accumulated duration and call charge,
including incoming and outgoing calls.
Cost Left function will show the left units that you have set beforehand.
(Please refer to Setting the Max Cost below )
Call Waiting
20
Once you activate this function, you can receive a second call while talking.
Idle > Menu > Phone Menu > Call Service > Call Waiting
Call Identification
In the Call Service menu, the Caller’s ID and Withhold ID functions allow
you to check the status of whether a Caller’s Identification is seen.
Idle > Menu > Phone Menu > Call Service > Withhold ID or Caller’s ID
Note: When checking the status the phone must be registered with a
network.
Charge Settings
Firstly, a price per unit must be entered. This is the cost that the Service
Provider charges for one unit of call time.
Idle > Menu > Phone Menu > Call Service > Charge Settings
Edit the values. At this point you will be asked to enter your PIN2. Enter a
currency unit.
Setting the Maximum Cost
This function allows you to pre - determine the maximum cost of calls
made.
Idle > Menu > Phone Menu > Call Service > Charge Settings > Max
Cost Entry the maximum unit you want to set. At this point you will be
asked to enter your PIN2.
Enter a value (number of units) which is to be the maximum permitted,
and the corresponding cost will be displayed.
Note: The duration of one unit may vary during the day, peak and offpeak times. Therefore, the call charge can be calculated accordingly.
However, call charge information may not give an accurate reflection of
the tariffs charged by your Service Provider.
Diverting Calls
Voice call can be diverted using different circumstances and to different
numbers. For example you may wish voice calls to be diverted to
voicemail box event that the phone is switched off.
Idle > Menu > Phone Menu > Call Divert
Use to select the circumstances that you wish to activate call diverts.
Then enter phone number to divert to.
21
When a divert situation is enabled the divert icon ( ) is displayed.
When updating or checking the status of Call Divert the phone must be
registered with a network.
Restricting Calls
Call Barring
The “Call Bar” function is used to restrict certain outgoing and/or incoming
calls. “Call Bar” is controlled by a security password that is supplied by
the Service Provider. When updating or checking the status of Call Bar
the phone must be registered with a network. Different Call Bar
restrictions can be used for voice call. Any combination of call restrictions
can be set.
Idle > Menu > Phone Menu > Security > Call Bar
Use to select the circumstances you need, then enter call bar password
Network
Network setting enables you to change the network parameters.
Auto Network
You can set “Auto Network” On or Off.
New Network
Once you set the “Auto Network” On: the phone will automatically search
an available network for you. If you set it Off, you can select a network
manually.
Network List
You can create and edit a network list according to your preferences.
Band Select
You can choose a network band: 900/1800, 900/1900, 900, 1800,
1900MHz.
22
Application ----------------------------------------
Application
Game
Idle > Menu > Application > Game
Please refer to Page 14.
Schedule
The Schedule can be used to register reminders for personal events as
well as planning holiday periods.
Idle > Menu > Application > Schedule The Schedule can be presented as
a weekly or monthly format. Use numerical keys 2, 4, 6, 8 to select a day.
For the first time entry, highlight the date and press Agenda > Select >
New entry. Choose a Type from Memo, Meeting
Then press
Enter Start/ End Date and Time then press Save.
downward to add a Description
Clock
This phone incorporates a clock with date/time, an alarm and a power off
feature.
23
Clock Setting
Idle > Menu > Application > Clock > Clock Setting > Time & Date
Press Select to set time and date. In the “Clock Setting” menu, you can
choose to display the time in the idle mode or not.
Idle > Menu > Application > Clock > Clock Setting > Display Time >
On/Off
Setting the Alarm
Idle > Menu > Application > Clock > Alarm
Press Set to set Time and choose a repeat format. Enter the digits with
24 hour clock. Press to leave. When the set time is reached, the
alarm will sound. If the alarm is due during a call, an alarm indicator will
display.
Caution: Ensure that the setting of the Alarm will not contravene any
regulations whereby it may automatically power on when in an aircraft or
medical facility etc. - see ‘‘Important Information’’page i.
Setting a Power Off Time
The phone can be set to turn itself off automatically at a specified time
using the Power Off feature. The procedure for setting/adjusting the
Power Off automatically is similar to the setting of Alarm.
Calculator
There are four arithmetic calculations enabling you to perform simple
calculations (addition/subtraction/multiplication and division).
Idle > Menu > Application > Calculator
Enter a number (maximum 7 digits) and it will be displayed on the upper
right of the display. If a decimal point is required press , if a minus
sign is needed press
Use to select the arithmetic operation you need.
Enter a number (maximum 7 digits) and press (=) then the result will
be obtained.
If is used to select another arithmetical operation to perform, an
intermediate calculation will be performed and the result displayed on the
upper line
24
Currency
The currency convertor enables the you to convert from/to a home
currency using a conversion rate that you enter.
Idle > Menu > Application > Currency
Rate Setting
Enter an exchange rate in the space where the pencil is. Press OK and
Save. If a decimal point is required press .
Rate Computing
Since you have saved the exchange rate, enter the numbers you want to
convert and press Convert.
25
Records/ In call Menu ----------------------------
Records
Last Dialled Numbers and Redial
Recently dialled phone numbers will be stored in Last Dialled.
If Caller Identification is known, caller’s phone number, for an answered
call will be stored in the Answered menu and an unanswered call will be
stored in the Unanswered menu.
When the store is full the next phone number will overwrite the oldest.
Idle > Menu > Records to view the Last Dialled、 Unanswered、
Answered.
Use to target the phone number (or name) you wish to redial and
press . Or in idle, press to view the last dialed numbers directly.
You can modify, save or delete the phone number before dialling.
Erase Records
Idle > Menu > Records > Erase Records You can Erase All、Erase
Last Dialled, Erase Answered, Erase Unanswered.
In Call Menu
During a call, there are several advanced functions, however; some of the
in-call options are provided by network service provider.
Holding Calls
Holding a Call
During a call, the display will show Menu and Hold.
1 Press Hold.
2 “Call Held” displayed.
3 Press back to retrieve the call.
26
Call Waiting
During a call, once a second call is coming, the display will show Reject
and Swap
1 Press Swap. Hold the first call.Talk to the second person.
2 “Call Held” displayed.
3 Press to select Swap to retrieve the call.
Hands Free
During a call, press Menu > Hands Free Then Hands Free will
be activated. In this case, you can speak to the phone without holding it.
Accepting/ Rejecting a Second Call
A second call can be received, if “Call Waiting” is switched on. This is
enabled from the Idle > Menu > Phone Menu > Call Service > Call
Waiting. During a call:
1 Press or to accept a call.
The current call will be placed on hold.
1 Press or to Reject.
Conference
A conference call enables three to be in conversation at the same time.
During a call, press Menu > Conference
Call Transfer
When two calls are in use:
During calls, press Menu and Use to select Call Transfer.
The two calls will be connected to each other and your call will be ended.
Note: Two calls transfer cannot be utilized while in Conference mode.
27
Menu Structure ------------------------------------
Menu Structure
1 Personalise
Language
Tones
Ring Volume
Ring Type
Melody Composer
Key Tone
Warning Tone
Display Setting
Idle Screen
Greeting
Animation
Contrast
Backlight
Alert Type
Ring Only
None
Ring & Vibration
Vibration Only
Profile Mode
User Messages
Auto Answer
Any Key Answer
Defaults
Own Menu
My Phonebook
T9 Input
2 Game (STK)
3Phonebook
Browse
Create
Group Setting
Review
My Numbers
Hot Key Dial
My Phonebook
4 Browser
Start Browser
Bookmarks
Sever Setting
5 Key Guard
6 Messages
Received List
Send List
Create
User Messages
Review
Parameters
Broadcast
7 Phone Menu
Call Service
Time/Charges
Call Waiting
Withhold ID
Caller's ID
Charge Settings
Call Divert
All Voice Calls
Not Reachable
No Reply
Busy
Status Check
Cancel All
Security
Call Bar
Codes
Fixed Dial
SIM Lock
Network
Auto Network
New Network
Network List
Band Select
8 Application
Game
(STK)
Schedule
Clock
Clock Setting
Alarm
Power Off Time
Calculator
Currency
9 Records
Last Dialled
Answered
Unanswered
Erase Records
28
Trouble Shooting ----------------------------------
Trouble Shooting
Problem Cause Remedy
Phone will
not
switch on
Extremely
short battery
life for a new
battery
Short battery
life for an old
battery
The
charging
indicator
does
notlight, the
battery level
indicator
does not
appear and
the phone
cannot be
switched on
when
charging
Battery fails
to charge
short time until the
Check that the battery is fully
The network you
are using and the
condition of the
battery can affect
battery life
The battery has
worn out
The battery is not
attached to the
phone or when
the battery has
been deeply
discharged the
phone will take a
indicator lights
The battery is not
attached to the
phone
charged and correctly
connected to the phone
Replace with a new fully
charged battery
Leave the phone charging the
battery for a few minutes
before the indicator is lit and
attempting to switch it on
Ensure the battery is fitted to
the phone prior to commencing
charging.
29
Battery has been
connected to the
phone after AC
adapter has been
switch on
Calls cannot
be made
Outgoing calls are
The phone is not
registered to a
Calls cannot
be made
from Fixed
dial Store
Calls cannot
be received
Emergency
calls cannot
be made
Phone
numbers
cannot be
recalled from
phonebook
The phone is not
Incoming calls are
The phone is not
registered to a
You are not in a
GSM coverage
Ensure the battery is fitted to
the phone prior to commencing
charging.
The phone is
locked
barred
network
Check your SIM supports
switched on
barred
network
area
The phone is
locked
Unlock the phone
Disable the outgoing call
barring, or barred dial
Move to a coverage area and
operate your phone after it has
registered with a network.
Fixed Dial
Check if the Fixed Dial is
switched on
Check the phone number is
stored in the Fixed Dial
Switch the phone on
Switch the phone on.
Disable the incoming call
barring.
Move to a coverage area and
operate your phone after it has
registered with a network.
Check that the antenna symbol
is display- move to a coverage
area and operate your phone
when antenna symbol is
displayed
Unlock the phone
30
Phone number
has been
restricted
Switch off restriction
WAP Settings
Use the table below to record your WAP settings.
Item Current Setting
Server Name
Dial Number
Call Type
Login Name
Password
IP Address
IP Port
Homepage URL
Linger Time
31
Specifications
Phone (Including Battery)*
Type
Temperature Range
Charging
Storage
WAP WAP 1.2.1
Weight Max 65 g
Dimensions
Height x Width x Depth 77 x 43 x 16.9mm (excluding antenna)
Supply Voltage 720 mAh Li-ion
Standby Time
Talk Time
Charging Time (Phone off) Less than 120 mins (Travel Charger)
Antenna External Stub Antenna
SIM Type 3V Plug-in only SIM
Note: Charge time will be longer when the phone is turned on. Battery life
is affected by the network being used, SIM card usage, and the condition
of the battery.
© Panasonic Mobile Communications Co., Ltd. 2003
Information in this document is subject to change without notice. No part of
these instructions may be reproduced or transmitted in any form or by any
means without obtaining express permission from Panasonic Mobile
Communications Co., Ltd
.
GSM 900 Class 4
GSM1800 Class 1
GSM1900 Class 1
+5°C - +35°C
-20°C - +60°C
78.3 Hrs ~ 230 Hrs
1.6 Hrs ~ 7.9 Hrs
32
33
Loading...
