MOTION CONTROLLER MANUAL
Document Version 1.0
Distribution:
Internal Only
External All
External Restricted If restricted, specify restricted to whom:
Quanta Computer Inc.
CONT E NTS
Motion controller requirements ..............................................................................................................2
Motion controller layout .........................................................................................................................2
First Run experience................................................................................................................................2
Connecting Your controller .................................................................................................................2
Before setup.................................................................................................................................... 3
Pairing your controllers for the first time......................................................................................... 3
Reconnecting after first pairing.......................................................................................................4
Powering off controller ...........................................................................................................................5
Device Indicators..................................................................................................................................... 5
Device Recovery .....................................................................................................................................5
Updating Device firmware ......................................................................................................................6
6/15/2017 Microsoft Confidential 1
MOTION C ONTROLLER R EQUIR EMENT S
Motion controller proper operation requires:
- Windows Mixed Reality compatible PC
- Windows Mixed Reality compatible Head Mounted Display (HMD)
- Windows 10 creators update software release
MOTION C ONTROLLER LAY OU T
Quanta Computer Inc.
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
FIRST RU N EXPERIE NCE
CONNECTI NG YO UR CON TRO LLER
The first run experience will guide the user through powering on and connecting the controller. It’s also
possible to power on and connect the controller through the native Bluetooth page in Windows
Settings.
2
Quanta Computer Inc.
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
BEFOR E S ETU P
Before pairing, you will need:
• Two motion controllers.
• Batteries for the controllers. Each controller takes two AA batteries.
• A Bluetooth dongle (if your machine doesn't support Bluetooth).
PAI R ING YOUR CONTRO LLERS FO R TH E F IRST TIME
1. Choose one of the controllers to pair. We'll run through this process for each controller.
2. Turn the controller on by pressing the Windows button for 2 seconds. You should see the LEDs
on the constellation flash and device vibrate, indicating that the device is on.

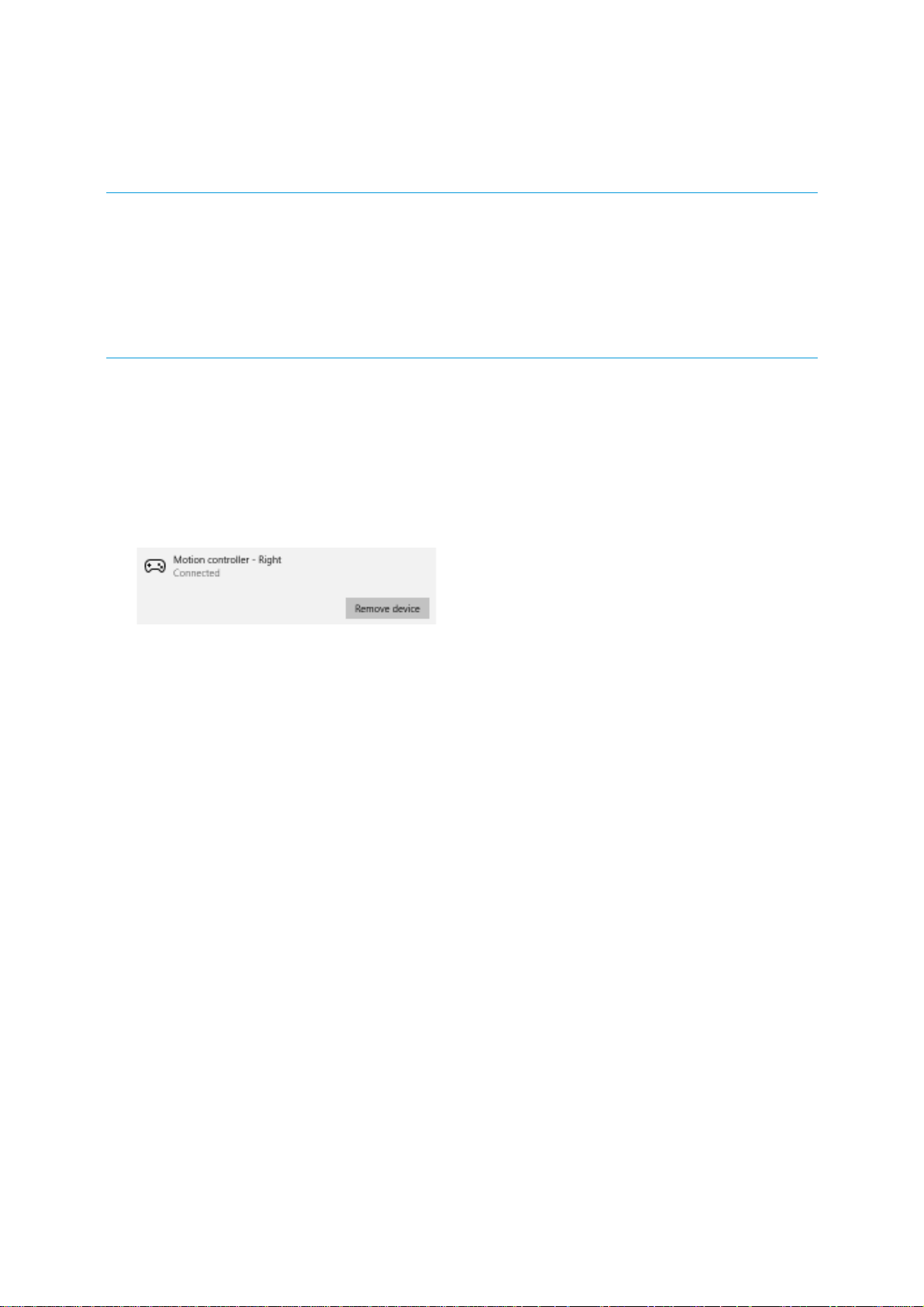

3. Go to Settings -> Devices -> Bluetooth and other devices.
4. Remove old controllers, if necessary. If you've already paired a different controller in the past,
remove it by clicking on the controller that appears in the panel and choosing 'Remove Device'.
5. Pairing Your Device
1. Click Add Bluetooth or other device on the Settings menu.
2. Choose Bluetooth
3. Remove the battery cover.
3
211, Wen Hwa 2nd Rd., Guishan Dist.,
4. Presspairing button more than 3 seconds on onedevice.
• The pairing button is located underneath the battery door next to the batteries.
Quanta Computer Inc.
Tao Yuan City, Taiwan
5. Device LED constellation will blink, indicating that device is in pairing mode. Device is
on pairing mode 60 seconds at the time.
6. You should see "Motion Controller - Left" or "Motion controller - Right" appear in the
Bluetooth menu.
7. Select "Connect", device will make single vibrate when connected. Windows Bluetooth
settings should indicate state as 'Connected'.
8. Replace the battery cover.
9. Repeat these steps to pair the other motion controller.
Device can be bonded with single host PC at the time.
You can un-pair device by removing controller from Windows Bluetooth setting or setting the device
again into pairing mode.
RECON NECT ING AF T ER FI RST PA IRI NG
• After device has been successfully paired with host, it will reconnect next time when powered
on.
4
Quanta Computer Inc.
Activity
Trigger
Indication
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
POW ERING OF F CON TROLLER
• Press Windows button for 4 seconds to power off the controller. The device will vibrate twice
and the LEDs will turn off.
• If device is not tracked or it is motionless 30 seconds, controller will move to low power state to
save power, picking up controller or pressing button will wake up the device.
• Your device will also automatically power off if there has not been motion for 10 minutes.
DEVICE IND ICATO RS
Motion controller uses LED constellation ring and haptics for indicating about its state.
Power on/off Windows button press LED goes on/off and device vibrates 2 times
Idle Controller not tracked by HMD or
motionlessfor 30 seconds
Pairing Pairing button press Lights slowly pulse when the device is in
Connect/Disconnect Controller connected or disconnected
to/fromhost PC
Low Battery Level During power on when battery level
is "Low"
Critical Battery Level During power on when battery level
is "Critical"
Device Update When firmware update started LED constellation has circular blinking
Light blink slowly every 3 seconds to indicate
the device is in idle mode
pairing mode
Device vibrates once
Lights blink twice when the device is turned
on
Light will blink three times when turned on if
the battery is critically low. It will then turn
off byitself.
pattern
DEVICE RE COVERY
If the controller isn’t working correctly and you’re unable to update the device, you can always restore
the device to factory conditions. To Recover your device:
1. Power off device
2. Open battery cover (Ensure you have good batteries when performing device recovery)
3. Press pairing button
4. Keep the pairing button pressed and power on the device by pressing home/Windows button
for 4 seconds
5. Release both buttons and let the device power on, It’s ok if it takes a few seconds for it to turn
on (there is no indication during device recovery process)
5
Quanta Computer Inc.
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
6. Once the recovery is complete, you’ll need to pair the controller to your PC again
7. After connecting with host and HMD device will update firmware to latest available
UPDATING DEVI CE FIRMWARE
Motion controller firmware will be updated automatically when there is new firmware available through
Windows Update service.
Firmware update will happen immediately after establishing connection with HMD and controller
cannot be used during the update. Update duration depends on new firmware to be programmed and is
indicated by illuminating LED constellation in circular blinking pattern.
After update iscompleted device re-connects to host PC and is ready to use.
6
Quanta Computer Inc.
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved bythe party responsible for
compliance could void the user's authority to operate this equipment.
Radiation Exposure Statement :
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. This Transmitter must not be colocated or operating in conjunction with any other antenna or transmitter.
7
Battery
This product use non- chargeable AA battery 2 pcs per controller.
"Use only batteries listed in the user-instructions" .
Quanta Computer Inc.
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
8
Quanta Computer Inc.
211, Wen Hwa 2nd Rd., Guishan Dist.,
Tao Yuan City, Taiwan
Declaration of Conformity
Hereby, Quanta Computer Inc. declares that the radio equipment type A85 CyK is in compliance with,
EMCD Directive: 2014/30/EU
- EN 300 328 V2.1.1: 2016-11
RED Directive 2014/53/EU
- EN 301 489-1 V2.2.0 2017-03 (draft)
- EN 301 489-17 V3.2.0 2017-03 (draft)
- EN 55032:2015+AC:2016-07
- EN 61000-4-2: 2009
- EN 61000-4-3: 2006+ A1: 2008 + A2: 2010
LVD Directive 2014/35/EU
- EN 60950-1: 2006/ A11: 2009 / A1:2010 / A12: 2011 / A2: 2013
Year to begin affixing CE marking 2017.
Radio Type / Description
Bluetooth BR + EDR 2402 ~ 2480 12 dBm
Transmitter Frequency
Maximum Outut Power
(MHz)
