Quanta U81 Schematic

5

4

3

2

1

U81

D D

C C

System BIOS SPI ROM

B B

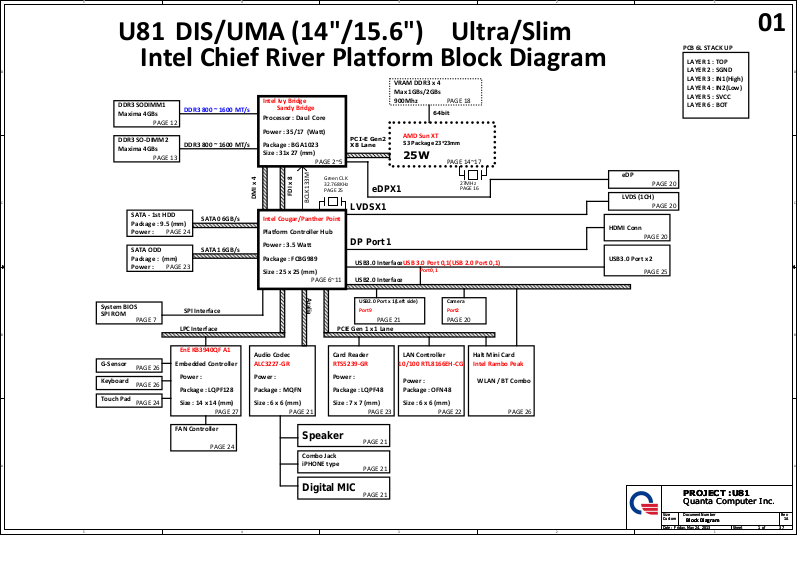

Intel Chief River Platform Block Diagram

DDR3 SODIMM1 Maxima 4GBs

DDR3 SO-DIMM2 Maxima 4GBs

SATA - 1st HDD Package : 9.5 (mm) Power :

SATA ODD Package : (mm) Power :

PAGE 7

DIS/UMA (14"/15.6")

Intel Ivy Bridge

DDR3 800 ~ 1600 MT/s

PAGE 12

DDR3 800 ~ 1600 MT/s

PAGE 13

SATA0 6GB/s

PAGE 24

SATA1 6GB/s

PAGE 23

SPI Interface

Sandy Bridge

Processor : Daul Core

Power : 35/17 (Watt)

Package : BGA1023 Size : 31x 27 (mm)

DMI x 4

Intel Cougar/Panther Point

Platform Controller Hub

Power : 3.5 Watt

Package : FCBG989

Size : 25 x 25 (mm)

FDI x 8

PAGE 2~5

BCLK133M

PAGE 6~11

Azalia

Green CLK

32.768KHz PAGE 25

PCIE Gen 1 x 1 LaneLPC Interface

PCI-E Gen2 X8 Lane

LVDSX1

DP Port 1

USB3.0 Interface

USB2.0 Interface

USB2.0 Port x 1(Left side)

Port9 Port2

eDPX1

PAGE 21

VRAM DDR3 x 4 Max 1GBs/2GBs 900Mhz

AMD Sun XT

S3 Package 23*23mm

25W

USB 3.0 Port 0,1(USB 2.0 Port 0,1)

Port0,1

Ultra/Slim

PAGE 18

64bit

PAGE 14~17

27MHz PAGE 16

Camera

PAGE 20

PCB 6L STACK UP

LAYER 1 : TOP LAYER 2 : SGND LAYER 3 : IN1(High) LAYER 4 : IN2(Low) LAYER 5 : SVCC LAYER 6 : BOT

eDP

PAGE 20

LVDS (1CH)

PAGE 20

HDMI Conn

PAGE 20

USB3.0 Port x 2

PAGE 25

01

EnE KB3940QF A1

G-Sensor

Keyboard

Touch Pad

A A

5

PAGE 26

PAGE 24

Embedded Controller

Power :

Package : LQPF128

Size : 14 x 14 (mm)

PAGE 27

FAN Controller

PAGE 24

Audio Codec

ALC3227-GR

Power :

Package : MQFN

Size : 6 x 6 (mm)

4

PAGE 21

Speaker

Combo Jack iPHONE type

Digital MIC

Card Reader

RTS5239-GR

Power :

Package : LQPF48

Size : 7 x 7 (mm)

PAGE 23

PAGE 21

LAN Controller

10/100 RTL8166EH-CG

Power : Package : OFN48

Size : 6 x 6 (mm)

PAGE 22

3

Halt Mini Card

Intel Rambo Peak

WLAN / BT Combo

PAGE 26

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Block Diagram

Date: Sheet

2

Date: Sheet of

1

1A

1 37Friday, May 24, 2013

of

5

Ivy Bridge Processor (DMI,PEG,FDI)

PEG_COMP connect to PIN G3&G4 W:4mils/S:15mils/L: 500mils.

U20A

AA11 AC12

AA10

AG11

AE11

AE10

EDP_HPD (20)

5

M2

DMI_RX#[0]

P6

DMI_RX#[1]

P1

DMI_RX#[2]

P10

DMI_RX#[3]

N3

DMI_RX[0]

P7

DMI_RX[1]

P3

DMI_RX[2]

P11

DMI_RX[3]

K1

DMI_TX#[0]

M8

DMI_TX#[1]

N4

DMI_TX#[2]

R2

DMI_TX#[3]

K3

DMI_TX[0]

M7

DMI_TX[1]

P4

DMI_TX[2]

T3

DMI_TX[3]

U7

FDI0_TX#[0]

W11

FDI0_TX#[1]

W1

FDI0_TX#[2]

AA6

FDI0_TX#[3]

W6

FDI1_TX#[0]

V4

FDI1_TX#[1]

Y2

FDI1_TX#[2]

AC9

FDI1_TX#[3]

U6

FDI0_TX[0]

W10

FDI0_TX[1]

W3

FDI0_TX[2]

AA7

FDI0_TX[3]

W7

FDI1_TX[0]

T4

FDI1_TX[1]

AA3

FDI1_TX[2]

AC8

FDI1_TX[3] FDI0_FSYNC

FDI1_FSYNC

U11

FDI_INT FDI0_LSYNC

AG8

FDI1_LSYNC

AF3

eDP_COMPIO

AD2

eDP_ICOMPO eDP_HPD#

AG4

eDP_AUX#

AF4

eDP_AUX

AC3

eDP_TX#[0]

AC4

eDP_TX#[1] eDP_TX#[2]

AE7

eDP_TX#[3]

AC1

eDP_TX[0]

AA4

eDP_TX[1] eDP_TX[2]

AE6

eDP_TX[3]

IC,IVB_2CBGA,0P7

eDP_COMPIO and ICOMPO signals should be shorted near balls and routed with typical impedance <25 mohms

4mils 12mils

+1.05V

XDP_BPM6

XDP_BPM7

DMI Intel(R) FDI

eDP

ph

DMI_TXN0(6) DMI_TXN1(6) DMI_TXN2(6) DMI_TXN3(6)

+1.05V

Q32

ME2N7002E

DMI_TXP0(6) DMI_TXP1(6) DMI_TXP2(6) DMI_TXP3(6)

DMI_RXN0(6) DMI_RXN1(6) DMI_RXN2(6) DMI_RXN3(6)

DMI_RXP0(6) DMI_RXP1(6) DMI_RXP2(6) DMI_RXP3(6)

FDI_TXN0(6) FDI_TXN1(6) FDI_TXN2(6) FDI_TXN3(6) FDI_TXN4(6) FDI_TXN5(6) FDI_TXN6(6) FDI_TXN7(6)

FDI_TXP0(6) FDI_TXP1(6) FDI_TXP2(6) FDI_TXP3(6) FDI_TXP4(6) FDI_TXP5(6) FDI_TXP6(6) FDI_TXP7(6)

FDI_FSYNC0(6) FDI_FSYNC1(6)

FDI_INT(6)

FDI_LSYNC0(6) FDI_LSYNC1(6)

eDP_COMP

INT_eDP_HPD_Q

R448 1K_4

3

2

1

INT_eDP_AUXN INT_eDP_AUXP

INT_eDP_TXN0

INT_eDP_TXP0

R442 100K_4

D D

C C

INT_eDP_AUXN(20) INT_eDP_AUXP(20)

INT_eDP_TXN0(20)

B B

INT_eDP_TXP0(20)

INT_eDP_HPD_Q

A A

PEG_COMP connect to PIN G1 W:12mils/S:15mils/L: 500mils.

PEG_ICOMPI

PEG_ICOMPO

PEG_RCOMPO

PEG_RX#[0] PEG_RX#[1] PEG_RX#[2] PEG_RX#[3] PEG_RX#[4] PEG_RX#[5] PEG_RX#[6] PEG_RX#[7] PEG_RX#[8]

PEG_RX#[9] PEG_RX#[10] PEG_RX#[11] PEG_RX#[12] PEG_RX#[13] PEG_RX#[14] PEG_RX#[15]

PEG_RX[0] PEG_RX[1] PEG_RX[2] PEG_RX[3] PEG_RX[4] PEG_RX[5] PEG_RX[6] PEG_RX[7] PEG_RX[8]

PEG_RX[9] PEG_RX[10] PEG_RX[11] PEG_RX[12] PEG_RX[13] PEG_RX[14] PEG_RX[15]

PEG_TX#[0] PEG_TX#[1] PEG_TX#[2] PEG_TX#[3] PEG_TX#[4] PEG_TX#[5] PEG_TX#[6] PEG_TX#[7] PEG_TX#[8] PEG_TX#[9]

PEG_TX#[10] PEG_TX#[11] PEG_TX#[12] PEG_TX#[13] PEG_TX#[14]

PCI EXPRESS -- GRAPHICS

PEG_TX#[15]

PEG_TX[0]

PEG_TX[1]

PEG_TX[2]

PEG_TX[3]

PEG_TX[4]

PEG_TX[5]

PEG_TX[6]

PEG_TX[7]

PEG_TX[8]

PEG_TX[9] PEG_TX[10] PEG_TX[11] PEG_TX[12] PEG_TX[13] PEG_TX[14] PEG_TX[15]

R451 24.9/F_4

R137 24.9/F_4

R449 *10K/F_4

TP44 TP49

For iFDIM Trigger Point

TP45 TP48

4

G3

PEG_COMP

G1 G4

H22

PEG_RXN0

J21

PEG_RXN1

B22

PEG_RXN2

D21

PEG_RXN3

A19

PEG_RXN4

D17

PEG_RXN5

B14

PEG_RXN6

D13

PEG_RXN7

A11 B10 G8 A8 B6 H8 E5 K7

K22

PEG_RXP0

K19

PEG_RXP1

C21

PEG_RXP2

D19

PEG_RXP3

C19

PEG_RXP4

D16

PEG_RXP5

C13

PEG_RXP6

D12

PEG_RXP7

C11 C9 F8 C8 C5 H6 F6 K6

G22

C_PEG_TXN0

C23 D23 F21 H19 C17 K15 F17 F14 A15 J14 H13 M10 F10 D9 J4

F22 A23 D24 E21 G19 B18 K17 G17 E14 C15 K13 G13 K10 G10 D8 K4

eDP_COMP

PEG_COMP

INT_eDP_HPD_Q

C251 0.22U/10V_4

C_PEG_TXN1

C230 0.22U/10V_4

C_PEG_TXN2

C246 0.22U/10V_4

C_PEG_TXN3

C233 0.22U/10V_4 C245 0.22U/10V_4

C_PEG_TXN5

C227 0.22U/10V_4

C_PEG_TXN6

C229 0.22U/10V_4

C_PEG_TXN7

C249 0.22U/10V_4

C_PEG_TXP0

C250 0.22U/10V_4

C_PEG_TXP1

C231 0.22U/10V_4

C_PEG_TXP2

C247 0.22U/10V_4

C_PEG_TXP3

C232 0.22U/10V_4

C_PEG_TXP4

C244 0.22U/10V_4

C_PEG_TXP5

C226 0.22U/10V_4

C_PEG_TXP6

C228 0.22U/10V_4

C_PEG_TXP7

C248 0.22U/10V_4

PM_DRAM_PWRGD(6)

Connect a Test Point on BPM# 6 signal, very close to processor.

Connect a Test Point on BPM# 7 signal, very close to processor.

4

PEG_RXN0 (14) PEG_RXN1 (14) PEG_RXN2 (14) PEG_RXN3 (14) PEG_RXN4 (14) PEG_RXN5 (14) PEG_RXN6 (14) PEG_RXN7 (14)

10/9: for reserve

PEG_RXP0 (14) PEG_RXP1 (14) PEG_RXP2 (14) PEG_RXP3 (14) PEG_RXP4 (14) PEG_RXP5 (14) PEG_RXP6 (14) PEG_RXP7 (14)

10/9: for reserve

PEG_TXN0 PEG_TXN1 PEG_TXN2 PEG_TXN3 PEG_TXN4C_PEG_TXN4 PEG_TXN5 PEG_TXN6 PEG_TXN7

PEG x8

10/9: for reserve

PEG_TXP0 PEG_TXP1 PEG_TXP2 PEG_TXP3 PEG_TXP4 PEG_TXP5 PEG_TXP6 PEG_TXP7

10/9: for reserve

SM_DRAMPWROK Processor Input.

3

+1.5V_CPU (4,10,21,26) +1.5VSUS (4,12,13,31,37) +1.05V (4,6,7,8,10,26,27,30,33) +3V_DEEP_SUS (6,7,8,9,10,35) +3V (6,7,8,9,10,12,13,14,20,21,22,23,24,25,26,27,30,33,35,36)

H_SNB_IVB#(7)

SKTOCC#

TP32

TP_CATERR#

TP34

H_PROCHOT#(27,33)

PEG_TXN0(14) PEG_TXN1(14) PEG_TXN2(14) PEG_TXN3(14) PEG_TXN4(14) PEG_TXN5(14) PEG_TXN6(14) PEG_TXN7(14)

PLTRST#(8,14,22,23,24,26,27)

Placement close to EC.

EC_PECI(27)

C22247P/50V_4

PM_THRMTRIP#(9,27)

PM_SYNC(6)

H_PWRGOOD(9)

R92 1.5K/F_4

EC_PECI CPU_DRAMRST#

R95 56.2/F_4

R98 10K/F_4

C224 *43P/50V_4

PM_DRAM_PWRGD_R

Intel DG request

CPU_RESET#

CPU RESET#

PEG_TXP0(14) PEG_TXP1(14) PEG_TXP2(14) PEG_TXP3(14) PEG_TXP4(14) PEG_TXP5(14) PEG_TXP6(14) PEG_TXP7(14)

+1.5V_CPU

R177

PM_DRAM_PWRGD PM_DRAM_PWRGD_R

R180 *3K/F_4

200/F_4 R181 130/F_4

R184

*39_4

3

1

2

Q13 *2N7002K

Local Thermal Sensor

MBCLK2(8,13,27)

MBDATA2(8,13,27)

PV change to Q29.1 for correct function

CPUOVERT(27)

MBCLK2 MBDATA2 IO_THERMDA_L

+3V

R443 *0_4 R444 *0_4

R440 *10K_4

3

Place under CPU heat pipe

H_PROCHOT#_R

R116 750/F_4

DRAMRST_CNTRL_DDR(12,13)

MAIN_ONG (4,35)

U19

8 7 6 4

*G781-1P8

U20B

F49

PROC_SELECT#

C57

PROC_DETECT#

C49

CATERR#

A48

PECI

C45

PROCHOT#

D45

THERMTRIP#

C48

PM_SYNC

B46

UNCOREPWRGOOD

BE45

SM_DRAMPW ROK

D44

RESET#

C240 *43P/50V_4

IC,IVB_2CBGA,0P7

DDR3 DRAM RESET

VCC DXP DXN GND

R182 1K/F_4

1 2 3

IO_THERMDC_L

5

+3V_DEEP_SUS

DRAMRST_CNTRL_PCH(8)

DRAMRST_CNTRL_EC(27)

SCLK SDA ALERT# OVERT#

MISC THERMAL PWR MANAGEMENT

DRAMRST_CNTRL_DDR

for DS3

R176 *0_4 R172 0_4

PV shortpad

C681 *0.01U/25V_4

G781-1P8(9Ah)

2

IO_THERMDA_IO

C684 *2200P/50V_4

IO_THERMDC_IO

2

10/30:reserved for eDP

1

CLK_DPLL_SSCLKP_R CLK_DPLL_SSCLKN_R

J3

BCLK

H2

BCLK#

AG3

DPLL_REF_CLK

DPLL_REF_CLK#

CLOCKS

SM_DRAMRST#

SM_RCOMP[0] SM_RCOMP[1] SM_RCOMP[2]

DDR3

MISC

PRDY# PREQ#

TRST#

BPM#[0] BPM#[1] BPM#[2]

C363

0.047U/10V_4

2

*METR3904-G

BPM#[3] BPM#[4] BPM#[5] BPM#[6] BPM#[7]

Q10 2N7002K

Q4

1 3

2

JTAG & BPM

+3V

CLK_DPLL_SSCLKP_R

AG1

CLK_DPLL_SSCLKN_R

10/30:modify for eDP

AT30

BF44

SM_RCOMP_0

BE43

SM_RCOMP_1

BG43

SM_RCOMP_2

SM_RCOMP[0] W:20mils/S:20mils/L: 500mils, SM_RCOMP[1] W:20mils/S:20mils/L: 500mils, SM_RCOMP[2] W:15mils/S:20mils/L: 500mils,

N53

XDP_PRDY#

N55

XDP_PREQ#

L56

XDP_TCLK

TCK

L55

XDP_TMS

TMS

J58

XDP_TRST#

M60

XDP_TDI_R

TDI

L59

XDP_TDO

TDO

K58

G58 E55 E59 G55 G59 H60 J59 J61

+1.5VSUS

3

1

CPU_DRAMRST#

R171

4.99K/F_4

R185 1K/F_4

XDP_DBRST#

XDP_BPM6 XDP_BPM7

CPU_DRAMRST#_R

DBR#

R4561K/F_4 R454*1K/F_4

R4521K/F_4

R457 *0_4 R455 *0_4

C362 *43P/50V_4

R167 140/F_4 R168 25.5/F_4 R169 200/F_4

R1781K/F_4

+1.05V

CLK_CPU_BCLKP (8) CLK_CPU_BCLKN (8)

TP38

CPU XDP

XDP_DBRST# (6)

DDR3_DRAMRST# (12,13)

02

CLK_DPLL_SSCLKP (8) CLK_DPLL_SSCLKN (8)

Processor pull-up (CPU)

+1.05V

H_PROCHOT# XDP_TDO XDP_TMS XDP_TDI_R XDP_PREQ# XDP_TCLK XDP_TRST#

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

IVB 1/4 (DMI/PEG/FDI)

Date: Sheet

R90 62_4 R112 51_4 R114 51_4 R118 51_4 R115 *51_4 R132 51_4 R126 51_4

1

2 37Friday, May 24, 2013

of

1A

5

4

3

2

1

03

Ivy Bridge Processor (DDR3)

D D

U20C IC,IVB_2CBGA,0P7

M_A_DQ[63:0](12)

C C

B B

M_A_BS#0(12) M_A_BS#1(12) M_A_BS#2(12)

M_A_CAS#(12) M_A_RAS#(12) M_A_WE#(12)

M_A_DQ0 M_A_DQ1 M_A_DQ2 M_A_DQ3 M_A_DQ4 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ8 M_A_DQ9 M_A_DQ10 M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19 M_A_DQ20 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ28 M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ32 M_A_DQ33 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47 M_A_DQ48 M_A_DQ49 M_A_DQ50 M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ58 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63

AG6 AP11 AJ10

AR11

AP6

AU6

AV9

AR6

AP8 AT13 AU13

BC7

BB7 BA13 BB11

BA7

BA9

BB9 AY13 AV14 AR14 AY17 AR19 BA14 AU14 BB14 BB17 BA45 AR43

AW48

BC48 BC45 AR45 AT48 AY48 BA49 AV49 BB51 AY53 BB49 AU49 BA53 BB55 BA55 AV56 AP50 AP53 AV54 AT54 AP56 AP52 AN57 AN53 AG56 AG53 AN55 AN52 AG55 AK56

BD37 BF36 BA28

BE39 BD39 AT41

AJ6 AL6 AJ8

AL8 AL7

SA_DQ[0] SA_DQ[1] SA_DQ[2] SA_DQ[3] SA_DQ[4] SA_DQ[5] SA_DQ[6] SA_DQ[7] SA_DQ[8] SA_DQ[9] SA_DQ[10] SA_DQ[11] SA_DQ[12] SA_DQ[13] SA_DQ[14] SA_DQ[15] SA_DQ[16] SA_DQ[17] SA_DQ[18] SA_DQ[19] SA_DQ[20] SA_DQ[21] SA_DQ[22] SA_DQ[23] SA_DQ[24] SA_DQ[25] SA_DQ[26] SA_DQ[27] SA_DQ[28] SA_DQ[29] SA_DQ[30] SA_DQ[31] SA_DQ[32] SA_DQ[33] SA_DQ[34] SA_DQ[35] SA_DQ[36] SA_DQ[37] SA_DQ[38] SA_DQ[39] SA_DQ[40] SA_DQ[41] SA_DQ[42] SA_DQ[43] SA_DQ[44] SA_DQ[45] SA_DQ[46] SA_DQ[47] SA_DQ[48] SA_DQ[49] SA_DQ[50] SA_DQ[51] SA_DQ[52] SA_DQ[53] SA_DQ[54] SA_DQ[55] SA_DQ[56] SA_DQ[57] SA_DQ[58] SA_DQ[59] SA_DQ[60] SA_DQ[61] SA_DQ[62] SA_DQ[63]

SA_BS[0] SA_BS[1] SA_BS[2]

SA_CAS# SA_RAS# SA_WE#

SA_CK[0] SA_CK#[0] SA_CKE[0]

SA_CK[1] SA_CK#[1] SA_CKE[1]

SA_CS#[0] SA_CS#[1]

SA_ODT[0] SA_ODT[1]

SA_DQS#[0] SA_DQS#[1] SA_DQS#[2] SA_DQS#[3] SA_DQS#[4] SA_DQS#[5] SA_DQS#[6] SA_DQS#[7]

SA_DQS[0] SA_DQS[1] SA_DQS[2] SA_DQS[3] SA_DQS[4] SA_DQS[5] SA_DQS[6] SA_DQS[7]

AU36 AV36 AY26

AT40 AU40 BB26

BB40 BC41

AY40 BA41

AL11 AR8 AV11 AT17 AV45 AY51 AT55 AK55

AJ11 AR10 AY11 AU17 AW45 AV51 AT56 AK54

M_A_DQSN0 M_A_DQSN1 M_A_DQSN2 M_A_DQSN3 M_A_DQSN4 M_A_DQSN5 M_A_DQSN6 M_A_DQSN7

M_A_DQSP0 M_A_DQSP1 M_A_DQSP2 M_A_DQSP3 M_A_DQSP4 M_A_DQSP5 M_A_DQSP6 M_A_DQSP7

M_A_CLKP0 (12) M_A_CLKN0 (12) M_A_CKE0 (12)

M_A_CLKP1 (12) M_A_CLKN1 (12) M_A_CKE1 (12)

M_A_CS#0 (12) M_A_CS#1 (12)

M_A_ODT0 (12) M_A_ODT1 (12)

M_A_DQSN[7:0] (12)

M_A_DQSP[7:0] (12)

DDR SYSTEM MEMORY A

SA_MA[0]

SA_MA[1]

SA_MA[2]

SA_MA[3]

SA_MA[4]

SA_MA[5]

SA_MA[6]

SA_MA[7]

SA_MA[8]

SA_MA[9]

SA_MA[10] SA_MA[11] SA_MA[12] SA_MA[13] SA_MA[14] SA_MA[15]

BG35 BB34 BE35 BD35 AT34 AU34 BB32 AT32 AY32 AV32 BE37 BA30 BC30 AW41 AY28 AU26

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14 M_A_A15

M_A_A[15:0] (12)

M_B_DQ[63:0](13)

M_B_BS#0(13) M_B_BS#1(13) M_B_BS#2(13)

M_B_CAS#(13) M_B_RAS#(13) M_B_WE#(13)

M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

U20D IC,IVB_2CBGA,0P7

AL4

SB_DQ[0]

AL1

SB_DQ[1]

AN3

SB_DQ[2]

AR4

SB_DQ[3]

AK4

SB_DQ[4]

AK3

SB_DQ[5]

AN4

SB_DQ[6]

AR1

SB_DQ[7]

AU4

SB_DQ[8]

AT2

SB_DQ[9]

AV4

SB_DQ[10]

BA4

SB_DQ[11]

AU3

SB_DQ[12]

AR3

SB_DQ[13]

AY2

SB_DQ[14]

BA3

SB_DQ[15]

BE9

SB_DQ[16]

BD9

SB_DQ[17]

BD13

SB_DQ[18]

BF12

SB_DQ[19]

BF8

SB_DQ[20]

BD10

SB_DQ[21]

BD14

SB_DQ[22]

BE13

SB_DQ[23]

BF16

SB_DQ[24]

BE17

SB_DQ[25]

BE18

SB_DQ[26]

BE21

SB_DQ[27]

BE14

SB_DQ[28]

BG14

SB_DQ[29]

BG18

SB_DQ[30]

BF19

SB_DQ[31]

BD50

SB_DQ[32]

BF48

SB_DQ[33]

BD53

SB_DQ[34]

BF52

SB_DQ[35]

BD49

SB_DQ[36]

BE49

SB_DQ[37]

BD54

SB_DQ[38]

BE53

SB_DQ[39]

BF56

SB_DQ[40]

BE57

SB_DQ[41]

BC59

SB_DQ[42]

AY60

SB_DQ[43]

BE54

SB_DQ[44]

BG54

SB_DQ[45]

BA58

SB_DQ[46]

AW59

SB_DQ[47]

AW58

SB_DQ[48]

AU58

SB_DQ[49]

AN61

SB_DQ[50]

AN59

SB_DQ[51]

AU59

SB_DQ[52]

AU61

SB_DQ[53]

AN58

SB_DQ[54]

AR58

SB_DQ[55]

AK58

SB_DQ[56]

AL58

SB_DQ[57]

AG58

SB_DQ[58]

AG59

SB_DQ[59]

AM60

SB_DQ[60]

AL59

SB_DQ[61]

AF61

SB_DQ[62]

AH60

SB_DQ[63]

BG39

SB_BS[0]

BD42

SB_BS[1]

AT22

SB_BS[2]

AV43

SB_CAS#

BF40

SB_RAS#

BD45

SB_WE#

SB_CK[0] SB_CK#[0] SB_CKE[0]

SB_CK[1] SB_CK#[1] SB_CKE[1]

SB_CS#[0] SB_CS#[1]

SB_ODT[0] SB_ODT[1]

SB_DQS#[0] SB_DQS#[1] SB_DQS#[2] SB_DQS#[3] SB_DQS#[4] SB_DQS#[5] SB_DQS#[6] SB_DQS#[7]

SB_DQS[0] SB_DQS[1] SB_DQS[2] SB_DQS[3] SB_DQS[4] SB_DQS[5] SB_DQS[6] SB_DQS[7]

BA34 AY34 AR22

BA36 BB36 BF27

BE41 BE47

AT43 BG47

AL3 AV3 BG11 BD17 BG51 BA59 AT60 AK59

AM2 AV1 BE11 BD18 BE51 BA61 AR59 AK61

M_B_DQSN0 M_B_DQSN1 M_B_DQSN2 M_B_DQSN3 M_B_DQSN4 M_B_DQSN5 M_B_DQSN6 M_B_DQSN7

M_B_DQSP0 M_B_DQSP1 M_B_DQSP2 M_B_DQSP3 M_B_DQSP4 M_B_DQSP5 M_B_DQSP6 M_B_DQSP7

M_B_CLKP0 (13) M_B_CLKN0 (13) M_B_CKE0 (13)

M_B_CLKP1 (13) M_B_CLKN1 (13) M_B_CKE1 (13)

M_B_CS#0 (13) M_B_CS#1 (13)

M_B_ODT0 (13) M_B_ODT1 (13)

M_B_DQSN[7:0] (13)

M_B_DQSP[7:0] (13)

DDR SYSTEM MEMORY B

SB_MA[0]

SB_MA[1]

SB_MA[2]

SB_MA[3]

SB_MA[4]

SB_MA[5]

SB_MA[6]

SB_MA[7]

SB_MA[8]

SB_MA[9]

SB_MA[10] SB_MA[11] SB_MA[12] SB_MA[13] SB_MA[14] SB_MA[15]

BF32 BE33 BD33 AU30 BD30 AV30 BG30 BD29 BE30 BE28 BD43 AT28 AV28 BD46 AT26 AU22

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14 M_B_A15

M_B_A[15:0] (13)

A A

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

IVB 2/4 (DDR3 I/F)

Date: Sheet

5

4

3

2

Date: Sheet of

1

1A

3 37Friday, May 24, 2013

of

5

U20F

+VCC_CORE

A26

VCC[1]

A29

VCC[2]

A31

VCC[3]

C241 22U/6.3VS_6

D D

C644 22U/6.3VS_6

C654 22U/6.3VS_6

C236 22U/6.3VS_6

C675 22U/6.3VS_6

C C

330uFx3pcs bulk BOT 22uFx14pcs cavity BOT

2.2uFx16pcs BGA TOP

B B

A A

+1.5V_CPU (2,10,21,26) +3VPCU (7,21,24,25,26,27,28,29) +1.5VSUS (2,12,13,31,37) +1.05V (2,6,7,8,10,26,27,30,33) +VCC_CORE (5,34) +VCCSA (32) +VCC_GFX (34) +1.8V (7,10,31,37)

22U/6.3VS_6

C672

C680

22U/6.3VS_6

C656

C237

22U/6.3VS_6

C238

C676

22U/6.3VS_6

C239 22U/6.3VS_6

C262 2.2U/6.3VS_4 C260 2.2U/6.3VS_4 C264 2.2U/6.3VS_4 C293 2.2U/6.3VS_4 C267 2.2U/6.3VS_4 C289 2.2U/6.3VS_4 C290 2.2U/6.3VS_4 C291 2.2U/6.3VS_4 C292 2.2U/6.3VS_4 C286 2.2U/6.3VS_4 C287 2.2U/6.3VS_4 C288 2.2U/6.3VS_4 C259 2.2U/6.3VS_4 C263 2.2U/6.3VS_4 C265 2.2U/6.3VS_4 C261 2.2U/6.3VS_4

5

C671

C252

A34

VCC[4]

A35

VCC[5]

A38

VCC[6]

A39

VCC[7]

A42

VCC[8]

C26

VCC[9]

C27

VCC[10]

C32

VCC[11]

C34

VCC[12]

C37

VCC[13]

C39

VCC[14]

C42

VCC[15]

D27

VCC[16]

D32

VCC[17]

D34

VCC[18]

D37

VCC[19]

D39

VCC[20]

D42

VCC[21]

E26

VCC[22]

E28

VCC[23]

E32

VCC[24]

E34

VCC[25]

E37

VCC[26]

E38

VCC[27]

F25

VCC[28]

F26

VCC[29]

F28

VCC[30]

F32

VCC[31]

F34

VCC[32]

F37

VCC[33]

F38

VCC[34]

F42

VCC[35]

G42

VCC[36]

H25

VCC[37]

H26

VCC[38]

H28

VCC[39]

H29

VCC[40]

H32

VCC[41]

H34

VCC[42]

H35

VCC[43]

H37

VCC[44]

H38

VCC[45]

H40

VCC[46]

J25

VCC[47]

J26

VCC[48]

J28

VCC[49]

J29

VCC[50]

J32

VCC[51]

J34

VCC[52]

J35

VCC[53]

J37

VCC[54]

J38

VCC[55]

J40

VCC[56]

J42

VCC[57]

K26

VCC[58]

K27

VCC[59]

K29

VCC[60]

K32

VCC[61]

K34

VCC[62]

K35

VCC[63]

K37

VCC[64]

K39

VCC[66]

K42

VCC[67]

L25

VCC[68]

L28

VCC[69]

L33

VCC[70]

L36

VCC[71]

L40

VCC[72]

N26

VCC[73]

N30

VCC[74]

N34

VCC[75]

N38

VCC[76]

IC,IVB_2CBGA,0P7

H_CPU_SVIDALRT# VR_SVID_DATA

VR_SVID_CLK

POWER

CORE SUPPLY

R close to CPU

R113 43_4

4

VCCIO[1] VCCIO[3] VCCIO[4] VCCIO[5] VCCIO[6] VCCIO[7] VCCIO[8]

VCCIO[9] VCCIO[10] VCCIO[11] VCCIO[12] VCCIO[13] VCCIO[14] VCCIO[15] VCCIO[16] VCCIO[17] VCCIO[18] VCCIO[19] VCCIO[20] VCCIO[21] VCCIO[22] VCCIO[23] VCCIO[24] VCCIO[25] VCCIO[26] VCCIO[27] VCCIO[28] VCCIO[29]

VCCIO[30] VCCIO[31] VCCIO[32]

PEG IO AND DDR IO

VCCIO[33] VCCIO[34] VCCIO[35] VCCIO[36] VCCIO[37] VCCIO[38] VCCIO[39] VCCIO[40] VCCIO[41] VCCIO[42] VCCIO[43] VCCIO[44] VCCIO[45] VCCIO[46] VCCIO[47] VCCIO[48] VCCIO[49]

VCCIO50

VCCIO51

VCCIO_SEL

VCCPQE[1] VCCPQE[2]

RAILS

VIDALERT#

VIDSCLK

VIDSOUT

VCC_SENSE VSS_SENSE

VCCIO_SENSE

VSS_SENSE_VCCIO

SENSE LINES SVID QUIET

4

IVB:8.5A

AF46 AG48 AG50 AG51 AJ17 AJ21 AJ25 AJ43 AJ47 AK50 AK51 AL14 AL15 AL16 AL20 AL22 AL26 AL45 AL48 AM16 AM17 AM21 AM43 AM47 AN20 AN42 AN45 AN48

AA14 AA15 AB17 AB20 AC13 AD16 AD18 AD21 AE14 AE15 AF16 AF18 AF20 AG15 AG16 AG17 AG20 AG21 AJ14 AJ15

W16 W17

C326 1U/6.3V_4

C697 22U/6.3VS_6

C703 22U/6.3VS_6

C702 22U/6.3VS_6

330uFx2pcs bulk BOT 22uFx10pcs cavity BOT

2.2uFx13pcs BGA TOP

Zo impedance: 27.4ohm

BC22

R463 *1K/F_4

AM25 AN22

A44 B43 C44

100- ±1% pull-up to VCC near processor.

F43 G43

AN16 AN17

R106 75/F_4

R107 130/F_4

H_CPU_SVIDALRT# VR_SVID_CLK VR_SVID_DATA

VCCP_SENSE

VSSP_SENSE

+1.05V VR_SVID_ALERT# (33) VR_SVID_DATA (33)

+1.05V VR_SVID_CLK (33)

C314 1U/6.3V_4

R102 100/F_4

R103 100/F_4 R146 10/F_4

R147 10/F_4

+1.05V

C349 1U/6.3V_4

C347 22U/6.3VS_6

C330 22U/6.3VS_6

C686 22U/6.3VS_6

C350 1U/6.3V_4 C303 1U/6.3V_4 C304 1U/6.3V_4 C305 1U/6.3V_4 C306 1U/6.3V_4 C307 1U/6.3V_4 C309 1U/6.3V_4 C333 1U/6.3V_4 C332 1U/6.3V_4 C340 1U/6.3V_4 C328 1U/6.3V_4 C308 1U/6.3V_4 C338 1U/6.3V_4

H_VTTVID1 (30)

+1.05V

+VCC_CORE

VCC_SENSE (33) VSS_SENSE (33)

+1.05V

VCCP_SENSE (30) VSSP_SENSE (30)

3

+VCC_GFX

C317 1U/6.3V_4

C348 22U/6.3VS_6

C685 22U/6.3VS_6

+1.8V

C270

22U/6.3VS_6

C277

22U/6.3VS_6

C276

22U/6.3VS_6

C275

22U/6.3VS_6

C301

1U/6.3V_4

C279

1U/6.3V_4

C300

1U/6.3V_4

+VCC_GFX

VCC_AXG_SENSE(33) VSS_AXG_SENSE(33)

22U/6.3VS_6

1U/6.3V_4

TP29

TP30

IVB: 1.5A

C706

C705

1U/6.3V_4

330uF x1, 10uF_8 x1, 1uF_4 x2

+VCCSA

C296

C266

10U/6.3V_6

330uFx1, 10uFx4

Zo impedance: 27.4ohm

Zo impedance: 55 ohm

Q12 AON7410

5 2

4

MAIND

C366 *470P/50V_4

CPU VDDQ

3

330uFx2pcs bulk BOT 22uFx12pcs cavity BOT 1uFx12pcs BGA TOP

C274

22U/6.3VS_6

C271

22U/6.3VS_6

C283

22U/6.3VS_6

C329

22U/6.3VS_6

C280

1U/6.3V_4

C312

1U/6.3V_4

C282

1U/6.3V_4

C704 10U/6.3V_6

IVB: 6A

C295

10U/6.3V_6

+1.5V_CPU+1.5VSUS

1 3

C273

C318

C272

C284

C278

C299

C298

C310

10U/6.3V_6

R173 220_8

3

1

R13310/F_4

R13410/F_4

2

Q11

2N7002K

U20G

AA46

VAXG[1]

AB47

VAXG[2]

AB50

VAXG[3]

AB51

VAXG[4]

AB52

VAXG[5]

AB53

VAXG[6]

AB55

VAXG[7]

AB56

VAXG[8]

AB58

VAXG[9]

AB59

VAXG[10]

AC61

VAXG[11]

AD47

VAXG[12]

AD48

VAXG[13]

AD50

VAXG[14]

AD51

VAXG[15]

AD52

VAXG[16]

AD53

VAXG[17]

AD55

VAXG[18]

AD56

VAXG[19]

AD58

VAXG[20]

AD59

VAXG[21]

AE46

VAXG[22]

N45

VAXG[23]

P47

VAXG[24]

P48

VAXG[25]

P50

VAXG[26]

P51

VAXG[27]

P52

VAXG[28]

P53

VAXG[29]

P55

VAXG[30]

P56

VAXG[31]

P61

VAXG[32]

T48

VAXG[33]

T58

VAXG[34]

T59

VAXG[35]

T61

VAXG[36]

U46

VAXG[37]

V47

VAXG[38]

V48

VAXG[39]

V50

VAXG[40]

V51

VAXG[41]

V52

VAXG[42]

V53

VAXG[43]

V55

VAXG[44]

V56

VAXG[45]

V58

VAXG[46]

V59

VAXG[47]

W50

VAXG[48]

W51

VAXG[49]

W52

VAXG[50]

W53

VAXG[51]

W55

VAXG[52]

W56

VAXG[53]

W61

VAXG[54]

Y48

VAXG[55]

Y61

VAXG[56]

F45

VAXG_SENSE

G45

VSSAXG_SENSE

BB3

VCCPLL[1]

BC1

VCCPLL[2]

BC4

VCCPLL[3]

L17

VCCSA[1]

L21

VCCSA[2]

N16

VCCSA[3]

N20

VCCSA[4]

N22

VCCSA[5]

P17

VCCSA[6]

P20

VCCSA[7]

R16

VCCSA[8]

R18

VCCSA[9]

R21

VCCSA[10]

U15

VCCSA[11]

V16

VCCSA[12]

V17

VCCSA[13]

V18

VCCSA[14]

V21

VCCSA[15]

W20

VCCSA[16]

IC,IVB_2CBGA,0P7

MAIN_ONG (2,35)

POWER

VREF

DDR3 - 1.5V RAILS

GRAPHICS

SENSE

LINES

1.8V RAIL

SA RAIL

VCCSA VID

SMDDR_VREF_DQ0_M3

SMDDR_VREF_DQ1_M3

2

SM_VREF

SA_DIMM_VREFDQ SB_DIMM_VREFDQ

VDDQ[10] VDDQ[11] VDDQ[12] VDDQ[13] VDDQ[14] VDDQ[15] VDDQ[16] VDDQ[17] VDDQ[18] VDDQ[19] VDDQ[20] VDDQ[21] VDDQ[22] VDDQ[23] VDDQ[24] VDDQ[25] VDDQ[26]

VCCDQ[1] VCCDQ[2]

QUIET RAILS

VDDQ_SENSE

VSS_SENSE_VDDQ

VCCSA_SENSE

SENSE LINES

VCCSA_VID[0] VCCSA_VID[1]

lines

2

AY43

BE7 BG7

AJ28

VDDQ[1]

AJ33

VDDQ[2]

AJ36

VDDQ[3]

AJ40

VDDQ[4]

AL30

VDDQ[5]

AL34

VDDQ[6]

AL38

VDDQ[7]

AL42

VDDQ[8]

AM33

VDDQ[9]

AM36 AM40 AN30 AN34 AN38 AR26 AR28 AR30 AR32 AR34 AR36 AR40 AV41 AW26 BA40 BB28 BG33

AM28 AN26

BC43 BA43

U10

D48 D49

SMDDR_VREF_DQ0_M3 (12)

R462 *1K/F_4

SMDDR_VREF_DQ1_M3 (13)

R461 *1K/F_4

+VDDR_REF_CPU +1.5V_CPU

SMDDR_VREF_DQ0_M3 SMDDR_VREF_DQ1_M3

20mils width

C364

0.1U/10V_4

IVB: 5A

C335 10U/6.3V_6

C337 10U/6.3V_6

CPU center

CRB: 1uf*1

+1.5V_CPU

C331 1U/6.3V_4

R136 *100/F_4

VCCSA_SEL0 VCCSA_SEL

R104 1K/F_4 R111 1K/F_4

R460 1K/F_4

R164 1K/F_4

C321 10U/6.3V_6

C322 10U/6.3V_6

TP47 TP46

+VCCSA

VCCUSA_SENSE (32)

Zo:55 ohm

VCCSA_SEL0 (32) VCCSA_SEL (32)

1

CAD Note: +VDDR_REF_CPU should have 10 mil trace width

1

+VDDR_REF_CPU and DDR_VTTREF must use 10mils width

C319 10U/6.3V_6

C336 10U/6.3V_6

3

Q9 2N7002K

2

C360 470P/50V_4

+1.5V_CPU

C323 10U/6.3V_6

C320 10U/6.3V_6

C369 0.1U/10V_4

C370 0.1U/10V_4

C368 0.1U/10V_4

C367 0.1U/10V_4

+3VPCU

THER_CPU

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

DDR_VTTREF (12,13,31)

R166 3.3K/F_4

+1.5VSUS+1.5V_CPU

IO Thrm Protect

For 65 degree, 1.8v limit, (SW)

R94

16.5K/F_4

R101

3.3K/F_4

For 75 degree, 1.2v limit, (HW)

R105

0_4

R96 100K_4 NTC

PROJECT :U81

Quanta Computer Inc.

IVB 3/4 (POWER)

1

C220

0.1U/10V_4

1 2

C234

0.1U/10V_4

1 2

04

MAIND (35)

THRM_MOINTOR (27)

THRM_MOINTOR1 (27)

4 37Friday, May 24, 2013

of

1A

5

4

3

2

1

U20H

A13

VSS[1]

A17

VSS[2]

A21

VSS[3]

A25

VSS[4]

A28

VSS[5]

A33

D D

C C

B B

A A

A37 A40 A45 A49 A53

A9

AA1 AA13 AA50 AA51 AA52 AA53 AA55 AA56

AA8 AB16 AB18 AB21 AB48 AB61 AC10 AC14 AC46

AC6 AD17 AD20

AD4 AD61 AE13

AE8

AF1 AF17 AF21 AF47 AF48 AF50 AF51 AF52 AF53 AF55 AF56 AF58 AF59 AG10 AG14 AG18 AG47 AG52 AG61

AG7

AH4 AH58 AJ13 AJ16 AJ20 AJ22 AJ26 AJ30 AJ34 AJ38 AJ42 AJ45 AJ48

AJ7

AK1 AK52 AL10 AL13 AL17 AL21 AL25 AL28 AL33 AL36 AL40 AL43 AL47 AL61

AM13 AM20 AM22 AM26 AM30 AM34

IC,IVB_2CBGA,0P7

VSS[6] VSS[7] VSS[8] VSS[9] VSS[10] VSS[11] VSS[12] VSS[13] VSS[14] VSS[15] VSS[16] VSS[17] VSS[18] VSS[19] VSS[20] VSS[21] VSS[22] VSS[23] VSS[24] VSS[25] VSS[26] VSS[27] VSS[28] VSS[29] VSS[30] VSS[31] VSS[32] VSS[33] VSS[34] VSS[35] VSS[36] VSS[37] VSS[38] VSS[39] VSS[40] VSS[41] VSS[42] VSS[43] VSS[44] VSS[45] VSS[46] VSS[47] VSS[48] VSS[49] VSS[50] VSS[51] VSS[52] VSS[53] VSS[54] VSS[55] VSS[56] VSS[57] VSS[58] VSS[59] VSS[60] VSS[61] VSS[62] VSS[63] VSS[64] VSS[65] VSS[66] VSS[67] VSS[68] VSS[69] VSS[70] VSS[71] VSS[72] VSS[73] VSS[74] VSS[75] VSS[76] VSS[77] VSS[78] VSS[79] VSS[80] VSS[81] VSS[82] VSS[83] VSS[84] VSS[85] VSS[86] VSS[87] VSS[88] VSS[89] VSS[90]

VSS

VSS[91] VSS[92] VSS[93] VSS[94] VSS[95] VSS[96] VSS[97] VSS[98]

VSS[99] VSS[100] VSS[101] VSS[102] VSS[103] VSS[104] VSS[105] VSS[106] VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158] VSS[159] VSS[160] VSS[161] VSS[162] VSS[163] VSS[164] VSS[165] VSS[166] VSS[167] VSS[168] VSS[169] VSS[170] VSS[171] VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179] VSS[180]

AM38 AM4 AM42 AM45 AM48 AM58 AN1 AN21 AN25 AN28 AN33 AN36 AN40 AN43 AN47 AN50 AN54 AP10 AP51 AP55 AP7 AR13 AR17 AR21 AR41 AR48 AR61 AR7 AT14 AT19 AT36 AT4 AT45 AT52 AT58 AU1 AU11 AU28 AU32 AU51 AU7 AV17 AV21 AV22 AV34 AV40 AV48 AV55 AW13 AW43 AW61 AW7 AY14 AY19 AY30 AY36 AY4 AY41 AY45 AY49 AY55 AY58 AY9 BA1 BA11 BA17 BA21 BA26 BA32 BA48 BA51 BB53 BC13 BC5 BC57 BD12 BD16 BD19 BD23 BD27 BD32 BD36 BD40 BD44 BD48 BD52 BD56 BD8 BE5 BG13

U20I

BG17 BG21 BG24 BG28 BG37 BG41 BG45 BG49 BG53

BG9 C29 C35 C40 D10 D14 D18 D22 D26 D29 D35

D4 D40 D43 D46 D50 D54 D58

D6 E25 E29

E3 E35 E40

F13 F15 F19 F29 F35 F40 F55

G51

G6 G61 H10 H14 H17 H21

H4 H53 H58

J1 J49 J55

K11 K21 K51

K8 L16 L20 L22 L26 L30 L34 L38 L43 L48 L61

M11 M15

IC,IVB_2CBGA,0P7

VSS[181] VSS[182] VSS[183] VSS[184] VSS[185] VSS[186] VSS[187] VSS[188] VSS[189] VSS[190] VSS[191] VSS[192] VSS[193] VSS[194] VSS[195] VSS[196] VSS[197] VSS[198] VSS[199] VSS[200] VSS[201] VSS[202] VSS[203] VSS[204] VSS[205] VSS[206] VSS[207] VSS[208] VSS[209] VSS[210] VSS[211] VSS[212] VSS[213] VSS[214] VSS[215] VSS[216] VSS[217] VSS[218] VSS[219] VSS[220] VSS[221] VSS[222] VSS[223] VSS[224] VSS[225] VSS[226] VSS[227] VSS[228] VSS[229] VSS[230] VSS[231] VSS[232] VSS[233] VSS[234] VSS[235] VSS[236] VSS[237] VSS[238] VSS[239] VSS[240] VSS[241] VSS[242] VSS[243] VSS[244] VSS[245] VSS[246] VSS[247] VSS[248] VSS[249]

M4

VSS[250]

M58

VSS[251]

M6

VSS[252]

N1

VSS[253]

N17

VSS[254]

N21

VSS[255]

N25

VSS[256]

N28

VSS[257]

N33

VSS[258]

N36

VSS[259]

N40

VSS[260]

N43

VSS[261]

N47

VSS[262]

N48

VSS[263]

N51

VSS[264]

N52

VSS[265]

N56

VSS[266]

N61

VSS[267]

P14

VSS[268]

P16

VSS[269]

P18

VSS_NCTF_1 VSS_NCTF_2 VSS_NCTF_3 VSS_NCTF_4 VSS_NCTF_5 VSS_NCTF_6 VSS_NCTF_7 VSS_NCTF_8

VSS_NCTF_9 VSS_NCTF_10 VSS_NCTF_11

NCTF

VSS_NCTF_12 VSS_NCTF_13 VSS_NCTF_14

VSS[270] VSS[271] VSS[272] VSS[273] VSS[274] VSS[275] VSS[276] VSS[277] VSS[278] VSS[279] VSS[280] VSS[281] VSS[282] VSS[283] VSS[284] VSS[285] VSS[286] VSS[287] VSS[288] VSS[289] VSS[290] VSS[291] VSS[292] VSS[293] VSS[294] VSS[295] VSS[296] VSS[297] VSS[298] VSS[299] VSS[300]

P21 P58 P59 P9 R17 R20 R4 R46 T1 T47 T50 T51 T52 T53 T55 T56 U13 U8 V20 V61 W13 W15 W18 W21 W46 W8 Y4 Y47 Y58 Y59

A5 A57 BC61 BD3 BD59 BE4 BE58 BG5 BG57 C3 C58 D59 E1 E61

CDPTR

VSS

Processor Strapping

CFG2 (PCIe Static x16 Lane Numbering Reversal.)

CFG4 (DP Presence Strap)

CFG7 (PEG Defer Training)

Normal Operation(Default) Lane Reversed

Disable; No physical DP attached to eDP

PEG train immediately following xxRESETB de assertion

+VCC_CORE (4,34)

U20E

B50

CFG[0]

C51

CFG[1]

TP31

+VCC_CORE

TP42 TP43

TP36 TP39

CFG2 CFG3 CFG4 CFG5 CFG6 CFG7

B54

CFG[2]

D53

CFG[3]

A51

CFG[4]

C53

CFG[5]

C55

CFG[6]

H49

CFG[7]

A55

CFG[8]

H51

CFG[9]

K49

CFG[10]

K53

CFG[11]

F53

CFG[12]

G53

CFG[13]

L51

CFG[14]

F51

CFG[15]

D52

CFG[16]

L53

CFG[17]

H43

R125*49.9/F_4 R129*49.9/F_4

VCC_VAL_SENSE

K43

VSS_VAL_SENSE

H45

VAXG_VAL_SENSE

K45

VSSAXG_VAL_SENSE

F48

VCC_DIE_SENSE

G48

RSVD47

H48

RSVD6

K48

RSVD7

BA19

RSVD8

AV19

RSVD9

AT21

RSVD10

BB21

RSVD11

BB19

RSVD12

AY21

RSVD13

BA22

RSVD14

AY22

RSVD15

AU19

RSVD16

AU21

RSVD17

BD21

RSVD18

BD22

RSVD19

BD25

RSVD20

BD26

RSVD21

BG22

RSVD22

BE22

RSVD23

BG26

RSVD24

BE26

RSVD25

BF23

RSVD26

BE24

RSVD27

IC,IVB_2CBGA,0P7

CFG[6:5] (PCIE Port Bifurcation Straps)

11: (Default) x16 - Device 1 functions 1 and 2 disabled 10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled 01: Reserved - (Device 1 function 1 disabled ; function 2 enabled) 00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

The CFG signals have a default value of '1' if not terminated on the board.

1 0

Enable; An ext DP device is connected to eDP

PEG wait for BIOS training

RESERVED

BCLK_ITP

BCLK_ITP#

RSVD30 RSVD31 RSVD32 RSVD33

RSVD34 RSVD35 RSVD36 RSVD37 RSVD38

RSVD39 RSVD40

RSVD41 RSVD42 RSVD43 RSVD44

RSVD45

DC_TEST_A4 DC_TEST_C4 DC_TEST_D3

DC_TEST_D1 DC_TEST_A58 DC_TEST_A59 DC_TEST_C59 DC_TEST_A61 DC_TEST_C61 DC_TEST_D61

DC_TEST_BD61 DC_TEST_BE61

DC_TEST_BE59 DC_TEST_BG61 DC_TEST_BG59 DC_TEST_BG58

DC_TEST_BG4 DC_TEST_BG3 DC_TEST_BE3 DC_TEST_BG1 DC_TEST_BE1 DC_TEST_BD1

CFG2 CFG4 CFG7

N59 N58

N42 L42 L45 L47

M13 M14 U14 W14 P13

AT49 K24

AH2 AG13 AM14 AM15

N50

A4 C4 D3 D1 A58 A59 C59 A61 C61 D61 BD61 BE61 BE59 BG61 BG59 BG58 BG4 BG3 BE3 BG1 BE1 BD1

CFG5

R110 1K/F_4

CFG6

R117 *1K/F_4

R100 *1K/F_4 R109 *1K/F_4 R99 *1K/F_4

05

TP40

TP37 TP33

TP41 TP82

TP81 TP80

TP79

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

IVB 4/4 (RSV,GND)

Date: Sheet

5

4

3

2

Date: Sheet of

1

1A

5 37Monday, May 27, 2013

of

5

4

3

2

1

Cougar Point/Panther Point (DMI,FDI,PM)

U23C HM77

DMI_RXN0(2) DMI_RXN1(2) DMI_RXN2(2) DMI_RXN3(2)

DMI_RXP0(2)

D D

for DS3

SUSACK#_EC(27)

C C

XDP_DBRST#(2)

IMVP_PWRGD

EC_PWROK(27)

for DS3

SUSWARN#_EC(27)

for DS3

B B

DMI_RXP1(2) DMI_RXP2(2) DMI_RXP3(2)

DMI_TXN0(2) DMI_TXN1(2) DMI_TXN2(2) DMI_TXN3(2)

DMI_TXP0(2) DMI_TXP1(2) DMI_TXP2(2) DMI_TXP3(2)

R476 49.9/F_4

+1.05V

R475 750/F_4

R268 *0_4

PV shortpad

R261 0_4

C510 *1U/6.3V_4

PM_DRAM_PWRGD(2)

RSMRST#(27)

PV shortpad

R275 0_4

DNBSWON#(27)

R302 0_4

PV shortpad

DMI_COMP DMI_RBIAS

SUS_PWR_ACKSUSWARN#

SUS_PWR_ACK

XDP_DBRST#

EC_PWROK

RSMRST#

SUSWARN#

DNBSWON#

AC_PRESENT_R

PM_BATLOW#

PM_RI#

BC24

DMI0RXN

BE20

DMI1RXN

BG18

DMI2RXN

BG20

DMI3RXN

BE24

DMI0RXP

BC20

DMI1RXP

BJ18

DMI2RXP

BJ20

DMI3RXP

AW24

DMI0TXN

AW20

DMI1TXN

BB18

DMI2TXN

AV18

DMI3TXN

AY24

DMI0TXP

AY20

DMI1TXP

AY18

DMI2TXP

AU18

DMI3TXP

BJ24

DMI_ZCOMP

BG25

DMI_IRCOMP

BH21

DMI2RBIAS

C12

SUSACK#

K3

SYS_RESET#

P12

SYS_PWROK

L22

PWROK

L10

APWROK

B13

DRAMPWROK

C21

RSMRST#

(+3VS5)

K16

SUSWARN#/SUSPWRDNACK/GPIO30

E20

PWRBTN#

(DSW)

H20

ACPRESENT / GPIO31

(+3VS5)

E10

BATLOW# / GPIO72

A10

RI#

DMI

FDI

CLKRUN# / GPIO32

SUS_STAT# / GPIO61

SUSCLK / GPIO62

SLP_S5# / GPIO63

System Power Management

SLP_LAN# / GPIO29

FDI_FSYNC0 FDI_FSYNC1 FDI_LSYNC0 FDI_LSYNC1

DSWVRMEN

FDI_RXN0 FDI_RXN1 FDI_RXN2 FDI_RXN3 FDI_RXN4 FDI_RXN5 FDI_RXN6 FDI_RXN7

FDI_RXP0 FDI_RXP1 FDI_RXP2 FDI_RXP3 FDI_RXP4 FDI_RXP5 FDI_RXP6 FDI_RXP7

FDI_INT

DPWROK

WAKE#

(+3V)

(+3VS5)

SLP_S4#

SLP_S3#

SLP_A#

SLP_SUS#

PMSYNCH

(+3VS5)

BJ14 AY14 BE14 BH13 BC12 BJ12 BG10 BG9

BG14 BB14 BF14 BG13 BE12 BG12 BJ10 BH9

AW16 AV12 BC10 AV14 BB10

A18

DSWVREN

E22

DPWROK RSMRST#

B9

PCIE_WAKE#

N3

CLKRUN#

G8

SUS_SATA#

N14

PCH_SUSCLK_L

D10

H4

F4

G10

G16

AP14

K14

SLP_LAN#

SLP_SUS#

PV shortpad

R292 0_4 R293 *0_4

R310 0_4

R294 0_4

FDI_TXN0 (2) FDI_TXN1 (2) FDI_TXN2 (2) FDI_TXN3 (2) FDI_TXN4 (2) FDI_TXN5 (2) FDI_TXN6 (2) FDI_TXN7 (2)

FDI_TXP0 (2) FDI_TXP1 (2) FDI_TXP2 (2) FDI_TXP3 (2) FDI_TXP4 (2) FDI_TXP5 (2) FDI_TXP6 (2) FDI_TXP7 (2)

FDI_INT (2) FDI_FSYNC0 (2) FDI_FSYNC1 (2) FDI_LSYNC0 (2) FDI_LSYNC1 (2)

DPWROK_EC

PCIE_WAKE# (22,26,27)

CLKRUN# (24,27)

TP57

TP58

SUSC# (27)

SUSB# (27)

TP56

SLP_SUS#_EC

PV shortpad

PM_SYNC (2)

DPWROK_EC (27)

PCH_SUSCLK (27)

TP59

for DS3

PCH_LVDS_BLON(20)

PCH_DISP_ON(20)

PCH_DPST_PWM(20)

PCH_EDIDCLK_C(20) PCH_EDIDDATA_C(20)

+3V

PCH_LA_CLK#(20)

PCH_LA_CLK(20)

PCH_LA_DATAN0_C(20)

PCH_LA_DATAN1(20) PCH_LA_DATAN2(20)

PCH_LA_DATAP0_C(20)

PCH_LA_DATAP1(20) PCH_LA_DATAP2(20)

for DS3

SLP_SUS#_EC (27)AC_PRESENT_EC(27)

Cougar Point/Panther Point (LVDS,DDI)

U23D HM77

J47

R253 2.2K_4 R254 2.2K_4

R235 2.37K/F_4

PCH_LA_CLK# PCH_LA_CLK

PCH_LA_DATAN0_C PCH_LA_DATAN1 PCH_LA_DATAN2

PCH_LA_DATAP0_C PCH_LA_DATAP1 PCH_LA_DATAP2

PCH_EDIDCLK_C PCH_EDIDDATA_C

CTRL_CLK CTRL_DATA

LVD_IBG

TP50

DAC_IREF

R264 1K/F_4

M45

AF37 AF36

AE48 AE47

AK39 AK40

AN48 AM47 AK47

AJ48

AN47 AM49 AK49

AJ47

AF40 AF39

AH45 AH47

AF49 AF45

AH43 AH49

AF47 AF43

N48

M40

M47 M49

P45 T40

K47 T45

P39

P49 T49

T39

T43 T42

L_BKLTEN L_VDD_EN

L_BKLTCTL L_DDC_CLK

L_DDC_DATA L_CTRL_CLK

L_CTRL_DATA LVD_IBG

LVD_VBG LVD_VREFH

LVD_VREFL

LVDSA_CLK# LVDSA_CLK

LVDSA_DATA#0 LVDSA_DATA#1 LVDSA_DATA#2 LVDSA_DATA#3

LVDSA_DATA0 LVDSA_DATA1 LVDSA_DATA2 LVDSA_DATA3

LVDSB_CLK# LVDSB_CLK

LVDSB_DATA#0 LVDSB_DATA#1 LVDSB_DATA#2 LVDSB_DATA#3

LVDSB_DATA0 LVDSB_DATA1 LVDSB_DATA2 LVDSB_DATA3

CRT_BLUE CRT_GREEN CRT_RED

CRT_DDC_CLK CRT_DDC_DATA

CRT_HSYNC CRT_VSYNC

DAC_IREF CRT_IRTN

LVDS

CRT

SDVO_TVCLKINN SDVO_TVCLKINP

SDVO_STALLN SDVO_STALLP

SDVO_CTRLCLK

SDVO_CTRLDATA

DDPC_CTRLCLK

DDPC_CTRLDATA

Digital Display Interface

DDPD_CTRLCLK

DDPD_CTRLDATA

SDVO_INTN SDVO_INTP

DDPB_AUXN DDPB_AUXP

DDPB_HPD

DDPB_0N DDPB_0P DDPB_1N DDPB_1P DDPB_2N DDPB_2P DDPB_3N DDPB_3P

DDPC_AUXN DDPC_AUXP

DDPC_HPD

DDPC_0N

DDPC_0P

DDPC_1N

DDPC_1P

DDPC_2N

DDPC_2P

DDPC_3N

DDPC_3P

DDPD_AUXN DDPD_AUXP

DDPD_HPD

DDPD_0N

DDPD_0P

DDPD_1N

DDPD_1P

DDPD_2N

DDPD_2P

DDPD_3N

DDPD_3P

AP43 AP45

AM42 AM40

AP39 AP40

P38 M39

AT49 AT47 AT40

AV42 AV40 AV45 AV46 AU48 AU47 AV47 AV49

P46 P42

AP47 AP49 AT38

AY47 AY49 AY43 AY45 BA47 BA48 BB47 BB49

M43 M36

AT45 AT43 BH41

BB43 BB45 BF44 BE44 BF42 BE42 BJ42 BG42

SDVO_CLK SDVO_DATA

HDMI_HPD_CON IN_D2#

IN_D2 IN_D1# IN_D1 IN_D0# IN_D0 IN_CLK# IN_CLK

+5V_DEEP_SUS(10) +3V_DEEP_SUS(2,7,8,9,10,35)

+3VPCU(4,7,21,24,25,26,27,28,29)

+3V_RTC(7,10,26)

06

SDVO_CLK (20) SDVO_DATA (20)

HDMI_HPD_CON (20)

IN_D2# (20) IN_D2 (20) IN_D1# (20) IN_D1 (20) IN_D0# (20) IN_D0 (20) IN_CLK# (20) IN_CLK (20)

+3V(2,7,8,9,10,12,13,14,20,21,22,23,24,25,26,27,30,33,35,36)

+3VS5(9,10,24,26,29,30,35,36,37)

+1.05V(2,4,7,8,10,26,27,30,33)

INT. HDMI

PCH Pull-high/low(CLG)

PM_RI# PM_BATLOW# PCIE_WAKE# SLP_LAN# SUSWARN# SUS_PWR_ACK

AC_PRESENT_R PM_BATLOW#

A A

CLKRUN# XDP_DBRST#

RSMRST# IMVP_PWRGD

for DS3

R544 10K/F_4 R297 8.2K_4 R545 10K/F_4 R330 *10K/F_4 R282 *10K/F_4 R271 *10K/F_4

R267 10K/F_4 R287 *8.2K_4

R507 8.2K_4 R514 1K/F_4 R512 *1K/F_4 R307 10K/F_4 R243 *100K/F_4

+3V_DEEP_SUS

+3VS5

+3V

INTEL DG

5

INTEL DG

for DS3

SLP_SUS_ON(27)

PV shortpad

R532 0_4

C765 1U/6.3V_4

C774 *10P/50V_4

System PWR_OK(CLG)

IMVP_PWRGD EC_PWROK

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

PCH 1/6 (DMI/FDI/VIDEO)

Date: Sheet

Date: Sheet of

1

R262 100K/F_4

IMVP_PWRGD (33)

6 37Friday, May 24, 2013

of

1A

OUT GND

1 2

+5V_DEEP_SUS

C766

0.1U/10V_4

+3V_RTC

R319 330K_4

DSWVREN

On Die DSW VR Enable High = Enable (Default)

Low = Disable

2

C708 1U/6.3V_4

+5VS5

R531 *100K/F_4

R534 *0_4

U26

5

IN

4

IN

3

ON/OFF

IC(5P) G5243AT11U

+3V_DEEP_SUS+3VS5

R186 *0_6

U27

5

IN

4

IN

3

ON/OFF

IC(5P) G5243AT11U R543 100K/F_4

4

OUT GND

1 2

C773

0.1U/10V_4

SLP_SUS_ON

3

5

Cougar Point/Panther Point (HDA,JTAG,SATA)

CLKGEN_RTC_X1(26)

D D

+3V_RTC

R325 0_4

R321 1M_4

ACZ_SPKR(21)

ACZ_SDIN0(21)

for DS3

+3V_DEEP_SUS

C C

SIO_EXT_SCI#(27)

R259 10K/F_4

RTC_X1 RTC_X2 RTC_RST# SRTC_RST# SM_INTRUDER# PCH_INVRMEN

ACZ_BCLK ACZ_SYNC ACZ_SPKR ACZ_RST#

ACZ_SDOUT

GPIO33

SIO_EXT_SCI#

PCH_SPI_CS0# PCH_SPI_CS1#

PCH_SPI_SI PCH_SPI_SO

U23A HM77

A20

RTCX1

C20

RTCX2

D20

RTCRST#

G22

SRTCRST#

K22

INTRUDER#

C17

INTVRMEN

N34

HDA_BCLK

L34

HDA_SYNC

T10

SPKR

K34

HDA_RST#

E34

HDA_SDIN0

G34

HDA_SDIN1

C34

HDA_SDIN2

A34

HDA_SDIN3

A36

HDA_SDO

(+3V)

C36

HDA_DOCK_EN# / GPIO33

(+3VS5)

N32

HDA_DOCK_RST# / GPIO13

J3

JTAG_TCK

H7

JTAG_TMS

K5

JTAG_TDI

H1

JTAG_TDO

T3

SPI_CLK

Y14

SPI_CS0#

T1

SPI_CS1#

V4

SPI_MOSI

U3

SPI_MISO

JTAG

ph

B B

PCH Strap Table

Pin Name Strap description Sampled Configuration

SPKR GNT3# / GPIO55 Top-Block Swap Override

No reboot mode setting PWROK

PWROK

INTVRMEN Integrated 1.05V VRM enable ALWAYS

Flash Descriptor Security

HDA_DOCK_EN#/GPIO33 GNT1# / GPIO51

GPIO19

Different from Calpella

GNT2# / GPIO53 NV_ALE

NV_CLE

A A

HDA_SYNC On-Die PLL VR Voltage Select RSMRST

Only for Interposer

Boot BIOS Selection 1 [bit-1] Boot BIOS Selection 0 [bit-0] ESI strap (Server only)

Intel Anti-Theft HDD protection

Only for Interposer

DMI Termination voltage weak pull-down 20kohm

PWROK PWROK PWROK PWROK PWROK 0 = Disable (Internal pull-down 20kohm)

PWROK

HDA_SDO PWROKFlash Descriptor Security GPIO8

GPIO28

Different from Calpella

Integrated Clock Chip Enable Should be pull-down (weak pull-up 20K)RSMRST# On-die PLL Voltage Regulator RSMRST#

SPI_MOSI iTPM function Disable APWROK

5

4

FWH0 / LAD0 FWH1 / LAD1 FWH2 / LAD2 FWH3 / LAD3

LPC

FWH4 / LFRAME#

LDRQ0#

LDRQ1# / GPIO23

RTCIHDA

SPI

(+3V)

SERIRQ

SATA0RXN SATA0RXP SATA0TXN

SATA0TXP

SATA1RXN SATA1RXP

SATA 6G

SATA1TXN

SATA1TXP

SATA2RXN SATA2RXP SATA2TXN

SATA2TXP

SATA3RXN SATA3RXP SATA3TXN

SATA3TXP

SATA4RXN SATA4RXP SATA4TXN

SATA

SATA4TXP

SATA5RXN SATA5RXP SATA5TXN

SATA5TXP

SATAICOMPO

SATAICOMPI

SATA3RCOMPO

SATA3COMPI

SATA3RBIAS

SATALED#

(+3V)

SATA0GP / GPIO21

(+3V)

SATA1GP / GPIO19

0 = Default (weak pull-down 20K)

1 = Setting to No-Reboot mode

0 = "top-block swap" mode

1 = Default (weak pull-up 20K) Should be always pull-up

0 = Override

1 = Default (weak pull-up 20K)

GNT0#GNT1#

11 00

Should not be pull-down (weak pull-up 20K)

0 = Support by 1.8V (weak pull-down) 1 = Support by 1.5V

0 = Override

1 = Default (weak pull-up 20K)

0 = Disable

1 = Enable (Default) 0 = Default (weak pull-down 20K)

1 = Enable

4

C38 A38 B37 C37

D36 E36

PCH_DRQ#0

K36

PCH_DRQ#1

V5

SERIRQ

AM3

SATA_RXN0

AM1

SATA_RXP0

AP7

SATA_TXN0

AP5

SATA_TXP0

AM10 AM8

DG recommended that SATA AC coupling capacitors should be

AP11

close to the connector (<100 mils) for optimal signal quality.

AP10 AD7

AD5 AH5 AH4

AB8 AB10 AF3 AF1

Y7

SATA_RXN4

Y5

SATA_RXP4

AD3

SATA_TXN4

AD1

SATA_TXP4

Y3 Y1 AB3 AB1

Y11 Y10

SATA_COMP

AB12 AB13

SATA3_COMP

AH1

SATA3_RBIASPCH_SPI_CLK

P3 V14 P1

BBS_BIT0

R499 *10K/F_4

LAD0 (24,26,27) LAD1 (24,26,27) LAD2 (24,26,27) LAD3 (24,26,27)

LFRAME# (24,26,27)

TP53

R252 8.2K_4

SATA_RXN0 (24) SATA_RXP0(24) SATA_TXN0(24) SATA_TXP0(24)

SATA_RXN4 (23) SATA_RXP4(23) SATA_TXN4(23) SATA_TXP4(23)

R246 37.4/F_4

R247 49.9/F_4 R316 33_4

R483 750/F_4 EC37 680P/50V_4

R498 10K/F_4 R239 10K/F_4

+1.05V

12/13 Add for EMI

+3V

Circuit

R237 *1K/F_4

+3V

R529 *1K/F_4 R527 10K/F_4

+3V

R320 330K_4

BIOS_WP# GPIO33

[Need external pull-down for LPC BIOS] Default weak pull-up on GNT0/1#

R502 *1K/F_4 R517 *1K/F_4

Boot Location

SPI

LPC

+3V_RTC

USE GPIO PIN

R472 *1K/F_4

+1.8V

R473 2.2K_4

+1.8V

for DS3

+3V_DEEP_SUS

R322 *1K/F_4

3

TP54

+3V SERIRQ (24,27)

SATA_LED# (21)

PCI_GNT3# (8)

R471 0_4

R474 1K/F_4

ACZ_SDOUT

3

HDD0 (SATA3 6Gb/s)

ODD (SATA2 3Gb/s)

Reserve HM77 and HM70 change to SATA PORT4 0509 update

ACZ_SPKR

PCH_INVRMEN

BBS_BIT0

BBS_BIT1 (8)

NV_ALE (8) NV_CLE (9)

H_SNB_IVB# (2)

R335 1K/F_4

R313 0_4

ACZ_SYNC

GPIO33_EC (27)

2

RTC Clock 32.768KHz

C775 *18P/50V_4

C780 *18P/50V_4

23

Y6 *32.768KHZ

4 1

no stuff If use green Clock

RTC Circuitry(RTC)

+3V_RTC_0

12

CN20 BAT_CONN

RTC Power trace width 20mils.

+3VPCU

R560 *1K/F_4

+3V_RTC_1

D13 *BAT54C

HDA Bus(CLG)

R337 10K/F_4

1M_4

PCH_SPI_CS0#_R PCH_SPI1_CLK_R

PCH_SPI1_SO_R

C741 22P/50V_4

ACZ_RST# ACZ_SDOUT ACZ_BCLK

1

C554

1 6 5 2

3

BIOS_WP#

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

R314 33_4

R283 33_4

C547

+5V

R339 33_4

R338

P/N AKE39ZN0Q02 (EN25Q32B-104HIP) AKE39FP0Z02 (MX25L3206EM2I-12G)MX

ACZ_SDOUT_AUDIO(21)

ACZ_SYNC_AUDIO(21)

Vender EON

ACZ_RST#_AUDIO(21)

BIT_CLK_AUDIO(21)

*10P/50V_4

Size 4MB

4MB AMIC 4MB AKE39F-0800 (A25LQ32AM-F/Q) Socket

PCH_SPI_CS1# PCH_SPI_CS0#

PCH_SPI_CLK PCH_SPI_SI PCH_SPI1_SI_R

+3V (2,6,8,9,10,12,13,14,20,21,22,23,24,25,26,27,30,33,35,36) +5V (10,20,21,23,24,25,26,35) +1.8V (4,10,31,37) +1.05V (2,4,6,8,10,26,27,30,33) +3VS5 (6,9,10,24,26,29,30,35,36,37) +3VPCU (4,21,24,25,26,27,28,29) +3V_RTC (6,10,26)

2

DFHS08FS023(91960-0084L-8P-SOCKET)

R489 *0_4

R487 0_4 R490 0_4 R496 0_4 R486 0_4

R479 3.3K/F_4

+3V

1

RTC_X1

R558 *10M_4

RTC_X2

30mils

+3V_RTC

R559

C776 *1U/6.3V_4

Q24

2

2N7002K

20K/F_4

R329 20K/F_4

10P/50V_4

R299 *0_6

3

ACZ_SYNCACZ_SYNC_R1

C777 1U/6.3V_4

C553 1U/6.3V_4

SRTC_RST#RTC_RST#

PCH SPI ROM(CLG)

TP87 TP86 TP88 TP85 TP84 TP83

TP for ICT burning code:

U22

CE# SCK SI SO

WP#

EN25Q32B-104HIP

DFHS08FS023

PROJECT :U81

Quanta Computer Inc.

PCH 2/6 (SATA/HDA/SPI)

Put on TOP side and close to U5020

8

VDD

7

HOLD#PCH_SPI_SO

HOLD#

4

VSS

1

PCH_SPI_CS0#_R PCH_SPI1_CLK_R PCH_SPI1_SI_R

PCH_SPI1_SO_R

BIOS_WP# HOLD#

R466 3.3K/F_4

C715

0.1U/10V_4

07

RTC_RST#

SRTC_RST#

+3V

7 37Friday, May 24, 2013

of

1A

5

PCI/USBOC# Pull-up(CLG)

PCI_PIRQA#

R258 8.2K_4

PCI_PIRQB#

R281 8.2K_4

PCI_PIRQC#

R289 8.2K_4

PCI_PIRQD#

R288 8.2K_4

MPC_PWR_CTRL# ACC_LED# BT_COMBO_EN#

D D

SI modify on 4/2

for DS3

USB_OC4# USB_OC1#

USB_OC3#

USB3.0

C C

ACCEL_INTA#(26)

B B

CLK_PCI_TPM(24)

CLK_33M_DEBUG(26)

CLK_33M_KBC(27)

GPIO3 GPIO52 GPIO54

R272 10K/F_4 R280 10K/F_4 R521 10K/F_4

R526 10K/F_4 R551 10K/F_4 R318 10K/F_4

+3V_DEEP_SUS

RP3

10

9 8 7 4

10K_10P8R_6

USB30_RX1-(25) USB30_RX2-(25)

USB30_RX1+(25) USB30_RX2+(25)

USB30_TX1-(25) USB30_TX2-(25)

USB30_TX1+(25) USB30_TX2+(25)

BT_COMBO_EN#(26)

BBS_BIT1(7) ACC_LED#(21) PCI_GNT3#(7)

BOARD_ID3(9)

R266 8.2K_4

+3V

CLK_PCI_FB

C543

18P/50V_4

SMBus/Pull-up(CLG)

SI modify on 4/2

SMB_ME1_CLK SMB_ME1_DAT

A A

+3V

1

USB_OC6#

2

USB_OC0#

3

PCH_AOCS# USB_OC5#USB_OC2#

56

TP52

R277 22_4 R269 *22_4

R291 22_4 R265 22_4

C531 18P/50V_4

EMI(near PCH)

R519 2.2K_4 R522 2.2K_4

PLTRST#(CLG)

R530

PCI_PLTRST#

0_4

PLTRST#

R528 100K/F_4

PLTRST# (2,14,22,23,24,26,27)

5

Cougar Point-M/Panther Point (PCI,USB,NVRAM)

PCI_PIRQA# PCI_PIRQB# PCI_PIRQC# PCI_PIRQD#

BT_COMBO_EN#

GPIO52 GPIO54

BBS_BIT1 ACC_LED# PCI_GNT3#

MPC_PWR_CTRL#

GPIO3

ACCEL_INTA#

PCI_PME# PCI_PLTRST#

CLK_PCI_FB_R

CLK_PCI_LPC_R CLK_PCI_EC_R

BG26

BJ26

BH25

BJ16 BG16 AH38 AH37

AK43

AK45

C18 N30

AH12

AM4 AM5

AB46

AB45

M20

AY16 BG46

BE28 BC30

BE32

BJ32 BC28

BE30

BF32 BG32

AV26

BB26 AU28

AY30 AU26

AY26

AV28 AW30

H3

Y13 K24 L24

B21

K40 K38 H38 G38

C46 C44 E40

D47 E42 F46

G42 G40 C42 D44

K10

C6

H49 H43 J48 K42 H40

U23E HM77

TP1 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP20

TP21 TP22 TP23 TP24

USB3Rn1 USB3Rn2 USB3Rn3 USB3Rn4 USB3Rp1 USB3Rp2 USB3Rp3 USB3Rp4 USB3Tn1 USB3Tn2 USB3Tn3 USB3Tn4 USB3Tp1 USB3Tp2 USB3Tp3 USB3Tp4

PIRQA# PIRQB# PIRQC# PIRQD#

REQ1# / GPIO50 REQ2# / GPIO52 REQ3# / GPIO54

GNT1# / GPIO51 GNT2# / GPIO53 GNT3# / GPIO55

PIRQE# / GPIO2 PIRQF# / GPIO3 PIRQG# / GPIO4 PIRQH# / GPIO5

PME# PLTRST#

CLKOUT_PCI0 CLKOUT_PCI1 CLKOUT_PCI2 CLKOUT_PCI3 CLKOUT_PCI4

RSVD

(+3V) (+3V) (+3V)

(+3V) (+3V) (+3V) (+3V)

PCI

(+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5)

SMBus/Pull-up(CLG)

+3V_DEEP_SUS

SMB_RUN_DAT(12,13,24)

MBCLK2(2,13,27)

MBDATA2(2,13,27)

R546 4.7K_4

+3V

SMB_RUN_DAT

R555 4.7K_4

+3V

SMB_RUN_CLK SMB_PCH_CLK

Q23

4 3

1

*2N7002DW

Q37

4 3

1

2N7002DW

USB

4

RSVD1 RSVD2 RSVD3 RSVD4

RSVD5 RSVD6

RSVD7 RSVD8

RSVD9 RSVD10 RSVD11 RSVD12 RSVD13 RSVD14 RSVD15 RSVD16 RSVD17 RSVD18 RSVD19 RSVD20 RSVD21 RSVD22

RSVD23 RSVD24

RSVD25 RSVD26

RSVD27 RSVD28

RSVD29

USBP0N USBP0P USBP1N USBP1P USBP2N USBP2P USBP3N USBP3P USBP4N USBP4P USBP5N USBP5P USBP6N USBP6P USBP7N USBP7P USBP8N USBP8P USBP9N USBP9P

USBP10N USBP10P USBP11N USBP11P USBP12N USBP12P USBP13N USBP13P

USBRBIAS#

USBRBIAS

OC0# / GPIO59 OC1# / GPIO40 OC2# / GPIO41 OC3# / GPIO42 OC4# / GPIO43

OC5# / GPIO9 OC6# / GPIO10 OC7# / GPIO14

+3V

5

2 6

+3V

5

SMB_PCH_DAT

2 6

4

AY7 AV7 AU3 BG4

AT10 BC8

AU2 AT4 AT3 AT1 AY3 AT5 AV3 AV1 BB1 BA3 BB5 BB3 BB7 BE8 BD4 BF6

AV5 AV10

AT8 AY5

BA2 AT12

BF3

C24 A24 C25 B25 C26 A26 K28 H28 E28 D28 C28 A28 C29 B29 N28 M28 L30 K30 G30 E30 C30 A30 L32 K32 G32 E32 C32 A32

C33

B33

A14 K20 B17 C16 L16 A16 D14 C14

SMB_ME1_CLK

SMB_ME1_DAT

PCIE_RXN1_WLAN(26) PCIE_RXP1_WLAN(26)

Cardreader

NV_ALE

USB_BIAS

USB_OC0# USB_OC1# USB_OC2# USB_OC3# USB_OC4# USB_OC5# USB_OC6# PCH_AOCS#

WLAN

LAN

USBP0- (25) USBP0+ (25) USBP1- (25) USBP1+ (25) USBP2- (20) USBP2+ (20)

USBP9- (21) USBP9+ (21) USBP10- (26) USBP10+ (26)

USBP11- (26) USBP11+ (26)

Merge TS connector

NV_ALE (7)

R540

22.6/F_4

PCIE_TXN1_WLAN(26) PCIE_TXP1_WLAN(26)

PCIE_RXN2_LAN(22) PCIE_RXP2_LAN(22) PCIE_TXN2_LAN(22) PCIE_TXP2_LAN(22)

PCIE_RXN3_CARD(23) PCIE_RXP3_CARD(23)

PCIE_TXN3_CARD(23) PCIE_TXP3_CARD(23)

USB2.0

Camera

CLK_REQ/Strap Pin(CLG)

PCIE_CLKREQ_LAN# PCIE_CLKREQ_CR#

PCIE_CLKREQ_WLAN# CLK_PCIE_REQ3# CLK_PCIE_REQ4#

Intel DG request

CLK_PEGB_REQ# CLK_PEGA_REQ#

CLK_PEGA_REQ# CLK_PEGB_REQ#

CLK_BUF_BCLK_N CLK_BUF_BCLK_P

CLK_BUF_PCIE_3GPLL# CLK_BUF_PCIE_3GPLL CLK_BUF_DREFCLK# CLK_BUF_DREFCLK CLK_BUF_DREFSSCLK# CLK_BUF_DREFSSCLK CLK_PCH_14M

CLOCK TERMINATION for FCIM

3

C435 0.1U/10V_4 C436 0.1U/10V_4

C417 0.1U/10V_4 C416 0.1U/10V_4

C433 0.1U/10V_4 C434 0.1U/10V_4

MPC Switch Control

MPC_PWR_CTRL#

ACC_LED#

12/13 Add for EMI

Low = MPC ON High = MPC OFF (Default)

R273 *1K/F_4

EC28 680P/50V_4

USB2.0/USB3.0 COMBO 1st

USB2.0/USB3.0 COMBO 2nd

WLAN

LAN

USB2.0 Right

Cardreader

WLAN Touch Screen

10/25:modify for 14/15 co-lay

R509 10K/F_4 R238 10K/F_4

for DS3for DS3

R515 10K/F_4 R536 10K/F_4 R315 10K/F_4

R523 10K/F_4 R263 10K/F_4

R255 *10K/F_4 R525 *10K/F_4

R477 10K/F_4 R478 10K/F_4

R210 10K/F_4 R213 10K/F_4 R278 10K/F_4 R284 10K/F_4 R230 10K/F_4 R233 10K/F_4 R276 10K/F_4

+3V

+3V_DEEP_SUS

PCIE Clock

WLAN

LAN

GPU

Cardreader

3

2

Cougar Point-M/Panther Point (PCI-E,SMBUS,CLK)

PCIE_TXN1_C PCIE_TXP1_C

PCIE_TXN2_LAN_C PCIE_TXP2_LAN_C

PCIE_TXN3_CR_C PCIE_TXP3_CR_C

CLK_PCIE_WLANN CLK_PCIE_WLANP

PCIE_CLKREQ_WLAN#

CLK_PCIE_LANN CLK_PCIE_LANP

PCIE_CLKREQ_LAN#

CLK_PCIE_CRN CLK_PCIE_CRP

PCIE_CLKREQ_CR#

CLK_PCIE_REQ3#

CLK_PCIE_REQ4#

BOARD_ID0(9)

CLK_PEGB_REQ#

BOARD_ID1(9)

BOARD_ID2(9)

PCIE_CLKREQ_WLAN#(26)

CLK_PCIE_WLANN(26) CLK_PCIE_WLANP(26)

CLK_PCIE_LANN(22) CLK_PCIE_LANP(22)

PCIE_CLKREQ_LAN#(22)

CLK_VGA_N(14)

CLK_PCIE_CRN(23) CLK_PCIE_CRP(23)

PCIE_CLKREQ_CR#(23)SMB_RUN_CLK(12,13,24)

U23B HM77

BG34

PERN1

BJ34

PERP1

AV32

PETN1

AU32

PETP1

BE34

PERN2

BF34

PERP2

BB32

PETN2

AY32

PETP2

BG36

PERN3

BJ36

PERP3

AV34

PETN3

AU34

PETP3

BF36

PERN4

BE36

PERP4

AY34

PETN4

BB34

PETP4

BG37

PERN5

BH37

PERP5

AY36

PETN5

BB36

PETP5

BJ38

PERN6

BG38

PERP6

AU36

PETN6

AV36

PETP6

BG40

PERN7

BJ40

PERP7

AY40

PETN7

BB40

PETP7

BE38

PERN8

BC38

PERP8

AW38

PETN8

AY38

PETP8

Y40

CLKOUT_PCIE0N

Y39

CLKOUT_PCIE0P

J2

PCIECLKRQ0# / GPIO73

AB49

CLKOUT_PCIE1N

AB47

CLKOUT_PCIE1P

M1

PCIECLKRQ1# / GPIO18

AA48

CLKOUT_PCIE2N

AA47

CLKOUT_PCIE2P

V10

PCIECLKRQ2# / GPIO20

Y37

CLKOUT_PCIE3N

Y36

CLKOUT_PCIE3P

A8

PCIECLKRQ3# / GPIO25

Y43

CLKOUT_PCIE4N

Y45

CLKOUT_PCIE4P

L12

PCIECLKRQ4# / GPIO26

V45

CLKOUT_PCIE5N

V46

CLKOUT_PCIE5P

L14

PCIECLKRQ5# / GPIO44

AB42

CLKOUT_PEG_B_N

AB40

CLKOUT_PEG_B_P

E6

PEG_B_CLKRQ# / GPIO56

V40

CLKOUT_PCIE6N

V42

CLKOUT_PCIE6P

T13

PCIECLKRQ6# / GPIO45

V38

CLKOUT_PCIE7N

V37

CLKOUT_PCIE7P

K12

PCIECLKRQ7# / GPIO46

AK14

CLKOUT_ITPXDP_N

AK13

CLKOUT_ITPXDP_P

CLK_VGA_P(14)

(+3VS5)

(+3V)

(+3VS5)

SMBUSController

SML1ALERT# / PCHHOT# / GPIO74

PCI-E*

CLOCKS

CLK_PCIE_WLANN CLK_PCIE_WLANP

PCIE_CLKREQ_WLAN#

CLK_PCIE_LANN CLK_PCIE_LANP

PCIE_CLKREQ_LAN#

CLK_VGA_N CLK_VGA_P

CLK_PCIE_CRN CLK_PCIE_CRP

PCIE_CLKREQ_CR#

SMBALERT# / GPIO11

SML0ALERT# / GPIO60

SML1CLK / GPIO58

SML1DATA / GPIO75

Link

PEG_A_CLKRQ# / GPIO47

CLKOUT_PEG_A_N CLKOUT_PEG_A_P

CLKOUT_DMI_N CLKOUT_DMI_P

CLKOUT_DP_N CLKOUT_DP_P

CLKIN_GND1_N CLKIN_GND1_P

CLKIN_DOT_96N CLKIN_DOT_96P

CLKIN_SATA_N CLKIN_SATA_P

CLKIN_PCILOOPBACK

CLKOUTFLEX0 / GPIO64 CLKOUTFLEX1 / GPIO65 CLKOUTFLEX2 / GPIO66 CLKOUTFLEX3 / GPIO67

FLEX CLOCKS

+3V_DEEP_SUS(2,6,7,9,10,35)

+3V(2,6,7,9,10,12,13,14,20,21,22,23,24,25,26,27,30,33,35,36)

+3VS5(6,9,10,24,26,29,30,35,36,37)

2

(+3VS5)

SMBCLK

SMBDATA

(+3VS5)

SML0CLK

SML0DATA

(+3VS5) (+3VS5)

(+3VS5)

CL_CLK1

CL_DATA1

CL_RST1#

(+3VS5)

CLKIN_DMI_N CLKIN_DMI_P

REFCLK14IN

XTAL25_IN

XTAL25_OUT

XCLK_RCOMP

(+3V) (+3V)

E12

SMBALERT#

H14

SMB_PCH_CLK

C9

SMB_PCH_DAT

A12

DRAMRST_CNTRL_PCH

C8

SMB_ME0_CLK

G12

SMB_ME0_DAT

C13

FPR_OFF

E14

SMB_ME1_CLK

M16

SMB_ME1_DAT

M7

T11

P10

M10

CLK_PEGA_REQ#

AB37

CLK_VGA_N

AB38

CLK_VGA_P

AV22 AU22

AM12 AM13

BF18

CLK_BUF_PCIE_3GPLL#

BE18

CLK_BUF_PCIE_3GPLL

BJ30

CLK_BUF_BCLK_N

BG30

CLK_BUF_BCLK_P

G24

CLK_BUF_DREFCLK#

E24

CLK_BUF_DREFCLK

AK7

CLK_BUF_DREFSSCLK#

AK5

CLK_BUF_DREFSSCLK

K45

CLK_PCH_14M

H45

CLK_PCI_FB

V47

XTAL25_IN

V49

XTAL25_OUT

Y47

XCLK_RCOMP

K43 F47 H47 K49

for DS3

R497 90.9/F_4

XTAL25_IN XTAL25_OUT

+3V_DEEP_SUS

1

08

DRAMRST_CNTRL_PCH (2)

TP60

PCIE_CLKREQ_VGA# (15)

CLK_CPU_BCLKN (2) CLK_CPU_BCLKP (2)

CLK_DPLL_SSCLKN (2) CLK_DPLL_SSCLKP (2)

10/23:modify for eDP

R506 0_4

C744 *33P/50V_4

R505 *1M/F_4

C740 *27P/50V_4

SMBus/Pull-up(CLG)

PV modify on 5/24

R309 10K/F_4 R539 2.2K_4 R538 2.2K_4 R535 2.2K_4 R306 2.2K_4 R333 10K/F_4

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

PCH 3/6 (PCIE/USB/CLK)

Date: Sheet of

Date: Sheet

+1.05V

TP90

Y5 *25MHZ

SMBALERT# SMB_PCH_CLK SMB_PCH_DAT SMB_ME0_CLK SMB_ME0_DAT FPR_OFF

1

PCH_XTAL25_IN (26)

TP89

of

8 37Friday, May 24, 2013

1A

5

Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)

Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)

PCI_SERR#(27)

SIO_EXT_SMI#(27)

D D

RF_OFF(26)

ZERO_ODD_DP#(23)

DGPU_PWROK(27,36,37)

for DS3

C C

DGPU_HOLD_RST#(14)

GPIO27_EC(27)

+3V

DGPU_PWR_EN(36,37)

BT_OFF(26)

TP51

R516 10K_4

TP55

R482 *0_4

R305 *0_4

R242 *0_4

2011 12 01 : Modify net from DGPU_PRSNT# to DGPU_PRSNT

OPTIMUS POWER control pin DGPU_PWROK GPIO17 DGPU_HOLD_RST# DGPU_PWR_EN

B B

GPIO24 GPIO36

PCI_SERR# SIO_EXT_SMI# BOARD_ID4 BOARD_ID5 BT_OFF LAN_DISABLE#_R RF_OFF

ODD_PRSNT#_R

BIOS_REC DGPU_HOLD_RST# GPIO27 PLL_ODVR_EN GPIO34 GPIO35 DGPU_PWR_EN_R FDI_OVRVLTG MFG_MODE DGPU_PRSNT TEST_SET_UP SATA5GP SV_DET

U23F HM77

T7

BMBUSY# / GPIO0

(+3V)

A42

TACH1 / GPIO1

(+3V)

H36

TACH2 / GPIO6

(+3V)

E38

TACH3 / GPIO7

(+3V)

C10

GPIO8

(+3VS5)

C4

LAN_PHY_PWR_CTRL / GPIO12

(+3VS5)

G2

GPIO15

(+3VS5)

U2

SATA4GP / GPIO16

(+3V)

D40

TACH0 / GPIO17

(+3V)

T5

SCLOCK / GPIO22

(+3V)

E8

GPIO24

(+3VS5)

E16

GPIO27

(DSW)

P8

GPIO28

(+3VS5)

K1

STP_PCI# / GPIO34

(+3V)

K4

GPIO35

(+3V)

V8

SATA2GP / GPIO36

(+3V)

M5

SATA3GP / GPIO37

(+3V)

N2

SLOAD / GPIO38

(+3V)

M3

SDATAOUT0 / GPIO39

(+3V)

V13

SDATAOUT1 / GPIO48

(+3V)

V3

SATA5GP / GPIO49 / TEMP_ALERT#

(+3V)

D6

GPIO57

(+3VS5)

A4

VSS_NCTF_1

A44

VSS_NCTF_2

A45

VSS_NCTF_3

A46

VSS_NCTF_4

A5

VSS_NCTF_5

A6

VSS_NCTF_6

B3

VSS_NCTF_7

B47

VSS_NCTF_8

BD1

VSS_NCTF_9

BD49

VSS_NCTF_10

BE1

VSS_NCTF_11

BE49

VSS_NCTF_12

BF1

VSS_NCTF_13

BF49

VSS_NCTF_14

4

C40

PECI

B41 C41 A40

P4 AU16 P5 AY11 AY10 T14 AY1

AH8 AK11 AH10 AK10

P37

BG2 BG48 BH3 BH47 BJ4 BJ44 BJ45 BJ46 BJ5 BJ6 C2 C48 D1 D49 E1 E49 F1 F49

GPIO68

GPIO69

GPIO70

EC_RCIN#

PCH_THRMTRIP#

NV_CLE

TACH4 / GPIO68

(+3V)

TACH5 / GPIO69

(+3V)

TACH6 / GPIO70

(+3V)

TACH7 / GPIO71

(+3V)

A20GATE

RCIN#

PROCPWRGD

NCTF

THRMTRIP#

INIT3_3V#

CPU/MISC

TS_VSS1 TS_VSS2 TS_VSS3 TS_VSS4

VSS_NCTF_15 VSS_NCTF_16 VSS_NCTF_17 VSS_NCTF_18 VSS_NCTF_19 VSS_NCTF_20 VSS_NCTF_21 VSS_NCTF_22 VSS_NCTF_23 VSS_NCTF_24 VSS_NCTF_25 VSS_NCTF_26 VSS_NCTF_27 VSS_NCTF_28 VSS_NCTF_29 VSS_NCTF_30 VSS_NCTF_31 VSS_NCTF_32

DF_TVS

NC_1

GPIO

R557 *0_4 R549 10K/F_4

R547 1.5K/F_4 R548 *1.5K/F_4

FPR_LOCK#

R222 390_4

NV_CLE (7)

3

DGPU_PWR_EN

+3V

TP91

+3V

EC_A20GATE (27)

EC_RCIN# (27) H_PWRGOOD (2) PM_THRMTRIP# (2,27)

2

MFG-TEST

MFG_MODE

Bios swap GPIO.

PCI_SERR#

RF_OFF

Intel ME Crypto Transport Layer Security (TLS) cipher suite

Low = Disable (Default) High = Enable

R518 1K/F_4

TEST_SET_UP

SV_SET_UP High = Strong (Default)

for DS3

R248 10K/F_4

R501 10K/F_4

R251 10K/F_4 R249 *0_4

+3V

+3V_DEEP_SUS

+3V

1

GPIO Pull-up/Pull-down(CLG)

BT_OFF LAN_DISABLE#_R

DGPU_HOLD_RST#

SIO_EXT_SMI# BT_OFF EC_A20GATE EC_RCIN# SATA5GP GPIO70 FPR_LOCK# ODD_PRSNT#_R DGPU_PWROK

DGPU_PWROK

GPIO27

BIOS_REC

BIOS RECOVERY High = Disable (Default)

R286 100K/F_4

Low = Enable

SV_DET

TEST DETECT Low = Default

R552 10K/F_4 R520 10K/F_4

R285 10K/F_4

R542 10K/F_4 R556 *10K/F_4 R256 10K_4 R227 10K/F_4 R484 10K/F_4 R541 1.5K/F_4 R550 1.5K/F_4 R485 10K/F_4 R553 10K/F_4

R554 *10K/F_4

R290 10K/F_4 R298 *10K/F_4

R225 10K/F_4

09

for DS3

+3V_DEEP_SUS

+3V

+3VS5

+3V

BOARD_ID0

BOARD_ID1

BOARD_ID2

BOARD_ID3

BOARD_ID4

BOARD_ID5

DGPU_PRSNT

SG Ra Rb

BOARD_ID0 BOARD_ID1 BOARD_ID2 BOARD_ID3

R327 *10K/F_4

R270 *10K/F_4

R311 *10K/F_4

R533 *10K/F_4

R301 *10K/F_4

R304 *10K/F_4

R511 *10K/F_4

UMA Rb Ra

for DS3

R231 100K/F_4

+3V_DEEP_SUS

+3V

SATA2GP/GPIO36 Reserved only

FDI TERMINATION VOLTAGE OVERRIDE

RaRb

3

2

FDI_OVRVLTG

Reserved only

+3V_DEEP_SUS(2,6,7,8,10,35)

+3V(2,6,7,8,10,12,13,14,20,21,22,23,24,25,26,27,30,33,35,36)

+3VS5(6,10,24,26,29,30,35,36,37)

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

PCH 4/6 (GPIO/MISC)

Date: Sheet

Date: Sheet of

1

9 37Friday, May 24, 2013

of

1A

Chief River BOARD ID SETTING

BOARD_ID4

BOARD_ID5

0

0 0

14": 0 15": 1

0

1

0

Model

U81 UMA

U81 SWG

A A

14"

15.6"

BOARD_ID1BOARD_ID2BOARD_ID3

BOARD_ID0

UMA: 0 DIS: 1

0

0 0 0

00000

1

0

BOARD_ID0(8) BOARD_ID1(8) BOARD_ID2(8) BOARD_ID3(8)

R323 10K/F_4

R274 10K/F_4

R300 10K/F_4

R537 10K/F_4

R312 10K/F_4

R295 10K/F_4

R510 10K/F_4

Stuff NC

5

4

5

4

3

2

1

Cougar Point/Panther Point (POWER)

U23J

HM77

AD49

VCCACLK

BH23

AL29

AL24

AA19 AA21 AA24 AA26 AA27 AA29 AA31 AC26 AC27 AC29 AC31 AD29 AD31

W21 W23 W24 W26 W29 W31 W33

BD47

BF47

AF17 AF33 AF34

AG34

AG33

T16

V12

T38

N16

Y49

V16

T17 V19

BJ8

A22

VCCDSW3_3

DCPSUSBYP

VCC3_3[5]

VCCAPLLDMI2 VCCIO[14]

DCPSUS[3]

VCCASW[1] VCCASW[2] VCCASW[3] VCCASW[4] VCCASW[5] VCCASW[6] VCCASW[7] VCCASW[8] VCCASW[9] VCCASW[10] VCCASW[11] VCCASW[12] VCCASW[13] VCCASW[14] VCCASW[15] VCCASW[16] VCCASW[17] VCCASW[18] VCCASW[19] VCCASW[20]

DCPRTC

VCCVRM[4]

VCCADPLLA VCCADPLLB

VCCIO[7] VCCDIFFCLKN[1] VCCDIFFCLKN[2] VCCDIFFCLKN[3]

VCCSSC

DCPSST

DCPSUS[1] DCPSUS[2]

V_PROC_IO

VCCRTC

R257 0_4

+3VS5

D D

+1.05V

C C

+1.05V

C493

1U/6.3V_4

R250 0_4

+1.05V

B B

+1.05V

V_PROC_IO=2mA (10mils)

A A

VCCRTC<1mA (10mils)

1U/6.3V_4

R228 0_4

1U/6.3V_4

+3V_RTC

C489

C478

+VCCDSW3_3

C523

0.1U/10V_4

+1.05V

VCCASW:803mA (40mils)

C468 1U/6.3V_4

C723

4.7U/6.3V_6

C550 1U/6.3V_4

5

3mA (10mils)

+3V_SUS_CLKF33

+VCCSUS1

C472 *1U/6.3V_4

C508

C477

1U/6.3V_4

C729 22U/6.3VS_8

C725 22U/6.3VS_8

+VCCRTCEXT

C530

0.1U/10V_4

+VCCAFDI_VRM

160mA (20mils)

+1.05V_VCCA_A_DPL

65mA (10mils)

+1.05V_VCCA_B_DPL

8mA (10mils)

+VCCDIFFCLKN

55mA (10mils)

+V1.05V_SSCVCC

95mA (10mils)

+VCCSST

C514

0.1U/10V_4

C727

C469

0.1U/10V_4

C551

C552

0.1U/10V_4

+3V(2,6,7,8,9,12,13,14,20,21,22,23,24,25,26,27,30,33,35,36) +3V_RTC(6,7,26) +5V(7,20,21,23,24,25,26,35)

+1.8V(4,7,31,37) +1.05V(2,4,6,7,8,26,27,30,33) +3VS5(6,9,24,26,29,30,35,36,37) +5VS5(6,21,25,29,30,31,32,33,34,35,36,37)

POWER

C535

0.1U/10V_4

+1.5V_CPU

3

+1.05V

R336 10_4

D12 RB500V-40

+3V

(Mobile 1.5V)

R220 0_4

+1.05V

L34 10uH/100MA_8

L32 10uH/100MA_8

+3V

VCCCore:1.73 A (100mils)

C507 1U/6.3V_4

C486 10U/6.3VS_6

for DS3

+5V_DEEP_SUS +3V_DEEP_SUS

+1.05V

VCCIO:3.799 A (140mils)

C461 1U/6.3V_4

C479 10U/6.3VS_6

C482 1U/6.3V_4

178m A (20mils)

+VCCAFDI_VRM

+1.05V_VCCA_A_DPL

+1.05V_VCCA_B_DPL

20mA (10mils)

+3V_SUS_CLKF33

20mA (10mils)

160mA (15mils)

N26

VCCIO[29]

P26

VCCIO[30]

P28

VCCIO[31]

T27

VCCIO[32]

T29

VCCIO[33]

VCCIO[34]

DCPSUS[4]

V5REF

VCC3_3[1] VCC3_3[8] VCC3_3[4]

VCC3_3[2]

VCCIO[5]

VCCIO[12] VCCIO[13]

VCCIO[6]

VCCVRM[1]

VCCIO[2] VCCIO[3] VCCIO[4]

T23 T24 V23 V24 P24

T26

M26

AN23 AN24

P34

N20 N22 P20 P22

AA16 W16 T34

AJ2

AF13

AH13 AH14

AF14 AK1

AF11

AC16 AC17 AD17

1.01A (60mils)

T21

V21

T19

P32

70mA

30mA

+5V_PCH_VCC5REFSUS

+VCCA_USBSUS

for DS3

+5V_PCH_VCC5REF

119mA (15mils)

266mA (20mils)

+3V

C518

0.1U/10V_4

350mA

+VCCAFDI_VRM

+1.05V

10mA (10mils)

C526

0.1U/10V_4

VCCSUS3_3[7] VCCSUS3_3[8] VCCSUS3_3[9]

VCCSUS3_3[10]

VCCSUS3_3[6]

V5REF_SUS

VCCSUS3_3[1]

VCCSUS3_3[2] VCCSUS3_3[3] VCCSUS3_3[4] VCCSUS3_3[5]

Clock and Miscellaneous

PCI/GPIO/LPCMISC

VCCAPLLSATA

SATA USB

VCCASW[22]

VCCASW[23]

CPURTC

F1

+1.5V_CPU(2,4,21,26)

+3V_DEEP_SUS(2,6,7,8,9,35)

VCCASW[21]

VCCSUSHDA

HDA

+1.5VSUS(2,4,12,13,31,37)

4

+1.05V

C516 1U/6.3V_4

C473

0.1U/10V_4

C521

0.1U/10V_4

+1.05V

C467 *1U/6.3V_4

+3V_DEEP_SUS

1mA (10mils)

for DS3

+3V_DEEP_SUS

C520 1U/6.3V_4

+3V

C418

0.1U/10V_4

+3V

C512

0.1U/10V_4

C492 1U/6.3V_4

C484 1U/6.3V_4

C463 1U/6.3V_4

for DS3

+3V_DEEP_SUS

C527 *1U/6.3V_4

for DS3

+3V_DEEP_SUS

VCCSUS3_3:65mA(15mils)

VCC5REFSUS=1mA

+1.05V

Cougar Point/Panther Point (POWER)

C496 1U/6.3V_4

C474 1U/6.3V_4

+1.05V

C515 1U/6.3V_4

C471 1U/6.3V_4

C728

0.1U/10V_4

+VCCAFDI_VRM

Close to Y49

AA23 AC23 AD21 AD23

AF21

AF23 AG21 AG23 AG24 AG26 AG27 AG29

AJ23

AJ26

AJ27

AJ29

AJ31

AN19

BJ22

AN16 AN17

AN21 AN26 AN27 AP21 AP23 AP24 AP26

AT24

AN33 AN34

BH29

AP16

AP17

AU20

C731 1U/6.3V_4

C719 1U/6.3V_4

L39 10uH/100MA_8

C504 1U/6.3V_4

U23G HM77

VCCCORE[1] VCCCORE[2] VCCCORE[3] VCCCORE[4] VCCCORE[5] VCCCORE[6] VCCCORE[7] VCCCORE[8] VCCCORE[9] VCCCORE[10] VCCCORE[11] VCCCORE[12] VCCCORE[13] VCCCORE[14] VCCCORE[15] VCCCORE[16] VCCCORE[17]

VCCIO[28]

VCCAPLLEXP

VCCIO[15] VCCIO[16]

VCCIO[17] VCCIO[18] VCCIO[19] VCCIO[20] VCCIO[21] VCCIO[22] VCCIO[23] VCCIO[24]

VCCIO[25] VCCIO[26]

VCC3_3[3]

VCCVRM[2]

BG6

VccAFDIPLL

VCCIO[27]

VCCDMI[2]

C519 1U/6.3V_4 C522 10U/6.3VS_6

POWER

CRTLVDS

VCC CORE

DMI

VCCIO

DFT / SPI HVCMOS

FDI

C460 1U/6.3V_4

Close to AT16 Close to AP16

2

C470 1U/6.3V_4

VCCADAC

VSSADAC

VCCALVDS

VSSALVDS

VCCTX_LVDS[1] VCCTX_LVDS[2] VCCTX_LVDS[3] VCCTX_LVDS[4]

VCC3_3[6]

VCC3_3[7]

VCCVRM[3]

VCCDMI[1]

VCCCLKDMI

VCCDFTERM[1]

VCCDFTERM[2]

VCCDFTERM[3]

VCCDFTERM[4]

VCCSPI

U48

U47

AK36 AK37

AM37 AM38 AP36 AP37

SG & UMA : Ra DIS : Rb

V33

V34

AT16

+VCCAFDI_VRM

AT20

AB36

AG16

AG17

AJ16

AJ17

V1

+5V_PCH_VCC5REF

V5REF= 1mA

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

6.3mA (10mils)

10

+VCCA_DAC_1_2

L42 0_6

C751 *10U/6.3VS_6 C757 *0.1U/10V_4 C759 *0.01U/25V_4

1mA (10mils)

60mA (10mils)

C734 22U/6.3VS_8 C465 0.01U/25V_4 C464 0.01U/25V_4

+1.05V

C509 1U/6.3V_4

2 mA (10mils)

10mA (10mils)

R334 10_4

D11 RB500V-40 C528 1U/6.3V_4

PROJECT :U81

Quanta Computer Inc.

PCH 5/6 (POWER)

1

+3V

L36

0.1uH/250mA_8

C476

0.1U/10V_4

42mA (10mils)

C462 1U/6.3V_4

C485 *10U/6.3V_6

C481

0.1U/10V_4

C491 1U/6.3V_4

+3V

+1.8V+VCC_TX_LVDS

10 37Monday, May 27, 2013

+3V

+1.05V

+1.8V

+5V +3V

of

+3V

1A

5

4

3

2

1

Cougar Point/Panther Point (GND)

U23I HM77

AY4

VSS[159]

AY42

VSS[160]

AY46

VSS[161]

AY8

VSS[162]

B11

VSS[163]

B15

BB12 BB16 BB20 BB22 BB24 BB28 BB30 BB38

BB46 BC14 BC18

BC22 BC26 BC32 BC34 BC36 BC40 BC42 BC48 BD46

BE22 BE26 BE40

BF10 BF12 BF16 BF20 BF22 BF24 BF26 BF28

BF30 BF38 BF40

BG17 BG21 BG33 BG44

BH11 BH15 BH17 BH19

BH27 BH31 BH33 BH35 BH39 BH43

B19 B23 B27 B31 B35 B39

BB4

BC2

BD5

BD3

BF8

BG8

H10

BH7 D12

D16 D18 D22 D24 D26 D30 D32 D34 D38 D42

E18 E26 G18 G20 G26 G28 G36 G48 H12 H18 H22 H24 H26 H30 H32 H34

VSS[164] VSS[165] VSS[166] VSS[167] VSS[168] VSS[169] VSS[170]

B7

VSS[171]

F45

VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179] VSS[180] VSS[181] VSS[182] VSS[183] VSS[184] VSS[185] VSS[186] VSS[187] VSS[188] VSS[189] VSS[190] VSS[191] VSS[192] VSS[193] VSS[194] VSS[195] VSS[196] VSS[197] VSS[198] VSS[199] VSS[200] VSS[201] VSS[202] VSS[203] VSS[204] VSS[205] VSS[206] VSS[207] VSS[208] VSS[209] VSS[210] VSS[211] VSS[212] VSS[213] VSS[214] VSS[215] VSS[216] VSS[217] VSS[218] VSS[219] VSS[220] VSS[221] VSS[222] VSS[223] VSS[224] VSS[225] VSS[226] VSS[227] VSS[228]

D3

VSS[229] VSS[230] VSS[231] VSS[232] VSS[233] VSS[234] VSS[235] VSS[236] VSS[237] VSS[238] VSS[239] VSS[240]

D8

VSS[241] VSS[242] VSS[243] VSS[244] VSS[245] VSS[246] VSS[247] VSS[248] VSS[249] VSS[250] VSS[251] VSS[252] VSS[253] VSS[254] VSS[255] VSS[256] VSS[257]

F3

VSS[258]

D D

C C

B B

A A

5

VSS[259] VSS[260] VSS[261] VSS[262] VSS[263] VSS[264] VSS[265] VSS[266] VSS[267] VSS[268] VSS[269] VSS[270] VSS[271] VSS[272] VSS[273] VSS[274] VSS[275] VSS[276] VSS[277] VSS[278] VSS[279] VSS[280] VSS[281] VSS[282] VSS[283] VSS[284] VSS[285] VSS[286] VSS[287] VSS[288] VSS[289] VSS[290] VSS[291] VSS[292] VSS[293] VSS[294] VSS[295] VSS[296] VSS[297] VSS[298] VSS[299] VSS[300] VSS[301] VSS[302] VSS[303] VSS[304] VSS[305] VSS[306] VSS[307] VSS[308] VSS[309] VSS[310] VSS[311] VSS[312] VSS[313] VSS[314] VSS[315] VSS[316] VSS[317] VSS[318] VSS[319] VSS[320] VSS[321] VSS[322] VSS[323] VSS[324] VSS[325] VSS[328] VSS[329] VSS[330] VSS[331] VSS[333] VSS[334] VSS[335] VSS[337] VSS[338] VSS[340] VSS[342] VSS[343] VSS[344] VSS[345] VSS[346] VSS[347] VSS[348] VSS[349] VSS[350] VSS[351] VSS[352]

4

H46 K18 K26 K39 K46 K7 L18 L2 L20 L26 L28 L36 L48 M12 P16 M18 M22 M24 M30 M32 M34 M38 M4 M42 M46 M8 N18 P30 N47 P11 P18 T33 P40 P43 P47 P7 R2 R48 T12 T31 T37 T4 W34 T46 T47 T8 V11 V17 V26 V27 V29 V31 V36 V39 V43 V7 W17 W19 W2 W27 W48 Y12 Y38 Y4 Y42 Y46 Y8 BG29 N24 AJ3 AD47 B43 BE10 BG41 G14 H16 T36 BG22 BG24 C22 AP13 M14 AP3 AP1 BE16 BC16 BG28 BJ28

Cougar Point/Panther Point (GND)

U23H HM77

H5

VSS[0]

AA17

VSS[1]

AA2

VSS[2]

AA3

VSS[3]

AA33

VSS[4]

AA34

VSS[5]

AB11

VSS[6]

AB14

VSS[7]

AB39

VSS[8]

AB4

VSS[9]

AB43

VSS[10]

AB5

VSS[11]

AB7

VSS[12]

AC19

VSS[13]

AC2

VSS[14]

AC21

VSS[15]

AC24

VSS[16]

AC33

VSS[17]

AC34

VSS[18]

AC48

VSS[19]

AD10

VSS[20]

AD11

VSS[21]

AD12

VSS[22]

AD13

VSS[23]

AD19

VSS[24]

AD24

VSS[25]

AD26

VSS[26]

AD27

VSS[27]

AD33

VSS[28]

AD34

VSS[29]

AD36

VSS[30]

AD37

VSS[31]

AD38

VSS[32]

AD39

VSS[33]

AD4

VSS[34]

AD40

VSS[35]

AD42

VSS[36]

AD43

VSS[37]

AD45

VSS[38]

AD46

VSS[39]

AD8

VSS[40]

AE2

VSS[41]

AE3

VSS[42]

AF10

VSS[43]

AF12

VSS[44]

AD14

VSS[45]

AD16

VSS[46]

AF16

VSS[47]

AF19

VSS[48]

AF24

VSS[49]

AF26

VSS[50]

AF27

VSS[51]

AF29

VSS[52]

AF31

VSS[53]

AF38

VSS[54]

AF4

VSS[55]

AF42

VSS[56]

AF46

VSS[57]

AF5

VSS[58]

AF7

VSS[59]

AF8

VSS[60]

AG19

VSS[61]

AG2

VSS[62]

AG31

VSS[63]

AG48

VSS[64]

AH11

VSS[65]

AH3

VSS[66]

AH36

VSS[67]

AH39

VSS[68]

AH40

VSS[69]

AH42

VSS[70]

AH46

VSS[71]

AH7

VSS[72]

AJ19

VSS[73]

AJ21

VSS[74]

AJ24

VSS[75]

AJ33

VSS[76]

AJ34

VSS[77]

AK12

VSS[78]

AK3

VSS[79]

3

VSS[80] VSS[81] VSS[82] VSS[83] VSS[84] VSS[85] VSS[86] VSS[87] VSS[88] VSS[89] VSS[90] VSS[91] VSS[92] VSS[93] VSS[94] VSS[95] VSS[96] VSS[97] VSS[98]

VSS[99] VSS[100] VSS[101] VSS[102] VSS[103] VSS[104] VSS[105] VSS[106] VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158]

AK38 AK4 AK42 AK46 AK8 AL16 AL17 AL19 AL2 AL21 AL23 AL26 AL27 AL31 AL33 AL34 AL48 AM11 AM14 AM36 AM39 AM43 AM45 AM46 AM7 AN2 AN29 AN3 AN31 AP12 AP19 AP28 AP30 AP32 AP38 AP4 AP42 AP46 AP8 AR2 AR48 AT11 AT13 AT18 AT22 AT26 AT28 AT30 AT32 AT34 AT39 AT42 AT46 AT7 AU24 AU30 AV16 AV20 AV24 AV30 AV38 AV4 AV43 AV8 AW14 AW18 AW2 AW22 AW26 AW28 AW32 AW34 AW36 AW40 AW48 AV11 AY12 AY22 AY28

2

11

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

PCH 6/6 (GND)

Date: Sheet

Date: Sheet of

1

11 37Friday, May 24, 2013

of

1A

5

4

3

2

1

M_A_A[15:0](3)

D D

M_A_BS#0(3) M_A_BS#1(3) M_A_BS#2(3) M_A_CS#0(3) M_A_CS#1(3) M_A_CLKP0(3) M_A_CLKN0(3) M_A_CLKP1(3) M_A_CLKN1(3) M_A_CKE0(3) M_A_CKE1(3) M_A_CAS#(3) M_A_RAS#(3)

R204 10K/F_4 R205 10K/F_4

C C

M_A_WE#(3)

SMB_RUN_CLK(8,13,24) SMB_RUN_DAT(8,13,24)

M_A_ODT0(3) M_A_ODT1(3)

M_A_DQSP[7:0](3)

M_A_DQSN[7:0](3)

CPU Bracket

B B

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14 M_A_A15

DIMM0_SA0 DIMM0_SA1 SMB_RUN_CLK SMB_RUN_DAT

M_A_DQSP0 M_A_DQSP1 M_A_DQSP2 M_A_DQSP3 M_A_DQSP4 M_A_DQSP5 M_A_DQSP6 M_A_DQSP7 M_A_DQSN0 M_A_DQSN1 M_A_DQSN2 M_A_DQSN3 M_A_DQSN4 M_A_DQSN5 M_A_DQSN6 M_A_DQSN7

JDIM1A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12 29 47

64 137 154 171 188

10

27

45

62 135 152 169 186

PC2100 DDR3 SDRAM SO-DIMM

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7

DDR3-DIMM0_H=4.0_STD

ddr-ddrsk-20401-tp4b-204p-ldv

DGMK4000325

SOCKET DDR3 SODIMM(204P,H4.0,STD)QBCON

5

DQ0

7

DQ1

15

DQ2

17

DQ3

4

DQ4

6

DQ5

16

DQ6

18

DQ7

21

DQ8

23

DQ9

33

DQ10

35

DQ11

22

DQ12

24

DQ13

34

DQ14

36

DQ15

39

DQ16

41

DQ17

51

DQ18

53

DQ19

40

DQ20

42

DQ21

50

DQ22

52

DQ23

57

DQ24

59

DQ25

67

DQ26

69

DQ27

56

DQ28

58

DQ29

68

DQ30

70

DQ31

129

DQ32

131

DQ33

141

DQ34

143

DQ35

130

DQ36

132

DQ37

140

DQ38

142

DQ39

147

DQ40

149

DQ41

157

DQ42

159

DQ43

146

DQ44

148

DQ45

158

DQ46

160

(204P)

DQ47

163

DQ48

165

DQ49

175

DQ50

177

DQ51

164

DQ52

166

DQ53

174

DQ54

176

DQ55

181

DQ56

183

DQ57

191

DQ58

193

DQ59

180

DQ60

182

DQ61

192

DQ62

194

DQ63

EZIW

M_A_DQ0 M_A_DQ4 M_A_DQ7 M_A_DQ3 M_A_DQ1 M_A_DQ5 M_A_DQ2 M_A_DQ6 M_A_DQ13 M_A_DQ9 M_A_DQ14 M_A_DQ10 M_A_DQ12 M_A_DQ8 M_A_DQ11 M_A_DQ15 M_A_DQ21 M_A_DQ17 M_A_DQ19 M_A_DQ18 M_A_DQ20 M_A_DQ16 M_A_DQ23 M_A_DQ22 M_A_DQ25 M_A_DQ24 M_A_DQ30 M_A_DQ26 M_A_DQ28 M_A_DQ29 M_A_DQ31 M_A_DQ27 M_A_DQ36 M_A_DQ37 M_A_DQ34 M_A_DQ38 M_A_DQ32 M_A_DQ33 M_A_DQ35 M_A_DQ39 M_A_DQ41 M_A_DQ45 M_A_DQ47 M_A_DQ46 M_A_DQ40 M_A_DQ44 M_A_DQ42 M_A_DQ43 M_A_DQ49 M_A_DQ48 M_A_DQ54 M_A_DQ50 M_A_DQ53 M_A_DQ52 M_A_DQ55 M_A_DQ51 M_A_DQ61 M_A_DQ60 M_A_DQ59 M_A_DQ63 M_A_DQ56 M_A_DQ57 M_A_DQ62 M_A_DQ58

M_A_DQ[63:0] (3)

+3V

PM_EXTTS#0(13)

DDR3_DRAMRST#(2,13)

SMDDR_VREF_DQ0_M3(4)

SMDDR_VREF_DQ0_M3

R207 0_6 R208 *0_6

+1.5VSUS

2.48A

+3V

R206 10K/F_4

PM_EXTTS#0

+SMDDR_VREF_DQ0SMDDR_VREF_DQ0_M1 +SMDDR_VREF_DIMM

JDIM1B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25 26 31 32 37 38 43

PC2100 DDR3 SDRAM SO-DIMM

VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15

DDR3-DIMM0_H=4.0_STD

ddr-ddrsk-20401-tp4b-204p-ldv

DGMK4000325

SOCKET DDR3 SODIMM(204P,H4.0,STD)QBCON

44

VSS16

48

VSS17

49

VSS18

54

VSS19

55

VSS20

60

VSS21

61

VSS22

65

VSS23

66

VSS24

71

VSS25

72

VSS26

127

VSS27

128

VSS28

133

VSS29

134

VSS30

138

VSS31

139

VSS32

144

VSS33

145

VSS34

150

VSS35

151

VSS36

155

VSS37

156

VSS38

161

VSS39

162

VSS40

167

VSS41

168

VSS42

172

VSS43

173

VSS44

178

VSS45

179

VSS46

184

VSS47

185

VSS48

189

VSS49

190

VSS50

195

VSS51

196

VSS52

(204P)

203

VTT1

204

VTT2

205

GND

206

GND

+0.75V_DDR_VTT

+1.5VSUS(2,4,13,31,37)

+0.75V_DDR_VTT(13,31,35)

12

+3V(2,6,7,8,9,10,13,14,20,21,22,23,24,25,26,27,30,33,35,36)

+1.5VSUS

For EMI RESERVE 8/30

+1.5VSUS

C421 120P/50V_4 C384 120P/50V_4

U36 SI modify on 5/28

A A

5

C394 120P/50V_4 C454 120P/50V_4 C385 120P/50V_4 C499 120P/50V_4 C450 120P/50V_4

+0.75V_DDR_VTT

C395 *120P/50V_4 C431 *120P/50V_4

+1.5VSUS

SI modify on 4/25

C397 120P/50V_4 C427 120P/50V_4 C498 120P/50V_4 C402 0.1U/10V_4 C497 0.1U/10V_4

4

+1.5VSUS +0.75V_DDR_VTT

C401 1U/6.3V_4 C396 1U/6.3V_4 C423 1U/6.3V_4 C425 1U/6.3V_4 C428 10U/6.3VS_6 C420 10U/6.3VS_6 C400 10U/6.3VS_6 C399 10U/6.3VS_6 C424 10U/6.3VS_6 C391 10U/6.3VS_6 C386 *10U/6.3V_6 C398 10U/6.3V_6 C422 10U/6.3V_6

+SMDDR_VREF_DIMM

+SMDDR_VREF_DQ0

3

C440 1U/6.3V_4 C403 1U/6.3V_4 C437 1U/6.3V_4 C405 1U/6.3V_4 C426 10U/6.3VS_6 C393 *10U/6.3V_6

C404 0.1U/10V_4 C408 2.2U/6.3V_6

C411 0.1U/10V_4 C429 2.2U/6.3V_6

+3V

C413 0.1U/10V_4 C432 2.2U/6.3V_6

DDR_VTTREF

SMDDR_VREF_DQ0_M3

DRAMRST_CNTRL_DDR(2,13)

2

R199 *0_6

1

2

Q20 A03416

R200

3

1K/F_4

SMDDR_VREF_DQ0_M1

R197 1K/F_4

DDR_VTTREF(4,13,31)

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

VREF DQ0 M1 SolutionPlace these Caps near So-Dimm0.

+1.5VSUS

R212 1K/F_4

1

+SMDDR_VREF_DIMM

R209

C419

1K/F_4

470P/50V_4

12 37Friday, May 24, 2013

of

R211 *0_6

PROJECT :U81

Quanta Computer Inc.

DDR3 DIMM0-STD(4.0H)

1A

5

4

3

2

1

M_B_A[15:0](3)

D D

M_B_BS#0(3) M_B_BS#1(3) M_B_BS#2(3) M_B_CS#0(3) M_B_CS#1(3) M_B_CLKP0(3) M_B_CLKN0(3) M_B_CLKP1(3) M_B_CLKN1(3) M_B_CKE0(3) M_B_CKE1(3) M_B_CAS#(3) M_B_RAS#(3)

R232 10K/F_4 R240 10K/F_4

+3V

C C

B B

M_B_WE#(3)

SMB_RUN_CLK(8,12,24) SMB_RUN_DAT(8,12,24)

M_B_ODT0(3) M_B_ODT1(3)

M_B_DQSP[7:0](3)

M_B_DQSN[7:0](3)

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14 M_B_A15

DIMM1_SA0 DIMM1_SA1

M_B_DQSP0 M_B_DQSP1 M_B_DQSP2 M_B_DQSP3 M_B_DQSP4 M_B_DQSP5 M_B_DQSP6 M_B_DQSP7 M_B_DQSN0 M_B_DQSN1 M_B_DQSN2 M_B_DQSN3 M_B_DQSN4 M_B_DQSN5 M_B_DQSN6 M_B_DQSN7

JDIM2A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

29

47

64 137 154 171 188

10

27

45

62 135 152 169 186

PC2100 DDR3 SDRAM SO-DIMM

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7

DDR3-DIMM1_H=4.0_RVS

ddr-ddrrk-20401-tp4b-204p-ruv

DGMK4000361

SOCKET DDR3 SODIMM(204P,H4.0,RVS)QBCON

5

DQ0

7

DQ1

15

DQ2

17

DQ3

4

DQ4

6

DQ5

16

DQ6

18

DQ7

21

DQ8

23

DQ9

33

DQ10

35

DQ11

22

DQ12

24

DQ13

34

DQ14

36

DQ15

39

DQ16

41

DQ17

51

DQ18

53

DQ19

40

DQ20

42

DQ21

50

DQ22

52

DQ23

57

DQ24

59

DQ25

67

DQ26

69

DQ27

56

DQ28

58

DQ29

68

DQ30

70

DQ31

129

DQ32

131

DQ33

141

DQ34

143

DQ35

130

DQ36

132

DQ37

140

DQ38

142

DQ39

147

DQ40

149

DQ41

157

DQ42

159

DQ43

146

DQ44

148

DQ45

158

DQ46

160

(204P)

DQ47

163

DQ48

165

DQ49

175

DQ50

177

DQ51

164

DQ52

166

DQ53

174

DQ54

176

DQ55

181

DQ56

183

DQ57

191

DQ58

193

DQ59

180

DQ60

182

DQ61

192

DQ62

194

DQ63

M_B_DQ5 M_B_DQ4 M_B_DQ3 M_B_DQ2 M_B_DQ0 M_B_DQ1 M_B_DQ6 M_B_DQ7 M_B_DQ9 M_B_DQ13 M_B_DQ14 M_B_DQ10 M_B_DQ8 M_B_DQ12 M_B_DQ11 M_B_DQ15 M_B_DQ20 M_B_DQ21 M_B_DQ18 M_B_DQ22 M_B_DQ17 M_B_DQ16 M_B_DQ19 M_B_DQ23 M_B_DQ25 M_B_DQ29 M_B_DQ27 M_B_DQ26 M_B_DQ28 M_B_DQ24 M_B_DQ31 M_B_DQ30 M_B_DQ36 M_B_DQ37 M_B_DQ35 M_B_DQ34 M_B_DQ33 M_B_DQ32 M_B_DQ39 M_B_DQ38 M_B_DQ44 M_B_DQ40 M_B_DQ42 M_B_DQ43 M_B_DQ45 M_B_DQ41 M_B_DQ46 M_B_DQ47 M_B_DQ49 M_B_DQ48 M_B_DQ54 M_B_DQ55 M_B_DQ52 M_B_DQ53 M_B_DQ50 M_B_DQ51 M_B_DQ61 M_B_DQ56 M_B_DQ63 M_B_DQ62 M_B_DQ57 M_B_DQ60 M_B_DQ58 M_B_DQ59

M_B_DQ[63:0] (3)

+1.5VSUS(2,4,12,31,37)

+0.75V_DDR_VTT(12,31,35)

PM_EXTTS#0(12)

DDR3_DRAMRST#(2,12)

SMDDR_VREF_DQ1_M1

SMDDR_VREF_DQ1_M3(4)

DDR_VTTREF(4,12,31)

SMDDR_VREF_DQ1_M3

R217 *0_6

R198 0_6 R202 *0_6

+1.5VSUS

R218 1K/F_4

+SMDDR_VREF_DIMM1

R224 1K/F_4

C442 470P/50V_4

+SMDDR_VREF_DIMM1

Local Thermal Sensor

R234 *10K/F_4

+3V

MBCLK2 MBDATA2 PM_EXTTS#0

MBCLK2(2,8,27)

MBDATA2(2,8,27)

+3V(2,6,7,8,9,10,12,14,20,21,22,23,24,25,26,27,30,33,35,36)

+1.5VSUS

2.48A

+3V

PM_EXTTS#0

+SMDDR_VREF_DQ1

JDIM2B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM1_H=4.0_RVS

ddr-ddrrk-20401-tp4b-204p-ruv

DGMK4000361

SOCKET DDR3 SODIMM(204P,H4.0,RVS)QBCON

10/23:add for DDR Thermal Sensor

U8

8

SCLK

7

SDA

6

ALERT#

4

OVERT#

*EMC1412-1-ACZL-TR

VCC DXP DXN

GND

1 2 3 5

44

VSS16

48

VSS17

49

VSS18

54

VSS19

55

VSS20

60

VSS21

61

VSS22

65

VSS23

66

VSS24

71

VSS25

72

VSS26

127

VSS27

128

VSS28

133

VSS29

134

VSS30

138

VSS31

139

VSS32

144

VSS33

145

VSS34

150

VSS35

151

VSS36

155

VSS37

156

VSS38

161

VSS39

162

VSS40

167

VSS41

168

VSS42

172

VSS43

173

VSS44

178

VSS45

179

VSS46

184

VSS47

185

VSS48

189

VSS49

190

VSS50

195

VSS51

196

VSS52

(204P)

PC2100 DDR3 SDRAM SO-DIMM

C778 *0.01U/25V_4

203

VTT1

204

VTT2

205

GND

206

GND

DDR_THERMDA

C446 *2200P/50V_4

DDR_THERMDC

+0.75V_DDR_VTT

+3V

DDR3 Thermal Sensor

2

Q22 *METR3904-G

1 3

Main:AL001412003 EMC1412-1-ACZL-TR(98h)

13

2nd:AL000431014 TMP431ADGKR(98h)

1

+1.5VSUS

R215 1K/F_4

SMDDR_VREF_DQ1_M1DDR_VTTREF

R216 1K/F_4

1A

13 37Friday, May 24, 2013

of

Place these Caps near So-Dimm1.

+1.5VSUS

C501 1U/6.3V_4 C448 1U/6.3V_4 C503 1U/6.3V_4

C451 10U/6.3VS_6 C495 10U/6.3VS_6

A A

5

4

C505 10U/6.3VS_6 C453 10U/6.3VS_6 C494 10U/6.3VS_6 C500 10U/6.3VS_6 C458 *10U/6.3V_6 C502 10U/6.3V_6 C452 10U/6.3V_6

+0.75V_DDR_VTT

C466 1U/6.3V_4 C457 1U/6.3V_4 C455 1U/6.3V_4 C444 1U/6.3V_4C443 1U/6.3V_4 C447 10U/6.3VS_6 C459 *10U/6.3V_6

+3V

C483 0.1U/10V_4 C475 2.2U/6.3V_6

3

+SMDDR_VREF_DIMM1

C441 0.1U/10V_4 C449 2.2U/6.3V_6

+SMDDR_VREF_DQ1

C390 0.1U/10V_4 C387 2.2U/6.3V_6

2

VREF DQ1 M1 Solution

SMDDR_VREF_DQ1_M3

DRAMRST_CNTRL_DDR(2,12)

R214 *0_6

1

3

Q19

2

AO3416

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

DDR3 DIMM1-RVS(4.0H)

Date: Sheet

Date: Sheet of

5

4

3

2

1

AG15 AG16

AG20 AG21

AG14 AH14 AM14 AM16 AM18

AF16

AG17

AF22

AG22

AF23 AG23 AM20 AM22 AM24

AF17

AG18

AF19

AG19

AF20

U14G

DPE_VDD18#1 DPE_VDD18#2

DPE_VDD10#1 DPE_VDD10#2

DPE_VSSR#1 DPE_VSSR#2 DPE_VSSR#3 DPE_VSSR#4 DPE_VSSR#5

DPF_VDD18#1 DPF_VDD18#2

DPF_VDD10#1 DPF_VDD10#2

DPF_VSSR#1 DPF_VSSR#2 DPF_VSSR#3 DPF_VSSR#4 DPF_VSSR#5

DPEF_CALR

DPE_PVDD DPE_PVSS

DPF_PVDD DPF_PVSS

*SUN_XT_S3

Mars stuff Sun un-stuff

L19

L17

DP A/B POWERDP E/F POWER

DP PLL POWER

*0_6

Mars stuff Sun un-stuff

*0_6

DPA_VDD18#1 DPA_VDD18#2

DPA_VDD10#1 DPA_VDD10#2

DPA_VSSR#1 DPA_VSSR#2 DPA_VSSR#3 DPA_VSSR#4 DPA_VSSR#5

DPB_VDD18#1 DPB_VDD18#2

DPB_VDD10#1 DPB_VDD10#2

DPB_VSSR#1 DPB_VSSR#2 DPB_VSSR#3 DPB_VSSR#4 DPB_VSSR#5

DPAB_CALR

DPA_PVDD DPA_PVSS

DPB_PVDD DPB_PVSS

+1.0V_VGA

+1.8V_VGA

AE11 AF11

AF6 AF7

AE1 AE3 AG1 AG6 AH5

AE13 AF13

AF8 AF9

AF10 AG9 AH8 AM6 AM8

AE10

AG8 AG7

AG10 AG11

14

NC for Mars & Sun

U14A

3GT/s bit rate

PEG_TXP0(2)

D D

C C

B B

PEG_TXN0(2)

PEG_TXP1(2) PEG_TXN1(2)

PEG_TXP2(2) PEG_TXN2(2)

PEG_TXP3(2) PEG_TXN3(2)

PEG_TXP4(2) PEG_TXN4(2)

PEG_TXP5(2) PEG_TXN5(2)

PEG_TXP6(2) PEG_RXP6 (2) PEG_TXN6(2)

PEG_TXP7(2) PEG_TXN7(2)

CLK_VGA_P(8) CLK_VGA_N(8)

TEST_PG renaming—must be tied to ground

PEG_TXP0 PEG_TXN0

PEG_TXP1 PEG_TXN1

PEG_TXP2 PEG_TXN2

PEG_TXP3 PEG_TXN3

PEG_TXP4 PEG_TXN4 C_PEG_RXN4

PEG_TXP5 PEG_TXN5

PEG_TXP6 PEG_TXN6

PEG_TXP7 PEG_TXN7

CLK_VGA_P CLK_VGA_N

PEGX_RST#

AF30

PCIE_RX0P

AE31

PCIE_RX0N

AE29

PCIE_RX1P

AD28

PCIE_RX1N

AD30

PCIE_RX2P

AC31

PCIE_RX2N

AC29

PCIE_RX3P

AB28

PCIE_RX3N

AB30

PCIE_RX4P

AA31

PCIE_RX4N

AA29

PCIE_RX5P

Y28

PCIE_RX5N

Y30

PCIE_RX6P

W31

PCIE_RX6N

W29

PCIE_RX7P

V28

PCIE_RX7N

V30

PCIE_RX8P

U31

PCIE_RX8N

U29

PCIE_RX9P

T28

PCIE_RX9N

T30

PCIE_RX10P

R31

PCIE_RX10N

R29

PCIE_RX11P

P28

PCIE_RX11N

P30

PCIE_RX12P

N31

PCIE_RX12N

N29

PCIE_RX13P

M28

PCIE_RX13N

M30

PCIE_RX14P

L31

PCIE_RX14N

L29

PCIE_RX15P

K30

PCIE_RX15N

CLOCK

AK30

PCIE_REFCLKP

AK32

PCIE_REFCLKN

N10

R67*1K/F_4

AL27

PWRGOOD

PERSTB

*SUN_XT_S3

PCI EXPRESS INTERFACE

CALIBRATION

PCIE_CALRP PCIE_CALRN

PCIE_TX0P PCIE_TX0N

PCIE_TX1P PCIE_TX1N

PCIE_TX2P PCIE_TX2N

PCIE_TX3P PCIE_TX3N

PCIE_TX4P PCIE_TX4N

PCIE_TX5P PCIE_TX5N

PCIE_TX6P PCIE_TX6N

PCIE_TX7P PCIE_TX7N

PCIE_TX8P PCIE_TX8N

PCIE_TX9P PCIE_TX9N

PCIE_TX10P PCIE_TX10N

PCIE_TX11P PCIE_TX11N

PCIE_TX12P PCIE_TX12N

PCIE_TX13P PCIE_TX13N

PCIE_TX14P PCIE_TX14N

PCIE_TX15P PCIE_TX15N

INT

AH30 AG31

AG29 AF28

AF27 AF26

AD27 AD26

AC25 AB25

Y23 Y24

AB27 AB26

Y27 Y26

W24 W23

V27 U26

U24 U23

T26 T27

T24 T23

P27 P26

P24 P23

M27 N26

Y22 AA22

C_PEG_RXP0 C_PEG_RXN0

C_PEG_RXP1 C_PEG_RXN1

C_PEG_RXP2 C_PEG_RXN2

C_PEG_RXP3 C_PEG_RXN3

C_PEG_RXP4

C_PEG_RXP5 C_PEG_RXN5

C_PEG_RXP6 C_PEG_RXN6

C_PEG_RXP7 C_PEG_RXN7

M72_PCIE_CALRP M72_PCIE_CALRN

C678 *0.22U/10V_4 C677 *0.22U/10V_4

C652 *0.22U/10V_4 C653 *0.22U/10V_4

C646 *0.22U/10V_4 C645 *0.22U/10V_4

C658 *0.22U/10V_4 C657 *0.22U/10V_4

C648 *0.22U/10V_4 C649 *0.22U/10V_4

C662 *0.22U/10V_4 C661 *0.22U/10V_4

C650 *0.22U/10V_4 C651 *0.22U/10V_4

C660 *0.22U/10V_4 C659 *0.22U/10V_4

R68 *1.69K/F_4 R70 *1K/F_4

+1.0V_VGA +1.0V_VGA

PEG_RXP0 (2) PEG_RXN0 (2)

PEG_RXP1 (2) PEG_RXN1 (2)

PEG_RXP2 (2) PEG_RXN2 (2)

PEG_RXP3 (2) PEG_RXN3 (2)

PEG_RXP4 (2) PEG_RXN4 (2)

PEG_RXP5 (2) PEG_RXN5 (2)

PEG_RXN6 (2)

PEG_RXP7 (2) PEG_RXN7 (2)

+1.0V_DPE_VDD10

+1.8V_DPE_VDD18

+1.0V_DPE_VDD10

C216

*0.1U/10V_4

C197

*0.1U/10V_4

+1.8V_DPE_VDD18

+1.0V_DPE_VDD10

+1.8V_DPE_VDD18

C215 *1U/10V_4

C198 *1U/10V_4

PV modify

C217 *10U/6.3V_6

C205 *10U/6.3V_6

PV modify to short pad

+3V

R431 *0_4 R430 *0_4

+3V_VGA

4

C664

*0.1U/10V_4

PEGX_RST#

R436 *100K/F_4

PEGX_RST#(15)

+1.0V_VGA (15,17,24,37) +1.8V_VGA (15,17,37)

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Sun S3 PCIE_Interface

Date: Sheet

3

2

Date: Sheet of

1

14 37Friday, May 24, 2013

1A

of

A A

PLTRST#(2,8,22,23,24,26,27)

DGPU_HOLD_RST#(9)

5

C673 *0.1U/10V_4

R438 *330/F_4

*MC74VHC1G08DFT2G

DGPU_HIN_RST#

U16

2 1

3 5

4

5

GPIO10

GPIO30

PWRCNTL4

PWRCNTL5

D D

1

0

1

0

1

0

1

0

1

0

1

0

1

0 1

1

0

1

1 1

1 1 0 0

C C

+3V_DELAY

R74 *10K/F_4 R56 *10K/F_4 R361 *10K/F_4 R358 *10K/F_4 R59 *10K/F_4 R66 R426 *10K/F_4 R402 *10K/F_4

R372 *10K/F_4

B B

A A

GFX_CORE_CNTRL4(16,36)

+3V_DELAY

R425 *5.1K/F_4

TESTEN

R422 *1K/F_4

Reserve for Power Play

GFX_CORE_CNTRL1 GFX_CORE_CNTRL2 GFX_CORE_CNTRL3 GFX_CORE_CNTRL4

GFX_CORE_CNTRL5 GFX_CORE_CNTRL5 GFX_CORE_CNTRL3

VDDCI_GPIO0

PWRCNTL3

1

1 1

0

1

10

1

0

R362 *10K/F_4

GPU_AC_BATT DGPU_TDI DGPU_TMS DGPU_TDO DGPU_TRSTB

*10K/F_4

PCIE_CLKREQ_VGA# DGPU_PROCHOT# VGA_ALERT

TEMP_FAIL_GPU

R382 *3.01K/F_4 R370 *3.01K/F_4

R373 *10K/F_4

R389 *3.01K/F_4 R392 *3.01K/F_4

R393 *10K/F_4 R384 *10K/F_4 R69 *3.01K/F_4

GPIO20

GPIO15GPIO16

PWRCNTL2

PWRCNTL1

1

0

1

0

1

0

01

1

10

0

1

010.950V

1

00

1

0

1 0

1

DGPU_TCK

R71 *10K/F_4

R388 *0_4

R415 *0_4

Fo Mars/ Chelsea Change La, Lb Bead to 0 ohm

For Thems: La,Lb: CX8PG471000/BLM18PG471SN1D/1A_6

+1.8V_VGA

+1.0V_VGA

+1.8V_VGA

SI Modify

Ra Rb

+3V_DELAY

5

Sun XT

V-CORE

1.175V

1.150V0

1.125V

1.100V

1.075V

1.050V

1.025V

1.000V

0.975V

0.925V

0.900V

0.875V

0.850V

0.825V

0.800V1

0.775V10111

DGPU_PROCHOT#(27)

Mars stuff Ra Sun stuff Rb

Ra

GFX_CORE_CNTRL4_Mars

Rb

GFX_CORE_CNTRL4_SUN

*0_6

L15

La

Lb

L14 *0_6

1.0V(125mA DPLL_VDDC)

'*HCB1608KF-121T30(120,3000MA)'

L16

For Mars: Stuff Ra only=> VDDC 1.1V For Thems: Stuff Ra, Rb=> VDDC 1.0V

+3V_DELAY

Default

Access to SMBBus ans SDA/SCL is mandatory on all designs Add test points on SMBBus and SDA/SCL for debug

+3V_DELAY

GFX_CORE_CNTRL5(36)

GFX_CORE_CNTRL1(36) GFX_CORE_CNTRL3(36)

GFX_CORE_CNTRL2(36)

DGPU_PROCHOT#

1.8V(75mA DPLL_PVDD)

C201 *10U/6.3V_6

C194 C206 *10U/6.3V_6

*1U/10V_4

R408 *4.7K_4 R405 *4.7K_4

R397 *4.7K_4 R399 *4.7K_4

GPIO0(16) GPIO1(16) GPIO2(16)

DGPUT_DATA(27) DGPUT_CLK(27)

GPU_AC_BATT(27)

PV modify to short pad

GPIO11(16) GPIO13(16)

PCIE_CLKREQ_VGA#(8)

+1.8V_VGA

C199

*1U/10V_4

C187 *10U/6.3V_8

0.85mm

1.8V(5mA TSVDD)

C174 *0.1U/10V_4

R424 *0_4

C172

*1U/10V_4

C191

*0.1U/10V_4

4

TP22 TP7 TP11 TP21 TP19 TP24 TP20 TP23 TP15 TP14 TP16

Memory ID

R412

*10K/F_4 R409 *10K/F_4 R79 *10K/F_4 R410 *10K/F_4

NC for Sun

GPIO0 GPIO1 GPIO2 DGPUT_DATA_R DGPUT_CLK_R GPIO5

VDDCI_GPIO0

DGPU_ROMSO DGPU_ROMSI

GPIO11

GFX_CORE_CNTRL4_Mars

GPIO13 HDMI_HP2 GFX_CORE_CNTRL1 GFX_CORE_CNTRL3 VGA_ALERT HPD3 TEMP_FAIL_GPU GFX_CORE_CNTRL2

DGPU_ROMCSB PCIE_CLKREQ_VGA#

GFX_CORE_CNTRL4_SUN

DGPU_TRSTB DGPU_TDI DGPU_TCK DGPU_TMS DGPU_TDO TESTEN

Rc

Rd

Ca

+1.0V_DPLL_VDDC

C186 *0.1U/10V_4

EVGA-XTALI EVGA-XTALO

R76 *0_4

GPIO28(16)

4

TP17

+0.6V_VREFG

+1.8V_DPLL_PVDD

GPU_THERMDA GPU_THERMDC

GPIO28 +1.8V_TSVDD

+VDDR4

DGPUT_DATA DGPUT_CLK

TP71 TP70

R407 *0_4 R404 *0_4 R73 *0_4

TP12 TP8

TP18

TP9

TP10

TP3 TP2 TP68 TP69 TP67

Mars stuff Rc, Rd, Ca Sun un-stuff Rc, Rd, Ca

1.8V+R6043(249R)=1.8V/3=0.6V

R81 *499/F_4 R72 *249/F_4

C190 *0.1U/10V_4

MEM_ID3 MEM_ID2 MEM_ID1 MEM_ID0

U14B

M93-S3/M92-S2

AE9

DVCNTL_0/ DVPDATA_18

L9

DVCNTL_1 / NC

N9

DVCNTL_2 / NC

AE8

DVDATA_12 / DVPDATA_16

AD9

DVDATA_11 / DVPDATA_20

AC10

DVDATA_10 / DVPDATA_22

AD7

DVDATA_9 / DVPDATA_12

AC8

DVDATA_8 / DVPDATA_14

AC7

DVDATA_7 / DVPCNTL_0

AB9

DVDATA_6 / DVPDATA_8

AB8

DVDATA_5 / DVPDATA_6

AB7

DVDATA_4 DVPDATA_4

AB4

DVDATA_3 / DVPDATA_19

AB2

DVDATA_2 / DVPDATA_21

Y8

DVDATA_1 / DVPDATA_2

Y7

DVDATA_0 / DVPDATA_0

M93-S3/M92-S2

W6

DPC_PVDD / DVPDATA_11

V6

DPC_PVSS / GND

AC6

DPC_VDD18#1/DVPDAT10

AC5

DPC_VDD18#2/DVPDAT23

AA5

DPC_VDD10#1/DVPDAT15

AA6

DPC_VDD10#2/DVPDAT17

U1

DPC_VSSR#1 / DVPCLK

W1

DPC_VSSR#2 / DVPDAT5

U3

DPC_VSSR#3 / GND

Y6

DPC_VSSR#4 / GND

AA1

DPC_VSSR#5/ DVPCNTL_MV0

R1

SCL

R3

SDA

GENERAL PURPOSE I/O

U6

GPIO_0

U10

GPIO_1

T10

GPIO_2

U8

GPIO_3_SMBDATA

U7

GPIO_4_SMBCLK

T9

GPIO_5_AC_BATT

T8

GPIO_6

T7

GPIO_7_BLON

P10

GPIO_8_ROMSO

P4

GPIO_9_ROMSI

P2

GPIO_10_ROMSCK

N6

GPIO_11

N5

GPIO_12

N3

GPIO_13

Y9

GPIO_14_HPD2

N1

GPIO_15_PWRCNTL_0

M4

GPIO_16_SSIN

R6

GPIO_17_THERMAL_INT

W10

GPIO_18_HPD3

M2

GPIO_19_CTF

P8

GPIO_20_PWRCNTL_1

P7

GPIO_21_BB_EN

N8

GPIO_22_ROMCSB

N7

GPIO_23_CLKREQB

AK10

GPIO_29

AM10

GPIO_30

L6

JTAG_TRSTB

L5

JTAG_TDI

L3

JTAG_TCK

L1

JTAG_TMS

K4

JTAG_TDO

AF24

TESTEN

AB13

GENERICA

W8

GENERICB

W9

GENERICC

W7

GENERICD

AD10

GENERICE_HPD4

AC14

HPD1

AC16

VREFG

PLL/CLOCK

AF14

DPLL_PVDD

AE14

DPLL_PVSS

AD14

DPLL_VDDC

AM28

XTALIN

AK28

XTALOUT

AC22

NC#2/XO_IN

AB22

NC#1/XO_IN2

T4

DPLUS

T2

DMINUS

R5

TS_FDO

AD17

TSVDD

AC17

TSVSS

F1

*SUN_XT_S3

I2C

THERMAL

DVO

DVPDATA_3/TXCCP_DPC3P DVPCNTL_2/TXCCM_DPC3N

DVPDATA_7 / TX0P_DPC2P DVPDATA_1 / TX0M_DPC2N

DVPCNTL_MV1 / TX1P_DPC1P

DVPDATA_9 / TX1M_DPC1N

DVPDATA_13 / TX2P_DPC0P

DVPCNTL_1 / TX2M_DPC0N

TXCAP_DPA3P TXCAM_DPA3N

TX0P_DPA2P

DPA

TX0M_DPA2N

TX1P_DPA1P

TX1M_DPA1N

TX2P_DPA0P

TX2M_DPA0N

TXCBP_DPB3P TXCBM_DPB3N

TX3P_DPB2P

TX3M_DPB2N

DPB

TX4P_DPB1P

TX4M_DPB1N

TX5P_DPB0P

TX5M_DPB0N

M92-S2/M93-S3

DPC

DAC1

M92-S2/M93-S3

DAC2

COMP / NC

R2SET / NC

DDC/AUX

DDC1DATA

DDC2DATA

DDCCLK_AUX5P

DDCDATA_AUX5N

DDC6DATA

NC/DDCCLK_AUX3P

NC/DDCDATA_AUX3N

AVSSN#1

AVSSN#2

AVSSN#3

HSYNC

VSYNC

RSET AVDD

AVSSQ

VDD1DI

VSS1DI

CEC_1

R2B / NC

G2 / NC

G2B / NC

B2B / NC

C / NC

H2SYNC

V2SYNC

DDC1CLK

AUX1P AUX1N

DDC2CLK

AUX2P AUX2N

DDC6CLK

PS_1 PS_0

PS_3 PS_2 TS_A

AF2 AF4

AG3 AG5

AH3 AH1

AK3 AK1

AK5 AM3

AK6 AM5

AJ7 AH6

AK8 AL7

V4 U5

W3 V2

Y4 W5

AA3 Y2

AM26

R

AK26 AL25

G

AJ25 AH24

B

AG25 AH26

AJ27

AD22 AG24

AE22 AE23

AD23

AM12 AK12

AL11 AJ11

AL9

AH12 AJ9

AL13 AJ13

AD19 AC19

AE20 AE17 AE19

AG13

AE6 AE5

AD2 AD4

AC11 AC13

AD13 AD11

AE16 AD16

AC1 AC3

AD20 AC20

3

VGA_ALERT

AVSSN#

R87 *499/F_4

AVSSQ +VDDD1

VSS1D1

PS_1 PS_0

PS_3 PS_2

R83 *0_4

R423 *715/F_4

PS_3[3:1]

000

001 010

011 100

101

TP72 TP73

For AMD tuning timing purpose

3

Thermal Solution(Close to GPU)

DGPUT_CLK

R398 *0_4

+3V_DELAY

PV modify

TP78

TP77

Mars stuff Sun un-stuff

+1.8V_AVDD_Q

DGPUT_DATA GPU_THERMDA VGA_ALERT_R

R439 *10K/F_4

DGPU_OVT#(27)

+1.8V_AVDD_Q

C178

*0.1U/10V_4

TP76

TP27 TP25

TP28 TP26

+VDDD1

C170

*0.1U/10V_4

+1.8V_AVDD_Q

+VDDD1

PEGX_RST#(14)

PV modify

Reserved. Do not connect on the PCB.

Vendor Type Vendor P/N

Hynix- F(Huma) H5TC2G63FFR-11C128Mx16 *4, 900Mhz

Samsung- E die K4W2G1646E-BC1A

Hynix- Huma die 256Mx16 *4, 900Mhz H5TC4G63FAFR-11C

Samsung- B die

Micron- E

C639 *8.2P/50V_4

1

2

4

3

C636 *8.2P/50V_4

C679 *0.01U/25V_4

U17

8 7 6 4

+1.8V_AVDD_Q

+VDDD1

1

VCC

SCLK

2

DXP

SDA

3

DXN

ALERT#

5

GND

OVERT#

*G781-1P8

Main:AL000781039 G781-1P8(9Ah)

2nd:AL001412005 EMC1412-2-ACZL-TR(9Ah)

C180

C179

*10U/6.3V_6

*1U/10V_4

1.8V(45mA VDD1DI)

C171

C176

*1U/10V_4

*10U/6.3V_6

PV modify

2

128Mx16 *4, 900Mhz 128Mx16 *4, 900Mhz

256Mx16 *4, 900Mhz

R421 *0_4

EVGA-XTALI

R419

Y3

*1M/F_4

*27MHZ +-10PPM

EVGA-XTALO

+3V_DELAY

C668 *2200P/50V_4

GPU_THERMDC

Mars stuff Sun un-stuff

1.8V(70mA)

+1.8V_VGA

L13 *0_6

Mars stuff Sun un-stuff

+1.8V_VGA

L12 *0_6

TEMP_FAIL_GPU

3

Q28

*ME2N7002E

1

TEMP_FAIL (27)

MT41J128M16JT-093G:KMicron- V89C/K

K4W4G1646B-HC1A

MT41J256M16HA-093G:E

PV modify to short pad

SI Modify

For Int Clk 27Mhz

2

CLK_27M_XTAL_IN (26)

2

R5045 R5048

NC 4.75K

8.45K 2K

4.53K 2K

6.98K

4.53K

4.99K

5.62K

3.24K

BIT5 => BIT0 PS0 => 11001 PS1 => 01000 PS2 => 00000 PS3 => 11000

4.99K

PS_0 PS_1

PS_2 PS_3

+1.8V_VGA (14,17,37) +1.0V_VGA (14,17,24,37)

1

+1.8V_VGA

R85 *8.45K/F_4

R84 *2K/F_4

+1.8V_VGA +1.8V_VGA

R86 *0_4

R80 *4.75K/F_4

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet

+1.8V_VGA

C193 *0.01U/50V_4

C207 *0.68U/4V_4

PROJECT :U81

Quanta Computer Inc.

Sun S3 Main

1

R82 *8.45K/F_4

R75 *4.75K/F_4

R89 *0_4

R88 *4.75K/F_4

15

C196

*0.082U/16V_4

SI Modify

C218 *0.01U/50V_4

of

15 37Monday, May 27, 2013

1A

5

4

3

2

1

U14E

AA27

PCIE_VSS#1

AB24

PCIE_VSS#2

AB32

PCIE_VSS#3

AC24

PCIE_VSS#4

AC26

PCIE_VSS#5

AC27

PCIE_VSS#6

AD25

PCIE_VSS#7

D D

C C

B B

AD32 AE27

AF32 AG27 AH32

M32 N25 N27

R27

U25 U27

W25 W26 W27

N11 N13

N16 N18 N21

R12 R15 R17 R20

U15 U17 U20

K28 K32 L27

P25 P32

T25 T32

V32

Y25 Y32

T13 T16 T18 T21

V13 V16 V18 Y10 Y15 Y17 Y20

M6

P6 P9

T6

U9

*SUN_XT_S3

PCIE_VSS#8 PCIE_VSS#9 PCIE_VSS#10 PCIE_VSS#11 PCIE_VSS#12 PCIE_VSS#13 PCIE_VSS#14 PCIE_VSS#15 PCIE_VSS#16 PCIE_VSS#17 PCIE_VSS#18 PCIE_VSS#19 PCIE_VSS#20 PCIE_VSS#21 PCIE_VSS#22 PCIE_VSS#23 PCIE_VSS#24 PCIE_VSS#25 PCIE_VSS#26 PCIE_VSS#27 PCIE_VSS#28 PCIE_VSS#29 PCIE_VSS#30 PCIE_VSS#31

GND#56 GND#57

GND#59 GND#60 GND#61 GND#62 GND#63 GND#64 GND#65 GND#66 GND#67 GND#68 GND#69 GND#70 GND#71 GND#72 GND#73 GND#74 GND#75 GND#76 GND#77 GND#78 GND#79 GND#80 GND#81 GND#82 GND#83 GND#84

GND#3 / EVDDQ#2

GND#6 / EVDDQ#3

GND

VSS_MECH#1 VSS_MECH#2 VSS_MECH#3

GND#1 GND#2

GND#4 GND#5

GND#7 GND#8

GND#9 GND#10 GND#11 GND#12 GND#13 GND#14 GND#15 GND#16 GND#17 GND#18 GND#19 GND#20 GND#21 GND#22 GND#23 GND#24 GND#25 GND#26 GND#27 GND#28 GND#29 GND#30 GND#31 GND#32 GND#33 GND#34 GND#35 GND#36 GND#37 GND#38 GND#39 GND#40 GND#41 GND#42 GND#43 GND#44 GND#45 GND#46 GND#47 GND#48 GND#49 GND#50 GND#51 GND#52 GND#53 GND#54 GND#55 GND#85 GND#86

A3 A30 AA13 AA16 AB10 AB15 AB6 AC9 AD6 AD8 AE7 AG12 AH10 AH28 B10 B12 B14 B16 B18 B20 B22 B24 B26 B6 B8 C1 C32 E28 F10 F12 F14 F16 F18 F2 F20 F22 F24 F26 F6 F8 G10 G27 G31 G8 H14 H17 H2 H20 H6 J27 J31 K11 K2 K22 K6 T11 R11

A32 AM1 AM32

Power Up/Down Sequence

+VGA_CORE

+1.5V_VGA

A A

+3.3V_Delay

+1.8V_VGA +1.8V_VGA

VDDC

VDDCI

VDDR1

VDDR3

VDDR4 VDD_CT

20ms20ms

5

4

U14F

LVDS CONTROL

LVTMDP

*SUN_XT_S3

AB11

VARY_BL

AB12

DIGON

TXCLK_UP_DPF3P TXCLK_UN_DPF3N

TXOUT_U0P_DPF2P

TXOUT_U0N_DPF2N

TXOUT_U1P_DPF1P

TXOUT_U1N_DPF1N

TXOUT_U2P_DPF0P

TXOUT_U2N_DPF0N

TXOUT_U3P TXOUT_U3N

TXCLK_LP_DPE3P

TXCLK_LN_DPE3N

TXOUT_L0P_DPE2P TXOUT_L0N_DPE2N

TXOUT_L1P_DPE1P TXOUT_L1N_DPE1N

TXOUT_L2P_DPE0P TXOUT_L2N_DPE0N

TXOUT_L3P TXOUT_L3N

AH20 AJ19

AL21 AK20

AH22 AJ21

AL23 AK22

AK24 AJ23

AL15 AK14

AH16 AJ15

AL17 AK16

AH18 AJ17

AL19 AK18

CONFIGURATION STRAPS-- SEE EACH DATABOOK FOR STRAP DETAILS

ALLOW FOR PULLUP PADS FOR THESE STRAPS AND IF THESE GPIOS ARE USED, THEY MUST NOT CONFLICT DURING RESET

STRAPS DESCRIPTION OF DEFAULT SETTINGSPIN

RSVD GPIO2 RESERVED 0 RSVD GPIO8 RESERVED 0

RSVD GPIO21 RESERVED 0

BIOS_ROM_EN

VIP_DEVICE_STRAP_ENA V2SYNC IGNORE VIP DEVICE STRAPS (Removed on Seymour/Whistler)

RSVD H2SYNC RESERVED 0

RSVD GENERICC RESERVED 0

NOTE1: AMD RESERVED CONFIGURATION STRAPS

ALLOW FOR PULLUP PADS FOR THESE STRAPS BUT DO NOT INSTALL RESISTOR. IF THESE GPIOS ARE USED, THEY MUST KEEP "LOW" AND NOT CONFLICT DURING RESET.

H2SYNC GENERICCGPIO21

Memory Aperture size(Seymour)

GPIO9 GPIO13 GPIO12 GPIO11

BIOSROM

0

0 0 0 0 0 0

128M

256M

64M 32M 512M 1G 2G 4G

0

0 0 1 0 0

1 1

It is a shared pin strap with CONFIG[2:0] if BIOS_ROM_EN is set to 0.

3

ROMIDCFG0ROMIDCFG1ROMIDCFG2

0

00

1 1 1

11 1

0

1

0

11 0 0

+3V_DELAY (15,17)

GPIO0 PCIE FULL TX OUTPUT SWINGTX_PWRS_ENB GPIO1TX_DEEMPH_EN PCIE TRANSMITTER DE-EMPHASIS ENABLED

GPIO_22_ROMCSB

GPIO[13:11]ROMIDCFG(2:0) SERIAL ROM TYPE OR MEMORY APERTURE SIZE SELECT

HSYNC 0AUD[1] VSYNC 0AUD[0]

ENABLE EXTERNAL BIOS ROM

SEE DATABOOK FOR DETAIL SEE DATABOOK FOR DETAIL

GPIO0(15) GPIO1(15)

GPIO2(15)

GPIO13(15)

GFX_CORE_CNTRL4(15,36)

GPIO11(15)

GPIO28(15)

GPIO2GPIO8

GPIO0 GPIO1

GPIO2

GPIO13 GPIO12 GPIO11

GPIO28

Mars : stuff Ra=> disable MLPS

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet

2

Date: Sheet

16

RECOMMENDED SETTINGS 0= DO NOT INSTALL RESISTOR 1 = INSTALL 3K RESISTOR X = DESIGN DEPENDANT NA = NOT APPLICABLE

0 X

0GPIO9 VGA ENABLEDBIF_VGA DIS

0

0 10

0

+3V_DELAY

R401 *10K/F_4 R77 *10K/F_4 R78 *10K/F_4

R383 *10K/F_4 R416 *10K/F_4 R65 *10K/F_4

R396 *10K/F_4

Ra

R395 *10K/F_4

Rb

stuff Rb=> enable MLPS

PROJECT :U81

Quanta Computer Inc.

Sun S3 GND / LVDS/ Straps

SI Modify

of

16 37Friday, May 24, 2013

1

16 37Friday, May 24, 2013

1A

5

4

3

2

1

17

D D

U14D

+1.5V_VGA

+1.8V_VGA

C C

+3V_VGA

+1.8V_VGA

1.5V ( DDR3, MVDDQ = 1.5V@1A)

L11 *0_6

L20 *0_6

Mars stuff Sun un-stuff

L18 *0_6

VDDC_CT: 1.8V @13mA

VDDR3 : 3.3V @ 25mA

VDDR4 : 1.8V @ 300mA

C592 *10U/6.3VS_6

C561 *10U/6.3VS_6

+1.8V_VDD_CT

+VDDR4

C574 *2.2U/6.3V_4

C580 *10U/6.3VS_6

C163

*10U/6.3VS_6

C575 *2.2U/6.3V_4

C33 *0.1U/10V_4

C161

*1U/10V_4

C160

*1U/10V_4

C211 *10U/6.3VS_6

C572 *2.2U/6.3V_4

C32 *0.1U/10V_4

+1.8V_VDD_CT

C162

*1U/10V_4

+3V_DELAY

C166

*1U/10V_4

+VDDR4

C157 *1U/10V_4

C108 *2.2U/6.3V_4

C588 *0.1U/10V_4

C159

*1U/10V_4

C158

*1U/10V_4

C152 *0.1U/10V_4

C109 *2.2U/6.3V_4

C43 *0.1U/10V_4

C155 *0.1U/10V_4

+3V_DELAY

C219

*10U/6.3VS_6

TP13

1.8V(90mA MPV18)

C97 *0.1U/10V_4

MPV18

C95 *10U/6.3VS_6

PV modify

+1.8V_VGA

L7 *HCB1608KF-181T15_6

C96

*1U/10V_4

1.8V(75mA SPV18)

B B

+1.8V_VGA

L8 '*TI160808U121(120,2.5A)'

C106

*1U/10V_4

+1.0V_VGA

SPV18

C107 *0.1U/10V_4

C117 *10U/6.3VS_6

0.95V(100mA SPV10)

L10 '*TI160808U121(120,2.5A)'

C124 *10U/6.3VS_6

+1.0V_VGA_SPV10

C120 *0.1U/10V_4

C121

*1U/10V_4

MPV18

SPV18

H13 H16 H19

J10 J23 J24

J9 K10 K23 K24

K9 L11 L12 L13 L20 L21 L22

AA20 AA21 AB20 AB21

M93-S3/M92-S2

AA17 AA18 AB17 AB18

V12 Y12 U12

AA11

Y11 V11

L17 L16

L8

H7

H8

J7

M12

*SUN_XT_S3

MEM I/O

VDDR1#1 VDDR1#2 VDDR1#3 VDDR1#4 VDDR1#5 VDDR1#6 VDDR1#7 VDDR1#8 VDDR1#9 VDDR1#10 VDDR1#11 VDDR1#12 VDDR1#13 VDDR1#14 VDDR1#15 VDDR1#16 VDDR1#17

LEVEL TRANSLATION

VDD_CT#1 VDD_CT#2 VDD_CT#3 VDD_CT#4

VDDR3#1

I/O

VDDR3#2 VDDR3#3 VDDR3#4

VDDR4#1 / VDDR5 VDDR4#2 VDDR4#3 / VDDR5

NC#1 / VDDR4 DVCLK / VDDR4

NC#3 / VDDR5

MEM CLK

VDDRHA VSSRHA

PLL

MPLL_PVDD

SPLL_PVDD SPLL_VDDC SPLL_PVSS

BACK BIAS

BBP#2

PCIE

PCIE_PVDD PCIE_VDDR#1 PCIE_VDDR#2 PCIE_VDDR#3 PCIE_VDDR#4 PCIE_VDDR#5 PCIE_VDDR#6 PCIE_VDDR#7 PCIE_VDDR#8

PCIE_VDDC#1 PCIE_VDDC#2 PCIE_VDDC#3 PCIE_VDDC#4 PCIE_VDDC#5 PCIE_VDDC#6 PCIE_VDDC#7 PCIE_VDDC#8 PCIE_VDDC#9

PCIE_VDDC#10 PCIE_VDDC#11 PCIE_VDDC#12

VDDC#1

CORE

VDDC#2 VDDC#3

POWER

VDDC#4 VDDC#5 VDDC#6 VDDC#7 VDDC#8

VDDC#9 VDDC#10 VDDC#11 VDDC#12 VDDC#13 VDDC#14 VDDC#15 VDDC#16 VDDC#17 VDDC#18 VDDC#20 VDDC#21 VDDC#22 VDDC#23 VDDC#24 VDDC#25 VDDC#26

VDDC#19/BIF_VDDC

VDDC#23 /BIF_VDDC

VDDCI#1

ISOLATED

VDDCI#2

CORE I/O

VDDCI#3 VDDCI#4 VDDCI#5 VDDCI#6 VDDCI#7 VDDCI#8

AM30 AB23 AC23 AD24 AE24 AE25 AE26 AF25 AG26

L23 L24 L25 L26 M22 N22 N23 N24 R22 T22 U22 V22

AA15 N15 N17 R13 R16 R18 Y21 T12 T15 T17 T20 U13 U16 U18 V21 V15 V17 V20 Y13 Y16 Y18 N12 M11 AA12 U11 U21 R21

M13 M15 M16 M17 M18 M20 M21 N20

NC for Mars & Sun

+1.0V_PCIE_VDDC+1.0V_PCIE_VDDC

C153

C154

*1U/10V_4

VDDC+VDDCI

0.8~1.15V(28A Max)

C128

C165

*1U/10V_4

C114

C82

*1U/10V_4

C619

C605

*1U/10V_4

*2.2U/6.3V_4

C80

C99

*10U/6.3VS_6

C144

*10U/6.3VS_6

C625

*1U/10V_4

C147

*1U/10V_4

C119

*1U/10V_4

C151

*1U/10V_4

C129

*1U/10V_4

C624

*1U/10V_4

C145

*1U/10V_4

C622

*1U/10V_4

+1.0V_PCIE_VDDC

C139

*1U/10V_4

C168

*1U/10V_4

C116

*1U/10V_4

C633

*1U/10V_4

C78

*10U/6.3VS_6

+1.0V_PCIE_VDDC

C88

*10U/6.3VS_6

C134

*1U/10V_4

C141

*1U/10V_4

C105

*1U/10V_4

C81

*1U/10V_4

C94

*10U/6.3VS_6

C209

*0.1U/10V_4

12

+

C127 *330u_2.5V_3528

C192 *0.01U/25V_4

0.95V(1.4A)

VDDC+VDDCI

0.8~1.15V(28A Max)

C77

*10U/6.3VS_6

*1U/6.3V_4

0.95V(2.5A)

C126

*1U/10V_4

C142

*1U/10V_4

C115

*1U/10V_4

C621

*1U/10V_4

C79

*10U/6.3VS_6

C183

C110

*1U/10V_4

C148

*1U/10V_4

C123

*1U/10V_4

+VGA_CORE

C618

C204 *10U/6.3VS_6

C143

*10U/6.3VS_6

C112

*1U/10V_4

C150

*1U/10V_4

C631

*2.2U/6.3V_4

C146

*10U/6.3VS_6

C627

*1U/10V_4

C135

*1U/10V_4

C628

*1U/10V_4

+1.8V_VGA

L9 *0_8

+VGA_CORE

C626

*1U/10V_4

C167

*1U/10V_4

C620

*1U/10V_4

+1.0V_VGA

+1.5V_VGA (18,19,24,37) +1.8V_VGA (14,15,37)

A A

5

4

3

2

+1.0V_VGA (14,15,24,37) +VGA_CORE (24,36,37) +3V_DELAY (15,16)

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Sun S3 Power_and_NC

Date: Sheet of

Date: Sheet

1

of

17 37Friday, May 24, 2013

1A

5

R57

*40.2/F_4

MVREFS

R61

*100/F_4

VMA_ODT0 VMA_ODT1

VMA_RAS0# VMA_RAS1#

VMA_CAS0# VMA_CAS1#

VMA_WE0# VMA_WE1#

VMA_CS0# VMA_CS1# VMA_CKE0

VMA_CKE1 VMA_CLK0

VMA_CLK0# VMA_CLK1

VMA_CLK1# VMA_WDQS[7..0] VMA_RDQS[7..0]

VMA_DM[7..0] VMA_DQ[63..0] VMA_MA[14..0]

VMA_BA0 VMA_BA1 VMA_BA2

MVREFD

VMA_ODT0(19) VMA_ODT1(19)

VMA_RAS0#(19) VMA_RAS1#(19)

VMA_CAS0#(19) VMA_CAS1#(19)

VMA_WE0#(19)

C607

VMA_WDQS[7..0](19) VMA_RDQS[7..0](19)

VMA_DM[7..0](19)

VMA_DQ[63..0](19)

VMA_MA[14..0](19)

+1.5V_VGA

R380

*40.2/F_4

R381

*100/F_4

VMA_WE1#(19)

VMA_CS0#(19) VMA_CS1#(19) VMA_CKE0(19)

VMA_CKE1(19) VMA_CLK0(19)

VMA_CLK0#(19)

VMA_CLK1(19)

VMA_CLK1#(19)

VMA_BA0(19) VMA_BA1(19) VMA_BA2(19)

C125

*1U/10V_4

support 1Gbit VRAM ( 64M X 16 )

+1.5V_VGA

D D

C C

B B

*1U/10V_4

4

R363 *1K/F_4

R369 *120/F_4

C133

*0.1U/10V_4

VMA_DQ0 VMA_DQ1 VMA_DQ2 VMA_DQ3 VMA_DQ4 VMA_DQ5 VMA_DQ6 VMA_DQ7 VMA_DQ8 VMA_DQ9 VMA_DQ10 VMA_DQ11 VMA_DQ12 VMA_DQ13 VMA_DQ14 VMA_DQ15 VMA_DQ16 VMA_DQ17 VMA_DQ18 VMA_DQ19 VMA_DQ20 VMA_DQ21 VMA_DQ22 VMA_DQ23 VMA_DQ24 VMA_DQ25 VMA_DQ26 VMA_DQ27 VMA_DQ28 VMA_DQ29 VMA_DQ30 VMA_DQ31 VMA_DQ32 VMA_DQ33 VMA_DQ34 VMA_DQ35 VMA_DQ36 VMA_DQ37 VMA_DQ38 VMA_DQ39 VMA_DQ40 VMA_DQ41 VMA_DQ42 VMA_DQ43 VMA_DQ44 VMA_DQ45 VMA_DQ46 VMA_DQ47 VMA_DQ48 VMA_DQ49 VMA_DQ50 VMA_DQ51 VMA_DQ52 VMA_DQ53 VMA_DQ54 VMA_DQ55 VMA_DQ56 VMA_DQ57 VMA_DQ58 VMA_DQ59 VMA_DQ60 VMA_DQ61 VMA_DQ62 VMA_DQ63

DRAM_RST CLKTESTA

CLKTESTB

C602 *0.1U/10V_4

U14C

K27

DQA_0

J29

DQA_1

H30

DQA_2

H32

DQA_3

G29

DQA_4

F28

DQA_5

F32

DQA_6

F30

DQA_7

C30

DQA_8

F27

DQA_9

A28

DQA_10

C28

DQA_11

E27

DQA_12

G26

DQA_13

D26

DQA_14

F25

DQA_15

A25

DQA_16

C25

DQA_17

E25

DQA_18

D24

DQA_19

E23

DQA_20

F23

DQA_21

D22

DQA_22

F21

DQA_23

E21

DQA_24

D20

DQA_25

F19

DQA_26

A19

DQA_27

D18

DQA_28

F17

DQA_29

A17

DQA_30

C17

DQA_31

E17

DQA_32

D16

DQA_33

F15

DQA_34

A15

DQA_35

D14

DQA_36

F13

DQA_37

A13

DQA_38

C13

DQA_39

E11

DQA_40

A11

DQA_41

C11

DQA_42

F11

DQA_43

A9

DQA_44

C9

DQA_45

F9

DQA_46

D8

DQA_47

E7

DQA_48

A7

DQA_49

C7

DQA_50

F7

DQA_51

A5

DQA_52

E5

DQA_53

C3

DQA_54

E1

DQA_55

G7

DQA_56

G6

DQA_57

G1

DQA_58

G3

DQA_59

J6

DQA_60

J1

DQA_61

J3

DQA_62

J5

DQA_63

K26

MVREFDA

J26

MVREFSA

J25

MEM_CALRN0

K7

NC/TESTEN#2

J8

MEM_CALRP1/DPC_CALR

K25

MEM_CALRP0

L10

DRAM_RST

K8

CLKTESTA

L7

CLKTESTB

*SUN_XT_S3

MEMORY INTERFACE

MAA_0 MAA_1 MAA_2 MAA_3 MAA_4 MAA_5 MAA_6 MAA_7 MAA_8

MAA_9 MAA_10 MAA_11 MAA_12

MAA_13/BA2 MAA_14/BA0 MAA_15/BA1

DQMA_0 DQMA_1 DQMA_2 DQMA_3 DQMA_4 DQMA_5 DQMA_6 DQMA_7

RDQSA_0 RDQSA_1 RDQSA_2 RDQSA_3 RDQSA_4 RDQSA_5 RDQSA_6 RDQSA_7

WDQSA_0 WDQSA_1 WDQSA_2 WDQSA_3 WDQSA_4 WDQSA_5 WDQSA_6 WDQSA_7

ODTA0

ODTA1

CLKA0

CLKA0B

CLKA1

CLKA1B

RASA0B RASA1B

CASA0B CASA1B

CSA0B_0 CSA0B_1

CSA1B_0 CSA1B_1

CKEA0

CKEA1

WEA0B WEA1B

PX_EN

RSVD#2 RSVD#3

3

K17

VMA_MA0

J20

VMA_MA1

H23

VMA_MA2

G23

VMA_MA3

G24

VMA_MA4

H24

VMA_MA5

J19

VMA_MA6

K19

VMA_MA7

J14

VMA_MA8

K14

VMA_MA9

J11

VMA_MA10

J13

VMA_MA11

H11

VMA_MA12

G11

VMA_BA2

J16

VMA_BA0

L15

VMA_BA1

E32

VMA_DM0

E30

VMA_DM1

A21

VMA_DM2

C21

VMA_DM3

E13

VMA_DM4

D12

VMA_DM5

E3

VMA_DM6

F4

VMA_DM7

H28

VMA_RDQS0

C27

VMA_RDQS1

A23

VMA_RDQS2

E19

VMA_RDQS3

E15

VMA_RDQS4

D10

VMA_RDQS5

D6

VMA_RDQS6

G5

VMA_RDQS7

H27

VMA_WDQS0

A27

VMA_WDQS1

C23 C19 C15 E9 C5 H4

L18 K16

H26 H25

G9 H9

G22 G17

G19 G16

H22 J22

G13 K13

K20 J17

G25 H10

AB16 G14 G20

VMA_WDQS2 VMA_WDQS3 VMA_WDQS4 VMA_WDQS5 VMA_WDQS6 VMA_WDQS7

VMA_ODT0 VMA_ODT1

VMA_CLK0 VMA_CLK0#

VMA_CLK1 VMA_CLK1#

VMA_RAS0# VMA_RAS1#

VMA_CAS0# VMA_CAS1#

VMA_CS0#

VMA_CS1#

VMA_CKE0 VMA_CKE1

VMA_WE0# VMA_WE1#

PX_EN

TP74

VMA_MA14 VMA_MA13

From GPU

Place all these components very close to GPU (Within 25mm) and keep all component close to each Other (within 5mm) except Rser2

This basic topology should be used for DRAM_RST for DDR3/GDDR5.These Capacitors and Resistor values are an example only. The Series R and || Cap values will depend on the DRAM load and will have to be calculated for different Memory ,DRAM Load and board to pass Reset Signal Spec.

2

25mm (max) 25mm (max)5mm (max)

R48 *10/F_4

R49 *4.99K/F_4

R4 *51.1/F_4

C21 *120P/50V_4

1

18

DRAM_RST_MDRAM_RST

DRAM_RST_M (19)

R62

*51.1/F_4

route 50ohms single-ended/100ohms diff

A A

5

and keep short

4

R368

*51.1/F_4

+1.5V_VGA (17,19,24,37)

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Sun S3 MEM_Interface

Date: Sheet of

Date: Sheet

3

2

Date: Sheet

18 37Friday, May 24, 2013

1

1A

of

5

U2

M9

VREFCA

H2

VREFDQ

N4

A0

P8

A1

P4

A2

N3

A3

P9

A4

P3

A5

R9

A6

R3

A7

T9

A8

R4

A9

L8

A10/AP

R8

A11

N8

A12/BC

T4

A13

T8

A14

M8

A15/BA3

M3

BA0

N9

BA1

M4

BA2

J8

CK

K8

CK

K10

CKE/CKE0

K2

ODT/ODT0

L3

CS /CS0

J4

RAS

K4

CAS

L4

WE

F4

DQSL

C8

DQSU

E8

DML

D4

DMU

G4

DQSL

B8

DQSU

T3

RESET

L9

ZQ/ZQ0

A1

NC

T1

NC

A11

NC

T11

NC

J2

NC/ODT1

L2

NC/CS1

J10

NC/CE1

L10

NC/ZQ1

100-BALL SDRAM DDR3

*H5TC2G63FFR-11C

VREFC_VMA1

C37

*0.1U/10V_4

VMA_MA[14..0]

VDD#B3

VDD#D10

VDD#G8 VDD#K3 VDD#K9 VDD#N2

VDD#N10

VDD#R2

VDD#R10

VDDQ#A2 VDDQ#A9 VDDQ#C2

VDDQ#C10

VDDQ#D3

VDDQ#E10

VDDQ#F2 VDDQ#H3

VDDQ#H10

VSS#A10

VSS#B4 VSS#E2 VSS#G9

VSS#J3 VSS#J9

VSS#M2

VSS#M10

VSS#P2

VSS#P10

VSS#T2

VSS#T10

VSSQ#B2

VSSQ#B10

VSSQ#D2 VSSQ#D9 VSSQ#E3 VSSQ#E9

VSSQ#F10

VSSQ#G2

VSSQ#G10

*4.99K/F_4

VMA_DQ[63..0](18)

VMA_RDQS[7..0](18)

E4

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

R352

R353

VMA_DQ20

F8

VMA_DQ18

F3

VMA_DQ22

F9

VMA_DQ17

H4

VMA_DQ23

H9

VMA_DQ16

G3

VMA_DQ21

H8

VMA_DQ19 VMA_DQ26

D8

VMA_DQ0

C4

VMA_DQ5

C9

VMA_DQ1

C3

VMA_DQ4

A8

VMA_DQ2

A3

VMA_DQ7

B9

VMA_DQ3

A4

VMA_DQ6

B3 D10 G8 K3 K9 N2 N10 R2 R10

A2 A9 C2 C10 D3 E10 F2 H3 H10

A10 B4 E2 G9 J3 J9 M2 M10 P2 P10 T2 T10

B2 B10 D2 D9 E3 E9 F10 G2 G10

+1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA +1.5V_VGA

+1.5V_VGA

Should be 240 Ohms +-1%

VREFD_VMA1 VREFC_VMA2 VREFD_VMA2 VREFC_VMA3 VREFD_VMA3 VREFC_VMA4 VREFD_VMA4

C585

*0.1U/10V_4

VMA_MA[14..0](18)

VMA_DM[7..0](18) VMA_WDQS[7..0](18)

VREFC_VMA1 VREFD_VMA1

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4

D D

VMA_BA0(18) VMA_BA1(18) VMA_BA2(18)

VMA_CLK0(18) VMA_CLK0#(18) VMA_CKE0(18)

VMA_ODT0(18)

VMA_CS0#(18) VMA_RAS0#(18) VMA_CAS0#(18) VMA_WE0#(18)

C C

DRAM_RST_M(18)

Should be 240 Ohms +-1%

B B

VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12

VMA_RDQS2 VMA_RDQS0

VMA_DM2 VMA_DM3 VMA_DM0 VMA_DM1

VMA_WDQS2 VMA_WDQS0

VMA_ZQ1

R35 *243/F_4

+1.5V_VGA

R6

*4.99K/F_4

R13

*4.99K/F_4

R343

*4.99K/F_4

R348

*4.99K/F_4

4

VREFC_VMA2 VREFD_VMA2

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12 VMA_MA13VMA_MA13 VMA_MA14VMA_MA14

VMA_BA0 VMA_BA1 VMA_BA2

VMA_CLK0 VMA_CLK0# VMA_CKE0

VMA_ODT0 VMA_CS0# VMA_RAS0# VMA_CAS0# VMA_WE0#

VMA_RDQS3 VMA_RDQS1

VMA_WDQS3 VMA_WDQS1

DRAM_RST_M

VMA_ZQ2

R350 *243/F_4

U11

M9

VREFCA

H2

VREFDQ

N4

A0

P8

A1

P4

A2

N3

A3

P9

A4

P3

A5

R9

A6

R3

A7

T9

A8

R4

A9

L8

A10/AP

R8

A11

N8

A12/BC

T4

A13

T8

A14

M8

A15/BA3

M3

BA0

N9

BA1

M4

BA2

J8

CK

K8

CK

K10

CKE/CKE0

K2

ODT/ODT0

L3

CS /CS0

J4

RAS

K4

CAS

L4

WE

F4

DQSL

C8

DQSU

E8

DML

D4

DMU

G4

DQSL

B8

DQSU

T3

RESET

L9

ZQ/ZQ0

A1

NC

T1

NC

A11

NC

T11

NC

J2

NC/ODT1

L2

NC/CS1

J10

NC/CE1

L10

NC/ZQ1

*H5TC2G63FFR-11C

C571

*0.1U/10V_4

VDDQ#C2

VDDQ#C10

VDDQ#D3

VDDQ#E10

VDDQ#H3

VDDQ#H10

VSSQ#B10

VSSQ#F10 VSSQ#G10

100-BALL SDRAM DDR3

R346

*4.99K/F_4

R347

*4.99K/F_4

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B3

VDD#D10

VDD#G8 VDD#K3 VDD#K9 VDD#N2

VDD#N10

VDD#R2

VDD#R10

VDDQ#A2 VDDQ#A9

VDDQ#F2

VSS#A10

VSS#B4 VSS#E2 VSS#G9

VSS#J3 VSS#J9

VSS#M2

VSS#M10

VSS#P2

VSS#P10

VSS#T2

VSS#T10

VSSQ#B2 VSSQ#D2

VSSQ#D9 VSSQ#E3 VSSQ#E9

VSSQ#G2

3

2

1

1G DDR3

U3

VMA_ZQ3

R25 *243/F_4

M9

VREFCA

H2

VREFDQ

N4

A0

P8

A1

P4

A2

N3

A3

P9

A4

P3

A5

R9

A6

R3

A7

T9

A8

R4

A9

L8

A10/AP

R8

A11

N8

A12/BC

T4

A13

T8

A14

M8

A15/BA3

M3

BA0

N9

BA1

M4

BA2

J8

CK

K8

CK

K10

CKE/CKE0

K2

ODT/ODT0

L3

CS /CS0

J4

RAS

K4

CAS

L4

WE

F4

DQSL

C8

DQSU

E8

DML

D4

DMU

G4

DQSL

B8

DQSU

T3

RESET

L9

ZQ/ZQ0

A1

NC

T1

NC

A11

NC

T11

NC

J2

NC/ODT1

L2

NC/CS1

J10

NC/CE1

L10

NC/ZQ1

100-BALL SDRAM DDR3

*H5TC2G63FFR-11C

C34

*0.1U/10V_4

E4

VMA_DQ27

F8

VMA_DQ31

F3

VMA_DQ25

F9

VMA_DQ29

H4

VMA_DQ30

H9

VMA_DQ28

G3

VMA_DQ24

H8

D8

VMA_DQ15

C4

VMA_DQ10

C9

VMA_DQ13

C3

VMA_DQ9

A8

VMA_DQ12

A3

VMA_DQ8

B9

VMA_DQ14

A4

VMA_DQ11

+1.5V_VGA

B3 D10 G8 K3 K9 N2 N10 R2 R10

+1.5V_VGA

A2 A9 C2 C10 D3 E10 F2 H3 H10

A10 B4 E2 G9 J3 J9 M2 M10 P2 P10 T2 T10

B2 B10 D2 D9 E3 E9 F10 G2 G10

INT

C577

*0.1U/10V_4

VMA_CLK1(18) VMA_CLK1#(18) VMA_CKE1(18)

VMA_ODT1(18)

VMA_CS1#(18) VMA_RAS1#(18) VMA_CAS1#(18) VMA_WE1#(18)

Should be 240 Ohms +-1%

VREFC_VMA3 VREFD_VMA3

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12 VMA_MA13 VMA_MA14

VMA_BA0 VMA_BA1 VMA_BA2

VMA_RDQS7 VMA_RDQS5

VMA_DM5

VMA_WDQS7 VMA_WDQS5

DRAM_RST_M

R10

*4.99K/F_4

R20

*4.99K/F_4

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B3

VDD#D10

VDD#G8 VDD#K3 VDD#K9 VDD#N2

VDD#N10

VDD#R2

VDD#R10

VDDQ#A2 VDDQ#A9

VDDQ#C2

VDDQ#C10

VDDQ#D3

VDDQ#E10

VDDQ#F2 VDDQ#H3

VDDQ#H10

VSS#A10

VSS#B4 VSS#E2

VSS#G9

VSS#J3 VSS#J9

VSS#M2

VSS#M10

VSS#P2

VSS#P10

VSS#T2

VSS#T10

VSSQ#B2

VSSQ#B10

VSSQ#D2

VSSQ#D9

VSSQ#E3 VSSQ#E9

VSSQ#F10

VSSQ#G2

VSSQ#G10

R36

*4.99K/F_4

R29

*4.99K/F_4

E4

VMA_DQ61

F8

VMA_DQ58

F3

VMA_DQ63

F9

VMA_DQ57

H4

VMA_DQ62

H9

VMA_DQ56

G3

VMA_DQ60

H8

VMA_DQ59

D8

VMA_DQ43

C4

VMA_DQ44

C9

VMA_DQ40

C3 A8

VMA_DQ42

A3

VMA_DQ45

B9

VMA_DQ41

A4

VMA_DQ46 VMA_DQ35

B3 D10 G8 K3 K9 N2 N10 R2 R10

A2 A9 C2 C10 D3 E10 F2 H3 H10

A10 B4 E2 G9 J3 J9 M2 M10 P2 P10 T2 T10

C55

*0.1U/10V_4

Should be 240 Ohms +-1%

B2 B10 D2 D9 E3 E9 F10 G2 G10

VREFC_VMA4 VREFD_VMA4

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12 VMA_DQ34 VMA_MA13 VMA_MA14

VMA_BA0 VMA_BA1 VMA_BA2

VMA_CLK1 VMA_CLK1# VMA_CKE1

VMA_ODT1 VMA_CS1# VMA_RAS1# VMA_CAS1# VMA_WE1#

VMA_RDQS6 VMA_RDQS4

VMA_DM6VMA_DM7 VMA_DM4

VMA_WDQS6 VMA_WDQS4

DRAM_RST_M

VMA_ZQ4

R340 *243/F_4

R342

*4.99K/F_4

R341

*4.99K/F_4

U12

M9

VREFCA

H2

VREFDQ

N4

A0

P8

A1

P4

A2

N3

A3

P9

A4

P3

A5

R9

A6

R3

A7

T9

A8

R4

A9

L8

A10/AP

R8

A11

N8

A12/BC

T4

A13

T8

A14

M8

A15/BA3

M3

BA0

N9

BA1

M4

BA2

J8

CK

K8

CK

K10

CKE/CKE0

K2

ODT/ODT0

L3

CS /CS0

J4

RAS

K4

CAS

L4

WE

F4

DQSL

C8

DQSU

E8

DML

D4

DMU

G4

DQSL

B8

DQSU

T3

RESET

L9

ZQ/ZQ0

A1

NC

T1

NC

A11

NC

T11

NC

J2

NC/ODT1

L2

NC/CS1

J10

NC/CE1

L10

NC/ZQ1

100-BALL SDRAM DDR3

*H5TC2G63FFR-11C

C559

*0.1U/10V_4

VDD#B3

VDD#D10

VDD#G8 VDD#K3 VDD#K9 VDD#N2

VDD#N10

VDD#R2

VDD#R10

VDDQ#A2 VDDQ#A9 VDDQ#C2

VDDQ#C10

VDDQ#D3

VDDQ#E10

VDDQ#F2 VDDQ#H3

VDDQ#H10

VSS#A10

VSS#B4 VSS#E2 VSS#G9

VSS#J3 VSS#J9

VSS#M2

VSS#M10

VSS#P2

VSS#P10

VSS#T2

VSS#T10

VSSQ#B2

VSSQ#B10

VSSQ#D2 VSSQ#D9 VSSQ#E3 VSSQ#E9

VSSQ#F10

VSSQ#G2

VSSQ#G10

R349

*4.99K/F_4

R351

*4.99K/F_4

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

E4 F8 F3 F9 H4 H9 G3 H8

D8 C4 C9 C3 A8 A3 B9 A4

B3 D10 G8 K3 K9 N2 N10 R2 R10

A2 A9 C2 C10 D3 E10 F2 H3 H10

A10 B4 E2 G9 J3 J9 M2 M10 P2 P10 T2 T10

B2 B10 D2 D9 E3 E9 F10 G2 G10

VMA_DQ48 VMA_DQ52 VMA_DQ53 VMA_DQ54 VMA_DQ49 VMA_DQ51 VMA_DQ50 VMA_DQ55

VMA_DQ37 VMA_DQ32 VMA_DQ36 VMA_DQ33VMA_DQ47 VMA_DQ39

VMA_DQ38

C581

*0.1U/10V_4

19

+1.5V_VGA+1.5V_VGA

C567

*1U/6.3V_4

C47

*1U/6.3V_4

C61

*10U/6.3VS_6

4

+1.5V_VGA

C586

*1U/6.3V_4

+1.5V_VGA

C15

*1U/6.3V_4

+1.5V_VGA

*10U/6.3VS_6

C579

C591

*1U/6.3V_4

C59

*1U/6.3V_4

*10U/6.3VS_6

C557

C589

*1U/6.3V_4

C40

*1U/6.3V_4

*10U/6.3VS_6

C17

C64

*1U/6.3V_4

C584

*1U/6.3V_4

*10U/6.3VS_6

C590

*1U/6.3V_4

C56

*1U/6.3V_4

C558

C578

*1U/6.3V_4

C45

*1U/6.3V_4

C11

*10U/6.3VS_6

3

C58

*1U/6.3V_4

C19

*1U/6.3V_4

+1.5V_VGA

*10U/6.3VS_6

C583

VMA_CLK0

R28

*40.2/F_4

+1.5V_VGA

5

VMA_CLK0# VMA_CLK1

VMA_CLK1#

A A

+

C555 *330U/2.5V/ESR9_3528

VMA_CLK0_COMM

R21

*40.2/F_4

R22

*40.2/F_4

VMA_CLK1_COMM

R19

*40.2/F_4

C48

*0.01U/25V_4

C39

*0.01U/25V_4

C46

*1U/6.3V_4

C27

*1U/6.3V_4

*10U/6.3VS_6

+1.5V_VGA

C18

C26

*1U/6.3V_4

C587

*1U/6.3V_4

*10U/6.3VS_6

C68

C65

*1U/6.3V_4

C569

*1U/6.3V_4

C582

*10U/6.3VS_6

C14

C60

C102

*1U/6.3V_4

C57

*1U/6.3V_4

C67

*10U/6.3VS_6

2

C560

*1U/6.3V_4

C100

*1U/6.3V_4

C12

*10U/6.3VS_6

C103

*1U/6.3V_4

C101

*1U/6.3V_4

C62

*1U/6.3V_4

C66

*1U/6.3V_4

+1.5V_VGA (17,18,24,37)

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Sun S3 VRAM(DDR3 BGA96P)

Date: Sheet of

1

19 37Friday, May 24, 2013

1A

5

LVDS Conn.

+3V

D D

PCH_DISP_ON(6)

EMU_LID(27)

PCH_LVDS_BLON(6)

C C

PCH_LVDS_BLON

PCH_DPST_PWM

C23 1U/6.3V_4

can't change to short pad

R37 0_4

R31 1K/F_4

R30 100K/F_4

R32 *1K_4

R8 *1K_4

Only for eDP reserve

R3 100K/F_4

U1

5

IN

4

IN

3

ON/OFF

IC(5P) G5243AT11U

D1

RB500V-40

+3V

For LVDS stuff Ra=4.7k,Rb=4.7k,Rc un-stuff For eDP reserve Ra=100k,Rc=100k,Rb un-stuff

+LCDVCC

1

OUT GND

R14 100K/F_4 C24 22P/50V_4

L1

2

BLON_CON

PCH_EDIDDATA(20)

PCH_EDIDCLK(20)

TI160808U600

4

+3VLCD_CON

C10 *10U/6.3V_6 C9 *0.01U/25V_4 C2 0.1U/10V_4

Ra

R23 4.7K/F_4

Rb

R24 4.7K/F_4

Rc

R40 *100K_4

3

PCH_DPST_PWM(6)

D_MIC

DIGITAL_D1(21)

DIGITAL_CLK(21)

PCH_LA_DATAP0_C(6)

INT_eDP_TXP0(2) INT_eDP_TXN0(2)

PCH_LA_DATAN0_C(6)

+3V

PCH_EDIDDATA_C(6)

INT_eDP_AUXN(2) INT_eDP_AUXP(2)

PCH_EDIDCLK_C(6)

R21K/F_4

L6 FCM1608KF-301T02 L5 FCM1608KF-301T02

C49 *33P/50V_4 C63 *33P/50V_4 C29 100P/50V_4 C28 100P/50V_4

INT_eDP_TXP0 INT_eDP_TXN0

INT_eDP_AUXN INT_eDP_AUXP

PCH_DPST_PWM_R

C8

R1 100K/F_4

22P/50V_4

DIGITAL_D1 DIGITAL_CLK DIGITAL_D1_R DIGITAL_CLK_R

R33 0_4 C51 *0.1U/10V_4 C52 *0.1U/10V_4 R34 0_4 R38 0_4 C53 *0.1U/10V_4 C54 *0.1U/10V_4 R39 0_4

DIGITAL_D1_R DIGITAL_CLK_R

PCH_LA_DATAP0 PCH_LA_DATAN0

PCH_EDIDDATA

PCH_EDIDCLK

EDP_HPD(2)

PCH_LA_DATAP0 (20) PCH_LA_DATAN0 (20)

PCH_EDIDDATA (20) PCH_EDIDCLK (20)

For EDP Only: stuff Cap For LVDS only stuff Resister

USBP2-(8)

USBP2+(8)

2

+3VLCD_CON

For EDP Only: Stuff Rd For LVDS Only: Stuff Rc

Rc

R9 0_4

R18 *0_4

EDP_HPD_R

Rd

USB CAMERA

R17 *0_4

DLP11SN900HL2L

1

2

43

L4

R16 *0_4

+3V

USBP2-_C USBP2+_C

C30

1000P/50V_4

PCH_LA_DATAN0(20)

PCH_LA_DATAP0(20)

PCH_LA_DATAN1(6)

PCH_LA_DATAP1(6)

PCH_LA_DATAN2(6)

PCH_LA_DATAP2(6)

PCH_LA_CLK#(6)

PCH_LA_CLK(6)

C41 1000P/50V_4

+3V

+VIN

C76

0.1U/50V_6

PCH_DPST_PWM_R

BLON_CON PCH_EDIDCLK PCH_EDIDDATA

PCH_LA_DATAN0 PCH_LA_DATAP0

PCH_LA_DATAN1 PCH_LA_DATAP1

PCH_LA_DATAN2 PCH_LA_DATAP2

USBP2-_C USBP2+_C

DIGITAL_D1_R DIGITAL_CLK_R

+VIN_BLIGHT

C36 0.01U/25V_4 C44 *4.7U/6.3V_6

L2 0_8

10/19 : change to 0805 short pad

1

CN1

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

LVDS CONN

DFHS30FS073

lvds-lvd-a30sfyg-30p-r

FOX DFWF30MR007 EOD

+VIN_BLIGHT

C16 *4.7U/25V_8 C13 0.1U/50V_6 C7 0.01U/25V_4

20

32

35

34

33

31

HDMI Conn.

B B

+3V

R152 100K/F_4

A A

C351 0.1U/10V_4

2N7002K

1 2

Close to Q24

5

HDMI SMBus Isolation

R145 2.2K_4

+3V

SDVO_CLK(6)

SDVO_DATA(6)

+3V

R144 2.2K_4

DGPU_CL_HDMIP

3

2

1

Q6

4 3

HDMI_SCL_R HDMI_SCLK

1

2N7002DW

+3V

5

2 6

HDMI_SDATAHDMI_SDA_R

Close to HDMI connector

R170 560/F_4 R163 560/F_4

R162 560/F_4 R160 560/F_4

R179 560/F_4 R174 560/F_4

R159 560/F_4 R156 560/F_4

C_TX2_HDMI+ C_TX2_HDMI-

C_TX1_HDMI+ C_TX1_HDMI-

C_TX0_HDMI+ C_TX0_HDMI-

C_IN_CLK C_IN_CLK#

4

12/13 Add for EMI

C_TX2_HDMI+ C_TX1_HDMI+ C_TX0_HDMI+ C_TXC_HDMI+

PV shortpad

C_IN_CLK C_TXC_HDMI+ C_IN_CLK#

PV shortpad

HDMI_HPD_CON(6)

EMI Solution

R165 121/F_4 R161 121/F_4 R175 121/F_4 R157 121/F_4

R158 0_4

R155 0_4

HDMI_HPD_CON HDMI_HPD

+3VPCU(4,7,21,24,25,26,27,28,29)

+12VALW(23,28,35,37)

+5VS5(6,21,25,29,30,31,32,33,34,35,36,37)

+VIN(24,28,29,30,31,34,35,36,37)

+3V(2,6,7,8,9,10,12,13,14,21,22,23,24,25,26,27,30,33,35,36) +5V(7,10,21,23,24,25,26,35)

+3V

C_TXC_HDMI-

R140 1M_4Q8

1

Q5 ME2N7002E

+VIN

3

C_TX2_HDMIC_TX1_HDMIC_TX0_HDMIC_TXC_HDMI-

2

IN_D2(6)

IN_D2#(6)

IN_D1(6)

IN_D1#(6)

IN_D0(6)

IN_D0#(6) IN_CLK(6)

IN_CLK#(6)

R142 20K/F_4

D3

+5V_HDMIC

3

IN_D2 IN_D2#

IN_D1 IN_D1#

IN_D0 IN_D0#

IN_CLK C_IN_CLK IN_CLK#

RB500V-40

2 1 2 1

D4 RB500V-40

HDMI_HPD HDMI_DET_C

L21 0_6

5V_HSMBCK 5V_HSMBDT

C365 0.1U/10V_4 C361 0.1U/10V_4

C359 0.1U/10V_4 C357 0.1U/10V_4

C372 0.1U/10V_4 C371 0.1U/10V_4

C356 0.1U/10V_4 C355 0.1U/10V_4

R148 2.2K_4 R151 2.2K_4

+5V_HDMIC

C_IN_CLK#

C345 *10P/50V_4 C339 *10P/50V_4

VC1 *TVM0G5R5M220R

C344

*0.01U/25V_4

+5V_HDMIC

+5V

C_TX2_HDMI+ C_TX2_HDMI-

C_TX1_HDMI+ C_TX1_HDMI-

C_TX0_HDMI+ C_TX0_HDMI-

C_TXC_HDMI+ C_TXC_HDMI-

HDMI_SCLK HDMI_SDATA

C334

220P/50V_4

40 mils

VC2 *TVM0G5R5M220R

for EMI request

2

CN15

22

SHELL3

20

SHELL1

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19

HP DET

21

SHELL2

23

SHELL4

HDMI CONN_4 pin GND

DFHD19MR323

hdmi-2he1608-000111f-19p-ldv

40 MIL

F1 FUSE1A6V_POLY

12

+5V_HDMIC

C346 0.1U/10V_4

+5V_HDMIC

SSM14 spec is 40V 1A

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

LCD/HDMI/Camera

Date: Sheet

Date: Sheet of

1

20 37Monday, May 27, 2013

of

1A

A

Close to PIN1

+3V_DVDD

+3V

ACZ_SDOUT_AUDIO(7)

ACZ_SYNC_AUDIO(7)

ACZ_RST#_AUDIO(7)

2.2U/6.3V_6

+3V_DVDD

1 1

Close to Pin 34,35,36

+5V

VOLMUTE#(27)

VREFOUT_C

L35

TO Digital MIC

BIT_CLK_AUDIO(7)

ACZ_SDIN0(7)

C536 2.2U/6.3V_6

C767

+3V_DVDD

+5V_DVDD

L38

HCB1608KF-181T15_6

+5V_DVDD

ACZ_RST#_AUDIO

C770

*1U/6.3V_4

AGND

HCB1608KF-181T15_6 C735

1U/6.3V_4

C737 10P/50V_4

DIGITAL_D1(20)

DIGITAL_CLK(20)

Close to PIN7

PV reserved 0.1uF for ESD solution

C511 *0.1U/10V_4

CAP-

CAP+

D6 *MEK500V-40

D5 MEK500V-40

R524 2.2K_4

A

R495 0_4 R493 100/F_4

R491 33_4

AMP_BEEP

C5404.7U/6.3V_6

+5V_DVDD

21

C739 10U/6.3VS_6

C738 10P/50V_4

ACZ_SYNC_AUDIO

L_SPK+

L_SPKR_SPKR_SPK+

C7580.1U/10V_4

Close to Pin 41

C75410U/6.3VS_6

Close to Pin 46

C7500.1U/10V_4 C74610U/6.3VS_6

+3V_DVDD

R245 1K/F_4

PD#

R244 10K_4

EXT_MIC_L

C764

0.1U/10V_4

DMIC0 DMIC_CLK_R

ACZ_SDOUT_AUDIO

HD_SDIN0

PD#

+3V_DVDD

C51310U/6.3VS_6

+3V_DVDD-IO

Close to CODEC

L_SPK+ L_SPKR_SPK+ R_SPK-

ACZ_SDIN0

ACZ_SDOUT_AUDIO

ACZ_SYNC_AUDIO

BIT_CLK_AUDIO

FOR EMI

B

L37

HCB1608KF-181T15_6

U24

1

DVDD

2

GPIO0/ DMIC-DATA

3

GPIO1 / DMIC-CLK

4

DVSS

5

SDATA-OUT

6

BCLK

7

LDO3-CAP

8

SDATA-IN

9

DVDD-IO

10

SYNC

11

RESETB

12

PCBEEP

34

CPVEE

35

CBN

37

CBP

36

CPVDD

42

SPK-L+

43

SPK-L-

44

SPK-R-

45

SPK-R+

NC

49

41

PVDD1

Digital

PVDD246SPDIF-OUT/GPIO2

PDB

47

C480

0.1U/10V_4

48

>40mils trace

+3V_DVDD-IO

C487 10U/6.3VS_6

AVDD1 AVDD2

AVSS1

AVSS2

LDO1-CAP LDO2-CAP

VREF

Analog

HPOUT-L (PORT I)

HPOUT-R (PORT I)

LINE2-L

LINE2-R

LINE1-L (PORTC) LINE1-R (PORTC)

MIC1-R (PORTB)

MIC1-L (PORTB)

MIC1-VREFO-L

MIC1-VREFO-R

MIC2-R (PORTF) MIC2-L (PORTF)

MIC2-VREFO

MONO-OUT

SenseA

JDREF

SenseB

13

15

14

R503 20K/F_4

SENSE_A_1

26 40

25 38

27

C537 10U/6.3VS_6

39

C763 10U/6.3VS_6

28

32

HPOUT_L

33

HPOUT_R

10/26: for library modify

24 23

22 21

20 19

31 30

18

MIC_R1

17

MIC_L1 EXT_MIC_L

29

VREFOUT_C

16

ALC3227 x QFN48

R500 39.2K/F_4

C

+5V_AVDD

C771 10U/6.3VS_6

+1.5V_AVDD

C772 0.1U/10V_4 C769 2.2U/6.3V_6

C753 *2.2U/6.3V_6 C747 2.2U/6.3V_6

AGND

SENSE_A

Close to codec

COMBO_GPI

R504 22K/F_4 C745 4.7U/6.3V_6

EXT_MIC_L

AGND

USB 2.0 AND AUDIO COMBO JACK

1 2

EC27 *1000P/50V_4

1 2

EC25 *1000P/50V_4

1 2

EC23 *1000P/50V_4

1 2

EC24 *1000P/50V_4

EC33 *33P/50V_4

EC22 *10P/50V_4

EC35 *10P/50V_4

EC34 *33P/50V_4

B

USBP9-(8)

USBP9+(8)

R236 *0_4

L25

1

2

4 3

DLP11SN900HL2L R241 *0_4

C

AGND

C760 10U/6.3VS_6

AGND

Close to PIN28

R508 1K/F_4

C596 *1000P/50V_4 C438 10U/6.3V_8

L41

HCB1608KF-181T15_6

C768

0.1U/10V_4

Close to PIN26

L40

HCB1608KF-181T15_6

Close to PIN40

AGND

AMP_BEEP

AGND SHIELD AGND SHIELD AGND SHIELD

MUTE_LED_CNTL (25)

TO Audio Jack MIC

Check layout mount location

AGND

HPOUT_L HPOUT_R

AGND

EXT_MIC_L

AGND

SENSE_A

USBPW_ON#(25,27)

DEEP_PWRLED#(25)

SATA_LED#(7)

ACC_LED#(8)

USBPW_ON#

C430

0.1U/25V_4

+5VS5

+1.5V_CPU

TO Headphone jack

C742

0.1U/10V_4

C743

0.01U/25V_4

D

+5V

12

*AZ2015-01H C762

C581 need check!

+5V_AVDD

C756 *2.2U/6.3V_6

AGND

check value

R488 100K/F_4

R494 10K_4

AGND

C407 1000P/50V_4 C410 1000P/50V_4 C412 1000P/50V_4

12/13 Add for EMI

+3VPCU

+3V

USBP9-_C USBP9+_C

D

C755 *0.1U/10V_4

L_SPK+ L_SPKR_SPKR_SPK+

TO Internal Speakers

AGND

C761 *1U/6.3V_4

Close to Speaker

Speaker 4 ohm: 40mils

L29 TI160808U600 L28 TI160808U600 L27 TI160808U600 L26 TI160808U600

C736

AMP_BEEP_R2AMP_BEEP_L

0.1U/10V_4

ME2N7002E

Q36

20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2

Audio CONN

1

CN8

E

+5V(7,10,20,23,24,25,26,35) +3V(2,6,7,8,9,10,12,13,14,20,22,23,24,25,26,27,30,33,35,36)

+1.5V_CPU(2,4,10,26)

U25

5 4

*TPS793475DBVR

HPA01091DBVR

1

Vout

Vin BYP GND2EN

+5V_AVDD

R492 10K_4

3

1

AGND

place to near U9000 or under U9000.

AGND

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

C749

3

0.1U/10V_4

R513 10K_4

Vset=1.242V

C564

C565 1000P/50V_4

1000P/50V_4

2

ACZ_SPKR (7)

12/13 Add for EMI

EC26 0.1U/25V_4

EC38 0.1U/25V_4 EC40 0.1U/25V_4 EC39 0.1U/25V_4 EC36 0.1U/25V_4

AGND

Close to CODEC

R260 0_8

PROJECT :U81

Quanta Computer Inc.

Azalia ALC 3227/D-MIC

E

C752

0.047U/10V_4

+5V

L_SPK+_R L_SPK-_R R_SPK-_R R_SPK+_R

C563 1000P/50V_4

21

+5V

INT SPEAKER CONN

C562

1000P/50V_4

C748 1U/6.3V_4

CN3

21 37Friday, May 24, 2013

of

1 2 3 4

1A

5

4

3

2

1

For EMI 0 ~ 22 ohm

Y1

1 2

*25MHZ +-10PPM

Cz

C132

R58 10/F_4

XTAL2

R55 0_4

XTAL2

C104 *33P/50V_4

PV shortpad

3 4

Power trace Layout 󱬵󱬵󱬵󱬵󱷯󱷯󱷯󱷯> 60mil

For 10/100

NA: Ca ,Cb Stuff La(0ohm),Cz

>60mil

LAN_XTAL25_IN (26)

For 10/100

0.1U/10V_4

For 10/100

Place Cc,Cd close to each VDD10 pin-- 8, 30

Cc Cd Cg

C87

C86

0.1U/10V_4

C98 1U/6.3V_4

+1.05V_LAN

Ch

C93

0.1U/10V_4

10/24: add for FAE review

Please add 9 GND VIAs connection with thermal PAD

+1.05V_LAN

R50 2.49K/F_4

33

MDI0+ MDI0VDD10 VDD10 MDI1+ MDI1-

VDD10

LAN_XTAL1 XTAL1

D D

C118

*33P/50V_4

>60mil

+1.05V_LAN_REGOUT

Trace<30 mil Width > 60 mil

0.1U/10V_4

C C

Place Cg Ch close to each VDD10 pin-- 30 (reserve)

+3V_LAN

PCIE_CLKREQ_LAN#(8)

PCIE_CLKREQ_LAN#

+3V_LAN

U5

GND

1

MDIP0

2

MDIN0

3

AVDD10(NC)

4

MDIP1

5

MDIN1

6

MDIP2(NC)

7

MDIN2(NC)

8

AVDD10

RTL8166EH

R53 0_4

+1.05V_LAN

LANRSET

PV shortpad

XTAL2

VDD10

LED0

XTAL1

RSET

27

32

30

31

28

RSET

AVDD33

AVDD10

CKXTAL229CKXTAL1

RTL 8166EH

HSIP13HSIN14REFCLK_P15REFCLK_N

CLKREQB

MDIP3(NC)9MDIN3(NC)

AVDD33(NC)

12

10

11

LAN_CLKRQ

LAN_ALED#

LAN_WLED#

FOR 8166: Stuff R40, NA R41

25

26

LED0

LED1/GPO

LED2(LED1)

REGOUT(NC)

VDDREG(VDD33)

DVDD10(NC)

LANWAKEB

ISOLATEB

PERSTB

HSON HSOP

16

PCIE_TXN2_LAN PCIE_TXP2_LAN

TP5

TP4

TP6

24

+1.05V_LAN_REGOUT

23

DVDDL

22 21

PCIE_WAKE#

20

ISOLATEB

19

P L T R S T #

18

PCIE_RXN2_LAN_L

17

PCIE_RXP2_LAN_L

CLK_PCIE_LANN CLK_PCIE_LANP

PV EMI suggestion

EC16 470P/50V_4

C138 0.1U/10V_4 C137 0.1U/10V_4

FOR 10/100 : RTL8166EH

CLK_PCIE_LANN (8) CLK_PCIE_LANP (8)

PCIE_TXN2_LAN (8)

PCIE_TXP2_LAN (8)

+1.05V_LAN_REGOUT +3V_LAN +1.05V_LAN

EC4 470P/50V_4

+3V

R64 1K_4

ISOLATEB

R63

15K/F_4

1 2

PCIE_WAKE# (6,26,27)

PLTRST# (2,8,14,23,24,26,27) PCIE_RXN2_LAN (8) PCIE_RXP2_LAN (8)

22

if ISOLATEB pin pull-low,the LAN chip will not drive it's PCI-E outputs ( excluding PCIE_WAKE# pin )

LAN conn

10/24: swap 0 & 1 for Layout routing 10/26: swap led

U4

LAN_MCTG1

LAN_MCTG0

1

TD+

3

TD-

2

CT

6

RD+

8

RD-

7

CT

MDI1+_1

R354 75/F_4

For 10/100

B B

Stuff Ca and Cb only, close to each VDD33 pin-- 23, 32

+3VLANVCC

+3V_LAN

C131

0.1U/10V_4

Ca Cb

C83

0.1U/10V_4

C84 *4.7U/6.3V_6

10P/3KV_1808

C85

*4.7U/6.3V_6

C576

R41 75/F_4

MDI1-_1

MDI0+_1 MDI0-_1

TX+

CMT

TXRX-

RX+

NS681684

16

MDI1+

15

TRA_V_DAC

14

MDI1-

9

MDI0-

10

CT

TRA_V_DAC

11

MDI0+

C70

0.01U/25V_4

SI Change correct PN(for Slim-G)

C72 10P/50V_4

+/- & RJ45 Library

(White)

LAN_WLED LAN_WLED#

MDI1-_1

MDI1+_1 MDI0-_1 MDI0+_1

LAN_ALED LAN_ALED#

(Amber)

12/13 Add for EMI

10

11 12

CN13

9

LED_AMB_P LED_AMB_N

8

RX1-

7

RX1+

6

RX0-

5

TX1-

4

TX1+

3

RX0+

2

TX0-

1

TX0+

LED_GRE_P LED_GRE_N

RJ45_CONN

RJ45

A1

A2

GND1

GND

B1 B2

R5

0_6

14 13

R44

0_6

+3VLANVCC

R345 360_4

C570 1000P/50V_4

LAN_ALED

󲙦󱆖

A A

+3V(2,6,7,8,9,10,12,13,14,20,21,23,24,25,26,27,30,33,35,36) +3VLANVCC(26,35)

5

4

+3VLANVCC

3

R355 360_4

LAN_WLED

C593 1000P/50V_4

󲙦󱆖

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

LAN RTL8166EH /RJ45 conn

Date: Sheet

2

Date: Sheet of

1

1A

22 37Friday, May 24, 2013

of

5

PCIE_CLKREQ_CR#(8)

D D

Zdiff = 100 ohm

CLK_PCIE_CRP(8)

CLK_PCIE_CRN(8) PCIE_RXP3_CARD(8) PCIE_RXN3_CARD(8)

C C

PCIE_TXP3_CARD(8) PCIE_TXN3_CARD(8)

R331 0_4

PLTRST#(2,8,14,22,24,26,27)

C414 0.1U/10V_4 C415 0.1U/10V_4

R322 need colse to Chip

RTS5237_AV12 RTS5237_DV12S

R279 0_4

PV shortpad

PCIE_CLKREQ_CR#_RPCIE_CLKREQ_CR#

PLTRST#

PCIE_CLKREQ_CR#_R

PCIE_TXP3_CARD PCIE_TXN3_CARD CLK_PCIE_CRP CLK_PCIE_CRN PCIE_RXP3_CARD_C PCIE_RXN3_CARD_C

Please add 9 GND VIAs connection with thermal PAD

R303 6.2K/F_4

+3V

C533

10U/6.3V_8

U9

1 2 3 4 5 6

25

C5440.1U/10V_4 C5424.7U/6.3V_6

RTS5237_RREF

C546

0.1U/10V_4

HSIP HSIN REFCLKP REFCLKN HSOP HSON

GND

4

SD_CD#

23

24

21

22

PERST#

MS_INS#

CLKREQ#

RTS5239

AV1273V3_IN9DV12S11SP1

RREF8CARD_3V3

10

RTS5237_AV12

+3VCARD

SD_WP

RTS5237_GPIO

19

20

SP7

GPIO

SD_CD#

12

RTS5237_DV12S

R332 10K_4

SP6 SP5 SP4

DV33_18

SP3 SP2

RTS5239

SD_D1_R

C545

0.1U/10V_4

+3V

Close to chip pin

18

SD_D2_R

17 16 15 14 13

R296 33_4

C539

4.7U/6.3V_6

R328 33_4

SD_D3_R

R326 33_4

SD_CMD_R

R324 0_4

DV33_18 SD_D0_R

12/13 CLK & D0~D3 Change to 33ohm for EMI

PV shortpad

R317 33_4 R308 33_4

SD_D1

Close to chip pin

SD_D2 SD_D3 SD_CMD

SD_CLKSD_CLK_R SD_D0

3

C548 5.6P/16V_4

2

SP1 SD_D1 SP2 SD_D0 MS_D1 SP3 SD_CLK MS_D0 SP4 SD_CMD MS_D2 SP5 SD_D3 MS_D3 SP6 SD_D2 MS_CLK

SP7 MS_BSSD_WP

1

23

Share Pin

Reserve for EMI

SD_D0

+3VCARD

SD_D1 SD_D2 SD_D3

C5491U/10V_4

CLOSE CONN

C5410.1U/10V_4

C524*0.1U/10V_4

C534 10U/6.3V_8

EC21 5.6P/16V_4 EC20 5.6P/16V_4 EC30 5.6P/16V_4 EC29 5.6P/16V_4

+3VCARD

SD / MMC CARD READER

SD_D2 SD_D3

SD_CMD

SD_CD#

SD_CLK

SD_D0 SD_D1

SD_WP

CN9

1

DAT2

2

DAT3

3

CMD

4

C/D

5

VSS1

6

VDD

7

CLK

8

VSS2

9

DAT0

10

DAT1

11

W/P

12

GND

13

GND

14

GND

15

GND

CARDREADER CONN

SI change PN to 11pin

2

+5V_ODD

12

3

1

23 37Friday, May 24, 2013

+5V

C688

0.1U/10V_4

R450 22_8

Q34 2N7002

of

1A

SATA ODD

+12VALW

B B

CONNECTOR

15'' SATA ODD

New Type

14'' SATA ODD

CN14

S1

2

TXP

3

TXN

14

5

RXN RXP

16

S7 P1

GND1

17

GND2 GND3

15

GND GND

P6

14 SATA ODD

6 8

DP

9

+5V

10

+5V

11

MD

1 4 7 12 13

C687

10U/6.3V_8

5

16

17 15

A A

SI change footprint

+5V_ODD

Bypass CAP close conn

SATA_TXP14_C SATA_TXN14_C

SATA_RXN14_C SATA_RXP14_C ZERO_ODD_DP#

ZERO_ODD_DA#

C700 0.01U/25V_4 C699 0.01U/25V_4

C695 0.01U/25V_4 C694 0.01U/25V_4

R453 1K_4

+5V_ODD

PV modify to short pad

120 mils

C691

0.1U/10V_4

SATA_TXP4(7) SATA_TXN4(7)

SATA_RXN4 (7)

1 2

R4460_4

+5V_ODD +5V

R447 *0_8

C689

0.1U/10V_4

SATA_RXP4(7)

ZERO_ODD_DP# (9)

C692

0.1U/10V_4

SI modify

0.1U/10V_4

C690

+3V

R445 10K_4

ODD_EJECT# (27)

4

CN7

18 17

20

16

20

19

15

19

14 13 12 11 10

*15 SATA ODD

SI change pin define/PN & footprint

ZERO_ODD_DA#

9

ZERO_ODD_DP#

8 7 6 5 4 3 2 1

3

SATA_RXP15_C SATA_RXN15_C

SATA_TXN15_C SATA_TXP15_C

+5V_ODD

C693 *0.01U/25V_4 C696 *0.01U/25V_4

C698 *0.01U/25V_4 C701 *0.01U/25V_4

SATA_RXP4 SATA_RXN4

SATA_TXN4 SATA_TXP4

PV modify to short pad

ZERO_PWR_ODD(27)

High : ODD power down Low : ODD power on

2

R458 0_4

R459 330K_6

1 2

3

2

Q35 2N7002

1

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

CR RTS5239 & CR SOCKET

Date: Sheet

Date: Sheet of

Q33 AO3404

2

C707

0.027U/25V_6

2 1

1

3

1

A

TPM

LAD0(7,26,27) LAD1(7,26,27)

4 4

LAD2(7,26,27) LAD3(7,26,27)

CLK_PCI_TPM(8)

LFRAME#(7,26,27) PLTRST#(2,8,14,22,23,26,27)

SERIRQ(7,27)

+3V

CLKRUN#(6,27)

R127 *0_4 R124 *0_4 R135 *0_4 R123 *0_4

R128 *0_4

R122 *4.7K/F_4

CLK_PCI_TPM

R130 *33_4

C258 *10P/50V_4

FOR EMI

3 3

LAD0_T TPCLK-1 LAD1_T LAD2_T LAD3_T

CLK_PCI_TPM

LFRAME#_T

LPCPD#_TPM

CLKRUN#

LAD0

23

LAD1

20

LAD2

17

LAD3

21

LCLK

22

LFRAME#

16

LRESET#

28

LPCPD#

27

SERIRQ

9

TEST/BADD

15

CLKRUN#

1

NC

3

NC

12

NC

*SLB9635TT1.2-FW3.17

XTALI/32K IN

Address

BADD 4EH/4F

HIGH (default)

U18

26

Hole

H7 H-TC236BC256D145P2

1

2 2

1 1

H11 *H-C217D141P2

1

H16 *H-C393D354P2

1

H8 *H-TC279BC216D141P2

1

H15 *H-U92-1

1

H19 H-C236D126P2

H9 *H-C217D141P2

H1 *H-TC236BC314D102P2

A

1

H23 H-TC256BC236D145P2

1

H18 *H-C394D118P2

1

H17 H-C236D126P2

1

H10 *H-C217D141P2

1

H5 *H-TC279BC216D141P2

1

H3 *H-TC157BC236D118P2

1

H4 *H-C394D118P2

1

H21 *H-TC102BC197D102P2

H12 *H-C217D141P2

H6 *H-TC279BC216D141P2

VDD VDD VDD VSB

GND GND GND GND

GPIO

GPIO2

PP

TESTI

XTALO

1

H14 *H-C394D118P2

1

H22 *H-C394D118P2

1

B

10 19 24 5

4 11 18 25

6 2

7 8

13 14

B

+3VS5

C255

*0.1U/10V_4

H=2.54mm

Y4

*32.768KHZ

PAD1

1

+3V

+PRWSRC +PRWSRC +PRWSRC +PRWSRC +PRWSRC +PRWSRC

+3VPCU

+1.5V_VGA +1.5V_VGA +1.5V_VGA

+1.0V_VGA +1.0V_VGA

+3V_VGA

+VGA_CORE

BATT+ BATT+

12/13 Add for EMI

C316 *0.1U/10V_4

C257

*0.1U/10V_4

TPM_PP

TPM_XIN

TPM_XOUT

R441 *10M_4

1 4 2 3

C682 *12P/50V_4

2/20 Y6 change footprint to xtl-6_7x1_4-6_3x0_9-4p

PAD3

*SPAD-RE197X394

1

PAD2

*SPAD-RE197X394

1

H13 *O-U81-1

1

H20 *H-C394D118P2

1

H2 *O-U83M-1

2

1

C256 *0.1U/10V_4

C683 *12P/50V_4

LPCPD#_TPM

TPM_PP

02/01 PV reserve for TPM circuit

C566 0.1U/25V_4 C31 *0.1U/25V_4 C568 0.1U/25V_4 C25 *0.1U/25V_4 C42 0.1U/25V_4

C1 0.1U/25V_4

EC1 100P/50V_4 EC3 100P/50V_4 EC2 100P/50V_4

EC7 100P/50V_4 EC17 100P/50V_4

EC18 100P/50V_4 EC32 100P/50V_4 C4 0.1U/25V_4 C3 150P/50V_4

+3V

R131 *4.7K/F_4

+3V

R121 *4.7K/F_4

R120 *0_4

BATT+ BATT+

+1.5V_VGA

BATT+(28) +12VALW(23,28,35,37)

C

+VIN +VIN +VIN

+VIN +VIN +VIN +VIN +VIN +VIN +VIN +VIN +VIN +VIN

C6 *150P/50V_4

+3VS5 +3VS5 +3VS5 +3VS5

+5VS5 +5VS5

+3V(2,6,7,8,9,10,12,13,14,20,21,22,23,25,26,27,30,33,35,36) +5V(7,10,20,21,23,25,26,35)

+3VPCU(4,7,21,25,26,27,28,29)

C

C637 *0.1U/25V_4 C221 *0.1U/25V_4C556 0.1U/25V_4 C598 *0.1U/25V_4

C722 0.1U/25V_4 C354 *150P/50V_4 C74 *150P/50V_4

C73 *0.1U/25V_4 C71 *0.1U/25V_4 C599 *0.1U/25V_4 C75 0.1U/25V_4 C573 *0.1U/25V_4 C315 0.1U/25V_4 C594 *0.1U/25V_4 C597 *0.1U/25V_4 C38 *0.1U/25V_4 C595 *0.1U/25V_4 C5 *0.1U/25V_4

C733 *0.1U/25V_4 C69 *0.1U/25V_4 C378 *0.1U/25V_4 C254 *0.1U/25V_4 C50 *0.1U/25V_4 C242 *0.1U/25V_4 C113 *0.1U/25V_4 C358 *0.1U/25V_4*SPAD-RE197X394

+VGA_CORE (17,36,37) +1.8V_VGA (14,15,17,37) +1.0V_VGA (14,15,17,37) +3V_VGA (14,17,26,37) +1.5V_VGA (17,18,19,37)

D

Touch Pad Connector

SMB_RUN_CLK(8,12,13)

2N7002KDW

+3V

2N7002KDW

SMB_RUN_DAT(8,12,13)

Q7B

Q7A

5 2

Dual

34

TP_SMB_CLK

R150 4.7K_4

R149 4.7K_4

61

TP_SMB_DATA

SATA HDD Connector(Cable type)

Bypass CAP close conn

CN19

1

2

Main HDD

19

SATA HDD(1ST)

DFHS13FS019

sata-ah534-00-13p-r

3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

SATA_TXP0_C SATA_TXN0_C

SATA_RXN0_C SATA_RXP0_C

C538 0.01U/25V_4 C532 0.01U/25V_4

C525 0.01U/25V_4 C529 0.01U/25V_4

+5V

C517 *10U/6.3V_8 C506 *10U/6.3VS_6 C488 4.7U/6.3V_6 C490 0.1U/10V_4

+5V: 2 A(4 Pin) +3V: 2 A(4 Pin) Gnd : (5 Pin)

Mini PCI-E Card 2- Full size mSATA

C781 *0.1U/25V_4

+5V

C779 *0.1U/25V_4

+5V

D

+3VSUS

+3V

TPCLK(27)

TPDATA(27)

C343 10P/50V_4

L23 BLM18BA470SN1D L22 BLM18BA470SN1D

C342 10P/50V_4

SATA_TXP0(7) SATA_TXN0(7)

SATA_RXN0 (7) SATA_RXP0 (7)

E

+3VSUS

25 mils

R154 4.7K_4 R153 4.7K_4

TPDATA-1

TP_SMB_DATA TP_SMB_CLK

TPCLK TPDATA

C341 *10P/50V_4 C352 *10P/50V_4 C353 0.1U/10V_4

88513-0601-6p-l-smt

DFFC06FR062

FAN

+5V

C623 10U/6.3VS_6 C630 0.1U/10V_4

FAN1

FAN1_PWM(27)

FAN1SIG(27)

R417 4.7K_4

+3V

12/13 Add for EMI

FAN1_PWM FAN1SIG

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

HDD/mSATA/FAN/LED

Date: Sheet

Date: Sheet of

E

FAN Connect

C629 120P/50V_4 C210 120P/50V_4

24

6 5 4 3 2 1

CN6

5

1

5 2 3

6

46

24 37Monday, May 27, 2013

of

1A

5

KEYBOARD Con.

MY[0..17](27)

MX[0..7](27)

D D

C C

MUTE_LED_CNTL(21)

CAPSLED#(27)

MUTE_LED_CNTL_R1 WIRELESS_ON_R

MY[0..17] MX[0..7]

MUTE_LED_CNTL_R1

3

2

Q3

R45 10K/F_4

+3V

2N7002K

1

R52 200/F_6 R51 200/F_6

12 12

MX1 MX7 MX6 MY9 MX4 MX5 MY0 MX2 MX3 MY5 MY1 MX0 MY2 MY4 MY7 MY8 MY6 MY3 MY12 MY13 MY14 MY11 MY10 MY15 MY16 MY17

CAPSLED#_R MUTE_LED_CNTL_R

WIRELESS_OFF_R

LED_PW

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

SI Change correct KB conn(for Slim-G)

USB 2.0/3.0 Combo

USBP0-_C

C376 *Clamp-Diode

1 2

USB30_TX1-_C

USB30_TX1+_C

B B

USB30_TX2-_C

USB30_TX2+_C

A A

C710 *Clamp-Diode

1 2

C711 *Clamp-Diode

1 2

C720 *Clamp-Diode

1 2

C717 *Clamp-Diode

1 2

5

USBP0+_C

USB30_RX1-_C

USB30_RX1+_C

USBP1-_C

USBP1+_C

USB30_RX2-_C

USB30_RX2+_C

C377 *Clamp-Diode

1 2

C381 *Clamp-Diode

1 2

C379 *Clamp-Diode

1 2

C724 *Clamp-Diode

1 2

C726 *Clamp-Diode

1 2

C732 *Clamp-Diode

1 2

C730 *Clamp-Diode

1 2

4

CN5

1

2

3

4

5

6

7

8

9

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

34 29 30

33 31 32

KB CONN

50698-03201-001-32p-l

DFFC32FR038

USB3_1USB3_1+

USB3_2USB3_2+

USB30_RX1USB30_RX1+

USB30_RX2USB30_RX2+

4

34 33

USB30_RX1-(8) USB30_RX1+(8)

USB30_TX1-(8) USB30_TX1+(8)

USB30_RX2-(8) USB30_RX2+(8)

USB30_TX2-(8) USB30_TX2+(8)

KEYBOARD PULL-UP

+3VPCU

MY13 MY12 MY3 MY6

+3VPCU

MY1 MY4 MY5 MY0 MY9

+3VPCU

USBP0-

R189 *0_4

USBP0+

R190 *0_4

USBP0-(8) USBP0+(8)

C713 0.1U/10V_4 C714 0.1U/10V_4

USBP1USBP1+

VC5

*AVLC5S_4

USB30_TX1-_C USB30_TX1+_C

USB30_TX2-_C USB30_TX2+_C

USB30_RX1-_C USB30_RX1+_C

USB30_RX2-_C USB30_RX2+_C

C721 0.1U/10V_4 C718 0.1U/10V_4

R469 *0_4 R470 *0_4

R464 0_4 R465 0_4

R468 0_4 R467 0_4

R193 0_4 R192 0_4

R481 0_4 R480 0_4

USBP1-(8) USBP1+(8)

USBPW_ON#(21,27)

PV shortpad

RP1

10

1

9

2

8

3

7 4

56

*10P8R-8.2K RP2

10

1

9

2

8

3

7 4

56

*10P8R-8.2K

R60 *8.2K_4 R54 *8.2K_4

USBP0-_C USBP0+_C

4 3 1

2

L24 DLP11SN900HL2L

L33 DLP11SN900HL2L

1

2

4 3

150 mils (Iout=3.7A)

U21

2

VIN1

3

VIN2

4

EN

1

GND

C716

AP2820GMMTR-G1

1U/6.3V_4

USB3_1USB3_1+

USB3_2USB3_2+

USBP1-_C USBP1+_C

OUT3 OUT2 OUT1

MY14 MY11 MY10 MY15

MY2 MY7

MY8

MY16 MY17

C709 0.1U/10V_4 C388 470P/50V_4

VC4 *AVLC5S_4

C373 1000P/50V_4

PV shortpad

C392 0.1U/10V_4 C389 470P/50V_4

VC3 *AVLC5S_4 C375 1000P/50V_4

PV shortpad

8

+5V_USBP0

7 6 5

OC

Active Low

3

MY5

C188 *220P/50V_4

MY6

C173 *220P/50V_4

MY3

C169 *220P/50V_4

MY7

C177 *220P/50V_4

MY8

C175 *220P/50V_4

MY9

C208 *220P/50V_4

MY10

C136 *220P/50V_4

MY11

C140 *220P/50V_4

MY1

C185 *220P/50V_4

MY2

C182 *220P/50V_4

MY4

C181 *220P/50V_4

MY0

C200 *220P/50V_4

MX4

C203 *220P/50V_4

MX6

C212 *220P/50V_4

MX3

C189 *220P/50V_4

MX2

C195 *220P/50V_4

MX7

C213 *220P/50V_4

MX0

C184 *220P/50V_4

MX5

C202 *220P/50V_4

MX1

C214 *220P/50V_4

MY12

C164 *220P/50V_4

MY13

C156 *220P/50V_4

MY14

C149 *220P/50V_4

MY15

C130 *220P/50V_4

MY16

C122 *220P/50V_4

MY17

C111 *220P/50V_4

+5V_USBP0 USBP0-_C USBP0+_C

USB30_RX1-_C USB30_RX1+_C

USB30_TX1-_C USB30_TX1+_C

+5V_USBP0 USBP1-_C USBP1+_C

USB30_RX2-_C USB30_RX2+_C

USB30_TX2-_C USB30_TX2+_C

+5V_USBP0+5VS5

3

WIRELESS_ON(27) WIRELESS_OFF(27)

USB 3.0

CN16 USB3.0 CONN

1A

1

VBUS

1

2

D-

2

3

D+

4

GND

5

SSRX-

5

6

SSRX+

7

GND

8

SSTX-

9

SSTX+

11111010131312

12

DFHS09FR435 usb-2ub4029-200201f-9p

USB 3.0

CN18 USB3.0 CONN

1A

1

VBUS

1

2

D-

2

3

D+

4

GND

5

SSRX-

5

6

SSRX+

7

GND

8

SSTX-

9

SSTX+

11111010131312

12

DFHS09FR435

usb-2ub4029-200201f-9p

C712 330U/2.5V_6X4.5ESR12

1 2

+

+5VS5(6,21,29,30,31,32,33,34,35,36,37) +3VPCU(4,7,21,24,26,27,28,29)

2

Q1

PDTC144EU

2

12

1 3

R46 *200/F_6

Power Botton Connector

+3VPCU

LID_EC#(27)

NBSWON1#(27)

12/13 Add for EMI

DEEP_PWRLED#(21)

2

+5V

R42 1K/F_4

WIRELESS_ON_R

Pin1 : +3VPCU(LIDSWITCH PWR) Pin2 : POWER LED Pin3 : LIDSWITCH Pin4 : GND Pin5 : GND Pin6 : POWERON#

DEEP_PWRLED#

C92

220P/50V_4

DEEP_PWRLED#

EC31 680P/50V_4

12/13 Add for EMI

C91 0.1U/10V_4

C90

+3VPCU

R387 10K/F_4

1 3

1

+5V

R43 1K/F_4

R47 *200/F_6

C89

220P/50V_4

2

PDTC144EU Q25

For EC into Deep Sleep in S3 mode

12

Q2

PDTC144EU

2

1 3

CN4

1 2 3 4 5 6

POWER BTN CONN

DFFC06FR062

88513-0601-6p-l-smt

PWR_LED#

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

PWR_LED# (27)

C616

0.1U/10V_4

PROJECT :U81

Quanta Computer Inc.

USB 3.0/KB

WIRELESS_OFF_R

1

25

25 37Monday, May 27, 2013

of

1A

A

Mini Card WLAN/BT(Option)

BT_OFF(9)

R223 *0_6

4 4

3 3

+5V

EC_DEBUG(27)

CLK_33M_DEBUG(8)

PCIE_TXP1_WLAN(8) PCIE_TXN1_WLAN(8) PCIE_RXP1_WLAN(8)

PCIE_RXN1_WLAN(8) CLK_PCIE_WLANP(8) CLK_PCIE_WLANN(8)

PCIE_CLKREQ_WLAN#(8)

BT_COMBO_EN#(8)

Accelerometer Sensor

2 2

Touch screen

R26 *0_6

+5V

R27 0_6

+3V

C35 *1U/10V_4

TS_ON(27)

1 1

TS_ON

Close to CN3

+3V_WLAN_P

2

1

Q21

2N7002E

INT_BT_OFF#

R196 0_4 R195 *0_4

R7 0_6

U10

5

IN

4

IN

3

ON/OFF

R344

*IC(5P) G5243AT11U

*100K/F_4

R15 0_4

A

SI change for DS3 leakage issue!

R226 10K_4

3

R229 *0_4

MINICAR_PME# LFRAME#

PLTRST#

REQ_WLAN#

28 48 51 49 47 45 19 17 33 31 25 23 13 11

43 37 35 29 27 21 15

MINICARD-110021-52131-52P-RUV

ACCEL_INTA#(8)

ACCEL_INTA#

C253 *22P/50V_4

+G_SEN_PW

1

OUT

2

GND

10/25:modify for 14/15 co-lay

H=4.0

CN17

6

+1.5V +1.5V +1.5V Reserved Reserved Reserved Reserved Reserved Reserved PETp0 PETn0 PERp0 PERn0 REFCLK+ REFCLK-

7

CLKREQ#

5

BT_CHCLK

3

BT_DATA

1

WAKE# Reserved Reserved GND GND GND GND GND

MINI PCIE H=4.0

DFHS52FS029

ACCEL_INTA# ACCEL_INTA#_R

+G_SEN_PW

MBDATA3 MBCLK3

R97 4.7K_4 R91 4.7K_4

+VCC_TS

C22

1U/10V_4

ph

+3.3V

+3.3V +3.3Vaux Reserved Reserved

LED_WLAN# LED_WPAN#

LED_WW AN#

USB_D+

USB_D-

SMB_DATA

SMB_CLK

PERST#

W_DISABLE#

Reserved Reserved Reserved Reserved Reserved

GND GND GND GND GND GND GND

PAD54PAD53HOLE55HOLE

56

PV shortpad

R93 0_6 R119 *0_6

+G_SEN_PW

C235

0.1U/10V_4

2 1

D2 RB500V-40

MBDATA3(27) MBCLK3(27)

R108 0_4

+G_SEN_PW

DEL TS 14" connector Circuit & Reserve +3V TS Power for AUO TS

USBP11-(8)

USBP11+(8)

B

C409

R219 4.7K_4 R221 0_4

PV shortpad

1

14

11

9 7

6 4

8

L3

1

2

43

DLP11SN900HL2L

0.01U/25V_4

LAD0 (7,24,27) LAD1 (7,24,27) LAD2 (7,24,27) LAD3 (7,24,27) LFRAME# (7,24,27)

U6 HP3DC2TR

Vdd_IO VDD

INT1 INT2

SDO SDA SCL

CS

AL003DC2A00

SMBUS Use 3, follow Ryan

USBP11-_C

+3V_WLAN_P+1.5V_CPU

52 2 24 41 39 44

WLAN_LED#

46 42 38 36 32 30 22

PLTRST#

20

INT_RF_OFF#

16

LAD0

14

LAD1

12

LAD2

10

LAD3

8 50 40 34 26 18 4 9

+3V_WLAN_P +3V

C243

0.1U/10V_4

TP35

MBDATA3 MBCLK3

C225 *33P/50V_4 C223 *33P/50V_4

MBDATA3 MBCLK3

USBP11-

R12 *0_4

USBP11+ USBP11+_C

R11 *0_4

+VCC_TS

B

+1.5V_CPU +3V_WLAN_P

C445

0.1U/10V_4

+3V_WLAN_P

USBP10+ (8) USBP10- (8) PLTRST# (2,8,14,22,23,24,27)

SI change for DS3 leakage issue!

2

NC

3

NC

10

RESERVED

13

RESERVED

15

RESERVED

16

RESERVED

5

GND

12

GND

C20

0.1U/10V_4

USBP11-_C TS_ON_R

EC5

*100P/50V_4

C

+3VPCU

C382

C439

0.1U/10V_4

EC_AOCS#(27)

10U/6.3VS_6

10K_4

3

Q15

2

2N7002E

1

+3V_WLAN_P

RF_OFF (9)

C456

0.1U/10V_4

C383 10U/6.3VS_6 R187

RF_LINK# (27)

R203 10K_4

Q18 2N7002E

3

C406

0.1U/10V_4

1

2

Support Wake Function(Reserve)

PCIE_WAKE#(6,22,27)

EC_PCIE_WAKE#(27)

Green CLK Circuitry

+3V_VGA(14,17,24,37)

15"

CN2

1 2 3 4 5 6

Touch screen CONN

R332 Change to 0ohm for SLG request

LAN_XTAL25_IN(22) PCH_XTAL25_IN(8)

CLKGEN_RTC_X1(7)

CLK_27M_XTAL_IN(15)

+3VLANVCC

+1.05V

+3V_VGA

R141 33_4 R139 0_4

PV shortpad

R138 22_4 C325 0.1U/10V_4

C297 0.1U/10V_4 C313 0.1U/10V_4

LAN_XTAL25_IN_R PCH_XTAL25_IN_R

CLK_27M_XTAL_IN_G

UMA del R365

GEN_XTAL25_OUT GEN_XTAL25_IN

Change Symbol pin1 & pin16 exchange!

C268 12P/50V_4

C269 15P/50V_4

C

+3VPCU(4,7,21,24,25,27,28,29)

2

4

+3V(2,6,7,8,9,10,12,13,14,20,21,22,23,24,25,27,30,33,35,36) +5V(7,10,20,21,23,24,25,35)

GEN_XTAL25_IN

1

Y2

25MHZ +-10PPM

3

GEN_XTAL25_OUT

6

25M_A

5

25M_B

9

32Khz

12

27Mhz/NC

8

VDDIO_25M_A VDDIO_25M_B3GND

11

VDDIO_27/NC

16

XTAL_OUT

1

XTAL_IN

SLG3NB244VTR

C294 0.1U/10V_4

C324 *10P/50V_4

C302 *10P/50V_4

C311 *10P/50V_4

D

R188 200K_4

U7

+V3.3A

VBAT

VDD_RTC_OUT

+3VLANVCC

LAN_XTAL25_IN

PCH_XTAL25_IN

CLK_27M_XTAL_INUSBP11+_C

D

VDD

GND GND GND

15 2 10

14 7

13 4 17

+3VS5

C374

0.1U/10V_4

+3VPCU

+3V_RTC_R

1

Q14 ME2303T1

2

24mil

3

+3V_AOCS

+3V_WLAN_P

2

13

Q17 *PDTC144EU

+3V_WLAN_P

2

13

Q16 PDTC144EU

20mils width(min)

+3V_RTC_0,+3V_RTC_R,+3V_RTC..

C285 0.1U/10V_4

R143 360_4 C327 22U/6.3VS_8

DIS UMA

E

+3V_WLAN_P

R191 *0_8

C380 *0.1U/10V_4

For EMI Suggestion

CLK_33M_DEBUG

R201 *0_4

MINICAR_PME#

R194 10K/F_4

MINICAR_PME#

+3V_RTC_0+3VLANVCC

+3V_RTC

C281

2.2U/6.3V_6

+3V

EC19 *33P/50V_4

26

U21 P/N AL000314000 AL3NB244000

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

WLAN/G-Sensor/G-CLK/TS

Date: Sheet

Date: Sheet of

E

26 37Friday, May 24, 2013

1A

of

1

MX0(25) MX1(25) MX2(25) MX3(25) MX4(25) MX5(25) MX6(25) MX7(25)

MY0(25) MY1(25) MY2(25) MY3(25) MY4(25) MY5(25) MY6(25) MY7(25) MY8(25) MY9(25)

ACIN(28,35)

R406 *0_4

R4000_4

R403 *0_4

C640

0.1U/10V_4

1 2

SERIRQ LFRAME# LAD0 LAD1 LAD2 LAD3

CLKRUN# SIO_EXT_SCI#

GATEA20 RCIN# 3920_RST#

MX0 MX1 MX2 MX3 MX4 MX5 MX6 MX7

MY0 MY1 MY2 MY3 MY4 MY5 MY6 MY7 MY8 MY9 MY10 MY11 MY12 MY13 MY14 MY15 MY16 MY17

DGPUT_CLK DGPUT_DATA

TPCLK TPDATA

BIOS_RD# BIOS_WR# BIOS_CS#

ACIN EC_GPXD1

D10 MEK500V-40

EC_PECI_R USBPW_ON#

SUSON MAINON

PV shortpad

C643

4.7U/6.3V_6

C632

0.1U/10V_4

1 2

SERIRQ(7,24)

LFRAME#(7,24,26)

LAD0(7,24,26) LAD1(7,24,26) LAD2(7,24,26) LAD3(7,24,26)

GFX_HWPG(33)

TP1

SUSWARN#_EC(6)

SYS_I(27,28)

CLK_33M_KBC(8)

PLTRST#(2,8,14,22,23,24,26)

CLKRUN#(6,24)

SIO_EXT_SCI#(7) EC_A20GATE(9)

EC_RCIN#(9)

MY10(25) MY11(25) MY12(25) MY13(25) MY14(25) MY15(25) MY16(25) MY17(25)

DGPUT_CLK(15) DGPUT_DATA(15)

MBCLK3(26) MBDATA3(26)

TPCLK(24)

TPDATA(24)

PCI_SERR#(9)

RF_LINK#(26)

SLP_SUS#_EC(6)

GPIO33_EC(7)

DPWROK_EC(6)

USBPW_ON#(21,25)

SUSON(31,35)

MAINON(30,31,35)

SLP_SUS_ON(6)

S5_ON(29)

THRM_ALERT_HW#1

FB_CLAMP

MBATLED0#(28)

AC_LED_ON#(28) WIRELESS_ON(25) WIRELESS_OFF(25)

THRM_MOINTOR THRM_MOINTOR1

1

A A

B B

For GPU thermal For Gsensor For Touch-Pad

10/26:modify by EC-Jerry

C C

THRM_MOINTOR1(4)

New Thermal Protect

10/17:modify by EC-Jerry

D D

2

U15

3

SERIRQ

4

LFRAME

10

LAD0

8

LAD1

7

LAD2

5

LAD3

12

PCICLK

13

PCIRST/GPIO5

38

CLKRUN

20

SCI/GPIOE

1

GA20/GPIO0

2

KBRST/GPIO1

37

ECRST

55

KSI0/GPIO30

56

KSI1/GPIO31

57

KSI2/GPIO32

58

KSI3/GPIO33

59

KSI4/GPIO34

60

KSI5/GPIO35

61

KSI6/GPIO36

62

KSI7/GPIO37

39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 81 82

83 84 85 86 87 88

119 120 128

89

76 109 110 112 114 115 116 117 118

97

98

99 100 101 102 103 104 105 106 107 108

124

KB3940QF A1

KSO0/GPIO20 KSO1/GPIO21 KSO2/GPIO22 KSO3/GPIO23 KSO4/GPIO24 KSO5/GPIO25 KSO6/GPIO26 KSO7/GPIO27 KSO8/GPIO28 KSO9/GPIO29 KSO10/GPIO2A KSO11/GPIO2B KSO12/GPIO2C KSO13/GPIO2D KSO14/GPIO2E KSO15/GPIO2F KSO16/GPIO48 KSO17/GPIO49

PSCLK1/GPIO4A PSDAT1/GPIO4B PSCLK2/GPIO4C PSDAT2/GPIO4D PSCLK3/GPIO4E PSDAT3/GPIO4F

RD WR SELMEM/SPICS SELIO/GPIO50 SELIO2/GPIO43 D0/GPXD0 D1/GPXD1 D2/GPXD2 D3/GPXD3 D4/GPXD4 D5/GPXD5 D6/GPXD6 D7/GPXD7

A0/GPXA0 A1/GPXA1 A2/GPXA2 A3/GPXA3 A4/GPXA4 A5/GPXA5 A6/GPXA6 A7/GPXA7 A8/GPXA8 A9/GPXA9 A10/GPXA10 A11/GPXA11

V18R

FANPWM1/GPIO12 FANPWM2/GPIO13

FANFB1/GPIO14 FANFB2/GPIO15

CIR_RX/GPIO40

Need Change New PN

C610

0.1U/10V_4

1 2

2

VCC1 VCC2 VCC3 VCC4 VCC5 VCC6

AVCC

AD0/GPI38 AD1/GPI39 AD2/GPI3A AD3/GPI3B

DA0/GPO3C DA1/GPO3D DA2/GPO3E DA3/GPO3F

PWM1/GPIOE

PWM2/GPIO10

SCL1/GPIO44 SDA1/GPIO45 SCL2/GPIO46 SDA2/GPIO47

GPIO4 GPIO7

GPIO8 GPIOA

GPIOB GPIOC GPIOD

GPIO11 GPIO16 GPIO17 GPIO18

GPIO19 GPIO1A

GPIO41 GPIO42 GPIO52 GPIO53 GPIO54 GPIO55 GPIO56 GPIO57 GPIO58 GPIO59

XCLKO

XCLKI

GND1 GND2 GND3 GND4 GND5 AGND

+3VPCU

9 22 33 96 111 125 67

63

TEMP_MBAT

64

AD_TYPE

65

AD_AIR

66

SYS_I

68 70

GPU_AC_BATT

71 72

PCH_PCIE_WAKE#

21

DRAMRST_CNTRL_EC

23

GPIO27_EC

26

FAN1_PWM

27 28

FAN1SIG

29 77

MBCLK

78

MBDATA

79

MBCLK2

80

MBDATA2

6

SUSB#

14

HWPG

15

H_PROCHOT#_EC

16

SUSC#

17 18 19

NBSWON1#

25 30

R432 0_4

31

ZERO_PWR_ODD

32

SIO_EXT_SMI#

34

VRON

36

73

EC_PCIE_WAKE#

74

THRM_MOINTOR

75

GPIO42_EC

90

DNBSWON#

91

CAPSLED#

92

PWR_LED#

93

EC_PWROK

95

RSMRST#

121

VOLMUTE#

126

BIOS_SPI_CLK

127

LID_EC#

123

CRY2

122

CRY1

11 24 35 94 113 69

R360 0_6

FOR SG/DIS

3

C642 0.1U/10V_4 C667 0.1U/10V_4 C635 0.1U/10V_4 C613 0.1U/10V_4 C665 0.1U/10V_4 C634 0.1U/10V_4 C614 0.1U/10V_4 C647 0.1U/10V_4 C641 0.1U/10V_4

+3VPCU_EC

C608 0.1U/10V_4

BATSHIP

R418 0_4

PV shortpad

DGPU_PWROK(9,27,36,37)

3

500mA

C606

4.7U/6.3V_6

TEMP_MBAT(28) AD_AIR (28)

SYS_I (27,28)

LAN_POWER (35)

GPU_AC_BATT (15)

BATSHIP (28)

PCIE_WAKE# (6,22,26) DRAMRST_CNTRL_EC (2)

GPIO27_EC (9) FAN1_PWM (24)

ODD_EJECT# (23)

FAN1SIG (24)

TS_ON (26)

MBCLK (28) MBDATA (28) MBCLK2 (2,8,13) MBDATA2 (2,8,13)

SUSB# (6) HWPG (29,30,31,32)

SUSC# (6)

SUSACK#_EC (6)

EC_AOCS# (26) NBSWON1# (25) EMU_LID (20) EC_DEBUG (26)

ZERO_PWR_ODD (23)

SIO_EXT_SMI# (9) VRON (33)

DGPU_PROCHOT# (15)

SI Add Pin36 to DGPU_PROCHOT# for DB error

TP75

EC_PCIE_WAKE# (26) THRM_MOINTOR (4)

DNBSWON# (6) CAPSLED# (25) PWR_LED# (25)

EC_PWROK (6) RSMRST# (6) VOLMUTE# (21)

LID_EC# (25)

C638 22P/50V_4

AC_PRESENT_EC (6)

SI Add 0ohm on AGND for ENE request!

CRY2

R411 0_4

GPIO13/GPIO41 for NVD GC6 function

for Battery charge/charge

for DDR Thermal IC

10/17:modify by EC-Jerry

L31 BLM15AG700SS1D(70,0.5A)

R420 0_4 C600 0.1U/10V_4

PV shortpad

R413 100K_4

1 2

4

L30 BLM18BA470SN1D

EC_GPXD1

4

+3VPCU+3VPCU_EC

BIOS_SPI_CLK_I

PCH_SUSCLK (6)

R428 33_4

C663 22P/50V_4

5

3920_RST#

1 3

D9

2 1

1SS355

R437 4.7K_4

Q30

METR3904-G

H_PROCHOT#_EC

+3VPCU

HWPG

+3VPCU

C669 *10P/50V_4

Q26 METR3904-G

2

R385 10K/F_4

R391 0_4

3

Q29

*2N7002

2

13

2

R434 *10K/F_4

R433 10K/F_4 R379 4.7K_4 R371 4.7K_4 R374 10K/F_4

R429 47K/F_4

R394 *10K_4

+3V

R377 4.7K_4 R378 4.7K_4

R366 4.7K_4 R367 4.7K_4 R376 4.7K_4

C666 0.1U/10V_4

R427 47K_4

Adapter select for EC

R375 10K/F_4

+3VPCU

EC_PECI(2)

+1.05V(2,4,6,7,8,10,26,30,33) +3V(2,6,7,8,9,10,12,13,14,20,21,22,23,24,25,26,30,33,35,36) +3VPCU(4,7,21,24,25,26,28,29)

5

6

R359 4.7K_4

2 1

D8 MEK500V-40

PV shortpad

THRM_ALERT_HW#1

+3V

EC_PWROKOVT_DETC

Open Drain need pu high

CPUOVERT (2)

1

C670 220P/50V_4

H_PROCHOT#

3

1

R435 *10_4

DGPU_OVT# (15)

+1.05V

Q31

2N7002K

3920_RST#

C655 0.1U/10V_4

GPIO42_EC

DGPU_PWROK (9,27,36,37)

PM_THRMTRIP# (2,9)

H_PROCHOT# (2,33)

C674 *47P/50V_4

NBSWON1# MBCLK MBDATA EC_PCIE_WAKE#

LID_EC#

GPIO33_EC DGPUT_CLK DGPUT_DATA

GPU_AC_BATT MBCLK2 MBDATA2

CLK_33M_KBC

R386 *10K/F_4

Hi ==> DIS/SG ( 90W ) Low ==>UMA ( 65W)

R414 43_4

H_PECI (50ohm) Route on microstrip only Spacing >18 mils Trace Length: 0.4~6.125 iches

EC_PECI_R

6

+3VPCU

7

adapter Type check

+3VPCU

Change to 1SS355 as Current loss

D7 1SS355

C604

0.1U/10V_4

2 1

R364 100/F_4

R365

12.1K/F_4 100P/50V_4

AD_TYPE

R390 10K_4

DGPU Thermal protect

U13

1

CE#

6

SCK

5

SI

2

SO

3

WP#

DFHS08FS023

soic8-8-1_27

2

VDD

HOLD#

VSS

TEMP_FAIL(15)

Reserve for ENE Hold time issue

Vender EON

MBCLK2 MBDATA2 MBCLK MBDATA DGPUT_CLK DGPUT_DATA

Size 1MB 1MB

C601 *10P/50V_4 C611 *10P/50V_4 C617 *10P/50V_4 C609 *10P/50V_4 C612 *10P/50V_4 C615 *10P/50V_4

P/N AKE3GZN0Q01 (EON EN25Q80A-100HIP)

AKE3GFP0Z00 (MX25L8006EM2I-12G)MX AMIC 1MB AKE3GZP0801 (A25L080M-F) Socket

TP64 TP63 TP62 TP66 TP61 TP65

TP for ICT burning code: Put on TOP side and close to U5008

BIOS_CS# BIOS_SPI_CLK_I BIOS_WR#

BIOS_RD#

+3VPCU

R356 10K/F_4

7

DFHS08FS023

BIOS_CS# BIOS_SPI_CLK_I BIOS_WR#

BIOS_RD#

SPI_7P SPI_3P

SPI_3P

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

EC (KB3940QF)/ROM

Date: Sheet

Date: Sheet of

8

27

AD_ID (28)

C603

3920_RST#

3

Q27

*ME2N7002E

1

8

7

SPI_7P

R357 10K/F_4

4

27 37Friday, May 24, 2013

of

8

+3VPCU

1A

5

EC8

1000P/50V_4

DC_JACK 90W

D D

6

GND

8

LED2

7

LED1

DC-IN CONN

5

AD_ID

To PWR LED

+12VALW

PC28

C C

B B

A A

*0.1U/25V_4

+12VALW

PC27

*0.1U/25V_4

2

PQ15

1 3

DRC5144

PR43

PQ11

2

PQ6

1 3

DRC5144

AD_AIR(27)

PC178

0.1U/10V_4

Place this cap close to EC

CN12

VDD VDD

GND GND

PR48 1M_4

1

AD_ID (27)

+VA_AC

1 2

3 4

PQ7

2

2N7002K

3

AC_LED_ON# (27)

1M_4

2

2N7002K

3

MBATLED0# (27)

+VA_AIR

PR42 75K/F_4

PR39

12.4K/F_4

+3VPCU (4,7,21,24,25,26,27,29) +5VPCU (29) BATT+(24) +PRWSRC (24)

5

PL8

80/5A

PL10

80/5A

PC29

0.1U/25V_4

AC_LED_ON#

2

PQ8 DRC5144

13

PR38

2.43K/F_6

MBATLED0#

2

PQ10 DRC5144

13

PR37

2.43K/F_6

PD5

1N4448WS-7-F

21

+VA

+5VPCU

+VA

6 7 8

PC154

PQ36 EMB20P03V

0.1U/25V_4

4

PR35 220K_4 PR34

220K_4

15 2 3

P4SMAJ20A

PC149

+VAD

4

2 1

MMDT2907A

PD9

0.1U/25V_4

PQ9

Place this ZVS close to Diode away +VIN

Q2

Q1

4

Do Not add test pad on BATDIS_G signal

+VAD

21

PR40

3

IDEA_G

1M_4

65

PR36

1K_6

+VAD

PR6

4

22_8

QM3016D

4 3

PC150 2200P/50V_4

BATDIS_G

+VA

+PRWSRC

PQ37

1

PC153

0.1U/50V_6

PR33 1M_4

PR5

4.02K/F4

REGN6V

ACIN(27,35)

PC10

0.47U/25V_6

MBDATA BQDATA

MBCLK BQCLK

ACDET=13V

MIN. BATV=7.2V

+VA_AIR

BQACDRV

+VAD

PR23 1M_4

PR14 1M_4

PR13 1M_4

PR21 1M_4

PR7

4.02K/F4

BQCMSRC

PR11

100K/F_4

PR10

100K/F_4

PR22

*0_4/S PR24

*0_4/S

2

PR9

430K/F_4

PR12

69.8K/F_4

1 3

+PRWSRC

ACIN

BQVCC

2

PQ2

METR3904-G

0.1U/25V_4

3

4

5

20

8

9

PR8

88.7K/F_4

3

PQ4 2N7002K

1

PC3

CMSRC

ACDRV

ACPRES

VCC

SDA

SCL

EC9

*1U/25V_4

PR44 *0_2/S

BQACP

2

6

3

EC10

*1U/25V_4

PR47

RC1206-R010

CSIP

PC5

0.1U/25V_4

ACP

ACDET

ILIM

10

PC14

*0.1U/50V_6

3

EC6

*1U/25V_4

21

PR49 *0_2/S

CSINBQACN

PC8

1

0.1U/25V_4

ACN

PU1

BQ24738H

PR31

PR32

100K/F_4

*100K/F_4

+3VPCU

EC11

*1U/25V_4

REGN6V

16

7

PC22

1U/16V_4

REGN

IOUT

BQIOUT

PC18

HIDRV

PHASE

LODRV

BATDRV

PR19 10/F_4

100P/50V_4

18

17

BQB_2

BTST

19

15

14

GND

21

GND

22

GND

23

GND

24

GND

25

GND

13

BQSRP

SRP

12

BQSRN

SRN

11

BQBATDRV

Place this cap close to EC

Place this ZVS close to Far-Far away +VIN

BQHIDRV

0_6

SYS_I (27)

0.01U/50V_4

PD3 RB501V-40

BQB_1

PC13

0.047U/25V_4

PR30 10_4/P

PR29 5.6_4/P

PR25

BQPHASE

BQLODRV

PC177

PR27

4.02K/F4

2 1

PQ35

RQ3E070BNFU7TB

21

REGN6V

PQ38

RQ3E070BNFU7TB

PC31

0.1U/25V_4

PC30

0.1U/25V_4

2

PD10 P4SMAJ20A

35241

PC26

0.1U/25V_4

BATSHIP(27)

2

1

CN10

*PMPCRF-08MLBK2ZZ4H0

PR2 330_4

PR3 200K_4

PD1

PC1

SMD SMC

+3VPCU

PDZ5.6B

*100P/50V_4

PC6

10U/25V_8

1

2

3

4

5

6

7

8

BATT+ SMD

SMC

B_TEMP_MBAT

PR4 1K/F_4

PC2

PC7

10U/25V_8

1

10

9

PMPCRA-08MLBK2ZZ4H4

14"

PC182

0.01U/25V_4

Place this cap close to EC

PC16

0.1U/25V_4

28 37Friday, May 24, 2013

28

CN11

1

2

3

4

5

6

7

8

TEMP_MBAT(27)

+BATCHG

PC15

PD8 SX34

of

10

9

0.1U/25V_4

1A

BATT+

PQ5 TPCA8064-H

5

BATDIS_ID_DODBQBATDRV

PC151

4.7U/25V_8

678

EC12

678

PR167 *2.2_6

PC159 *2200P/50V_4

+BATCHG

3

D

S

2 1

G

4

PC21

0.01U/50V_4

+VIN

PC157

PC33

1000P/50V_4

2200P/50V_4

EC13

*10U/25V_8

PL9

4.7uH/5.5A(EM-47AM05V08)

+BATCHG

PR159 470_8

3

2

PQ1 2N7002K

1

PC19

PC156

EC15

*10U/25V_8

CSOP CSON

PL2 80/5A

PL1 80/5A

0.1U/25V_4

MBDATA(27)

MBCLK(27)

0.1U/25V_4

BQLR

PR162 *0_2/S

B_TEMP_MBAT

15"

PC9

0.1U/25V_4

PR1 330_4

PD2

PDZ5.6B

2 1

PC4

*100P/50V_4

EC14

*10U/25V_8

PR160 RC1206-R020

F3_2X1_65-2_8

1 2

PR161 *0_2/S

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Charger (BQ24738)

Date: Sheet

Date: Sheet of

5

DC/DC +3VS5/+5VS5

4

3

2

1

29

+3.3 Volt +/- 5%

+3VPCU

D D

PC239

PR230

0_4/P

PR148

0_4/P

PR229

0_4/P

PR234

*665K/F_4

PR231

*330K/F_4

PR233

0_4/P

10U/6.3V_6

NB670ENLDO

PC242

10U/6.3V_6

+3VS5

HWPG(27,30,31,32)

C C

B B

A A

Reserve for NB670 5V version.

S5_ON(27,29)

PR228 10K/F_4

HWPG NB670PG

+VIN

S5_ON NB670EN NB670VOUT

+5VPCU

PR237

HWPG NB671PG

S5_ON NB671EN

PC236 *0.1U/10V_4

PC138

1U/6.3V_4

PC137 *0.1U/10V_4

PU11

6

LDO

3

NC

5

CLK

4

PGOOD

12

ENLDO

13

EN

NB670

PU12

6

NC

3

NC

5

NC

4

PGOOD

11

VCC

13

EN

NB669

+VIN

VIN

AGND PGND

BST

SW SW SW SW

VCC

VOUT

VIN

AGND PGND

BST

SW SW SW SW

VOUT

*665K/F_4

FB

PR232

1

14 2

10

8

NB670SW

9 15 16

+5VALW

11

7

1

14 2

10

8

NB671SW

9 15 16

7

NB671VOUT

12

NB671FB

PC241 1U/6.3V_4

PC240

*0.1U/10V_4

PC233

0.1U/25V_4

PR239

0_6

PC235

0.1U/25V_4

PR238

0_6

PR235

*82K/F_4

PR236 *330K/F_4

NB670BST_SNB670BST

NB671BST_SNB671BST

PC227

4.7U/25V_8

PC231

4.7U/25V_8

PC229

4.7U/25V_8

PC244

0.1U/25V_4

PC234

4.7U/25V_8

PC243

0.1U/25V_4

+VIN_3VS5

+VIN_5VS5

PR240 *2.2_6

PC245

PR241 *2.2_6

PC246 *2200P/50V_4

PL18 *0_8/S

PC232

2200P/50V_4

PL21

1.5uH/9A(EM-15AM05V03)

*2200P/50V_4

PL19 *0_8/S

PC238

2200P/50V_4

PL22

1.5uH/9A(EM-15AM05V03)

+VIN

PC164

0.1U/25V_4

PC228

0.1U/25V_4

PR242 *0_2/S

12

+

PC250

Countinue current:4A Peak current:6A OCP minimum:7.5A

+3VS5

+3.3VS5_S

PC249

0.1U/10V_4

220U/6.3V_6X4.5

1 2

+5 Volt +/- 5% Countinue current:4A Peak current:6A OCP minimum:7.5A

+5VS5

PR243 *0_2/S

+5VS5_S

12

+

PC248

220U/6.3V_6X4.5

PJP5 *POWER_JP/S

1 2

PC247

0.1U/10V_4

PJP6 *POWER_JP/S

+3VS5 (6,9,10,24,26,30,35,36,37) +5VS5 (6,21,25,30,31,32,33,34,35,36,37)

Reserve for NB670 5V version.

5

4

3

2

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

3/5VPCU(NB669/NB670)

Date: Sheet

Date: Sheet of

1

29 37Friday, May 24, 2013

of

1A

5

4

3

2

1

+3VS5

PR125 10K/F_4

PR110

+5VS5

D D

1.05V_VTT_PWRGD(32)

HWPG(27,29,31,32)

MAINON(27,31,35)

C C

PD6

2 1

1N4448WS-7-F

+3V

PR120 10K/F_4

PR119 0_4/P PR116 0_4/P

10_6

1U/6.3V_4

PR122

54.9K/F_4

RT8240HWPG_S2A

PC96 *0.1U/10V_4

PC94

RT8240ILIM

RT8240EN

RT8240VCC

5

10

CS

9

PGOOD

8

RT8240BZ

EN

13

PAD

PR115 *10/F_4

RT8240TON

11

VCC

GND12FB

RGND

7

RT8240RGND

TON

6

RT8240FB

PU5

UGATE BOOST

PHASE

LGATE

PR123

*0_4

3 4

2 1

PR112 *10/F_4

H_VTTVID1 (4)

RT8240DH

PR111

RT8240BST_1

2.2_6

RT8240LX

RT8240DL

RT8240BST

PR113 0_4 PR114 0_4

PC95

0.1U/25V_4

9

PQ45 RJK03S3DPA

1

2

D1

G1

D1

S1/D2

G2

S2

765

8

RDSon=5.2m ohm

VCCP_SENSE (4)

VSSP_SENSE (4)

PC104

2200P/50V_4

RT8240LX

PC105

0.1U/25V_4

PR218 *2.2_6

PC214 *2200P/50V_4

+VIN_1.05V_VTT

PC102

4.7U/25V_8

PL16

0.82uH/13A(EM-82BM05V04)

PC99

+VIN

PL6 *0_8/S

PC97

+1.05V_VTT +/- 5% Countinue current:10A

4.7U/25V_8

Peak current: 12A

0.1U/25V_4

OCP minimum: 14.5A

+1.05V

600 mils

PR217 *0_2/S

12

+

PC213

330U/2.5V_6X4.5ESR12

PC212

0.1U/10V_4

30

B B

A A

PROJECT :U81

Quanta Computer Inc.

+1.05V (2,4,6,7,8,10,26,27,33)

5

4

3

2

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

1.05V(RT8240BZ)

Date: Sheet

Date: Sheet of

1

30 37Friday, May 24, 2013

of

1A

1

2

3

4

5

31

A A

+1.5VSUS (2,4,12,13,37)

+VIN+VIN_DDR

( VTT/2A )

+0.75V_DDR_VTT

PC146 10U/6.3V_6

( 3mA )

PC147

0.1U/10V_4

SUSON

PR158

100/F_4

PR151 0_4/P PR157 0_4/P

PR155

54.9K/F_4 PR156

47K/F_4

+5VS5

PC145

0.22U/10V_4

51216TRIP

51216MODE

B B

MAINON(27,30,35)

MAINON

1N4448WS-7-F

PD7

PR152

100K/F_4

21

DDR_VTTREF(4,12,13)

PC143

0.1U/10V_4

SUSON(27,35)

HWPG(27,29,30,32)

51216S3

51216S5 51216PGHWPG

PC140

1

4

7

21

5

17

16 20

18

19

12

PU7

VTT3VLDOIN VTTSNS

VTTGND

GND GND VTTREF

S3

S5 PGOOD

TRIP

MODE

V5IN

APW8819QAI

DRVH

VBST

DRVL

PGND

VDDQSNS

VREF

REFIN

SW

+1.5VSUS

2

*10U/6.3V_6

14

51216DRVH

15

51216VBST

13

51216SW

11

51216DRVL

10

9

51216VDDQSNS

+1.8VREF

6

PC144

0.1U/10V_4

8

51216REFIN

PC142

PC148

PR150

2.2_6

51216VBST_S

PR154 10K/F_4

PR153

53.6K/F_4

PC141

0.1U/25V_4

1

D1

G1

S1/D2

9

G2

S2

765

8

PQ34 RJK03S3DPA

Rds(on) 5.2m ohm

PC133

0.1U/25V_4

2

D1

51216SW

S2

PR149 *2.2_6

PC139 *2200P/50V_4

PC135

4.7U/25V_8

PC132

PL7 *0_8/S

PC134

4.7U/25V_8 2200P/50V_4

PL20

0.82uH/13A(EM-82BM05V04)

PC131

0.1U/25V_4

PR227 *0_2/S

+1.5V +/- 5% Countinue current:6A Peak current:10A OCP minimum:12A

+1.5VSUS

+1.5VSUS_S

12

+

PC230

330U/2.5V_6X4.5ESR12

PC237

PJP4 *POWER_JP/S

1 2

0.1U/10V_4

C C

1U/6.3V_4

0.01U/25V_4

1.8V +/- 3% Countinue current:2A Peak current:3A OCP minimum:4A

PC218

*22U/6.3V_8

+1.8V

1 2

PC223

PR220 *POWER_JP/S

10U/6.3V_6

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

DDR3 (APW8819)

Date: Sheet

4

Date: Sheet of

5

31 37Friday, May 24, 2013

1A

of

PC225

PR226

*2200P/50V_4

PR221

HWPG

PJP3

*POWER_JP/S

PC224

0.01U/50V_4

12

PR225

10_6

PC221

10U/6.3V_6

+5VS5

D D

1

0_4/P

554PG_1.8V

554PVIN_1.8V

PC220

1U/6.3V_4

PU10

4

PG

9

PVIN

10

PVIN

RT8068A

8

SVIN

11

GND

2

*2.2_6

1

554LX_1.8V

NC

2

LX

3

LX

7

554NC_1.8V

NC

6

554FB_1.8V554SVIN_1.8V

FB

5

554EN_1.8V

EN

PL17

1uH/11A(EM-10AM05V06)

PC219

*68P/50V_4

PR222

69.8K/F_4

PC217

0.47U/6.3V_4

PC216

*22P/50V_4

554FB_1.8V_S

PR223

20K/F_4

R1

PR224

R2

10K/F_4

V0=0.6*(R1+R2)/R2

MAINON

3

PR219 *0_2/S

+1.8V_L

PC222

0.1U/10V_4

5

4

3

2

1

TPS51462RGER/AL051462000

For CPU SV system agent voltage slew rate of 0.5 -10 mV/µs

SEL1

0

1

0

PR205 0_4/P

PR204 0_4/P

PR203 0_4/P

PL15

+VCCSA

0.9V

0.8V

0.725V

0.675V

VCCSA_SEL (4)

VCCSA_SEL0 (4)

1.05V_VTT_PWRGD (30)

PC196

PC198

22U/6.3V_8

51461FB

+VCCSA Volt +/- 5% Countinue current:4A Peak current:6A OCP minimum:7A

+VCCSA

PC197

PC195

22U/6.3V_8

PC199

0.1U/10V_4

PR211 *0_2/S

D D

SEL0

0

1

1 1

VCCSA_VID1

HWPG(27,29,30,31)

PC193 1U/6.3V_4

PR209 0_6

PC194

C C

PJP2

*POWER_JP/S

+5VS5

B B

12

PC201 10U/6.3V_8

VCC_TPS51461

PC202 10U/6.3V_8

PC203

0.1U/10V_4

2.2U/6.3V_4

22 23 24

19 20 21

1

0.22U/6.3V_4

VIN VIN VIN

PGND PGND PGND GND

18

PC211

51461VCC

17

16

V5FILT

V5DRV

PGOOD

PU9

TPS51462RGER

VREF2COMP

3

51461REF

51461COMP

4.99K/F_4

PC210

3300P/50V_4

15

VID014VID1

SLEW4VOUT5MODE

PC208

0.01U/16V_4PR212

13

6

EN

BST

SW

PR214

*33K/F_4

VCCSA_VID0

51461EN

12

11

10

9

8

7

PR210

0_6

*0.1U/10V_4

PC200

0.1U/25V_4

PC192

PC191

PR215 0_4

PC190 *0.1U/10V_4

0.47uH/17.5A(EM-47BM05V05)

PR216 *2.2_6

PC209 *2200P/50V_4

PR213 100/F_4

VCCUSA_SENSE (4)

32

A A

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

VCCSA(TPS51462RGER)

Date: Sheet of

Date: Sheet

5

4

3

2

Date: Sheet

1

32 37Friday, May 24, 2013

1ACustom

of

5

+5VS5

PR68 0_4

D D

IMVP_PWRGD(6)

C C

SDIO

VR_SVID_ALERT#

SCLK

B B

A A

PR74 130/F_4

VSS_SENSE(4)

VCC_SENSE(4)

+1.05V

TRBSTA#

GFX_HWPG

PR80 *75/F_4

5

+3V

PR85 10K/F_4

+3V

PR73 10K/F_4

H_PROCHOT#

PC58

0.1U/10V_4

PR79

54.9/F_4

Using Kevin connection for layout

TRBST#

Using Kevin connection for layout

VCC_AXG_SENSE(4)

+1.05V

PR86 *75/F_4

GFX_HWPG(27)

VR_SVID_DATA(4)

VR_SVID_ALERT#(4)

VR_SVID_CLK(4)

+VIN_VCC_CORE

*1K/F_4

CSCOMP

VSS_AXG_SENSE(4)

VRON(27)

10/F_4

PR101

PR90

PR97

1.21K/F_4

*820P/50V_4

PR95

0_4

PC70

680P/50V_4

PC76

GFX_HWPG

PR83 1K/F_4

6132AGND

PR87 0_4

PR88 0_4

6132AGND

4

+5VS5

6132AGND

PR78 *0_4/S PR77 *0_4/S

PR70 *0_4/S

6132AGND

H_PROCHOT#(2,27)

PC62

0.01U/50V_4

49.9/F_4

PC73 4700P/25V_4

PR107 *0_4

PR106

DROOP

*4.7K/F_4

4

PR59 10/F_4

PR67

1K/F_4

PR195

2.2_6

PC183

2.2U/6.3V_6

PR82 10K/F_4 PR81 95.3K/F_4

PC65 1000P/50V_4

PR91

1K/F_4

PR89

PR94

24.9K/F_4

PC79

*1000P/50V_4

PC49

33P/50V_4

PR64 0_4

PR63 0_4

VR_SVID_ALERT#

H_PROCHOT# IMVP_PWRGD

PC69

100P/50V_4

CSREF

PR104

*0_4/S

6132VRMP

6132AGND

PC52 10P/50V_4

PR56

4.3K/F_4

PC55 1000P/50V_4

6132AGND

1

VCC

2

VDDBP

3

VRDYA

4

6132EN

EN

5

SDIO

6

ALERT#

7

SCLK

8

VBOOT

9

ROSC

10

VRMP

11

VRHOT#

12

VRDY

13

VSN

14

VSP

15

DIFF

11.5K/F_4

PC66

33P/50V_4

PC71

PR100

5.11K/F_4 2200P/50V_4

PR99

23.7K/F_4

6132AGND 6132AGND

PC54

0.1U/10V_4 PR57

24.3K/F_4

PC53

2200P/50V_4

VSPA

VSNA

60

61

59

VSPA

VSNA

EPAD

FB

TRBST#

17

16

FB

TRBST#

PR102

PC80

0.1U/10V_4

DIFFA

TRBSTA#

58

57

DIFFA

COMP

18

19

IMON

COMP

IMONA

FBA

COMPA

54

56

55

FBA

IOUTA

COMPA

TRBSTA#

PU3

NCP6132B

CSCOMP22CSP325CSREF24CSSUM

DROOP

IOUT

ILIM

21

20

ILIM

DROOP

CSCOMP

3

PC56

1200P/50V_4

PR65

68.1K/F_6

PR58

15.8K/F_4

6132AGND

PC51 1000P/50V_4

CSSUMA

DROOPA

CSP1A

CSCOMPA

ILIMA

CSREFA

50

49

51

52

48

53

47

ILIMA

CSP2A

CSREFA

CSSUMA

DROOPA

CSCOMPA

CSP1

CSP2

TSNS

23

27

29

26

28

CSREF

CSP1

CSSUM

CSP2

TSENSE CSP2A

DRVEN

CSP3

0.1U/10V_4

PC75 1000P/50V_4

6132AGND

PC77 1200P/50V_4

PC74 560P/50V_4

PR105

75K/F_4

12

PR200 220K_6 NTC

3

PC50 470P/50V_4

PR61 165K/F_4

PR60 75K/F_4

Place NTC close with GT Inductor

SWN1A

CSREFA (34)

+5VS5

PC59

TSENSEA

0.1U/10V_4

46

CSP1A

TSNSA PWMA

BSTA

SWA HGA

LGA

BST2

SW2

HG2

LG2

PVCC

PGND

LG1

HG1

SW1

BST1

DRVEN

PWM

30

6132_PWM

PC64

CSREF (34)

CSSUM

PR103

165K/F_4

Put close with VCORE Phase 1 Inductor

45 44 42 43 41 40 38 39 37 36 35 34 32 33 31

6132AGND

6132_PWMA

LG1 HG1 SW1 BST1

PR84

29.4K/F_4

DRVEN (34)

6132AGND

+5VS5

+5VS5 +5VS5

12

SWN1A (34)

PR98

93.1K/F_6

PR206 220K_6 NTC

PR75

29.4K/F_4

6132_PWMA (34)

PC67

2.2U/6.3V_6

PC63 0.22U/25V_6

CSREF

PR96

*11K/F_4

SWN1

2

CSREFA

PC57

0.047U/10V_4

2

LG1 (34) HG1 (34) SW1 (34)

PR62

6.98K/F_4

PR92

6.98K/F_4

SWN1

CSP1A SWN1A

PC72

0.047U/10V_4

SWN1 (34)

PR54

*1K/F_4

PR69 1K/F_4

1

PC48

*100P/50V_4

DROOPA CSREFACSCOMPA

PC46

PR55

0_4

1000P/50V_4

PR53

*4.7K/F_4

TSENSEA

12

PR72

PR76

100K_4 NTC

8.25K/F_4

Place NTC close with V_GT hot spot

+5VS5

PR71

Rd

*0_4

POP Rd

CSP1A

8.25K/F_4

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

For discrete only operation

TSENSE

12

PR194

Place close with VCORE hot spot

PR196 100K_4 NTC

PROJECT :U81

Quanta Computer Inc.

CPU Core1 (NCP6132B)

1

33

33 37Friday, May 24, 2013

of

1A

5

4

3

2

1

34

D D

PC43

5

D

S

213

5

D

S

213

PC85

2.2U/6.3V_6

PR197 *4.7_6

PC181 *1000P/50V_4

VGTA_BST1

PU4 NCP5911

1

BST

2

PWM

3

EN

4

4.7U/25V_8

HG1(33)

SW1(33)

LG1(33)

C C

B B

PR198

6132_PWMA(33)

DRVEN(33)

+5VS5

G

4

1_6

PQ41

TPCA8064-H

G

4

PQ42

TPCA8A10-H

PR109

2.74K/F_4

PAD

9

PC176

4.7U/25V_8

PC84

0.22U/25V_6

HG

SW

GND

LGVCC

8

7

6

5

+VIN_VCC_CORE

PC179

PC45

4.7U/25V_8

PL13

0.36UH/30A

HGTA SWGTA

LGTA

*0_8/S

PC180

0.1U/25V_4 2200P/50V_4

PR201 *0_2/S PR199 *0_2/S

PR108

1_6

PL4

4

PQ43

TPCA8064-H

4

PQ44

TPCA8A10-H

PC41

0.1U/25V_4

G

PR93 10/F_4

+VIN

12

+

PC167

5

D

S

213

5

D

S

213

No POP for UMA

12

+

PC171

*100UF/25V

+VCC_CORE

12

+

PC188

*330U_2V_7343

CSREF (33) SWN1 (33)

PC78

PC82

4.7U/25V_8

PR202 *4.7_6

PC187 *1000P/50V_4

12

PC206

4.7U/25V_8

12

+

PC226

PC184

+VCC_CORE (ULV 17W)

*100UF/25V

12

+

PC189

PC205

330U/2.5V_6X4.5ESR12

+VIN_VCC_GT +VIN

PC81

PC83

4.7U/25V_8

*4.7U/25V_8

PL14

0.36UH/30A

Countinue current:16A Peak current: 33A Load Line : -2.9mV/A

330U/2.5V_6X4.5ESR12

PL5 *0_8/S

PC186

PC185

0.1U/25V_4 2200P/50V_4

PR208 *0_2/S PR207 *0_2/S

PR66 10/F_4

PC68

+VCC_GFX

0.1U/25V_4

CSREFA (33) SWN1A (33)

Countinue current:21.5A Peak current: 33A Load Line : -3.9mV/A

+VCC_GFX

12

+

PC207

330U/2.5V_6X4.5ESR12

12

+

PC215

PC204

330U/2.5V_6X4.5ESR12

12

+

330U/2.5V_6X4.5ESR12

PC98

PC101

PC100

*22U/6.3V_8

*330U_2V_7343

*22U/6.3V_8

A A

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev C

C

CPU Core2 (NCP5911)

Date: Sheet

5

4

3

2

Date: Sheet of

1

1A

34 37Friday, May 24, 2013

of

5

4

3

2

1

35

+VAD

PR146

ON1

ON2

ON3

ON4

DISC1

22_6

G5934VIN

20

VIN

DRIVER4

12

SUSD

PC121 2200P/50V_4

G5934CN

19

DRIVER3

11

PC118

0.1U/25V_4

CN

G5934RZ1U

12

G5934CP

18

PU6

8

G5934DISC4

+3V

CP

DISC4

PR133 *0_4/S

PC124

G5934VOUT

17

VOUT

DRIVER1

9

LAN_ON

PC120 2200P/50V_4

0.47U/25V_6

1U/35V_6

DCAP

16

D_CAP

VSENSE

DRIVER2

10

PC109 2200P/50V_4

PQ31

EMB32N03K

3

REG

DISC3

DISC2

PC123

PG

+3VS5

GND

21

MAIND

15

14

+12VALW

13

7

G5934DISC3

6

G5934DISC2

65241

PC117

*10U/6.3V_6

G5934PG

G5934VSENSE

PC111 1U/16V_4

PC36

0.1U/10V_4

+3VLANVCC

PR144 *0_4

PR134 *0_4/S

PR135 *0_4/S

PQ32

RQ3E070BNFU7TB

0.67A

PC113

0.1U/10V_4

ACIN (27,28)

+VAD

PR141 *750K/F_4

PR139 *100K/F_4

+5VS5

678

35241

PC128

*10U/6.3V_6

+3VSUS

PC61

0.1U/10V_4

5.1A

+5V

PC127

0.1U/10V_4

PQ20

MAIND (4) MAIN_ONG (2,4)

2N7002K

+VIN

PR124 1M_4

3

2

PR121 1M_4

1

+0.75V_DDR_VTT

PR118 22_8

3

PQ18 2N7002K

2

1

+3V(2,6,7,8,9,10,12,13,14,20,21,22,23,24,25,26,27,30,33,36) +5V(7,10,20,21,23,24,25,26)

+VIN(20,24,28,29,30,31,34,36,37) +3VS5(6,9,10,24,26,29,30,36,37) +5VS5(6,21,25,29,30,31,32,33,34,36,37)

+12VALW(23,28,37)

+3VLANVCC(22,26)

+0.75V_DDR_VTT(12,13,31)

D D

PC119

0.1U/25V_4

LAN_POWER(27)

MAINON(27,30,31)

SUSON(27,31)

C C

+3VLANVCC +5V

678

PQ29

RQ3E070BNFU7TB

PC125

35241

0.022U/25V_4

PC130

0.1U/10V_4

5.2A

+3V

+3VS5

MAINON

PR142 *0_4/S

MAINON

PR140 *0_4/S

MAIND3.3V

1

2

3

4

5

G5934DISC1

for +1.05V_MODPHY timing

PC112

0.1U/10V_4

B B

for touchpad reserve

A A

PC115

*10U/6.3V_6

+3V_DEEP_SUS

R183

*0_4

0.04A

+3VSUS

PC122

0.1U/10V_4

PC136

0.1U/10V_4

+3VS5

65241

3

PQ30 EMB32N03K

PC116

*10U/6.3V_6

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Dis-charge IC (SLG55448)

Date: Sheet of

Date: Sheet

5

4

3

2

Date: Sheet

1

35 37Friday, May 24, 2013

1A

of

5

4

3

2

1

VGA Core

PD4

*1N4448WS-7-F

DGPU_PWROK(9,27,37)

PR51 *100/F_4

PR52 *100/F_4

PR41

*20K/F_4

*0.33U/6.3V_4

+3V

PC168

*470P/50V_4

+VGA_CORE

D D

DGPU_PWR_EN(9,37)

GFX_CORE_CNTRL1(15) GFX_CORE_CNTRL2(15) GFX_CORE_CNTRL3(15) GFX_CORE_CNTRL4(15,16) GFX_CORE_CNTRL5(15)

PR184

C C

PC172

*1000P/50V_4

B B

A A

*100K/F_4

PC170

*220P/50V_4

PR179

*1K/F_4

PR183

PR181

*0_4/S

Place close to CPU socket VCCSENSE & VSSSENSE pins

VGPU_CORE_SENSE

VSS_GPU_SENSE

Place close to CPU socket VCCSENSE & VSSSENSE pins

21

5

PC35

PR185 *10K/F_4

+3VS5

PR50 *100K/F_4

2

34

PQ13A *2N7002KDW

PC169

*47P/50V_4

PR182 *20K/F_4

61

PR186

*100K/F_4

PQ13B *2N7002KDW

+3V

PR188 *0_4/S

PR189 *0_4/S

PR175

*80.6K/F_4

3211_EN

3211_FBRTN 3211_FB 3211_COMP 3211_IREF

3211_RPM

PU8 *ADP3211A

32

EN

31

VID0

30

VID1

29

VID2

28

VID3

27

VID4

26

VID5

25

VID6

1

PWRGD

2

IMON

3

CLKEN#

4

FBRTN

5

FB

6

COMP

9

IREF

10

RPM

11

3211_RT

PR176

PR170

PR180

*0_4

*340K/F_4

*200K/F_4

+5VS5

PR190 *10_6

PC174

3211_VCC

3211_BST

3211_CSCOMP 3211_ILIM 3211_LLINE

3211_CSFB 3211_CSREF 3211_RAMP

PR177

*422K/F_4

PR172

*1K/F_4

PC160

*1U/6.3V_4

PR187 *1_6

PC173 *0.22U/25V_6

+5VS5

PC60

*2.2U/6.3V_6

PR174 *3.24K/F_4 PR173 *20K/F_4 PR178 *20K/F_4

PC161

3211_CSREF

3211_SW 3211_DRVL

PC162

3211_DRVH_G3211_DRVH

4

PQ14

*TPCA8A10-H

G

Place close to Inductor

PR164

*220K_6 NTC

PR166

*110K/F_4

PC163 *680P/50V_4

*1200P/50V_4

5

213

5

213

D

S

D

S

12

3211_DRVH_G

PQ40 *TPCA8064-H

3211_DRVL

*TPCA8A10-H

PR171

*178K/F_4

PQ12

PR168

*121K/F_4

5

PC38

D

G

4

S

213

5

G

4

213

PQ39

*TPCA8064-H

D

S

*4.7U/25V_8

*0.36U28A(ETQP4LR36AFC)

DCR=0.76mohm

PR45 *2.2_6

PC34 *2200P/50V_4

PC39

PR191 *0_2/S

*4.7U/25V_8

PL12

PC44

*4.7U/25V_8

PR192 *0_2/S

GPIO10

PWRCNTL5

0

1

PC37

*4.7U/25V_8

GPIO30

PWRCNTL4

PC42

1

0

*0.1U/25V_4

PC40

*2200P/50V_4

12

+

PC47

*330U_2V_7343_ESR6

PWRCNTL3

1

0 1

24

VCC

22

DRVH

23

BST

21

SW

20

PVCC

18

PGND

17

AGND

19

DRVL

16

CSCOMP

8

ILIM

13

LLINE

15

CSFB

14

CSREF

12

RAMP

GPU

RT

GNDEP

7

33

PR169 *0_4/S

PR193 *0_4/S

+5VS5

+VIN_GPU

0

*1000P/50V_4

1

1 1

1

1 1 0 0

+VIN+VIN_GPU

PL3 *0_8/S

800 mils

12

+

PC166

*330U/2.5V_6X4.5ESR12

GPIO20

PWRCNTL2

1 1

0

1

10

1

0

12

+VGA +/- 5%

PC106

Countinue current:21A Peak current:27A OCP minimum 33A

*0.1U/25V_4

+VGA_CORE

12

+

PC165

PC175

*330U/2.5V_6X4.5ESR12

GPIO15GPIO16

PWRCNTL1

0

10

0

1

0

1 0

Sun XT

V-CORE

1

1.125V

0

1.100V

1

1.075V

01

1.050V

1.025V

1

0

1.000V

1

0.975V

010.950V

1

0.925V

00

0.900V

0.875V

1

0.850V

0.825V

1

0.800V1

36

Default

0.775V10111

PROJECT :U81

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet of

+VGACORE (ADP3211)

1

36 37Friday, May 24, 2013

1A

of

1

A A

DGPU_PWROK(9,27,36)

B B

+5VS5

2

PJP1

*POWER_JP/S

PC23

*0.01U/50V_4

PR20 *0_4/P

12

PR26

*10_6

PC24

*10U/6.3V_6

554PG_1.0V

554PVIN_1.0V

PC20

*1U/6.3V_4

3

VGA TYPE

Thems

MARS

PC25

*2200P/50V_4

PU2

4

PG

9

PVIN

10

PVIN

*RT8068A

8

SVIN

11

GND

DGPU_PWR_EN(9,36)

R2 Value

10K

11.3K

PR28

*2.2_6

1

554LX_1.0V

NC

2

LX

3

LX

7

554NC_1.0V

NC

6

554FB_1.0V554SVIN_1.0V

FB

5

EN

PR18 *10K_4

4

CS31132FB07

PL11

*1uH/11A(EM-10AM05V06)

*22P/50V_4

PC17

*68P/50V_4

PC11

*0.47U/6.3V_4

PC12

P/N 1.0V_VGA

1.0VCS31002FB26

0.95V

554FB_1.0V_S

R1

R2

PR163 *0_2/S

PR16

*6.65K/F_4

V0=0.6*(R1+R2)/R2

PR17 *11.3K/F_4

5

+0.95V +/- 3% Countinue current:2A Peak current:3A OCP minimum:4A

+1.0V_VGA

+1.0V_VGA_S2

PC152

PC158

*22U/6.3V_8

*0.1U/10V_4

PR165 *POWER_JP/S

1 2

PC155

*10U/6.3V_6

+0.95V_VGA

6

7

8

37

PR147 *1M_4

PR145 *1M_4

+VIN

PR127 *1M_4

PR126 *1M_4

+1.8V_VGA

2

1.8VGFX_ONG

+3V_VGA

2

3VGFX_ONG

+VIN

3

PQ26

2

PC103 *0.47U/6.3V_4

2

1

*2N7002K

3

PQ21 *2N7002K

1

DGPU_PWR_EN

C C

DGPU_PWR_EN

D D

1

PR132 *33K/F_4 PC110

*0.47U/6.3V_4

PR128

*0_4/P

3

1

3

1

PR137 *22_8

PQ28 *2N7002K

PR129 *22_8

PQ24 *2N7002K

3

+12VALW

2

PR138 *1M_4

1.8VGFX_OND

3

PQ27 *2N7002K

1

+VGA_CORE

2

3

1

PR117 *22_8

PQ19 *2N7002K

2

PQ17 *EMB20N03V

PC93 *0.01U/16V_4

+12VALW

PR46 *1M_4

3

PQ22 *2N7002K

1

+1.8V

678

35241

3VGFX_OND

PC86 *0.1U/10V_4

4

PC91

*0.1U/10V_4

1.5A

+1.8V_VGA

3

PQ16

*EMB32N03K

PC87 *2200P/50V_4

PC88

*10U/6.3V_6

+3VS5

DGPU_PWR_EN

65241

PC92 *0.1U/10V_4

PC89 *0.1U/10V_4

PR136

*30K/F_4

0.06A

+3V_VGA

PC90

PC114

*0.01U/16V_4

4

+1.5VSUS

PC129

5

D

G

S

*0.1U/10V_4

213

PQ33 *MDU1512RH

PC107

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet

Date: Sheet

Date: Sheet of

7

(5A )

+1.5V_VGA

PC32

PC126

*0.1U/10V_4

*10U/6.3V_6

PROJECT :U81

Quanta Computer Inc.

+1.0V_VGA/1.8V_VGA/3V_VGA

1A

37 37Friday, May 24, 2013

8

1A

of

3

1

PR15 *22_8

PQ3 *2N7002K

+12VALW

2

3

1

PR143 *1M_4

1.5V_OND

PQ23 *2N7002K

+1.5V_VGA

+VIN

PR131 *1M_4

2

1.5V_ONG

2

PC108

PQ25 *DRC5144

*0.47U/6.3V_4

*10U/6.3V_6

5

PR130 *1M_4

1 3

+1.5V_VGA (17,18,19,24)

+1.8V_VGA (14,15,17) +1.0V_VGA (14,15,17,24) +3V_VGA (14,17,24,26)

6

Quanta U81 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
