STRATOS S210 Series
S210-X12RS
Ultra-Socket High Memory
1U Rackmount Server
User's Guide
Version: 1.0
CONVENTIONS
XV
Conventions
Several different typographic conventions are used throughout
this manual. Refer to the following examples for common
usage.
Bold type face denotes menu items, buttons and application
names.
Italic type face denotes references to other sections, and the
names of the folders, menus, programs, and files.
<Enter> type face denotes keyboard keys.
WARNING!
Warning information appears before the text it references and
should not be ignored as the content may prevent damage to
the device.
CAUTION!
CAUTIONS APPEAR BEFORE THE TEXT IT REFERENCES, SIMILAR TO
NOTES AND WARNINGS. CAUTIONS, HOWEVER, APPEAR IN CAPITAL
LETTERS AND CONTAIN VITAL HEALTH AND SAFETY INFORMATION.
Important:
Indicates information that is important to know for the proper
completion of a procedure, choice of an option, or completing a
task.
!
!
Note:
Highlights general or useful information and tips.
ACRONYMS
XVI
Acronyms
TERM DEFINITION
A/D Analog to Digital
ACPI Advanced Configuration and Power Interface
ASF Alerting Standard Forum
Asserted
Active-high (positive true) signals are asserted when in
the high electrical state (near power potential). Activelow (negative true) signals are asserted when in the low
electrical state (near ground potential).
BIOS Basic Input/Output System
BIST Built-In Self Test
BMC
At the heart of the IPMI architecture is a microcontroller
called the Baseboard management controller (BMC)
Bridge
Circuitry connecting one computer bus to another,
allowing an agent on one to access the other
BSP Bootstrap processor
Byte 8-bit quantity
CLI Command Line Interface
CMOS
In terms of this specification, this describes the PC-AT
compatible region of battery-backed 128 bytes of
memory, which normally resides on the baseboard
CPU Central Processing Unit
Deasserted
A signal is deasserted when in the inactive state. Activelow signal names have “_L” appended to the end of the
signal mnemonic. Active-high signal names have no “_L”
suffix. To reduce confusion when referring to active-high
and active-low signals, the terms one/zero, high/low, and
true/false are not used when describing signal states.
DTC Data Transfer Controller
EEPROM Electrically Erasable Programmable Read-Only Memory
EMP Emergency Management Port
FRU Field Replaceable Unit
GB 1024 MB.
GPIO General Purpose Input/Out
HSC Hot-Swap Controller
Hz Hertz (1 cycle/second)
I
2
C
Inter-Integrated Circuit bus
IANA Internet Assigned Numbers Authority
IBF Input buffer
ICH I/O Controller Hub
ICMB Intelligent Chassis Management Bus
IERR Internal Error
IP Internet Protocol
IPMB Intelligent Platform Management Bus
ACRONYMS
XVII
IPMI Intelligent Platform Management Interface
ITP In-Target Probe
KB 1024 bytes.
KCS Keyboard Controller Style
KVM Keyboard, Video, Mouse
LAN Local Area Network
LCD Liquid Crystal Display
LCT Lower Critical Threshold
LED Light Emitting Diode
LNCT Lower Non-Critical Threshold
LNRT Lower Non-Recoverable Threshold
LPC Low Pin Count
LSI Large Scale Integration
LUN Logical Unit Number
MAC Media Access Control
MB 1024 KB
MD2 Message Digest 2 – Hashing Algorithm
MD5 Message Digest 5 – Hashing Algorithm – Higher Security
Ms Milliseconds
Mux Multiplexer
NIC Network Interface Card
NMI Nonmaskable Interrupt
NM Node Management
OBF Output buffer
OEM Original Equipment Manufacturer
Ohm Unit of electrical resistance
PDB Power Distribution Board
PEF Platform Event Filtering
PEP Platform Event Paging
PERR Parity Error
POH Power-On Hours
POST Power-On Self Test
PWM Pulse Width Modulation
RAC Remote Access Card
RAM Random Access Memory
RMCP Remote Management Control Protocol
ROM Read Only Memory
RTC
Real-Time Clock. Component of the chipset on the
baseboard.
RTOS Real Time Operation System
SCI Serial Communication Interface
SDC SCSI Daughter Card
SDR Sensor Data Record
SEEPROM
Serial Electrically Erasable Programmable Read-Only
Memory
ACRONYMS
XVIII
SEL System Event Log
SERR System Error
SMBus
A two-wire interface based on the I
2
C protocol. The
SMBus is a low-speed bus that provides positive
addressing for devices, as well as bus arbitration
SMI
Server Management Interrupt. SMI is the highest priority
nonmaskable interrupt
SMM Server Management Mode
SMS Server Management Software
SNMP Simple Network Management Protocol
SOL Serial Over LAN
UART Universal Asynchronous Receiver/Transmitter
UCT Upper Critical Threshold
UDP User Datagram Protocol
UNCT Upper Non-Critical Threshold
UNRT Upper Non-Recoverable Threshold
WDT Watchdog Timer
Word 16-bit quantity
SAFETY INFORMATION
XIX
Safety Information
Important Safety Instructions
Read all caution and safety statements in this document before
performing any of the instructions.
Warnings
Heed safety instructions: Before working with the server,
whether using this manual or any other resource as a reference, pay close attention to the safety instructions. Adhere to
the assembly instructions in this manual to ensure and maintain
compliance with existing product certifications and approvals.
Use only the described, regulated components specified in this
manual. Use of other products / components will void the UL
listing and other regulatory approvals of the product and will
most likely result in non-compliance with product regulations in
the region(s) in which the product is sold.
System power on/off: The power button DOES NOT turn off
the system AC power. To remove power from system, you must
unplug the AC power cord from the wall outlet. Make sure the
AC power cord is unplugged before opening the chassis, adding, or removing any components.
Hazardous conditions, devices and cables: Hazardous electrical conditions may be present on power, telephone, and communication cables. Turn off the server and disconnect the
power cord, telecommunications systems, networks, and
modems attached to the server before opening it. Otherwise,
personal injury or equipment damage can result.
Electrostatic discharge (ESD) and ESD protection: ESD can
damage drives, boards, and other parts. We recommend that
you perform all procedures in this chapter only at an ESD workstation. If one is not available, provide some ESD protection by
wearing an antistatic wrist strap attached to chassis ground any
unpainted metal surface on the server when handling parts.
ESD and handling boards: Always handle boards carefully.
They can be extremely sensitive to electrostatic discharge
(ESD). Hold boards only by their edges. After removing a board
from its protective wrapper or from the server, place the board
component side up on a grounded, static free surface. Use a
conductive foam pad if available but not the board wrapper. Do
not slide board over any surface.
Installing or removing jumpers: A jumper is a small plastic
encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that can be gripped with fingertips
or with a pair of fine needle nosed pliers. If the jumpers do not
have such a tab, take care when using needle nosed pliers to
remove or install a jumper; grip the narrow sides of the jumper
with the pliers, never the wide sides. Gripping the wide sides
can damage the contacts inside the jumper, causing intermittent
problems with the function controlled by that jumper. Take care
to grip with, but not squeeze, the pliers or other tool used to
remove a jumper, or the pins on the board may bend or break.
REVISION HISTORY
XX
Revision History
Refer to the table below for the updates made to this manual.
Copyright
Copyright © 2014 Quanta Computer Inc. This publication,
including all photographs, illustrations and software, is protected under international copyright laws, with all rights
reserved. Neither this manual, nor any of the material contained
herein, may be reproduced without the express written consent
of the manufacturer. All trademarks and logos are copyrights of
their respective owners.
Version 1.0.2 3/11/14
Disclaimer
The information in this document is subject to change without
notice. The manufacturer makes no representations or warran-
ties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. Furthermore, the manufacturer reserves
the right to revise this publication and to make changes from
time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.
For the latest information and updates please refer to
www.QuantaQCT.com
All the illustrations in this technical guide are for reference only
and are subject to change without prior notice.
DATE CHAPTER UPDATES
3/11/14
Specification Ivy-Bridge plafform support
BIOS Adding iSCSI and other sections
BMC Adding SNMP and Quanta SMASH
REVISION HISTORY
XXI
About the Server
Chapter 1
About the Server
Chapter 1
ABOUT THE SERVER INTRODUCTION
1-1
1.1 Introduction
This manual is written for system technicians who are responsible for troubleshooting, upgrading, and repairing the server chassis.
This document provides an overview of the hardware features of the chassis, troubleshooting information, and instructions on how to
add and replace components of the multi-node server series.The document also provides information on the BIOS, and Baseboard
Management Controller (BMC).
For the latest version of this manual, see www.QauntaQCT.com.
System Features
The system comprises a 1U/28.66” long chassis using 16.5” x
19.18” mainboard. The major components are featured as follows:
Chipset: Intel
®
C602 series, upgradeable ROM kit sup-
port.
Processors (x2): Intel
®
Xeon processor E5-2600 / E5-
2600 v2 product family.
PCI Express: (1) PCIe x16 G3 Low profile riser slot, (1)
PCIe x8 G3 Network Mezzanine slot, (1) PCIe x8 G3 SAS/
RAID Mezzanine slot.
Memory: Up to twenty-four DIMM slots are available.
DDR3 800/1066/1333/1600/1866 MHz RDIMM/LR-DIMM
memory is supported.
Storage: Up to ten 2.5" SATA/SAS hot-plug drives or four
3.5" SATA/SAS hot-plug drives. One SATADOM is
optional.
Network: Intel
®
Powerville I350GbE RJ45 or Intel® Twin-
ville X540 10G BASE T RJ45 dual-port on board.
Note:
A second processor must be installed (in
processor slot 2) to activate the expansion slot and
to allow the mezzanine card in there to function
properly.
Note:
Expansion cards descriebed in the document are
optional components.
Table 1-1: Specification
Chassis type 1U Chassis
ABOUT THE SERVER SYSTEM FEATURES
1-2
Size (L x W x H)
728.0 mm x 438.0 mm x 43.2 mm
28.6" x 17.2" x 1.7"
MB factor (W x L)
487.17 mm x 419.1 mm
19.18" x 16.5"
Processor
(2) Intel
®
Xeon® processor E5-2600/ E5-
2600 V2 family, up to 130W
Chipset
Intel
®
C602 (Patsburg A)
SAS Controller
Intel® SAS controller
Intel
®
C602 (Patsburg A) upgrade ROM
#1 (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#2 (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#5 (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#6 (optional)
or
LSI SAS controller
Quanta LSISAS 2008 Mezzanine card
(optional)
Quanta LSISAS 2108 Mezzanine card
(optional)
Quanta LSISAS 2208 Mezzanine card
(optional)
Quanta LSISAS 2308 Mezzanine card
(optional)
Table 1-1: Specification (Continued)
System Memory
(24) DDR3 800/1066/1333/1600/1866
MHz
ECC RDIMM/LR-DIMM slots up to 768
GB
Storage
(10) 2.5" SATA/SAS hot-plug drives, or
(4) 3.5" SATA/SAS hot-plug drives
(1) SATADOM (optional)
HDD Backplane 1 to 1 or expander
PCI Expansion Slot
(1) PCIe x16 G3 low profile riser slot
(1) PCIe x8 G3 10GbE SFP+ Mezzanine
slot
(1) PCIe x8 G3 Quanta LSISAS/RAID
Mezzanine slot
Table 1-1: Specification (Continued)
ABOUT THE SERVER SYSTEM FEATURES
1-3
Software RAID Options
Intel® SW RAID
Intel
®
RSTe SATA RAID 0/1/10 (AHCI
HDD)
Intel
®
C602 (Patsburg A) upgrade ROM
#1 RAID 0/1/10 for SCU (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#2 RAID 0/1/10/5 for SCU (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#5 RAID 0/1/10 for SCU (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#6 RAID 0/1/10/5 for SCU (optional)
Intel
®
C602 (Patsburg A) upgrade ROM
#9 SATA RAID 0/1/10/5 for SCU
(optional)
or
LSI SW RAID
Quanta LSISAS 2008 mezzanine card
for RAID 0/1/10 (optional)
Quanta LSISAS 2308 mezzanine card
for RAID 0/1/10 (optional)
Hardware RAID Options
Quanta LSISAS2208 PD-32 mezzanine
card for RAID 0/1/10/5 (optional)
Quanta LSISAS2208 PD-32 mezzanine
card + LSI RAID 6 Key for RAID 0/1/10/5/
6/50/60 (optional)
Table 1-1: Specification (Continued)
Network Interface
(2) Intel
®
Powerville I350 GbE RJ45
ports, or
(2) Intel
®
Twinville X540 10G BASE T
RJ45 ports
Management Port (1) Dedicated GbE RJ45 management port
Integrated Graphics BMC
Aspeed AST2300 8MB DDR3 Video
memory
Rear I/O Interface
(2) USB 2.0 ports
(1) VGA port
(1) RS232 serial Port
(2) GbE or 10G BASE-T RJ45 ports
(1) GbE RJ45 management port
(1) ID button with LED
Power Supply
(1) 750W high efficiency PSU, 100-
240VAC 50/60Hz
(1) 750W high efficiency redundant PSU,
100-240VAC 50/60Hz (optional)
TPM Yes (optional)
RoHS Yes
Systems Management
IPMI v2.0 Compliant
On board "KVM over IP" support
Table 1-1: Specification (Continued)
ABOUT THE SERVER PACKAGE CONTENTS
1-4
Package Contents
The following list includes the package components:
(1) 1U chassis system
(1) Mainboard modules
(2) Processor heatsinks
(1) Power supply
(1) Power cord (Optional)
(1) CD (user manual included)
(1) Rail kit
ABOUT THE SERVER A TOUR OF THE SYSTEM
1-5
1.2 A Tour of the System
The system is available as a 2.5” or a 3.5” form factor. The following illustrations show the major component parts of these two variants.
2.5” HDD System
Figure 1-1. 2.5” HDD System Component Overview
1
2
3
4
5
6
7
Table 1-2: 2.5” HDD System Component Overview
NO. ITEM DESCRIPTION
1 Riser Assembly
(1) PCIe x16 G3 low profile riser slot
(1) PCIe x8 G3 10GbE SFP+ Mezzanine slot
(1) PCIe x8 G3 Quanta LSISAS/RAID Mezzanine
slot
2 Hot-Swap PSU (2) Power supply units
3 Front Panel Control and LED panel for system status
4
2.5” Hard
Drives
(10) 2.5” hard disk drives (HDD)
5 System Fan (6) Fan module assembly
6 Air Duct Maintains proper airflow throughout system
7 iBBU holder Backup battery unit for mezzanine expansion card
ABOUT THE SERVER 3.5” HDD SYSTEM
1-6
3.5” HDD System
Figure 1-2. 3.5” HDD System Component Description
1
2
4
5
6
7
3
Table 1-3: 3.5” HDD System Component Description
N
O.ITEM DESCRIPTION
1.
Riser Assembly
(1) PCIe x16 G3 low profile riser slot
(1) PCIe x8 G3 10GbE SFP+ Mezzanine slot
(1) PCIe x8 G3 Quanta LSISAS/RAID Mezzanine
slot
2. Hot-Swap PSU (2) Power supply units
3. Front Panel Control and LED panel for system status
4. iBBU holder Backup battery unit for mezzanine expansion card
5. 3.5 Hard Drives (4) 3.5” hard disk drives (HDD)
6. System Fan (6) Fan module assembly
7. Air Duct Maintains proper airflow throughout system
ABOUT THE SERVER 3.5” HDD SYSTEM
1-7
3.5” HDD System Front Features
Figure 1-3. 3.5” HDD System Front Features
3.5” HDD System Front Panel Definition 3.5” HDD System Front Control Panel
1
2
Table 1-4: 3.5” HDD Front Panel Definition
I
TEM NAME DESCRIPTION
1 Control Panel Connect USB devices to these ports
2 HDD Bays Insert HDDs here.
Table 1-5: 3.5” HDD System LED Function and Behavior
I
TEM ICON NAME DESCRIPTION
1
Front USB
ports
Connect USB devices to these ports
123 456 7 8
ABOUT THE SERVER 3.5” HDD SYSTEM
1-8
2
Reset
Button with
LED
Base system On
Push button to Reset system
3MGMT LED
Green On, link
Green Blinking, LAN access
4
LAN 2/1
LED
Green On, link Green Blinking, LAN
access
5
HDD
Activity
LED
Green Blinking, HDD access Off, no
access
6 Event LED
Amber Blinking
Critical failure: fan, voltage,
temperature state
Non-critial failure: fan, voltage,
temperature state, CPU, thermal trip
Off
SEL cleared, DC Off, last pending
warning/error de-asserted
7
ID Button
with LED
Blue On
Selected unit ID
Off
No ID requested
Table 1-5: 3.5” HDD System LED Function and Behavior (Continued)
I
TEM ICON NAME DESCRIPTION
8
Power
button with
LED
Green
On
Off
System off
Turn system on / off.
Table 1-5: 3.5” HDD System LED Function and Behavior (Continued)
I
TEM ICON NAME DESCRIPTION
ABOUT THE SERVER 3.5” HDD SYSTEM
1-9
2.5” HDD System Front Features

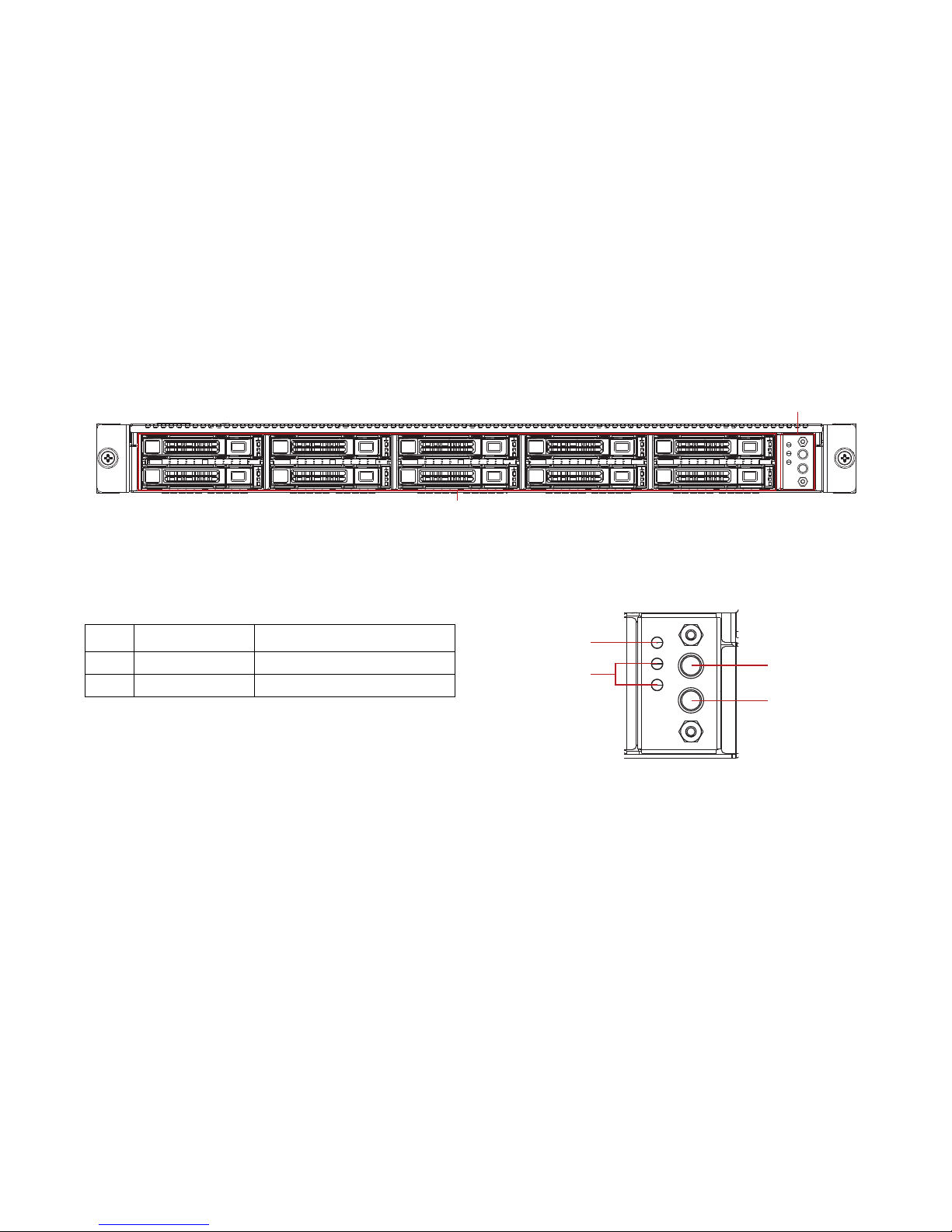

Figure 1-4. 2.5” HDD System Front Features
2.5” HDD System Front Panel Definition 2.5” HDD System Front Control Panel
Figure 1-5. Control Panel
2
1
Table 1-6: 2.5” HDD Front Panel Definition
I
TEM NAME DESCRIPTION
1 Control Panel Connect USB devices to these ports
2 HDD Bays Insert HDDs here.
1
2
3
4
ABOUT THE SERVER 3.5” HDD SYSTEM
1-10
Table 1-7: 2.5” HDD LED Function and Behavior
I
TEM ICON NAME DESCRIPTION
1 Event LED
Amber Blinking
Critical failure: fan, voltage,
temperature state
Non-critial failure: fan, voltage,
temperature state, CPU, thermal trip
Off
SEL cleared, DC Off, last pending
warning/error de-asserted
2 LAN1/2 LED
Green ON, link
Green Blinking, LAN access
3
Power
Button with
LED
Green
On
Off
System off
Turn system on / off
4
ID button
with LED
Blue On
Selected unit ID
Off
No ID requested
ABOUT THE SERVER SYSTEM HDD INTRODUCTION
1-11
System HDD Introduction
This system is available in two form factors, 2.5” HDD and 3.5” HDD.
2.5” Hard Disk Drive Configuration
Figure 1-6. 2.5” HDD Configuration
3.5” Hard Disk Drive Configuration
Figure 1-7. 3.5” HDD Configuration
HDD 1
HDD 0 HDD 2
HDD 3
HDD 4
HDD 5
HDD 6
HDD 7
HDD 8
HDD 9
HDD 0 HDD 1 HDD 2 HDD 3
ABOUT THE SERVER SYSTEM REAR FEATURES
1-12
System Rear Features
System Rear View
Figure 1-8. I/O Features (shown with ports on Mezzanine card)
12
9876534
Table 1-8: System I/O Features
I
TEM FEATURE DESCRIPTION
1 10GbE SFP+ Port Optional
2 PCIe Card PCIe x16 G3 card
3 PSU
Power supply unit
Left: PSU1
Right: PSU0
4ID button
Press this to illuminate the ID
LED on the front panel
5 VGA port Connect a monitor to this port
6 Console port
Connect a serial cable to this
port
7 USB port (2) USB 2.0 ports
8 GbE (or 10GbE) LAN port
Connect this to the data
network
9
Dedicated Management LAN
Port
Connect this to a network
monitoring station
Note:
The system supports single and redundant PSU. Redundant
PSU is optional.
Table 1-8: System I/O Features (Continued)
I
TEM FEATURE DESCRIPTION
ABOUT THE SERVER SYSTEM REAR FEATURES
1-13
System I/O LED Description
Rear I/O LED Description
Table 1-9: Rear side LED Function and Behavior (1G LAN)
I
CON NAME COLOR CONDITION DESCRIPTION
Identification LED Blue
ON Unit selected for identification
OFF No identification requested
LAN1 LED (Right)
Link/Act Green
On LAN Link
Blinking LAN access (off when there is traffic)
OFF Disconnect
Speed
Green ON Link speed is 100Mbits/sec
Amber ON Link speed is 1000Mbits/sec
-- OFF OFF, link speed is 10Mbits/sec
LAN2 LED (Left)
Link/Act Green
On LAN Link
Blinking LAN access (off when there is traffic)
OFF Disconnect
Speed
Green ON Link speed is 100Mbits/sec
Amber ON Link speed is 1000Mbits/sec
-- OFF OFF, link speed is 10Mbits/sec
ABOUT THE SERVER SYSTEM REAR FEATURES
1-14
Service Port
(LAN 3) LED
Link/Act Green
On LAN Link
Blinking LAN access (off when there is traffic)
OFF Disconnect
Speed Green ON Link speed is 10/100/1000Mbits/sec
Table 1-9: Rear side LED Function and Behavior (1G LAN) (Continued)
I
CON NAME COLOR CONDITION DESCRIPTION
Table 1-10: Rear side LED Function and Behavior (10G LAN)
I
CON NAME COLOR CONDITION DESCRIPTION
Identification LED Blue
ON Unit selected for identification
OFF No identification requested
LAN1 LED
(Right)
Link/Act Green
On LAN Link
Blinking
LAN access (off when there
is traffic)
OFF Disconnect
Speed
Blue ON Link speed is 10Gbits/sec
Amber ON Link speed is 1Gbits/sec
-- OFF
Link speed is 10/100Mbits/
sec
ABOUT THE SERVER SYSTEM REAR FEATURES
1-15
LAN2 LED
(Left)
Link/Act Green
On LAN Link
Blinking
LAN access (off when there
is traffic)
OFF Disconnect
Speed
Blue ON Link speed is 10Gbits/sec
Amber ON Link speed is 1Gbits/sec
-- OFF
Link speed is 10/100Mbits/
sec
Service Port
(LAN 3) LED
Link/Act Green
On LAN Link
Blinking
LAN access (off when there
is traffic)
OFF Disconnect
Speed Green
ON
Link speed is 10/100/
1000Mbits/sec
OFF Disconnect
Table 1-10: Rear side LED Function and Behavior (10G LAN) (Continued)
I
CON NAME COLOR CONDITION DESCRIPTION
Installation and Assembly Safety
Instructions
Chapter 2
INSTALLATION AND ASSEMBLY SAFETY INSTRUCTIONS INSTALLATION ASSEMBLY SAFETY INSTRUCTIONS
2-1
2.1 Installation Assembly Safety Instructions
Guidelines
The power supply in this product contains no user-serviceable parts.
Refer servicing only to qualified personnel.
Do not attempt to modify or use the supplied AC power cord if it is not the exact type required. A
product with more than one power supply will have a separate AC power cord for each supply.
The power button on the system does not turn off system AC power.
To remove AC power from the system, you must unplug each AC power cord from the wall outlet
or power supply.
The power cord(s) is considered the disconnect device to the main (AC) power. The socket outlet that the system plugs into shall be installed near the equipment and shall be easily accessible.
INSTALLATION AND ASSEMBLY SAFETY INSTRUCTIONS GUIDELINES
2-2
SAFETY STEPS: Whenever you remove the chassis covers to access the inside of the system,
follow these steps:
1. Turn off all peripheral devices connected to the system.
2. Turn off the system by pressing the power button.
3. Unplug all AC power cords from the system or from wall outlets.
4. Label and disconnect all cables connected to I/O connectors or ports on the back of the system.
5. Provide some electrostatic discharge (ESD) protection by wearing an antistatic wrist strap
attached to chassis ground of the system-any unpainted metal surface-when handling components.
6. Do not operate the system with the chassis covers removed.
After you have completed the six SAFETY steps above, you can remove the system covers. To
do this:
1. Unlock and remove the padlock from the back of the system if a padlock has been installed.
2. Remove and save all screws from the covers.
3. Remove the cover(s).
A microprocessor and heat sink may be hot if the system has been running. Also, there may be
sharp pins and edges on some board and chassis parts. Contact should be made with care.
Consider wearing protective gloves.
INSTALLATION AND ASSEMBLY SAFETY INSTRUCTIONS GUIDELINES
2-3
For proper cooling and airflow, always reinstall the chassis covers before turning on the system.
Operating the system without the covers in place can damage system parts. To install the covers:
1. Check first to make sure you have not left loose tools or parts inside the system.
2. Check that cables, add-in cards, and other components are properly installed.
3. Attach the covers to the chassis with the screws removed earlier, and tighten them firmly.
4. Insert and lock the padlock to the system to prevent unauthorized access inside the system.
5. Connect all external cables and the AC power cord(s) to the system.
Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Dispose of used batteries according to
manufacturer's instructions.
INSTALLATION AND ASSEMBLY SAFETY INSTRUCTIONS GUIDELINES
2-4
The system is designed to operate in a typical office environment.
Choose a site that is:
Clean and free of airborne particles (other than normal room dust).
Well ventilated and away from sources of heat including direct sunlight.
Away from sources of vibration or physical shock.
Isolated from strong electromagnetic fields produced by electrical devices.
In regions that are susceptible to electrical storms, we recommend you plug your system
into a surge suppressor and disconnect telecommunication lines to your modem during an
electrical storm.
Provided with a properly grounded wall outlet.
Provided with sufficient space to access the power supply cord(s), because they serve as
the product's main power disconnect.
The server system is safety certified as rack-mounted equipment for use in a server room or computer room, using
the customer rack kit.
The rail racks are designed to carry only the weight of the server system. Do not place additional load onto any railmounted equipment.
System rack kits are intended to be installed in a rack by trained service technicians.
Heavy object. Indicates two people are required to safely handle the system.
Safety Information
Chapter 3
SAFETY INFORMATION SERVER SAFETY INFORMATION
3-1
3.1 Server Safety Information
To reduce the risk of bodily injury, electrical shock, fire, and
equipment damage, read this document and observe all warnings and precautions in this guide before installing or maintaining your server product.
In the event of a conflict between the information in this document and information provided with the product or on the website for a particular product, the product documentation takes
precedence.
Your server should be integrated and serviced only by technically qualified persons.
You must adhere to the guidelines in this guide and the assembly instructions in your server manuals to ensure and maintain
compliance with existing product certifications and approvals.
Use only the described, regulated components specified in this
guide. Use of other products / components will void the UL Listing and other regulatory approvals of the product, and may
result in noncompliance with product regulations in the
region(s) in which the product is sold.
Safety Warnings and Cautions
To avoid personal injury or property damage, before you begin
installing the product, read, observe, and adhere to all of the following safety instructions and information. The following safety
symbols may be used throughout the documentation and may
be marked on the product and / or the product packaging.
Table 9-1: Safety Warning and Cautions
CAUTION
Indicates the presence of a hazard that may cause
minor personal injury or property damage if the
CAUTION is ignored.
WARNING
Indicates the presence of a hazard that may result in
serious personal injury if the WARNING is ignored.
Indicates potential hazard if indicated information is
ignored.
Indicates shock hazards that result in serious injury or
death if safety instructions are not followed.
Indicates hot components or surfaces.
Indicates do not touch fan blades, may result in injury.
SAFETY INFORMATION INTENDED APPLICATION USES
3-2
Intended Application Uses
This product was evaluated as Information Technology Equipment (ITE), which may be installed in offices, schools, computer
rooms, and similar commercial type locations. The suitability of
this product for other product categories and environments
(such as medical, industrial, residential, alarm systems, and
test equipment), other than an ITE application, may require further evaluation.
Site Selection
The system is designed to operate in a typical office environment. Choose a site that is:
Clean, dry, and free of airborne particles (other than nor-
mal room dust).
Well-ventilated and away from sources of heat including
direct sunlight and radiators.
Away from sources of vibration or physical shock.
Isolated from strong electromagnetic fields produced by
electrical devices.
In regions that are susceptible to electrical storms, we rec-
ommend you plug your system into a surge suppressor
and disconnect telecommunication lines to your modem
during an electrical storm.
Provided with a properly grounded wall outlet.
Provided with sufficient space to access the power supply
cord(s), because they serve as the product's main power
disconnect.
Provided with either two independent AC power sources
or two independent phases from a s single source.
Indicates to unplug all AC power cord(s) to disconnect
AC power.
Please recycle battery.
The rail racks are designed to carry only the weight of
the server system. Do not use rail-mounted equipment
as a workspace. Do not place additional load onto any
rail-mounted equipment.
Indicates two people are required to safely handle the
system.
Restricted Access Location: The server is intended
for installation only in a Server Room or Computer
Room where both these conditions apply:
access can only be gained by SERVICE
PERSONS or by USERS who have been
instructed about the reasons for the restrictions
applied to the location and about any precautions
that shall be taken; and
access is through the use of a TOOL or lock and
key, or other means of security, and is controlled by
the authority responsible for the location.
Table 9-1: Safety Warning and Cautions
SAFETY INFORMATION EQUIPMENT HANDLING PRACTICES
3-3
Equipment Handling Practices
Reduce the risk of personal injury or equipment damage:
Conform to local occupational health and safety require-
ments when moving and lifting equipment.
Use mechanical assistance or other suitable assistance
when moving and lifting equipment.
To reduce the weight for easier handling, remove any eas-
ily detachable components.
Power and Electrical Warnings
CAUTION!
THE POWER BUTTON, INDICATED BY THE STAND-BY POWER
MARKING, DOES NOT COMPLETELY TURN OFF THE SYSTEM AC
POWER, 5V STANDBY POWER IS ACTIVE WHENEVER THE SYSTEM
IS PLUGGED IN. TO REMOVE POWER FROM SYSTEM, YOU MUST
UNPLUG THE AC POWER CORD FROM THE WALL OUTLET. YOUR
SYSTEM MAY USE MORE THAN ONE AC POWER CORD. MAKE SURE
ALL AC POWER CORDS ARE UNPLUGGED. MAKE SURE THE AC
POWER CORD(S) IS / ARE UNPLUGGED BEFORE YOU OPEN THE
CHASSIS, OR ADD OR REMOVE ANY NON HOT-PLUG COMPONENTS.
CAUTION!
DO NOT ATTEMPT TO MODIFY OR USE AN AC POWER CORD IF IT IS
NOT THE EXACT TYPE REQUIRED. A SEPARATE AC CORD IS
REQUIRED FOR EACH SYSTEM POWER SUPPLY.
!
!
CAUTION!
SOME POWER SUPPLIES IN SERVERS USE NEUTRAL POLE
F
USING. TO AVOID RISK OF SHOCK USE CAUTION WHEN WORKING
WITH POWER SUPPLIES THAT USE NEUTRAL POLE FUSING.
CAUTION!
SOME POWER SUPPLIES IN SERVERS USE NEUTRAL POLE
F
USING. TO AVOID RISK OF SHOCK USE CAUTION WHEN WORKING
WITH POWER SUPPLIES THAT USE NEUTRAL POLE FUSING.
CAUTION!
THE POWER SUPPLY IN THIS PRODUCT CONTAINS NO USER-
SERVICEABLE PARTS. DO NOT OPEN THE POWER SUPPLY.
H
AZARDOUS VOLTAGE, CURRENT AND ENERGY LEVELS ARE
PRESENT INSIDE THE POWER SUPPLY. RETURN TO
MANUFACTURER FOR SERVICING.
CAUTION!
WHEN REPLACING A HOT-PLUG POWER SUPPLY, UNPLUG THE
POWER CORD TO THE POWER SUPPLY BEING REPLACED BEFORE
REMOVING IT FROM THE SERVER.
CAUTION!
TO AVOID RISK OF ELECTRIC SHOCK, TURN OFF THE SERVER AND
DISCONNECT THE POWER CORD, TELECOMMUNICATIONS
SYSTEMS, NETWORKS, AND MODEMS ATTACHED TO THE SERVER
BEFORE OPENING IT.
!
!
!
!
!
SAFETY INFORMATION SYSTEM ACCESS WARNINGS
3-4
Power Cord Warnings
If an AC power cord was not provided with your product, purchase one that is approved for use in your country.
System Access Warnings
CAUTION!
TO AVOID ELECTRICAL SHOCK OR FIRE, CHECK THE POWER
CORD(S) THAT WILL BE USED WITH THE PRODUCT AS FOLLOWS:
Do not attempt to modify or use the AC power cord(s) if
they are not the exact type required to fit into the grounded
electrical outlets.
The power cord(s) must meet the following criteria:
The power cord must have an electrical rating that is greater
than that of the electrical current rating marked on the
product.
CAUTION!
THE POWER CORD MUST HAVE SAFETY GROUND PIN OR CONTACT
THAT IS SUITABLE FOR THE ELECTRICAL OUTLET.
CAUTION!
THE POWER SUPPLY CORD(S) IS / ARE THE MAIN DISCONNECT
DEVICE TO AC POWER. THE SOCKET OUTLET(S) MUST BE NEAR
THE EQUIPMENT AND READILY ACCESSIBLE FOR DISCONNECTION.
CAUTION!
THE POWER SUPPLY CORD(S) MUST BE PLUGGED INTO SOCKET-
OUTLET(S) THAT IS /ARE PROVIDED WITH A SUITABLE EARTH
GROUND.
!
!
!
!
CAUTION!
TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, THE
FOLLOWING SAFETY INSTRUCTIONS APPLY WHENEVER ACCESSING
THE INSIDE OF THE PRODUCT:
Turn off all peripheral devices connected to this product.
Turn off the system by pressing the power button to off.
Disconnect the AC power by unplugging all AC power
cords from the system or wall outlet.
Disconnect all cables and telecommunication lines that are
connected to the system.
Retain all screws or other fasteners when removing
access cover(s). Upon completion of accessing inside the
product, refasten access cover with original screws or
fasteners.
Do not access the inside of the power supply. There are no
serviceable parts in the power supply. Return to
manufacturer for servicing.
Power down the server and disconnect all power cords
before adding or replacing any non hot-plug component.
When replacing a hot-plug power supply, unplug the power
cord to the power supply being replaced before removing the
power supply from the server.
CAUTION!
IF THE SERVER HAS BEEN RUNNING, ANY INSTALLED
PROCESSOR(S) AND HEAT SINK(S) MAY BE HOT.
!
!
SAFETY INFORMATION RACK MOUNT WARNINGS
3-5
Rack Mount Warnings
The following installation guidelines are required by UL for
maintaining safety compliance when installing your system into
a rack.
The equipment rack must be anchored to an unmovable support to prevent it from tipping when a server or piece of equipment is extended from it. The equipment rack must be installed
according to the rack manufacturer's instructions.
Install equipment in the rack from the bottom up, with the heaviest equipment at the bottom of the rack.
Extend only one piece of equipment from the rack at a time.
You are responsible for installing a main power disconnect for
the entire rack unit. This main disconnect must be readily
accessible, and it must be labeled as controlling power to the
entire unit, not just to the server(s).
To avoid risk of potential electric shock, a proper safety ground
must be implemented for the rack and each piece of equipment
installed in it.
Elevated Operating Ambient - If installed in a closed or multiunit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment
in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
CAUTION!
UNLESS YOU ARE ADDING OR REMOVING A HOT-PLUG
COMPONENT, ALLOW THE SYSTEM TO COOL BEFORE OPENING THE
COVERS. TO AVOID THE POSSIBILITY OF COMING INTO CONTACT
WITH HOT COMPONENT(S) DURING A HOT-PLUG INSTALLATION, BE
CAREFUL WHEN REMOVING OR INSTALLING THE HOT-PLUG
COMPONENT(S).
CAUTION!
TO AVOID INJURY DO NOT CONTACT MOVING FAN BLADES. IF YOUR
SYSTEM IS SUPPLIED WITH A GUARD OVER THE FAN, DO NOT
OPERATE THE SYSTEM WITHOUT THE FAN GUARD IN PLACE.
!
!
SAFETY INFORMATION ELECTROSTATIC DISCHARGE (ESD)
3-6
Reduced Air Flow - Installation of the equipment in a rack
should be such that the amount of air flow required for safe
operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack
should be such that a hazardous condition is not achieved due
to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that
overloading of the circuits might have on overcurrent protection
and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other
than direct connections to the branch circuit (e.g. use of power
strips).
Electrostatic Discharge (ESD)
Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by their edges. After removing a
board from its protective wrapper or from the server, place the
board component side up on a grounded, static free surface.
Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.
CAUTION!
ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE
RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD
WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD
PROTECTION BY WEARING AN ANTISTATIC WRIST STRAP ATTACHED
TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON
YOUR SERVER WHEN HANDLING PARTS.
!
SAFETY INFORMATION OTHER HAZARDS
3-7
Other Hazards
Battery Replacement
Cooling and Airflow
Laser Peripherals or Devices
Use certified and rated Laser Class I for Optical Transceiver
product.
CAUTION!
THERE IS THE DANGER OF EXPLOSION IF THE BATTERY IS
INCORRECTLY REPLACED. WHEN REPLACING THE BATTERY, USE
ONLY THE BATTERY RECOMMENDED BY THE EQUIPMENT
MANUFACTURER.
CAUTION!
DISPOSE OF BATTERIES ACCORDING TO LOCAL ORDINANCES AND
REGULATIONS.
CAUTION!
DO NOT ATTEMPT TO RECHARGE A BATTERY.
CAUTION!
DO NOT ATTEMPT TO DISASSEMBLE, PUNCTURE, OR OTHERWISE
DAMAGE A BATTERY.
!
!
!
!
CAUTION!
CAREFULLY ROUTE CABLES AS DIRECTED TO MINIMIZE AIRFLOW
BLOCKAGE AND COOLING PROBLEMS. FOR PROPER COOLING AND
AIRFLOW, OPERATE THE SYSTEM ONLY WITH THE CHASSIS
COVERS INSTALLED. OPERATING THE SYSTEM WITHOUT THE
COVERS IN PLACE CAN DAMAGE SYSTEM PARTS. TO INSTALL THE
COVERS:
Check first to make sure you have not left loose tools or
parts inside the system.
Check that cables, add-in cards, and other components
are properly installed.
Attach the covers to the chassis according to the product
instructions.
CAUTION!
TO AVOID RISK OF RADIATION EXPOSURE AND / OR PERSONAL
INJURY:
Do not open the enclosure of any laser peripheral or
device.
Laser peripherals or devices are not serviceable.
Return to manufacturer for servicing.
!
!
Regulatory and Compliance
Information
Chapter 4
REGULATORY AND COMPLIANCE INFORMATION PRODUCT REGULATORY COMPLIANCE MARKINGS
4-1
4.1 Product Regulatory Compliance Markings
This product is marked with the following Product Certification
markings:
Table 10-1: Product Regulatory Compliance Markings
R
EGULATORY
C
OMPLIANCE
REGION MARKING
cULus Listing
Marks
USA /
Canada
CE Mark Europe
FCC Marking
(Class A)
USA
This device complies with Part 15 of the
FCC Rules. Operation of this device is
subject to the following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
VCCI Marking
(Class A)
Japan
BSMI
Certification
Number &
Class A
Warning
Ta iw an
KCC Korea
GOST R
Marking
Russia
Table 10-1: Product Regulatory Compliance Markings (Continued)
REGULATORY AND COMPLIANCE INFORMATION PRODUCT REGULATORY COMPLIANCE MARKINGS
4-2
ICES Canada
This Class A digital apparatus
complies with Canadian ICES-
003.
Cet appareil numérique de la
classe A est conforme à la
norme NMB-003 du Canada.
Recycling
Package
Mark
Other than
China
Table 10-1: Product Regulatory Compliance Markings (Continued)
REGULATORY AND COMPLIANCE INFORMATION ELECTROMAGNETIC COMPATIBILITY NOTICES
4-3
Electromagnetic Compatibility Notices
FCC Verification Statement (USA)
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver
Connect the equipment to an outlet on a circuit other than
the one to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to operate
the equipment. The customer is responsible for ensuring compliance of the modified product.
Only peripherals (computer input/output devices, terminals,
printers, etc.) that comply with FCC Class A or B limits may be
attached to this computer product. Operation with noncompliant
peripherals is likely to result in interference to radio and TV
reception.
All cables used to connect to peripherals must be shielded and
grounded. Operation with cables, connected to peripherals, that
are not shielded and grounded may result in interference to
radio and TV reception.
Europe (CE Declaration of Conformity)
This product has been tested in accordance too, and complies
with the Low Voltage Directive (73/23/EEC) and EMC Directive
(89/336/EEC). The product has been marked with the CE Mark
to illustrate its compliance.
REGULATORY AND COMPLIANCE INFORMATION VCCI (JAPAN)
4-4
VCCI (Japan)
(
English translation of the notice above:
This is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI) from Information
Technology Equipment. If this is used near a radio or television
receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction
manual.
BSMI (Taiwan)
The BSMI Certification Marking and EMC warning is located on
the outside rear area of the product.
KCC (Korea)
Korean Communications Commission (KCC) Class A Statement:
Regulated Specified Components
To maintain the UL listing and compliance to other regulatory
certifications and/or declarations, the following regulated components must be used and conditions adhered to. Interchanging
or use of other component will void the UL listing and other
product certifications and approvals.
Updated product information for configurations can be found on
the site at the following URL:
www.quantaqct.com
If you do not have access to the Web address, please contact
your local representative.
Add-in cards: must have a printed wiring board flammabil-
ity rating of minimum UL94V-1. Add-in cards containing
external power connectors and/or lithium batteries must
be UL recognized or UL listed. Any add-in card containing
REGULATORY AND COMPLIANCE INFORMATION RESTRICTION OF HAZARDOUS SUBSTANCES (ROHS) COMPLIANCE
4-5
modem telecommunication circuitry must be UL listed. In
addition, the modem must have the appropriate telecommunications, safety, and EMC approvals for the region in
which it is sold.
Peripheral Storage Devices: must be UL recognized or UL
listed accessory and TUV or VDE licensed. Maximum
power rating of any one device is 19 watts. Total server
configuration is not to exceed the maximum loading conditions of the power supply.
Restriction of Hazardous Substances
(RoHS) Compliance
Quanta® Computer Inc. has a system in place to restrict the
use of banned substances in accordance with the European
Directive 2002/95/EC. Compliance is based on declaration that
materials banned in the RoHS Directive are either (1) below all
applicable threshold limits or (2) an approved / pending RoHS
exemption applies.
RoHS implementation details are not fully defined and may
change.
Threshold limits and banned substances are noted below:
Quantity limit of 0.1% by mass (1000 PPM) for:
Lead
Mercury
Hexavalent Chromium
Polybrominated Biphenyls Diphenyl Ethers (PBDE)
Quantity limit of 0.01% by mass (100 PPM) for:
Cadmium
End of Life / Product Recycling
Product recycling and end-of-life take-back systems and
requirements vary by country. Contact the retailer or distributor
of this product for information about product recycling and / or
take-back.
Loading...
