R09/A 17" OPT BLOCK DIAGRAM
A A
DDRIII-SODIMM1
H=4mm
PAGE12
DDRIII-SODIMM2
H=8mm
SATA -HDD(Main)
B B
SATA -HDD(Second)
m-SATA
ODD
USB3.0 Ports x2
USB Power share port1
3-axis Fall Sensor
FFS_INT2_R
C C
D D
FFS LNG3DMTR
Keyboard Conn.
Touch Pad
PAGE11
PAGE34
PAGE34
PAGE41
PAGE34
PAGE35, 36
PAGE33
PAGE40
PAGE40
HDD_FALL_INT1
PWM FAN
&Thermal
DDRIII 1600 MT/s
DDRIII 1600 MT/s
SATA0 Gen3
SATA1 Gen3
SATA2 Gen2
SATA3 Gen2
USB3.0/2.0
SMBUS
KBC
ITE 8518
PAGE38
SPI ROM
8MB
PAGE44 PAGE39
FDI LINK
LPC
CPU
Ivy Bridge/
Sandy Bridge
35W / 45W CPU
PGA 988
2.7GT /s
Mobile Intel
Series 7 Chipset
PCH
HM77
Panther Point
BGA 989
25 mm X 25 mm
SPI
SPI ROM
8MB
PAGE39
25MHz
PAGE6~10
DMI LINK
5GT /s
iGFX Interfaces
PAGE20~26
32.768KHz
PCIEx16
HDMI 1.4a
CRT
LVDS
USB2.0
PCI-E
USB3.0/2.0
IHDA
N13P-GT/GV
(128bit/64bit)
USB[12]
Camera
PAGE27 PAGE32
USB[4]
WLAN/BT
PAGE41
PCIE[1]
USB3.0
Ports x1
DB1
Audio Codec
IDT 92HD94
PAGE30
Nvidia
29mm X 29mm
BGA 973
GDDR5 2GB/1GB
128Mbx16bitx8
128Mbx16bitx4
PAGE18,19
Card reader
RTS5179GR
LAN 10/100/1000
RTL8111F/8105E
PAGE13~17
HDMI 1.4a
USB[11]
PCIE[5]
25MHz
eDP
CRT
Finger print
RJ45
3D LCD CONN
1920 x 1080 (FHD)
CRT CONN
HDMI CONN
PAGE29
USB[8]
PAGE27
PAGE27
PAGE28
LCD CONN
1600 x 900 (HD+)
1920 x 1080 (FHD)
DB2
Hot key
board
DB3
USB3.0
Ports x1
DB4
Poewr button board
DB5
TP button board
PCB STACK UP
6L
LAYER 1 : TOP
LAYER 2 : GND
LAYER 3 : IN1
LAYER 4 : IN2
LAYER 5 : VCC
LAYER 6 : BOT
PAGE27
DIS
Subwoofer
TI TPA3111
PAGE31 PAGE30 PAGE30 PAGE27
1
2
3
4
5
Jack x 2Speaker Digital-MIC
6
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, February 20, 2012
Date: Sheet of
Monday, February 20, 2012
Date: Sheet of
Monday, February 20, 2012
7
PROJECT :
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
R09A
R09A
R09A
1 58
1 58
1 58
8
3A
3A
3A
1
A A
2
+3.3V_SUS
3
+3.3V_RUN
4
5
JDIM1A
A0
6
7
8
2.2K
2.2K2.2K
JDIM2A
FALL SENSOR
STM LNG3DM
A4
50
2.2K2.2K
SMBCLK
H14
SMBDATA
C9
PCH
C8
SML0CLK
G12
SML0DATA
B B
+3.3V_RUN
N-MOSFET
N-MOSFET
+3.3V_RUN
2.2K
WLAN_SCLK
WLAN_SDATA
+3.3V_SUS
+3.3V_SUS
2.2K2.2K
E14
SMB_CLK_ME1
M16
SMB_DATA_ME1
+3.3V_ALW
2.2K2.2K
SMBDAT1116
SMBCLK1
115
+3.3V_ALW
C C
SIO
ITE8518E
110
SMBCLK0
111 SMBDAT0
2.2K2.2K
+3.3V_RUN
2.2K2.2K
SMBCLK3
94
SMBDAT3
95
N-MOS
N-MOS
+3.3V_SUS
+3.3V_SUS
100
100
Battery
Charger
THERMAL(NCT7718W)
16h
Function
12
DDR3
Thermal IC
Charge IC
Battery
Fall Sensor
98
JDIM1A A0
JDIM2A A4
G781-1P8
EMC1422
BQ24707ARGRR
Battery
LNG3DM
SMBus AddressIC
1001101xb (9Ah)
1001100xb (98h)
0b00010010 (0x12)
16h
01010000 (50h)
THERMAL(G781-1)
9A
For GPU
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
1
2
3
4
5
6
7
Wednesday, February 08, 2012
PROJECT :
SMB/SCREW PAD
SMB/SCREW PAD
SMB/SCREW PAD
8
R09A
R09A
R09A
2 58
2 58
2 58
3A
3A
3A
1
2
3
4
5
6
7
8
USB Master
A A
USB0
USB1
USB2
USB3
USB4
USB5
B B
USB6
Port Assignment
External port#1 (USB3.0)
External port#2
(USB3.0 / Power share)
External port#3 (USB3.0)
External port#4 (USB3.0)
MiniCard 1 (WLAN/BT/WiMAX)
NC
X(FOR HM77)
SATA0
SATA1
SATA2
SATA3
SATA4
SATA5
Port AssignmentSATA Master
HDD Main
HDD Second
mSATA
ODD
NC
NC
PCIE 1
PCIE 2
PCIE 3
PCIE 4
PCIE 5
PCIE 6
PCIE 7
Port AssignmentPCIE Master
WLAN
NC
NC
NC
LAN
NC
NC
NCPCIE 8
USB7
X(FOR HM77)
FingerprintUSB8
USB9
USB10
USB11
USB12
NC
Card Reader
Express Card
Camera
C C
D D
USB13
1
NC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012 3 58
Date: Sheet of
Wednesday, February 08, 2012 3 58
Date: Sheet of
2
3
4
5
6
Wednesday, February 08, 2012 3 58
7
PROJECT :
PORT ASSIGNMENT
PORT ASSIGNMENT
PORT ASSIGNMENT
R11
3A
3A
3A
8
5
4
3
2
1
Adapter 90W
Charger
BQ24707RGRR
D D
PWR_SRC
Shapes: 280mil
Via: 10
VER : 1A
Battery 3S2P
+3.3V_EN2 ALW_ON
TI (PU1)
TPS51125ARGER
+3.3V_ALW
TDC: 6.2A
Shapes: 155mil
C C
Via: ?
SUS_ON
Load Switch(PQ18)
FDC655BN
+3.3V_SUS
TDC: 0.226A
Shapes: 8mil
Via: ?
B B
+5V_ALW
TDC: 10.8A
Shapes: 720mil
Via: ?
Load Switch(PQ24)
FDC655BN
+5V_SUS
TDC: 0.1A
Shapes: 56.4mil
Via: ?
RUN_ON
Load Switch(PQ23)
MDV1522URH
+3.3V_RUN
TDC: 2.6A
Shapes: 140.8mil
Via: ?
+15V_ALW
SUS_ON
Load Switch(PQ17)
MDV1522URH
+5V_RUN
TDC: 4.13A
Shapes: 140mil
Via: ?
DGPU_PWR_EN
Load Switch(PQ20)
FDC655BN
For dGPU only
+3.3V_GFX
TDC: 0.966A
Shapes: 8mil
Via: ?
SIO_SLP_S3#
+1.5V_SUS
TDC: 16A
Shapes: 326mil
Via: ?
RUN_ON
RichTek(PU5)
RT8068AZQW
+1.8V_RUN
TDC: 0.869A
Shapes: 40.8mil
Via: ?
SIO_SLP_S4#
TI(PU2)
TPS51216RUKR
+0.75V_DDR_VTT
Load Switch(PQ25)
FDC655BN
+1.5V_RUN
TDC: 0.922A
Shapes: 40mil
Via: ?
1.05V_PCH_PWRGD
1.5V_SUS_PWRGD
LDO
TDC: 1A
Shapes: 40mil
Via: ?
RUN_ON
Load Switch(PQ26)
MDV1522URH
VCCSA_EN
RichTek(PU4)
RT8241DGQW
RichTek(PU3)
RT8240BGQW
+1.5V_SUS
+VCCSA_CORE
TDC: 4.2A
Shapes: 168mil
Via: ?
DGPU_PWR_ON#
SIO_SLP_S3#
Load Switch(Q4)
AON7410
For dGPU only For dGPU only
+1.5V_GFX
TDC: 7.9A
Shapes: 40mil
For dGPU
Via: ?
+1.5V_CPU
TDC: 5A
Shapes: 200mil
Via: ?
+1.05V_PCH
Load Switch(PQ28)
MDV1522URH
TDC: 13.4A
Shapes: 415.6mil
Via: ?
+1.05V_GFX
TDC: 2.7A
Shapes: 40mil
Via: ?
+3.3V_RUN
DGFX_VR_PWRGD
IMVP_VR_ON
ON(PU7)
NCP6132A
PQ34 PQ35 PQ36
+VCC_CORE
TDC: 52A
Shapes: 1696mil
Via: ?
+VCC_iGFX_CORE
TDC: 38A
Shapes: 920mil
Via: ?
ON(PU10)
NCP3218MNR2G
+VCC_DGFX_CORE
TDC: 60A
Shapes: 1600mil
Via: ?
+3V_GFX
For dGPU only
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Power Block Diagram
Power Block Diagram
Power Block Diagram
Date: Sheet of
Wednesday, February 08, 2012 4 58
Date: Sheet of
Wednesday, February 08, 2012 4 58
Date: Sheet of
5
4
3
2
Wednesday, February 08, 2012 4 58
PROJECT :
R09A
R09A
R09A
3A
3A
3A
1
1
Battery Mode
+5V_ALW
+3.3V_ALW
A A
B B
C C
+5V_ALW
+3.3V_ALW
+1.5V_SUS
D D
SUS
SW
G
+PWR_SRC
DDR/0.75V
S3
S4
SLP_S3
SWITCH
G
+PWR_SRC
RUN PWR
SWITCH
G
+PWR_SRC
1.05V
VR
EN
1
PG
RC Delay
PG
2
+5V_SUS
+3.3V_SUS
SUS_ON
+1.5V_SUS
+DDR_VTTREF
+0.75V_DDR_VTT
1.5V_SUS_PWRGD
SIO_SLP_S3#
SIO_SLP_S4#
+1.5V_CPU+1.5V_SUS
SIO_SLP_S3#
+GFX_PWR_SRC
+5V_RUN
+3.3V_RUN
+1.5V_RUN
RUN_ON
+1.05V_PCH
1.05V_PCH_PWRGD
30
+3.3V_RUN
2
21
11
12
10
26
27
28
25
29
20
22
23
24
19
18
19
VCCSA_PWRGD
34
+5V_ALW
SVID
42
3
1.8V
VR
EN
+PWR_SRC
VCCSA
VR
EN
+PWR_SRC
IMVP
VR
3
EN
CPUPCH
35
HWPG
PG
PG
PG
IMVP_VR_ON
31
32
33
34
4
3
POWER_SW_IN0#
7
SUS_ON
10
+1.8V_RUN
VCCSA_EN
+VCCSA_CORE
VCCSA_PWRGD
VCCSA_EN
+VCC_CORE
+VCC_GFX_CORE
IMVP_PWRGD
43
47
44
36
4
SYS_PWR_SW#
RUN_ON
25
+3.3V_ALW
+1.5V_SUS
5
2
+5V_ALW2
PWR SW VR
3.3V_ALW_ON
4
6
ALW_ON
13
RSMRST#
ME_SUS_PWR_ACK
AC_PRESENT
EC
EC_PWROK
IMVP_VR_ON
3637
SIO_SLP_S5#17SIO_SLP_S4#18SIO_SLP_S3#
19
GPU PWR
15
SIO_PWRBTN#
16
35.2
+3V_GFX
SWITCH
G
DGPU_PWR_EN
+PWR_SRC
GPU
VR
EN
35.3
GPU PWR
SWITCH
G
PG
35.5
+VCC_DGFX_CORE
35.4
DGFX_VR_PWRGD
DGPU_VREN
35.6
35.7
DGFX_VR_PWRGD
+1.5V_GFX
+1.05V_GFX+1.05V_PCH
GPU
5
3V/5V
EN2
35.1
6
+PWR_SRC
14
38
44
37
38
37
6
+3.3V_ALW
+5V_ALW
+15V_ALW
EN1
SIO_SLP_S5#
SIO_SLP_S4#
SIO_SLP_S3#
PM_DRAM_PWRGD
PCH_CLK
SYS_PWROK
DGPU_PWR_EN
DGPU_VREN
SYS_PWROK
IMVP_PWRGD
EC_PWROK
PM_DRAM_PWRGD
EC_PWROK
46
PLTRST#
DGPU_HOLD_RST#
35.10
7
1
+VCHGR+PWR_SRC
8
5
8
9
17
19
39
35.1
CHARGER Battery
DPWROK
SUSWARN#
ACPRESENT
PWRBTN#
18
SLP_S5#
SLP_S3#
APWROK
DRAMPWROK
SYS_PWROK
PCH
35.3
35.8
GPIO17DGPU_PWROK
PROCPWRGD
35.10
H_PWRGOOD
41
45
DGPU_HOLD_RST#
40
U2
SM_SDRAMPWROK
SVID
42
47
GPU_RST#
GPU
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012 5 58
Date: Sheet of
Wednesday, February 08, 2012 5 58
Date: Sheet of
Wednesday, February 08, 2012 5 58
7
PROJECT :
POWER SEQUENCE
POWER SEQUENCE
POWER SEQUENCE
R09
8
46
UNCOREPWRGOOD
CPU
PLTRST#
RESET# PLTRST#
3A
3A
3A
5
4

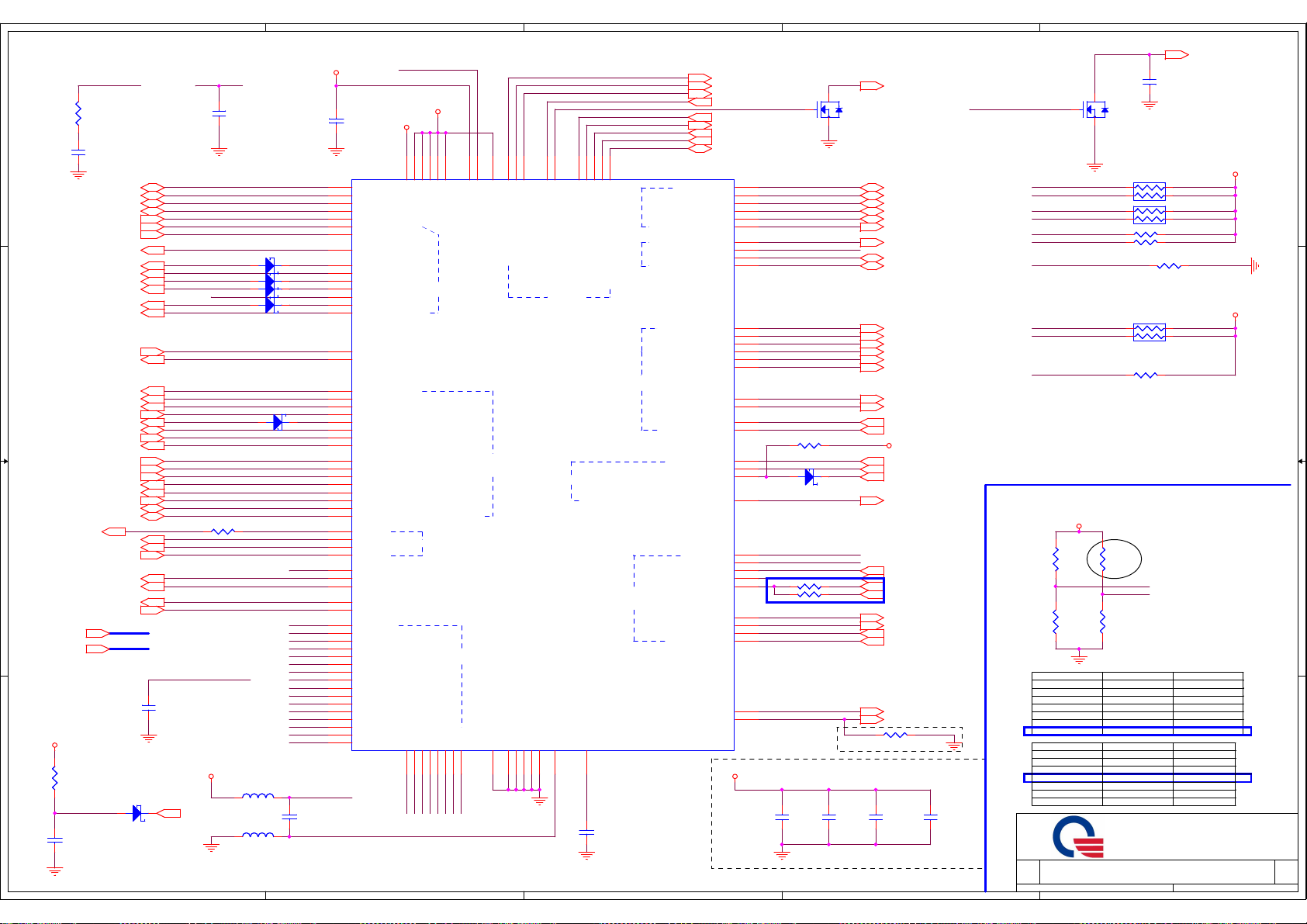

Ivy Bridge Processor (RESERVED, CFG)
3
2
1
DP & PEG Compensation
+1.05V_PCH
D D
U29A
U29A
DMI_TXN0[20]
DMI_TXN1[20]
DMI_TXN2[20]
DMI_TXN3[20]
DMI_TXP0[20]
DMI_TXP1[20]
DMI_TXP2[20]
DMI_TXP3[20]
DMI_RXN0[20]
DMI_RXN1[20]
DMI_RXN2[20]
DMI_RXN3[20]
DMI_RXP0[20]
DMI_RXP1[20]
DMI_RXP2[20]
DMI_RXP3[20]
C C
B B
eDP_ICOMPO 12mil
eDP_COMPIO 4mil
Programing Disable eDP interface(BIOS)
FDI_TXN0[20]
FDI_TXN1[20]
FDI_TXN2[20]
FDI_TXN3[20]
FDI_TXN4[20]
FDI_TXN5[20]
FDI_TXN6[20]
FDI_TXN7[20]
FDI_TXP0[20]
FDI_TXP1[20]
FDI_TXP2[20]
FDI_TXP3[20]
FDI_TXP4[20]
FDI_TXP5[20]
FDI_TXP6[20]
FDI_TXP7[20]
FDI_FSYNC0[20]
FDI_FSYNC1[20]
FDI_LSYNC0[20]
FDI_LSYNC1[20]
FDI_INT[20]
eDP_COMP
INT_eDP_HPD
DMI_TXN0
DMI_TXN1
DMI_TXN2
DMI_TXN3
DMI_TXP0
DMI_TXP1
DMI_TXP2
DMI_TXP3
DMI_RXN0
DMI_RXN1
DMI_RXN2
DMI_RXN3
DMI_RXP0
DMI_RXP1
DMI_RXP2
DMI_RXP3
FDI_TXN0
FDI_TXN1
FDI_TXN2
FDI_TXN3
FDI_TXN4
FDI_TXN5
FDI_TXN6
FDI_TXN7
FDI_TXP0
FDI_TXP1
FDI_TXP2
FDI_TXP3
FDI_TXP4
FDI_TXP5
FDI_TXP6
FDI_TXP7
FDI_FSYNC0
FDI_FSYNC1
FDI_INT
FDI_LSYNC0
FDI_LSYNC1
FDI Disabling (Discrete Only)
FDI_INT
R190 0_4_DISR190 0_4_DIS
1 2
R200 0_4_DISR200 0_4_DIS
1 2
R185 0_4_DISR185 0_4_DIS
1 2
R197 0_4_DISR197 0_4_DIS
1 2
R184
R184
1K_4_DIS
1K_4_DIS
A A
DIS: POP
UMA/ OTP: NC
R186
R186
1K_4_DIS
1K_4_DIS
FDI_FSYNC can gang
all these 4
signals together
and tie them with
only one 1K
resistor to GND
(DG V0.5 Ch2.2.9).
5
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC0
FDI_LSYNC1
B27
DMI_RX#[0]
B25
DMI_RX#[1]
A25
DMI_RX#[2]
B24
DMI_RX#[3]
B28
DMI_RX[0]
B26
DMI_RX[1]
A24
DMI_RX[2]
B23
DMI_RX[3]
G21
DMI_TX#[0]
E22
DMI_TX#[1]
F21
DMI_TX#[2]
D21
DMI_TX#[3]
G22
DMI_TX[0]
D22
DMI_TX[1]
F20
DMI_TX[2]
C21
DMI_TX[3]
A21
FDI0_TX#[0]
H19
FDI0_TX#[1]
E19
FDI0_TX#[2]
F18
FDI0_TX#[3]
B21
FDI1_TX#[0]
C20
FDI1_TX#[1]
D18
FDI1_TX#[2]
E17
FDI1_TX#[3]
A22
FDI0_TX[0]
G19
FDI0_TX[1]
E20
FDI0_TX[2]
G18
FDI0_TX[3]
B20
FDI1_TX[0]
C19
FDI1_TX[1]
D19
FDI1_TX[2]
F17
FDI1_TX[3]
J18
FDI0_FSYNC
J17
FDI1_FSYNC
H20
FDI_INT
J19
FDI0_LSYNC
H17
FDI1_LSYNC
A18
eDP_COMPIO
A17
eDP_ICOMPO
B16
eDP_HPD
C15
eDP_AUX
D15
eDP_AUX#
C17
eDP_TX[0]
F16
eDP_TX[1]
C16
eDP_TX[2]
G15
eDP_TX[3]
C18
eDP_TX#[0]
E16
eDP_TX#[1]
D16
eDP_TX#[2]
F15
eDP_TX#[3]

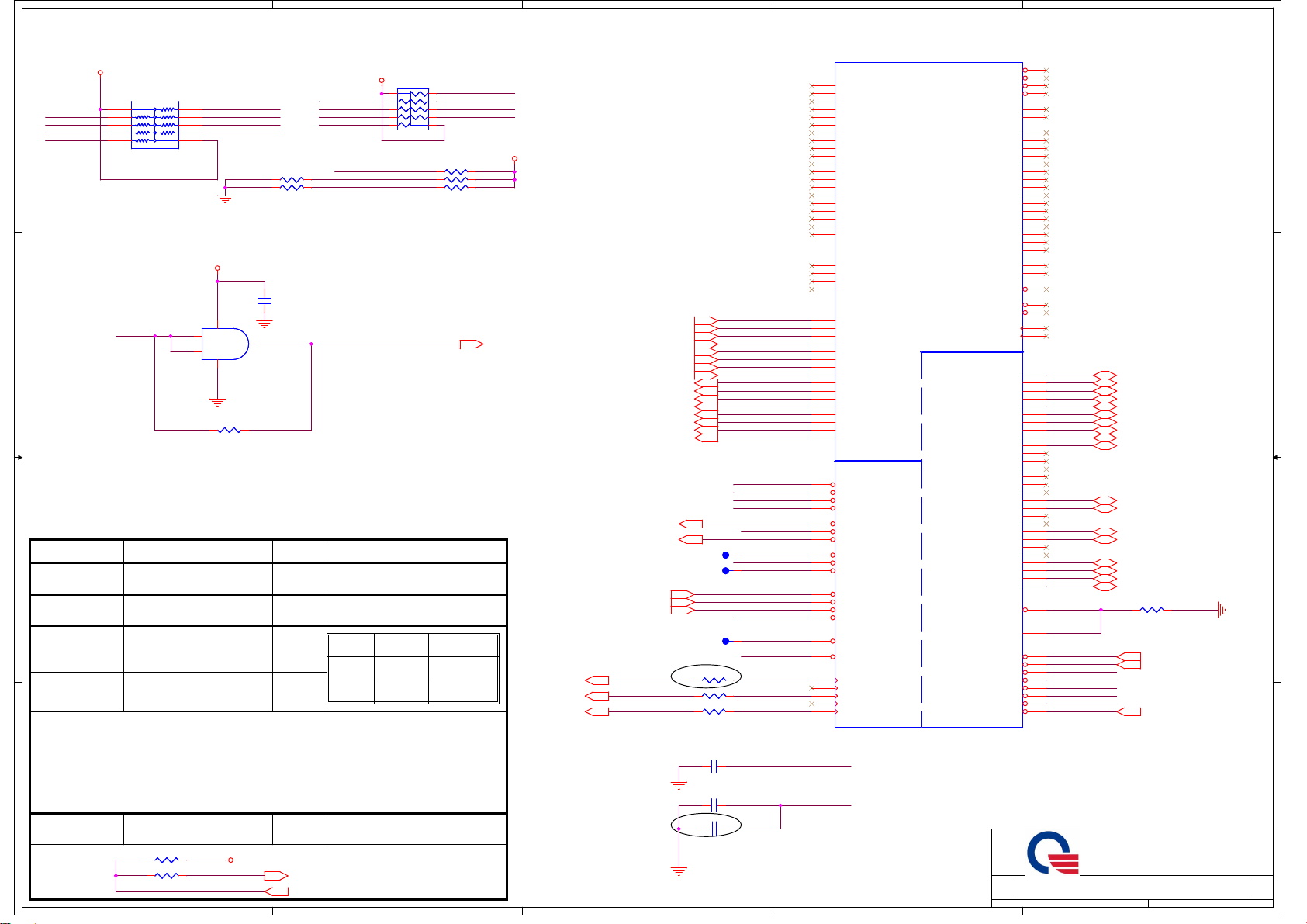

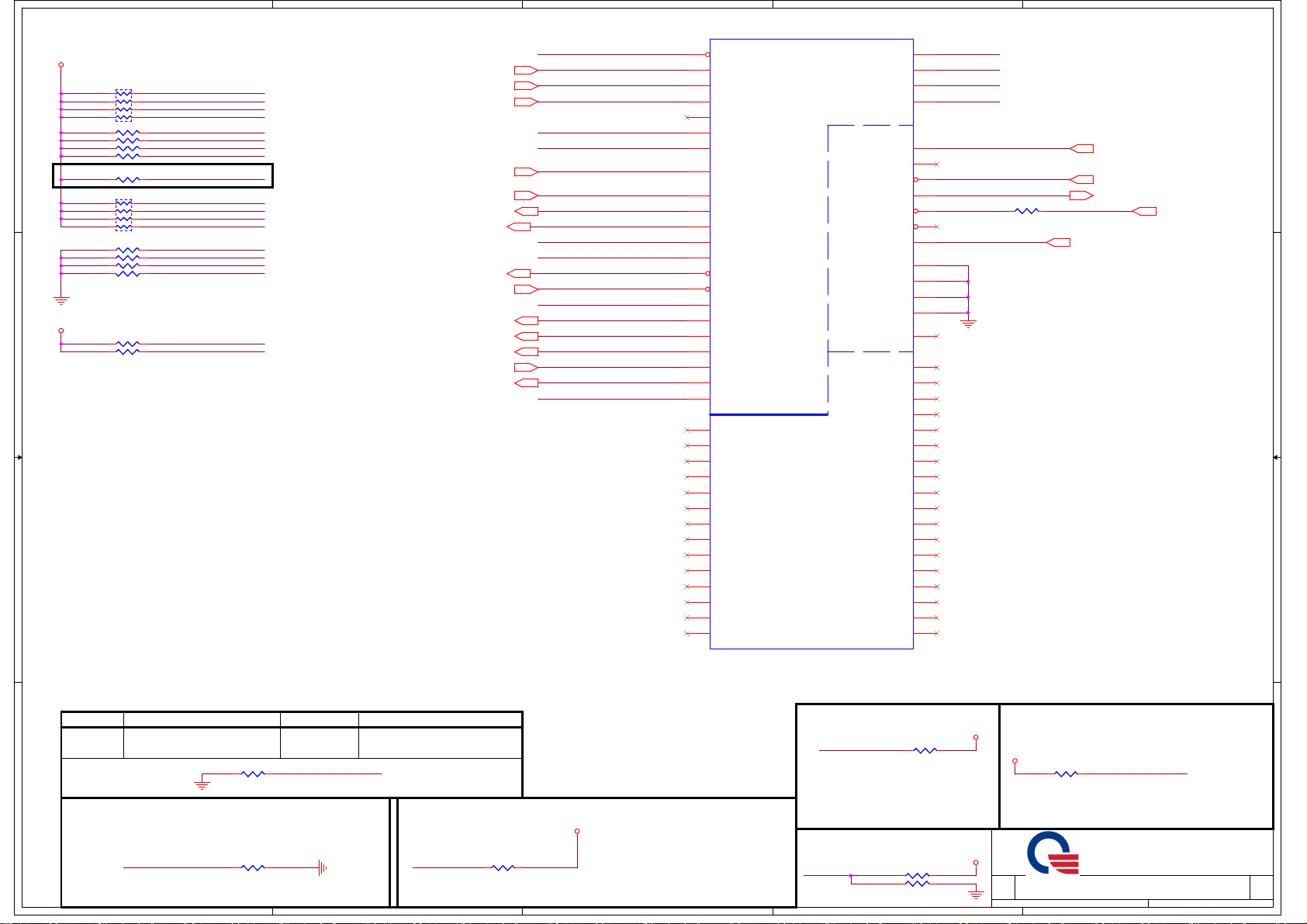

Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
4
DMI
DMI
Intel(R) FDI
Intel(R) FDI
eDP
eDP
PEG_ICOMPI
PEG_ICOMPO
PEG_RCOMPO
PEG_RX#[0]
PEG_RX#[1]
PEG_RX#[2]
PEG_RX#[3]
PEG_RX#[4]
PEG_RX#[5]
PEG_RX#[6]
PEG_RX#[7]
PEG_RX#[8]
PEG_RX#[9]
PEG_RX#[10]
PEG_RX#[11]
PEG_RX#[12]
PEG_RX#[13]
PEG_RX#[14]
PEG_RX#[15]
PEG_RX[0]
PEG_RX[1]
PEG_RX[2]
PEG_RX[3]
PEG_RX[4]
PEG_RX[5]
PEG_RX[6]
PEG_RX[7]
PEG_RX[8]
PEG_RX[9]
PEG_RX[10]
PEG_RX[11]
PEG_RX[12]
PEG_RX[13]
PEG_RX[14]
PEG_RX[15]
PEG_TX#[0]
PEG_TX#[1]
PEG_TX#[2]
PEG_TX#[3]
PEG_TX#[4]
PEG_TX#[5]
PEG_TX#[6]
PEG_TX#[7]
PEG_TX#[8]
PEG_TX#[9]
PEG_TX#[10]
PEG_TX#[11]
PCI EXPRESS* - GRAPHICS
PCI EXPRESS* - GRAPHICS
PEG_TX#[12]
PEG_TX#[13]
PEG_TX#[14]
PEG_TX#[15]
PEG_TX[0]
PEG_TX[1]
PEG_TX[2]
PEG_TX[3]
PEG_TX[4]
PEG_TX[5]
PEG_TX[6]
PEG_TX[7]
PEG_TX[8]
PEG_TX[9]
PEG_TX[10]
PEG_TX[11]
PEG_TX[12]
PEG_TX[13]
PEG_TX[14]
PEG_TX[15]
VGA(U3)
N13P-GV
N13P-GT
PEG_ICOMPO 12mil
PEG_ICOMPI, PEG_RCOMPO 4mil,
J22
J21
H22
K33
M35
L34
J35
J32
H34
H31
G33
G30
F35
E34
E32
D33
D31
B33
C32
J33
L35
K34
H35
H32
G34
G31
F33
F30
E35
E33
F32
D34
E31
C33
B32
M29
M32
M31
L32
L29
K31
K28
J30
J28
H29
G27
E29
F27
D28
F26
E25
M28
M33
M30
L31
L28
K30
K27
J29
J27
H28
G28
E28
F28
D27
E26
D25
PEG_COMP
PEG_RXN0
PEG_RXN1
PEG_RXN2
PEG_RXN3
PEG_RXN4
PEG_RXN5
PEG_RXN6
PEG_RXN7
PEG_RXN8
PEG_RXN9
PEG_RXN10
PEG_RXN11
PEG_RXN12
PEG_RXN13
PEG_RXN14
PEG_RXN15
PEG_RXP0
PEG_RXP1
PEG_RXP2
PEG_RXP3
PEG_RXP4
PEG_RXP5
PEG_RXP6
PEG_RXP7
PEG_RXP8
PEG_RXP9
PEG_RXP10
PEG_RXP11
PEG_RXP12
PEG_RXP13
PEG_RXP14
PEG_RXP15
PEG_TXN0_C
PEG_TXN1_C PEG_TXN1
PEG_TXN2_C
PEG_TXN3_C
PEG_TXN4_C
PEG_TXN5_C
PEG_TXN6_C
PEG_TXN7_C
PEG_TXN8_C
PEG_TXN9_C
PEG_TXN10_C
PEG_TXN11_C
PEG_TXN12_C
PEG_TXN13_C
PEG_TXN14_C
PEG_TXN15_C
PEG_TXP0_C
PEG_TXP1_C
PEG_TXP2_C
PEG_TXP3_C
PEG_TXP4_C
PEG_TXP5_C
PEG_TXP6_C
PEG_TXP7_C
PEG_TXP8_C
PEG_TXP9_C
PEG_TXP10_C
PEG_TXP11_C
PEG_TXP12_C
PEG_TXP13_C
PEG_TXP14_C
PEG_TXP15_C
C497 0.22U/16V_4C497 0.22U/16V_4
C496 0.22U/16V_4C496 0.22U/16V_4
C494 0.22U/16V_4C494 0.22U/16V_4
C490 0.22U/16V_4C490 0.22U/16V_4
C482 0.22U/16V_4C482 0.22U/16V_4
C484 0.22U/16V_4C484 0.22U/16V_4
C481 0.22U/16V_4C481 0.22U/16V_4
C474 0.22U/16V_4C474 0.22U/16V_4
C472 0.22U/16V_4C472 0.22U/16V_4
C467 0.22U/16V_4C467 0.22U/16V_4
C463 0.22U/16V_4C463 0.22U/16V_4
C461 0.22U/16V_4C461 0.22U/16V_4
C456 0.22U/16V_4C456 0.22U/16V_4
C455 0.22U/16V_4C455 0.22U/16V_4
C451 0.22U/16V_4C451 0.22U/16V_4
C452 0.22U/16V_4C452 0.22U/16V_4
C491 0.22U/16V_4C491 0.22U/16V_4
C495 0.22U/16V_4C495 0.22U/16V_4
C493 0.22U/16V_4C493 0.22U/16V_4
C489 0.22U/16V_4C489 0.22U/16V_4
C480 0.22U/16V_4C480 0.22U/16V_4
C486 0.22U/16V_4C486 0.22U/16V_4
C479 0.22U/16V_4C479 0.22U/16V_4
C471 0.22U/16V_4C471 0.22U/16V_4
C473 0.22U/16V_4C473 0.22U/16V_4
C465 0.22U/16V_4C465 0.22U/16V_4
C459 0.22U/16V_4C459 0.22U/16V_4
C460 0.22U/16V_4C460 0.22U/16V_4
C457 0.22U/16V_4C457 0.22U/16V_4
C454 0.22U/16V_4C454 0.22U/16V_4
C453 0.22U/16V_4C453 0.22U/16V_4
C450 0.22U/16V_4C450 0.22U/16V_4
PEG_RXN0 [13]
PEG_RXN1 [13]
PEG_RXN2 [13]
PEG_RXN3 [13]
PEG_RXN4 [13]
PEG_RXN5 [13]
PEG_RXN6 [13]
PEG_RXN7 [13]
PEG_RXN8 [13]
PEG_RXN9 [13]
PEG_RXN10 [13]
PEG_RXN11 [13]
PEG_RXN12 [13]
PEG_RXN13 [13]
PEG_RXN14 [13]
PEG_RXN15 [13]
PEG_RXP0 [13]
PEG_RXP1 [13]
PEG_RXP2 [13]
PEG_RXP3 [13]
PEG_RXP4 [13]
PEG_RXP5 [13]
PEG_RXP6 [13]
PEG_RXP7 [13]
PEG_RXP8 [13]
PEG_RXP9 [13]
PEG_RXP10 [13]
PEG_RXP11 [13]
PEG_RXP12 [13]
PEG_RXP13 [13]
PEG_RXP14 [13]
PEG_RXP15 [13]
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
0.22uF AC coupling Caps for PCIE GEN1/2/3 - GT
0.1uF AC coupling Caps for PCIE GEN1/2 - GV
AC coupling Cap
0.1uF
CAP CHIP 0.1U 16V(10%,X7R,0402)
0.22uF
CAP CHIP 0.22U 16V(10%,X7R,0402)
3
PN
CH4103K1B08
CH4223K1B00
PEG_TXN0
PEG_TXN2
PEG_TXN3
PEG_TXN4
PEG_TXN5
PEG_TXN6
PEG_TXN7
PEG_TXN8
PEG_TXN9
PEG_TXN10
PEG_TXN11
PEG_TXN12
PEG_TXN13
PEG_TXN14
PEG_TXN15
PEG_TXP0
PEG_TXP1
PEG_TXP2
PEG_TXP3
PEG_TXP4
PEG_TXP5
PEG_TXP6
PEG_TXP7
PEG_TXP8
PEG_TXP9
PEG_TXP10
PEG_TXP11
PEG_TXP12
PEG_TXP13
PEG_TXP14
PEG_TXP15
PEG_TXN0 [13]
PEG_TXN1 [13]
PEG_TXN2 [13]
PEG_TXN3 [13]
PEG_TXN4 [13]
PEG_TXN5 [13]
PEG_TXN6 [13]
PEG_TXN7 [13]
PEG_TXN8 [13]
PEG_TXN9 [13]
PEG_TXN10 [13]
PEG_TXN11 [13]
PEG_TXN12 [13]
PEG_TXN13 [13]
PEG_TXN14 [13]
PEG_TXN15 [13]
PEG_TXP0 [13]
PEG_TXP1 [13]
PEG_TXP2 [13]
PEG_TXP3 [13]
PEG_TXP4 [13]
PEG_TXP5 [13]
PEG_TXP6 [13]
PEG_TXP7 [13]
PEG_TXP8 [13]
PEG_TXP9 [13]
PEG_TXP10 [13]
PEG_TXP11 [13]
PEG_TXP12 [13]
PEG_TXP13 [13]
PEG_TXP14 [13]
PEG_TXP15 [13]
TX location RX location(page13)
C452,C451,C455,
C456,C461,C463,
C467,C472,C450,
C453,C454,C457,
C460,C459,C465,
C473
C125,C126,C147
C145,C123,C124
C152,C153,C121
C122,C151,C150
C119,C120,C149
C148
ALL ALL
2
eDP_COMP
R432 24.9/F_4R432 24.9/F_4
eDP_COMPIO and ICOMPO signals should
be shorted near balls and
routed within 500 mils
PEG_COMP
PEG_ICOMPI and RCOMPO signals should
be routed within 500 mils
PEG_ICOMPO signals should
be routed within 500 mils
1 2
+1.05V_PCH
R183 24.9/F_4R183 24.9/F_4
1 2
eDP Hot-plug (Disable)
+1.05V_PCH
R434
INT_eDP_HPD
CAD Note: Place PU resistor within 2 inches
of CPU
This signal can be left as no connect if
entire eDP interface is disabled.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
Ivy Bridge 1/5
Ivy Bridge 1/5
Ivy Bridge 1/5
Monday, March 05, 2012
Monday, March 05, 2012
Monday, March 05, 2012
R434
12
*10K_4_NC
*10K_4_NC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
R09A
R09A
R09A
6 58
6 58
6 58
3A
3A
3A
5
4
3
2
1

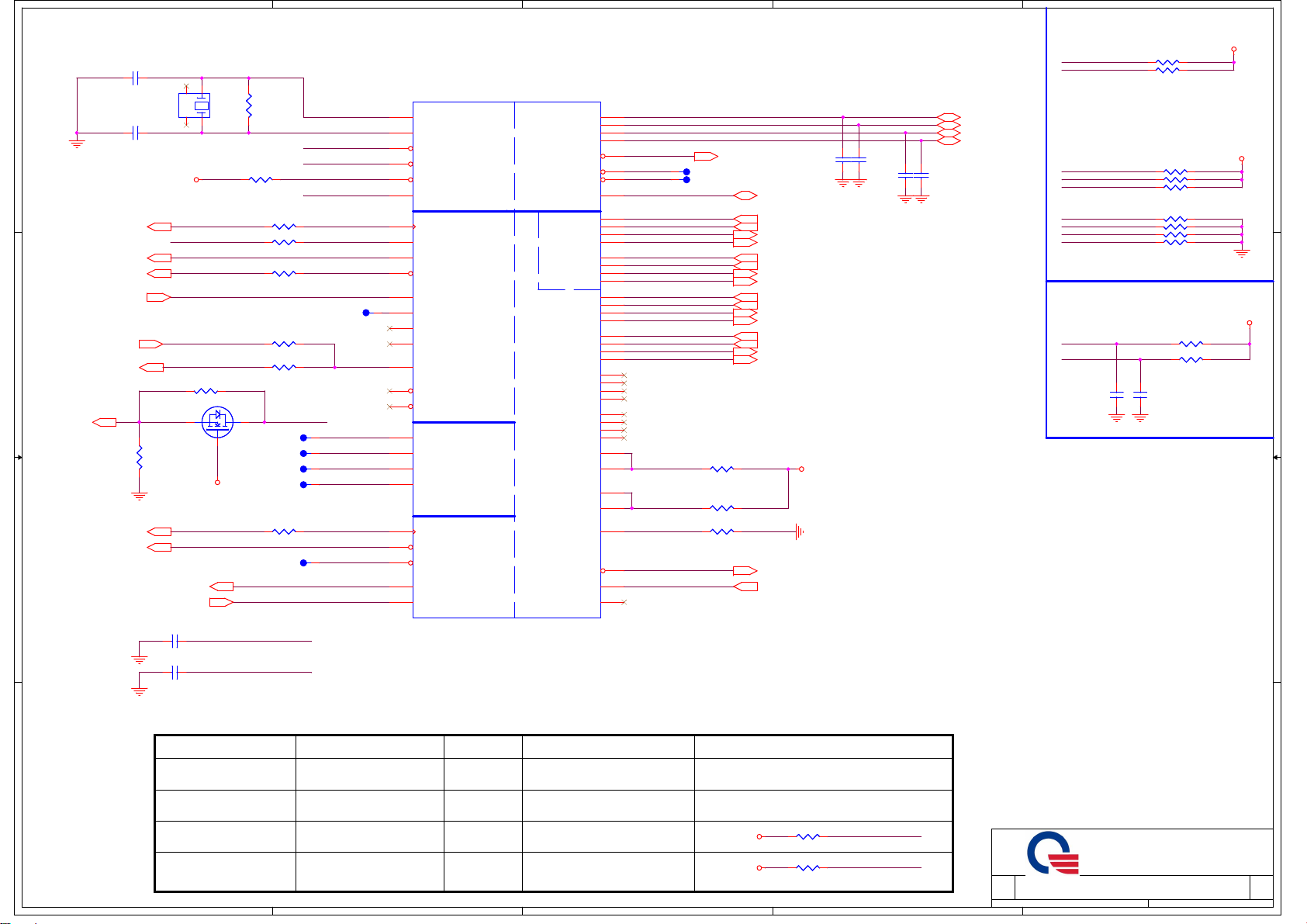

Ivy Bridge Processor (CLK,MISC,JTAG)
U29B
U29B
SNB_IVB# N.A at SNB EDS #27637 0.7v1
H_SNB_IVB#[23]
D D
IMVP7_PROCHOT#[38,53,55]
Over 130 degree C will
drive low
C C
H_CPUDET#[38]
PECI_EC[38]
H_PM_SYNC[20]
H_PWRGOOD[25]
PLTRST#[13,23,38,41,57]
PECI_EC
IMVP7_PROCHOT#
PM_THRMTRIP#[25]
H_PWRGOOD
R146 1.5K/F_4R146 1.5K/F_4
H_SNB_IVB#
H_CPUDET#
TP10TP10
CATERR#
R150 43_4R150 43_4
1 2
R151 56_4R151 56_4
1 2
PM_THRMTRIP#
12
R13610K_4 R13610K_4
12
SM_DRAMPWROK
CPU_PLTRST#_RPLTRST#
12
R147
R147
750/F_4
750/F_4
PECI_EC_R
H_PROCHOT#
C26
PROC_SELECT#
AN34
SKTOCC#
AL33
CATERR#
AN33
PECI
AL32
PROCHOT#
AN32
THERMTRIP#
AM34
PM_SYNC
AP33
UNCOREPWRGOOD
V8
SM_DRAMPWROK
AR33
RESET#
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
MISCTHERMALPWR MANAGEMENT
MISCTHERMALPWR MANAGEMENT
CLOCKS
CLOCKS
DDR3
DDR3
JTAG & BPM
JTAG & BPM
DPLL_REF_CLK
DPLL_REF_CLK#
SM_DRAMRST#
SM_RCOMP[0]
SM_RCOMP[1]
SM_RCOMP[2]
MISC
MISC
A28
BCLK
A27
BCLK#
CLK_DP_P_R
A16
CLK_DP_N_R
A15
CPU_DRAMRST#
R8
SM_RCOMP_0
AK1
SM_RCOMP_1
A5
SM_RCOMP_2
A4
SM_RCOMP_0, SM_RCOMP_1 20mil / SM_RCOMP_2 15mil.
AP29
PRDY#
AP27
PREQ#
TCK
TMS
TRST#
TDO
DBR#
BPM#[0]
BPM#[1]
BPM#[2]
BPM#[3]
BPM#[4]
BPM#[5]
BPM#[6]
BPM#[7]
TDI
XDP_TCLK
AR26
XDP_TMS
AR27
XDP_TRST#H_PM_SYNC
AP30
XDP_TDI XDP_TDO
AR28
XDP_TDO
AP26
XDP_DBRST#
AL35
AT28
AR29
AR30
AT30
AP32
AR31
AT31
AR32
CLK_CPU_BCLKP
CLK_CPU_BCLKN
R436 1K_4R436 1K_4
1 2
R438 1K_4R438 1K_4
1 2
R236 140/F_4R236 140/F_4
1 2
R231 25.5/F_4R231 25.5/F_4
1 2
R230 200/F_4R230 200/F_4
1 2
TP3TP3
TP5TP5
TP7TP7
TP6TP6
TP4TP4
+3.3V_RUN
1 2
R152 1K_4R152 1K_4
CLK_CPU_BCLKP [24]
CLK_CPU_BCLKN [24]
+1.05V_PCH
For internal eDP (Disable)
XDP_TMS
XDP_TDI
IMVP7_PROCHOT#
XDP_TCLK
XDP_TRST#
+1.05V_PCH
R142 *51_4_NCR142 *51_4_NC
R143 *51_4_NCR143 *51_4_NC
R141 *51_4_NCR141 *51_4_NC
R139 62_4R139 62_4
R129 *51_4_NCR129 *51_4_NC
R144 *51_4_NCR144 *51_4_NC
1 2
1 2
12
12
12
12
Intel spec VinH min =VCCIO X 0.7
B B
Boot S3
S3 RSM
+1.5V_CPU
DRAM_PWRGD
SYS_PWROK
100 ns after +1.5V_CPU
reaches 80%
Follow #DG1.5 471984 P130
DRAMRST# Routing Illustration
+1.5V_SUS
SM_DRAMPWROK
Follow #DG1.5 471984 P119
Follow #DG1.5 471984 P128
DDR Power Gating Topology
A A
PM_DRAM_PWRGD[20]
EC_PWROK[20,38]
PM_DRAM_PWRGD
+3.3V_SUS
12
R460
R460
200_4
200_4
2
1
U30
U30
74AHC1G09GW
74AHC1G09GW
3 5
12
C585
C585
0.1U/16V_4
0.1U/16V_4
4
+1.5V_CPU
R229
R229
200_4
200_4
1 2
R225 130_4R225 130_4
1 2
SM_DRAMPWROKSM_DRAMPWROK_R
DDR3_DRAMRST#[11,12]
DDR_HVREF_RST_PCH[9,24]
R464 1K_4R464 1K_4
DDR_HVREF_RST_PCH
when 1,2 is high, 4 is high-impedance OFF-state
5
4
3
2
12
+3.3V_SUS
1 2
R462 1K_4R462 1K_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
Ivy Bridge 2/5
Ivy Bridge 2/5
Ivy Bridge 2/5
Friday, March 02, 2012
Friday, March 02, 2012
Friday, March 02, 2012
Q45
Q45
R463
R463
2N7002W
2N7002W
1K_4
1K_4
1 2
3 1
2
12
C586
C586
0.047U/10V_4
0.047U/10V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
12
R461
R461
4.99K/F_4
4.99K/F_4
R09A
R09A
R09A
7 58
7 58
7 58
CPU_DRAMRST#DDR3_DRAMRST#_RDDR3_DRAMRST#
3A
3A
3A
5
4
3
2
1
Ivy Bridge Processor (DDR3)
U29D
D10
K10
AM5
AM6
AR3
AP3
AN3
AN2
AN1
AP2
AP5
AN9
AT5
AT6
AP6
AN8
AR6
AR5
AR9
AJ11
AT8
AT9
AH11
AR8
AJ12
AH12
AT11
AN14
AR14
AT14
AT12
AN15
AR15
AT15
AA9
AA7
AA10
AB8
AB9
C9
A7
C8
A9
A8
D9
D8
G4
F4
F1
G1
G5
F5
F2
G2
K9
J10
K8
K7
M5
N4
N2
N1
M4
N5
M2
M1
R6
J7
J8
J9
U29D
SB_DQ[0]
SB_DQ[1]
SB_DQ[2]
SB_DQ[3]
SB_DQ[4]
SB_DQ[5]
SB_DQ[6]
SB_DQ[7]
SB_DQ[8]
SB_DQ[9]
SB_DQ[10]
SB_DQ[11]
SB_DQ[12]
SB_DQ[13]
SB_DQ[14]
SB_DQ[15]
SB_DQ[16]
SB_DQ[17]
SB_DQ[18]
SB_DQ[19]
SB_DQ[20]
SB_DQ[21]
SB_DQ[22]
SB_DQ[23]
SB_DQ[24]
SB_DQ[25]
SB_DQ[26]
SB_DQ[27]
SB_DQ[28]
SB_DQ[29]
SB_DQ[30]
SB_DQ[31]
SB_DQ[32]
SB_DQ[33]
SB_DQ[34]
SB_DQ[35]
SB_DQ[36]
SB_DQ[37]
SB_DQ[38]
SB_DQ[39]
SB_DQ[40]
SB_DQ[41]
SB_DQ[42]
SB_DQ[43]
SB_DQ[44]
SB_DQ[45]
SB_DQ[46]
SB_DQ[47]
SB_DQ[48]
SB_DQ[49]
SB_DQ[50]
SB_DQ[51]
SB_DQ[52]
SB_DQ[53]
SB_DQ[54]
SB_DQ[55]
SB_DQ[56]
SB_DQ[57]
SB_DQ[58]
SB_DQ[59]
SB_DQ[60]
SB_DQ[61]
SB_DQ[62]
SB_DQ[63]
SB_BS[0]
SB_BS[1]
SB_BS[2]
SB_CAS#
SB_RAS#
SB_WE#
M_B_CLKP0
AE2
SB_CLK[0]
SB_CLK#[0]
SB_CKE[0]
SB_CLK[1]
SB_CLK#[1]
SB_CKE[1]
SB_CLK[2]
SB_CLK#[2]
SB_CKE[2]
SB_CLK[3]
SB_CLK#[3]
SB_CKE[3]
SB_CS#[0]
SB_CS#[1]
SB_CS#[2]
SB_CS#[3]
SB_ODT[0]
SB_ODT[1]
SB_ODT[2]
SB_ODT[3]
SB_DQS#[0]
SB_DQS#[1]
SB_DQS#[2]
SB_DQS#[3]
SB_DQS#[4]
SB_DQS#[5]
SB_DQS#[6]
SB_DQS#[7]
SB_DQS[0]
SB_DQS[1]
SB_DQS[2]
SB_DQS[3]
SB_DQS[4]
SB_DQS[5]
SB_DQS[6]
DDR SYSTEM MEMORY B
DDR SYSTEM MEMORY B
SB_DQS[7]
SB_MA[0]
SB_MA[1]
SB_MA[2]
SB_MA[3]
SB_MA[4]
SB_MA[5]
SB_MA[6]
SB_MA[7]
SB_MA[8]
SB_MA[9]
SB_MA[10]
SB_MA[11]
SB_MA[12]
SB_MA[13]
SB_MA[14]
SB_MA[15]
AD2
R9
AE1
AD1
R10
AB2
AA2
T9
AA1
AB1
T10
AD3
AE3
AD6
AE6
AE4
AD4
AD5
AE5
D7
F3
K6
N3
AN5
AP9
AK12
AP15
C7
G3
J6
M3
AN6
AP8
AK11
AP14
AA8
T7
R7
T6
T2
T4
T3
R2
T5
R3
AB7
R1
T1
AB10
R5
R4
M_B_CLKN0
M_B_CKE0
M_B_CLKP1
M_B_CLKN1
M_B_CKE1
M_B_CS#0
M_B_CS#1
M_B_ODT0
M_B_ODT1
M_B_DQSN0
M_B_DQSN1
M_B_DQSN2
M_B_DQSN3
M_B_DQSN4
M_B_DQSN5
M_B_DQSN6
M_B_DQSN7
M_B_DQSP0
M_B_DQSP1
M_B_DQSP2
M_B_DQSP3
M_B_DQSP4
M_B_DQSP5
M_B_DQSP6
M_B_DQSP7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
M_B_CLKP0 [12]
M_B_CLKN0 [12]
M_B_CKE0 [12]
M_B_CLKP1 [12]
M_B_CLKN1 [12]
M_B_CKE1 [12]
M_B_CS#0 [12]
M_B_CS#1 [12]
M_B_ODT0 [12]
M_B_ODT1 [12]
M_B_DQSN[7..0] [12]
M_B_DQSP[7..0] [12]
M_B_A[15..0] [12]
U29C
U29C
D D
C C
B B
M_A_DQ[63..0][11]
M_A_BS0[11]
M_A_BS1[11]
M_A_BS2[11]
M_A_CAS#[11]
M_A_RAS#[11]
M_A_WE#[11]
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
M_A_BS0
M_A_BS1
M_A_BS2
M_A_CAS#
M_A_RAS#
M_A_WE#
G10
N10
M10
AG6
AG5
AK6
AK5
AH5
AH6
AK8
AK9
AH8
AH9
AL9
AL8
AP11
AN11
AL12
AM12
AM11
AL11
AP12
AN12
AJ14
AH14
AL15
AK15
AL14
AK14
AJ15
AH15
AE10
AF10
AE8
AD9
AF9
F10
AJ5
AJ6
AJ8
AJ9
C5
D5
D3
D2
D6
C6
C2
C3
F8
G9
F9
F7
G8
G7
K4
K5
K1
J1
J5
J4
J2
K2
M8
N8
N7
M9
N9
M7
V6
SA_DQ[0]
SA_DQ[1]
SA_DQ[2]
SA_DQ[3]
SA_DQ[4]
SA_DQ[5]
SA_DQ[6]
SA_DQ[7]
SA_DQ[8]
SA_DQ[9]
SA_DQ[10]
SA_DQ[11]
SA_DQ[12]
SA_DQ[13]
SA_DQ[14]
SA_DQ[15]
SA_DQ[16]
SA_DQ[17]
SA_DQ[18]
SA_DQ[19]
SA_DQ[20]
SA_DQ[21]
SA_DQ[22]
SA_DQ[23]
SA_DQ[24]
SA_DQ[25]
SA_DQ[26]
SA_DQ[27]
SA_DQ[28]
SA_DQ[29]
SA_DQ[30]
SA_DQ[31]
SA_DQ[32]
SA_DQ[33]
SA_DQ[34]
SA_DQ[35]
SA_DQ[36]
SA_DQ[37]
SA_DQ[38]
SA_DQ[39]
SA_DQ[40]
SA_DQ[41]
SA_DQ[42]
SA_DQ[43]
SA_DQ[44]
SA_DQ[45]
SA_DQ[46]
SA_DQ[47]
SA_DQ[48]
SA_DQ[49]
SA_DQ[50]
SA_DQ[51]
SA_DQ[52]
SA_DQ[53]
SA_DQ[54]
SA_DQ[55]
SA_DQ[56]
SA_DQ[57]
SA_DQ[58]
SA_DQ[59]
SA_DQ[60]
SA_DQ[61]
SA_DQ[62]
SA_DQ[63]
SA_BS[0]
SA_BS[1]
SA_BS[2]
SA_CAS#
SA_RAS#
SA_WE#
SA_CLK#[0]
SA_CLK#[1]
SA_CLK#[2]
SA_CLK#[3]
SA_DQS#[0]
SA_DQS#[1]
SA_DQS#[2]
SA_DQS#[3]
SA_DQS#[4]
SA_DQS#[5]
SA_DQS#[6]
SA_DQS#[7]
DDR SYSTEM MEMORY A
DDR SYSTEM MEMORY A
SA_CLK[0]
SA_CKE[0]
SA_CLK[1]
SA_CKE[1]
SA_CLK[2]
SA_CKE[2]
SA_CLK[3]
SA_CKE[3]
SA_CS#[0]
SA_CS#[1]
SA_CS#[2]
SA_CS#[3]
SA_ODT[0]
SA_ODT[1]
SA_ODT[2]
SA_ODT[3]
SA_DQS[0]
SA_DQS[1]
SA_DQS[2]
SA_DQS[3]
SA_DQS[4]
SA_DQS[5]
SA_DQS[6]
SA_DQS[7]
SA_MA[0]
SA_MA[1]
SA_MA[2]
SA_MA[3]
SA_MA[4]
SA_MA[5]
SA_MA[6]
SA_MA[7]
SA_MA[8]
SA_MA[9]
SA_MA[10]
SA_MA[11]
SA_MA[12]
SA_MA[13]
SA_MA[14]
SA_MA[15]
AB6
AA6
V9
AA5
AB5
V10
AB4
AA4
W9
AB3
AA3
W10
AK3
AL3
AG1
AH1
AH3
AG3
AG2
AH2
C4
G6
J3
M6
AL6
AM8
AR12
AM15
D4
F6
K3
N6
AL5
AM9
AR11
AM14
AD10
W1
W2
W7
V3
V2
W3
W6
V1
W5
AD8
V4
W4
AF8
V5
V7
M_A_CLKN0
M_A_CKE0
M_A_CLKP1
M_A_CLKN1
M_A_CKE1
M_A_CS#0
M_A_CS#1
M_A_ODT0
M_A_ODT1
M_A_DQSN0
M_A_DQSN1
M_A_DQSN2
M_A_DQSN3
M_A_DQSN4
M_A_DQSN5
M_A_DQSN6
M_A_DQSN7
M_A_DQSP0
M_A_DQSP1
M_A_DQSP2
M_A_DQSP3
M_A_DQSP4
M_A_DQSP5
M_A_DQSP6
M_A_DQSP7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
M_A_CLKP0 [11]
M_A_CLKN0 [11]
M_A_CKE0 [11]
M_A_CLKP1 [11]
M_A_CLKN1 [11]
M_A_CKE1 [11]
M_A_CS#0 [11]
M_A_CS#1 [11]
M_A_ODT0 [11]
M_A_ODT1 [11]
M_A_DQSN[7..0] [11]
M_A_DQSP[7..0] [11]
M_A_A[15..0] [11]
M_A_CLKP0
M_B_DQ[63..0][12]
M_B_BS0[12]
M_B_BS1[12]
M_B_BS2[12]
M_B_CAS#[12]
M_B_RAS#[12]
M_B_WE#[12]
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
M_B_BS0
M_B_BS1
M_B_BS2
M_B_CAS#
M_B_RAS#
M_B_WE#
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
A A
5
4
3
Ivy Bridge_rPGA_2DPC_Rev0p61
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
PROJECT :
Ivy Bridge 3/5
Ivy Bridge 3/5
Ivy Bridge 3/5
1
R09A
R09A
R09A
8 58
8 58
8 58
3A
3A
3A
5
12
10U/6.3V_6
10U/6.3V_6
12
10U/6.3V_6
10U/6.3V_6
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
12
10U/6.3V_6
10U/6.3V_6
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
CPU Core Power
IVY, SNB: 35W ~ 53A
IVY, SNB: 45W ~ 94A
10F x24
C216
C216
C210
C210
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
C523
C523
C209
C209
12
10U/6.3V_6
10U/6.3V_6
C524
C524
C186
C186
12
10U/6.3V_6
10U/6.3V_6
C528
C528
C527
C527
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
C206
C206
C187
C187
12
10U/6.3V_6
10U/6.3V_6
C529
C529
C188
C188
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
C184
C184
C220
C220
12
10U/6.3V_6
10U/6.3V_6
C545
C545
C183
C183
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
5
+VCC_CORE
12
10U/6.3V_6
10U/6.3V_6
12
10U/6.3V_6
10U/6.3V_6
12
10U/6.3V_6
10U/6.3V_6
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
12
10U/6.3V_6
10U/6.3V_6
12
10U/6.3V_6
10U/6.3V_6
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
12
10U/6.3V_6
10U/6.3V_6
VR_SVID_CLK
U29F
U29F
AG35
VCC1
AG34
VCC2
AG33
VCC3
AG32
VCC4
AG31
VCC5
AG30
VCC6
AG29
VCC7
AG28
VCC8
AG27
VCC9
AG26
VCC10
AF35
VCC11
AF34
VCC12
AF33
VCC13
AF32
VCC14
AF31
VCC15
AF30
VCC16
AF29
VCC17
AF28
VCC18
AF27
VCC19
AF26
VCC20
AD35
VCC21
AD34
VCC22
AD33
VCC23
AD32
VCC24
AD31
VCC25
AD30
VCC26
AD29
VCC27
AD28
VCC28
AD27
VCC29
AD26
VCC30
AC35
VCC31
AC34
VCC32
AC33
VCC33
AC32
VCC34
AC31
VCC35
AC30
VCC36
AC29
VCC37
AC28
VCC38
AC27
VCC39
AC26
VCC40
AA35
VCC41
AA34
VCC42
AA33
VCC43
AA32
VCC44
AA31
VCC45
AA30
VCC46
AA29
VCC47
AA28
VCC48
AA27
VCC49
AA26
VCC50
Y35
VCC51
Y34
VCC52
Y33
VCC53
Y32
VCC54
Y31
VCC55
Y30
VCC56
Y29
VCC57
Y28
VCC58
Y27
VCC59
Y26
VCC60
V35
VCC61
V34
VCC62
V33
VCC63
V32
VCC64
V31
VCC65
V30
VCC66
V29
VCC67
V28
VCC68
V27
VCC69
V26
VCC70
U35
VCC71
U34
VCC72
U33
VCC73
U32
VCC74
U31
VCC75
U30
VCC76
U29
VCC77
U28
VCC78
U27
VCC79
U26
VCC80
R35
VCC81
R34
VCC82
R33
VCC83
R32
VCC84
R31
VCC85
R30
VCC86
R29
VCC87
R28
VCC88
R27
VCC89
R26
VCC90
P35
VCC91
P34
VCC92
P33
VCC93
P32
VCC94
P31
VCC95
P30
VCC96
P29
VCC97
P28
VCC98
P27
VCC99
P26
VCC100
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
VR_SVID_CLK [53]
POWER
POWER
CORE SUPPLY
CORE SUPPLY
SENSE LINES SVID
SENSE LINES SVID
Place PU resistor close to CPU
+1.05V_PCH +1.05V_PCH
35W
16pcs
45W 24pcs
C224
C224
C205
C205
12
D D
*10U/6.3V_6_NC
*10U/6.3V_6_NC
C208
C208
C207
C207
12
10U/6.3V_6
10U/6.3V_6
C537
C537
C222
C222
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
C526
C526
C525
C525
12
10U/6.3V_6
10U/6.3V_6
C C
C535
C535
C556
C556
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
C555
C555
C185
C185
12
10U/6.3V_6
10U/6.3V_6
C225
C225
C534
C534
12
*10U/6.3V_6_45W_NC
*10U/6.3V_6_45W_NC
B B
A A
Layout note: need routing
together and ALERT need
between CLK and DATA
VCCIO1
VCCIO2
VCCIO3
VCCIO4
VCCIO5
VCCIO6
VCCIO7
VCCIO8
VCCIO9
VCCIO10
VCCIO11
VCCIO12
VCCIO13
VCCIO14
VCCIO15
VCCIO16
VCCIO17
VCCIO18
VCCIO19
VCCIO20
VCCIO21
VCCIO22
VCCIO23
VCCIO24
VCCIO25
VCCIO26
VCCIO27
VCCIO28
VCCIO29
VCCIO30
PEG AND DDR
PEG AND DDR
VCCIO31
VCCIO32
VCCIO33
VCCIO34
VCCIO35
VCCIO36
VCCIO37
VCCIO38
VCCIO39
VCCIO40
VIDALERT#
VIDSCLK
VIDSOUT
VCC_SENSE
VSS_SENSE
VCCIO_SENSE
VSS_SENSE_VCCIO
SVID DATA SVID ALERTSVID CLK
12
R148
130_4
130_4
4
4
AH13
AH10
AG10
AC10
Y10
U10
P10
L10
J14
J13
J12
J11
H14
H12
H11
G14
G13
G12
F14
F13
F12
F11
E14
E12
E11
D14
D13
D12
D11
C14
C13
C12
C11
B14
B12
A14
A13
A12
A11
J23
AJ29
AJ30
AJ28
AJ35
AJ34
B10
A10
1.05V_PCH
SNB: 8.5A
IVY: 8.5A
10F x12
C564
C564
C227
C227
H_CPU_SVIDALRT#
VR_SVID_CLK
VR_SVID_DATA
R155 100/FR155 100/F
R156 100/FR156 100/F
1 2
R445 10_4R445 10_4
1 2
R447 10_4R447 10_4
VR_SVID_DATA [53]
+1.05V_PCH
C228
C228
10U/6.3V_6
10U/6.3V_6
12
12
10U/6.3V_6
10U/6.3V_6
C230
C230
10U/6.3V_6
10U/6.3V_6
12
12
10U/6.3V_6
10U/6.3V_6
SMDDR_VREF_DQ0_M3_C
*AP2302GN_NC
*AP2302GN_NC
SMDDR_VREF_DQ1_M3_C
*AP2302GN_NC
*AP2302GN_NC
+VCC_CORE
VCCSENSE
VSSSENSE
+1.05V_PCH
VCCIO_SENSE
VSSIO_SENSE
C229
C229
*10U/6.3V_6_NC
*10U/6.3V_6_NC
12
C231
C231
12
10U/6.3V_6
10U/6.3V_6
C567
C567
C566
C566
Q43
Q43
2
2
Q44
Q44
3
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
12
10U/6.3V_6
10U/6.3V_6
+1.8V_RUN
CPU VCCPL
SNB: 1.2A
IVY: 1.2A
10uF x 1
M3 VREF
SMDDR_VREF_DQ0_M3
31
DDR_HVREF_RST_PCH
SMDDR_VREF_DQ1_M3
31
1uF x 2
Vgs=2.5V Rds=115m
VCCSENSE [53]
VSSSENSE [53]
VCCIO_SENSE [51]
VSSIO_SENSE [51]
Place PU resistor close to CPU
1 2
R149 43_4R149 43_4
3
CPU VGT
SNB: 33A
IVY: 33A
10uF x 12
+VCC_GFX_CORE
OTP/UMA
C548
C548
*10U/6.3V_6_NC
*10U/6.3V_6_NC
12
C221
C221
12
0_6
0_6
C223
C223
12
0_6
0_6
CS00003J951
RESISTOR CHIP 0 1/10W+-5%(0603)
UMA/OPT
10uF
CH6101M9905
CAP CHIP 10U 6.3V(+-20%,X5R,0603)
12
C596
C596
*10U/6.3V_6_NC
*10U/6.3V_6_NC
SMDDR_VREF_DQ0_M3 [11]
DDR_HVREF_RST_PCH [7,24]
SMDDR_VREF_DQ1_M3 [12]
R138
R138
75/F
75/FR148
VR_SVID_ALERT#H_CPU_SVIDALRT#VR_SVID_DATA
C539
C539
C202
C202
12
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
*10U/6.3V_6_NC
*10U/6.3V_6_NC
C554
C554
C536
C536
12
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
*10U/6.3V_6_NC
*10U/6.3V_6_NC
C213
C213
C217
C217
12
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
*10U/6.3V_6_NC
*10U/6.3V_6_NC
C221,C223,C2150 ohmDIS
C548,C202,C539,C530,C221,
C536,C554,C219,C223,C217,
C213,C215
12
12
C259
C259
C569
C569
10U/6.3V_6
10U/6.3V_6
1U/6.3V_4
1U/6.3V_4
VR_SVID_ALERT# [53]
2
Ivy Bridge Processor (GRAPHIC POWER)
POWER
POWER
1.8V RAIL
1.8V RAIL
+5V_ALW
12
34
5
2
GRAPHICS
GRAPHICS
R242
R242
10K_4
10K_4
Q19A
Q19A
DMN66D0LDW-7
DMN66D0LDW-7
VAXG_SENSE
VSSAXG_SENSE
SENSE
LINES
SENSE
LINES
SA_DIMM_VREFDQ
VREFMISC
VREFMISC
SB_DIMM_VREFDQ
DDR3 -1.5V RAILS
DDR3 -1.5V RAILS
SA RAIL
SA RAIL
VCCSA_SENSE
VCCSA_VID[0]
VCCSA_VID[1]
VCCIO_SEL
PS_S3CNTRL
C273 0.1U/16V_4C273 0.1U/16V_4
1 2
C276 0.1U/16V_4C276 0.1U/16V_4
1 2
C275 0.1U/16V_4C275 0.1U/16V_4
1 2
C274 0.1U/16V_4C274 0.1U/16V_4
1 2
SM_VREF
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9
VDDQ10
VDDQ11
VDDQ12
VDDQ13
VDDQ14
VDDQ15
VCCSA1
VCCSA2
VCCSA3
VCCSA4
VCCSA5
VCCSA6
VCCSA7
VCCSA8
R153 *100_4_UO_NCR153 *100_4_UO_NC
AK35
AK34
R154 *100_4_UO_NCR154 *100_4_UO_NC
+VDDR_REF_CPU
AL1
CAD Note: +VDDR_REF_CPU should
have 10 mil trace width
B4
D1
R458
R458
*1K_4_NC
*1K_4_NC
1 2
AF7
AF4
AF1
C258
C258
AC7
AC4
AC1
Y7
Y4
Y1
U7
U4
C254
C254
U1
P7
P4
P1
M27
M26
L26
J26
J25
J24
H26
H25
1 2
R180 100_4R180 100_4
H23
VCCSA_VID0
C22
VCCSA_VID1
C24
A19
1 2
+15V_ALW
PS_S3CNTRL [11]
2
C530
C530
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
C219
C219
12
*10U/6.3V_6_NC
*10U/6.3V_6_NC
C215
C215
12
0_6
0_6
12
C256
C256
*1U/6.3V_4_NC
*1U/6.3V_4_NC
SIO_SLP_S3#[20,38,49]
U29G
U29G
AT24
VAXG1
AT23
VAXG2
AT21
VAXG3
AT20
VAXG4
AT18
VAXG5
AT17
VAXG6
AR24
VAXG7
AR23
VAXG8
AR21
VAXG9
AR20
VAXG10
AR18
VAXG11
AR17
VAXG12
AP24
VAXG13
AP23
VAXG14
AP21
VAXG15
AP20
VAXG16
AP18
VAXG17
AP17
VAXG18
AN24
VAXG19
AN23
VAXG20
AN21
VAXG21
AN20
VAXG22
AN18
VAXG23
AN17
VAXG24
AM24
VAXG25
AM23
VAXG26
AM21
VAXG27
AM20
VAXG28
AM18
VAXG29
AM17
VAXG30
AL24
VAXG31
AL23
VAXG32
AL21
VAXG33
AL20
VAXG34
AL18
VAXG35
AL17
VAXG36
AK24
VAXG37
AK23
VAXG38
AK21
VAXG39
AK20
VAXG40
AK18
VAXG41
AK17
VAXG42
AJ24
VAXG43
AJ23
VAXG44
AJ21
VAXG45
AJ20
VAXG46
AJ18
VAXG47
AJ17
VAXG48
AH24
VAXG49
AH23
VAXG50
AH21
VAXG51
AH20
VAXG52
AH18
VAXG53
AH17
VAXG54
B6
VCCPLL1
A6
VCCPLL2
A2
VCCPLL3
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
SIO_SLP_S3#
1
OTP/UMA : POP
DIS : NC
1 2
1 2
SMDDR_VREF_DQ0_M3_C
SMDDR_VREF_DQ1_M3_C
R459
R459
*1K_4_NC
*1K_4_NC
1 2
C253
C253
12
10U/6.3V_6
10U/6.3V_6
C260
C260
12
10U/6.3V_6
10U/6.3V_6
12
C214
C214
10U/6.3V_6
10U/6.3V_6
VCCSA_SENSE
R429*0_4_NC R429*0_4_NC
VCCSA_VID0
VCCSA_VID1
12
R241
R241
100K_4
100K_4
PS_S3CNTRL_S
61
Q19B
Q19B
DMN66D0LDW-7
DMN66D0LDW-7
+1.5V_CPU+1.5V_SUS
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
+VCC_GFX_CORE
VCC_AXG_SENSE [53]
VSS_AXG_SENSE [53]
For internal GFX
+VDDR_REF_CPU
CPU MCH
SNB: 5A
IVY: 5A
10uF x 6
C262
C262
C257
C257
12
12
10U/6.3V_6
10U/6.3V_6
10U/6.3V_6
10U/6.3V_6
12
10U/6.3V_6
10U/6.3V_6
CPU SA
SNB: 6A
IVY: 6A
12
12
C522
C522
10U/6.3V_6
10U/6.3V_6
+VCCSA_CORE
VCCSA_SENSE [52]
VCCSA_VID0 [52]
VCCSA_VID1 [52]
H_VTTVID1
1 2
R179 1K_4R179 1K_4
1 2
R176 1K_4R176 1K_4
S3 Power reduce
+1.5V_SUS +1.5V_CPU
Q20
12
EC101
EC101
2200P/50V_4
2200P/50V_4
Take care Q20 Vgs(MAX)=2.5
Q20
AON7410
AON7410
8
762
5
C272
C272
*4700P/25V_4_NC
*4700P/25V_4_NC
+VDDR_REF_CPU
+1.5V_CPU
R228
R228
1K/F_4
1K/F_4
1 2
R235
R235
1K/F_4
1K/F_4
1 2
Ivy Bridge 4/5
Ivy Bridge 4/5
Ivy Bridge 4/5
Monday, March 05, 2012
Monday, March 05, 2012
Monday, March 05, 2012
+1.5V_CPU
12
10U/6.3V_6
10U/6.3V_6
10uF x 3
+VCCSA_CORE
C203
C203
1U/25V_6
1U/25V_6
item18
+3.3V_RUN
12
R428
R428
10K_4
10K_4
R34 and R36 pull-down 1K
Spec:This will ensure the
VID is 00 prior to VCCIO stability.
5A
3
1
4
12
12
0.1U/16V_4
0.1U/16V_4
C263
C263
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
R09A
R09A
R09A
H_VTTVID1 [51]
9 58
9 58
9 58
3A
3A
3A
5
4
3
2
1
Ivy Bridge Processor (GND) Ivy Bridge Processor (RESERVED, CFG)
U29I
U29H
U29H
AT35
VSS1
AT32
VSS2
AT29
VSS3
AT27
VSS4
AT25
VSS5
AT22
VSS6
AT19
VSS7
AT16
VSS8
D D
C C
B B
A A
AT13
VSS9
AT10
VSS10
AT7
VSS11
AT4
VSS12
AT3
VSS13
AR25
VSS14
AR22
VSS15
AR19
VSS16
AR16
VSS17
AR13
VSS18
AR10
VSS19
AR7
VSS20
AR4
VSS21
AR2
VSS22
AP34
VSS23
AP31
VSS24
AP28
VSS25
AP25
VSS26
AP22
VSS27
AP19
VSS28
AP16
VSS29
AP13
VSS30
AP10
VSS31
AP7
VSS32
AP4
VSS33
AP1
VSS34
AN30
VSS35
AN27
VSS36
AN25
VSS37
AN22
VSS38
AN19
VSS39
AN16
VSS40
AN13
VSS41
AN10
VSS42
AN7
VSS43
AN4
VSS44
AM29
VSS45
AM25
VSS46
AM22
VSS47
AM19
VSS48
AM16
VSS49
AM13
VSS50
AM10
VSS51
AM7
VSS52
AM4
VSS53
AM3
VSS54
AM2
VSS55
AM1
VSS56
AL34
VSS57
AL31
VSS58
AL28
VSS59
AL25
VSS60
AL22
VSS61
AL19
VSS62
AL16
VSS63
AL13
VSS64
AL10
VSS65
AL7
VSS66
AL4
VSS67
AL2
VSS68
AK33
VSS69
AK30
VSS70
AK27
VSS71
AK25
VSS72
AK22
VSS73
AK19
VSS74
AK16
VSS75
AK13
VSS76
AK10
VSS77
AK7
VSS78
AK4
VSS79
AJ25
VSS80
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
5
VSS
VSS
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS98
VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
AJ22
AJ19
AJ16
AJ13
AJ10
AJ7
AJ4
AJ3
AJ2
AJ1
AH35
AH34
AH32
AH30
AH29
AH28
AH25
AH22
AH19
AH16
AH7
AH4
AG9
AG8
AG4
AF6
AF5
AF3
AF2
AE35
AE34
AE33
AE32
AE31
AE30
AE29
AE28
AE27
AE26
AE9
AD7
AC9
AC8
AC6
AC5
AC3
AC2
AB35
AB34
AB33
AB32
AB31
AB30
AB29
AB28
AB27
AB26
Y9
Y8
Y6
Y5
Y3
Y2
W35
W34
W33
W32
W31
W30
W29
W28
W27
W26
U9
U8
U6
U5
U3
U2
U29I
T35
VSS161
T34
VSS162
T33
VSS163
T32
VSS164
T31
VSS165
T30
VSS166
T29
VSS167
T28
VSS168
T27
VSS169
T26
VSS170
P9
VSS171
P8
VSS172
P6
VSS173
P5
VSS174
P3
VSS175
P2
VSS176
N35
VSS177
N34
VSS178
N33
VSS179
N32
VSS180
N31
VSS181
N30
VSS182
N29
VSS183
N28
VSS184
N27
VSS185
N26
VSS186
M34
VSS187
L33
VSS188
L30
VSS189
L27
VSS190
L9
VSS191
L8
VSS192
L6
VSS193
L5
VSS194
L4
VSS195
L3
VSS196
L2
VSS197
L1
VSS198
K35
VSS199
K32
VSS200
K29
VSS201
K26
VSS202
J34
VSS203
J31
VSS204
H33
VSS205
H30
VSS206
H27
VSS207
H24
VSS208
H21
VSS209
H18
VSS210
H15
VSS211
H13
VSS212
H10
VSS213
H9
VSS214
H8
VSS215
H7
VSS216
H6
VSS217
H5
VSS218
H4
VSS219
H3
VSS220
H2
VSS221
H1
VSS222
G35
VSS223
G32
VSS224
G29
VSS225
G26
VSS226
G23
VSS227
G20
VSS228
G17
VSS229
G11
VSS230
F34
VSS231
F31
VSS232
F29
VSS233
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
VSS
VSS
Processor Strapping
CFG2
(PCI-E Static x16 Lane Reversal)
CFG4
(DP Presence Strap)
4
F22
VSS234
F19
VSS235
E30
VSS236
E27
VSS237
E24
VSS238
E21
VSS239
E18
VSS240
E15
VSS241
E13
VSS242
E10
VSS243
E9
VSS244
E8
VSS245
E7
VSS246
E6
VSS247
E5
VSS248
E4
VSS249
E3
VSS250
E2
VSS251
E1
VSS252
D35
VSS253
D32
VSS254
D29
VSS255
D26
VSS256
D20
VSS257
D17
VSS258
C34
VSS259
C31
VSS260
C28
VSS261
C27
VSS262
C25
VSS263
C23
VSS264
C10
VSS265
C1
VSS266
B22
VSS267
B19
VSS268
B17
VSS269
B15
VSS270
B13
VSS271
B11
VSS272
B9
VSS273
B8
VSS274
B7
VSS275
B5
VSS276
B3
VSS277
B2
VSS278
A35
VSS279
A32
VSS280
A29
VSS281
A26
VSS282
A23
VSS283
A20
VSS284
A3
VSS285
GV - R470 POP
GT, UMA - ALL NC
The CFG signals have a default value of '1' if not terminated on the board.
1 0
Normal Operation
Disable; No physical DP attached to eDP
3
TP17TP17
TP20TP20
CFG2
TP16TP16
TP18TP18
CFG5
CFG6
TP8TP8
TP9TP9
R470 *1K_4_GV_NCR470 *1K_4_GV_NC
R471 *1K_4_NCR471 *1K_4_NC
12
12
Lane Reversed
CFG2
R145 1K_4R145 1K_4
Enable; An ext DP device is connected to eDP
U29E
U29E
AK28
CFG[0]
AK29
CFG[1]
AL26
CFG[2]
AL27
CFG[3]
AK26
CFG[4]
AL29
CFG[5]
AL30
CFG[6]
AM31
CFG[7]
AM32
CFG[8]
AM30
CFG[9]
AM28
CFG[10]
AM26
CFG[11]
AN28
CFG[12]
AN31
CFG[13]
AN26
CFG[14]
AM27
CFG[15]
AK31
CFG[16]
AN29
CFG[17]
AJ31
VAXG_VAL_SENSE
AH31
VSSAXG_VAL_SENSE
AJ33
VCC_VAL_SENSE
AH33
VSS_VAL_SENSE
AJ26
RSVD5
F25
RSVD8
F24
RSVD9
F23
RSVD10
D24
RSVD11
G25
RSVD12
G24
RSVD13
E23
RSVD14
D23
RSVD15
C30
RSVD16
A31
RSVD17
B30
RSVD18
B29
RSVD19
D30
RSVD20
B31
RSVD21
A30
RSVD22
C29
RSVD23
J20
RSVD24
B18
RSVD25
J15
RSVD27
Ivy Bridge_rPGA_2DPC_Rev0p61
Ivy Bridge_rPGA_2DPC_Rev0p61
CFG[6:5] (PCIE Port Bifurcation Straps)
CFG5
11: (Default) 1x16 PCI Express*
CFG6
10: 2x8 PCI Express*
01: Reserved
00: 1x8, 2x4 PCI Express*
12
2
CFG
CFG
RSVD28
RSVD29
RSVD30
RSVD31
RSVD32
RSVD33
RSVD34
RSVD35
RSVD37
RSVD38
RSVD39
RSVD40
RSVD41
RSVD42
RSVD43
RSVD44
RSVD45
RSVD46
RSVD47
RSVD48
RSVD49
RSVD50
RSVD51
RSVD52
AH27
AH26
L7
AG7
AE7
AK2
W8
AT26
AM33
AJ27
T8
J16
H16
G16
AR35
AT34
AT33
AP35
AR34
B34
A33
A34
B35
C35
AJ32
AK32
RESERVED
RESERVED
VCC_DIE_SENSE
VSS_DIE_SENSE
#27636 SNB EDS0.7v1 no function.
AN35
BCLK_ITP
AM35
BCLK_ITP#
AT2
RSVD56
AT1
RSVD57
AR1
RSVD58
B1
KEY
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
PROJECT :
Ivy Bridge 5/5
Ivy Bridge 5/5
Ivy Bridge 5/5
1
R09A
R09A
R09A
10 58
10 58
10 58
3A
3A
3A
1
M_A_A[15..0][8]
A A
M_A_BS0[8]
M_A_BS1[8]
M_A_BS2[8]
M_A_CS#0[8]
M_A_CS#1[8]
M_A_CLKP0[8]
M_A_CLKN0[8]
M_A_CLKP1[8]
M_A_CLKN1[8]
M_A_CKE0[8]
M_A_CKE1[8]
M_A_CAS#[8]
RP21 10KX2RP21 10KX2
1
3
B B
C C
+1.5V_SUS
12
12
C313
C313
0.1U/16V_4
0.1U/16V_4
0.1U/16V_4
0.1U/16V_4
M_A_RAS#[8]
M_A_WE#[8]
2
4
WLAN_SCLK[12,24,33]
WLAN_SDATA[12,24,33]
M_A_ODT0[8]
M_A_ODT1[8]
M_A_DQSP[7..0][8]
M_A_DQSN[7..0][8]
Place these Caps near So-Dimm0.
C290
C290
12
C339
C339
0.1U/16V_4
0.1U/16V_4
12
0.1U/16V_4
0.1U/16V_4
C341
C341
2
C289
C289
12
10U/6.3V_8
10U/6.3V_8
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
M_A_BS0
M_A_BS1
M_A_BS2
M_A_CS#0
M_A_CS#1
M_A_CLKP0
M_A_CLKN0
M_A_CLKP1
M_A_CLKN1
M_A_CKE0
M_A_CKE1
M_A_CAS#
M_A_RAS#
M_A_WE#
DIMM0_SA0
DIMM0_SA1
WLAN_SCLK
WLAN_SDATA
M_A_ODT0
M_A_ODT1
M_A_DQSP0
M_A_DQSP1
M_A_DQSP2
M_A_DQSP3
M_A_DQSP4
M_A_DQSP5
M_A_DQSP6
M_A_DQSP7
M_A_DQSN0
M_A_DQSN1
M_A_DQSN2
M_A_DQSN3
M_A_DQSN4
M_A_DQSN5
M_A_DQSN6
M_A_DQSN7
C317
C317
12
10U/6.3V_8
10U/6.3V_8
SMDDR_VREF_DQ0_M3[9]
98
97
96
95
92
91
90
86
89
85
107
84
83
119
80
78
109
108
79
114
121
101
103
102
104
73
74
115
110
113
197
201
202
200
116
120
11
28
46
63
136
153
170
187
12
29
47
64
137
154
171
188
10
27
45
62
135
152
169
186
C318
C318
12
10U/6.3V_8
10U/6.3V_8
JDIM1A
JDIM1A
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC#
A13
A14
A15
BA0
BA1
BA2
S0#
S1#
CK0
CK0#
CK1
CK1#
CKE0
CKE1
CAS#
RAS#
WE#
SA0
SA1
SCL
SDA
ODT0
ODT1
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
DDRRK-20401-TP9D
DDRRK-20401-TP9D
+0.75V_DDR_VTT
12
C295
C295
1U/6.3V_4
1U/6.3V_4
SMDDR_VREF_DQ0_M3
M3 VREF
3
M_A_DQ5
5
DQ0
M_A_DQ4
7
DQ1
M_A_DQ7
15
DQ2
M_A_DQ6
17
DQ3
M_A_DQ1
4
DQ4
M_A_DQ0
6
DQ5
M_A_DQ3
16
DQ6
M_A_DQ2
18
DQ7
M_A_DQ8
21
DQ8
M_A_DQ9
23
DQ9
M_A_DQ15
33
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
(204P)
(204P)
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
35
22
24
34
36
39
41
51
53
40
42
50
52
57
59
67
69
56
58
68
70
129
131
141
143
130
132
140
142
147
149
157
159
146
148
158
160
163
165
175
177
164
166
174
176
181
183
191
193
180
182
192
194
M_A_DQ10
M_A_DQ13
M_A_DQ12
M_A_DQ11
M_A_DQ14
M_A_DQ20
M_A_DQ21
M_A_DQ18
M_A_DQ19
M_A_DQ16
M_A_DQ17
M_A_DQ23
M_A_DQ22
M_A_DQ29
M_A_DQ25
M_A_DQ27
M_A_DQ31
M_A_DQ28
M_A_DQ24
M_A_DQ26
M_A_DQ30
M_A_DQ36
M_A_DQ37
M_A_DQ34
M_A_DQ39
M_A_DQ32
M_A_DQ33
M_A_DQ38
M_A_DQ35
M_A_DQ45
M_A_DQ44
M_A_DQ42
M_A_DQ43
M_A_DQ41
M_A_DQ40
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ54
M_A_DQ55
M_A_DQ53
M_A_DQ52
M_A_DQ51
M_A_DQ50
M_A_DQ61
M_A_DQ60
M_A_DQ62
M_A_DQ63
M_A_DQ56
M_A_DQ57
M_A_DQ59
M_A_DQ58
4
M_A_DQ[63..0] [8]
H=9.2mm,RVS
S3 Power reduce
+0.75V_DDR_VTT
R250
R250
22_4
22_4
1 2
Q22
Q22
31
PS_S3CNTRL
2
2N7002W
2N7002W
5
*2.2U/6.3V_6_NC
*2.2U/6.3V_6_NC
PS_S3CNTRL [9]
C602
C602
+3.3V_RUN
DDR3_DRAMRST#[7,12]
+SMDDR_VREF_DQ0
+SMDDR_VREF_DIMM0
6
+1.5V_SUS
+3.3V_RUN
12
12
C322
C322
0.1U/16V_4
0.1U/16V_4
R246 *10K_4_NCR246 *10K_4_NC
1 2
DDR3_DRAMRST#
7
JDIM1B
JDIM1B
75
VDD1
76
VDD2
81
VDD3
82
VDD4
87
VDD5
88
VDD6
93
VDD7
94
VDD8
99
VDD9
100
VDD10
105
VDD11
106
VDD12
111
VDD13
112
VDD14
117
VDD15
118
VDD16
123
VDD17
124
VDD18
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS1
3
VSS2
8
VSS3
9
VSS4
13
VSS5
14
VSS6
19
VSS7
20
VSS8
25
VSS9
26
VSS10
31
VSS11
32
VSS12
37
VSS13
38
VSS14
43
VSS15
DDRRK-20401-TP9D
DDRRK-20401-TP9D
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
(204P)
(204P)
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VTT1
VTT2
8
44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196
203
204
205
G1
206
G2
207
H1
208
H2
+0.75V_DDR_VTT
M1 VREF
12
C304
C304
1U/6.3V_4
1U/6.3V_4
+1.5V_SUS
1 2
1 2
R248
R248
1K/F_4
1K/F_4
R247
R247
1K/F_4
1K/F_4
+SMDDR_VREF_DIMM0
12
C288
C288
0.1U/16V_4
0.1U/16V_4
12
C287
C287
1U/6.3V_4
1U/6.3V_4
12
C332
C332
1U/6.3V_4
1U/6.3V_4
12
C597
C597
*1U/6.3V_4_NC
*1U/6.3V_4_NC
R255 *0_4_NCR255 *0_4_NC
12
1 2
C598
C598
*1U/6.3V_4_NC
*1U/6.3V_4_NC
+1.5V_SUS
1 2
12
+SMDDR_VREF_DQ0
R256
R256
1K/F_4
1K/F_4
R253
R253
1K/F_4
1K/F_4
12
C301
C301
0.1U/16V_4
0.1U/16V_4
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
1
2
3
4
5
6
Wednesday, February 08, 2012
7
PROJECT :
DDR3 DIMM-0
DDR3 DIMM-0
DDR3 DIMM-0
R09A
R09A
R09A
11 58
11 58
11 58
8
3A
3A
3A
1
2
3
4
5
6
7
8
JDIM2A
M_B_A[15..0][8]
A A
M_B_BS0[8]
M_B_BS1[8]
M_B_BS2[8]
M_B_CS#0[8]
M_B_CS#1[8]
M_B_CLKP0[8]
M_B_CLKN0[8]
M_B_CLKP1[8]
M_B_CLKN1[8]
M_B_CKE0[8]
M_B_CKE1[8]
M_B_CAS#[8]
RP22 10KX2RP22 10KX2
2
1
4
+3.3V_RUN
B B
C C
3
+1.5V_SUS
12
C343
C343
0.1U/16V_4
0.1U/16V_4
M_B_RAS#[8]
M_B_WE#[8]
WLAN_SCLK[11,24,33]
WLAN_SDATA[11,24,33]
M_B_ODT0[8]
M_B_ODT1[8]
M_B_DQSP[7..0][8]
M_B_DQSN[7..0][8]
Place these Caps near So-Dimm1.
12
12
0.1U/16V_4
0.1U/16V_4
C323
C323
C344
C344
0.1U/16V_4
0.1U/16V_4
12
C338
C338
0.1U/16V_4
0.1U/16V_4
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
M_B_BS0
M_B_BS1
M_B_BS2
M_B_CS#0
M_B_CS#1
M_B_CLKP0
M_B_CLKN0
M_B_CLKP1
M_B_CLKN1
M_B_CKE0
M_B_CKE1
M_B_CAS#
M_B_RAS#
M_B_WE#
DIMM1_SA0
DIMM1_SA1
WLAN_SCLK
WLAN_SDATA
M_B_ODT0
M_B_ODT1
M_B_DQSP0
M_B_DQSP1
M_B_DQSP2
M_B_DQSP3
M_B_DQSP4
M_B_DQSP5
M_B_DQSP6
M_B_DQSP7
M_B_DQSN0
M_B_DQSN1
M_B_DQSN2
M_B_DQSN3
M_B_DQSN4
M_B_DQSN5
M_B_DQSN6
M_B_DQSN7
12
C340
C340
10U/6.3V_8
10U/6.3V_8
98
97
96
95
92
91
90
86
89
85
107
84
83
119
80
78
109
108
79
114
121
101
103
102
104
73
74
115
110
113
197
201
202
200
116
120
11
28
46
63
136
153
170
187
12
29
47
64
137
154
171
188
10
27
45
62
135
152
169
186
12
C319
C319
10U/6.3V_8
10U/6.3V_8
JDIM2A
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC#
A13
A14
A15
BA0
BA1
BA2
S0#
S1#
CK0
CK0#
CK1
CK1#
CKE0
CKE1
CAS#
RAS#
WE#
SA0
SA1
SCL
SDA
ODT0
ODT1
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
DDRRK-20401-TP5B
DDRRK-20401-TP5B
+0.75V_DDR_VTT
12
C342
C342
10U/6.3V_8
10U/6.3V_8
SMDDR_VREF_DQ1_M3[9]
(204P)
(204P)
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
12
C312
C312
1U/6.3V_4
1U/6.3V_4
5
7
15
17
4
6
16
18
21
23
33
35
22
24
34
36
39
41
51
53
40
42
50
52
57
59
67
69
56
58
68
70
129
131
141
143
130
132
140
142
147
149
157
159
146
148
158
160
163
165
175
177
164
166
174
176
181
183
191
193
180
182
192
194
M_B_DQ5
M_B_DQ4
M_B_DQ3
M_B_DQ2
M_B_DQ0
M_B_DQ1
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ14
M_B_DQ10
M_B_DQ12
M_B_DQ13
M_B_DQ11
M_B_DQ15
M_B_DQ21
M_B_DQ17
M_B_DQ19
M_B_DQ23
M_B_DQ16
M_B_DQ20
M_B_DQ18
M_B_DQ22
M_B_DQ28
M_B_DQ24
M_B_DQ30
M_B_DQ31
M_B_DQ25
M_B_DQ29
M_B_DQ27
M_B_DQ26
M_B_DQ36
M_B_DQ37
M_B_DQ35
M_B_DQ34
M_B_DQ32
M_B_DQ33
M_B_DQ39
M_B_DQ38
M_B_DQ44
M_B_DQ40
M_B_DQ42
M_B_DQ43
M_B_DQ45
M_B_DQ41
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ54
M_B_DQ55
M_B_DQ52
M_B_DQ53
M_B_DQ51
M_B_DQ50
M_B_DQ61
M_B_DQ60
M_B_DQ63
M_B_DQ62
M_B_DQ57
M_B_DQ56
M_B_DQ59
M_B_DQ58
12
C345
C345
1U/6.3V_4
1U/6.3V_4
SMDDR_VREF_DQ1_M3
M3 REF
M_B_DQ[63..0] [8]
12
C599
C599
*1U/6.3V_4_NC
*1U/6.3V_4_NC
H=5.2mm,RVS
12
C600
C600
*1U/6.3V_4_NC
*1U/6.3V_4_NC
R259 *0_4_NCR259 *0_4_NC
1 2
1 2
1 2
R257
R257
1K/F_4
1K/F_4
R262
R262
1K/F_4
1K/F_4
C601
C601
*2.2U/6.3V_6_NC
*2.2U/6.3V_6_NC
+3.3V_RUN
DDR3_DRAMRST#[7,11]
M1 VREF
12
C324
C324
0.1U/16V_4
0.1U/16V_4
+3.3V_RUN
12
12
C337
C337
0.1U/16V_4
0.1U/16V_4
R258 *10K_4_NCR258 *10K_4_NC
+SMDDR_VREF_DQ1
+SMDDR_VREF_DIMM1
+1.5V_SUS +SMDDR_VREF_DIMM1+1.5V_SUS +SMDDR_VREF_DQ1
R260
R260
1K/F_4
1K/F_4
1 2
12
C325
C325
1U/6.3V_4
1U/6.3V_4
1 2
R261
R261
1K/F_4
1K/F_4
1 2
DDR3_DRAMRST#
12
C327
C327
0.1U/16V_4
0.1U/16V_4
+1.5V_SUS
12
C328
C328
1U/6.3V_4
1U/6.3V_4
JDIM2B
JDIM2B
75
VDD1
76
VDD2
81
VDD3
82
VDD4
87
VDD5
88
VDD6
93
VDD7
94
VDD8
99
VDD9
100
VDD10
105
VDD11
106
VDD12
111
VDD13
112
VDD14
117
VDD15
118
VDD16
123
VDD17
124
VDD18
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS1
3
VSS2
8
VSS3
9
VSS4
13
VSS5
14
VSS6
19
VSS7
20
VSS8
25
VSS9
26
VSS10
31
VSS11
32
VSS12
37
VSS13
38
VSS14
43
VSS15
DDRRK-20401-TP5B
DDRRK-20401-TP5B
PC2100 DDR3 SDRAM SO-DIMM
PC2100 DDR3 SDRAM SO-DIMM
(204P)
(204P)
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VTT1
VTT2
44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196
203
204
205
G1
206
G2
207
H1
208
H2
+0.75V_DDR_VTT
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
1
2
3
4
5
6
Wednesday, February 08, 2012
7
PROJECT :
DDR3 DIMM-1
DDR3 DIMM-1
DDR3 DIMM-1
R09A
R09A
R09A
12 58
12 58
12 58
8
3A
3A
3A
1
2
3
4
5
6
7
8
U24A
U24A
N13P-GT-A2
PEX_IOVDD/Q <3.3A
+1.05V_GFX
A A
+1.05V_GFX
B B
+3.3V_GFX
12~16 mils width
C C
+3.3V_GFX
C89 0.1U/16V_4C89 0.1U/16V_4
C45 1U/6.3V_4C45 1U/6.3V_4
C70 10U/6.3V_6C70 10U/6.3V_6
C104 10U/6.3V_6C104 10U/6.3V_6
C46 0.047U/10V_4C46 0.047U/10V_4
C61 0.1U/16V_4C61 0.1U/16V_4
C53 1U/6.3V_4C53 1U/6.3V_4
C75 1U/6.3V_4C75 1U/6.3V_4
C77 10U/6.3V_6C77 10U/6.3V_6
C65 10U/6.3V_6C65 10U/6.3V_6
C476 0.1U/16V_4C476 0.1U/16V_4
C5 0.1U/16V_4C5 0.1U/16V_4
C28 0.1U/16V_4C28 0.1U/16V_4
+VCC_DGFX_CORE
VDD_SENSE[56]
GND_SENSE[56]
C85 0.1U/16V_4C85 0.1U/16V_4
C98 1U/6.3V_4C98 1U/6.3V_4
C102 1U/25V_6C102 1U/25V_6
C36 0.1U/16V_4C36 0.1U/16V_4
C6 1U/25V_6C6 1U/25V_6
12
12
12
12
12
12
12
12
12
12
1 2
C35 1U/25V_6C35 1U/25V_6
C19 1U/6.3V_4C19 1U/6.3V_4
12
12
12
12
VDD_SENSE
GND_SENSE
L8
L8
BLM18AG121SN1D
BLM18AG121SN1D
12
12
12
12
12
R41 100_4R41 100_4
R40 100_4R40 100_4
+1.05V_GFX
21
150mA
+PEX_PLLVDD
12
12~16 mils width210mA
+3.3V_GFX
C413 *0.1U/16V_4_NCC413 *0.1U/16V_4_NC
1 2
GPU_RST#
D D
4
R351 0_4_DISR351 0_4_DIS
1 2
R395 *0_4_OPT_NCR395 *0_4_OPT_NC
1 2
1
2
1
3 5
U21
U21
*TC7SH08FU_NC
*TC7SH08FU_NC
N13P-GT-A2
AG19
PEX_IOVDD_1
AG21
PEX_IOVDD_2
AG22
PEX_IOVDD_3
AG24
PEX_IOVDD_4
AH21
PEX_IOVDD_5
AH25
PEX_IOVDD_6
AG13
PEX_IOVDDQ_1
AG15
PEX_IOVDDQ_2
AG16
PEX_IOVDDQ_3
AG18
PEX_IOVDDQ_4
AG25
PEX_IOVDDQ_5
AH15
PEX_IOVDDQ_6
AH18
PEX_IOVDDQ_7
AH26
PEX_IOVDDQ_8
AH27
PEX_IOVDDQ_9
AJ27
PEX_IOVDDQ_10
AK27
PEX_IOVDDQ_11
AL27
PEX_IOVDDQ_12
AM28
PEX_IOVDDQ_13
AN28
PEX_IOVDDQ_14
GB4-128
GB4-128
PCI EXPRESS
J8
VDD33_1
K8
VDD33_2
L8
VDD33_3
M8
VDD33_4
12
L4
VDD_SENSE
L5
GND_SENSE
AG26
PEX_PLLVDD
P8
3V3AUX_NC
AG12
PEX_SVDD_3V3
AH12
PEX_PLL_HVDD
AJ11
PEX_WAKE#
PCI EXPRESS
PLTRST# [7,23,38,41,57]
DGPU_HOLD_RST# [23]
PEX_RX0
PEX_RX0*
PEX_RX1
PEX_RX1*
PEX_RX2
PEX_RX2*
PEX_RX3
PEX_RX3*
PEX_RX4
PEX_RX4*
PEX_RX5
PEX_RX5*
PEX_RX6
PEX_RX6*
PEX_RX7
PEX_RX7*
PEX_RX8
PEX_RX8*
PEX_RX9
PEX_RX9*
PEX_RX10
PEX_RX10*
PEX_RX11
PEX_RX11*
PEX_RX12
PEX_RX12*
PEX_RX13
PEX_RX13*
PEX_RX14
PEX_RX14*
PEX_RX15
PEX_RX15*
PEX_TX0
PEX_TX0*
PEX_TX1
PEX_TX1*
PEX_TX2
PEX_TX2*
PEX_TX3
PEX_TX3*
PEX_TX4
PEX_TX4*
PEX_TX5
PEX_TX5*
PEX_TX6
PEX_TX6*
PEX_TX7
PEX_TX7*
PEX_TX8
PEX_TX8*
PEX_TX9
PEX_TX9*
PEX_TX10
PEX_TX10*
PEX_TX11
PEX_TX11*
PEX_TX12
PEX_TX12*
PEX_TX13
PEX_TX13*
PEX_TX14
PEX_TX14*
PEX_TX15
PEX_TX15*
PEX_REFCLK
PEX_REFCLK*
PEX_TSTCLK_OUT
PEX_TSTCLK_OUT*
PEX_RST*
PEX_CLKREQ*
PEX_TERMP
TESTMODE
DIS
OPT
2
3
AN12
AM12
AN14
AM14
AP14
AP15
AN15
AM15
AN17
AM17
AP17
AP18
AN18
AM18
AN20
AM20
AP20
AP21
AN21
AM21
AN23
AM23
AP23
AP24
AN24
AM24
AN26
AM26
AP26
AP27
AN27
AM27
AK14
AJ14
AH14
AG14
AK15
AJ15
AL16
AK16
AK17
AJ17
AH17
AG17
AK18
AJ18
AL19
AK19
AK20
AJ20
AH20
AG20
AK21
AJ21
AL22
AK22
AK23
AJ23
AH23
AG23
AK24
AJ24
AL25
AK25
AL13
AK13
AJ26
AK26
AJ12
AK12
AP29
AK11
PEG_TXP15
PEG_TXN15
PEG_TXP14
PEG_TXN14
PEG_TXP13
PEG_TXN13
PEG_TXP12
PEG_TXN12
PEG_TXP11
PEG_TXN11
PEG_TXP10
PEG_TXN10
PEG_TXP9
PEG_TXN9
PEG_TXP8
PEG_TXN8
PEG_TXP7
PEG_TXN7
PEG_TXP6
PEG_TXN6
PEG_TXP5
PEG_TXN5
PEG_TXP4
PEG_TXN4
PEG_TXP3
PEG_TXN3
PEG_TXP2
PEG_TXN2
PEG_TXP1
PEG_TXN1
PEG_TXP0
PEG_TXN0
PEG_RXP15_C
PEG_RXN15_C
PEG_RXP14_C
PEG_RXN14_C
PEG_RXP13_C
PEG_RXN13_C
PEG_RXP12_C
PEG_RXN12_C
PEG_RXP11_C
PEG_RXN11_C
PEG_RXP10_C
PEG_RXN10_C
PEG_RXP9_C
PEG_RXN9_C
PEG_RXP8_C
PEG_RXN8_C
PEG_RXP7_C
PEG_RXN7_C
PEG_RXP6_C
PEG_RXN6_C
PEG_RXP5_C
PEG_RXN5_C
PEG_RXP4_C
PEG_RXN4_C
PEG_RXP3_C
PEG_RXN3_C
PEG_RXP2_C
PEG_RXN2_C
PEG_RXP1_C
PEG_RXN1_C
PEG_RXP0_C
PEG_RXN0_C
CLK_PCIE_VGAP
CLK_PCIE_VGAN
PEX_TSTCLK
PEX_TSTCLK#
GPU_RST#
PEX_CLKREQ#
PEX_TERMP
TESTMODE
PEG_TXP15 [6]
PEG_TXN15 [6]
PEG_TXP14 [6]
PEG_TXN14 [6]
PEG_TXP13 [6]
PEG_TXN13 [6]
PEG_TXP12 [6]
PEG_TXN12 [6]
PEG_TXP11 [6]
PEG_TXN11 [6]
PEG_TXP10 [6]
PEG_TXN10 [6]
PEG_TXP9 [6]
PEG_TXN9 [6]
PEG_TXP8 [6]
PEG_TXN8 [6]
PEG_TXP7 [6]
PEG_TXN7 [6]
PEG_TXP6 [6]
PEG_TXN6 [6]
PEG_TXP5 [6]
PEG_TXN5 [6]
PEG_TXP4 [6]
PEG_TXN4 [6]
PEG_TXP3 [6]
PEG_TXN3 [6]
PEG_TXP2 [6]
PEG_TXN2 [6]
PEG_TXP1 [6]
PEG_TXN1 [6]
PEG_TXP0 [6]
PEG_TXN0 [6]
C125 0.22U/16VC125 0.22U/16V
1 2
C126 0.22U/16VC126 0.22U/16V
1 2
C147 0.22U/16VC147 0.22U/16V
1 2
C145 0.22U/16VC145 0.22U/16V
1 2
C123 0.22U/16VC123 0.22U/16V
1 2
C124 0.22U/16VC124 0.22U/16V
1 2
C152 0.22U/16VC152 0.22U/16V
1 2
C153 0.22U/16VC153 0.22U/16V
1 2
C121 0.22U/16VC121 0.22U/16V
1 2
C122 0.22U/16VC122 0.22U/16V
1 2
C151 0.22U/16VC151 0.22U/16V
1 2
C150 0.22U/16VC150 0.22U/16V
1 2
C119 0.22U/16VC119 0.22U/16V
1 2
C120 0.22U/16VC120 0.22U/16V
1 2
C149 0.22U/16VC149 0.22U/16V
1 2
C148 0.22U/16VC148 0.22U/16V
1 2
C128 0.22U/16VC128 0.22U/16V
1 2
C127 0.22U/16VC127 0.22U/16V
1 2
C161 0.22U/16VC161 0.22U/16V
1 2
C160 0.22U/16VC160 0.22U/16V
1 2
C129 0.22U/16VC129 0.22U/16V
1 2
C130 0.22U/16VC130 0.22U/16V
1 2
C158 0.22U/16VC158 0.22U/16V
1 2
C159 0.22U/16VC159 0.22U/16V
1 2
C157 0.22U/16VC157 0.22U/16V
1 2
C156 0.22U/16VC156 0.22U/16V
1 2
C134 0.22U/16VC134 0.22U/16V
1 2
C133 0.22U/16VC133 0.22U/16V
1 2
C155 0.22U/16VC155 0.22U/16V
1 2
C154 0.22U/16VC154 0.22U/16V
1 2
C131 0.22U/16VC131 0.22U/16V
1 2
C132 0.22U/16VC132 0.22U/16V
1 2
R64 *200_4_NCR64 *200_4_NC
R63 *10K_4_NCR63 *10K_4_NC
R80 2.49K/F_4R80 2.49K/F_4
1 2
R46 10K_4R46 10K_4
1 2
PEX_CLKREQ#
4
+1.05V_GFX
CLK_PCIE_VGAP [24]
CLK_PCIE_VGAN [24]
12
12
PDTC143TT
Hfe=200, Vce(sat)=0.1V, Vbe(sat)=0.7V, Rb=4.7K
Ib=(1.05-0.7)/4.7K=74.46uA,
Ic=(3.3-0.1)/220=9.69mA
Hfe*Ib > Ic, Saturation
+3.3V_GFX
+3.3V_GFX
2
31
Q3
Q3
*2N7002W _NC
*2N7002W _NC
R61 0_4R61 0_4
GPU all PWROK
+3.3V_GFX
2
Q2
Q2
*PDTC143TT_NC
*PDTC143TT_NC
PEG_RXP15
PEG_RXN15
PEG_RXP14
PEG_RXN14
PEG_RXP13
PEG_RXN13
PEG_RXP12
PEG_RXN12
PEG_RXP11
PEG_RXN11
PEG_RXP10
PEG_RXN10
PEG_RXP9
PEG_RXN9
PEG_RXP8
PEG_RXN8
PEG_RXP7
PEG_RXN7
PEG_RXP6
PEG_RXN6
PEG_RXP5
PEG_RXN5
PEG_RXP4
PEG_RXN4
PEG_RXP3
PEG_RXN3
PEG_RXP2
PEG_RXN2
PEG_RXP1
PEG_RXN1
PEG_RXP0
PEG_RXN0
+3.3V_RUN
R13
R13
*330_4_NC
*330_4_NC
1 2
1 3
12
PEG_RXP15 [6]
PEG_RXN15 [6]
PEG_RXP14 [6]
PEG_RXN14 [6]
PEG_RXP13 [6]
PEG_RXN13 [6]
PEG_RXP12 [6]
PEG_RXN12 [6]
PEG_RXP11 [6]
PEG_RXN11 [6]
PEG_RXP10 [6]
PEG_RXN10 [6]
PEG_RXP9 [6]
PEG_RXN9 [6]
PEG_RXP8 [6]
PEG_RXN8 [6]
PEG_RXP7 [6]
PEG_RXN7 [6]
PEG_RXP6 [6]
PEG_RXN6 [6]
PEG_RXP5 [6]
PEG_RXN5 [6]
PEG_RXP4 [6]
PEG_RXN4 [6]
PEG_RXP3 [6]
PEG_RXN3 [6]
PEG_RXP2 [6]
PEG_RXN2 [6]
PEG_RXP1 [6]
PEG_RXN1 [6]
PEG_RXP0 [6]
PEG_RXN0 [6]
R25
R25
*10K_4_NC
*10K_4_NC
1 2
31
2
C2
C2
*4700P/25V_4_NC
*4700P/25V_4_NC
0.22uF AC coupling Caps for PCIE GEN1/2/3
0.1uF AC coupling Caps for PCIE GEN1/2
PEG_A_CLKRQ# [24]
5
DGPU_PW ROK [25]
Q1
Q1
*2N7002W _NC
*2N7002W _NC
6
Power up sequence
VDD33
+3.3V_GFX
IFP(AB)_IOVDD
+1.8V_GFX
NVVDD
+VCC_DGFX_CORE
FBVDDQ
+1.5V_GFX
PEX_VDD
+1.05V_GFX
IFP(CDEF)_IOVDD
+1.05V_GFX
NVVDD Maximum Settling Time
NVVDD
GPIO
I/O 3.3V
PEX_RST
Trise >= 1uS Tfail <=500nS
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
7
t>=0
t>0
t>0
t>0
tsNVVDD<100us
PEX_RST timing
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
N13P-GS (PCIE I/F) 1/5
N13P-GS (PCIE I/F) 1/5
N13P-GS (PCIE I/F) 1/5
R09A
R09A
R09A
13 58
13 58
13 58
t>=0
8
3A
3A
3A
1
U24B
U24B
N13P-GT-A2
N13P-GT-A2
VMA_CMD0[18]
VMA_CMD1[18]
VMA_CMD2[18]
VMA_CMD3[18]
VMA_CMD4[18]
VMA_CMD5[18]
VMA_CMD6[18]
VMA_CMD7[18]
VMA_CMD8[18]
A A
VMA_CMD9[18]
VMA_CMD10[18]
VMA_CMD11[18]
VMA_CMD12[18]
VMA_CMD13[18]
VMA_CMD14[18]
VMA_CMD15[18]
VMA_CMD16[18]
VMA_CMD17[18]
VMA_CMD18[18]
VMA_CMD19[18]
VMA_CMD20[18]
VMA_CMD21[18]
VMA_CMD22[18]
VMA_CMD23[18]
VMA_CMD24[18]
VMA_CMD25[18]
VMA_CMD26[18]
VMA_CMD27[18]
VMA_CMD28[18]
VMA_CMD29[18]
VMA_CMD30[18]
VMA_CMD31[18]
DBI
B B
EDC
VMA_WDQS0
VMA_WDQS1
VMA_WDQS2
VMA_WDQS3
VMA_WDQS4
VMA_WDQS5
VMA_WDQS6
VMA_WDQS7
VMA_DM0
VMA_DM1
VMA_DM2
VMA_DM3
VMA_DM4
VMA_DM5
VMA_DM6
VMA_DM7
GDDR5 NO USE
VMA_WCK01[18]
VMA_WCK01#[18]
VMA_WCK23[18]
VMA_WCK23#[18]
VMA_WCK45[18]
VMA_WCK45#[18]
VMA_WCK67[18]
C C
VMA_WCK67#[18]
+1.5V_GFX
D D
1
U30
U29
R34
R33
U32
U33
U28
V28
V29
V30
U34
U31
V34
V33
Y32
AA31
AA29
AA28
AC34
AC33
AA32
AA33
Y28
Y29
W31
Y30
AA34
Y31
Y34
Y33
V31
P30
M32
AD31
AL29
AM32
AF34
M31
G31
E33
M33
AE31
AK30
AN33
AF33
M30
H30
E34
M34
AF30
AK31
AM34
AF32
K31
H34
AG30
AG31
AJ34
AK34
AH31
AJ31
AJ32
AJ33
AA27
AA30
AB27
AB33
AC27
AD27
AE27
AF27
AG27
B13
B16
B19
E13
E16
E19
H10
H11
H12
H13
T31
F31
F34
L30
J34
J30
J31
J32
J33
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD30
FBA_CMD31
FBA_DQM0
FBA_DQM1
FBA_DQM2
FBA_DQM3
FBA_DQM4
FBA_DQM5
FBA_DQM6
FBA_DQM7
FBA_DQS_WP0
FBA_DQS_WP1
FBA_DQS_WP2
FBA_DQS_WP3
FBA_DQS_WP4
FBA_DQS_WP5
FBA_DQS_WP6
FBA_DQS_WP7
FBA_DQS_RN0
FBA_DQS_RN1
FBA_DQS_RN2
FBA_DQS_RN3
FBA_DQS_RN4
FBA_DQS_RN5
FBA_DQS_RN6
FBA_DQS_RN7
FBA_WCK01
FBA_WCK01_N
FBA_WCK23
FBA_WCK23_N
FBA_WCK45
FBA_WCK45_N
FBA_WCK67
FBA_WCK67_N
FBA_WCKB01
FBA_WCKB01_N
FBA_WCKB23
FBA_WCKB23_N
FBA_WCKB45
FBA_WCKB45_N
FBA_WCKB67
FBA_WCKB67_N
FBVDDQ_1
FBVDDQ_2
FBVDDQ_3
FBVDDQ_4
FBVDDQ_5
FBVDDQ_6
FBVDDQ_7
FBVDDQ_8
FBVDDQ_9
FBVDDQ_10
FBVDDQ_11
FBVDDQ_12
FBVDDQ_13
FBVDDQ_14
FBVDDQ_15
FBVDDQ_16
FBVDDQ_17
FBVDDQ_18
FBVDDQ_19
2
GB4-128
GB4-128
MEMORY I/F A
MEMORY I/F A
2
FBA_D00
FBA_D01
FBA_D02
FBA_D03
FBA_D04
FBA_D05
FBA_D06
FBA_D07
FBA_D08
FBA_D09
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_CLK0
FBA_CLK0*
FBA_CLK1
FBA_CLK1*
FB_VREF
FBA_DEBUG0
FBA_DEBUG1
FBA_CMD_RFU0
FBA_CMD_RFU1
FB_DLL_AVDD
FBA_PLL_AVDD
FBVDDQ_22
FBVDDQ_21
FBVDDQ_20
FB_CLAMP
3
L28
M29
L29
M28
N31
P29
R29
P28
J28
H29
J29
H28
G29
E31
E32
F30
C34
D32
B33
C33
F33
F32
H33
H32
P34
P32
P31
P33
L31
L34
L32
L33
AG28
AF29
AG29
AF28
AD30
AD29
AC29
AD28
AJ29
AK29
AJ30
AK28
AM29
AM31
AN29
AM30
AN31
AN32
AP30
AP32
AM33
AL31
AK33
AK32
AD34
AD32
AC30
AD33
AF31
AG34
AG32
AG33
R30
R31
AB31
AC31
+FB_VREF1
H26
15mils width
FBA_DEBUG0
R28
FBA_DEBUG1
AC28
R32
AC32
+FB_PLLAVDD
K27
U27
100mA
H16
H15
H14
E1
3
VMA_DQ0
VMA_DQ1
VMA_DQ2
VMA_DQ3
VMA_DQ4
VMA_DQ5
VMA_DQ6
VMA_DQ7
VMA_DQ8
VMA_DQ9
VMA_DQ10
VMA_DQ11
VMA_DQ12
VMA_DQ13
VMA_DQ14
VMA_DQ15
VMA_DQ16
VMA_DQ17
VMA_DQ18
VMA_DQ19
VMA_DQ20
VMA_DQ21
VMA_DQ22
VMA_DQ23
VMA_DQ24
VMA_DQ25
VMA_DQ26
VMA_DQ27
VMA_DQ28
VMA_DQ29
VMA_DQ30
VMA_DQ31
VMA_DQ32
VMA_DQ33
VMA_DQ34
VMA_DQ35
VMA_DQ36
VMA_DQ37
VMA_DQ38
VMA_DQ39
VMA_DQ40
VMA_DQ41
VMA_DQ42
VMA_DQ43
VMA_DQ44
VMA_DQ45
VMA_DQ46
VMA_DQ47
VMA_DQ48
VMA_DQ49
VMA_DQ50
VMA_DQ51
VMA_DQ52
VMA_DQ53
VMA_DQ54
VMA_DQ55
VMA_DQ56
VMA_DQ57
VMA_DQ58
VMA_DQ59
VMA_DQ60
VMA_DQ61
VMA_DQ62
VMA_DQ63
VMA_CLKP0
VMA_CLKN0
VMA_CLKP1
VMA_CLKN1
T7T7
For Debug only
R71 *60.4/F_4_NCR71 *60.4/F_4_NC
1 2
R72 *60.4/F_4_NCR72 *60.4/F_4_NC
1 2
L5 BLM18PG300SN1DL5 BLM18PG300SN1D
12
1 2
1 2
+1.5V_GFX
R35
R35
10K_4
10K_4
1 2
C86 1U/6.3V_4C86 1U/6.3V_4
C88 0.1U/16V_4C88 0.1U/16V_4
VMA_DQ[63..0][18]
VMA_DM[7..0][18]
VMA_WDQS[7..0][18]
VMC_DQ[63..0][19]
VMC_DM[7..0][19]
VMC_WDQS[7..0][19]
VMA_CLKP0 [18]
VMA_CLKN0 [18]
VMA_CLKP1 [18]
VMA_CLKN1 [18]
100mA
4
+1.5V_GFX
+1.05V_GFX
15mils width
+1.5V_GFX
C20 0.1U/16V_4_GTC20 0.1U/16V_4_GT
1 2
C33 0.1U/16V_4_GTC33 0.1U/16V_4_GT
1 2
C174 0.1U/16V_4C174 0.1U/16V_4
1 2
C47 0.1U/16V_4C47 0.1U/16V_4
1 2
C87 0.1U/16V_4C87 0.1U/16V_4
1 2
C78 0.1U/16V_4C78 0.1U/16V_4
1 2
C71 0.1U/16V_4C71 0.1U/16V_4
1 2
C138 1U/6.3V_4_GTC138 1U/6.3V_4_GT
1 2
C117 1U/6.3V_4C117 1U/6.3V_4
1 2
C76 1U/6.3V_4C76 1U/6.3V_4
1 2
C101 1U/6.3V_4C101 1U/6.3V_4
1 2
4
5
VMC_CMD0[19]
VMC_CMD1[19]
VMC_CMD2[19]
VMC_CMD3[19]
VMC_CMD4[19]
VMC_CMD5[19]
VMC_CMD6[19]
VMC_CMD7[19]
VMC_CMD8[19]
VMC_CMD9[19]
VMC_CMD10[19]
VMC_CMD11[19]
VMC_CMD12[19]
VMC_CMD13[19]
VMC_CMD14[19]
VMC_CMD15[19]
VMC_CMD16[19]
VMC_CMD17[19]
VMC_CMD18[19]
VMC_CMD19[19]
VMC_CMD20[19]
VMC_CMD21[19]
VMC_CMD22[19]
VMC_CMD23[19]
VMC_CMD24[19]
VMC_CMD25[19]
VMC_CMD26[19]
VMC_CMD27[19]
VMC_CMD28[19]
VMC_CMD29[19]
VMC_CMD30[19]
VMC_CMD31[19]
DBI
EDC
VMC_WDQS0
VMC_WDQS1
VMC_WDQS2
VMC_WDQS3
VMC_WDQS4
VMC_WDQS5
VMC_WDQS6
VMC_WDQS7
VMC_DM0
VMC_DM1
VMC_DM2
VMC_DM3
VMC_DM4
VMC_DM5
VMC_DM6
VMC_DM7
GDDR5 NO USE
VMC_WCK01[19]
VMC_WCK01#[19]
VMC_WCK23[19]
VMC_WCK23#[19]
VMC_WCK45[19]
VMC_WCK45#[19]
VMC_WCK67[19]
VMC_WCK67#[19]
+1.5V_GFX
GT
GV
5
U24C
U24C
N13P-GT-A2
N13P-GT-A2
D13
FBB_CMD0
E14
FBB_CMD1
F14
FBB_CMD2
A12
FBB_CMD3
B12
FBB_CMD4
C14
FBB_CMD5
B14
FBB_CMD6
G15
FBB_CMD7
F15
FBB_CMD8
E15
FBB_CMD9
D15
FBB_CMD10
A14
FBB_CMD11
D14
FBB_CMD12
A15
FBB_CMD13
B15
FBB_CMD14
C17
FBB_CMD15
D18
FBB_CMD16
E18
FBB_CMD17
F18
FBB_CMD18
A20
FBB_CMD19
B20
FBB_CMD20
C18
FBB_CMD21
B18
FBB_CMD22
G18
FBB_CMD23
G17
FBB_CMD24
F17
FBB_CMD25
D16
FBB_CMD26
A18
FBB_CMD27
D17
FBB_CMD28
A17
FBB_CMD29
B17
FBB_CMD30
E17
FBB_CMD31
E11
FBB_DQM0
E3
FBB_DQM1
A3
FBB_DQM2
C9
FBB_DQM3
F23
FBB_DQM4
F27
FBB_DQM5
C30
FBB_DQM6
A24
FBB_DQM7
D10
FBB_DQS_WP0
D5
FBB_DQS_WP1
C3
FBB_DQS_WP2
B9
FBB_DQS_WP3
E23
FBB_DQS_WP4
E28
FBB_DQS_WP5
B30
FBB_DQS_WP6
A23
FBB_DQS_WP7
D9
FBB_DQS_RN0
E4
FBB_DQS_RN1
B2
FBB_DQS_RN2
A9
FBB_DQS_RN3
D22
FBB_DQS_RN4
D28
FBB_DQS_RN5
A30
FBB_DQS_RN6
B23
FBB_DQS_RN7
F8
FBB_WCK01
E8
FBB_WCK01_N
A5
FBB_WCK23
A6
FBB_WCK23_N
D24
FBB_WCK45
D25
FBB_WCK45_N
B27
FBB_WCK67
C27
FBB_WCK67_N
D6
FBB_WCKB01
D7
FBB_WCKB01_N
C6
FBB_WCKB23
B6
FBB_WCKB23_N
F26
FBB_WCKB45
E26
FBB_WCKB45_N
A26
FBB_WCKB67
A27
FBB_WCKB67_N
H18
FBVDDQ_23
H19
FBVDDQ_24
H20
FBVDDQ_25
H21
FBVDDQ_26
H22
FBVDDQ_27
H23
FBVDDQ_28
H24
FBVDDQ_29
H8
FBVDDQ_30
H9
FBVDDQ_31
L27
FBVDDQ_32
M27
FBVDDQ_33
N27
FBVDDQ_34
P27
FBVDDQ_35
R27
FBVDDQ_36
T27
FBVDDQ_37
T30
FBVDDQ_38
all POP
NC C20,C33,C138
6
GB4-128
GB4-128
MEMORY I/F C
MEMORY I/F C
FB_CAL_TERM_GND
6
7
GDDR5 Mode H Mapping
VMC_DQ0
G9
FBB_D00
E9
FBB_D01
G8
FBB_D02
F9
FBB_D03
F11
FBB_D04
G11
FBB_D05
F12
FBB_D06
G12
FBB_D07
G6
FBB_D08
F5
FBB_D09
E6
FBB_D10
F6
FBB_D11
F4
FBB_D12
G4
FBB_D13
E2
FBB_D14
F3
FBB_D15
C2
FBB_D16
D4
FBB_D17
D3
FBB_D18
C1
FBB_D19
B3
FBB_D20
C4
FBB_D21
B5
FBB_D22
C5
FBB_D23
A11
FBB_D24
C11
FBB_D25
D11
FBB_D26
B11
FBB_D27
D8
FBB_D28
A8
FBB_D29
C8
FBB_D30
B8
FBB_D31
F24
FBB_D32
G23
FBB_D33
E24
FBB_D34
G24
FBB_D35
D21
FBB_D36
E21
FBB_D37
G21
FBB_D38
F21
FBB_D39
G27
FBB_D40
D27
FBB_D41
G26
FBB_D42
E27
FBB_D43
E29
FBB_D44
F29
FBB_D45
E30
FBB_D46
D30
FBB_D47
A32
FBB_D48
C31
FBB_D49
C32
FBB_D50
B32
FBB_D51
D29
FBB_D52
A29
FBB_D53
C29
FBB_D54
B29
FBB_D55
B21
FBB_D56
C23
FBB_D57
A21
FBB_D58
C21
FBB_D59
B24
FBB_D60
C24
FBB_D61
B26
FBB_D62
C26
FBB_D63
VMC_CLKP0
D12
FBB_CLK0
FBB_CLK0*
FBB_CLK1
FBB_CLK1*
FBB_PLL_AVDD
FBB_CMD_RFU0
FBB_CMD_RFU1
FB_VDDQ_SENSE
FB_GND_SENSE
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FBB_DEBUG0
FBB_DEBUG1
FBVDDQ_39
FBVDDQ_40
FBVDDQ_41
FBVDDQ_42
FBVDDQ_43
FBVDDQ_44
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
VMC_CLKN0
E12
VMC_CLKP1
E20
VMC_CLKN1
F20
+FB_PLLAVDD
H17
C12
C20
F1
F2
FB_CAL_PD_VDDQ
J27
FB_CAL_PU_GND
H27
FB_CAL_TERM_GND
H25
FBC_DEBUG0
G14
FBC_DEBUG1
G20
T33
V27
W27
W30
W33
Y27
N13P-GS (MEMORY I/F) 2/5
N13P-GS (MEMORY I/F) 2/5
Saturday, March 03, 2012
Saturday, March 03, 2012
Saturday, March 03, 2012
N13P-GS (MEMORY I/F) 2/5
7
< 0-31 > < 32-63 > Memory
VMC_DQ1
VMC_DQ2
VMC_DQ3
VMC_DQ4
VMC_DQ5
VMC_DQ6
VMC_DQ7
VMC_DQ8
VMC_DQ9
VMC_DQ10
VMC_DQ11
VMC_DQ12
VMC_DQ13
VMC_DQ14
VMC_DQ15
VMC_DQ16
VMC_DQ17
VMC_DQ18
VMC_DQ19
VMC_DQ20
VMC_DQ21
VMC_DQ22
VMC_DQ23
VMC_DQ24
VMC_DQ25
VMC_DQ26
VMC_DQ27
VMC_DQ28
VMC_DQ29
VMC_DQ30
VMC_DQ31
VMC_DQ32
VMC_DQ33
VMC_DQ34
VMC_DQ35
VMC_DQ36
VMC_DQ37
VMC_DQ38
VMC_DQ39
VMC_DQ40
VMC_DQ41
VMC_DQ42
VMC_DQ43
VMC_DQ44
VMC_DQ45
VMC_DQ46
VMC_DQ47
VMC_DQ48
VMC_DQ49
VMC_DQ50
VMC_DQ51
VMC_DQ52
VMC_DQ53
VMC_DQ54
VMC_DQ55
VMC_DQ56
VMC_DQ57
VMC_DQ58
VMC_DQ59
VMC_DQ60
VMC_DQ61
VMC_DQ62
VMC_DQ63
CMD0 CMD16 CS*
CMD1 CMD17 A3_BA3
CMD2 CMD18 A2_BA0
CMD3 CMD19 A4_BA2
CMD4 CMD20 A5_BA1
CMD5 CMD21 WE*
CMD6 CMD22 A7_A8
CMD7 CMD23 A6_A11
CMD8 CMD24 ABI*
CMD9 CMD25 A12_RFU
CMD10 CMD26 A0_A10
CMD11 CMD27 A1_A9
CMD12 CMD28 RAS*
CMD13 CMD29 RST*
CMD14 CMD30 CKE*
CMD15 CMD31 CAS*
VMC_CLKP0 [19]
VMC_CLKN0 [19]
VMC_CLKP1 [19]
VMC_CLKN1 [19]
C64 0.1U/16V_4C64 0.1U/16V_4
1 2
C62 0.047U/10V_4C62 0.047U/10V_4
1 2
C57 1U/6.3V_4C57 1U/6.3V_4
1 2
1 2
R70 40.2/F_4R70 40.2/F_4
1 2
R69 40.2/F_4R69 40.2/F_4
1 2
R62 60.4/F_4R62 60.4/F_4
R52 *60.4/F_4_NCR52 *60.4/F_4_NC
1 2
R57 *10K_4_NCR57 *10K_4_NC
1 2
+1.5V_GFX
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
R09A
R09A
R09A
8
+1.5V_GFX
+1.5V_GFX
14 58
14 58
14 58
8
3A
3A
3A
1
A A
DIS
DIS
B B
C18,C24 - 0.1uF
+3.3V_GFX
+1.05V_GFX
CH4103K1B08
CAP CHIP 0.1U 16V(+-10%,X7R,0402)
eDP_HPD[27]
1 2
R364 1K_4_DISR364 1K_4_DIS
DIS
DIS
+3.3V_GFX
C C
DIS
C30 - 0.1uF
CH4103K1B08
CAP CHIP 0.1U 16V(+-10%,X7R,0402)
D D
1
2
L2 HCB1608KF-301T20_DISL2 HCB1608KF-301T20_DIS
1 2
L4 BLM18EG121SN1D_DISL4 BLM18EG121SN1D_DIS
eDP_HPD_R
R47
R47
100K_4_DIS
100K_4_DIS
L1 HCB1608KF-301T20_DISL1 HCB1608KF-301T20_DIS
1 2
2
C17 1U/25V_6_DISC17 1U/25V_6_DIS
C18 0.1U_4C18 0.1U_4
+1.05V_GFX
1 2
1 2
C41 1U/6.3V_4_DISC41 1U/6.3V_4_DIS
C24 0.1U_4C24 0.1U_4
C42 0.1U/16V_4_DISC42 0.1U/16V_4_DIS
C23 0.1U/16V_4_DISC23 0.1U/16V_4_DIS
1 2
C30 0.1U/16V_4_DISC30 0.1U/16V_4_DIS
1 2
L3 BLM18EG221SN1DL3 BLM18EG221SN1D
1 2
1 2
1 2
3
R357 1K/F_4_DISR357 1K/F_4_DIS
1 2
R376 1K/F_4_DISR376 1K/F_4_DIS
1 2
R49 10K_4R49 10K_4
R48 10K_4R48 10K_4
0.1U/16V_4_DIS
0.1U/16V_4_DIS
C22 0.1U/16V_4C22 0.1U/16V_4
C29 1U/6.3V_4C29 1U/6.3V_4
3
R50 10K_4R50 10K_4
R51 10K_4R51 10K_4
EXT_HDMI_HPD_R[29]
12
12
120 mA
12
C447
C447
60mA
45mA
1 2
1 2
4
12
R45*1K/F_4_NC R45*1K/F_4_NC
IFPAB_RSET
12
12
T5T5
110 mA
+IFPCD_PLLVDD
eDP_HPD_R
IFPC_RSET
IFPD_RSET
+IFPCD_IOVDD
200 mA
+IFPEF_PLLVDD
+IFPEF_IOVDD
+DACA_VDD
R377
R377
124/F_DIS
124/F_DIS
+NV_PLLVDD
4
U24D
U24D
N13P-GT-A2
N13P-GT-A2
AH8
IFPAB_PLLVDD
AJ8
IFPAB_RSET
AG8
IFPA_IOVDD
AG9
IFPB_IOVDD
N4
GPIO14
AF7
IFPCD_PLLVDD/
IFPC_PLLVDD
IFPC_PLLVDD
AG7
DACB_VDD/
IFPD_PLLVDD
IFPD_PLLVDD
P2
GPIO15
M6
GPIO17
AF8
IFPCD_RSET/ IFPC_RSET
AN2
DACB_RSET/ IFPD_RSET
AF6
IFPC_IOVDD
AG6
IFPD_IOVDD
AD6
IFPEF_RSET
AB8
IFPEF_PLLVDD
AC7
IFPE_IOVDD
AC8
IFPF_IOVDD
R1
GPIO18
P3
GPIO19
AG10
DACA_VDD
AP9
DACA_VREF
AP8
DACA_RSET
AC6
NC_1
AJ28
NC_2
AJ4
NC_3
AJ5
NC_4
AL11
NC_5
C15
NC_6
D19
NC_7
D20
NC_8
D23
NC_9
D26
NC_10
H31
NC_11
T8
NC_12
V32
NC_13
AD8
PLLVDD
AD7
VID_PLLVDD
GF108/GKx
GF108/GKx
AE8
SP_PLLVDD
IFPAB(LVDS)
IFPAB(LVDS)
IFPCD
IFPCD
DACA(CRT)
DACA(CRT)
NC
NC
GF117
GF117
5
GB4-128
GB4-128
I2CW_SDA/ IFPC_AUX_N
I2CW_SCL/ IFPC_AUX
IFPC
IFPC
I2CX_SDA/ IFPD_AUX_N
I2CX_SCL/ IFPD_AUX
IFPD
IFPD
I2CY_SCL/ IFPE_AUX
I2CY_SDA/ IFPE_AUX*
IFPEF
IFPEF
I2CZ_SCL/ IFPF_AUX
I2CZ_SDA/ IFPF_AUX*
XTAL_PLL
XTAL_PLL
5
IFPA_TXC
IFPA_TXC*
IFPA_TXD0
IFPA_TXD0*
IFPA_TXD1
IFPA_TXD1*
IFPA_TXD2
IFPA_TXD2*
IFPA_TXD3
IFPA_TXD3*
IFPB_TXC
IFPB_TXC*
IFPB_TXD4
IFPB_TXD4*
IFPB_TXD5
IFPB_TXD5*
IFPB_TXD6
IFPB_TXD6*
IFPB_TXD7
IFPB_TXD7*
IFPC_L3_N
IFPC_L3
IFPC_L2_N
IFPC_L2
IFPC_L1_N
IFPC_L1
IFPC_L0_N
IFPC_L0
IFPD_L3_N
IFPD_L3
IFPD_L2_N
IFPD_L2
IFPD_L1_N
IFPD_L1
IFPD_L0_N
IFPD_L0
IFPE_L0
IFPE_L0*
IFPE_L1
IFPE_L1*
IFPE_L2
IFPE_L2*
IFPE_L3
IFPE_L3*
IFPF_L0
IFPF_L0*
IFPF_L1
IFPF_L1*
IFPF_L2
IFPF_L2*
IFPF_L3
IFPF_L3*
DACA_RED
DACA_GREEN
DACA_BLUE
DACA_HSYNC
DACA_VSYNC
I2CA_SCL
I2CA_SDA
XTAL_SSIN
XTAL_OUTBUFF
XTAL_IN
XTAL_OUT
6
AM6
AN6
AP3
AN3
AN5
AM5
AL6
AK6
AJ6
AH6
AJ9
AH9
AP6
AP5
AM7
AL7
AN8
AM8
AK8
AL8
AG2
AG3
AG4
AG5
AH4
AH3
AJ2
AJ3
AJ1
AK1
AK2
AK3
AK5
AK4
AL4
AL3
AM4
AM3
AM2
AM1
AB3
AB4
AD2
AD3
AD1
AC1
AC2
AC3
AC4
AC5
AF3
AF2
AE3
AE4
AF4
AF5
AD4
AD5
AG1
AF1
AK9
AL10
AL9
AM9
AN9
R4
R5
DIS
EXT_CRT_RED
EXT_CRT_GRE
EXT_CRT_BLU
EXT_CRT_HSYNC
EXT_CRT_VSYNC
EXT_DDCCLK
EXT_DDCDAT
DIS:POP
UMA/OPT:NC
CLK_VGA_27M_SS
H1
BXTALOUT
J4
XTALIN
H3
XTALOUT
H2
C418
C418
*27P/50V_4_OPT_NC
*27P/50V_4_OPT_NC
OPT
6
eDP_1_AUXN
eDP_1_AUXP
R44 150/F_4_DISR44 150/F_4_DIS
R36 150/F_4_DISR36 150/F_4_DIS
R34 150/F_4_DISR34 150/F_4_DIS
R355 10K_4R355 10K_4
R14 10K_4R14 10K_4
Y3 *27MHZ_OPT_NCY3 *27MHZ_OPT_NC
2 1
12
7
EXT_HDMI_TXCN [29]
EXT_HDMI_TXCP [29]
EXT_HDMI_TXN0 [29]
EXT_HDMI_TXP0 [29]
EXT_HDMI_TXN1 [29]
EXT_HDMI_TXP1 [29]
EXT_HDMI_TXN2 [29]
eDP_1_AUXN
eDP_1_AUXP
R372 100K_EDPR372 100K_EDP
R375 100K_EDPR375 100K_EDP
EC118 *15P/50V_4_NCEC118 *15P/50V_4_NC
1 2
EC103 *15P/50V_4_NCEC103 *15P/50V_4_NC
1 2
EC117 *15P/50V_4_NCEC117 *15P/50V_4_NC
1 2
EXT_HDMI_TXP2 [29]
eDP_1_AUXN [27]
eDP_1_AUXP [27]
eDP_1_TXN3 [27]
eDP_1_TXP3 [27]
eDP_1_TXN2 [27]
eDP_1_TXP2 [27]
eDP_1_TXN1 [27]
eDP_1_TXP1 [27]
eDP_1_TXN0 [27]
eDP_1_TXP0 [27]
EXT_CRT_RED [28]
EXT_CRT_GRE [28]
EXT_CRT_BLU [28]
EXT_CRT_HSYNC [28]
EXT_CRT_VSYNC [28]
EXT_DDCCLK [28]
EXT_DDCDAT [28]
EXT_HDMI_SDA [29]
EXT_HDMI_SCL [29]
EXT_CRT_RED
EXT_CRT_GRE
EXT_CRT_BLU
8
HDMI
eDP
VGA
R place close to GPU
1 2
1 2
1 2
10 kΩ pull-down only if no spread chip used.
1 2
1 2
1 2
R363 0_4_DISR363 0_4_DIS
12
C419
C419
*27P/50V_4_OPT_NC
*27P/50V_4_OPT_NC
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
DIS
Monday, March 05, 2012
Monday, March 05, 2012
Monday, March 05, 2012
7
EXT_CRT_RED
EXT_CRT_GRE
EXT_CRT_BLU
CLK_VGA_27M [24]
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
N13P-GS (DISPLAY) 3/5
N13P-GS (DISPLAY) 3/5
N13P-GS (DISPLAY) 3/5
R09A
R09A
R09A
15 58
15 58
15 58
8
3A
3A
3A
1
A A
2
U24E
U24E
N13P-GT-A2
N13P-GT-A2
MISC1
MISC1
(GPIOS,JTAG,THERM,I2C)
(GPIOS,JTAG,THERM,I2C)
GB4-128
GB4-128
3
N13P-GT
4
5
10K/F_4: CS31002FB26 [RES CHIP 10K 1/16W +1% (0402)]
4.99K/F_4: CS24992FB26 [RES CHIP 4.99K 1/16W +1%(0402)]
15K/F_4: CS31502FB24 [RES CHIP 15K 1/16W +1% (0402)]
20K/F_4: CS32002FB29 RES CHIP 20K 1/16W +-1%(0402)
6
R19
R19
*4.99K/F_4_NC
*4.99K/F_4_NC
ROM_SO
ROM_SCLK
R20
R20
24.9K/F_4
24.9K/F_4
1 2
12
24.9K/F_4: CS32492FB16 [RES CHIP 24.9K 1/16W +-1%(0402)]
30K/F_4: CS33002FB13 [RES CHIP 30K 1/16W +-1%(0402)]
35.7K/F_4: CS33572FB13 [RES CHIP 35.7K 1/16W +-1%(0402)]
45.3K/F_4: CS34532FB18 [RES CHIP 45.3K 1/16W +-1% (0402)]
+3.3V_GFX +3.3V_GFX
R345
R345
10K/F_4
10K/F_4
R21
R21
1 2
4.99K/F_4
4.99K/F_4
1 2
12
12
R16
R16
*10K/F_4_NC
*10K/F_4_NC
R346
R346
*10K/F_4_NC
*10K/F_4_NC
7
R22
R22
45.3/F_4
45.3/F_4
STRAP0
STRAP1ROM_SI
STRAP2
STRAP3
STRAP4
R23
R23
*10K/F_4_NC
*10K/F_4_NC
1 2
1 2
R15
R15
*35.7K/F_4_NC
*35.7K/F_4_NC
1 2
R18
R18
4.99K/F_4
4.99K/F_4
1 2
R343
R343
*10K/F_4_NC
*10K/F_4_NC
1 2
R344
R344
10K/F_4
10K/F_4
1 2
8
R341
R341
*15K/F_4_NC
*15K/F_4_NC
1 2
R342
R342
15K/F_4
15K/F_4
1 2
R340
R340
*10K/F_4_NC
*10K/F_4_NC
1 2
R339
R339
45.3K/F_4
45.3K/F_4
1 2
N13P-GV
B B
P6
M3
L6
P5
P7
L7
M7
N8
M1
M2
L1
M5
N3
M4
R8
P4
P1
H6
H5
H7
H4
L2
L3
DGPU_VID4
DGPU_VID3
EXT_LCD_PWM
EXT_LVDS_VDDEN
EXT_LVDS_BLEN
DGPU_VID1
DGPU_VID2
VGA_OVT#
VGA_ALERT
GPIO10_VREF
DGPU_VID0
VGA_PW R_LEVEL#
DGPU_VID5
ROM_SI
ROM_SO
ROM_SCLK
DGPU_VID4 [56]
DGPU_VID3 [56]
EXT_LCD_PWM [27]
EXT_LVDS_VDDEN [27]
EXT_LVDS_BLEN [38]
DGPU_VID1 [56]
DGPU_VID2 [56]
GPIO10_VREF [18,19]
DGPU_VID0 [56]
VGA_PW R_LEVEL# [38,56]
DGPU_VID5 [56]
T14T14
T2T2
4
RAMCFG
[3:0]
0100
0101
JTAG_TMS
JTAG_TDI
VGA_OVT#
VGA_ALERT
VGA_PW R_LEVEL#
DGPU_VID0
DGPU_VID1
DGPU_VID2
DGPU_VID3
DGPU_VID4
DGPU_VID5
DGPU_VID0
DGPU_VID1
DGPU_VID2
DGPU_VID3
DGPU_VID4
DGPU_VID5
JTAG_TCK
JTAG_TRST#
5
DESCRIPTION
GDDR5 128Mx16, 2500MHz
SOR_EXPOSED[3:0]
0000
0010
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
T16T16
T17T17
T19T19
T18T18
T15T15
12
VGA_THERMDN
VGA_THERMDP
JTAG_TCK
JTAG_TMS
JTAG_TDI
JTAG_TDO
JTAG_TRST#
I2CS_SCL
I2CS_SDA
EXT_EDIDCLK
EXT_EDIDDATA
I2CB_SCL_G
I2CB_SDA_G
STRAP_REF_GND
VGA_THERMDN[44]
VGA_THERMDP[44]
R24 2.2K_4R24 2.2K_4
1 2
R352 2.2K_4R352 2.2K_4
C C
+3.3V_GFX
+3.3V_GFX
+3.3V_GFX
1 2
R359 2.2K_4R359 2.2K_4
1 2
R353 2.2K_4R353 2.2K_4
1 2
R17 2.2K_4R17 2.2K_4
1 2
R358 2.2K_4R358 2.2K_4
1 2
R362 40.2K/F_4R362 40.2K/F_4
GT : R362 POP
D D
GV : R362 NC
STRAP0
STRAP1
STRAP2
STRAP3
STRAP4
K4
THERMDN
K3
THERMDP
AM10
JTAG_TCK
AP11
JTAG_TMS
AM11
JTAG_TDI
AP12
JTAG_TDO
AN11
JTAG_TRST*
T4
I2CS_SCL
T3
I2CS_SDA
R2
I2CC_SCL
R3
I2CC_SDA
R7
I2CB_SCL
R6
I2CB_SDA
J2
STRAP0
J7
STRAP1
J6
STRAP2
J5
STRAP3
J3
STRAP4
J1
MULTI_STRAP_REF_GND
MISC2(ROM)
MISC2(ROM)
Output
0.875V
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO16
GPIO20
GPIO21
ROM_CS*
ROM_SI
ROM_SO
ROM_SCLK
BUFRST*
CEC
VID0 VID1 VID2 VID3 VID4 VID5
0 1 0 0 1 1N13P-GV(QS)
N13P-GT(QS) 0.9V 0 0 0 0 1 1
1
2
3
Default: Hynix VRAM (0100)
VRAM Configuration Table
Vendor Vendor P/N
Hynix
SamsungGDDR5 128Mx16, 2500MHz
Optimus
Discret only
+3.3V_GFX
R381*10K_4_NC R381*10K_4_NC
R382*10K_4_NC R382*10K_4_NC
R36110K_4 R36110K_4
R35410K_4 R35410K_4
R36010K_4 R36010K_4
R596*10K_4_NC R596*10K_4_NC
R597*10K_4_GV_NC R597*10K_4_GV_NC
R598*10K_4_NC R598*10K_4_NC
R599*10K_4_NC R599*10K_4_NC
R60010K_4 R60010K_4
R60110K_4 R60110K_4
R60210K_4 R60210K_4
R60310K_4_GT R60310K_4_GT
R60410K_4 R60410K_4
R60510K_4 R60510K_4
R606*10K_4_NC R606*10K_4_NC
R607*10K_4_NC R607*10K_4_NC
R378*10K_4_NC R378*10K_4_NC
R37910K_4 R37910K_4
6
GPIO
10
11
12
13
Quanta P/N
AKG5MWUTW14 H5GQ2H24MFR-T2C
AKG5MWDT509
STRAP3
PD 5K
PD 15K
0
1
3
4
5
6
7
8
9
Display confiauration table
ACTIVE
I/O
OUT
N/A
OUT
N/A
OUT
HIGH
OUT2HIGH
OUT
HIGH
OUT
N/A
OUT
N/A
OUT
N/A
I/O
LOW
I/O
LOW
OUT
N/A
OUT
N/A
IN
N/A
OUT
N/A
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, March 21, 2012
Date: Sheet of
Wednesday, March 21, 2012
Date: Sheet of
Wednesday, March 21, 2012
K4G20325FD-F
USAGE
NVVDD VID4
NVVDD VID3
PANEL BACKLIGHT PWM
PANEL POWER ENABLE
PANEL BACKLIGHT ENABLE
NVVDD VID1
NVVDD VID2
3D VERSION LEFT/RIGHT SIGNAL
OVERT
ALERT
MEMORY VREF CONTROL
NVVDD VID0
PWR_LEVEL
NVVDD VID5
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
N13P-GT (GPIO&STRAPS) 4/5
N13P-GT (GPIO&STRAPS) 4/5
N13P-GT (GPIO&STRAPS) 4/5
7
ROM_SI
PD 25K
PD 30K
R09T
R09T
R09T
16 57
16 57
16 57
8
2B
2B
2B
1
A A
B B
C C
GT: 60A
GV: 42A
D D
1
2
all POP
NC C34,C38,C72
2
U24F
U24F
N13P-GT-A2
N13P-GT-A2
AA12
VDD_001
AA14
VDD_002
AA16
VDD_003
AA19
VDD_004
AA21
VDD_005
AA23
VDD_006
AB13
VDD_007
AB15
VDD_008
AB17
VDD_009
AB20
VDD_010
AB22
VDD_011
AC12
VDD_012
AC14
VDD_013
AC16
VDD_014
AC19
VDD_015
AC21
VDD_016
AC23
VDD_017
M12
VDD_018
M14
VDD_019
M16
VDD_020
M19
VDD_021
M21
VDD_022
M23
VDD_023
N13
VDD_024
N15
VDD_025
N17
VDD_026
N18
VDD_027
N20
VDD_028
N22
VDD_029
P12
VDD_030
P14
VDD_031
P16
VDD_032
P19
VDD_033
P21
VDD_034
P23
VDD_035
R13
VDD_036
R15
VDD_037
R17
VDD_038
R18
VDD_039
R20
VDD_040
R22
VDD_041
T12
VDD_042
T14
VDD_043
T16
VDD_044
T19
VDD_045
T21
VDD_046
T23
VDD_047
U13
VDD_048
U15
VDD_049
U17
VDD_050
U18
VDD_051
U20
VDD_052
U22
VDD_053
V13
VDD_054
V15
VDD_055
V17
VDD_056
+VCC_DGFX_CORE
3
VDD_057
VDD_058
VDD_059
GB4-128
GB4-128
NVVDD
NVVDD
VDD_060
VDD_061
VDD_062
VDD_063
VDD_064
VDD_065
VDD_066
VDD_067
VDD_068
VDD_069
VDD_070
VDD_071
VDD_072
XVDD_01
XVDD_02
XVDD_03
XVDD_04
XVDD_05
XVDD_06
XVDD_07
XVDD_08
XVDD_09
XVDD_10
XVDD_11
XVDD_12
XVDD_13
XVDD_14
XVDD_15
XVDD_16
XVDD_17
XVDD_18
XVDD_19
XVDD_20
XVDD_21
XVDD_22
XVDD_23
XVDD_24
XVDD_25
XVDD_26
XVDD_27
XVDD_28
XVDD_29
XVDD_30
XVDD_31
XVDD_32
XVDD_33
XVDD_34
XVDD_35
XVDD_36
XVDD_37
XVDD_38
NVVDD Decoupling
C34 0.01U/25V_4_GTC34 0.01U/25V_4_GT
1 2
C73 0.01U/25V_4C73 0.01U/25V_4
1 2
C83 0.01U/25V_4C83 0.01U/25V_4
1 2
C74 0.01U/25V_4C74 0.01U/25V_4
1 2
C69 0.01U/25V_4C69 0.01U/25V_4
1 2
C81 0.01U/25V_4C81 0.01U/25V_4
1 2
C84 0.01U/25V_4C84 0.01U/25V_4
1 2
C50 0.01U/25V_4C50 0.01U/25V_4
1 2
C38 0.01U/25V_4_GTC38 0.01U/25V_4_GT
1 2
C51 0.01U/25V_4C51 0.01U/25V_4
1 2
C39 0.01U/25V_4C39 0.01U/25V_4
1 2
C66 0.1U/16V_4C66 0.1U/16V_4
1 2
C72 0.1U/16V_4_GTC72 0.1U/16V_4_GT
1 2
C48 0.1U/16V_4C48 0.1U/16V_4
1 2
C80 0.1U/16V_4C80 0.1U/16V_4
1 2
C40 0.1U/16V_4C40 0.1U/16V_4
1 2
C52 1U/6.3V_4C52 1U/6.3V_4
1 2
C68 1U/6.3V_4C68 1U/6.3V_4
1 2
C82 1U/6.3V_4C82 1U/6.3V_4
1 2
C67 1U/6.3V_4C67 1U/6.3V_4
1 2
C60 1U/25V_6C60 1U/25V_6
1 2
C59 10U/6.3V_6C59 10U/6.3V_6
1 2
C43 10U/6.3V_6C43 10U/6.3V_6
1 2
C58 10U/6.3V_6C58 10U/6.3V_6
1 2
C26 10U/6.3V_6C26 10U/6.3V_6
1 2
330uF*2 at power page
3
+VCC_DGFX_CORE+VCC_DGFX_CORE
V18
AB18
V20
V22
W12
W14
W16
W19
W21
W23
Y13
Y15
Y17
Y18
Y20
Y22
U1
U2
U3
U4
U5
U6
U7
U8
V1
V2
V3
V4
V5
V6
V7
V8
W2
W3
W4
W5
W7
W8
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
AA1
AA2
AA3
AA4
AA5
AA6
AA7
AA8
4
U24G
U24G
N13P-GT-A2
N13P-GT-A2
A2
GND_1
A33
GND_2
AA13
GND_3
AA15
GND_4
AA17
GND_5
AA18
GND_6
AA20
GND_7
AA22
GND_8
AB12
GND_9
AB14
GND_10
AB16
GND_11
AB19
GND_12
AB2
GND_13
AB21
GND_14
AB23
GND_15
AB28
GND_16
AB30
GND_17
AB32
GND_18
AB5
GND_19
AB7
GND_20
AC13
GND_21
AC15
GND_22
AC17
GND_23
AC18
GND_24
AC20
GND_25
AC22
GND_26
AE2
GND_27
AE28
GND_28
AE30
GND_29
AE32
GND_30
AE33
GND_31
AE5
GND_32
AE7
GND_33
AH10
GND_34
AH13
GND_35
AH16
GND_36
AH19
GND_37
AH2
GND_38
AH22
GND_39
AH24
GND_40
AH28
GND_41
AH29
GND_42
AH30
GND_43
AH32
GND_44
AH33
GND_45
AH5
GND_46
AH7
GND_47
AJ7
GND_48
AK10
GND_49
AK7
GND_50
AL12
GND_51
AL14
GND_52
AL15
GND_53
AL17
GND_54
AL18
GND_55
AL2
GND_56
AL20
GND_57
AL21
GND_58
AL23
GND_59
AL24
GND_60
AL26
GND_61
AL28
GND_62
AL30
GND_63
AL32
GND_64
AL33
GND_65
AL5
GND_66
AM13
GND_67
AM16
GND_68
AM19
GND_69
AM22
GND_70
AM25
GND_71
AN1
GND_72
AN10
GND_73
AN13
GND_74
AN16
GND_75
AN19
GND_76
AN22
GND_77
AN25
GND_78
AN30
GND_79
AN34
GND_80
AN4
GND_081
AN7
GND_082
AP2
GND_083
AP33
GND_084
B1
GND_085
B10
GND_086
B22
GND_087
B25
GND_088
B28
GND_089
B31
GND_090
B34
GND_091
B4
GND_092
B7
GND_093
C10
GND_094
C13
GND_095
C19
GND_096
C22
GND_097
C25
GND_098
C28
GND_099
C7
GND_100
D2
GND_101
D31
GND_102
4
5
GB4-128
GB4-128
GROUND
GROUND
5
GND_105
GND_104
GND_103
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
GND_137
GND_138
GND_139
GND_140
GND_141
GND_142
GND_143
GND_144
GND_145
GND_146
GND_147
GND_148
GND_149
GND_150
GND_151
GND_152
GND_153
GND_154
GND_155
GND_156
GND_157
GND_158
GND_159
GND_160
GND_161
GND_162
GND_163
GND_164
GND_165
GND_166
GND_167
GND_168
GND_169
GND_170
GND_171
GND_172
GND_173
GND_174
GND_175
GND_176
GND_177
GND_178
GND_179
GND_180
GND_181
GND_182
GND_183
GND_184
GND_185
GND_186
GND_187
GND_188
GND_189
GND_190
GND_191
GND_192
GND_193
GND_194
GND_195
GND_196
GND_197
GND_198
GND_199
GND_200
GND_201
GND_202
E22
E10
D33
E25
E5
E7
F28
F7
G10
G13
G16
G19
G2
G22
G25
G28
G3
G30
G32
G33
G5
G7
K2
K28
K30
K32
K33
K5
K7
M13
M15
M17
M18
M20
M22
N12
N14
N16
N19
N2
N21
N23
N28
N30
N32
N33
N5
N7
P13
P15
P17
P18
P20
P22
R12
R14
R16
R19
R21
R23
T13
T15
T17
T18
T2
T20
T22
AG11
T28
T32
T5
T7
U12
U14
U16
U19
U21
U23
V12
V14
V16
V19
V21
V23
W13
W15
W17
W18
W20
W22
W28
Y12
Y14
Y16
Y19
Y21
Y23
AH11
C16
W32
6
6
7
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
7
PROJECT :
N13P-GS (POWER & GND) 5/5
N13P-GS (POWER & GND) 5/5
N13P-GS (POWER & GND) 5/5
8
R09A
R09A
R09A
17 58
17 58
17 58
8
3A
3A
3A
1
2
3
4
VMA_DQ[63..0][14]
VMA_DM[7..0][14]
VMA_WDQS[7..0][14]
CHANNEL A: 1024MB GDDR5
5
6
7
8
LOWER HALF UPPER HALF
M2
M4
N2
N4
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
MF=1
U27
U27
DQ31 | DQ7
DQ30 | DQ6
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
GDDR5
GDDR5
VDDQ-B1
VDDQ-B3
VDDQ-B12
VDDQ-B14
VDDQ-D1
VDDQ-D3
VDDQ-D12
VDDQ-D14
VDDQ-E5
VDDQ-E10
VDDQ-F1
VDDQ-F3
VDDQ-F12
VDDQ-F14
VDDQ-G2
VDDQ-G13
VDDQ-H3
VDDQ-H12
VDDQ-K3
VDDQ-K12
VDDQ-L2
VDDQ-L13
VDDQ-M1
VDDQ-M3
VDDQ-M12
VDDQ-M14
VDDQ-N5
VDDQ-N10
VDDQ-P1
VDDQ-P3
VDDQ-P12
VDDQ-P14
VDDQ-T1
VDDQ-T3
VDDQ-T12
VDDQ-T14
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-A12
VSSQ-A14
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E1
VSSQ-E3
VSSQ-E12
VSSQ-E14
VSSQ-F5
VSSQ-F10
VSSQ-H2
VSSQ-H13
VSSQ-K2
VSSQ-K13
VSSQ-M5
VSSQ-M10
VSSQ-N1
VSSQ-N3
VSSQ-N12
VSSQ-N14
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V1
VSSQ-V3
VSSQ-V12
VSSQ-V14
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
+1.5V_GFX+1.5V_GFX
B1
B3
B12
B14
D1
D3
D12
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U27
U27
MF=0
U28
U28
M2
DQ31 | DQ7
M4
DQ30 | DQ6
N2
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
GDDR5
GDDR5
VDDQ-B12
VDDQ-B14
VDDQ-D12
VDDQ-D14
VDDQ-E10
VDDQ-F12
VDDQ-F14
VDDQ-G13
VDDQ-H12
VDDQ-K12
VDDQ-L13
VDDQ-M12
VDDQ-M14
VDDQ-N10
VDDQ-P12
VDDQ-P14
VDDQ-T12
VDDQ-T14
VSSQ-A12
VSSQ-A14
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E12
VSSQ-E14
VSSQ-F10
VSSQ-H13
VSSQ-K13
VSSQ-M10
VSSQ-N12
VSSQ-N14
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V12
VSSQ-V14
N4
A A
QD16~23
QD0~7
VMA_CMD9[14]
VMA_CMD6[14]
VMA_CMD7[14]
VMA_CMD4[14]
VMA_CMD3[14]
VMA_CMD1[14]
VMA_CMD2[14]
VMA_CMD11[14]
VMA_CMD10[14]
VMA_CMD8[14]
VMA_WCK01[14]
VMA_WCK01#[14]
VMA_WCK23[14]
VMA_WCK23#[14]
VMA_CMD12[14]
VMA_CMD15[14]
VMA_CMD14[14]
VMA_CLKN0[14]
VMA_CLKP0[14]
VMA_CMD0[14]
VMA_CMD5[14]
R124 120/F_4R124 120/F_4
R386 1K_4R386 1K_4
VMA_CMD13[14]
1 2
1 2
R105 1K_4R105 1K_4
VREFC_VMA1
VREFD_VMA1
B B
C C
VMA_DQ23
VMA_DQ22
VMA_DQ21
VMA_DQ20
VMA_DQ19
VMA_DQ18
VMA_DQ17
VMA_DQ16
VMA_DQ7
VMA_DQ6
VMA_DQ5
VMA_DQ4
VMA_DQ3
VMA_DQ2
VMA_DQ1
VMA_DQ0
VMA_DM2
VMA_DM0
VMA_WDQS2
VMA_WDQS0
VMA_CMD14
VMA_CMD13
SEN_A
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
+1.5V_GFX +1.5V_GFX
B1
VDDQ-B1
B3
VDDQ-B3
B12
B14
D1
VDDQ-D1
D3
VDDQ-D3
D12
VDDQ-E5
VDDQ-F1
VDDQ-F3
VDDQ-G2
VDDQ-H3
VDDQ-K3
VDDQ-L2
VDDQ-M1
VDDQ-M3
VDDQ-N5
VDDQ-P1
VDDQ-P3
VDDQ-T1
VDDQ-T3
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-E1
VSSQ-E3
VSSQ-F5
VSSQ-H2
VSSQ-K2
VSSQ-M5
VSSQ-N1
VSSQ-N3
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-V1
VSSQ-V3
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U28
U28
QD8~15
QD24~31
VMA_CMD9[14]
VMA_CMD10[14]
VMA_CMD11[14]
VMA_CMD1[14]
VMA_CMD2[14]
VMA_CMD4[14]
VMA_CMD3[14]
VMA_CMD7[14]
VMA_CMD6[14]
VMA_WCK23[14]
VMA_WCK23#[14]
VMA_WCK01[14]
VMA_WCK01#[14]
+1.5V_GFX
VMA_CMD8[14]
VMA_CMD15[14]
VMA_CMD12[14]
VMA_CMD14[14]
VMA_CLKN0[14]
VMA_CLKP0[14]
VMA_CMD5[14]
VMA_CMD0[14]
R123 120/F_4R123 120/F_4
VMA_CMD13[14]
1 2
R111 1K_4R111 1K_4
VREFC_VMA1
VREFD_VMA1
VMA_DQ15
VMA_DQ14
VMA_DQ13
VMA_DQ12
VMA_DQ11
VMA_DQ10
VMA_DQ9
VMA_DQ8
VMA_DQ31
VMA_DQ30
VMA_DQ29
VMA_DQ28
VMA_DQ27
VMA_DQ26
VMA_DQ25
VMA_DQ24
VMA_DM1
VMA_DM3
VMA_WDQS1
VMA_WDQS3
VMA_CMD14
VMA_CMD13
SEN_A
MF=1 MF=0
U8
U8
M2
M4
N2
N4
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
GDDR5
GDDR5
DQ31 | DQ7
DQ30 | DQ6
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
VDDQ-B1
VDDQ-B3
VDDQ-B12
VDDQ-B14
VDDQ-D1
VDDQ-D3
VDDQ-D12
VDDQ-D14
VDDQ-E5
VDDQ-E10
VDDQ-F1
VDDQ-F3
VDDQ-F12
VDDQ-F14
VDDQ-G2
VDDQ-G13
VDDQ-H3
VDDQ-H12
VDDQ-K3
VDDQ-K12
VDDQ-L2
VDDQ-L13
VDDQ-M1
VDDQ-M3
VDDQ-M12
VDDQ-M14
VDDQ-N5
VDDQ-N10
VDDQ-P1
VDDQ-P3
VDDQ-P12
VDDQ-P14
VDDQ-T1
VDDQ-T3
VDDQ-T12
VDDQ-T14
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-A12
VSSQ-A14
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E1
VSSQ-E3
VSSQ-E12
VSSQ-E14
VSSQ-F5
VSSQ-F10
VSSQ-H2
VSSQ-H13
VSSQ-K2
VSSQ-K13
VSSQ-M5
VSSQ-M10
VSSQ-N1
VSSQ-N3
VSSQ-N12
VSSQ-N14
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V1
VSSQ-V3
VSSQ-V12
VSSQ-V14
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
B1
B3
B12
B14
D1
D3
D12
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U8
U8
QD48~55
QD32~39
VMA_WCK45[14]
VMA_WCK45#[14]
VMA_WCK67[14]
VMA_WCK67#[14]
VMA_CMD24[14]
VMA_CMD25[14]
VMA_CMD22[14]
VMA_CMD23[14]
VMA_CMD20[14]
VMA_CMD19[14]
VMA_CMD17[14]
VMA_CMD18[14]
VMA_CMD27[14]
VMA_CMD26[14]
VMA_CMD28[14]
VMA_CMD31[14]
VMA_CMD30[14]
VMA_CLKN1[14]
VMA_CLKP1[14]
VMA_CMD16[14]
VMA_CMD21[14]
R391 120/F_4R391 120/F_4
1 2
R403 1K_4R403 1K_4
VMA_CMD29[14]
1 2
R112 1K_4R112 1K_4
VREFC_VMA3
VREFD_VMA3
VMA_DQ55
VMA_DQ54
VMA_DQ53
VMA_DQ52
VMA_DQ51
VMA_DQ50
VMA_DQ49
VMA_DQ48
VMA_DQ39
VMA_DQ38
VMA_DQ37
VMA_DQ36
VMA_DQ35
VMA_DQ34
VMA_DQ33
VMA_DQ32
VMA_DM6
VMA_DM4
VMA_WDQS6
VMA_WDQS4
VMA_CMD30
VMA_CMD29
SEN_B
U9
U9
M2
M4
N2
N4
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
GDDR5
GDDR5
DQ31 | DQ7
DQ30 | DQ6
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
VDDQ-B1
VDDQ-B3
VDDQ-B12
VDDQ-B14
VDDQ-D1
VDDQ-D3
VDDQ-D12
VDDQ-D14
VDDQ-E5
VDDQ-E10
VDDQ-F1
VDDQ-F3
VDDQ-F12
VDDQ-F14
VDDQ-G2
VDDQ-G13
VDDQ-H3
VDDQ-H12
VDDQ-K3
VDDQ-K12
VDDQ-L2
VDDQ-L13
VDDQ-M1
VDDQ-M3
VDDQ-M12
VDDQ-M14
VDDQ-N5
VDDQ-N10
VDDQ-P1
VDDQ-P3
VDDQ-P12
VDDQ-P14
VDDQ-T1
VDDQ-T3
VDDQ-T12
VDDQ-T14
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-A12
VSSQ-A14
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E1
VSSQ-E3
VSSQ-E12
VSSQ-E14
VSSQ-F5
VSSQ-F10
VSSQ-H2
VSSQ-H13
VSSQ-K2
VSSQ-K13
VSSQ-M5
VSSQ-M10
VSSQ-N1
VSSQ-N3
VSSQ-N12
VSSQ-N14
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V1
VSSQ-V3
VSSQ-V12
VSSQ-V14
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
B1
B3
B12
B14
D1
D3
D12
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U9
U9
QD40~47
QD56~63
VMA_WCK67[14]
VMA_WCK67#[14]
VMA_WCK45[14]
VMA_WCK45#[14]
+1.5V_GFX
VMA_CMD24[14]
VMA_CMD25[14]
VMA_CMD26[14]
VMA_CMD27[14]
VMA_CMD17[14]
VMA_CMD18[14]
VMA_CMD20[14]
VMA_CMD19[14]
VMA_CMD23[14]
VMA_CMD22[14]
VMA_CMD31[14]
VMA_CMD28[14]
VMA_CMD30[14]
VMA_CLKN1[14]
VMA_CLKP1[14]
VMA_CMD21[14]
VMA_CMD16[14]
R399 120/F_4R399 120/F_4
VMA_CMD29[14]
1 2
R117 1K_4R117 1K_4
VMA_DQ47
VMA_DQ46
VMA_DQ45
VMA_DQ44
VMA_DQ43
VMA_DQ42
VMA_DQ41
VMA_DQ40
VMA_DQ63
VMA_DQ62
VMA_DQ61
VMA_DQ60
VMA_DQ59
VMA_DQ58
VMA_DQ57
VMA_DQ56
VMA_DM5
VMA_DM7
VMA_WDQS5
VMA_WDQS7
VREFC_VMA3
VREFD_VMA3
VMA_CMD30
SEN_B
VMA_CMD29
931/F_4
931/F_4
R104
R104
VREF_VMA1_MOS
R122
R122
549/F_4
549/F_4
1 2
1.33K/F_4
1.33K/F_4
C100
C100
820P/50V_4
820P/50V_4
1 2
C462 1U/6.3V_4C462 1U/6.3V_4
C449 1U/6.3V_4C449 1U/6.3V_4
C139 1U/6.3V_4C139 1U/6.3V_4
C137 1U/6.3V_4C137 1U/6.3V_4
C511 0.1U/16V_4C511 0.1U/16V_4
1 2
C508 0.047U/10V_4C508 0.047U/10V_4
1 2
C499 0.1U/16V_4C499 0.1U/16V_4
1 2
C502 0.047U/10V_4C502 0.047U/10V_4
1 2
C10 *0.1U/16V_4_NCC10 *0.1U/16V_4_NC
1 2
C7 *0.1U/16V_4_NCC7 *0.1U/16V_4_NC
1 2
R120
R120
931/F_4
931/F_4
1 2
VREFD_VMA1
R115
R115
C115
C115
820P/50V_4
820P/50V_4
1 2
1 2
3
VMA_CLKP0
R397
R397
80.6/F_4
80.6/F_4
VMA_CLKN0
D D
+1.5V_GFX
+
+
C106 *330U/2.5V_3528_NC
C106 *330U/2.5V_3528_NC C175 1U/6.3V_4C175 1U/6.3V_4
C458 10U/6.3V_8C45 8 10U/6.3V_8
1 2
C166 10U/6.3V_8C16 6 10U/6.3V_8
1 2
C464 10U/6.3V_8C46 4 10U/6.3V_8
1 2
1
+1.5V_GFX +1.5V_GFX +1.5V_GFX +1.5V_GFX
C105 1U/6.3V_4C105 1U/6.3V_4
C168 1U/6.3V_4C168 1U/6.3V_4
C167 1U/6.3V_4C167 1U/6.3V_4
C498 0.047U/10V_4C498 0.047U/10V_4
1 2
C103 0.1U/16V_4C103 0.1U/16V_4
1 2
C163 0.047U/10V_4C163 0.047U/10V_4
1 2
C162 0.1U/16V_4C162 0.1U/16V_4
1 2
C165 0.1U/16V_4C165 0.1U/16V_4
1 2
C164 0.1U/16V_4C164 0.1U/16V_4
1 2
+1.5V_GFX +1.5V_GFX
R98
R98
549/F_4
549/F_4
VREFC_VMA1
R102
R102
1.33K/F_4
1.33K/F_4
1 2
2
VREF_VMA1_MOS
31
Q6
2N7002WQ62N7002W
C170 1U/6.3V_4C170 1U/6.3V_4
C169 1U/6.3V_4C169 1U/6.3V_4
C176 1U/6.3V_4C176 1U/6.3V_4
C108 0.1U/16V_4C108 0.1U/16V_4
1 2
C470 0.1U/16V_4C470 0.1U/16V_4
1 2
C178 0.1U/16V_4C178 0.1U/16V_4
1 2
C177 *0.1U/16V_4_NCC177 *0.1U/16V_4_NC
1 2
C172 *0.1U/16V_4_NCC172 *0.1U/16V_4_NC
1 2
C171 *0.1U/16V_4_NCC171 *0.1U/16V_4_NC
1 2
GPIO10_VREF
2
2N7002W
2N7002W
Q12
Q12
4
VREF_VMA3_MOS
31
GPIO10_VREF
2
C488 1U/6.3V_4C488 1U/6.3V_4
C487 *1U/6.3V_4_NCC487 *1U/6.3V_4_NC
C63 1U/6.3V_4C63 1U/6.3V_4
C49 1U/6.3V_4C49 1U/6.3V_4
C56 0.047U/10V_4C56 0.047U/10V_4
1 2
C110 0.047U/10V_4C110 0.047U/10V_4
1 2
C485 0.1U/16V_4C485 0.1U/16V_4
1 2
C483 0.1U/16V_4C483 0.1U/16V_4
1 2
C500 0.1U/16V_4C500 0.1U/16V_4
1 2
C501 0.1U/16V_4C501 0.1U/16V_4
1 2
1 2
R99
R99
100K_4
100K_4
GPIO10_VREF [16,19]
+1.5V_GFX +1.5V_GFX
R113
R113
931/F_4
931/F_4
549/F_4
549/F_4
VREFC_VMA3 VREFD_VMA3
R108
R108
1.33K/F_4
1.33K/F_4
1 2
VMA_CMD14
VMA_CMD30
VMA_CMD13
VMA_CMD29
5
VREF_VMA3_MOS
R118
R118
549/F_4
549/F_4
1 2
1.33K/F_4
1.33K/F_4
C135
C135
820P/50V_4
820P/50V_4
1 2
R394
R394
R392
R392
931/F_4
931/F_4
1 2
R396
R396
C514
C514
820P/50V_4
820P/50V_4
1 2
1 2
+1.5V_GFX
R11610K_4 R11610K_4
12
R10610K_4 R10610K_4
12
R12110K_4 R12110K_4
12
R10010K_4 R10010K_4
12
6
VMA_CLKP1
R97
R97
80.6/F_4
80.6/F_4
VMA_CLKN1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
GDDR5 Mode H Mapping
< 0-31 > < 32-63 > Memory
CMD0 CMD16 CS*
CMD1 CMD17 A3_BA3
CMD2 CMD18 A2_BA0
CMD3 CMD19 A4_BA2
CMD4 CMD20 A5_BA1
CMD5 CMD21 WE*
CMD6 CMD22 A7_A8
CMD7 CMD23 A6_A11
CMD8 CMD24 ABI*
CMD9 CMD25 A12_RFU
CMD10 CMD26 A0_A10
CMD11 CMD27 A1_A9
CMD12 CMD28 RAS*
CMD13 CMD29 RST*
CMD14 CMD30 CKE*
CMD15 CMD31 CAS*
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
N13P-GS VRAM-1(GDDR5 BGA170)
N13P-GS VRAM-1(GDDR5 BGA170)
N13P-GS VRAM-1(GDDR5 BGA170)
Friday, March 02, 2012
Friday, March 02, 2012
Friday, March 02, 2012
R09A
R09A
R09A
8
18 58
18 58
18 58
3A
3A
3A
1
2
3
VMC_DQ[63..0][14]
VMC_DM[7..0][14]
VMC_WDQS[7..0][14]
4
5
CHANNEL B: 1024MB GDDR5
6
7
8
UPPER HALFLOWER HALF
QD40~47
QD56~63
VMC_CMD25[14]
VMC_CMD26[14]
VMC_CMD27[14]
VMC_CMD17[14]
VMC_CMD18[14]
VMC_CMD20[14]
VMC_CMD19[14]
VMC_CMD23[14]
VMC_CMD22[14]
VMC_WCK67[14]
VMC_WCK67#[14]
VMC_WCK45[14]
VMC_WCK45#[14]
+1.5V_GFX
VMC_CMD24[14]
VMC_CMD31[14]
VMC_CMD28[14]
VMC_CMD30[14]
VMC_CLKN1[14]
VMC_CLKP1[14]
VMC_CMD21[14]
VMC_CMD16[14]
R90 120/F_4R90 120/F_4
VMC_CMD29[14]
1 2
R60 1K_4R60 1K_4
VREFC_VMC3
VREFD_VMC3
VMC_DQ47
VMC_DQ46
VMC_DQ45
VMC_DQ44
VMC_DQ43
VMC_DQ42
VMC_DQ41
VMC_DQ40
VMC_DQ63
VMC_DQ62
VMC_DQ61
VMC_DQ60
VMC_DQ59
VMC_DQ58
VMC_DQ57
VMC_DQ56
VMC_DM5
VMC_DM7
VMC_WDQS5
VMC_WDQS7
VMC_CMD30
VMC_CMD29
SEN_D
M2
M4
N2
N4
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
MF=1
U25
U25
DQ31 | DQ7
DQ30 | DQ6
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
GDDR5
GDDR5
VDDQ-B1
VDDQ-B3
VDDQ-B12
VDDQ-B14
VDDQ-D1
VDDQ-D3
VDDQ-D12
VDDQ-D14
VDDQ-E5
VDDQ-E10
VDDQ-F1
VDDQ-F3
VDDQ-F12
VDDQ-F14
VDDQ-G2
VDDQ-G13
VDDQ-H3
VDDQ-H12
VDDQ-K3
VDDQ-K12
VDDQ-L2
VDDQ-L13
VDDQ-M1
VDDQ-M3
VDDQ-M12
VDDQ-M14
VDDQ-N5
VDDQ-N10
VDDQ-P1
VDDQ-P3
VDDQ-P12
VDDQ-P14
VDDQ-T1
VDDQ-T3
VDDQ-T12
VDDQ-T14
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-A12
VSSQ-A14
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E1
VSSQ-E3
VSSQ-E12
VSSQ-E14
VSSQ-F5
VSSQ-F10
VSSQ-H2
VSSQ-H13
VSSQ-K2
VSSQ-K13
VSSQ-M5
VSSQ-M10
VSSQ-N1
VSSQ-N3
VSSQ-N12
VSSQ-N14
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V1
VSSQ-V3
VSSQ-V12
VSSQ-V14
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
+1.5V_GFX+1.5V_GFX
B1
B3
B12
B14
D1
D3
D12
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U25
U25
MF=0
U23
U23
M2
DQ31 | DQ7
M4
DQ30 | DQ6
N2
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
GDDR5
GDDR5
VDDQ-B12
VDDQ-B14
VDDQ-D12
VDDQ-D14
VDDQ-E10
VDDQ-F12
VDDQ-F14
VDDQ-G13
VDDQ-H12
VDDQ-K12
VDDQ-L13
VDDQ-M12
VDDQ-M14
VDDQ-N10
VDDQ-P12
VDDQ-P14
VDDQ-T12
VDDQ-T14
VSSQ-A12
VSSQ-A14
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E12
VSSQ-E14
VSSQ-F10
VSSQ-H13
VSSQ-K13
VSSQ-M10
VSSQ-N12
VSSQ-N14
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V12
VSSQ-V14
N4
T2
T4
A A
QD16~23
QD0~7
VMC_CMD9[14]
VMC_CMD6[14]
VMC_CMD7[14]
VMC_CMD4[14]
VMC_CMD3[14]
VMC_CMD1[14]
VMC_CMD2[14]
VMC_CMD11[14]
VMC_CMD10[14]
VMC_WCK01[14]
VMC_CMD8[14]
VMC_WCK01#[14]
VMC_WCK23[14]
VMC_WCK23#[14]
VMC_CMD12[14]
VMC_CMD15[14]
VMC_CMD14[14]
VMC_CLKN0[14 ]
VMC_CLKP0[14]
VMC_CMD0[14]
VMC_CMD5[14]
R32 120/F_4R32 120/F_4
1 2
R369 1K_4R369 1K_4
VMC_CMD13[14]
1 2
R56 1K_4R56 1K_4
VREFC_VMC1
VREFD_VMC1 VREFD_VMC3
B B
C C
VMC_DQ23
VMC_DQ22
VMC_DQ21
VMC_DQ20
VMC_DQ19
VMC_DQ18
VMC_DQ17
VMC_DQ16
VMC_DQ7
VMC_DQ6
VMC_DQ5
VMC_DQ4
VMC_DQ3
VMC_DQ2
VMC_DQ1
VMC_DQ0
VMC_DM2
VMC_DM0
VMC_WDQS2
VMC_WDQS0
VMC_CMD14
VMC_CMD13
SEN_C
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
+1.5V_GFX +1.5V_GFX
B1
VDDQ-B1
B3
VDDQ-B3
B12
B14
D1
VDDQ-D1
D3
VDDQ-D3
D12
VDDQ-E5
VDDQ-F1
VDDQ-F3
VDDQ-G2
VDDQ-H3
VDDQ-K3
VDDQ-L2
VDDQ-M1
VDDQ-M3
VDDQ-N5
VDDQ-P1
VDDQ-P3
VDDQ-T1
VDDQ-T3
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-E1
VSSQ-E3
VSSQ-F5
VSSQ-H2
VSSQ-K2
VSSQ-M5
VSSQ-N1
VSSQ-N3
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-V1
VSSQ-V3
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U23
U23
QD8~15
QD24~31
VMC_CMD9[14]
VMC_CMD10[14]
VMC_CMD11[14]
VMC_CMD1[14]
VMC_CMD2[14]
VMC_CMD4[14]
VMC_CMD3[14]
VMC_CMD7[14]
VMC_CMD6[14]
VMC_WCK23[14]
VMC_WCK23#[14]
VMC_WCK01[14]
VMC_WCK01#[14]
+1.5V_GFX
VMC_CMD8[14]
VMC_CMD15[14]
VMC_CMD12[14]
VMC_CMD14[14]
VMC_CLKN0[14 ]
VMC_CLKP0[14]
VMC_CMD5[14]
VMC_CMD0[14]
R33 120/F_4R33 120/F_4
VMC_CMD13[14]
1 2
R55 1K_4R55 1K_4
VREFC_VMC1
VREFD_VMC1
VMC_DQ15
VMC_DQ14
VMC_DQ13
VMC_DQ12
VMC_DQ11
VMC_DQ10
VMC_DQ9
VMC_DQ8
VMC_DQ31
VMC_DQ30
VMC_DQ29
VMC_DQ28
VMC_DQ27
VMC_DQ26
VMC_DQ25
VMC_DQ24
VMC_DM1
VMC_DM3
VMC_WDQS1
VMC_WDQS3
VMC_CMD14
VMC_CMD13
SEN_C
U3
U3
M2
M4
N2
N4
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
GDDR5
GDDR5
MF=1
DQ31 | DQ7
DQ30 | DQ6
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
VDDQ-B1
VDDQ-B3
VDDQ-B12
VDDQ-B14
VDDQ-D1
VDDQ-D3
VDDQ-D12
VDDQ-D14
VDDQ-E5
VDDQ-E10
VDDQ-F1
VDDQ-F3
VDDQ-F12
VDDQ-F14
VDDQ-G2
VDDQ-G13
VDDQ-H3
VDDQ-H12
VDDQ-K3
VDDQ-K12
VDDQ-L2
VDDQ-L13
VDDQ-M1
VDDQ-M3
VDDQ-M12
VDDQ-M14
VDDQ-N5
VDDQ-N10
VDDQ-P1
VDDQ-P3
VDDQ-P12
VDDQ-P14
VDDQ-T1
VDDQ-T3
VDDQ-T12
VDDQ-T14
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-A12
VSSQ-A14
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E1
VSSQ-E3
VSSQ-E12
VSSQ-E14
VSSQ-F5
VSSQ-F10
VSSQ-H2
VSSQ-H13
VSSQ-K2
VSSQ-K13
VSSQ-M5
VSSQ-M10
VSSQ-N1
VSSQ-N3
VSSQ-N12
VSSQ-N14
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V1
VSSQ-V3
VSSQ-V12
VSSQ-V14
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
B1
B3
B12
B14
D1
D3
D12
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U3
U3
QD48~55
QD32~39
VMC_WCK45[14]
VMC_WCK45#[14]
VMC_WCK67[14]
VMC_WCK67#[14]
VMC_CMD24[14]
VMC_CMD25[14]
VMC_CMD22[14]
VMC_CMD23[14]
VMC_CMD20[14]
VMC_CMD19[14]
VMC_CMD17[14]
VMC_CMD18[14]
VMC_CMD27[14]
VMC_CMD26[14]
VMC_CMD28[14]
VMC_CMD31[14]
VMC_CMD30[14]
VMC_CLKN1[14 ]
VMC_CLKP1[14]
VMC_CMD16[14]
VMC_CMD21[14]
R89 120/F_4R89 120/F_4
1 2
R384 1K_4R384 1K_4
VMC_CMD29[14]
1 2
R59 1K_4R59 1K_4
VMC_DQ55
VMC_DQ54
VMC_DQ53
VMC_DQ52
VMC_DQ51
VMC_DQ50
VMC_DQ49
VMC_DQ48
VMC_DQ39
VMC_DQ38
VMC_DQ37
VMC_DQ36
VMC_DQ35
VMC_DQ34
VMC_DQ33
VMC_DQ32
VMC_DM6
VMC_DM4
VMC_WDQS6
VMC_WDQS4
VREFC_VMC3
VMC_CMD30
SEN_D
VMC_CMD29
U4
U4
M2
M4
N2
N4
T2
T4
U2
U4
M13
M11
N13
N11
T13
T11
U13
U11
F13
F11
E13
E11
B13
B11
A13
A11
F2
F4
E2
E4
B2
B4
A2
A4
J5
K4
K5
K10
K11
H10
H11
H5
H4
D4
D5
P4
P5
R2
R13
C13
C2
P2
P13
D13
D2
G3
L3
J3
J11
J12
G12
L12
J13
J10
J2
J1
A5
U5
A10
U10
J14
J4
GDDR5
GDDR5
MF=0
DQ31 | DQ7
DQ30 | DQ6
DQ29 | DQ5
DQ28 | DQ4
DQ27 | DQ3
DQ26 | DQ2
DQ25 | DQ1
DQ24 | DQ0
DQ23 | DQ15
DQ22 | DQ14
DQ21 | DQ13
DQ20 | DQ12
DQ19 | DQ11
DQ18 | DQ10
DQ17 | DQ9
DQ16 | DQ8
DQ15 | DQ23
DQ14 | DQ22
DQ13 | DQ21
DQ12 | DQ20
DQ11 | DQ19
DQ10 | DQ18
DQ9 | DQ17
DQ8 | DQ16
DQ7 | DQ31
DQ6 | DQ30
DQ5 | DQ29
DQ4 | DQ28
DQ3 | DQ27
DQ2 | DQ26
DQ1 | DQ25
DQ0 | DQ24
RFU/A12/NC
A7/A8 | A0/A10
A6/A11 | A1/A9
A5/BA1 | A3/BA3
A4/BA2 | A2/BA0
A3/BA3 | A5/BA1
A2 /BA0 | A4/BA2
A1/A9 | A6/A11
A0/A10 | A7/A8
WCK01 | WCK23
WCK01# | WCK23#
WCK23 | WCK01
WCK23# | WCK01#
EDC3 | EDC0
EDC2 | EDC1
EDC1 | EDC2
EDC0 | EDC3
DBI3# | DBI0#
DBI2 #| DBI1#
DBI1# | DBI2#
DBI0# | DBI3#
RAS# | CAS#
CAS# | RAS#
CKE#
CK#
CK
CS# | WE#
WE# | CS#
ZQ
SEN
RESET#
MF
Vpp,NC
Vpp,NC1
VREFD1
VREFD2
VREFC
ABI#
VDDQ-B1
VDDQ-B3
VDDQ-B12
VDDQ-B14
VDDQ-D1
VDDQ-D3
VDDQ-D12
VDDQ-D14
VDDQ-E5
VDDQ-E10
VDDQ-F1
VDDQ-F3
VDDQ-F12
VDDQ-F14
VDDQ-G2
VDDQ-G13
VDDQ-H3
VDDQ-H12
VDDQ-K3
VDDQ-K12
VDDQ-L2
VDDQ-L13
VDDQ-M1
VDDQ-M3
VDDQ-M12
VDDQ-M14
VDDQ-N5
VDDQ-N10
VDDQ-P1
VDDQ-P3
VDDQ-P12
VDDQ-P14
VDDQ-T1
VDDQ-T3
VDDQ-T12
VDDQ-T14
VDD-C5
VDD-C10
VDD-D11
VDD-G1
VDD-G4
VDD-G11
VDD-G14
VDD-L1
VDD-L4
VDD-L11
VDD-L14
VDD-P11
VDD-R5
VDD-R10
VSSQ-A1
VSSQ-A3
VSSQ-A12
VSSQ-A14
VSSQ-C1
VSSQ-C3
VSSQ-C4
VSSQ-C11
VSSQ-C12
VSSQ-C14
VSSQ-E1
VSSQ-E3
VSSQ-E12
VSSQ-E14
VSSQ-F5
VSSQ-F10
VSSQ-H2
VSSQ-H13
VSSQ-K2
VSSQ-K13
VSSQ-M5
VSSQ-M10
VSSQ-N1
VSSQ-N3
VSSQ-N12
VSSQ-N14
VSSQ-R1
VSSQ-R3
VSSQ-R4
VSSQ-R11
VSSQ-R12
VSSQ-R14
VSSQ-V1
VSSQ-V3
VSSQ-V12
VSSQ-V14
VSS-B5
VSS-B10
VSS-D10
VSS-G5
VSS-G10
VSS-H1
VSS-H14
VSS-K1
VSS-K14
VSS-L5
VSS-L10
VSS-P10
VSS-T5
VSS-T10
B1
B3
B12
B14
D1
D3
D12
D14
E5
E10
F1
F3
F12
F14
G2
G13
H3
H12
K3
K12
L2
L13
M1
M3
M12
M14
N5
N10
P1
P3
P12
P14
T1
T3
T12
T14
C5
C10
D11
G1
G4
G11
G14
L1
L4
L11
L14
P11
R5
R10
A1
A3
A12
A14
C1
C3
C4
C11
C12
C14
E1
E3
E12
E14
F5
F10
H2
H13
K2
K13
M5
M10
N1
N3
N12
N14
R1
R3
R4
R11
R12
R14
U1
U3
U12
U14
B5
B10
D10
G5
G10
H1
H14
K1
K14
L5
L10
P10
T5
T10
U4
U4
VREF_VMC1_MOS
+1.5V_GFX +1.5V_GFX
R29
VMC_CLKP0
R39
R39
80.6/F_4
80.6/F_4
VMC_CLKN0
D D
C179 1U/6.3V_4C179 1U/6.3V_4 C11 1U/6.3V_4C11 1U/6.3V_4
C173 *1U/6.3V_4_NCC173 *1U/6.3V_4_NC
C468 1U/6.3V_4C468 1U/6.3V_4
C475 *1U/6.3V_4_NCC475 *1U/6.3V_4_NC
C44 0.1U/16V_4C44 0.1U/16V_4
1 2
C31 0.047U/10V_4C31 0.047U/10V_4
1 2
C15 0.1U/16V_4C15 0.1U/16V_4
1 2
C446 0.1U/16V_4C446 0.1U/16V_4
1 2
C434 0.047U/10V_4C434 0.047U/10V_4
1 2
C14 0.1U/16V_4C14 0.1U/16V_4
1 2
1
549/F_4
549/F_4
1.33K/F_4
1.33K/F_4
R29
931/F_4
931/F_4
R30
R30
VREFC_VMC1
R31
R31
1 2
C466 1U/6.3V_4C466 1U/6.3V_4
C412 1U/6.3V_4C412 1U/6.3V_4
C426 *1U/6.3V_4_NCC426 *1U/6.3V_4_NC
C423 *1U/6.3V_4_NCC423 *1U/6.3V_4_NC
C492 0.1U/16V_4C492 0.1U/16V_4
1 2
C16 0.047U/10V_4C16 0.047U/10V_4
1 2
C448 0.1U/16V_4C448 0.1U/16V_4
1 2
C427 *0.1U/16V_4_NCC427 *0.1U/16V_4_NC
1 2
C21 *0.1U/16V_4_NCC21 *0.1U/16V_4_NC
1 2
2
1 2
1 2
C9
820P/50V_4C9820P/50V_4
549/F_4
549/F_4
1.33K/F_4
1.33K/F_4
R27
R27
R26
R26
VREFD_VMC1
1 2
1 2
C4
820P/50V_4C4820P/50V_4
R28
R28
931/F_4
931/F_4
1 2
2N7002W
2N7002W
C520 *1U/6.3V_4_NCC520 *1U/6.3V_4_NC
C478 1U/6.3V_4C478 1U/6.3V_4
C142 1U/6.3V_4C142 1U/6.3V_4
C140 1U/6.3V_4C140 1U/6.3V_4
C519 *0.1U/16V_4_NCC519 *0.1U/16V_4_NC
1 2
C141 *0.1U/16V_4_NCC141 *0.1U/16V_4_NC
1 2
C512 *0.1U/16V_4_NCC512 *0.1U/16V_4_NC
1 2
C509 0.1U/16V_4C509 0.1U/16V_4
1 2
C504 0.1U/16V_4C504 0.1U/16V_4
1 2
C507 *0.1U/16V_4_NCC507 *0.1U/16V_4_NC
1 2
3
VREF_VMC1_MOS
31
Q39
Q39
GPIO10_VREF
2
Q5
2N7002WQ52N7002W
+1.5V_GFX+1.5V_GFX+1.5V_GFX+1.5V_GFX
C13 1U/6.3V_4C13 1U/6.3V_4
C516 1U/6.3V_4C516 1U/6.3V_4
C8 *0.1U/16V_4_NCC8 *0.1U/16V_4_NC
C37 *0.1U/16V_4_NCC37 *0.1U/16V_4_NC
C517 0.1U/16V_4C517 0.1U/16V_4
C144 0.1U/16V_4C144 0.1U/16V_4
C518 0.047U/10V_4C518 0.047U/10V_4
C469 0.1U/16V_4C469 0.1U/16V_4
1 2
1 2
1 2
1 2
1 2
1 2
VREF_VMC3_MOS
31
GPIO10_VREF
2
4
GPIO10_VREF [16,18]
+1.5V_GFX +1.5V_GFX
R83
R83
549/F_4
549/F_4
VREFC_VMC3 VREFD_VMC3
R85
R85
1.33K/F_4
1.33K/F_4
1 2
931/F_4
931/F_4
VREF_VMC3_MOS
VMC_CLKP1
R86
+1.5V_GFX
R86
80.6/F_4
80.6/F_4
VMC_CLKN1
GDDR5 Mode H Mapping
< 0-31 > < 32-63 > Memory
CMD0 CMD16 CS*
CMD1 CMD17 A3_BA3
CMD2 CMD18 A2_BA0
CMD3 CMD19 A4_BA2
CMD4 CMD20 A5_BA1
CMD5 CMD21 WE*
CMD6 CMD22 A7_A8
CMD7 CMD23 A6_A11
CMD8 CMD24 ABI*
CMD9 CMD25 A12_RFU
CMD10 CMD26 A0_A10
CMD11 CMD27 A1_A9
CMD12 CMD28 RAS*
CMD13 CMD29 RST*
CMD14 CMD30 CKE*
CMD15 CMD31 CAS*
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
PROJECT :
N13P-GS VRAM-2(GDDR5 BGA170)
N13P-GS VRAM-2(GDDR5 BGA170)
N13P-GS VRAM-2(GDDR5 BGA170)
Saturday, March 03, 2012
Saturday, March 03, 2012
Saturday, March 03, 2012
R09T
R09T
R09T
8
19 57
19 57
19 57
2B
2B
2B
R389
R84
R84
549/F_4
549/F_4
1 2
1.33K/F_4
1.33K/F_4
C92
C92
820P/50V_4
820P/50V_4
1 2
5
R389
R390
R390
931/F_4
931/F_4
1 2
R388
R388
C506
C506
820P/50V_4
820P/50V_4
1 2
1 2
VMC_CMD14
VMC_CMD30
VMC_CMD13
VMC_CMD29
R5310K_4 R5310K_4
12
R5810K_4 R5810K_4
12
R5410K_4 R5410K_4
12
R38310K_4 R38310K_4
12
6
5
4
3
2
1
Cougar Point/Panther Point (DMI,FDI,PM)
U13C
U13C
DMI_RXN0[6]
DMI_RXN1[6]
DMI_RXN2[6]
DMI_RXN3[6]
D D
DMI_RXP0[6]
DMI_RXP1[6]
DMI_RXP2[6]
DMI_RXP3[6]
DMI_TXN0[6]
DMI_TXN1[6]
DMI_TXN2[6]
DMI_TXN3[6]
DMI_TXP0[6]
DMI_TXP1[6]
DMI_TXP2[6]
DMI_TXP3[6]
DMI_RXN0
DMI_RXN1
DMI_RXN2
DMI_RXN3
DMI_RXP0
DMI_RXP1
DMI_RXP2
DMI_RXP3
DMI_TXN0
DMI_TXN1
DMI_TXN2
DMI_TXN3
DMI_TXP0
DMI_TXP1
DMI_TXP2
DMI_TXP3
DMI_ZCOMP, DMI_IRCOMP 4mil
R233 49.9/F_4R233 49.9/F_4
+1.05V_PCH
C C
PM_DRAM_PWRGD[7]
ME_SUS_PWR_ACK[38]
B B
1 2
R232 750/F_4R232 750/F_4
EC_PWROK[7,38]
HWPG[38,45]
RSMRST#[38]
SIO_PWRBTN#[38]
AC_PRESENT[38]
12
ME_SUS_PWR_ACK
SYS_RESET#
SYS_PWROK
EC_PWROK
HWPG
PM_DRAM_PWRGD
RSMRST#
ME_SUS_PWR_ACK
SIO_PWRBTN#
AC_PRESENT
PM_BATLOW#
PM_RI#
DMI_COMP
DMI2RBIAS
BC24
DMI0RXN
BE20
DMI1RXN
BG18
DMI2RXN
BG20
DMI3RXN
BE24
DMI0RXP
BC20
DMI1RXP
BJ18
DMI2RXP
BJ20
DMI3RXP
AW24
DMI0TXN
AW20
DMI1TXN
BB18
DMI2TXN
AV18
DMI3TXN
AY24
DMI0TXP
AY20
DMI1TXP
AY18
DMI2TXP
AU18
DMI3TXP
BJ24
DMI_ZCOMP
BG25
DMI_IRCOMP
BH21
DMI2RBIAS
C12
SUSACK#
K3
SYS_RESET#
P12
SYS_PWROK
L22
PWROK
L10
APWROK
B13
DRAMPWROK
C21
RSMRST#
K16
SUSWARN#/SUSPWRDNACK/GPIO30
E20
H20
E10
A10
CPT_PPT_HM77
CPT_PPT_HM77
DSW
PWRBTN#
ACPRESENT / GPIO31
BATLOW# / GPIO72
RI#
+3V
+3V_S5
+3V_S5
+3V_S5
DSW
+3V_S5
+3V_S5
DMI
FDI
DMI
FDI
CLKRUN# / GPIO32
SUS_STAT# / GPIO61
SUSCLK / GPIO62
SLP_S5# / GPIO63
System Power Management
System Power Management
+3V_S5
SLP_LAN# / GPIO29
FDI_RXN0
FDI_RXN1
FDI_RXN2
FDI_RXN3
FDI_RXN4
FDI_RXN5
FDI_RXN6
FDI_RXN7
FDI_RXP0
FDI_RXP1
FDI_RXP2
FDI_RXP3
FDI_RXP4
FDI_RXP5
FDI_RXP6
FDI_RXP7
FDI_INT
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC0
FDI_LSYNC1
DSWVRMEN
DPWROK
WAKE#
SLP_S4#
SLP_S3#
SLP_A#
SLP_SUS#
PMSYNCH
BJ14
AY14
BE14
BH13
BC12
BJ12
BG10
BG9
BG14
BB14
BF14
BG13
BE12
BG12
BJ10
BH9
AW16
AV12
BC10
AV14
BB10
A18
E22
B9
N3
G8
N14
D10
H4
F4
G10
G16
AP14
K14
FDI_TXN0
FDI_TXN1
FDI_TXN2
FDI_TXN3
FDI_TXN4
FDI_TXN5
FDI_TXN6
FDI_TXN7
FDI_TXP0
FDI_TXP1
FDI_TXP2
FDI_TXP3
FDI_TXP4
FDI_TXP5
FDI_TXP6
FDI_TXP7
FDI_INT_R
FDI_FSYNC0_R
FDI_FSYNC1_R
FDI_LSYNC0_R
FDI_LSYNC1_R
DSWVRMEN
RSMRST#
PCIE_WAKE#
CLKRUN#
SUSCLK
SIO_SLP_S5#
SIO_SLP_S4#
SIO_SLP_S3#
W/O support iAMT
W/O support Deep Sx
H_PM_SYNC
SIO_SLP_LAN#
FDI_TXN0 [6]
FDI_TXN1 [6]
FDI_TXN2 [6]
FDI_TXN3 [6]
FDI_TXN4 [6]
FDI_TXN5 [6]
FDI_TXN6 [6]
FDI_TXN7 [6]
FDI_TXP0 [6]
FDI_TXP1 [6]
FDI_TXP2 [6]
FDI_TXP3 [6]
FDI_TXP4 [6]
FDI_TXP5 [6]
FDI_TXP6 [6]
FDI_TXP7 [6]
R226 *0_4_UO_NCR226 *0_4_UO_NC
3
1
RP20 *0_4_UO_NCRP20 *0_4_UO_NC
3
1
RP19 *0_4_UO_NCRP19 *0_4_UO_NC
DIS: NC
UMA/ OTP: POP
CLKRUN# [38]
TP37TP37
TP33TP33
SIO_SLP_S5# [38]
SIO_SLP_S4# [38,49]
SIO_SLP_S3# [9,38,49]
H_PM_SYNC [7]
4
2
4
2
FDI_INT [6]
FDI_FSYNC0 [6]
FDI_FSYNC1 [6]
FDI_LSYNC0 [6]
FDI_LSYNC1 [6]
PCH Pull-high/low(CLG)
PM_RI#
PCIE_WAKE#
ME_SUS_PWR_ACK
AC_PRESENT
PM_BATLOW#
SIO_SLP_LAN#
CLKRUN#
SYS_RESET#
RSMRST#
SYS_PWROK
IF pop R128, R166 need change to 100K
On Die DSW VR Enable
High = Enable (Default)
Low = Disable
RP10 10KX4RP10 10KX4
1
3
5
7
R407 10K_4R407 10K_4
1 2
R473 *10K_4_NCR473 *10K_4_NC
1 2
RP15 10KX2RP15 10KX2
1
3
R474 10K_4R474 10K_4
1 2
R166 100K_4R166 100K_4
1 2
+RTC_CELL
R163
R163
330K_4
330K_4
DSWVRMEN
1 2
12
R164
R164
*330K_4_NC
*330K_4_NC
2
4
6
8
2
4
+3.3V_SUS
+3.3V_RUN
+3.3V_SUS
1
C197
C197
*0.1U/16V_4_NC
*0.1U/16V_4_NC
U12
U12
SYS_PWROK
A A
5
4
4
*TC7SH08FU_NC
*TC7SH08FU_NC
R128 *0_0402short_NCR128 *0_0402short_NC
1 2
2
2
1
3 5
12
R130
R130
10K_4
10K_4
It is recommended that SYS_PWROK be asserted
after both PWROK assertion and CPU core VR
powergood assertion to ensure a safe
platform design
3
EC_PWROK
IMVP_PWRGD [38,44,53]
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
2
Monday, March 05, 2012
PROJECT :
Panther Point 1/7
Panther Point 1/7
Panther Point 1/7
1
R09A
R09A
R09A
20 58
20 58
20 58
3A
3A
3A
5
4
3
2
1
Cougar Point/Panther Point (LVDS,DDI)
U13I
U13I
AY4
U13D
U13D
PANEL_BKEN[38]
D D
R441 *2.37K/F_4_UO_NCR441 *2.37K/F_4_UO_NC
DIS:NC
ENVDD[27]
LCD_PW M[27]
INT_LCD_DDCCLK[27]
INT_LCD_DDCDAT[27]
12
T24T24
PANEL_BKEN
ENVDD
LCD_PW M
INT_LCD_DDCCLK
INT_LCD_DDCDAT
DIS_L_CTRL_CLK
DIS_L_CTRL_DATA
LVDS_IBG
LVDS_VBG
UMA/OPT:POP
INT_TXLCLKOUTN[27]
INT_TXLCLKOUTP[27]
INT_TXLOUTN0[27]
INT_TXLOUTN1[27]
INT_TXLOUTN2[27]
INT_TXLOUTP0[27]
INT_TXLOUTP1[27]
INT_TXLOUTP2[27]
C C
B B
INT_TXUCLKOUTN[27]
INT_TXUCLKOUTP[27]
INT_TXUOUTN0[27]
INT_TXUOUTN1[27]
INT_TXUOUTN2[27]
INT_TXUOUTP0[27]
INT_TXUOUTP1[27]
INT_TXUOUTP2[27]
INT_CRT_BLU[28]
INT_CRT_GRE[28]
INT_CRT_RED[28]
INT_DDCCLK[28]
INT_DDCDAT[28]
INT_CRT_HSYNC[28]
INT_CRT_VSYNC[28]
R place close to PCH
R188 *150/F_4_UO_NCR188 *150/F_4_UO_NC
1 2
R193 *150/F_4_UO_NCR193 *150/F_4_UO_NC
1 2
R201 *150/F_4_UO_NCR201 *150/F_4_UO_NC
1 2
INT_TXLCLKOUTN
INT_TXLCLKOUTP
INT_TXLOUTN0
INT_TXLOUTN1
INT_TXLOUTN2
INT_TXLOUTP0
INT_TXLOUTP1
INT_TXLOUTP2
INT_TXUCLKOUTN
INT_TXUCLKOUTP
INT_TXUOUTN0
INT_TXUOUTN1
INT_TXUOUTN2
INT_TXUOUTP0
INT_TXUOUTP1
INT_TXUOUTP2
INT_CRT_BLU
INT_CRT_GRE
INT_CRT_RED
INT_DDCCLK
INT_DDCDAT
INT_CRT_HSYNC
INT_CRT_VSYNC
DAC_IREF
R433
R433
1K/F_4
1K/F_4
1 2
J47
M45
P45
T40
K47
T45
P39
AF37
AF36
AE48
AE47
AK39
AK40
AN48
AM47
AK47
AJ48
AN47
AM49
AK49
AJ47
AF40
AF39
AH45
AH47
AF49
AF45
AH43
AH49
AF47
AF43
N48
P49
T49
T39
M40
M47
M49
T43
T42
INT_CRT_BLU
INT_CRT_GRE
INT_CRT_RED
L_BKLTEN
L_VDD_EN
L_BKLTCTL
L_DDC_CLK
L_DDC_DATA
L_CTRL_CLK
L_CTRL_DATA
LVD_IBG
LVD_VBG
LVD_VREFH
LVD_VREFL
LVDSA_CLK#
LVDSA_CLK
LVDSA_DATA#0
LVDSA_DATA#1
LVDSA_DATA#2
LVDSA_DATA#3
LVDSA_DATA0
LVDSA_DATA1
LVDSA_DATA2
LVDSA_DATA3
LVDSB_CLK#
LVDSB_CLK
LVDSB_DATA#0
LVDSB_DATA#1
LVDSB_DATA#2
LVDSB_DATA#3
LVDSB_DATA0
LVDSB_DATA1
LVDSB_DATA2
LVDSB_DATA3
CRT_BLUE
CRT_GREEN
CRT_RED
CRT_DDC_CLK
CRT_DDC_DATA
CRT_HSYNC
CRT_VSYNC
DAC_IREF
CRT_IRTN
CPT_PPT_HM77
CPT_PPT_HM77
LVDS
LVDS
CRT
CRT
INT_LCD_DDCDAT
INT_LCD_DDCCLK
DIS_L_CTRL_CLK
DIS_L_CTRL_DATA
DDPB_0N
DDPB_0P
DDPB_1N
DDPB_1P
DDPB_2N
DDPB_2P
DDPB_3N
DDPB_3P
DDPC_0N
DDPC_0P
DDPC_1N
DDPC_1P
DDPC_2N
DDPC_2P
DDPC_3N
DDPC_3P
DDPD_0N
DDPD_0P
DDPD_1N
DDPD_1P
DDPD_2N
DDPD_2P
DDPD_3N
DDPD_3P
AP43
AP45
AM42
AM40
AP39
AP40
P38
M39
AT49
AT47
AT40
AV42
AV40
AV45
AV46
AU48
AU47
AV47
AV49
P46
P42
AP47
AP49
AT38
AY47
AY49
AY43
AY45
BA47
BA48
BB47
BB49
M43
M36
AT45
AT43
BH41
BB43
BB45
BF44
BE44
BF42
BE42
BJ42
BG42
2
4
2
4
SDVO_TVCLKINN
SDVO_TVCLKINP
SDVO_STALLN
SDVO_STALLP
SDVO_INTN
SDVO_INTP
SDVO_CTRLCLK
SDVO_CTRLDATA
DDPB_AUXN
DDPB_AUXP
DDPB_HPD
DDPC_CTRLCLK
DDPC_CTRLDATA
DDPC_AUXN
DDPC_AUXP
DDPC_HPD
Digital Display Interface
Digital Display Interface
DDPD_CTRLCLK
DDPD_CTRLDATA
DDPD_AUXN
DDPD_AUXP
DDPD_HPD
RP30 *2.2KX2_UO_NCRP30 *2.2KX2_UO_NC
1
3
RP31 *2.2KX2_UO_NCRP31 *2.2KX2_UO_NC
1
3
INT_HDMI_SCL
INT_HDMI_SDA
INT_HDMI_HPD_Q
INT_HDMI_TXN2_C
INT_HDMI_TXP2_C
INT_HDMI_TXN1_C
INT_HDMI_TXP1_C
INT_HDMI_TXN0_C
INT_HDMI_TXP0_C
INT_HDMI_TXCN_C
INT_HDMI_TXCP_C
+3.3V_RUN
INT_HDMI_SCL [29]
INT_HDMI_SDA [29]
INT_HDMI_HPD_Q [29]
INT_HDMI_TXN2_C [29]
INT_HDMI_TXP2_C [29]
INT_HDMI_TXN1_C [29]
INT_HDMI_TXP1_C [29]
INT_HDMI_TXN0_C [29]
INT_HDMI_TXP0_C [29]
INT_HDMI_TXCN_C [29]
INT_HDMI_TXCP_C [29]
INT. HDMI
DIS:NC
A A
EC56 *18P/50V_4_NCEC56 *18P/50V_4_NC
1 2
EC57 *18P/50V_4_NCEC57 *18P/50V_4_NC
1 2
EC65 *18P/50V_4_NCEC65 *18P/50V_4_NC
1 2
5
INT_CRT_BLU
INT_CRT_GRE
INT_CRT_RED
4
UMA/OPT:POP
3
AY42
AY46
AY8
B11
B15
B19
B23
B27
B31
B35
B39
BB12
BB16
BB20
BB22
BB24
BB28
BB30
BB38
BB4
BB46
BC14
BC18
BC2
BC22
BC26
BC32
BC34
BC36
BC40
BC42
BC48
BD46
BD5
BE22
BE26
BE40
BF10
BF12
BF16
BF20
BF22
BF24
BF26
BF28
BD3
BF30
BF38
BF40
BF8
BG17
BG21
BG33
BG44
BG8
BH11
BH15
BH17
BH19
H10
BH27
BH31
BH33
BH35
BH39
BH43
BH7
D12
D16
D18
D22
D24
D26
D30
D32
D34
D38
D42
E18
E26
G18
G20
G26
G28
G36
G48
H12
H18
H22
H24
H26
H30
H32
H34
B7
F45
D3
D8
F3
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
VSS[195]
VSS[196]
VSS[197]
VSS[198]
VSS[199]
VSS[200]
VSS[201]
VSS[202]
VSS[203]
VSS[204]
VSS[205]
VSS[206]
VSS[207]
VSS[208]
VSS[209]
VSS[210]
VSS[211]
VSS[212]
VSS[213]
VSS[214]
VSS[215]
VSS[216]
VSS[217]
VSS[218]
VSS[219]
VSS[220]
VSS[221]
VSS[222]
VSS[223]
VSS[224]
VSS[225]
VSS[226]
VSS[227]
VSS[228]
VSS[229]
VSS[230]
VSS[231]
VSS[232]
VSS[233]
VSS[234]
VSS[235]
VSS[236]
VSS[237]
VSS[238]
VSS[239]
VSS[240]
VSS[241]
VSS[242]
VSS[243]
VSS[244]
VSS[245]
VSS[246]
VSS[247]
VSS[248]
VSS[249]
VSS[250]
VSS[251]
VSS[252]
VSS[253]
VSS[254]
VSS[255]
VSS[256]
VSS[257]
VSS[258]
CPT_PPT_HM77
CPT_PPT_HM77
Cougar Point/Panther Point (GND)
U13H
U13H
H5
VSS[259]
VSS[260]
VSS[261]
VSS[262]
VSS[263]
VSS[264]
VSS[265]
VSS[266]
VSS[267]
VSS[268]
VSS[269]
VSS[270]
VSS[271]
VSS[272]
VSS[273]
VSS[274]
VSS[275]
VSS[276]
VSS[277]
VSS[278]
VSS[279]
VSS[280]
VSS[281]
VSS[282]
VSS[283]
VSS[284]
VSS[285]
VSS[286]
VSS[287]
VSS[288]
VSS[289]
VSS[290]
VSS[291]
VSS[292]
VSS[293]
VSS[294]
VSS[295]
VSS[296]
VSS[297]
VSS[298]
VSS[299]
VSS[300]
VSS[301]
VSS[302]
VSS[303]
VSS[304]
VSS[305]
VSS[306]
VSS[307]
VSS[308]
VSS[309]
VSS[310]
VSS[311]
VSS[312]
VSS[313]
VSS[314]
VSS[315]
VSS[316]
VSS[317]
VSS[318]
VSS[319]
VSS[320]
VSS[321]
VSS[322]
VSS[323]
VSS[324]
VSS[325]
VSS[328]
VSS[329]
VSS[330]
VSS[331]
VSS[333]
VSS[334]
VSS[335]
VSS[337]
VSS[338]
VSS[340]
VSS[342]
VSS[343]
VSS[344]
VSS[345]
VSS[346]
VSS[347]
VSS[348]
VSS[349]
VSS[350]
VSS[351]
VSS[352]
2
H46
K18
K26
K39
K46
K7
L18
L2
L20
L26
L28
L36
L48
M12
P16
M18
M22
M24
M30
M32
M34
M38
M4
M42
M46
M8
N18
P30
N47
P11
P18
T33
P40
P43
P47
P7
R2
R48
T12
T31
T37
T4
W34
T46
T47
T8
V11
V17
V26
V27
V29
V31
V36
V39
V43
V7
W17
W19
W2
W27
W48
Y12
Y38
Y4
Y42
Y46
Y8
BG29
N24
AJ3
AD47
B43
BE10
BG41
G14
H16
T36
BG22
BG24
C22
AP13
M14
AP3
AP1
BE16
BC16
BG28
BJ28
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
VSS[0]
AA17
VSS[1]
AA2
VSS[2]
AA3
VSS[3]
AA33
VSS[4]
AA34
VSS[5]
AB11
VSS[6]
AB14
VSS[7]
AB39
VSS[8]
AB4
VSS[9]
AB43
VSS[10]
AB5
VSS[11]
AB7
VSS[12]
AC19
VSS[13]
AC2
VSS[14]
AC21
VSS[15]
AC24
VSS[16]
AC33
VSS[17]
AC34
VSS[18]
AC48
VSS[19]
AD10
VSS[20]
AD11
VSS[21]
AD12
VSS[22]
AD13
VSS[23]
AD19
VSS[24]
AD24
VSS[25]
AD26
VSS[26]
AD27
VSS[27]
AD33
VSS[28]
AD34
VSS[29]
AD36
VSS[30]
AD37
VSS[31]
AD38
VSS[32]
AD39
VSS[33]
AD4
VSS[34]
AD40
VSS[35]
AD42
VSS[36]
AD43
VSS[37]
AD45
VSS[38]
AD46
VSS[39]
AD8
VSS[40]
AE2
VSS[41]
AE3
VSS[42]
AF10
VSS[43]
AF12
VSS[44]
AD14
VSS[45]
AD16
VSS[46]
AF16
VSS[47]
AF19
VSS[48]
AF24
VSS[49]
AF26
VSS[50]
AF27
VSS[51]
AF29
VSS[52]
AF31
VSS[53]
AF38
VSS[54]
AF4
VSS[55]
AF42
VSS[56]
AF46
VSS[57]
AF5
VSS[58]
AF7
VSS[59]
AF8
VSS[60]
AG19
VSS[61]
AG2
VSS[62]
AG31
VSS[63]
AG48
VSS[64]
AH11
VSS[65]
AH3
VSS[66]
AH36
VSS[67]
AH39
VSS[68]
AH40
VSS[69]
AH42
VSS[70]
AH46
VSS[71]
AH7
VSS[72]
AJ19
VSS[73]
AJ21
VSS[74]
AJ24
VSS[75]
AJ33
VSS[76]
AJ34
VSS[77]
AK12
VSS[78]
AK3
VSS[79]
CPT_PPT_HM77
CPT_PPT_HM77
Panther Point 2/7
Panther Point 2/7
Panther Point 2/7
Monday, March 05, 2012
Monday, March 05, 2012
Monday, March 05, 2012
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
R09A
R09A
R09A
21 58
21 58
21 58
VSS[80]
VSS[81]
VSS[82]
VSS[83]
VSS[84]
VSS[85]
VSS[86]
VSS[87]
VSS[88]
VSS[89]
VSS[90]
VSS[91]
VSS[92]
VSS[93]
VSS[94]
VSS[95]
VSS[96]
VSS[97]
VSS[98]
VSS[99]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
AK38
AK4
AK42
AK46
AK8
AL16
AL17
AL19
AL2
AL21
AL23
AL26
AL27
AL31
AL33
AL34
AL48
AM11
AM14
AM36
AM39
AM43
AM45
AM46
AM7
AN2
AN29
AN3
AN31
AP12
AP19
AP28
AP30
AP32
AP38
AP4
AP42
AP46
AP8
AR2
AR48
AT11
AT13
AT18
AT22
AT26
AT28
AT30
AT32
AT34
AT39
AT42
AT46
AT7
AU24
AU30
AV16
AV20
AV24
AV30
AV38
AV4
AV43
AV8
AW14
AW18
AW2
AW22
AW26
AW28
AW32
AW34
AW36
AW40
AW48
AV11
AY12
AY22
AY28
3A
3A
3A
5
4
3
2
1
Cougar Point/Panther Point (HDA,JTAG,SATA)
IRQ_SERIRQ
C19315P/50V_4 C19315P/50V_4
12
D D
ACZ_BITCLK[30]
ACZ_SPKR[30]
ACZ_RST#[30]
ACZ_SDIN0[30]
C C
B B
PCH_MELOCK[38]
ACZ_SDOUT[30]
ACZ_SYNC[30]
Notice: R76 is Q30,R211 strip
PCH_SPI_CLK[39]
PCH_SPI_CS0#[39]
12
+RTC_CELL
ACZ_SYNC ACZ_SYNC_R1
12
R211
R211
1M_4
1M_4
PCH_SPI_SI[39]
PCH_SPI_SO[39]
EC55 *10P/50V_4_NCEC55 *10P/50V_4_NC
EC21 *10P/50V_4_NCEC21 *10P/50V_4_NC
14
23
C18915P/50V_4 C18915P/50V_4
ACZ_BITCLK
ACZ_SYNC_R1
ACZ_RST#
ACZ_SDIN0
PCH_MELOCK
ACZ_SDOUT
R76 *0_4_NCR76 *0_4_NC
1
Q30 BSS138LT1GQ30 BSS138LT1G
+5V_RUN
PCH_SPI_CS0#
12
12
12
Y1
Y1
R160
R160
32.768KHZ
32.768KHZ
10M_4
10M_4
R401 1M_4R401 1M_4
1 2
R137 33_4R137 33_4
1 2
R135 33_4R135 33_4
1 2
R131 33_4R131 33_4
1 2
R140 1K_4R140 1K_4
1 2
R133 33_4R133 33_4
1 2
3
2
TP14TP14
TP34TP34
TP35TP35
TP13TP13
R430 0_4R430 0_4
1 2
TP21TP21
PCH_SPI_SI
PCH_SPI_SO
PCH_SPI_CLK
ACZ_BITCLK
RTC_X1
RTC_X2
RTC_RST#
SRTC_RST#
SM_INTRUDER#
PCH_INTVRMEN
ACZ_BITCLK_R
ACZ_SYNC_R
ACZ_SPKRACZ_SPKR
ACZ_RST#_R
TP31TP31
ACZ_SDOUT_R
PCH_JTAG_TCK
PCH_JTAG_TMS
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_SPI_CLK_RPCH_SPI_CLK
U13A
U13A
A20
RTCX1
C20
RTCX2
D20
RTCRST#
G22
SRTCRST#
K22
INTRUDER#
C17
INTVRMEN
N34
HDA_BCLK
L34
HDA_SYNC
T10
SPKR
K34
HDA_RST#
E34
HDA_SDIN0
G34
HDA_SDIN1
C34
HDA_SDIN2
A34
HDA_SDIN3
A36
HDA_SDO
C36
HDA_DOCK_EN# / GPIO33
N32
HDA_DOCK_RST# / GPIO13
J3
JTAG_TCK
H7
JTAG_TMS
K5
JTAG_TDI
H1
JTAG_TDO
T3
SPI_CLK
Y14
SPI_CS0#
T1
SPI_CS1#
V4
SPI_MOSI
U3
SPI_MISO
CPT_PPT_HM77
CPT_PPT_HM77
RTCIHDA
RTCIHDA
JTAG
JTAG
SPI
SPI
+3V
+3V
LPC
LPC
FWH4 / LFRAME#
LDRQ1# / GPIO23
+3V
SATA 6G
SATA 6G
+3V
SATA
SATA
+3V_S5
SATA3RCOMPO
SATA0GP / GPIO21
SATA1GP / GPIO19
FWH0 / LAD0
FWH1 / LAD1
FWH2 / LAD2
FWH3 / LAD3
LDRQ0#
SERIRQ
SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP
SATA1RXN
SATA1RXP
SATA1TXN
SATA1TXP
SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP
SATA3RXN
SATA3RXP
SATA3TXN
SATA3TXP
SATA4RXN
SATA4RXP
SATA4TXN
SATA4TXP
SATA5RXN
SATA5RXP
SATA5TXN
SATA5TXP
SATAICOMPO
SATAICOMPI
SATA3COMPI
SATA3RBIAS
SATALED#
C38
A38
B37
C37
D36
E36
K36
V5
AM3
AM1
AP7
AP5
AM10
AM8
AP11
AP10
AD7
AD5
AH5
AH4
AB8
AB10
AF3
AF1
Y7
Y5
AD3
AD1
Y3
Y1
AB3
AB1
Y11
Y10
AB12
AB13
AH1
P3
V14
P1
LPC_LFRAME#
LPC_LDRQ0#
IRQ_SERIRQ
SATA_COMP
SATA3_COMP
SATA3_RBIAS
PCH_SATA_LED#
KB_DET#
LPC_LAD0
LPC_LAD1
LPC_LAD2
LPC_LAD3
LPC_LFRAME# [38,41]
TP32TP32
TP38TP38
SATA_RXN1
SATA_RXP1
SATA_TXN1
SATA_TXP1
SATA_RXN0
SATA_RXP0
SATA_TXN0
SATA_TXP0
SATA_RXN2
SATA_RXP2
SATA_TXN2
SATA_TXP2
SATA_RXN3
SATA_RXP3
SATA_TXN3
SATA_TXP3
R202 37.4/F_4R202 37.4/F_4
1 2
R203 49.9/F_4R203 49.9/F_4
1 2
R204 750/F_4R204 750/F_4
1 2
EC206
EC206
33P/50V_4
33P/50V_4
IRQ_SERIRQ [38]
SATA_RXN1 [34]
SATA_RXP1 [34]
SATA_TXN1 [34]
SATA_TXP1 [34]
SATA_RXN0 [34]
SATA_RXP0 [34]
SATA_TXN0 [34]
SATA_TXP0 [34]
SATA_RXN2 [41]
SATA_RXP2 [41]
SATA_TXN2 [41]
SATA_TXP2 [41]
SATA_RXN3 [34]
SATA_RXP3 [34]
SATA_TXN3 [34]
SATA_TXP3 [34]
+1.05V_PCH
PCH_SATA_LED# [46]
KB_DET# [40]
12
12
EC207
EC207
33P/50V_4
33P/50V_4
EC208
EC208
33P/50V_4
33P/50V_4
SATA 1 HDD
SATA 0 HDD
mSATA
SATA ODD
LPC_LAD0 [38,41]
LPC_LAD1 [38,41]
LPC_LAD2 [38,41]
LPC_LAD3 [38,41]
12
12
EC209
EC209
33P/50V_4
33P/50V_4
KB_DET#
PCH_JTAG_TMS
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_TMS
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_TCK
RTC_RST#
SRTC_RST#
C521
C521
1U/6.3V_4
1U/6.3V_4
R414 *200_4_NCR414 *200_4_NC
1 2
R418 *200_4_NCR418 *200_4_NC
1 2
R173 *200_4_NCR173 *200_4_NC
1 2
R415 *100_4_NCR415 *100_4_NC
1 2
R419 *100_4_NCR419 *100_4_NC
1 2
R172 *100_4_NCR172 *100_4_NC
1 2
R169 *51_4_NCR169 *51_4_NC
1 2
R402 20K/F_4R402 20K/F_4
1 2
R400 20K/F_4R400 20K/F_4
1 2
12
12
C515
C515
1U/6.3V_4
1U/6.3V_4
+3.3V_RUN
R43710K_4 R43710K_4
12
R10110K_4 R10110K_4
12
+3.3V_SUS
+RTC_CELL
PCH Strap Table
Pin Name
SPKR
A A
HDA_SDO
INTVRMEN
HDA_SYNC
5
Strap description
No reboot mode setting PWROK
Integrated 1.05V VRM enable ALWAYS
On-Die PLL VR Volatge Select RSMRST
4
Sampled
PWROKFlash Descriptor Security
Configuration
0 = Default (weak pull-down 20K)
1 = Setting to No-Reboot mode
0 = Default (weak pull-down 20K)
1 = Override
Should be always pull-up
0 = Support by 1.8V (weak PD)
1 = Support by 1.5V
3
+RTC_CELL
+3.3V_SUS
Note
NC
NC
R162 330K_4R162 330K_4
1 2
R134 1K_4R134 1K_4
1 2
PCH_INTVRMEN
ACZ_SYNC_R
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
PROJECT :
Panther Point 3/7
Panther Point 3/7
Panther Point 3/7
1
R09A
R09A
R09A
22 58
22 58
22 58
3A
3A
3A
5
4
3
2
1
Cougar Point-M/Panther Point (PCI,USB,NVRAM)
U13E
BG26
BJ26
BH25
BJ16
BG16
AH38
AH37
AK43
AK45
C18
N30
H3
AH12
AM4
AM5
Y13
K24
L24
AB46
AB45
B21
M20
AY16
BG46
BE28
BC30
BE32
BJ32
BC28
BE30
BF32
BG32
AV26
BB26
AU28
AY30
AU26
AY26
AV28
AW30
K40
K38
H38
G38
C46
C44
E40
D47
E42
F46
G42
G40
C42
D44
K10
C6
H49
H43
J48
K42
H40
CLK_33M_KBC
U13E
TP1
TP2
TP3
TP4
TP5
TP6
TP7
TP8
TP9
TP10
TP11
TP12
TP13
TP14
TP15
TP16
TP17
TP18
TP19
TP20
TP21
TP22
TP23
TP24
USB30_RX1N
TP25
USB30_RX2N
TP26
USB30_RX3N
TP27
USB30_RX4N
TP28
USB30_RX1P
TP29
USB30_RX2P
TP30
USB30_RX3P
TP31
USB30_RX4P
TP32
USB30_TX1N
TP33
USB30_TX2N
TP34
USB30_TX3N
TP35
USB30_TX4N
TP36
USB30_TX1P
TP37
USB30_TX2P
TP38
USB30_TX3P
TP39
USB30_TX4P
TP40
PIRQA#
PIRQB#
PIRQC#
PIRQD#
REQ1# / GPIO50
REQ2# / GPIO52
REQ3# / GPIO54
GNT1# / GPIO51
GNT2# / GPIO53
GNT3# / GPIO55
PIRQE# / GPIO2
PIRQF# / GPIO3
PIRQG# / GPIO4
PIRQH# / GPIO5
PME#
PLTRST#
CLKOUT_PCI0
CLKOUT_PCI1
CLKOUT_PCI2
CLKOUT_PCI3
CLKOUT_PCI4
CPT_PPT_HM77
CPT_PPT_HM77
RSVD
RSVD
PCI
PCI
+5V
+5V
+5V
+3V
+3V
+3V
+3V
+3V
+3V
+3V
USB
USB
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD10
RSVD11
RSVD12
RSVD13
RSVD14
RSVD15
RSVD16
RSVD17
RSVD18
RSVD19
RSVD20
RSVD21
RSVD22
RSVD23
RSVD24
RSVD25
RSVD26
RSVD27
RSVD28
RSVD29
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N
USBP9P
USBP10N
USBP10P
USBP11N
USBP11P
USBP12N
USBP12P
USBP13N
USBP13P
USBRBIAS#
USBRBIAS
OC0# / GPIO59
OC1# / GPIO40
OC2# / GPIO41
OC3# / GPIO42
OC4# / GPIO43
OC5# / GPIO9
OC6# / GPIO10
OC7# / GPIO14
AY7
AV7
AU3
BG4
AT10
BC8
AU2
AT4
AT3
AT1
AY3
AT5
AV3
AV1
BB1
BA3
BB5
BB3
BB7
BE8
BD4
BF6
AV5
AV10
AT8
AY5
BA2
AT12
BF3
C24
A24
C25
B25
C26
A26
K28
H28
E28
D28
C28
A28
C29
B29
N28
M28
L30
K30
G30
E30
C30
A30
L32
K32
G32
E32
C32
A32
C33
B33
USB_OC0#
A14
USB_OC1#
K20
USB_OC2#
B17
USB_OC3#
C16
USB_OC4#
L16
USB_OC5#
A16
USB_OC6#
D14
SIO_EXT_W AKE#
C14
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP8N
USBP8P
USBP10N
USBP10P
USBP12N
USBP12P
USBP13N
USBP13P
USB_BIAS
USBP0N [36]
USBP0P [36]
USBP1N [35]
USBP1P [35]
USBP2N [57]
USBP2P [57]
USBP3N [57]
USBP3P [57]
USBP4N [41]
USBP4P [41]
USBP8N [57]
USBP8P [57]
USBP10N [32]
USBP10P [32]
USBP12N [27]
USBP12P [27]
USBP13N [27]
USBP13P [27]
R158 22.6/F_4R158 22.6/F_4
USB2.0/USB3.0 COMBO
USB2.0/USB3.0 Power share
USB2.0/USB3.0 COMBO
USB2.0/USB3.0 COMBO
WLAN/BT
Fingerprint
Card Reader
Camera
3D Emitter
1 2
USB_OC0# [35,36]
USB_OC1# [57]
SIO_EXT_W AKE# [38]
+3.3V_RUN
RP29
RP29
PCIE_MCARD2_DET#
8.2KX8
8.2KX8
6
HDD_FALL_INT1
7
SATA_ODD_MD#
8
GPIO5
9
10
+3.3V_SUS
2
1
U11
U11
3 5
*TC7SH08FU_NC
*TC7SH08FU_NC
R125 *0_0402short_NCR125 *0_0402short_NC
12
*0.1U/16V_4_NC
*0.1U/16V_4_NC
C181
C181
4
PCI_PIRQA#
PCI_PIRQB#
D D
PCI_PIRQC#
PCI_PIRQD#
C C
5
4
3
2
1
PCI_PLTRST#
Pin Name Strap description
B B
GNT2# / GPIO53
GNT3# / GPIO55
GNT1# / GPIO51
GPIO19
ESI strap (Server only) PWROK
Top-Block Swap Override
Boot BIOS Selection 1 [bit-1]
Boot BIOS Selection 0 [bit-0]
USB_OC4#
USB_OC1#
USB_OC3#
R410*10K_4_NC R410*10K_4_NC
12
R406*10K_4_NC R406*10K_4_NC
12
PLTRST#
Sampled
PWROK
PWROK
PWROK
Default weak pull-up on GNT0/1#
[Need external pull-down for LPC BIOS]
+3.3V_SUS
RP26
RP26
10
DGPU_HOLD_RST#
GPIO52
DGPU_PW R_EN
9
8
7 4
10KX8
10KX8
1
2
3
56
Configuration
Should not be pull-down
(weak pull-up 20K)
0 = "top-block swap" mode
1 = Default (weak pull-up 20K)
Bit 1Bit 0
Boot Location
11
00
SPI
LPC
USB_OC6#
USB_OC0#
SIO_EXT_W AKE#
USB_OC5#USB_OC2#
+3.3V_RUN
R41310K_4 R41310K_4
12
R40910K_4 R40910K_4
12
R40510K_4 R40510K_4
12
PLTRST# [7,13,38,41,57]
*
USB3.0_RX1-[36]
USB3.0_RX2-[35]
USB3.0_RX3-[57]
USB3.0_RX4-[57]
USB3.0_RX1+[36]
USB3.0_RX2+[35]
USB3.0_RX3+[57]
USB3.0_RX4+[57]
DGPU_HOLD_RST#[13]
DGPU_PW R_EN[50]
CLK_33M_LPC
USB3.0_TX1-[36]
USB3.0_TX2-[35]
USB3.0_TX3-[57]
USB3.0_TX4-[57]
USB3.0_TX1+[36]
USB3.0_TX2+[35]
USB3.0_TX3+[57]
USB3.0_TX4+[57]
ITEM2
R417 *22_4_NCR417 *22_4_NC
R423 22_4R423 22_4
R167 22_4R167 22_4
USB3.0
HDD_FALL_INT1[33]
SATA_ODD_MD#[34]
KB_LED_DET[40]
CLK_33M_LPC[41]
CLK_33M_KBC[38]
CLK_PCI_FB[24]
USB3.0_RX1USB3.0_RX2USB3.0_RX3USB3.0_RX4USB3.0_RX1+
USB3.0_RX2+
USB3.0_RX3+
USB3.0_RX4+
USB3.0_TX1USB3.0_TX2USB3.0_TX3USB3.0_TX4USB3.0_TX1+
USB3.0_TX2+
USB3.0_TX3+
USB3.0_TX4+
PCI_PIRQA#
PCI_PIRQB#
PCI_PIRQC#
PCI_PIRQD#
DGPU_HOLD_RST#
GPIO52
DGPU_PW R_EN
TP11TP11
TP12TP12
TP36TP36
1 2
1 2
1 2
EC54 *10P/50V_4_NCEC54 *10P/50V_4_NC
BBS_BIT1
PCIE_MCARD2_DET#
PCI_GNT3#
HDD_FALL_INT1
SATA_ODD_MD#
KB_LED_DET
GPIO5
PCI_PME#
PCI_PLTRST#
CLK_33M_LPC_R
CLK_33M_KBC_RCLK_33M_KBC
CLK_PCI_FB_RCLK_PCI_FB
12
ITEM2
3
EC53 *10P/50V_4_NCEC53 *10P/50V_4_NC
12
EC204 *33P/50V_4_NCEC204 *33P/50V_4_NC
12
CLK_33M_LPC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
2
Saturday, March 03, 2012
PROJECT :
Panther Point 4/7
Panther Point 4/7
Panther Point 4/7
1
R09A
R09A
R09A
23 58
23 58
23 58
3A
3A
3A
A A
DF_TVS
DMI and FDI Tx/Rx
Termination Voltage
R216 2.2K_4R216 2.2K_4
R214 1K_4R214 1K_4
12
12
5
+1.8V_RUN
DF_TVS
H_SNB_IVB#
PWROK
DF_TVS [25]
H_SNB_IVB# [7]
weak pull-down 20kohm
4
5
WLAN
D D
LAN
PCIE_RXN1[41]
PCIE_RXP1[41]
PCIE_TXN1[41]
PCIE_TXP1[41]
PCIE_RXN5[57]
PCIE_RXP5[57]
PCIE_TXN5[57]
PCIE_TXP5[57]
PCIE_RXN1
PCIE_RXP1
PCIE_TXN1
PCIE_TXP1
PCIE_RXN5
PCIE_RXP5
PCIE_TXN5
PCIE_TXP5
C584 0.1U/16V_4C584 0.1U/16V_4
12
C583 0.1U/16V_4C583 0.1U/16V_4
12
C581 0.1U/16V_4C581 0.1U/16V_4
12
C582 0.1U/16V_4C582 0.1U/16V_4
12
PCIE_TXN1_C
PCIE_TXP1_C
PCIE_TXN5_C
PCIE_TXP5_C
Express card
C C
WLAN
B B
LAN
CLK_PCIE_WLANN[41]
CLK_PCIE_WLANP[41]
PCIE_CLK_REQ0#[41]
CLK_PCIE_LANN[57]
CLK_PCIE_LANP[57]
PCIE_CLK_REQ4#[57]
Express card (NA)
A A
CLKOUTFLEX0 /GPIO64
CLKOUTFLEX1 /GPIO65
CLKOUTFLEX2 /GPIO66
CLKOUTFLEX3 /GPIO67
5
CLK_PCIE_WLANN
CLK_PCIE_WLANP
PCIE_CLK_REQ0#
PCIE_CLK_REQ1#
PCIE_CLK_REQ2#
PCIE_CLK_REQ3#
CLK_PCIE_LANN
CLK_PCIE_LANP
PCIE_CLK_REQ4#
PCIE_CLK_REQ5#
PEG_B_CLKRQ#
PCIE_CLK_REQ6#
PCIE_CLK_REQ7#
XDP
Configurable as a GPIO or as a programmable output clock
which can be configured as one of the following:
33 /27 /48/ 14.318 MHz / DC Output logic ‘0’
unsupported clock output value (Default) / 27/ 14.318 MHz output to SIO/EC /48/24 MHz
33/25/27/48/24/14.318 MHz / DC Output logic ‘0’
27/14.318 output to SIO/48/24 MHz (Default)
4
U13B
U13B
BG34
PERN1
BJ34
PERP1
AV32
PETN1
AU32
PETP1
BE34
PERN2
BF34
PERP2
BB32
PETN2
AY32
PETP2
BG36
PERN3
BJ36
PERP3
AV34
PETN3
AU34
PETP3
BF36
PERN4
BE36
PERP4
AY34
PETN4
BB34
PETP4
BG37
PERN5
BH37
PERP5
AY36
PETN5
BB36
PETP5
BJ38
PERN6
BG38
PERP6
AU36
PETN6
AV36
PETP6
BG40
PERN7
BJ40
PERP7
AY40
PETN7
BB40
PETP7
BE38
PERN8
BC38
PERP8
AW38
PETN8
AY38
PETP8
Y40
CLKOUT_PCIE0N
Y39
CLKOUT_PCIE0P
J2
PCIECLKRQ0# / GPIO73
AB49
CLKOUT_PCIE1N
AB47
CLKOUT_PCIE1P
M1
PCIECLKRQ1# / GPIO18
AA48
CLKOUT_PCIE2N
AA47
CLKOUT_PCIE2P
V10
PCIECLKRQ2# / GPIO20
Y37
CLKOUT_PCIE3N
Y36
CLKOUT_PCIE3P
A8
PCIECLKRQ3# / GPIO25
Y43
CLKOUT_PCIE4N
Y45
CLKOUT_PCIE4P
L12
PCIECLKRQ4# / GPIO26
V45
CLKOUT_PCIE5N
V46
CLKOUT_PCIE5P
L14
PCIECLKRQ5# / GPIO44
AB42
CLKOUT_PEG_B_N
AB40
CLKOUT_PEG_B_P
E6
PEG_B_CLKRQ# / GPIO56
V40
CLKOUT_PCIE6N
V42
CLKOUT_PCIE6P
T13
PCIECLKRQ6# / GPIO45
V38
CLKOUT_PCIE7N
V37
CLKOUT_PCIE7P
K12
PCIECLKRQ7# / GPIO46
AK14
CLKOUT_ITPXDP_N
AK13
CLKOUT_ITPXDP_P
CPT_PPT_HM77
CPT_PPT_HM77
4
3
2
Cougar Point-M/Panther Point (PCI-E,SMBUS,CLK)
PCH_SMB_ALERT#
SMBCLK
SMBDATA
SML0CLK
CL_CLK1
CL_DATA1
CL_RST1#
XTAL25_IN
E12
SMBCLK
H14
SMBDATA
C9
DDR_HVREF_RST_PCH
A12
SML0CLK
C8
SML0DATA
G12
PCH_GPIO74
C13
SMB_CLK_ME1
E14
SMB_DATA_ME1
M16
M7
T11
P10
M10
AB37
AB38
AV22
AU22
AM12
AM13
CLK_DMI_N
BF18
CLK_DMI_P
BE18
BJ30
BG30
CLK_BUF_DREFCLK_N
G24
CLK_BUF_DREFCLK_P
E24
CLK_BUF_DREFSSCLK_N
AK7
CLK_BUF_DREFSSCLK_P
AK5
CLK_PCH_14M
K45
CLK_PCI_FB
H45
XTAL25_IN
V47
XTAL25_OUT
V49
XCLK_RCOMP
Y47
CLK_48M_CARD_R
K43
CLK_VGA_27M_R
F47
CLK_LAN_25M_R
H47
K49
3
PEG_A_CLKRQ#
CLK_PCIE_VGAN
CLK_PCIE_VGAP
CLK_CPU_BCLKN
CLK_CPU_BCLKP
R456 10K_4R456 10K_4
1 2
R455 10K_4R455 10K_4
1 2
R234 10K_4R234 10K_4
1 2
R157 10K_4R157 10K_4
R159 10K_4R159 10K_4
R450 10K_4R450 10K_4
R453 10K_4R453 10K_4
CLK_PCI_FB [23]
R443 90.9/F_4R443 90.9/F_4
1 2
T8T8
R416 22_4R416 22_4
1 2
T21T21
DDR_HVREF_RST_PCH [7,9]
PEG_A_CLKRQ# [13]
CLK_PCIE_VGAN [13]
CLK_PCIE_VGAP [13]
CLK_CPU_BCLKN [7]
CLK_CPU_BCLKP [7]
1 2
1 2
1 2
1 2
12
R205
R205
1M_4
1M_4
+1.05V_PCH
C233 27P/50V_4C233 27P/50V_4
1 2
Y2
25MHzY225MHz
1 2
C234 27P/50V_4C234 27P/50V_4
1 2
CLK_VGA_27M [15]
2
+3V_S5
+3V_S5
SMBUSController
SMBUSController
+3V_S5
SML1ALERT# / PCHHOT# / GPIO74
+3V_S5
+3V_S5
PCI-E*
PCI-E*
+3V_S5
+3V_S5
CLOCKS
CLOCKS
+3V
+3V
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V_S5
+3V
+3V_S5
+3V
+3V
+3V
SMBALERT# / GPIO11
SML0ALERT# / GPIO60
SML0DATA
SML1CLK / GPIO58
SML1DATA / GPIO75
Link
Link
PEG_A_CLKRQ# / GPIO47
CLKOUT_PEG_A_N
CLKOUT_PEG_A_P
CLKOUT_DMI_N
CLKOUT_DMI_P
CLKOUT_DP_N
CLKOUT_DP_P
CLKIN_DMI_N
CLKIN_DMI_P
CLKIN_GND1_N
CLKIN_GND1_P
CLKIN_DOT_96N
CLKIN_DOT_96P
CLKIN_SATA_N
CLKIN_SATA_P
REFCLK14IN
CLKIN_PCILOOPBACK
XTAL25_OUT
XCLK_RCOMP
CLKOUTFLEX0 / GPIO64
CLKOUTFLEX1 / GPIO65
CLKOUTFLEX2 / GPIO66
CLKOUTFLEX3 / GPIO67
FLEX CLOCKS
FLEX CLOCKS
1
SMBus/Pull-up(CLG)
+3.3V_RUN
1
3
RP17
RP17
2.2KX2
2.2KX2
2
4
WLAN_SCLK
2
WLAN_SDATA
SMBCLK1
34
5
2
DMN66D0LDW-7
DMN66D0LDW-7
SMBDAT1
61
Q11B
Q11B
RP28 10KX2RP28 10KX2
1
3
RP13 2.2KX2RP13 2.2KX2
3
1
RP8 2.2KX2RP8 2.2KX2
3
1
RP27 2.2KX2RP27 2.2KX2
3
1
RP9 10KX4RP9 10KX4
1
3
5
7
3
1
1 2
1
3
RP14 10KX2RP14 10KX2
1 2
R421 10K_4R421 10K_4
WLAN_SCLK [11,12,33]
WLAN_SDATA [11,12,33]
SMBCLK1 [38]
SMBDAT1 [38]
+3.3V_SUS
2
4
4
2
4
2
4
2
+3.3V_SUS
2
4
6
8
10KX2
10KX2
4
2
RP25
RP25
R41210K_4 R41210K_4
+3.3V_RUN
2
4
+3.3V_SUS
SMBCLK
DMN66D0LDW-7
DMN66D0LDW-7
SMBDATA
SMB_CLK_ME1
SMB_DATA_ME1
R420
R420
*10K_4_NC
*10K_4_NC
5
3 4
Q14A
Q14A
Q14B
Q14B
DMN66D0LDW-7
DMN66D0LDW-7
DMN66D0LDW-7
DMN66D0LDW-7
+3.3V_SUS
PCH_GPIO74
PCH_SMB_ALERT#
SMBCLK
SMBDATA
SML0CLK
SML0DATA
SMB_CLK_ME1
SMB_DATA_ME1
PCIE_CLK_REQ0#
PCIE_CLK_REQ3#
PCIE_CLK_REQ4#
PCIE_CLK_REQ5#
PCIE_CLK_REQ6#
PCIE_CLK_REQ7#
PEG_B_CLKRQ#
PCIE_CLK_REQ1#
PCIE_CLK_REQ2#
PEG_A_CLKRQ#
1 2
6 1
Q11A
Q11A
Stuff for Integrated CLK Gen Mode
CLK_PCH_14M
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
Panther Point 5/7
Panther Point 5/7
Panther Point 5/7
Wednesday, February 08, 2012
Wednesday, February 08, 2012
Wednesday, February 08, 2012
R424 10K_4R424 10K_4
1 2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
R09A
R09A
R09A
24 58
24 58
24 58
3A
3A
3A
5
Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)
Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)
Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)Cougar Point/Panther Point (GPIO,VSS_NCTF,RSVD)
+3.3V_RUN
RP11 10KX4RP11 10KX4
1
3
5
D D
+3.3V_SUS
C C
B B
7
R312 10K_4R312 10K_4
1 2
R175 10K_4R175 10K_4
1 2
R132 10K_4R132 10K_4
1 2
R192 10K_4R192 10K_4
1 2
R422 *10K_4_NCR422 *10K_4_NC
1 2
1
3
5
7
RP12 10KX4RP12 10KX4
R404 10K_4R404 10K_4
R427 10K_4R427 10K_4
R425 10K_4R425 10K_4
R380 100K_4R380 100K_4
R168 10K_4R168 10K_4
1 2
R408 *10K_4_NCR408 *10K_4_NC
1 2
SIO_EXT_SMI#
2
SIO_EXT_SCI#
4
SIO_A20GATE
6
SIO_RCIN#
8
2
4
6
8
12
12
12
12
USB_MCARD1_DET#
BT_RADIO_DIS#
PCIE_MCARD1_DET#
SATA_MCARD3_DET#
FFS_INT2
PCH_GPIO70
PCH_GPIO69
PCH_GPIO71
PCH_GPIO68
ROUSH_PAID_TS_DET#
DGPU_VREN
TP_LED2
LAN_PCIE_PWR_CTRL#
LAN_PHY_PWR_CTRL
CAP_LED
Vostro POP - NA
4
BMBUSY#
SIO_EXT_SMI#[38]
PCIE_MCARD1_DET#[41]
SIO_EXT_SCI#[38]
SATA_MCARD3_DET#[41]
DGPU_PW ROK[13]
DGPU_VREN[56]
CAP_LED[40]
LAN_PCIE_PWR_CTRL#[57]
USB_MCARD1_DET#[41]
TP_LED2[40]
WLAN_RADIO_DIS#[41]
BT_RADIO_DIS#[41]
FFS_INT2[33]
MODC_EN[34]
SIO_EXT_SMI#
PCIE_MCARD1_DET#
SIO_EXT_SCI#
LAN_PHY_PWR_CTRL
HOST_ALERT#1
SATA_MCARD3_DET#
DGPU_PW ROK
DGPU_VREN
CAP_LED
ROUSH_PAID_TS_DET#
GPIO28
LAN_PCIE_PWR_CTRL#
USB_MCARD1_DET#
CAMERA_CBL_DET#
TP_LED2
WLAN_RADIO_DIS#
BT_RADIO_DIS#
FFS_INT2
MODC_EN
SV_DET
3
U13F
U13F
T7
BMBUSY# / GPIO0
A42
TACH1 / GPIO1
H36
TACH2 / GPIO6
E38
TACH3 / GPIO7
C10
GPIO8
C4
LAN_PHY_PWR_CTRL / GPIO12
G2
GPIO15
U2
SATA4GP / GPIO16
D40
TACH0 / GPIO17
T5
SCLOCK / GPIO22
E8
GPIO24 / MEM_LED
E16
GPIO27
P8
GPIO28
K1
STP_PCI# / GPIO34
K4
GPIO35
V8
SATA2GP / GPIO36
M5
SATA3GP / GPIO37
N2
SLOAD / GPIO38
M3
SDATAOUT0 / GPIO39
V13
SDATAOUT1 / GPIO48
V3
SATA5GP / GPIO49
D6
GPIO57
A4
VSS_NCTF_1
A44
VSS_NCTF_2
A45
VSS_NCTF_3
A46
VSS_NCTF_4
A5
VSS_NCTF_5
A6
VSS_NCTF_6
B3
VSS_NCTF_7
B47
VSS_NCTF_8
BD1
VSS_NCTF_9
BD49
VSS_NCTF_10
BE1
VSS_NCTF_11
BE49
VSS_NCTF_12
BF1
VSS_NCTF_13
BF49
VSS_NCTF_14
CPT_PPT_HM77
CPT_PPT_HM77
+3V_S5
+3V_S5
DSW
+3V_S5
+3V
+3V_S5
+3V
+3V
+3V
+3V
+3V
+3V
+3V
+3V_S5
+3V
+3V
+3V
+3V
+3V
+3V
+3V
GPIO
GPIO
+3V
+3V
+3V
+3V
+3V_S5
NCTF
NCTF
TACH4 / GPIO68
TACH5 / GPIO69
TACH6 / GPIO70
TACH7 / GPIO71
A20GATE
PECI
RCIN#
PROCPWRGD
THRMTRIP#
INIT3_3V#
DF_TVS
CPU/MISC
CPU/MISC
TS_VSS1
TS_VSS2
TS_VSS3
TS_VSS4
NC_1
VSS_NCTF_15
VSS_NCTF_16
VSS_NCTF_17
VSS_NCTF_18
VSS_NCTF_19
VSS_NCTF_20
VSS_NCTF_21
VSS_NCTF_22
VSS_NCTF_23
VSS_NCTF_24
VSS_NCTF_25
VSS_NCTF_26
VSS_NCTF_27
VSS_NCTF_28
VSS_NCTF_29
VSS_NCTF_30
VSS_NCTF_31
VSS_NCTF_32
2
C40
B41
C41
A40
P4
AU16
P5
AY11
PCH_THRMTRIP#
AY10
T14
AY1
AH8
AK11
AH10
AK10
P37
BG2
BG48
BH3
BH47
BJ4
BJ44
BJ45
BJ46
BJ5
BJ6
C2
C48
D1
D49
E1
E49
F1
F49
PCH_GPIO68
PCH_GPIO69
PCH_GPIO70
PCH_GPIO71
SIO_A20GATE
SIO_RCIN#
H_PWRGOOD
1 2
R454 390_4R454 390_4
DF_TVS
SIO_A20GATE [38]
SIO_RCIN# [38]
H_PWRGOOD [7]
PM_THRMTRIP#
DF_TVS [23]
1
PM_THRMTRIP# [7]
Pin Name Strap description
GPIO28
A A
CHECK LIST:
When Unused as GPIO or SATA*GP - Use 8.2K-10K pull-down to ground.
On-die PLL Voltage Regulator RSMRST#
R426 *1K_4_NCR426 *1K_4_NC
1 2
CAMERA_CBL_DET#
5
R439 10K_4R439 10K_4
1 2
Sampled
0 = Disable
1 = Enable (Default)
GPIO28
Configuration
BMBUSY#
4
R435 10K_4R435 10K_4
1 2
+3.3V_RUN
BMBUSY#:
If not used, require a weak pull-up
(8.2- KΩ to 10 kΩ) to Vcc3_3.
CRB(V1.0)P28: it has 1K PU and
100 ohm on this net for validation purpose.
3
HOST_ALERT#1
Intel ME Crypto Transport Layer
Security (TLS) cipher suite
Low = Disable (Default)
High = Enable
R170 1K_4R170 1K_4
MFG-TEST
WLAN_RADIO_DIS#
R182 10K_4R182 10K_4
R181 *0_4_NCR181 *0_4_NC
1 2
1 2
1 2
2
+3.3V_SUS
+3.3V_SUS
R411 10K_4R411 10K_4
1 2
+3.3V_RUN
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
Panther Point 6/7
Panther Point 6/7
Panther Point 6/7
Wednesday, February 08, 2012
Wednesday, February 08, 2012
Wednesday, February 08, 2012
SV_DET
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
R09A
R09A
R09A
25 58
25 58
25 58
3A
3A
3A
5
4
3
2
1
Cougar Point/Panther Point (POWER)
VccDSW3_3= 10mA(10mil)
+3.3V_SUS
VccADAC =63mA(10mils)
VCCADAC
VSSADAC
+VCCALVDS
VccALVDS=1mA (10mils)
VCCALVDS
VSSALVDS
VCC3_3[6]
VCC3_3[7]
VCCVRM[3]
VCCDMI[1]
VCCCLKDMI
VCCSPI
+VCCA_DAC_1_2
U48
U47
AK36
AK37
AM37
AM38
AP36
AP37
V33
V34
AT16
AT20
AB36
L28 180ohm/5AL28 180ohm/5A
C212 *10U/6.3V_6_UO_NCC212 *10U/6.3V_6_UO_NC
1 2
C551 *0.1U/16V_4_UO_NCC551 *0.1U/16V_4_UO_NC
1 2
C552 *0.01U/25V_4_UO_NCC552 *0.01U/25V_4_UO_NC
1 2
C595 *22U/6.3V_8_UO_NCC595 *22U/6.3V_8_UO_NC
1 2
DIS
R452
R452
0_4_DIS
0_4_DIS
+3V_VCC_GIO
Vcc3_3 = 0.228A (15mils)
+VCC_DMI
VccDMI =47mA (10mils)
+VCC_DMI_CCI
+VCC_DMI_CCI= 70mA (10mils)
AG16
AG17
+VCCP_NAND
VCCPNAND = 2 mA(10mils)
AJ16
AJ17
+3V_VCCME_SPI
VCCSPI = 10mA(10mils)
V1
1 2
C543 0.1U/16V_4C543 0.1U/16V_4
R457 *0_0402short_NCR457 *0_0402short_NC
C553 1U/6.3V_4C553 1U/6.3V_4
C565 0.1U/16V_4C565 0.1U/16V_4
C261 1U/6.3V_4C261 1U/6.3V_4
D D
+1.05V_PCH
C C
B B
+1.05V_PCH
+1.05V_PCH_VCC
1.7 A (70mils)
R240 *0_1206short_NCR240 *0_1206short_NC
1 2
+1.05V_PCH_VCCDPLL_EXP
+1.05V_PCH
T11T11
+1.05V_VCCIO
VccIO =3.711 A(160mils)
+1.05V_PCH
+3.3V_RUN
+3V_VCC_EXP
C540 0.1U/16V_4C540 0.1U/16V_4
12
+1.5V_RUN
1.05V_VCCDPLL_FDI=40mA(10mils)
VccDMI =0.047 A(10mils)
+1.5V_RUN
+1.05V_PCH_VCC
C26510U/6.3V_8 C26510U/6.3V_8
12
C5501U/6.3V_4 C5501U/6.3V_4
12
C5621U/6.3V_4 C5621U/6.3V_4
12
C5611U/6.3V_4 C5611U/6.3V_4
12
C5681U/6.3V_4 C5681U/6.3V_4
12
C5471U/6.3V_4 C5471U/6.3V_4
12
C5701U/6.3V_4 C5701U/6.3V_4
12
C5761U/6.3V_4 C5761U/6.3V_4
12
T28T28
+VCC_DMI
C368
C368
10U/6.3V_6
10U/6.3V_6
1 2
AA23
AC23
AD21
AD23
AF21
AF23
AG21
AG23
AG24
AG26
AG27
AG29
AJ23
AJ26
AJ27
AJ29
AJ31
AN19
BJ22
AN16
AN17
AN21
AN26
AN27
AP21
AP23
AP24
AP26
AT24
AN33
AN34
BH29
AP16
BG6
AP17
AU20
12
C579
C579
0.1U/16V_4
0.1U/16V_4
U13G
U13G
VCCCORE[1]
VCCCORE[2]
VCCCORE[3]
VCCCORE[4]
VCCCORE[5]
VCCCORE[6]
VCCCORE[7]
VCCCORE[8]
VCCCORE[9]
VCCCORE[10]
VCCCORE[11]
VCCCORE[12]
VCCCORE[13]
VCCCORE[14]
VCCCORE[15]
VCCCORE[16]
VCCCORE[17]
VCCIO[28]
VCCAPLLEXP
VCCIO[15]
VCCIO[16]
VCCIO[17]
VCCIO[18]
VCCIO[19]
VCCIO[20]
VCCIO[21]
VCCIO[22]
VCCIO[23]
VCCIO[24]
VCCIO[25]
VCCIO[26]
VCC3_3[3]
VCCVRM[2]
VccAFDIPLL
VCCIO[27]
VCCDMI[2]
CPT_PPT_HM77
CPT_PPT_HM77
12
POWER
POWER
C580
C580
0.1U/16V_4
0.1U/16V_4
CRTLVDS
CRTLVDS
VCC CORE
VCC CORE
VCCTX_LVDS[1]
VCCTX_LVDS[2]
VCCTX_LVDS[3]
VCCTX_LVDS[4]
DMI
DMI
VCCIO
VCCIO
VCCDFTERM[1]
VCCDFTERM[2]
VCCDFTERM[3]
VCCDFTERM[4]
DFT / SPI HVCMOS
DFT / SPI HVCMOS
FDI
FDI
+3.3V_RUN
R451 *0_4_UO_NCR451 *0_4_UO_NC
+VCCALVDS
VccTX_LVDS=40mA
(10mils)
12
C573
C573
0_4_DIS
0_4_DIS
1 2
+1.5V_RUN
12
C575 1U/6.3V_4C575 1U/6.3V_4
1 2
R442 *0_0402short_NCR442 *0_0402short_NC
12
1 2
1 2
1 2
UMA/ OPT
12
C574
C574
*0.1U/16V_4_UO_NC
*0.1U/16V_4_UO_NC
1 2
+3.3V_RUN
+1.05V_PCH
+1.05V_PCH
+1.8V_RUN
+3.3V_RUN
+3.3V_RUN
R237 *0_4_UO_NCR237 *0_4_UO_NC
1 2
C266
C266
*22U/6.3V_8_NC
*22U/6.3V_8_NC
1 2
C266 default NC
+1.05V_PCH
R448 *0_0402short_NCR448 *0_0402short_NC
R446 *0_0402short_NCR446 *0_0402short_NC
R449 *0_0402short_NCR449 *0_0402short_NC
+1.05V_PCH
UMA/ OPT
+1.8V_RUN+VCC_TX_LVDS
1 2
C557 1U/6.3V_4C557 1U/6.3V_4
1 2
C559 1U/6.3V_4C559 1U/6.3V_4
1 2
C563 1U/6.3V_4C563 1U/6.3V_4
VCCRTC<1mA(10mils)
C196 *0.1U/16V_4_NCC196 *0.1U/16V_4_NC
+3V_SUS_CLKF33 =30mA(10mils)
+VCCDPLL_CRY =40mA(10mils)
UMA/OPT
C573
1uFPNCH5101K9B01
DIS PN
C573
0 ohm
C267 22U/6.3V_8C267 22U/6.3V_8
12
C270 22U/6.3V_8C270 22U/6.3V_8
12
C549 1U/6.3V_4C549 1U/6.3V_4
12
C560 1U/6.3V_4C560 1U/6.3V_4
12
C546 1U/6.3V_4C546 1U/6.3V_4
12
C182 0.1U/16V_4C182 0.1U/16V_4
12
12
12
+1.05V_PCH
+RTC_CELL
Cougar Point/Panther Point (POWER)
POWER
T9T9
12
PCH_VCCDSW
T22T22
+3V_SUS_CLKF33
T10T10
CS00002JB38
+1.05V_PCH
VccASW =0.903A
(40mils)
1 2
+1.5V_RUN
80mA(10mils)
80mA(10mils)
+VCCDIFFCLK= 40mA(10mils)
VCCDIFFCLKN= 55mA(10mils)
VCCSSC= 95mA(10mils)
C200 0.1U/16V_4C200 0.1U/16V_4
+VTT_VCCPCPU 1mA(10mils)
+VCCRTCEXT
+1.05V_VCCA_A_DPL
+1.05V_VCCA_B_DPL
+VCCDIFFCLK
+VCCDIFFCLKN
+V1.05V_SSCVCC
12
T23T23
C245 1U/25V_6C245 1U/25V_6
12
C251 0.1U/16V_4C251 0.1U/16V_4
12
C248 *0.1U/16V_4_NCC248 *0.1U/16V_4_NC
12
C192 1U/6.3V_4C192 1U/6.3V_4
12
C190 0.1U/16V_4C190 0.1U/16V_4
12
C191 *0.1U/16V_4_NCC191 *0.1U/16V_4_NC
12
+VCCSST
AD49
BH23
AL29
AL24
AA19
AA21
AA24
AA26
AA27
AA29
AA31
AC26
AC27
AC29
AC31
AD29
AD31
W21
W23
W24
W26
W29
W31
W33
BD47
BF47
AF17
AF33
AF34
AG34
AG33
T16
V12
T38
N16
Y49
V16
T17
V19
BJ8
A22
U13J
U13J
VCCACLK
VCCDSW3_3
DCPSUSBYP
VCC3_3[5]
VCCAPLLDMI2
VCCIO[14]
DCPSUS[3]
VCCASW[1]
VCCASW[2]
VCCASW[3]
VCCASW[4]
VCCASW[5]
VCCASW[6]
VCCASW[7]
VCCASW[8]
VCCASW[9]
VCCASW[10]
VCCASW[11]
VCCASW[12]
VCCASW[13]
VCCASW[14]
VCCASW[15]
VCCASW[16]
VCCASW[17]
VCCASW[18]
VCCASW[19]
VCCASW[20]
DCPRTC
VCCVRM[4]
VCCADPLLA
VCCADPLLB
VCCIO[7]
VCCDIFFCLKN[1]
VCCDIFFCLKN[2]
VCCDIFFCLKN[3]
VCCSSC
DCPSST
DCPSUS[1]
DCPSUS[2]
V_PROC_IO
VCCRTC
CPT_PPT_HM77
CPT_PPT_HM77
POWER
Clock and Miscellaneous
Clock and Miscellaneous
CPURTC
CPURTC
PCI/GPIO/LPCMISC
PCI/GPIO/LPCMISC
SATA USB
SATA USB
HDA
HDA
VCCIO[29]
VCCIO[30]
VCCIO[31]
VCCIO[32]
VCCIO[33]
VCCSUS3_3[7]
VCCSUS3_3[8]
VCCSUS3_3[9]
VCCSUS3_3[10]
VCCSUS3_3[6]
VCCIO[34]
V5REF_SUS
DCPSUS[4]
VCCSUS3_3[1]
V5REF
VCCSUS3_3[2]
VCCSUS3_3[3]
VCCSUS3_3[4]
VCCSUS3_3[5]
VCC3_3[1]
VCC3_3[8]
VCC3_3[4]
VCC3_3[2]
VCCIO[5]
VCCIO[12]
VCCIO[13]
VCCIO[6]
VCCAPLLSATA
VCCVRM[1]
VCCIO[2]
VCCIO[3]
VCCIO[4]
VCCASW[22]
VCCASW[23]
VCCASW[21]
VCCSUSHDA
+1.05V_VCCUSBCORE
N26
P26
P28
T27
T29
+3V_VCCPUSB= 50mA(10mil)
T23
T24
V23
V24
P24
+3V_VCCAUBG= 100mA(10mil)
T26
VCC5REFSUS=1mA(10mil)
+5V_PCH_VCC5REFSUS
M26
AN23
+3.3V_SUS
AN24
V5REF= 1mA(10mil)
+5V_PCH_VCC5REF
P34
N20
VCCSUS3_3 =
N22
40mA (10mils)
P20
P22
AA16
W16
VCCPCORE =50mA(10mils)
T34
C542 0.1U/16V_4C542 0.1U/16V_4
AJ2
C541 0.1U/16V_4C541 0.1U/16V_4
AF13
+V1.05S_SATA3= 400mA(20mils)
AH13
AH14
AF14
AK1
AF11
AC16
AC17
AD17
T21
V21
T19
VCCSUSHDA= 10mA(10mils)
P32
C146 0.1U/16V_4C146 0.1U/16V_4
C194 0.1U/16V_4C194 0.1U/16V_4
C199 1U/6.3V_4C199 1U/6.3V_4
C195 *1U/6.3V_4_NCC195 *1U/6.3V_4_NC
C538 0.1U/16V_4C538 0.1U/16V_4
1 2
1 2
C558 1U/6.3V_4C558 1U/6.3V_4
T26T26
+1.05V_PCH
12
+1.05V_PCH
C571 1U/6.3V_4C571 1U/6.3V_4
+1.05V_PCH
+1.5V_RUN
C572
C572
*1U/6.3V_4_NC
*1U/6.3V_4_NC
C180 0.1U/16V_4C180 0.1U/16V_4
+1.05V_PCH
1 2
1 2
1 2
1 2
R171 10_4R171 10_4
21
D12 SDM10K45-7-FD12 SDM10K45-7-F
1 2
C198 0.1U/16V_4C198 0.1U/16V_4
1 2
R174 10_4R174 10_4
21
D13 SDM10K45-7-FD13 SDM10K45-7-F
1 2
1 2
1 2
+3.3V_RUN
+3.3V_RUN
1 2
1 2
+3.3V_SUS
+5V_SUS
+3.3V_SUS
+5V_RUN
+3.3V_RUN
+3.3V_SUS
+3.3V_RUN
+1.05V_PCH
+3.3V_SUS
R239 *0_0805short_NCR239 *0_0805short_NC
+1.05V_PCH
VCCAFDI_VRM =167mA (10mils)
A A
VCCVRM: 1.8V (Destop)
1.5V (Mobile)
5
4
1 2
R238 *0_0805short_NCR238 *0_0805short_NC
1 2
3
12
C269
C269
*10U/6.3V_8_NC
*10U/6.3V_8_NC
12
C268
C268
*10U/6.3V_8_NC
*10U/6.3V_8_NC
+1.05V_VCCA_A_DPL
12
C577
C577
1U/6.3V_4
1U/6.3V_4
+1.05V_VCCA_B_DPL
12
C578
C578
1U/6.3V_4
1U/6.3V_4
2
+3.3V_RUN
R178 *0_0402short_NCR178 *0_0402short_NC
12
C211
C211
*10U/6.3V_6_NC
*10U/6.3V_6_NC
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
Panther Point 7/7
Panther Point 7/7
Panther Point 7/7
Monday, March 05, 2012
Monday, March 05, 2012
Monday, March 05, 2012
+3V_SUS_CLKF33
12
12
C204
C204
1U/6.3V_4
1U/6.3V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
R09A
R09A
R09A
26 58
26 58
1
26 58
3A
3A
3A
5
4
3
2
1
+LCDVCC
U22
R366 0_8_DISR366 0_8_DIS
+5V_RUN
+3.3V_RUN
1 2
R367 *0_8_OU_NCR367 *0_8_OU_NC
1 2
12
DIS~ eDP : R366
D D
LCDVCC_TST_EN[38]
ENVDD[21]
EXT_LVDS_VDDEN[16]
OPT~ LVDS : R367
R371 *0_4_UO_NCR371 *0_4_UO_NC
R370 0_4_DISR370 0_4_DIS
D20
D20
1
2
BAT54C T/R
BAT54C T/R
OTP/ UMA: R371
C424
C424
0.1U/25V_6
0.1U/25V_6
EN_LCDVCC
3
+LCDVCC_R
R356
R356
10K_4
10K_4
1 2
U22
4
1
IN
OUT
5
IN
2
GND
3
EN
G5243A
G5243A
12
C411
C411
0.1U/16V_4
0.1U/16V_4
X7R
X7R
16
16
DIS: R370
C C
+PWR_SRC +GFX_PWR_SRC
12
R338
R338
*100K_4_NC
*100K_4_NC
RUN_ON[31,38,50]
B B
Backlight Control
PWM_VADJ[38]
LCD_PWM[21]
EXT_LCD_PWM[16]
R335 *0_4_UO_NCR335 *0_4_UO_NC
R336 0_4_DISR336 0_4_DIS
OTP/ UMA: R335
R334 *0_1206short_NCR334 *0_1206short_NC
1 2
1
12
C410
C410
*0.1U/25V_6_NC
*0.1U/25V_6_NC
R337
R337
*100K_4_NC
*100K_4_NC
1 2
31
Q38
Q38
2
*2N7002W_NC
*2N7002W_NC
Q37
Q37
*AP2301GN_NC
*AP2301GN_NC
2
D19
D19
1
2
BAT54C T/R
BAT54C T/R
12
40mil40mil
C408
C408
0.1U/25V_6
0.1U/25V_6
12
C409
C409
*0.1U/25V_6_NC
*0.1U/25V_6_NC
DMIC_CLK
DMIC_DATA
1 2
EC50 *10P_NCEC50 *10P_NC
1 2
EC49 *10P_NCEC49 *10P_NC
3
Place near conn.
EMC Reserve
INT_TXLOUTP0
C425 *3.3P/50V/NPO_NCC425 *3.3P/50V/NPO_NC
INT_TXLOUTP1 INT_TXLOUTN1
INT_TXLOUTP2
BL_PWM
3
12
R365
R365
10K_4
10K_4
INT_TXLCLKOUTP
INT_TXUOUTP0
INT_TXUOUTP1 INT_TXUOUTN1
INT_TXUOUTP2
INT_TXUCLKOUTP
12
C414 *3.3P/50V/NPO_NCC414 *3.3P/50V/NPO_NC
12
C415 *3.3P/50V/NPO_NCC415 *3.3P/50V/NPO_NC
12
C420 *3.3P/50V/NPO_NCC420 *3.3P/50V/NPO_NC
12
C416 *3.3P/50V/NPO_NCC416 *3.3P/50V/NPO_NC
12
C421 *3.3P/50V/NPO_NCC421 *3.3P/50V/NPO_NC
12
C417 *3.3P/50V/NPO_NCC417 *3.3P/50V/NPO_NC
12
C422 *3.3P/50V/NPO_NCC422 *3.3P/50V/NPO_NC
12
Pleace R close to pin of LCD connector, J1
INT_TXLOUTN0
INT_TXLOUTN2
INT_TXLCLKOUTN
INT_TXUOUTN0
INT_TXUOUTN2
INT_TXUCLKOUTN
DIS: R336
A A
Normal Panel - 40pin
JLVDS1
JLVDS1
G_5
40
39
38
37
36
35
34
33
32
G_4
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
G_1
9
8
7
6
5
4
3
2
1
G_0
*GS12401-1011-9H_OU_NC
*GS12401-1011-9H_OU_NC
+GFX_PWR_SRC
+3.3V_RUN
DMIC_CLK_R
DMIC_DATA_R
USBP12N_R
USBP12P_R
BL_PWM
INT_TXUCLKOUTP
INT_TXUCLKOUTN
INT_TXUOUTP2
INT_TXUOUTN2
INT_TXUOUTP1
INT_TXUOUTN1
INT_TXUOUTP0
INT_TXUOUTN0
INT_TXLCLKOUTP
INT_TXLCLKOUTN
INT_TXLOUTP2
INT_TXLOUTN2
INT_TXLOUTP1
INT_TXLOUTN1
INT_TXLOUTP0
INT_TXLOUTN0
LCD_TST
ER9 *0_4_OU_NCER9 *0_4_OU_NC
ER8 *0_4_OU_NCER8 *0_4_OU_NC
ER7 *0_4_OU_NCER7 *0_4_OU_NC
ER6 *0_4_OU_NCER6 *0_4_OU_NC
DMIC + CCD
+LCDVCC
3D Panel - DIS turbo - 40pin
FOX_GS12407-11141-9H_DIS
FOX_GS12407-11141-9H_DIS
1
1
45
44
43
42
41
JEDP1
JEDP1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
45
44
43
42
41
For eDP only. (eDP_1_AUXP, eDP_1_AUXN)
+3.3V_GFX
eDP_1_AUXN_C
eDP_1_AUXP_C
eDP_1_TXN0_C
eDP_1_TXP0_C
eDP_1_TXN1_C
eDP_1_TXP1_C
eDP_1_TXN2_C
eDP_1_TXP2_C
eDP_1_TXN3_C
eDP_1_TXP3_C
R374 100K_DISR374 100K_DIS
R373 100K_DISR373 100K_DIS
+GFX_PWR_SRC
0.94A
BL_PWM
+5V_RUN
C445 0.1U/16V/X7R_DISC445 0.1U/16V/X7R_DIS
1 2
C444 0.1U/16V/X7R_DISC444 0.1U/16V/X7R_DIS
1 2
C443 0.1U/16V/X7R_DISC443 0.1U/16V/X7R_DIS
1 2
C442 0.1U/16V/X7R_DISC442 0.1U/16V/X7R_DIS
1 2
C441 0.1U/16V/X7R_DISC441 0.1U/16V/X7R_DIS
1 2
C440 0.1U/16V/X7R_DISC440 0.1U/16V/X7R_DIS
1 2
C439 0.1U/16V/X7R_DISC439 0.1U/16V/X7R_DIS
1 2
C438 0.1U/16V/X7R_DISC438 0.1U/16V/X7R_DIS
1 2
C437 0.1U/16V/X7R_DISC437 0.1U/16V/X7R_DIS
1 2
C436 0.1U/16V/X7R_DISC436 0.1U/16V/X7R_DIS
1 2
LCD_TST
+LCDVCC
DMIC_CLK
DMIC_DATA
USBP12NN
USBP12PP
R350 *10K_4_OU_NCR350 *10K_4_OU_NC
INT_TXUCLKOUTP [21]
INT_TXUCLKOUTN [21]
INT_TXUOUTP2 [21]
INT_TXUOUTN2 [21]
INT_TXUOUTP1 [21]
INT_TXUOUTN1 [21]
INT_TXUOUTP0 [21]
INT_TXUOUTN0 [21]
INT_TXLCLKOUTP [21]
INT_TXLCLKOUTN [21]
INT_TXLOUTP2 [21]
INT_TXLOUTN2 [21]
INT_TXLOUTP1 [21]
INT_TXLOUTN1 [21]
INT_TXLOUTP0 [21]
INT_TXLOUTN0 [21]
INT_LCD_DDCDAT [21]
INT_LCD_DDCCLK [21]
LCD_TST [38]
DMIC_CLK
DMIC_DATA
USBP12NN
USBP12PP
R368 10K_4_DISR368 10K_4_DIS
1A - Actual
+3.3V_RUN
DMIC_CLK [30]
DMIC_DATA [30]
DMIC + CCD
eDP_1_AUXN_C
eDP_1_AUXP_C
12
INT_LCD_BAK [38]
12
INT_LCD_BAK [38]
3D sensor
USBP13N [23]
USBP13P [23]
eDP_1_AUXN [15]
eDP_1_AUXP [15]
eDP_1_TXN0 [15]
eDP_1_TXP0 [15]
eDP_1_TXN1 [15]
eDP_1_TXP1 [15]
eDP_1_TXN2 [15]
eDP_1_TXP2 [15]
eDP_1_TXN3 [15]
eDP_1_TXP3 [15]
eDP_HPD [15]
+3.3V_RUN
DLP11SN900HL2L
DLP11SN900HL2L
12
3 4
EL16
EL16
EL16 colse to
JEDP1
12
C407
C407
0.1U/16V_4
0.1U/16V_4
USBP12N [23]
USBP12P [23]
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
PROJECT :
LVDS
LVDS
LVDS
R09A
R09A
R09A
27 58Monday, March 05, 2012
27 58Monday, March 05, 2012
27 58Monday, March 05, 2012
1
3A
3A
3A
5
VGA
INT_CRT_RED[21]
EXT_CRT_RED[15]
INT_CRT_GRE[21]
D D
EXT_CRT_GRE[15]
INT_CRT_BLU[21]
EXT_CRT_BLU[15]
R2 *0_4_UO_NCR2 *0_4_UO_NC
R327 0_4_DISR327 0_4_DIS
R5 *0_4_UO_NCR5 *0_4_UO_NC
R329 0_4_DISR329 0_4_DIS
R6 *0_4_UO_NCR6 *0_4_UO_NC
R330 0_4_DISR330 0_4_DIS
CRT_RED
CRT_GRE
CRT_BLU
DIS: EXT POP
UMA/OPT: INT POP
Layout Note:
Setting R,G,B treac
CRT_RED
C C
B B
A A
CRT_GRE
CRT_BLU
12
R8
150/F_4R8150/F_4
5
impedance to 50 ohm.
12
12
R4
R1
150/F_4R4150/F_4
150/F_4R1150/F_4
CRT_HSYNC
C1
C1
0.1U/16V_4
0.1U/16V_4
+5V_RUN
12
2 4
74AHCT1G125GW
74AHCT1G125GW
2 4
74AHCT1G125GW
74AHCT1G125GW
4
INT_DDCDAT[21]
EXT_DDCDAT[15]
INT_DDCCLK[21]
EXT_DDCCLK[15]
INT_CRT_HSYNC[21]
EXT_CRT_HSYNC[15]
INT_CRT_VSYNC[21]
EXT_CRT_VSYNC[15]
EXT_DDCDAT DDCDAT
EXT_DDCCLK DDCCLK
R9 *0_4_UO_NCR9 *0_4_UO_NC
R332 0_4_DISR332 0_4_DIS
R10 *0_4_UO_NCR10 *0_4_UO_NC
R333 0_4_DISR333 0_4_DIS
R3 *0_4_UO_NCR3 *0_4_UO_NC
R328 0_4_DISR328 0_4_DIS
R7 *0_4_UO_NCR7 *0_4_UO_NC
R331 0_4_DISR331 0_4_DIS
3
CRT_HSYNC
CRT_VSYNC
2
+5V_RUN
21
D1
D1
SDM10K45-7-F
SDM10K45-7-F
EXT_DDCDAT
EXT_DDCCLK
1
+3.3V_GFX
1
3
RP33
RP33
*2.2KX2_GT_OPT_NC
*2.2KX2_GT_OPT_NC
2
4
N13P-GT I2C must PH even VGA is disable
It is for Nvidia MODS test.
N13P-GT - OPT(POP)
DIS: EXT POP
UMA/OPT: INT POP
EL1
EL1
BLM18BB750SN1D
BLM18BB750SN1D
1 2
EL2
EL2
BLM18BB750SN1D
BLM18BB750SN1D
1 2
EL3
EL3
BLM18BB750SN1D
BLM18BB750SN1D
1 2
12
EC6
EC6
18P/50V_4
18P/50V_4
1
5
U1
U1
1
5
U2
U2
4
HSYNC_R
VSYNC_RCRT_VSYNC
12
EC4
EC4
18P/50V_4
18P/50V_4
DDCDAT
DDCCLK
12
0.1U/16V_4
0.1U/16V_4
EC120
EC120
EC2
EC2
18P/50V_4
18P/50V_4
12
1
3
RP24
RP24
2.2KX2
2.2KX2
2
4
12
EC5
EC5
10P/50V_4
10P/50V_4
R12 *0_4_UO_NCR12 *0_4_UO_NC
R11 0_4_DISR11 0_4_DIS
+3.3V_VGA
UMA/OPT:R12
DIS:R11
Q36A
Q36A
ER4 33_4ER4 33_4
1 2
Place near
74AHCT125 <
200 mil
ER5 33_4ER5 33_4
1 2
3
DMN66D0LDW-7
DMN66D0LDW-7
34
5
2
61
Q36B
Q36B
DMN66D0LDW-7
DMN66D0LDW-7
12
EC3
EC3
10P/50V_4
10P/50V_4
+3.3V_RUN
+3.3V_GFX
G_DAT_DDC_C
G_CLK_DDC_C
VSYNC
HSYNC
12
EC1
EC1
10P/50V_4
10P/50V_4
RED
GREEN
BLUE
0.1U/16V_4
0.1U/16V_4
+5V_CRT_REF
1
3
RP23
RP23
2.2KX2
2.2KX2
2
4
EC119
EC119
2
CRTF1
CRTF1
KMC3S110RY
KMC3S110RY
+5V_CRT_REF
12
1617
JVGA1
JVGA1
6
111
7
12
2
8
13
3
9
14
4
10
YMI_10256-00001
YMI_10256-00001
15
5
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
VGA
VGA
VGA
1
R09A
R09A
R09A
3A
3A
3A
28 58Monday, March 05, 2012
28 58Monday, March 05, 2012
28 58Monday, March 05, 2012
1
2
3
4
5
6
7
8
HDMI W/O Re-driver
EL8
EL7
HDMI_TX2+_R
DIS HDMI
EXT_HDMI_TXP2[15]
A A
EXT_HDMI_TXN2[15]
EXT_HDMI_TXP1[15]
EXT_HDMI_TXN1[15]
EXT_HDMI_TXP0[15]
EXT_HDMI_TXN0[15]
EXT_HDMI_TXCP[15]
EXT_HDMI_TXCN[15]
EXT_HDMI_TXP2
EXT_HDMI_TXN2
EXT_HDMI_TXP1
EXT_HDMI_TXN1
EXT_HDMI_TXP0
EXT_HDMI_TXN0
EXT_HDMI_TXCP
EXT_HDMI_TXCN
C239 0.1U/16V_4_DISC239 0.1U/16V_4_DIS
1 2
C237 0.1U/16V_4_DISC237 0.1U/16V_4_DIS
1 2
C236 0.1U/16V_4_DISC236 0.1U/16V_4_DIS
1 2
C235 0.1U/16V_4_DISC235 0.1U/16V_4_DIS
1 2
C241 0.1U/16V_4_DISC241 0.1U/16V_4_DIS
1 2
C244 0.1U/16V_4_DISC244 0.1U/16V_4_DIS
1 2
C250 0.1U/16V_4_DISC250 0.1U/16V_4_DIS
1 2
C247 0.1U/16V_4_DISC247 0.1U/16V_4_DIS
1 2
HDMI_TX2+_R
HDMI_TX2-_R
HDMI_TX1+_R
HDMI_TX1-_R
HDMI_TX0+_R
HDMI_TX0-_R
HDMI_CLK+_R
HDMI_CLK-_R
HDMI_TX2-_R
HDMI_TX1+_R HDMI_TX1+_C
HDMI_TX1-_R
EL7
1 2
EXC24CG900U
EXC24CG900U
EL6
EL6
1 2
EXC24CG900U
EXC24CG900U
HDMI_TX2+_C
HDMI_TX2-_C
34
HDMI_TX1-_C
34
HDMI_TX0+_R
HDMI_TX0-_R
HDMI_CLK+_R
HDMI_CLK-_R
EL8
3 4
EXC24CG900U
EXC24CG900U
EL9
EL9
1 2
EXC24CG900U
EXC24CG900U
HDMI_TX0+_C
12
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
34
OTP/UMA HDMI
INT_HDMI_TXP2_C[21]
INT_HDMI_TXN2_C[21]
INT_HDMI_TXP1_C[21]
INT_HDMI_TXN1_C[21]
INT_HDMI_TXP0_C[21]
INT_HDMI_TXN0_C[21]
INT_HDMI_TXCP_C[21]
INT_HDMI_TXCN_C[21]
B B
31
+3.3V_RUN
2
INT_HDMI_TXP2_C
INT_HDMI_TXN2_C
INT_HDMI_TXP1_C
INT_HDMI_TXN1_C
INT_HDMI_TXP0_C
INT_HDMI_TXN0_C
INT_HDMI_TXCP_C
INT_HDMI_TXCN_C
R213 499_4R213 499_4
R210 499_4R210 499_4
R209 499_4R209 499_4
R206 499_4R206 499_4
R215 499_4R215 499_4
R220 499_4R220 499_4
R224 499_4R224 499_4
R221 499_4R221 499_4
Q18
Q18
2N7002W
2N7002W
R691~702
UMA/OPT -- 680 ohm PN: CS16802JB27
DIS ----- 499 ohm PN: CS14992FB24
C240 *0.1U/16V_4_UO_NCC240 *0.1U/16V_4_UO_NC
1 2
C238 *0.1U/16V_4_UO_NCC238 *0.1U/16V_4_UO_NC
1 2
C232 *0.1U/16V_4_UO_NCC232 *0.1U/16V_4_UO_NC
1 2
C226 *0.1U/16V_4_UO_NCC226 *0.1U/16V_4_UO_NC
1 2
C242 *0.1U/16V_4_UO_NCC242 *0.1U/16V_4_UO_NC
1 2
C246 *0.1U/16V_4_UO_NCC246 *0.1U/16V_4_UO_NC
1 2
C252 *0.1U/16V_4_UO_NCC252 *0.1U/16V_4_UO_NC
1 2
C249 *0.1U/16V_4_UO_NCC249 *0.1U/16V_4_UO_NC
1 2
HDMI_TX2+_R
12
HDMI_TX2-_R
12
HDMI_TX1+_R
12
HDMI_TX1-_R
12
HDMI_TX0+_R
12
HDMI_TX0-_R
12
HDMI_CLK+_R
12
HDMI_CLK-_R
12
HDMI_TX2+_R
HDMI_TX2-_R
HDMI_TX1+_R
HDMI_TX1-_R
HDMI_TX0+_R
HDMI_TX0-_R
HDMI_CLK+_R
HDMI_CLK-_R
EXT_HDMI_SCL[15]
INT_HDMI_SCL[21]
EXT_HDMI_SDA[15]
INT_HDMI_SDA[21]
EXT_HDMI_HPD_R[15]
INT_HDMI_HPD_Q[21]
HDMI HPD
EXT_HDMI_SCL
INT_HDMI_SCL
EXT_HDMI_SDA
INT_HDMI_SDA
EXT_HDMI_HPD_R
INT_HDMI_HPD_Q HDMI_HPD_Q
R191 0_4_DISR191 0_4_DIS
R187 *0_4_UO_NCR187 *0_4_UO_NC
R195 0_4_DISR195 0_4_DIS
R199 *0_4_UO_NCR199 *0_4_UO_NC
R198 0_4_DISR198 0_4_DIS
R189 *0_4_UO_NCR189 *0_4_UO_NC
DIS - R191,R195,R198
UMA/OPT - R187,R199,R189
HDMI_HPD spec
+3.3V_RUN
VinH_min=2.0V
HDMI_SCL
HDMI_SDA
C C
+3.3V_GFX+3.3V_RUN
R42
R37
R37
*0_4_UO_NC
*0_4_UO_NC
+3.3V_HDMI
1
3
RP16
RP16
4.7KX2
4.7KX2
2
4
HDMI_SCL
D D
HDMI_SDA
1
R42
0_4_DIS
0_4_DIS
Q15 FDV301NQ15 FDV301N
1
1
Q17 FDV301NQ17 FDV301N
2
UMA/OPT:R37
DIS:R42
3
2
2
3
SDM10K45-7-F
SDM10K45-7-F
D14
D14
RP18
RP18
2.2KX2
2.2KX2
+5V_HDMI
21
+5V_HDMIF1_D
3
4
+5V_RUN
21
D21
D21
SDM10K45-7-F
SDM10K45-7-F
+5V_HDMIF2_D
1
2
HDMIF1 KMC3S110RYHDMIF1 KMC3S110RY
3
HDMI Conn.
HDMI_TX2+_C
HDMI_TX2-_C
HDMI_TX1+_C
HDMI_TX1-_C
HDMI_TX0+_C
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
HDMI_CLK
HDMI_DAT
+5V_HDMI
HDMI_HPD
4
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
CN5
CN5
DFHD19MR203
DFHD19MR203
TYPE A
TYPE A
D2+
D2+
D2-
D2-
GND
GND
D0+
D0+
D0-
D0-
GND
GND
CEC
CEC
SCL
SCL
GND
GND
HPD
HPD
GND
GND
Q16
Q16
MMST3904-7-F
MMST3904-7-F
HDMI_HPD_Q
GND
GND
D1+
D1+
22
D1-
D1-
GND
GND
CK+
CK+
CK-
CK-
RSVD
RSVD
23
SDA
SDA
+5V
+5V
5
6
1 2
2
1 3
R194
R194
5.11K/F_4
5.11K/F_4
1 2
IB=(5V-0.7V)/(150K+(70+1)5.1K)=8.4uA
IE=(1+70)X8.4uA=596.4uA
VE=596.4uA X 5.1K=3.04V
B=70
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
7
HDMI_HPD
R196150K R196150K
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
HDMI CONN
HDMI CONN
HDMI CONN
R09A
R09A
R09A
29 58
29 58
29 58
8
3A
3A
3A
1
CODEC
A A
B B
PLACE CLOSE TO U1 PIN 14
+5V_AVDD
12
R291
R291
10K_4
SENSE_B
If Sense_B is un-used, then pull high
Sense_B to AVDD by 10Kohm resistor
C C
Tied at one point only under
the 92HD94 or near it.
QT change to short pad
D D
10K_4
R303 *0_0603short_NCR303 *0_0603short_NC
R271 *0_0603short_NCR271 *0_0603short_NC
R270 *0_0603short_NCR270 *0_0603short_NC
R269 *0_0603short_NCR269 *0_0603short_NC
AGND
HP_OUT_L HP_OUT_L_R
MIC1_VREFOUT
MIC1_L MIC1_L_C
1
1 2
C349 2.2U/6.3V_6C349 2.2U/6.3V_6
1 2
C357 2.2U/6.3V_6C357 2.2U/6.3V_6
R298 30/F_4R298 30/F_4
R305 30/F_4R305 30/F_4
C352 1U/6.3V_4C352 1U/6.3V_4
1 2
R272 4.7K_4R272 4.7K_4
R275 4.7K_4R275 4.7K_4
ACZ_SDOUT[22]
ACZ_SYNC[22]
ACZ_SDIN0[22]
12
12
MIC1_R_C
2
ACZ_BITCLK[22]
For EMI solution, can be reserved,
place close to pin6
+3.3V_SUS
C359
C359
1U/6.3V_4
1U/6.3V_4
R277 33_4R277 33_4
1 2
+3.3V_RUN
ER3 *0_0402short_NCER3 *0_0402short_NC
1 2
ER2 *0_0402short_NCER2 *0_0402short_NC
EC38
EC38
*10P_NC
*10P_NC
1 2
L12 HCB1608KF-601T10L12 HCB1608KF-601T10
L14 HCB1608KF-601T10L14 HCB1608KF-601T10
DVDD_IO should match
with HDA Bus level
ACZ_RST#[22]
NB_MUTE#[31,38]
DMIC_CLK[27]
DMIC_DATA[27]
HP_OUT_R_RHP_OUT_R
AGND
L9 HCB1608KF-601T10L9 HCB1608KF-601T10
L10 HCB1608KF-601T10L10 HCB1608KF-601T10
2
C360
C360
0.1U/16V_4
0.1U/16V_4
ACZ_BITCLK_CODEC
ACZ_SDOUT
ACZ_SYNC
ACZ_SDIN0
ACZ_RST#
EC39
EC39
*10P_NC
*10P_NC
1 2
L24.L25,L30,L31,
FB_600ohm+-25%_100MHz
_200mA_0.6ohm DC
3
R274 *0_0402short_NCR274 *0_0402short_NC
+3.3V_RUN
C358
C358
0.1U/16V_4
0.1U/16V_4
ACZ_SDIN0_CODEC
R286 10K_4R286 10K_4
1 2
HP_JD#
MIC1_L_CL
MIC1_R_CLMIC1_R
MIC_JD#
3
ACZ_BITCLK_CODEC
EC41
EC41
*22P_NC
*22P_NC
C361
C361
10U/6.3V_6
10U/6.3V_6
1 2
DMIC_CLK_ER
DMIC_DATA_ER
C396
C396
4.7U/6.3V_6
4.7U/6.3V_6
1 2
HP_OUT_L_RL
HP_OUT_R_RL
12
C399
C399
0.01U/25V_4
0.01U/25V_4
12
C362
C362
220P/50V_4
220P/50V_4
4
U20
U20
1
DVDD_CORE
3
DVDD_IO
9
DVDD
6
HDA_BITCLK
5
HDA_SDO
10
HDA_SYNC
8
HDA_SDI
11
HDA_RST#
47
EAPD
2
DMIC_CLK/GPIO1
4
DMIC0/GPIO2
48
SPDIFOUT0/GPIO3
46
DMIC1/GPIO0/SPDIFOUT1
36
CAP+
35
CAP-
7
DVSS
42
PVSS
49
PAD
92HD94B2X5NLGXYAX
92HD94B2X5NLGXYAX
12
C377
C377
0.01U/25V_4
0.01U/25V_4
AGND
12
C347
C347
220P/50V_4
220P/50V_4
AGND
4
5
AVDD1
AVDD2
PVDD1
PVDD2
SENSE_A
SENSE_B
HP0_PORTA_L
HP0_PORTA_R
VREFOUT_A
HP1_PORTB_L
HP1_PORTB_R
PORTC_L
PORTC_R
VREFOUT_C/GPIO4
PORTE_L
PORTE_R
PORTF_L
PORTF_R
SPK_PORTD_+L
SPK_PORTD_-L
SPK_PORTD_+R
SPK_PORTD_-R
MONO_OUT
PCBEEP
VREFFILT
VREG(+2.5V)
AVSS1
AVSS2
AVSS3
HP Jack
CON6
CON6
3
1
2
4
5
AUDIO JACK 5P FR(H3.9)
AUDIO JACK 5P FR(H3.9)
Normal Open
Normal Open
MIC Jack
CON5
CON5
3
1
2
4
5
AUDIO JACK 5P FR(H3.9)
AUDIO JACK 5P FR(H3.9)
Normal Open
Normal Open
5
CAP2
R302 *0_0805short_NCR302 *0_0805short_NC
1 2
6
Notes:
+5V_AVDD+5V_RUN
+5V_AVDD +5V_RUN
Keep PVDD supply and speaker traces routed on the DGND plane.
Keep away from AGND and other analog signals
7
8
1A max current
12
C380
C393
C384
C384
10U/6.3V_6
10U/6.3V_6
27
38
45
39
13
14
28
29
23
31
32
19
20
24
15
16
17
18
40
41
44
43
25
12
21
22
34
V-
37
26
30
33
1 2
AGND AGND AGND
SENSE_A
SENSE_B
AUD_PCBEEP
AGND AGND AGND AGND AGND
C393
1U/6.3V_4
1U/6.3V_4
AUD_SPK_L+ [31]
AUD_SPK_L- [31]
AUD_SPK_R+ [31]
AUD_SPK_R- [31]
SUB_OUT [31]
12
C387
C387
4.7U/6.3V_6
4.7U/6.3V_6
C394
C394
0.1U/16V_4
0.1U/16V_4
R282 20K/F_4R282 20K/F_4
1 2
R278 39.2K/F_4R278 39.2K/F_4
1 2
MIC1_L
MIC1_R
MIC1_VREFOUT
HP_OUT_L
HP_OUT_R
C364 0.1U/16V_4C364 0.1U/16V_4
C375 0.1U/16V_4C375 0.1U/16V_4
12
12
C395
C395
C383
C383
4.7U/6.3V_6
4.7U/6.3V_6
1U/6.3V_4
1U/6.3V_4
C374
C374
10U/6.3V_6
10U/6.3V_6
1 2
12
C379
C379
10U/6.3V_6
10U/6.3V_6
Place C14~C17 close to Codec
6
C380
0.1U/16V_4
0.1U/16V_4
HP_JD#
MIC_JD#
R295
R295
10K_4
10K_4
Recommend to divide the amplitude of
BEEP signal before input to PCBEEP pin.
R20,R21 are optional.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
C370
C370
*10U/6.3V_6_NC
*10U/6.3V_6_NC
1 2
PLACE CLOSE TO U1 PIN 13
SENSE_A
R273 100K/F_4R273 100K/F_4
1 2
R290 100K/F_4R290 100K/F_4
1 2
12
12
R276
R276
10K_4
10K_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
CODEC
CODEC
CODEC
+5V_AVDD
AGND
ACZ_SPKR
BEEP
12
C371
C371
*0.1U/16V_4_NC
*0.1U/16V_4_NC
12
R280
R280
2.49K/F_4
2.49K/F_4
C369
C369
1000P/50V_4
1000P/50V_4
R09A
R09A
R09A
30 58Friday, March 02, 2012
30 58Friday, March 02, 2012
30 58Friday, March 02, 2012
8
1%
ACZ_SPKR [22]
BEEP [38]
3A
3A
3A
A
Subwoofer Amp
EC100
EC100
2200P/50V_4
+3.3V_RUN
R285
R285
2200P/50V_4
R283
R283
*100K_4_NC
*100K_4_NC
1 2
1 2
4 4
GAIN0
GAIN1
3 3
*0_0402short_NC
*0_0402short_NC
12
*100K_4_NC
*100K_4_NC
R288
R288
*100K_4_NC
*100K_4_NC
1 2
R293
R293
*0_0402short_NC
*0_0402short_NC
1 2
RUN_ON[27,38,50]
+PWR_SRC
R309
R309
12
C400
C400
*0.1U/25V_6_NC
*0.1U/25V_6_NC
R308 *0_0603short_NCR308 *0_0603short_NC
1
2
12
R310
R310
*100K_4_NC
*100K_4_NC
1 2
31
2
Q29
Q29
*2N7002W_NC
*2N7002W_NC
12
3
Q28
Q28
*AP2301GN_NC
*AP2301GN_NC
SUB_OUT[30]
B
+VCC_AMP
12
C392
C392
0.1U/25V_6
0.1U/25V_6
1 2
R487 53.6K/F_4R487 53.6K/F_4
NB_MUTE#[30,38]
R479 41.2K/F_4R479 41.2K/F_4
R488
R488
180K/F_4
180K/F_4
1 2
NB_MUTE#
+5V_RUN
C386 0.047U/25V_4C386 0.047U/25V_4
12
C389 0.047U/25V_4C389 0.047U/25V_4
12
1 2
R292
R292
10_4
10_4
SUB_OUT_C
C
+VCC_AMP is 8V~26V.
12
C603
C603
1U/25V_6
1U/25V_6
U19
R279 *0_0402short_NCR279 *0_0402short_NC
1 2
GAIN0
GAIN1 SUBWOOFER-
+V_BAT_R
1 2
C397 1U/25V_6C397 1U/25V_6
1 2
R615 100K/F_4R615 100K/F_4
12
C378
C378
R299
R299
21K/F_4
21K/F_4
1U/25V_6
1U/25V_6
U19
1
SD
2
FAULT
3
GND
4
GND
5
GAIN0
6
GAIN1
7
AVCC
8
AGND
9
GVDD
10
PLIMIT
11
INN
12
INP
13
NC
14
AVCC
PAD
APA2613RI-TRG
APA2613RI-TRG
29
PVCC
PVCC
OUTN
PGND
OUTN
OUTP
PGND
OUTP
PVCC
PVCC
+VCC_AMP+VCC_AMP
28
27
26
BSN
25
24
23
22
BSN
21
BSP
20
19
18
17
BSP
16
15
C372
C372
1 2
0.47U/25V_8
0.47U/25V_8
SUBWOOFER-_R
SUBWOOFER+_R
C381
C381
1 2
0.47U/25V_8
0.47U/25V_8
12
C356
C356
*10U/25V_8_NC
*10U/25V_8_NC
D
12
C365
C365
0.1U/25V_6
0.1U/25V_6
L11 BLM18EG101TN1DL11 BLM18EG101TN1D
L13 BLM18EG101TN1DL13 BLM18EG101TN1D
1000P/50V_4
1000P/50V_4
12
C388
C388
1000P/50V_4
1000P/50V_4
C373
C373
12
C367
C367
1000P/50V_4
1000P/50V_4
12
12
SUBWOOFER+
12
C382
C382
1000P/50V_4
1000P/50V_4
C390
C390
0.1U/25V_6
0.1U/25V_6
12
12
C398
C398
EC98
EC98
2200P/50V_4
2200P/50V_4
10U/25V_8
10U/25V_8
CN9
CN9
2
2
1
1
ACS_85205-0200L
ACS_85205-0200L
EMI suppresion, cut off frequescy
is 27kHz for 4 ohms impedance.
E
Speaker Amp.
AUD_SPK_R+[30]
AUD_SPK_R-[30]
2 2
AUD_SPK_L-[30]
AUD_SPK_L+[30]
+3.3V_RUN
1 1
12
R609
R609
*10K/F_4_NC
*10K/F_4_NC
R472
R472
*0_4_NC
*0_4_NC
1 2
AUD_SPK_R+
AUD_SPK_R- AUD_SPK_R-_R1
AUD_SPK_L-
AUD_SPK_L+
12
R610
R610
*10K/F_4_NC
*10K/F_4_NC
AMP_GAIN0
AMP_GAIN1
R398
R398
*0_4_NC
*0_4_NC
1 2
R986 *3.3K/F_4_NCR986 *3.3K/F_4_NC
R989 *3.3K/F_4_NCR989 *3.3K/F_4_NC
AMP open point
R987 *3.3K/F_4_NCR987 *3.3K/F_4_NC
R991 *3.3K/F_4_NCR991 *3.3K/F_4_NC
A
R491,R495,R494,R496 default NC
R491
R491
*2.2K_4_NC
*2.2K_4_NC
1 2
R990 *3.3K/F_4_NCR990 *3.3K/F_4_NC
12
C604
C604
*680P/50V_4_NC
*680P/50V_4_NC
R993 *3.3K/F_4_NCR993 *3.3K/F_4_NC
R495
R495
*2.2K_4_NC
*2.2K_4_NC
1 2
R494
R494
*2.2K_4_NC
*2.2K_4_NC
1 2
R992 *3.3K/F_4_NCR992 *3.3K/F_4_NC
12
C605
C605
*680P/50V_4_NC
*680P/50V_4_NC
R994 *3.3K/F_4_NCR994 *3.3K/F_4_NC
R496
R496
*2.2K_4_NC
*2.2K_4_NC
1 2
IDT default GAIN is 7dB
R486
R486
*2.2K_4_NC
*2.2K_4_NC
1 2
12
C607
C607
*680P/50V_4_NC
*680P/50V_4_NC
R492
R492
*2.2K_4_NC
*2.2K_4_NC
1 2
R490
R490
*2.2K_4_NC
*2.2K_4_NC
1 2
12
C608
C608
*680P/50V_4_NC
*680P/50V_4_NC
R493
R493
*2.2K_4_NC
*2.2K_4_NC
1 2
B
AUD_SPK_R+_R1
AUD_SPK_L-_R1
AUD_SPK_L+_R1
AUD_SPK_R+
AUD_SPK_RAUD_SPK_LAUD_SPK_L+
AUD_SPK_R+_R1
AUD_SPK_R-_R1
AUD_SPK_L-_R1
AUD_SPK_L+_R1
Internal open point
R296 *0_0603short_NCR296 *0_0603short_NC
R300 *0_0603short_NCR300 *0_0603short_NC
R304 *0_0603short_NCR304 *0_0603short_NC
R478 *0_0603short_NCR478 *0_0603short_NC
For Codec output
C883 *1U/25V_6_NCC883 *1U/25V_6_NC
C865 *1U/25V_6_NCC865 *1U/25V_6_NC
C866 *1U/25V_6_NCC866 *1U/25V_6_NC
C867 *1U/25V_6_NCC867 *1U/25V_6_NC
C870 *1U/25V_6_NCC870 *1U/25V_6_NC
C871 *1U/25V_6_NCC871 *1U/25V_6_NC
R614 *18.7K/F_6_NCR614 *18.7K/F_6_NC
C880 *1U/25V_6_NCC880 *1U/25V_6_NC
R982
R982
3.3_4
3.3_4
12
12
C1335
C1335
2200P/50V_4
2200P/50V_4
C
12
12
+5V_RUN
R983
R983
3.3_4
3.3_4
C1333
C1333
2200P/50V_4
2200P/50V_4
R617
R617
*10_4_NC
*10_4_NC
12
12
12
12
12
AUD_SPK_R+_C
AUD_SPK_L-_C
AUD_SPK_L+_C
R984
R984
3.3_4
3.3_4
12
C1334
C1334
2200P/50V_4
2200P/50V_4
+VCC_AMP
12
NB_MUTE#
LINE_F_R+_C
LINE_F_R-_C
LINE_F_L-_C
LINE_F_L+_C
AMP_AVCC
AMP_GVDD
1 2
R613 *100K/F_4_NCR613 *100K/F_4_NC
AMP_PLIMIT
AMP_GAIN0
AMP_GAIN1
L17 BLM18EG101TN1DL17 BLM18EG101TN1D
L18 BLM18EG101TN1DL18 BLM18EG101TN1D
L19 BLM18EG101TN1DL19 BLM18EG101TN1D
L20 BLM18EG101TN1DL20 BLM18EG101TN1D
R985
R985
3.3_4
3.3_4
12
C1336
C1336
2200P/50V_4
2200P/50V_4
U54
U54
1
SD
2
FAULT
12
RINP
11
RINN
4
LINN
3
LINP
7
AVCC
9
GVDD
10
PLIMIT
5
GAIN0
6
GAIN1
8
AGND
14
PBTL
13
NC
5V / 4 Ohm / 2W
12
C1329
C1329
*1000P/50V_4_NC
*1000P/50V_4_NC
GND
29
12
C1330
C1330
*1000P/50V_4_NC
*1000P/50V_4_NC
For AMP output (default)
D
APA2613 is P2P to TI TPA3113
+VCC_AMP
Cross to U54 pin 27,28 Cross to U54 pin 15,16
28
PVCCL
27
PVCCL
16
PVCCR
15
PVCCR
BSPL
OUTPL
OUTNL
BSNL
BSNR
OUTNR
OUTPR
BSPR
PGND
PGND
*APA2613RI-TRG_NC
*APA2613RI-TRG_NC
BSPL
26
AMP_SPK_L+
25
AMP_SPK_L-
23
BSNL
22
BSNR
21
AMP_SPK_R-
20
AMP_SPK_R+
18
BSPR
17
24
19
Int. Stereo Speakers
AUD_SPK_R+_R
AUD_SPK_R-_RAUD_SPK_R-_C
AUD_SPK_L-_R
AUD_SPK_L+_R
12
C1331
C1331
*1000P/50V_4_NC
*1000P/50V_4_NC
4
3
2
1
12
C1332
C1332
*1000P/50V_4_NC
*1000P/50V_4_NC
12
12
C882
C882
C881
C881
*10U/25V_8_NC
*10U/25V_8_NC
*0.1U/25V_6_NC
*0.1U/25V_6_NC
C872 *0.22U/25V_6_NCC872 *0.22U/25V_6_NC
12
C873 *0.22U/25V_6_NCC873 *0.22U/25V_6_NC
12
C874 *0.22U/25V_6_NCC874 *0.22U/25V_6_NC
12
C875 *0.22U/25V_6_NCC875 *0.22U/25V_6_NC
12
88266-04001-06
88266-04001-06
4
3
2
1
J5
J5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
Friday, March 02, 2012
12
C868
C868
*10U/25V_8_NC
*10U/25V_8_NC
R475 *0_6_NCR475 *0_6_NC
R476 *0_6_NCR476 *0_6_NC
R477 *0_6_NCR477 *0_6_NC
R480 *0_6_NCR480 *0_6_NC
AMP open point
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
WOOFER
WOOFER
WOOFER
E
12
C869
C869
*0.1U/25V_6_NC
*0.1U/25V_6_NC
AUD_SPK_L+_C
AUD_SPK_L-_C
AUD_SPK_R-_C
AUD_SPK_R+_C
R09A
R09A
R09A
31 58
31 58
31 58
12
EC99
EC99
*2200P/50V_4_NC
*2200P/50V_4_NC
3A
3A
3A
5
4
3
2
1
Cardreader (RTS5179GR) Support SD3.0 USH50
For INSPIRON Placement (R09,R09A,R09T)
D D
CON1
+CARD_3V3
12
C588
C588
1U/10V_6
1U/10V_6
C C
SD_D2
SD_D3
MS_CLK
SD_CMD
MS_D3
MS_INS#
MS_D2
MS_D0
MS_D1
SD_CLK
MS_BS
SD_D0
SD_D1
SD_CD#
SD_WP
CON1
1
SD-DAT2
2
MS-VSS2
3
SD-CD/DAT3/MMC-RSV
4
MS-VCC
5
MS-SCLK
6
SD-CMD/MMC-CMD
7
MS-DATA3
8
MS-INS
9
SD-VSS/MMC-VSS1
10
MS-DATA2
11
SD-VDD/MMC-VDD
12
MS-DATA0
13
MS-DATA1
14
SD-CLK/MMC-CLK
15
MS-BS
16
MS-VSS1
17
SD-VSS/MMC-VSS2
18
SD-DAT0/MMC-DAT
19
SD-DAT1
20
SD-CD
21
SD-GND
22
SD-WP
143-1300302601
143-1300302601
GND1
GND2
23
24
USBP10N[23]
USBP10P[23]
+3.3V_RUN
USBP10N
USBP10P USBP10_D+
+CARD_3V3
12
C363
C363
0.1U/16V_4
0.1U/16V_4
12
C366
C366
4.7U/6.3V_6
4.7U/6.3V_6
R287 *0_0402short_NCR287 *0_0402short_NC
1 2
1 2
R281 *0_0402short_NCR281 *0_0402short_NC
R289 6.2K/F_4R289 6.2K/F_4
1 2
12
C355
C355
*1U/6.3V_4_NC
*1U/6.3V_4_NC
C353
C353
1U/6.3V_4
1U/6.3V_4
USBP10_DUSBP10_D+
12
USBP10_D-
RREF
SDREG
C587
C587
1U/6.3V_4
1U/6.3V_4
1
2
3
4
5
6
25
12
U18
U18
RREF
DM
DP
3V3_IN
CARD_3V3
SDREG
GND
V18
SP14
SP13
SP12
24
22
23
V18
XD_D7
RTS5179GR
RTS5179GR
XD_CD#7SP18SP29SP310SP411SP5
SP1
SP2
SP3
SP4
12
SP5
SP1119SP1220SP1321SP14
SP10
GPIO0
SP9
SP8
SP7
SP6
SP10
18
17
SP9
16
SP8
15
14
SP6
13
NA
+CARD_3V3
B B
A A
SD_D2
SD_D3
MS_CLK
SD_CMD
MS_D3
MS_INS#
MS_D2
MS_D0
MS_D1
SD_CLK
MS_BS
SD_D0
SD_D1
SD_CD#
SD_WP
5
4
MS_CLK
SD_CLK
EC40
EC40
1 2
*22P/50V_4_NC
*22P/50V_4_NC
EC42
EC42
1 2
*22P/50V_4_NC
*22P/50V_4_NC
3
SP1 SD_WP MS_CLK
SP2 MS_INS#
SP3 SD_D1
SP4 SD_D0 MS_D7
SP5 SD_D7 MS_D3
SP6 SD_CD#
SP8 SD_CLK MS_D2
SP9 SD_D5 MS_D0
SP10 SD_CMD
SP12 SD_D3 MS_D1
SP13 SD_D2 MS_D5
SP14 MS_BS
Share Pin
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
Cardreader (RTS5179GR)
Cardreader (RTS5179GR)
Wednesday, February 08, 2012
Wednesday, February 08, 2012
Wednesday, February 08, 2012
Cardreader (RTS5179GR)
1
R09A
R09A
R09A
32 58
32 58
32 58
3A
3A
3A
5
4
3
2
1
3-axis Fall Sensor - NC
D D
+5V_RUN
12
R393
R393
*10K_4_NC
*10K_4_NC
C C
FFS_INT2
2
61
Q40B
Q40B
*DMN66D0LDW-7_NC
*DMN66D0LDW-7_NC
34
5
FFS_INT2_R
Q40A
Q40A
*DMN66D0LDW-7_NC
*DMN66D0LDW-7_NC
FFS_INT2_R [34]
OD circuit
+3.3V_RUN
TP15TP15
B B
WLAN_SCLK[11,12,24]
WLAN_SDATA[11,12,24]
WLAN_SCLK
WLAN_SDATA
TP19TP19
NEAR
TOUCH PAD
C510 4.7uF default NC
C505 *0.1U/16V_4_NCC505 *0.1U/16V_4_NC
12
C510 *4.7U/6.3V_6_NCC510 *4.7U/6.3V_6_NC
12
R387
R387
*0_4_NC
*0_4_NC
1 2
SA0 is low: I2C device address is 00110000 (30h)
SA0 is high: I2C device address is 00110010 (32h)
1
14
4
6
7
8
5
12
U26
U26
VDDIO
VDD
SCL
SDA
SA0
CS
GND
GND
*LNG3DM_NC
*LNG3DM_NC
INT1
INT2
RES
RES
RES
RES
NC
NC
HDD_FALL_INT1
11
FFS_INT2
9
2
3
10
13
15
16
HDD_FALL_INT1 [23]
FFS_INT2 [25]
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
5
4
3
2
Wednesday, February 08, 2012
PROJECT :
3-axis Fall Sensor
3-axis Fall Sensor
3-axis Fall Sensor
1
R09A
R09A
R09A
33 58
33 58
33 58
3A
3A
3A
1
2
3
4
5
6
7
8
HDDX2 ODD
A A
B B
C166P2-12205-L_GT
C166P2-12205-L_GT
12
C428
C428
*10U/6.3V_8_NC
*10U/6.3V_8_NC
CON3
CON3
GND
12V
12V
12V
GND
RSVD
GND
5V
5V
5V
GND
GND
GND
3.3V
3.3V
3.3V
GND
TXP
TXN
GND
RXN
RXP
GND
GND
12
C430
C430
1U/6.3V_4_GT
1U/6.3V_4_GT
24
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
23
Default C351, C430 POP Default C334, C432 POP
Main - For Turbo
FFS_INT2_R
+5V_RUN
+3.3V_RUN
SATA_RXP0_C SATA_RXP0
SATA_RXN0_C SATA_RXN0
SATA_TXN0_C SATA_TXN0
C55 0.01U/25V_4_GTC55 0.01U/25V_4_GT
12
C54 0.01U/25V_4_GTC54 0.01U/25V_4_GT
12
C32 0.01U/25V_4_GTC32 0.01U/25V_4_GT
12
C27 0.01U/25V_4_GTC27 0.01U/25V_4_GT
12
DG: Place TX cap close to connector
+3.3V_RUN+5V_RUN
12
C431
C431
*0.1U/16V_4_NC
*0.1U/16V_4_NC
12
C429
C429
*10U/6.3V_8_NC
*10U/6.3V_8_NC
FFS_INT2_R [33]
SATA_TXP0SATA_TXP0_C
12
C432
C432
1U/6.3V_4_GT
1U/6.3V_4_GT
12
C433
C433
*0.1U/16V_4_NC
*0.1U/16V_4_NC
SATA_RXP0 [22]
SATA_RXN0 [22]
SATA_TXN0 [22]
SATA_TXP0 [22]
CN7
CN7
GND14
GND
A+
A-
GND
B-
B+
GND
DP
5V
5V
MD
GND
GND
GND15
C18539-11305-L
C18539-11305-L
+5V_MOD
Place caps close to connector.
12
C282
C282
10U/6.3V_8
10U/6.3V_8
Support Zero power ODD
14
1
2
3
4
5
6
7
SATA_ODD_PRSNT#
8
9
10
SATA_ODD_MD#
11
12
13
15
12
C283
C283
1U/6.3V_4
1U/6.3V_4
DG: Place TX cap close to connector
SATA_TXP3_C
SATA_TXN3_C
SATA_RXN3_C
SATA_RXP3_C
C314 0.01U/25V_4C314 0.01U/25V_4
C310 0.01U/25V_4C310 0.01U/25V_4
C303 0.01U/25V_4C303 0.01U/25V_4
C300 0.01U/25V_4C300 0.01U/25V_4
TP22TP22
+5V_MOD
12
C284
C284
0.1U/16V_4
0.1U/16V_4
1 2
1 2
1 2
1 2
Internal PD, for Hot Plug function
SATA_TXP3
SATA_TXN3
SATA_RXN3
SATA_RXP3
SATA_ODD_MD# [23]
SATA_TXP3 [22]
SATA_TXN3 [22]
SATA_RXN3 [22]
SATA_RXP3 [22]
+3.3V_RUN+5V_RUN
+5V_MOD
4
MOD_EN_5V
DMN66D0LDW-7
DMN66D0LDW-7
Q25A
Q25A
12
C335
C335
0.1U/25V_6
0.1U/25V_6
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
SATA HDD/ODD
SATA HDD/ODD
SATA HDD/ODD
R09A
R09A
R09A
34 58
34 58
34 58
8
3A
3A
3A
12
R267
R267
100K_4
100K_4
61
DMN66D0LDW-7
DMN66D0LDW-7
Q25B
Q25B
+5V_ALW
+15V_ALW
Q21 AP2606AGY-HFQ21 AP2606AGY-HF
6
5
2
1
3
R265 100K_4R265 100K_4
12
34
5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
7
12
C346
C346
*10U/6.3V_8_NC
*10U/6.3V_8_NC
C C
12
C348
C348
*1U/6.3V_4_NC
*1U/6.3V_4_NC
12
C351
C351
0.1U/16V_4
0.1U/16V_4
12
C331
C331
*10U/6.3V_8_NC
*10U/6.3V_8_NC
12
C336
C336
*1U/6.3V_4_NC
*1U/6.3V_4_NC
12
C334
C334
0.1U/16V_4
0.1U/16V_4
+3.3V_ALW
+3.3V_RUN
Second - For Inspiron
MODC_EN
12
R266
R266
10K_4
10K_4
2
6
CON4
CON4
D D
C166BK-12205-L
C166BK-12205-L
1
GND
GND
RSVD
GND
GND
GND
GND
3.3V
3.3V
3.3V
GND
TXP
TXN
GND
RXN
RXP
GND
GND
12V
12V
12V
24
22
21
20
19
FFS_INT2_R
18
17
16
5V
15
5V
14
5V
13
12
11
10
9
8
7
6
5
4
3
2
1
23
DG: Place TX cap close to connector
+5V_RUN
+3.3V_RUN
SATA_RXP1_C SATA_RXP1
SATA_RXN1_C SATA_RXN1
SATA_TXN1_C SATA_TXN1
C305 0.01U/25V_4C305 0.01U/25V_4
C302 0.01U/25V_4C302 0.01U/25V_4
C298 0.01U/25V_4C298 0.01U/25V_4
C296 0.01U/25V_4C296 0.01U/25V_4
2
12
12
12
12
FFS_INT2_R [33]
SATA_TXP1SATA_TXP1_C
3
SATA_RXP1 [22]
SATA_RXN1 [22]
SATA_TXN1 [22]
SATA_TXP1 [22]
4
MODC_EN[25]
5
5
4
3
2
1
USB3.0x1 with Power share
close to conn
+5V_ALW
R249
1
2
3
4
R249
22.1K/F
22.1K/F
U15
U15
IN
DM_OUT
DP_OUT
ILIM_SEL
16
17
PwPd
EN5CTL16CTL27CTL3
13
14
GND
ILIM115ILIM0
FAULT
DM_IN
DP_IN
8
12
OUT
11
10
9
N/C
TPS2540ARTER
TPS2540ARTER
USBP1N_LL
USBP1P_LL
+5V_ALW
12
R243
R243
100K_4
100K_4
USB_OC0# [23,36]
+USB_PW R_CHARGE
D D
C C
C286 *10U/6.3V/_6_NCC286 *10U/6.3V/_6_NC
1 2
C285 0.1U/16V_4C285 0.1U/16V_4
USBP1N[23]
USBP1P[23]
SR1 *0_0402short_NCSR1 *0_0402short_NC
USB_BACK_EN[38]
USBP0_BUS_SW_CB0[38]
12
ITEM369
30mA
12
C278
C278
10U/6.3V_8
10U/6.3V_8
USB3.0_RX2-[23]
USB3.0_RX2+[23]
+USB_PW R_CHARGE
100 mil
12
C277
C277
0.1U/16V_4
0.1U/16V_4
USB3.0_RX2+ USB3.0_RX2+_L
12
C279
C279
*150P/50V_4_NC
*150P/50V_4_NC
R481 *0_0402short_NCR481 *0_0402short_NC
1 2
R482 *0_0402short_NCR482 *0_0402short_NC
1 2
R481, R482 put EL11
location
USBP1N_LL
USBP1P_LL
USBP1N_L
USBP1P_L
USB3.0_RX2-_LUSB3.0_RX2-
USB3.0_TX2-_L
USB3.0_TX2+_L
CN6
CN6
1
VBUS
2
D-
3
D+
4
GND
5
SSRX-
6
SSRX+
8
SSTX-
9
SSTX+
7
GND
YUSB0002-P001A
YUSB0002-P001A
EL12
EL12
3 4
12
DLP11SN900HL2L
DLP11SN900HL2L
DET#
USB2.0
USB2.0
USB 3.0
USB 3.0
GND
GND
GND
GND
10
11
12
13
14
USBP1N_L
USBP1P_L
USB_CHG_DET# [43]
USB3.0_TX2-[23]
+USB_PW R_CHARGE
C292 10U/10V/Y5V_8C292 10U/10V/Y5V_8
1 2
C293 0.1U/16V_4C293 0.1U/16V_4
R249 mA
OC
limitation
USBP0_BUS_SW_CB0 Mode
B B
100k ohm
22.1k ohm
480
2171 Applied Now
Low DCP, Auto-detect
High
CDP, BC Spec 1.1
Operating at
S3/S4/S5, 1.5 A
S0, 1.5 A
1 2
USB3.0_TX2+[23]
USB 3.0 ESD
USB3.0_TX2USB3.0_TX2+
C281 0.1U/16V_4C281 0.1U/16V_4
C280 0.1U/16V_4C280 0.1U/16V_4
12
12
USB3.0_RX2-_L
USB3.0_RX2+_L
USB3.0_TX2-_L
USB3.0_TX2+_L
USB3.0_TX2-_C
USB3.0_TX2+_C
5
2+
4
2-
3
GND
2
1+
1
1-
EU1 *ESD7004MUTAG_NCEU1 *ESD7004MUTAG_NC
R483 *0_0402short_NCR483 *0_0402short_NC
R484 *0_0402short_NCR484 *0_0402short_NC
6
NC
7
NC
8
GND
9
NC
10
NC
1 2
1 2
R483, R484 put EL10
location
USB3.0_RX2-_L
USB3.0_RX2+_L
USB3.0_TX2-_L
USB3.0_TX2+_L
USB3.0_TX2-_L
USB3.0_TX2+_L
USB 2.0 ESD
ESD1
ESD1
USBP0P_L[36] USBP0N_L [36]
A A
USBP1N_L
1
1
2
2
334
*TVL ST23 04 AD0_NC
*TVL ST23 04 AD0_NC
6
6
5
5
USBP1P_L
4
+5V_ALW
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
5
4
3
2
Friday, March 02, 2012
PROJECT :
USB3.0 POWER SHARE
USB3.0 POWER SHARE
USB3.0 POWER SHARE
1
R09A
R09A
R09A
35 58
35 58
35 58
3A
3A
3A
USB3.0x1
A
B
C
D
E
+5V_ALW
4 4
USB_RIGHT_EN#[38,57]
C311
C311
10U/6.3V_8
10U/6.3V_8
12
0.1U/16V_4
0.1U/16V_4
close to conn
C297
C297
12
+USB_SIDE3_PWR
U17
U17
UP7534BRA8-15
UP7534BRA8-15
2
IN1
IN23OUT2
4
EN#
1
GND
100 mil
12
C299
C299
10U/6.3V_8
10U/6.3V_8
USB3.0_RX1-[23]
USB3.0_RX1+[23]
3 3
USB3.0_TX1-[23]
USB3.0_TX1+[23]
USB3.0_TX1- USB3.0_TX1-_L
12
C309
C309
0.1U/16V_4
0.1U/16V_4
USB3.0_RX1USB3.0_RX1+
R498 *0_0402short_NCR498 *0_0402short_NC
R499 *0_0402short_NCR499 *0_0402short_NC
R498, R499 put EL15 location
C321 0.1U/16V_4C321 0.1U/16V_4
C316 0.1U/16V_4C316 0.1U/16V_4
12
1 2
1 2
12
12
C308
C308
*150P/50V_4_NC
*150P/50V_4_NC
USB3.0_TX1-_C
USB3.0_TX1+_CUSB3.0_TX1+
USBP0N_L[35]
USBP0P_L[35]
I continuous 1.5A
OC 2.0A M13 Request
8
OUT3
7
6
OUT1
5
OC#
USB3.0_RX1-_L
USB3.0_RX1+_L
USB3.0_TX1-_L
USB3.0_TX1+_L
R497 *0_0402short_NCR497 *0_0402short_NC
1 2
R485 *0_0402short_NCR485 *0_0402short_NC
1 2
USBP0N_L
USBP0P_L
+USB_SIDE3_PWR
CN8
CN8
1
VBUS
2
D-
3
D+
4
GND
5
SSRX-
6
SSRX+
8
SSTX-
9
SSTX+
7
GND
2UB4008-300101F
2UB4008-300101F
USB_OC0# [23,35]
USB2.0
USB2.0
USB 3.0
USB 3.0
GND
GND
GND
GND
USB3.0_TX1+_L
GND
NC
NC
NC
NC
USB3.0_RX1-_L
6
USB3.0_RX1+_L
7
8
USB3.0_TX1-_L
9
USB3.0_TX1+_L
10
12
USB3.0 ESD
USBP0N_L
USBP0P_L
USB3.0_RX1-_L
USB3.0_RX1+_L
USB3.0_TX1-_L
USB3.0_TX1+_L
USBP0N[23]
10
11
12
13
USBP0P[23]
5
2+
4
2-
3
GND
2
1+
1
1-
EU2 *ESD7004MUTAG_NCEU2 *ESD7004MUTAG_NC
DLP11SN900HL2L
USBP0N
USBP0P
DLP11SN900HL2L
3 4
EL13
EL13
R497, R485 put EL14 location
2 2
1 1
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
A
B
C
D
Friday, March 02, 2012
PROJECT :
USB 3.0 port
USB 3.0 port
USB 3.0 port
E
R09A
R09A
R09A
36 58
36 58
36 58
3A
3A
3A
5
H19
H19
*h-tc315bc236d118p2
*h-tc315bc236d118p2
h-tc315bc236d118p2
h-tc315bc236d118p2
1
D D
H6
H6
*h-tc335bc315D118p2
*h-tc335bc315D118p2
h-tc335bc315D118p2
h-tc335bc315D118p2
1
H26
H26
*O-R09-3
*O-R09-3
O-R09-3
O-R09-3
1
C C
H24
H24
*h-tc315bc236d118p2
*h-tc315bc236d118p2
H-TC315BC256D118P2
H-TC315BC256D118P2
1
H12
H12
*H-TC354BC315D118P2
*H-TC354BC315D118P2
H-TC354BC315D118P2
H-TC354BC315D118P2
1
H11
INTEL-CPU-BKT2H11
INTEL-CPU-BKT2
*INTEL-CPU-BKT2
*INTEL-CPU-BKT2
4
3
1
2
CPU BLEKET
CPU BLEKET
CPU BLEKETCPU BLEKET
H23
H23
*h-tc315bc236d118p2
*h-tc315bc236d118p2
h-tc315bc236d118p2
h-tc315bc236d118p2
1
H22
H22
*H-TC315BC354D118P2
*H-TC315BC354D118P2
H-TC315BC354D118P2
H-TC315BC354D118P2
1
4
H20
H20
*h-tc315bc236d118p2
*h-tc315bc236d118p2
h-tc315bc236d118p2
h-tc315bc236d118p2
1
H5
H5
*H-TC354BC315D118P2
*H-TC354BC315D118P2
H-TC354BC315D118P2
H-TC354BC315D118P2
1
H8
H8
H-TC217BC102D102PT
H-TC217BC102D102PT
H-TC217BC102D102PT
H-TC217BC102D102PT
1
CPU NUT
MBIM3001010
H25
H25
*h-tc315bc354d118p2
*h-tc315bc354d118p2
h-tc315bc354d118p2
h-tc315bc354d118p2
1
H10
H10
*H-TC472BC315D118P2
*H-TC472BC315D118P2
H-TC472BC315D118P2
H-TC472BC315D118P2
1
H18
H18
*H-C433D433N
*H-C433D433N
H-C433D433N
H-C433D433N
1
H13
H13
*o-r09-1
*o-r09-1
o-r09-1
o-r09-1
1
H14
H14
H-TC217BC102D102PT
H-TC217BC102D102PT
H-TC217BC102D102PT
H-TC217BC102D102PT
1
mSATA NUT
MBIM3001010
3
H3
H21
H21
*o-r09-2
*o-r09-2
H-TC315BC236D118P2
H-TC315BC236D118P2
1
H7
H7
*H-C154D154N
*H-C154D154N
H-C154D154N
H-C154D154N
1
H15
H15
H-TC217BC65D61PT
H-TC217BC65D61PT
H-TC217BC65D61PT
H-TC217BC65D61PT
1
H3
*o-r09-2
*o-r09-2
H1
H1
*H-C102D102N
*H-C102D102N
WLAN NUT
FBFM8001010
H-C118D118N
H-C118D118N
1
H-C102D102N
H-C102D102N
1
2
H2
H2
*h-o189x228d189x228n
*h-o189x228d189x228n
h-o189x228d189x228n
h-o189x228d189x228n
1
H4
H4
*H-tc243bc154d154pt
*H-tc243bc154d154pt
H-tc243bc154d154pt
H-tc243bc154d154pt
1
+3.3V_SUS
12
EC62
EC62
2200P/50V_4
2200P/50V_4
+3.3V_RUN
12
EC64
EC64
2200P/50V_4
2200P/50V_4
Near H14
12
EC63
EC63
1000P/50V_4
1000P/50V_4
Near H22
H17
H17
*H-O181X104D181X104N
*H-O181X104D181X104N
H-O181X104D181X104N
H-O181X104D181X104N
1
H9
H9
*H-C189D189N
*H-C189D189N
H-C189D189N
H-C189D189N
1
H27
H27
*PAD-C197
*PAD-C197
H29
H29
*PAD-C189
*PAD-C189
1
1
PAD-C197
PAD-C197
PAD-C189
PAD-C189
1
H16
H16
*h-o165x106d165x106n
*h-o165x106d165x106n
h-o165x106d165x106n
h-o165x106d165x106n
1
H28
H28
*PAD-C177
*PAD-C177
1
H30
H30
*PAD-C189
*PAD-C189
1
PAD-C177
PAD-C177
PAD-C189
PAD-C189
Near
C423/ESD2/H8/PR204/PR235/pq20/PL5/PC121/H10/R334/PL7/EC45
+PWR_SRC
12
EC66
EC66
1000P/50V_4
1000P/50V_4
B B
+PWR_SRC
12
EC68
EC68
2200P/50V_4
2200P/50V_4
+PWR_SRC
12
EC71
EC71
2200P/50V_4
2200P/50V_4
+PWR_SRC
A A
12
EC74
EC74
2200P/50V_4
2200P/50V_4
12
EC69
EC69
1000P/50V_4
1000P/50V_4
12
EC72
EC72
1000P/50V_4
1000P/50V_4
12
EC75
EC75
1000P/50V_4
1000P/50V_4
5
12
12
12
EC67
EC67
0.1U/25V_6
0.1U/25V_6
EC70
EC70
0.1U/25V_6
0.1U/25V_6
EC73
EC73
0.1U/25V_6
0.1U/25V_6
+PWR_SRC
12
+PWR_SRC
12
+PWR_SRC
12
+PWR_SRC
12
EC77
EC77
2200P/50V_4
2200P/50V_4
EC80
EC80
2200P/50V_4
2200P/50V_4
EC83
2200P/50V_4
2200P/50V_4
EC86
EC86
2200P/50V_4
2200P/50V_4
12
EC78
EC78
1000P/50V_4
1000P/50V_4
12
EC81
EC81
1000P/50V_4
1000P/50V_4
12
EC84
EC84
1000P/50V_4
1000P/50V_4
12
EC87
EC87
1000P/50V_4
1000P/50V_4
+PWR_SRC +5V_ALW +5V_ALW
12
EC79
EC79
0.1U/25V_6
0.1U/25V_6
12
EC95
EC95
2200P/50V_4
2200P/50V_4
12
EC97
EC97
0.1U/25V_6
0.1U/25V_6
12
EC96
EC96
2200P/50V_4
2200P/50V_4
Near H26 Near EC96
12
EC82
EC82
0.1U/25V_6
0.1U/25V_6
+VCC_DGFX_CORE
12
EC121
EC121
100P/50V_4
100P/50V_4
3
12
12
EC85
EC85
0.1U/25V_6
0.1U/25V_6
EC88
EC88
0.1U/25V_6
0.1U/25V_6
4
+PWR_SRC
12
+PWR_SRC
12
EC90
EC90
2200P/50V_4
2200P/50V_4
EC93
EC93
2200P/50V_4
2200P/50V_4
12
EC89
EC89
1000P/50V_4
1000P/50V_4
12
EC92
EC92
1000P/50V_4
1000P/50V_4
12
12
EC91
0.1U/25V_6
0.1U/25V_6
EC94
EC94
0.1U/25V_6
0.1U/25V_6
12
EC122
EC122
100P/50V_4
100P/50V_4
12
EC102
EC102
0.1U/25V_6
0.1U/25V_6
12
EC123
EC123
100P/50V_4
100P/50V_4
2
Spring
S1
S1
RHC-CP-55B01
RHC-CP-55B01
SPAD-RE167X98
SPAD-RE167X98
1
L5.6*W2.5*H5.5 L3.5*W2.0*H2.5
AOI label
AOI label
AOI LABEL on 31 header
AOI LABEL on 31 headerEC83
AOI label
AOI label
AOI LABEL on 31 header
AOI LABEL on 31 header
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
PROJECT :
SCREW HOLE
SCREW HOLE
SCREW HOLE
S2
S2
RHC-CP-25L03
RHC-CP-25L03
1
PPID label
PPID label
PPID LABEL on 31 header
PPID LABEL on 31 headerEC91
R09A
R09A
R09A
37 58W ednesday, February 08, 2012
37 58W ednesday, February 08, 2012
37 58W ednesday, February 08, 2012
1
SPAD-RE110X79
SPAD-RE110X79
3A
3A
3A
5
+RTC_CELL
CLK_33M_KBC
12
R79
R79
10_4
10_4
KSO[0..16][40]
KSI[0..7][40]
+3.3V_ALW
1 2
12
12
LCDVCC_TST_EN[27]
EC_FLASH_SPI_CS#[39]
EC_FLASH_SPI_DIN[39]
EC_FLASH_SPI_DO[39]
R77
R77
100K_4
100K_4
WRST#
SDM10K45-7-F
SDM10K45-7-F
C93
C93
1U/6.3V_4
1U/6.3V_4
C96
C96
2.2P/50V_4
2.2P/50V_4
LPC_LAD0[22,41]
LPC_LAD1[22,41]
LPC_LAD2[22,41]
LPC_LAD3[22,41]
CLK_33M_KBC[23]
LPC_LFRAME#[22,41]
SIO_A20GATE[25]
IRQ_SERIRQ[22]
SIO_EXT_SMI#[25]
SIO_EXT_SCI#[25]
SIO_RCIN#[25]
IMVP_VR_ON[53]
IMVP_PWRGD[20,44,53]
RSMRST#[20]
NB_MUTE#[30,31]
HOT_KEY3#[42]
SIO_PWRBTN#[20]
H_CPUDET#[7]
PBAT_PRES#[47]
SIO_SLP_S5#[20]
INT_LCD_BAK[27]
USB_BACK_EN[35]
HOT_KEY_LED3[42]
HOT_KEY1#[42]
D9
D9
PLTRST#[7,13,23,41,57]
LCD_TST[27]
RUN_ON[27,31,50]
PS_ID[47]
AUX_EN#[41]
IINP[55]
BEEP[30]
HWPG[20,45]
SMBDAT3[44]
SMBCLK3[44]
EC_FLASH_SPI_CLK
SUS_ON[50]
2 1
5
12
D D
C C
Thermal
EC_FLASH_SPI_CLK[39]
B B
A A
LPC_LAD0
LPC_LAD1
LPC_LAD2
LPC_LAD3
PLTRST#
CLK_33M_KBC
LPC_LFRAME#
LCD_TST
SIO_A20GATE
IRQ_SERIRQ
SIO_EXT_SMI#
SIO_EXT_SCI#
SIO_RCIN#
IMVP_VR_ON
IMVP_PWRGD
RUN_ON
RSMRST#
NB_MUTE#
LCDVCC_TST_EN
SIO_PWRBTN#
PS_ID
H_CPUDET#
AUX_EN#
PBAT_PRES#
IINP
SIO_SLP_S5#
INT_LCD_BAK
BEEP
HWPG
SMBDAT3
SMBCLK3
ER1 33_4ER1 33_4
EC_FLASH_SPI_CS#
EC_FLASH_SPI_DIN
EC_FLASH_SPI_DO
USB_BACK_EN
HOT_KEY_LED3
SUS_ON
HOT_KEY1#
EC_FLASH_SPI_CLK
EC20
EC20
18P/50V_4
18P/50V_4
+3.3V_ALW
THERM_STP# [44,45]
NB_MUTE#
12
EC116
EC116
100P/50V_4
100P/50V_4
Near H30
D7 SDM10K45-7-FD7 SDM10K45-7-F
2 1
D4 SDM10K45-7-FD4 SDM10K45-7-F
2 1
D3 SDM10K45-7-FD3 SDM10K45-7-F
2 1
WRST#
D5 SDM10K45-7-FD5 SDM10K45-7-F
2 1
2 1
D6 SDM10K45-7-FD6 SDM10K45-7-F
EC_FLASH_SPI_CLK_R
1 2
L6
L6
BLM11A05S
BLM11A05S
603
603
L7
L7
603
603
BLM11A05S
BLM11A05S
KSO16
KSO0
KSO1
KSO2
KSO3
KSO4
KSO5
KSO6
KSO7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO13
KSO14
KSO15
+3.3V_ALW_AVCC
12
12
0.1U/16V_4
0.1U/16V_4
C90
C90
12
12
10
9
8
7
22
13
6
17
126
5
15
23
14
4
16
119
123
80
104
33
88
81
87
109
108
71
72
73
35
34
107
95
94
105
101
102
103
56
57
32
100
106
36
37
38
39
40
41
42
43
44
45
46
51
52
53
54
55
0.1U/16V_4
0.1U/16V_4
C97
C97
4
+3.3V_ALW_AVCC
+3.3V_ALW
+3.3V_RUN
11
114
U5
U5
LAD0/GPM0
LAD1/GPM1
LAD2/GPM2
LAD3/GPM3
LPCRST#/WUI4/GPD2
LPCCLK/GPM4
LFRAME#/GPM5
LPCPD#/WUI6/GPE6
GA20/GPB5
SERIRQ/GPM6
ECSMI#/GPD4
ECSCI#/GPD3
WRST#
KBRST#/GPB6
PWUREQ#/BBO/GPC7
CRX0/GPC0
CTX0/TMA0/GPB2
DAC4/DCD0#/GPJ4
DSR0#/GPG6
GINT/CTS0#/GPD5
PS2DAT1/RTS0#/GPF3
DAC5/RIG0#/GPJ5
PS2CLK1/DTR0#/GPF2
TXD/SOUT0/GPB1
RXD/SIN0/GPB0
ADC5/DCD1#/WUI29/GPI5
ADC6/DSR1#/WUI30/GPI6
ADC7/CTS1#/WUI31/GPI7
RTS1#/WUI5/GPE5
PWM7/RIG1#/GPA7
DTR1#/SBUSY/GPG1/ID7
CTX1/WUI18/SOUT1/GPH2/SMDAT3/ID2
CRX1/WUI17/SIN1/SMCLK3/GPH1/ID1
FSCK
FSCE#
EXTERNAL SERIAL FLASH
EXTERNAL SERIAL FLASH
FMOSI
FMISO
KSO16/SMOSI/GPC3
KSO17/SMISO/GPC5
PWM6/SSCK/GPA6
SSCE0#/GPG2
SSCE1#/GPG0
KSO0/PD0
KSO1/PD1
KSO2/PD2
KSO3/PD3
KSO4/PD4
KSO5/PD5
KSO6/PD6
KSO7/PD7
KSO8/ACK#
KSO9/BUSY
KSO10/PE
KSO11/ERR#
KSO12/SLCT
KSO13
KSO14
KSO15
4
121
VCC
VSTBY26VSTBY50VSTBY92VSTBY
LPC
LPC
CIR
CIR
SPI ENABLE
SPI ENABLE
KBMX
KBMX
KSI0/STB#58KSI1/AFD#59KSI2/INIT#60KSI3/SLIN#61KSI462KSI563KSI664KSI7
KSI3
KSI5
KSI4
KSI0
KSI1
KSI2
VSTBY
UART port
UART port
65
KSI7
KSI6
3
BAT1_LED
ALW_ON
EC_PWROK
SIO_SLP_S4#
VGA_PW R_LEVEL_EC
EC_SPI_SI
EC_SPI_SO
EC_SPI_CLK
EC_SPI_CS0#
CLKRUN#
127
3
74
84
82
20
19
99
96
97
93
VBAT
AVCC
VSTBY
HMISO/GPH5/ID598HMOSI/GPH6/ID6
L80LLAT/WUI7/GPE7
L80HLAT/BAO/WUI24/GPE0
GPIO
GPIO
WAKE UP
WAKE UP
RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7
IT8518
IT8518
EGAD/WUI25/GPE1
EGCS#/WUI26/GPE283EGCLK/WUI27/GPE3
HSCK/GPH4/ID4
HSCE#/WUI19/GPH3/ID3
CLKRUN#/WUI16/GPH0/ID0
A/D D/A
A/D D/A
PECI/SMCLK2/WUI22/GPF6
SM BUS
SM BUSPS/2
SMDAT2/WUI23/GPF7
PS2CLK0/TMB0/GPF0
PS2DAT0/TMB1/GPF1
PS2CLK2/WUI20/GPF4
PS2DAT2/WUI21/GPF5
PS/2
PWM
PWM
TACH1A/TMA1/GPD7
TMRI0/WUI2/GPC4
TMRI1/WUI3/GPC6
ADC4/WUI28/GPI4
DAC2/TACH0B/GPJ2
DAC3/TACH1B/GPJ3
EC_SPI_CS0# [39]
SMCLK0/GPB3
SMDAT0/GPB4
SMCLK1/GPC1
SMDAT1/GPC2
PWM0/GPA0
PWM1/GPA1
PWM2/GPA2
PWM3/GPA3
PWM4/GPA4
PWM5/GPA5
TACH0A/GPD6
PWRSW/GPE4
RI1#/WUI0/GPD0
RI2#/WUI1/GPD1
ADC0/GPI0
ADC1/GPI1
ADC2/GPI2
ADC3/GPI3
GPJ0
GPJ1
BAT1_LED [46]
ALW_ON [43,48]
EC_PWROK [7,20]
SIO_SLP_S4# [20,49]
EC_SPI_SI [39]
EC_SPI_SO [39]
EC_SPI_CLK [39]
CLKRUN# [20]
110
111
115
116
117
118
85
86
89
90
24
25
28
29
30
31
47
48
120
124
R74 *100K_4_NCR74 *100K_4_NC
125
18
D2
D2
21
SDM10K45-7-F
SDM10K45-7-F
112
66
67
68
69
70
76
77
78
79
31
Q4
Q4
2
2N7002W
2N7002W
SMBCLK0
SMBDAT0
SMBCLK1
SMBDAT1
PECI_EC
ADAPT_TRIP_SET
PCH_MELOCK
H_PROCHOT#_EC
CLK_TP_SIO
DAT_TP_SIO
BREATH_LED
HOT_KEY_LED1
FAN1_PW M
PWM_VADJ
HOT_KEY_LED2
KB_BACKLITE_EN
FAN_TACH
AC_OFF
LID_SW#
SIO_SLP_S3#
1 2
SYS_PWR_SW#
USB_CHG_DET#_R
ACAV_IN
2 1
AC_PRESENT
BD0
ME_SUS_PWR_ACK
T_CPU
R38 *0_4_OPT_NCR38 *0_4_OPT_NC
R43 0_4_DISR43 0_4_DIS
USBP0_BUS_SW_CB0
SIO_EXT_W AKE#
PCIE_EC_W AKE#
HOT_KEY2_EC#
BD1
DIS: R43
UMA/OPT: R38
BAT2_LED
2
VSS
1
VSS27VSS49VSS
VSS
VSS
91
113
CK32KE
CLOCK
CLOCK
VCORE
AVSS
12
75
122
ITE8502IX_JX
12
0.1U/16V_4
0.1U/16V_4
C95
C95
3
CK32K
+3.3V_ALW
USB_RIGHT_EN#
128
Place these caps close to ITE8518.
12
C107
C107
1U/6.3V_4
1U/6.3V_4
R92 10K_4R92 10K_4
For Crystal-Free
12
C94
C94
0.1U/16V_4
0.1U/16V_4
2
VGA_PW R_LEVEL# [16,56]
SMBCLK0 [47,55]
SMBDAT0 [47,55]
SMBCLK1 [24]
SMBDAT1 [24]
PECI_EC [7]
ADAPT_TRIP_SET [55]
PCH_MELOCK [22]
CLK_TP_SIO [40]
DAT_TP_SIO [40]
BREATH_LED [46]
HOT_KEY_LED1 [42]
FAN1_PW M [44]
PWM_VADJ [27]
HOT_KEY_LED2 [42]
KB_BACKLITE_EN [40]
FAN_TACH [44]
AC_OFF [47]
LID_SW# [40]
SIO_SLP_S3# [9,20,49]
+3.3V_ALW
SYS_PWR_SW# [43]
USB_CHG_DET#_R [43]
ACAV_IN [43,55]
AC_PRESENT [20]
ME_SUS_PWR_ACK [20]
T_CPU [41]
PANEL_BKEN [21]
EXT_LVDS_BLEN [16]
USBP0_BUS_SW_CB0 [35]
SIO_EXT_W AKE# [23]
PCIE_EC_W AKE# [41,57]
HOT_KEY2_EC# [42]
BAT2_LED [46]
USB_RIGHT_EN# [36,57]
1 2
C91
C91
0.1U/16V_4
0.1U/16V_4
12
C79
C79
0.1U/16V_4
0.1U/16V_4
2
12
H_PROCHOT#_EC
Charge ,BAT
PCH
Board ID Straps
1
IMVP7_PROCHOT#
12
31
2N7002W
2N7002W
2
Q9
Q9
SMBDAT0
SMBCLK0
SMBDAT1
SMBCLK1
PCIE_EC_W AKE#
H_CPUDET#
SUS_ON
SMBDAT3
SMBCLK3
IMVP_PWRGD
+3.3V_ALW
12
R67
R67
12K/F_4
12K/F_4
12
R68
R68
20K/F_4
20K/F_4
BD1
000
001
010
011
100
101 3.0V PU 1.65K
BD0
000
001
010
011
100
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
RP3 2.2KX2RP3 2.2KX2
1
3
RP4 2.2KX2RP4 2.2KX2
1
3
R75 10K_4R75 10K_4
1 2
R95 10K_4R95 10K_4
1 2
R93 100K_4R93 100K_4
1 2
RP1 2.2KX2RP1 2.2KX2
1
3
R91 10K_4R91 10K_4
1 2
ITEM3
12
R66
R66
*1.65K/F_4_CHANGE_NC
*1.65K/F_4_CHANGE_NC
BD0
BD1
12
R65
R65
20K/F_4
20K/F_4
0.5V PU 100K
1.5V PU 24.3K
2.0V PU 12K
2.5V PU 6.49K
0.5V PU 100K
1.0V PU 45.3K
1.5V PU 24.3K
2.0V PU 12K
2.5V PU 6.49K
3.0V PU 1.65K101
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
SIO (ITE8518E)
SIO (ITE8518E)
SIO (ITE8518E)
IMVP7_PROCHOT# [7,53,55]
C118
C118
47P/50V_4
47P/50V_4
+3.3V_ALW
2
4
2
4
+3.3V_RUN
2
4
100K/F_4: CS41002FB28
45.3K/F_4: CS34532FB18
24.3K/F_4: CS32432FB19
12K/F_4 : CS31202FB15
6.49K/F_4: CS26492FB23
1.65K/F_4: CS21652FB29
Inspiron UMA
Inspiron Optimus1.0V PU 45.3K
Inspiron DIS (R0A)
Vostro UMA
Vostro Optimus
Inspiron Turbo OPT
Inspiron Turbo DIS111 0V non-PU
SSI (X00)
PT (X01)
ST (X02)
QT (A00)
(A01)
(A02)
R09A
R09A
R09A
38 58
38 58
38 58
1
3A
3A
3A
5
4
3
2
1
FLASH / RTC
D D
8
7
4
2
1
2
1
4
RP5
RP5
10KX2
10KX2
3
4
RP6
RP6
*10KX2_NC
*10KX2_NC
3
+3.3V_ALW
12
C114
C114
0.1U/16V_4
0.1U/16V_4
+3.3V_RUN
RTC
+RTC_CELL +3.3V_RTC_LDO
RTCD1
RTCD1
2
12
C354
C354
1U/6.3V_4
1U/6.3V_4
3
BAT54C T/R
BAT54C T/R
1
+RTC_2
RTCR1 1K_4RTCR1 1K_4
1 2
RTCBT1
RTCBT1
1 2
AAA-BAT-054-K01
AAA-BAT-054-K01
For EC 64Mbit (8M Byte)
U6
EC_FLASH_SPI_CS#[38]
EC_FLASH_SPI_CLK[38]
EC_FLASH_SPI_DIN[38]
EC_FLASH_SPI_DO[38]
C C
EC_FLASH_SPI_CS#
EC_FLASH_SPI_CLK
EC_FLASH_SPI_DIN
EC_FLASH_SPI_DO
U6
1
CE#
6
SCK
5
SI
2
SO
3
WP#
W25Q64CVSSIG
W25Q64CVSSIG
VDD
HOLD#
VSS
For PCH 64Mbit (8M Byte)
U10
8
RP2
RP2
0X4
0X4
7
U10
1
CE#
VDD
6
SCK
5
SI
2
SO
HOLD#
3
WP#
VSS
*W25Q64CVSSIG_NC
*W25Q64CVSSIG_NC
4
8
7
4
12
C218
C218
*0.1U/16V_4_NC
*0.1U/16V_4_NC
3
Double, 25'C, Vf=0.4V, If=25mA
one, 25'C, Vf=0.35V, If=15.8mA
2
PCH_SPI_CS0#[22]
PCH_SPI_CLK[22]
PCH_SPI_SI[22]
PCH_SPI_SO[22]
B B
EC_SPI_CS0#[38]
EC_SPI_CLK[38]
EC_SPI_SI[38]
EC_SPI_SO[38]
A A
5
PCH_SPI_CS0#
PCH_SPI_CLK
PCH_SPI_SI
PCH_SPI_SO
EC_SPI_CS0#
EC_SPI_CLK
EC_SPI_SI
EC_SPI_SO
246
135
RTC-BATTERYRTC-BATTERY
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
PROJECT :
FLASH / RTC
FLASH / RTC
FLASH / RTC
1
R09A
R09A
R09A
39 58
39 58
39 58
3A
3A
3A
1
2
3
4
5
6
7
8
Touch Pad CONNECTOR
+3.3V_ALW+3.3V_RUN
1
A A
CLK_TP_SIO[38]
LID_SW#[38]
DAT_TP_SIO[38]
B B
CLK_TP_SIO
LID_SW#
DAT_TP_SIO
100P/50V_4
100P/50V_4
EC115
EC115
3
100K_4
RP32
RP32
4.7KX2
4.7KX2
2
4
12
ITEM9
L16 *0_0603short_NCL16 *0_0603short_NC
1 2
L15 *0_0603short_NCL15 *0_0603short_NC
1 2
+3.3V_RUN
C532
C532
0.1U/16V_4
0.1U/16V_4
TP_LED2[25]
12
100K_4
C531
C531
12
0.047U/10V_4
0.047U/10V_4
TP_LED2
Key board illumination
+KB_LED power trace width >10 mil
Q13
Q13
2N7002K_GT
2N7002K_GT
C C
LED_PW M
KB_BACKLITE_EN[38]
3
KB_BACKLITE_EN
1
2
+5V_RUN +KB_LED
KB_LED_DET[23]
1206L050YR_GT
1206L050YR_GT
1 2
FS1
KB_LED_DET
302.68mA
R431
R431
+3.3V_ALW
12
C533
C533
0.1U/16V_4
0.1U/16V_4
1206FS1
1206
12
TP_CLK
TP_DATA
TP_LED2_AMBER
12
12
R440
R440
220_4
220_4
31
2
R126 100K_4_GTR126 100K_4_GT
1 2
LED_PW M
R127
R127
200K_4_GT
200K_4_GT
EC108
EC108
100P/50V_GT
100P/50V_GT
ON:White light on
OFF:Amber light on
ACS_88513-0841
ACS_88513-0841
1
2
3
4
5
6
7
8
JP1
JP1
Q42
Q42
2N7002W
2N7002W
INSPIRON
INSPIRON Turbo
+KB_LED
J1
J1
1
1
2
2
3
3
4
4
GB1RF040-1203-8H_GT
12
GB1RF040-1203-8H_GT
12
EC107
EC107
100P/50V_GT
100P/50V_GT
CAP_LED[25]
NC
POP
CAP_LED
Vi(on_max)= -1.4V
Vi(off_min)=-0.3
+5V_RUN
13
Q8
Q8
DDTA114YUA-7-F
DDTA114YUA-7-F
47K
47K
2
10K
31
2
2N7002W
2N7002W
10K
Q7
Q7
1 2
R107330_4 R107330_4
KEYBOARD CONNECTOR
KB_DET#[22]
KSO[0..16][38]
KSI[0..7][38]
CAP_LED_L
CAP_LED_L
4.85mA
EC104 100P/50V_4EC104 100P/50V_4
ECP1 100PX4
ECP1 100PX4
6
4
2
KSO13
78
KSO15
5
KSO16
3
KSO12
1
50603
50603
1
KSI7
2
KSI6
3
KSI4
4
KSI2
5
KSI5
6
KSI1
7
KSI3
8
KSI0
9
KSO5
10
KSO4
11
KSO7
12
KSO6
13
KSO8
14
KSO3
15
KSO1
16
KSO2
17
KSO0
18
KSO12
19
KSO16
20
KSO15
21
KSO13
22
KSO14
23
KSO9
24
KSO11
25
KSO10
26
27
28
29
30
196370-30041-3
196370-30041-3
12
ECP2 100PX4
ECP2 100PX4
6
4
2
50603
50603
JKB1
JKB1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
KSI7
KSO10
78
KSO11
5
KSO9
3
KSO14
1
ECP3 100PX4
ECP3 100PX4
6
4
2
50603
50603
ECP5 100PX4
ECP5 100PX4
6
4
2
50603
50603
KSO8
78
KSO6
5
KSO7
3
KSO4
1
KSI5
78
KSI2
5
KSI4
3
KSI6
1
ECP4 100PX4
ECP4 100PX4
6
4
2
50603
50603
ECP6 100PX4
ECP6 100PX4
6
4
2
50603
50603
KSO0
78
KSO2
5
KSO1
3
KSO3
1
KSO5
78
KSI0
5
KSI3
3
KSI1
1
Layout Note: 100P CAPS CLOSE TO JKB1
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
Saturday, March 03, 2012
Date: Sheet of
1
2
3
4
5
6
Saturday, March 03, 2012
7
PROJECT :
TP / KB
TP / KB
TP / KB
R09A
R09A
R09A
40 58
40 58
40 58
8
3A
3A
3A
5
+3.3V_AUX
2
Q47
PCIE_CLK_REQ0#[24]
D D
PCIE_EC_WAKE#[38,57]
C C
B B
PCIE_CLK_REQ0# PCIE_CLK_REQ0#_R
12
C591
C591
*100P/50V_4_NC
*100P/50V_4_NC
CLK_PCIE_WLANN[24]
CLK_PCIE_WLANP[24]
CLK_33M_LPC[23]
PCIE_RXN1[24]
PCIE_RXP1[24]
PCIE_TXN1[24]
PCIE_TXP1[24]
PCIE_MCARD1_DET#[25]
BT_RADIO_DIS#[25]
Q47
3 1
*2N7002W_NC
*2N7002W_NC
R284 *0_0402short_NCR284 *0_0402short_NC
12
+3.3V_AUX
2
Q46
Q46
PCIE_EC_WAKE#
PLTRST#
PCIE_TXN1
PCIE_TXP1
PCIE_MCARD1_DET#
3 1
PCIE_CLK_REQ0#_R
*2N7002W_NC
*2N7002W_NC
CLK_PCIE_WLANN
CLK_PCIE_WLANP
For Debug Only, Remove at QT
ITEM8
R316 *0_4_NCR316 *0_4_NC
1 2
R315 *0_4_NCR315 *0_4_NC
1 2
BT_RADIO_DIS#
+1.5V_RUN
12
C401
C401
*0.047U/10V_4_NC
*0.047U/10V_4_NC
PCIE_WAKE#_R
PCIE_CLK_REQ0#_R
WLAN_RADIO_DIS#_R
WLAN_LED#
WPAN_LED#
MiniCard WLAN connector
R313 *10K_4_NCR313 *10K_4_NC
1 2
R314 *10K_4_NCR314 *10K_4_NC
1 2
R319 10K_4R319 10K_4
1 2
R311 10K_4R311 10K_4
1 2
R489 10K_4R489 10K_4
1 2
+3.3V_AUX
J7
PCIE_WAKE#_R
PLTRST#_R
CLK_LPC_DEBUG_RCLK_33M_LPC
12
C402
C402
*0.047U/10V_4_NC
*0.047U/10V_4_NC
J7
1
WAKE#
3
RESERVED_1
5
RESERVED_2
7
CLKREQ#
9
GND1
11
REFCLK-
13
REFCLK+
15
GND2
17
UIM_C8
19
UIM_C4
21
GND4
23
PERn0
25
PERp0
27
GND6
29
GND7
31
PETn0
33
PETp0
35
GND9
37
RESERVED_3
39
RESERVED_4
41
RESERVED_5
43
RESERVED_6
45
RESERVED_7
47
RESERVED_8
49
RESERVED_9
51
RESERVED_10
AAA-PCI-092-K01
AAA-PCI-092-K01
+3.3V_AUX
12
C589
C589
0.1U/16V_4
0.1U/16V_4
4
+3.3V_AUX
WLAN_RADIO_DIS#_R
+3.3V_AUX
2
3.3V_1
4
GND0
6
1.5V_1
8
UIM_PWR
10
UIM_DATA
12
UIM_CLK
14
UIM_RESET
16
UIM_VPP
18
GND3
20
W_DISABLE#
22
PERST#
24
3.3VAUX1
26
GND5
28
1.5V_2
30
SMB_CLK
32
SMB_DATA
34
GND8
36
USB_D-
38
USB_D+
40
GND10
42
LED_WWAN#
44
LED_WLAN#
46
LED_WPAN#
48
1.5V_3
50
GND11
52
3.3V_2
Place caps close to connector.
12
C403
C403
*0.047U/10V_NC
*0.047U/10V_NC
12
C406
C406
0.1U/16V_4
0.1U/16V_4
+3.3V_RUN
2
Q32
Q32
3 1
*2N7002W_NC
*2N7002W_NC
R294 *0_0402short_NCR294 *0_0402short_NC
+1.5V_RUN
12
For Debug Only, Remove at QT
LPC_LFRAME#_R LPC_LFRAME#
LPC_LAD3_R
LPC_LAD2_R
LPC_LAD1_R
LPC_LAD0_R
WLAN_RADIO_DIS#_R
12
C405
C405
0.047U/10V_4
0.047U/10V_4
+3.3V_AUX
WLAN_LED#
WPAN_LED#
R469 *0_4_NCR469 *0_4_NC
R468 *0_4_NCR468 *0_4_NC
R467 *0_4_NCR467 *0_4_NC
R466 *0_4_NCR466 *0_4_NC
R465 *0_4_NCR465 *0_4_NC
D22 BAT54AD22 BAT54A
2
1
12
C404
C404
1U/6.3V_4
1U/6.3V_4
1 2
1 2
1 2
1 2
1 2
USBP4N
USBP4P
USB_MCARD1_DET#
3
PLTRST#
RFLED#
WLAN_RADIO_DIS# [25]
LPC_LAD3
LPC_LAD2
LPC_LAD1
LPC_LAD0
ITEM8
USBP4N [23]
USBP4P [23]
USB_MCARD1_DET# [25]
RFLED# [46]
12
3
C590
C590
33P/50V_4
33P/50V_4
LPC_LFRAME# [22,38]
LPC_LAD3 [22,38]
LPC_LAD2 [22,38]
LPC_LAD1 [22,38]
LPC_LAD0 [22,38]
PLTRST# [7,13,23,38,57]
2
1
MiniCard mSATA connector
J6
1
Reserved
3
Reserved
5
Reserved
7
Reserved
9
GND
11
Reserved
13
Reserved
15
GND
17
Reserved
19
Reserved
21
12
C329
C329
0.047U/10V_4
0.047U/10V_4
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
GND
SATA_RXP
SATA_RXN
GND
GND
SATA_TXN
SATA_TXP
GND
GND
+3.3 V
+3.3 V
Device Type
Vendor Specific
Vendor Specific
DAS
Presence Detect
12
C306
C306
4.7U/6.3V_6
4.7U/6.3V_6
SATA_RXP2 SATA_RXP2_C
C330 0.01U/25V_4C330 0.01U/25V_4
SATA_RXP2[22]
SATA_RXN2[22]
SATA_TXN2[22]
SATA_TXP2[22]
SATA_RXN2
SATA_TXN2
SATA_TXP2
SATA_MCARD3_DET#[ 25]
12
C326 0.01U/25V_4C326 0.01U/25V_4
12
C320 0.01U/25V_4C320 0.01U/25V_4
12
C315 0.01U/25V_4C315 0.01U/25V_4
12
SATA_MCARD3_DET#
SATA_RXN2_C
SATA_TXN2_C
SATA_TXP2_C
+3.3V_RUN
+3.3V_RUN
12
C350
C350
0.1U/16V_4
0.1U/16V_4
Place caps close to connector.
+3.3V
+1.5V
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
+3.3 V
+1.5V
SMB_CLK
SMB_DATA
Reserved
Reserved
Reserved
Reserved
Reserved
+1.5V
+3.3V
2041119-3J62041119-3
+3.3V_RUN
2
4
GND
6
8
10
12
14
16
18
GND
20
22
24
26
GND
28
30
32
34
GND
36
38
40
GND
42
44
46
48
50
GND
52
No support AOAC
+15V_ALW
AUX_EN#[38]
A A
5
+3.3V_ALW
*2200P/50V_4_NC
*2200P/50V_4_NC
EC76
EC76
12
+3.3V_RUN
R264 *100K_4_NCR264 *100K_4_NC
12
R263
R263
*100K_4_NC
*100K_4_NC
R268 *0_1206short_NCR268 *0_1206short_NC
1 2
Q26 *AP2606AGY-HF_NCQ26 *AP2606AGY-HF_NC
6
524
1
3
12
31
Q24
Q24
2
*2N7002W_NC
*2N7002W_NC
4
+3.3V_AUX
12
C333
C333
*0.1U/25V_6_NC
*0.1U/25V_6_NC
+3.3V_ALW
12
RT1
RT1
*10K/NTC_6_NC
*10K/NTC_6_NC
T_CPU[38]
T_CPU
12
R73
R73
*1.5K/F_4_NC
*1.5K/F_4_NC
3
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
2
Friday, March 02, 2012
PROJECT :
WLAN/mSATA
WLAN/mSATA
WLAN/mSATA
1
R09A
R09A
R09A
41 58
41 58
41 58
3A
3A
3A
5
4
3
2
1
HOT_KEY2 support Pre-Boot Recovery
+3.3V_ALW
D D
HOT_KEY2#
ITEM7
1 2
R385 *0_0402short_NCR385 *0_0402short_NC
D8
D8
3
*BAT54C T/R_NC
*BAT54C T/R_NC
R96
R96
100K_4
100K_4
1 2
2
LATCH
1
HOT_KEY2_EC# [38]
LATCH [43]
INSPIRON: R385 pop, D8 NC
C C
Hot key BOARD
CN2
12
EC113
EC113
100P/50V_4
100P/50V_4
CN2
12
EC114
EC114
100P/50V_4
100P/50V_4
8
7
6
5
4
3
2
1
ACS_88513-080N
ACS_88513-080N
+5V_ALW
12
C503
C503
0.1U/16V_4
0.1U/16V_4
B B
HOT_KEY1#[38]
HOT_KEY3#[38]
HOT_KEY_LED1[38]
HOT_KEY_LED2[38]
HOT_KEY_LED3[38]
HOT_KEY2#
HOT_KEY3#
12
EC109
EC109
100P/50V_4
100P/50V_4
12
EC110
EC110
100P/50V_4
100P/50V_4
12
EC111
EC111
100P/50V_4
100P/50V_4
12
EC112
EC112
100P/50V_4
100P/50V_4
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
5
4
3
2
Wednesday, February 08, 2012
PROJECT :
HOT KEY
HOT KEY
HOT KEY
1
R09A
R09A
R09A
42 58
42 58
42 58
3A
3A
3A
5
4
3
2
1
D D
C C
B B
For USB charger usage
+3.3V_ALW
R110
R110
100K_4
100K_4
D11
D11
USB_CHG_DET#[35]
USB_CHG_DET#
3
BAT54C T/R
BAT54C T/R
1 2
2
1
USB_CHG_DET#_R
POWER_SW_IN0#[57]
USB_CHG_DET#_R [38]
POWER_SW_IN0#
LATCH[42]
ACAV_IN[38,55]
3
ACAV_IN
3V ALW ON POWER LOGIC
D10
D10
BAT54C T/R
BAT54C T/R
+3.3V_ALW
R114
R114
100K_4
100K_4
1 2
SYS_PWR_SW#
12
C116
C116
0.1U/16V_4
0.1U/16V_4
16
16
X7R
31
X7R
ALW_ON[38,48]
Q10
Q10
2N7002W
2N7002W
LATCH
12
C136
C136
*0.1U/16V_4_NC
*0.1U/16V_4_NC
ALW_ON
2
1
2
+5V_ALW2
1 2
SYS_PWR_SW# [38]
61
2
R297
R297
100K_4
100K_4
DMN66D0LDW-7
DMN66D0LDW-7
Q27B
Q27B
R301
R301
100K_4
100K_4
1 2
3.3V_ALW_ON
34
DMN66D0LDW-7
DMN66D0LDW-7
5
Q27A
Q27A
3.3V_ALW_ON [45]
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
5
4
3
2
Wednesday, February 08, 2012
PROJECT :
POWER SWITCH
POWER SWITCH
POWER SWITCH
1
R09A
R09A
R09A
43 58
43 58
43 58
3A
3A
3A
THERMAL IC
5
4
3
2
+5V_RUN
1
For GPU use
G781-1P8
D D
VGA_THERMDP[16]
VGA_THERMDN[16]
C C
SMBus address is 1001101xb (9Ah) (x is R/W bit).
+3.3V_RUN
C111 0.1U/16V_4_GFXC111 0.1U/16V_4_GFX
1 2
U7
U7
1
VDD
2
D+
3
D-
4
THERM#
G781-1P8_GFX
G781-1P8_GFX
SDATA
ALERT#
VGA_THERMDP
VGA_THERMDN
+3.3V_RUN
C1 close to IC
12
C113
C113
C1
2200P/50V_4_GFX
2200P/50V_4_GFX
1 2
R161 10K_4_DISR161 10K_4_DIS
DIS : POP
OPT: NC
8
SCLK
7
6
5
GND
IMVP_PWRGD
For CPU use
Closed to CPU
Place under CPU
Q41
Q41
MMST3904-7-F
B B
1.Place C1340 close to NCT7718W
2.Place C1339 close to Q81
Total capacitance between D+/D- is 2200pF(max)
if use 2200pF for C1340, then C1339 should be dummy
MMST3904-7-F
2
1 3
REM_DIODE1_P
12
C544
C544
*100P/50V_4_NC
*100P/50V_4_NC
IMVP_PWRGD[20,38,53]
10/20mils
12
C294
C294
2200P/50V_4
2200P/50V_4
C291
C291
0.1U/16V_4
0.1U/16V_4
+3.3V_RUN
Low cost
EMC1422 pin to pin NCT7718W
NCT7718W
Quanta PN: AL007718000
U16
U16
1
VDD
2
DP
3
DN
SYS_SHDN#4GND
EMC1422-1-ACZL-TR
EMC1422-1-ACZL-TR
12
Q23
Q23
2N7002W
SYS_SHDN# THERM_STP#
IMVP_PWRGD
2N7002W
2
DIS/OPT:POP
UMA:NC
SMBCLK3
SMBDAT3
Q48
Q48
2N7002W_DIS
2N7002W_DIS
SCL
SDA
ALERT#
31
2
SMBCLK3 [38]
SMBDAT3 [38]
R109 10K_4_DISR109 10K_4_DIS
THERM_STP#
31
SMBCLK3
8
SMBDAT3
7
THERM_ALERT#REM_DIODE1_N
6
5
12
+3.3V_RUN
SMBCLK3 [38]
SMBDAT3 [38]
THERM_STP# [38,45]
U14
U14
1
VEN
GND
2
VIN
3
VO
SET4GND
G990P11U
G990P11U
GND
GND
C255
C255
1000P/50V_4
1000P/50V_4
+5V_FAN1
12
R227
FAN1_PWM[38]
FAN1_PWM
R227
1 2
180K/F_4
180K/F_4
FAN CONN
+5V_FAN1
12
C271
C271
2.2U/6.3V_6
2.2U/6.3V_6
NCT7718W SMBus address is 1001100xb (98h) (x is R/W bit).
SYS_SHD#
12
+5V_RUN
C264
C264
0.1U/16V_4
0.1U/16V_4
R218 4.7K_4R218 4.7K_4
FAN_TACH[38]
2K 7.5K 10.5K 14K 18.7K
ALERT#
77'C
79'C
81'C
83'C
85'C
87'C
89'C
91'C
93'C
95'C
2K
7.5K
10.5K
14K
18.7K
EMC1422 SMBus address is 1001_100xb (98h) (x is R/W bit).
SYS_SHD#
6.8K4.7K
107'C
97'C
99'C
101'C
103'C 123'C
105'C 115'C
109'C
111'C
113'C
117'C
119'C
121'C
125'C
33K22K15K10K
ALERT#
4.7K
77'C
89'C83'C
107'C101'C95'C
FAN_TACH
12
12
C243
C243
1U/10V_6
1U/10V_6
8
7
6
5
J4
J4
1
1
2
2
3
3
88231-0304N
88231-0304N
84'C
6.8K
A A
OTP 85 degree C
R254 10K/F_4R254 10K/F_4
+3.3V_RUN
5
4
1 2
R119 6.8K/F_4R119 6.8K/F_4
1 2
THERM_ALERT#
SYS_SHDN#
EMC1422
OTP 85 degree : R996 = 10K, R997 = 6.8K
OTP 90 degree : R996 = 6.8K, R997 = 10K
3
10K
15K
22K
33K
78'C 90'C
79'C
85'C
80'C
86'C
81'C
87'C
82'C
88'C
96'C
102'C
91'C 103'C
97'C 109'C
92'C
98'C
104'C
93'C
99'C
105'C
94'C
100'C
106'C
2
108'C
110'C
111'C
112'C
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
PROJECT :
FAN & THERMAL
FAN & THERMAL
FAN & THERMAL
R09A
R09A
R09A
44 58
44 58
1
44 58
3A
3A
3A
1
A A
2
3
4
+3.3V_RUN
5
12
R348
R348
10K_4
10K_4
6
7
8
1.5V_SUS_PWRGD[49]
B B
C C
VCCSA_PWRGD[52] HWPG [20,38]
THERM_STP#[38,44]
3.3V_ALW _ON[43] +3.3V_EN2 [48]
1.5V_SUS_PWRGD
THERM_STP#
3.3V_ALW _ON +3.3V_EN2
R349 *0_0402short_NCR349 *0_0402short_NC
1 2
R347 *0_0402short_NCR347 *0_0402short_NC
1 2
R307 *0_0402short_NCR307 *0_0402short_NC
1 2
R306 *0_0402short_NCR306 *0_0402short_NC
1 2
HWPGVCCSA_PWRGD
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
Friday, March 02, 2012
Date: Sheet of
1
2
3
4
5
6
Friday, March 02, 2012
7
PROJECT :
System Reset Circuit
System Reset Circuit
System Reset Circuit
R09A
R09A
R09A
45 58
45 58
45 58
8
3A
3A
3A
5
4
3
2
1
White
R323
R323
220_4
220_4
2
3
2
+5V_ALW
2
1 2
61
+5V_SUS
12
21
31
13
1 2
R325
R325
330_4
330_4
D18
D18
WHITE_3P
WHITE_3P
Q34
Q34
2N7002W
2N7002W
D16
D16
WHITE/AMBER
WHITE/AMBER
AMBER(3:4)White(2:1)
R322
R322
240_4
240_4
34
Q33A
Q33A
5
DMN66D0LDW-7
DMN66D0LDW-7
BREATH_LED_R [57]
BAT2_LEDBAT1_LED
BAT2_LED [38]
+5V_RUN
+3.3V_AUX
12
R321
R321
10K_4
10K_4
RFLED#[41]
2
12
R320
R320
100K_4
100K_4
61
DMN66D0LDW-7
DMN66D0LDW-7
Q35B
Q35B
White
12
R324
R324
330_4
330_4
21
D17
D17
3
WHITE_3P
WHITE_3P
34
DMN66D0LDW-7
DMN66D0LDW-7
5
Q35A
Q35A
HDD activity LED.
White
R326
R326
330_4
330_4
Q31A
Q31A
5
+5V_RUN
3
1 2
21
34
D15
D15
WHITE_3P
WHITE_3P
+3.3V_RUN
12
R317
R317
100K_4
R318
R318
10K_4
10K_4
1 2
Q31B
PCH_SATA_LED#[22]
PCH_SATA_LED#
Q31B
DMN66D0LDW-7
DMN66D0LDW-7
100K_4
DMN66D0LDW-7
61
2
DMN66D0LDW-7
Power Bluetooth / WLAN on/off LED
D D
BREATH_LED[38]
C C
Battery
B B
Q33B
BAT1_LED[38]
Q33B
DMN66D0LDW-7
DMN66D0LDW-7
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet of
PROJECT :
LED
LED
LED
1
R09A
R09A
R09A
3A
3A
3A
46 58Wednesday, February 08, 2012
46 58Wednesday, February 08, 2012
46 58Wednesday, February 08, 2012
A
1 1
2 2
EC47
EC47
0.1U/25V_6
0.1U/25V_6
12
EC46
EC46
1000P/50V_4
1000P/50V_4
12
EC45
EC45
2200P/50V_4
2200P/50V_4
12
JBAT1
JBAT1
BATT1+
BATT2+
SMB_CLK
SMB_DAT
BATT_PRES#
SYSPRES#
BATT_VOLT
BATT1-
SUY_200045MR009G537ZL
SUY_200045MR009G537ZL
BATT2-
12
EC9
EC9
2200P/50V_4
2200P/50V_4
1
2
3
4
5
6
7
8
9
12
+VCHGR
PR3 100_4PR3 100_4
1 2
PR6 100_4PR6 100_4
1 2
PR4 100_4PR4 100_4
1 2
EC8
EC8
1000P/50V_4
1000P/50V_4
B
EL4
EL4
BLM41PG600SN1L
BLM41PG600SN1L
1 2
EL5
EL5
BLM41PG600SN1L
BLM41PG600SN1L
1 2
12
EC7
EC7
0.1U/25V_6
0.1U/25V_6
+3.3V_ALW
SMBCLK0 [38,55]
SMBDAT0 [38,55]
pop for A7-OPT & GLK-OPT
12
EC48
EC48
0.1U/25V_6
0.1U/25V_6
PQ36B
PQ36B
DMN66D0LDW-7
DMN66D0LDW-7
12
PR147
PR147
2.4K_12
2.4K_12
PR148
PR148
2.4K_12
2.4K_12
61
2
12
12
PR5
PR5
10K_4
10K_4
1234
6
5
C
IMD2AT108
IMD2AT108
PBAT_PRES# [38]
PQ30
PQ30
+DC_IN
12
PC153
PC153
0.47U/25V_8
0.47U/25V_8
PS_ID
12
12
PR132
PR132
240K_4
240K_4
PR131
PR131
47K_4
47K_4
ESD2
ESD2
1
1
2
2
334
1
2
3
TVL ST23 04 AD0
TVL ST23 04 AD0
PQ1
PQ1
AON7403
AON7403
4
D
SMBDAT0
6
6
5
5
SMBCLK0PBAT_PRES#
4
8
7
6
5
12
PC9
PC9
0.01U/25V_4
0.01U/25V_4
+3.3V_ALW
+DC_IN_SS
PC10
PC10
0.1U/25V_6
0.1U/25V_6
2
12
PR8
PR8
6.8K/F_4
6.8K/F_4
61
PQ3B
PQ3B
DMN66D0LDW-7
DMN66D0LDW-7
12
AC_OK[55]
1 2
1 2
PR243
PR243
6.8K/F_4
6.8K/F_4
PR10
PR10
*0_4_NC
*0_4_NC
E
HW1
AC_OFF[38]
3 3
CN4
CN4
1
Adapter1-
2
Adapter2-
3
Adapter3-
4
Adapter4-
PSID
Adapter1+
Adapter2+
Adapter3+
MLX_87438-0843
MLX_87438-0843
4 4
DOCK_PSID
5
+DCIN_JACK
6
7
8
EL17
EL17
BLM11B102S
BLM11B102S
1 2
12
PC151
PC151
100P/50V_4
100P/50V_4
A
B
12
PR142
PR142
100K/F_4
100K/F_4
12
PR152
PR152
15K/F_4
15K/F_4
3
PQ32
PQ32
FDV301N
FDV301N
2
Q1
2
PQ35
PQ35
MMST3904-7-F
MMST3904-7-F
1 3
PR133
PR133
33_4
33_4
1 2
1
1 2
PR157
PR157
1K_4
1K_4
12
PQ36A
PQ36A
DMN66D0LDW-7
DMN66D0LDW-7
PBAT_PRES# PBAT_PRES#
PR159
PR159
100K_4
100K_4
+5V_ALW2
1
PD3
PD3
3
*DA204U_NC
*DA204U_NC
PR151
PR151
10K_4
10K_4
2
+5V_ALW2
12
5
+3.3V_ALW
12
PR129
PR129
2.2K_4
2.2K_4
PR156*10K_4_NCPR156*10K_4_NC
34
HW3HW2
The ESD is highly potential
issue on PSID pin(Q1), a
Gate-Source zener for ESD
ruggedness, such as
FDV301N(Fairchild) is
recommended or able to sustain
6KV ESD protection.
C
12
PS_ID [38]
+3.3V_ALW
PR14
PR14
1K_4
1K_4
1 2
PC15
PC15
0.01U/25V_4
0.01U/25V_4
12
PC11
PC11
1U/25V_6
1U/25V_6
34
PQ3A
PQ3A
5
DMN66D0LDW-7
DMN66D0LDW-7
12
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
D
Monday, March 05, 2012
PROJECT :
DC IN / BATT
DC IN / BATT
DC IN / BATT
E
R09
R09
R09
47 57
47 57
47 57
1A
1A
1A
5
4
3
2
1
TPS51125A TONSEL Connection and Switching Frequency
Ton
REG5
REG3
VREF GND
12
4
4
TP27TP27
TP25TP25
Enable
3.3V_EN
DMN66D0LDW-7
DMN66D0LDW-7
300 kHz
375 kHz
876
2
351
876
2
351
PQ20A
PQ20A
245 kHz
305 kHz
2200P/50V_4
2200P/50V_4
12
PQ22
PQ22
NTTFS4930N
NTTFS4930N
2.2UH20%12A(TMPB0603M-2R2MN-Z01)
2.2UH20%12A(TMPB0603M-2R2MN-Z01)
12
PC124
PC124
*2200P/50V_4_NC
PQ23
PQ23
NTTFS4930N
NTTFS4930N
*2200P/50V_4_NC
12
PR108
PR108
*2.2_8_NC
*2.2_8_NC
34
5
DMN66D0LDW-7
DMN66D0LDW-7
EC37
EC37
12
1 2
PQ20B
PQ20B
0.1U/25V_6
0.1U/25V_6
PL4
PL4
EC36
EC36
12
61
200 kHz
250 kHz
+PWR_SRC
PC123
10U/25V_8
PC123
10U/25V_8
12
0.1U/16V_4
0.1U/16V_4
12
PC125
PC125
+3.3V_RTC_LDO
10K_4
10K_4
PR103
PR103
2
12
+3.3V_ALW
+
+
PC126
PC126
150U/6.3V/ESR15
150U/6.3V/ESR15
PC119
PC119
*100P/50V_4_NC
*100P/50V_4_NC
1
SJ7
SJ7
1
SJ0201
SJ0201
2
2
TPS51125A_VO2
close to
output Cap
+3.3V_EN2 [45]
SJ9
SJ9
SJ0201
SJ0201
+PWR_SRC
+3.3V_ALW
Fsw : 375K
TDC : 6.2A
OCP : 8.7A
+3.3V_ALW
1
1
2
2
TPS51125A_FB2
Channel1 Fs
PR96
PR96
26
7
8
9
10
11
12
27
28
AGND_DC/DC
Channel2 Fs
PR91
PR91
13K/F_4
13K/F_4
1 2
12
20K/F_4
20K/F_4
PR93
PR93
TPS51125A_VO2
3.3V_BST
SJ6
SJ6
112
SJ0402
SJ0402
2
PC109
PC109
1U/6.3V_4
TPS51125A_VFB1
PR85
PR85
115K/F_4
115K/F_4
33
GPAD
24
VO1
23
PGOOD
22
VBST1
21
DRVH1
20
LL1
19
DRVL1
32
GPAD
31
GPAD
10U/6.3V_8
10U/6.3V_8
34
GPAD
GPAD
30
VCLK
PC107
PC107
0.1U/25V_6
0.1U/25V_6
1U/6.3V_4
D D
TPS51125A_FB1
+PWR_SRC
EC35
0.1U/25V_6
EC35
0.1U/25V_6
PC122
10U/25V_8
PC122
10U/25V_8
12
12
+5V_ALW
Fsw : 300K
TDC : 10.8A
OCP : 15A
2.2UH20%18A(TMPB1004M-2R2MN-Z01)
1
+
+
1
PC106
PC106
2
220U/6.3V/ESR15
220U/6.3V/ESR15
2
TPS51125A_FB1
+15V_ALW
2.2UH20%18A(TMPB1004M-2R2MN-Z01)
*0.1U/16V_4_NC
*0.1U/16V_4_NC
0.1U/16V_4
0.1U/16V_4
+5V_ALW
C C
B B
+5V_ALW
SJ4
SJ4
SJ0201
SJ0201
1
SJ5
SJ5
1
SJ0201
SJ0201
2
2
TPS51125A_VO1
close to
output Cap
+PWR_SRC 5V_EN
EC34
2200P/50V_4
EC34
2200P/50V_4
12
PC100
PC100
0.1U/25V_6
0.1U/25V_6
12
5V_LX
5V_DL
5V_DH
TP26TP26
5V_DL
TP24TP24
12
PC101
PC101
0.1U/25V_6
0.1U/25V_6
0.1U/16V_4
0.1U/16V_4
12
+5V_ALW
PC92
PC92
PC96
PC96
PL1
PL1
PC105
PC105
12
12
12
*2200P/50V_4_NC
*2200P/50V_4_NC
*2.2_8_NC
*2.2_8_NC
12
PC91
PC91
0.1U/25V_6
0.1U/25V_6
PC112
PC112
PR95
PR95
BAT54S-7-F
BAT54S-7-F
1
PD2
PD2
2
BAT54S-7-F
BAT54S-7-F
1
PD1
PD1
2
PQ19
PQ19
876
MDV1525URH
MDV1525URH
4
2
351
12
12
3
3
876
2
351
0.1U/16V_4
0.1U/16V_4
PQ18
PQ18
MDV1522URH
MDV1522URH
4
PC102
PC102
12
PR82
PR82
0_6
0_6
1 2
PR86
PR86
30K/F_4
30K/F_4
1 2
PR88
PR88
20K/F_4
20K/F_4
TPS51125A_VO1
5V_BST
+PWR_SRC
1 2
1 2
+5V_ALW2
12
1
2
VFB1
ENTRIP1
TPS51125ARGER
TPS51125ARGER
18
12
PC108
PC108
TPS51125A_VREF
3
VREF
PU4
PU4
TPS51125A_VIN
12
+3.3V_RTC_LDO
4
5
VFB2
TONSEL
TPS51125A_VFB2
249K/F_4
249K/F_4
3.3V_EN
1 2
6
25
GPAD
GPAD
ENTRIP2
VO2
VREG3
VBST2
DRVH2
LL2
DRVL2
GPAD
GPAD
EN013SKIPSEL14GND15VIN16VREG517VCLK
GPAD
29
+3.3V_RTC_LDO
TPS51125A_FB2
1 2
PR99
PR99
0_6
0_6
1 2
3.3V_DH5V_DH
3.3V_LX
3.3V_DL
365 kHz
460 kHz
PC117
PC117
1U/6.3V_4
1U/6.3V_4
3.3V_DH
3.3V_DL
+3.3V_RTC_LDO
PC118
PC118
0.1U/25V_6
0.1U/25V_6
+3.3V_RTC_LDO
PR78
PR78
10K_4
10K_4
PQ16B
PQ16B
1 2
61
2
ALW_ON [38,43]
12
PC99
PC99
*100P/50V_4_NC
*100P/50V_4_NC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
3.3V_ALW / 5V_ALW (TPS51125ARGER)
3.3V_ALW / 5V_ALW (TPS51125ARGER)
3.3V_ALW / 5V_ALW (TPS51125ARGER)
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
PROJECT :
1
R09
R09
R09
48 57
48 57
48 57
1A
1A
1A
5V_EN
34
PQ16A
PQ16A
5
DMN66D0LDW-7
DMN66D0LDW-7
DMN66D0LDW-7
A A
5
4
3
2
DMN66D0LDW-7
5
4
3
2
1
A7-OPT;A7-Turbo-DIS;GLK-OPT A7- UMA;GLK-UMA
R4-->PN: CS33922FB15 R4-->PN: CS41202FB17
C1-->pop C1-->depop
C2-->pop C2-->depop
D D
C C
B B
Need confirm with EE or not have pull high resister for PG.
1.5V_SUS_PWRGD[45]
+0.75V_DDR_VTT
PC136
PC136
10U/6.3V_8
10U/6.3V_8
SIO_SLP_S4#[20,38]
SIO_SLP_S3#[9,20,38]
+DDR_VTTREF
12
PC134
PC134
0.22U/6.3V_4
0.22U/6.3V_4
PR118
PR118
10K_4
10K_4
1 2
12
VOUT = (R3/(R2 +R3))*1.8
1 2
12
+1.5V_SUS
12
PC142
PC142
*10U/6.3V_8_NC
*10U/6.3V_8_NC
0.1U/16V_4
0.1U/16V_4
PR117
PR117
SJ0402
SJ0402
PC144
PC144
0.047U/10V_4
0.047U/10V_4
23
22
4
1
3
5
2
PC131
PC131
GPAD
GPAD
VTTGND
VTTSNS
VTT
VTTREF
VLDOIN
TPS51216_VREF
12
1.5V_S5
1.5V_S3
PR112
PR112
10K/F_4
10K/F_4
R2
PR111
PR111
56.2K/F_4
56.2K/F_4
17
S516S3
TPS51216RUKR
TPS51216RUKR
PU6
PU6
VREF6GND7REFIN
8
12
TPS51216_REFIN
12
12
0.01U/25V_4
0.01U/25V_4
20
PC132
PC132
100K_4
100K_4
PR120
PR120
1 2
R1
1.5V_MODE
18
19
TRIP
MODE
PGOOD
PGND
PwPd
10
21
R4
39.2K/F_4
39.2K/F_4
PR119
PR119
1 2
1.5V_RIP
24
GPAD
25
GPAD
26
GPAD
15
VBST
14
DRVH
13
SW
11
DRVL
12
V5IN
VDDQSNS
9
1.5V_FB
1.5V_BST
1.5V_DH
1.5V_LX
1.5V_DL
12
1 2
PC137
PC137
1U/6.3V_4
1U/6.3V_4
PR121
PR121
0_6
0_6
PQ1-->BAM88780030 PQ1-->BAM15280000
L1-->CV+42M0MZ01 L1-->CV-10C0MZ01
R1-->CS41002JB20 R1-->CS42002JB14
PQ1
PQ26
+5V_ALW
PC141
PC141
0.1U/25V_6
0.1U/25V_6
12
1.5V_DH
1.5V_DL
PQ26
FDMC8878
FDMC8878
PQ2
FDMS0306AS
FDMS0306AS
PQ28
PQ28
TP30TP30
TP29TP29
876
4
2
351
876
4
2
351
PQ1-->BAM15160000PQ2-->BAM03060001
+PWR_SRC
C1
12
PC147
PC147
10U/25V_8
10U/25V_8
+1.5V_SUS
12
+
+
PC127
PC127
330U/2V_7343
330U/2V_7343
330U/2V_7343
330U/2V_7343
12
12
EC43
EC43
2200P/50V_4
2200P/50V_4
L1
PL5
PL5
0.42UH 20% 22A(MPC0740LR42C)
0.42UH 20% 22A(MPC0740LR42C)
1 2
12
PC146
9
PC146
*1000P/50V_4_NC
*1000P/50V_4_NC
12
PR124
PR124
*2.2_8_NC
*2.2_8_NC
PC129
PC129
0.1U/16V_4
0.1U/16V_4
EC44
EC44
0.1U/25V_6
0.1U/25V_6
12
12
C2
12
PC133
PC133
*10U/6.3V_8_NC
*10U/6.3V_8_NC
PC145
PC145
10U/25V_8
10U/25V_8
+
+
12
PC128
PC128
+PWR_SRC
1
SJ8
SJ8
1
SJ0201
SJ0201
2
close to
2
output Cap
+1.5V_SUS
+1.5V_SUS(UMA)
1.5 Volt +/- 5%
TDC : 8.3A
OCP : 12A
+1.5V_SUS(Dis)
1.5 Volt +/- 5%
TDC : 16A
OCP : 21A
R3
Outputs Management by S3, S5 control
State S3 S5
S0
A A
S4/S5
5
4
HI
S3
LO
LO
HI
HI
LO
3
VDDQ
On
On
Off (discharge)
VTTREF
On
On
Off (discharge)
VTT
On
Off (Hi-Z)
Off (discharge)
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
1.5_SUS/0.75_DDR_VTT (TPS51216RUKR)
1.5_SUS/0.75_DDR_VTT (TPS51216RUKR)
1.5_SUS/0.75_DDR_VTT (TPS51216RUKR)
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
PROJECT :
R09
R09
R09
49 57
49 57
1
49 57
1A
1A
1A
1
2
3
4
5
+15V_ALW +5V_ALW+5V_ALW2
5
12
PR72
PR72
100K_4
100K_4
RUN_ON_ENABLE
34
PQ13A
PQ13A
DMN66D0LDW-7
DMN66D0LDW-7
12
PR74
PR74
100K_4
100K_4
A A
RUN_ON[27,31,38]
B B
RUN_ON#
61
PQ13B
PQ13B
2
DMN66D0LDW-7
DMN66D0LDW-7
PQ15
PQ15
MDV1522URH
MDV1522URH
8
7
6
5
1 2
PR71
PR71
10K_4
10K_4
+3.3V_ALW +3.3V_RUN
PQ25
PQ25
MDV1522URH
MDV1522URH
8
7
6
5
1 2
PR116
PR116
56K/F_4
56K/F_4
PQ27
PQ27
FDC655BN
FDC655BN
6
5
2
1
1 2
PR113
PR113
200K/F_4
200K/F_4
3
2
1
4
12
PC88
PC88
4700P/25V_4
4700P/25V_4
3
2
1
4
12
PC140
PC140
0.047U/25V_4
0.047U/25V_4
4
3
12
PC143
PC143
0.047U/25V_4
0.047U/25V_4
+5V_RUN
+5V_RUN
Max Current : 4.13A
12
PC86
PC86
0.1U/16V_4
0.1U/16V_4
+3.3V_RUN
Max Current : 4A
12
PC139
PC139
0.1U/16V_4
0.1U/16V_4
+1.5V_RUN+1.5V_SUS
+1.5V_RUN
Max Current : 922mA
12
PC135
PC135
0.1U/16V_4
0.1U/16V_4
C99
C99
10U/6.3V_6
10U/6.3V_6
1 2
item12
Depop for A7-UMA
Depop for GLK-UMA
12
12
12
PR40
PR40
100K_4
100K_4
DGPU_PWR_ON#
61
PQ11B
PQ11B
DGPU_PWR_EN[23]
2
DGFX_VR_PWRGD#
DMN66D0LDW-7
DMN66D0LDW-7
12
EC211
EC211
2200P/50V_4
2200P/50V_4
2
EC210
EC210
2200P/50V_4
2200P/50V_4
5
C1338
C1338
*22U/6.3V_8_NC
*22U/6.3V_8_NC
+15V_ALW
PR41
PR41
100K_4
100K_4
1.5V_GFX_ENABLE
31
PQ8
PQ8
2N7002W
2N7002W
PR37
PR37
100K_4
100K_4
3.3V_GFX_ENABLE
34
PQ11A
PQ11A
DMN66D0LDW-7
DMN66D0LDW-7
C1337
C1337
*22U/6.3V_8_NC
*22U/6.3V_8_NC
0.047U/25V_4
0.047U/25V_4
+3.3V_GFX
Max Current : 470mA
+3.3V_GFX+3.3V_ALW+5V_ALW2 +15V_ALW
PQ12
PQ12
FDC655BN
FDC655BN
6
5
4
2
1
3
12
PC32
PC32
4700P/25V_4
4700P/25V_4
+1.5V_GFX+1.5V_SUS
PQ9
PQ9
MDV1522URH
MDV1522URH
8
3
7
2
6
1
5
4
PQ10
PQ10
MDV1522URH
MDV1522URH
8
3
7
2
6
1
5
4
PC30
PC30
0.1U/16V_4
0.1U/16V_4
PC33
PC33
C25
12
PC31
PC31
0.1U/16V_4
0.1U/16V_4
C25
10U/6.3V_6
10U/6.3V_6
1 2
+1.5V_GFX
Max Current : 14A
+3.3V_SUS
Max Current : 266mA
+5V_ALW2
12
C C
SUS_ON[38]
D D
PR123
PR123
100K_4
100K_4
SUS_ON#
61
PQ29B
PQ29B
2
DMN66D0LDW-7
DMN66D0LDW-7
12
EC212
EC212
2200P/50V_4
2200P/50V_4
5
12
PR115
PR115
100K_4
100K_4
SUS_ON_ENABLE
34
PQ29A
PQ29A
DMN66D0LDW-7
DMN66D0LDW-7
+3.3V_ALW+15V_ALW
1 2
PR114
PR114
20K/F_4
20K/F_4
1 2
PR73
PR73
10K_4
10K_4
PQ24
PQ24
FDC655BN
FDC655BN
6
5
2
1
PQ14
PQ14
FDC655BN
FDC655BN
6
5
2
1
+3.3V_SUS
4
12
PC138
3
12
PC130
PC130
0.047U/25V_4
0.047U/25V_4
PC138
0.1U/16V_4
0.1U/16V_4
+5V_SUS
Max Current : 100mA
+5V_SUS+5V_ALW
4
12
PC87
3
12
PC89
PC89
4700P/25V_4
4700P/25V_4
PC87
0.1U/16V_4
0.1U/16V_4
+1.05V_GFX
current : 3.76A
+15V_ALW+5V_ALW2 +1.05V_GFX+1.05V_PCH
200K_4
12
PR194
PR194
100K_4
100K_4
DGFX_VR_PWRGD#
61
PQ41B
PQ41B
DGFX_VR_PWRGD[56]
2
DMN66D0LDW-7
DMN66D0LDW-7
200K_4
PR195
PR195
1 2
34
PQ41A
PQ41A
5
DMN66D0LDW-7
DMN66D0LDW-7
8
7
6
5
12
C594
C594
*10U/6.3V_6_NC
*10U/6.3V_6_NC
Item 5
PQ42
PQ42
MDV1522URH
MDV1522URH
4
12
PC180
PC180
0.047U/25V_4
0.047U/25V_4
3
2
1
12
PC181
PC181
0.1U/16V_4
0.1U/16V_4
12
C477
C477
10U/6.3V_6
10U/6.3V_6
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Load Switch
Load Switch
Load Switch
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
1
2
3
4
Monday, March 05, 2012
PROJECT :
R09
R09
R09
1A
1A
50 57
50 57
5
50 57
1A
1
A A
2
3
4
5
PR102
PR102
10_6
10_6
1 2
PC110
PC110
0.047U/10V_4
0.047U/10V_4
1 2
PR89
PR89
71.5K/F_4
71.5K/F_4
1.05V_CS
12
+5V_SUS
Need confirm with EE
or not have pull high
resister for PG.
B B
1.05V_PCH_PWRGD[52]
+3.3V_RUN
1 2
PR90 100K_4PR90 100K_4
12
PC121
PC121
4.7U/6.3V_6
4.7U/6.3V_6
1.05V_VCC
10
9
8
13
CS
PGOOD
EN
PAD
5
VCC
PU5
PU5
RT8240BGQW
RT8240BGQW
GND
12
PR229
PR229
SJ0402
SJ0402
1 2
11
G0
3
UGATE
4
BOOT
2
PHASE
1
LGATE
VOUT
RGND
6
7
1.05V_DH
1.05V_BST
1.05V_LX1.05V_EN
1.05V_DL
1.05V_DH
1.05V_DL
H_VTTVID1 [9]
PR100
PR100
0_6
0_6
1 2
PQ21
PQ21
FDMC8878
FDMC8878
PC114
PC114
0.1U/25V_6
0.1U/25V_6
PQ17
PQ17
FDMS0310AS
FDMS0310AS
TP28TP28
TP23TP23
+PWR_SRC
12
EC33
EC33
2200P/50V_4
2200P/50V_4
876
4
12
2
351
876
9
12
PC116
351
PC116
*1000P/50V_4_NC
*1000P/50V_4_NC
12
PR92
PR92
*2.2_8_NC
*2.2_8_NC
4
2
12
EC32
EC32
0.1U/25V_6
0.1U/25V_6
PL3
PL3
0.68UH 20% 16A(TMPB0603M-R68MN-Z01)
0.68UH 20% 16A(TMPB0603M-R68MN-Z01)
1 2
12
PR101
PR101
*10_4_NC
*10_4_NC
12
PC115
PC115
10U/25V_8
10U/25V_8
R1
12
PC120
PC120
0.1U/16V_4
0.1U/16V_4
12
PC111
PC111
10U/25V_8
10U/25V_8
+1.05V_PCH
+
+
12
PC113
PC113
R7
330U/2V_7343
330U/2V_7343
+PWR_SRC
+1.0V_VCCIO
1.05 Volt DC +/- 2%
TDC : 13.4A
OCP : 18.5A
freq=400k
+1.05V_PCH
R3
VCCIO_SENSE1
VSSIO_SENSE1
C C
12
PR94
PR94
*10_4_NC
*10_4_NC
1 2
PR98 SJ0402PR98 SJ0402
PR97 SJ0402PR97 SJ0402
1 2
R4
VCCIO_SENSE [9]
VSSIO_SENSE [9]
R2
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
+1.05V_PCH / VTT (RT8240BGQW)
+1.05V_PCH / VTT (RT8240BGQW)
+1.05V_PCH / VTT (RT8240BGQW)
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
1
2
3
4
Monday, March 05, 2012
PROJECT :
5
R09
R09
R09
51 57
51 57
51 57
1A
1A
1A
5
PR38
PR38
10_6
10_6
D D
Need confirm
with EE or not
have pull high
resister for PG.
VCCSA_PWRGD[45]
C C
+5V_SUS +PWR_SRC
1 2
VCCSA_EN
1 2
VCCSA_VID0[9]
VCCSA_VID1[9]
1 2
PR35
PR35
137K/F_4
137K/F_4
VCCSA_CS
PR39 SJ0402PR39 SJ0402
VCCSA_EN1
VCSA_VCC
12
PC29
PC29
4.7U/6.3V_6
4.7U/6.3V_6
11
9
6
12
PC28
PC28
*0.047U/10V_4_NC
*0.047U/10V_4_NC
CS
PGOOD
EN
5
VCC
PU2
PU2
RT8241DGQW
RT8241DGQW
G0
7
4
PQ6
PQ6
NTTFS4930N
PR36
PR36
0_6
0_6
NTTFS4930N
PC27
PC27
0.1U/25V_6
0.1U/25V_6
12
PQ7
PQ7
NTTFS4930N
NTTFS4930N
TP2TP2
TP1TP1
12
13
PAD
GND
UGATE
BOOST
PHASE
LGATE
FB
G1
8
10
3
4
2
1
VCCSA_DH
VCCSA_BST
VCCSA_LX
VCCSA_DL
VCCSA_DH
VCCSA_DL
VCCSA_FB
1 2
876
4
2
351
876
4
2
351
3
12
EC18
EC18
2200P/50V_4
2200P/50V_4
12
PC25
PC25
*1000P/50V_4_NC
*1000P/50V_4_NC
12
PR33
PR33
*2.2_8_NC
*2.2_8_NC
+PWR_SRC
12
EC19
EC19
0.1U/25V_6
0.1U/25V_6
PL10
PL10
1UH 20% 12A(TMPB0603M-1R0MN-Z01)
1UH 20% 12A(TMPB0603M-1R0MN-Z01)
1 2
R1
12
12
PR196
PR196
*100_4_NC
*100_4_NC
1 2
PC26
PC26
10U/25V_8
10U/25V_8
PR34
PR34
SJ0402
SJ0402
12
PC183
PC183
0.1U/16V_4
0.1U/16V_4
2
+VCCSA_CORE
12
+
+
R3
PC182
PC182
390U/2.5V_63*58
390U/2.5V_63*58
1
+VCCSA_CORE
0.9 Volt +/- 5%
Fsw : 300K
TDC : 4.2A
OCP : 7A
+VCCSA_CORE
VCCSA_SENSE [9]
R2
VCCSA_VID1 VCCSA_VID0 VCCSA_CORE
Low 0.9V
High Low
High High
+5V_ALW
VCCSA_EN
+5V_ALW
+3.3V_RUN
12
PC93
PC93
0.1U/16V_4
0.1U/16V_4
PR87
PR87
10K_4
10K_4
1 2
4
PGOOD
9
PVIN
10
PVIN
PU3
PU3
RT8068AZQW
RT8068AZQW
8
SVIN
11
GND
1
LX1
2
LX2
3
LX3
7
NC
6
FB
5
EN
PC104
PC104
0.047U/10V_4
0.047U/10V_4
1 2
PR84 10K_4PR84 10K_4
12
PL2
PL2
1UH 20% 12A(TMPB0603M-1R0MN-Z01)
1UH 20% 12A(TMPB0603M-1R0MN-Z01)
1 2
1.05V_PCH_PWRGD [51]
B B
PR77
PR77
10_6
10_6
1 2
12
PC90
PC90
10U/6.3V_8
10U/6.3V_8
12
PC94
PC94
0.1U/16V_4
0.1U/16V_4
PC97
PC97
*22P/50V_4_NC
*22P/50V_4_NC
+3.3V_RUN
Low
HighLow
0.8V
0.725V
0.675V
+1.8V_RUN
12
12
PR79
PR79
R1
20K/F_4
12
20K/F_4
PR80
PR80
10K/F_4
10K/F_4
12
R2
PC95
PC95
0.1U/16V_4
0.1U/16V_4
12
PC98
PC98
10U/6.3V_8
10U/6.3V_8
12
PC103
PC103
10U/6.3V_8
10U/6.3V_8
+1.8V_RUN
+1.8V_RUN
1.8 Volt +/- 5%
TDC : 0.869A
OCP : 3.5A
freq=1M
A A
VOUT = 0.6(1+R1/R2)
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
VCCSA (RT8241DGQW)
VCCSA (RT8241DGQW)
VCCSA (RT8241DGQW)
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
5
4
3
2
Monday, March 05, 2012
PROJECT :
1
R09
R09
R09
52 57
52 57
52 57
1A
1A
1A
5
D D
TRBSTA#
R23
1 2
1 2
R24
*0.033U/25V_4_NC
*0.033U/25V_4_NC
PR66
PR66
*10_4_NC
*10_4_NC
PR67
PR67
*8.06K/F_4_NC
*8.06K/F_4_NC
PC61
PC61
C11
6132AGND
VCC_AXG_SENSE[9]
12
VR_SVID_CLK[9]
R14
5
IMVP_VR_ON[38]
+PWR_SRC
TRBST#
1 2
1 2
12
PR59
PR59
54.9/F_4
54.9/F_4
VR_SVID_DATA
6132AGND
PR68
PR68
0_4
0_4
PR48
PR48
1K/F_4
1K/F_4
VR_SVID_CLK
VSS_AXG_SENSE[9]
PR32 SJ0402PR32 SJ0402
1 2
PR214 SJ0402PR214 SJ0402
PR213 SJ0402PR213 SJ0402
PR52
PR52
10_4
10_4
1 2
DROOP
12
PR60 10K/F_4PR60 10K/F_4
PR58 64.9K/F_4PR58 64.9K/F_4
PR57
PR57
1K/F_4
1K/F_4
6132AGND
12
12
PC50
PC50
0.033U/25V_4
0.033U/25V_4
12
PR56
PR56
8.06K/F_4
8.06K/F_4
0.033U/25V_4
0.033U/25V_4
PC64
PC64
*1000P/50V_4_NC
*1000P/50V_4_NC
12
12
PC44
PC44
1000P/50V_4
1000P/50V_4
+1.05V_PCH
Item 6
C593
C593
*1U/6.3V_4_NC
*1U/6.3V_4_NC
C C
IMVP7_PROCHOT#[7,38,55]
B B
A A
PR62
PR62
130/F_4
130/F_4
6132AGND
VR_SVID_DATA[9]
VR_SVID_ALERT#[9]
IMVP_PWRGD[20,38,44]
VSSSENSE[9]
VCCSENSE[9]
CSCOMPA DROOPA
CSCOMP
C10
PC67
PC67
*0.033U/25V_4_NC
*0.033U/25V_4_NC
12
R25
PR64
PR64
*806/F_4_NC
*806/F_4_NC
1 2
PC198
PC198
PR220
PR220
R21
12
R19
PR222 *0_4_NCPR222 *0_4_NC
PR223 *0_4_NCPR223 *0_4_NC
R20
+5V_SUS
1 2
6132AGND
12
12
12
PC54
PC54
0.01U/25V_4
0.01U/25V_4
12
PC189
PC189
1000P/50V_4
1000P/50V_4
12
PC51
PC51
6132AGND 6132AGND
1 2
*10_4_NC
*10_4_NC
R22
1 2
PR219 *1K/F_4_NCPR219 *1K/F_4_NC
12
12
R16
12
PR224
PR224
0_4
0_4
PR216
PR216
2_6
2_6
1 2
Add GFX resister
PR241
PR241
12
0_4
0_4
IMVP7_PROCHOT#
IMVP_PWRGD
PR50
PR50
1K/F_4
1K/F_4
1 2
PR51
PR51
49.9/F_4
49.9/F_4
1 2
PR53
PR53
806/F_4
806/F_4
1 2
12
1 2
*33P/50V_4_NC
*33P/50V_4_NC
100P/50V_4
100P/50V_4
PC43
PC43
1 2
2+0 24.3K
CSREFA
CSREFCSREF
SJ0402
SJ0402
PC622.2U/6.3V_6 PC622.2U/6.3V_6
6132VRMP
PR54
PR54
24.3K/F_4
24.3K/F_4
112
C9
SJ2
SJ2
VSN
VSP
R1
2
6132AGND
VCC
VBOOT
ROSC
PR46
PR46
1 2
5.11K/F_4
5.11K/F_4
12
4
6132AGND
R10
PC195 0_4PC195 0_4
PR225
PR225
1 2
*4.3K/F_4_NC
*4.3K/F_4_NC
R26
C6
PC193
PC193
0_4
0_4
1 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PC42
PC42
1 2
33P/50V_4
33P/50V_4
3300P/50V_4
3300P/50V_4
PC47
PC47
0.1U/16V_4
0.1U/16V_4
4
C14
PC60
PC60
*0.1U/16V_4_NC
*0.1U/16V_4_NC
0_4
0_4
PR63
PR63
C4
1 2
PC197
PC197
1 2
*3300P/50V_4_NC
*3300P/50V_4_NC
VSPA
VSNA
59
60
61
VSNA
EPAD
VCC
VDDBP
VRDYA
EN
SDIO
ALERT#
SCLK
VBOOT
ROSC
VRMP
VRHOT#
VRDY
VSN
VSP
DIFF
TRBST#
17
16
FB
TRBST#
PC38
PC38
1 2
12
PR208
PR208
12.4K/F_4
12.4K/F_4
R2
2+0 12.4K
PUT COLSE
TO VCORE
Phase 1
Inductor
C12
DIFFA
58
VSPA
18
COMP
12
12
COMPA
FBA
TRBSTA#
57
56
55
FBA
DIFFA
TRBSTA#
COMP
IOUT
ILIM
19
20
ILIM
IMON
DROOP
1 2
C3
12
PC194
PC194
0_4
0_4
IMONA
R9
1 2
PR228 *21.5K/F_4_NCPR228 *21.5K/F_4_NC
IMONA
DROOPA
CSCOMPA
ILIMA
CSSUMA
CSREFA
54
52
49
50
53
51
ILIMA
IOUTA
COMPA
CSREFA
CSSUMA
DROOPA
CSCOMPA
CSCOMP22CSP325CSREF24CSSUM
DROOP21FB
CSP1
CSP2
23
27
26
CSP1
CSSUM
CSP2
CSP3
CSCOMP
CSREF
12
PC48
PC48
1000P/50V_4
1000P/50V_4
6132AGND
1 2
PC186 *330P/50V_4_NCPC186 *330P/50V_4_NC
1 2
PR200
PR200
1 2
75K/F_4
75K/F_4
PR201
PR201
220K_6 NTC
220K_6 NTC
C16
PC196
PC196
*820P/50V_4_NC
*820P/50V_4_NC
1 2
R8
PR221
PR221
*68.1K_4_NC
*68.1K_4_NC
iGPU_LX2
1 2
PR227
PR227
*68.1K_4_NC
*68.1K_4_NC
iGPU_LX1
1 2
R28
CSREFA [54]
PC58 0_4PC58 0_4
1 2
C5
check P/N for ONS 6132A/B
CSP1A
CSP2A
46
48
47
PU10
PU10
NCP6132A
NCP6132A
CSP2A
CSP1A
TSNSA
45
PWMA
44
BSTA
42
SWA
43
HGA
41
LGA
40
BST2
38
SW2
39
HG2
37
LG2
36
PVCC
35
PGND
34
LG1
32
HG1
31
BST1
33
SW1
DRVEN
TSNS
PWM
PR209
PR209
29
28
30
41.2K/F_4
41.2K/F_4
1 2
PC49
PC49
TSENSE
0.1U/16V_4
0.1U/16V_4
1 2
CSSUM
PC185
PC185
1000P/50V_4
1000P/50V_4
PR203
PR203
1 2
165K/F_4
165K/F_4
12
1 2
PR226
PR226
*165K/F_4_NC
*165K/F_4_NC
R31
6132AGND
iGPU_BST1
iGPU_LX1
iGPU_DH1
iGPU_DL1
BST2
SW2
HG2
LG2
LG1
HG1
BST1
SW1
R4
6132_PWM [54]
DRVEN [54]
6132AGND
CSREF [54]
1 2
PR202
PR202
137K/F_4
137K/F_4
1 2
PR205
PR205
137K/F_4
137K/F_4
1 2
PR207
PR207
*137K/F_4_NC
*137K/F_4_NC
2+0
3
R30
PR231
PR231
*75K/F_4_NC
*75K/F_4_NC
1 2
R27
*100K_4 NTC_NC
*100K_4 NTC_NC
PR232
PR232
1 2
R15
PR233
PR233
1 2
0_4
0_4
1 2
C13
PC59
PC59
*0.1U/16V_4_NC
*0.1U/16V_4_NC
PR218 *36K/F_4_NCPR218 *36K/F_4_NC
1 2
PR217
PR217
R18
*1.8_6_NC
*1.8_6_NC
1 2
iGPU_DH1 [54]
iGPU_DL1 [54]
PR215 0_6PR215 0_6
1 2
HG2 [54]
LG2 [54]
LG1 [54]
HG1 [54]
PR211 0_6PR211 0_6
1 2
2+0 41.2K
PUT COLSE
TO VCORE
HOT SPOT
PR199 100K_4 NTCPR199 100K_4 NTC
1 2
PR206 7.15K/F_4PR206 7.15K/F_4
1 2
Location
SW1
C13
SW2
C14
C15C15
SW3
R3
R28
R29
R30
R31
C16
3
R29
12
PR234
PR234
*220K_6 NTC_NC
*220K_6 NTC_NC
PUT COLSE
TO GT
Inductor
PR69
PUT COLSE
TO V_GT
HOT SPOT
6132AGND
6132_PWMA [54]
R5
PC192
PC192
*0.22U/25V_6_NC
*0.22U/25V_6_NC
12
PC190
PC190
0.22U/25V_6
0.22U/25V_6
12
PC188
PC188
0.22U/25V_6
0.22U/25V_6
12
P/N: CH4103K1B08
C8
iGPU_LX1 [54]
SW2 [54]
+5V_SUS
12
PC53
PC53
2.2U/6.3V_6
2.2U/6.3V_6
SW1 [54]
CSP1A CSP2A CSP3
A7-UMA
A7-OPT
(2+1phase)
CSP1A
CSREFA
CSP2A
CSREFA
CSP1
CSREF
CSP2
CSREF
CSP3
CSREF
+5V_SUS +5V_SUS +5V_SUS
R11 R12 R13
12
PR164
PR164
0_4
0_4
A7 Turbo-DIS
(3phase)
depop
P/N: CH4103K1B08 P/N: CH4103K1B08
P/N: CH21006JB10 depop
P/N: CS35762FB11 depop
P/N: CU422090000
P/N: CS37502FB12
P/N: CS41652FB14
P/N: CH18206KB11
R17
12
12
12
12
12
12
depop
depop
depop
depop
depop
PR69
*5.11K/F_4_NC
*5.11K/F_4_NC
1 2
PC65
PC65
*0.047U/10V_4_NC
*0.047U/10V_4_NC
C7
PR65
PR65
R7
*5.11K/F_4_NC
*5.11K/F_4_NC
1 2
PC63
PC63
*0.047U/10V_4_NC
*0.047U/10V_4_NC
C2
PR45
PR45
5.11K/F_4
5.11K/F_4
1 2
PC37
PC37
0.047U/10V_4
0.047U/10V_4
PR47
PR47
5.11K/F_4
5.11K/F_4
1 2
PC41
PC41
0.047U/10V_4
0.047U/10V_4
PR49
PR49
*5.11K/F_4_NC
*5.11K/F_4_NC
R6
1 2
PC45
PC45
*0.047U/10V_4_NC
*0.047U/10V_4_NC
C1
PR160
PR160
0_4
0_4
P/N: CU422090000
P/N: CS41652FB14
2
iGPU_LX1 [54]
iGPU_LX2 [54]
SW1 [54]
SW2 [54]
SW3 [54]
2+0
12
PR55
PR55
0_4
0_4
2+0
GLK-UMA
GLK-OPT
(3+2phase)
P/N: CH4103K1B08
P/N: CH21006JB10
P/N: CS35762FB11
P/N: CS37502FB12
P/N: CH18206KB11
2
Location
R1
R2
R3
R4
R5
R6
C1
R7
C2
R8
R9
R10
R11
R12
R13
C3
C4
C5
R14
C6
R15
R16
R17
C7
R18
C8
R19
R20
R21
R22
C9
R23
R24
C10
C11
R25
R26
C12
R27
1
A7-UMA
A7-OPT
(2+1phase)
A7 Turbo-DIS
(3phase)
P/N: CS32432FB01 P/N: CS32372FB05
P/N: CS32102FB14P/N: CS31242FB05
GLK-UMA
GLK-OPT
(3+2phase)
P/N: CS32372FB05
P/N: CS32102FB14
depop P/N: CS41302FB01 P/N: CS41302FB01
P/N: CS37322FB14 P/N: CS37322FB14P/N: CS34122FB19
P/N: CS32552FB03 depop P/N: CS33602FB07
P/N: CS25112FB15P/N: CS25112FB15depop
depop P/N: CH34702KB10 P/N: CH34702KB10
depop
depop
depop depop
P/N: CS31582FB12
P/N: CS32432FB01
depop
depop P/N: CH34702KB10
depop
P/N: CS00002JB38
P/N: CS25112FB15
P/N: CS35762FB11
P/N: CS32152BB00
P/N: CS32402FB15
depop P/N: CS00002JB38 depop
P/N: CS00002JB38
P/N: CS00002JB38
P/N: CS00002JB38 depop
depopdepop
P/N: CS00002JB38P/N: CH21006JB10 P/N: CH21006JB10
P/N: CH01006JB08 P/N: CS00002JB38 P/N: CH01006JB08
P/N: CH21006JB10 P/N: CS00002JB38 P/N: CH21006JB10
P/N: CS15102FB19
P/N: CH21006JB10
P/N: CS28252FB15
P/N: CS00002JB38
P/N: CS00002JB38
P/N: CS15102FB19
P/N: CH21006JB10
P/N: CS28252FB15P/N: CS00002JB38
P/N: CS00002JB38depop depop
P/N: CS25112FB15
P/N: CH34702KB10
P/N: CS00003J951
P/N: CH4224K9904
P/N: CS00002JB38
P/N: CS00002JB38
P/N: CS01002JB22
P/N: CS21002FB24
P/N: CH03306JB04
P/N: CS01002JB22 depop
P/N: CS22002FB19
P/N: CH16806KB17
P/N: CH24704KB19
P/N: CS31072FB10
P/N: CS24302FB07
P/N: CH23306JB16 P/N: CH23306JB16
P/N: CU4100B0000
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
CPU_CORE (NCP6132)
CPU_CORE (NCP6132)
CPU_CORE (NCP6132)
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
depop
depop
P/N: CS25112FB15
P/N: CH34702KB10
P/N: CS00003J951depop
depop P/N: CH4224K9904
depop
depop
P/N: CS00002JB38
P/N: CS00002JB38
P/N: CS01002JB22depop
P/N: CS21002FB24depop
P/N: CH03306JB04depop
P/N: CS01002JB22
depop
P/N: CS22002FB19
P/N: CH16806KB17depop
depop
depop
depop
P/N: CH24704KB19
P/N: CS31072FB10
P/N: CS24302FB07
depop
depop P/N: CU4100B0000
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
R09
R09
R09
53 57
53 57
1
53 57
1A
1A
1A
5
4
3
2
1
CPU Power
BST3
PR210
PR210
*2K/F_4_NC
*2K/F_4_NC
PC200
PC200
*2.2U/6.3V_6_NC
*2.2U/6.3V_6_NC
HG1
SW1
LG1
PR212
PR212
*0_6_NC
*0_6_NC
1 2
*NCP5911MNTBG_NC
*NCP5911MNTBG_NC
PU9
PU9
1
1
BST
BST
2
2
PWM
PWM
3
3
EN
EN
4
4
PC191
PC191
*0.22U/25V_6_NC
*0.22U/25V_6_NC
HG
HG
SW
SW
GND
GND
LGVCC
LGVCC
PAD
PAD
9
9
12
12
EC22
EC22
EC213
EC213
2200P/50V_4
2200P/50V_4
2200P/50V_4
PQ43
PQ43
FDMS3660S
FDMS3660S
9
HG3
12
8
8
7
7
6
6
5
5
SW3
LG3
PQ45
PQ45
*FDMS3660S_NC
*FDMS3660S_NC
2200P/50V_4
1
2
D1D1D1
G1
D1D1D1
G1
S1/D2
S1/D2
G2
G2
765
8
SW1[53]
CSREF[53]
1
G1
G1
S1/D2
S1/D2
9
G2
G2
8
S2S2S2
S2S2S2
2
765
CSREF
D1D1D1
D1D1D1
S2S2S2
S2S2S2
12
PC184
PC184
1000P/50V_4
1000P/50V_4
12
PR198
PR198
2_8
2_8
PR43
PR43
10_6
10_6
1 2
12
EC26
EC26
*2200P/50V_4_NC
*2200P/50V_4_NC
12
PC199
PC199
*1000P/50V_4_NC
*1000P/50V_4_NC
12
PR230
PR230
*2_8_NC
*2_8_NC
HG1[53]
D D
SW1[53]
LG1[53]
Depop for A7-UMA
Depop for A7-OPT
6132_PWM[53]
C C
+5V_SUS
1 2
DRVEN[53]
12
+PWR_SRC
12
12
EC23
EC23
0.1U/25V_6
0.1U/25V_6
PL11
PL11
0.24UH (ETQP4LR24AFM)
0.24UH (ETQP4LR24AFM)
1 2
+PWR_SRC
12
12
EC27
EC27
*0.1U/25V_6_NC
*0.1U/25V_6_NC
PL13
PL13
*0.24UH (ETQP4LR24AFM)_NC
*0.24UH (ETQP4LR24AFM)_NC
1 2
PC34
PC34
10U/25V_8
10U/25V_8
12
PC57
PC57
*10U/25V_8_NC
*10U/25V_8_NC
12
PC35
PC35
10U/25V_8
10U/25V_8
PC71
PC71
0.1U/16V_4
0.1U/16V_4
12
PC55
PC55
*10U/25V_8_NC
*10U/25V_8_NC
12
+PWR_SRC
12
EC215
EC215
0.1U/25V_6
0.1U/25V_6
HG2
SW2
LG2
12
+
+
PC178
PC178
*100U/25V_6.3_NC
*100U/25V_6.3_NC
12
EC216
EC216
2200P/50V_4
2200P/50V_4
12
+
+
PC179
PC179
*100U/25V_6.3_NC
*100U/25V_6.3_NC
12
EC217
EC217
0.1U/25V_6
0.1U/25V_6
12
EC25
EC25
*2200P/50V_4_NC
PQ44
PQ44
1
FDMS3660S
FDMS3660S
G1
G1
S1/D2
S1/D2
9
G2
G2
765
8
SW2[53]
CSREF[53]
12
12
EC219
EC219
EC218
EC218
0.1U/25V_6
0.1U/25V_6
2200P/50V_4
2200P/50V_4
*2200P/50V_4_NC
2
D1D1D1
D1D1D1
12
PC56
PC56
S2S2S2
S2S2S2
1000P/50V_4
1000P/50V_4
12
PR61
PR61
2_8
2_8
PR42
PR42
10_6
10_6
CSREF
1 2
12
+
+
PC40
PC40
330U/2V_7343
330U/2V_7343
12
12
EC222
EC222
C513
C513
0.1U/25V_6
0.1U/25V_6
*10U/25V_8_NC
*10U/25V_8_NC
place @ bottom
+VCC_CORE +VCC_CORE
2+0
PC36
PC36
PC70
PC70
*0.1U/16V_4_NC
*0.1U/16V_4_NC
+VCC_CORE
12
12
+
+
+
+
PC66
PC66
*330U/2V_7343_NC
*330U/2V_7343_NC
*330U/2V_7343_NC
*330U/2V_7343_NC
+PWR_SRC
+PWR_SRC
HG2[53]
SW2[53]
+PWR_SRC
12
LG2[53]
EC214
EC214
2200P/50V_4
2200P/50V_4
+PWR_SRC
12
12
EC24
EC24
0.1U/25V_6
0.1U/25V_6
PL12
PL12
0.24UH (ETQP4LR24AFM)
0.24UH (ETQP4LR24AFM)
1 2
12
+
+
PC52
PC52
330U/2V_7343
330U/2V_7343
PC46
PC46
10U/25V_8
10U/25V_8
12
PC39
PC39
10U/25V_8
10U/25V_8
12
PC69
PC69
0.1U/16V_4
0.1U/16V_4
QC 45W CPU
VID1=0.9V
IccMax=94A
Icc_Dyn=66A
Icc_TDC=52A
R_LL=1.9m ohm
OCP~110A
12
+
+
PC76
PC76
330U/2V_7343
330U/2V_7343
+VCC_CORE
PC68
PC68
330U/2V_7343
330U/2V_7343
12
+
+
SW3[53]
CSREF[53]
pop for GLK UMA
pop for GLK OPT
B B
A A
pop for A7-UMA
pop for A7-OPT
iGPU_LX1[53]
iGPU_DL1[53]
5
place @ bottom
12
2
765
D1D1D1
D1D1D1
S2S2S2
S2S2S2
CSREFA
12
C592
C592
EC31
EC31
*2200P/50V_4_NC
*2200P/50V_4_NC
*10U/25V_8_NC
*10U/25V_8_NC
12
PC77
PC77
*1000P/50V_4_NC
*1000P/50V_4_NC
12
Depop for all
PR70
PR70
*2_8_NC
*2_8_NC
PR237
PR237
*10_6_NC
*10_6_NC
1 2
QC 45W GT2
VID1=1.23V
IccMax=46A
Icc_Dyn=37A
Icc_TDC=38A
R_LL=3.9m ohm
OCP~55A
iGPU_LX1
iGPU_DH1
PQ46
PQ46
*FDMS3660S_NC
*FDMS3660S_NC
9
1
G1
G1
S1/D2
S1/D2
G2
G2
iGPU_DH1[53]
8
iGPU_DL1
iGPU_LX1[53]
CSREFA[53]
PR44
PR44
*10_6_NC
*10_6_NC
CSREF
1 2
+ICPU_PWR_SRC
12
12
EC30
EC30
PC78
PC78
*10U/25V_8_NC
*10U/25V_8_NC
*0.1U/25V_6_NC
*0.1U/25V_6_NC
PL14
PL14
*0.24UH (ETQP4LR24AFM)_NC
*0.24UH (ETQP4LR24AFM)_NC
1 2
4
+PWR_SRC
EL20
EL20
*BLM41PG600SN1L_NC
*BLM41PG600SN1L_NC
12
12
PC75
PC75
PC73
PC73
*10U/25V_8_NC
*10U/25V_8_NC
*10U/25V_8_NC
*10U/25V_8_NC
12
PC72
PC72
*0.1U/16V_4_NC
*0.1U/16V_4_NC
12
12
EC221
EC221
EC220
EC220
*2200P/50V_4_NC
*2200P/50V_4_NC
*0.1U/25V_6_NC
*0.1U/25V_6_NC
+VCC_GFX_CORE
6132_PWMA[53]
PC80
PC83
PC83
12
+
+
PC80
*330U/2V_7343_NC
*330U/2V_7343_NC
*330U/2V_7343_NC
*330U/2V_7343_NC
12
+
+
DRVEN[53]
+5V_SUS
3
1 2
iGPU_BST2
PR238
PR238
1 2
*2K/F_4_NC
*2K/F_4_NC
PR236
PR236
*1.8_6_NC
*1.8_6_NC
1 2
PU11
PU11
1
1
BST
BST
2
2
PWM
PWM
3
3
EN
EN
4
4
12
PC187
PC187
*2.2U/6.3V_6_NC
*2.2U/6.3V_6_NC
*0.22U/25V_6_NC
*0.22U/25V_6_NC
*NCP5911MNTBG_NC
*NCP5911MNTBG_NC
PAD
PAD
9
9
PC201
PC201
HG
HG
SW
SW
GND
GND
LGVCC
LGVCC
iGPU_DH2
12
8
8
7
7
6
6
5
5
iGPU_LX2
iGPU_DL2
PQ47
PQ47
*FDMS3660S_NC
*FDMS3660S_NC
9
2
1
G1
G1
S1/D2
S1/D2
G2
G2
8
2
765
iGPU_LX2[53]
CSREFA[53]
D1D1D1
D1D1D1
S2S2S2
S2S2S2
12
12
EC29
EC29
EC28
EC28
*2200P/50V_4_NC
*2200P/50V_4_NC
*0.1U/25V_6_NC
*0.1U/25V_6_NC
12
PC202
PC202
*1000P/50V_4_NC
*1000P/50V_4_NC
12
Depop for all
PR239
PR239
*2_8_NC
*2_8_NC
PR240
PR240
*10_6_NC
*10_6_NC
CSREFA
1 2
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
+ICPU_PWR_SRC
12
12
PC79
PC79
*10U/25V_8_NC
*10U/25V_8_NC
PL15
PL15
*0.24UH (ETQP4LR24AFM)_NC
*0.24UH (ETQP4LR24AFM)_NC
1 2
CPU_CORE (NCP6132)
CPU_CORE (NCP6132)
CPU_CORE (NCP6132)
Monday, March 05, 2012
Monday, March 05, 2012
Monday, March 05, 2012
PC81
PC81
*10U/25V_8_NC
*10U/25V_8_NC
PC85
PC85
*0.1U/16V_4_NC
*0.1U/16V_4_NC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
1
12
12
+VCC_GFX_CORE
PC84
PC84
12
+
+
Depop for all
R09
R09
R09
PC82
PC82
*10U/25V_8_NC
*10U/25V_8_NC
PC74
PC74
12
*330U/2V_7343_NC
*330U/2V_7343_NC
+
+
54 57
54 57
54 57
*330U/2V_7343_NC
*330U/2V_7343_NC
1A
1A
1A
A
B
C
D
E
+PWR_SRC
PQ2
PQ2
AON7403
1 1
12
12
12
+DC_IN_SS
REGN_LDO
12
PR11
PR11
10K/F_4
10K/F_4
12
PR15
PR15
12.4K/F_4
12.4K/F_4
PQ4B
PQ4B
DMN66D0LDW-7
DMN66D0LDW-7
1SS355
1SS355
PR12
PR12
63.4K/F_4
63.4K/F_4
PR23
PR23
10K/F_4
10K/F_4
PR190
PR190
316K/F_4
316K/F_4
100K/F_4
100K/F_4
AC_OK[47]
PD4
PD4
2 1
12
PR189
PR189
5
61
12
+DC_IN_SS
ACAV_IN[38,43]
2 2
PC203
PC203
0.01U/25V_4
0.01U/25V_4
+3.3V_ALW
+3.3V_ALW
8
7
6
5
PR2
PR2
10K_4
10K_4
1 2
34
PQ4A
PQ4A
DMN66D0LDW-7
DMN66D0LDW-7
PR16
PR16
2
change to 1206
PR165 10_12PR165 10_12
1 2
PC159
PC159
1U/25V_6
1U/25V_6
12
SMBDAT0[38,47]
SMBCLK0[38,47]
IINP[38]
12
PC177
PC177
0.01U/25V_4
0.01U/25V_4
AON7403
10K_4
10K_4
4
REGN_LDO
1 2
1
2
3
PR1
PR1
100K_4
100K_4
1 2
12
PR20
PR20
10K_4
10K_4
12
PR22
PR22
12.4K/F_4
12.4K/F_4
PC174
PC174
*100P/50V_NC
*100P/50V_NC
1 2
100K/F_4
100K/F_4
1 2
R4
PR25 SJ0402PR25 SJ0402
0.1U/25V_6
0.1U/25V_6
CMPOUT
PR179
PR179
VCHGR_PG
VCHGR_VCC
VCHGR_ACDET
12
PR24 SJ0402PR24 SJ0402
BQ24707_ILIM
PC167
PC167
12
100P/50V_4
100P/50V_4
12
CMPIN
12
PC176
PC176
PC1
PC1
1U/25V_6
1U/25V_6
12
3
4
5
6
8
9
10
7
PR7
PR7
0.01_12
0.01_12
1
1
2
1P
2P2P1P
PC162
PC162
0.1U/16V_4
0.1U/16V_4
12
ACP
ACN
1
2
ACP
ACN
CMPOUT
REGN
CMPIN
BTST
ACOK#
HIDRV
VCC20PHASE
ACDET
LODRV
SDA
SCL
ILIM
IOUT
IFAULT#
GND21GND22GND23GND24GND
25
2
16
17
18
19
15
14
GND
13
SRP
12
SRN
11
BQ24707ARGRR
BQ24707ARGRR
PU8
PU8
12
PC160
PC160
0.1U/25V_6
0.1U/25V_6
REGN_LDO
PD5
PD5
SDM10K45-7-F
SDM10K45-7-F
2 1
VCHGR_BST
VCHGR_DH
VCHGR_LX
VCHGR_DL
SRP
SRN
PR191
PR191
10K_4
10K_4
12
PC158
PC158
1U/10V_6
1U/10V_6
1 2
1 2
+3.3V_ALW
PR163
PR163
0_6
0_6
+PWR_SRC
PC157
PC157
0.047U/25V_4
0.047U/25V_4
12
12
EC51
EC51
2200P/50V_4
2200P/50V_4
12
EC10
EC10
2200P/50V_4
2200P/50V_4
876
PQ33
PQ33
AON7410
AON7410
4
2
351
876
4
PQ31
PQ31
2
351
AON7410
AON7410
12
EC52
EC52
0.1U/25V_6
0.1U/25V_6
12
EC11
EC11
0.1U/25V_6
0.1U/25V_6
PL6
PL6
4.7UH20%6A(TMPB0603M-4R7MN-Z01)
4.7UH20%6A(TMPB0603M-4R7MN-Z01)
1 2
12
PC150
PC150
*1000P/50V_4_NC
*1000P/50V_4_NC
12
PR125
PR125
*2.2_8_NC
*2.2_8_NC
12
PC7
PC7
10U/25V_8
10U/25V_8
PC169
PC169
0.1U/25V_6
0.1U/25V_6
1
2
3
PQ34
PQ34
AON7403
AON7403
4
12
12
+DC_IN_SS
PR181
PR181
470K_4
470K_4
1
1P
PR171
PR171
10_6
10_6
1 2
8
7
6
5
PR137
PR137
0.01_12
0.01_12
1
PC171
PC171
0.1U/16V_4
0.1U/16V_4
1 2
2P2P1P
PR177
PR177
2
7.5_6
7.5_6
+VCHGR+DC_IN_SS
EL18
EL18
1 2
*HCB3216VF-161T60(6A 160)_NC
*HCB3216VF-161T60(6A 160)_NC
EL19
12
PC5
PC5
10U/25V_8
10U/25V_8
12
EC60
EC60
2200P/50V_4
2200P/50V_4
EL19
1 2
HCB3216VF-161T60(6A 160)
HCB3216VF-161T60(6A 160)
12
EC58
EC58
1000P/50V_4
1000P/50V_4
Item18
12
EC59
EC59
0.1U/25V_6
0.1U/25V_6
+VCHGR_P+VCHGR_P1
2
12
PC2
PC2
10U/25V_8
10U/25V_8
12
12
PC173
PC173
0.1U/25V_6
0.1U/25V_6
3 3
A7-UMA
GLK-UMA
65WAdapter type
ADAPT_TRIP_SET
PR188
PR188
78.7K/F_4
1 2
78.7K/F_4
R3
PR21
PR21
1 2
2.2M_4
2.2M_4
R7
CMPOUTCMPIN
34
PQ40A
PQ40A
5
DMN66D0LDW-7
DMN66D0LDW-7
B
R5
PR187
PR187
120K/F_4
120K/F_4
1 2
61
PQ40B
PQ40B
ADAPT_TRIP_SET[38]
4 4
2
DMN66D0LDW-7
DMN66D0LDW-7
A
IMVP7_PROCHOT# [7,38,53]
C
SETTING CURRENT
R3
R4
R5
R7
0 1
3.7A 5.6A
P/N:CS33902FB16
P/N:CS42202FB10
P/N:CS36492FB17
P/N:CS52003F911
D
A7-OPT
A7 Turbo-DIS
GLK-OPT
130W90W 90W
0 1
5.6A 7.6A
P/N:CS37872FB07
P/N:CS41002FB28
P/N:CS41202FB17
P/N:CS52202JB00
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
PROJECT :
Charger (BQ24765RUVR)
Charger (BQ24765RUVR)
Charger (BQ24765RUVR)
E
R09
R09
R09
1A
1A
55 57Monday, March 05, 2012
55 57Monday, March 05, 2012
55 57Monday, March 05, 2012
1A
5
4
3
2
1
Depop for A7-UMA
Depop for GLK-UMA
D D
PR130 pop; PR135,PR242 depop
for Nvidia QS sample
DGPU_VREN[25]
+3.3V_GFX
C C
12
PR150
PR150
110K/F_4
110K/F_4
12
PC149
PC149
150P/50V_4
150P/50V_4
12
150P/50V_4
150P/50V_4
PR141
PR141
1.65K/F_4
1.65K/F_4
+VCC_DGFX_CORE
1 2
VDD_SENSE1
B B
GND_SENSE1
12
PC154
PC154
1000P/50V_4
1000P/50V_4
A7-OPT
Location
R5
GLK-OPT
(2phase)
P/N: CS41202FB17 P/N: CS37872FB15
12
R6 P/N: CS46492FB00 P/N: CS45622FB11
R7 P/N: CS21402FB02 P/N: CS22152FB07
R8 Depop P/N: CS42742FB00
R9
A A
P/N: CS00002JB38 Depop
R10
Depop P/N: CS00002JB38
PR135 SJ0402PR135 SJ0402
1 2
Need confirm with EE
or not have pull high
resister for PG.
DGFX_VR_PWRGD[50]
3218_FB
PR158
PR158
39.2K/F_4
39.2K/F_4
PC155
PC155
1 2
12
VGA_PWR_LEVEL_R
+5V_SUS
PR17
PR17
*100_4_NC
*100_4_NC
R1
PR18 SJ0402PR18 SJ0402
1 2
1 2
PR19 SJ0402PR19 SJ0402
*100_4_NC
*100_4_NC
PR126
PR126
R2
A7 Turbo-DIS
(3phase)
PR130 *0_4_NCPR130 *0_4_NC
12
12
PC156
PC156
33P/50V_4
33P/50V_4
PR172
PR172
1 2
7.32K
7.32K
PR174
PR174
220K_6 NTC
220K_6 NTC
R3
R4
12
+3.3V_GFX
12
1 2
12
PC165
PC165
0.01U/25V_4
0.01U/25V_4
VDD_SENSE [13]
GND_SENSE [13]
1K_4
1K_4
PR242
PR242
100K_4
100K_4
PR145
PR145
3218_COMP
PR161
PR161
5.11K/F_4
5.11K/F_4
12
N13XXX2
12
1
EN
2
PWRGD
3
IMON
4
CLKEN
5
FBRTN
6
FB
7
COMP
8
TRDET
9
VARFREQ
10
VRTT
11
TTSNS
12
AGND
49
GND
13
3218_IREF
3218_RPM
PR183 80.6K_4PR183 80.6K_4
PR184 47.5K/F_4PR184 47.5K/F_4
12
12
R5
VGA_PWR_LEVEL_R
0.85V
0.95V
1.0V
PR138 SJ0402PR138 SJ040 2
PR143 SJ0402PR143 SJ040 2
PR128SJ0402 PR128SJ0402
PR127SJ0402 PR127SJ0402
12
12
12
47
IREF
RPM14RT15RAMP16LLINE17CSREF18CSSUM
3218_RAPM
PR180 562K/F_4PR180 562K/F_4
3218_RT
PR185 78 .7K/F_4PR185 78.7K/F_4
R6
1 2
1 2
PR186 1K/F_ 4PR186 1K/F_4
1 2
+PWR_SRC
2
PR139 SJ0402PR139 SJ040 2
PR140SJ0402 PR140SJ0402
12
12
PU7
PU7
NCP3218MNR2G
NCP3218MNR2G
19
3218_LLINE
PR168 20K/F_4PR168 20K/F_4
12
PC175 1000P/50V_4PC175 1000P/50V_4
12
3218_CSREF
PC166
PC166
4.7U/6.3V_6
4.7U/6.3V_6
1 2
VGA_PWR_LEVEL#
31
PQ38
PQ38
2N7002W
2N7002W
41
PSI
VID642VID543VID444VID345VID246VID048VID1
CSCOMP
20
R7
3218_CSSUM
+5V_SUS
1
0
0
+5V_SUS
1 2
PR1440_ 4 PR1440_4
PR134*0_ 4_NC PR134*0_4_NC
R9
12
12
R10
40
37
39
PH138PH0
DPRSLP
PWM3
OD3
ILIM
23
22
21
24
12
OD3
PWM3
PR169
PR169
2.15K/F_4
2.15K/F_4
12
PC164
PC164
100P/50V_4
100P/50V_4
AGND_VCORE
VGA_PWR_LEVEL# [16,38 ]
0
1 1
1
PR136
PR136
10_6
10_6
VCC
36
BST1
35
DRVH1
34
SW1
33
SWFB1
32
PVCC
31
DRVL1
30
PGND
29
DRVL2
28
SWFB2
27
SW2
26
DRVH2
25
BST2
SWFB3
PR167
PR167
PR175 20K/F_4PR175 20K/F_4
3218_CSCOMP
12
PC170
PC170
1000P/50V_4
1000P/50V_4
1 2
PR173 27 4K/F_4PR173 274K/F_4
PR178 27 4K/F_4PR178 274K/F_4
PR170 27 4K/F_4PR170 274K/F_4
SJ1
SJ1
112
SJ0402
SJ0402
1U/6.3V_4
1U/6.3V_4
12
PC148
PC148
dGPU_BST1
dGPU_BST2
12
100_4
100_4
PR176
PR176
165K/F_4
165K/F_4
1 2
1 2
1 2
2
DGPU_VID1DGPU_VID3 DGPU_VID2
1
0
DGPU_VID0 [16]
DGPU_VID1 [16]
DGPU_VID2 [16]
DGPU_VID3 [16]
DGPU_VID4 [16]
DGPU_VID5 [16]
1 2
PR155
PR155
PR162
PR162
1 2
3218_LLINE
12
12
PR146
PR146
0_6
0_6
0.22U/25V_6
0.22U/25V_6
12
100_4
100_4
1 2
PC13 4 .7U/6.3V_6PC13 4.7U/6.3V_6
12
100_4
100_4
0.22U/25V_6
0.22U/25V_6
PR166
PR166
0_6
0_6
PR193
PR193
75K/F_4
75K/F_4
R8
PC152
PC152
+5V_SUS
PC161
PC161
12
12
12
PR192
PR192
220K_6 NTC
220K_6 NTC
N13XXX1
1
2
3
4
+5V_SUS
PU1
PU1
IN
SD
DRVLSD
CROWBAR
5
VCC
GND
7
ADP3611_DIS
ADP3611_DIS
1
0
0
dGPU_DH1
dGPU_LX1
dGPU_DL1
dGPU_DH2
dGPU_LX2
dGPU_DL2
PC22
PC22
1 2
4.7U/6.3V_6
4.7U/6.3V_6
10
BST
9
DRVH
8
SW
6
DRVL
0.825V
0.975V
1.0V
PUT COLSE TO
+VCC_GFX_CORE
Phase 1 Inductor
Depop for A7-OPT
Depop for GLK-OPT
PWM3
OD3 dGPU_DH3
0
1 0
0
PQ37
PQ37
FDMS3660S
FDMS3660S
PQ39
PQ39
FDMS3660S
FDMS3660S
PC24
PC24
0.22U/25V_6
0.22U/25V_6
12
PR30
PR30
0_0603_DIS
0_0603_DIS
dGPU_LX3
dGPU_DL3
DGPU_VID1DGPU_VID3 DGPU_VID2
1
1
+PWR_SRC
1
2
D1D1D1
G1
D1D1D1
G1
S1/D2
S1/D2
9
G2
G2
S2S2S2
S2S2S2
765
8
1
G1
G1
S1/D2
S1/D2
9
G2
G2
765
8
12
2
FDMS3660S
FDMS3660S
+PWR_SRC
D1D1D1
D1D1D1
S2S2S2
S2S2S2
PQ5
PQ5
9
PC12
PC12
1000P/50V_4
1000P/50V_4
12
PR9
PR9
2_8
2_8
PC16
PC16
1000P/50V_4
1000P/50V_4
12
PR13
PR13
2_8
2_8
1
G1
G1
S1/D2
S1/D2
G2
G2
8
+PWR_SRC
12
EC13
EC13
2200P/50V_4
2200P/50V_4
0.24UH (ETQP4LR24AFM)
0.24UH (ETQP4LR24AFM)
12
EC15
EC15
2200P/50V_4
2200P/50V_4
0.24UH (ETQP4LR24AFM)
0.24UH (ETQP4LR24AFM)
+PWR_SRC
2
D1D1D1
D1D1D1
S2S2S2
S2S2S2
765
+VCC_GFX_CORE
Fs=400K
Dis =30A
Turbo =42A
Dis OC=42A
Turbo OC=60A
12
12
EC12
EC12
0.1U/25V_6
0.1U/25V_6
PL7
PL7
+VCC_DGFX_CORE
12
12
PR27
PR27
10_6
10_6
3218_CSREF3218_CSREF
12
12
EC14
EC14
0.1U/25V_6
0.1U/25V_6
PL8
PL8
12
12
PR28
PR28
10_6
10_6
12
EC17
EC17
0.24UH (ETQP4LR24AFM)
0.24UH (ETQP4LR24AFM)
PC23
PC23
1000P/50V_4
1000P/50V_4
12
PR29
PR29
2_8
2_8
+VCC_DGFX_CORE
12
+
+
PC8
PC8
470U/2V_7343
470U/2V_7343
12
PC6
PC6
PC3
PC3
10U/25V_8
10U/25V_8
10U/25V_8
10U/25V_8
12
12
+
+
PC172
PC172
0.1U/16V_4
0.1U/16V_4
12
PC17
PC17
PC14
PC14
10U/25V_8
10U/25V_8
10U/25V_8
10U/25V_8
+VCC_DGFX_CORE
12
PC163
PC163
0.1U/16V_4
0.1U/16V_4
12
12
EC16
EC16
PC20
PC20
0.1U/25V_6
0.1U/25V_6
2200P/50V_4
2200P/50V_4
PL9
PL9
10U/25V_8
10U/25V_8
12
12
PR26
PR26
10_6
10_6
PC4
PC4
330U/2V_7343
330U/2V_7343
12
PC19
PC19
10U/25V_8
10U/25V_8
+VCC_DGFX_CORE
12
PC168
PC168
0.1U/16V_4
0.1U/16V_4
12
+
+
PC18
PC18
330U/2V_7343
330U/2V_7343
12
+
+
PC21
PC21
330U/2V_7343
330U/2V_7343
3218_CSREF
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
R09
PROJECT :
R09
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
VGA_N11P-dGFX (NCP3218MNR2G)
VGA_N11P-dGFX (NCP3218MNR2G)
VGA_N11P-dGFX (NCP3218MNR2G)
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
Monday, March 05, 2012
Date: Sheet of
5
4
3
2
Monday, March 05, 2012
R09
1
56 57
56 57
56 57
1A
1A
1A
5
DB CONNECTOR
4
3
2
1
D D
PCIE_EC_W AKE#[38,41]
PCIE_CLK_REQ4#[24]
LAN_PCIE_PWR_CTRL#[25]
CLK_PCIE_LANN[24]
CLK_PCIE_LANP[24]
USB_RIGHT_EN#[36,38]
+3.3V_LAN = 370mA
+3.3V_LAN
PLTRST#[7,13,23,38,41]
PCIE_TXN5[24]
PCIE_TXP5[24]
PCIE_RXN5[24]
PCIE_RXP5[24]
USBP2N[23]
USBP2P[23]
USB_OC1#[23]
USBP3N[23]
USBP3P[23]
USB3.0_RX4-[23]
USB3.0_RX4+[23]
USB3.0_TX4-[23]
USB3.0_TX4+[23]
USB3.0_RX3-[23]
USB3.0_RX3+[23]
USB3.0_TX3-[23]
USB3.0_TX3+[23]
+3.3V_ALW
+3.3V_SUS
C C
B B
R87 *0_6_NCR87 *0_6_NC
R88 *0_0603short_NCR88 *0_0603short_NC
RJ45 + USB 3.0* 2
+5V_ALW
FOX_GS12407-11141-9H
FOX_GS12407-11141-9H
+5V_ALW
+3.3V_LAN
1
1
2
2
45
3
3
44
4
4
5
5
43
6
6
42
7
7
41
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
CN1
CN1
45
44
43
42
41
+5V_ALW
+3.3V_LAN
C435
C435
0.1U/16V_4
0.1U/16V_4
12
12
C12
C12
0.1U/16V_4
0.1U/16V_4
12
C307
C307
*10U/6.3V_6_NC
*10U/6.3V_6_NC
Vostro - NA
USBP8P[23]
USBP8N[23]
Fingerprint
USBP8P
USBP8N
J2
J2
6
5
4
3
2
1
*HEADER 6_1_NC
*HEADER 6_1_NC
+3.3V_RUN
12
C201
C201
*0.1U/16V_4_NC
*0.1U/16V_4_NC
Power button board
+5V_SUS
J3
J3
BREATH_LED_R[46]
POWER_SW_IN0#[43]
12
EC105
EC105
100P/50V_4
A A
100P/50V_4
5
12
EC106
EC106
100P/50V_4
100P/50V_4
4
3
6
2
5
1
ACES 88513-044N
ACES 88513-044N
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
Wednesday, February 08, 2012
Date: Sheet of
4
3
2
Wednesday, February 08, 2012
PROJECT :
DB CONNECTOR
DB CONNECTOR
DB CONNECTOR
1
R09A
R09A
R09A
57 58
57 58
57 58
3A
3A
3A
Loading...
