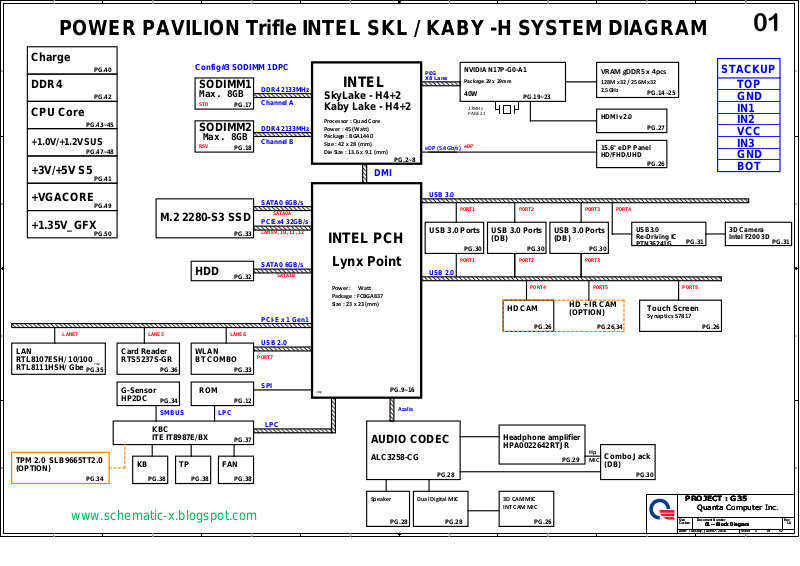

POWER PAVILION Trifle INTEL SKL / KABY -H SYSTEM DIAGRAM

LPC

FAN

For Layout Review

PG.17

PG.18

PG.33

PG.32

PG.33PG.35

PG.12

PG.37

PG.38PG.38PG.38

DDR4 2133MHz Channel A

DDR4 2133MHz Channel B

SATA0 6GB/s

SATA0A

PCIEx4 32GB/s

LANE9,10,11,12

SATA0 6GB/s

SATA1B

PCI-E x 1 Gen1

USB 2.0

PORT7

SPI

LPC

INTEL

SkyLake - H4+2 Kaby Lake - H4+2

Processor : Quad Core Power : 45 (Watt) Package : BGA1440 Size : 42 x 28 (mm) Die Size : 13.6 x 9.1 (mm)

DMI

INTEL PCH

Lynx Point

Power : Watt Package : FCBGA837 Size : 23 x 23 (mm)

cdp

AUDIO CODEC

ALC3258-CG

PG.2~8

PG.9~16

Azalia

PEG X8 Lane

eDP (5.4Gb/s)

USB 3.0

NVIDIA N17P-G0-A1

Package 29 x 29mm

40W

eDP

PORT1

USB 3.0 Ports

PG.30 PG.30

PORT1

USB 2.0

PG.28

27MHz PAGE 21

PG.19~23

PORT2

USB 3.0 Ports (DB)

PG.30

PORT2

PORT4

HD CAM

Headphone amplifier HPA0022642RTJR

PORT3

USB 3.0 Ports (DB)

PORT3

PORT5

HD + IR CAM (OPTION)

PG.26,34

Hp

PG.29

MIC

VRAM gDDR5 x 4pcs

128M x32 / 256M x32

2.5GHz

HDMI v2.0

15.6" eDP Panel HD/FHD/UHD

PORT4

PG.14~25

PG.27

PG.26

USB3.0 Re-Driving IC PTN36241G

Touch Screen

Synaptics S7817

Combo Jack (DB)

PG.30

STACKUP

PORT8

PG.26PG.26

Charge

A A

PG.40

DDR4

PG.42

Config#3 SODIMM 1DPC

SODIMM1

Max. 8GB

STD

CPU Core

PG.43~45

+1.0V/+1.2VSUS

PG.47~48

+3V/+5V S5

B B

+VGACORE

PG.41

PG.49

SODIMM2

Max. 8GB

RSV

M.2 2280-S3 SSD

+1.35V_GFX

PG.50

HDD

C C

LANE7

LAN RTL8107ESH/ 10/100 RTL8111HSH/ Gbe

TPM 2.0 SLB9665TT2.0

D D

(OPTION)

cdp

PG.34

LANE5 LANE6

Card Reader RTS5237S-GR

PG.36

G-Sensor HP2DC

PG.34

SMBUS

KBC ITE IT8987E/BX

KB TP

WLAN BT COMBO

ROM

01

TOP GND IN1 IN2 VCC IN3 GND BOT

3D Camera Intel F200 3D

PG.31PG.31

1

2

w w w . c h i n a f i x . c o m

3

4

Dual Digital MICSpeaker

PG.28 PG.28

5

3D CAM MIC INT CAM MIC

PG.26

PROJECT : G35

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

01 -- Block Diagram

Date: Sheet of

Date: Sheet

6

7

Date: Sheet

of

1 52Tuesday, June 07, 2016
