QUANTA FL8 Schematics

5

PCB STACK UP 8L

LAYER 1 : TOP LAYER 2 : SGND LAYER 3 : IN1 LAYER 4 : IN2 LAYER 5 : SVCC

D D

LAYER 6 : IN3 LAYER 7 : SGND1 LAYER 8 : BOT

DDR3 SO-DIMM 1 (STD)

D/M Note Block Diagram -- Intel Huron River ULV

DDR3 SO-DIMM 2 (RVS)

Page 13

Page 14

4

Intel Huron River

Sandy Bridge

31mmX24mm, BGA

2 Core 18Watt

FDI

Page 3, 4, 5, 6

X4 DMI

3

Environment temperature

Thermal Sensor

Page 26

Charger temperature

Thermal Sensor

Page 26

DDR

Thermal Sensor

Page 13

2

1

POWER

DC/DC

3V_PCU, 5V_PCU, +15V

REGULATOR (DDR3)

1.5V_SUS, 0.75V_DDR_VTT

REGULATOR

1.05V&1.8V

REGULATOR

VCCSA

CPU Core

Charger

RUN POWER SW/Discharge

5V_SUS, 3V_S5, 5V_S5 +3V, +5V

Page 31

Page 32

Page 33

Page 34

Page 35

Page 36

Page 37

USB

Card Reader Realtek RTS5209

C C

HP/Mic Audio Jack

Page 18

HDA CODEC

CX20671-21Z

Page 18

HD Audio

Cougar Point

Internal MIC

B B

SPI Flash (4MB)

Internal SPK

Page 18Page 18

Page 8

32.768KHz

HM65

25mmX25mm, BGA

PCH 3.9Watt

Page 7, 8, 9, 10, 11, 12

PCI-e/USB

PCI-e

SATA

Mini PCIe Slot

Page 22 Page 22

Page 23

10/100/1G Ethernet

AR8151-BL1A-R++

2.5" HDD /

SSD Module

(Option)

Page 17

Page 21

WLAN Module

WWAN Module

Page 23

RJ-45

Page 19

LPC BUS

SPI Flash (512K)

Accelerometer (APS)

A A

Page 25

Int. KB T/P Battery

Page 24 Page 24

Page 28

IT8518

Page 28

Page 36 Page 36

TPM

(for M-note)

Page 25

Charger

USB

Camera Conn

Bluetooth

USB PORT X 3

Page 15 Page 15

Page 25

Page 20

Camera Module

4 in 1 Socket

SD/SDHC/SDXC/MMC

SIM Card

Page 23

Page 17

LVDS

RGB

HDMI

11.6" HD (1366x768) LCD

CRT

HDMI

Page 16

Page 21

Page 15

Page 16

USB

5

4

Fingerprint(for M-note)

3

Page 24

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

System Block Diagram

1

1 43Monday, January 31, 2011

1A

1

2

3

4

5

6

7

8

02

Table of Contents

PAGE DESCRIPTION

LOCK DIAGRAM(UMA)

A A

B B

C C

01

02 03-06 07-12 13-14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

FRONT PAGE Sandy Bridge Cougar Point-PCH DDRIII SO-DIMM LCD/CAMERA CRT/HDMI CONN LAN-RTL8111E-VB-GR AUDIO (CX20671-21Z, SPK) SATA USB X 3 Card Reader-RTS5209 WLAN WWAN KB/TP/FP BT/G-SENSOR/TPM FAN/Thermal SW/LED/RFID_EEPROM KBC IT8518/19

Screw Hole/EMI Power Block Diagram POWER_3V/5V (RT8206MGQW) POWER_DDR3 (TPS51116) POWER_1.05V&1.8V (OZ8117)

POWER_+VCCSA (OZ8117)

POWER_+VCC_CORE(ISL95831)

POWER_Charger (ISL88731A)

POWER_Discharge

Power On Sequence

BOM Matrix Table

Schematic Value Descript

EC RECORD DV +VCC_CORE

Power EC RECORD DV

POWER PLANE

VIN +3V_RTC 3VPCU 5VPCU +15V LANVCC 5V_S5 +5V

3V_S5

5VSUS 3VSUS +1.5VSUS +0.75V_DDR_VTT +5V

+3V

+VCC_GFX +VCCSA +1.8V +1.05V

+LCDVCC +3V_HDD +5V_HDD

BAT-V

VOLTAGE PAGE

10V~+20V

+3.0V~+3.3V

+3.3V +5V +15V +3.3V

+3.3V

+5V +3.3V +1.5V +0.75V +5V

+3.3V

+0.8V~+0.9V

+1.8V +1.05V

+3.3V +3V +5V

+10V~+17V

15,31,32,33,34,35,36,37 7,8,11,28 8,15,16,17,20,27,28,31,33,36,37 15,29,31,32,33,34,36,37 15,25,31,32,37 17,37 11,20,37

3,7,8,9,10,11,22,25,27,28,37

15,27,35,37 32,37 3,11,13,14,32,37 13,14,32,37 7,8,11,15,16,18,19,24,26,28,29,37 3,7,8,9,10,11,13,14,15,16,17,18,19,21,22,23

24, 25,26,27,28,29

5,35,37 5,34,37 5,8,11,33,37 3,5,7,8,9,11,33,37 5,6,35,37 15 19 19 36

Power States

MAIN POWER RTC IT8518/19 POWER DC/DC POWER IC SOURCE LARGE POWER LAN POWER PCH SUS POWER Sys Management,PCH Resume Well,

USB,WLAN,WiMAX POWER

SLP_S4# CTRLD POWER SLP_S4# CTRLD POWER DDR3 SODIMM POWER DDR3 SODIMM REFERENCE POWER SLP_S3# CTRLD POWER

SLP_S3# CTRLD POWER

VGA CORE POWER Sandy Bridge Power LVDS,NVM POWER

Sandy Bridge VTT POWER/PCH CORE POWER

CPU CORE POWER LCD Power ODD Power HDD Power MAIN BATTERY

DESCRIPTION

CONTROL SIGNAL

3V5V_EN 3V5V_EN 3V5V_EN LAN_ON S5_ON

S5_ON

SUSON SUSON SUSON MAINON MAINON

MAINON

MAINON MAINON MAINON MAINON VRON ENVDD ODD_5V_ON MAINON# CHG_PBATT

ACTIVE IN

S0~S5 S0~S5 S0~S5 S0~S5 S0~S5

S0~S3 S0~S3

S0~S3 S0~S3 S0~S3

S0 S0

S0

S0 S0 S0 S0S0 S0 S0 S0 S0

S0~S5

+1.5V_CPU

D D

1

2

3

3,5,32,37 S0+1.5V

4

5

DDR3 1.5V Rails PS_S3CNTRL

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

6

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

System Block Diagram

7

1A

2 43Monday, January 31, 2011

8

1A

5

4

3

2

1

Sandy Bridge Processor (DMI,PEG,FDI) Sandy Bridge Processor (CLK,MISC,JTAG)

+1.05V

CPU_DRAMRST#

R60

4.99K/F_4

03

U25B

U25A

DMI_TXN0(7) DMI_TXN1(7) DMI_TXN2(7) DMI_TXN3(7)

DMI_TXP0(7) DMI_TXP1(7)

D D

C C

B B

DMI_TXP2(7) DMI_TXP3(7)

DMI_RXN0(7) DMI_RXN1(7) DMI_RXN2(7) DMI_RXN3(7)

DMI_RXP0(7) DMI_RXP1(7) DMI_RXP2(7) DMI_RXP3(7)

FDI_TXN0(7) FDI_TXN1(7) FDI_TXN2(7) FDI_TXN3(7) FDI_TXN4(7) FDI_TXN5(7) FDI_TXN6(7) FDI_TXN7(7)

FDI_TXP0(7) FDI_TXP1(7) FDI_TXP2(7) FDI_TXP3(7) FDI_TXP4(7) FDI_TXP5(7) FDI_TXP6(7) FDI_TXP7(7)

FDI_FSYNC0(7) FDI_FSYNC1(7)

FDI_INT(7)

FDI_LSYNC0(7) FDI_LSYNC1(7)

eDP_COMP INT_eDP_HPD_Q

eDP_COMP connect to PIN AF3 W:4mils/S:15mils/L: 500mils. eDP_COMP connect to PIN AD2 W:12mils/S:15mils/L: 500mils.

M2 P6 P1

P10

N3 P7 P3

P11

K1 M8 N4 R2

K3 M7 P4

T3

U7

W11

W1

AA6

W6

V4 Y2

AC9

U6

W10

W3

AA7

W7

T4 AA3 AC8

AA11 AC12

U11

AA10

AG8

AF3 AD2

AG11

AG4

AF4

AC1 AA4

AE10

AE6 AC3

AC4

AE11

AE7

IC,SNB_2CBGA,1P0

DMI_RX#[0] DMI_RX#[1] DMI_RX#[2] DMI_RX#[3]

DMI_RX[0] DMI_RX[1] DMI_RX[2] DMI_RX[3]

DMI_TX#[0] DMI_TX#[1] DMI_TX#[2] DMI_TX#[3]

DMI_TX[0] DMI_TX[1] DMI_TX[2] DMI_TX[3]

FDI0_TX#[0] FDI0_TX#[1] FDI0_TX#[2] FDI0_TX#[3] FDI1_TX#[0] FDI1_TX#[1] FDI1_TX#[2] FDI1_TX#[3]

FDI0_TX[0] FDI0_TX[1] FDI0_TX[2] FDI0_TX[3] FDI1_TX[0] FDI1_TX[1] FDI1_TX[2] FDI1_TX[3]

FDI0_FSYNC FDI1_FSYNC

FDI_INT FDI0_LSYNC

FDI1_LSYNC

eDP_COMPIO eDP_ICOMPO eDP_HPD

eDP_AUX# eDP_AUX

eDP_TX[0] eDP_TX[1] eDP_TX[2] eDP_TX[3]

eDP_TX#[0] eDP_TX#[1] eDP_TX#[2] eDP_TX#[3]

DMI Intel(R) FDI DP

PEG_ICOMPI

PEG_ICOMPO

PEG_RCOMPO

PEG_RX#[0] PEG_RX#[1] PEG_RX#[2] PEG_RX#[3] PEG_RX#[4] PEG_RX#[5] PEG_RX#[6] PEG_RX#[7] PEG_RX#[8]

PEG_RX#[9] PEG_RX#[10] PEG_RX#[11] PEG_RX#[12] PEG_RX#[13] PEG_RX#[14] PEG_RX#[15]

PEG_RX[0] PEG_RX[1] PEG_RX[2] PEG_RX[3] PEG_RX[4] PEG_RX[5] PEG_RX[6] PEG_RX[7] PEG_RX[8]

PEG_RX[9] PEG_RX[10] PEG_RX[11] PEG_RX[12] PEG_RX[13] PEG_RX[14] PEG_RX[15]

PEG_TX#[0] PEG_TX#[1] PEG_TX#[2] PEG_TX#[3] PEG_TX#[4] PEG_TX#[5] PEG_TX#[6] PEG_TX#[7] PEG_TX#[8] PEG_TX#[9]

PEG_TX#[10] PEG_TX#[11] PEG_TX#[12]

PCI EXPRESS -- GRAPHICS

PEG_TX#[13] PEG_TX#[14] PEG_TX#[15]

PEG_TX[0]

PEG_TX[1]

PEG_TX[2]

PEG_TX[3]

PEG_TX[4]

PEG_TX[5]

PEG_TX[6]

PEG_TX[7]

PEG_TX[8]

PEG_TX[9] PEG_TX[10] PEG_TX[11] PEG_TX[12] PEG_TX[13] PEG_TX[14] PEG_TX[15]

PEG_COMP

G3 G1 G4

H22 J21 B22 D21 A19 D17 B14 D13 A11 B10 G8 A8 B6 H8 E5 K7

K22 K19 C21 D19 C19 D16 C13 D12 C11 C9 F8 C8 C5 H6 F6 K6

G22 C23 D23 F21 H19 C17 K15 F17 F14 A15 J14 H13 M10 F10 D9 J4

F22 A23 D24 E21 G19 B18 K17 G17 E14 C15 K13 G13 K10 G10 D8 K4

PEG_COMP connect to PIN G3&G4 W:4mils/S:15mils/L: 50 PEG_COMP connect to PIN G1 W:12mils/S:15mils/L: 500mils.

PROC_SELECT#(8)

SNB_IVB# N.A at SNB EDS #27637 0.7v1

Placement close to EC.

EC_PECI(10,28)

H_PROCHOT#(28,35)

PM_THRMTRIP#(10)

PM_SYNC(7)

H_PWRGOOD(10)

U1

CPU RESET#

PLTRST#(9,17,21,22,23,25,27)

U1

4

GND3OUT

2

IN

1

VCC5NC

74LVC1G07GW

R13 *1.5K/F_4R13 *1.5K/F_4

SM_DRAMPWROK Processor Input.

SYS_PWROK(7,32)

PM_DRAM_PWRGD(7)

PM_DRAM_PWRGD_R

R66 *short_4R66 *short_4

EC-SIT-1

R65

R65 *1.1K/F_4

*1.1K/F_4

R64 *3K/F_4R64 *3K/F_4

0mils.

SKTOCC#

TP3TP3

TP_CATERR#

TP6TP6

R366 43_4R366 43_4

R20 56.2/F_4R20 56.2/F_4

R365 *short_4R365 *short_4

H_PECI

H_PROCHOT#_R

PM_THRMTRIP#_R

EC-SIT-1

R353 *short_4R353 *short_4

R11 *short_4R11 *short_4 R19 10K/F_4R19 10K/F_4

R9 75_4R9 75_4

+1.05V

CPU_PLTRST# CPU_PLTRST#_RCPU_PLTRST#_R

3V_S5

2 1

C6

0.1U/10V/X7R_4

3V_S5

U6

74AHC1G09U674AHC1G09

3 5

R12 43_4R12 43_4

C142

0.1U/10V/X7R_4

4

R80 *39_4R80 *39_4

PM_SYNC_R

H_PWRGOOD_R

PM_DRAM_PWRGD_R

+1.5V_CPU

R22

R22 *750/F_4

*750/F_4

3

Q14 *2N7002KQ14 *2N7002K

U25B

F49

C57

C49

A48

C45

D45

C48

B46

BE45

D44

IC,SNB_2CBGA,1P0

R73

R73 200/F_4

200/F_4 R69 130/F_4R69 130/F_4

1

2

PROC_SELECT#

PROC_DETECT#

CATERR#

PECI

PROCHOT#

THERMTRIP#

PM_SYNC

UNCOREPWRGOOD

SM_DRAMPWROK

RESET#

PM_DRAM_PWRGD_RPM_DRAM_PWRGD_Q

MAINON# (37)

MISC THERMAL PWR MANAGEMENT

CLOCKS

DDR3

MISC

DDR3

MISC

JTAG & BPM

BCLK

BCLK#

DPLL_REF_CLK

DPLL_REF_CLK#

BCLK_ITP

BCLK_ITP#

SM_DRAMRST#

SM_RCOMP[0] SM_RCOMP[1] SM_RCOMP[2]

PRDY# PREQ#

TRST#

DBR#

BPM#[0] BPM#[1] BPM#[2] BPM#[3] BPM#[4] BPM#[5] BPM#[6] BPM#[7]

DDR3_DRAMRST#(13,14)

DRAMRST_CNTRL_PCH(9)

TCK TMS

TDI

TDO

J3 H2

AG3 AG1

N59 N58

AT30

BF44 BE43 BG43

N53 N55

L56 L55 J58

M60 L59

K58

G58 E55 E59 G55 G59 H60 J59 J61

CLK_CPU_BCLKP (9) CLK_CPU_BCLKN (9)

CLK_DPLL_SSCLKP_R CLK_DPLL_SSCLKN_R

BCLK_ITP BCLK_ITP#

CPU_DRAMRST#

SM_RCOMP_0

R48 140/F_4R48 140/F_4

SM_RCOMP_1

R49 25.5/F_4R49 25.5/F_4

SM_RCOMP_2

XDP_PRDY# XDP_PREQ#

XDP_TCLK XDP_TMS XDP_TRST#

XDP_TDI XDP_TDO

XDP_DBRST#

XDP_BPM0 XDP_BPM1 XDP_BPM2 XDP_BPM3 XDP_BPM4 XDP_BPM5 XDP_BPM6 XDP_BPM7

R50 200/F_4R50 200/F_4

R374 *1K/F_4R374 *1K/F_4

SM_RCOMP[0] W:20mils/S:20mils/L: 500mils,

M_RCOMP[1] W:20mils/S:20mils/L: 500mils,

S SM_RCOMP[2] W:15mils/S:20mils/L: 500mils,

TP55TP55 TP56TP56

TP8TP8 TP7TP7

TP9TP9 TP1TP1 TP50TP50

TP57TP57 TP54TP54

XDP_DBRST# (7)

TP51TP51 TP5TP5 TP4TP4 TP2TP2 TP48TP48 TP52TP52 TP49TP49 TP53TP53

T14T14

R383 1K_4R383 1K_4 R382 1K_4R382 1K_4

T13T13

CPU XDP

DDR3 DRAM RESET

3

C133

0.047U/10V/X7R_4

R44 *0_4R44 *0_4R45 1K/F_4R45 1K/F_4

+1.5VSUS

R47 1K/F_4R47 1K/F_4

R67 *short_4R67 *short_4

+3V

2

Q5 2N7002Q52N7002

1

+1.5VSUS (11,13,14,29,32,37) +1.05V (5,7,8,9,11,29,33,37) +1.5V_CPU (5,29,32,37) 3V_S5 (7,8,9,10,11,22,25,28,37) +3V (7,8,9,10,11,13,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37)

DP & PEG Compensation

R381 10K/F_4R381 10K/F_4

+1.05V

R380 24.9/F_4R380 24.9/F_4

A A

5

4

3

+1.05V

eDP_COMPIO and ICOMPO signals should be shorted near balls and routed with typical impedance <25 mohms

R377 24.9/F_4R377 24.9/F_4

+1.05V

PEG_ICOMPI and RCOMPO signals should be routed within 500 mils typical impedance = 43 mohms PEG_ICOMPO signals should be routed within 500 mils typical impedance = 14.5 mohms

INT_eDP_HPD_Q

eDP_COMP

PEG_COMP

2

Processor pull-up (CPU)

H_PROCHOT# XDP_TDO XDP_TMS XDP_TDI XDP_PREQ# XDP_TCLK XDP_TRST#

R21 62_4R21 62_4 R378 51/F_4R378 51/F_4 R18 51/F_4R18 51/F_4 R379 51/F_4R379 51/F_4 R33 *51/F_4R33 *51/F_4 R32 51/F_4R32 51/F_4 R373 51/F_4R373 51/F_4

Size Document Number Rev

Date: Sheet of

+1.05V

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Custom

SNB 1/4 (PCIE&DMI&FDI)

1

1A

3 43Monday, January 31, 2011

1A

5

4

3

2

1

04

Sandy Bridge Processor (DDR3)

U25C

AP11

AJ10

AR11

AT13 AU13

BA13 BB11

AY13 AV14 AR14 AY17 AR19 BA14 AU14 BB14 BB17 BA45 AR43

AW48

BC48 BC45 AR45 AT48 AY48 BA49 AV49 BB51 AY53 BB49 AU49 BA53 BB55 BA55 AV56 AP50 AP53 AV54 AT54 AP56 AP52 AN57 AN53 AG56 AG53 AN55 AN52 AG55 AK56

BD37 BF36 BA28

BE39 BD39 AT41

AG6 AJ6

AL6 AJ8

AL8 AL7

AP6 AU6 AV9 AR6 AP8

BC7 BB7

BA7 BA9 BB9

U25C

SA_DQ[0] SA_DQ[1] SA_DQ[2] SA_DQ[3] SA_DQ[4] SA_DQ[5] SA_DQ[6] SA_DQ[7] SA_DQ[8] SA_DQ[9] SA_DQ[10] SA_DQ[11] SA_DQ[12] SA_DQ[13] SA_DQ[14] SA_DQ[15] SA_DQ[16] SA_DQ[17] SA_DQ[18] SA_DQ[19] SA_DQ[20] SA_DQ[21] SA_DQ[22] SA_DQ[23] SA_DQ[24] SA_DQ[25] SA_DQ[26] SA_DQ[27] SA_DQ[28] SA_DQ[29] SA_DQ[30] SA_DQ[31] SA_DQ[32] SA_DQ[33] SA_DQ[34] SA_DQ[35] SA_DQ[36] SA_DQ[37] SA_DQ[38] SA_DQ[39] SA_DQ[40] SA_DQ[41] SA_DQ[42] SA_DQ[43] SA_DQ[44] SA_DQ[45] SA_DQ[46] SA_DQ[47] SA_DQ[48] SA_DQ[49] SA_DQ[50] SA_DQ[51] SA_DQ[52] SA_DQ[53] SA_DQ[54] SA_DQ[55] SA_DQ[56] SA_DQ[57] SA_DQ[58] SA_DQ[59] SA_DQ[60] SA_DQ[61] SA_DQ[62] SA_DQ[63]

SA_BS[0] SA_BS[1] SA_BS[2]

SA_CAS# SA_RAS# SA_WE#

AU36

SA_CLK[0]

AV36

SA_CLK#[0]

AY26

SA_CKE[0]

AT40

SA_CLK[1]

AU40

SA_CLK#[1]

BB26

SA_CKE[1]

BB40

SA_CS#[0]

BC41

SA_CS#[1]

AY40

SA_ODT[0]

BA41

SA_ODT[1]

M_A_DQSN0

AL11

SA_DQS#[0] SA_DQS#[1] SA_DQS#[2] SA_DQS#[3] SA_DQS#[4] SA_DQS#[5] SA_DQS#[6] SA_DQS#[7]

SA_DQS[0] SA_DQS[1] SA_DQS[2] SA_DQS[3] SA_DQS[4] SA_DQS[5] SA_DQS[6] SA_DQS[7]

DDR SYSTEM MEMORY A

SA_MA[0] SA_MA[1] SA_MA[2] SA_MA[3] SA_MA[4] SA_MA[5] SA_MA[6] SA_MA[7] SA_MA[8]

SA_MA[9] SA_MA[10] SA_MA[11] SA_MA[12] SA_MA[13] SA_MA[14] SA_MA[15]

AR8 AV11 AT17 AV45 AY51 AT55 AK55

AJ11 AR10 AY11 AU17 AW45 AV51 AT56 AK54

BG35 BB34 BE35 BD35 AT34 AU34 BB32 AT32 AY32 AV32 BE37 BA30 BC30 AW41 AY28 AU26

M_A_DQSN1 M_A_DQSN2 M_A_DQSN3 M_A_DQSN4 M_A_DQSN5 M_A_DQSN6 M_A_DQSN7

M_A_DQSP0 M_A_DQSP1 M_A_DQSP2 M_A_DQSP3 M_A_DQSP4 M_A_DQSP5 M_A_DQSP6 M_A_DQSP7

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14 M_A_A15

M_A_CLKP0 (13) M_A_CLKN0 (13) M_A_CKE0 (13)

M_A_CLKP1 (13) M_A_CLKN1 (13) M_A_CKE1 (13)

M_A_CS#0 (13) M_A_CS#1 (13)

M_A_ODT0 (13) M_A_ODT1 (13)

M_A_DQSN[7:0] (13)

M_A_DQSP[7:0] (13)

M_A_A[15:0] (13)

M_B_DQ[63:0](14)

M_B_BS#0(14) M_B_BS#1(14) M_B_BS#2(14)

M_B_CAS#(14) M_B_RAS#(14) M_B_WE#(14)

M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

D D

M_A_DQ[63:0](13)

C C

B B

M_A_BS#0(13) M_A_BS#1(13) M_A_BS#2(13)

M_A_CAS#(13) M_A_RAS#(13) M_A_WE#(13)

M_A_DQ0 M_A_DQ1 M_A_DQ2 M_A_DQ3 M_A_DQ4 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ8 M_A_DQ9 M_A_DQ10 M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19 M_A_DQ20 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ28 M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ32 M_A_DQ33 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47 M_A_DQ48 M_A_DQ49 M_A_DQ50 M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ58 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63

BD13

BF12

BD10 BD14

BE13 BF16 BE17 BE18 BE21

BE14 BG14 BG18

BF19 BD50

BF48 BD53

BF52 BD49

BE49 BD54

BE53

BF56

BE57 BC59

AY60

BE54 BG54

BA58

AW59 AW58

AU58 AN61 AN59 AU59 AU61 AN58 AR58

AK58

AL58 AG58 AG59 AM60

AL59

AF61 AH60

BG39 BD42

AT22

AV43

BF40 BD45

AL4 AL1 AN3 AR4 AK4 AK3 AN4 AR1 AU4 AT2 AV4 BA4 AU3 AR3 AY2 BA3 BE9 BD9

BF8

U25D

SB_DQ[0] SB_DQ[1] SB_DQ[2] SB_DQ[3] SB_DQ[4] SB_DQ[5] SB_DQ[6] SB_DQ[7] SB_DQ[8] SB_DQ[9] SB_DQ[10] SB_DQ[11] SB_DQ[12] SB_DQ[13] SB_DQ[14] SB_DQ[15] SB_DQ[16] SB_DQ[17] SB_DQ[18] SB_DQ[19] SB_DQ[20] SB_DQ[21] SB_DQ[22] SB_DQ[23] SB_DQ[24] SB_DQ[25] SB_DQ[26] SB_DQ[27] SB_DQ[28] SB_DQ[29] SB_DQ[30] SB_DQ[31] SB_DQ[32] SB_DQ[33] SB_DQ[34] SB_DQ[35] SB_DQ[36] SB_DQ[37] SB_DQ[38] SB_DQ[39] SB_DQ[40] SB_DQ[41] SB_DQ[42] SB_DQ[43] SB_DQ[44] SB_DQ[45] SB_DQ[46] SB_DQ[47] SB_DQ[48] SB_DQ[49] SB_DQ[50] SB_DQ[51] SB_DQ[52] SB_DQ[53] SB_DQ[54] SB_DQ[55] SB_DQ[56] SB_DQ[57] SB_DQ[58] SB_DQ[59] SB_DQ[60] SB_DQ[61] SB_DQ[62] SB_DQ[63]

SB_BS[0] SB_BS[1] SB_BS[2]

SB_CAS# SB_RAS# SB_WE#

BA34

SB_CLK[0]

AY34

SB_CLK#[0]

AR22

SB_CKE[0]

BA36

SB_CLK[1]

BB36

SB_CLK#[1]

BF27

SB_CKE[1]

BE41

SB_CS#[0]

BE47

SB_CS#[1]

AT43

SB_ODT[0]

BG47

SB_ODT[1]

M_B_DQSN0

AL3

SB_DQS#[0] SB_DQS#[1] SB_DQS#[2] SB_DQS#[3] SB_DQS#[4] SB_DQS#[5] SB_DQS#[6] SB_DQS#[7]

SB_DQS[0] SB_DQS[1] SB_DQS[2] SB_DQS[3] SB_DQS[4] SB_DQS[5] SB_DQS[6] SB_DQS[7]

DDR SYSTEM MEMORY B

SB_MA[0] SB_MA[1] SB_MA[2] SB_MA[3] SB_MA[4] SB_MA[5] SB_MA[6] SB_MA[7] SB_MA[8]

SB_MA[9] SB_MA[10] SB_MA[11] SB_MA[12] SB_MA[13] SB_MA[14] SB_MA[15]

AV3 BG11 BD17 BG51 BA59 AT60 AK59

AM2 AV1 BE11 BD18 BE51 BA61 AR59 AK61

BF32 BE33 BD33 AU30 BD30 AV30 BG30 BD29 BE30 BE28 BD43 AT28 AV28 BD46 AT26 AU22

M_B_DQSN1 M_B_DQSN2 M_B_DQSN3 M_B_DQSN4 M_B_DQSN5 M_B_DQSN6 M_B_DQSN7

M_B_DQSP0 M_B_DQSP1 M_B_DQSP2 M_B_DQSP3 M_B_DQSP4 M_B_DQSP5 M_B_DQSP6 M_B_DQSP7

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14 M_B_A15

M_B_CLKP0 (14) M_B_CLKN0 (14) M_B_CKE0 (14)

M_B_CLKP1 (14) M_B_CLKN1 (14) M_B_CKE1 (14)

M_B_CS#0 (14) M_B_CS#1 (14)

M_B_ODT0 (14) M_B_ODT1 (14)

M_B_DQSN[7:0] (14)

M_B_DQSP[7:0] (14)

M_B_A[15:0] (14)

IC,SNB_2CBGA,1P0

A A

5

4

3

IC,SNB_2CBGA,1P0

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

Custom

SNB 2/4 (DDR3 I/F)

1

4 43Monday, January 31, 2011

1A

5

Sandy Bridge Processor (POWER)

U25F

CPU Core Power

+VCC_CORE

D D

C C

B B

A A

SNB:21.5A

C39 22U/6.3V/X5R_8C39 22U/6.3V/X5R_8 C25 22U/6.3V/X5R_8C25 22U/6.3V/X5R_8 C29 22U/6.3V/X5R_8C29 22U/6.3V/X5R_8 C86 22U/6.3V/X5R_8C86 22U/6.3V/X5R_8 C85 22U/6.3V/X5R_8C85 22U/6.3V/X5R_8 C24 22U/6.3V/X5R_8C24 22U/6.3V/X5R_8 C69 22U/6.3V/X5R_8C69 22U/6.3V/X5R_8 C70 22U/6.3V/X5R_8C70 22U/6.3V/X5R_8 C28 22U/6.3V/X5R_8C28 22U/6.3V/X5R_8 C26 22U/6.3V/X5R_8C26 22U/6.3V/X5R_8 C40 22U/6.3V/X5R_8C40 22U/6.3V/X5R_8 C38 22U/6.3V/X5R_8C38 22U/6.3V/X5R_8 C27 22U/6.3V/X5R_8C27 22U/6.3V/X5R_8 C78 22U/6.3V/X5R_8C78 22U/6.3V/X5R_8 C79 22U/6.3V/X5R_8C79 22U/6.3V/X5R_8

C55 1U/6.3V/X5R_4C55 1U/6.3V/X5R_4 C58 1U/6.3V/X5R_4C58 1U/6.3V/X5R_4 C429 1U/6.3V/X5R_4C429 1U/6.3V/X5R_4 C60 1U/6.3V/X5R_4C60 1U/6.3V/X5R_4 C48 1U/6.3V/X5R_4C48 1U/6.3V/X5R_4 C61 1U/6.3V/X5R_4C61 1U/6.3V/X5R_4 C445 1U/6.3V/X5R_4C445 1U/6.3V/X5R_4 C433 1U/6.3V/X5R_4C433 1U/6.3V/X5R_4 C46 1U/6.3V/X5R_4C46 1U/6.3V/X5R_4 C448 1U/6.3V/X5R_4C448 1U/6.3V/X5R_4 C439 1U/6.3V/X5R_4C439 1U/6.3V/X5R_4 C441 1U/6.3V/X5R_4C441 1U/6.3V/X5R_4 C446 1U/6.3V/X5R_4C446 1U/6.3V/X5R_4 C434 1U/6.3V/X5R_4C434 1U/6.3V/X5R_4 C47 1U/6.3V/X5R_4C47 1U/6.3V/X5R_4 C437 1U/6.3V/X5R_4C437 1U/6.3V/X5R_4 C444 1U/6.3V/X5R_4C444 1U/6.3V/X5R_4 C438 1U/6.3V/X5R_4C438 1U/6.3V/X5R_4 C440 1U/6.3V/X5R_4C440 1U/6.3V/X5R_4 C436 1U/6.3V/X5R_4C436 1U/6.3V/X5R_4

C447 *1U/6.3V/X5R_4C447 *1U/6.3V/X5R_4 C59 *1U/6.3V/X5R_4C59 *1U/6.3V/X5R_4 C431 *1U/6.3V/X5R_4C431 *1U/6.3V/X5R_4 C45 *1U/6.3V/X5R_4C45 *1U/6.3V/X5R_4 C432 *1U/6.3V/X5R_4C432 *1U/6.3V/X5R_4 C430 *1U/6.3V/X5R_4C430 *1U/6.3V/X5R_4 C442 *1U/6.3V/X5R_4C442 *1U/6.3V/X5R_4 C62 *1U/6.3V/X5R_4C62 *1U/6.3V/X5R_4 C443 *1U/6.3V/X5R_4C443 *1U/6.3V/X5R_4 C56 *1U/6.3V/X5R_4C56 *1U/6.3V/X5R_4 C428 *1U/6.3V/X5R_4C428 *1U/6.3V/X5R_4 C23 *1U/6.3V/X5R_4C23 *1U/6.3V/X5R_4 C49 *1U/6.3V/X5R_4C49 *1U/6.3V/X5R_4 C435 *1U/6.3V/X5R_4C435 *1U/6.3V/X5R_4 C427 *1U/6.3V/X5R_4C427 *1U/6.3V/X5R_4

SVID CLK

Layout note: need routing together and ALERT need between CLK and DATA.

H_CPU_SVID_CLK

A26

VCC[1]

A29

VCC[2]

A31

VCC[3]

A34

VCC[4]

A35

VCC[5]

A38

VCC[6]

A39

VCC[7]

A42

VCC[8]

C26

VCC[9]

C27

VCC[10]

C32

VCC[11]

C34

VCC[12]

C37

VCC[13]

C39

VCC[14]

C42

VCC[15]

D27

VCC[16]

D32

VCC[17]

D34

VCC[18]

D37

VCC[19]

D39

VCC[20]

D42

VCC[21]

E26

VCC[22]

E28

VCC[23]

E32

VCC[24]

E34

VCC[25]

E37

VCC[26]

E38 F25 F26 F28 F32 F34 F37 F38 F42 G42 H25 H26 H28 H29 H32 H34 H35 H37 H38 H40 J25 J26 J28 J29 J32 J34 J35 J37 J38 J40 J42 K26 K27 K29 K32 K34 K35 K37 K39 K42 L25 L28 L33 L36 L40 N26 N30 N34 N38

R362 *short_4R362 *short_4

VCC[27] VCC[28] VCC[29] VCC[30] VCC[31] VCC[32] VCC[33] VCC[34] VCC[35] VCC[36] VCC[37] VCC[38] VCC[39] VCC[40] VCC[41] VCC[42] VCC[43] VCC[44] VCC[45] VCC[46] VCC[47] VCC[48] VCC[49] VCC[50] VCC[51] VCC[52] VCC[53] VCC[54] VCC[55] VCC[56] VCC[57] VCC[58] VCC[59] VCC[60] VCC[61] VCC[62] VCC[63] VCC[64] VCC[66] VCC[67] VCC[68] VCC[69] VCC[70] VCC[71] VCC[72] VCC[73] VCC[74] VCC[75] VCC[76]

IC,SNB_2CBGA,1P0

Place PU resistor close to VR

R363 54.9/F_4R363 54.9/F_4

CORE SUPPLY

POWER

PEG AND DDRSENSE LINES SVID QUIET RAILS

VCC_SENSE VSS_SENSE

VCCIO_SENSE

VSS_SENSE_VCCIO

EC-SIT-1 EC-SIT-1

5

VCCIO[1] VCCIO[3] VCCIO[4] VCCIO[5] VCCIO[6] VCCIO[7] VCCIO[8]

VCCIO[9] VCCIO[10] VCCIO[11] VCCIO[12] VCCIO[13] VCCIO[14] VCCIO[15] VCCIO[16] VCCIO[17] VCCIO[18] VCCIO[19] VCCIO[20] VCCIO[21] VCCIO[22] VCCIO[23] VCCIO[24] VCCIO[25] VCCIO[26] VCCIO[27] VCCIO[28] VCCIO[29]

VCCIO[30] VCCIO[31] VCCIO[32] VCCIO[33] VCCIO[34] VCCIO[35] VCCIO[36] VCCIO[37] VCCIO[38] VCCIO[39] VCCIO[40] VCCIO[41] VCCIO[42] VCCIO[43] VCCIO[44] VCCIO[45] VCCIO[46] VCCIO[47] VCCIO[48] VCCIO[49]

VCCIO50

VCCIO51

VCCIO_SEL

VCCPQE[1] VCCPQE[2]

VIDALERT#

VIDSCLK

VIDSOUT

4

330uF locate power side

8.5A

AF46 AG48 AG50

C87 10U/6.3V/X5R_6C87 10U/6.3V/X5R_6

AG51 AJ17 AJ21 AJ25 AJ43 AJ47 AK50 AK51 AL14 AL15 AL16 AL20 AL22 AL26 AL45 AL48 AM16 AM17 AM21 AM43 AM47 AN20 AN42 AN45 AN48

AA14 AA15 AB17 AB20 AC13 AD16 AD18 AD21 AE14 AE15 AF16 AF18 AF20 AG15 AG16 AG17 AG20 AG21 AJ14 AJ15

W16 W17

1 2

C471 10U/6.3V/X5R_6C471 10U/6.3V/X5R_6

1 2

C88 10U/6.3V/X5R_6C88 10U/6.3V/X5R_6

1 2

C81 10U/6.3V/X5R_6C81 10U/6.3V/X5R_6

1 2

C468 10U/6.3V/X5R_6C468 10U/6.3V/X5R_6

1 2

C470 10U/6.3V/X5R_6C470 10U/6.3V/X5R_6

1 2

C80 10U/6.3V/X5R_6C80 10U/6.3V/X5R_6

1 2

C94 10U/6.3V/X5R_6C94 10U/6.3V/X5R_6

1 2

C467 10U/6.3V/X5R_6C467 10U/6.3V/X5R_6

1 2

C95 10U/6.3V/X5R_6C95 10U/6.3V/X5R_6

1 2

C463 1U/6.3V/X5R_4C463 1U/6.3V/X5R_4 C464 1U/6.3V/X5R_4C464 1U/6.3V/X5R_4 C124 1U/6.3V/X5R_4C124 1U/6.3V/X5R_4 C459 1U/6.3V/X5R_4C459 1U/6.3V/X5R_4 C89 1U/6.3V/X5R_4C89 1U/6.3V/X5R_4 C123 1U/6.3V/X5R_4C123 1U/6.3V/X5R_4 C455 1U/6.3V/X5R_4C455 1U/6.3V/X5R_4 C458 1U/6.3V/X5R_4C458 1U/6.3V/X5R_4 C453 1U/6.3V/X5R_4C453 1U/6.3V/X5R_4 C90 1U/6.3V/X5R_4C90 1U/6.3V/X5R_4 C450 1U/6.3V/X5R_4C450 1U/6.3V/X5R_4 C462 1U/6.3V/X5R_4C462 1U/6.3V/X5R_4 C102 1U/6.3V/X5R_4C102 1U/6.3V/X5R_4 C98 1U/6.3V/X5R_4C98 1U/6.3V/X5R_4 C451 1U/6.3V/X5R_4C451 1U/6.3V/X5R_4 C97 1U/6.3V/X5R_4C97 1U/6.3V/X5R_4 C454 1U/6.3V/X5R_4C454 1U/6.3V/X5R_4 C100 1U/6.3V/X5R_4C100 1U/6.3V/X5R_4 C452 1U/6.3V/X5R_4C452 1U/6.3V/X5R_4 C457 1U/6.3V/X5R_4C457 1U/6.3V/X5R_4 C469 1U/6.3V/X5R_4C469 1U/6.3V/X5R_4 C460 1U/6.3V/X5R_4C460 1U/6.3V/X5R_4 C126 1U/6.3V/X5R_4C126 1U/6.3V/X5R_4 C125 1U/6.3V/X5R_4C125 1U/6.3V/X5R_4 C96 1U/6.3V/X5R_4C96 1U/6.3V/X5R_4 C456 1U/6.3V/X5R_4C456 1U/6.3V/X5R_4

3.3V_SUS?(PDDG p127)

BC22

TP10TP10

R46 0.01/F_6R46 0.01/F_6

AM25 AN22

C122 1U/10V/X5R_4C122 1U/10V/X5R_4

H_CPU_SVIDALRT#

A44

H_CPU_SVID_CLK

B43

H_CPU_SVID_DATA

C44

R360 100/F_4R360 100/F_4

F43 G43

R361 100/F_4R361 100/F_4

R38 10/F_4R38 10/F_4

AN16 AN17

R37 10/F_4R37 10/F_4

SVID DATA

Place PU resistor close to CPU

H_CPU_SVID_DATA

4

+1.05V

R7 130/F_4R7130/F_4

R8 *short_4R8 *short_4

+VCC_CORE

+1.05V

+1.05V +VCC_GFX

+1.05V

VCC_SENSE (35) VSS_SENSE (35)

VCCP_SENSE (33)

+1.05V

Place PU resistor

R384

close to VR

130/F_4

VR_SVID_DATA (35)VR_SVID_CLK (35) VR_SVID_ALERT# (35)

3

Sandy Bridge Processor (GRAPHIC POWER)

12A

C67 22U/6.3V/X5R_8C67 22U/6.3V/X5R_8 C68 22U/6.3V/X5R_8C68 22U/6.3V/X5R_8 C83 22U/6.3V/X5R_8C83 22U/6.3V/X5R_8 C84 22U/6.3V/X5R_8C84 22U/6.3V/X5R_8 C82 22U/6.3V/X5R_8C82 22U/6.3V/X5R_8 C66 22U/6.3V/X5R_8C66 22U/6.3V/X5R_8

C109 10U/6.3V/X5R_6C109 10U/6.3V/X5R_6

1 2

C110 10U/6.3V/X5R_6C110 10U/6.3V/X5R_6

1 2

C113 10U/6.3V/X5R_6C113 10U/6.3V/X5R_6

1 2

C108 10U/6.3V/X5R_6C108 10U/6.3V/X5R_6

1 2

C129 10U/6.3V/X5R_6C129 10U/6.3V/X5R_6

1 2

C121 10U/6.3V/X5R_6C121 10U/6.3V/X5R_6

1 2

C77 1U/6.3V/X5R_4C77 1U/6.3V/X5R_4 C477 1U/6.3V/X5R_4C477 1U/6.3V/X5R_4 C483 1U/6.3V/X5R_4C483 1U/6.3V/X5R_4C33 22U/6.3V/X5R_8C33 22U/6.3V/X5R_8 C474 1U/6.3V/X5R_4C474 1U/6.3V/X5R_4 C476 1U/6.3V/X5R_4C476 1U/6.3V/X5R_4 C76 1U/6.3V/X5R_4C76 1U/6.3V/X5R_4 C481 1U/6.3V/X5R_4C481 1U/6.3V/X5R_4 C475 1U/6.3V/X5R_4C475 1U/6.3V/X5R_4 C75 1U/6.3V/X5R_4C75 1U/6.3V/X5R_4

C480 *1U/6.3V/X5R_4C480 *1U/6.3V/X5R_4 C482 *1U/6.3V/X5R_4C482 *1U/6.3V/X5R_4

AA46 AB47 AB50 AB51 AB52 AB53 AB55 AB56 AB58 AB59 AC61 AD47 AD48 AD50 AD51 AD52 AD53 AD55 AD56 AD58 AD59 AE46

U25G

VAXG[1] VAXG[2] VAXG[3] VAXG[4] VAXG[5] VAXG[6] VAXG[7] VAXG[8] VAXG[9] VAXG[10] VAXG[11] VAXG[12] VAXG[13] VAXG[14] VAXG[15] VAXG[16] VAXG[17] VAXG[18] VAXG[19] VAXG[20] VAXG[21] VAXG[22]

N45

VAXG[23]

P47

VAXG[24]

P48

VAXG[25]

P50

VAXG[26]

P51

VAXG[27]

P52

VAXG[28]

P53

VAXG[29]

P55

VAXG[30]

P56

VAXG[31]

P61

VAXG[32]

T48

VAXG[33]

T58

VAXG[34]

T59

VAXG[35]

T61

VAXG[36]

U46

VAXG[37]

V47

VAXG[38]

V48

VAXG[39]

V50

VAXG[40]

V51

VAXG[41]

V52

VAXG[42]

V53

VAXG[43]

V55

VAXG[44]

V56

VAXG[45]

V58

VAXG[46]

V59

VAXG[47]

W50

VAXG[48]

W51

VAXG[49]

W52

VAXG[50]

W53

VAXG[51]

W55

VAXG[52]

W56

VAXG[53]

W61

VAXG[54]

Y48

VAXG[55]

Y61

VAXG[56]

2

GRAPHICS

SM_VREF

VDDQ[1] VDDQ[2] VDDQ[3] VDDQ[4] VDDQ[5] VDDQ[6] VDDQ[7] VDDQ[8]

VDDQ[9] VDDQ[10] VDDQ[11] VDDQ[12] VDDQ[13] VDDQ[14] VDDQ[15] VDDQ[16] VDDQ[17] VDDQ[18] VDDQ[19] VDDQ[20] VDDQ[21] VDDQ[22]

DDR3 - 1.5V RAILS

POWER

VDDQ[23] VDDQ[24] VDDQ[25] VDDQ[26]

AY43

AJ28 AJ33 AJ36 AJ40 AL30 AL34 AL38 AL42 AM33 AM36 AM40 AN30 AN34 AN38 AR26 AR28 AR30 AR32 AR34 AR36 AR40 AV41 AW26 BA40 BB28 BG33

+VDDR_REF_CPU

R52 *0_6R52 *0_6

1

R57

R57 100K/F_4

100K/F_4

5A

C118 10U/6.3V/X5R_6C118 10U/6.3V/X5R_6 C116 10U/6.3V/X5R_6C116 10U/6.3V/X5R_6 C127 10U/6.3V/X5R_6C127 10U/6.3V/X5R_6 C117 10U/6.3V/X5R_6C117 10U/6.3V/X5R_6 C115 10U/6.3V/X5R_6C115 10U/6.3V/X5R_6 C104 10U/6.3V/X5R_6C104 10U/6.3V/X5R_6 C101 10U/6.3V/X5R_6C101 10U/6.3V/X5R_6 C120 10U/6.3V/X5R_6C120 10U/6.3V/X5R_6

C135 1U/6.3V/X5R_4C135 1U/6.3V/X5R_4 C92 1U/6.3V/X5R_4C92 1U/6.3V/X5R_4 C105 1U/6.3V/X5R_4C105 1U/6.3V/X5R_4 C134 1U/6.3V/X5R_4C134 1U/6.3V/X5R_4 C91 1U/6.3V/X5R_4C91 1U/6.3V/X5R_4 C114 1U/6.3V/X5R_4C114 1U/6.3V/X5R_4 C112 1U/6.3V/X5R_4C112 1U/6.3V/X5R_4 C103 1U/6.3V/X5R_4C103 1U/6.3V/X5R_4 C93 1U/6.3V/X5R_4C93 1U/6.3V/X5R_4 C99 1U/6.3V/X5R_4C99 1U/6.3V/X5R_4

1

CAD Note: +VDDR_REF_CPU should have 10 mil trace width

Q10

Q10 2N7002

2N7002

2

MAIND

DDR_VTTREF (13,14,32)

3

MAIND (37)

+1.5V_CPU

05

EC-DV-02

+VCC_GFX VCC_AXG_SENSE(35) VSS_AXG_SENSE(35)

+1.8V

+VCCSA

R28 10/F_4R28 10/F_4

R29 10/F_4R29 10/F_4

1.2A

C478 1U/6.3V/X5R_4C478 1U/6.3V/X5R_4 C479 1U/6.3V/X5R_4C479 1U/6.3V/X5R_4

SNB:6A

C71 10U/6.3V/X5R_6C71 10U/6.3V/X5R_6 C72 10U/6.3V/X5R_6C72 10U/6.3V/X5R_6 C74 10U/6.3V/X5R_6C74 10U/6.3V/X5R_6 C73 10U/6.3V/X5R_6C73 10U/6.3V/X5R_6

C54 1U/6.3V/X5R_4C54 1U/6.3V/X5R_4 C53 1U/6.3V/X5R_4C53 1U/6.3V/X5R_4 C52 1U/6.3V/X5R_4C52 1U/6.3V/X5R_4 C57 1U/6.3V/X5R_4C57 1U/6.3V/X5R_4 C50 1U/6.3V/X5R_4C50 1U/6.3V/X5R_4

VCCSA_VID0 VCCSA_SEL

F45

VAXG_SENSE

G45

VSSAXG_SENSE

BB3

VCCPLL[1]

BC1

VCCPLL[2]

BC4

VCCPLL[3]

L17

VCCSA[1]

L21

VCCSA[2]

N16

VCCSA[3]

N20

VCCSA[4]

N22

VCCSA[5]

P17

VCCSA[6]

P20

VCCSA[7]

R16

VCCSA[8]

R18

VCCSA[9]

R21

VCCSA[10]

U15

VCCSA[11]

V16

VCCSA[12]

V17

VCCSA[13]

V18

VCCSA[14]

V21

VCCSA[15]

W20

VCCSA[16]

IC,SNB_2CBGA,1P0

IC,SNB_2CBGA,1P0 R354 *1K/F_4R354 *1K/F_4

R367 10K/F_4R367 10K/F_4 R355 *1K/F_4R355 *1K/F_4 R368 1K/F_4R368 1K/F_4

SENSE

LINES

SENSE

LINES

1.8V RAIL

SA RAIL

VCCDQ[1] VCCDQ[2]

QUIET RAILS

VDDQ_SENSE

VSS_SENSE_VDDQ

SENSE LINES

VCCSA_SENSE

VCCSA_VID[0] VCCSA_VID[1]

+1.05V

R61 0.01/F_6R61 0.01/F_6

AM28 AN26

C132 1U/10V/X5R_4C132 1U/10V/X5R_4

R39 *51/F_4R39 *51/F_4

BC43

R36 *51/F_4R36 *51/F_4

BA43

R34 100/F_4R34 100/F_4

U10

SNB_IVB# N.A at SNB EDS #27637 0.7v1

VCCSA_VID0

D48

VCCSA_SEL

D49

+VCC_CORE (6,29,35,37) +VCC_GFX (29,35,37) +VCCSA (34,37) +1.05V (3,7,8,9,11,29,33,37) +1.5V_CPU (3,29,32,37) +1.8V (8,11,33,37) DDR_VTTREF (13,14,32)

+1.5V_CPU

+VCCSA

VCCSA_SEL (34)

If +1.5V_CPU will be implemented, have to change the two divided resistor as 100-ohm 1%

VCCUSA_SENSE (34)

SVID ALERT

Place PU resistor close to CPU

H_CPU_SVIDALRT#

3

R352 75_4R352 75_4

+1.05V+1.05V

R364 43_4R364 43_4

R351 *short_4R351 *short_4

EC-SIT-1

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Custom

SNB 3/4 (POWER)

1

5 43Monday, January 31, 2011

1A

5

Sandy Bridge Processor (GND)

U25H

A13

VSS[1]

A17

VSS[2]

A21

VSS[3]

A25

VSS[4]

D D

C C

B B

A A

A28

VSS[5]

A33

VSS[6]

A37

VSS[7]

A40

VSS[8]

A45

VSS[9]

A49

VSS[10]

A53

VSS[11]

A9

VSS[12]

AA1

VSS[13]

AA13

VSS[14]

AA50

VSS[15]

AA51

VSS[16]

AA52

VSS[17]

AA53

VSS[18]

AA55

VSS[19]

AA56

VSS[20]

AA8

VSS[21]

AB16

VSS[22]

AB18

VSS[23]

AB21

VSS[24]

AB48

VSS[25]

AB61

VSS[26]

AC10

VSS[27]

AC14

VSS[28]

AC46

VSS[29]

AC6

VSS[30]

AD17

VSS[31]

AD20

VSS[32]

AD4

VSS[33]

AD61

VSS[34]

AE13

VSS[35]

AE8

VSS[36]

AF1

VSS[37]

AF17

VSS[38]

AF21

VSS[39]

AF47

VSS[40]

AF48

VSS[41]

AF50

VSS[42]

AF51

VSS[43]

AF52

VSS[44]

AF53

VSS[45]

AF55

VSS[46]

AF56

VSS[47]

AF58

VSS[48]

AF59

VSS[49]

AG10

VSS[50]

AG14

VSS[51]

AG18

VSS[52]

AG47

VSS[53]

AG52

VSS[54]

AG61

VSS[55]

AG7

VSS[56]

AH4

VSS[57]

AH58

VSS[58]

AJ13

VSS[59]

AJ16

VSS[60]

AJ20

VSS[61]

AJ22

VSS[62]

AJ26

VSS[63]

AJ30

VSS[64]

AJ34

VSS[65]

AJ38

VSS[66]

AJ42

VSS[67]

AJ45

VSS[68]

AJ48

VSS[69]

AJ7

VSS[70]

AK1

VSS[71]

AK52

VSS[72]

AL10

VSS[73]

AL13

VSS[74]

AL17

VSS[75]

AL21

VSS[76]

AL25

VSS[77]

AL28

VSS[78]

AL33

VSS[79]

AL36

VSS[80]

AL40

VSS[81]

AL43

VSS[82]

AL47

VSS[83]

AL61

VSS[84]

AM13

VSS[85]

AM20

VSS[86]

AM22

VSS[87]

AM26

VSS[88]

AM30

VSS[89]

AM34

VSS[90]

IC,SNB_2CBGA,1P0

VSS

VSS[91] VSS[92] VSS[93] VSS[94] VSS[95] VSS[96] VSS[97] VSS[98]

VSS[99] VSS[100] VSS[101] VSS[102] VSS[103] VSS[104] VSS[105] VSS[106] VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158] VSS[159] VSS[160] VSS[161] VSS[162] VSS[163] VSS[164] VSS[165] VSS[166] VSS[167] VSS[168] VSS[169] VSS[170] VSS[171] VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179] VSS[180]

AM38 AM4 AM42 AM45 AM48 AM58 AN1 AN21 AN25 AN28 AN33 AN36 AN40 AN43 AN47 AN50 AN54 AP10 AP51 AP55 AP7 AR13 AR17 AR21 AR41 AR48 AR61 AR7 AT14 AT19 AT36 AT4 AT45 AT52 AT58 AU1 AU11 AU28 AU32 AU51 AU7 AV17 AV21 AV22 AV34 AV40 AV48 AV55 AW13 AW43 AW61 AW7 AY14 AY19 AY30 AY36 AY4 AY41 AY45 AY49 AY55 AY58 AY9 BA1 BA11 BA17 BA21 BA26 BA32 BA48 BA51 BB53 BC13 BC5 BC57 BD12 BD16 BD19 BD23 BD27 BD32 BD36 BD40 BD44 BD48 BD52 BD56 BD8 BE5 BG13

4

U25I

BG17

VSS[181]

BG21

VSS[182]

BG24

VSS[183]

BG28

VSS[184]

BG37

VSS[185]

BG41

VSS[186]

BG45

VSS[187]

BG49

VSS[188]

BG53

VSS[189]

BG9

VSS[190]

C29

VSS[191]

C35

VSS[192]

C40

VSS[193]

D10

VSS[194]

D14

VSS[195]

D18

VSS[196]

D22

VSS[197]

D26

VSS[198]

D29

VSS[199]

D35

VSS[200]

D4

VSS[201]

D40

VSS[202]

D43

VSS[203]

D46

VSS[204]

D50

VSS[205]

D54

VSS[206]

D58

VSS[207]

D6

VSS[208]

E25

VSS[209]

E29

VSS[210]

E3

VSS[211]

E35

VSS[212]

E40

VSS[213]

F13

VSS[214]

F15

VSS[215]

F19

VSS[216]

F29

VSS[217]

F35

VSS[218]

F40

VSS[219]

F55

VSS[220]

G48

VSS[221]

G51

VSS[222]

G6

VSS[223]

G61

VSS[224]

H10

VSS[225]

H14

VSS[226]

H17

VSS[227]

H21

VSS[228]

H4

VSS[229]

H53

VSS[230]

H58

VSS[231]

J1

VSS[232]

J49

VSS[233]

J55

VSS[234]

K11

VSS[235]

K21

VSS[236]

K51

VSS[237]

K8

VSS[238]

L16

VSS[239]

L20

VSS[240]

L22

VSS[241]

L26

VSS[242]

L30

VSS[243]

L34

VSS[244]

L38

VSS[245]

L43

VSS[246]

L48

VSS[247]

L61

VSS[248]

M11

VSS[249]

M15

VSS[250]

IC,SNB_2CBGA,1P0

VSS

Processor Strapping

CFG2 (PCI-E Static x16 Lane Reversal)

CFG3 (PCI-E Static x4 Lane Reversal)

CFG4 (DP Presence Strap)

3

M4

VSS[251]

M58

VSS[252]

M6

VSS[253]

N1

VSS[254]

N17

VSS[255]

N21

VSS[256]

N25

VSS[257]

N28

VSS[258]

N33

VSS[259]

N36

VSS_NCTF_10

NCTF

VSS_NCTF_11 VSS_NCTF_12 VSS_NCTF_13 VSS_NCTF_14

VSS[260] VSS[261] VSS[262] VSS[263] VSS[264] VSS[265] VSS[266] VSS[267] VSS[268] VSS[269] VSS[270] VSS[271] VSS[272] VSS[273] VSS[274] VSS[275] VSS[276] VSS[277] VSS[278] VSS[279] VSS[280] VSS[281] VSS[282] VSS[283] VSS[284] VSS[285] VSS[286] VSS[287] VSS[288] VSS[289] VSS[290] VSS[291] VSS[292] VSS[293] VSS[294] VSS[295] VSS[296] VSS[297] VSS[298] VSS[299] VSS[300] VSS[301]

VSS_NCTF_1 VSS_NCTF_2 VSS_NCTF_3 VSS_NCTF_4 VSS_NCTF_5 VSS_NCTF_6 VSS_NCTF_7 VSS_NCTF_8 VSS_NCTF_9

N40 N43 N47 N48 N51 N52 N56 N61 P14 P16 P18 P21 P58 P59 P9 R17 R20 R4 R46 T1 T47 T50 T51 T52 T53 T55 T56 U13 U8 V20 V61 W13 W15 W18 W21 W46 W8 Y4 Y47 Y58 Y59

A5 A57 BC61 BD3 BD59 BE4 BE58 BG5 BG57 C3 C58 D59 E1 E61

+VCC_CORE +VCC_CORE

R26

R26 *51/F_4

*51/F_4

VCC_VAL_SENSE VAXG_VAL_SENSE VSS_VAL_SENSE VSSAXG_VAL_SENSE

R31

R31 *51/F_4

*51/F_4

The CFG signals have a default value of '1' if not terminated on the board.

1 0

Normal Operation Lane Reversed

Disable; No physical DP attached to eDP

Enable; An ext DP device is connected to eDP

2

Sandy Bridge Processor (RESERVED, CFG)

U25E

R25

R25 *51/F_4

*51/F_4

R30

R30 *51/F_4

*51/F_4

CFG2 CFG3 CFG4CFG4 CFG5 CFG6 CFG7

R357 *1K/F_4R357 *1K/F_4 R358 *1K/F_4R358 *1K/F_4

B50

CFG[0]

C51

CFG[1]

B54

CFG[2]

D53

CFG[3]

A51

CFG[4]

C53

CFG[5]

C55

CFG[6]

H49

CFG[7]

A55

CFG[8]

H51

CFG[9]

K49

CFG[10]

K53

CFG[11]

F53

CFG[12]

G53

CFG[13]

L51

CFG[14]

F51

CFG[15]

D52

CFG[16]

L53

CFG[17]

H43

VCC_VAL_SENSE

K43

VSS_VAL_SENSE

H45

VAXG_VAL_SENSE

K45

VSSAXG_VAL_SENSE

F48

VCC_DIE_SENSE

H48

RSVD6

K48

RSVD7

BA19

RSVD8

AV19

RSVD9

AT21

RSVD10

BB21

RSVD11

BB19

RSVD12

AY21

RSVD13

BA22

RSVD14

AY22

RSVD15

AU19

RSVD16

AU21

RSVD17

BD21

RSVD18

BD22

RSVD19

BD25

RSVD20

BD26

RSVD21

BG22

RSVD22

BE22

RSVD23

BG26

RSVD24

BE26

RSVD25

BF23

RSVD26

BE24

RSVD27

IC,SNB_2CBGA,1P0

RESERVED

DC_TEST_A4 DC_TEST_C4 DC_TEST_D3

DC_TEST_D1 DC_TEST_A58 DC_TEST_A59

DC_TEST_C59

DC_TEST_A61

DC_TEST_C61

DC_TEST_D61 DC_TEST_BD61 DC_TEST_BE61 DC_TEST_BE59 DC_TEST_BG61 DC_TEST_BG59 DC_TEST_BG58

DC_TEST_BG4

DC_TEST_BG3

DC_TEST_BE3

DC_TEST_BG1

DC_TEST_BE1

DC_TEST_BD1

T5T5

T4T4 T6T6

T2T2 T3T3

T1T1

VCC_VAL_SENSE VSS_VAL_SENSE

VAXG_VAL_SENSE VSSAXG_VAL_SENSE

VCC_DIE_SENSE

CPU_RSVD6 CPU_RSVD7

CFG5 CFG6

CFG[6:5] (PCIE Port Bifurcation Straps)

11: (Default) x16 - Device 1 functions 1 and 2 disabled 10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled 01: Reserved - (Device 1 function 1 disabled ; function 2 enabled) 00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

CFG2

R370 *1K/F_4R370 *1K/F_4

CFG3

R369 *1K/F_4R369 *1K/F_4

CFG4

R356 *1K/F_4R356 *1K/F_4

CFG7

R27 *1K/F_4R27 *1K/F_4

RSVD28 RSVD29

RSVD30 RSVD31 RSVD32 RSVD33

RSVD34 RSVD35 RSVD36 RSVD37 RSVD38

RSVD39 RSVD40

RSVD41 RSVD42 RSVD43 RSVD44

RSVD45

BE7 BG7

N42 L42 L45 L47

M13 M14 U14 W14 P13

AT49 K24

AH2 AG13 AM14 AM15

N50

A4 C4 D3 D1 A58 A59 C59 A61 C61 D61 BD61 BE61 BE59 BG61 BG59 BG58 BG4 BG3 BE3 BG1 BE1 BD1

1

06

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet

PROJECT D/M NOTE INTEL HURON RIVER

Custom

SNB 4/4 (GND)

1

of

6 43Monday, January 31, 2011

1A

5

4

3

2

1

Cougar Point (DMI,FDI,PM)

U30C

DMI_RXN0(3) DMI_RXN1(3) DMI_RXN2(3) DMI_RXN3(3)

DMI_RXP0(3) DMI_RXP1(3) DMI_RXP2(3)

+1.05V

SYS_PWROK

EC_PWROK_R

DMI_RXP3(3)

DMI_TXN0(3) DMI_TXN1(3) DMI_TXN2(3) DMI_TXN3(3)

DMI_TXP0(3) DMI_TXP1(3) DMI_TXP2(3) DMI_TXP3(3)

R403 49.9/F_4R403 49.9/F_4 R404 750/F_4R404 750/F_4

R486 *0_4R486 *0_4

EC-SIT-1

R219 *short_4R219 *short_4 R235 *0_4R235 *0_4

R220 *short_4R220 *short_4

R236 *short_4R236 *short_4

R497 *short_4R497 *short_4

R284 *short_4R284 *short_4

R278 *short_4R278 *short_4

EC-SIT-1

DMI_COMP DMI_RBIAS

SUSACK#_RSUS_PWR_ACK_R

XDP_DBRST#

SYS_PWROK_R

EC_PWROK_R

APWROK_R

PM_DRAM_PWRGD

RSMRST#

SUS_PWR_ACK_R

DNBSWON#_R

AC_PRESENT_R

PM_BATLOW#

PM_RI#

D D

XDP_DBRST#(3)

C C

B B

ECPWROK(28)

PM_DRAM_PWRGD(3)

ICH_RSMRST#(28)

SUS_PWR_ACK(28)

DNBSWON#(28)

AC_PRESENT(28)

BC24

DMI0RXN

BE20

DMI1RXN

BG18

DMI2RXN

BG20

DMI3RXN

BE24

DMI0RXP

BC20

DMI1RXP

BJ18

DMI2RXP

BJ20

DMI3RXP

AW24

DMI0TXN

AW20

DMI1TXN

BB18

DMI2TXN

AV18

DMI3TXN

AY24

DMI0TXP

AY20

DMI1TXP

AY18

DMI2TXP

AU18

DMI3TXP

BJ24

DMI_ZCOMP

BG25

DMI_IRCOMP

BH21

DMI2RBIAS

C12

SUSACK#

K3

SYS_RESET#

P12

SYS_PWROK

L22

PWROK

L10

APWROK

B13

DRAMPWROK

C21

RSMRST#

(+3VS5)

K16

SUSWARN#/SUSPWRDNACK/GPIO30

E20

PWRBTN#

(DSW)

H20

ACPRESENT / GPIO31

(+3VS5)

E10

BATLOW# / GPIO72

A10

RI#

CougarPoint_R1P0

DMI

FDI

DMI

FDI

CLKRUN# / GPIO32

SUS_STAT# / GPIO61

SUSCLK / GPIO62

SLP_S5# / GPIO63

System Power Management

SLP_LAN# / GPIO29

FDI_RXN0 FDI_RXN1 FDI_RXN2 FDI_RXN3 FDI_RXN4 FDI_RXN5 FDI_RXN6 FDI_RXN7

FDI_RXP0 FDI_RXP1 FDI_RXP2 FDI_RXP3 FDI_RXP4 FDI_RXP5 FDI_RXP6 FDI_RXP7

FDI_INT FDI_FSYNC0 FDI_FSYNC1 FDI_LSYNC0 FDI_LSYNC1

DSWVRMEN

DPWROK

WAKE#

(+3V)

(+3VS5)

SLP_S4#

SLP_S3#

SLP_A#

SLP_SUS#

PMSYNCH

(+3VS5)

BJ14 AY14 BE14 BH13 BC12 BJ12 BG10 BG9

BG14 BB14 BF14 BG13 BE12 BG12 BJ10 BH9

AW16 AV12 BC10 AV14 BB10

DSWVREN

A18

EC-SIT-1

R207 *short_4R207 *short_4

E22

PCIE_WAKE#

B9

PCI_CLKRUN#

N3

G8

PCH_SUSCLK_L

N14

D10

EC-SIT-1

R256 *short_4R256 *short_4

H4

R468 *short_4R468 *short_4

F4

G10

G16

AP14

SLP_LAN#

K14

RSMRST#

PM_SYNC (3)

TP46TP46

FDI_TXN0 (3) FDI_TXN1 (3) FDI_TXN2 (3) FDI_TXN3 (3) FDI_TXN4 (3) FDI_TXN5 (3) FDI_TXN6 (3) FDI_TXN7 (3)

FDI_TXP0 (3) FDI_TXP1 (3) FDI_TXP2 (3) FDI_TXP3 (3) FDI_TXP4 (3) FDI_TXP5 (3) FDI_TXP6 (3) FDI_TXP7 (3)

FDI_INT (3) FDI_FSYNC0 (3) FDI_FSYNC1 (3) FDI_LSYNC0 (3) FDI_LSYNC1 (3)

PCIE_WAKE# (17,22)

PCI_CLKRUN# (25,28)

LPCPD# (28)

TP41TP41

TP40TP40

PM_SLP_S4# (28)

SIO_SLP_S3# (28)

TP37TP37

TP38TP38

RSMRST#

12

RV9

RV9 *TVM0G180M030R(18V,3p)_4

*TVM0G180M030R(18V,3p)_4

INT_LVDS_BLON(15) INT_DISP_ON(15)

INT_DPST_PWM(15) INT_EDIDCLK(15)

INT_EDIDDATA(15)

+3V

INT_TXLCLKN(15) INT_TXLCLKP(15)

INT_TXLOUTN0(15) INT_TXLOUTN1(15) INT_TXLOUTN2(15)

INT_TXLOUTP0(15) INT_TXLOUTP1(15) INT_TXLOUTP2(15)

R453 150/F_4R453 150/F_4 R449 150/F_4R449 150/F_4 R446 150/F_4R446 150/F_4

CRT_B_CON(16) CRT_G_CON(16) CRT_R_CON(16)

CRTDCLK(16) CRTDDAT(16)

HSYNC(16) VSYNC(16)

R164 2.2K_4R164 2.2K_4 R155 2.2K_4R155 2.2K_4

R419 2.37K/F_4R419 2.37K/F_4

TP20TP20

R462 33/F_4R462 33/F_4 R458 33/F_4R458 33/F_4

R165 1K/F_4R165 1K/F_4

Cougar Point (LVDS,DDI)

U30D

J47

L_BKLTEN

M45

L_VDD_EN

P45

L_BKLTCTL

T40

L_DDC_CLK

K47

AF37 AF36

AE48 AE47

AK39 AK40

AN48 AM47 AK47

AJ48

AN47 AM49 AK49

AJ47

AF40 AF39

AH45 AH47 AF49 AF45

AH43 AH49 AF47 AF43

T45

P39

N48 P49

T49

T39

M40

M47 M49

T43 T42

L_DDC_DATA L_CTRL_CLK

L_CTRL_DATA LVD_IBG

LVD_VBG LVD_VREFH

LVD_VREFL

LVDSA_CLK# LVDSA_CLK

LVDSA_DATA#0 LVDSA_DATA#1 LVDSA_DATA#2 LVDSA_DATA#3

LVDSA_DATA0 LVDSA_DATA1 LVDSA_DATA2 LVDSA_DATA3

LVDSB_CLK# LVDSB_CLK

LVDSB_DATA#0 LVDSB_DATA#1 LVDSB_DATA#2 LVDSB_DATA#3

LVDSB_DATA0 LVDSB_DATA1 LVDSB_DATA2 LVDSB_DATA3

CRT_BLUE CRT_GREEN CRT_RED

CRT_DDC_CLK CRT_DDC_DATA

CRT_HSYNC CRT_VSYNC

DAC_IREF CRT_IRTN

CougarPoint_R1P0

LVDS

Digital Display Interface

CRT

L_CTRL_CLK L_CTRL_DATA

LVDS_IBG LVDS_VBG

HSYNC_R VSYNC_R

DAC_IREF

SDVO_TVCLKINN

SDVO_TVCLKINP

SDVO_STALLN SDVO_STALLP

SDVO_INTN SDVO_INTP

SDVO_CTRLCLK

SDVO_CTRLDATA

DDPB_AUXN DDPB_AUXP

DDPB_HPD

DDPB_0N DDPB_0P DDPB_1N DDPB_1P DDPB_2N DDPB_2P DDPB_3N DDPB_3P

DDPC_CTRLCLK

DDPC_CTRLDATA

DDPC_AUXN DDPC_AUXP

DDPC_HPD

DDPC_0N DDPC_0P DDPC_1N DDPC_1P DDPC_2N DDPC_2P DDPC_3N DDPC_3P

DDPD_CTRLCLK

DDPD_CTRLDATA

DDPD_AUXN DDPD_AUXP

DDPD_HPD

DDPD_0N DDPD_0P DDPD_1N DDPD_1P DDPD_2N DDPD_2P DDPD_3N DDPD_3P

AP43 AP45

AM42 AM40

AP39 AP40

P38 M39

AT49 AT47 AT40

AV42 AV40 AV45 AV46 AU48 AU47 AV47 AV49

P46 P42

AP47 AP49 AT38

AY47 AY49 AY43 AY45 BA47 BA48 BB47 BB49

M43 M36

AT45 AT43 BH41

BB43 BB45 BF44 BE44 BF42 BE42 BJ42 BG42

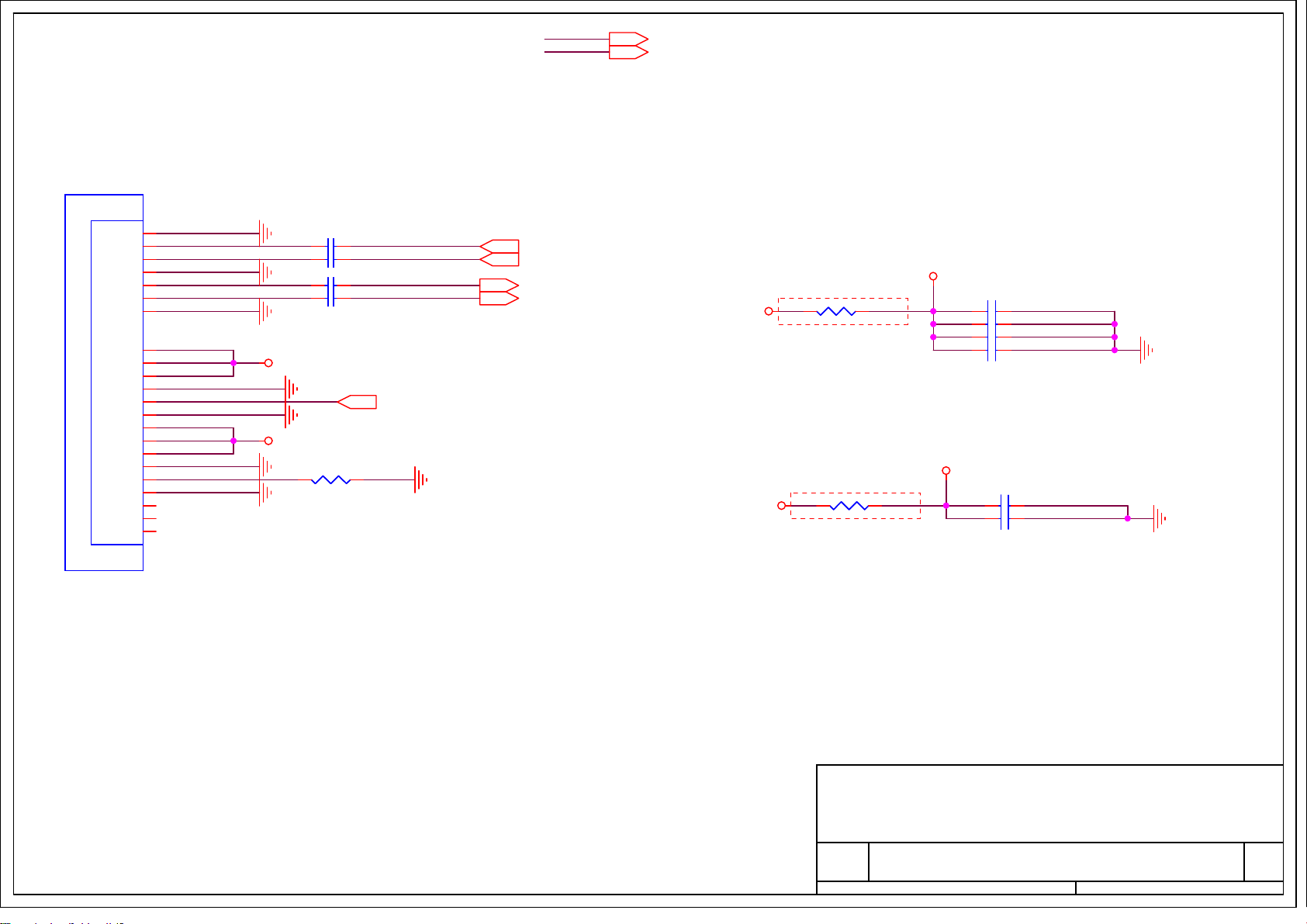

INT_HDMI_SCL (16) INT_HDMI_SDA (16)

DPB_HPD_Q

DPB_LANE0_N

C143 0.1U/10V/X5R_4C143 0.1U/10V/X5R_4

DPB_LANE0_P

C144 0.1U/10V/X5R_4C144 0.1U/10V/X5R_4

DPB_LANE1_N

C140 0.1U/10V/X5R_4C140 0.1U/10V/X5R_4

DPB_LANE1_P

C141 0.1U/10V/X5R_4C141 0.1U/10V/X5R_4

DPB_LANE2_N

C138 0.1U/10V/X5R_4C138 0.1U/10V/X5R_4

DPB_LANE2_P

C139 0.1U/10V/X5R_4C139 0.1U/10V/X5R_4

DPB_LANE3_N

C136 0.1U/10V/X5R_4C136 0.1U/10V/X5R_4

DPB_LANE3_P

C137 0.1U/10V/X5R_4C137 0.1U/10V/X5R_4

Layout note: AC coupling capacitors of DP are placed on near connector

HDMI_HPD(16)

R400

R400 100K_4

100K_4

3

Q37

Q37 ME2N7002E

ME2N7002E

HDMI_TX2- (16) HDMI_TX2+ (16) HDMI_TX1- (16) HDMI_TX1+ (16) HDMI_TX0- (16) HDMI_TX0+ (16) HDMI_CLK- (16) HDMI_CLK+ (16)

+5V

2

1

07

INT. HDMI

DPB_HPD_QDPB_HPD_Q

EC-DV-09

PCH Pull-high/low(CLG)

PM_RI# PM_BATLOW# PCIE_WAKE# SLP_LAN# SUS_PWR_ACK_R AC_PRESENT_R PM_DRAM_PWRGD

A A

XDP_DBRST# PCI_CLKRUN#

RSMRST# SYS_PWROK

R487 10K_4R487 10K_4 R279 8.2K_4R279 8.2K_4 R484 10K_4R484 10K_4 R280 10K_4R280 10K_4 R496 10K_4R496 10K_4 R266 10K_4R266 10K_4 R231 200/F_4R231 200/F_4

R451 10K_4R451 10K_4 R443 8.2K_4R443 8.2K_4

R282 10K_4R282 10K_4 R195 10K_4R195 10K_4

3V_S5

SYS_PWROK(3,32)

+3V

+3V_RTC

5

System PWR_OK(CLG)

3V_S5

SYS_PWROK

4

U17

3 5

TC7SH08FU

R494 330K_4R494 330K_4

DSWVREN

R500 *330K_4R500 *330K_4

On Die DSW VR Enable High = Enable (Default)

Low = Disable

C303 0.1U/10V/X5R_4C303 0.1U/10V/X5R_4

2

DELAY_VR_PWRGOOD (35)

ECPWROK

1

R212

R212 *100K_4

*100K_4

4

Quanta Computer Inc.

+1.05V (3,5,8,9,11,29,33,37) +3V_RTC (8,11,28) 3V_S5 (3,8,9,10,11,22,25,28,37) +3V (3,8,9,10,11,13,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) +5V (11,15,16,18,19,24,26,29,37)

3

2

Size Document Number Rev

Date: Sheet of

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

PCH 1/6 (DMI/FDI/VIDEO)

Monday, January 31, 2011 7 43

1

1A

5

Cougar Point (HDA,JTAG,SATA)

RTC_X1 RTC_X2 RTC_RST# SRTC_RST#

R215 1M_4R215 1M_4

D D

C C

B B

+3V_RTC

ACZ_SPKR(18)

ACZ_SDIN0(18)

TP33TP33

R270 *10K_4R270 *10K_4

+3V

R203 *10K_4R203 *10K_4

3V_S5

TP30TP30 TP26TP26 TP32TP32 TP67TP67

R435 *10K_4R435 *10K_4

3VPCU

PCH Strap Table

SM_INTRUDER# PCH_INVRMEN

ACZ_BCLK ACZ_SYNC_R SPKR ACZ_RST#

ACZ_SDOUT

GPIO33 GPIO13

PCH_JTAG_TCK PCH_JTAG_TMS PCH_JTAG_TDI PCH_JTAG_TDO

SPI_CLK_R SPI_CS0#_R PCH_SPI_CS1#

SPI_SI_R SPI_SO_R

U30A

A20

RTCX1

C20

RTCX2

D20

RTCRST#

G22

SRTCRST#

K22

INTRUDER#

C17

INTVRMEN

N34

HDA_BCLK

L34

HDA_SYNC

T10

SPKR

K34

HDA_RST#

E34

HDA_SDIN0

G34

HDA_SDIN1

C34

HDA_SDIN2

A34

HDA_SDIN3

A36

HDA_SDO

(+3V)

C36

HDA_DOCK_EN# / GPIO33

(

+3VS5)

N32

HDA_DOCK_RST# / GPIO13

J3

JTAG_TCK

H7

JTAG_TMS

K5

JTAG_TDI

H1

JTAG_TDO

T3

SPI_CLK

Y14

SPI_CS0#

T1

SPI_CS1#

V4

SPI_MOSI

U3

SPI_MISO

CougarPoint_R1P0

Pin Name Strap description Sampled Configuration

SPKR

Different from Calpella

GNT3# / GPIO55 Top-Block Swap Override

No reboot mode setting PWROK

PWROK

INTVRMEN Integrated 1.05V VRM enable ALWAYS Should be always pull-up HDA_SDO GNT1# / GPIO51 GPIO19

Different from Calpella

GNT2# / GPIO53

DF_TVS

A A

HDA_SYNC On-Die PLL VR Voltage Select RSMRST

Flash Descriptor Security

Only for Interposer

Boot BIOS Selection 1 [bit-1] Boot BIOS Selection 0 [bit-0] ESI strap (Server only)

DMI Termination voltage weak pull-down 20kohm

PWROK PWROK PWROK PWROK

PWROK

4

LDRQ0#

(+3V)

SERIRQ

SATA0RXN SATA0RXP SATA0TXN

SATA0TXP

SATA1RXN SATA1RXP SATA1TXN

SATA1TXP

SATA2RXN SATA2RXP SATA2TXN

SATA2TXP

SATA3RXN SATA3RXP SATA3TXN

SATA3TXP

SATA4RXN SATA4RXP SATA4TXN

SATA4TXP

SATA5RXN SATA5RXP SATA5TXN

SATA5TXP

SATALED#

(+3V) (

+3V)

GNT0#GNT1#

C38 A38 B37 C37

D36 E36

K36 V5

AM3 AM1 AP7 AP5

AM10 AM8 AP11 AP10

AD7 AD5 AH5 AH4

AB8 AB10 AF3 AF1

Y7 Y5 AD3 AD1

Y3 Y1 AB3 AB1

Y11 Y10

AB12 AB13

AH1

P3 V14 P1

11 00

FWH0 / LAD0 FWH1 / LAD1 FWH2 / LAD2 FWH3 / LAD3

LPC

FWH4 / LFRAME#

LDRQ1# / GPIO23

RTCIHDA

SATA 6G

SATA

SATAICOMPO

JTAG

SPI

SATAICOMPI

SATA3RCOMPO

SATA3COMPI

SATA3RBIAS

SATA0GP / GPIO21 SATA1GP / GPIO19

0 = Default (weak pull-down 20K)

1 = Setting to No-Reboot mode

0 = "top-block swap" mode

1 = Default (weak pull-up 20K)

0 = effective(Default: weak pull down)

1 = Override

Should not be pull-down (weak pull-up 20K)

0 = Support by 1.8V (weak pull-down) 1 = Support by 1.5V

3

LPC_AD0 (22,25,28) LPC_AD1 (22,25,28) LPC_AD2 (22,25,28) LPC_AD3 (22,25,28)

LPC_FRAME# (22,25,28)

LPC_DRQ#0 (22)

SERIRQ

SATA_COMP

SATA3_COMP

SATA3_RBIAS

BT_DET# BBS_BIT0

if default boot destination is SPI, n

o external pull-up/-down resistors on the board are

necessary

LCD_BK_OFF (15)

R151 8.2K_4R151 8.2K_4

SERIRQ (22,25,28)

SATA_RXN0 (19) SATA_RXP0 (19) SATA_TXN0 (19) SATA_TXP0 (19)

R150 37.4/F_4R150 37.4/F_4

R142 49.9/F_4R142 49.9/F_4

R424 750/F_4R424 750/F_4

R440 10K_4R440 10K_4 R136 10K_4R136 10K_4

+3V

SATA HDD/SSD

+1.05V

TP61TP61

+3V +3V

Circuit

Boot Location

SPI

LPC

SPKR

+3V

PCH_INVRMEN

ACZ_SDOUT

[Need external pull-down for LPC BIOS]

R482 *1K_4R482 *1K_4 R477 10K_4R477 10K_4

R442 *1K_4R442 *1K_4 R481 *1K_4R481 *1K_4

R172 *1K_4R172 *1K_4

Bios request, for can't boot Capella 4/23.

R488 330K_4R488 330K_4

R224 *1K_4R224 *1K_4

USE GPIO PIN

+1.8V

PROC_SELECT#(3)

3V_S5

R418 1K_4R418 1K_4

R201 1K_4R201 1K_4

BT_DET# (25)

+3V

PCI_GNT3# (9)

+3V_RTC

3V_S5

BBS_BIT1 (9)

R416 2.2K_4R416 2.2K_4

+1.05V (3,5,7,9,11,29,33,37) +1.8V (5,11,33,37) +3V_RTC (7,11,28) 3VPCU (15,16,17,20,27,28,29,31,33,36,37) +3V (3,7,9,10,11,13,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) +5V (7,11,15,16,18,19,24,26,29,37)

BT1

BT1 RTC_CON

RTC_CON

+3V

EC-SIT-2

HDA Bus(CLG)

BBS_BIT0

N.A at CPT EDS 0.7

DF_TVS (10)

ACZ_SYNC_R

ACZ_SYNC ACZ_SYNC_RACZ_SYNC_R

2

RTC Circuitry(RTC)

3VPCU

+3V_RTC_0

iTPM Function R366 Enable 1K Disable NC

R342 1K_4R342 1K_4

RTC Power trace width 20mils.

1

2

34

iTPM ENABLE/DISABLE

R395 *1K_4R395 *1K_4

SPI_CS0#_R SPI_CLK_R SPI_SI_R SPI_SO_R

Q26

2N7002

ACZ_SYNC_RACZ_SYNC_R

1

3

2

R318

33K/F_4

+3V

EC-SIT-1

R391 *short_4R391 *short_4 R392 *short_4R392 *short_4 R396 *short_4R396 *short_4 R387 *short_4R387 *short_4

C399

33P/50V/NPO_4

RTC Clock 32.768KHz

C560 18P/50V/NPO_4C560 18P/50V/NPO_4

EC-SIT-3

C564 18P/50V/NPO_4C564 18P/50V/NPO_4

+3V_RTC_2 +3V_RTC_1

D13

D13 BAT54C

BAT54C

SPI_SI

22P/50V/NPO_4

SPI_CS0# SPI_CLK SPI_SI SPI_SO

ACZ_BITCLK_AUDIO(18)

ACZ_SYNC_AUDIO(18)

ACZ_RST#_AUDIO(18)

ACZ_SDOUT_AUDIO(18)

12

30mils

+3V_RTC

R331

20K/F_4

R337

R337 20K/F_4

20K/F_4R341 *short_6R341 *short_6

C416

C416 1U/6.3V/X5R_4

1U/6.3V/X5R_4

32Mbit (4M Byte), SPI

R393

3.3K_4

C491

Place near the audio codec

1

Y4

32.768KHZ

C407

1U/6.3V/X5R_4

C411

1U/6.3V/X5R_4

R333 *0_6R333 *0_6

For PCH

U27

1

CE#

VDD

6

SCK

5

SI

2

SO

HOLD#

3

WP#

VSS

W25Q32BVSSIG

R273 33_4R273 33_4 R326 33_4R326 33_4 R206 33_4R206 33_4 R246 33_4R246 33_4

RTC_X1

R490

R490 10M_4

10M_4

RTC_X2

12

SRTC_RST#RTC_RST#

8

7 4

C356

*10P/50V/COG_4

ACZ_BCLK ACZ_SYNC ACZ_RST# ACZ_SDOUT

08

RTC_RST#

J1

J1 *SOLDERJUMPER-2

*SOLDERJUMPER-2

SRTC_RST#

J2

J2 *SOLDERJUMPER-2

*SOLDERJUMPER-2

+3V+3V

R397

3.3K_4

C502

0.1U/10V/X5R_4

GPIO15 GPIO28 DSWVREN

Different from Calpella

5

On-die PLL Voltage Regulator RSMRST# 0: disable

1: enable

0 = Disable

1 = Enable (Default)

4

GPIO15

GPIO15(10)

R466 1K_4R466 1K_4

R192 *1K_4R192 *1K_4

3

3V_S5

PLL_ODVR_EN (10)

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

PCH 2/6 (SATA/HDA/SPI)

Monday, January 31, 2011 8 43

1

1A

5

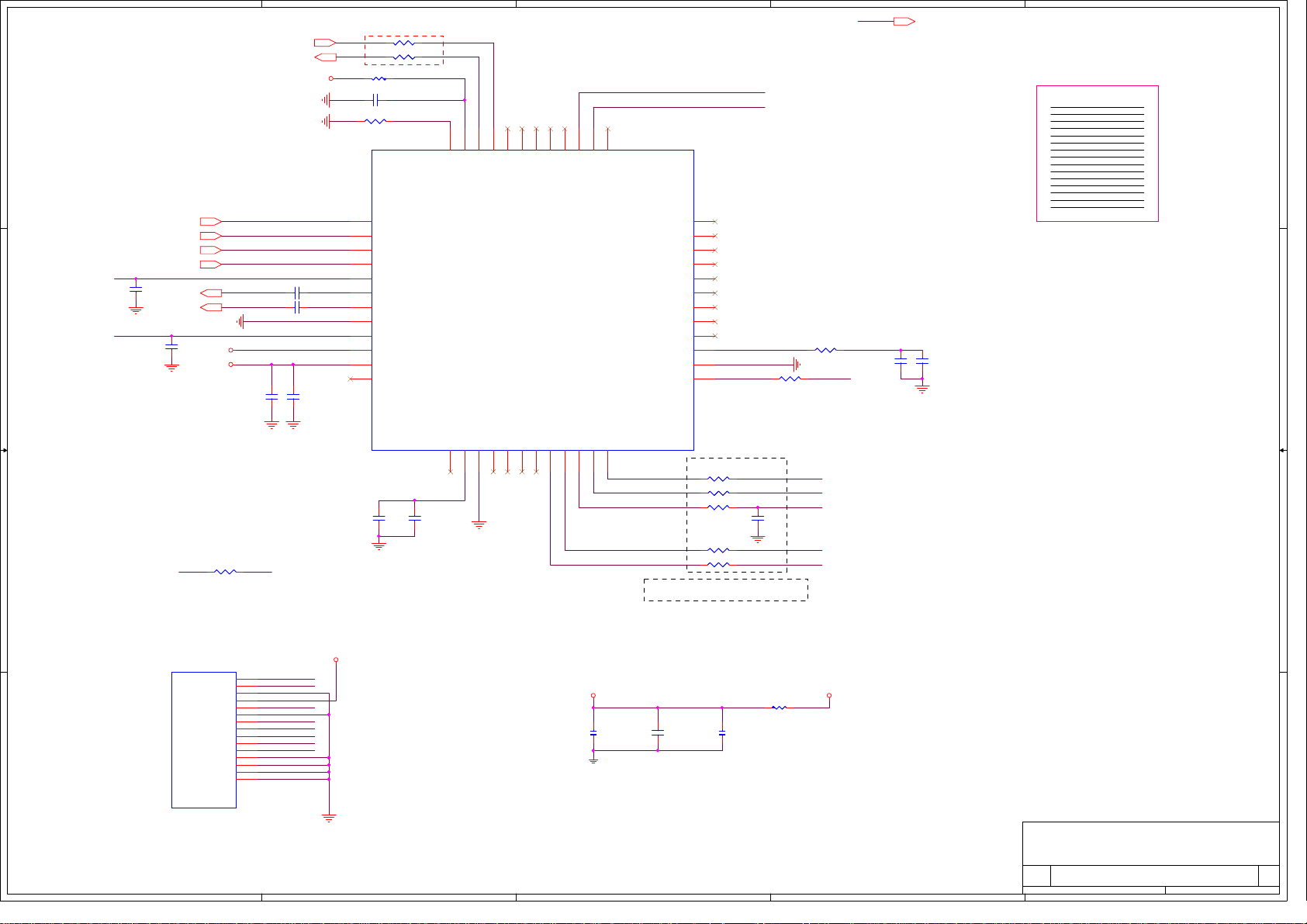

Cougar Point-M (PCI,USB,NVRAM)

U30E

PCI/USBOC# Pull-up(CLG)

PCI_PIRQA#

R197 8.2K_4R197 8.2K_4

PCI_PIRQB#

R183 8.2K_4R183 8.2K_4

PCI_PIRQC#

R189 8.2K_4R189 8.2K_4

PCI_PIRQD#

D D

DOCK_ID0 PCI_REQ3#

DOCK_ID1

C C

PCLK_DEBUG(22) CLK_LPC_TPM(25) PCLK_591(28)

B B

PLTRST#(CLG)

PCI_PLTRST#

EC-SIT-1

R243

A A

*short_4

R205 8.2K_4R205 8.2K_4

+3V

RP1

10

9 8 7 4

10K_10P8R_6

3V_S5

RP2

10

USB_OC4# USB_OC1# USB_OC2# USB_OC3#

C556 *15P/50V/NPO_4C556 *15P/50V/NPO_4

C553 *10P/50V/COG_4C553 *10P/50V/COG_4

SIO_EXT_WAKE#(28)

PLTRST#

9 8 7 4

BBS_BIT1(8)

PCI_GNT3#(8)

CLK_PCI_FB

3V_S5

2 1

10K_10P8R_6

TP29TP29

3 5

+3V

DOCK_ID2

1

INTH#

2

PCI_REQ1#

3

PCI_REQ2#

56

USB_OC6#

1

USB_OC0#

2

USB_OC7#

3

USB_OC5#

56

PCI_PIRQA# PCI_PIRQB# PCI_PIRQC# PCI_PIRQD#

PCI_REQ1# PCI_REQ2# PCI_REQ3#

BBS_BIT1 PWM_SELECT# PCI_GNT3#

DOCK_ID0 DOCK_ID1 DOCK_ID2 INTH#

PCI_PLTRST#

PCLK_DEBUG_C PCLK_591

PLTRST#

4

R244

R244 100K_4

100K_4

5

PCLK_DEBUG_C CLK_LPC_TPM_C PCLK_591_C CLK_PCI_FB_C

R471 22_4R471 22_4 R184 22_4R184 22_4 R472 22_4R472 22_4 R174 22_4R174 22_4

C555 *0.1U/10V/X5R_4C555 *0.1U/10V/X5R_4

U32

U32 *TC7SH08FU

*TC7SH08FU

PLTRST# (3,17,21,22,23,25,27)

BG26

TP1

BJ26

TP2

BH25

TP3

BJ16

TP4

BG16

TP5

AH38

TP6

AH37

TP7

AK43

TP8

AK45

TP9

C18

TP10

N30

TP11

H3

TP12

AH12

TP13

AM4

TP14

AM5

TP15

Y13

TP16

K24

TP17

L24

TP18

AB46

TP19

AB45

TP20

B21

TP21

M20

TP22

AY16

TP23

BG46

TP24

BE28

TP25

BC30

TP26

BE32

TP27

BJ32

TP28

BC28

TP29

BE30

TP30

BF32

TP31

BG32

TP32

AV26

TP33

BB26

TP34

AU28

TP35

AY30

TP36

AU26

TP37

AY26

TP38

AV28

TP39

AW30

TP40

K40

PIRQA#

K38

PIRQB#

H38

PIRQC#

G38

PIRQD#

C46

REQ1# / GPIO50

C44

REQ2# / GPIO52

E40

REQ3# / GPIO54

D47

GNT1# / GPIO51

E42

GNT2# / GPIO53

F46

GNT3# / GPIO55

G42

PIRQE# / GPIO2

G40

PIRQF# / GPIO3

C42

PIRQG# / GPIO4

D44

PIRQH# / GPIO5

K10

PME#

C6

PLTRST#

H49

CLKOUT_PCI0

H43

CLKOUT_PCI1

J48

CLKOUT_PCI2

K42

CLKOUT_PCI3

H40

CLKOUT_PCI4

CougarPoint_R1P0

MBCLK_THRM(26,28)

MBDATA_THRM(26,28)

SMB_PCH_DAT

SMB_PCH_CLK

RSVD

PCI

(+3V) (+3V) (+3V)

USB

(+3V) (+3V) (+3V)

(+3V) (+3V) (+3V) (+3V)

(+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5) (+3VS5)

SMBus/Pull-up(CLG) CLK_REQ/Strap Pin(CLG)

2N7002K

1

Q22

2

+3V

2

1

Q23

2N7002K

Q39

Q39 2N7002K

2N7002K

+3V

3

2 2

Q40

Q40 2N7002K

2N7002K

1

R267 4.7K_4R267 4.7K_4 R272 4.7K_4R272 4.7K_4

1

4

AY7

RSVD1

AV7

RSVD2

AU3

RSVD3

BG4

RSVD4

AT10

RSVD5

BC8

RSVD6

AU2

RSVD7

AT4

RSVD8

AT3

RSVD9

AT1

RSVD10

AY3

RSVD11

AT5

RSVD12

AV3

RSVD13

AV1

RSVD14

BB1

RSVD15

BA3

RSVD16

BB5

RSVD17

BB3

RSVD18

BB7

RSVD19

BE8

RSVD20

BD4

RSVD21

BF6

RSVD22

AV5

RSVD23

AV10

RSVD24

AT8

RSVD25

AY5

RSVD26

BA2

RSVD27

AT12

RSVD28

BF3

RSVD29

C24

USBP0N

A24

USBP0P

C25

USBP1N

B25

USBP1P

C26

USBP2N

A26

USBP2P

K28

USBP3N

H28

USBP3P

E28

USBP4N

D28

USBP4P

C28

USBP5N

A28

USBP5P

C29

USBP6N

B29

USBP6P

N28

USBP7N

M28

USBP7P

L30

USBP8N

K30

USBP8P

G30

USBP9N

E30

USBP9P

C30

USBP10N

A30

USBP10P

L32

USBP11N

K32

USBP11P

G32

USBP12N

E32

USBP12P

C32

USBP13N

A32

USBP13P

C33

USBRBIAS#

B33

USBRBIAS

OC0# / GPIO59 OC1# / GPIO40 OC2# / GPIO41 OC3# / GPIO42 OC4# / GPIO43

OC6# / GPIO10 OC7# / GPIO14

A14 K20 B17 C16 L16 A16

OC5# / GPIO9

D14 C14

SMB_ME1_CLK

3

R210 2.2K_4R210 2.2K_4

3V_S5

R211 2.2K_4R211 2.2K_4

SMB_ME1_DAT

3

PDAT_SMB (13,14,23,27)

PCLK_SMB (13,14,23,27)

4

NV_RCOMP

R118

USBP0- (20) USBP0+ (20) USBP1- (20) USBP1+ (20)

USBP3- (15) USBP3+ (15) USBP4- (22) USBP4+ (22) USBP5- (23) USBP5+ (23)

USBP8- (20) USBP8+ (20)

USBP10- (24) USBP10+ (24)

USBP13- (25) USBP13+ (25)

USB_BIAS

USB_OC0# USB_OC1# USB_OC2# USB_OC3# USB_OC4# USB_OC5# USB_OC6# USB_OC7#

R245

22.6/F_4

PCIE_CLKREQ_W LAN# PCIE_CLKREQ_CARD#

PCIECLKRQ0# PCIE_REQ_WW AN# CLK_PCIE_REQ4# CLK_PEGB_REQ#

PCIECLKRQ7# CLK_PEGA_REQ# PCIE_CLKREQ_LAN#

CLK_PEGA_REQ# CLK_BUF_BCLK_N CLK_BUF_BCLK_P

CLK_BUF_PCIE_3GPLL# CLK_BUF_PCIE_3GPLL CLK_BUF_DREFCLK# CLK_BUF_DREFCLK CLK_BUF_DREFSSCLK# CLK_BUF_DREFSSCLK CLK_PCH_14M

CLOCK TERMINATION for FCIM

*32.4/F_4

USB0

USB1(AUO4)

Camera WLAN WWAN

USB2 (Wire)

Finger Printer

BlueTooth

USB_OC0_1# (20)

USB_OC8_9# (20)

TP14TP14

R447 10K_4R447 10K_4 R158 10K_4R158 10K_4

R460 10K_4R460 10K_4 R483 10K_4R483 10K_4 R261 10K_4R261 10K_4 R260 10K_4R260 10K_4 R223 10K_4R223 10K_4 R263 10K_4R263 10K_4 R252 10K_4R252 10K_4 R171 10K_4R171 10K_4

R402 10K_4R402 10K_4 R401 10K_4R401 10K_4

R92 10K_4R92 10K_4 R93 10K_4R93 10K_4 R185 10K_4R185 10K_4 R202 10K_4R202 10K_4 R121 10K_4R121 10K_4 R124 10K_4R124 10K_4 R178 10K_4R178 10K_4

WLAN

Card Reader

WWAN

LAN

EHCI1EHCI2

Card Reader

+3V

3V_S5

3

PCIE_RXN2(22)

PCIE_RXN6_LAN(17)

PCIE_RXP6_LAN(17) PCIE_TXN6_LAN(17)

PCIE_TXP6_LAN(17)

WLAN

WWAN

Reserved

LAN

PCIE_RXP2(22) PCIE_TXN2(22)

PCIE_TXP2(22)

PCIE_RXN3(21)

PCIE_RXP3(21) PCIE_TXN3(21)

PCIE_TXP3(21)

PCIE_RXN4(23)

PCIE_RXP4(23) PCIE_TXN4(23)

PCIE_TXP4(23)

PCIE_CLKREQ_W LAN#(22)

PCIE_CLKREQ_CARD#(21)

CLK_PCIE_WLANN(22) CLK_PCIE_WLANP(22)

CLK_PCIE_CARD#(21)

CLK_PCIE_CARD(21)

CLK_PCIE_WANN(23)

CLK_PCIE_WANP(23)

PCIE_REQ_WW AN#(23)

PCIE_CLKREQ_LAN#(17)

CLK_PCIE_LANN(17) CLK_PCIE_LANP(17)

C163 0.1U/10V/X7R_4C163 0.1U/10V/X7R_4 C162 0.1U/10V/X7R_4C162 0.1U/10V/X7R_4

C166 0.1U/10V/X7R_4C166 0.1U/10V/X7R_4 C167 0.1U/10V/X7R_4C167 0.1U/10V/X7R_4

C164 0.1U/10V/X7R_4C164 0.1U/10V/X7R_4 C165 0.1U/10V/X7R_4C165 0.1U/10V/X7R_4

C199 0.1U/10V/X7R_4C199 0.1U/10V/X7R_4 C189 0.1U/10V/X7R_4C189 0.1U/10V/X7R_4

TP66TP66

TP23TP23 TP24TP24

TP34TP34

TP44TP44

TP39TP39

TP45TP45 TP17TP17

TP18TP18

PCIE Clock

Layout note: PCIE_CLKREQ_LAN# layout adjacent to CLK_PEGA_REQ#

3

2

Cougar Point-M (PCI-E,SMBUS,CLK)

PCIE_TXN2_C PCIE_TXP2_C

PCIE_TXN3_C PCIE_TXP3_C

PCIE_TXN4_C PCIE_TXP4_C

PCIE_TXN6_LAN_C PCIE_TXP6_LAN_C

PCIECLKRQ0#

PCIE_CLKREQ_W LAN#

PCIE_CLKREQ_CARD#

PCIE_REQ_WW AN#

CLK_PCIE_REV1N CLK_PCIE_REV1P

CLK_PCIE_REQ4#

PCIE_CLKREQ_LAN#

CLK_PEGB_REQ#

PCIECLKRQ6#

PCIECLKRQ7#

CLK_PCIE_XDPN CLK_PCIE_XDPP

U30B

BG34

PERN1

BJ34

PERP1

AV32

PETN1

AU32

PETP1

BE34

PERN2

BF34

PERP2

BB32

PETN2

AY32

PETP2

BG36

PERN3

BJ36

PERP3

AV34

PETN3

AU34

PETP3

BF36

PERN4

BE36

PERP4

AY34

PETN4

BB34

PETP4

BG37

PERN5

BH37

PERP5

AY36

PETN5

BB36

PETP5

BJ38

PERN6

BG38

PERP6

AU36

PETN6

AV36

PETP6

BG40

PERN7

BJ40

PERP7

AY40

PETN7

BB40

PETP7

BE38

PERN8

BC38

PERP8

AW38

PETN8

AY38

PETP8

Y40

CLKOUT_PCIE0N

Y39

CLKOUT_PCIE0P

J2

PCIECLKRQ0# / GPIO73

(+3VS5)

AB49

CLKOUT_PCIE1N

AB47

CLKOUT_PCIE1P

M1

PCIECLKRQ1# / GPIO18

(+3V)

AA48

CLKOUT_PCIE2N

AA47

CLKOUT_PCIE2P

V10

PCIECLKRQ2# / GPIO20

(+3V)

Y37

CLKOUT_PCIE3N

Y36

CLKOUT_PCIE3P

A8

PCIECLKRQ3# / GPIO25

(+3VS5)

Y43

CLKOUT_PCIE4N

Y45

CLKOUT_PCIE4P

L12

PCIECLKRQ4# / GPIO26

(+3VS5)

V45

CLKOUT_PCIE5N

V46

CLKOUT_PCIE5P

L14

PCIECLKRQ5# / GPIO44

(+3VS5)

AB42

CLKOUT_PEG_B_N

AB40

CLKOUT_PEG_B_P

E6

PEG_B_CLKRQ# / GPIO56

(+3VS5)

V40

CLKOUT_PCIE6N

V42

CLKOUT_PCIE6P

T13

PCIECLKRQ6# / GPIO45

(+3VS5)

V38

CLKOUT_PCIE7N

V37

CLKOUT_PCIE7P

K12

PCIECLKRQ7# / GPIO46

(+3VS5)

AK14

CLKOUT_ITPXDP_N

AK13

CLKOUT_ITPXDP_P

CougarPoint_R1P0

3V_S5 (3,7,8,10,11,22,25,28,37) +3V (3,7,8,10,11,13,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37)

2

PCI-E*

CLOCKS

SMBALERT# / GPIO11

SML0ALERT# / GPIO60

SMBUSController

SML1ALERT# / PCHHOT# / GPIO74

SML1CLK / GPIO58

SML1DATA / GPIO75

Link

PEG_A_CLKRQ# / GPIO47

CLKOUT_PEG_A_N

CLKOUT_PEG_A_P

CLKIN_PCILOOPBACK

CLKOUTFLEX0 / GPIO64 CLKOUTFLEX1 / GPIO65 CLKOUTFLEX2 / GPIO66 CLKOUTFLEX3 / GPIO67

FLEX CLOCKS

SMBus/Pull-up(CLG)

3V_S5

R485 1K_4R485 1K_4 R262 10K_4R262 10K_4

R276 2.2K_4R276 2.2K_4 R268 2.2K_4R268 2.2K_4 R479 2.2K_4R479 2.2K_4 R265 2.2K_4R265 2.2K_4R238 *10K_4R238 *10K_4 R264 10K_4R264 10K_4

1

(+3VS5)

SMBCLK

SMBDATA

(+3VS5)

SML0CLK

SML0DATA

(+3VS5) (+3VS5)

(+3VS5)

CL_CLK1

CL_DATA1

CL_RST1#

(+3VS5)

CLKOUT_DMI_N CLKOUT_DMI_P

CLKOUT_DP_N CLKOUT_DP_P

CLKIN_DMI_N CLKIN_DMI_P

CLKIN_GND1_N CLKIN_GND1_P

CLKIN_DOT_96N CLKIN_DOT_96P

CLKIN_SATA_N CLKIN_SATA_P

REFCLK14IN

XTAL25_IN

XTAL25_OUT

XCLK_RCOMP

(+3V) (+3V)

DRAMRST_CNTRL_PCH SMBALERT#

SMB_PCH_CLK SMB_PCH_DAT SMB_ME0_CLK SMB_ME0_DAT SML1ALERT#_R

SMBALERT#

E12

SMB_PCH_CLK

H14

SMB_PCH_DAT

C9

DRAMRST_CNTRL_PCH

A12

SMB_ME0_CLK

C8

SMB_ME0_DAT

G12

SML1ALERT#_R

C13

SMB_ME1_CLK

E14

SMB_ME1_DAT

M16

CL_CLK_R

M7

CL_DAT_R

T11

CL_RST#_R

P10

CLK_PEGA_REQ#

M10

AB37 AB38

AV22 AU22

AM12 AM13

CLK_BUF_PCIE_3GPLL#

BF18

CLK_BUF_PCIE_3GPLL

BE18

CLK_BUF_BCLK_N

BJ30

CLK_BUF_BCLK_P

BG30

CLK_BUF_DREFCLK#

G24

CLK_BUF_DREFCLK

E24

CLK_BUF_DREFSSCLK#

AK7

CLK_BUF_DREFSSCLK

AK5

CLK_PCH_14M

K45

CLK_PCI_FB

H45

XTAL25_IN

V47

XTAL25_OUT

V49

XCLK_RCOMP

Y47

K43 F47 H47 K49

Size Document Number Rev

Date: Sheet of

Monday, January 31, 2011 9 43

Date: Sheet of

Monday, January 31, 2011 9 43

Date: Sheet of

Monday, January 31, 2011 9 43

R436 90.9/F_4R436 90.9/F_4

CLK_FLEX0 CLK_FLEX1 CLK_FLEX2 CLK_FLEX3

3V_S5

R200 *10K_4R200 *10K_4 R187 *10K_4R187 *10K_4 R179 *10K_4R179 *10K_4

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

PCH 3/6 (PCIE/USB/CLK)

1

09

DRAMRST_CNTRL_PCH (3)

TP35TP35

TP31TP31

TP27TP27

TP25TP25

CLK_CPU_BCLKN (3) CLK_CPU_BCLKP (3)

TP15TP15 TP16TP16

C542

C542 27P/50V/NPO_4

27P/50V/NPO_4

21

R441

Y3

1M_4

25MHzY325MHz

C541

C541 27P/50V/NPO_4

27P/50V/NPO_4

+1.05V

TP28TP28 TP42TP42 TP68TP68 TP69TP69

CL_CLK_RPCIECLKRQ6# CL_DAT_R CL_RST#_R

1A

5

Cougar Point (GPIO,VSS_NCTF,RSVD)

Cougar Point (GPIO,VSS_NCTF,RSVD)Cougar Point (GPIO,VSS_NCTF,RSVD)

U30F

GPIO0

SIO_EXT_SMI#(28) SIO_EXT_SCI#(28)

D D

GPIO15(8)

EC-SIT-1

PLL_ODVR_EN(8)

CCD_ON(15) BT_ON(22,25)

C C

B B

R193 *short_4R193 *short_4

SIO_EXT_SMI# SIO_EXT_SCI# EXPRCRD_PWREN# GPIO8 GPIO12 GPIO15

GPIO16

DGPU_PWROK MODEL_ID0 GPIO24 MSATA_DTCT# DF_TVS GPIO28 CCD_ON BT_ON BOARD_ID0 BOARD_ID1 BOARD_ID2 BOARD_ID3 GPIO48 GPIO49 PCH_GPIO57

TP70TP70

U30F

T7

BMBUSY# / GPIO0

A42

TACH1 / GPIO1

H36

TACH2 / GPIO6

E38

TACH3 / GPIO7

C10

GPIO8

C4

LAN_PHY_PWR_CTRL / GPIO12

G2

GPIO15

U2

SATA4GP / GPIO16

D40

TACH0 / GPIO17

T5

SCLOCK / GPIO22

E8

GPIO24 / MEM_LED

E16

GPIO27

P8

GPIO28

K1

STP_PCI# / GPIO34

K4

GPIO35

V8

SATA2GP / GPIO36

M5

SATA3GP / GPIO37

N2

SLOAD / GPIO38

M3

SDATAOUT0 / GPIO39

V13

SDATAOUT1 / GPIO48

V3

SATA5GP / GPIO49

D6

GPIO57

A4

VSS_NCTF_1

A44

VSS_NCTF_2

A45

VSS_NCTF_3

A46

VSS_NCTF_4

A5

VSS_NCTF_5

A6

VSS_NCTF_6

B3

VSS_NCTF_7

B47

VSS_NCTF_8

BD1

VSS_NCTF_9

BD49

VSS_NCTF_10

BE1

VSS_NCTF_11

BE49

VSS_NCTF_12

BF1

VSS_NCTF_13

BF49

VSS_NCTF_14

CougarPoint_R1P0

(+3V) (+3V) (+3V) (+3V) (+3VS5) (+3VS5)

(+3VS5)

(+3V) (+3V)

(+3V) (+3VS5) (DSW) (+3VS5) (+3V) (+3V) (+3V) (+3V) (+3V) (+3V) (+3V) (+3V) (+3VS5)

4

3

2

1

10

GPIO

NCTF

TACH4 / GPIO68

(+3V)

TACH5 / GPIO69

(+3V)

TACH6 / GPIO70

(+3V)

TACH7 / GPIO71

(+3V)

A20GATE

PECI

RCIN#

PROCPWRGD

THRMTRIP#

INIT3_3V#

DF_TVS

CPU/MISC

TS_VSS1 TS_VSS2 TS_VSS3 TS_VSS4

NC_1

VSS_NCTF_15 VSS_NCTF_16 VSS_NCTF_17 VSS_NCTF_18 VSS_NCTF_19 VSS_NCTF_20 VSS_NCTF_21 VSS_NCTF_22 VSS_NCTF_23 VSS_NCTF_24 VSS_NCTF_25 VSS_NCTF_26 VSS_NCTF_27 VSS_NCTF_28 VSS_NCTF_29 VSS_NCTF_30 VSS_NCTF_31 VSS_NCTF_32

C40 B41 C41 A40

P4 AU16 P5 AY11 AY10 T14 AY1

AH8 AK11 AH10 AK10

P37

BG2 BG48 BH3 BH47 BJ4 BJ44 BJ45 BJ46 BJ5 BJ6 C2 C48 D1 D49 E1 E49 F1 F49

GPIO68 GPIO69 WLAN_OFF# WWAN_OFF#

SIO_A20GATE

SIO_RCIN#

PCH_THRMTRIP#

R221 10K_4R221 10K_4 R285 *1.5K/F_4R285 *1.5K/F_4

R286 10K_4R286 10K_4

+3V

WLAN_OFF# (22) WWAN_OFF# (23)

GPIO Pull-up/Pull-down(CLG)

R119 *0_4R119 *0_4

R114 390_4R114 390_4

DF_TVS (8)

EC-SIT-1

R126 *short_4R126 *short_4 R152 10K_4R152 10K_4

TP11TP11

TP58TP58

TP43TP43

SIO_A20GATE (28)

EC_PECI (3,28) SIO_RCIN# (28) H_PWRGOOD (3) PM_THRMTRIP# (3)

GPIO12 GPIO8 MSATA_DTCT# GPIO24

GPIO48 CCD_ON GPIO16 GPIO0 SIO_EXT_SCI# SIO_EXT_SMI# EXPRCRD_PWREN# SIO_A20GATE SIO_RCIN# GPIO49 DGPU_PWROK

WWAN_OFF# WLAN_OFF#

WWAN_OFF# BT_ON

R467 10K_4R467 10K_4 R498 10K_4R498 10K_4 R281 10K_4R281 10K_4 R259 10K_4R259 10K_4

R162 10K_4R162 10K_4 R455 10K_4R455 10K_4 R434 10K_4R434 10K_4

R208 10K_4R208 10K_4 R275 10K_4R275 10K_4 R239 10K_4R239 10K_4 R186 10K_4R186 10K_4 R199 10K_4R199 10K_4 R427 10K_4R427 10K_4 R222 10K_4R222 10K_4

R296 *10K_4R296 *10K_4 R274 10K_4R274 10K_4

R295 1M_4R295 1M_4 R456 100K/F_4R456 100K/F_4

3V_S5

+3V

3V_S5 (3,7,8,9,11,22,25,28,37) +3V (3,7,8,9,11,13,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37)

BOARD ID SETTING

Board ID For Function

SDV SIV SIT SVT SOVP

A A

+3V

R161 *10K_4R161 *10K_4 R213 *10K_4R213 *10K_4 R444 *10K_4R444 *10K_4 R450 *10K_4R450 *10K_4

ID3

ID2 GPIO38

0 0

0 1

ID1 GPIO37

0 0 1 10 0

R157 10K_4R157 10K_4 R214 10K_4R214 10K_4 R445 10K_4R445 10K_4 R448 10K_4R448 10K_4

GPIO39

0 0 1 0 0

0

BOARD_ID0 BOARD_ID1 BOARD_ID2 BOARD_ID3

5

ID0 GPIO36

0

0 1 0

INTEL

AMD

+3V

R173

R173 *10K_4

MODEL_ID0Model ID

0

MODEL_ID0

1

4

*10K_4

R180

R180 10K_4

10K_4

3V_S5

R254

2

R254 *10K/F_4

*10K/F_4

PCH_GPIO57

R255

R255 10K/F_4

10K/F_4

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

PCH 4/6 (GPIO/MISC)

Monday, January 31, 2011 10 43

1

1A

TPM physical presence

PCH_GPIO57 Low: Default

3

5

4

3

2

1

Cougar Point-M (POWER)

COUGAR POINT (POWER)

POWER

U30G

AA23

VCCCORE[1]

AC23

VCCCORE[2]

AD21

VCCCORE[3]

AD23

VCCCORE[4]

AF21

VCCCORE[5]

AF23

VCCCORE[6]

AG21

VCCCORE[7]

AG23

VCCCORE[8]

AG24

VCCCORE[9]

AG26

VCCCORE[10]

AG27

VCCCORE[11]

AG29

VCCCORE[12]

AJ23

VCCCORE[13]

AJ26

VCCCORE[14]

AJ27

VCCCORE[15]

AJ29

VCCCORE[16]

AJ31

VCCCORE[17]

AN19

VCCIO[28]

BJ22

VCCAPLLEXP

AN16

VCCIO[15]

AN17

VCCIO[16]

AN21

VCCIO[17]

AN26

VCCIO[18]

AN27

VCCIO[19]

AP21

VCCIO[20]

AP23

VCCIO[21]

AP24

VCCIO[22]

AP26

VCCIO[23]

AT24

VCCIO[24]

AN33

VCCIO[25]

AN34

VCCIO[26]

BH29

VCC3_3[3]

AP16

VCCVRM[2]

BG6

VccAFDIPLL

AP17

VCCIO[27]

AU20

VCCDMI[2]

CougarPoint_R1P0

C512 1U/6.3V/X5R_4C512 1U/6.3V/X5R_4

+

C504 220U/2.5V_3528

C511 1U/6.3V/X5R_4C511 1U/6.3V/X5R_4

+

C503 220U/2.5V_3528

C533 1U/6.3V/X5R_4C533 1U/6.3V/X5R_4

L25

L25 10uH/100mA_8

10uH/100mA_8

C528 10U/6.3V/X5R_6C528 10U/6.3V/X5R_6

2

POWER

VCC CORE

VCCIO

FDI

CRTLVDS

VCCTX_LVDS[1] VCCTX_LVDS[2] VCCTX_LVDS[3] VCCTX_LVDS[4]

DMI

VCCDFTERM[1]

VCCDFTERM[2]

VCCDFTERM[3]

VCCDFTERM[4]

DFT / SPI HVCMOS

Size Document Number Rev

Date: Sheet of

Date: Sheet

VCCADAC

VSSADAC

VCCALVDS VSSALVDS

VCC3_3[6]

VCC3_3[7]

VCCVRM[3]

VCCDMI[1]

VCCCLKDMI

VCCSPI

+5V_PCH_VCC5REF

V5REF= 1mA

+5V_PCH_VCC5REFSUS

VCC5REFSUS=1mA

Monday, January 31, 2011 11 43

EC-SIT-1

+3V

+1.05V+1.05V_VCCUSBCORE

119mA (20mils)

3V_S5

+1.05V

+1.05V +1.05V_VCCIO

3V_S5

+3V

+1.05V

+1.5VSUS 3V_S5

3

R134

+1.05V_PCH_VCCDPLL_EXP+1.05V

L19

*1uH/25mA_6

EC-SIT-1

R425 *short_6R425 *short_6 R431 *0_6R431 *0_6

+1.05V

L20

L20 10uH/100MA_8

10uH/100MA_8

1.3 A (60mils)

C220

C220 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C235

C235 10U/6.3V/X5R_6

10U/6.3V/X5R_6

C212

C212 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C203

C203 1U/6.3V/X5R_4

1U/6.3V/X5R_4

R398 *short_8R398 *short_8

C509

0.1U/10V/X5R_4

160mA (15mils)

+VCCAFDI_VRM

+1.05V

C233

C233 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C215

C215 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C508

C508 *10U/6.3V/X5R_6

*10U/6.3V/X5R_6

2.925 A (140mils)

C208

C208 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C204

C204 1U/6.3V/X5R_4

1U/6.3V/X5R_4

+3V_VCC_EXP+3V

EC-SIT-1

+VCCAFDI_VRM +1.05V_VCCAPLL_FDI

R406 *0_8R406 *0_8

EC-SIT-1

R89 *short_8R89 *short_8

+1.05V_VCCDPLL_FDI

80mA (40mils)

+1.05V_VCCA_A_DPL

+1.05V +1.05V_PCH_VCC

0.002/F_1206

R123 *short_6R123 *short_6

EC-SIT-1

+1.05V +1.05V_VCCAPLL_EXP

R94

0.002/F_1206

C210

C210 10U/6.3V/X5R_6

10U/6.3V/X5R_6

(Mobile 1.5V)

+1.5V

+1.05V

80mA (40mils)

L17

L17 10uH/100MA_8

10uH/100MA_8

+3V

R421 *0_6R421 *0_6 R423 1/F_4R423 1/F_4

+1.05V +VCC_DMI_CCI +1.1V_VCC_DMI_CCI

R413 *1/F_4R413 *1/F_4 R417 *short_4R417 *short_4

+1.05V_VCCA_B_DPL

20mA (10mils)

+3V_SUS_CLKF33 +3V_SUS_CLKF33_R

20mA (10mils)

L22

L22 *10uH/100mA_8

*10uH/100mA_8

EC-SIT-1

POWER

U30J

R105 *0_8R105 *0_8

+1.05V

R277 *short_4R277 *short_4

3V_S5

EC-SIT-1

C255

0.1U/10V/X5R_4

D D

+1.05V

+1.05V +1.05V_VCCEPW

0.002/F_1206

C C

+1.05V

B B

+1.05V

+3V_RTC

VCCRTC<1mA (10mils)

A A

0.1U/10V/X5R_4

+VCCAPLL_CPY_PCH

L18

*10uH/100mA_8

EC-SIT-1

R125

*short_6

R141

C241

C241 1U/6.3V/X5R_4

1U/6.3V/X5R_4

EC-SIT-1

R410 *short_6R410 *short_6

C521

1U/6.3V/X5R_4

EC-SIT-1

R412 *short_6R412 *short_6

C522

1U/6.3V/X5R_4

EC-SIT-1

R407 *short_6R407 *short_6

C520

1U/6.3V/X5R_4

R160 *0_6R160 *0_6

C271

*1U/6.3V/X5R_4

EC-SIT-1

R405 *short_4R405 *short_4

V_PROC_IO=1mA (10mils)

C507

C507 *10U/6.3V/X5R_6

*10U/6.3V/X5R_6

C513

C513 10U/6.3V/X5R_6

10U/6.3V/X5R_6

C565

C565 1U/6.3V/X5R_4

1U/6.3V/X5R_4

5

1.01A (60mils)

C256

C256 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C219

C219 22U/6.3V/X5R_8

22U/6.3V/X5R_8

+VCCACLK

+VCCPDSW

3mA (10mils)

C250

PCH_VCCDSW

0.1U/10V/X5R_4

+3V_SUS_CLKF33

+VCCDPLL_CPY

+VCCSUS1

C221

C221 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C246

C246 22U/6.3V/X5R_8

22U/6.3V/X5R_8

C268

0.1U/10V/X5R_4

+VCCAFDI_VRM

160mA (20mils)

+1.05V_VCCA_A_DPL

80mA 40mils)

+1.05V_VCCA_B_DPL

80mA (40mils)

+VCCDIFFCLK +VCCDIFFCLKN

55mA (10mils)

+V1.05V_SSCVCC

95mA (10mils)

C252

0.1U/10V/X5R_4

+V1.05M_VCCSUS

+VTT_VCCPCPU

C516

0.1U/10V/X5R_4

C358

0.1U/10V/X5R_4

C207

C207 *1U/6.3V/X5R_4

*1U/6.3V/X5R_4

+VCCRTCEXT

+VCCSST

C515

0.1U/10V/X5R_4

C351

0.1U/10V/X5R_4

AD49

BH23 AL29

AL24

AA19 AA21 AA24 AA26 AA27 AA29 AA31 AC26 AC27 AC29 AC31 AD29 AD31

W21 W23 W24 W26 W29 W31 W33

BD47 BF47

AF17 AF33 AF34

AG34

AG33

T16

V12

T38

N16

Y49

V16

T17 V19

BJ8

A22

U30J

VCCACLK

VCCDSW3_3

DCPSUSBYP

VCC3_3[5]

VCCAPLLDMI2 VCCIO[14]

DCPSUS[3]

VCCASW[1] VCCASW[2] VCCASW[3] VCCASW[4] VCCASW[5] VCCASW[6] VCCASW[7] VCCASW[8] VCCASW[9] VCCASW[10] VCCASW[11] VCCASW[12] VCCASW[13] VCCASW[14] VCCASW[15] VCCASW[16] VCCASW[17] VCCASW[18] VCCASW[19] VCCASW[20]

DCPRTC

VCCVRM[4]

VCCADPLLA VCCADPLLB

VCCIO[7] VCCDIFFCLKN[1] VCCDIFFCLKN[2] VCCDIFFCLKN[3]

VCCSSC

DCPSST

DCPSUS[1] DCPSUS[2]

V_PROC_IO

VCCRTC

CougarPoint_R1P0

POWER

N26

VCCIO[29]

P26

VCCIO[30]

P28

VCCIO[31]

T27

VCCIO[32]

T29

VCCIO[33]

+3V_VCCPUSB

VCCIO[34]

V5REF_SUS

DCPSUS[4]

V5REF

VCC3_3[1] VCC3_3[8] VCC3_3[4]

VCC3_3[2]

VCCIO[5]

VCCIO[12] VCCIO[13]

VCCIO[6]

VCCVRM[1]

VCCIO[2] VCCIO[3] VCCIO[4]

T23 T24 V23 V24

+3V_VCCAUBG

P24

+VCCAUPLL

T26

+5V_PCH_VCC5REFSUS

M26

+VCCA_USBSUS

AN23

+3V_VCCPSUS

AN24

+5V_PCH_VCC5REF

P34

N20 N22

119mA (15mils)

+3V_VCCPSUS

P20 P22

AA16

266mA (20mils)

+3V_VCCPCORE

W16 T34

AJ2

AF13

AH13 AH14

AF14

+V1.1LAN_VCCAPLL

AK1

+VCCAFDI_VRM

AF11

AC16

+1.05V_VCCIO1

AC17 AD17

1.01A (60mils)

+1.05V_VCCEPW

T21

V21

T19

P32

C315

0.1U/10V/X5R_4

C222

0.1U/10V/X5R_4

+V1.05S_SATA3

+V3.3A_1.5A_HDA_IO

VCCSUS3_3[7] VCCSUS3_3[8] VCCSUS3_3[9]

VCCSUS3_3[10]

VCCSUS3_3[6]

VCCSUS3_3[1]

VCCSUS3_3[2] VCCSUS3_3[3] VCCSUS3_3[4] VCCSUS3_3[5]

Clock and Miscellaneous

PCI/GPIO/LPCMISC

VCCAPLLSATA

SATA USB

VCCASW[22]

VCCASW[23]

HDA

4

VCCASW[21]

VCCSUSHDA

CPURTC

+3V_RTC (7,8,28) 3V_S5 (3,7,8,9,10,22,25,28,37) +3V (3,7,8,9,10,13,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) 5V_S5 (20,37) +5V (7,15,16,18,19,24,26,29,37) +1.05V (3,5,7,8,9,29,33,37) +1.5VSUS (3,13,14,29,32,37) +1.8V (5,8,33,37)

+3V

10mA (10mils)

R227 *0_4R227 *0_4 R226 *short_4R226 *short_4

C279

C279 *1U/6.3V/X5R_4

*1U/6.3V/X5R_4

EC-SIT-1

C206 *1U/6.3V/X5R_4C206 *1U/6.3V/X5R_4

EC-SIT-1

R130 *short_8R130 *short_8

C259

C259 1U/6.3V/X5R_4

1U/6.3V/X5R_4

R191 *short_6R191 *short_6

C288

0.1U/10V/X5R_4

EC-SIT-1

R241 *short_6R241 *short_6

C287

0.1U/10V/X5R_4

EC-SIT-1

R163 *short_6R163 *short_6

R190 *short_6R190 *short_6

C290

C290 1U/6.3V/X5R_4

1U/6.3V/X5R_4

EC-SIT-1

R144 *short_6R144 *short_6

C251

0.1U/10V/X5R_4

C261

0.1U/10V/X5R_4

EC-SIT-1

R411 *short_8R411 *short_8

C523

C523 1U/6.3V/X5R_4

1U/6.3V/X5R_4 L23

L23 *10uH/100mA_8

*10uH/100mA_8

C527

C527 *10U/6.3V/X5R_6

*10U/6.3V/X5R_6

EC-SIT-1

R415 *short_6R415 *short_6

C242

C242 1U/6.3V/X5R_4

1U/6.3V/X5R_4

EC-SIT-1

1mA (10mils)

+VCCA_DAC_1_2

U48

U47

1mA (10mils)

+VCCALVDS

AK36 AK37

60mA (10mils)

AM37 AM38 AP36 AP37

+3V_VCC_GIO +3V

V33

V34

+VCCAFDI_VRM

AT16

AT20

AB36

AG16

AG17

AJ16

AJ17

+1.1V_VCC_DMI_CCI

C534

C534 1U/6.3V/X5R_4

1U/6.3V/X5R_4

L7

HCB1608KF-181T15/1.5A_6

HCB1608KF-181T15/1.5A_6 C266 10U/6.3V/X5R_6C266 10U/6.3V/X5R_6 C280 0.1U/10V/X5R_4C280 0.1U/10V/X5R_4 C270 0.01U/25V/X7R_4C270 0.01U/25V/X7R_4 R153 *0_6R153 *0_6

R414 *short_4R414 *short_4

EC-SIT-1

L21

0.1uH/250mA_8

C517 22U/6.3V/X5R_8C517 22U/6.3V/X5R_8 C213 0.01U/25V/X7R_4C213 0.01U/25V/X7R_4 C519 0.01U/25V/X7R_4C519 0.01U/25V/X7R_4

R166 *short_6R166 *short_6

EC-SIT-1

C269

0.1U/10V/X5R_4

42mA (10mils)

C526

C526 *10U/6.3V/X5R_6

*10U/6.3V/X5R_6

190 mA (15mils)

20mA (10mils)

V1

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

R428 *short_6R428 *short_6

EC-SIT-1

C536

C536 1U/6.3V/X5R_4

1U/6.3V/X5R_4

R209 10_4R209 10_4 D9 RB500V-40D9 RB500V-40

C273

C273 1U/6.3V/X5R_4

1U/6.3V/X5R_4

R493 10_4R493 10_4 D14 RB500V-40D14 RB500V-40

C558

0.1U/10V/X5R_4

PCH 5/6 (POWER)

1

11

+3V

+1.8V+VCC_TX_LVDS

R399 *short_4R399 *short_4

EC-SIT-1

C510

C510 1U/6.3V/X5R_4

1U/6.3V/X5R_4

R408 *short_8R408 *short_8

EC-SIT-1

C518

0.1U/10V/X5R_4

+3V+3V_VCCME_SPI

+5V +3V

5V_S5 3V_S5

of

+1.05V+1.1V_VCC_DMI

+1.8V+VCCP_NAND

1A

5

4

3

2

1

IBEX PEAK-M (GND)

U30I

AY4

VSS[159]

AY42

VSS[160]

AY46

VSS[161]

AY8

VSS[162]

B11

VSS[163]

B15

VSS[164]

BB12 BB16 BB20 BB22 BB24 BB28 BB30 BB38

BB46 BC14 BC18

BC22 BC26 BC32 BC34 BC36 BC40 BC42 BC48 BD46

BE22

BE26

BE40

BF10

BF12

BF16

BF20

BF22

BF24

BF26

BF28

BF30

BF38

BF40 BG17

BG21 BG33 BG44

BG8 BH11 BH15 BH17 BH19

BH27 BH31 BH33 BH35 BH39 BH43

B19 B23 B27 B31 B35 B39

BB4

BC2

BD5

BD3

BF8

H10

BH7 D12

D16 D18 D22 D24 D26 D30 D32 D34 D38 D42

E18 E26 G18 G20 G26 G28 G36 G48 H12 H18 H22 H24 H26 H30 H32 H34

B7

F45

D3

D8

F3

VSS[165] VSS[166] VSS[167] VSS[168] VSS[169] VSS[170] VSS[171] VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179] VSS[180] VSS[181] VSS[182] VSS[183] VSS[184] VSS[185] VSS[186] VSS[187] VSS[188] VSS[189] VSS[190] VSS[191] VSS[192] VSS[193] VSS[194] VSS[195] VSS[196] VSS[197] VSS[198] VSS[199] VSS[200] VSS[201] VSS[202] VSS[203] VSS[204] VSS[205] VSS[206] VSS[207] VSS[208] VSS[209] VSS[210] VSS[211] VSS[212] VSS[213] VSS[214] VSS[215] VSS[216] VSS[217] VSS[218] VSS[219] VSS[220] VSS[221] VSS[222] VSS[223] VSS[224] VSS[225] VSS[226] VSS[227] VSS[228] VSS[229] VSS[230] VSS[231] VSS[232] VSS[233] VSS[234] VSS[235] VSS[236] VSS[237] VSS[238] VSS[239] VSS[240] VSS[241] VSS[242] VSS[243] VSS[244] VSS[245] VSS[246] VSS[247] VSS[248] VSS[249] VSS[250] VSS[251] VSS[252] VSS[253] VSS[254] VSS[255] VSS[256] VSS[257] VSS[258]

CougarPoint_R1P0

D D

C C

B B

A A

VSS[259] VSS[260] VSS[261] VSS[262] VSS[263] VSS[264] VSS[265] VSS[266] VSS[267] VSS[268] VSS[269] VSS[270] VSS[271] VSS[272] VSS[273] VSS[274] VSS[275] VSS[276] VSS[277] VSS[278] VSS[279] VSS[280] VSS[281] VSS[282] VSS[283] VSS[284] VSS[285] VSS[286] VSS[287] VSS[288] VSS[289] VSS[290] VSS[291] VSS[292] VSS[293] VSS[294] VSS[295] VSS[296] VSS[297] VSS[298] VSS[299] VSS[300] VSS[301] VSS[302] VSS[303] VSS[304] VSS[305] VSS[306] VSS[307] VSS[308] VSS[309] VSS[310] VSS[311] VSS[312] VSS[313] VSS[314] VSS[315] VSS[316] VSS[317] VSS[318] VSS[319] VSS[320] VSS[321] VSS[322] VSS[323] VSS[324] VSS[325] VSS[328] VSS[329] VSS[330] VSS[331] VSS[333] VSS[334] VSS[335] VSS[337] VSS[338] VSS[340] VSS[342] VSS[343] VSS[344] VSS[345] VSS[346] VSS[347] VSS[348] VSS[349] VSS[350] VSS[351] VSS[352]

H46 K18 K26 K39 K46 K7 L18 L2 L20 L26 L28 L36 L48 M12 P16 M18 M22 M24 M30 M32 M34 M38 M4 M42 M46 M8 N18 P30 N47 P11 P18 T33 P40 P43 P47 P7 R2 R48 T12 T31 T37 T4 W34 T46 T47 T8 V11 V17 V26 V27 V29 V31 V36 V39 V43 V7 W17 W19 W2 W27 W48 Y12 Y38 Y4 Y42 Y46 Y8 BG29 N24 AJ3 AD47 B43 BE10 BG41 G14 H16 T36 BG22 BG24 C22 AP13 M14 AP3 AP1 BE16 BC16 BG28 BJ28

IBEX PEAK-M (GND)

U30H

H5

VSS[0]

AA17

VSS[1]

AA2

VSS[2]

AA3

VSS[3]

AA33

VSS[4]

AA34

VSS[5]

AB11

VSS[6]

AB14

VSS[7]

AB39

VSS[8]

AB4

VSS[9]

AB43

VSS[10]

AB5

VSS[11]

AB7

VSS[12]

AC19

VSS[13]

AC2

VSS[14]

AC21

VSS[15]

AC24

VSS[16]

AC33

VSS[17]

AC34

VSS[18]

AC48

VSS[19]

AD10

VSS[20]

AD11

VSS[21]

AD12

VSS[22]

AD13

VSS[23]

AD19

VSS[24]

AD24

VSS[25]

AD26

VSS[26]

AD27

VSS[27]

AD33

VSS[28]

AD34

VSS[29]

AD36

VSS[30]

AD37

VSS[31]

AD38

VSS[32]

AD39

VSS[33]

AD4

VSS[34]

AD40

VSS[35]

AD42

VSS[36]

AD43

VSS[37]

AD45

VSS[38]

AD46

VSS[39]

AD8

VSS[40]

AE2

VSS[41]

AE3

VSS[42]

AF10

VSS[43]

AF12

VSS[44]

AD14

VSS[45]

AD16

VSS[46]

AF16

VSS[47]

AF19

VSS[48]

AF24

VSS[49]

AF26

VSS[50]

AF27

VSS[51]

AF29

VSS[52]

AF31

VSS[53]

AF38

VSS[54]

AF4

VSS[55]

AF42

VSS[56]

AF46

VSS[57]

AF5

VSS[58]

AF7

VSS[59]

AF8

VSS[60]

AG19

VSS[61]

AG2

VSS[62]

AG31

VSS[63]

AG48

VSS[64]

AH11

VSS[65]

AH3

VSS[66]

AH36

VSS[67]

AH39

VSS[68]

AH40

VSS[69]

AH42

VSS[70]

AH46

VSS[71]

AH7

VSS[72]

AJ19

VSS[73]

AJ21

VSS[74]

AJ24

VSS[75]

AJ33

VSS[76]

AJ34

VSS[77]

AK12

VSS[78]

AK3

VSS[79]

CougarPoint_R1P0

VSS[80] VSS[81] VSS[82] VSS[83] VSS[84] VSS[85] VSS[86] VSS[87] VSS[88] VSS[89] VSS[90] VSS[91] VSS[92] VSS[93] VSS[94] VSS[95] VSS[96] VSS[97] VSS[98]

VSS[99] VSS[100] VSS[101] VSS[102] VSS[103] VSS[104] VSS[105] VSS[106] VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158]

AK38 AK4 AK42 AK46 AK8 AL16 AL17 AL19 AL2 AL21 AL23 AL26 AL27 AL31 AL33 AL34 AL48 AM11 AM14 AM36 AM39 AM43 AM45 AM46 AM7 AN2 AN29 AN3 AN31 AP12 AP19 AP28 AP30 AP32 AP38 AP4 AP42 AP46 AP8 AR2 AR48 AT11 AT13 AT18 AT22 AT26 AT28 AT30 AT32 AT34 AT39 AT42 AT46 AT7 AU24 AU30 AV16 AV20 AV24 AV30 AV38 AV4 AV43 AV8 AW14 AW18 AW2 AW22 AW26 AW28 AW32 AW34 AW36 AW40 AW48 AV11 AY12 AY22 AY28

12

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

PCH 6/6 (GND)

Monday, January 31, 2011 12 43

1

1A

5

4

3

2

1

CN18A

M_A_A[15:0](4)

D D

M_A_BS#0(4) M_A_BS#1(4) M_A_BS#2(4) M_A_CS#0(4) M_A_CS#1(4) M_A_CLKP0(4) M_A_CLKN0(4) M_A_CLKP1(4) M_A_CLKN1(4) M_A_CKE0(4) M_A_CKE1(4) M_A_CAS#(4) M_A_RAS#(4)

R99 10K_4R99 10K_4 R104 10K_4R104 10K_4

C C

B B

M_A_WE#(4)

PCLK_SMB(9,14,23,27) PDAT_SMB(9,14,23,27)

M_A_ODT0(4) M_A_ODT1(4)

M_A_DQSP[7:0](4)

M_A_DQSN[7:0](4)

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14 M_A_A15

DIMM0_SA0 DIMM0_SA1 PCLK_SMB PDAT_SMB

M_A_DM1

M_A_DM2

M_A_DQSP0 M_A_DQSP1 M_A_DQSP2 M_A_DQSP3 M_A_DQSP4 M_A_DQSP5 M_A_DQSP6 M_A_DQSP7 M_A_DQSN0 M_A_DQSN1 M_A_DQSN2 M_A_DQSN3 M_A_DQSN4 M_A_DQSN5 M_A_DQSN6 M_A_DQSN7

CN18A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

DDR3-DIMM0_H=5.2_STD

ddr-c-2013289-204p

DGMK4000059

IC SOCKET DDR3 STD SO-DIMM(204P,H5.2)

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46

(204P)

PC2100 DDR3 SDRAM SO-DIMM

DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

M_A_DQ4

5

M_A_DQ5

7

M_A_DQ7

15

M_A_DQ6

17

M_A_DQ1

4

M_A_DQ0

6

M_A_DQ3

16

M_A_DQ2

18

M_A_DQ9

21

M_A_DQ8

23

M_A_DQ15

33

M_A_DQ10

35

M_A_DQ12

22

M_A_DQ13

24

M_A_DQ14

34

M_A_DQ11

36

M_A_DQ21

39

M_A_DQ16

41

M_A_DQ19

51

M_A_DQ18

53

M_A_DQ20

40

M_A_DQ17

42

M_A_DQ23

50

M_A_DQ22

52

M_A_DQ25

57

M_A_DQ24

59

M_A_DQ30

67

M_A_DQ26

69

M_A_DQ28

56

M_A_DQ29

58

M_A_DQ31

68

M_A_DQ27

70

M_A_DQ36

129

M_A_DQ37

131

M_A_DQ34

141

M_A_DQ38

143

M_A_DQ32

130

M_A_DQ33

132

M_A_DQ35

140

M_A_DQ39

142

M_A_DQ41

147

M_A_DQ45

149

M_A_DQ47

157

M_A_DQ46

159

M_A_DQ40

146

M_A_DQ44

148

M_A_DQ42

158

M_A_DQ43

160

M_A_DQ49

163

M_A_DQ48

165

M_A_DQ54

175

M_A_DQ55

177

M_A_DQ53

164

M_A_DQ52

166

M_A_DQ50

174

M_A_DQ51

176

M_A_DQ61

181

M_A_DQ60

183

M_A_DQ62

191

M_A_DQ63

193

M_A_DQ56

180

M_A_DQ57

182

M_A_DQ59

192

M_A_DQ58

194

M_A_DQ[63:0] (4)

EC-SIT-4

+3V

PM_EXTTS#0(14)

DDR3_DRAMRST#(3,14)

+SMDDR_VREF_DIMM(14)

2.48A

C575

3.3P/50V/C0G_4

+3V

R87 10K_4R87 10K_4

PM_EXTTS#0

+SMDDR_VREF_DQ0 +SMDDR_VREF_DIMM

+1.5VSUS

+0.75V_DDR_VTT (14,32,37) +1.5VSUS (3,11,14,29,32,37) +3V (3,7,8,9,10,11,14,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) DDR_VTTREF (5,14,32)

CN18B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM0_H=5.2_STD

ddr-c-2013289-204p

DGMK4000059

IC SOCKET DDR3 STD SO-DIMM(204P,H5.2)

VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52

(204P)

PC2100 DDR3 SDRAM SO-DIMM

VTT1 VTT2

GND GND

44 48 49 54 55 60 61 65 66 71 72 127 128 133 134 138 139 144 145 150 151 155 156 161 162 167 168 172 173 178 179 184 185 189 190 195 196

203 204

205 206

+0.75V_DDR_VTT

13

VREF DQ0 M1 Solution

Place these Caps near So-Dimm0.

+3V

C178 *0.1U/10V/X7R_4C178 *0.1U/10V/X7R_4

R97

8

3

4

R97 *10K_4

*10K_4

MEMHOT_DIMM#

2

Q16

Q16 *2N7002

*2N7002

3

4

SYS_SHDN# (26,31,35,37)

1

U10

+3V

PDAT_SMB PCLK_SMB

A A

5

A07+VS

6

A1

5

A2

1

SDA

2

SCL

*DS75U+T&R

Close DDR3 socket CN22,CN23ADDRESS: 92H

O.S

GND

+1.5VSUS +0.75V_DDR_VTT

C498 1U/6.3V/X5R_4C498 1U/6.3V/X5R_4 C499 1U/6.3V/X5R_4C499 1U/6.3V/X5R_4 C497 1U/6.3V/X5R_4C497 1U/6.3V/X5R_4 C158 1U/6.3V/X5R_4C158 1U/6.3V/X5R_4 C168 1U/6.3V/X5R_4C168 1U/6.3V/X5R_4 C495 10U/6.3V/X5R_6C495 10U/6.3V/X5R_6 C494 10U/6.3V/X5R_6C494 10U/6.3V/X5R_6 C493 10U/6.3V/X5R_6C493 10U/6.3V/X5R_6 C170 10U/6.3V/X5R_6C170 10U/6.3V/X5R_6 C169 10U/6.3V/X5R_6C169 10U/6.3V/X5R_6 C171 10U/6.3V/X5R_6C171 10U/6.3V/X5R_6 C172 *10U/6.3V/X5R_6C172 *10U/6.3V/X5R_6 C153 10U/6.3V/X5R_8C153 10U/6.3V/X5R_8 C154 10U/6.3V/X5R_8C154 10U/6.3V/X5R_8

+SMDDR_VREF_DIMM

+SMDDR_VREF_DQ0

C151 1U/6.3V/X5R_4C151 1U/6.3V/X5R_4 C152 1U/6.3V/X5R_4C152 1U/6.3V/X5R_4

C159 1U/6.3V/X5R_4C159 1U/6.3V/X5R_4 C149 10U/6.3V/X5R_6C149 10U/6.3V/X5R_6 C157 *10U/6.3V/X5R_6C157 *10U/6.3V/X5R_6

C500 0.1U/10V/X5R_4C500 0.1U/10V/X5R_4 C489 2.2U/6.3V/X5R_6C489 2.2U/6.3V/X5R_6

C161 0.1U/10V/X5R_4C161 0.1U/10V/X5R_4 C156 2.2U/6.3V/X5R_6C156 2.2U/6.3V/X5R_6

+3V

C181 0.1U/10V/X5R_4C181 0.1U/10V/X5R_4 C177 2.2U/6.3V/X5R_6C177 2.2U/6.3V/X5R_6

3

R113 *0_6R113 *0_6

2

R96

R96 1K/F_4

1K/F_4

R90

R90 1K/F_4

1K/F_4

+1.5VSUS+1.5VSUS

R388

R388 10K_4

10K_4

DDR_VTTREFDDR_VTTREF

Size Document Number Rev

Date: Sheet of

R385 *0_6R385 *0_6

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Custom

DDR3 DIMM0-STD (5.2H)

+SMDDR_VREF_DIMM+SMDDR_VREF_DQ0

R390

C492

10K_4

470P/50V/X7R_4

13 43Monday, January 31, 2011

1

13 43Monday, January 31, 2011

1A

5

4

3

2

1

2.48A

+3V

PM_EXTTS#0

+SMDDR_VREF_DQ1 +SMDDR_VREF_DIMM

+1.5VSUS

CN20B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM1_H=6.0_RVS

DDR-78279-001-RVS-204P

DGMK4000005

IC SOCKET DDR3 SODIMM(204P,H4.0,RVS)

VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52

(204P)

PC2100 DDR3 SDRAM SO-DIMM

VTT1 VTT2

GND GND

44 48 49 54 55 60 61 65 66 71 72 127 128 133 134 138 139 144 145 150 151 155 156 161 162 167 168 172 173 178 179 184 185 189 190 195 196

203 204

205 206

+0.75V_DDR_VTT

14

CN20A

M_B_A[15:0](4)

D D

M_B_BS#0(4) M_B_BS#1(4) M_B_BS#2(4) M_B_CS#0(4) M_B_CS#1(4) M_B_CLKP0(4) M_B_CLKN0(4) M_B_CLKP1(4) M_B_CLKN1(4) M_B_CKE0(4) M_B_CKE1(4) M_B_CAS#(4) M_B_RAS#(4)

R116 10K_4R116 10K_4 R117 10K_4R117 10K_4

+3V

C C

+0.75V_DDR_VTT (13,32,37)

B B

+1.5VSUS (3,11,13,29,32,37) +3V (3,7,8,9,10,11,13,15,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37)

M_B_WE#(4)

PCLK_SMB(9,13,23,27) PDAT_SMB(9,13,23,27)

M_B_ODT0(4) M_B_ODT1(4)

M_B_DQSP[7:0](4)

M_B_DQSN[7:0](4)

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14 M_B_A15

DIMM1_SA0 DIMM1_SA1

M_B_DM1

M_B_DM2

M_B_DQSP0 M_B_DQSP1 M_B_DQSP2 M_B_DQSP3 M_B_DQSP4 M_B_DQSP5 M_B_DQSP6 M_B_DQSP7 M_B_DQSN0 M_B_DQSN1 M_B_DQSN2 M_B_DQSN3 M_B_DQSN4 M_B_DQSN5 M_B_DQSN6 M_B_DQSN7

CN20A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

DDR3-DIMM1_H=6.0_RVS

DDR-78279-001-RVS-204P

DGMK4000005

IC SOCKET DDR3 SODIMM(204P,H4.0,RVS)

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46

(204P)

PC2100 DDR3 SDRAM SO-DIMM

DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

M_B_DQ5

5

M_B_DQ4

7

M_B_DQ3

15

M_B_DQ2

17

M_B_DQ0

4

M_B_DQ1

6

M_B_DQ6

16

M_B_DQ7

18

M_B_DQ12

21

M_B_DQ13

23

M_B_DQ14

33

M_B_DQ10

35

M_B_DQ8

22

M_B_DQ9

24

M_B_DQ11

34

M_B_DQ15

36

M_B_DQ20

39

M_B_DQ21

41

M_B_DQ18

51

M_B_DQ22

53

M_B_DQ17

40

M_B_DQ16

42

M_B_DQ19

50

M_B_DQ23

52

M_B_DQ25

57

M_B_DQ29

59

M_B_DQ27

67

M_B_DQ26

69

M_B_DQ28

56

M_B_DQ24

58

M_B_DQ31

68

M_B_DQ30

70

M_B_DQ36

129

M_B_DQ37

131

M_B_DQ35

141

M_B_DQ34

143

M_B_DQ33

130

M_B_DQ32

132

M_B_DQ39

140

M_B_DQ38

142

M_B_DQ44

147

M_B_DQ40

149

M_B_DQ42

157

M_B_DQ43

159

M_B_DQ45

146

M_B_DQ41

148

M_B_DQ46

158

M_B_DQ47

160

M_B_DQ49

163

M_B_DQ48

165

M_B_DQ54

175

M_B_DQ55

177

M_B_DQ52

164

M_B_DQ53

166

M_B_DQ50

174

M_B_DQ51

176

M_B_DQ61

181

M_B_DQ56

183

M_B_DQ62

191

M_B_DQ63

193

M_B_DQ57

180

M_B_DQ60

182

M_B_DQ59

192

M_B_DQ58

194

M_B_DQ[63:0] (4)

PM_EXTTS#0(13)

DDR3_DRAMRST#(3,13)

+SMDDR_VREF_DIMM(13)

Place these Caps near So-Dimm1.

+1.5VSUS

C190 1U/6.3V/X5R_4C190 1U/6.3V/X5R_4 C191 1U/6.3V/X5R_4C191 1U/6.3V/X5R_4 C192 1U/6.3V/X5R_4C192 1U/6.3V/X5R_4 C228 1U/6.3V/X5R_4C228 1U/6.3V/X5R_4 C194 10U/6.3V/X5R_6C194 10U/6.3V/X5R_6 C195 10U/6.3V/X5R_6C195 10U/6.3V/X5R_6 C196 10U/6.3V/X5R_6C196 10U/6.3V/X5R_6 C231 10U/6.3V/X5R_6C231 10U/6.3V/X5R_6

A A

5

C229 10U/6.3V/X5R_6C229 10U/6.3V/X5R_6 C230 10U/6.3V/X5R_6C230 10U/6.3V/X5R_6 C232 *10U/6.3V/X5R_6C232 *10U/6.3V/X5R_6 C197 10U/6.3V/X5R_8C197 10U/6.3V/X5R_8 C249 10U/6.3V/X5R_8C249 10U/6.3V/X5R_8

4

+0.75V_DDR_VTT

C184 1U/6.3V/X5R_4C184 1U/6.3V/X5R_4 C160 1U/6.3V/X5R_4C160 1U/6.3V/X5R_4 C201 1U/6.3V/X5R_4C201 1U/6.3V/X5R_4 C202 1U/6.3V/X5R_4C202 1U/6.3V/X5R_4 C150 10U/6.3V/X5R_6C150 10U/6.3V/X5R_6

+3V

C218 0.1U/10V/X5R_4C218 0.1U/10V/X5R_4 C217 2.2U/6.3V/X5R_6C217 2.2U/6.3V/X5R_6

+SMDDR_VREF_DIMM

C198 0.1U/10V/X5R_4C198 0.1U/10V/X5R_4 C187 2.2U/6.3V/X5R_6C187 2.2U/6.3V/X5R_6

+SMDDR_VREF_DQ1

C240 0.1U/10V/X5R_4C240 0.1U/10V/X5R_4 C239 2.2U/6.3V/X5R_6C239 2.2U/6.3V/X5R_6C179 *10U/6.3V/X5R_6C179 *10U/6.3V/X5R_6

3

2

VREF DQ1 M1 Solution

+1.5VSUS

R139

R139 1K/F_4

1K/F_4

DDR_VTTREF

Size Document Number Rev

Date: Sheet of

R143 *0_6R143 *0_6

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Custom

+SMDDR_VREF_DQ1

R140

R140 1K/F_4

1K/F_4

DDR3 DIMM1-RVS (4.0H)

1

14 43Monday, January 31, 2011

1A

5

+3V (3,7,8,9,10,11,13,14,16,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) 3VPCU (8,16,17,20,27,28,29,31,33,36,37) +15V (25,31,32,37) +5V (7,11,16,18,19,24,26,29,37) VIN (29,31,32,33,34,35,36,37) 5VSUS (27,35,37) 5VPCU (29,31,32,33,34,36,37)

+15V

R345

R345 330K_4

330K_4

LCDVCC_ON

3

Q32

2N7002W

1

+3V

3

2

C422

0.022U/25V/X7R_6

2

LCDVCC

D D

5VPCU

R347

100K_4

Q30

Q30 AO3404

AO3404

1

Q31

Q31 2N7002W

2N7002W

4

+LCDVCC

C417

C417 10U/6.3V/X5R_8

10U/6.3V/X5R_8

R343

R343 22_8

22_8

3

2

1

INT_TXLCLKN

INT_TXLCLKP

For RF

EC-SIT-5

12

3

For ESD

+LCDVCC

INT_EDIDCLK(7) INT_EDIDDATA(7)

INT_TXLOUTN0(7) INT_TXLOUTP0(7)

INT_TXLOUTN1(7) INT_TXLOUTP1(7)

INT_TXLOUTN2(7) INT_TXLOUTP2(7)

INT_TXLCLKN(7) INT_TXLCLKP(7)

R520 0_4R520 0_4 R521 0_4R521 0_4

R522 0_4R522 0_4 R523 0_4R523 0_4

R524 0_4R524 0_4 R525 0_4R525 0_4

R526 0_4R526 0_4 R527 0_4R527 0_4

LOGO_LED_A#(27)

+3V

SC1 *0.1U/10V/X5R_4SC1 *0.1U/10V/X5R_4 C420 2.2U/6.3V/X5R_6C420 2.2U/6.3V/X5R_6

INT_EDIDCLK INT_EDIDDATA INT_TXLOUTN0_R INT_TXLOUTP0_R

INT_TXLOUTN1_R INT_TXLOUTP1_R

INT_TXLOUTN2_R INT_TXLOUTP2_R

INT_TXLCLKN_R INT_TXLCLKP_R

5VSUS

For EMI

C8

C9

12

LOGO_LED_A#

+CAM_VCC USBP3+_R USBP3-_R

VADJ_PWM DISPON

GFX_PWR_SRC

2

LVD-A30SFYG+

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

CN1

1

G_3

G_4

C13

*47P/50V/NPO_4

+3V

C12

15

close to CN2

+3V

G_2

R6

R5

2.2K_4R62.2K_4

2.2K_4R52.2K_4

INT_EDIDCLK INT_EDIDDATA

G_1

G_0

LVDS (11.6") (1024x600, 1366x768)

SC2

12

*0.1U/10V/X5R_4

LOGO_LED_A#

*Clamp-Diode_4

6.8P/50V/X7R_4C86.8P/50V/X7R_4

C10

2200P/50V/X7R_4

For ESD

12

C15

Q33

Q33 PDTC144EU

3VPCU

PDTC144EU

1 3

R10

R10 10K_4

10K_4

RB500V-40

C19

0.1U/10V/X5R_4

INT_EDIDCLK

INT_EDIDDATA

For ESD

+3V

R359

R359 *4.7K_4

*4.7K_4

D2

D1

RB500V-40

R16

R16 100K_4

100K_4

DISPON

C21

C21 *47P/50V/NPO_4

*47P/50V/NPO_4

INT_DISP_ON(7)

C C

R346

10K_4

2

Back light

LID#(16,28)

SC4

*0.1U/10V/X5R_4

B B

*0.1U/10V/X5R_4

For ESD

INT_LVDS_BLON(7)

INT_DPST_PWM(7)

A A

R372 2.2K_4R372 2.2K_4

R371

R371 10K_4

10K_4

EC-SIT-1

R17 *short_4R17 *short_4

*1U/10V/X5R_6

VADJ_PWM

C22

C22 *47P/50V/NPO_4

*47P/50V/NPO_4

C426

1 3

Q36

PDTC144EU

2

LCD_BK_OFF (8)

GFX_PWR_SRC

C419

0.1U/25V/X7R_6

LOGO_LED_A#

For EMI

C421

0.1U/25V/X7R_6

C7

12

C418

C418 *10U/25V/X6S_12

*10U/25V/X6S_12

C11

SC3

12

*0.1U/10V/X5R_4

2200P/50V/X7R_4C72200P/50V/X7R_4

EC-SIT-1

R344 *short_8R344 *short_8

6.8P/50V/X7R_4C96.8P/50V/X7R_4

2200P/50V/X7R_4

For EMI

CAMERA VCC Control

CCD_ON(10)

VIN

USBP3-(9) USBP3+(9)

CHDTC144EUPT

Q34

R3 *short_4R3 *short_4

CML1

1

2

4 3

*DLW21HN900SQ2L

*DLW21HN900SQ2L R4 *short_4R4 *short_4

R349

R349 10K_4

10K_4

R350

R350 10K_4

10K_4

C425

2

C425

2200P/50V/X7R_6

1 3

2

1U/6.3V/X5R_4

USBP3-_R

USBP3+_R

+5V

1

Q35

AOS3413

3

C424

FOR ESD

U24

2

VIN

IO1

3

GND

IO2

*PJSR05

R348

R348 *0_6

*0_6

+CAM_VCC

C423

0.1U/10V/X7R_4

4 1

+CAM_VCC

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

LCD/CAMERA

15 43Monday, January 31, 2011

1

1A

A

B

C

D

3VPCU(8,15,17,20,27,28,29,31,33,36,37) +3V(3,7,8,9,10,11,13,14,15,18,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) +5V(7,11,15,18,19,24,26,29,37)

E

16

For ESD

CRT_R_CON(7) CRT_G_CON(7)

4 4

CRT_B_CON(7)

C5

C20

5.6P/50V/COG_4

C5

5.6P/50V/COG_4

L3 BLM18BA470SN1L3 BLM18BA470SN1 L2 BLM18BA470SN1L2 BLM18BA470SN1 L1 BLM18BA470SN1L1 BLM18BA470SN1

C3

5.6P/50V/COG_4

C16

5.6P/50V/COG_4

C14

5.6P/50V/COG_4

VGA_RED_L VGA_GRE_L

VGA_BLU_L

C4

5.6P/50V/COG_4

3VPCU

+5V

+3V

EC-SIT-6

SC5 *0.1U/10V/X5R_4SC5 *0.1U/10V/X5R_4 SC6 *0.1U/10V/X5R_4SC6 *0.1U/10V/X5R_4

LID#(15,28)

HSYNC(7)

VSYNC(7)

CRTDCLK(7) CRTDDAT(7)

VGA_RED_L VGA_GRE_L VGA_BLU_L

R2 *2.2K_4R2*2.2K_4

+3V

R1 *2.2K_4R1*2.2K_4

CRT@88511-1401

141615 13 12 11 10

9 8 7 6 5 4 3 2 1

CN2

3 3

2 2

HDMI_TX2+ HDMI_TX2-

HDMI_TX1+ HDMI_TX1-

HDMI_TX0+ HDMI_TX0-

HDMI_CLK+ HDMI_CLK-

1 1

HDMI_DDC_DAT HDMI_DDC_CLK

HDMIC_5V HP_DET HP_DET

For ESD Layout note:Place close to HDMI Conn

EC-DV-01

2

+5V

U7

1

2

3

VCC

4

5

*RClamp0514M_AG

*RClamp0514M_AG U5

U5

1

2

3

VCC

4

5

*RClamp0514M_AG

*RClamp0514M_AG U4

U4

1

2

3

VCC

4

5

*RClamp0514M_AG

A

R82 499/F_4R82 499/F_4 R81 499/F_4R81 499/F_4

R78 499/F_4R78 499/F_4 R77 499/F_4R77 499/F_4

R74 499/F_4R74 499/F_4 R71 499/F_4R71 499/F_4

R68 499/F_4R68 499/F_4 R62 499/F_4R62 499/F_4

HDMI_LF

3

Q11

Q11 2N7002K-T1-E3

2N7002K-T1-E3

1

10

9

GND

7 6

10

9

GND

7 6

10

9

GND

7 6

HDMI_TX2+

10

HDMI_TX2-

9 8

HDMI_TX1+

7

HDMI_TX1-

6

HDMI_TX0+

10

HDMI_TX0-

9 8

HDMI_CLK+

7

HDMI_CLK-

6

HDMI_DDC_DAT

10

HDMI_DDC_CLK

9 8

HDMIC_5V

7 6

HDMI_TX2+ HDMI_TX2-

HDMI_TX1+ HDMI_TX1-

HDMI_TX0+ HDMI_TX0-

HDMI_CLK+ HDMI_CLK-

INT_HDMI_SCL(7)

INT_HDMI_SDA(7)

EMI reserve for HDMI

HDMI_TX2+

R83

R83 *100/F_4

HDMI_TX2HDMI_TX1+

HDMI_TX1HDMI_TX0+

HDMI_TX0HDMI_CLK+

HDMI_CLK-

B

*100/F_4

R79

R79 *100/F_4

*100/F_4

R76

R76 *100/F_4

*100/F_4

R70

R70 *100/F_4

*100/F_4

R56

2.2K_4

+3V

R55

2.2K_4

1

+3V

1

CN16

HDMI_DDC_CLK HDMI_DDC_DAT

HDMIC_5V

F2

HP_DET

D

HDMI_TX2+ HDMI_TX2-

HDMI_TX1+ HDMI_TX1-

HDMI_TX0+ HDMI_TX0-

HDMI_CLK+ HDMI_CLK-

R59

R59 20K/F_4

20K/F_4

HDMI_TX2+(7) HDMI_TX2-(7)

+5V

R63

R72

3

Q9

Q9 FDV301N

FDV301N

2 2

3

Q12

Q12 FDV301N

FDV301N

HDMI_HPD(7)

C

2.2K_4

+3V

R72

+5V

R75

R75 10K_4

10K_4

3

2

Q13

Q13 2N7002K-T1-E3

2N7002K-T1-E3

1

2.2K_4

HDMI_TX1+(7) HDMI_TX1-(7)

HDMI_TX0+(7) HDMI_TX0-(7)

HDMI_CLK+(7) HDMI_CLK-(7)

FUSE1A6V_POLY

+3V

3

1

12

R54

R54 10K_4

10K_4

2

Q6

Q6 2N7002K-T1-E3

2N7002K-T1-E3

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19

HP DET

SP@HDMI

HDMIC_5V

Size Document Number Rev

<Doc> 1ACustom

Date: Sheet of

20

SHELL1

23

GND

22

GND

21

SHELL2

C485

C485 220P/50V/X7R_4

220P/50V/X7R_4

For EMI

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

CRT/HDMI CONN

16 43Monday, January 31, 2011

E

5

4

3

2

1

LAN: AR8151-BL1A-R

C236 10U/6.3V/X5R_8C236 10U/6.3V/X5R_8 C264 10U/6.3V/X5R_8C264 10U/6.3V/X5R_8 C262 1U/6.3V/X5R_4C262 1U/6.3V/X5R_4

LAN_REST#

RSET

XTAL1

XTAL2

PCIE_CLKREQ_LAN#(9)

LANVCC

CLK_PCIE_LANP(9) CLK_PCIE_LANN(9)

PCIE_RXP6_LAN(9)

PCIE_RXN6_LAN(9)

PCIE_TXP6_LAN(9) PCIE_TXN6_LAN(9)

PLTRST#(3,9,21,22,23,25,27)

PCIE_WAKE#(7,22)

R167 *4.7K_4R167 *4.7K_4 R169 *4.7K_4R169 *4.7K_4 R168 *4.7K_4R168 *4.7K_4

C260

C260 33P/50V/NPO_4

33P/50V/NPO_4

PCIE_REQ_LAN#

LAN_REST#

PCIE_WAKE#_R

C332 0.1U/10V/X5R_4C332 0.1U/10V/X5R_4 C331 0.1U/10V/X5R_4C331 0.1U/10V/X5R_4

EC-SIT-1

R170 *short_4R170 *short_4 R156 *short_4R156 *short_4

2 1

D8 *RB501V-40D8 *RB501V-40

R181 2.37K/F_4R181 2.37K/F_4

LANVCC

21

Y1 25MHZY1 25MHZ

C272

C272 33P/50V/NPO_4

33P/50V/NPO_4

PCIE_RXP6_LAN_C PCIE_RXN6_LAN_C

PCIE_WAKE#_R

PCIE_REQ_LAN#

R249 *4.7K_4R249 *4.7K_4 R250 *4.7K_4R250 *4.7K_4

LANVCC

Q21

AO6402A

3

3VPCU

65241

LANVCC_R

C265

C265 *10U/6.3V/X5R_8

*10U/6.3V/X5R_8

C317

0.1U/10V/X7R_4

LANVCC

C289

C289 1U/6.3V/X5R_4

1U/6.3V/X5R_4

R137

R137 0_8

0_8

C237

0.1U/10V/X5R_4

C313

0.1U/10V/X7R_4

C338

0.1U/10V/X7R_4

C336

0.1U/10V/X7R_4

D D

LAN_ON(37)

LANVCC Trace width>60mil, Trace length<200mil

1.1V_REG_D 2.7V_REG_A

C C

20mil 20mil

C330

C307

C307 1U/6.3V/X5R_4

1U/6.3V/X5R_4

1.1V_REG_A

C330

0.1U/10V/X7R_4

0.1U/10V/X7R_4C263 0.1U/10V/X7R_4C263

U18

33

REFCLKP

32

REFCLKN

30

TX_P

29

TX_N

35

RX_P

36

RX_N

2

PERSTn

3

WAKEn

4

VDDCT_REG/CKRn

10

RBIAS

25

SMCLK

26

SMDATA

7

XTLO

8

XTLI

AR8151-BL1A-R

LANVCC

1.1V_REG_A

1

6

VDD33

Atheros

AR8151

DVDD_REG

DVDDL

AVDDH

AVDDH_REG

AVDDH

9

37

24

22

16

2.7V_REG_A1.1V_REG_D

31

13

19

AVDDL

AVDDL34AVDDL

AVDDL

AVDDL_REG

LED_LINK10/100n

LED_ACTn

CLKREQn/LED2

TEST_RST

TESTMODE

GND42GND43GND44GND45GND46GND47GND48GND49GND

TRXP0 TRXN0 TRXP1 TRXN1 TRXP2 TRXN2 TRXP3 TRXN3

VDDCT

GND1

LX

50

11 12 14 15 17 18 20 21

RJ45_LINKUP#

39

RJ45_ACTIVITY#

38

LED2

23

40

30mil

VDDCT

5 28

27 41

LX

MDI_0+ MDI_0MDI_1+ MDI_1MDI_2+ MDI_2MDI_3+ MDI_3-

R182 49.9/F_4R182 49.9/F_4 R188 49.9/F_4R188 49.9/F_4 R194 49.9/F_4R194 49.9/F_4 R204 49.9/F_4R204 49.9/F_4 R216 49.9/F_4R216 49.9/F_4 R225 49.9/F_4R225 49.9/F_4 R237 49.9/F_4R237 49.9/F_4 R242 49.9/F_4R242 49.9/F_4

C304 *1000P/50V_4C304 *1000P/50V_4 C308 *1000P/50V_4C308 *1000P/50V_4

T9T9

EMI Reserved

L8 4.7uHL8 4.7uH

30mil

1000P ==> EMI Reserved

0.1U/10V/X7R_4C297 0.1U/10V/X7R_4C297

C291 *1000P/50V_4C291 *1000P/50V_4

0.1U/10V/X7R_4C305 0.1U/10V/X7R_4C305

C302 *1000P/50V_4C302 *1000P/50V_4

0.1U/10V/X7R_4C314 0.1U/10V/X7R_4C314

C318 *1000P/50V_4C318 *1000P/50V_4

0.1U/10V/X7R_4C329 0.1U/10V/X7R_4C329

C324 *1000P/50V_4C324 *1000P/50V_4

0.1U/10V/X7R_4C286 0.1U/10V/X7R_4C286

0.1U/10V/X7R_4C298 0.1U/10V/X7R_4C298 C283 10U/6.3V/X5R_8C283 10U/6.3V/X5R_8 C294 1000P/50V/X7R_4C294 1000P/50V/X7R_4

RJ45_ACTIVITY#

R198

5.1K/F_4

17

20mil

C316

C316 1U/6.3V/X5R_4

1U/6.3V/X5R_4

C319

0.1U/10V/X7R_4

C301

0.1U/10V/X7R_4

C321

0.1U/10V/X7R_4

C322

0.1U/10V/X7R_4

C281

0.1U/10V/X7R_4

EC-DV-10

RJ45 Connector

U16

Tramsformer

B B

Layout:All termination signal should have 20 mil trace

C254 1U/6.3V/X5R_4C254 1U/6.3V/X5R_4

TRA_V_DAC VDDCT

L6 PBY160808T-601Y-N_1AL6 PBY160808T-601Y-N_1A

LFE9292A-R

MDI_0+ MDI_1-

1000P ==> EMI Reserved

MDI_0-

12

C344 *1000P/50V_4C344 *1000P/50V_4

0.1U/10V/X7R_4C293 0.1U/10V/X7R_4C293

C343 *1000P/50V_4C343 *1000P/50V_4

0.1U/10V/X7R_4C300 0.1U/10V/X7R_4C300

C335 *1000P/50V_4C335 *1000P/50V_4

0.1U/10V/X7R_4C292 0.1U/10V/X7R_4C292

C334 *1000P/50V_4C334 *1000P/50V_4 R478 75/F_8R478 75/F_8

A A

0.1U/10V/X7R_4C299 0.1U/10V/X7R_4C299

MDI_0+

MDI_1MDI_1+

MDI_2MDI_2+

MDI_3MDI_3+

TD4-

11

TD4+

10

TCT4

9

TCT3

8

TD3-

7

TD3+

6

TD2-

5

TD2+

4

TCT2

3

TCT1

2

TD1-

1

TD1+

U19

MX4MX4+ MCT4

MCT3

MX3MX3+

MX2MX2+ MCT2

MCT1 MX1MX1+

LAN_MX0-

13

LAN_MX0+

14 15

LAN_MCT1

16

LAN_MX1-

17

LAN_MX1+

18

LAN_MX2-

19

LAN_MX2+

20

LAN_MCT2

21

LAN_MCT3

22

LAN_MX3-

23

LAN_MX3+

24

R454 75/F_8R454 75/F_8

R464 75/F_8R464 75/F_8

R469 75/F_8R469 75/F_8

ISN

LANCTLAN_MCT0

R127

R127 1M/F_6

1M/F_6

C532

C532 1000P/3KV/NPO_18

1000P/3KV/NPO_18

RV18

RV18 VARISTOR_6

VARISTOR_6

EC-DV-07

MDI_2+ MDI_3-

U7, U8 Reserve for Surge and cable ESD

U16

1

IO1

IO4

2

REF

GND IO23IO3

TVLST2304AD0

U20

1

IO1

IO4

2

REF

GND IO23IO3

TVLST2304AD0

For ESD reserved

SR1 *0_4SR1 *0_4

MDI_0-

6 5

MDI_1+

4

MDI_2-

6 5

MDI_3+

4

EC-DV-11

LANVCC

EMI:close RJ45

LANVCC

RJ45_ACTIVITY#

EMI:close RJ45

C253

*0.1U/10V/X5R_4

R147 150_4R147 150_4

R269 150_4R269 150_4

C342

*0.1U/10V/X5R_4

LAN_GLED

RJ45_LINKUP#

Orange LED

EC-DV-05

5

4

3

2

RV4 *VARISTOR_6RV4 *VARISTOR_6

C539

C539 *0.1U/10V/X5R_4

*0.1U/10V/X5R_4

CN24

11

LED_GRE_P

12

RV10 *VARISTOR_6RV10 *VARISTOR_6

LED_GRE_N

8

RX1-

7

RX1+

6

RX0-

5

TX1-

4

TX1+

3

RX0+

2

TX0-

1

TX0+

9

LED_YEL_P

10

LED_YEL_N

JM36113-N4525-7F

GND3 GND2 GND1

GND

16 15 14 13

GREEN LED

LAN_MX3LAN_MX3+ LAN_MX1LAN_MX2LAN_MX2+ LAN_MX1+ LAN_MX0LAN_MX0+

RJ45 Connector

EC-DV-10

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

LAN_AR8151-BL1A-R++

Monday, January 31, 2011

1

17 43

1A

A

Note:

To support Wake-on-Jack or Wake-on-Ring, the CODEC VAUX_3.3 pins must be powered by a rail that is not removed unless AC power is removed.

EC-SIT-1

3V_DVDD

ACZ_BITCLK_AUDIO_R

FOR EMI

HD Audio Bus

ACZ_RST#_AUDIO(8)

ACZ_BITCLK_AUDIO(8)

ACZ_SYNC_AUDIO(8)

ACZ_SDOUT_AUDIO(8)

DIGITAL_MIC

SC7 *0.1U/10V/X5R_4SC7 *0.1U/10V/X5R_4

+3V

DMIC_DATA DMIC_CLK

C14633P/50V/NPO_4 C14633P/50V/NPO_4

R86 *short_4R86 *short_4

SC8

C14833P/50V/NPO_4 C14833P/50V/NPO_4

For EMI

1 1

DMIC_DATA DMIC_CLK

R301 *short_4R301 *short_4

C378

C378 *27P/50V/NPO_4

*27P/50V/NPO_4

ACZ_SDIN0(8)

R323

+3V

From EC

VOLMUTE#(28)

For ESD reserved

4 3

6

2

5

1

CN6

CONN_DIGITAL_MIC

SC9

C3691U/25V/X7R_8 C3691U/25V/X7R_8

C3710.1U/10V/X5R_4 C3710.1U/10V/X5R_4

FOR EMI

R306 0_4R306 0_4 R293 0_4R293 0_4 R300 22_4R300 22_4 R307 0_4R307 0_4

*10K/F_4

DMIC_CLK DMIC_DATA

AVDD_3.3 pin is output of internal LDO. Do NOT connect to external supply.

CX_VDDIO

C3961U/25V/X7R_8 C3961U/25V/X7R_8

SPDIF

EC-DV-14

FILT_1.65V

C3890.1U/10V/X5R_4 C3890.1U/10V/X5R_4

C39410U/6.3V/X5R_8 C39410U/6.3V/X5R_8

EC-DV-13

AGND

ACZ_BITCLK_AUDIO_R

ACZ_SDIN0_ADC

PC_BEEP

*PAD

T11

R324 0_6R324 0_6 R325 0_6R325 0_6

C57633P/50V/NPO_4 C57633P/50V/NPO_4

C57733P/50V/NPO_4 C57733P/50V/NPO_4

C3880.1U/10V/X5R_4 C3880.1U/10V/X5R_4

EC-SIT-7

C376 10U/10V/X5R_8C376 10U/10V/X5R_8 C392 0.1U/10V/X5R_4C392 0.1U/10V/X5R_4 C408 0.1U/10V/X5R_4C408 0.1U/10V/X5R_4

FILT_1.8V

C373 0.1U/10V/X5R_4C373 0.1U/10V/X5R_4 C384 10U/6.3V/X5R_8C384 10U/6.3V/X5R_8

9

5 8 6 4

10 39 38

37

40

1

For RF

*0.1U/10V/X5R_4

For ESD reserved

INT Speaker

SPK_R+ SPK_RSPK_L+ SPK_L-

PC BEEP CONTROL

*0.1U/10V/X5R_4

R291 BK1608HS601R291 BK1608HS601 R297 BK1608HS601R297 BK1608HS601 R312 BK1608HS601R312 BK1608HS601 R317 BK1608HS601R317 BK1608HS601

BEEP2

C360 0.1U/10V/X5R_4C360 0.1U/10V/X5R_4

A

R290 33_4R290 33_4

R289

R289 *20K/F_4

*20K/F_4

C364

CONN_SPEAKER

C379

U22

*100P/50V/X7R_4

3V_DVDD

CONN_SPEAKER

4 3

6

2

5

1

CN12

*100P/50V/X7R_4

C391

Close to codec

C380 0.1U/10V/X7R_4C380 0.1U/10V/X7R_4

5

2 1

3

TC7SET32FU

SPK_R+_OUT SPK_R-_OUT SPK_L+_OUT SPK_L-_OUT

*100P/50V/X7R_4

C375

BEEP1PC_BEEP

4

C393 10U/6.3V/X5R_8C393 10U/6.3V/X5R_8 C377 0.1U/10V/X5R_4C377 0.1U/10V/X5R_4

AGND

U23

RESET#

BIT_CLK SYNC SDATA_IN SDATA_OUT

PC_BEEP NC_S GPIO0/EAPD#

GPIO1/SPK_MUTE#

DMIC_CLK DMIC_1/2

CX20671-21Z

From EC

PCBEEP_AD (28)

ACZ_SPKR (8)

From SB

B

AVDD_3.3V

+5VA

3V_DVDD

26

2

3

FILT_1.8

11

SPK_L+

27

18

7

29

28

VDD_IO

FILT_1.65

VAUX_3.3

LEFT+

DVDD_3.3

LEFT-13RIGHT-

SPK_L-

AVDD_3.3

AVDD_HP

RIGHT+

14

16

SPK_R-

SPK_R+

ESD Reserved

12

AVDD_5V

LPWR_5.0

CALSSD_5V

C352 0.1U/10V/X5R_4C352 0.1U/10V/X5R_4

15

RPWR_5.0

SENSE_A

PORTB_R

PORTB_L

B_BIAS

C_BIAS PORTC_R PORTC_L

NC_DR NC_DL

PORTA_R

PORTA_L

FLY_N FLY_P

EC-DV-12

C348 0.1U/10V/X5R_4C348 0.1U/10V/X5R_4 C347 0.1U/10V/X5R_4C347 0.1U/10V/X5R_4 C345 10U/6.3V/X5R_8C345 10U/6.3V/X5R_8 C350 10U/6.3V/X5R_8C350 10U/6.3V/X5R_8

3V_DVDD

17

R322

5.1K/F_4

CLASSDREF

SENSEA SENSE_MIC

36

35 34 33

32

MIC1_R

31

MIC1_L

30

25 24

HPOUT_R

23

HPOUT_L

22

AVEE

21

AVEE

20 19

C361 1U/25V/X7R_8C361 1U/25V/X7R_8

EP_GND

41

EC-DV-08

R507 *short_4R507 *short_4

AGND

SR3 *0_4SR3 *0_4 SR4 *0_4SR4 *0_4

AGND

EMI Reserved

C412 1000P/50V/X7R_6C412 1000P/50V/X7R_6

AGND

C404 1000P/50V/X7R_6C404 1000P/50V/X7R_6

AGND

C370 1000P/50V/X7R_6C370 1000P/50V/X7R_6

AGND

C574 *SHORT0603C574 *SHORT0603

AGND

C363 1000P/50V/X7R_6C363 1000P/50V/X7R_6

AGND

C415 1000P/50V/X7R_6C415 1000P/50V/X7R_6

AGND

EC-DV-08

B

*100P/50V/X7R_4

C

Layout Note: Path from +5V to LPWR_5.0 and RPWR_5.0 must be very low resistance ( <0.01 ohms). Place bypass caps very close to device.

+5VA +5V

L10

C3830.1U/10V/X5R_4 C3830.1U/10V/X5R_4

Mount R57 (20K) Vendor suggestion

R319 10K/F_4R319 10K/F_4 R320 39.2K/F_4R320 39.2K/F_4 R321 *20K/F_4R321 *20K/F_4

C401 2.2U/6.3V/X5R_6C401 2.2U/6.3V/X5R_6 C397 2.2U/6.3V/X5R_6C397 2.2U/6.3V/X5R_6

C367 10U/6.3V/X5R_8C367 10U/6.3V/X5R_8 C368 0.1U/10V/X5R_4C368 0.1U/10V/X5R_4

L10

1 2

NHCB2012KF-131T10 130

C33310U/6.3V/X5R_8 C33310U/6.3V/X5R_8

NHCB2012KF-131T10 130

SENSE_HP

MIC1-VREF

AGND

T10 *PADT10 *PAD

EXT_MIC_MV

0.1A2.5A

C40310U/6.3V/X5R_8 C40310U/6.3V/X5R_8

C4001U/10V/X5R_4 C4001U/10V/X5R_4

Port Configuration

Port A: Headphone jack (jack shared with S/PDIF) Port B: Internal analog mono or stereo MIC. Port C: Microphone jack Port G: Internal stereo speakers Port J: Optional Internal stereo digital mic Port H: S/PDIF (jack shared with headphone)

EXT_MIC_L_2HP-OUT-R_2HP-OUT-R_2HP-OUT-R_2HP-OUT-R_2HP-OUT-L_2HP-OUT-L_2HP-OUT-L_2HP-OUT-L_2

L13

L13 *0.047uH

*0.047uH

C402

*100P/50V/X7R_4

R305 0_4R305 0_4 R304 0_4R304 0_4

C

C372

ACZ_SDIN0_ADCACZ_BITCLK_AUDIO

C387

C387 *27P/50V/NPO_4

*27P/50V/NPO_4

FOR EMI

EC-DV-18

AGND

L11

L11 *0.047uH

*0.047uH

C398

*100P/50V/X7R_4

L14

L14 *0.047uH

*0.047uH

AGNDAGNDAGND

C374

C374 *27P/50V/NPO_4

*27P/50V/NPO_4

External MIC/ Headphone out combo

3V_DVDD +3V

L16

1 2

NHCB2012KF-131T10 130

C3460.1U/10V/X5R_4 C3460.1U/10V/X5R_4

HPOUT_L

R336 75/F_4R336 75/F_4

HPOUT_R

R303 75/F_4R303 75/F_4

D

+3V (3,7,8,9,10,11,13,14,15,16,19,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) +5V (7,11,15,16,19,24,26,29,37)

SENSE_HP

3

1

2N7002K-T1-E3

AGND

SENSE_MIC

3

Q28

2N7002K-T1-E3

1

3

Q27

BSS138N

HP-OUT-L_1 HP-OUT-R_1 HP-OUT-R_2

R316 *22K_4R316 *22K_4

AGND

D

AVDD_3.3V

1

AGND AGND

R328 1K_4R328 1K_4

L15 0_6L15 0_6 L12 0_6L12 0_6

R335 *22K_4R335 *22K_4

E

Q29

R340 20K/F_4R340 20K/F_4

2

EC-DV-26

C414

R339

R339 47K/F_4

47K/F_4

SENSE_HP1

EC-DV-15

AGND

0.1U/10V/X5R_4

R332 20K/F_4R332 20K/F_4

2

R338 10K_4R338 10K_4

2

C413

C413 1U/10V/X5R_4

1U/10V/X5R_4

C406

10U/6.3V/X5R_6

R327 100/F_4R327 100/F_4

R334

2.2K_4

R329 *0_4R329 *0_4

R330

R330 *20K/J_4

*20K/J_4

EXT_MIC_L_2

EXT_MIC_MV

MIC1-VREF

EC-DV-16

AGND

Sense For MIC/ Headphone out combo

EC-DV-17

R292 1K_4R292 1K_4

+5VA

C365 1U/10V/X5R_6C365 1U/10V/X5R_6

AGND

HP-OUT-L_2

SENSE_HP1

C390100P/50V/X7R_4 C390100P/50V/X7R_4

C410100P/50V/X7R_4 C410100P/50V/X7R_4

AGND

Size Document Number Rev

Date: Sheet of

EXT_MIC_L_2

12

AVLC 5S 02 (5.5V,100p)_4

RV11

RV15

AVLC 5S 02 (5.5V,100p)_4

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

AUDIO (CX20671, SPK)

AGND

CN13

1 2 6 3 4 5 7

COMBO_JACK

12

RV16

AVLC 5S 02 (5.5V,100p)_4

18 43Monday, January 31, 2011

E

18 43Monday, January 31, 2011

18

11 10 9 8

AGND

1A

HDD

1

+3V (3,7,8,9,10,11,13,14,15,16,18,21,22,23,24,25,26,27,28,29,31,32,33,34,35,37) +5V (7,11,15,16,18,24,26,29,37)

19

CN15

PLACE SATA AC COUPLING C

APS CLOSE TO Connector

DC Current rating: 2 A (MAX)

A1+

A1B1-

B1+

3.3V

3.3V GND GND GND

5V 5V 5V

GND GND

12V 12V 12V

1

SATA_TXP0_C

2

SATA_TXN0_C

3 4

SATA_RXN0_C

5

SATA_RXP0_C

6 7

8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

C130 0.01U/16V/X7R_4C130 0.01U/16V/X7R_4 C128 0.01U/16V/X7R_4C128 0.01U/16V/X7R_4

C119 0.01U/16V/X7R_4C119 0.01U/16V/X7R_4 C111 0.01U/16V/X7R_4C111 0.01U/16V/X7R_4

+3V_HDD

HDD_DETECT# (28)

+5V_HDD

R35 *Short_4R35 *Short_4

SATA_TXP0 (8) SATA_TXN0 (8)

SATA_RXN0 (8) SATA_RXP0 (8)

EC-SIT-1

+5V

+3V

+5V_HDD

R375 *short_8R375 *short_8

C461 10U/10V/X5R_8C461 10U/10V/X5R_8 C465 10U/10V/X5R_8C465 10U/10V/X5R_8 C449 *4.7U/6.3V/X5R_6C449 *4.7U/6.3V/X5R_6 C472 0.1U/10V/X7R_4C472 0.1U/10V/X7R_4

DC Current rating: 3 A (MAX)

+3V_HDD

EC-SIT-1

R43 *short_8R43 *short_8

C107 10U/6.3V/X5R_8C107 10U/6.3V/X5R_8 C106 0.1U/10V/X7R_4C106 0.1U/10V/X7R_4

GND1

GND2

GND3

A A

RSVD

CONN_HDD

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

1A

SATA

of

Date: Sheet of

1

Date: Sheet

19 43Monday, January 31, 2011

1A

1

TPS2541 table

2

3

4

USB1PWR

5

C537

C537 470P/50V/X7R_4

470P/50V/X7R_4

6

C245

0.1U/10V/X5R_4

12

+

C543

+

C543 150U/6.3V/ESR35_3528

150U/6.3V/ESR35_3528

7

USB Connector

8

20

EC-SIT-1

CN21

A A

BUSBP1- USBP1-_R BUSBP1+

R429 *short_4R429 *short_4

CML5

1

2

4 3

*DLW21HN900SQ2L

R426 *short_4R426 *short_4

USBP1+_R

C529

C535

EC-SIT-1

5V_S5

C285 4.7U/6.3V/X5R_6C285 4.7U/6.3V/X5R_6

C282 0.1U/10V/X5R_4C282 0.1U/10V/X5R_4

70 mils (Iout=1.6A)

B B

USB_OC0_1#(9)

USB1PWR

R159 33K/F_4R159 33K/F_4

IC current limit is 1.6A

U13

1 12 14

9 17 16 15

4 13

TPS2540/41

IN OUT GND NC PADGND ILIM0 ILIM1 ILIM_SEL /FAULT

DM_OUT

DP_OUT

EN/DSC

CTL1 CTL2

CTL3 DM_IN DP_IN

5 6 7 8 11 10 2 3

BUSBP1BUSBP1+

USBCHR_ON (28) USB_CB0 (28)

EC-DV-19

USBP1- (9) USBP1+ (9)

USB0PWR

USBP0-(9)

USBP0+(9)

C514

C514 470P/50V/X7R_4

470P/50V/X7R_4

EC-SIT-1

*DLW21HN900SQ2L

C505

0.1U/10V/X5R_4

R108 *short_4R108 *short_4

4 3 1

R107 *short_4R107 *short_4

CML2

2

12

C506

+

*10P/50V/COG_4

USBP0-_R

150U/6.3V/ESR35_3528

USBP0+_R

C173

*10P/50V/COG_4

C174

EC-SIT-1

*10P/50V/COG_4

USB2PWR

5V_S5

C C

C180

1U/10V/X5R_6

USB_ON#(28)

5V_S5

D D

C284

1U/10V/X5R_6

USB_ON#(28)

1

U28

2 3 4 1

APL3510DXI-TRG

U14

2 3 4 1

APL3510DXI-TRG

2

VIN1 VIN2 EN GND

OUT3 OUT2 OUT1

OC

OUT3 OUT2 OUT1

OC

40 mils (Iout=1A)

8 7 6 5

40 mils (Iout=1A)

8 7 6 5

USBP8-_R USBP8+_R

C525

C2241000P/50V/X7R_4 C2241000P/50V/X7R_4

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

USB x 3

7

USB0PWR

USB_OC0_1# (9)

USBP8-(9)

USBP8+(9)

USB2PWR

USB_OC8_9# (9)

5V_S5 (11,37) 3VPCU (8,15,16,17,27,28,29,31,33,36,37)

3

4

5

EC-SIT-1

DCIN_LED#(28)

For EMI

3VPCU

1000P/50V/X7R_4

R145 *short_4R145 *short_4

CML3

1 4 3

*DLW21HN900SQ2L

R146 *short_4R146 *short_4

2

EC-SIT-1

C524

1000P/50V/X7R_4

6

Size Document Number Rev

Date: Sheet of

Date: Sheet

CN21

1

VDD

2

D-

3

D+

4

GND4

USB_CON

U29

2

VIN

IO1

3

GND

IO2

*PJSR05

CN19

1 2 3 4

USB_CON

U35

2

IO1

3

IO2

*PJSR05

EC-SIT-8

CN7

EC-DV-04

8 7 6 5 4 3

USB BTB connector

2 1

Connector-FPC/FFC

VDD DD+ GND4

VIN

GND

GND5 GND6 GND7 GND8

4 1

USB 1

5 6 7 8

GND5 GND6 GND7 GND8

4 1

USB1PWR

USB 2

5 6 7 8

of

20 43Monday, January 31, 2011

8

USB0PWR

1A

5

PLTRST#(3,9,17,22,23,25,27)

PCIE_CLKREQ_CARD#(9)

+3V

D D

PCIE_RXP3 PCIE_RXN3

+3V

10U/10V/X5R_6

L27

*0_8

PCIE_TXP3 PCIE_TXN3

C549

0.1U/10V/X5R_4

0.1U/10V/X5R_4 C548

C548

0.1U/10V/X5R_4

C550

DV12AV12

PCIE_RXP3_C PCIE_RXN3_C

GND

C551

0.1U/10V/X5R_4

PCIE_TXP3(9) PCIE_TXN3(9)

CLK_PCIE_CARD(9)

CLK_PCIE_CARD#(9)

AV12

C546

4.7U/10V/X5R_6

C C

B B

0.1U/10V/X5R_4

DV12

C547

PCIE_RXP3(9) PCIE_RXN3(9)

Card1_3V3

4

EC-SIT-1

R480 *short_4R480 *short_4 R476 *short_4R476 *short_4

R465 0_8R465 0_8

C552 0.1U/10V/X5R_4C552 0.1U/10V/X5R_4

R475 6.2K/F_4R475 6.2K/F_4

U33

1

HSIP

2

HSIN

3

REFCLKP

4

REFCLKN

5

AV12

6

HSOP

7

HSON

8

GND

9

DV12

10

Card1_3V3

11

3V3_IN

12

Card2_3V3

C559

*4.7U/10V/X5R_6

PLTRST#_R

+3V_R

RREF

46

44

42

45

47

48

RREF

3V3_IN

XD_CD#13DV33_1814GND15SP116SP217SP318SP419SD_D120SD_D021SD_CLK22SD_CMD23SD_D3

DV33_18

C557

43

EECS

EEDO

PERST#

CLK_REQ#

RTS5209

GND

3

2

+3V (3,7,8,9,10,11,13,14,15,16,18,19,22,23,24,25,26,27,28,29,31,32,33,34,35,37)

1

21

Note:

SD_CD# SD_WP

40

39

41

38

EESK

GPIO/EEDI

SP1437SP15

SD_CD#

MS_INS#

36

SP13

35

SP12

34

SP11

33

SP10

32

SP9

31

SP8

30

SP7

29

SP6

28

SP5

27

DV12_S

GND

SD_D2

24

SD_D3_R SD_CMD_R SD_CLK_R SD_CLK

SD_D0_R SD_D1_R

GND

26

SD_D2_R

25

R505 0_4R505 0_4 R504 0_4R504 0_4 R499 0_4R499 0_4

R495 0_4R495 0_4 R489 0_4R489 0_4

R509 0_4R509 0_4

R508 0_4R508 0_4

SD_D3

SD_CMD

C568

C568 *22P/50V/NPO_4

*22P/50V/NPO_4

SD_D0 SD_D1

SD_D2

DV12_SDV12_S_R

C572

4.7U/10V/X5R_6

C571

0.1U/10V/X5R_4

R4~R9,C28 close to chip pin

SD/MMC MS

SP1

SD_D7

SP2 SD_D6 SP3 SD_D5 SP4

SD_D4

SP5 MS_BS SP6 SP7 MS_D1 SP8 SP9 SP10 SP11 SP12 SP13 SP14 SP15 SD_WP

MS_D0 MS_D2

MS_D3 MS_CLK

It is recommended that mismatch trace length between CLK and DATA trace is 100 mils with maximum

4 IN 1 CARD READER

VDD_SD

CN11

SD-DAT3

SD-CMD

GND1

SD-VCC

SD-CLK

GND2 SD-DAT0 SD-DAT1 SD-DAT2

SD-CD

SD-WP SHIELD1-GND SHIELD2-GND SHIELD3-GND

A A

SHIELD4-GND

SD_D3

1

SD_CMD

2 3 4

SD_CLK

5 6

SD_D0

7

SD_D1

8

SD_D2

9

SD_CD#

10

SD_WP

11 12 13 14 15

Memory Card Power Supply

VDD_SD

C569

0.01U/16V/X7R_4

C570

0.1U/16V/X7R_4

800mA

R511 0_8R511 0_8

C573

C573 10U/6.3V/X5R_6

10U/6.3V/X5R_6

Card1_3V3

Use 0805 type and Trace width = 40 mil" at Card1_3V3

5

CARD READER SOCKET

DFHD11MR014

sdcard-cs1s-245-h-n-11p

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

GC8F Card Reader

Monday, January 31, 2011 21 43

1

1A

1

MiniCard WLAN connector

+3V (3,7,8,9,10,11,13,14,15,16,18,19,21,23,24,25,26,27,28,29,31,32,33,34,35,37) +1.5V (11,23,32) 3V_S5 (3,7,8,9,10,11,25,28,37)

22

+3.3V_WLAN+3.3V_WLAN

CN23

MINICARD_PME#(23)

BBC0EX1(25)

PCIE_CLKREQ_WLAN#(9)

BBC0EX2(25)

CLK_PCIE_WLANN(9)

CLK_PCIE_WLANP(9)

MINICARD_PME#

1

WAKE#

3

RESERVED_1

5

RESERVED_2

7

CLKREQ#

9

GND1

11

REFCLK-

13

REFCLK+

15

GND2

UIM_PWR

UIM_DATA

UIM_CLK

UIM_RESET

UIM_VPP

3.3V_1 GND0

1.5V_1

2 4 6 8 10 12 14 16

+1.5V

LPC_FRAME# (8,25,28) LPC_AD0 (8,25,28) LPC_AD1 (8,25,28) LPC_AD2 (8,25,28) LPC_AD3 (8,25,28)

EC-SIT-1

SERIRQ(8,25,28)

PCIE_RXN2(9)

PCI-Express TX and RX direct to connector

A A

PCIE_WAKE#(7,17)

PCIE_RXP2(9)

PCIE_TXN2(9) PCIE_TXP2(9)

BT_ON(10,25)

3V_S5

R409 *10K_4R409 *10K_4

2

13

Q38

Q38 *PDTC144EU@NC

*PDTC144EU@NC

R420 *short_4R420 *short_4

T15T15

WLAN_OFF_R#

MINICARD_PME#

17

UIM_C8

19

UIM_C4

21

GND4

23

PERn0

25

PERp0

27

GND6

29

GND7

31

PETn0

33

PETp0

35

GND9

37

RESERVED_3

39

RESERVED_4

41

RESERVED_5

43

RESERVED_6

45

RESERVED_7

47

RESERVED_8

49

RESERVED_9

51

RESERVED_10

ACS-88911-5204

D7 RB500V-40D7 RB500V-40

R129 *0_4R129 *0_4

W_DISABLE#

3.3VAUX1

SMB_CLK

SMB_DATA

LED_WWAN#

LED_WLAN#

LED_WPAN#

GND3

PERST#

GND5

1.5V_2

GND8

USB_D-

USB_D+

GND10

1.5V_3

GND11

3.3V_2

18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52

WLAN_OFF# (10)

WLAN_OFF_R#

USBP4-_C USBP4+_C

EC-SIT-1

R138 *short_4R138 *short_4

EC-SIT-1

R492 *short_4R492 *short_4 R491 *short_4R491 *short_4

R176 *Short_4R176 *Short_4 R175 *Short_4R175 *Short_4

T8T8

USBP4-_C USBP4+_C

PLTRST# (3,9,17,21,23,25,27)

PCLK_DEBUG (9)

LPC_DRQ#0 (8)

USBP4- (9) USBP4+ (9)

2 3

U15

IO1 IO2

*PJSR05

VIN

GND

4 1

+3.3V_WLAN

R459 0_8R459 0_8

+3V+3.3V_WLAN

C193

C563

0.01U/16V/X7R_4

C248

0.1U/10V/X5R_4

C209

C209 10U/6.3V/X5R_8

10U/6.3V/X5R_8

C193 *47P/50V/NPO_4

*47P/50V/NPO_4

close to CN22

+3.3V_WLAN+1.5V

C545

0.1U/10V/X5R_4

1

C183

0.047U/10V/X7R_4

Place caps close to connector.

C238

0.1U/10V/X5R_4

C562

0.047U/10V/X7R_4

Size Document Number Rev

Date: Sheet of

close to CN22

C223

4.7U/6.3V/X5R_6

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

WLAN

22 43Monday, January 31, 2011

C561

*47P/50V/NPO_4

1A

5

SIM Card CONN

CN14

1

D D

UIM_VPP UIM_DATA

Layout Note: UIM_RESET,UIM_CLK,UIM_DATA routting as short as possible

3 5 7 9

13

GND VPP I_O N/A CT

SHIELD

CONN_SIM

VCC RST CLK

N/A

DET

SHIELD

2 4 6 8 10

14

UIM_PWR UIM_RESET UIM_CLK

SIM_DET

4

+3V

R376

R376 *10K_4

*10K_4

EC-20100419B-08

T12T12

3

UIM_RESET UIM_CLK

C34

C36

33P/50V/NPO_4

C34 33P/50V/NPO_4

33P/50V/NPO_4

2

+3V (3,7,8,9,10,11,13,14,15,16,18,19,21,22,24,25,26,27,28,29,31,32,33,34,35,37) +1.5V (11,22,32)

U3

1

2

3

CM1293A-04SO

6 5 4

UIM_VPP

6

UIM_PWR

5

UIM_DATA

4

C42

C42 33P/50V/NPO_4

33P/50V/NPO_4

1

C44

C44 1U/10V/X5R_6

1U/10V/X5R_6

23

C43

C43 33P/50V/NPO_4

33P/50V/NPO_4

MiniCard WWAN connector

C C

MINICARD_PME#(22)

PCIE_REQ_WWAN#(9)

CLK_PCIE_WANN(9)

CLK_PCIE_WANP(9)

PCI-Express TX and RX direct to connector

PCIE_RXN4(9) PCIE_RXP4(9)

PCIE_TXN4(9)

B B

A A

PCIE_TXP4(9)

C306

0.047U/10V/X7R_4

C227

C227 33P/50V/NPO_4

33P/50V/NPO_4

+3.3V_WWAN

C188

C188 *47P/50V/NPO_4

*47P/50V/NPO_4

CN22

1

WAKE#

3

RESERVED_1

5

RESERVED_2

7

CLKREQ#

9

GND1

11

REFCLK-

13

REFCLK+

15

GND2

17

UIM_C8

19

UIM_C4

21

GND4

23

PERn0

25

PERp0

27

GND6

29

GND7

31

PETn0

33

PETp0

35

GND9

37

RESERVED_3

39

RESERVED_4

41

RESERVED_5

43

RESERVED_6

45

RESERVED_7

47

RESERVED_8

49

RESERVED_9

51

RESERVED_10

ACS-88911-5204

+3.3V_WWAN+1.5V

W_DISABLE#

LED_WWAN#

LED_WLAN#

LED_WPAN#

C327

C327 33P/50V/NPO_4

33P/50V/NPO_4

UIM_PWR

UIM_DATA

UIM_RESET

3.3VAUX1

SMB_CLK

SMB_DATA

3.3V_1 GND0

1.5V_1

UIM_CLK UIM_VPP

GND3

PERST#

GND5

1.5V_2

GND8

USB_D-

USB_D+

GND10

1.5V_3

GND11

3.3V_2

C326

0.047U/10V/X7R_4

+3.3V_WWAN

2 4 6 8 10 12 14 16

18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52

Place caps close to connector.

close to CN22

5

4

+1.5V

USBP5-_C USBP5+_C

C244

C244 33P/50V/NPO_4

33P/50V/NPO_4

3

UIM_PWR UIM_DATA UIM_CLK UIM_RESET UIM_VPP

R149 *Short_4R149 *Short_4

R133 *short_4R133 *short_4 R128 *short_4R128 *short_4

R122 *short_4R122 *short_4 R120 *short_4R120 *short_4

T7T7

C186

0.047U/10V/X7R_4

EC-SIT-1

WWAN_OFF# (10) PLTRST# (3,9,17,21,22,25,27)

PCLK_SMB (9,13,14,27) PDAT_SMB (9,13,14,27)

USBP5- (9) USBP5+ (9)

USBP5-_C USBP5+_C

C182

C182 *47P/50V/NPO_4

*47P/50V/NPO_4

close to CN22

2

U11

2

VIN

IO1

3

GND

IO2

*PJSR05

Size Document Number Rev

Date: Sheet of

+3V

4 1

+3V+3.3V_WWAN

R131 0_8R131 0_8

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

WWAN

23 43Monday, January 31, 2011

1

1A

5

KEYBOARD

CN5

30

29

RIGHT MIDDLE LEFT

D D

MY15(28) MY10(28) MY11(28) MY14(28) MY13(28) MY12(28) MY3(28) MY6(28) MY8(28) MY7(28) MY4(28) MY2(28) MX0(28) MY1(28) MY5(28) MX3(28) MX2(28) MY0(28) MX5(28) MX4(28) MY9(28) MX6(28) MX7(28) MX1(28)

MY15 MY10 MY11 MY14 MY13 MY12 MY3 MY6 MY8 MY7 MY4 MY2 MX0 MY1 MY5 MX3 MX2 MY0 MX5 MX4 MY9 MX6 MX7 MX1

28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

KB_CONN

MY2 MY4 MY7 MY8

MY6 MY3 MY12 MY13

MY14 MY11 MY10 MY15

Touch pad

12

TRACK_POINT_CLK TRACK_POINT_DAT

+5V

Fro EMI

+5V

TRACK_POINT_CLK TRACK_POINT_DAT

F3

C C

CN8

1 2 3 4 5 6 7 8 91011

12

TOUCH PAD 10P

TPD_VCC_F

TPDATA TPCLK PAD_RESET#_TP

L5 BLM15BD121SS1_4L5 BLM15BD121SS1_4 L4 BLM15BD121SS1_4L4 BLM15BD121SS1_4

EC-DV-25

F3 FUSE_1A/6V_POLY

FUSE_1A/6V_POLY

C538

0.1U/10V/X5R_4

TPDATA (28) TPCLK (28)

PAD_DETECT# (28)

4

CA2

CA2 220PX4

220PX4

1

2

3

4

5

6

7

8

CA3

CA3 220PX4

220PX4

1

2

3

4

5

6

7

8

CA1

CA1 220PX4

220PX4

1

2

3

4

5

6

7

8

For EMI request

+5V

R106

R106 *4.7K_4

*4.7K_4

12

RV6

C225

C243

*10P/50V/COG_4

*TVM0G180M030R(18V,3p)_4

*10P/50V/COG_4

CA4

CA4 220PX4

220PX4

7 5 3 1

CA5

CA5 220PX4

220PX4

1 3 5 7

CA6

CA6 220PX4

220PX4

1 3 5 7

TPDATATPDATA TPCLK

12

RV5

*TVM0G180M030R(18V,3p)_4

8 6 4 2

2 4 6 8

R100

R100 *4.7K_4

*4.7K_4

EC-DV-22

MX1 MX7 MX6 MY9

MX2 MY0 MX5 MX4

MX0 MY1 MY5 MX3

3

FINGER PRINTER for M NOTE

*FINGER-PRINTER_CON

TRACK POINT

TRACK_POINT_CLK

TRACK_POINT_RESET#_R TRACK_POINT_DAT

C63

15P/50V/NPO_4

C6515P/50V/NPO_4 C6515P/50V/NPO_4

CN9

LEFT RIGHT MIDDLE

C473220P/50V/X7R_4 C473220P/50V/X7R_4

+3V

1 2 3 456

+5V

EC-SIT-9

R512 0_4R512 0_4 R513 0_4R513 0_4 R514 0_4R514 0_4 R515 0_4R515 0_4 R516 0_4R516 0_4 R517 0_4R517 0_4 R518 0_4R518 0_4 R519 0_4R519 0_4

C51220P/50V/X7R_4 C51220P/50V/X7R_4

USBP10+_R USBP10-_R

C64220P/50V/X7R_4 C64220P/50V/X7R_4

2

+5V (7,11,15,16,18,19,26,29,37) +3V (3,7,8,9,10,11,13,14,15,16,18,19,21,22,23,25,26,27,28,29,31,32,33,34,35,37)

EC-SIT-1

R217 *short_4R217 *short_4C205 *0.1U/10V/X5R_4C205 *0.1U/10V/X5R_4

CML4

1

2

4 3

*DLW21HN900SQ2L

RV8 *TVM0G180M030R(18V,3p)_4RV8 *TVM0G180M030R(18V,3p)_4

RV7 *TVM0G180M030R(18V,3p)_4RV7 *TVM0G180M030R(18V,3p)_4

12

CN4

10 9 8 7 6 5 4 3 2 1

TRACK POINT

*DLW21HN900SQ2L R218 *short_4R218 *short_4

EC-DV-21

EC-SIT-1

USBP10+ (9) USBP10- (9)

1

24

TRACK POINT/TOUCH PAD reset signal level shift

2

+5V

R42

R42 *10K_4

*10K_4

3

Q4 *2N7002EQ4*2N7002E

1

PAD_RESET#_TP

TRACK_POINT_RESET#(28)

3

B B

A A

5

EC-DV-20

R154

4.7K_4

TPDATA TPCLK

R135

4.7K_4

+5V

R58

R58 *10K_4

*10K_4

3

Q8 *2N7002EQ8*2N7002E

PAD_RESET#(28)

4

2

1

R53 *short_4R53 *short_4

2

+5V

R51

R51 10K_4

10K_4

3

Q7 2N7002EQ72N7002E

1

R40 *0_4R40 *0_4

2

+5V

R41

R41 10K_4

10K_4

TRACK_POINT_RESET#_R

3

Q3 2N7002EQ32N7002E

2

1

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

KB/TP

24 43Monday, January 31, 2011

1

1A

A

B

C

D

E

BLUETOOTH

C386

C385

33P/50V/NPO_4

BLUETOOTH_CON

C362

C366

33P/50V/NPO_4

BT_ON(10,22)

BBC0EX1(22)

33P/50V/NPO_4

D D

G-SENSOR (2-Axial)

C C

B B

GSENSOR_ON#(28)

GSENSOR_TST(28)

2

1U/6.3V/X5R_4

R287 *0_4R287 *0_4

R302

R302 1M/F_6

1M/F_6

2

Q25

Q25 PDTC144EU

PDTC144EU

1 3

R298

R298 100K_4

100K_4

TP47TP47

BC0EX1

+3V+15V

3

1

R283 10_6R283 10_6

Q24

Q24 2N7002W

2N7002W

U21

2

1 4

9 11 13 16

R294

*Short_6

ST

NC NC NC NC NC NC

BLUETOOTH_CON

GPIO_514BDC_Presence

12

GPIO_3

10

BDC_LED

8

GPIO_BT

6

BDC_ON WLAN_ACT4VCC3BT BDC_Presence2BT_PRI

CN10

C381

0.1U/10V/X5R_4

GS_VDD

C349

C349 10U/6.3V/X5R_8

10U/6.3V/X5R_8

15

VS14VS

XOUT YOUT

NC

PAD

COM

COM5COM6COM

3

7

LIS34ALTR

12 10 8

17

GND GND

USB_D-

USB_D+

GS_GND

C337

GS_GND

13 11 9 7 5 3 1

C339

0.1U/10V/X5R_4

USBP13-_C USBP13+_C

BC0EX2

GSENSOR_X_R GSENSOR_Y_R GSENSOR_Z_R

C341

0.1U/10V/X5R_4

1U/6.3V/X5R_4

C353

0.1U/10V/X5R_4

R309 *1K_4R309 *1K_4 R308 *1K_4R308 *1K_4 R310 0_4R310 0_4

EC-SIT-1

R247 *short_4R247 *short_4 R248 *short_4R248 *short_4

R271 *0_4R271 *0_4

R240 56K_4R240 56K_4 R253 56K_4R253 56K_4 R288 *56K_4R288 *56K_4

3V_S5

BT_DET# (8)

USBP13- (9) USBP13+ (9)

BBC0EX2 (22)

+3V (3,7,8,9,10,11,13,14,15,16,18,19,21,22,23,24,26,27,28,29,31,32,33,34,35,37) +15V (15,31,32,37) 3V_S5 (3,7,8,9,10,11,22,28,37)

Spacing = 10 milsWidth = 6mils

C328

0.1U/10V/X5R_4

+3V

C567

2.2U/6.3V/X5R_6

GSENSOR_X (28) GSENSOR_Y (28) GSENSOR_Z (28)

C354

C340

0.1U/10V/X5R_4

*0.1U/10V/X5R_4

25

Discrete TPM for M NOTE

CLK_LPC_TPM(9)

LPC_FRAME#(8,22,28)

PLTRST#(3,9,17,21,22,23,27)

LPC_AD3(8,22,28) LPC_AD2(8,22,28) LPC_AD1(8,22,28) LPC_AD0(8,22,28)

R474 *4.7K_4R474 *4.7K_4

A A

A

+3V

SERIRQ(8,22,28)

R439 *0_4R439 *0_4 R432 *0_4R432 *0_4

R437 *0_4R437 *0_4 R470 *0_4R470 *0_4 R473 *0_4R473 *0_4

U31

21

CLK

22

FRAME#

16

RESET#

17

LDA3

20

LDA2

23

LDA1

26

LDA0

28

LPCPD#

27

SERIRQ

*ST19NP18ER28PVMO

B

STNP18

STNP18 TPM

TPM

VDD VDD

GPIO5 GPIO4

GPIO3 GPIO2

GPIO1

GND GND GND

ISO

10 24

15 9 7

PP

6 3 2 1 5

NC

8

NC

12

NC

13

NC

14

NC

19

NC

25

NC

4 11 18

+3V

C540 *0.1U/10V/X7R_4C540 *0.1U/10V/X7R_4 C554 *10U/6.3V/X5R_6C554 *10U/6.3V/X5R_6

PCI_CLKRUN# (7,28)

supplier P/N: ST19NP18ER28PVMO Quanta P/N: AL19NP18K29 F/P:tssop28-6_4-65-1_2h

C

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

D

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

1A

BT/G-SENSOR/TPM

25 43Monday, January 31, 2011

E

1A

1

FANPWR = 1.6*VSET

+3V

8

+VS

GND

4

26

3

O.S

G751-2P8F

+5V

+3V

R389

R386

10K_4

U26

+5V

VFAN(28)

C147

0.1U/10V/X5R_4

A A

R88

8.2K/F_4

1 2

R394 180K_4R394 180K_4

+3V_THR

1

SET

+3V (3,7,8,9,10,11,13,14,15,16,18,19,21,22,23,24,25,27,28,29,31,32,33,34,35,37) +5V (7,11,15,16,18,19,24,29,37)

5

VCC

GND

2

R84 150_4R84 150_4

3

OT

U8

HYST

G708T1U (SOT-23-5)

4

+5V_FAN

TH_FAN_POWER

FAN_SET

C501

C501 1000P/50V/X7R_4

1000P/50V/X7R_4

SYS_SHDN-1#

+3V

1 2 3

R85

R85 10K_4

10K_4

U26

VEN

GND

VIN

GND

VO

GND

SET4GND

G990P11U

1

Q15

Q15 2N7002

2N7002

+3V

8 7 6 5

+5V

C496

2.2U/10V/X5R_6

2

3

SYS_SHDN# (13,31,35,37)

MBDATA_THRM(9,28)

MBCLK_THRM(9,28)

for Charger

FANSIG(28)

TH_FAN_POWER

C487

C487 10U/10V/X5R_8

10U/10V/X5R_8

3

RHU002N06

3

RHU002N06

+3V

2

C486

C486 *0.01U/25V/X7R_4

*0.01U/25V/X7R_4

C488

0.01U/16V/X7R_4

Q2

1

Q1

1

R386 10K_4

10K_4

C18

0.1U/10V/X5R_4

CN17

1 2 3

85205-0300L

U2

7

A0

6

A1

5

A2

1

SDA

2

SCL

ADDRESS

1

0 0 1 A2 A1 A0 0

ADDRESS: 9AH

MSB LSB

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

1

Date: Sheet

FAN/Thermal

of

26 43Monday, January 31, 2011

1A

1

+3V (3,7,8,9,10,11,13,14,15,16,18,19,21,22,23,24,25,26,28,29,31,32,33,34,35,37) 3VPCU (8,15,16,17,20,28,29,31,33,36,37) 3V_S5 (3,7,8,9,10,11,22,25,28,37) 5VSUS (15,35,37)

27

RFID

+3V

EC-SIT-10

R115

4.7K_4

21 21

R111

1.8K/F_4

3

Q19

Q19 2N7002W

2N7002W

1

R109

R109 845/F_4

845/F_4

4.7K_4

PROT

+3V

C155 0.1U/10V/X5R_4C155 0.1U/10V/X5R_4

8 7

4

LOGO_LED_C#

R91

R91 1K_4

1K_4

LOGO_LED_A# (15)

POWER BUTTON

EC-SIT-11

CN3

4 3 2 1

POWER switch

EC-DV-24

LOGO_LED_C#

R24 *short_6R24 *short_6

RV1 *TVM0G180M030R(18V,3p)_4RV1 *TVM0G180M030R(18V,3p)_4

12

LED1

LOGO_LED_RED

12

C382

*Clamp-Diode_4

NBSWON#(28)

5VSUS

C37

0.1U/10V/X5R_4

3VPCU

R23

R23 10K_4

10K_4

12

C41

C41 *15P/50V/NPO_4

*15P/50V/NPO_4

D4

D4 CH500H-40

HWPG(28,31,32,33,34,35) PLTRST#(3,9,17,21,22,23,25)

R98 *100K_4R98 *100K_4 R103 *100K_4R103 *100K_4

PCLK_SMB(9,13,14,23)

PDAT_SMB(9,13,14,23)

PROT

CH500H-40

D3

D3 CH500H-40

CH500H-40

U9

1 2

6

PCA24S08DP TSSOP

VCC

L1 L2 PROT3WP

SCL SDA5GND

LED Driver

A A

LOGO_LED#(28)

R112

R112 100K_4

100K_4

R110

R110 10K_4

10K_4

2

5VSUS

3

Q20

Q20 2N7002W

2N7002W

1

2

3

Q18

Q18 2N7002W

2N7002W

2

1

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

1

Date: Sheet of

SW/LED/RFID_EEPROM

27 43Monday, January 31, 2011

1A

5

+3V_RTCRTC_VCC

R177 *0_4R177 *0_4

C275

C275 *short_4

*short_4

D D

3VPCU

C211

0.1U/10V/X5R_4

PCLK_591(9)

EMI suggestion: Add a 15p bypass CAP on CLK_PCI_8512

C C

Layout Note: Place this test point on top side

3VPCU

R148

R148 470K_4

470K_4

WRST_8512#

C234

0.1U/10V/X5R_4

B B

A A

EC-SIT-1

Layout Note: Place all capacitors close to IT8512.

C310

0.1U/10V/X5R_4

PCLK_591

C247

C247 *15P/50V/NPO_4

*15P/50V/NPO_4

TP21TP21

R101

High Low

5

C214

0.1U/10V/X5R_4

LPC_FRAME#(8,22,25)

SIO_A20GATE(10) SIO_EXT_SMI#(10)

SIO_EXT_SCI#(10)

DNBSWON#(7)

ICH_RSMRST#(7)

AC_PRESENT(7)

PM_SLP_S4#(7)

PAD_DETECT#(24) GSENSOR_TST(25)

PAD_RESET#(24)

SUS_PWR_ACK(7)

R229

R229 100K_4

100K_4

FLASH TYPE SELECT

LPC/FWH FLASH ROM SPI FLASH ROM (Default)

LPCPD#(7)

SIO_RCIN#(10)

USB_ON#(20)

USB_CB0(20)

GSENSOR_Z(25)

ACDC_ID(36)

MY[0..15](24)

MX[0..7](24)

C309

0.1U/10V/X5R_4

LPC_AD0(8,22,25) LPC_AD1(8,22,25) LPC_AD2(8,22,25) LPC_AD3(8,22,25)

LID#(15,16)

SERIRQ(8,22,25)

D/C#(36)

TP72TP72 TP73TP73

S5_ON(37)

SUSON(32,37)

VRON(35,37)

L26 BLM18AG121SN1DL26 BLM18AG121SN1D

C323

0.1U/10V/X5R_4

Layout Note: net "3VPCU" and "RTC_VCC" minimum trace width 12mils.

D11 RB500V-40D11 RB500V-40 D6 RB500V-40D6 RB500V-40

D5 RB500V-40D5 RB500V-40 D12 RB500V-40D12 RB500V-40

D10 RB500V-40D10 RB500V-40

BATLED_AMBER_LED# BATLED_GREEN_LED#

C544

0.1U/10V/X5R_4

IT8518&19

PCLK_591

WRST_8512#

TP22TP22

DNBSWON_R

TP12TP12

8512_SCK 8512_SCE# 8512_SI 8512_SO

TP13TP13

MY0 MY1 MY2 MY3 MY4 MY5 MY6 MY7 MY8 MY9 MY10 MY11 MY12 MY13 MY14 MY15

4

C530

C530 1000P/16V/X7R_4

1000P/16V/X7R_4

C267

0.1U/10V/X5R_4

U12

10

LAD0/GPM0(X)

9

LAD1/GPM1(X)

8

LAD2/GPM2(X)

7

LAD3/GPM3(X)

22

LPCRST#/W UI4/GPD2(Up)

13

LPCCLK/GPM4(X)

6

LFRAME#/GPM5(X)

17

LPCPD#/WUI6/GPE6(Dn)

126

GA20/GPB5(X)

5

SERIRQ/GPM6(X)

15

ECSMI#/GPD4(Up)

23

ECSCI#/GPD3(Up)

14

WRST#

4

KBRST#/GPB6(X)

16

PWUREQ#/BBO/SMCLK2ALT/GPC7(Up)/SMCLK2ALT

119

CRX0/GPC0(Dn)

123

CTX0/TMA0/GPB2(Dn)

80

DAC4/DCD0#/GPJ4(X)

104

DSR0#/GPG6(X)

33

GINT/CTS0#/GPD5(Up)

88

PS2DAT1/RTS0#/GPF3(Up)

81

DAC5/RIG0#/GPJ5(X)

87

PS2CLK1/DTR0#/GPF2(Up)

109

TXD/SOUT0/GPB1(Up)

108

RXD/SIN0/GPB0(Up)

71

ADC5/DCD1#/W UI29/GPI5(X)

72

ADC6/DSR1#/W UI30/GPI6(X)

73

ADC7/CTS1#/W UI31/GPI7(X)

35

RTS1#/WUI5/GPE5(Dn)

34

PWM7/RIG1#/GPA7(Up)

107

DTR1#/SBUSY/GPG1/ID7(Dn)

95

CTX1/WUI18/SOUT1/GPH2/SMDAT3/ID2(Dn)

94

CRX1/WUI17/SIN1/SMCLK3/GPH1/ID1(Dn)

105

FSCK

101

FSCE#

102

FMOSI

103

FMISO

56

KSO16/SMOSI/GPC3(Dn)

57

KSO17/SMISO/GPC5(Dn)

32

PWM6/SSCK/GPA6(Up)

100

SSCE0#/GPG2(X)

106

SSCE1#/GPG0(X)

36

KSO0/PD0

37

KSO1/PD1

38

KSO2/PD2

39

KSO3/PD3

40

KSO4/PD4

41

KSO5/PD5

42

KSO6/PD6

43

KSO7/PD7

44

KSO8/ACK#

45

KSO9/BUSY

46

KSO10/PE

51

KSO11/ERR#

52

KSO12/SLCT

53

KSO13

54

KSO14

55

KSO15

4

IT8512_AVCC

C531

C531 1U/6.3V/X5R_4

1U/6.3V/X5R_4 C357

+3V

RTC_VCC

3VPCU

114

11

VCC

VSTBY26VSTBY50VSTBY92VSTBY

LPC

CIR

EXTERNAL SERIAL FLASH

SPI ENABLE

KBMX

KSI0/STB#58KSI1/AFD#59KSI2/INIT#60KSI3/SLIN#61KSI462KSI563KSI664KSI7

MX0 MX1 MX2 MX3 MX4 MX5 MX6 MX7

121

VSTBY

UART port

65

74

3

VBAT

AVCC

L24 10_6L24 10_6 L9 BLM18AG121SN1DL9 BLM18AG121SN1D

C357

0.1U/10V/X5R_4

IT8512_VSTBY

127

VSTBY

IT8518

VSS

1

TRACK_POINT_RESET

82

19

20

84

EGAD/WUI25/GPE1(Dn)

EGCS#/WUI26/GPE2(Dn)83EGCLK/WUI27/GPE3(Dn)

L80LLAT/WUI7/GPE7(Up)

L80HLAT/BAO/WUI24/GPE0(Dn)

GPIO

RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7(Dn)

VSS27VSS49VSS

VSS

AVSS

VSS

75

91

122

113

C258

C258 *1U/6.3V/X5R_4

*1U/6.3V/X5R_4

G_SENSOR_ID

99

97

HSCK/GPH4/ID4(Dn)

HMISO/GPH5/ID5(Dn)98HMOSI/GPH6/ID6(Dn)

WAKE UP

VCORE

12

C257

0.1U/10V/X5R_4

96

HSCE#/WUI19/GPH3/ID3(Dn)

3VPCU 3VPCU

(For PLL Power)

TP60TP60 TP59TP59

TP19TP19

TP65TP65

93

SMCLK0/GPB3(X) SMDAT0/GPB4(X) SMCLK1/GPC1(X) SMDAT1/GPC2(X)

PECI/SMCLK2/WUI22/GPF6(Up)

SMDAT2/WUI23/GPF7(Up)

PS2CLK0/TMB0/GPF0(Up)

SM BUS

PS2DAT0/TMB1/GPF1(Up) PS2CLK2/WUI20/GPF4(Up) PS2DAT2/WUI21/GPF5(Up)

PS/2

CLKRUN#/WUI16/GPH0/ID0(Dn)

PWM0/GPA0(Up) PWM1/GPA1(Up) PWM2/GPA2(Up) PWM3/GPA3(Up) PWM4/GPA4(Up) PWM5/GPA5(Up)

PWM

TACH0A/GPD6(Dn)

TACH1A/TMA1/GPD7(Dn)

TMRI0/WUI2/GPC4(Dn) TMRI1/WUI3/GPC6(Dn)

PWRSW/GPE4(Up) RI1#/WUI0/GPD0(Up) RI2#/WUI1/GPD1(Up)

ADC4/WUI28/GPI4(X)

A/D D/A

TACH2/GPJ0(X)

DAC2/TACH0B/GPJ2(X) DAC3/TACH1B/GPJ3(X)

CLOCK

3

TRACK_POINT_RESET# (24)

ECPWROK (7)

DCIN_LED# (20)

USBCHR_ON (20)

R461 *Short_4R461 *Short_4

110 111 115 116 117 118

85 86 89 90

24 25 28 29 30 31

47 48

120 124

125 18 21

112

66

ADC0/GPI0(X)

67

ADC1/GPI1(X)

68

ADC2/GPI2(X)

69

ADC3/GPI3(X)

70

76 77

GPJ1(X)

78 79

2

CK32KE/GPJ7

128

CK32K/GPJ6

3

MBCLK MBDATA MBCLK_THRM MBDATA_THRM

TP63TP63 TP62TP62

PWR_BLUE#

SUSPEND_LED#

H_PROCHOT_EC

R232 *0_4R232 *0_4

NBSWON#

R422 *short_4R422 *short_4

BL/C#

IT8512_CK32KE IT8512_CK32K

H_PROCHOT_EC

PCI_CLKRUN# (7,25)

MBCLK (36) MBDATA (36) MBCLK_THRM (9,26)

EC_PECI (3,10) VOLMUTE# (18)

TPCLK (24) TPDATA (24)

TP74TP74

LOGO_LED# (27) VFAN (26)

TP71TP71

GSENSOR_ON# (25)LAN_POWER(37) PCBEEP_AD (18)

FANSIG (26)

TEMP_MBAT

HWPG

C311 *.1U/10V/X5R_4C311 *.1U/10V/X5R_4

EC-DV-19

C295

C295 0_4

0_4

NBSWON# (27) SIO_SLP_S3# (7) ACIN (36)

MAINON (32,33,34,37)

HDD_DETECT# (19) SIO_EXT_WAKE# (9) BL/C# (36)

TP64TP64

H_PROCHOT#_Q

3

2

R101

1

100K_4

MBDATA_THRM (9,26)

HWPG (27,31,32,33,34,35)

TEMP_MBAT (36) MBATV (36) AD_ID (36) GSENSOR_Y (25) GSENSOR_X (25)

Y2

1 4 2 3

*32.768KHZY2*32.768KHZ

Q17

Q17 ME2N7002E

ME2N7002E

2

EC-SIT-1

R95 *short_4R95 *short_4

C296

C296 *10P/50V/NPO_4

*10P/50V/NPO_4

2

H_PROCHOT# (3,35)

for EUP Lot6

EC-DV-06

G-sensor ID select

G_SENSOR_ID

4Mbit (512k Byte), SPI

Winbond AKE37FN0N01 MAX AKE37FP0Z02

8512_SCE# 8512_SCK

R503 47_4R503 47_4

8512_SI 8512_SI1

R502 47_4R502 47_4

8512_SO

R501 15_4R501 15_4

8512_SCK1 8512_SO1

Size Document Number Rev

Date: Sheet of

1

+3V(3,7,8,9,10,11,13,14,15,16,18,19,21,22,23,24,25,26,27,29,31,32,33,34,35,37) 3VPCU(8,15,16,17,20,27,29,31,33,36,37) +3V_RTC(7,8,11)

PWR_BLUE# BATLED_AMBER_LED# BATLED_GREEN_LED#

MBCLK_THRM MBDATA_THRM MBCLK MBDATA PAD_RESET# BL/C# HDD_DETECT# TRACK_POINT_RESET

TEMP_MBAT

HWPG

+3V

R251

R251 *10K_4

*10K_4

R228

R228 *10K_4

*10K_4

3VPCU

R510

R510 10K_4

10K_4

1 6 5 2

3

POWER SWITCH/ CARE BUTTON

U34

CE#

VDD SCK SI SO

HOLD#

WP#

VSS

W25X40BVSSIG

MBCLK MBDATA

R132 *10K_4R132 *10K_4 R463 *10K_4R463 *10K_4 R230 *10K_4R230 *10K_4

R257 4.7K_4R257 4.7K_4 R258 4.7K_4R258 4.7K_4 R452 4.7K_4R452 4.7K_4 R457 4.7K_4R457 4.7K_4 R102 10K_4R102 10K_4 R433 *10K_4R433 *10K_4 R430 100K_4R430 100K_4 R438 *10K_4R438 *10K_4

R196 *100K/F_4R196 *100K/F_4

R233 10K_4R233 10K_4

3VPCU

NBSWON#

R506

R506 10K_4

10K_4

8

7 4

For ESD

close battery connector

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

KBC IT8518/19

1

28

R234

R234 10K_4

10K_4

C312

0.1U/10V/X5R_4

C566

0.1U/10V/X5R_4

SC20

SC21

*0.1U/10V/X5R_4

28 43Monday, January 31, 2011

3V_S5

3VPCU

+3V

*0.1U/10V/X5R_4

1A

1

2

3

4

5

6

7

8

Hole for CPU support

HOLE12

HOLE13

*H-C142D142N

A A

1

HOLE15

*H-C142D142N

1

BLUETOOTH CRT

HOLE8

H-TC217BC59I99D59PT

1

B B

EC-DV-03

HOLE2

*h-c197I117d87p2

1

HOLE12

*H-C142D142N

1

Spad1

Spad1 *Spad1

*Spad1

1

Boundary Hole

HOLE14

*H-C142D142N

1

Keyboard SB

HOLE7

*O-FL7C-2

1

HOLE4

*H-C71d71n

1

HOLE18

H-TC217BIC142D102P2

HOLE1

HOLE1 *HG-C197D91P2

*HG-C197D91P2

2 3 4

1

8

9

1

HOLE16

H-TC5_5BC4I3D3P2

HOLE5

5 6 7

HOLE5

*H-o106x87d106x87n

MiniCard WLANMiniCard WWAN

HOLE17

H-TC217BIC142D102P2

1

HOLE20

H-TC5_5BC4I3D3P2

1

Boundary Hole

EMI

12

C131

C175

+1.5VSUS

C395

C274

C359

C395

12

2200P/50V/X7R_4

C405

C1

12

2200P/50V/X7R_4

2200P/50V/X7R_4C12200P/50V/X7R_4

2200P/50V/X7R_4

C320

+5V

C320

12

2200P/50V/X7R_4

C200

12

2200P/50V/X7R_4

C176

C185

C2

C176

12

2200P/50V/X7R_4

+3V

C325

12

2200P/50V/X7R_4C22200P/50V/X7R_4

C216

12

2200P/50V/X7R_4

C490

12

2200P/50V/X7R_4

29

HOLE10

HOLE11

*HG-C217D87P2

2 3

C C

4

1

8

9

*HG-C217D87P2

2

5

3

6

4

7

HOLE10

1

8

9

*HG-C217D87P2

5 6 7

2 3 4

HOLE9

8

1

9

*HG-C217D87P2

5 6 7

2 3 4

HOLE6

8

1

9

5 6 7

HOLE3

HOLE3 *HG-C217D91P2

*HG-C217D91P2

2 3 4

1

8

C35

C226

C484

12

C409

5 6 7

9

C409

1U/6.3V/X5R_4

C484

12

2200P/50V/X7R_4

C35

C466

12

2200P/50V/X7R_4

12

2200P/50V/X7R_4

C17

C355

12

2200P/50V/X7R_4

Fro ESD

+VCC_GFX3VPCU+1.5V_CPU

SC18

SC11

SC10

D D

*0.1U/10V/X5R_4

1

SC12

*0.1U/10V/X5R_4

SC13

*0.1U/10V/X5R_4

SC14

SC15

SC16

*0.1U/10V/X5R_4

2

SC17

*0.1U/10V/X5R_4

SC18

*0.1U/10V/X5R_4

SC19

*0.1U/10V/X5R_4

3

C31

+VCC_CORE

VIN

C145

*0.1U/10V/X5R_4

4

+3V

Fro ESD

C276

C276 1000P/50V/X7R_4

1000P/50V/X7R_4

+1.05V

+1.5V_CPU (3,5,32,37) 3VPCU (8,15,16,17,20,27,28,31,33,36,37) +VCC_GFX (5,35,37) +3V (3,7,8,9,10,11,13,14,15,16,18,19,21,22,23,24,25,26,27,28,31,32,33,34,35,37) +5V (7,11,15,16,18,19,24,26,37) +1.5VSUS (3,11,13,14,32,37) 5VPCU (15,31,32,33,34,36,37) VIN (15,31,32,33,34,35,36,37) +VCC_CORE (5,6,35,37) +1.05V (3,5,7,8,9,11,33,37)

5

5VPCU

C277

C277 1U/6.3V/X5R_4

1U/6.3V/X5R_4

6

Fro EMI

C278

C278 1U/6.3V/X5R_4

1U/6.3V/X5R_4

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

Screw Hole/EMI

7

29 43Monday, January 31, 2011

8

1A

3

2

1

7A

VA

ACDC_ID

D D

22V

21

D/C#

ADAPTER CONN

1 2

3

1P

2P

VIN

2

3

1

2

5V DC-DC

1

6.3A OCP:8.2A

3 2

3

5VPCU

LDO

VA

Resister Divider

DCIN

ACIN

AC_OK

MBCLK

MBDATA

C C

AD_ID

ACIN

ACOK

SCL SDA

ICM

CSSP CSSN

BATTERY CHARGER

CSIP CSIN

VFB

2

VIN

1

3

1 2

2

1P

1

3

2P

1 2

BAT-V

10A

ISL88731A

MBCLK MBDATA TEMPMBAT

RT8206MGQW

3V DC-DC

5VPCU

MAINON

3V5V_EN3V5V_EN

VIN

VDD

ON/SKIP

+VCCSA

2

1

6.8A OCP:9A

3 2

3

2

3 2

3

3VPCU

+VCCSA

5VPCU

3VPCU

2

Boost

2

3

1

3

1

3

1

3

1

3

1

+VCCSA

6A OCP:8A

BATTERY CONN

OZ8117

5VSUS

VDD

VR_SVID_CLK

B B

VR_SVID_DATA

SHDN

SCLK SDA

VR_ON

CPU/GFX

2

1

3

2

1

3

+VCC_GFX

12A OCP:20A

DC-DC

2

1

ISL95831

-CRZ-T

3

2

1

3

+VCC_CORE

21.5A OCP:35A

VIN

5VPCU

1.05V DC-DC

RT8204LGQW

VDD

EN/DEN

LDRI

LDN

VIN

5VPCU

2

1

3 2

1

3

+1.05V_VTT

VCC1.05_P+VCC_GFX

MAX:15.5A

OCP:20.2A

V5IN

1

12.2A OCP:16A

2

3 2

3

213

1.5VSUS

1.5V_ON

+1.5V

1.5VSUS

1.2A 6A

DDRIII

2

3

MAINON MAINON

2

1

3

3VPCU

+1.8V

1.3A

TPS51116 RGER

S5 S3

1.5V_ON

+0.75_DDR_VTT +0.75_VREF_DIMM

SUSON MAINON

1

+1.5V_CPU S3_Power Saving

1.2A

5A

3.3A

+5V

MAINON 5VSUS

SUSON 5V_S5

S5_ON

+15V

+3V

MAINON

3V_S5

0.72A

S5_ON

0.1A

3.1A

5.7A

30

A A

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

<Doc> 1ACustom

Power Block Diagram

Date: Sheet of

3

2

1

Date: Sheet of

30 4 3Monday, January 31, 2011

5

POWER_3V/5V (RT8206MGQW)

4

3

2

1

31

3VPCU(8,15,16,17,20,27,28,29,33,36,37) 5VPCU(15,29,32,33,34,36,37) +15V(15,25,32,37) VIN(15,29,32,33,34,35,36,37)

D D

SYS_SHDN#(13,26,35,37)

PL1

UPB201212T-800Y-N

VIN

UPB201212T-800Y-N

5VPCU Fs = 400K

C C

Peak Current : 6.3A OCP : 8.2A

PJP2

PJP2 *POWER_SHORT

*POWER_SHORT

PJP3

EC-DV-P01

12

PC30

PC29

12

PC30

4.7U/10V/X5R_6

0.1U/10V/X7R_4

4.7U/10V/X5R_6

12

PC38

+

220U/6.3V/ESR25_7343

EC-DV-P09

5VPCU

B B

PR80

0_4

Place these CAPs close to FETs

1 2

OUT1

PR64

PR64 *0_4

*0_4

3V5V_EN

PR63

PR63 0_4

0_4

+DC1_PWR_SRC_5V+DC1_PWR_SRC_5V

PC36

PC37

10U/25V/X6S_12

PC35

1 2

PL2

PCMC063T-2R2MN

*4.7/F_6

*1000P/50V/X7R_4

PR76

PR76 39K/F_4

39K/F_4

0.1U/50V/X7R_6

ER4

EC5

12

PC32

+15V

5V_AL

PL4

UPB201212T-800Y-N

+3V

12

PR59

PR59 *10K_4

*10K_4

PC56

PR56

220U/6.3V/ESR25_7343

0_4

UPB201212T-800Y-N

OUT2

12

+

EC-DV-P04

VIN

3VPCU Fs = 500K Peak Current : 6.8A OCP : 9A

PJP7

PJP7 *POWER_SHORT

*POWER_SHORT

12

PC62

PC69

4.7U/10V/X5R_6

0.1U/10V/X7R_4

0.1U/10V/X7R_4 *POWER_SHORT

*POWER_SHORT

PJP6

EC-DV-P01

HWPG (27,28,32,33,34,35)

12

3VPCU

12

+DC1_PWR_SRC

PC50

PC51

5V_AL

PR229

PR229 *10/F_6

PC72

4.7U/10V/X5R_6

1 2

8

4

7

6

3

5

VIN

RTC

LDO

ONLDO

LDOREFIN

PU3

RT8206MGQW

BST117DL118VDD19SECFB20GND21PGND22DL223BST2

*SHORT-1A

PC46

1U/10V/X5R_4

12

*10/F_6

PR77

PR77 0_4

0_4

0.1U/10V/X7R_4

1

REF

TON2VCC

REFIN2

PGOOD2

24

PR211

PC80

REF

EC-DV-P12

ILIM2 OUT2 SKIP#

EN2 DH2

LX2

PR52

2.2/F_6

PR50

*0_6

PC81

PR70

PR70 *0_4

*0_4

32 31 30 29 28 27 26 25

1U/10V/X5R_4

12

REFIN2

1 2

SKIP

DDPWRGD_R

3V5V_EN

12

0.1U/50V/X7R_6

5V_AL

PC57

PR223

PR223 0_4

0_4

PR66

PR66 182K/F_4

182K/F_4

12

OUT2

PR74

PR74 *0_4

*0_4

PR75

PR75 *0_4

*0_4

DL3

PC64

52

1 2

DH3

4

3

1

PQ34

PQ34 AON7406

AON7406

PCMC063T-2R2MN

LX3

4

PQ30

AON7702

SKIP REF

PCMC063T-2R2MN

52

3

1

12

PR220

PR220 *0_4

*0_4

12

PR218

0_4

0.1U/50V/X7R_6

ER5

ER5 *4.7/F_6

*4.7/F_6

EC6

EC6 *1000P/50V/X7R_4

*1000P/50V/X7R_4

PR82

2.2/F_6

PR224

390K/F_4

PC84

0.1U/50V/X7R_6

REFIN2

52

PQ20

PQ20 AON7406

AON7406

DH5

4

3

1

2200P/50V/X7R_4

12

52

3

1

PC184

0.1U/50V/X7R_6

PR238

PR238 22_8

22_8

LX5

4

PQ23

PQ23 AON7702

AON7702

12

0.1U/50V/X7R_6

DL5

12

+15V_ALWP

PC191

EC-DV-P12

1 2

PC58

0.1U/50V/X7R_6

1

2

1

2

PC192

*1U/25V/X5R_6

1 2

PR60

PR60 169K/F_4

169K/F_4

PR228

115K/F_4

12

0.1U/50V/X7R_6

3

PD18

PD18 BAT54SGP

BAT54SGP

3

PD19

PD19 BAT54SGP

BAT54SGP

DDPWRGD_R

3V5V_EN

PC185

12

PR49

1 2

*200K/F_4

OUT1

PR53

2.2/F_6

1U/25V/X5R_6

PR230 *0_6PR230 *0_6

9

BYP

10

OUT1

11

FB1

12

ILIM1

13

PGOOD1

14

EN1

15

DH1

16

LX1

5V_AL

PR219

0_6

12

PC187

0.1U/50V/X7R_6

*39K/F_4

PC83

DL3

PAD

33

PR48

10U/25V/X6S_12

PC63

12

2200P/50V/X7R_4

PL5

PR62

*0_4

PC51

10U/25V/X6S_12

Place these CAPs close to FETs

0_4

PR57

1 2

DDPWRGD_R

A A

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

<Doc> 1ACustom

POWER_3V/5V (RT8206MGQW)

1

31 43Monday, January 31, 2011

5

4

3

2

1

32

1.5VSUS Fs=400K Peak Current :12.2A OCP :16A

PJP4

PJP4 *POWER_SHORT

*POWER_SHORT

12

PJP5

PJP5 *POWER_SHORT

*POWER_SHORT

+1.5VSUS

12

25

VTT

GND

VLDOIN

VBST

DRVH

DRVL

PGND

CS_GND

V5IN

V5FILT

PGOOD

VIN_DDR

LL

CS

1.5VSUS_P

24

23

DDR_VBST

22

DRVH

21

DDR_LL

20

DRVL

19

18

17

DDR_CS

16

DDR_V5IN

15

DDR_V5FILT

14

PR93

13

DDR_COMP

*10K/F_4

12

PC71

2.2U/10V/X5R_6

EC-DV-P12

PR94

PR94 0_4

0_4

PR84

PR84 0_4

0_4

PC70

PR68

0.1U/50V/X7R_6

1 2

2.2/F_6

PR81

8.87K/F_4

+3V

HWPG (27,28,31,33,34,35)

PQ35

AON7406

PR78

5.1_6

PC89

PC89 1U/10V/X5R_4

1U/10V/X5R_4

Place these CAPs close to FETs

VIN_DDR

PC52

PC53

PR71

PR71 0_6

0_6

12

1 2

0.1U/50V/X7R_6

0.1U/50V/X7R_6 2200P/50V/X7R_4

2200P/50V/X7R_4

52

PQ31

AON7702

4

3

1

5VPCU

52

4

3

1

52

PQ26

AON7702

4

3

1

PC88

PC88 1U/10V/X5R_4

1U/10V/X5R_4

PR232

*SHORT-1A

12

PC55

PC54

+

10U/25V/X6S_12

PL3

PCMC063T-R82MN/13A

ER3

ER3 *4.7/F_6

*4.7/F_6

12

EC4

EC4 *1000P/50V/X7R_4

*1000P/50V/X7R_4

10U/25V/X6S_12

PL6

UPB201212T-800Y-N

PR9710K/F_4 PR9710K/F_4

PR9810K/F_4 PR9810K/F_4

1116VDDQSET

VIN

1.5VSUS_P

12

PC92

*10p/50V/C0G_4

12

PC91

*1000P/50V/X7R_4

12

PC44

PC60

+

330U/2.5V/ESR9_3528

PC43

12

PC42

0.1U/10V/X7R_4

10U/6.3V/X5R_6

EC-DV-P09

D D

+0.75V_DDR_VTT

PC79

Peak Current: 1.2A

+0.75V_DDR_VTT

C C

SYS_PWROK(3,7)

MAINON(28,33,34,37)

SUSON(28,37)

PJP8

PJP8 *POWER_SHORT

*POWER_SHORT

DDR_VTTREF

PR100 100K_4PR100 100K_4

PR101

PR101 0_4

0_4

PC79 *0.1U/10V/X7R_4

*0.1U/10V/X7R_4

12

PR102

PR102 *0_4@NC

*0_4@NC

PD8

*1SS355@NC

PC87

PC68

PC68 10U/6.3V/X5R_6

10U/6.3V/X5R_6

1.5VSUS_P

PR95

PR95 0_4

0_4

DDR_V5FILT

S3

12

21

S5

12

PC94

PC94 *0.1U/10V/X7R_4

*0.1U/10V/X7R_4

PC93

PC93 *0.1UF/10V/X7R_4@NC

*0.1UF/10V/X7R_4@NC

PC87 10U/6.3V/X5R_6

10U/6.3V/X5R_6

PR88

PR88 *0_4

*0_4

PR85 0_4PR85 0_4

SMDDR_VREF_C

12

PC90

0.033U/16V/X7R_4

PR99

PR99 *0_4

*0_4

1

VTTGND

2

VTTSNS

3

GND

4

MODE

5

VTTREF

6

COMP

7

NC

8

VDDQSNS

9

VDDQSET

S3

10

S5

S3

11

S5

12

NC

PU4

TPS51116REGR

PR92

PR92 *620K/F_4

*620K/F_4

B B

PQ7

1.5V_ON

4

PQ7 AON7406

AON7406

5 2

4

12

PC19

PC19 *0.015U/50V/X7R_6

*0.015U/50V/X7R_6

+1.5V_CPU

1 3

PC21

5 A

PC61

10U/6.3V/X5R_6

PR90

PR90 *1M_4

*1M_4

+1.5VSUS

1.5V_ON

PQ32

PQ32 AON7406

AON7406

5 2

+1.5V

PR51

PR46

PR51 22_8

22_8

5VPCU

3

2

1

3

2

1

PC20

10U/6.3V/X5R_6

100K/F_4

PS_S3CNTRL(37)

MAINON(28,33,34,37)

3

MAINON

2N7002W

PQ42

PQ27

PQ27 2N7002W

2N7002W

2

PR91

PR91 1M_4

1M_4

PQ44

+15V

3

2

1

+1.5V

1 3

4

12

PC45

PC45 *0.015U/50V/X7R_6

*0.015U/50V/X7R_6

Size Document Number Rev

<Doc> 1ACustom

Date: Sheet of

1.2A

PC48

PC49

POWER_DDR3 (TPS51116)

*10U/6.3V/X5R_6

10U/6.3V/X5R_6

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

32 43Monday, January 31, 2011

1

32 43Monday, January 31, 2011

PC22

+1.5VSUS

10U/6.3V/X5R_6

For S3 Power Saving

S3

3

PS_S3CNTRL(37)

A A

2

PQ43

*2N7002W

1

5

4

3

2

1

33

Place these CAPs close to FETs

PQ59

PQ59 TPCC8065-H

TPCC8065-H

52

3

1

1 2

VIN_1.05

PC139

0.1U/50V/X7R_6

ER8

ER8 *4.7/F_6

*4.7/F_6

12

EC9

*1000P/50V/X7R_4

PC143

12

2200P/50V/X7R_4

0.033U/50V/X7R_6

EC-DV-P06

AGND_1.05V_PCH

PC146

10U/25V/X6S_12

PCMC104T-1R0MN/18A

PR143

PR143 20K/F_4

20K/F_4

PR144

PR144 20K/F_4

20K/F_4

PC127

PC129

PC129 22P/50V/NPO_4

22P/50V/NPO_4

PC137

10U/25V/X6S_12

PL14

PR201

10K_6_NTC

EC-DV-P06

D D

PC130

12

PR14

PR14 100K_4

100K_4

AGND_1.05V_PCH

PC121

0.01U/25V/X7R_4

PR136

0_4

MAINON(28,32,34,37)

C C

1.05VPCH_VREF

PR134

84.5K/F_4

1.05VPCH_VSET1

PC128

PC128 1000P/50V/X7R_4

PR145

52.3K/F_4

AGND_1.05V_PCH

B B

1000P/50V/X7R_4

AGND_1.05V_PCH

0_4

PC124

PC124 *0.1U/25V/X5R_4

*0.1U/25V/X5R_4

21

PD5

PD5 *1SS355VM

*1SS355VM

AGND_1.05V_PCH

PR141

PR141 20K/F_4

20K/F_4

1.05VPCH_TEST

PC126

PR138

80.6K/F_4

AGND_1.05V_PCH AGND_1.05V_PCH

PC126 1000P/50V/X7R_4

1000P/50V/X7R_4

1 2

1U/10V/X5R_4

PR151

PR151 22_6

22_6

1.05VPCH_VSET1

1.05VPCH_TEST

1.05VPCH_VREF

PC123

0.1U/25V/X5R_4

AGND_1.05V_PCH

12 18

3 7 8 9

10

6 4

21

AGND_1.05V_PCH

VDDP VDDA

ON/SKIP VSET1 VSET2 G0 G1 TSET VREF

GNDA

PC132

1U/10V/X5R_4

PR148

PR148 0/F_6

16 15

17

13

19 20 11 1 2

14

0/F_6

1.05VPCH_HDR

1.05VPCH_BST

1.05VPCH_LX

1.05VPCH_LDR

1.05VPCH_CSP

1.05VPCH_CSN

1.05VPCH_RSP

1.05VPCH_RSN

5

VIN

HDR BST

PU5

PU5 OZ8117

OZ8117

AGND_1.05V_PCH

LX

LDR

CSP CSN

PG RSP RSN

GNDP

PR16

PR16 *short

*short PR147

21

PD11

PD11 1SS355VM

1SS355VM

PC131

0.22U/25V/X5R_6

PR146 *10K/F_4PR146 *10K/F_4

1 2

PR147 0_4

0_4

PR149

PR149 0/F_6

0/F_6

5VPCU

PQ62

TPCC8062-H

4

3

+3V

HWPG (27,28,31,32,34,35)

52

1

4

PQ57

TPCC8062-H

1.05VPCH_CSP

1.05VPCH_CSN

52

3

1

4

PR142

1.27K/F_4

PL12

UPB201212T-800Y-N

PR139

51.1/F_6

PC125

PC125 1000P/50V/X7R_4

1000P/50V/X7R_4

AGND_1.05V_PCH

1.05VPCH_RSP

AGND_1.05V_PCH

1.05VPCH_RSN

AGND_1.05V_PCH

1.05VPCH_P

VIN

12

PC178

330U/2V/ESR9_7343

PR137

PR137 51/F_6

51/F_6

PC122

0.01U//50V/X7R_4

0.01U//50V/X7R_4 PR140

PR140 51/F_6

51/F_6

PC15

0.01U//50V/X7R_4

12

PC180

+

330U/2V/ESR9_7343

PC182

10U/6.3V/X5R_6

PC183

0.1U/25V/X5R_4

EC-DV-P11

12

PR135

PR135 10_4

10_4

VCCP_SENSE (5)

GND Close To Sandy Bridge Processor (POWER) Side

+1.05V_VTT F

s=250K TDC : 15.5A(Imax) OCP : 20.2A

PJP11

PJP11 *POWER_SHORT

*POWER_SHORT

12

PJP12

PJP12 *POWER_SHORT

*POWER_SHORT

12

*POWER_SHORT

*POWER_SHORT PJP13

PJP13

+1.05V

3VPCU

PJP15

PQ47

PQ47 MMBT3904W T1G

MMBT3904W T1G

1 3

PJP15 *POWER_SHORT

*POWER_SHORT

PC193

10U/6.3V/X6S_8

PC95

0.33U/6.3V/X5R_4

12

1U/10V/X5R_4

HWPG(27,28,31,32,34,35)

3

5VPCU

12

PC200

0.1U/25V/X5R_4

PC207

PR234

5VPCU

PR96

PR96 100K/F_4

100K/F_4

3

MAINON(28,32,34,37)

A A

5

PQ46

PQ46 ME2N7002E

ME2N7002E

2

1

4

PR234 100K/F_4

100K/F_4

PR103

3

2

PQ45

PQ45 ME2N7002E

ME2N7002E

1

PR105

PR105 100K/F_4

100K/F_4

MAINON

PR106

PR103 *0_4

*0_4

12

PR104

PR104 0_4

0_4

1 2

2

PC96

PC96 1U/10V/X5R_4

1U/10V/X5R_4

1 2

1.8V_Vin

1 2

HWPG

PU8

PU8 UP0104PSU8

UP0104PSU8

3

VIN

2

EN VDD4GND

1

PGOOD

7

1 2

ADJ

1.8VADJ

PR235

PR235 10K/F_4

10K/F_4

R2

VOUT

GND1

NC

R1

PR236

12.7K/F_4

+1.8V

5

6

8 9

PC202

10U/4V/X6S_6

1.8V_P

PC203

10U/4V/X6S_6

2

PJP16

PJP16 *POWER_SHORT

*POWER_SHORT

PC204

12

PC201

*10U/4V/X6S_6

0.1U/25V/X5R_4

Iout=1.3A

+1.8V

12

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

<Doc> 1ACustom

POWER_1.05V&1.8V(OZ8117)

1

33 43Monday, January 31, 2011

5

PC85

PR65

100K/F_4

PC67

0.01U/25V/X7R_4

21

0_4

0_4 PR237

PR237

12

PR83

PR83 0_4

0_4

1 2

AGND_VCCSA

100K/F_4

PR215

PR215 *20K_6

*20K_6

PC189

PC189 *1000P/50V/X7R_4

*1000P/50V/X7R_4

+VCCSA_G0 +VCCSA_G1

12

PC66

0.1U/25V/X5R_4

D D

PR214

PR214 20K_6

MAINON(28,32,33,37)

C C

VCCSA_SEL(5)

20K_6

PD17

1SS355VM

EC-DV-P07

B B

EC-DV-P07

PR233

38.3K/F_4

4

1U/10V/X5R_4

AGND_VCCSA

12

AGND_VCCSA

AGND_VCCSA AGND_VCCSA

PR225

93.1K/F_4

PR226

7.5K/F_4

PR87

PR87 22_6

22_6

+VCCSA_VSET1 +VCCSA_VSET2 +VCCSA_G0 +VCCSA_G1 +VCCSA_TEST +VCCSA_VREF

12

PC74

0.1U/25V/X5R_4

12

PC86

PC86 1000P/50V/X7R_4

1000P/50V/X7R_4

AGND_VCCSA

12

PC188

PC188 1000P/50V/X7R_4

1000P/50V/X7R_4

12

VDDP

18

VDDA

3

ON/SKIP

7

VSET1

8

VSET2

9

G0

10

G1

6

TSET

4

VREF

21

GNDA

+VCCSA_VREF

+VCCSA_VSET1

+VCCSA_VSET2

PC199

PC199 1U/10V/X5R_4

1U/10V/X5R_4

5

16

VIN

HDR

15

BST

17

PU7

PU7 OZ8117

OZ8117

AGND_VCCSA

PR73

PR73 36K/F_4

36K/F_4

PR79

80.6K/F_4

LX

13

LDR

19

CSP

20

CSN

11

PG

1

RSP

2

RSN

14

GNDP

PR86

*SHORT-1A

+VCCSA_TEST

12

PC77

PC77 1000P/50V/X7R_4

1000P/50V/X7R_4

1 2

AGND_VCCSA AGND_VCCSA

PR239

0_6

+VCCSA_HDR +VCCSA_BST

+VCCSA_LX

+VCCSA_LDR

+VCCSA_CSP +VCCSA_CSN

+VCCSA_RSP +VCCSA_RSN

3

21

PR243

PD20

0_6

1SS355VM

PC190

0.22U/25V/X5R_6

PR240

PR240 *10K/F_6

*10K/F_6

1 2

PR241

PR241 0_4

0_4

+3V

VCCSA_SEL 0 0.9V 0

0 1

Place these CAPs close to FETs

5VPCU

PQ71

52

4

3

1

52

4

3

1

PQ69

AON7406

AON7702

HWPG (27,28,31,32,33,35)

+VCCSA_CSP +VCCSA_CSN

+VCCSA

0.85V

VIN_+VCCSA

12

PC206

2200P/50V/X7R_4

ER6

ER6 *4.7/F_6

*4.7/F_6

12

EC7

EC7 *1000P/50V/X7R_4

*1000P/50V/X7R_4

2

PC205

PC194

0.1U/50V/X7R_6

AGND_VCCSA

+VCCSA_RSP

AGND_VCCSA

+VCCSA_RSN

AGND_VCCSA

PL15

UPB201212T-800Y-N

PC196

10U/25V/X6S_12

*10U/25V/X6S_12

OCP related circuit

DCR=9mohm

PL16

1UH/11A-PCMD063T-1R0MN

1 2

PR231

PR231 100K/F_4

100K/F_4

PR221

60.4K/F_4

PC65

PC65 4700P/25V/X7R_4

4700P/25V/X7R_4

PR212

PR212 715/F_4

715/F_4

EC-DV-P12

12

PC186

PC186 22P/50V/NPO_4

22P/50V/NPO_4

PR217

PR217 51/F_6

51/F_6

PC76

0.01U//50V/X7R_4

0.01U//50V/X7R_4 PR216

PR216 51/F_6

51/F_6

PC73

0.01U//50V/X7R_4

1

VIN

+VCCSA

FSW(KHZ)=300K Hz TDC=6A O.C.P.=8A

+VCCSA_P

12

PC195

+

330U/2.5V/ESR9_3528

PR69

51.1/F_6

12

PC75

PC75 1000P/50V/X7R_4

1000P/50V/X7R_4

AGND_VCCSA

PR213

PR213 10/F_4

10/F_4

VCCUSA_SENSE (5)

GND Close To Sandy Bridge Processor (POWER) Side

PC198

10U/6.3V/X5R_6

PC197

12

0.1U/25V/X5R_4

34

+VCCSA

12

*POWER_SHORT

*POWER_SHORT PJP14

PJP14

AGND_VCCSA

A A

5

AGND_VCCSA

4

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

VCCSA (OZ8117)

Monday, January 31, 2011 34 43

VCCSA (OZ8117)

1

1A

5

VCC_AXG_SENSE(5)

VSS_AXG_SENSE(5)

PC173

*330P/50V/X7R_4

5VSUS

VIN_VCC_CORE

D D

PR158

PR158 1_6

1_6

5VSUS

PC144

PR157

1U/10V/X5R_4

0_6

PC135

HWPG(27,28,31,32,33,34)

PR168

PR168 470K_4_NTC

470K_4_NTC

PC135 *1U/10V/X5R_4

*1U/10V/X5R_4

PR194 *0_4PR194 *0_4

PR197 0_4PR197 0_4

PR199

1.91K/F_4

PR156

PR156 470K_4_NTC

470K_4_NTC

PR165

27.4K/F_4

PR161

3.83K/F_4

PC140

PC140 1U/10V/X5R_4

1U/10V/X5R_4

DELAY_VR_PWRGOOD(7)

C C

PR153

PR153 0_6

0_6

PC138

+3V

PR196

1.91K/F_4

H_PROCHOT#(3,28)

Place near the Vcore HS-FET

PR191

27.4K/F_4

PR198

3.83K/F_4

PC149

PC149 *330P/50V/X7R_4

*330P/50V/X7R_4

0.22U/25V/X5R_6

PC166

PC166 39P/50V/NPO_4

39P/50V/NPO_4

PC170

*330P/50V/X7R_4

150P/50V/NPO_4

VSS_AXG_SENSE

PR189

*2K/F_4

PC163 39P/50V/NPO_4PC163 39P/50V/NPO_4

PC171

PC171 150P/50V/NPO_4

150P/50V/NPO_4

PC164 1000P/16V/X7R_4PC164 1000P/16V/X7R_4

VR_SVID_ALERT#(5)

VR_SVID_DATA(5)

VR_SVID_CLK(5)

PR162 0_4PR162 0_4

PR166 14K/F_4PR166 14K/F_4

PC165

PC165 1000P/16V/X7R_4

1000P/16V/X7R_4

PR184 8.06K/F_4PR184 8.06K/F_4

PC161

PC161 33P/50V/NPO_4

33P/50V/NPO_4

PC17

PR18

PR18 316K/F_4

316K/F_4

PR186

8.06K/F_4

Place near the VCC_GFX HS-FET

PC18

PR20

*560P/50V/X7R_4

PR195

PR195 100K/F_4

100K/F_4

PR200

PR200 *0_4

*0_4

21

VCC_SENSE(5) VSS_SENSE(5)

*560P/50V/X7R_4

B B

EC-DV-P08

A A

VGT_IMON

PR187

PR187 21K/F_4

21K/F_4

VSS_AXG_SENSE

VCORE_IMON

PR183

17.4K/F_4

VSS_SENSE

VRON(28,37) HWPG(27,28,31,32,33,34)

SYS_SHDN#(13,26,31,37)

PC172

0.022U/16V/X7R_4

PC169

0.015U/16V/X7R_4

5

PD12

*1SS400@NC

1 2 1 2

PD13

PD13 *1SS400@NC

*1SS400@NC

*2K/F_4

VSS_SENSE

SHDN

PC168

PC168 100P/50V/X7R_4

100P/50V/X7R_4

PR20

PR178

PR178 0_4

0_4

PR176

PR176 0_4

0_4

PC162

PC162 330P/50V/X7R_4

330P/50V/X7R_4

PC159

PC159 1000P/16V/X7R_4

1000P/16V/X7R_4

PR185

PR185 475K/F_4

475K/F_4

SHDN

VGT_IMON VCORE_IMON

PR190 0_4PR190 0_4 PR181 0_4PR181 0_4 PR182 0_4PR182 0_4

PC16

PC16 470P/50V/NPO_4

470P/50V/NPO_4

4

PR179 1.96K/F_4PR179 1.96K/F_4

PC167

680P/50V/NPO_4

PR17

1.82K/F_4

PC158

PC158 330P/50V/X7R_4

330P/50V/X7R_4

PC153

PC153 1000P/16V/X7R_4

1000P/16V/X7R_4

4

23 22 31

10

42 11 24 41 12 13 14

7 3 8 2 9

5 4 6

PR19

PR19 499/F_4

499/F_4

VIN VDD VDDP VR_ON PGOODG PGOOD NC1 NC2 VR_HOT# ALERT# SDA SCLK

NTCG NTC PROG1 PROG2 VW COMP FB

PR180

PR180 412/F_4

412/F_4

1

VWG

VSEN18RTN

48

47

FBG

COMPG

ISL95831CRZ-T

19

PC152

330P/50V/X7R_4

PC160

45

46

RTNG

VSENG

PU6

ISEN3/B215ISEN216ISEN1

EC-DV-P12

PR177

PR177 0_4

0_4

330P/50V/X7R_4

17

PC150

PR169

5VSUS

*330P/50V//X7R_4

*100/F_4

PC151

PC151 *330P/50V/X7R_4

*330P/50V/X7R_4

PR171

PR171 *100/F_4

*100/F_4

44

43

ISPG

ISNG

BOOTG

BOOT1

BOOT2

LGATE1b/PWM3

ISUMN20ISUMP

21

PR172

681/F_4

PR173

UGG PHG

VSSP1

VSSP2

3

PR170

PC145

2.2/F_6

0.22U/25V/X5R_6

PC155

0.1U/10V/X5R_4

BOOT_GT

ISPG ISNG

PR203

PR188

PR188 11K/F_4

11K/F_4

PR203

7.5K/F_4

PR192

PR192 10K_6_NTC

10K_6_NTC

PC156

PC157

294/F_4

0.1U/10V/X5R_4

0.033U/16V/X7R_4

NTC Place near the VCC_GFX Inductor

BOOT_GT

40

UGATE_GT

39

PHASE_GT

38

LGATE_GT

37

LGG

BOOT_1

25

UGATE_1

26

UG1

PHASE_1

27

PH1

LGATE_1

29

LG1

28

36 35

UG2

34

PH2

32

LG2

33

30

49

EP

PC147

PC148

0.01U/10V/X7R_4

0.22U/6.3V/X5R_4

5VSUS

PR160

PR160 0_4

0_4

When PWM3 is pulled to 5V VDD, the controller will disable VR1 Phase 3

PR164

2.61K/F_4

PR167

PR167 11K/F_4

11K/F_4

PR150

PR150 10K_6_NTC

10K_6_NTC

PC154

0.1U/10V/X5R_4

NTC Place near the Vcore Phase 1 Inductor

3

BOOT_1

VSUM+ VSUM-

PR152

2.2/F_6

UGATE_1

PHASE_1VR_PWM3

LGATE_1

UGATE_GT

PHASE_GT

LGATE_GT

0.22U/25V/X5R_6

TPCC8062-H

PC133

0.22U/25V/X5R_6

AOL1718

VSUM+

VSUM-

PQ60

PQ55

4

ISPG ISNG

4

5

4

213

PR159 3.65K/F_6PR159 3.65K/F_6

PR163 1/F_4PR163 1/F_4

2

Place these CAPs close to FETs

EC-DV-P02

52

4

PQ61

3

1

TPCC8065-H

PQ58

52

4

3

1

52

TPCC8062-H

3

1

PR193 10K/F_6PR193 10K/F_6 PR202 1/F_4PR202 1/F_4

Place these CAPs close to FETs

EC-DV-P02

5

213

PQ54

PQ54 AOL1428A

AOL1428A

5

4

213

PQ56

AOL1718

2

VCC_GT_VIN

0.36uH/0.798m/28A(10*10*4)-PANA

ER2

ER2 *4.7/F_6

*4.7/F_6

12

EC3

EC3 *1000P/50V/X7R_4

*1000P/50V/X7R_4

0.36uH/0.798m/28A(10*10*4)-PANA

1 2 3 4

ER7

ER7 *4.7/F_6

*4.7/F_6

12

EC8

EC8 *1000P/50V/X7R_4

*1000P/50V/X7R_4

PR154

PR154 0_4

0_4

1

PL11

UPB201212T-800Y-N_5A

PC141

PC136

0.1U/50V/X7R_6

PL13

1 2 3 4

PR204

PR205

0_4

PC136

2200P/50V/X7R_4

PC142

PC134

10U/25V/X6S_12

12

PC175

+

470U/2V/ESR4.5_7343

EC-DV-P10

12

PC176

+

470U/2V/ESR4.5_7343

For GT1

PC177

10U/6.3V/X5R_6

+VCC_GFX

ICC_MAX=18A TDC=12A O.C.P.=25A

GFX_P

PC179

12

0.1U/10V/X7R_4

+VCC_CORE

ICC_MAX=33A TDC=21.5A O.C.P.=37A

PL9

PC113

10U/25V/X6S_12

PC120

470U/2V/ESR4.5_7343

UPB201212T-800Y-N

12

+

1

PC119

470U/2V/ESR4.5_7343

PL9

PC14

VIN_VCC_CORE

PC117

PL10

PR155

PR155 0_4

0_4

Size Document Number Rev

Date: Sheet of

VIN_VCC_COREVIN_VCC_CORE

PC118

PC115

10U/25V/X6S_12

0.1U/50V/X7R_6

0.1U/50V/X7R_6 2200P/50V/X7R_4

2200P/50V/X7R_4

12

+

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

+VCC_CORE (ISL95831)

Monday, January 31, 2011 35 43

+VCC_CORE (ISL95831)

35

VIN

+VCC_GFX

PJP9

PJP9 *POWER_SHORT

*POWER_SHORT

*POWER_SHORT PJP10

PJP10

+VCC_CORE

0.1U/10V/X7R_4

12

VIN

1A

5

4

3

2

1

36 43Monday, January 31, 2011

36

PD1

clamp3301 D

ACIN(28)

3VPCU

0.1U/10V/X7R_4

AD_ID(28)

PR111

PR111 15K/F_4

15K/F_4

3

1

1SS355V M

PC102

*8.45K/F_ 4

PR107

PR107 10K/F_4

10K/F_4

2

PD9

5

clamp3301 D

1 2

DC-IN

PJ1PJ1

PR3

PR3 220_6

220_6

1 2

2 1

PR119

1 2 3 4 5

PDTA124EU

1U/25V/X5R_6

PR118

0_4

ACOK

PR108

PR108 1M_4

1M_4

MBDATA(28)

PQ48

PC97

MBCLK(28)

BAT-V

12

PC104

ADPIN+

0.01U/25V/X7R_4

2

4.7K/F_4

PC12

PC8

0.1U/50V/X7R_6

13

ACOK#

PC110

0.01U/25V/X7R_4

PR11

0.01U/25V/X7R_4

PF2

TR/3216FF7-R

1 2

88731LD O

PR112

PR112 47K_6

47K_6

3

PQ49

2

ME2N7002D

1

VA

PR125

221K/F_4

PR121

49.9K/F_4

ACIN=17.5V

PR117 0_4PR117 0_4

1 2

FUSE_10A _24V(FAS T)_TR/3216FF10

PR116 0_4PR116 0_4PC102

PC111

*0.01U/25V/X7R_4

1 2

MBDATA(28)

MBCLK(28)

88731_A CIN

AC_OK

88731_I INP

PC109

PF1

MMPZ5232BPT

VA

21

1SS355V M

PR7

PR7 10/F_6

10/F_6

0.1U/50V/X7R_6

0.01U/25V/X7R_4

VBATT

PR5

200/F_4

PD2

PC13

0.1U/50V/X7R_6

PD10

PC11

PC6

1U/25V/X5R_6

1 2

22

DCIN

2

ACIN

13

ACOK

11

VDDSMB

10

SCL

9

SDA

14

NC

8

ICM

6

VCOMP

5

NC

4

ICOMP

3

VREF

88731REF

PC108

*1U/10V/X5R_4

VBATT

2 1

1

GND

PU1

ISL8873 1A

NC

7

PR27

PR27 511K/F_4

511K/F_4

PR6

PR6 200/F_4

200/F_4

PD3

PD3 MMPZ5232BPT

MMPZ5232BPT

2 1

88731CSSN

88731CSSP

28

27

CSSP

CSSN

BOOT

VDDP

VCC UGATE PHASE LGATE

PGND

CSOP

CSON

VFB

NC

GND

12

PC107

PC107 *0.1U/10V /X7R_4

*0.1U/10V /X7R_4

Close to EC

PR28

71.5K/F_4

4

PR127

PR127 1K_6

1K_6

PR126

PR126 1M_4

1M_4

PC9

0.1U/50V/X7R_6

88731BS T

25

21 26

88731DHI

24

88731LX

23

88731DL O

20 19 18 17

15 16

PC5

0.01U/25V/X7R_4

PR113

*Short_4

3VPCU

PR2

PR2 10K/F_4

10K/F_4

AO4413(-30V,-15A)

8 7 6 5 4

PR130 220K/F_4PR130 2 20K/F_4

1 2

PQ52

PQ52 UMT1NGTN

UMT1NGTN

1 2

PR124 220K/F_4PR124 2 20K/F_4

88731LD O

PR114

4.7/F_6

4.7/F_6PC110

PR8

PR8 100/F_4

100/F_4

BAT-V

PC26

0.01U/25V/X7R_4

PC2

0.1U/10V/X7R_4

PQ4

PR9

2.2/F_6

PC101

PC101 1U/10V/X5R_4

1U/10V/X5R_4

PC103

PC103 1U/10V/X5R_4

1U/10V/X5R_4

MBATV

1 2 3

3216

5

4

EC-DV-P03

TEMP_MBAT (28)

PR123

PR123 1M_4

1M_4

PC106

PC7

0.1U/50V/X7R_6

EC1

EC1 220p/50 V/X7R_4

220p/50 V/X7R_4

7

BT+

6

BT+

5

SCLK

4

SDATA

3

BT_TH

2

GND

1

GND

12

PC10

+

10U/25V/X6S_12

MBATV (28)

G1

G2

PJP1

PJP1 1827654 -1

1827654 -1

P4SMAJ22 A

Vin_Charger

12

+

10U/25V/X6S_12

4

8

9

PD4

PC114

876

2

351

876

2

351

VA1

2 1

PL7

UPB201212T-800Y-N

Place these CAPs close to FETs

1 2

0.1U/50V/X7R_6

PQ51

PQ51 AO4496(30V/10A)

AO4496(30V/10A)

PQ50

PQ50 AO4496(30V/10A)

AO4496(30V/10A)

8731CSIP

8731CSIN

3

VIN

PC112

12

2200P/50V/X7R_4

CHOKE 10UH +-20% 6A _10*10

ER1

*4.7/F_6

12

EC2

EC2 *1000P/5 0V/X7R_ 4

*1000P/5 0V/X7R_ 4

PC4

0.1U/50V/X7R_6

PL8

PR110 10/F_4PR110 10/F_4

PR109 10/F_4PR109 10/F_4

PC3

1U/25V/X5R_6

PR115

0.02_1W _3720

*1U/25V/X 5R_6

3VPCU

2P11P

1 2

2

PC98

1SS355V M

1 3

PC116

0.1U/50V/X7R_6

PC31

PQ53

PQ53 PDTA124EU

PDTA124EU

2

PR128

100K/F_4

12

+

10U/25V/X6S_12

VIN

1 2

21

PD7

ME2N7002 D

Battery Low 7.5V

PR132

PR132 200K/F_4

200K/F_4

1 2

PC99

10U/25V/X6S_12

PC24

1000P/5 0V/X7R_4

PR34

PR34 475K/F_6

475K/F_6

PR33

PR33 332K/F_6

332K/F_6

PQ14

PQ2

1 2 3

AO4413(-30V,-15A)

88731CSSP 88731CSSN

321

5 4

BAT-V

12

PC100

+

1 2

10U/25V/X6S_12

3VPCU

12

3

2

1

2

8 7 6 54

PR122

PR122 10/F_4

10/F_4

PQ3

PQ3 AO4413(-30V,-15A)

AO4413(-30V,-15A)

876

PC1

0.1U/50V/X7R_6

5VPCU

PR31

PR31 100/F_4

100/F_4

1

+

3

-

12

PC28

PC28 *1000P/5 0V/X7R_ 4

*1000P/5 0V/X7R_ 4

PR10

0.01_1W _3720

ACOK

D/C#(28)

5

PU2

2

G1331T11U

2

2P11P

PR120

PR120 10/F_4

10/F_4

PC105

0.1U/50V/X7R_6

PR131

PR131 10K_6

10K_6

VIN

PR24

100K/F_4

12

B

21

PD6

1SS355V M

3

D/C#

2

1

PR30

PR30 *0_4

*0_4

PR25

PR25 10K/F_4

10K/F_4

PR23

PR23 10K/F_4

10K/F_4

1 2

12

4

12

2

PQ16

PQ16 ME2N7002 D

ME2N7002 D

3

PQ15

PQ15 ME2N7002 D

ME2N7002 D

1

BL/C# (28)

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

<Doc> 1ACustom

POWER_Charger (ISL88731A)

1

ACDC_ID(28 )

D D

C C

B B

A A

3VPCU

PQ1

ME2N7002 D

PR4

PR4 10K_6

10K_6

88731_A CIN

5

4

3

2

1

+3.3V, +5V

5VPCU +5V +3V

PR41

PR41 100K/F_4

100K/F_4

D D

MAINON

2

PQ24

2N7002W

PR36

PR36 22_8

22_8

3

2

1

PR72

PR72 22_8

22_8

3

1

PQ22

3

2

2N7002W

1

MAINON#

PQ41

2N7002W

PR89

PR89 22_8

22_8

2

MAINON# (3)

+VCCSA

3

PQ70

PQ70 2N7002W

2N7002W

1

+15V

PR42

PR42 1M_4

1M_4

MAIND

3

2

1

PQ25

PQ25 ME2N7002D

ME2N7002D

PR40

PR40 *1M_4

*1M_4

12

PC41

3VPCU 5VPCU

52

PQ39

AON7406

4

3

1

PC82

2200P/50V/X7R_4

PC82

0.1U/10V/X7R_4

PC78

0.1U/10V/X7R_4

5.7A

+3V

AON7406

PQ21

+1.05V +1.8V

PR210

PR210 22_8

22_8

3

PQ66

2

2N7002W

1

PR242

PR242 22_8

22_8

3

PQ68

2

2N7002W

1

2N7002W

PR222

100K/F_4

PQ67

5VPCU

3

2

1

52

PC40

0.1U/10V/X7R_4

4

0.1U/10V/X7R_4

3

1

3.3A

+5V

PC39

0.1U/10V/X7R_4

MAIND (5)

MAINON(28,32,33,34)

37

3V_S5, 5V_S5

3VPCU 5VPCU

C C

PQ33

SI3456DDV

0.72A

3V_S5

0.1U/10V/X7R_4

PC59

65241

AON7406

3

PC47

*0.1U/50V/X7R_6

5VPCU

PR43

100K/F_4

PQ28

PQ28 ME2N7002D

ME2N7002D

2

3

B B

S5_ON(28)

2N7002W

PQ29

2

1

52

PQ18

4

+15V

3

5V_S5

1

PC33

0.1U/10V/X7R_4

3.1A

VRON(28,35)

3V_S5 5V_S5

PR45

PR45 1M_4

1M_4

3

PR47

PR47 *1M_4

*1M_4

1

PR58

PR58 22_8

22_8

3

PQ36

PQ36 2N7002W

2N7002W

2

1

PR32

PR32 22_8

22_8

3

PQ19

PQ19 2N7002W

2N7002W

2

1

EC-DV-P05

+15V

5VPCU

PR29

100K/F_4

3

2

A A

SUSON(28,32)

2N7002W

PQ37

2

1

PR26

PR26 22_8

22_8

3

1

PQ13

2N7002W

+0.75V_DDR_VTT

PR67

PR67 22_8

22_8

3

2

1

PQ40

+1.5VSUS5VSUS

PR44

PR44 1M_4

PR55

PR55 22_8

22_8

PQ12

3

ME2N7002D

PQ38

2

2N7002W

2

2N7002W

1

SUSD

3

1

1M_4

PR22

*1M_4

PR15

PR15 *100K/F_4

*100K/F_4

PQ6

*2N7002W@NC

5VSUS

PC23

12

2200P/50V/X7R_4

2

5VPCU +VCC_CORE

3

1

3

2

1

5VPCU

65241

3

PQ11

SI3456DDV

PC27

0.1U/10V/X7R_4

PR13

*22_8

PQ5

PQ5 *2N7002W@NC

*2N7002W@NC

PC25

0.1U/10V/X7R_4

0.02A

5VSUS

+VCC_GFX

2

PR209

PR209 *22_8

*22_8

3

1

PQ64

PQ64 *2N7002W@NC

*2N7002W@NC

SYS_SHDN#(13,26,31,35)

LAN_POWER(28)

PQ65

PQ65 MMBT3904W

MMBT3904W

PD16

1SS355VM

LANVCC

5VPCU LANVCC +15V

PR38

PR38 100K/F_4

100K/F_4

3

2

PQ10

2N7002W

1

21

PR206

PR206 10K_6

10K_6

PR208

PR208 100K_6

100K_6

CH3906WPT

CH3906WPT PQ63

PQ63

2

1 3

PC181

PC181 1U/25V/X5R_6

1U/25V/X5R_6

1 2

PR37

PR37 1M_4

1M_4

LAN_ON

3

2

PQ9

PQ9 ME2N7002D

ME2N7002D

1

21

VA

21

VIN

PD14

+1.5VSUS 3V 5V

PR54

470_6_PTC

+VCCSA

PR227

470_6_PTC

12

3

1

PR39

PR39 22_8

22_8

PR207

PR207 549K/F_4

549K/F_4

PQ17

PQ17 2N7002W

2N7002W

PD15

1SS355VM

Muruta P/N PRF18BC471QB5RB

PR129

PR12

470_6_PTC

PR129

1 2

12

470_6_PTC

LAN_ON (17)

PS_S3CNTRL(32)

PR61

470_6_PTC

PR133

470_6_PTC

+1.5V_CPU

PR21

PR21 22_8

22_8

3

PQ8

2

2N7002W

1

PR35

12

1 2

470_6_PTC

PR1

12

470_6_PTC

ACINBatt IN CPU_phase1Charger

12

+1.05V

GFX

12

PR175

PR175 470_6_PTC

470_6_PTC

PR174

PR174 470_6_PTC

470_6_PTC

1 2

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

Discharge/+3V_MAINON

Monday, January 31, 2011 37 43

Discharge/+3V_MAINON

1

1A

5

4

3

2

1

5VPCU

ADP IN

BAT

D D

Charger Circuit

ISL88731A

VIN

MAX17020ETJ+

1a

1

HWPG(3/5VPCU)

3VPCU

4

S5_ON

3VPCU

2

470K

WRST_8512#

R

0.1U

C

3

NBSWON#

WRST#

EC

ITE-8518

HWPG(All Power GOOD)

12

DELAY 99mS

6

7

8a

8b

13

12a

5VPCU

AO6402A

3VPCU

AO6402A

RSMRST#

SIO_PWRBTN#

PM_SLP_S4#

PM_SLP_S3#

ECPWROK

VRON

5

3V_S5

RSMRST#

PWRBTN#

5V_S5

15

DRAMPWROK

PCH

SYS_PWROK

PLTRST#

GPIO

SYS_PWROK

PWROK

MEPWROK

GPIO

HWPG(All Power GOOD)

12

PM_DRAM_PWRGD

16

H_PWRGOOD

17

PLTRST#

18

DGPU_HOLD_RST#

25

15

SYS_PWROK

DGPU_PWR_EN#

19a

GFXPG_RGPIO

24

PLTRST#

VIN

C C

9a

SUSON

TPS51116REGR

5VPCU

AO6402A

10a

+1.5V_SUS

10d

10a

0.75VSMDDR_VTERM

10c

+1.5VCPU_PG

5VSUS

LDO

3VPCU

10a

AO6402A

9b

20a

1.5VSUS

MAINON

GFX_CORE

LDO RT9018B

21a

+1V_GFX_PCIE

B B

Discrete

19a

DGPU_PWR_EN#

VIN

19c

19b

MAX8792

20b

GFXPG_1V_EN

3VSUS

Huron River

VTTPWRGOOD

SM_DRAMPWROK

UNCOREPWRGOOD

RSTIN#

14

IMVP_PWRGD

VR1_READY

VIN

OZ8115

VIN

OZ8115

VIN

OZ8115

VIN

OZ8115

5VPCU

AON7410

3VPCU

5VPCU

VT1316M

+

VT1317S

VRON

R

1a

10a

10b

11b

10b

11b

10b

11b

10b

11b

10b

GPU_RST#

26

13

+VCC_CORE

+VCC_GFX

13

0ohm

HWPG(3/5VPCU)

HWPG(+1.5VSUS)

+1.05V_VTT

HWPG(+1.05V_VTT)

+1.05_PCH

HWPG(+1.05V_VTT)

+1.8V

HWPG(+1.8V)

+0.85V

HWPG(+0.85V)

+5V

+3V

Discrete

N12P-GE

GPU_RST#

HWPG(All Power GOOD)

38

AON7410

21b

A A

5

4

+3V

+1V_PCIE_PG

22a

+3.3V_DELAY

AO6402A

1.5VSUS

22a

+1.5V_GPU

TPCA8030-H

+1.8V

HWPG

AO6402A

23a

+1.8V_GPU

Delay

23b

3

12

DGPU_PWROK

24

GFXPG_R

1.5VSUS

AO6402A

1.5VSUS

AO6402A

10b

+1.5V

+1.5VCPU

Delay

2

10c

+1.5VCPU_PG

Quanta Computer Inc.

38 -- Power On Sequence

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

<Doc> 1ACustom

Date: Sheet o f

1

38 43Monday, J anuary 31, 2011

5

4

3

2

1

D-NOTE SKU TABLE

Location

D D

C C

M-NOTE SKU TABLE

Location Page

39

B B

A A

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

BOM Matrix Table

1

39 43Monday, January 31, 2011

1A

5

4

3

2

1

Revision History

Revision Date Phase

D D

C C

A1A DV

Initial release

Change List

Release Schematic Date Release Gerber File Date

2010/12/03 2010/12/03

40

Schematic Value Explanation Description :

RESISTOR

Value F 4 6 Description

*1K/F_4 1% 0402 (1005 )

8 12

1210

*

DE POP

1K ohm 1% SMD 0402 package and DE POP

1K_6 5% 1K_8

B B

1K_12 1K_1210

5% 5% 5%

0603 (1608 )

0805 (2125 )

1206 (3216 )

1210 (3225 )

POP POP POP POP

1K ohm 5% SMD 0603 package and POP 1K ohm 5% SMD 0805 package and POP 1K ohm 5% SMD 1206 package and POP 1K ohm 5% SMD 1210 package and POP

CAPACITOR

Value Voltage Material 6 Description

0.1U/10V/X5R_4 X5R

* 1U/25V/X7R_6

A A

5

10V 25V X7R

0402 (1005 ) 0603 (1608 )

4

3

*

DE POP

POP

0.1UF 10V X5R SMD 0402 package DE POP

0.1UF 25V X7R SMD 0603 package POP

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

Schematic Value Descript

1

1A

40 43Monday, January 31, 2011

1A

5

reference Conexant combo jack latest CRB schematic to delete C7373 and change R1283 to 4.7K

DM NOTE Schematic EC Tracking Record DV ( for DV )XXXX. XX, 2010

PageEC # Date

Part Affected

4

3

2

1

41

Description

16 2010/11/17 U2000 and related schematic Remove level shift and related schematicEC-DV-01 05 R11256 Follow Intel power delivery to add 10m ohm pull-up at VDDCQEC-DV-02

D D

EC-DV-03 29 Change HOLE10 footprintHOLE10

2010/11/17 2010/11/17

20 2010/11/17 CN23 Change USB BTB connector to FFC typeEC-DV-04

EC-DV-05 17 2010/11/17 C11242 Change C11242 from 10P to 1000P and series with ESD part for ISN

28 2010/11/18EC-DV-06 EC Pin#98, R11264, R11265 G-sensor ID select EC-DV-07 17 2010/11/18 RV19 Change RV19 pop for ESD solution EC-DV-08 18 2010/11/19 R916, R11216, R11266 Delete R916 and R11216, because AGND connect with DGND in GND layer EC-DV-09 07 2010/11/22 RV8 Reserse for ESD EC-DV-10 17 2010/11/22 RV17, RV18, C11243, C11246 Reserse for ESD

C C

EC-DV-11 17 2010/11/22 U11005, U11006 Pin#5 connect LANVCC for ESD's request EC-DV-12 18 2010/11/22 R281 reference CX20371-21Z CRB schematic to delete it EC-DV-13 18 2010/11/22 R330 reference CX20371-21Z CRB schematic to delete it EC-DV-14 18 2010/11/22 C11247 reference CX20371-21Z CRB schematic to add it EC-DV-15 18 2010/11/22 R1283, C7373 EC-DV-16 18 2010/11/22 R11269 reference Conexant combo jack latest CRB schematic to add it EC-DV-17 18 2010/11/22 R1290, C11248 reference Conexant combo jack latest CRB schematic to add C11248 and change R1290 to 200 EC-DV-18 18 2010/11/22 R11267, R11268 EMI request

B B

EC-DV-19 20, 2010/11/23 U47.6, U47.7, U15.79 28 EC can combine USB charger IC CB[0:1] pin to one signal CB[0] EC-DV-20 24

R209, R201 Change to 4.7K2010/11/23 EC-DV-21 24 2010/11/22 RV9, RV10 Reserse for ESD EC-DV-22 24 2010/11/22 RV11, RV12 Reserse for ESD EC-DV-23

27 2010/11/22 RV13, RV14, RV15 Reserse for ESD EC-DV-24 2010/11/2227 RV16 Reserse for ESD EC-DV-25 24 2010/11/29 CN9 CN9 PIN8 connect to EC EC-DV-26 27 2010/11/29 C12000 Add C12000 for Audio vendor suggestion

A A

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size D ocument Numb er Rev

EC Tracking Record DV

Date: Shee t of

5

4

3

2

Date: Shee t of

1

41 43Monday, January 31, 2011

1A

5

DM NOTE Schematic EC Tracking Record DV ( for DV )XXXX. XX, 2010

PageEC # Date

Part Affected

4

3

Description

2

1

42

EC-DV-P01 EC-DV-P02

D D

EC-DV-P03 EC-DV-P04

EC-DV-P05 EC-DV-P06 EC-DV-P07 EC-DV-P08 EC-DV-P09

EC-DV-P10

C C

EC-DV-P11

EC-DV-P12

31 11/09 PJP2, PJP3, PJP6, PJP7 Add short pad for DV test 35 11/09 PQ23, PQ27 Remove reserved component 36 11/09 PD13 Remove reserved component

11/15 PC1831 Remove reserved component 11/1737

PR235, PQ74, PQ70, PC201, PC202

Remove 3VSUS reserved component

PR142, PC12733 11/30 O2 FAE recommend change value for DC/DC 1.05V 34 11/30 PR225, PR226, PR233 O2 FAE recommend change value for DC/DC VCCSA 35 11/30 PR187 Intersil FAE recommend change value for DC/DC VCC_CORE 31 1/10 PC34 Remove reserved component

35 1/10 PC175, PC176 Intersil FAE recommend change value for DC/DC VCC_GFX 33 1/10 PC174 Remove component for cost down 31 32

34 1/10 35

1/10 1/10

1/10

PR60, PR66

PR81

PR212 PR172

Change for OCP setting

B B

A A

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

EC Tracking Record DV

1

42 43Monday, January 31, 2011

1A

5

DM NOTE Schematic EC Tracking Record DV ( for SIT)01.26.2011

PageEC # Date

EC-SIT-1 11/01/26 Change some 0 ohm to short Pad

D D

3,5,7,8,9,10, 11,15,17,18, 19,20,22,23, 24,25,27,28

Part Affected

R365,R353,R11,R66,R362,R8,R351,R219,R220,

R236,R497,R284,R278,R207,R256,R468,R391,

R392,R396,R387,R243,R193,R126,R277,R125,

R410,R412,R407,R405,R226,R415,R411,R144,

4

3

2

1

43

Description

R190,R163,R241,R191,R130,R123,R398,R425,

R89,R417,R428,R408,R399,R166,R414,R17,

R170,R156,R301,R375,R43,R429,R426,R108,

R107,R145,R146,R480,R476,R420,R138,R492,

R491,R122,R120,R217,R218,R247,R248,R275,

R95

EC-SIT-2 EC-SIT-3 EC-SIT-4 EC-SIT-5 EC-SIT-6

C C

EC-SIT-7 EC-SIT-8 EC-SIT-9 EC-SIT-10

8 11/01/19 Change BT_DET# from U30.E40 GPIO54 to U30.V14 GPIO21U30 8 11/01/25 C560,C564 vender advise to change from 15p to 18p, let XTAL more accuracy 13 11/01/19 C575 Add 33p capacitor for RF requirement 15 11/01/19 C520,C521,C522,C523,C524,C525,C526,C527 Reserve 0 ohm resistor for RF requirement 16 11/01/24 C20,C5,C3,C16,C14,C4 Change 10P to 5.6P for signal quality 18 11/01/19 C576,C577 Add 33p capacitor near IC for RF requirement 20 11/01/19 RV2, RV3, RV17, U35 Replace RV2,RV3,RV17 to U35 for ESD requirement 24 11/01/19 R512,R513,R514,R515,R516,R517,R518,R519 Reserve 0 ohm resistor for EMI requirement 27 11/01/20 LED2,LED3,R313,R299,RV14,RV12,RV13,R314,

Delete Battery and Suspend LED related schematic

R315,R311

EC-SIT-11 27 11/01/26 R15,R14,C32,C30 Delete Power Button LED related schematic

B B

A A

Quanta Computer Inc.

PROJECT D/M NOTE INTEL HURON RIVER

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet of

PROJECT D/M NOTE INTEL HURON RIVER

EC Tracking Record SIT

1

43 43Monday, January 31, 2011

1A

QUANTA FL8 Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
