PCB STACK UP
BL5S Block Diagram
LAYER 1 : TOP
LAYER 2 : SGND
LAYER 3 : IN1
A A
LAYER 4 : IN2
LAYER 5 : VCC
LAYER 6 : BOT
VCC_CORE
HDMI
Page 20
TV-OUT
Page 22
CRT
Page 18
LCD(WXGA+ 15.4W)
Page 18
Transmitter
Sil1392
Page 20
+1.5V
SATA - TWO HDD
+1.05V
B B
+1.25V
+1.8VSUS
+3VPCU
+3V_S5
+3VSUS
+3V
+5VPCU
+5V_S5
+5V
SMDDR_VTERM
SMDDR_VREF
C C
Page 22
IDE - ODD
Page 22
USB CONN 1
Page 19
USB CONN 2
Page 19
USB CONN3
Page 19
USB CONN 4
Page 19DAUGHTER BOARD
WLAN
Page 25
Finger Printer
Page 28
Bluetooth
Page 28
New Card
Page 28
Felica
Page 28
Camera
Page 18
Azalia
SATA X2
PATA
USB 2.0
SDVO
R.G.B
LVDS X2
Page 29
FAN Touch
Page 3,4
Page 5,7,8,9,10,11
Page 14,15,16,17
WPC8769LDG
WPCE775L
PAD Board
Intel
Merom
(35W)
FSB(667/800MHZ)
Crestline GM
DMI(x2/x4)
ICH8M
LPC
32.768KHz
Key FLASH
ROM
PCI-E X16
533/ 667 MHZ DDR II
PCI-Express
MINI CARD
WLAN
Page 25
Azalia
PCI Bus
CIR
Azalia
Card
Reader/1394
OZ129T
Page 23
5 IN 1
Page 2
Page 19
MINI CARD
Page 25
1394
CLOCK GENERATOR
CK505
ICS9LPR363
VGA CONNECTOR
DDRII-SODIMM1
DDRII-SODIMM2
Page 12,13
MINI CARD
Page 25
AUDIO CODEC
(CX20561)
Page 26
MODEM CONN
(CX20548)
Page 26
USB X2
RJ11
CRT
HDMI
LCD
TV-OUT
NEW CARD
Page 28 Page 24
Port-A
Port-B
DIB_PDIB_N
Port-C
Giga/100/10 LAN
Marvell_8040
8055
RJ45
SPK AMP
Page 26
HP(SPDIF)
Page 27
INT SPK
Page 26
INT MIC
Page 18,27
MIC JACK
Page 27
FM TUNER
Page 27
RJ11/USB DAUGHTER BOARD
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
1
2
3
4
5
6
Date: Sheet
7
PROJECT : BL5S Santa Rosa
Block Diagram
Block Diagram
Block Diagram
1A
1A
137Tuesday, January 22, 2008
137Tuesday, January 22, 2008
137Tuesday, January 22, 2008
8
1A
of
of
of

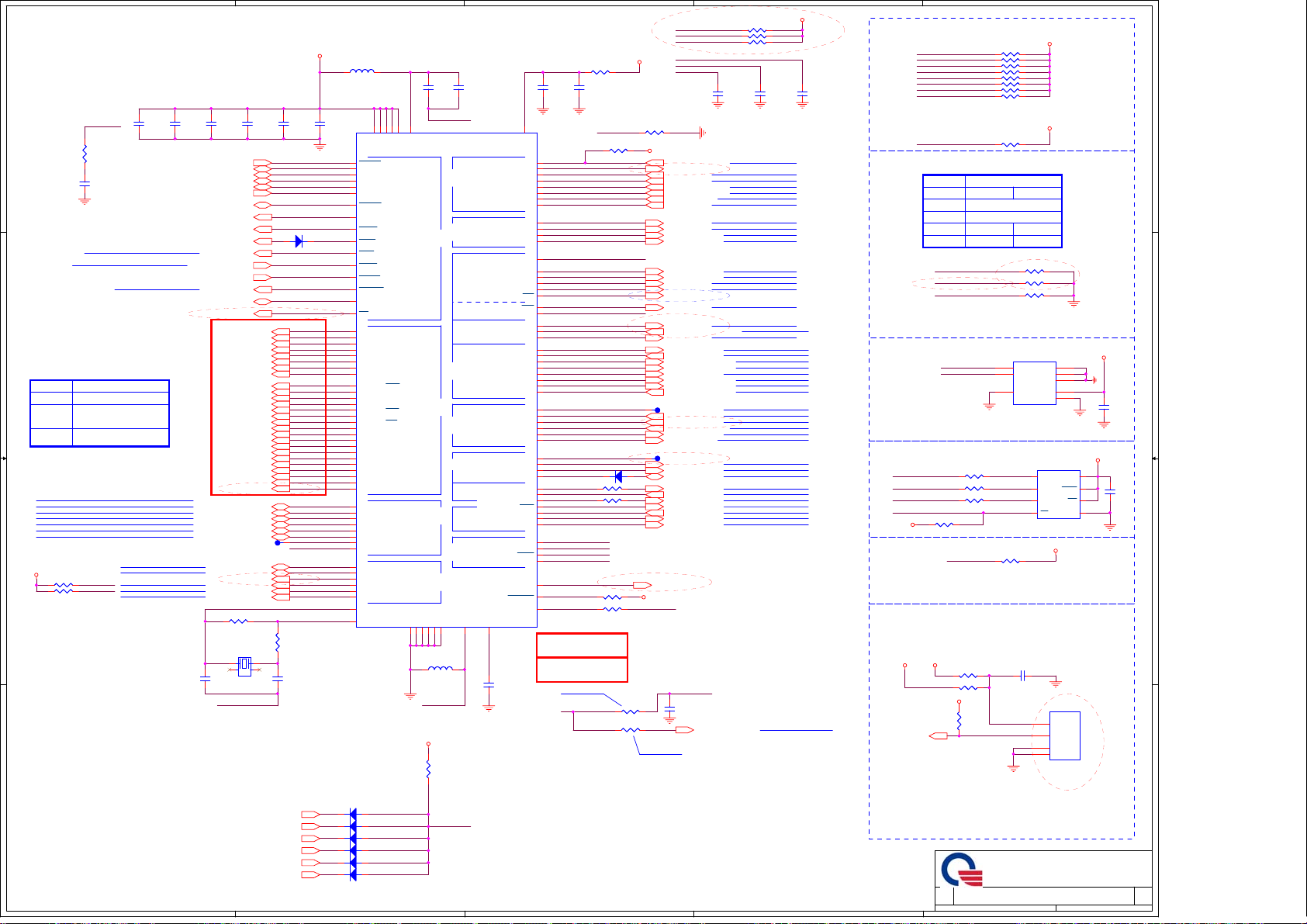

Clock Generator
5
4
3
2
1
Clock Gen Differential IO
power
L21 PBY160808T-301Y-N_6L21 PBY160808T-301Y-N_6
+3V
C270
C270
10u/10V_8
D D
H=1.5mm
C272 27p_4C272 27p_4
CL=20p
C280 27p_4C280 27p_4
21
CG_XIN
Y2
Y2
14.318MHZ
14.318MHZ
CG_XOUT
10u/10V_8
10/26 REV_A1 Change Value
PCLK_DEBUG(25)
T49T49
PCLK_OZ129(23)
C C
PCLK_591(29)
PCLK_ICH(15)
CLKUSB_48(16)
14M_ICH(16)
+3V
+3V
+3V
CLK_BSEL0
CLK_BSEL1
CLK_BSEL2 FSC
C291 0.1u/10V_4C291 0.1u/10V_4
C299 0.1u/10V_4C299 0.1u/10V_4
C271 10u/10V_8C271 10u/10V_8
C253 0.1u/10V_4C253 0.1u/10V_4
C295 0.1u/10V_4C295 0.1u/10V_4
C259 0.1u/10V_4C259 0.1u/10V_4
C255 0.1u/10V_4C255 0.1u/10V_4
R277 10K_4R277 10K_4
R271 *10K_4R271 *10K_4
R278 *10K_4R278 *10K_4
R272 10K_4R272 10K_4
R279 *10K_4R279 *10K_4
R273 10K_4R273 10K_4
R275 2.2K_4R275 2.2K_4
R231 10K_4R231 10K_4
R228 33_4R228 33_4
+1.25V_VDD
R259 33_4R259 33_4
R264 33_4R264 33_4
R265 33_4R265 33_4
R266 10K_4R266 10K_4
R267 33_4R267 33_4
R268 33_4R268 33_4
R274 33_4R274 33_4
VDD_CK_VDD_48
VDD_CK_VDD_48
VDD_CK_VDD_48
VDD_CK_VDD_48
VDD_CK_VDD_48
VDD_CK_VDD_48
PCLK_DEBUG_R
PCLK_PCM_RPCLK_PCM
PCLK_R5C833_R
PCI_CLK_SIO_R
PCLK_591_R
PCLK_ICH_R
CG_XIN
CG_XOUT
FSA
FSA
H=1.2mm
U9
IC(64P) ICS9LPRS365BGLFT(TSSOP)
U9
IC(64P) ICS9LPRS365BGLFT(TSSOP)
2
VDD_PCI
9
VDD_48
16
VDD_PLL3
61
VDD_REF
CK505
39
55
12
20
26
45
36
49
1
3
4
5
6
7
60
59
10
57
62
8
11
15
19
52
23
29
42
58
CK505
VDD_SRC
VDD_CPU
VDD_96_IO
VDD_PLL3_IO
VDD_SRC_IO_1
VDD_SRC_IO_3
VDD_SRC_IO_2
VDD_CPU_IO
PCI0/CR#_A
PCI1/CR#_B
PCI2/TME
PCI3
PCI4/SRC5_EN
PCIF5/ITP_EN
XTAL_IN
XTAL_OUT
USB_48/FSA
FSB/TEST/MODE
REF0/FSC/TESTSEL
VSS_PCI
VSS_48
VSS_IO
VSS_PLL3
VSS_CPU
VSS_SRC1
VSS_SRC2
VSS_SRC3
VSS_REF
ICS9LPRS365BGLFT
IO_VOUT
SCLK
SDA
SRC5/PCI_STOP#
SRC5#/CPU_STOP#
CPU0
CPU0#
CPU1
CPU1#
SRC8/ITP
SRC8#/ITP#
SRC10#
SRC10
SRC11/CR#_H
SRC11#/CR#_G
SRC9
SRC9#
SRC7/CR#_F
SRC7#/CR#_E
SRC6
SRC6#
SRC4
SRC4#
SRC3/CR#_C
SRC3#/CR#_D
SRC2/SATA
SRC2#/SATA#
SRC1/SE1
SRC1#/SE2
SRC0/DOT96
SRC0#/DOT96#
CKPWRGD/PWRDWN#
ICS9LPRS365AGLFT/ SLG8SP512T
ICS9LPRS365AGLFT/ SLG8SP512T
48
CGCLK_SMB
64
CGDAT_SMB
63
38
37
CLK_CPU_BCLK_R
54
CLK_CPU_BCLK#_R
53
CLK_MCH_BCLK_R
51
CLK_MCH_BCLK#_R
50
CLK_PCIE_MINI3_R
47
CLK_PCIE_MINI3#_R
46
CLK_PCIE_3GPLL#_R
35
CLK_PCIE_3GPLL_R
34
CLK_MCH_OE#_R
33
NEW_CLKREQ#_R
32
CLK_PCIE_NEW_R
30
CLK_PCIE_NEW_R#
31
CLK_PCIE_MINI2_R
44
CLK_PCIE_MINI2#_R
43
CLK_PCIE_MINI_R
41
CLK_PCIE_MINI#_R
40
CLK_PCIE_LAN_R
27
CLK_PCIE_LAN#_R
28
CLK_PCIE_ICH_R
24
CLK_PCIE_ICH#_R
25
CLK_PCIE_SATA_R
21
CLK_PCIE_SATA#_R
22
DREFSSCLK_R
17
DREFSSCLK#_R
18
DREFCLK_R
13
DREFCLK#_R
14
56
C282
C282
C281
C281
10u/10V_8
10u/10V_8
*10u/10V_8
*10u/10V_8
CGCLK_SMB (13)
CGDAT_SMB (13)
RP32 0X2RP32 0X2
1
3
RP33 0X2RP33 0X2
1
3
RP34 0X2RP34 0X2
1
3
RP40 0X2RP40 0X2
1
3
R237 475_4R237 475_4
R262 475_4R262 475_4
RP46 0X2RP46 0X2
3
1
RP35 0X2RP35 0X2
1
3
RP36 0X2RP36 0X2
1
3
RP45 0X2RP45 0X2
3
1
RP44 0X2RP44 0X2
3
1
RP43 0X2RP43 0X2
3
1
RP41 IV@0X2RP41 IV@0X2
3
1
C257
C257
0.1u/10V_4
0.1u/10V_4
C260
C260
0.1u/10V_4
0.1u/10V_4
2
4
2
4
2
4
2
4
4
2
2
4
2
4
4
2
4
2
4
2
4
2
C297
C297
0.1u/10V_4
0.1u/10V_4
C256
C256
0.1u/10V_4
0.1u/10V_4
PM_STPPCI# (16)
PM_STPCPU# (16)
CLK_CPU_BCLK (3)
CLK_CPU_BCLK# (3)
CLK_MCH_BCLK (5)
CLK_MCH_BCLK# (5)
CLK_PCIE_MINI3 (25)
CLK_PCIE_MINI3# (25)
CLK_PCIE_3GPLL# (6)
CLK_PCIE_3GPLL (6)
CLK_MCH_OE# (6)
NEW_CLKREQ# (28)
CLK_PCIE_NEW (28)
CLK_PCIE_NEW# (28)
CLK_PCIE_MINI2 (25)
CLK_PCIE_MINI2# (25)
CLK_PCIE_MINI (25)
CLK_PCIE_MINI# (25)
CLK_PCIE_LAN (24)
CLK_PCIE_LAN# (24)
CLK_PCIE_ICH (15)
CLK_PCIE_ICH# (15)
CLK_PCIE_SATA (14)
CLK_PCIE_SATA# (14)
DREFCLK (6)
DREFCLK# (6)
CK_PWRGD (16)
+1.25V_VDD +1.25V
L22
L22
PBY160808T-301Y-N_6
PBY160808T-301Y-N_6
C300
C300
C296
C296
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
To SB
To CPU
To NB
To MINI3
To NB
To New Card
To MINI2
To WLAN
To LAN
To SB
To SB
To NB
ICS9LPRS365
(ALPRS365K13)
Pin 4
Pin 5
Pin 6
Pin 7
PCI2/TME
PCI-3
PCI-4/27M_SEL
PCIF-5/ITP_EN
B B
CPU Clock select
BSEL Frequency Select Table
FSC FSB FSA Frequency
0
0
0
1
0
A A
1
0
1
1
1
1
0
1
0
1
RTM875T-606
(AL000875K06)
PCI2/TME
internal PD
PCI-3/SRC5_EN
internal PD
PCI-4/27M_SEL
internal PD
PCIF-5/ITP_EN
internal PD
0
1
1
0
0
1
1
0
5
PIN37/38 IS SRC5
PIN 17/18 IS 27MHz
266Mhz0
133Mhz
166Mhz
200Mhz
400Mhz
Reserved
100Mhz
333Mhz
(default)
PULL DOWNPULL HIGH
NORMAL RUNNO OVERCLOCKING
PIN37/38 IS
PCI_STOP/CPU_STOP
PIN 17/18
IS SRC/DOT
PIN 46/47 IS SRC8PIN 46/47 IS CPUITP
+1.05V
+1.05V
+1.05V
10/31 REV_A1 Change Value
(default)
(default)
(default)
CPU_BSEL0(3)
CPU_BSEL1(3)
CPU_BSEL2(3) MCH_BSEL2 (6)
4
PCLK_PCM
PCLK_591
CLKUSB_48
14M_ICH
PCLK_ICH
PCLK_DEBUG
R282 0_4R282 0_4
R281 *56_4R281 *56_4
R280 *1K_4R280 *1K_4
R225 0_4R225 0_4
R227 *0_4R227 *0_4
R226 *1K_4R226 *1K_4
R233 0_4R233 0_4
R234 *0_4R234 *0_4
R232 *1K_4R232 *1K_4
CLK_BSEL0
CLK_BSEL1
CLK_BSEL2
C311 *33p_4C311 *33p_4
C312 *33p_4C312 *33p_4
C324 15p_4C324 15p_4
C258 *33p_4C258 *33p_4
C323 *33p_4C323 *33p_4
C304 *33p_4C304 *33p_4
MCH_BSEL0 (6)
MCH_BSEL1 (6)
3
FSA
FSB
FSC
DREFSSCLK#_R
DREFSSCLK_R
+3V
RP42 IV@0X2RP42 IV@0X2
RP47 EV@0X2RP47 EV@0X2
R261 10K_4R261 10K_4
2
2
1
4
3
4
3
2
1
Clock Gen
I2C
SDATA(16,21,25,28)
SCLK(16,21,25,28)
01/21 REV_3B Add for ESD
NEW_CLKREQ#_R
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
CLK. GEN./ CK505
CLK. GEN./ CK505
CLK. GEN./ CK505
Date: Sheet
Date: Sheet
Date: Sheet
DREFSSCLK# (6)
DREFSSCLK (6)
CLK_MXM (19)
CLK_MXM# (19)
To NB
To MXM
+3V
Q17
Q17
RHU002N06
RHU002N06
2
3
+3V
Q18
Q18
RHU002N06
RHU002N06
2
3
C685
C685
*0.1u/10V_4
*0.1u/10V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
R242
R242
10K_4
10K_4
CGDAT_SMB
1
R250
R250
10K_4
10K_4
CGCLK_SMB
1
237Tuesday, January 22, 2008
237Tuesday, January 22, 2008
237Tuesday, January 22, 2008
1
1A
1A
1A
of
of
of
5
H_A#[16:3](5)
CPU(HOST)
D D
C C
B B
+1.05V
A A
R51
R51
1K/F_4
1K/F_4
R50
R50
2K/F_6
2K/F_6
T9T9
T73T73
T23T23
T8T8
H_ADSTB0#(5)
H_REQ#[4:0](5)
H_A#[35:17](5)
H_ADSTB1#(5)
H_IGNNE#(14)
H_STPCLK#(14)
H_D#[15:0](5)
H_DSTBN#0(5)
H_DSTBP#0(5)
H_DINV#0(5)
H_D#[31:16](5)
H_DSTBN#1(5)
H_DSTBP#1(5)
H_DINV#1(5)
CPU_BSEL0(2)
CPU_BSEL1(2)
CPU_BSEL2(2)
H_A20M#(14)
H_FERR#(14)
H_INTR(14)
H_NMI(14)
H_SMI#(14)
R45 *1K_4R45 *1K_4
R44 *1K_4R44 *1K_4
5
CPU_TEST4
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_GTLREF
CPU_TEST1
CPU_TEST2
CPU_TEST3
CPU_TEST5
CPU_TEST6
U22A
U22A
J4
A[3]#
L5
A[4]#
L4
A[5]#
K5
A[6]#
M3
A[7]#
N2
A[8]#
J1
A[9]#
N3
A[10]#
P5
A[11]#
P2
A[12]#
L2
A[13]#
P4
A[14]#
P1
A[15]#
R1
A[16]#
M1
ADSTB[0]#
K3
REQ[0]#
H2
REQ[1]#
K2
REQ[2]#
J3
REQ[3]#
L1
REQ[4]#
Y2
A[17]#
U5
A[18]#
R3
A[19]#
W6
A[20]#
U4
A[21]#
Y5
A[22]#
U1
A[23]#
R4
A[24]#
T5
A[25]#
T3
A[26]#
W2
A[27]#
W5
A[28]#
Y4
A[29]#
U2
A[30]#
V4
A[31]#
W3
A[32]#
AA4
A[33]#
AB2
A[34]#
AA3
A[35]#
V1
ADSTB[1]#
A6
A20M#
A5
FERR#
C4
IGNNE#
D5
STPCLK#
C6
LINT0
B4
LINT1
A3
SMI#
M4
RSVD[01]
N5
RSVD[02]
T2
RSVD[03]
V3
RSVD[04]
B2
RSVD[05]
C3
RSVD[06]
D2
RSVD[07]
D22
RSVD[08]
D3
RSVD[09]
F6
RSVD[10]
Merom Ball-out Rev 1a
Merom Ball-out Rev 1a
U22B
U22B
E22
D[0]#
F24
D[1]#
E26
D[2]#
G22
D[3]#
F23
D[4]#
G25
D[5]#
E25
D[6]#
E23
D[7]#
K24
D[8]#
G24
D[9]#
J24
D[10]#
J23
D[11]#
H22
D[12]#
F26
D[13]#
K22
D[14]#
H23
D[15]#
J26
DSTBN[0]#
H26
DSTBP[0]#
H25
DINV[0]#
N22
D[16]#
K25
D[17]#
P26
D[18]#
R23
D[19]#
L23
D[20]#
M24
D[21]#
L22
D[22]#
M23
D[23]#
P25
D[24]#
P23
D[25]#
P22
D[26]#
T24
D[27]#
R24
D[28]#
L25
D[29]#
T25
D[30]#
N25
D[31]#
L26
DSTBN[1]#
M26
DSTBP[1]#
N24
DINV[1]#
AD26
GTLREF
C23
TEST1
D25
TEST2
C24
TEST3
AF26
TEST4
AF1
TEST5
A26
TEST6
B22
BSEL[0]
B23
BSEL[1]
C21
BSEL[2]
Merom Ball-out Rev 1a
Merom Ball-out Rev 1a
ADDR GROUP 0 ADDR GROUP 1
ADDR GROUP 0 ADDR GROUP 1
ADS#
BNR#
BPRI#
DEFER#
DRDY#
DBSY#
BR0#
IERR#
INIT#
LOCK#
CONTROL
CONTROL
RESET#
RS[0]#
RS[1]#
RS[2]#
TRDY#
HIT#
HITM#
BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#
PRDY#
PREQ#
TCK
TDI
TDO
TMS
TRST#
XDP/ITP SIGNALS
XDP/ITP SIGNALS
DBR#
THERMAL
THERMAL
PROCHOT#
THERMDA
THERMDC
ICH
ICH
THERMTRIP#
H CLK
H CLK
BCLK[0]
BCLK[1]
RESERVED
RESERVED
DATA GRP 0
DATA GRP 0
DATA GRP 2DATA GRP 3
DATA GRP 2DATA GRP 3
DSTBN[2]#
DSTBP[2]#
DINV[2]#
DATA GRP 1
DATA GRP 1
DSTBN[3]#
DSTBP[3]#
DINV[3]#
COMP[0]
MISC
MISC
COMP[1]
COMP[2]
COMP[3]
DPRSTP#
DPSLP#
PWRGOOD
DPWR#
D[32]#
D[33]#
D[34]#
D[35]#
D[36]#
D[37]#
D[38]#
D[39]#
D[40]#
D[41]#
D[42]#
D[43]#
D[44]#
D[45]#
D[46]#
D[47]#
D[48]#
D[49]#
D[50]#
D[51]#
D[52]#
D[53]#
D[54]#
D[55]#
D[56]#
D[57]#
D[58]#
D[59]#
D[60]#
D[61]#
D[62]#
D[63]#
SLP#
PSI#
H1
E2
G5
H5
F21
E1
F1
D20
B3
H4
C1
F3
F4
G3
G2
G6
E4
AD4
AD3
AD1
AC4
AC2
AC1
AC5
AA6
AB3
AB5
AB6
C20
D21
A24
B25
C7
A22
A21
4
H_IERR#
XDP_TCK
XDP_TDI
XDP_TMS
XDP_TRST#
XDP_DBRESET#
H_PROCHOT_R#
H_THERMDA
H_THERMDC
THERMTRIP#_PWR
H_D#32
Y22
H_D#33
AB24
H_D#34
V24
H_D#35
V26
H_D#36
V23
H_D#37
T22
H_D#38
U25
H_D#39
U23
H_D#40
Y25
H_D#41
W22
H_D#42
Y23
H_D#43
W24
H_D#44
W25
H_D#45
AA23
H_D#46
AA24
H_D#47
AB25
Y26
AA26
U22
H_D#48
AE24
H_D#49
AD24
H_D#50
AA21
H_D#51
AB22
H_D#52
AB21
H_D#53
AC26
H_D#54
AD20
H_D#55
AE22
H_D#56
AF23
H_D#57
AC25
H_D#58
AE21
H_D#59
AD21
H_D#60
AC22
H_D#61
AD23
H_D#62
AF22
H_D#63
AC23
AE25
AF24
AC20
COMP0
R26
COMP1
U26
COMP2
AA1
COMP3
Y1
E5
B5
D24
D6
D7
AE6
4
R40 56.2_4R40 56.2_4
R43 0_4R43 0_4
R41 56.2_4R41 56.2_4
R42 *2.2K_4R42 *2.2K_4
CLK_CPU_BCLK (2)
CLK_CPU_BCLK# (2)
R49 27.4/F_6R49 27.4/F_6
R48 54.9/F_4R48 54.9/F_4
R170 27.4/F_6R170 27.4/F_6
R173 54.9/F_4R173 54.9/F_4
+1.05V
H_D#[47:32] (5)
H_DSTBN#2 (5)
H_DSTBP#2 (5)
H_DINV#2 (5)
H_D#[63:48] (5)
H_DSTBN#3 (5)
H_DSTBP#3 (5)
H_DINV#3 (5)
H_DPSLP# (14)
H_DPWR# (5)
H_CPUSLP# (5)
PSI# (32)
H_ADS# (5)
H_BNR# (5)
H_BPRI# (5)
H_DEFER# (5)
H_DRDY# (5)
H_DBSY# (5)
H_BREQ#0 (5)
H_INIT# (14)
H_LOCK# (5)
H_CPURST# (5)
H_RS#0 (5)
H_RS#1 (5)
H_RS#2 (5)
H_TRDY# (5)
H_HIT# (5)
H_HITM# (5)
T28T28
01/17 REV_3B Add C674
T25T25
T26T26
T27T27
T24T24
T29T29
T77T77
+1.05V
H_PROCHOT# (32)
12/06 REV_3A Add C666
H_CPURST#
C674
C674
0.1u/10V_4
0.1u/10V_4
ICH_DPRSTP# (6,14,32)
H_PWRGD (14)
3
SYS_RST# (16)
3
CPU Thermal monitor
01/17 REV_3B mount C666
C666
C666
0.1u/10V_4
0.1u/10V_4
2ND_MBCLK(29)
2ND_MBDATA(29)
THERM_ALERT#(16)
CPU FAN
SYSFANON#(19)
VFAN(29)
PU/PD (ITP700)
XDP_TMS
XDP_TDI
XDP_TCK
XDP_TRST#
R174 39_4R174 39_4
R175 150_4R175 150_4
R171 27_4R171 27_4
R172 680_4R172 680_4
+3V
+3V
+3V
2
3
+3V
2
3
R434 10K_4R434 10K_4
R435 *0_4R435 *0_4
R436 10K_4R436 10K_4
THER_SHD#
+5V
C433
C433
2.2u/6.3V_6
2.2u/6.3V_6
R415 0_4R415 0_4
+1.05V
2
THERM_ALERT#_R
Q37
Q37
RHU002N06
RHU002N06
1
Q38
Q38
RHU002N06
RHU002N06
1
THERM_MBCLK
THERM_MBDATA
THER_SHD#
THERM_MBCLK
THERM_MBDATA
8
7
6
4
U19
U19
SCLK
SDA
ALERT#
OVERT#
LM95245
LM95245
10/22 REV_A1 Mount R434
THERM_ALERT#_R
THER_SHD#
+3V
R431
R431
330_4
330_4
Q36
Q36
2
MMBT3904
MMBT3904
1 3
H=1.75mm
U17
U17
VIN2VO
GND
1
/FON
GND
GND
4
VSET
GND
G995
G995
SYS_SHDN# (31)
3
5
6
7
8
FANPWR = 1.6*VSET
Thermal Trip
DELAY_VR_PWRGOOD(6,16,32)
+1.05V
THERMTRIP#_PWR
2
1
LM86VCC
1
R440
R440
10K_4
10K_4
VCC
DXP
DXN
GND
R438
R438
10K_4
10K_4
2
3
5
8
7
6
4
H_THERMDA
H_THERMDC
+3V
R445
R445
200_6
200_6
H=1.75mm
U20
U20
VCC
SCLK
DXP
SDA
DXN
ALERT#
GND
OVERT#
*MAX6657
*MAX6657
ADDRESS:
98H
LM86VCC
1
2
3
5
C458
C458
0.1u/10V_4
0.1u/10V_4
C459
C459
2200p_4
2200p_4
H_THERMDA
H_THERMDC
10/29 REV_A1 Add for ESD
10/26 REV_A1 Add for ESD
FANSIG(29)
TH_FAN_POWER
C436
C436
10u/10V_8
10u/10V_8
C434
C434
0.01u_4
0.01u_4
D44
D44
VPORT_6
VPORT_6
2 1
21
VPORT_6
VPORT_6
D49
D49
C440
C440
*0.01u_4
*0.01u_4
+3V
R423
R423
10K_4
10K_4
CN17
CN17
1
2
345
PTI_CWY030-B0G1Z
PTI_CWY030-B0G1Z
21
*VPORT_6
*VPORT_6
D50
D50
12/04 REV_3A DNI C440
+1.05V
3
Q39
Q39
2
FDV301N
FDV301N
1
R613
R613
1K_4
R439
R439
56.2_4
56.2_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
1K_4
10/22 REV_A1 Add R613
Q40
Q40
2
MMBT3904
MMBT3904
1 3
R442 *0_4R442 *0_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
CPU(1 of 2)/FAN/Thermal
CPU(1 of 2)/FAN/Thermal
CPU(1 of 2)/FAN/Thermal
10/22 REV_A1 Del
C452,Add R614
D36
D36
R437
R437
*BAS316
*BAS316
*10K_4
*10K_4
SYS_SHDN# (31)
PM_THRMTRIP# (6,14)
1
337Tuesday, January 22, 2008
337Tuesday, January 22, 2008
337Tuesday, January 22, 2008
R614
R614
100K_6
100K_6
of
of
of
1A
1A
1A
5
CPU(Power)
VCC_CORE
C499
C133
C133
10u/6.3V_8
10u/6.3V_8
C185
C185
*10u/6.3V_8
*10u/6.3V_8
C485
C485
*10u/6.3V_8
*10u/6.3V_8
C173
C173
*10u/6.3V_8
*10u/6.3V_8
C499
10u/6.3V_8
10u/6.3V_8
C497
C497
10u/6.3V_8
10u/6.3V_8
C154
C154
*10u/6.3V_8
*10u/6.3V_8
C184
C184
*10u/6.3V_8
*10u/6.3V_8
C487
C174
C174
10u/6.3V_8
10u/6.3V_8
C498
C498
*10u/6.3V_8
*10u/6.3V_8
C483
C483
*10u/6.3V_8
*10u/6.3V_8
C155
C155
*10u/6.3V_8
*10u/6.3V_8
C487
10u/6.3V_8
10u/6.3V_8
C484
C484
*10u/6.3V_8
*10u/6.3V_8
C183
C183
*10u/6.3V_8
*10u/6.3V_8
C182
C182
*10u/6.3V_8
*10u/6.3V_8
C156
C172
C172
10u/6.3V_8
10u/6.3V_8
C134
C134
10u/6.3V_8
10u/6.3V_8
C131
C131
*10u/6.3V_8
*10u/6.3V_8
C132
C132
*10u/6.3V_8
*10u/6.3V_8
C156
10u/6.3V_8
10u/6.3V_8
C157
C157
*10u/6.3V_8
*10u/6.3V_8
C486
C486
*10u/6.3V_8
*10u/6.3V_8
C478
C478
*10u/6.3V_8
*10u/6.3V_8
+
+
C151
C151
330u/2.5V_7343
330u/2.5V_7343
C495
C495
10u/6.3V_8
10u/6.3V_8
D D
C477
C477
10u/6.3V_8
10u/6.3V_8
C191
C191
*10u/6.3V_8
*10u/6.3V_8
C C
C496
C496
*10u/6.3V_8
*10u/6.3V_8
+
+
C152
C152
330u/2.5V_7343
330u/2.5V_7343
12/04 REV_3A Mount C152,C151
B B
C171
C171
10u/6.3V_8
10u/6.3V_8
4
C488
C488
10u/6.3V_8
10u/6.3V_8
C494
C494
*10u/6.3V_8
*10u/6.3V_8
C479
C479
*10u/6.3V_8
*10u/6.3V_8
U22C
U22C
A7
VCC[001]
A9
VCC[002]
A10
VCC[003]
A12
VCC[004]
A13
VCC[005]
A15
VCC[006]
A17
VCC[007]
A18
VCC[008]
A20
VCC[009]
B7
VCC[010]
B9
VCC[011]
B10
VCC[012]
B12
VCC[013]
B14
VCC[014]
B15
VCC[015]
B17
VCC[016]
B18
VCC[017]
B20
VCC[018]
C9
VCC[019]
C10
VCC[020]
C12
VCC[021]
C13
VCC[022]
C15
VCC[023]
C17
VCC[024]
C18
VCC[025]
D9
VCC[026]
D10
VCC[027]
D12
VCC[028]
D14
VCC[029]
D15
VCC[030]
D17
VCC[031]
D18
VCC[032]
E7
VCC[033]
E9
VCC[034]
E10
VCC[035]
E12
VCC[036]
E13
VCC[037]
E15
VCC[038]
E17
VCC[039]
E18
VCC[040]
E20
VCC[041]
F7
VCC[042]
F9
VCC[043]
F10
VCC[044]
F12
VCC[045]
F14
VCC[046]
F15
VCC[047]
F17
VCC[048]
F18
VCC[049]
F20
VCC[050]
AA7
VCC[051]
AA9
VCC[052]
AA10
VCC[053]
AA12
VCC[054]
AA13
VCC[055]
AA15
VCC[056]
AA17
VCC[057]
AA18
VCC[058]
AA20
VCC[059]
AB9
VCC[060]
AC10
VCC[061]
AB10
VCC[062]
AB12
VCC[063]
AB14
VCC[064]
AB15
VCC[065]
AB17
VCC[066]
AB18
VCC[067]
Merom Ball-out Rev 1a
Merom Ball-out Rev 1a
VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]
VCCP[01]
VCCP[02]
VCCP[03]
VCCP[04]
VCCP[05]
VCCP[06]
VCCP[07]
VCCP[08]
VCCP[09]
VCCP[10]
VCCP[11]
VCCP[12]
VCCP[13]
VCCP[14]
VCCP[15]
VCCP[16]
VCCA[01]
VCCA[02]
VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]
VCCSENSE
VSSSENSE
.
.
AB20
AB7
AC7
AC9
AC12
AC13
AC15
AC17
AC18
AD7
AD9
AD10
AD12
AD14
AD15
AD17
AD18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF10
AF12
AF14
AF15
AF17
AF18
AF20
G21
V6
J6
K6
M6
J21
K21
M21
N21
N6
R21
R6
T21
T6
V21
W21
B26
C26
AD6
AF5
AE5
AF4
AE3
AF3
AE2
AF7
AE7
3
+VCCA_PROC
H_VID0 (32)
H_VID1 (32)
H_VID2 (32)
H_VID3 (32)
H_VID4 (32)
H_VID5 (32)
H_VID6 (32)
+1.05V
+
+
C475
C475
330u/2.5V_7343
330u/2.5V_7343
VCC_CORE
R134
R134
100/F_6
100/F_6
R133
R133
100/F_6
100/F_6
C192
C192
0.1u/16V_6
0.1u/16V_6
C56
C56
0.01u_4
0.01u_4
2
C53
C53
0.1u/16V_6
0.1u/16V_6
C52
C52
0.1u/16V_6
0.1u/16V_6
R39 0_6R39 0_6
C54
C54
10u/10V_8
10u/10V_8
VCCSENSE (32)
VSSSENSE (32)
C207
C207
0.1u/16V_6
0.1u/16V_6
+1.5V
C206
C206
0.1u/16V_6
0.1u/16V_6
C114
C114
0.1u/16V_6
0.1u/16V_6
1
U22D
U22D
A4
VSS[001]
A8
VSS[002]
A11
VSS[003]
A14
VSS[004]
A16
VSS[005]
A19
VSS[006]
A23
VSS[007]
AF2
VSS[008]
B6
VSS[009]
B8
VSS[010]
B11
VSS[011]
B13
VSS[012]
B16
VSS[013]
B19
VSS[014]
B21
VSS[015]
B24
VSS[016]
C5
VSS[017]
C8
VSS[018]
C11
VSS[019]
C14
VSS[020]
C16
VSS[021]
C19
VSS[022]
C2
VSS[023]
C22
VSS[024]
C25
VSS[025]
D1
VSS[026]
D4
VSS[027]
D8
VSS[028]
D11
VSS[029]
D13
VSS[030]
D16
VSS[031]
D19
VSS[032]
D23
VSS[033]
D26
VSS[034]
E3
VSS[035]
E6
VSS[036]
E8
VSS[037]
E11
VSS[038]
E14
VSS[039]
E16
VSS[040]
E19
VSS[041]
E21
VSS[042]
E24
VSS[043]
F5
VSS[044]
F8
VSS[045]
F11
VSS[046]
F13
VSS[047]
F16
VSS[048]
F19
VSS[049]
F2
VSS[050]
F22
VSS[051]
F25
VSS[052]
G4
VSS[053]
G1
VSS[054]
G23
VSS[055]
G26
VSS[056]
H3
VSS[057]
H6
VSS[058]
H21
VSS[059]
H24
VSS[060]
J2
VSS[061]
J5
VSS[062]
J22
VSS[063]
J25
VSS[064]
K1
VSS[065]
K4
VSS[066]
K23
VSS[067]
K26
VSS[068]
L3
VSS[069]
L6
VSS[070]
L21
VSS[071]
L24
VSS[072]
M2
VSS[073]
M5
VSS[074]
M22
VSS[075]
M25
VSS[076]
N1
VSS[077]
N4
VSS[078]
N23
VSS[079]
N26
VSS[080]
VSS[081]P3VSS[162]
Merom Ball-out Rev 1a
Merom Ball-out Rev 1a
VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[163]
P6
P21
P24
R2
R5
R22
R25
T1
T4
T23
T26
U3
U6
U21
U24
V2
V5
V22
V25
W1
W4
W23
W26
Y3
Y6
Y21
Y24
AA2
AA5
AA8
AA11
AA14
AA16
AA19
AA22
AA25
AB1
AB4
AB8
AB11
AB13
AB16
AB19
AB23
AB26
AC3
AC6
AC8
AC11
AC14
AC16
AC19
AC21
AC24
AD2
AD5
AD8
AD11
AD13
AD16
AD19
AD22
AD25
AE1
AE4
AE8
AE11
AE14
AE16
AE19
AE23
AE26
A2
AF6
AF8
AF11
AF13
AF16
AF19
AF21
A25
AF25
.
.
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
CPU(2 of 2)
CPU(2 of 2)
CPU(2 of 2)
1
1A
1A
1A
of
of
of
437Tuesday, January 22, 2008
437Tuesday, January 22, 2008
437Tuesday, January 22, 2008
5
4
3
2
1
NB(HOST)
U21A
M10
N12
P13
W10
W6
W9
W3
AD12
AE3
AD9
AC9
AC7
AC14
AD11
AC11
AB2
AD7
AB1
AC6
AE2
AC5
AG3
AJ9
AH8
AJ14
AE9
AE11
AH12
AJ5
AH5
AJ6
AE7
AJ7
AJ2
AE5
AJ3
AH2
AH13
W1
W2
E2
G2
G7
M6
H7
H3
G4
F3
N8
H2
N9
H5
K9
M2
Y8
V4
M3
J1
N5
N3
N2
Y7
Y9
P4
N1
Y3
B3
C2
B6
E5
B9
A9
U21A
H_D#_0
H_D#_1
H_D#_2
H_D#_3
H_D#_4
H_D#_5
H_D#_6
H_D#_7
H_D#_8
H_D#_9
H_D#_10
H_D#_11
H_D#_12
H_D#_13
H_D#_14
H_D#_15
H_D#_16
H_D#_17
H_D#_18
H_D#_19
H_D#_20
H_D#_21
H_D#_22
H_D#_23
H_D#_24
H_D#_25
H_D#_26
H_D#_27
H_D#_28
H_D#_29
H_D#_30
H_D#_31
H_D#_32
H_D#_33
H_D#_34
H_D#_35
H_D#_36
H_D#_37
H_D#_38
H_D#_39
H_D#_40
H_D#_41
H_D#_42
H_D#_43
H_D#_44
H_D#_45
H_D#_46
H_D#_47
H_D#_48
H_D#_49
H_D#_50
H_D#_51
H_D#_52
H_D#_53
H_D#_54
H_D#_55
H_D#_56
H_D#_57
H_D#_58
H_D#_59
H_D#_60
H_D#_61
H_D#_62
H_D#_63
H_SWING
H_RCOMP
H_SCOMP
H_SCOMP#
H_CPURST#
H_CPUSLP#
H_AVREF
H_DVREF
CRESTLINE_1p0
CRESTLINE_1p0
H_ADSTB#_0
H_ADSTB#_1
HOST
HOST
H_DSTBN#_0
H_DSTBN#_1
H_DSTBN#_2
H_DSTBN#_3
H_DSTBP#_0
H_DSTBP#_1
H_DSTBP#_2
H_DSTBP#_3
H_A#_3
H_A#_4
H_A#_5
H_A#_6
H_A#_7
H_A#_8
H_A#_9
H_A#_10
H_A#_11
H_A#_12
H_A#_13
H_A#_14
H_A#_15
H_A#_16
H_A#_17
H_A#_18
H_A#_19
H_A#_20
H_A#_21
H_A#_22
H_A#_23
H_A#_24
H_A#_25
H_A#_26
H_A#_27
H_A#_28
H_A#_29
H_A#_30
H_A#_31
H_A#_32
H_A#_33
H_A#_34
H_A#_35
H_ADS#
H_BNR#
H_BPRI#
H_BREQ#
H_DEFER#
H_DBSY#
HPLL_CLK
HPLL_CLK#
H_DPWR#
H_DRDY#
H_HIT#
H_HITM#
H_LOCK#
H_TRDY#
H_DINV#_0
H_DINV#_1
H_DINV#_2
H_DINV#_3
H_REQ#_0
H_REQ#_1
H_REQ#_2
H_REQ#_3
H_REQ#_4
H_RS#_0
H_RS#_1
H_RS#_2
J13
B11
C11
M11
C15
F16
L13
G17
C14
K16
B13
L16
J17
B14
K19
P15
R17
B16
H20
L19
D17
M17
N16
J19
B18
E19
B17
B15
E17
C18
A19
B19
N19
G12
H17
G20
C8
E8
F12
D6
C10
AM5
AM7
H8
K7
E4
C6
G10
B7
K5
L2
AD13
AE13
M7
K3
AD2
AH11
L7
K2
AC2
AJ10
M14
E13
A11
H13
B12
E12
D7
D8
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35
H_DINV#0
H_DINV#1
H_DINV#2
H_DINV#3
H_DSTBN#0
H_DSTBN#1
H_DSTBN#2
H_DSTBN#3
H_DSTBP#0
H_DSTBP#1
H_DSTBP#2
H_DSTBP#3
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_RS#0
H_RS#1
H_RS#2
H_D#[63:0](3)
+1.05V
R430
+1.05V
+1.05V
R430
221/F_4
221/F_4
R429
R429
100/F_4
100/F_4
R428
R428
24.9/F_4
24.9/F_4
R30
R30
54.9/F_4
54.9/F_4
R29
R29
54.9/F_4
54.9/F_4
H_SWING
H_RCOMP
H_SCOMP
H_SCOMP#
C447
C447
0.1u/10V_4
0.1u/10V_4
+1.05V
12/05 REV_3A Add L53 for ESD
C449
C449
0.1u/10V_4
0.1u/10V_4
H_CPURST#(3)
R432
R432
1K/F_4
1K/F_4
R433
R433
2K/F_4
2K/F_4
L53 BK1608LM252-T_6L53 BK1608LM252-T_6
D D
C C
B B
A A
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
H_SWING
H_RCOMP
H_SCOMP
H_SCOMP#
H_AVREF
965GM : AJSLA5T0T20
965PM : AJSLA5U0T25
960GL : AJSLA5V0T09
5
4
3
H_A#[35:3] (3)
H_ADS# (3)
H_ADSTB0# (3)
H_ADSTB1# (3)
H_BNR# (3)
H_BPRI# (3)
H_BREQ#0 (3)
H_DEFER# (3)
H_DBSY# (3)
CLK_MCH_BCLK (2)
CLK_MCH_BCLK# (2)
H_DPWR# (3)
H_DRDY# (3)
H_HIT# (3)
H_HITM# (3)
H_LOCK# (3)
H_TRDY# (3)
H_DINV#[3:0] (3)
H_DSTBN#[3:0] (3)
H_DSTBP#[3:0] (3)
H_REQ#[4:0] (3)
H_RS#[2:0] (3)H_CPUSLP#(3)
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : BL5S Santa Rosa
GMCH HOST(1 of 7)
GMCH HOST(1 of 7)
GMCH HOST(1 of 7)
1
of
of
of
537Tuesday, January 22, 2008
537Tuesday, January 22, 2008
537Tuesday, January 22, 2008
1A
1A
1A
5
)
D D
M_A_A14(12,13)
M_B_A14(12,13)
C C
MCH_BSEL0(2)
MCH_BSEL1(2)
MCH_BSEL2(2)
MCH_CFG_5(11)
MCH_CFG_9(11)
MCH_CFG_12(11)
MCH_CFG_13(11)
MCH_CFG_16(11)
MCH_CFG_19(11)
MCH_CFG_20(11)
B B
A A
DELAY_VR_PWRGOOD3,16,32
M_RCOMP#
M_RCOMP
PM_BMBUSY#(16)
ICH_DPRSTP#(3,14,32)
PM_EXTTS#0(13)
PM_EXTTS#1(13)
PLTRST#_NB(15)
PM_THRMTRIP#(3,14)
PM_DPRSLPVR(16,32)
+1.8VSUS
R36
R36
20/F_4
20/F_4
R46
R46
20/F_4
20/F_4
R61 100_4R61 100_4
R54 *0_4R54 *0_4
+3V
5
T74T74
T75T75
T16T16
T17T17
T11T11
T14T14
T18T18
T10T10
T15T15
T12T12
T21T21
MCH_CFG_3
MCH_CFG_4
MCH_CFG_6
MCH_CFG_7
MCH_CFG_8
MCH_CFG_10
MCH_CFG_11
MCH_CFG_14
MCH_CFG_15
MCH_CFG_17
MCH_CFG_18
PM_EXTTS#0
RST_IN#_MCH
PM_THRMTRIP#_GMCH
R123 10K_4R123 10K_4
R121 10K_4R121 10K_4
R122 10K_4R122 10K_4
+1.8VSUS
U21B
U21B
P36
RSVD1
P37
RSVD2
R35
RSVD3
N35
RSVD4
AR12
RSVD5
AR13
RSVD6
AM12
RSVD7
AN13
RSVD8
J12
RSVD9
AR37
RSVD10
AM36
RSVD11
AL36
RSVD12
AM37
RSVD13
D20
RSVD14
H10
RSVD20
B51
RSVD21
BJ20
RSVD22
BK22
RSVD23
BF19
RSVD24
BH20
RSVD25
BK18
RSVD26
BJ18
RSVD27
BF23
RSVD28
BG23
RSVD29
BC23
RSVD30
BD24
RSVD31
BJ29
RSVD32
BE24
RSVD33
BH39
RSVD34
AW20
RSVD35
BK20
RSVD36
C48
RSVD37
D47
RSVD38
B44
RSVD39
C44
RSVD40
A35
RSVD41
B37
RSVD42
B36
RSVD43
B34
RSVD44
C34
RSVD45
P27
CFG_0
N27
CFG_1
N24
CFG_2
C21
CFG_3
C23
CFG_4
F23
CFG_5
N23
CFG_6
G23
CFG_7
J20
CFG_8
C20
CFG_9
R24
CFG_10
L23
CFG_11
J23
CFG_12
E23
CFG_13
E20
CFG_14
K23
CFG_15
M20
CFG_16
M24
CFG_17
L32
CFG_18
N33
CFG_19
L35
CFG_20
G41
PM_BM_BUSY#
L39
PM_DPRSTP#
L36
PM_EXT_TS#_0
J36
PM_EXT_TS#_1
AW49
PWROK
AV20
RSTIN#
N20
THERMTRIP#
G36
DPRSLPVR
BJ51
NC_1
BK51
NC_2
BK50
NC_3
BL50
NC_4
BL49
NC_5
BL3
NC_6
BL2
NC_7
BK1
NC_8
BJ1
NC_9
E1
NC_10
A5
NC_11
C51
NC_12
B50
NC_13
A50
NC_14
A49
NC_15
BK2
NC_16
CRESTLINE_1p0
CRESTLINE_1p0
CLK_MCH_OE#
PM_EXTTS#0
PM_EXTTS#1
R113 1K/F_4R113 1K/F_4
CFGRSVD
CFGRSVD
PM
PM
NC
NC
R112
R112
3.01K/F_4
3.01K/F_4
R104
R104
1K/F_4
1K/F_4
4
AV29
SM_CK_0
BB23
SM_CK_1
BA25
SM_CK_3
AV23
SM_CK_4
AW30
SM_CK#_0
BA23
SM_CK#_1
AW25
SM_CK#_3
AW23
SM_CK#_4
BE29
SM_CKE_0
AY32
SM_CKE_1
BD39
SM_CKE_3
BG37
SM_CKE_4
BG20
SM_CS#_0
BK16
SM_CS#_1
BG16
SM_CS#_2
BE13
SM_CS#_3
BH18
SM_ODT_0
BJ15
SM_ODT_1
BJ14
SM_ODT_2
BE16
SM_ODT_3
BL15
SM_RCOMP
SM_VREF_0
SM_VREF_1
PEG_CLK
PEG_CLK#
DMI_RXN_0
DMI_RXN_1
DMI_RXN_2
DMI_RXN_3
DMI_RXP_0
DMI_RXP_1
DMI_RXP_2
DMI_RXP_3
DMI_TXN_0
DMI_TXN_1
DMI_TXN_2
DMI_TXN_3
DMI_TXP_0
DMI_TXP_1
DMI_TXP_2
DMI_TXP_3
GFX_VID_0
GFX_VID_1
GFX_VID_2
GFX_VID_3
GFX_VR_EN
CL_CLK
CL_DATA
CL_PWROK
CL_RST#
CL_VREF
CLK_REQ#
ICH_SYNC#
TEST_1
TEST_2
4
BK14
BK31
BL31
AR49
AW4
B42
C42
H48
H47
K44
K45
AN47
AJ38
AN42
AN46
AM47
AJ39
AN41
AN45
AJ46
AJ41
AM40
AM44
AJ47
AJ42
AM39
AM43
E35
A39
C38
B39
E36
AM49
AK50
AT43
AN49
AM50
H35
K36
G39
G40
A37
R32
C129
C129
2.2u/6.3V_6
2.2u/6.3V_6
C123
C123
2.2u/6.3V_6
2.2u/6.3V_6
SM_RCOMP#
SM_RCOMP_VOH
SM_RCOMP_VOL
DDR MUXINGCLK
DDR MUXINGCLK
DPLL_REF_CLK
DPLL_REF_CLK#
DPLL_REF_SSCLK
DPLL_REF_SSCLK#
DMI
DMI
GRAPHICS VID
GRAPHICS VID
ME
ME
SDVO_CTRL_CLK
SDVO_CTRL_DATA
MISC
MISC
SM_RCOMP_VOH
C120
C120
0.01u_4
0.01u_4
SM_RCOMP_VOL
C115
C115
0.01u_4
0.01u_4
M_RCOMP
M_RCOMP#
SM_RCOMP_VOH
SM_RCOMP_VOL
SMDDR_VREF_MCH
DREFCLK
DREFCLK#
DREFSSCLK
DREFSSCLK#
DMI_TXN0
DMI_TXN1
DMI_TXN2
DMI_TXN3
DMI_TXP0
DMI_TXP1
DMI_TXP2
DMI_TXP3
DMI_RXN0
DMI_RXN1
DMI_RXN2
DMI_RXN3
DMI_RXP0
DMI_RXP1
DMI_RXP2
DMI_RXP3
+1.25V_CL_VREF
CLK_MCH_OE#
GMCH_TEST1
GMCH_TEST2
M_CLK_DDR0 (13)
M_CLK_DDR1 (13)
M_CLK_DDR3 (13)
M_CLK_DDR4 (13)
M_CLK_DDR#0 (13)
M_CLK_DDR#1 (13)
M_CLK_DDR#3 (13)
M_CLK_DDR#4 (13)
M_CKE0 (12,13)
M_CKE1 (12,13)
M_CKE3 (12,13)
M_CKE4 (12,13)
M_CS#0 (12,13)
M_CS#1 (12,13)
M_CS#2 (12,13)
M_CS#3 (12,13)
M_ODT0 (12,13)
M_ODT1 (12,13)
M_ODT2 (12,13)
M_ODT3 (12,13)
R35 *10K_6R35 *10K_6
R31 *10K_6R31 *10K_6
R450 0_4R450 0_4
R88 20K_4R88 20K_4
R33 0_6R33 0_6
DREFCLK (2)
DREFCLK# (2)
DREFSSCLK (2)
DREFSSCLK# (2)
CLK_PCIE_3GPLL (2)
CLK_PCIE_3GPLL# (2)
DMI_TXN[3:0] (15)
DMI_TXP[3:0] (15)
DMI_RXN[3:0] (15)
DMI_RXP[3:0] (15)
CL_CLK0 (16)
CL_DATA0 (16)
MPWROK (16)
CL_RST#0 (16)
SDVO_CTRLCLK (20)
SDVO_CTRLDATA (20)
CLK_MCH_OE# (2)
MCH_ICH_SYNC# (16)
R126 EV@0_4R126 EV@0_4
R127 EV@0_4R127 EV@0_4
3
1
RP49 EV@0X2RP49 EV@0X2
RP53 EV@0X2RP53 EV@0X2
1
3
+SMDDR_VREF
+1.8VSUS
INT_CRT_DDCCLK(18)
INT_CRT_DDCDAT(18)
INT_HSYNC(18)
INT_VSYNC(18)
C506
C506
0.1u/10V_4
0.1u/10V_4
4
2
2
4
INT_LVDS_PWM(18)
INT_LVDS_BLON(18)
INT_LVDS_EDIDCLK(18)
INT_LVDS_EDIDDATA(18)
INT_LVDS_DIGON(18)
INT_CRT_BLU(18)
INT_CRT_GRN(18)
INT_CRT_RED(18)
+1.25V_AXD
R461
R461
1K/F_4
1K/F_4
R463
R463
392/F_6
392/F_6
INT_CRT_DDCCLK
INT_CRT_DDCDAT
DREFCLK
DREFCLK#
DREFSSCLK
DREFSSCLK#
3
R452 EV@0_4R452 EV@0_4
R456 EV@0_4R456 EV@0_4
+3V
R116 IV@2.4K_4R116 IV@2.4K_4
R124 IV@0_4R124 IV@0_4
INT_TXLCLKOUT-(18)
INT_TXLCLKOUT+(18)
INT_TXUCLKOUT-(18)
INT_TXUCLKOUT+(18)
INT_TXLOUT0-(18)
INT_TXLOUT1-(18)
INT_TXLOUT2-(18)
INT_TXLOUT0+(18)
INT_TXLOUT1+(18)
INT_TXLOUT2+(18)
INT_TXUOUT0-(18)
INT_TXUOUT1-(18)
INT_TXUOUT2-(18)
INT_TXUOUT0+(18)
INT_TXUOUT1+(18)
INT_TXUOUT2+(18)
INT_TV_Y/G(22)
INT_TV_C/R(22)
+3V
R117 IV@2.2K_4R117 IV@2.2K_4
R120 IV@2.2K_4R120 IV@2.2K_4
R119 EV@0_4R119 EV@0_4
R118 EV@0_4R118 EV@0_4
R106 IV@30/F_4R106 IV@30/F_4
R89 IV@30/F_4R89 IV@30/F_4
R108 EV@0_4R108 EV@0_4
R103 EV@0_4R103 EV@0_4
Close U3023
3
R451 IV@10K_4R451 IV@10K_4
R454 IV@10K_4R454 IV@10K_4
LVDS_IBG
T22T22
INT_TV_COMP
INT_TV_Y/G
INT_TV_C/R
INT_CRT_BLU
INT_CRT_GRN
INT_CRT_RED
INT_CRT_DDCCLK
INT_CRT_DDCDAT
HSYNC_A
CRTIREF
VSYNC_A
HSYNC_A
VSYNC_A
Close U3023
For EV@
CRT R/G/B
TV A/B/C
USE 0 ohm R
R90 150/F_4R90 150/F_4
R86 150/F_4R86 150/F_4
R91 150/F_4R91 150/F_4
R78 150/F_4R78 150/F_4
R75 150/F_4R75 150/F_4
R76 150/F_4R76 150/F_4
R448 1.3K_6R448 1.3K_6
For IV@ USE 1.3K ohm R
For EV@ USE 0 ohm R
CTCLK
CTDA
CTCLK
CTDA
U21C
U21C
J40
L_BKLT_CTRL
H39
L_BKLT_EN
E39
L_CTRL_CLK
E40
L_CTRL_DATA
C37
L_DDC_CLK
D35
L_DDC_DATA
K40
L_VDD_EN
L41
LVDS_IBG
L43
LVDS_VBG
N41
LVDS_VREFH
N40
LVDS_VREFL
D46
LVDSA_CLK#
C45
LVDSA_CLK
D44
LVDSB_CLK#
E42
LVDSB_CLK
G51
LVDSA_DATA#_0
E51
LVDSA_DATA#_1
F49
LVDSA_DATA#_2
G50
LVDSA_DATA_0
E50
LVDSA_DATA_1
F48
LVDSA_DATA_2
G44
LVDSB_DATA#_0
B47
LVDSB_DATA#_1
B45
LVDSB_DATA#_2
E44
LVDSB_DATA_0
A47
LVDSB_DATA_1
A45
LVDSB_DATA_2
E27
TVA_DAC
G27
TVB_DAC
K27
TVC_DAC
F27
TVA_RTN
J27
TVB_RTN
L27
TVC_RTN
M35
TV_DCONSEL_0
P33
TV_DCONSEL_1
H32
CRT_BLUE
G32
CRT_BLUE#
K29
CRT_GREEN
J29
CRT_GREEN#
F29
CRT_RED
E29
CRT_RED#
K33
CRT_DDC_CLK
G35
CRT_DDC_DATA
F33
CRT_HSYNC
C32
CRT_TVO_IREF
E33
CRT_VSYNC
CRESTLINE_1p0
CRESTLINE_1p0
For IV@
CRT R/G/B
TV A/B/C
USE 150 ohm R
INT_CRT_BLU
INT_CRT_GRN
INT_CRT_RED
INT_TV_COMP
INT_TV_Y/G
INT_TV_C/R
CRTIREF
2
EXP_A_COMPX
PEG_RX#_0
PEG_RX#_1
PEG_RX#_2
PEG_RX#_3
PEG_RX#_4
PEG_RX#_5
PEG_RX#_6
PEG_RX#_7
PEG_RX#_8
PEG_RX#_9
PEG_RX_0
PEG_RX_1
PEG_RX_2
PEG_RX_3
PEG_RX_4
PEG_RX_5
PEG_RX_6
PEG_RX_7
PEG_RX_8
PEG_RX_9
PEG_RX_10
PEG_RX_11
PEG_RX_12
PEG_RX_13
PEG_RX_14
PEG_RX_15
PEG_TX#_0
PEG_TX#_1
PEG_TX#_2
PEG_TX#_3
PEG_TX#_4
PEG_TX#_5
PEG_TX#_6
PEG_TX#_7
PEG_TX#_8
PEG_TX#_9
PEG_TX_0
PEG_TX_1
PEG_TX_2
PEG_TX_3
PEG_TX_4
PEG_TX_5
PEG_TX_6
PEG_TX_7
PEG_TX_8
PEG_TX_9
PEG_TX_10
PEG_TX_11
PEG_TX_12
PEG_TX_13
PEG_TX_14
PEG_TX_15
N43
M43
J51
L51
N47
T45
T50
U40
Y44
Y40
AB51
W49
PEG_RXN10
AD44
PEG_RXN11
AD40
PEG_RXN12
AG46
PEG_RXN13
AH49
PEG_RXN14
AG45
PEG_RXN15
AG41
PEG_RXP0
J50
PEG_RXP1_H
L50
PEG_RXP2
M47
PEG_RXP3
U44
PEG_RXP4
T49
PEG_RXP5
T41
PEG_RXP6
W45
PEG_RXP7
W41
PEG_RXP8
AB50
PEG_RXP9
Y48
PEG_RXP10
AC45
PEG_RXP11
AC41
PEG_RXP12
AH47
PEG_RXP13
AG49
PEG_RXP14
AH45
PEG_RXP15
AG42
N45
U39
U47
N51
R50
T42
Y43
W46
W38
AD39
AC46
AC49
AC42
AH39
AE49
AH44
M45
T38
T46
N50
R51
U43
W42
Y47
Y39
AC38
AD47
AC50
AD43
AG39
AE50
AH43
C_PEG_TXN0_H
C_PEG_TXP0_H
C_PEG_TXN2_H
C_PEG_TXP2_H
C_PEG_TXN1_H
C_PEG_TXP1_H
C_PEG_TXN3_H
C_PEG_TXP3_H
PEG_RXN1_H
PEG_RXP1_H
PEG_COMPI
PEG_COMPO
LVDS
LVDS
TV VGA
TV VGA
PEG_RX#_10
PEG_RX#_11
PEG_RX#_12
PEG_RX#_13
PEG_RX#_14
PEG_RX#_15
PEG_TX#_10
PCI-EXPRESS GRAPHICS
PCI-EXPRESS GRAPHICS
PEG_TX#_11
PEG_TX#_12
PEG_TX#_13
PEG_TX#_14
PEG_TX#_15
2
R462 24.9/F_4R462 24.9/F_4
PEG_RXN0
PEG_RXN1_H
PEG_RXN2
PEG_RXN3
PEG_RXN4
PEG_RXN5
PEG_RXN6
PEG_RXN7
PEG_RXN8
PEG_RXN9
C_PEG_TXN0_H
C_PEG_TXN1_H
C_PEG_TXN2_H
C_PEG_TXN3_H
C_PEG_TXN4
C228 EV@0.1u/10V_4C228 EV@0.1u/10V_4
C_PEG_TXN5
C219 EV@0.1u/10V_4C219 EV@0.1u/10V_4
C_PEG_TXN6
C217 EV@0.1u/10V_4C217 EV@0.1u/10V_4
C_PEG_TXN7
C230 EV@0.1u/10V_4C230 EV@0.1u/10V_4
C_PEG_TXN8
C226 EV@0.1u/10V_4C226 EV@0.1u/10V_4
C_PEG_TXN9
C508 EV@0.1u/10V_4C508 EV@0.1u/10V_4
C_PEG_TXN10
C215 EV@0.1u/10V_4C215 EV@0.1u/10V_4
C_PEG_TXN11
C224 EV@0.1u/10V_4C224 EV@0.1u/10V_4
C_PEG_TXN12
C516 EV@0.1u/10V_4C516 EV@0.1u/10V_4
C_PEG_TXN13
C514 EV@0.1u/10V_4C514 EV@0.1u/10V_4
C_PEG_TXN14
C512 EV@0.1u/10V_4C512 EV@0.1u/10V_4
C_PEG_TXN15
C510 EV@0.1u/10V_4C510 EV@0.1u/10V_4
C_PEG_TXP0_H
C_PEG_TXP1_H
C_PEG_TXP2_H
C_PEG_TXP3_H
C_PEG_TXP4
C227 EV@0.1u/10V_4C227 EV@0.1u/10V_4
C_PEG_TXP5
C218 EV@0.1u/10V_4C218 EV@0.1u/10V_4
C_PEG_TXP6
C216 EV@0.1u/10V_4C216 EV@0.1u/10V_4
C_PEG_TXP7
C229 EV@0.1u/10V_4C229 EV@0.1u/10V_4
C_PEG_TXP8
C225 EV@0.1u/10V_4C225 EV@0.1u/10V_4
C_PEG_TXP9
C523 EV@0.1u/10V_4C523 EV@0.1u/10V_4
C_PEG_TXP10
C214 EV@0.1u/10V_4C214 EV@0.1u/10V_4
C_PEG_TXP11
C223 EV@0.1u/10V_4C223 EV@0.1u/10V_4
C_PEG_TXP12
C517 EV@0.1u/10V_4C517 EV@0.1u/10V_4
C_PEG_TXP13
C515 EV@0.1u/10V_4C515 EV@0.1u/10V_4
C_PEG_TXP14
C513 EV@0.1u/10V_4C513 EV@0.1u/10V_4
C_PEG_TXP15
C511 EV@0.1u/10V_4C511 EV@0.1u/10V_4
To HDMI
C209 IV@0.1u/10V_4C209 IV@0.1u/10V_4
C208 IV@0.1u/10V_4C208 IV@0.1u/10V_4
C213 IV@0.1u/10V_4C213 IV@0.1u/10V_4
C212 IV@0.1u/10V_4C212 IV@0.1u/10V_4
C211 IV@0.1u/10V_4C211 IV@0.1u/10V_4
C210 IV@0.1u/10V_4C210 IV@0.1u/10V_4
C204 IV@0.1u/10V_4C204 IV@0.1u/10V_4
C203 IV@0.1u/10V_4C203 IV@0.1u/10V_4
R191 EV@0_4R191 EV@0_4
R205 IV@0_4R205 IV@0_4
R190 EV@0_4R190 EV@0_4
R204 IV@0_4R204 IV@0_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
1
+VCC_PEG
PEG_RXN0 (19)
PEG_RXN2 (19)
PEG_RXN3 (19)
PEG_RXN4 (19)
PEG_RXN5 (19)
PEG_RXN6 (19)
PEG_RXN7 (19)
PEG_RXN8 (19)
PEG_RXN9 (19)
PEG_RXN10 (19)
PEG_RXN11 (19)
PEG_RXN12 (19)
PEG_RXN13 (19)
PEG_RXN14 (19)
PEG_RXN15 (19)
PEG_RXP0 (19)
PEG_RXP2 (19)
PEG_RXP3 (19)
PEG_RXP4 (19)
PEG_RXP5 (19)
PEG_RXP6 (19)
PEG_RXP7 (19)
PEG_RXP8 (19)
PEG_RXP9 (19)
PEG_RXP10 (19)
PEG_RXP11 (19)
PEG_RXP12 (19)
PEG_RXP13 (19)
PEG_RXP14 (19)PEG_RXP14 (19)
PEG_RXP15 (19)
C518 EV@0.1u/10V_4C518 EV@0.1u/10V_4
C509 EV@0.1u/10V_4C509 EV@0.1u/10V_4
C521 EV@0.1u/10V_4C521 EV@0.1u/10V_4
C519 EV@0.1u/10V_4C519 EV@0.1u/10V_4
C525 EV@0.1u/10V_4C525 EV@0.1u/10V_4
C524 EV@0.1u/10V_4C524 EV@0.1u/10V_4
C522 EV@0.1u/10V_4C522 EV@0.1u/10V_4
C520 EV@0.1u/10V_4C520 EV@0.1u/10V_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
GMCH DMI/VIDEO(2 of 7)
GMCH DMI/VIDEO(2 of 7)
GMCH DMI/VIDEO(2 of 7)
PEG_TXN4
PEG_TXN5
PEG_TXN6
PEG_TXN7
PEG_TXN8
PEG_TXN9
PEG_TXN10
PEG_TXN11
PEG_TXN12
PEG_TXN13
PEG_TXN14
PEG_TXN15
PEG_TXP4
PEG_TXP5
PEG_TXP6
PEG_TXP7
PEG_TXP8
PEG_TXP9
PEG_TXP10
PEG_TXP11
PEG_TXP12
PEG_TXP13
PEG_TXP14
PEG_TXP15
SDVOB_RED- (20)
SDVOB_RED+ (20)
SDVOB_BLUE- (20)
SDVOB_BLUE+ (20)
SDVOB_GREEN- (20)
SDVOB_GREEN+ (20)
SDVOB_CLK- (20)
SDVOB_CLK+ (20)
PEG_RXN1 (19)
SDVOB_INT- (20)
PEG_RXP1 (19)
SDVOB_INT+ (20)
1
PEG_TXN0 (19)
PEG_TXN1 (19)
PEG_TXN2 (19)
PEG_TXN3 (19)
PEG_TXN4 (19)
PEG_TXN5 (19)
PEG_TXN6 (19)
PEG_TXN7 (19)
PEG_TXN8 (19)
PEG_TXN9 (19)
PEG_TXN10 (19)
PEG_TXN11 (19)
PEG_TXN12 (19)
PEG_TXN13 (19)
PEG_TXN14 (19)
PEG_TXN15 (19)
PEG_TXP0 (19)
PEG_TXP1 (19)
PEG_TXP2 (19)
PEG_TXP3 (19)
PEG_TXP4 (19)
PEG_TXP5 (19)
PEG_TXP6 (19)
PEG_TXP7 (19)
PEG_TXP8 (19)
PEG_TXP9 (19)
PEG_TXP10 (19)
PEG_TXP11 (19)
PEG_TXP12 (19)
PEG_TXP13 (19)
PEG_TXP14 (19)
PEG_TXP15 (19)
637Tuesday, January 22, 2008
637Tuesday, January 22, 2008
637Tuesday, January 22, 2008
of
of
of
1A
1A
1A
5
NB(Memory controller)
4
3
2
1
M_A_DQ[63:0](13)
D D
C C
B B
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
AR43
AW44
BA45
AY46
AR41
AR45
AT42
AW47
BB45
BF48
BG47
BJ45
BB47
BG50
BH49
BE45
AW43
BE44
BG42
BE40
BF44
BH45
BG40
BF40
AR40
AW40
AT39
AW36
AW41
AY41
AV38
AT38
AV13
AT13
AW11
AV11
AU15
AT11
BA13
BA11
BE10
BD10
BD8
AY9
BG10
AW9
BD7
BB9
BB5
AY7
AT5
AT7
AY6
BB7
AR5
AR8
AR9
AN3
AM8
AN10
AT9
AN9
AM9
AN11
U21D
U21D
SA_DQ_0
SA_DQ_1
SA_DQ_2
SA_DQ_3
SA_DQ_4
SA_DQ_5
SA_DQ_6
SA_DQ_7
SA_DQ_8
SA_DQ_9
SA_DQ_10
SA_DQ_11
SA_DQ_12
SA_DQ_13
SA_DQ_14
SA_DQ_15
SA_DQ_16
SA_DQ_17
SA_DQ_18
SA_DQ_19
SA_DQ_20
SA_DQ_21
SA_DQ_22
SA_DQ_23
SA_DQ_24
SA_DQ_25
SA_DQ_26
SA_DQ_27
SA_DQ_28
SA_DQ_29
SA_DQ_30
SA_DQ_31
SA_DQ_32
SA_DQ_33
SA_DQ_34
SA_DQ_35
SA_DQ_36
SA_DQ_37
SA_DQ_38
SA_DQ_39
SA_DQ_40
SA_DQ_41
SA_DQ_42
SA_DQ_43
SA_DQ_44
SA_DQ_45
SA_DQ_46
SA_DQ_47
SA_DQ_48
SA_DQ_49
SA_DQ_50
SA_DQ_51
SA_DQ_52
SA_DQ_53
SA_DQ_54
SA_DQ_55
SA_DQ_56
SA_DQ_57
SA_DQ_58
SA_DQ_59
SA_DQ_60
SA_DQ_61
SA_DQ_62
SA_DQ_63
CRESTLINE_1p0
CRESTLINE_1p0
BB19
SA_BS_0
BK19
SA_BS_1
BF29
SA_BS_2
BL17
SA_CAS#
SA_DM_0
SA_DM_1
SA_DM_2
SA_DM_3
SA_DM_4
SA_DM_5
SA_DM_6
SA_DM_7
SA_DQS_0
SA_DQS_1
SA_DQS_2
SA_DQS_3
SA_DQS_4
SA_DQS_5
SA_DQS_6
SA_DQS_7
SA_DQS#_0
SA_DQS#_1
SA_DQS#_2
SA_DQS#_3
SA_DQS#_4
SA_DQS#_5
SA_DQS#_6
SA_DQS#_7
SA_MA_0
SA_MA_1
SA_MA_2
SA_MA_3
SA_MA_4
SA_MA_5
SA_MA_6
SA_MA_7
SA_MA_8
SA_MA_9
SA_MA_10
SA_MA_11
SA_MA_12
SA_MA_13
SA_RAS#
SA_RCVEN#
DDR SYSTEM MEMORY A
DDR SYSTEM MEMORY A
SA_WE#
AT45
BD44
BD42
AW38
AW13
BG8
AY5
AN6
AT46
BE48
BB43
BC37
BB16
BH6
BB2
AP3
AT47
BD47
BC41
BA37
BA16
BH7
BC1
AP2
BJ19
BD20
BK27
BH28
BL24
BK28
BJ27
BJ25
BL28
BA28
BC19
BE28
BG30
BJ16
BE18
AY20
BA19
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
TP_SA_RCVEN#
M_A_BS#0 (12,13)
M_A_BS#1 (12,13)
M_A_BS#2 (12,13)
M_A_CAS# (12,13)
M_A_DM[7:0] (13)
M_A_DQS[7:0] (13)
M_A_DQS#[7:0] (13)
M_A_A[13:0] (12,13)
M_A_RAS# (12,13)
T20T20
M_A_WE# (12,13)
M_B_DQ[63:0](13)
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
AP49
AR51
AW50
AW51
AN51
AN50
AV50
AV49
BA50
BB50
BA49
BE50
BA51
AY49
BF50
BF49
BJ50
BJ44
BJ43
BL43
BK47
BK49
BK43
BK42
BJ41
BL41
BJ37
BJ36
BK41
BJ40
BL35
BK37
BK13
BE11
BK11
BC11
BC13
BE12
BC12
BG12
BJ10
BK5
BK9
BK10
BF4
BH5
BG1
BC2
BK3
BE4
BD3
BJ2
BA3
BB3
AR1
AT3
AY2
AY3
AU2
AT2
BL9
BL5
BJ8
BJ6
U21E
U21E
SB_DQ_0
SB_DQ_1
SB_DQ_2
SB_DQ_3
SB_DQ_4
SB_DQ_5
SB_DQ_6
SB_DQ_7
SB_DQ_8
SB_DQ_9
SB_DQ_10
SB_DQ_11
SB_DQ_12
SB_DQ_13
SB_DQ_14
SB_DQ_15
SB_DQ_16
SB_DQ_17
SB_DQ_18
SB_DQ_19
SB_DQ_20
SB_DQ_21
SB_DQ_22
SB_DQ_23
SB_DQ_24
SB_DQ_25
SB_DQ_26
SB_DQ_27
SB_DQ_28
SB_DQ_29
SB_DQ_30
SB_DQ_31
SB_DQ_32
SB_DQ_33
SB_DQ_34
SB_DQ_35
SB_DQ_36
SB_DQ_37
SB_DQ_38
SB_DQ_39
SB_DQ_40
SB_DQ_41
SB_DQ_42
SB_DQ_43
SB_DQ_44
SB_DQ_45
SB_DQ_46
SB_DQ_47
SB_DQ_48
SB_DQ_49
SB_DQ_50
SB_DQ_51
SB_DQ_52
SB_DQ_53
SB_DQ_54
SB_DQ_55
SB_DQ_56
SB_DQ_57
SB_DQ_58
SB_DQ_59
SB_DQ_60
SB_DQ_61
SB_DQ_62
SB_DQ_63
CRESTLINE_1p0
CRESTLINE_1p0
AY17
SB_BS_0
BG18
SB_BS_1
BG36
SB_BS_2
BE17
SB_CAS#
SB_DM_0
SB_DM_1
SB_DM_2
SB_DM_3
SB_DM_4
SB_DM_5
SB_DM_6
SB_DM_7
SB_DQS_0
SB_DQS_1
SB_DQS_2
SB_DQS_3
SB_DQS_4
SB_DQS_5
SB_DQS_6
SB_DQS_7
SB_DQS#_0
SB_DQS#_1
SB_DQS#_2
SB_DQS#_3
SB_DQS#_4
SB_DQS#_5
SB_DQS#_6
SB_DQS#_7
SB_MA_0
SB_MA_1
SB_MA_2
SB_MA_3
SB_MA_4
SB_MA_5
SB_MA_6
SB_MA_7
SB_MA_8
SB_MA_9
SB_MA_10
SB_MA_11
SB_MA_12
SB_MA_13
SB_RAS#
SB_RCVEN#
SB_WE#
DDR SYSTEM MEMORY B
DDR SYSTEM MEMORY B
AR50
BD49
BK45
BL39
BH12
BJ7
BF3
AW2
AT50
BD50
BK46
BK39
BJ12
BL7
BE2
AV2
AU50
BC50
BL45
BK38
BK12
BK7
BF2
AV3
BC18
BG28
BG25
AW17
BF25
BE25
BA29
BC28
AY28
BD37
BG17
BE37
BA39
BG13
AV16
AY18
BC17
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
TP_SB_RCVEN#
M_B_BS#0 (12,13)
M_B_BS#1 (12,13)
M_B_BS#2 (12,13)
M_B_CAS# (12,13)
M_B_DM[7:0] (13)
M_B_DQS[7:0] (13)
M_B_DQS#[7:0] (13)
M_B_A[13:0] (12,13)
M_B_RAS# (12,13)
T13T13
M_B_WE# (12,13)
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
MCH DDR(3 of 7)
MCH DDR(3 of 7)
MCH DDR(3 of 7)
1
1A
1A
1A
of
of
of
737Tuesday, January 22, 2008
737Tuesday, January 22, 2008
737Tuesday, January 22, 2008
5
4
3
2
1
NB(Power-1)
+1.05V
U21G
U21G
AT35
VCC_1
AT34
VCC_2
AH28
VCC_3
AC32
VCC_5
+1.8VSUS
AC31
AK32
AJ31
AJ28
AH32
AH31
AH29
AF32
R30
AU32
AU33
AU35
AV33
AW33
AW35
AY35
BA32
BA33
BA35
BB33
BC32
BC33
BC35
BD32
BD35
BE32
BE33
BE35
BF33
BF34
BG32
BG33
BG35
BH32
BH34
BH35
BJ32
BJ33
BJ34
BK32
BK33
BK34
BK35
BL33
AU30
R20
T14
W13
W14
Y12
AA20
AA23
AA26
AA28
AB21
AB24
AB29
AC20
AC21
AC23
AC24
AC26
AC28
AC29
AD20
AD23
AD24
AD28
AF21
AF26
AA31
AH20
AH21
AH23
AH24
AH26
AD31
AJ20
AN14
VCC_4
VCC_6
VCC_7
VCC_8
VCC_9
VCC_10
VCC_11
VCC_12
VCC_13
VCC_SM_1
VCC_SM_2
VCC_SM_3
VCC_SM_4
VCC_SM_5
VCC_SM_6
VCC_SM_7
VCC_SM_8
VCC_SM_9
VCC_SM_10
VCC_SM_11
VCC_SM_12
VCC_SM_13
VCC_SM_14
VCC_SM_15
VCC_SM_16
VCC_SM_17
VCC_SM_18
VCC_SM_19
VCC_SM_20
VCC_SM_21
VCC_SM_22
VCC_SM_23
VCC_SM_24
VCC_SM_25
VCC_SM_26
VCC_SM_27
VCC_SM_28
VCC_SM_29
VCC_SM_30
VCC_SM_31
VCC_SM_32
VCC_SM_33
VCC_SM_34
VCC_SM_35
VCC_SM_36
VCC_AXG_1
VCC_AXG_2
VCC_AXG_3
VCC_AXG_4
VCC_AXG_5
VCC_AXG_6
VCC_AXG_7
VCC_AXG_8
VCC_AXG_9
VCC_AXG_10
VCC_AXG_11
VCC_AXG_12
VCC_AXG_13
VCC_AXG_14
VCC_AXG_15
VCC_AXG_16
VCC_AXG_17
VCC_AXG_18
VCC_AXG_19
VCC_AXG_20
VCC_AXG_21
VCC_AXG_22
VCC_AXG_23
VCC_AXG_24
VCC_AXG_25
VCC_AXG_26
VCC_AXG_27
VCC_AXG_28
VCC_AXG_29
VCC_AXG_30
VCC_AXG_31
VCC_AXG_32
VCC_AXG_33
VCC_AXG_34
CRESTLINE_1p0
CRESTLINE_1p0
VCC CORE
VCC CORE
POWER
POWER
VCC SMVCC GFX
VCC SMVCC GFX
4
D D
+1.8VSUS
C145
C145
C144
C144
C136
C136
0.1u/10V_4
C C
B B
A A
0.1u/10V_4
+1.8VSUS
C457
C457
*0.1u/10V_4
*0.1u/10V_4
5
22u/10V_8
22u/10V_8
C464
C464
*0.1u/10V_4
*0.1u/10V_4
22u/10V_8
22u/10V_8
+1.05V_VCC_AXG_NCTF
VCC_AXG_NCTF_1
VCC_AXG_NCTF_2
VCC_AXG_NCTF_3
VCC_AXG_NCTF_4
VCC_AXG_NCTF_5
VCC_AXG_NCTF_6
VCC_AXG_NCTF_7
VCC_AXG_NCTF_8
VCC_AXG_NCTF_9
VCC_AXG_NCTF_10
VCC_AXG_NCTF_11
VCC_AXG_NCTF_12
VCC_AXG_NCTF_13
VCC_AXG_NCTF_14
VCC_AXG_NCTF_15
VCC_AXG_NCTF_16
VCC_AXG_NCTF_17
VCC_AXG_NCTF_18
VCC_AXG_NCTF_19
VCC_AXG_NCTF_20
VCC_AXG_NCTF_21
VCC_AXG_NCTF_22
VCC_AXG_NCTF_23
VCC_AXG_NCTF_24
VCC_AXG_NCTF_25
VCC_AXG_NCTF_26
VCC_AXG_NCTF_27
VCC_AXG_NCTF_28
VCC_AXG_NCTF_29
VCC_AXG_NCTF_30
VCC_AXG_NCTF_31
VCC_AXG_NCTF_32
VCC_AXG_NCTF_33
VCC_AXG_NCTF_34
VCC_AXG_NCTF_35
VCC_AXG_NCTF_36
VCC_AXG_NCTF_37
VCC_AXG_NCTF_38
VCC_AXG_NCTF_39
VCC_AXG_NCTF_40
VCC_AXG_NCTF_41
VCC_AXG_NCTF_42
VCC_AXG_NCTF_43
VCC_AXG_NCTF_44
VCC_AXG_NCTF_45
VCC_AXG_NCTF_46
VCC_AXG_NCTF_47
VCC_AXG_NCTF_48
VCC_AXG_NCTF_49
VCC_AXG_NCTF_50
VCC_AXG_NCTF_51
VCC_AXG_NCTF_52
VCC_AXG_NCTF_53
VCC_AXG_NCTF_54
VCC GFX NCTF
VCC GFX NCTF
VCC_AXG_NCTF_55
VCC_AXG_NCTF_56
VCC_AXG_NCTF_57
VCC_AXG_NCTF_58
VCC_AXG_NCTF_59
VCC_AXG_NCTF_60
VCC_AXG_NCTF_61
VCC_AXG_NCTF_62
VCC_AXG_NCTF_63
VCC_AXG_NCTF_64
VCC_AXG_NCTF_65
VCC_AXG_NCTF_66
VCC_AXG_NCTF_67
VCC_AXG_NCTF_68
VCC_AXG_NCTF_69
VCC_AXG_NCTF_70
VCC_AXG_NCTF_71
VCC_AXG_NCTF_72
VCC_AXG_NCTF_73
VCC_AXG_NCTF_74
VCC_AXG_NCTF_75
VCC_AXG_NCTF_76
VCC_AXG_NCTF_77
VCC_AXG_NCTF_78
VCC_AXG_NCTF_79
VCC_AXG_NCTF_80
VCC_AXG_NCTF_81
VCC_AXG_NCTF_82
VCC_AXG_NCTF_83
VCC_SM_LF1
VCC_SM_LF2
VCC_SM_LF3
VCC_SM_LF4
VCC_SM_LF5
VCC_SM_LF6
VCC_SM_LF7
VCC SM LF
VCC SM LF
T17
T18
T19
T21
T22
T23
T25
U15
U16
U17
U19
U20
U21
U23
U26
V16
V17
V19
V20
V21
V23
V24
Y15
Y16
Y17
Y19
Y20
Y21
Y23
Y24
Y26
Y28
Y29
AA16
AA17
AB16
AB19
AC16
AC17
AC19
AD15
AD16
AD17
AF16
AF19
AH15
AH16
AH17
AH19
AJ16
AJ17
AJ19
AK16
AK19
AL16
AL17
AL19
AL20
AL21
AL23
AM15
AM16
AM19
AM20
AM21
AM23
AP15
AP16
AP17
AP19
AP20
AP21
AP23
AP24
AR20
AR21
AR23
AR24
AR26
V26
V28
V29
Y31
AW45
BC39
BE39
BD17
BD4
AW8
AT6
VCCSM_LF1
VCCSM_LF2
VCCSM_LF3
VCCSM_LF4
VCCSM_LF5
VCCSM_LF6
VCCSM_LF7
C71
C71
IV@0.47u/10V_6
IV@0.47u/10V_6
C49
C49
0.1u/10V_4
0.1u/10V_4
+1.05V
+1.05V_VCC_AXG_NCTF
C64
C64
IV@1u/10V_6
IV@1u/10V_6
+1.05V
C87
C87
22u/10V_8
22u/10V_8
C48
C48
0.1u/10V_4
0.1u/10V_4
3
+
+
C442
C442
330u/2.5V_3528
330u/2.5V_3528
C65
C65
IV@10u/10V_8
IV@10u/10V_8
C46
C46
0.22u/6.3V_4
0.22u/6.3V_4
C84
C84
IV@22u/10V_8
IV@22u/10V_8
C112
C112
0.22u/6.3V_4
0.22u/6.3V_4
C139
C139
22u/10V_8
22u/10V_8
C118
C118
0.22u/6.3V_4
0.22u/6.3V_4
C62
C62
0.22u/6.3V_4
0.22u/6.3V_4
C128
C128
0.22u/6.3V_4
0.22u/6.3V_4
C63
C63
IV@0.1u/10V_4
IV@0.1u/10V_4
C124
C124
0.1u/10V_4
0.1u/10V_4
C150
C150
0.47u/10V_6
0.47u/10V_6
C143
C143
0.22u/6.3V_4
0.22u/6.3V_4
R82
R82
IV@0_8
IV@0_8
C70
C70
IV@0.1u/10V_4
IV@0.1u/10V_4
C104
C104
0.1u/10V_4
0.1u/10V_4
C146
C146
1u/10V_6
1u/10V_6
2
+1.05V
C167
C167
1u/10V_6
1u/10V_6
C117
C117
0.1u/10V_4
0.1u/10V_4
R81
R81
IV@0_8
IV@0_8
R74
R74
EV@0_4
EV@0_4
C142
C142
0.1u/10V_4
0.1u/10V_4
U21F
U21F
AB33
VCC_NCTF_1
AB36
VCC_NCTF_2
AB37
VCC_NCTF_3
AC33
VCC_NCTF_4
AC35
VCC_NCTF_5
AC36
VCC_NCTF_6
AD35
VCC_NCTF_7
AD36
VCC_NCTF_8
AF33
VCC_NCTF_9
AF36
VCC_NCTF_10
AH33
VCC_NCTF_11
AH35
VCC_NCTF_12
AH36
VCC_NCTF_13
AH37
VCC_NCTF_14
AJ33
VCC_NCTF_15
AJ35
VCC_NCTF_16
AK33
VCC_NCTF_17
AK35
VCC_NCTF_18
AK36
VCC_NCTF_19
AK37
VCC_NCTF_20
AD33
VCC_NCTF_21
AJ36
VCC_NCTF_22
AM35
VCC_NCTF_23
AL33
VCC_NCTF_24
AL35
VCC_NCTF_25
AA33
VCC_NCTF_26
AA35
VCC_NCTF_27
AA36
VCC_NCTF_28
AP35
VCC_NCTF_29
AP36
VCC_NCTF_30
AR35
VCC_NCTF_31
AR36
VCC_NCTF_32
Y32
VCC_NCTF_33
Y33
VCC_NCTF_34
Y35
VCC_NCTF_35
Y36
VCC_NCTF_36
Y37
VCC_NCTF_37
T30
VCC_NCTF_38
T34
VCC_NCTF_39
T35
VCC_NCTF_40
U29
VCC_NCTF_41
U31
VCC_NCTF_42
U32
VCC_NCTF_43
U33
VCC_NCTF_44
U35
VCC_NCTF_45
U36
VCC_NCTF_46
V32
VCC_NCTF_47
V33
VCC_NCTF_48
V36
VCC_NCTF_49
V37
VCC_NCTF_50
AL24
VCC_AXM_NCTF_1
AL26
VCC_AXM_NCTF_2
AL28
VCC_AXM_NCTF_3
AM26
VCC_AXM_NCTF_4
AM28
VCC_AXM_NCTF_5
AM29
VCC_AXM_NCTF_6
AM31
VCC_AXM_NCTF_7
AM32
VCC_AXM_NCTF_8
AM33
VCC_AXM_NCTF_9
AP29
VCC_AXM_NCTF_10
AP31
VCC_AXM_NCTF_11
AP32
VCC_AXM_NCTF_12
AP33
VCC_AXM_NCTF_13
AL29
VCC_AXM_NCTF_14
AL31
VCC_AXM_NCTF_15
AL32
VCC_AXM_NCTF_16
AR31
VCC_AXM_NCTF_17
AR32
VCC_AXM_NCTF_18
AR33
VCC_AXM_NCTF_19
CRESTLINE_1p0
CRESTLINE_1p0
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
GMCH Power-1(4 of 7)
GMCH Power-1(4 of 7)
GMCH Power-1(4 of 7)
Date: Sheet
Date: Sheet
Date: Sheet
VCC NCTF
VCC NCTF
POWER
POWER
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
VSS_NCTF_1
VSS_NCTF_2
VSS_NCTF_3
VSS_NCTF_4
VSS_NCTF_5
VSS_NCTF_6
VSS_NCTF_7
VSS_NCTF_8
VSS_NCTF_9
VSS_NCTF_10
VSS_NCTF_11
VSS_NCTF_12
VSS_NCTF_13
VSS_NCTF_14
VSS_NCTF_15
VSS NCTF
VSS NCTF
VSS_NCTF_16
VSS_NCTF_17
VSS_NCTF_18
VSS_NCTF_19
VSS_NCTF_20
VSS_NCTF_21
VSS SCBVCC AXM
VSS SCBVCC AXM
VCC_AXM_1
VCC_AXM_2
VCC_AXM_3
VCC_AXM_4
VCC_AXM_5
VCC_AXM_6
VCC_AXM_7
VCC AXM NCTF
VCC AXM NCTF
1
VSS_SCB1
VSS_SCB2
VSS_SCB3
VSS_SCB4
VSS_SCB5
VSS_SCB6
T27
T37
U24
U28
V31
V35
AA19
AB17
AB35
AD19
AD37
AF17
AF35
AK17
AM17
AM24
AP26
AP28
AR15
AR19
AR28
A3
B2
C1
BL1
BL51
A51
+1.05V
AT33
AT31
AK29
AK24
AK23
AJ26
AJ23
of
of
of
837Tuesday, January 22, 2008
837Tuesday, January 22, 2008
837Tuesday, January 22, 2008
1A
1A
1A
5
NB(Power-2)
L13 IV@10uh_8L13 IV@10uh_8
+1.25V
D D
+1.25V
C C
IV@PBY160808T-301Y-N_6
IV@PBY160808T-301Y-N_6
+3V
B B
C500
C500
IV@220u/6.3V_7343
IV@220u/6.3V_7343
L15 IV@10uh_8L15 IV@10uh_8
C504
C504
IV@220u/6.3V_7343
IV@220u/6.3V_7343
R135 EV@0_4R135 EV@0_4
R140 EV@0_4R140 EV@0_4
L34
L34
C455
C455
IV@22u/10V_8
IV@22u/10V_8
+1.5V
+
+
+
+
+3V_TV_DAC
C456
C456
IV@10u/10V_8
IV@10u/10V_8
R68 0_6R68 0_6
C178
C178
IV@0.1u/10V_4
IV@0.1u/10V_4
C175
C175
IV@0.1u/10V_4
IV@0.1u/10V_4
+1.25V
C445 22u/10V_8C445 22u/10V_8
+1.25V_VCCA_DPLLA
+1.25V_VCCA_DPLLB
IV&EV Dis/Enable setting
C453
C453
IV@0.1u/10V_4
IV@0.1u/10V_4
C454
C454
IV@0.1u/10V_4
IV@0.1u/10V_4
C461
C461
IV@0.1u/10V_4
IV@0.1u/10V_4
R69 IV@100/F_6R69 IV@100/F_6
L33 PBY160808T-301Y-N_6L33 PBY160808T-301Y-N_6
V1.25M_MPLL_RC
C463
C463
IV@22n/16V_4
IV@22n/16V_4
C462
C462
IV@22n/16V_4
IV@22n/16V_4
C460
C460
IV@22n/16V_4
IV@22n/16V_4
C75
C75
IV@0.1u/10V_4
IV@0.1u/10V_4
IV&EV Dis/Enable setting
L35 IV@PBY160808T-301Y-N_6L35 IV@PBY160808T-301Y-N_6
+3V
+3V_TV_DAC
L32 PBY160808T-301Y-N_6L32 PBY160808T-301Y-N_6
+1.25V
C76
C76
IV@22n/16V_4
IV@22n/16V_4
R427
R427
0.5_6
0.5_6
C444
C444
+
+
100u/6.3V_3528
100u/6.3V_3528
+1.25V
R443
R443
EV@0_4
EV@0_4
<FAE>
INT VGA disable
VCCD_TVDAC still
+1.5V
C443
C443
22u/10V_8
22u/10V_8
C40
C40
0.1u/10V_4
0.1u/10V_4
R37 0_6R37 0_6
R71 0_6R71 0_6
C97
C97
0.1u/10V_4
0.1u/10V_4
C77
C77
IV@1u/10V_6
IV@1u/10V_6
R107 IV@0_6R107 IV@0_6
+3V
C470
C470
IV@22u/10V_8
IV@22u/10V_8
R444 IV@0_6R444 IV@0_6
C45
C45
0.1u/10V_4
0.1u/10V_4
C103
C103
22n/16V_4
22n/16V_4
R77
R77
4
EV@0_4
EV@0_4
+3V_VCCSYNC
C122
C122
IV@0.1u/10V_4
IV@0.1u/10V_4
C472
C472
IV@0.1u/10V_4
IV@0.1u/10V_4
C468
C468
C467
C467
IV@22n/16V_4
IV@22n/16V_4
IV@0.1u/10V_4
IV@0.1u/10V_4
IV&EV Dis/Enable setting
R145 0_8R145 0_8
+3V
C188 0.1u/10V_4C188 0.1u/10V_4
C58
C58
*22u/10V_8
*22u/10V_8
C99
C99
C98
C98
*1u/16V_6
*1u/16V_6
*1u/16V_6
*1u/16V_6
R87 EV@0_4R87 EV@0_4
R84 IV@0_6R84 IV@0_6
R27 0_6R27 0_6
+1.25V
L17 PBY160808T-301Y-N_6L17 PBY160808T-301Y-N_6
+1.25V
+V1.25S_PEGPLL_FB
C197
C197
10u/10V_8
10u/10V_8
R457 IV@0_6R457 IV@0_6
+1.8VSUS
C473
C473
IV@22n/16V_4
IV@22n/16V_4
C61
C61
4.7u/10V_6
4.7u/10V_6
C100
C100
22u/10V_8
22u/10V_8
R105
R105
EV@0_4
EV@0_4
R449
R449
EV@0_4
EV@0_4
R447
R447
EV@0_4
EV@0_4
C491
C491
IV@1000p_4
IV@1000p_4
C193 0.1u/10V_4C193 0.1u/10V_4
C59
C59
22u/10V_8
22u/10V_8
C102
C102
0.1u/10V_4
0.1u/10V_4
+1.25VM_MCH_VCCD_HPLL
C43
C43
0.1u/10V_4
0.1u/10V_4
R149
R149
1_8
1_8
C153
C153
IV@1u/10V_6
IV@1u/10V_6
3
CRT/TV Disable/Enable guideline
EnableBall EnableDisable DisableBall
3.3V GND
VCCA_CRT
VCCD_CRT
1.5V
VCCDQ_CRT
3.3V
VCCA_A_TVO
3.3V
VCCA_B_TVO VCC_SYNC
+3V_VCCA_CRT_DAC
+3V_VCCA_DAC_BG
+1.25V_VCCA_DPLLA
+1.25V_VCCA_DPLLB
+1.25VM_VCCA_HPLL
+1.25VM_VCCA_MPLL
+1.8VSUS_VCC_TX_LVDS
+3V_VCCA_PEG_BG
+1.25V_VCCD_PEG_PLL
+1.25VM_VCCA_SM
C69
C69
1u/10V_6
1u/10V_6
+1.25VM_VCCA_SM_CK
+1.5V_VCCD_CRT
+1.5V_VCCD_TVDAC
+1.5V_VCCD_QDAC
+1.25V_VCCD_PEG_PLL
C180
C180
0.1u/10V_4
0.1u/10V_4
+1.8V_VCCD_LVDS
C482
C482
R455
R455
IV@10u/10V_8
IV@10u/10V_8
EV@0_4
EV@0_4
AW18
AV19
AU19
AU18
AU17
AT22
AT21
AT19
AT18
AT17
AR17
AR16
BC29
BB29
GND
GND
GND
GND
J32
A33
B33
A30
B32
B49
H49
AL2
AM2
A41
B41
K50
K49
U51
C25
B25
C27
B27
B28
A28
M32
L29
N28
AN2
U48
J41
H42
VCCA_C_TVO
VCCD_TVO
VCCABG_DAC
VSSABG_DAC
U21H
U21H
VCCSYNC
VCCA_CRT_DAC_1
VCCA_CRT_DAC_2
VCCA_DAC_BG
VSSA_DAC_BG
VCCA_DPLLA
VCCA_DPLLB
VCCA_HPLL
VCCA_MPLL
VCCA_LVDS
VSSA_LVDS
VCCA_PEG_BG
VSSA_PEG_BG
VCCA_PEG_PLL
VCCA_SM_1
VCCA_SM_2
VCCA_SM_3
VCCA_SM_4
VCCA_SM_5
VCCA_SM_7
VCCA_SM_8
VCCA_SM_9
VCCA_SM_10
VCCA_SM_11
VCCA_SM_NCTF_1
VCCA_SM_NCTF_2
VCCA_SM_CK_1
VCCA_SM_CK_2
VCCA_TVA_DAC_1
VCCA_TVA_DAC_2
VCCA_TVB_DAC_1
VCCA_TVB_DAC_2
VCCA_TVC_DAC_1
VCCA_TVC_DAC_2
VCCD_CRT
VCCD_TVDAC
VCCD_QDAC
VCCD_HPLL
VCCD_PEG_PLL
VCCD_LVDS_1
VCCD_LVDS_2
CRESTLINE_1p0
CRESTLINE_1p0
3.3V
1.5V1.5V
3.3V
GND
3.3V
CRTPLLA PEGA SMTV
CRTPLLA PEGA SMTV
POWER
POWER
A CK A LVDS
A CK A LVDS
D TV/CRTLVDS
D TV/CRTLVDS
D37 PDZ5.6BD37 PDZ5.6B
+1.05V
+3V
GND
1.5V
GND
GND
GND
2 1
VTT
VTT
VCC_AXD_1
VCC_AXD_2
VCC_AXD_3
VCC_AXD_4
VCC_AXD_5
AXD
AXD
VCC_AXD_6
VCC_AXD_NCTF
VCC_AXF_1
VCC_AXF_2
VCC_AXF_3
AXF
AXF
VCC_DMI
VCC_SM_CK_1
VCC_SM_CK_2
VCC_SM_CK_3
VCC_SM_CK_4
SM CK
SM CK
VCC_TX_LVDS
VCC_HV_1
VCC_HV_2
HV
HV
VCC_PEG_1
VCC_PEG_2
VCC_PEG_3
VCC_PEG_4
PEG
PEG
VCC_PEG_5
VCC_RXR_DMI_1
VCC_RXR_DMI_2
DMI
DMI
VTTLF
VTTLF
VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8
VTT_9
VTT_10
VTT_11
VTT_12
VTT_13
VTT_14
VTT_15
VTT_16
VTT_17
VTT_18
VTT_19
VTT_20
VTT_21
VTT_22
VTTLF1
VTTLF2
VTTLF3
+1.05V_SD
+1.05V
U13
U12
U11
U9
U8
U7
U5
U3
+1.25V_AXD
U2
U1
T13
T11
T10
T9
T7
T6
T5
T3
T2
R3
R2
R1
AT23
AU28
AU24
AT29
AT25
AT30
AR29
+1.25V_VCC_AXF
B23
B21
A21
+1.25V_VCC_DMI
AJ50
+1.8VSUS_VCC_SM_CK
BK24
BK23
BJ24
BJ23
+1.8VSUS_VCC_TX_LVDS
A43
C40
B40
AD51
W50
W51
V49
V50
AH50
AH51
A7
F2
AH1
C42
C42
0.47u/6.3V_4
0.47u/6.3V_4
R446
R446
10_4
10_4
R453 0_4R453 0_4
2
LVDS Disable/Enable guideline
External VGA with EV@part,Internal VGA with IV@ part
+3V_VCC_HV
C446
C446
0.47u/6.3V_4
0.47u/6.3V_4
Signal
VCCD_LVDS
VCCA_LVDS
VCCTX_LVDS
C47
C47
4.7u/10V_8
4.7u/10V_8
C90
C90
1u/10V_6
1u/10V_6
C82
C82
0.1u/10V_4
0.1u/10V_4
+3V_VCC_HV
If SDVO Disable
LVDS Disable
GND
GND
EXTERNAL INTERNAL
C39
C39
4.7u/10V_8
4.7u/10V_8
R92 0_6R92 0_6
C88
C88
*22u/10V_8
*22u/10V_8
C450
C450
1u/10V_6
1u/10V_6
+VCC_PEG
C448
C448
0.47u/6.3V_4
0.47u/6.3V_4
C480
C480
0.1u/10V_4
0.1u/10V_4
C505
C505
0.1u/10V_4
0.1u/10V_4
C83
C83
22u/10V_8
22u/10V_8
If SDVO enable
LVDS Disable
1.8V
GND
GNDGND
C55
C55
2.2u/10V_8
2.2u/10V_8
R441 0_6R441 0_6
C451
C451
10u/10V_8
10u/10V_8
R467 0_6R467 0_6
R67 1_6R67 1_6
R130
R130
EV@0_4
EV@0_4
C503
C503
10u/10V_8
10u/10V_8
1
If SDVO enable
LVDS enable
1.8V
1.8V
1.8V
C44
C44
0.47u/10V_6
0.47u/10V_6
+1.25V
+1.25V
+1.25V
L7 1uh_8L7 1uh_8
+V1.8_SMCK_RC
IV&EV Dis/Enable setting
L36 IV@1uh_8L36 IV@1uh_8
+
+
C489
C489
C492
C492
IV@220u/6.3V_7343
IV@220u/6.3V_7343
IV@1000p_4
IV@1000p_4
L37 91nHL37 91nH
+
+
C501
C501
220u/6.3V_7343
220u/6.3V_7343
+1.05V
+1.8VSUS
C68 22u/10V_8C68 22u/10V_8
+1.8VSUS
+1.05V
A A
VCCGFPLLOW
R109 IV@10_4R109 IV@10_4
5
4
3
D8 IV@PDZ5.6BD8 IV@PDZ5.6B
21
2
+1.05V+3V_VCCSYNC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : BL5S Santa Rosa
GMCH Power-2(5 of 7)
GMCH Power-2(5 of 7)
GMCH Power-2(5 of 7)
1
1A
1A
937Tuesday, January 22, 2008
937Tuesday, January 22, 2008
937Tuesday, January 22, 2008
1A
of
of
of
5
4
3
2
1
NB(Power-3)
U21I
U21I
A13
VSS_1
A15
VSS_2
A17
VSS_3
A24
VSS_4
AA21
VSS_5
AA24
VSS_6
AA29
VSS_7
AB20
D D
C C
B B
A A
5
AB23
AB26
AB28
AB31
AC10
AC13
AC3
AC39
AC43
AC47
AD1
AD21
AD26
AD29
AD3
AD41
AD45
AD49
AD5
AD50
AD8
AE10
AE14
AE6
AF20
AF23
AF24
AF31
AG2
AG38
AG43
AG47
AG50
AH3
AH40
AH41
AH7
AH9
AJ11
AJ13
AJ21
AJ24
AJ29
AJ32
AJ43
AJ45
AJ49
AK20
AK21
AK26
AK28
AK31
AK51
AM11
AM13
AM3
AM4
AM41
AM45
AN1
AN38
AN39
AN43
AN5
AN7
AP4
AP48
AP50
AR11
AR2
AR39
AR44
AR47
AR7
AT10
AT14
AT41
AT49
AU1
AU23
AU29
AU3
AU36
AU49
AU51
AV39
AV48
AW1
AW12
AW16
AL1
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
VSS_91
VSS_92
VSS_93
VSS_94
VSS_95
VSS_96
VSS_97
VSS_98
VSS_99
CRESTLINE_1p0
CRESTLINE_1p0
VSS
VSS
VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
AW24
AW29
AW32
AW5
AW7
AY10
AY24
AY37
AY42
AY43
AY45
AY47
AY50
B10
B20
B24
B29
B30
B35
B38
B43
B46
B5
B8
BA1
BA17
BA18
BA2
BA24
BB12
BB25
BB40
BB44
BB49
BB8
BC16
BC24
BC25
BC36
BC40
BC51
BD13
BD2
BD28
BD45
BD48
BD5
BE1
BE19
BE23
BE30
BE42
BE51
BE8
BF12
BF16
BF36
BG19
BG2
BG24
BG29
BG39
BG48
BG5
BG51
BH17
BH30
BH44
BH46
BH8
BJ11
BJ13
BJ38
BJ4
BJ42
BJ46
BK15
BK17
BK25
BK29
BK36
BK40
BK44
BK6
BK8
BL11
BL13
BL19
BL22
BL37
BL47
C12
C16
C19
C28
C29
C33
C36
C41
4
3
U21J
U21J
C46
VSS_199
C50
VSS_200
C7
VSS_201
D13
VSS_202
D24
VSS_203
D3
VSS_204
D32
VSS_205
D39
VSS_206
D45
VSS_207
D49
VSS_208
E10
VSS_209
E16
VSS_210
E24
VSS_211
E28
VSS_212
E32
VSS_213
E47
VSS_214
F19
VSS_215
F36
VSS_216
F4
VSS_217
F40
VSS_218
F50
VSS_219
G1
VSS_220
G13
VSS_221
G16
VSS_222
G19
VSS_223
G24
VSS_224
G28
VSS_225
G29
VSS_226
G33
VSS_227
G42
VSS_228
G45
VSS_229
G48
VSS_230
G8
VSS_231
H24
VSS_232
H28
VSS_233
H4
VSS_234
H45
VSS_235
J11
VSS_236
J16
VSS_237
J2
VSS_238
J24
VSS_239
J28
VSS_240
J33
VSS_241
J35
VSS_242
J39
VSS_243
K12
VSS_245
K47
VSS_246
K8
VSS_247
L1
VSS_248
L17
VSS_249
L20
VSS_250
L24
VSS_251
L28
VSS_252
L3
VSS_253
L33
VSS_254
L49
VSS_255
M28
VSS_256
M42
VSS_257
M46
VSS_258
M49
VSS_259
M5
VSS_260
M50
VSS_261
M9
VSS_262
N11
VSS_263
N14
VSS_264
N17
VSS_265
N29
VSS_266
N32
VSS_267
N36
VSS_268
N39
VSS_269
N44
VSS_270
N49
VSS_271
N7
VSS_272
P19
VSS_273
P2
VSS_274
P23
VSS_275
P3
VSS_276
P50
VSS_277
R49
VSS_278
T39
VSS_279
T43
VSS_280
T47
VSS_281
U41
VSS_282
U45
VSS_283
U50
VSS_284
V2
VSS_285
V3
VSS_286
CRESTLINE_1p0
CRESTLINE_1p0
VSS
VSS
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
W11
W39
W43
W47
W5
W7
Y13
Y2
Y41
Y45
Y49
Y5
Y50
Y11
P29
T29
T31
T33
R28
AA32
AB32
AD32
AF28
AF29
AT27
AV25
H50
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
PROJECT : BL5S Santa Rosa
GMCH Power-3(6 of 7)
GMCH Power-3(6 of 7)
GMCH Power-3(6 of 7)
1
1A
1A
1A
of
of
of
10 37Tuesday, January 22, 2008
10 37Tuesday, January 22, 2008
10 37Tuesday, January 22, 2008
5
4
3
2
1
Strap table
All strap are sampled with respect to the leading edge of the GMCH Power OK(PWROK) Signal
CFG[17:3] Have internal Pull-up
CFG[18:19] Have internal Pull-down
Any CFG signal strapping option not list below should be left NC Pin
Pin Name Strap description
D D
CFG[2:0]
CFG[4:3]
CFG5
CFG6
CFG7
CFG8
CFG9
CFG[11:10]
C C
CFG[13:12]
CFG[15:14]
CFG16
CFG[18:17]
SDVO_CTRLDATA
CFG19
CFG20
B B
DMI X2 Select
MCH_CFG_5 Low = DMIX2
High = IDMIX4(Default)
FSB Dynamic ODT
MCH_CFG_16 Low = ODT Disable
A A
MCH_CFG_16(6)
High = ODT Enable(Default)
5
FSB Frequency Select
Reserved
DMI X2 Select
Reserved
CPU Strap
Low power PCI Express
PCI Express Graphics Lane Reversal
Reserved
XOR/ALLZ
Reserved
FSB Dynamic ODT
Reserved
SDVO Present
DMI Lane Reversal
SDVO/PCIe concurrent
DMI Lane Reversal
MCH_CFG_19 Low = Normal operation(Default)
R59
R59
*4.02K_4
*4.02K_4
MCH_CFG_19(6)
SDVO/PCIE Concurrent operation
MCH_CFG_20
R53
R53
*4.02K_4
*4.02K_4
MCH_CFG_20(6)
High = Reverse Lane
+3V
R115
R115
*4.02K_4
*4.02K_4
Low = Only SDVO or PCIE X1 is
operational(Default)
High = SDVO andPCIE X1 are operating
simultaneously via the PEG port
+3V
R114
R114
*4.02K_4
*4.02K_4
4
Configuration
010 = FSB 800MHz
011 = FSB 667MHz
0 = DMI X2
1 = DMI X4(Default)
0 = Reserved
1 = Mobile CPU(Default)
0 = Normal mode
1 = Low Power mode
0 = Reverse Lanes
1 = Normal operation(Default)
00 = Reserved
01 = XOR Mode Enable
10 = All-Z Mode Enabled
11 = Normal operation(Default)
0 = Dynamic ODT disable
1 = Dynamic ODT Enable(Default)
0 = No SDVO Card present(Default)
1 = SDVO Card Present
0 = Normal operation(Default)
1 = Reverse Lanes
0 = Only SDVO or PCIE x1 is operation(Default)
1 = SDVO and PCIE x1 are operating simultaneously via the PEG port
XOR /ALLz /Clock Un-gating
MCH_CFG_12MCH_CFG_13 Configuration
0
0
1
1
MCH_CFG_12(6)
MCH_CFG_13(6)
0
1
0
1
3
Clock gating disable
XOR Mode Enable
ALL-z Mode Enable
Normal operation(Default)
R58
R58
*4.02K_4
*4.02K_4
PCI Express Graphics
MCH_CFG_9 Low = Reverse Lane
R60
R60
*4.02K_4
*4.02K_4
High = Normal operation(Default)
MCH_CFG_9(6)MCH_CFG_5(6)
2
R62
R62
*4.02K_4
*4.02K_4
SDVO Present
Strap define at External
DVI control page
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : BL5S Santa Rosa
GMCH Strap(7 of 7)
GMCH Strap(7 of 7)
GMCH Strap(7 of 7)
1
of
of
of
11 37Tuesday, January 22, 2008
11 37Tuesday, January 22, 2008
11 37Tuesday, January 22, 2008
1A
1A
1A
1
DDR2 Dual channel A/B PU
2
3
4
5
6
7
8
A A
DDRII A CHANNEL DDRII B CHANNEL
+SMDDR_VTERM +SMDDR_VTERM
C176
C176
C186
C85
C85
0.1u/10V_4
0.1u/10V_4
B B
C C
D D
C148
C148
0.1u/10V_4
0.1u/10V_4
M_A_BS#2(7,13)
M_A_RAS#(7,13)
M_A_BS#1(7,13)
M_B_BS#0(7,13)
M_B_BS#1(7,13)
C93
C93
0.1u/10V_4
0.1u/10V_4
M_CKE1(6,13)
M_CKE0(6,13)
C189
C189
0.1u/10V_4
0.1u/10V_4
M_A_A3
M_A_A1
M_A_A9
M_A_A5
M_A_A4
M_A_A2
M_A_A11
M_A_A8
M_A_A12
M_B_A10
M_B_A5
M_B_A3
M_B_A0
M_B_A7
M_B_A11
M_B_A8
M_B_A1
M_B_A4
M_B_A2
M_B_A9
M_B_A12
C141
C141
C164
C164
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
RP17 56X2RP17 56X2
1
3
RP22 56X2RP22 56X2
1
3
RP20 56X2RP20 56X2
1
3
RP28 56X2RP28 56X2
1
3
RP25 56X2RP25 56X2
1
3
RP29 56X2RP29 56X2
1
3
RP15 56X2RP15 56X2
1
3
RP14 56X2RP14 56X2
1
3
RP19 56X2RP19 56X2
1
3
RP13 56X2RP13 56X2
1
3
RP21 56X2RP21 56X2
1
3
RP24 56X2RP24 56X2
1
3
RP18 56X2RP18 56X2
1
3
RP26 56X2RP26 56X2
1
3
C89
C89
0.1u/10V_4
0.1u/10V_4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
C96
C96
0.1u/10V_4
0.1u/10V_4
C186
0.1u/10V_4
0.1u/10V_4
+SMDDR_VTERM
+SMDDR_VTERM
0.1u/10V_4
0.1u/10V_4
M_A_A[13..0]
M_B_A[13..0]
C86
C86
0.1u/10V_4
0.1u/10V_4
C177
C177
0.1u/10V_4
0.1u/10V_4
M_A_A[13..0] (7,13)
M_B_A[13..0] (7,13)
C91
C91
0.1u/10V_4
0.1u/10V_4
C190
C160
C160
C92
C92
C111
C187
C187
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
M_A_A7
M_A_A6
M_CKE3(6,13)
M_B_BS#2(7,13)
M_CS#1(6,13)
M_ODT1(6,13)
M_ODT3(6,13)
M_B_CAS#(7,13)
M_A_BS#0(7,13)
M_A_WE#(7,13)
M_A_CAS#(7,13)
M_CS#0(6,13)
M_B_WE#(7,13)
M_CS#3(6,13)
M_CKE4(6,13)
M_ODT2(6,13)
M_B_RAS#(7,13)
M_ODT0(6,13)
M_CS#2(6,13)
M_A_A10
M_A_A0
M_B_A6
M_A_A13
M_B_A13
C111
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
RP23 56X2RP23 56X2
RP30 56X2RP30 56X2
RP6 56X2RP6 56X2
RP7 56X2RP7 56X2
RP16 56X2RP16 56X2
RP12 56X2RP12 56X2
RP11 56X2RP11 56X2
RP10 56X2RP10 56X2
RP27 56X2RP27 56X2
RP9 56X2RP9 56X2
RP5 56X2RP5 56X2
RP8 56X2RP8 56X2
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
C95
C95
0.1u/10V_4
0.1u/10V_4
C166
C166
0.1u/10V_4
0.1u/10V_4
C181
C181
0.1u/10V_4
0.1u/10V_4
+SMDDR_VTERM
C190
0.1u/10V_4
0.1u/10V_4
C140
C140
0.1u/10V_4
0.1u/10V_4
C110
C110
0.1u/10V_4
0.1u/10V_4
C161
C161
0.1u/10V_4
0.1u/10V_4
C179
C179
0.1u/10V_4
0.1u/10V_4
C138
C138
0.1u/10V_4
0.1u/10V_4
Quanta Computer Inc.
Quanta Computer Inc.
M_A_A14(6,13)
M_B_A14(6,13)
1
R128 56_4R128 56_4
R125 56_4R125 56_4
2
+SMDDR_VTERM
3
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
4
5
6
Date: Sheet
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
DDR RES. ARRAY
DDR RES. ARRAY
DDR RES. ARRAY
7
1A
1A
1A
of
of
of
12 37Tuesday, January 22, 2008
12 37Tuesday, January 22, 2008
12 37Tuesday, January 22, 2008
8
1
DDR2 Dual channel A/B CONN
A A
B B
C C
D D
M_CKE0(6,12)
M_A_BS#2(7,12)
M_A_BS#0(7,12)
M_A_WE#(7,12)
M_A_CAS#(7,12)
M_CS#1(6,12)
M_ODT1(6,12)
CGDAT_SMB
CGCLK_SMB
+3V
+3V
SMDDR_VREF_DIMM
+1.8VSUS
1
M_A_DQ5
M_A_DQ6
M_A_DQS#0
M_A_DQS0
M_A_DQ3
M_A_DQ2
M_A_DQ9
M_A_DQ8 M_A_DM1
M_A_DQS#1
M_A_DQS1
M_A_DQ11 M_A_DQ15
M_A_DQ16 M_A_DQ20
M_A_DQ21
M_A_DQS#2
M_A_DQS2
M_A_DQ23
M_A_DQ19
M_A_DQ28
M_A_DQ25
M_A_DM3
M_A_DQ26
M_A_DQ27
M_A_A12
M_A_A9
M_A_A5
M_A_A3
M_A_A1
M_A_A10
M_A_DQ36
M_A_DQS#4
M_A_DQS4
M_A_DQ39
M_A_DQ34
M_A_DQ40
M_A_DQ41
M_A_DM5
M_A_DQ46
M_A_DQ42
M_A_DQ48 M_A_DQ49
M_A_DQ53
M_A_DQS#6
M_A_DQS6
M_A_DQ50
M_A_DQ51
M_A_DQ56
M_A_DQ60
M_A_DM7
M_A_DQ62
M_A_DQ63
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
101
103
105
107
109
111
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
181
183
185
187
189
191
193
195
197
199
Standard Type H: 6.5mm
2
CN21
CN21
VREF
VSS47
DQ0
DQ1
VSS37
DQS#0
DQS0
VSS48
DQ2
DQ3
VSS38
DQ8
DQ9
VSS49
DQS#1
DQS1
VSS39
DQ10
DQ11
VSS50
VSS18
DQ16
DQ17
VSS1
DQS#2
DQS2
VSS19
DQ18
DQ19
VSS22
DQ24
DQ25
VSS23
DM3
NC4
VSS9
DQ26
DQ27
VSS4
CKE0
VDD7
NC1
A16_BA2
VDD9
A12
A9
A8
VDD5
A5
A3
A1
VDD10
A10/AP
BA0
WE#
VDD2
CAS#
S1#
VDD3
ODT1
VSS11
DQ32
DQ33
VSS26
DQS#4
DQS4
VSS2
DQ34
DQ35
VSS27
DQ40
DQ41
VSS29
DM5
VSS51
DQ42
DQ43
VSS40
DQ48
DQ49
VSS52
NCTEST
VSS30
DQS#6
DQS6
VSS31
DQ50
DQ51
VSS33
DQ56
DQ57
VSS3
DM7
VSS34
DQ58
DQ59
VSS14
SDA
SCL
VDD(SPD)
TYCO_1775803-2
TYCO_1775803-2
2
VSS46
4
DQ4
6
DQ5
8
VSS15
10
DM0
12
VSS5
14
DQ6
16
DQ7
18
VSS16
20
DQ12
22
DQ13
24
VSS17
26
DM1
28
VSS53
30
CK0
32
CK0#
34
VSS41
36
DQ14
38
DQ15
40
VSS54
42
VSS20
44
DQ20
46
DQ21
48
VSS6
50
NC3
52
DM2
54
VSS21
56
DQ22
58
DQ23
60
VSS24
62
DQ28
64
DQ29
66
VSS25
68
DQS#3
70
DQS3
72
VSS10
74
DQ30
76
DQ31
78
VSS8
80
CKE1
82
PC4800 DDR2 SDRAM
SO-DIMM (200P)
PC4800 DDR2 SDRAM
SO-DIMM (200P)
VDD8
84
A15
86
A14
88
VDD11
90
A11
92
A7
94
A6
96
VDD4
98
A4
100
A2
102
A0
104
VDD12
106
BA1
108
RAS#
110
S0#
112
VDD1
114
ODT0
116
A13
118
VDD6
120
NC2
122
VSS12
124
DQ36
126
DQ37
128
VSS28
130
DM4
132
VSS42
134
DQ38
136
DQ39
138
VSS55
140
DQ44
142
DQ45
144
VSS43
146
DQS#5
148
DQS5
150
VSS56
152
DQ46
154
DQ47
156
VSS44
158
DQ52
160
DQ53
162
VSS57
164
CK1
166
CK1#
168
VSS45
170
DM6
172
VSS32
174
DQ54
176
DQ55
178
VSS35
180
DQ60
182
DQ61
184
VSS7
186
DQS#7
188
DQS7
190
VSS36
192
DQ62
194
DQ63
196
VSS13
198
SA0
200
SA1
3
M_A_DM[0..7] (7)
M_A_DQ[0..63] (7)
+1.8VSUS +1.8VSUS +1.8VSUS
M_A_DQ4
M_A_DQ0
M_A_DM0
M_A_DQ7
M_A_DQ1
M_A_DQ13
M_A_DQ12
M_A_DQ10M_A_DQ14
M_A_DQ17
M_A_DM2
M_A_DQ18
M_A_DQ22
M_A_DQ29
M_A_DQ24
M_A_DQS#3
M_A_DQS3
M_A_DQ30
M_A_DQ31
M_A_A11
M_A_A7
M_A_A6M_A_A8
M_A_A4
M_A_A2
M_A_A0
M_A_A13
M_A_DQ32
M_A_DQ37M_A_DQ33
M_A_DM4
M_A_DQ35
M_A_DQ38
M_A_DQ44
M_A_DQ45
M_A_DQS#5
M_A_DQS5
M_A_DQ43
M_A_DQ47
M_A_DQ52
M_A_DM6
M_A_DQ55
M_A_DQ54
M_A_DQ61
M_A_DQ57
M_A_DQS#7
M_A_DQS7
M_A_DQ58
M_A_DQ59
R23 10K_4R23 10K_4
R21 10K_4R21 10K_4
SO-DIMM0 SPD Address is 0xA0
SO-DIMM0 TS Address is 0x30
M_A_DQS[0..7] (7)
M_A_DQS#[0..7] (7)
M_A_A[0..13] (7,12)
M_CLK_DDR0 (6)
M_CLK_DDR#0 (6)
PM_EXTTS#0 (6)
M_CKE1 (6,12)
M_A_A14 (6,12)
INTEL FAE (08/17)
ADD MA14 FOR DUAL LAYERS RAM
M_A_BS#1 (7,12)
M_A_RAS# (7,12)
M_CS#0 (6,12)
M_ODT0 (6,12)
M_CLK_DDR1 (6) M_CLK_DDR#4 (6)
M_CLK_DDR#1 (6)
M_CKE3(6,12) M_CKE4 (6,12)
M_B_BS#2(7,12)
M_B_BS#0(7,12)
M_B_WE#(7,12)
M_B_CAS#(7,12)
M_CS#3(6,12)
M_ODT3(6,12)
4
SMDDR_VREF_DIMM
CN22
CN22
1
VREF
3
M_B_DQ5
M_B_DQ4
M_B_DQS#0
M_B_DQS0
M_B_DQ2
M_B_DQ3
M_B_DQ8
M_B_DQ9
M_B_DQS#1
M_B_DQS1
M_B_DQ20
M_B_DQ17
M_B_DQS#2
M_B_DQS2
M_B_DQ23
M_B_DQ22
M_B_DQ28
M_B_DQ25
M_B_DM3
M_B_DQ30 M_B_DQ26
M_B_A12
M_B_A9
M_B_A5
M_B_A3
M_B_A1
M_B_A10
M_B_DQS#4
M_B_DQS4
M_B_DQ35
M_B_DQ34
M_B_DQ41
M_B_DQ40
M_B_DM5
M_B_DQ43
M_B_DQ46
M_B_DQ52 M_B_DQ53
M_B_DQS#6
M_B_DQS6
M_B_DQ50 M_B_DQ54
M_B_DQ56
M_B_DQ57 M_B_DQ61
M_B_DM7
M_B_DQ58
M_B_DQ63 M_B_DQ62
CGDAT_SMB
CGCLK_SMB
+3V
VSS47
5
DQ0
7
DQ1
9
VSS37
11
DQS#0
13
DQS0
15
VSS48
17
DQ2
19
DQ3
21
VSS38
23
DQ8
25
DQ9
27
VSS49
29
DQS#1
31
DQS1
33
VSS39
35
DQ10
37
DQ11
39
VSS50
41
VSS18
43
DQ16
45
DQ17
47
VSS1
49
DQS#2
51
DQS2
53
VSS19
55
DQ18
57
DQ19
59
VSS22
61
DQ24
63
DQ25
65
VSS23
67
DM3
69
NC4
71
VSS9
73
DQ26
75
DQ27
77
VSS4
79
CKE0
81
VDD7
83
NC1
85
A16_BA2
87
VDD9
89
A12
91
A9
93
A8
95
VDD5
97
A5
99
A3
101
A1
103
VDD10
105
A10/AP
107
BA0
109
WE#
111
VDD2
113
CAS#
115
S1#
117
VDD3
119
ODT1
121
VSS11
123
DQ32
125
DQ33
127
VSS26
129
DQS#4
131
DQS4
133
VSS2
135
DQ34
137
DQ35
139
VSS27
141
DQ40
143
DQ41
145
VSS29
147
DM5
149
VSS51
151
DQ42
153
DQ43
155
VSS40
157
DQ48
159
DQ49
161
VSS52
163
NCTEST
165
VSS30
167
DQS#6
169
DQS6
171
VSS31
173
DQ50
175
DQ51
177
VSS33
179
DQ56
181
DQ57
183
VSS3
185
DM7
187
VSS34
189
DQ58
191
DQ59
193
VSS14
195
SDA
197
SCL
199
VDD(SPD)
TYCO_292532-4
TYCO_292532-4
5
2
VSS46
4
DQ4
6
DQ5
8
VSS15
10
DM0
12
VSS5
14
DQ6
16
DQ7
18
VSS16
20
DQ12
22
DQ13
24
VSS17
26
DM1
28
VSS53
30
CK0
32
CK0#
34
VSS41
36
DQ14
38
DQ15
40
VSS54
42
VSS20
44
DQ20
46
DQ21
48
VSS6
50
NC3
52
DM2
54
VSS21
56
DQ22
58
DQ23
60
VSS24
62
DQ28
64
DQ29
66
VSS25
68
DQS#3
70
DQS3
72
VSS10
74
DQ30
76
DQ31
78
VSS8
80
CKE1
82
VDD8
84
A15
86
A14
88
VDD11
90
PC4800 DDR2 SDRAM
SO-DIMM (200P)
PC4800 DDR2 SDRAM
SO-DIMM (200P)
A11
92
A7
94
A6
96
VDD4
98
A4
100
A2
102
A0
104
VDD12
106
BA1
108
RAS#
110
S0#
112
VDD1
114
ODT0
116
A13
118
VDD6
120
NC2
122
VSS12
124
DQ36
126
DQ37
128
VSS28
130
DM4
132
VSS42
134
DQ38
136
DQ39
138
VSS55
140
DQ44
142
DQ45
144
VSS43
146
DQS#5
148
DQS5
150
VSS56
152
DQ46
154
DQ47
156
VSS44
158
DQ52
160
DQ53
162
VSS57
164
CK1
166
CK1#
168
VSS45
170
DM6
172
VSS32
174
DQ54
176
DQ55
178
VSS35
180
DQ60
182
DQ61
184
VSS7
186
DQS#7
188
DQS7
190
VSS36
192
DQ62
194
DQ63
196
VSS13
198
SA0
200
SA1
Standard Type H: 11mm
6
M_B_DM[0..7] (7)
M_B_DQ[0..63] (7)
M_B_DQS[0..7] (7)
M_B_DQS#[0..7] (7)
M_B_DQ0
M_B_DQ1
M_B_DM0
M_B_DQ7
M_B_DQ6
M_B_DQ12
M_B_DQ13
M_B_DM1
M_B_DQ11M_B_DQ14
M_B_DQ10M_B_DQ15
M_B_DQ21
M_B_DQ16
M_B_DM2
M_B_DQ18
M_B_DQ19
M_B_DQ24
M_B_DQ29
M_B_DQS#3
M_B_DQS3
M_B_DQ27M_B_DQ31
M_B_A11
M_B_A7
M_B_A6M_B_A8
M_B_A4
M_B_A2
M_B_A0
M_B_A13
M_B_DQ37M_B_DQ32
M_B_DQ38M_B_DQ36
M_B_DM4
M_B_DQ39
M_B_DQ33
M_B_DQ44
M_B_DQ45
M_B_DQS#5
M_B_DQS5
M_B_DQ42
M_B_DQ47
M_B_DQ48M_B_DQ49
M_B_DM6
M_B_DQ51M_B_DQ55
M_B_DQ60
M_B_DQS#7
M_B_DQS7
M_B_DQ59
R24 10K_4R24 10K_4
R22 10K_4R22 10K_4
+3V
SO-DIMM1 SPD Address is 0xA4
SO-DIMM1 TS Address is 0x34
M_B_A[0..13] (7,12)
M_CLK_DDR3 (6)
M_CLK_DDR#3 (6)
PM_EXTTS#1 (6)
M_B_A14 (6,12)
M_B_BS#1 (7,12)
M_B_RAS# (7,12)
M_CS#2 (6,12)
M_ODT2 (6,12)
M_CLK_DDR4 (6)
+1.8VSUS
+1.8VSUS
+
+
C465
C465
*330u/2.5V_3528
*330u/2.5V_3528
+1.8VSUS
C169
C169
0.1u/10V_4
0.1u/10V_4
Close to DIMM0
+1.8VSUS
C121
C121
0.1u/10V_4
0.1u/10V_4
Close to DIMM1
R203 *10K_4R203 *10K_4
C135
C135
0.1u/10V_4
0.1u/10V_4
+
+
C474
C474
*330u/2.5V_3528
*330u/2.5V_3528
C159
C159
0.1u/10V_4
0.1u/10V_4
7
C163
C163
2.2u/6.3V_6
2.2u/6.3V_6
C471
C471
0.1u/10V_4
0.1u/10V_4
C493
C493
2.2u/6.3V_6
2.2u/6.3V_6
C149
C149
C168
C168
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
CGCLK_SMB
CGDAT_SMB
SMDDR_VREF_DIMM
R194 0_6R194 0_6
R195 *10K_4R195 *10K_4
C130
C130
2.2u/6.3V_6
2.2u/6.3V_6
C108
C108
0.1u/10V_4
0.1u/10V_4
SMDDR_VREF_DIMM
C236
C236
0.1u/10V_4
0.1u/10V_4
C466
C466
2.2u/6.3V_6
2.2u/6.3V_6
SMDDR_VREF_DIMM
C481
C481
2.2u/6.3V_6
2.2u/6.3V_6
C158
C158
2.2u/6.3V_6
2.2u/6.3V_6
C237
C237
0.1u/10V_4
0.1u/10V_4
8
C476
C476
2.2u/6.3V_6
2.2u/6.3V_6
+3V
C33
C33
2.2u/6.3V_6
2.2u/6.3V_6
C233
C233
2.2u/6.3V_6
2.2u/6.3V_6
C490
C490
2.2u/6.3V_6
2.2u/6.3V_6
+3V
C34
C34
2.2u/6.3V_6
2.2u/6.3V_6
C234
C234
2.2u/6.3V_6
2.2u/6.3V_6
CGCLK_SMB (2)
CGDAT_SMB (2)
+SMDDR_VREF
+1.8VSUS
C113
C113
2.2u/6.3V_6
2.2u/6.3V_6
C31
C31
0.1u/10V_4
0.1u/10V_4
C147
C147
2.2u/6.3V_6
2.2u/6.3V_6
C32
C32
0.1u/10V_4
0.1u/10V_4
CLOCK 0,1 CLOCK 3,4
CKE 2,3CKE 0,1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
1
2
3
4
5
6
Date: Sheet
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
DDR SO-DIMM(200P)
DDR SO-DIMM(200P)
DDR SO-DIMM(200P)
7
1A
1A
1A
of
of
of
13 37Tuesday, January 22, 2008
13 37Tuesday, January 22, 2008
13 37Tuesday, January 22, 2008
8
5
RTC
+3VPCU
D D
C C
D24 CH500H-40D24 CH500H-40
VCCRTC_4
D25 CH500H-40D25 CH500H-40
R569
R569
1K_4
1K_4
CN14
CN14
1
1
2
2
ACS_85204-0200L
ACS_85204-0200L
01/15 REV_3B Change R574 footprint
+5VPCU
R574 2K/F_4R574 2K/F_4
R582
R582
6.8K/F_4
6.8K/F_4
R585
R585
15K_4
15K_4
VCCRTC
VCCRTC
R579 20K_6R579 20K_6
R571
R571
1M_6
1M_6
CMOS Setting G1
Clear CMOS Short
Keep CMOS Open
VCCRTC_3
R568 2K/F_4R568 2K/F_4
10/25 REV_A1 Change value
01/08 REV_3B Change value
C636 1u/10V_6C636 1u/10V_6
12
G1
G1
*SHORT_PAD
*SHORT_PAD
VCCRTC_2VCCRTC_1
Q47
Q47
MMBT3904
MMBT3904
R520 *10K_4R520 *10K_4
R522 *10K_4R522 *10K_4
<check list>
Delay 18~25ms
13
2
SATA_RXN2_C
SATA_RXP2_C
C642
C642
1u/10V_6
1u/10V_6
12/04 REV_3A Swap SATA channel
SATA Disable
1.Connect to GND: SATA[2:0]RXp/n , SATARBIAS , SATARBIAS# , SATA_CLKP , SATACLKN
2.NC: SATA[2:0]TXp/n , SATALED#
3.VccSATAPLL should be connected directly to Vcc1_5,Filter cap are not required
B B
4.BIOS disable
4
01/21 REV_3B Change footprint
C367 15p_4C367 15p_4
32.768KHZ
32.768KHZ
Y4
Y4
2 3
T90T90
+3V
C359 3900p/25V_4C359 3900p/25V_4
C355 3900p/25V_4C355 3900p/25V_4
C363 3900p/25V_4C363 3900p/25V_4
C368 3900p/25V_4C368 3900p/25V_4
C354 3900p/25V_4C354 3900p/25V_4
C356 3900p/25V_4C356 3900p/25V_4
C365 3900p/25V_4C365 3900p/25V_4
C371 3900p/25V_4C371 3900p/25V_4
C613 *3900p_4C613 *3900p_4
C614 *3900p_4C614 *3900p_4
C350 *3900p_4C350 *3900p_4
C353 *3900p_4C353 *3900p_4
CLK_PCIE_SATA#(2)
CLK_PCIE_SATA(2)
SATA_RXN1(22)
SATA_RXP1(22)
SATA_TXN1(22)
SATA_TXP1(22)
SATA_RXN0(22)
SATA_RXP0(22)
SATA_TXN0(22)
SATA_TXP0(22)
C366 15p_4C366 15p_4
+1.5V_PCIE
SATA_LED#(22)
T84T84
T85T85
T82T82
T83T83
41
R323
R323
10M_6
10M_6
R255 24.9/F_4R255 24.9/F_4
ACZ_SDIN0(26)
ACZ_SDIN2(20)
T55T55
R364
R364
*10K_4
*10K_4
T56T56
T60T60
R524 24.9/F_4R524 24.9/F_4
CLK_32KX1
CLK_32KX2
RTCRST#
SM_INTRUDER#
ICH_INTVRMEN
LAN100_SLP
GLAN_COMP_SB
ACZ_BCLK
ACZ_SYNC
ACZ_RST#
ACZ_SDIN2
ACZ_SDIN3
ACZ_SDOUT
SATA_LED#
SATA_RXN1_C
SATA_RXP1_C
SATA_TXN1_C
SATA_TXP1_C
SATA_RXN0_C
SATA_RXP0_C
SATA_TXN0_C
SATA_TXP0_C
SATA_RXN2_C
SATA_RXP2_C
SATA_TXN2_C
SATA_TXP2_C
SATA_BIAS
3
U33A
U33A
AG25
RTCX1
AF24
RTCX2
AF23
RTCRST#
AD22
INTRUDER#
AF25
INTVRMEN
AD21
LAN100_SLP
B24
GLAN_CLK
D22
LAN_RSTSYNC
C21
LAN_RXD0
B21
LAN_RXD1
C22
LAN_RXD2
D21
LAN_TXD0
E20
LAN_TXD1
C20
LAN_TXD2
AH21
GLAN_DOCK#/GPIO13
D25
GLAN_COMPI
C25
GLAN_COMPO
AJ16
HDA_BIT_CLK
AJ15
HDA_SYNC
AE14
HDA_RST#
AJ17
HDA_SDIN0
AH17
HDA_SDIN1
AH15
HDA_SDIN2
AD13
HDA_SDIN3
AE13
HDA_SDOUT
AE10
HDA_DOCK_EN#/GPIO33
AG14
HDA_DOCK_RST#/GPIO34
AF10
SATALED#
AF6
SATA0RXN
AF5
SATA0RXP
AH5
SATA0TXN
AH6
SATA0TXP
AG3
SATA1RXN
AG4
SATA1RXP
AJ4
SATA1TXN
AJ3
SATA1TXP
AF2
SATA2RXN
AF1
SATA2RXP
AE4
SATA2TXN
AE3
SATA2TXP
AB7
SATA_CLKN
AC6
SATA_CLKP
AG1
SATARBIAS#
AG2
SATARBIAS
ICH8M REV 1.0
ICH8M REV 1.0
FWH0/LAD0
FWH1/LAD1
FWH2/LAD2
FWH3/LAD3
FWH4/LFRAME#
LDRQ0#
LDRQ1#/GPIO23
RTCLAN / GLAN
LPCCPU
RTCLAN / GLAN
LPCCPU
A20GATE
A20M#
DPRSTP#
DPSLP#
FERR#
CPUPWRGD/GPIO49
IGNNE#
RCIN#
STPCLK#
THRMTRIP#
IHDA
IHDA
IDE
IDE
SATA
SATA
DCS1#
DCS3#
DIOR#
DIOW#
DDACK#
IDEIRQ
IORDY
DDREQ
INIT#
INTR
SMI#
DD0
DD1
DD2
DD3
DD4
DD5
DD6
DD7
DD8
DD9
DD10
DD11
DD12
DD13
DD14
DD15
2
E5
F5
G8
F6
C4
G9
LDRQ#1
E6
GATEA20
AF13
AG26
AF26
AE26
AD24
AG29
AF27
AE24
AC20
RCIN#
AH14
AD23
NMI
AG28
AA24
H_THERMTRIP_R
AE27
ICH_TP8
AA23
TP8
DA0
DA1
DA2
PDD0
V1
PDD1
U2
PDD2
V3
PDD3
T1
PDD4
V4
PDD5
T5
PDD6
AB2
PDD7
T6
PDD8
T3
PDD9
R2
PDD10
T4
PDD11
V6
PDD12
V5
PDD13
U1
PDD14
V2
PDD15
U6
PDA0
AA4
PDA1
AA1
PDA2
AB3
Y6
Y5
W4
W3
Y2
Y3
Y1
W5
LAD0 (25,29)
LAD1 (25,29)
LAD2 (25,29)
LAD3 (25,29)
LFRAME# (25,29)
T46T46
LDRQ#1 (25)
GATEA20 (29)
H_A20M# (3)
T52T52
ICH_DPRSTP# (3,6,32)
H_DPSLP# (3)
H_PWRGD (3)
H_IGNNE# (3)
H_INIT# (3)
H_INTR (3)
RCIN# (29)
H_NMI (3)
H_SMI# (3)
H_STPCLK# (3)
R287 24/F_6R287 24/F_6
PDD[15:0] (22)
PDA[2:0] (22)
PDCS1# (22)
PDCS3# (22)
PDIOR# (22)
PDIOW# (22)
PDDACK# (22)
IRQ14 (22)
PDIORDY (22)
PDDREQ (22)
1
+1.05V_V_CPU_IO
R283
R283
56.2_4
56.2_4
R285 *0_4R285 *0_4
RCIN#
GATEA20
+1.05V_V_CPU_IO
R309
R309
56.2_4
56.2_4
H_FERR# (3)
PM_THRMTRIP# (3,6)
+3V +3V
R547
R547
10K_4
10K_4
R352
R352
8.2K_4
8.2K_4
SB Strap HDA
ICH8-M Internal VR Enable strap
(Internal VR for Vccsus1_05,VccSus1_5 and VccCL1_5)
INTVRMEN Low = Internal VR disable
A A
High = Internal VR enable(Default)
VCCRTC
R325
R325
332K_6
332K_6
ICH_INTVRMEN
R326
R326
*0_4
*0_4
5
ICH8-M LAN100_SLP Strap
(Internal VR for VccLAN1_05 and VccCL1.05)
LAN100_SLP Low = Internal VR disable
High = Internal VR enable(Default)
VCCRTC
R303
R303
332K_6
332K_6
R312
R312
*0_4
*0_4
4
LAN100_SLP
XOR Chain Entrance Strap
ICH_RSV0 HDA_SDOUT Description
0
0
1
1
3
0
1
0
1
+3V
R368
R368
*1K_6
*1K_6
R539
R539
*1K_4
*1K_4
Enter XOR Chain
Normal opration(Default)
Set PCIE port config bit 1
ACZ_SDOUT
RSVD
ICH_TP3 (16)
BIT_CLK_AUDIO
R370
R370
*22_4
*22_4
C387
C387
*22p/50V_4
*22p/50V_4
BIT_CLK_HDMI
R551
R551
*22_4
*22_4
C386
C386
*22p/50V_4
*22p/50V_4
2
ACZ_SDOUT
ACZ_SYNC
ACZ_BCLK
ACZ_RST#
R372 33_4R372 33_4
R351 33_4R351 33_4
R549 33_4R549 33_4
R533 33_4R533 33_4
R550 33_4R550 33_4
R535 33_4R535 33_4
R371 33_4R371 33_4
R350 33_4R350 33_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : BL5S Santa Rosa
ICH8M HOST(1 of 4)
ICH8M HOST(1 of 4)
ICH8M HOST(1 of 4)
ACZ_SDOUT_AUDIO (26)
ACZ_SDOUT_HDMI (20)
ACZ_SYNC_AUDIO (26)
ACZ_SYNC_HDMI (20)
BIT_CLK_AUDIO (26)
BIT_CLK_HDMI (20)
ACZ_RST#_AUDIO (26)
ACZ_RST#_HDMI (20)
14 37Tuesday, January 22, 2008
14 37Tuesday, January 22, 2008
14 37Tuesday, January 22, 2008
1
of
of
of
1A
1A
1A
5
4
3
2
1

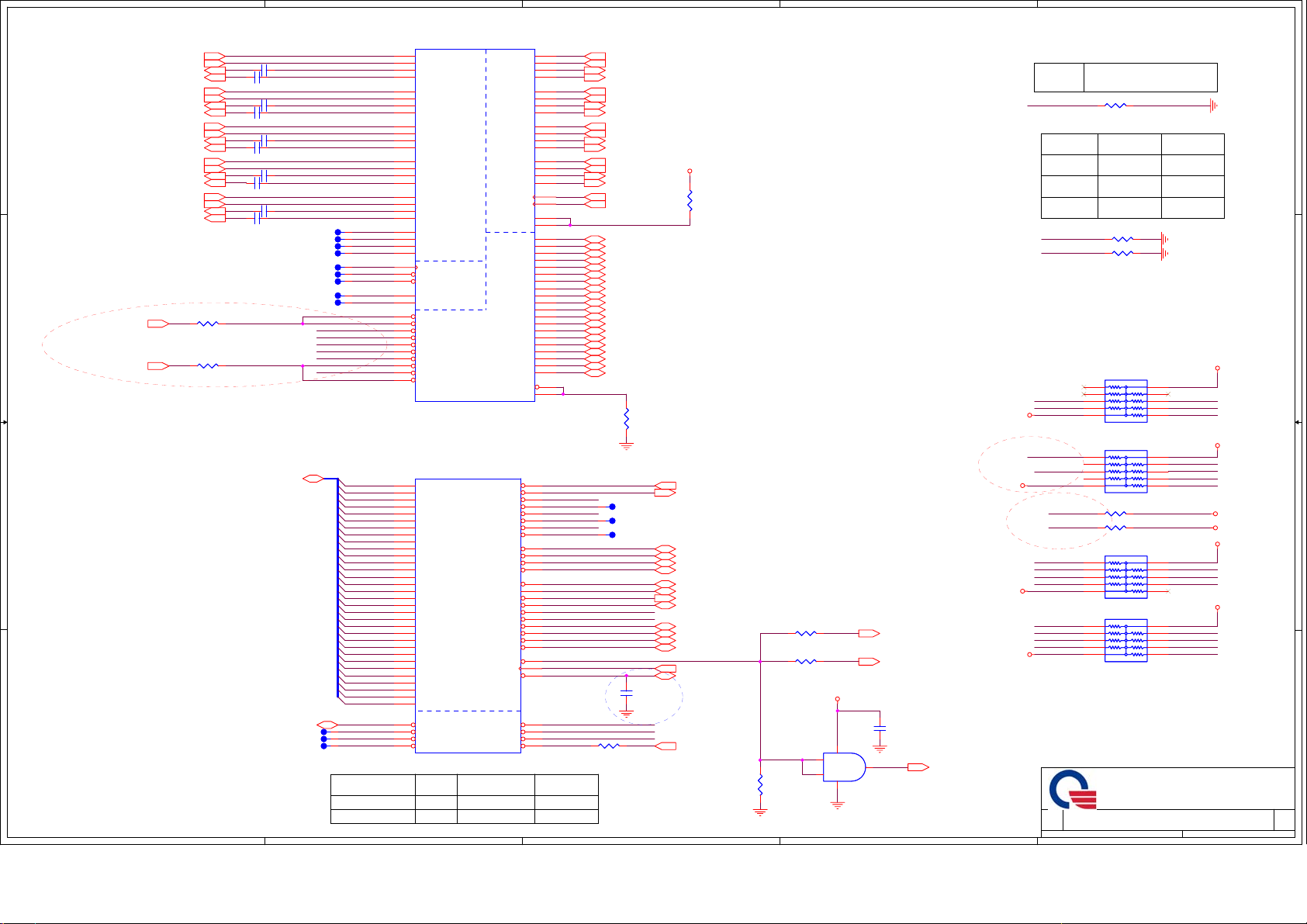

SB-PCIE/USB/DMI
To WLAN
To LAN
D D
To MINI-2
To New Card
To MINI-3
C C
USBOC#1(19,29)
USBOC#0(19,29)
PCIE_RXN1(25)
PCIE_RXP1(25)
PCIE_TXN1(25)
PCIE_TXP1(25)
PCIE_RXN2(24)
PCIE_RXP2(24)
PCIE_TXN2(24)
PCIE_TXP2(24)
PCIE_RXN3(25)
PCIE_RXP3(25)
PCIE_TXN3(25)
PCIE_TXP3(25)
PCIE_RXN4(28)
PCIE_RXP4(28)
PCIE_TXN4(28)
PCIE_TXP4(28)
PCIE_RXN5(25)
PCIE_RXP5(25)
PCIE_TXN5(25)
PCIE_TXP5(25)
R617 0_4R617 0_4
R607 0_4R607 0_4
C330 0.1u/10V_4C330 0.1u/10V_4
C325 0.1u/10V_4C325 0.1u/10V_4
C313 0.1u/10V_4C313 0.1u/10V_4
C317 0.1u/10V_4C317 0.1u/10V_4
C305 0.1u/10V_4C305 0.1u/10V_4
C301 0.1u/10V_4C301 0.1u/10V_4
C292 0.1u/10V_4C292 0.1u/10V_4
C288 0.1u/10V_4C288 0.1u/10V_4
C577 0.1u/10V_4C577 0.1u/10V_4
C568 0.1u/10V_4C568 0.1u/10V_4
USBOC#1_C
USBOC#0_C
T36T36
T42T42
T33T33
T40T40
T34T34
T80T80
T38T38
T41T41
T44T44
PCIE_TXN1_C
PCIE_TXP1_C
PCIE_TXN2_C
PCIE_TXP2_C
PCIE_TXN3_C
PCIE_TXP3_C
PCIE_TXN4_C
PCIE_TXP4_C
PCIE_TXN5_C
PCIE_TXP5_C
SPI_CS1#
USBOC#2
USBOC#3
USBOC#4
USBOC#5
USBOC#6
USBOC#8
SB-PCI
AD[0..31](23)
B B
INTA#(23)
A A
5
T31T31
T79T79
T32T32
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
INTA#
INTB#
INTC#
INTD#
PCI ROUTING
TABLE
REQ0# / GNT0#
U33D
U33D
P27
PERN1
P26
PERP1
N29
PETN1
N28
PETP1
M27
PERN2
M26
PERP2
L29
PETN2
L28
PETP2
K27
PERN3
K26
PERP3
J29
PETN3
J28
PETP3
H27
PERN4
H26
PERP4
G29
PETN4
G28
PETP4
F27
PERN5
F26
PERP5
E29
PETN5
E28
PETP5
D27
PERN6/GLAN_RXN
D26
PERP6/GLAN_RXP
C29
PETN6/GLAN_TXN
C28
PETP6/GLAN_TXP
C23
SPI_CLK
B23
SPI_CS0#
E22
SPI_CS1#
D23
SPI_MOSI
F21
SPI_MISO
AJ19
OC0#
AG16
OC1#/GPIO40
AG15
OC2#/GPIO41
AE15
OC3#/GPIO42
AF15
OC4#/GPIO43
AG17
OC5#/GPIO29
AD12
OC6#/GPIO30
AJ18
OC7#/GPIO31
AD14
OC8#
AH18
OC9#
ICH8M REV 1.0
ICH8M REV 1.0
U33B
U33B
D20
AD0
E19
AD1
D19
AD2
A20
AD3
D17
AD4
A21
AD5
A19
AD6
C19
AD7
A18
AD8
B16
AD9
A12
AD10
E16
AD11
A14
AD12
G16
AD13
A15
AD14
B6
AD15
C11
AD16
A9
AD17
D11
AD18
B12
AD19
C12
AD20
D10
AD21
C7
AD22
F13
AD23
E11
AD24
E13
AD25
E12
AD26
D8
AD27
A6
AD28
E8
AD29
D6
AD30
A3
AD31
Interrupt I/F
Interrupt I/F
F9
PIRQA#
B5
PIRQB#
C5
PIRQC#
A10
PIRQD#
ICH8M REV 1.0
ICH8M REV 1.0
IDSEL
AD17
4
V27
DMI0RXN
V26
DMI0RXP
U29
DMI0TXN
U28
DMI0TXP
Y27
DMI1RXN
Y26
DMI1RXP
W29
DMI1TXN
W28
DMI1TXP
AB26
DMI2RXN
AB25
DMI2RXP
AA29
DMI2TXN
AA28
DMI2TXP
AD27
DMI3RXN
AD26
DMI3RXP
AC29
DMI3TXN
AC28
DMI3TXP
PCI-Express
PCI-Express
SPI
SPI
USB
USB
PCI
PCI
REQ1#/GPIO50
GNT1#/GPIO51
REQ2#/GPIO52
GNT2#/GPIO53
REQ3#/GPIO54
GNT3#/GPIO55
PIRQE#/GPIO2
PIRQF#/GPIO3
PIRQG#/GPIO4
PIRQH#/GPIO5
INTERUPT
INTA#
DMI_ZCOMP
DMI_IRCOMP
PCIRST#
DEVSEL#
PLOCK#
FRAME#
PLTRST#
T26
DMI_CLKN
T25
DMI_CLKP
Y23
Y24
Direct Media Interface
Direct Media Interface
G3
USBP0N
G2
USBP0P
H5
USBP1N
H4
USBP1P
H2
USBP2N
H1
USBP2P
J3
USBP3N
J2
USBP3P
K5
USBP4N
K4
USBP4P
K2
USBP5N
K1
USBP5P
L3
USBP6N
L2
USBP6P
M5
USBP7N
M4
USBP7P
M2
USBP8N
M1
USBP8P
N3
USBP9N
N2
USBP9P
F2
USBRBIAS#
F3
USBRBIAS
A4
REQ0#
D7
GNT0#
E18
C18
B19
F18
A11
C10
C17
C/BE0#
E15
C/BE1#
F16
C/BE2#
E17
C/BE3#
C8
IRDY#
D9
PAR
G6
D16
A7
PERR#
B7
F10
SERR#
C16
STOP#
C9
TRDY#
A17
AG24
B10
PCICLK
G7
PME#
F8
G11
F12
B3
DEVICE
OZ129
USB_RBIAS_PN
REQ0#
GNT0#
REQ1#
GNT1#
REQ2#
GNT2#
REQ3#
GNT3#
IRDY#
DEVSEL#
PERR#
LOCK#
SERR#
STOP#
TRDY#
FRAME#
PLT_RST-R#
PCLK_ICH
INTE#
INTF#
INTG#
INTH#
DMI_RXN0 (6)
DMI_RXP0 (6)
DMI_TXN0 (6)
DMI_TXP0 (6)
DMI_RXN1 (6)
DMI_RXP1 (6)
DMI_TXN1 (6)
DMI_TXP1 (6)
DMI_RXN2 (6)
DMI_RXP2 (6)
DMI_TXN2 (6)
DMI_TXP2 (6)
DMI_RXN3 (6)
DMI_RXP3 (6)
DMI_TXN3 (6)
DMI_TXP3 (6)
CLK_PCIE_ICH# (2)
CLK_PCIE_ICH (2)
DMI_IRCOMP_R
USBP0- (19)
USBP0+ (19)
USBP1- (19)
USBP1+ (19)
USBP2- (18)
USBP2+ (18)
USBP3- (25)
USBP3+ (25)
USBP4- (28)
USBP4+ (28)
USBP5- (28)
USBP5+ (28)
USBP6- (28)
USBP6+ (28)
USBP7- (19)
USBP7+ (19)
USBP8- (28)
USBP8+ (28)
USBP9- (19)
USBP9+ (19)
T39T39
T30T30
T35T35
R238 *0_4R238 *0_4
+1.5V_PCIE
R295
R295
24.9/F_4
24.9/F_4
To USB BOARD
To USB BOARD
To Camera
To WLAN
To Finger Printer
To Bluetooth
To New Card
To eSATA
To Felica
To M/B USB
R492
R492
22.6/F_6
22.6/F_6
REQ0# (23)
GNT0# (23)
CBE0# (23)
CBE1# (23)
CBE2# (23)
CBE3# (23)
IRDY# (23)
PAR (23)
PCIRST# (23)
DEVSEL# (23)
SERR#
STOP# (23)
TRDY# (23)
FRAME# (23)
PCLK_ICH (2)
PCI_PME# (23)
C686
C686
0.1u/10V_4
0.1u/10V_4
01/21 REV_3B Add C686
CRT_SENSE# (18,29)
3
R334 0_6R334 0_6
R322 0_6R322 0_6
U11
U11
PLT_RST-R#
2
R328
R328
100K_6
100K_6
1
TC7SH08FU
TC7SH08FU
+3V_S5
3 5
10/26 REV_A1 Modify
09/20 REV_A1 Modify
GFXRST# (19)
PLTRST#_NB (6)
C374
C374
0.1u/10V_4
0.1u/10V_4
4
PLTRST# (16,20,21,22,24,25,28,29)
2
A16 SWAP Override strap
PCI_GNT#3 Low = A16 swap override enabled
GNT3#
ICH8 Boot BIOS select
SPI_CS1#
GNT0#
REQ0#
INTH#
+3V
USBOC#8
USBOC#5
+3V_S5
USBOC#0
USBOC#1
REQ1#
DEVSEL#
FRAME#
STOP#
+3V
LOCK#
IRDY#
PERR#
INTF#
+3V
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
High = Default
R251 *1K_4R251 *1K_4
SPI_CS#1PCI_GNT#0
R258 *1K_4R258 *1K_4
R253 *1K_4R253 *1K_4
RP39
RP39
6
7
8
9
10
8.2KX8
8.2KX8
RP56
RP56
6
7
8
9
10
8.2KX8
8.2KX8
R315 8.2K_4R315 8.2K_4
R536 8.2K_4R536 8.2K_4
RP37
RP37
6
7
8
9
10
8.2KX8
8.2KX8
RP38
RP38
6
7
8
9
10
8.2KX8
8.2KX8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
ICH8M PCIE(2 of 4)/ BIOS
ICH8M PCIE(2 of 4)/ BIOS
ICH8M PCIE(2 of 4)/ BIOS
Boot BIOS Location
SPI(Default)10
PCI01
LPC11
5
4
3
2
1
5
USBOC#2
4
USBOC#3
3
USBOC#4
2
USBOC#6
1
5
4
3
2
1
5
4
3
2
1
1
INTC#
INTB#
SERR#
REQ2#
TRDY#
INTG#
INTE#
INTD#
REQ3#
INTA#
+3V
+3V_S5
+3V_S5
+3V_S5
+3V
+3V
15 37Tuesday, January 22, 2008
15 37Tuesday, January 22, 2008
15 37Tuesday, January 22, 2008
1A
1A
1A
of
of
of
5
SB-GPIO
+3V
R346
R346
R347
R347
*10K_4
*10K_4
*10K_4
D D
PM_STPPCI#(2)
PM_STPCPU#(2)
*10K_4
09/29 REV_A1 Del D44
SCLK(2,21,25,28)
SDATA(2,21,25,28)
CL_RST#1(25)
T81T81
SYS_RST#(3)
PM_BMBUSY#(6)
PCIE_WAKE#(24,25,28)
SERIRQ(25,29)
THERM_ALERT#(3)
T86T86
Port_C#(26)
SB_GPIO7(27)
SCI#(29)
10/22 REV_A1 Add FM_DET net
SB_GPIO27(27)
FM_INT(27)
RST_HDD#(22)
ICH_TP3(14)
SMLINK0
SMLINK1
SYS_RST#
DNBSWON#
ICH_GPIO24
HDPACTCL_RST#1
RI#
SCLK
SDATA
SMB_ALERT#
PCIE_WAKE#
PM_BATLOW#_R
SPKR(26)
R531 0_4R531 0_4
R301 10K_4R301 10K_4
R299 10K_4R299 10K_4
R306 10K_4R306 10K_4
R222 10K_4R222 10K_4
Internal Pull up
R559 *10K_4R559 *10K_4
R540 *10K_4R540 *10K_4
R307 10K_4R307 10K_4
R558 2.2K_4R558 2.2K_4
R300 2.2K_4R300 2.2K_4
R541 10K_4R541 10K_4
R310 1K_4R310 1K_4
R297 8.2K_4R297 8.2K_4
C C
VR_PWRGD_CK410#(32)
No Reboot
strap
SPKR Low = Default
B B
SPKR
GPIO35
THERM_ALERT#
SERIRQ
CLKRUN#
MCH_ICH_SYNC#_R
KBSMI#_ICH
SCI#
ICH_GPIO48
RST_HDD#
GPIO36
GPIO37
PM_DPRSLPVR
A A
ICH_PWROK
ICH_GPIO14
HDPINT
ICH_GPIO39
High = No Reboot
R335 *10K_4R335 *10K_4
R373 10K_4R373 10K_4
R293 8.2K_4R293 8.2K_4
R374 10K_4R374 10K_4
R528 8.2K_4R528 8.2K_4
R546 *10K_4R546 *10K_4
R330 10K_4R330 10K_4
R526 10K_4R526 10K_4
R534 10K_4R534 10K_4
R340 10K_4R340 10K_4
R361 10K_4R361 10K_4
R353 8.2K_4R353 8.2K_4
R355 8.2K_4R355 8.2K_4
R548 100K_4R548 100K_4
R313 10K_4R313 10K_4
R317 10K_4R317 10K_4
R319 *10K_4R319 *10K_4
R527 10K_4R527 10K_4
5
MCH_ICH_SYNC#(6)
+3V
U34
U34
1
5
2
43
NC7SZ04
NC7SZ04
R537 100K_4R537 100K_4
C640 0.1u/10V_4C640 0.1u/10V_4
VR_PWRGD_CLKEN
+3V
DELAY_VR_PWRGOOD(3,6,32)
4
SCLK
SDATA
CL_RST#1
SMLINK0
SMLINK1
RI#
LPC_PD#
SYS_RST#
SMB_ALERT#
CLKRUN#
PCIE_WAKE#
SERIRQ
THERM_ALERT#
VR_PWRGD_CLKEN
ICH_TP7
SCI#
FM_DET
BOARD_ID0
BOARD_ID1
LOW_DET
BOARD_ID4
GPIO35
RST_HDD#
ICH_GPIO39
ICH_GPIO48
SPKR
MCH_ICH_SYNC#_R
+3V_S5
4
U33C
U33C
AJ26
SMBCLK
AD19
SMBDATA
AG21
LINKALERT#
AC17
SMLINK0
AE19
SMLINK1
AF17
RI#
F4
SUS_STAT#/LPCPD#
AD15
SYS_RESET#
AG12
BMBUSY#/GPIO0
AG22
SMBALERT#/GPIO11
AE20
STP_PCI#/GPIO15
AG18
STP_CPU#/GPIO25
AH11
CLKRUN#/GPIO32
AE17
WAKE#
AF12
SERIRQ
AC13
THRM#
AJ20
VRMPWRGD
AJ22
KBSMI#_ICH
01/09
REV_3B Add
TP7
AJ8
TACH1/GPIO1
AJ9
TACH2/GPIO6
AH9
TACH3/GPIO7
AE16
GPIO8
AC19
GPIO12
AG8
TACH0/GPIO17
AH12
GPIO18
AE11
GPIO20
AG10
SCLOCK/GPIO22
AH25
QRT_STATE0/GPIO27
AD16
QRT_STATE1/GPIO28
AG13
SATACLKREQ#/GPIO35
AF9
SLOAD/GPIO38
AJ11
SDATAOUT0/GPIO39
AD10
SDATAOUT1/GPIO48
AD9
SPKR
AJ13
MCH_SYNC#
AJ21
TP3
ICH8M REV 1.0
ICH8M REV 1.0
DELAY_VR_PWRGOOD
ECPWROK
R246 100K_4R246 100K_4
TC7SH08FU
TC7SH08FU
R365 Always mount
R365
R365
10K_4
10K_4
R360
R360
*10K_4
*10K_4
1
2
High : Main Strem
Low : Low Cost
10/22 REV_A1 Add FM_DET function
10/25 REV_A1 Change power
+3V_S5
R298 Always mount
R298
R298
10K_4
10K_4
FM_DET
R615
R615
High : W/O FM
Low : W/ FM
*0_4
*0_4
SATA
GPIO
SATA
GPIO
SMB
SMB
Clocks
Clocks
SYS
GPIO
SYS
GPIO
Power MGTController Link
Power MGTController Link
GPIO
GPIO
MISC
MISC
+3V_S5
53
U8
U8
ICH_PWROK
4
LOW_DET (28)
FM_DET (27)
3
SATA0GP/GPIO21
SATA1GP/GPIO19
SATA2GP/GPIO36
SATA3GP/GPIO37
CLK14
CLK48
SUSCLK
SLP_S3#
SLP_S4#
SLP_S5#
S4_STATE#/GPIO26
PWROK
DPRSLPVR/GPIO16
BATLOW#
PWRBTN#
LAN_RST#
RSMRST#
CK_PWRGD
CLPWROK
SLP_M#
CL_CLK0
CL_CLK1
CL_DATA0
CL_DATA1
CL_VREF0
CL_VREF1
CL_RST#
MEM_LED/GPIO24
ME_EC_ALERT/GPIO10
EC_ME_ALERT/GPIO14
WOL_EN/GPIO9
0.1u/10V_4C265 0.1u/10V_4C265
3
2
BOARD_ID3
AJ12
BOARD_ID2
AJ10
GPIO36
AF11
GPIO37
AG11
14M_ICH
AG9
CLKUSB_48
G5
D3
SLP_S3#
AG23
AF21
AD18
AH27
AE23
AJ14
AE21
C2
AH20
AG27
E1
E3
AJ25
F23
AE18
F22
AF19
D24
AH23
AJ23
AJ27
AJ24
AF22
AG19
R318 100_4R318 100_4
SLP_S4#
R332 100_4R332 100_4
SLP_S5#
ICH_PWROK
PM_DPRSLPVR_R
PM_BATLOW#_R
DNBSWON#
PM_LAN_ENABLE_R
RSMRST#_R
ECPWROK
CL_VREF0_SB
CL_VREF1_SB
ICH_GPIO24
HDPACT
ICH_GPIO14
HDPINT
R532 100_4R532 100_4
R552 *0_4R552 *0_4
T54T54
T88T88
PM_DPRSLPVR
PLTRST#
R219 0_4R219 0_4
T87T87
BL5 W/O LED panel ,BOARD_ID1 always keep low
+3V +3V+3V +3V+3V +3V
R354
R354
*10K_4
*10K_4
R337
R337
10K_4
10K_4
NEW CARD
CARD BUS
LED Panel
CCFL Panel
W/ G-SENSOR
W/O G-SENSOR
W/ S-VIDEO
W/O S-VIDEO
W/ HDMI
W/O HDMI
W/ FM
W/O FM
ID5
L
H
ID4
H
L
BOARD_ID3LOW_DET BOARD_ID2 BOARD_ID0BOARD_ID1BOARD_ID4
R529
R529
R544
R544
10K_4
10K_4
*10K_4
*10K_4
R356
R356
*10K_4
*10K_4
R357
R357
10K_4
10K_4
ID2ID3
H
L
H
L
H
L
2
14M_ICH (2)
CLKUSB_48 (2)
T37T37
SUSB# (29)
SUSC# (29)
PM_DPRSLPVR (6,32)CLKRUN#(23,29)
DNBSWON# (29)
PLTRST# (15,20,21,22,24,25,28,29)
CK_PWRGD (2)
ECPWROK (29)
MPWROK (6)
CL_CLK0 (6)
CL_CLK1 (25)
CL_DATA0 (6)
CL_DATA1 (25)
CL_RST#0 (6)
T89T89
T59T59
RSMRST#_R
R359
R530
R530
*10K_4
*10K_4
R545
R545
10K_4
10K_4
R359
10K_4
10K_4
R358
R358
*10K_4
*10K_4
ID0ID1Board ID
H
L
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
ICH8M GPIO(3 of 4)
ICH8M GPIO(3 of 4)
ICH8M GPIO(3 of 4)
Date: Sheet
Date: Sheet
Date: Sheet
1
CLKUSB_48 14M_ICH
R252
R252
*10_4
*10_4
C276
C276
*6.8p_4
*6.8p_4
PM_LAN_ENABLE_R
R327
R327
453/F_4
453/F_4
R367 *0_4R367 *0_4
R333
R333
10K_4
10K_4
R321
R321
2.2K_4
2.2K_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
R336
R336
3.24K/F_6
3.24K/F_6
C358
C358
0.1u/10V_4
0.1u/10V_4
3 1
2
2
3
1
2
3
1
R538 *10K_4R538 *10K_4
R543 10K_4R543 10K_4
Q22
Q22
MMBT3906
MMBT3906
R369 4.7K_4R369 4.7K_4
D22
D22
BAV99
BAV99
D21
D21
BAV99
BAV99
1
R248
R248
453/F_4
453/F_4
+3V+3V_S5
16 37Tuesday, January 22, 2008
16 37Tuesday, January 22, 2008
16 37Tuesday, January 22, 2008
R324
R324
*33_4
*33_4
C362
C362
*10p_4
*10p_4
R249
R249
3.24K/F_6
3.24K/F_6
C287
C287
0.1u/10V_4
0.1u/10V_4
RSMRST# (29)
of
of
of
+3V_S5
+3V
1A
1A
1A
5
21
D38
D38
+5V
PDZ5.6B
R487
R487
+5V_S5
10_6
10_6
D D
+1.5V
2 1
+1.5V
R542
R542
0_8
0_8
C C
B B
+3V
+1.5V
A A
+1.5V_PCIE
PDZ5.6B
C566
C566
0.1u/10V_4
0.1u/10V_4
L39
L39
FBMJ2125HS420-T_8
FBMJ2125HS420-T_8
D53
D53
VPORT_6
VPORT_6
01/21 REV_3B Add
R490 0_6R490 0_6
R270 0_6R270 0_6
R236 1_8R236 1_8
+1.5V_PCIE
R525
R525
0_8
0_8
+1.5V_USB
C303
C303
0.1u/10V_4
0.1u/10V_4
PBY160808T-301Y-N_6
PBY160808T-301Y-N_6
C306
C306
4.7u/10V_6
4.7u/10V_6
5
R244
R244
100/F_6
100/F_6
+
+
C583
C583
330u/2.5V_3528
330u/2.5V_3528
+1.5V_APLL_RR
L19
L19
+3V
+3V+3V_S5
21
C278
C278
10u/10V_6
10u/10V_6
VCCRTC
D15
D15
PDZ5.6B
PDZ5.6B
C338
C338
1u/10V_6
1u/10V_6
C318
C318
22u/10V_8
22u/10V_8
L41
L41
10uh_8
10uh_8
CV01001MN08
CV01001MN08
C310
C310
1u/10V_6
1u/10V_6
C316
C316
1u/10V_6
1u/10V_6
C328
C328
0.1u/10V_4
0.1u/10V_4
C570
C570
0.1u/10V_4
0.1u/10V_4
C273
C273
2.2u/6.3V_6
2.2u/6.3V_6
R247 0_6R247 0_6
C352
C352
1u/6.3V_4
1u/6.3V_4
C329
C329
22u/10V_8
22u/10V_8
+1.5V_APLL+1.5V_SATA
C617
C617
10u/10V_6
10u/10V_6
+1.5V_SATA
TP_VCCLAN1_05_ICH_1
TP_VCCLAN1_05_ICH_2
+3V_VCCLAN
4
C351
C351
C349
C349
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
+5VREF_SB
+5VREF_SUS_SB
C339
C339
2.2u/6.3V_6
2.2u/6.3V_6
C616
C616
1u/10V_6
1u/10V_6
+1.5V_VCCGLANPLL
+3V_GLAN
4
AD25
AA25
AA26
AA27
AB27
AB28
AB29
M24
M25
W25
AG7
AH7
AC1
AC2
AC3
AC4
AC5
AC10
AC9
AC7
AD7
W23
A16
T7
G4
D28
D29
E25
E26
E27
F24
F25
G24
H23
H24
J23
J24
K24
K25
L23
L24
L25
N23
N24
N25
P24
P25
R24
R25
R26
R27
T23
T24
T27
T28
T29
U24
U25
V23
V24
V25
Y25
AJ6
AE7
AF7
AJ7
AA5
AA6
G12
G17
H7
D1
F1
L6
L7
M6
M7
F17
G18
F19
G20
A24
A26
A27
B26
B27
B28
B25
U33F
U33F
VCCRTC
V5REF[1]
V5REF[2]
V5REF_SUS
VCC1_5_B[01]
VCC1_5_B[02]
VCC1_5_B[03]
VCC1_5_B[04]
VCC1_5_B[05]
VCC1_5_B[06]
VCC1_5_B[07]
VCC1_5_B[08]
VCC1_5_B[09]
VCC1_5_B[10]
VCC1_5_B[11]
VCC1_5_B[12]
VCC1_5_B[13]
VCC1_5_B[14]
VCC1_5_B[15]
VCC1_5_B[16]
VCC1_5_B[17]
VCC1_5_B[18]
VCC1_5_B[19]
VCC1_5_B[20]
VCC1_5_B[21]
VCC1_5_B[22]
VCC1_5_B[23]
VCC1_5_B[24]
VCC1_5_B[25]
VCC1_5_B[26]
VCC1_5_B[27]
VCC1_5_B[28]
VCC1_5_B[29]
VCC1_5_B[30]
VCC1_5_B[31]
VCC1_5_B[32]
VCC1_5_B[33]
VCC1_5_B[34]
VCC1_5_B[35]
VCC1_5_B[36]
VCC1_5_B[37]
VCC1_5_B[38]
VCC1_5_B[39]
VCC1_5_B[40]
VCC1_5_B[41]
VCC1_5_B[42]
VCC1_5_B[43]
VCC1_5_B[44]
VCC1_5_B[45]
VCC1_5_B[46]
VCCSATAPLL
VCC1_5_A[01]
VCC1_5_A[02]
VCC1_5_A[03]
VCC1_5_A[04]
VCC1_5_A[05]
VCC1_5_A[06]
VCC1_5_A[07]
VCC1_5_A[08]
VCC1_5_A[09]
VCC1_5_A[10]
VCC1_5_A[11]
VCC1_5_A[12]
VCC1_5_A[13]
VCC1_5_A[14]
VCC1_5_A[15]
VCC1_5_A[16]
VCC1_5_A[17]
VCC1_5_A[18]
VCC1_5_A[19]
VCCUSBPLL
VCC1_5_A[20]
VCC1_5_A[21]
VCC1_5_A[22]
VCC1_5_A[23]
VCC1_5_A[24]
VCC1_5_A[25]
VCCLAN1_05[1]
VCCLAN1_05[2]
VCCLAN3_3[1]
VCCLAN3_3[2]
VCCGLANPLL
VCCGLAN1_5[1]
VCCGLAN1_5[2]
VCCGLAN1_5[3]
VCCGLAN1_5[4]
VCCGLAN1_5[5]
VCCGLAN3_3
ICH8M REV 1.0
ICH8M REV 1.0
CORE
CORE
VCCA3GP ATXARX
VCCA3GP ATXARX
VCCP_COREVCCPSUSVCCPUSB
VCCP_COREVCCPSUSVCCPUSB
IDE
IDE
PCI
PCI
VCCSUS1_05[1]
VCCSUS1_05[2]
VCCSUS1_5[1]
VCCSUS1_5[2]
VCCSUS3_3[01]
VCCSUS3_3[02]
VCCSUS3_3[03]
VCCSUS3_3[04]
VCCSUS3_3[05]
USB CORE
USB CORE
VCCSUS3_3[06]
VCCSUS3_3[07]
VCCSUS3_3[08]
VCCSUS3_3[09]
VCCSUS3_3[10]
VCCSUS3_3[11]
VCCSUS3_3[12]
VCCSUS3_3[13]
VCCSUS3_3[14]
VCCSUS3_3[15]
VCCSUS3_3[16]
VCCSUS3_3[17]
VCCSUS3_3[18]
VCCSUS3_3[19]
GLAN POWER
GLAN POWER
VCC1_05[01]
VCC1_05[02]
VCC1_05[03]
VCC1_05[04]
VCC1_05[05]
VCC1_05[06]
VCC1_05[07]
VCC1_05[08]
VCC1_05[09]
VCC1_05[10]
VCC1_05[11]
VCC1_05[12]
VCC1_05[13]
VCC1_05[14]
VCC1_05[15]
VCC1_05[16]
VCC1_05[17]
VCC1_05[18]
VCC1_05[19]
VCC1_05[20]
VCC1_05[21]
VCC1_05[22]
VCC1_05[23]
VCC1_05[24]
VCC1_05[25]
VCC1_05[26]
VCC1_05[27]
VCC1_05[28]
VCCDMIPLL
VCC_DMI[1]
VCC_DMI[2]
V_CPU_IO[1]
V_CPU_IO[2]
VCC3_3[01]
VCC3_3[02]
VCC3_3[03]
VCC3_3[04]
VCC3_3[05]
VCC3_3[06]
VCC3_3[07]
VCC3_3[08]
VCC3_3[09]
VCC3_3[10]
VCC3_3[11]
VCC3_3[12]
VCC3_3[13]
VCC3_3[14]
VCC3_3[15]
VCC3_3[16]
VCC3_3[17]
VCC3_3[18]
VCC3_3[19]
VCC3_3[20]
VCC3_3[21]
VCC3_3[22]
VCC3_3[23]
VCC3_3[24]
VCCHDA
VCCSUSHDA
VCCCL1_05
VCCCL1_5
VCCCL3_3[1]
VCCCL3_3[2]
A13
B13
C13
C14
D14
E14
F14
G14
L11
L12
L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18
R29
AE28
AE29
AC23
AC24
AF29
AD2
AC8
AD8
AE8
AF8
AA3
U7
V7
W1
W6
W7
Y7
A8
B15
B18
B4
B9
C15
D13
D5
E10
E7
F11
AC12
AD11
J6
AF20
AC16
J7
C3
AC18
AC21
AC22
AG20
AH28
P6
P7
C1
N7
P1
P2
P3
P4
P5
R1
R3
R5
R6
G22
A22
F20
G21
TP_VCCCL1_05_ICH
VCCCL1_5_INT_ICH
+V3.3M_ICH
3
+1.05V_SB
C331
C331
0.1u/10V_4
0.1u/10V_4
VCCDMIPLL_ICH
+1.25V_DMI
+1.05V_V_CPU_IO
+V3.3_DMI_ICH
+V3.3_SATA_ICH
+V3.3S_VCCPCORE_ICH
+V3.3S_IDE_ICH
C340
C340
0.1u/10V_4
0.1u/10V_4
+V3.3S_PCI_ICH
C279
C279
0.1u/10V_4
0.1u/10V_4
+3V_1.5V_HDA_IO_ICH
+VCCSUSHDA
TP_VCCSUS1_05_ICH_1
TP_VCCSUS1_05_ICH_2
TP_VCCSUS1_5_ICH_1
TP_VCCSUS1_5_ICH_2
+V3.3A_ICH
+V3.3A_USB_ICH
R269 0_6R269 0_6
3
R241 0_1206R241 0_1206
C337
C337
10u/10V_8
10u/10V_8
C357
C357
22u/10V_8
22u/10V_8
C298
C298
0.1u/10V_4
0.1u/10V_4
C370
C370
0.1u/10V_4
0.1u/10V_4
R289 0_8R289 0_8
C333
C333
4.7u/10V_6
4.7u/10V_6
C275
C275
1u/10V_6
1u/10V_6
C334
C334
0.01u_4
0.01u_4
R320 0_8R320 0_8
C343
C343
0.1u/10V_4
0.1u/10V_4
C348
C348
0.1u/10V_4
0.1u/10V_4
C344
C344
0.1u/16V_6
0.1u/16V_6
R362 0_6R362 0_6
C375
C375
22n/16V_4
22n/16V_4
C277
C277
0.1u/10V_4
0.1u/10V_4
+1.05V
D52 VPORT_6D52 VPORT_6
2 1
01/21 REV_3B Add
L23
C336
C336
10u/10V_6
10u/10V_6
+1.25V
C341
C341
0.1u/10V_4
0.1u/10V_4
C619
C619
0.1u/10V_4
0.1u/10V_4
C289
C289
0.1u/10V_4
0.1u/10V_4
R296 0_6R296 0_6
+3V_S5
TP_VCCLAN1_05_ICH_1
TP_VCCLAN1_05_ICH_2
TP_VCCSUS1_05_ICH_1
TP_VCCSUS1_05_ICH_2
TP_VCCSUS1_5_ICH_1
TP_VCCSUS1_5_ICH_2
TP_VCCCL1_05_ICH
+3V
2
R286 1_8R286 1_8L23
PBY160808T-301Y-N_6
PBY160808T-301Y-N_6
R276 0_6R276 0_6
C322
C322
4.7u/10V_6
4.7u/10V_6
R554 0_6R554 0_6
R308 0_6R308 0_6
R311 0_6R311 0_6
R302 0_6R302 0_6
R245 0_6R245 0_6
+3V_S5
D54 VPORT_6D54 VPORT_6
2 1
01/21 REV_3B Add
D55 VPORT_6D55 VPORT_6
2 1
01/21 REV_3B Add
C309 0.1u/16V_6C309 0.1u/16V_6
C308 0.1u/16V_6C308 0.1u/16V_6
C307 0.1u/16V_6C307 0.1u/16V_6
C369 0.1u/16V_6C369 0.1u/16V_6
T53T53
T50T50
T47T47
2
+1.5V
+1.05V
+3V
R294 0_6R294 0_6
C342
C342
0.1u/10V_4
0.1u/10V_4
1
U33E
U33E
A23
VSS[001]
A5
VSS[002]
AA2
VSS[003]
AA7
VSS[004]
A25
VSS[005]
AB1
VSS[006]
AB24
VSS[007]
AC11
VSS[008]
AC14
VSS[009]
AC25
VSS[010]
AC26
VSS[011]
AC27
VSS[012]
AD17
VSS[013]
AD20
VSS[014]
AD28
VSS[015]
AD29
VSS[016]
AD3
VSS[017]
AD4
VSS[018]
AD6
VSS[019]
AE1
VSS[020]
AE12
VSS[021]
AE2
VSS[022]
AE22
VSS[023]
AD1
VSS[024]
AE25
VSS[025]
AE5
VSS[026]
AE6
VSS[027]
AE9
VSS[028]
AF14
VSS[029]
AF16
VSS[030]
AF18
VSS[031]
AF3
VSS[032]
AF4
VSS[033]
AG5
VSS[034]
AG6
VSS[035]
AH10
VSS[036]
AH13
VSS[037]
AH16
VSS[038]
AH19
VSS[039]
AH2
VSS[040]
AF28
VSS[041]
AH22
VSS[042]
AH24
VSS[043]
AH26
VSS[044]
AH3
VSS[045]
AH4
VSS[046]
AH8
VSS[047]
AJ5
VSS[048]
B11
VSS[049]
B14
VSS[050]
B17
VSS[051]
B2
VSS[052]
B20
VSS[053]
B22
VSS[054]
B8
VSS[055]
C24
VSS[056]
C26
VSS[057]
C27
VSS[058]
C6
VSS[059]
D12
VSS[060]
D15
VSS[061]
D18
VSS[062]
D2
VSS[063]
D4
VSS[064]
+3V
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
E21
VSS[065]
E24
VSS[066]
E4
VSS[067]
E9
VSS[068]
F15
VSS[069]
E23
VSS[070]
F28
VSS[071]
F29
VSS[072]
F7
VSS[073]
G1
VSS[074]
E2
VSS[075]
G10
VSS[076]
G13
VSS[077]
G19
VSS[078]
G23
VSS[079]
G25
VSS[080]
G26
VSS[081]
G27
VSS[082]
H25
VSS[083]
H28
VSS[084]
H29
VSS[085]
H3
VSS[086]
H6
VSS[087]
J1
VSS[088]
J25
VSS[089]
J26
VSS[090]
J27
VSS[091]
J4
VSS[092]
J5
VSS[093]
K23
VSS[094]
K28
VSS[095]
K29
VSS[096]
K3
VSS[097]
K6
VSS[098]
ICH8M REV 1.0
ICH8M REV 1.0
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
ICH8M Power(4 of 4)
ICH8M Power(4 of 4)
ICH8M Power(4 of 4)
VSS_NCTF[01]
VSS_NCTF[02]
VSS_NCTF[03]
VSS_NCTF[04]
VSS_NCTF[05]
VSS_NCTF[06]
VSS_NCTF[07]
VSS_NCTF[08]
VSS_NCTF[09]
VSS_NCTF[10]
VSS_NCTF[11]
VSS_NCTF[12]
1
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
K7
L1
L13
L15
L26
L27
L4
L5
M12
M13
M14
M15
M16
M17
M23
M28
M29
M3
N1
N11
N12
N13
N14
N15
N16
N17
N18
N26
N27
N4
N5
N6
P12
P13
P14
P15
P16
P17
P23
P28
P29
R11
R12
R13
R14
R15
R16
R17
R18
R28
R4
T12
T13
T14
T15
T16
T17
T2
U12
U13
U14
U15
U16
U17
U23
U26
U27
U3
U5
V13
V15
V28
V29
W2
W26
W27
Y28
Y29
Y4
AB4
AB23
AB5
AB6
AD5
U4
W24
A1
A2
A28
A29
AH1
AH29
AJ1
AJ2
AJ28
AJ29
B1
B29
of
of
of
17 37Tuesday, January 22, 2008
17 37Tuesday, January 22, 2008
17 37Tuesday, January 22, 2008
1A
1A
1A
5
4
3
2
1

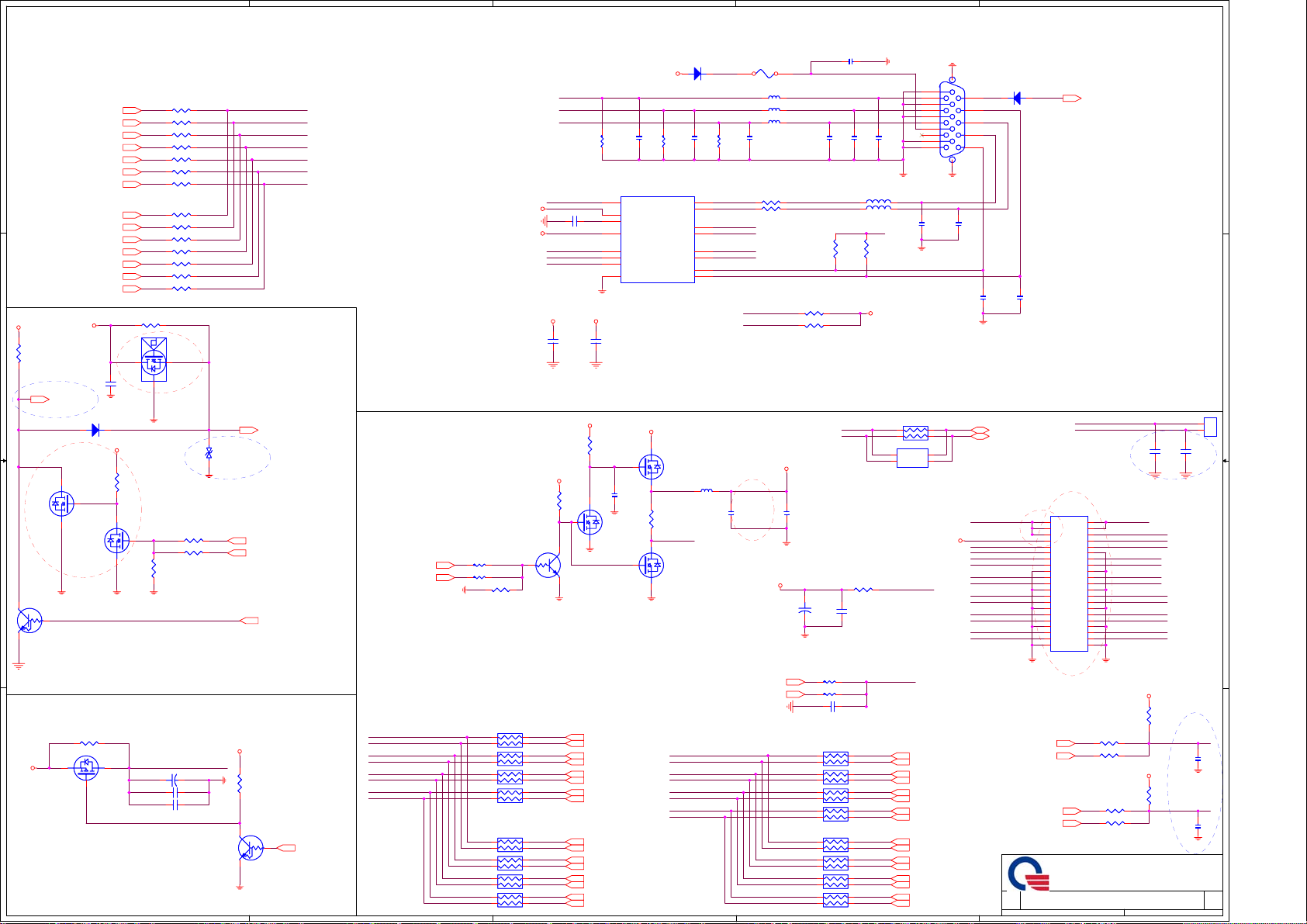

CRT PORT
D1 SSM14D1 SSM14
2 1
+5V
+5V
+3V
CRT_R
CRT_G
CRT_B
5V_CRT2
C437 0.22u/10V_6C437 0.22u/10V_6
CRT_R1
CRT_G1
CRT_B1
R3
150/F_4R3150/F_4
1
7
8
2
3
4
5
6
U18
U18
VCC_SYNC
VCC_DDC
BYP
VCC_VIDEO
VIDEO_1
VIDEO_2
VIDEO_3
GND
CM2009
CM2009
C8
10p_4C810p_4
R2
150/F_4R2150/F_4
SYNC_OUT2
SYNC_OUT1
SYNC_IN2
SYNC_IN1
DDC_IN1
DDC_IN2
DDC_OUT1
DDC_OUT2
16
14
15
13
10
11
9
12
C6
10p_4C610p_4
VSYNC1
HSYNC1
VSYNC
HSYNC
DDCCLK
DDCDAT
CRTDCLK
CRTDDAT
D D
EV_CRT_R(19)
EV_CRT_G(19)
EV_CRT_B(19)
EV_CRT_HSYNC(19)
EV_CRT_VSYNC(19)
EV_CRT_DDCCLK(19)
EV_CRT_DDCDAT(19)
INT_CRT_RED(6)
INT_CRT_GRN(6)
INT_CRT_BLU(6)
INT_HSYNC(6)
INT_VSYNC(6)
INT_CRT_DDCCLK(6)
INT_CRT_DDCDAT(6)
R179 EV@0_4R179 EV@0_4
R169 EV@0_4R169 EV@0_4
R167 EV@0_4R167 EV@0_4
R182 EV@0_4R182 EV@0_4
R188 EV@0_4R188 EV@0_4
R214 EV@0_4R214 EV@0_4
R217 EV@0_4R217 EV@0_4
R165 IV@0_4R165 IV@0_4
R158 IV@0_4R158 IV@0_4
R157 IV@0_4R157 IV@0_4
R180 IV@0_4R180 IV@0_4
R183 IV@0_4R183 IV@0_4
R213 IV@0_4R213 IV@0_4
R216 IV@0_4R216 IV@0_4
CRT_R
CRT_G
CRT_B
HSYNC
VSYNC
DDCCLK
DDCDAT
H=1.75mm
+3V
PDTC143TT
PDTC143TT
Q35
Q35
2
R18
R18
100K_4
100K_4
+5V
+3VPCU
C438
C438
0.1u/10V_4
0.1u/10V_4
330K_6
330K_6
2
1 3
R410
R410
+15V
3
1
LCDON#
C439
C439
0.1u/10V_4
0.1u/10V_4
LCDONG
Q31
Q31
2N7002
2N7002
65mil
C431
C431
0.01u_4
0.01u_4
Q30
Q30
2N7002
2N7002
+3V
3
Q32
Q32
12/06 REV_3A Del C421
AO3404
AO3404
2
1
3
2
1
LCDVCC1
65mil
R409
R409
22_8
22_8
LCDDISCHG
L29
L29
0_6
0_6
C422
C422
0.1u/16V_4
0.1u/16V_4
+3V
C C
B B
1 3
+3VPCU
R391
R391
1K_4
1K_4
DISPON (29)
01/08 REV_3B Add to control MMB LED
DISPON
D33 BAS316D33 BAS316
DISPON
3
2
Q53
Q53
2N7002
2N7002
1
2N7002
2N7002
2
Q28
Q28
DTC144EU
DTC144EU
R599 100K_4R599 100K_4
10/26 REV_A1 Change Value
LID591#
2
1
MR1
C418
C418
0.1u/10V_4
0.1u/10V_4
+3V
BL#
3
Q54
Q54
1
MR1
PT3661-BB
PT3661-BB
3
D56
D56
VPORT_6
VPORT_6
R584
R584
10K_4
10K_4
12/07 REV_3A Del D34,R601
12/07 REV_3A Add Q53,Q54,R584
2
R602
R602
100K_4
100K_4
2 1
01/21 REV_3B Add
R600 IV@0_4R600 IV@0_4
R402 EV@0_4R402 EV@0_4
LID591# (29)
INT_LVDS_BLON (6)
EV_LVDS_BLON (19)
EC_FPBACK# (29)
EV_LVDS_BL_BRGHT(19)
INT_LVDS_DIGON(6)
R419 EV@0_4R419 EV@0_4
R420 IV@0_4R420 IV@0_4
R418
R418
100K_4
100K_4
HALL SENSOR
L4 BLM18BA220SN1D_6L4 BLM18BA220SN1D_6
L3 BLM18BA220SN1D_6L3 BLM18BA220SN1D_6
L2 BLM18BA220SN1D_6L2 BLM18BA220SN1D_6
C4
R1
10p_4C410p_4
150/F_4R1150/F_4
R414 39_4R414 39_4
R416 39_4R416 39_4
DDCCLK
DDCDAT
65mil
INT_LVDS_PWM(6)
CONTRAST(29)
F1
F1
12
FUSE1A6V_POLY-1A-6V
FUSE1A6V_POLY-1A-6V
LCDVCC
VIN
10u/25V_1206
10u/25V_1206
CAMERA MODULE
TXLCLKOUT+
R413CM@0_8 R413CM@0_8
CCD_POWER
+
+
C426 *CM@10u/10V_8
C426 *CM@10u/10V_8
C427 *CM@1000p_4C427 *CM@1000p_4
C428 *CM@0.1u/10V_4C428 *CM@0.1u/10V_4
5
Q34
Q34
2
*CM@AO3413
*CM@AO3413
3
1
+5V
A A
+5V
R411
R411
*CM@4.7K_4
*CM@4.7K_4
1 3
2
Q33
Q33
*CM@DTC144EU
*CM@DTC144EU
CCD_POWERON (29)
TXLCLKOUTÂTXLOUT0-
TXLOUT0+
TXLOUT1+
TXLOUT1ÂTXLOUT2-
TXLOUT2+
4
RN9 IV@0X2RN9 IV@0X2
2
1
4
RN8 IV@0X2RN8 IV@0X2
RN7 IV@0X2RN7 IV@0X2
RN15 IV@0X2RN15 IV@0X2
RN18 EV@0X2RN18 EV@0X2
RN17 EV@0X2RN17 EV@0X2
RN16 EV@0X2RN16 EV@0X2
RN14 EV@0X2RN14 EV@0X2
3
4
3
2
1
2
1
4
3
4
3
2
1
2
1
4
3
4
3
2
1
2
1
4
3
4
3
2
1
INT_TXLCLKOUT+ (6)
INT_TXLCLKOUT- (6)
INT_TXLOUT0- (6)
INT_TXLOUT0+ (6)
INT_TXLOUT1+ (6)
INT_TXLOUT1- (6)
INT_TXLOUT2- (6)
INT_TXLOUT2+ (6)
EV_LVDS_LCLK (19)
EV_LVDS_LCLK# (19)
EV_LVDS_LTX#0 (19)
EV_LVDS_LTX0 (19)
EV_LVDS_LTX1 (19)
EV_LVDS_LTX#1 (19)
EV_LVDS_LTX#2 (19)
EV_LVDS_LTX2 (19)
3
TXUCLKOUTÂTXUCLKOUT+
TXUOUT0+
TXUOUT0-
TXUOUT1ÂTXUOUT1+
TXUOUT2+
TXUOUT2-
RN19 EV@0X2RN19 EV@0X2
RN20 EV@0X2RN20 EV@0X2
RN13 EV@0X2RN13 EV@0X2
RN12 EV@0X2RN12 EV@0X2
C1 0.1u/10V_4C1 0.1u/10V_4
5V_CRT2
25 MIL
C3
10p_4C310p_4
VSYNC1_CRT
HSYNC1_CRT
R421 2.2K_4R421 2.2K_4
R422 2.2K_4R422 2.2K_4
C423
C423
10u/6.3V_6
10u/6.3V_6
C425
C425
+
+
RN10 IV@0X2RN10 IV@0X2
RN11 IV@0X2RN11 IV@0X2
RN6 IV@0X2RN6 IV@0X2
RN5 IV@0X2RN5 IV@0X2
L30 BLM18BA220SN1L30 BLM18BA220SN1
L31
L31
R412
R412
2.7K_4
2.7K_4
USBP2+_C
USBP2-_C
12
C424
C424
1000p_4
1000p_4
R5 IV@*0_4R5 IV@*0_4
R4 0_4R4 0_4
C13 *0.1u/10V_4C13 *0.1u/10V_4
2
4
4
2
2
4
4
2
1
3
3
1
1
3
3
1
CRT_R1
CRT_G1
CRT_B1
C5
10p_4C510p_4
BLM18BA220SN1
BLM18BA220SN1
5V_CRT2
R417
R417
2.7K_4
2.7K_4
+3V
R4080_8 R4080_8
1
3
3
1
1
3
3
1
2
4
4
2
2
4
4
2
2
CN16
CN16
1617
CRT_DSUB-070549FR015SX03CX-15P-V
CRT_DSUB-070549FR015SX03CX-15P-V
6
111
7
12
2
8
13
3
9
14
10
CRTHSYNC
C430
C430
10p_4
10p_4
0_4P2R_S
0_4P2R_S
2
4
*DLW21HN900SQ2L
*DLW21HN900SQ2L
443
1
1
2
L1
L1
4
5
1
3
3
2
CRTVSYNC
C432
C432
10p_4
10p_4
15
C7
10p_4C710p_4
RP1
RP1
10/22 REV_A1 Add pin3 to INVCC0
+3V
INVCC0
LVDS_VADJ
INT_TXUCLKOUT- (6)
INT_TXUCLKOUT+ (6)
INT_TXUOUT0+ (6)
INT_TXUOUT0- (6)
INT_TXUOUT1- (6)
INT_TXUOUT1+ (6)
INT_TXUOUT2+ (6)
INT_TXUOUT2- (6)
EV_LVDS_UCLK# (19)
EV_LVDS_UCLK (19)
EV_LVDS_UTX0 (19)
EV_LVDS_UTX#0 (19)
EV_LVDS_UTX#1 (19)
EV_LVDS_UTX1 (19)
EV_LVDS_UTX2 (19)
EV_LVDS_UTX#2 (19)
D35 *MTW355D35 *MTW355
C429
C429
C435
C435
10p_4
10p_4
10p_4
10p_4
USBP2+ (15)
USBP2- (15)
LCD PANEL MODULE
INVCC0
CCD_POWER
MIC_GND
MIC_DATA
DISPON
TXLCLKOUT+
TXLCLKOUT- TXUCLKOUT-
TXLOUT0+
TXLOUT0-
TXLOUT1+
TXLOUT1-
TXLOUT2+
TXLOUT2-
10/22 REV_A1 Change P/N
8/14 Modify Pin Define
EV_LVDS_DDCCLK(19)
INT_LVDS_EDIDCLK(6)
EV_LVDS_DDCDAT(19)
INT_LVDS_EDIDDATA(6)
01/03 REV_3B Change C669,C670 to 220p
12/06 REV_3A Add C669,C670 for EMI
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
LCD/CRT/LID/CAMERA
LCD/CRT/LID/CAMERA
LCD/CRT/LID/CAMERA
Date: Sheet
Date: Sheet
Date: Sheet
CRT_SENSE# (15,29)
MIC_DATA
MIC_GND
C10
C10
220p_4
220p_4
01/03 REV_3B Mount C9,C10 for EMI
CN1
CN1
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41 42
ACES_88242-40XX_LVDS
ACES_88242-40XX_LVDS
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
LCDVCC
2
4
LCD_EDIDDATA
6
LCD_EDIDCLK
8
LVDS_VADJ
10
12
USBP2+_C
14
USBP2-_C
16
18
TXUCLKOUT+
20
22
24
TXUOUT0+
26
TXUOUT0-
28
30
TXUOUT1+
32
TXUOUT1-
34
36
TXUOUT2+
38
TXUOUT2-
40
R468 EV@0_4R468 EV@0_4
R465 IV@0_4R465 IV@0_4
R469 EV@0_4R469 EV@0_4
R466 IV@0_4R466 IV@0_4
1
+3V
+3V
R464
R464
2.2K_4
2.2K_4
R470
R470
2.2K_4
2.2K_4
LCD_EDIDDATA
18 37Tuesday, January 22, 2008
18 37Tuesday, January 22, 2008
18 37Tuesday, January 22, 2008
C9
220p_4C9220p_4
LCD_EDIDCLK
C669
C669
220p_4
220p_4
C670
C670
220p_4
220p_4
of
of
of
INT_MIC
INT_MIC
CN2
CN2
2
1
1A
1A
1A
5
CN25
PEG_TXN15(6)
PEG_TXP15(6)
PEG_TXN14(6)
PEG_TXP14(6)
PEG_TXN13(6)
PEG_TXP13(6)
PEG_TXN12(6)
D D
C C
EV_CRT_DDCCLK(18)
EV_CRT_DDCDAT(18)
EV_HDMI_DDCCLK(21)
EV_HDMI_DDCDATA(21)
EV_LVDS_DDCCLK(18)
EV_LVDS_DDCDAT(18)
B B
EV_LVDS_LTX#2(18)
EV_LVDS_LTX#1(18)
EV_LVDS_LTX#0(18)
EV_LVDS_LCLK#(18)
EV_LVDS_LCLK(18)
10/24 REV_A1 Modify
A A
PEG_TXP12(6)
PEG_TXN11(6)
PEG_TXP11(6)
PEG_TXN10(6)
PEG_TXP10(6)
PEG_TXN9(6)
PEG_TXP9(6)
PEG_TXN8(6)
PEG_TXP8(6)
PEG_TXN7(6)
PEG_TXP7(6)
PEG_TXN6(6)
PEG_TXP6(6)
PEG_TXN5(6)
PEG_TXP5(6)
PEG_TXN4(6)
PEG_TXP4(6)
PEG_TXN3(6)
PEG_TXP3(6)
PEG_TXN2(6)
PEG_TXP2(6)
PEG_TXN1(6)
PEG_TXP1(6)
PEG_TXN0(6)
PEG_TXP0(6)
EV_CRT_R(18)
EV_CRT_G(18)
EV_CRT_B(18)
EV_LVDS_LTX2(18)
EV_LVDS_LTX1(18)
EV_LVDS_LTX0(18)
EV_TV_C/R(22)
EV_TV_Y/G(22)
T94T94
EV_HDMICLK-(21)
EV_HDMICLK+(21)
EV_HDMITX2N(21)
EV_HDMITX2P(21)
EV_HDMITX1N(21)
EV_HDMITX1P(21)
EV_HDMITX0N(21)
EV_HDMITX0P(21)
5
PEG_TXN15
PEG_TXP15
PEG_TXN14
PEG_TXP14
PEG_TXN13
PEG_TXP13
PEG_TXN12
PEG_TXP12
PEG_TXN11
PEG_TXP11
PEG_TXN10
PEG_TXP10
PEG_TXN9
PEG_TXP9
PEG_TXN8
PEG_TXP8
PEG_TXN7
PEG_TXP7
PEG_TXN6
PEG_TXP6
PEG_TXN5
PEG_TXP5
PEG_TXN4
PEG_TXP4
PEG_TXN3
PEG_TXP3
PEG_TXN2
PEG_TXP2
PEG_TXN1
PEG_TXP1
PEG_TXN0
PEG_TXP0
EV_CRT_DDCCLK
EV_CRT_DDCDAT
EV_HDMI_DDCCLK
EV_HDMI_DDCDAT
EV_LVDS_DDCCLK
EV_LVDS_DDCDAT
EV_CRT_R
EV_CRT_G
EV_CRT_B
EV_LVDS_LTX#2
EV_LVDS_LTX2
EV_LVDS_LTX#1
EV_LVDS_LTX1
EV_LVDS_LTX#0
EV_LVDS_LTX0
EV_LVDS_LCLK#
EV_LVDS_LCLK
EV_TV_C/R
EV_TV_Y/G
EV_TV_COMP
EV_HDMICLK-
EV_HDMICLK+
EV_HDMITX2N
EV_HDMITX2P
EV_HDMITX1N
EV_HDMITX1P
EV_HDMITX0N
EV_HDMITX0P
VIN VIN
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
2
2
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
20
22
22
24
24
26
26
28
28
30
30
32
32
34
34
36
36
38
38
40
40
42
42
44
44
46
46
48
48
50
50
52
52
54
54
56
56
58
58
60
60
62
62
64
64
66
66
68
68
70
70
72
72
74
74
76
76
78
78
80
80
82
82
84
84
86
86
88
88
90
90
92
92
94
94
96
96
98
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
CN25
101
103
105
107
109
111
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
181
183
185
187
189
191
193
195
197
199
*Tyco
*Tyco
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
4
PEG_RXN15
1
PEG_RXP15
3
5
PEG_RXN14
7
PEG_RXP14
9
11
PEG_RXN13
13
PEG_RXP13
15
17
PEG_RXN12
19
PEG_RXP12
21
23
PEG_RXN11
25
PEG_RXP11
27
29
PEG_RXN10
31
PEG_RXP10
33
35
PEG_RXN9
37
PEG_RXP9
39
41
PEG_RXN8
43
PEG_RXP8
45
47
PEG_RXN7
49
PEG_RXP7
51
53
PEG_RXN6
55
PEG_RXP6
57
59
PEG_RXN5
61
PEG_RXP5
63
65
PEG_RXN4
67
PEG_RXP4
69
71
PEG_RXN3
73
PEG_RXP3
75
77
PEG_RXN2
79
PEG_RXP2
81
83
PEG_RXN1
85
PEG_RXP1
87
89
PEG_RXN0
91
PEG_RXP0
93
95
CLK_MXM#
97
CLK_MXM
99
101
GFXRST#
103
SYSFANON#
105
GFXON
107
GFXPG
109
3ND_MBDATA
111
3ND_MBCLK
113
EV_LVDS_BLON
115
EV_LVDS_BL_BRGHT
117
DVI_HPD
119
121
EV_CRT_HSYNC
123
EV_CRT_VSYNC
125
127
EV_LVDS_UTX#2
129
EV_LVDS_UTX2
131
133
EV_LVDS_UTX#1
135
EV_LVDS_UTX1
137
139
EV_LVDS_UTX#0
141
EV_LVDS_UTX0
143
145
EV_LVDS_UCLK#
147
EV_LVDS_UCLK
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
181
183
185
187
189
191
193
195
197
199
+5V
+3V
VIN_VGAVIN_VGA VIN
4
PEG_RXN15 (6)
PEG_RXP15 (6)
PEG_RXN14 (6)
PEG_RXP14 (6)
PEG_RXN13 (6)
PEG_RXP13 (6)
PEG_RXN12 (6)
PEG_RXP12 (6)
PEG_RXN11 (6)
PEG_RXP11 (6)
PEG_RXN10 (6)
PEG_RXP10 (6)
PEG_RXN9 (6)
PEG_RXP9 (6)
PEG_RXN8 (6)
PEG_RXP8 (6)
PEG_RXN7 (6)
PEG_RXP7 (6)
PEG_RXN6 (6)
PEG_RXP6 (6)
PEG_RXN5 (6)
PEG_RXP5 (6)
PEG_RXN4 (6)
PEG_RXP4 (6)
PEG_RXN3 (6)
PEG_RXP3 (6)
PEG_RXN2 (6)
PEG_RXP2 (6)
PEG_RXN1 (6)
PEG_RXP1 (6)
PEG_RXN0 (6)
PEG_RXP0 (6)
CLK_MXM# (2)
CLK_MXM (2)
GFXRST# (15)
SYSFANON# (3)
GFXPG (29)
3ND_MBDATA (21,28,29)
3ND_MBCLK (21,28,29)
EV_LVDS_BLON (18)
EV_LVDS_BL_BRGHT (18)
DVI_HPD (21)
EV_CRT_HSYNC (18)
EV_CRT_VSYNC (18)
EV_LVDS_UTX#2 (18)
EV_LVDS_UTX2 (18)
EV_LVDS_UTX#1 (18)
EV_LVDS_UTX1 (18)
EV_LVDS_UTX#0 (18)
EV_LVDS_UTX0 (18)
EV_LVDS_UCLK# (18)
EV_LVDS_UCLK (18)
R478 *0_8R478 *0_8
+5V
+3V
C532
C532
0.1u/10V_4
0.1u/10V_4
C533
C533
0.1u/10V_4
0.1u/10V_4
VIN
C536
C536
0.1u/50V_6
0.1u/50V_6
C535
C535
10u/10V_6
10u/10V_6
C534
C534
10u/10V_6
10u/10V_6
3
USBVGA
+5VPCU
POLY SWITCH 1.5A/6V_1206
POLY SWITCH 1.5A/6V_1206
USBP9+(15)
USBP9-(15)
USBP7+(15)
USBP7-(15)
MAINON (29,33,34,35)
USBPWR0
+
+
F3
F3
USBP9+
USBP9-
USBP7+
USBP7-
C565
C565
100u/6.3V_3528
100u/6.3V_3528
USB_EN#(29)
USBP7ÂUSBP7+
USBPOWER
C419
C419
4.7u/10V_6
4.7u/10V_6
CN28
CN28
1
5
2
6
3
7
4
8
USB
USB
09/23 REV_A1 Change footprint 09/23 REV_A1 Change footprint
USB board connector
+5VPCU
C663
C663
0.1u/10V_4
0.1u/10V_4
09/20 REV_A1 Modify
+5VPCU
USBOC#1(15,29)
USBP1+(15)
USBP1-(15)
USBP0+(15)
USBP0-(15)
USB_EN#1(29)
+5VPCU
BT@88266-100XX-XXX-10P-R
09/29 REV_A1 Modify 10/16 REV_A1 Modify
3
BT@88266-100XX-XXX-10P-R
USB_EN#1
C664
C664
0.1u/10V_4
0.1u/10V_4
USBP1+
USBP1ÂUSBP0+
USBP0-
10/24 REV_A1 Add for EMI
CN11
CN11
1
1211
2
3
4
5
6
7
8
9
10
2
U16
U16
RT9711BPF
RT9711BPF
2
IN1
IN23OUT2
4
EN#
1
GND
9
GND-C
OUT3
OUT1
OC#
USBPWR0
8
7
6
R394 *100K_6R394 *100K_6
5
+5VPCU
USBOC#0 (15,29)
09/20 REV_A1 Modify
01/17 REV_3B Del R513,R494,R523,R521,L38,L40
USBPWR0
C606
C606
+
+
100u/6.3V_3528
100u/6.3V_3528
01/09 REV_3B Add
USBP9-
USBP9+
USBP7ÂUSBP7+
USBPWR0
2
D42 EGA_4D42 EGA_4
2 1
D43 EGA_4D43 EGA_4
2 1
D39 EGA_4D39 EGA_4
2 1
D40 EGA_4D40 EGA_4
2 1
D41 VPORT_6D41 VPORT_6
2 1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
VGA CONNECTOR/USB/ESATA
VGA CONNECTOR/USB/ESATA
VGA CONNECTOR/USB/ESATA
Date: Sheet
Date: Sheet
Date: Sheet
USBP9ÂUSBP9+
Close CN12
D19 EGA_4D19 EGA_4
2 1
D18 EGA_4D18 EGA_4
2 1
D17 EGA_4D17 EGA_4
2 1
D16 EGA_4D16 EGA_4
2 1
D20 VPORT_6D20 VPORT_6
2 1
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
1
1
CN32
CN32
1
2
3
4
USB
USB
5
6
7
8
USB
19 37Tuesday, January 22, 2008
19 37Tuesday, January 22, 2008
19 37Tuesday, January 22, 2008
of
of
of
USBP0ÂUSBP0+
USBP1ÂUSBP1+
+5VPCU
1A
1A
1A
5
4
3
2
1
SiI1392 HDMI TX
LAYOUT RULES:
Route traces with 100 Ohm Differential Impedance
Avoid placing GND Copper or traces adjacent to TMDS Trace
Put these 4 resistors and 4 capacitors as close as possible
to the TMDS output pins of the SiI1392
D D
R212
R212
C246 0.1u/10V_4C246 0.1u/10V_4
300_4
300_4
C245 0.1u/10V_4C245 0.1u/10V_4
R211
R211
300_4
300_4
C244 0.1u/10V_4C244 0.1u/10V_4
R210
R210
300_4
300_4
C243 0.1u/10V_4C243 0.1u/10V_4

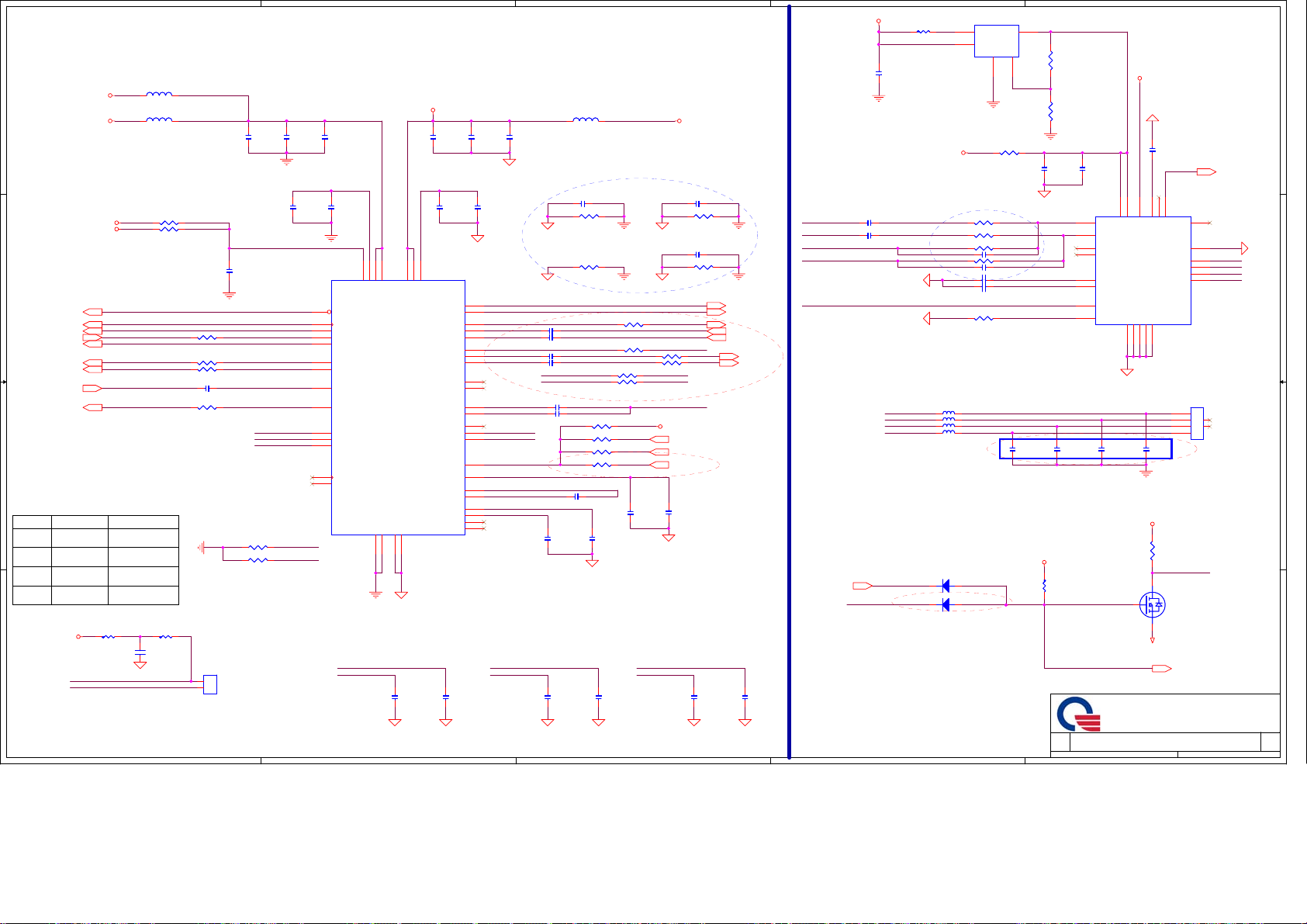

R209
R209
300_4
300_4
EXT_SWING1 AVCC
U31
U31
26
29
25
28
C C
R486 1K_4R486 1K_4
8
VCC
7
WP
6
SCL
5
SDA
S_INT+
S_INT-
EXT_RES
46
47
51
52
54
55
57
58
60
61
49
1
7
6
8
12
11
14
13
44
QFN + EPAD TO GND
SDVOB_INT+(6)
SDVOB_INT-(6)
PLTRST#(15,16,21,22,24,25,28,29)
SDVO_CTRLCLK(6)
SDVO_CTRLDATA(6)
R229
R229
4.7K/F_4
4.7K/F_4
R482
R482
27K_4
27K_4
(others)
7.5K
7.5K
23.2K
23.2K
+3V
R224
R224
4.7K/F_4
4.7K/F_4
R480
R480
27K_4
27K_4
EC B-10
B B
A A
SDVO_CTRLCLK
SDVO_CTRLDATA
965GM
R229
R224
R482
R480
4.7K
4.7K
27K
27K
C552 0.1u/10V_4C552 0.1u/10V_4
C553 0.1u/10V_4C553 0.1u/10V_4
SDVOB_RED+(6)
SDVOB_RED-(6)
SDVOB_GREEN+(6)
SDVOB_GREEN-(6)
SDVOB_BLUE+(6)
SDVOB_BLUE-(6)
SDVOB_CLK+(6)
SDVOB_CLK-(6)
SDVO_CTRLCLK
SDVO_CTRLDATA
A1
R223
R223
IV_HDMI_DDCDATA(21)
1K_4
1K_4
IV_HDMI_DDCCLK(21)
+3V
C249
C249
*0.1u/10V_4
*0.1u/10V_4
1
2
3
4
U5
A0
A1
A2
GND
*NM24C02U5*NM24C02
LANCELOT
TX2-
TX1+
TX2+
SDI+
SDI-
SDR+
SDR-
SDG+
SDG-
SiI1392
SiI1392
SDB+
SDB-
SDC+
SDC-
EXT_RES
RESET#
SDSCL
SDSDA
A1
SDADDC
SCLDDC
SCLROM
SDAROM
TEST
HDBCLK
HDAVCC37HDRST35HDSDI
39
FB3
FB3
BLM18AG601SN1D_06
BLM18AG601SN1D_06
C250
C250
0.1u/10V_4
0.1u/10V_4
TX1-
36
+3V
20
23
19
22
TX0-
TX0+
TXC+
HDASYNC
SPDIF/HDSDO
40
34
R218 33_4R218 33_4
TXC-
LSCL4LSDA
42
16
2
VCC
HTPLG
43
VCC
9
VCC
EXT_SWING
48
VCC
38
VCC
5
GND
10
GND
21
AVCC
27
AVCC
18
AGND
24
AGND
30
AGND
64
OVCC
17
PVCC1
31
PVCC2
32
AVCC3.3
33
RSVD
50
SVCC0
56
SVCC1
65
GND
41
GND
45
GND
53
SGND
59
SGND
62
SPVCC
63
SPGND
LINT#
3
15
EC B-27
R479
R479
750_4
750_4
VCC_PWR
C556
C556
100p/50V_4
100p/50V_4
AVCC
C247
C247
0.1u/10V_4
0.1u/10V_4
OVCC
PVCC1
PVCC2
AVCC33V
VCC_PWR
C559
C559
C564
C564
100p/50V_4
100p/50V_4
1000p/16V_4
1000p/16V_4
ACZ_SDOUT_HDMI (14)
ACZ_SYNC_HDMI (14)
ACZ_SDIN2 (14)
ACZ_RST#_HDMI (14)
BIT_CLK_HDMI (14)
SPVCC
IV_HDMITX2P
IV_HDMITX2N
IV_HDMITX1P
IV_HDMITX1N
IV_HDMITX0P
IV_HDMITX0N
IV_HDMICLK+
IV_HDMICLKÂHTPLG
750 ohm if use external source termination
620 ohm if use internal source termination
C550
C550
1000p/16V_4
1000p/16V_4
C540
C540
0.1u/10V_4
0.1u/10V_4
C560
C560
1u/6.3V_6
1u/6.3V_6
SVCC
C562
C562
100p/50V_4
100p/50V_4
FB4
FB4
SPVCC
BLM18AG601SN1D_06
BLM18AG601SN1D_06
C267
C267
10u/6.3V_8
10u/6.3V_8
C555
C555
0.1u/10V_4
0.1u/10V_4
C539
C539
0.1u/10V_4
0.1u/10V_4
C268
C268
10u/6.3V_8
10u/6.3V_8
C563
C563
1000p/16V_4
1000p/16V_4
+3V
+3V
R483
R483
4.7K_4
4.7K_4
C546
C546
0.1u/10V_4
0.1u/10V_4
C238
C238
10u/6.3V_8
10u/6.3V_8
C561
C561
0.1u/10V_4
0.1u/10V_4
IV_HDMITX2P (21)
IV_HDMITX2N (21)
IV_HDMITX1P (21)
IV_HDMITX1N (21)
IV_HDMITX0P (21)
IV_HDMITX0N (21)
IV_HDMICLK+ (21)
IV_HDMICLK- (21)
HTPLG (21)
C554
C554
0.1u/10V_4
0.1u/10V_4
BLM18AG601SN1D_06
BLM18AG601SN1D_06
FB5
FB5
BLM18AG601SN1D_06
BLM18AG601SN1D_06
C558
C558
1000p/16V_4
1000p/16V_4
FB1
FB1
C551
C551
0.1u/10V_4
0.1u/10V_4
+3V
C269
C269
10u/6.3V_8
10u/6.3V_8
C557
C557
0.1u/10V_4
0.1u/10V_4
+1.8V
FB9
FB9
BLM18AG601SN1D_06
BLM18AG601SN1D_06
C549
C549
0.1u/10V_4
0.1u/10V_4
+1.8V
C264
C264
10u/6.3V_8
10u/6.3V_8
+1.8V
FB8
FB8
BLM18AG601SN1D_06
BLM18AG601SN1D_06
PVCC2
PVCC1
AVCC33V
C537
C537
0.1u/10V_4
0.1u/10V_4
C541
C541
0.1u/10V_4
0.1u/10V_4
C545
C545
1000p/16V_4
1000p/16V_4
C538
C538
0.1u/10V_4
0.1u/10V_4
C542
C542
0.1u/10V_4
0.1u/10V_4
C547
C547
1000p/16V_4
1000p/16V_4
C543
C543
1u/6.3V_6
1u/6.3V_6
C544
C544
1u/6.3V_6
1u/6.3V_6
C548
C548
0.1u/10V_4
0.1u/10V_4
+1.8V
FB7
FB7
BLM18AG601SN1D_06
BLM18AG601SN1D_06
+1.8V
FB6
FB6
BLM18AG601SN1D_06
BLM18AG601SN1D_06
FB2
FB2
BLM18AG601SN1D_06
BLM18AG601SN1D_06
C242
C242
10u/6.3V_8
10u/6.3V_8
+3V
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
SiI1392(HDMI)
SiI1392(HDMI)
SiI1392(HDMI)
1
1A
1A
20 37Tuesday, January 22, 2008
20 37Tuesday, January 22, 2008
20 37Tuesday, January 22, 2008
1A
of
of
of
5
IV_HDMITX2N(20)
IV_HDMITX2P(20)
EV_HDMITX2P(19)
EV_HDMITX2N(19)
IV_HDMITX1N(20)
IV_HDMITX1P(20)
EV_HDMITX1P(19)
EV_HDMITX1N(19)
IV_HDMITX0N(20)
IV_HDMITX0P(20)
D D
EV_HDMITX0P(19)
EV_HDMITX0N(19)
IV_HDMICLK-(20)
IV_HDMICLK+(20)
EV_HDMICLK+(19)
EV_HDMICLK-(19)
IV_HDMITX2N
IV_HDMITX2P HDMITX2P
IV_HDMITX1N
IV_HDMITX1P
IV_HDMITX0N
IV_HDMITX0P
IV_HDMICLKÂIV_HDMICLK+
RN21 IV@0X2RN21 IV@0X2
2
1
4
RN4 EV@0X2RN4 EV@0X2
RN22 IV@0X2RN22 IV@0X2
RN3 EV@0X2RN3 EV@0X2
RN23 IV@0X2RN23 IV@0X2
RN2 EV@0X2RN2 EV@0X2
RN24 IV@0X2RN24 IV@0X2
RN1 EV@0X2RN1 EV@0X2
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
HDMITX2N
HDMITX1N
HDMITX1P
HDMITX0N
HDMITX0P
HDMICLKÂHDMICLK+
4
R129 0_4R129 0_4
HDMITX2P
HDMITX2N
HDMITX1P
HDMITX1N
L12 *WCM2012-90L12 *WCM2012-90
4 3
1
2
R136 0_4R136 0_4
R138 0_4R138 0_4
L14 *WCM2012-90L14 *WCM2012-90
4 3
1
2
R141 0_4R141 0_4
3
HDMITX2P_C
HDMITX2N_C
HDMITX1P_C
HDMITX1N_C
HDMITX0P
HDMITX0N
HDMICLK+
HDMICLK-
R142 0_4R142 0_4
L16 *WCM2012-90L16 *WCM2012-90
4 3
1
2
R144 0_4R144 0_4
R148 0_4R148 0_4
L18 *WCM2012-90L18 *WCM2012-90
4 3
1
2
R150 0_4R150 0_4
+5VPCU
D10 RSX101MD10 RSX101M
C507
C507
10u/10V_8
10u/10V_8
2
HDMITX0P_C
HDMITX0N_C
HDMICLK+_C
HDMICLK-_C
2 1
10/19 REV_A1 Change net
F2
F2
POLY SWITCH 1.1A/6V_1206
POLY SWITCH 1.1A/6V_1206
HDMITX2P_C
HDMITX2N_C
HDMITX1P_C
HDMITX1N_C
HDMITX0P_C
HDMITX0N_C
HDMICLK+_C
HDMICLK-_C
HDMI_DDCDATA_C
HDMI_DDCCLK_C
DDC5V
HDMI_HP
C199
C199
0.1u/10V_4
0.1u/10V_4
1
U23 *RCIamp0514MU23 *RCIamp0514M
1
1
2
VCC
4
5
1
2
VCC
4
5
1
2
VCC
4
5
Layout note:
Place close
to HDMI
Conn
10
9
GND
7
6
10
9
GND
7
6
10
9
GND
7
6
2
3
4
5
1
2
3
4
5
U24 *RCIamp0514MU24 *RCIamp0514M
U25 *RCIamp0514MU25 *RCIamp0514M
1
2
3
4
5
10
HDMITX2N_C
9
8
7
HDMITX1N_C
6
10
HDMITX0N_C
9
8
7
6
HDMI_DDCDATA_C
10
HDMI_DDCCLK_C
9
8
7
6
HDMITX2P_C
HDMITX1P_C
HDMITX0P_C
HDMICLK+_C
HDMICLK-_C
DDC5V
HDMI_HP
10/19 REV_A1 Add Q50,Q51,R156,R168,R606,R608
CN23
CEC_POWER
R156
R156
R168
R168
CEC@4.7K_4
CEC@4.7K_4
CEC@4.7K_4
C C
HDMI_DDCDATA_C
To HDMI CONN
HDMI_DDCCLK_C
B B
A A
To EC
CEC_EC_HP(29)
To IV/EV VGA
Hot Plug Detect
DVI_HPD(19)
HTPLG(20)
C527 CEC@*22p_6C527 CEC@*22p_6
C526 CEC@*22p_6C526 CEC@*22p_6
C530 CEC@*0.1u/10V_4C530 CEC@*0.1u/10V_4
CEC@*G691L308T73UF
CEC@*G691L308T73UF
Vcc
Reset#
GND
U29
U29
C531 CEC@0.1u/10V_4C531 CEC@0.1u/10V_4
R475
R475
EV@1K_4
EV@1K_4
R477
R477
IV@1K_4
IV@1K_4
XIN_CEC
Y5
Y5
CEC@*8 MHz
CEC@*8 MHz
2 1
XOUT_CEC
CEC_POWER
3
CEC-RESET#
1
2
5
Q50
Q50
CEC@2SK3541
CEC@2SK3541
3
R606 CEC@*0_4R606 CEC@*0_4
Q51
Q51
CEC@2SK3541
CEC@2SK3541
3
R608 CEC@*0_4R608 CEC@*0_4
C529 CEC@0.1u/10V_4C529 CEC@0.1u/10V_4
HPDET
C528 CEC@0.1u/10V_4C528 CEC@0.1u/10V_4
+3V
53
1
4
2
U30
U30
CEC@TC7SH08FU
CEC@TC7SH08FU
CEC_POWER
C502
C502
CEC@1u/10V_6
CEC@1u/10V_6
CEC_POWER
T76T76
T78T78
1
CEC_POWER
1
CEC_POWER
CEC@NL17SZ17
CEC@NL17SZ17
+3VPCU
CEC@NL17SZ17
CEC@NL17SZ17
PLTRST#
1
3
2
2
5
4 3
5
4 3
CEC-RESET#
CEC-MODE
CEC@4.7K_4
U28
U28
1
2
U27
U27
1
2
PLTRST# (15,16,20,22,24,25,28,29)
R476 CEC@*0_6R476 CEC@*0_6
+5VPCU
R474 CEC@0_6R474 CEC@0_6
+3VPCU
C202
C202
CEC@0.1u/10V_4
CEC@0.1u/10V_4
R163CEC@47K_4 R163CEC@47K_4
XIN_CEC
R162CEC@47K_4 R162CEC@47K_4
CEC-RESET#
2
CEC-MODE
4
RP54CEC@4.7KX2 RP54CEC@4.7KX2
CEC@2SK3541
CEC@2SK3541
HDMI_DDCDATA
HDMI_DDCCLK
R472 CEC@1.2K/F_4R472 CEC@1.2K/F_4
R471
R471
CEC@470K/F_4
CEC@470K/F_4
7
VCC
16
VCC
4
XOUT
6
XIN
3
RESET
8
MODE
5
VSS
15
NC
14
NC
11
NC
4
+3V
Q10
Q10
1
3
R459 CEC@*0_4R459 CEC@*0_4
CEC@2SK3541
CEC@2SK3541
HDMI_HP
From HDMI conn Pin 19
(Hot Plug Det)
CEC_POWER
U26
U26
SCL
SDA
DDCSDA
DDCSCL
TEST1
TEST0
CEC OUT
CEC IN
HPDET
NC
CEC@R5F211A4SP
CEC@R5F211A4SP
R153
R153
CEC@0_4
CEC@0_4
2
Q11
Q11
1
3
R460 CEC@*0_4R460 CEC@*0_4
CEC_POWER
R164
R164
CEC@2.2K_4
CEC@2.2K_4
1
20
18
17
13
12
RP50 CEC@4.7KX2RP50 CEC@4.7KX2
CEC_OUT
10
CEC_IN
9
HPDET
19
2
2
R458
R458
CEC@2.2K_4
CEC@2.2K_4
CEC_SCLK
CEC_SDATA
HDMI_DDCDATA
HDMI_DDCCLKXOUT_CEC
4
2
CEC@4.7K_4
CEC@4.7K_4
CEC_SCLK
CEC_SDATA
3
1
R147
R147
CEC_P
3
R146
R146
CEC@4.7K_4
CEC@4.7K_4
RP55 IV@0X2RP55 IV@0X2
2
4
4
2
RP31
RP31
+3V_S5 +3VPCU
CEC@*0_4
CEC@*0_4
R184
R184
CEC_P
Q13
Q13
2
CEC@2N7002
CEC@2N7002
3
Q12
Q12
2
CEC@2N7002
CEC@2N7002
3
CEC_POWER
1
3
3
1
CEC@0_4
CEC@0_4
R181
R181
1
1
EV@0X2
EV@0X2
RP51 CEC@*0_4P2R_SRP51 CEC@*0_4P2R_S
4
2
RP52 CEC@0_4P2R_SRP52 CEC@0_4P2R_S
4
2
IV_HDMI_DDCDATA (20)
IV_HDMI_DDCCLK (20)
EV_HDMI_DDCDATA (19)
EV_HDMI_DDCCLK (19)
3
1
3
1
+5VPCU+5VPCU
10/19 REV_A1 Change net
CEC_OUT
SCLK (2,16,25,28)
SDATA (2,16,25,28)
3ND_MBCLK (19,28,29)
3ND_MBDATA (19,28,29)
2
HDMITX2P_C
HDMITX2N_C
HDMITX1P_C
HDMITX1N_C
HDMITX0P_C
HDMITX0N_C
HDMICLK+_C
HDMICLK-_C
CEC
HDMI_DDCCLK_C
R1522.2K_4 R1522.2K_4
HDMI_DDCDATA_C
R1512.2K_4 R1512.2K_4
DDC5V
HDMI_HP
C205 CEC@*0.1u/10V_4C205 CEC@*0.1u/10V_4
CEC@10K_4
CEC@10K_4
CEC_IN
Q42
Q42
CEC@2SK3541
CEC@2SK3541
R159 CEC@27K_4R159 CEC@27K_4
R160
R160
CEC@100K_4
CEC@100K_4
To SB
To EC
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
HDMI+CEC
HDMI+CEC
HDMI+CEC
Date: Sheet
Date: Sheet
Date: Sheet
CN23
1
D2+
2
D2 Shield
3
D2-
4
D1+
5
D1 Shield
6
7
8
9
10
11
12
13
14
15
16
17
18
19
01/09 REV_3B Change footprint
10/19 REV_A1 Change footprint
12/07 REV_3A Change footprint
CEC_POWER
U4
U4
1
5
2
4 3
CEC@*TC7SET14FU
CEC@*TC7SET14FU
+3VPCUCEC_POWER
R161
R161
3
1
2
1
CEC@2SK3541
CEC@2SK3541
Q41
Q41
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
20
SHELL1
D1-
21
SHELL2
D0+
D0 Shield
22
D0-
SHELL3
23
CK+
SHELL4
CK Shield
CKÂCE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
HDMI-C12816-119A5-L
HDMI-C12816-119A5-L
D11
D11
CEC@CH500H-40
CEC@CH500H-40
R166
R166
CEC@27K_4
CEC@27K_4
To HDMI CONN Pin 13
3
2
21 37Tuesday, January 22, 2008
21 37Tuesday, January 22, 2008
21 37Tuesday, January 22, 2008
1
CEC
of
of
of
1A
1A
1A
5
ODD
-IDERST
PDD[0..15](14)
PDDREQ(14)
PDIOW#(14)
PDIOR#(14)
PDIORDY(14)
PDDACK#(14)
IRQ14(14)
PDA1(14)
D D
PDA0(14)
PDCS1#(14)
PDA2(14)
PDCS3#(14)
ODD_LED#
PDD[0..15]
PDDREQ
PDIOW#
PDIOR#
PDIORDY
PDDACK#
IRQ14
PDA1
PDA0
PDCS1#
PDA2
PDCS3#
ODD_LED#
+5V
C194
C194
*0.1u/10V_4
*0.1u/10V_4
+5V
01/09 REV_3B Modify
HOLE14
HOLE14
*H-C236D146P2-8
*H-C236D146P2-8
8
9
123
HOLE16
HOLE16
*H-C236D146P2-8
*H-C236D146P2-8
8
9
123
HOLE8
HOLE8
H-c236d146p2-8
H-c236d146p2-8
8
9
123
HOLE24
HOLE24
H-c236d146p2-8
H-c236d146p2-8
8
9
123
R206 *0_4R206 *0_4
R207 0_4R207 0_4
HOLE10
HOLE10
*H-C236D146P2-8
*H-C236D146P2-8
67
8
5
9
4
HOLE18
HOLE18
*H-C236D146P2-8
*H-C236D146P2-8
67
8
5
9
4
MODEM
67
5
4
HOLE32
HOLE32
H-c236d146p2-8
H-c236d146p2-8
67
5
8
4
9
123
67
5
4
123
67
5
4
123
HOLE21
HOLE21
*H-C236D146P2-8
*H-C236D146P2-8
8
9
123
HOLE33
HOLE33
H-c236d146p2-8
H-c236d146p2-8
67
5
8
4
9
RST_HDD#(16)
5,16,20,21,24,25,28,29)
C C
B B
PLTRST#
CPU SINK VGA SINK
HOLE13
HOLE13
*H-C236D146P2-8
*H-C236D146P2-8
67
5
8
4
9
123
HOLE17
HOLE17
*H-C236D146P2-8
*H-C236D146P2-8
67
5
8
4
9
123
MINI-1 SINK
HOLE9
HOLE9
H-c236d146p2-8
H-c236d146p2-8
67
5
8
4
9
123
MINI-2 SINK
HOLE25
HOLE25
H-c236d146p2-8
H-c236d146p2-8
67
5
8
4
9
123
01/16 REV_3B Change footprint
2'nd SATA HDD
CN29
CN29
23
GND23
GND1
RXP
RXN
GND2
TXN
TXP
GND3
3.3V
3.3V
A A
3.3V
GND
GND
GND
5V
5V
5V
GND
RSVD
GND
12V
12V
12V
GND24
SA@127043FR022XX27ZR
SA@127043FR022XX27ZR
01/21 REV_3B Add AVLC18S02003 for ESD
1
SATA_TXP0
2
SATA_TXN0
3
4
SATA_RXN0
5
SATA_RXP0
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
+3.3VSATA_2
C327
C327
0.1u/10V_4
0.1u/10V_4
01/15 REV_3B
Change footprint
5
C585
C585
*4.7u/10V_8
*4.7u/10V_8
C332
C332
0.1u/10V_4
0.1u/10V_4
R493 *0_8R493 *0_8
C335
C335
10u/10V_8
10u/10V_8
C580
C580
*0.1u/10V_4
*0.1u/10V_4
R288 0_8R288 0_8
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
PDIOW#
IRQ14
PDA1
PDA0
PDCS1#
ODD_LED#
R143 470_6R143 470_6
IN for Master
NC for Slave
+3V_S5 +5V
Q14
Q14
2
DTC144EU
DTC144EU
1 3
HOLE19
HOLE19
*H-C236D146P2-8
*H-C236D146P2-8
67
5
8
9
123
12/06 REV_3A
Change footprint
8
4
9
01/21 REV_3B Modify
8
9
67
5
4
8
9
67
5
8
4
D57 EGA_4D57 EGA_4
2 1
D58 EGA_4D58 EGA_4
2 1
D59 EGA_4D59 EGA_4
2 1
D60 EGA_4D60 EGA_4
2 1
D63 EGA_4D63 EGA_4
2 1
D61 EGA_4D61 EGA_4
2 1
D64 EGA_4D64 EGA_4
2 1
D62 EGA_4D62 EGA_4
2 1
SATA_TXP0 (14)
SATA_TXN0 (14)
SATA_RXN0 (14)
SATA_RXP0 (14)
+3V
9
+5V
123
C294
C294
150u/6.3V_7343
150u/6.3V_7343
R197
R197
10K_4
10K_4
-IDERST
HOLE11
HOLE11
*H-C315D118P2-8
*H-C315D118P2-8
HOLE29
HOLE29
*h-ts315bc295d118p2
*h-ts315bc295d118p2
HOLE15
HOLE15
*H-C315D118P2-8
*H-C315D118P2-8
HOLE5
HOLE5
*H-C335D118P2-8
*H-C335D118P2-8
HOLE6
HOLE6
*H-C315D118P2-8
*H-C315D118P2-8
4
CN24
CN24
1
2
3
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
ODD_CONN
ODD_CONN
PDD8
PDD9PDD7
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
PDDREQ
PDIOR#
PDDACK#PDIORDY
DIAG#
PDA2
PDCS3#
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
515152
52
RES-TYPE
+3V
+3V
MB SINK
10/26 REV_A1 Modify footprint
HOLE26
HOLE26
*H-C335D118P2-8
*H-C335D118P2-8
67
8
5
9
4
123
HOLE28
HOLE28
*h-tsbc315d118p2
*h-tsbc315d118p2
1
ADOGND
HOLE12
HOLE12
*H-C315D118P2-8
*H-C315D118P2-8
67
5
8
4
9
123
HOLE20
HOLE20
*H-C335I248D118P2-8
*H-C335I248D118P2-8
67
5
8
4
9
123
HOLE1
HOLE1
*H-C315D118P2-8
*H-C315D118P2-8
67
5
8
4
9
123
SATA_TXP1
SATA_TXN1
SATA_RXN1
SATA_RXP1
SATA_TXP0
SATA_TXN0
SATA_RXN0
SATA_RXP0
SA@127043FR022GX51ZR
SA@127043FR022GX51ZR
HOLE27
HOLE27
*H-C276D118P2-8
*H-C276D118P2-8
67
8
5
9
4
123
HOLE22
HOLE22
*H-C315D118P2-8
*H-C315D118P2-8
8
9
1
10/26 REV_A1 Del HOLE34 for EXP
HOLE7
HOLE7
*H-C335D118P2-8
*H-C335D118P2-8
67
8
5
9
4
123
HOLE23
HOLE23
*H-C335D118P2-8
*H-C335D118P2-8
67
5
8
4
9
123
HOLE4
HOLE4
*H-C335D146P2-8
*H-C335D146P2-8
67
8
5
9
4
123
SATA HDD
CN31
CN31
GND23
GND1
RXP
RXN
GND2
TXN
TXP
GND3
3.3V
3.3V
3.3V
GND
GND
GND
5V
5V
5V
GND
RSVD
GND
12V
12V
12V
GND24
4
3
R192 *10K_4R192 *10K_4
C201
C201
C198
C198
0.1u/10V_4
0.1u/10V_4
1000p_6
1000p_6
R196 4.7K_4R196 4.7K_4
R193 8.2K_4R193 8.2K_4
80 mils
C200
C200
0.1u/10V_4
0.1u/10V_4
+5V
C196
C196
10u/10V_8
10u/10V_8
+5V
C220
C220
150u/6.3V_7343
150u/6.3V_7343
PDIORDY
IRQ14
EV_TV_Y/G(19)
EV_TV_C/R(19)
INT_TV_Y/G(6)
INT_TV_C/R(6)
L5 BLM18PG181SN1DL5 BLM18PG181SN1D
R66
R66
150/F_4
150/F_4
R186 EV@0_4R186 EV@0_4
R187 EV@0_4R187 EV@0_4
R177 IV@0_4R177 IV@0_4
R178 IV@0_4R178 IV@0_4
TV-CHROMA TV-LUMA SYS_TV_Y/GSYS_TV_C/R
C67
C73
C73
C67
6p_4
6p_4
6p_4
6p_4
TVOUT
10/23 REV_A1 Modify footprint 10/24 REV_A1
HOLE35
67
5
4
123
67
5
4
123
10/20 REV_A1 Add
10/22 REV_A1 Modify
+3.3VSATA
C360
C360
*4.7u/10V_8
*4.7u/10V_8
C346
C346
C347
C347
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
HOLE35
*H-TC217C131D91P2
*H-TC217C131D91P2
1
HOLE36
HOLE36
*H-TC217C131D91P2
*H-TC217C131D91P2
1
HOLE37
HOLE37
*H-TC217C131D91P2
*H-TC217C131D91P2
1
HOLE42
HOLE42
*H-C217D87P2
*H-C217D87P2
1
C364
C364
*0.1u/10V_4
*0.1u/10V_4
R254 0_8R254 0_8
C345
C345
10u/10V_8
10u/10V_8
SATA_TXP1 (14)
SATA_TXN1 (14)
SATA_RXN1 (14)
SATA_RXP1 (14)
150u/6.3V_7343
150u/6.3V_7343
HOLE3
HOLE3
*H-C236D146P2-8
*H-C236D146P2-8
67
5
8
4
9
123
67
5
4
123
HOLE2
HOLE2
*H-C236D146P2-8
*H-C236D146P2-8
67
5
8
4
9
123
67
5
4
123
67
5
4
123
09/20 REV_A1 Add HOLE30,HOLE31 for ESATA
01/21 REV_3B Del HOLE30,HOLE31
23
1
SATA_TXP1
2
SATA_TXN1
3
4
SATA_RXN1
5
SATA_RXP1
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
LED / WLAN SW
HOLE38
HOLE38
*H-TC217C131D91P2
*H-TC217C131D91P2
1
HOLE39
HOLE39
*H-TC217C131D91P2
*H-TC217C131D91P2
1
HOLE40
HOLE40
*H-TC217C131D91P2
*H-TC217C131D91P2
1
HOLE41
HOLE41
*H-C217D87P2
*H-C217D87P2
1
C314
C314
3
HOLE43
HOLE43
*h-sped110p2
*h-sped110p2
1
10/26 REV_A1 Add
12/06 REV_3A Add
HOLE34
HOLE34
*H-C91D91N
*H-C91D91N
1
12/05 REV_3A Add
01/22 REV_3B Del R316
+3V
12/06 REV_3A
Change P/N
+5V
KILL_SW(29)
+3VPCU
D48
D48
DA204U
DA204U
HOLE44
HOLE44
*H-SPED118P2
*H-SPED118P2
1
HOLE45
HOLE45
*H-C98D98N
*H-C98D98N
1
2 1
2 1
1
2
D31
D31
BAS316
BAS316
+5V
D32
D32
BAS316
BAS316
3
01/17 REV_3B change
LED4,LED3 footprint
and P/N
R403
R403
150_4
150_4
R405
R405
10K_4
10K_4
HDDLED#
+3VPCU
2
SYS_TV_Y/G
SYS_TV_C/R
12/10 REV_3A change
to P/N
CN20
CN20
4
4
6
6
2
2
SUYIN_030018FR004S100FR
SUYIN_030018FR004S100FR
10/25 REV_A1 change
to 4pin conn
change footprint
10/25 REV_A1 Change circuit
+5V
R404
R404
10K_4
10K_4
ODD_LED#
01/15
REV_3B
Modify
footprint
R603
R603
10K_4
10K_4
2
1
3
SW-NSS506-212F-CCCD1T-3P
SW-NSS506-212F-CCCD1T-3P
09/20
REV_A1
Modify
footprint
2
Q48
Q48
MMBT3906
MMBT3906
SW1
SW1
ODD_LED#IDE_LED#(28)
SATA_LED# (14)
LED_LOGO(29)
1
+3V +3V
1
D5
TV-CHROMA
3
*DA204UD5*DA204U
2
3
3
5
5
1
1
W-LAN&BT LED
27-21UYOC/S530-A3/TR8
27-21UYOC/S530-A3/TR8
WiMAX LED
R597 *100_4R597 *100_4
+5V
09/28 REV_A1 Modify LED type
12/05 REV_3A
Change type
10/24 REV_A1
change
footprint
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
L11 BLM18PG181SN1DL11 BLM18PG181SN1D
C127
C127
6p_4
6p_4
Mainstream --> Orange
Low Cost --> Orange
LED4
LED4
RF_LED_R
21
*27-21/BHC-ZL1M2TY/3C
*27-21/BHC-ZL1M2TY/3C
2 1
LED3
LED3
99-113UNC/V90/TR8
99-113UNC/V90/TR8
LED1
LED1
LED_LOGO
2
*0.1u/10V_4
*0.1u/10V_4
C414
C414
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PATA/ODD/TV/LED
PATA/ODD/TV/LED
PATA/ODD/TV/LED
C119
C119
R598 390_4R598 390_4
10/24 REV_A1
change footprint
WiMAX_R
WiMAX_LED#(25)
RF_LED_R
WiMAX_R
LOGO_1
LOGO_2
01/22 REV_3B
Change value
R401
R401
330_4
330_4
21
99-113UNC/V90/TR8
99-113UNC/V90/TR8
Mainstream --> White
Low Cost --> N/A
LOGO_1
3
LED_LOGO
Q29
Q29
2N7002
2N7002
1
1
6p_4
6p_4
1
D47
D47
*BZ5V6
*BZ5V6
D30
D30
*BZ5V6
*BZ5V6
1
2
R102
R102
150/F_4
150/F_4
Q49
Q49
2
*BSS84
*BSS84
1
2
1
2
+5V+5V
LED2
LED2
2
22 37Tuesday, January 22, 2008
22 37Tuesday, January 22, 2008
22 37Tuesday, January 22, 2008
D7
3
*DA204UD7*DA204U
3
R616
R616
*10K_4
*10K_4
3
3
21
LOGO_2
3
1
of
of
of
TV-LUMA
RF_LED (29)
+3V
R406
R406
330_4
330_4
Q27
Q27
2N7002
2N7002
1A
1A
1A
A
4 4
AD[31..0](15)
AD17
REQ0#
GNT0# INTA#
AD17
R379 100/F_4R379 100/F_4
OZ129_IDSEL
The 100ohm is that reduce the notice form PCI signal
3 3
2 2
MEDIA_LED: 1=Enable MEDIA_LED activity(Default)
1 1
+3V +1.8V
C382
C382
4.7u/6.3V_6
4.7u/6.3V_6
AD[31..0]
CBE3#(15)
CBE2#(15)
CBE1#(15)
CBE0#(15)
PCLK_OZ129(2)
DEVSEL#(15)
FRAME#(15)
IRDY#(15)
TRDY#(15)
STOP#(15)
PAR(15)
REQ0#(15)
GNT0#(15)
PCIRST#(15)
INTA#(15)
PCI_PME#(15)
CLKRUN#(16,29)
TP_XD_LED(28)
PCLK_OZ129
R378
R378
*22_4
*22_4
C389
C389
*22p_4
*22p_4
AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
OZ129_IDSEL
INTA#
PCI_PME#
CLKRUN#
C388
C388
0.1u/10V_4
0.1u/10V_4
L24 BK1608HS220_6L24 BK1608HS220_6
C405
C405
0.1u/10V_4
0.1u/10V_4
U12
U12
OZ129T
OZ129T
19
AD31
20
AD30
21
AD29
22
AD28
23
AD27
24
AD26
25
AD25
27
AD24
29
AD23
30
AD22
31
AD21
32
AD20
34
AD19
35
AD18
36
AD17
37
AD16
47
AD15
48
AD14
49
AD13
50
AD12
51
AD11
52
AD10
53
AD9
54
AD8
57
AD7
58
AD6
59
AD5
60
AD4
61
AD3
62
AD2
63
AD1
64
AD0
28
C/BE3#
38
C/BE2#
46
C/BE1#
55
C/BE0#
5
IDSEL
45
PCI_CLK
42
DEVSEL#
39
FRAME#
40
IRDY#
41
TRDY#
43
STOP#
44
PAR
17
REQ#
18
GNT#
1
PCI_RST#
11
INTA#
3
PME#
6
CLKRUN#
106
MEDIA_ACTV
GND12GND16GND33GND66GND68GND
PCI_VCC26PCI_VCC
B
+3VARUN
C383
C383
C380
C380
C381
0.1u/10V_4
0.1u/10V_4
125
1.8VCCD
TPBIAS
TPA+
TPB+
MC_3V#
SD_D3
SD_D2
SD_D1
SD_D0
SD_CMD
SD_CD#
XD_D6
XD_D5
XD_D4
XD_CE#
XD_R/B#
XD_CLE
XD_ALE
XD_WE#
XD_RE#
MS_CD#
XD_CD#
TEST0
TEST1
TPAÂTPB-
REF
XI
XO
NC1
NC2
NC6
NC7
NC5
NC3
NC4
NC8
C390
C390
4.7u/6.3V_6
4.7u/6.3V_6
78
83
84
76
75
74
72
71
4
113
111
112
107
108
110
117
114
95
93
89
87
88
90
94
96
119
100
118
109
105
101
98
99
97
2
8
9
10
13
126
127
128
85
86
C381
0.1u/10V_4
0.1u/10V_4
C406
C406
0.1u/10V_4
0.1u/10V_4
R363 5.9K/F_4R363 5.9K/F_4
1394_XIN
1394_XOUT
TPBIAS0
TPA0P
TPA0N
TPB0P
TPB0N
MC_PWR_3V#
SD/MS_CLK
SD_D3
SD_D2
SD_D1
SD_D0
SD_CMD
SM_WPI#/SD_WP
SD_CD#
MS_D1/XD_D7
XD_D6
XD_D5
XD_D4
MS_BS/XD_D3
MS_D0/XD_D2
MS_D2/XD_D1
MS_D3/XD_D0
XD_CE#
XD_R/B#
XD_CLE
XD_ALE
XD_WE#
XD_RE#
XD_WPO#
MS_CD#
XD_CD#
C376
C376
0.1u/10V_4
0.1u/10V_4
10/26 REV_A1 Change Value
Y3 24.576MHzY3 24.576MHz
H=1.2mm
4.7u/6.3V_6
4.7u/6.3V_6
3.3VCCD73.3VCCD
104
81
102
103
122
3.3VCCA673.3VCCA733.3VCCA793.3VCCA
3.3VCCD
3.3VCCD
GND
GND
GND
GND
115
116
121
123
124
GND
1.8VCCD141.8VCCD151.8VCCD911.8VCCD921.8VCCD
SM_WPI#/SD_WP
AGND65AGND69AGND70AGND77AGND80AGND
120
SD/MS_CLK
MS_D1/XD_D7
MS_BS/XD_D3
MS_D0/XD_D2
MS_D2/XD_D1
MS_D3/XD_D0
XD_WPO#
H=1.6mm
82
L25 0_6L25 0_6
56
1 2
Better than 50ppm
C
CARDREADER POWER
D
VCC_XD
E
C593
C593
0.01u_4
0.01u_4
C592
C592
0.01u_4
0.01u_4
C591
C591
0.01u_4
0.01u_4
09/20 REV_A1 Add U39
+3V
C569
C569
1u/16V_8
1u/16V_8
MC_PWR_3V#
U39
U39
RT9711BPF
RT9711BPF
2
IN1
IN23OUT2
4
EN#
1
GND
9
GND-C
OUT3
OUT1
OC#
30mil
VCC_XD
8
7
6
5
VCC_XD
R488*10K_4 R488*10K_4
+3V
09/20 REV_A1 C569 from 4.7u/6.3V_6 to 1u/16V_8
15p_4C378 15p_4C378
C682
15p_4C377 15p_4C377
5 IN 1 CARD READER
CN30
XD_CLE XD_CLE_C
SD_D2 SD_D2_C
XD_WPO# XD_WPO#_C
XD_CD# XD_CD#_C
XD_R/B#
XD_ALE XD_ALE_C
XD_RE# XD_RE#_C
MS_CD# MS_CD#_C
SD_CMD SD_CMD_C
MS_D3/XD_D0
MS_D2/XD_D1 MS_D2/XD_D1_C
XD_CE# XD_CE#_C
XD_WE# XD_WE#_C
SD_D3 SD_D3_C
R499 33_4R499 33_4
R502 33_4R502 33_4
R503 33_4R503 33_4
R495 33_4R495 33_4
R496 33_4R496 33_4
R500 33_4R500 33_4
R497 33_4R497 33_4
R507 33_4R507 33_4
R505 33_4R505 33_4
R506 33_4R506 33_4
R508 33_4R508 33_4
R498 33_4R498 33_4
R501 33_4R501 33_4
R504 33_4R504 33_4
VCC_XD
VCC_XD
XD_R/B#_C
SD/MS_CLK_C
MS_D3/XD_D0_C
CN30
6
CLE_XD
9
DAT2_SD
10
-WP_XD
2
CD_XD
3
R/-B_XD
7
ALE_XD
4
-RE_XD
1
GND_XD
11
MS-VSS
13
MS-VCC
18
MS-INS
19
VSS_SD
17
GND_XD
15
CMD_SD
14
MS-SCLK
16
MS-DATA3
20
MS-DATA2
5
-CE_XD
8
-WE_XD
12
CD/DAT3_SD
21
VDD_SD
MXP038-01-A_CARD READER
MXP038-01-A_CARD READER
C682
22p_4
22p_4
GND
GND-SDIO
CLK_SD
MS-BS
VSS_SD
MS-VSS
D1_XD
DAT0_SD
D2_XD
DAT1_SD
D3_XD
D4_XD
D5_XD
D6_XD
D7_XD
VCC_XD
C/D_SD
GND_SD
W/P_SD
MS-DATA1
SDIO/MS-DATA0
D0_XD
SD/MS_CLK_C
43
42
25
26
27
28
MS_D2/XD_D1_C
29
30
MS_D0/XD_D2_C
31
32
MS_BS/XD_D3_C
33
XD_D4_C
34
35
36
MS_D1/XD_D7_C
37
38
39
40
41
24
22
MS_D3/XD_D0_C
23
09/20 REV_A1 Del Q43,R489
01/17 REV_3B Add C682 for EMI
R510 33_4R510 33_4
R305 33_4R305 33_4
R511 33_4R511 33_4
R512 33_4R512 33_4
R292 33_4R292 33_4
R291 33_4R291 33_4
R290 33_4R290 33_4
R338 33_4R338 33_4
R377 33_4R377 33_4
R509 33_4R509 33_4
R304 33_4R304 33_4
SD/MS_CLKSD/MS_CLK_C
MS_BS/XD_D3MS_BS/XD_D3_C
SD_D0SD_D0_C
SD_D1SD_D1_C
XD_D4
XD_D5XD_D5_C
XD_D6XD_D6_C
SD_CD#SD_CD#_C
SM_WPI#/SD_WPSM_WPI#/SD_WP_C
MS_D1/XD_D7MS_D1/XD_D7_C
MS_D0/XD_D2MS_D0/XD_D2_C
VCC_XD
01/09 REV_3A Change value for EMI 01/09 REV_3A Change value for EMI
1394
As close as
possible to OZ129
TPBIAS0
TPA0P
TPA0N
TPB0N
TPB0P
R341
R341
1394@56.2/F_4
1394@56.2/F_4
R344
R344
1394@56.2/F_4
1394@56.2/F_4
1394_COM
R345
R345
1394@5.1K/F_4
1394@5.1K/F_4
R342
R342
1394@56.2/F_4
1394@56.2/F_4
R343
R343
1394@56.2/F_4
1394@56.2/F_4
C373
C373
1394@270P_4
1394@270P_4
1394@1u/10V_4C379 1394@1u/10V_4C379
L44
L44
443
1
1
2
*1394@CL-2M2012-121JT
*1394@CL-2M2012-121JT
RN29
RN29
1 2
43
1394@0_4P2R_S
1394@0_4P2R_S
1394@0_4P2R_S
1394@0_4P2R_S
1 2
43
RN30
RN30
*1394@CL-2M2012-121JT
*1394@CL-2M2012-121JT
443
1
1
2
L45
L45
3
2
L1394_TPA0+
L1394_TPA0-
L1394_TPB0ÂL1394_TPB0+
3
2
L1394_TPB0ÂL1394_TPA0ÂL1394_TPA0+
L1394_TPB0+
CN34
CN34
1
3
4
2
1394@C13121-100A
1394@C13121-100A
5
6
MMC
Reserve EMI
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
OZ129T (Card Reader/1394)
OZ129T (Card Reader/1394)
OZ129T (Card Reader/1394)
E
1A
1A
23 37Tuesday, January 22, 2008
23 37Tuesday, January 22, 2008
23 37Tuesday, January 22, 2008
1A
of
of
of
5
4
3
2
1
LAN_MARVELL_88E8040/88E8055/88E8072
+3V_S5
10/100 : 88E8040
GIGA : 88E8055
GIGA : 88E8072 P/N : AL008072000
U32
MCT1
MX1+
MX1-
MCT2
MX2+
MX2-
MCT3
MX3+
MX3-
MCT4
MX4+
MX4-
50
49
53
54
56
55
35
34
37
36
43
42
41
38
16
46
47
12
11
10
15
14
74
65
66
67
68
69
70
71
72
73
U32
TX_N
TX_P
RX_N
RX_P
REFCLKN
REFCLKP
SPI_DI
SPI_DO
SPI_CLK
SPI_CS
PU_VDDO_TTL
CLKREQn
VPD_DATA
VPD_CLK
5
PERSTn/TSTPT
6
WAKEn
RSET
TESTMODE
VMAIN_AVLBL
VAUX_AVLBL
9
SWITCH_VAUX
SWITCH_VCC
LOM_DISABLEn
XTALI
XTALO
GND10
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
24
23
22
21
20
19
18
17
16
15
14
13
TERM9
88E805X
88E805X
TERM4
TERM3
TERM2
TERM1
R208
R208
75/F_4
75/F_4
P/N : DB0MA8LAN00DELTA
P/N : DB0SA1LAN01HWS
P/N : DB0KN7LAN24BOTHHAND
D D
R518 0_4R518 0_4
R517 2K/F_4R517 2K/F_4
D6
LAN_XIN
LAN_XOUT
PCIE_RXN2_C
PCIE_RXP2_C
PU_VDDO_TTL
VPD_DATA
VPD_CLK
LAN_RSET CTRL12
+3V
+3V_S5
LOM_DISABLE#
LAN_XIN
LAN_XOUT
CLK_PCIE_LAN(2)
+3V_S5
PCIE_WAKE#(16,25,28)
C581 0.1u/10V_4C581 0.1u/10V_4
C578 0.1u/10V_4C578 0.1u/10V_4
R491 40@4.7K_4R491 40@4.7K_4
PLTRST#(15,16,20,21,22,25,28,29)
PCIE_RXN2(15)
PCIE_RXP2(15)
PCIE_TXN2(15)
PCIE_TXP2(15)
CLK_PCIE_LAN#(2)
C C
LAN_RSET
2K Ohm for 8040
4.87K Ohm for 8055/8072
12/05 REV_3A Add D6
LOM_DISABLE(29)
10/24 REV_A1 Add
B B
R519 4.7K_4R519 4.7K_4
+3V_S5
*BAS316D6*BAS316
C605
C605
27p_4
27p_4
4
3
Y6
C604
C604
25MHz-SY625MHz-S
27p_4
27p_4
H = 0.8mm
1
2
10/24 REV_A1 Modify
10/100 : LFE8696-R
H = 4mm
GIGA : LFE9249-R P/N : DB0ZR1LAN11
10/100 : HPL-4001B
H = 4mm
GIGA : HPL-68 P/N : DB0ZB1LAN12
10/100 : TST1284 LF
H = 4mm
+2.5V_1.8V_LAN
TX3P
TX3N
+2.5V_1.8V_LAN
TX2P
A A
C266
C266
0.1u/16V_4
0.1u/16V_4
TX2N
+2.5V_1.8V_LAN
TX1P
TX1N
C241
C241
+2.5V_1.8V_LAN
1000p_4
1000p_4
TX0N X-TX0N
5
GIGA : GST5009 LF P/N : DBKN1NLAN03
U6
U6
1
TCT1
2
TD1+
3
TD1-
4
TCT2
5
TD2+
6
TD2-
7
TCT3
8
TD3+
9
TD3-
10
TCT4
11
TD4+
12
TD4-
TRANSFORMER
TRANSFORMER
C232
C232
1000p/3KV_1808
1000p/3KV_1808
P/N : AL008040001
P/N : AJ080550000
VDDO_TTL
VDDO_TTL
VDDO_TTL
VDDO_TTL
AVDDH
AVDD
AVDD
AVDD
AVDD
AVDDL
AVDDL
NC
NC
VDD25
CTRL18
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
CTRL12
TSTPT
HSDACN
HSDACP
MDIN[3]
MDIP[3]
MDIN[2]
MDIP[2]
MDIN[1]
MDIP[1]
MDIN[0]
MDIP[0]
LED_ACTn
LED_LINK10/100n
LED_LINK1000n
LED_LINKn
88E8040T
88E8040T
R220
R220
R230
R230
75/F_4
75/F_4
*55_72@75/F_4
*55_72@75/F_4
TERMINATION PLANE
4
1
40
45
61
8
23
19
22
28
51
52
32
57
64
4
2
7
13
33
39
44
48
58
3
29
25
24
31
30
27
26
21
20
18
17
59
100MBPS#
60
1000MBPS#
62
10_1000MBPS#
63
X-TX3P
X-TX3N
X-TX2P
X-TX2N
X-TX1P
X-TX1N
X-TX0PTX0P
R235
R235
*55_72@75/F_4
*55_72@75/F_4
CTRL18
+3V_S5
+2.5V_1.8V_LAN
+1.2V_LAN
R514 *0_4R514 *0_4
R515 *0_4R515 *0_4
R516 0_4R516 0_4
TX3N
TX3P
TX2N
TX2P
TX1N
TX1P
TX0N
TX0P
LAN_ACTLED#
LAN_LINKLED#
C222 470p/50V_4C222 470p/50V_4
C248 470p/50V_4C248 470p/50V_4
C221 470p/50V_4C221 470p/50V_4
10u/6.3V_8C274 10u/6.3V_8C274
0.1u/16V_4C611 0.1u/16V_4C611
55_72@BK1608HS220_6_1A
55_72@BK1608HS220_6_1A
0.1u/16V_4C598 0.1u/16V_4C598
0.1u/16V_4C607 0.1u/16V_4C607
0.1u/16V_4C610 0.1u/16V_4C610
0.1u/16V_4C573 0.1u/16V_4C573
43
RN28
RN28
55@49.9/F_4P2R
55@49.9/F_4P2R
1 2
LAN_N1 LAN_N2 LAN_N3 LAN_N4
C601
+3V_S5
LAN_ACTLED#
LAN_LINKLED#
+3V_S5
+3V_S5
C601
55@0.1u/16V_4
55@0.1u/16V_4
3
C602
C602
55@1000p_4
55@1000p_4
R189 220_4R189 220_4
R243 220_4R243 220_4
AUX3V_S5
L20
L20
C239
C239
55_72@4.7u/6.3V_6
55_72@4.7u/6.3V_6
25 mil Trace width
C261
C261
55_72@4.7u/6.3V_6
55_72@4.7u/6.3V_6
25 mil Trace width
43
RN27
RN27
55@49.9/F_4P2R
55@49.9/F_4P2R
1 2
C599
C599
55@0.1u/16V_4
55@0.1u/16V_4
LAN_ACTLED#
LAN_VCC3
X-TX3N
X-TX3P
X-TX1N
X-TX2N
X-TX2P
X-TX1P
X-TX0N
X-TX0P
LAN_LINKLED#
LAN_VCC4
C597
C597
55@1000p_4
55@1000p_4
CN26
CN26
12
11
8
7
6
5
4
3
2
1
10
9
RJ45-CONN
RJ45-CONN
YÂY+
NC4/3ÂNC/3+
RX-/1ÂNC2/2ÂNC1/2+
RX+/1+
TX-/0ÂTX+/0+
GÂG+
01/16 REV_3B change footprint
55_72@0.1u/16V_4
55_72@0.1u/16V_4
C235
C235
CTRL18
55_72@0.1u/16V_4
55_72@0.1u/16V_4
C254
C254
CTRL12
43
RN26
RN26
55@49.9/F_4P2R
55@49.9/F_4P2R
1 2
C588
C588
55@0.1u/16V_4
55@0.1u/16V_4
14
GND
13
GND
R215
R215
55_72@4.7K_4
55_72@4.7K_4
R239
R239
55_72@4.7K_4
55_72@4.7K_4
C589
C589
55@1000p_4
55@1000p_4
2
1
1
R4730_8 R4730_8
R2400_8 R2400_8
3
Q15
Q15
E
B
C
C
55_72@BCP69T1
55_72@BCP69T1
2
3
Q16
Q16
E
B
C
C
55_72@BCP69T1
55_72@BCP69T1
2
43
1 2
C584
C584
55@0.1u/16V_4
55@0.1u/16V_4
+2.5V_1.8V_LAN
4
+1.2V_LAN
4
RN25
RN25
55@49.9/F_4P2R
55@49.9/F_4P2R
C586
C586
0.1u/16V_4
0.1u/16V_4
C600
C600
0.1u/16V_4
0.1u/16V_4
C240
C240
55_72@4.7u/6.3V_6
55_72@4.7u/6.3V_6
C608
C608
0.1u/16V_4
0.1u/16V_4
C574
C574
0.1u/16V_4
0.1u/16V_4
C263
C263
55_72@4.7u/6.3V_6
55_72@4.7u/6.3V_6
C582
C582
55@1000p_4
55@1000p_4
C595
C595
C579
C579
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
C594
C594
C587
C587
C590
0.1u/16V_4
0.1u/16V_4
C612
C612
0.1u/16V_4
0.1u/16V_4
C572
C572
0.1u/16V_4
0.1u/16V_4
12/10 REV_3A DNI R485,R484,U7
Mount R481
VPD_DATA
VPD_CLK
EEPROM No Use
VPD_DATA Pull Down
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
LAN_Marvell_8040/8055
LAN_Marvell_8040/8055
LAN_Marvell_8040/8055
Date: Sheet
Date: Sheet
Date: Sheet
C590
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
C596
C596
C609
C609
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
C575
C575
C576
C576
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
0.1u/16V_4
+3V_S5
R485
R485
*4.7K_4
*4.7K_4
R481
R481
0_4
0_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
R484
R484
*4.7K_4
*4.7K_4
U7
5
6
7
4
*24LC08U7*24LC08
1
+2.5V_1.8V_LAN
+1.2V_LAN
SDA
SCL
WP
GND
VCC
C603
C603
40@4.7u/6.3V_6
40@4.7u/6.3V_6
C571
C571
40@4.7u/6.3V_6
40@4.7u/6.3V_6
1
A0
2
A1
3
A2
8
24 37Tuesday, January 22, 2008
24 37Tuesday, January 22, 2008
24 37Tuesday, January 22, 2008
of
of
of
+3V_S5
1A
1A
1A
5
CLK_PCIE_MINI(2)
CLK_PCIE_MINI#(2)
PCLK_DEBUG(2)
CL_RST#1(16)
CL_DATA1(16)
CL_CLK1(16)
PCIE_TXP1(15)
PCIE_TXN1(15)
PCIE_RXP1(15)
PCIE_RXN1(15)
WCS_CLK(28)
WCS_DAT(28)
To BT
SERIRQ(16,29)
LDRQ#1(14)
PLTRST#(15,16,20,21,22,24,28,29)
+3V_S5
09/28 REV_A1 Modify
SERIRQ
R375 *0_4R375 *0_4
LDRQ#1
R221 *0_4R221 *0_4
PLTRST#
R553 *0_4R553 *0_4
PCLK_DEBUG
R339 *0_4R339 *0_4
T72T72
T69T69
T68T68
T67T67
T66T66
3
WCS_CLK
WCS_DAT
2
2N7002E-LFQ12N7002E-LF
Q1
R331 0_4R331 0_4
R348 0_4R348 0_4
R349 0_4R349 0_4
R425 BT@0_4R425 BT@0_4
R424 BT@0_4R424 BT@0_4
1
R8 10K_4R8 10K_4
Mini PCI-E Card
WLAN
MINI-Card I
D D
PCIE_WAKE#(16,24,28)
C C
MINI-Card II
01/18 REV_3B Add PAD
PAD1
PAD1
EMIPAD
EMIPAD
1
VIN
C677
C677
C676
C676
C675
C675
0.1u/50V_6
0.1u/50V_6
B B
0.1u/50V_6
0.1u/50V_6
0.1u/50V_6
0.1u/50V_6
EMI
12/07 REV_3A Add
C679
C679
C678
C678
0.1u/50V_6
0.1u/50V_6
0.1u/50V_6
0.1u/50V_6
+1.5V
C680
C680
0.1u/50V_6
0.1u/50V_6
C681
C681
0.1u/50V_6
0.1u/50V_6
R426 0_4R426 0_4
WLAN_WAKE#
4
PCIE_TXP1
PCIE_TXN1
PCIE_RXP1
PCIE_RXN1
CLK_PCIE_MINI
CLK_PCIE_MINI#
SERIRQ_WLAN
CL_RST#1_MIN
CL_DATA1_MIN
CL_CLK1_MIN
WCS_CLKR
WCS_DATR
WLAN_WAKE#
CLK_PCIE_MINI2(2)
CLK_PCIE_MINI2#(2)
CN19
CN19
51
NC
49
C-Link_RST
47
C-Link_DAT
45
C-Link_CLK
43
GND
41
NC
39
NC
37
GND
35
GND
33
PETp0
31
PETn0
29
GND
27
GND
25
PERp0
23
PERn0
21
GND
19
NC
17
NC
15
GND
13
REFCLK+
11
REFCLK-
9
GND
7
CLKREQ#
5
BT_CHCLK
3
BT_DATA
1
WAKE#
minipai-c15706-52p-ldv
minipai-c15706-52p-ldv
PCIE_TXP3(15)
PCIE_TXN3(15)
PCIE_RXP3(15)
PCIE_RXN3(15)
+3.3V
GND
+1.5V
LED_WPAN#
LED_WLAN#
USB_D+
USB_D-
GND
SMB_DATA
SMB_CLK
+1.5V
GND
+3.3Vaux
PERST#
W_DISABLE#
GND
+1.5V
GND
+3.3V
CLK_PCIE_MINI2
CLK_PCIE_MINI2#
52
50
48
46
44
42
NC
40
NC
38
36
34
32
30
28
26
24
22
20
18
16
NC
14
NC
12
NC
10
NC
8
NC
6
4
2
PCIE_TXP3
PCIE_TXN3
PCIE_RXP3
PCIE_RXN3
3
+3V_S5+1.5V
+3V
10/26 REV_A1 Modify
T2T2
WiMAX_LED#_B WiMAX_LED#
R14 *0_4R14 *0_4
USBP3+_B USBP3+
USBP3-_B
WL_SMDATA
WL_SMCLK
PLTRST#
RF_EN_WLAN
R7 0_4R7 0_4
LFRAME#_PCIE
LAD3_PCIE
LAD2_PCIE
LAD1_PCIE
LAD0_PCIE
+3V
R13*0_4 R13*0_4
R110_4 R110_4
USBP3-
R90_4 R90_4
LFRAME#
R199*0_4 R199*0_4
LAD3
R198*0_4 R198*0_4
LAD2
R200*0_4 R200*0_4
LAD1
R201*0_4 R201*0_4
LAD0
R202*0_4 R202*0_4
T3T3
WiMAX_LED# (22)
USBP3+ (15)
USBP3- (15)
PLTRST# (15,16,20,21,22,24,28,29)
RF_EN (29)
LFRAME# (14,29)
LAD3 (14,29)
LAD2 (14,29)
LAD1 (14,29)
LAD0 (14,29)
09/28 REV_A1 Modify
+3V_S5+1.5V+3V
CN39
CN39
R100_4 R100_4
51
Reserved
49
Reserved
47
Reserved
45
Reserved
43
GND
41
+3.3Vaux
39
+3.3Vaux
37
GND
35
GND
33
PETp0
31
PETn0
29
GND
27
GND
25
PERp0
23
PERn0
21
GND
19
Reserved
17
Reserved
15
GND
13
REFCLK+
11
REFCLK-
9
GND
7
CLKREQ#
5
Reserved
3
Reserved
1
WAKE#
3G@minipai-c15706-52p-ldv
3G@minipai-c15706-52p-ldv
53
+3.3V
+1.5V
LED_WPAN#
LED_WLAN#
LED_WWAN#
USB_D+
USB_D-
SMB_DATA
SMB_CLK
+1.5V
+3.3Vaux
PERST#
W_DISABLE#
UIM_VPP
UIM_RESET
UIM_CLK
UIM_DATA
UIM_PWR
+1.5V
+3.3V
GND54GND
52
50
GND
48
46
44
42
40
GND
38
36
34
GND
32
30
28
26
GND
24
22
20
18
GND
16
14
12
10
8
6
4
GND
2
+3V
MINI2_SMDATA
MINI2_SMCLK
PLTRST#
2
+3V +1.5V +3V
C21
C22
C22
0.1u/10V_4
0.1u/10V_4
C16
C16
10u/10V_8
10u/10V_8
C20
C20
0.001u_4
0.001u_4
C21
0.1u/10V_4
0.1u/10V_4
09/20 REV_A1 Modify
R12*0_4 R12*0_4
T1T1
T71T71
T70T70
R150_4 R150_4
PLTRST# (15,16,20,21,22,24,28,29)
RF_EN (29)
SDATA(2,16,21,28)
SCLK(2,16,21,28)
SDATA(2,16,21,28)
SCLK(2,16,21,28)
C19
C19
10u/10V_8
10u/10V_8
C469
C469
0.1u/10V_4
0.1u/10V_4
+3V
3
3
3
3
C641
C641
10u/10V_8
10u/10V_8
1
2
4
RP4
RP4
4.7KX2
1
1
1
1
C385
C385
0.001u_4
0.001u_4
1
3
2
4
1
3
C361
C361
0.1u/10V_4
0.1u/10V_4
4.7KX2
WL_SMDATA
WL_SMCLK
RP3
RP3
4.7KX2
4.7KX2
MINI2_SMDATA
MINI2_SMCLK
+1.5V
C384
C384
10u/10V_8
10u/10V_8
Q5
2
2N7002EQ52N7002E
+3V
Q3
2
2N7002EQ32N7002E
+3V
Q4
2
2N7002EQ42N7002E
+3V
Q2
2
2N7002EQ22N7002E
C30
C30
C262
C262
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
C41
C41
C162
C162
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
C14
C14
C441
C441
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
C407
C407
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
C252
C252
0.1u/10V_4
0.1u/10V_4
A A
C251
C251
0.1u/10V_4
0.1u/10V_4
C11
C11
0.1u/10V_4
0.1u/10V_4
C12
C12
0.1u/10V_4
0.1u/10V_4
C195
C195
0.1u/10V_4
0.1u/10V_4
5
+5V
+5VPCU
C372
C372
0.1u/10V_4
0.1u/10V_4
C15
C15
0.1u/10V_4
0.1u/10V_4
C2
0.1u/10V_4C20.1u/10V_4
C18
C18
0.1u/10V_4
0.1u/10V_4
C23
C23
0.1u/10V_4
0.1u/10V_4
C231
C231
0.1u/10V_4
0.1u/10V_4
+3AVDD
C673
C673
0.1u/10V_4
0.1u/10V_4
+3VPCU
C615
C615
C72
C72
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
12/07 REV_3A Add
MINI-Card III
PCIE_TXP5(15)
PCIE_TXN5(15)
PCIE_RXP5(15)
PCIE_RXN5(15)
CLK_PCIE_MINI3(2)
CLK_PCIE_MINI3#(2)
4
PCIE_TXP5
PCIE_TXN5
PCIE_RXP5
PCIE_RXN5
CLK_PCIE_MINI3
CLK_PCIE_MINI3#
+3V
2
Q46
Q46
2N7002E
2N7002E
Q45
Q45
2N7002E
2N7002E
1
4
RP57
RP57
4.7KX2
4.7KX2
1
3
MINI3_SMDATA
1
MINI3_SMCLK
1
1A
1A
25 37Tuesday, January 22, 2008
25 37Tuesday, January 22, 2008
25 37Tuesday, January 22, 2008
1A
of
of
of
+3V_S5+3V
+1.5V
CN33
CN33
51
NC
49
C-Link_RST
47
C-Link_DAT
45
C-Link_CLK
43
GND
41
NC
39
R314 0_4R314 0_4
T91T91
T92T92
T93T93
NC
37
GND
35
GND
33
PETp0
31
PETn0
29
GND
27
GND
25
PERp0
23
PERn0
21
GND
19
NC
17
NC
15
GND
13
REFCLK+
11
REFCLK-
9
GND
7
CLKREQ#
5
BT_CHCLK
3
BT_DATA
1
WAKE#
minipai-c15706-52p-ldv
minipai-c15706-52p-ldv
H= 8mm
3
+3.3V
+1.5V
LED_WPAN#
LED_WLAN#
USB_D+
USB_D-
SMB_DATA
SMB_CLK
+1.5V
+3.3Vaux
PERST#
W_DISABLE#
+1.5V
+3.3V
52
50
GND
48
46
44
42
NC
40
NC
38
36
34
GND
32
30
28
26
GND
24
22
20
18
GND
16
NC
14
NC
12
NC
10
NC
8
NC
6
4
GND
2
+3V
MINI3_SMDATA
MINI3_SMCLK
PLTRST#
RF_EN_WLAN
R329 *0_4R329 *0_4
T57T57
T58T58
PLTRST# (15,16,20,21,22,24,28,29)
2
SDATA(2,16,21,28)
SCLK(2,16,21,28)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
MINI PCIE/HOLE
MINI PCIE/HOLE
MINI PCIE/HOLE
Date: Sheet
Date: Sheet
Date: Sheet
2
3
+3V
2
3
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
5
Codec(CX20561)
L42 PBY160808T-301Y-N_6L42 PBY160808T-301Y-N_6
D D
C C
ACZ_RST#_AUDIO(14)
BIT_CLK_AUDIO(14)
ACZ_SYNC_AUDIO(14)
ACZ_SDOUT_AUDIO(14)
SPDIF_OUT(27)
B B
GAIN
0dB
-6dB
-12dB
-18dB
INT_MIC
A A
+3V_S5
L43 *PBY160808T-301Y-N_6L43 *PBY160808T-301Y-N_6
+3VSUS
+3V_S5
+3VSUS
ACZ_SDIN0(14)
DIB_P(27)
DIB_N(27)
SPKR(16)
PC Beep GAIN CONTROL
GPIO1 GPIO2
10K 10K
omit omit
10K
omit
R392
+3AVDD
R392
1K_4
1K_4
INT_MIC_R
ADOGND
R563 0_4R563 0_4
R562 *0_4R562 *0_4
omit
10K
R593 4.7K_4R593 4.7K_4
C410
C410
10u/10V_6
10u/10V_6
ADOGND
5
R557 33_4R557 33_4
Reserve for EMI
R572 0_4R572 0_4
R580 0_4R580 0_4
C620 0.1u/10V_4C620 0.1u/10V_4
R564 0_4R564 0_4
CN35
CN35
2
1
INT_MIC
INT_MIC
+AZA_VDD
C627
C627
C637
C637
10u/10V_8
10u/10V_8
0.1u/10V_4
0.1u/10V_4
C623
C623
10u/10V_8
10u/10V_8
Determining HDA use +1.5V/+3V
C621
C621
0.1u/10V_4
0.1u/10V_4
ACZ_SDIN20561
DIB_P_L
DIB_N_L
PC_BEEP
GPIO2
GPIO1
EAPD#
CX20561-12Z Not
support digital MIC
CX20561-13Z support
digital MIC
R566 *10K_4R566 *10K_4
R565 *10K_4R565 *10K_4
GPIO1
GPIO2
C626
C626
0.1u/10V_4
0.1u/10V_4
U36
U36
11
6
10
8
5
43
42
12
48
45
46
47
1
2
CX20561-12Z
CX20561-12Z
C622
C622
0.1u/10V_4
0.1u/10V_4
RESET#
BIT_CLK
SYNC
SDATA_IN
SDATA_OUT
DIB_P
DIB_N
PC_BEEP
S/PDIF
GPIO2
GPIO1
EAPD#/GPIO0
DMIC_CLOCK
DMIC_1/2
4
+3AVDD
C657
C657
C647
C647
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
C655
C655
C652
C652
0.1u/10V_4
0.1u/10V_4
10u/10V_8
10u/10V_8
ADOGND
36
26
40
3
44
AVEE
AVDD_26
AVDD_40
DVDD_44
DVDD_3-3
RESERVED_32
RESERVED_33
AVSS_38
DVSS_41
AVSS_25
DVSS_7
7
38
41
25
ADOGND
C629
C629
*100p_4
*100p_4
ADOGND ADOGND ADOGND ADOGND ADOGNDADOGND
4
12/04 REV_3A Mount R556,R581,R407
34
PORTA_L
35
PORTA_R
MICBIASB
PORTB_L
PORTB_R
MICBIASC
PORTC_L
PORTC_R
PORTD_L
PORTD_R
STEREO_L
STEREO_R
SENSEA
VREF_LO
VREF_HI
MIC_L
MIC_R
MONO
VREF
FLY_P
FLY_N
C625
C625
*100p_4
*100p_4
19
14
15
18
16
17
27
28
20
21
29
30
31
13
24
39
37
22
23
32
33
MIC1-VREFO_B
MIC1-LL
MIC1-RR
MIC1-VREFO_C
FM_linein_L
FM_linein_R
MIC2_INT_L
MIC2_INT_R
SPKR-L
SPKR-R
SENSEA
CX20561_VILT
CX20561_FLY_P
CX20561_FLY_N
CX20561_RVD22
CX20561_RVD23
MIC1-LL
MIC1-RR
9
4
VDD_IO
DVDD_1-8
L26 PBY160808T-301Y-N_6L26 PBY160808T-301Y-N_6
C392
C392
10u/10V_8
10u/10V_8
ADOGND
C690 0.1u/10V_4C690 0.1u/10V_4
R589 0_4R589 0_4
ADOGND ADOGND
R556 0_4R556 0_4
ADOGND ADOGND
C624 2.2u/6.3V_6C624 2.2u/6.3V_6
C628 2.2u/6.3V_6C628 2.2u/6.3V_6
C633 2.2u/6.3V_6C633 2.2u/6.3V_6
C638 2.2u/6.3V_6C638 2.2u/6.3V_6
FM_linein_LL
FM_linein_RR
10/19 REV_A1 Add R611,R612,R609,R610
C395 2.2u/6.3V_6C395 2.2u/6.3V_6
C396 2.2u/6.3V_6C396 2.2u/6.3V_6
R386 5.1K/F_4R386 5.1K/F_4
R383 5.11K/F_4R383 5.11K/F_4
R387 10K/F_4R387 10K/F_4
R382 20K/F_4R382 20K/F_4
C651 1u/10V_4C651 1u/10V_4
C646
C646
1u/10V_4
1u/10V_4
ADOGND
FM_linein_L
FM_linein_R
C639
C639
*100p_4
*100p_4
01/22 REV_3B Add
R611 0_4R611 0_4
R612 *0_4R612 *0_4
FM_linein_LL
FM_linein_RR
R609 *0_4R609 *0_4
R610 *0_4R610 *0_4
C644
C644
1u/10V_4
1u/10V_4
C631
C631
*100p_4
*100p_4
3
+3V
C688 0.1u/10V_4C688 0.1u/10V_4
R581 0_4R581 0_4
C687 0.1u/10V_4C687 0.1u/10V_4
R407 0_4R407 0_4
MIC1-VREFO
MIC1-L
MIC1-R
MIC1-VREFO
R577 10K_4R577 10K_4
R578 10K_4R578 10K_4
MIC1-L
MIC1-R
INT_MIC_R
+3AVDD
Port_A# (27)
Port_B# (27)
Port_C# (16)
12/12 REV_3A Mount R382
C656
C656
C650
C650
10u/10V_8
10u/10V_8
0.1u/10V_4
0.1u/10V_4
ADOGND
MIC2_INT_L
MIC2_INT_R
C394
C394
*100p_4
*100p_4
3
HPL (27)
HPR (27)
MIC1-VREFO (27)
MIC1-L (27)
MIC1-R (27)
FM_LEFT (27)
FM_RIGHT (27)
C393
C393
*100p_4
*100p_4
2
INT SPK AMP
SPKR-L SPKR-L-2
SPKR-R
INSPKL+
INSPKR+
G1441_SHDN
+5V
R583 *0_6R583 *0_6
C648
C648
*1u/16V_6
*1u/16V_6
+5V
01/15 REV_3B Change R384,R575 to 10.5K
01/15 REV_3B Change R586,R576 to 16K
C391 2.2u/6.3V_6C391 2.2u/6.3V_6
C634 2.2u/6.3V_6C634 2.2u/6.3V_6
ADOGND
ADOGND
SPKR-L-1
SPKR-R-1
R384 10.5K/F_6R384 10.5K/F_6
R575 10.5K/F_6R575 10.5K/F_6
R586 16K/F_6R586 16K/F_6
C649 330p/25V_4C649 330p/25V_4
R576 16K/F_6R576 16K/F_6
C643 330p/25V_4C643 330p/25V_4
C635 4.7u/6.3V_6C635 4.7u/6.3V_6
C653 4.7u/6.3V_6C653 4.7u/6.3V_6
R561 0_4R561 0_4
U37
U37
4
VEN
VOUT
5
VIN
GND
2
R570 0_6R570 0_6
*G961-18ADJTEU(SOT89-5)
*G961-18ADJTEU(SOT89-5)
3
ADJ
1
ADOGND
INT SPEAKER
INSPKL-
L49 BK1608LL121_6L49 BK1608LL121_6
INSPKL+
L48 BK1608LL121_6L48 BK1608LL121_6
INSPKR-
L47 BK1608LL121_6L47 BK1608LL121_6
INSPKR+ INSPKR+N
L46 BK1608LL121_6L46 BK1608LL121_6
Mount ESD protect parts:BC03220KZ19
AMP_MUTE#(29)
EAPD# MUTE#
H : AMP turn on
L : AMP power down
D46 MTW355D46 MTW355
D45 *MTW355D45 *MTW355
2
21
21
12/06 REV_3A D45 DNI
INSPKL-N
INSPKL+N
INSPKR-N
C400
C400
*47p_6
*47p_6
10/26 REV_A1 change to CC0603
+3AVDD
1
R573
R573
*36K/F_4
*36K/F_4
R567
R567
*12K/F_4
*12K/F_4
C645
C645
10u/10V_8
10u/10V_8
SPKR-R-2
18
17
G1441_RBY
16
G1441_PBY
G1441_SE/BTL
11
C399
C399
*47p_6
*47p_6
R560
R560
10K_4
10K_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Conexant CX205601
Conexant CX205601
Conexant CX205601
Date: Sheet
Date: Sheet
Date: Sheet
+3AVDD
ADOGND
+5V_VDD
C632
C632
0.1u/10V_4
0.1u/10V_4
U35
U35
1
LIN1
RIN1
2
LIN2
RIN2
RBYPASS
3
LBYPASS
5
SHDN
SE/BTL
G1441
G1441
ADOGND
C398
C398
*47p_6
*47p_6
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
4
LVDD
C630
C630
*0.1u/10V_4
*0.1u/10V_4
6
15
8
14
23
20
VOL
CT
NC
VDD3
RVDD
SECNTL
13
IN1/IN2
ROUT+
LOUT+
GND/HS22GND/HS
GND/HS
GND/HS
THRMPAD
9
21
10
25
SPEAKER_H1.95
SPEAKER_H1.95
C397
C397
*47p_6
*47p_6
+5V_VDD
R555
R555
100K_4
100K_4
G1441_SHDN
3
2
1
ADOGND
1
ROUTÂLOUT-
Q44
Q44
2N7002E
2N7002E
19
12
24
7
CN15
CN15
1
2
5
3
6
4
MUTE# (27)
26 37Tuesday, January 22, 2008
26 37Tuesday, January 22, 2008
26 37Tuesday, January 22, 2008
INSPKR+
INSPKRÂINSPKL+
SECNTL (27)
INSPKL-
of
of
of
ADOGND
1A
1A
1A
5
VR
D D
+3AVDD
DIGVOL_UP(29)
DIGVOL_DN(29)
DIGVOL_UP
DIGVOL_DN
R395 10K_4R395 10K_4
R397 10K_4R397 10K_4
R393 0_4R393 0_4
R400 0_4R400 0_4
VR_UP
VR_DN
12/04 REV_3A Mount R393,R400
ADOGND ADOGND
+3AVDD
12/04 REV_3A DNI U14,C404
DIGVOL_UP
C C
DIGVOL_DN
ADOGND
ADOGND
ADOGND
C404
C404
*0.1u/10V_4
*0.1u/10V_4
C402
C402
*0.1u/10V_4
*0.1u/10V_4
C408
C408
*0.1u/10V_4
*0.1u/10V_4
U14
U14
5
CLK
Vcc
D
4
GND
Q
*SN74LVC1G79DBVR
*SN74LVC1G79DBVR
2
1
3
ADOGND
C420
C420
0.1u/10V_4
0.1u/10V_4
ADOGND
VR_UP
4
C411
C411
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
+3AVDD
01/03 REV_3B Add C665
C665
C665
C452
C452
*0.1u/10V_4
*0.1u/10V_4
ADOGND
VR1
VR1
A2COM
3
B
VR_XRE094_NOBLE
VR_XRE094_NOBLE
U41
U41
5
4 3
*NL17SZ17
*NL17SZ17
12/04 REV_3A Add U41,C452,C665
12/04 REV_3A Del Q25,R385
1
4
4
5
5
6
7
ADOGND
1
VR_DN
2
ADOGND
3
SYSTEM MIC
Port_B#
2
MDC
DIB_P(26)
DIB_N(26)
MIC1-VREFO(26)
MIC1-L(26)
MIC1-R(26)
D26
D26
1
3
2
*DA204U
*DA204U
01/15 REV_3B Change footprint
CN27
CN27
1
SB_GPIO7
3
SB_GPIO27
5
FM_INT
7
DIB_P
9
DIB_N
11
FM_SUSCLK
MDC
MDC
R388 4.7K_4R388 4.7K_4
+3AVDD
ADOGND
MIC1-R
AGND
FM_L
FM_R
AGND
2
+3V
4
GND
6
8
10
12
L27 BK1608LL121_6L27 BK1608LL121_6
L28 BK1608LL121_6L28 BK1608LL121_6
C567
C567
0.1u/10V_4
0.1u/10V_4
C416
C416
*100p_4
*100p_4
09/26 REV_A1 Modify
10/19 REV_A1 Change footprint
+3V
Port_B#(26)
C415
C415
*100p_4
*100p_4
CNXT suggestion can not over 100P
FM Tuner
SB_GPIO7(16)
SB_GPIO27(16)
FM_LEFT(26)
FM_RIGHT(26)
FM_DET(16)
FM_INT(16)
MIC1_L1MIC1-L
MIC1_R1
Port_B#
1
+3V
C662
C662
*0.1u/10V_4
*0.1u/10V_4
CN37
CN37
1
7
2
6
3
4
8
5
MIC_JACK
MIC_JACK
Normal OPEN Jack
SB_GPIO7
SB_GPIO27
FM_LEFT
FM_RIGHT
FM_INT
ADOGND
CN38
CN38
1
10
2
3
4
5
6
7
8 9
*BL121-08R-8P-L-BL5
*BL121-08R-8P-L-BL5
HP Amplifier
12/06 REV_3A Del R584,R592
HP
G1412_HPL
G1412_HPR
HPL(26)
B B
HPR(26)
A A
Port_A#(26)
R588 *1412@0_4R588 *1412@0_4
R590 *1412@0_4R590 *1412@0_4
C667 10u/10V_6C667 10u/10V_6
C668 10u/10V_6C668 10u/10V_6
*1412@10u/10V_8C659 *1412@10u/10V_8C659
*1412@10u/10V_8C660 *1412@10u/10V_8C660
Port_A#
01/09 REV_3B Mount R591,R587 0.1u
R591,R587 Mount 0.1u CAP not resistors
for solve GPRG noise issue
12/06 REV_3A Mount L50,L51,C654,C658
HPR_1
R587
R587
R591
R591
HPL_2
HPR_2
12/06 REV_3A Mount R591,R587
+5V
R381
3
1
R381
10K_4
10K_4
Q23
Q23
2N7002
2N7002
Q24
Q24
3
2N7002
2N7002
2
1
0.1u_4
0.1u_4
0.1u_4
0.1u_4
+5V
R380
R380
22K_4
22K_4
2
01/17 REV_3B Add D51
5
L50 BK1608LL121_6L50 BK1608LL121_6
L51 BK1608LL121_6L51 BK1608LL121_6
C654
C654
C658
C658
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
ADOGND
1
+3V +3V_SPD
HP_JD
D51
D51
VPORT_6
VPORT_6
2 1
12/07 REV_3A Add C671
HP_JD
HPL_SYSHPL_1
HPR_SYS
SPDIF_OUT(26)
C421
C421
100p_4
100p_4
3
Q26
Q26
2
ME2347
ME2347
C671
C671
100p_4
100p_4
4
C672
C672
+3V_SPD
100p_4
100p_4
5
4
10
3
2
1
7
8
6
12/07 REV_3A Add C421
ADOGND
HP_JD
12/07 REV_3A Add C672
CN36
CN36
HP_JACK
HP_JACK
Drive
Drive
IC
IC
3
LED
LED
D27
D27
*DA204U
*DA204U
9
1
2
ADOGND
01/16
REV_3B Add
AGND
+3AVDD
ADOGND
+3AVDD
3
R396 1412@10K_6R396 1412@10K_6
C412 1412@47p_4C412 1412@47p_4
U15
U15
HPL_2
R389 1412@100K_4R389 1412@100K_4
MUTE#(26)
SECNTL(26)
D29 1412@MTW355D29 1412@MTW355
D28 1412@*MTW355D28 1412@*MTW355
HPR_2
+NVDD+3AVDD
21
21
C401 1412@4.7u/6.3V_6C401 1412@4.7u/6.3V_6
U13
U13
1
VOUT
2
VIN
3
C-
1412@G5930
1412@G5930
R390 1412@10K_6R390 1412@10K_6
R399 1412@10K_6R399 1412@10K_6
6
C+
5
/SHDN
4
GND
ADOGND
+3AVDD
+NVDD
1412MUTE#
1412MUTE#
4
3
15
6
10
1
16
8
2
-
-
INL
+
+
SVDD
PVDD
SVSS
NVDD
SHDNR#
SHDNL#
+
+
-
-
INR
1412@G1412
1412@G1412
C413 1412@47p_4C413 1412@47p_4
R398 1412@10K_6R398 1412@10K_6
OUTL
SGND
PGND
TPAD
OUTR
5
9
NC1
11
NC2
12
NC3
14
NC4
2
13
17
7
12/11 REV_3A Add For EMI
+3AVDD
C403
+NVDD
C417
C417
1412@4.7u/6.3V_6
1412@4.7u/6.3V_6
C403
1412@0.1u/10V_4
1412@0.1u/10V_4
27 37Tuesday, January 22, 2008
27 37Tuesday, January 22, 2008
27 37Tuesday, January 22, 2008
C409
C409
0.1u/16V_6
0.1u/16V_6
G1412_HPL
ADOGND
G1412_HPR
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
ADOGND ADOGND
ADOGND
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Audio JACK/VR
Audio JACK/VR
Audio JACK/VR
1
1A
1A
1A
of
of
of
5
R16CM@0_8 R16CM@0_8
FINGER_POWER
+
+
C29 CM@10u/10V_8
C29 CM@10u/10V_8
C27 *CM@1000p_4C27 *CM@1000p_4
C28 *CM@0.1u/10V_4C28 *CM@0.1u/10V_4
2
RP2
RP2
10
9
8
7 4
10KX8
10KX8
100px4
100px4
CP4
CP4
100px4
100px4
CP5
CP5
100px4
100px4
CP3
CP3
100px4
100px4
CP2
CP2
100px4
100px4
CP1
CP1
3
Q9
Q9
*CM@AO3413
*CM@AO3413
MX7
1
MX2
2
MX3
3
MX4
56
MX7
MX2
6
MX3
4
MX4
2
MX0
MX5
6
MX6
4
MX1
2
MY7
MY13
6
MY12
4
MY15
2
MY3
MY5
6
MY14
4
MY6
2
MY2
MY1
6
MY0
4
MY4
2
MX1
MX6
MX5
MX0
1
+3VPCU
7 8
5
3
1
7 8
5
3
1
7 8
5
3
1
7 8
5
3
1
7 8
5
3
1
+3V
D D
C C
B B
+3V
CN6
CN6
36
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
91504-340N-34P-L
91504-340N-34P-L
Keyboard Side
R19
R19
*CM@4.7K_4
*CM@4.7K_4
1 3
K_LED_P
MY16
MY17
K_LED_P
MY2
MY1
MY0
MY4
MY3
MY5
MY14
MY6
MY7
MY13
MY8
MY9
MY10
MY11
MY12
MY15
MX7
MX2
MX3
MX4
MX0
MX5
MX6
MX1
K_LED_P
CAPSLED
FN_F10
NUMLED
+5V
2
Q6
Q6
*CM@DTC144EU
*CM@DTC144EU
1
FP_PWRON (29)
MY16 (29)
MY17 (29)
MY2 (29)
MY1 (29)
MY0 (29)
MY4 (29)
MY3 (29)
MY5 (29)
MY14 (29)
MY6 (29)
MY7 (29)
MY13 (29)
MY8 (29)
MY9 (29)
MY10 (29)
MY11 (29)
MY12 (29)
MY15 (29)
MX7 (29)
MX2 (29)
MX3 (29)
MX4 (29)
MX0 (29)
MX5 (29)
MX6 (29)
MX1 (29)
K_LED_P
CAPSLED (29)
FN_F10 (29)
NUMLED (29)
R20CM@*0_8 R20CM@*0_8
3
Q8
Q8
2
CM@AO3413
CM@AO3413
10/26 REV_A1 Add
R6 150_4R6 150_4
+3V
4
K_LED_P
FELICA_POWER
+
+
C24 CM@10u/10V_8
C24 CM@10u/10V_8
C26 CM@1000p_4C26 CM@1000p_4
C25 CM@0.1u/10V_4C25 CM@0.1u/10V_4
+5V_TP
+5VPCU
TPDATA_1
TPCLK_1
GND
TP_LED_ON_C
BATLED1#
BATLED0#
PWRLED#
SUSLED_EC
SATA_LED#
ACIN
TP_XD_LED
Aces 88501-1401-14P-L
Aces 88501-1401-14P-L
01/18 REV_3B Add CN7
+5V
1 3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R17
R17
CM@4.7K_4
CM@4.7K_4
Q7
Q7
CM@DTC144EU
CM@DTC144EU
CN7
CN7
2
16
15
3
Finger Printer
FINGER_POWER
D65 EGA_4D65 EGA_4
2 1
D66 EGA_4D66 EGA_4
2 1
D67 VPORT_6D67 VPORT_6
2 1
Felica
FELICA_PWRON (29)
FELICA_POWER
BLUETOOTH MODULE CONNECTOR
12/06 REV_3A R366 DNI
BT_EN(29)
Wire Cable 1.25mm Pitch
BUTTONS ON KB COVER
MMB
01/18 REV_3B Add C683,C684 for EMI
09/26 REV_A1 Del R156,R168
USBP4-(15)
USBP4+(15)
USBP4ÂUSBP4+
FINGER_POWER
FP@88266-040XX-XXX-4P-R
FP@88266-040XX-XXX-4P-R
01/21 REV_3B Add
10/24 REV_A1 Modify
FELICA_DE
T62T62
R137 *FP@0_6R137 *FP@0_6
USBP8+(15)
R139 *FP@0_6R139 *FP@0_6
USBP8-(15)
10/19 REV_A1 Change footprint
USBP5+(15)
WCS_CLK(25)
USBP5-(15)
WCS_DAT(25)
+3VPCU
WCS_CLK
BT_RESET
WCS_DAT
+3V
USB_DETACH
BT@88266-100XX-XXX-10P-R
BT@88266-100XX-XXX-10P-R
R366 *BT@*0_4R366 *BT@*0_4
R376 BT@0_4R376 BT@0_4
USB_DETACH: Low USB connect
Low cost
10/29 REV_A1 Modify MX1 to MX5
C683
C683
1000p/16V_4
1000p/16V_4
CN10
CN10
1
2
3
4
5 6
USBP8+_C
USBP8-_C
*BL121-06R-6P-L-BL5
*BL121-06R-6P-L-BL5
CN13
CN13
1
1211
2
3
4
5
6
7
8
9
10
BT_RESET
USB_DETACH
High USB disconnect
+3VPCU
MX5(29)
MX2(29)
MY1(29)
MX3(29)
LOW_DET(16)
MX4(29)
FN0#(29)
FN1#(29)
FFC Cable 1.0mm Pitch
C684
C684
1000p/16V_4
1000p/16V_4
2
T/P
+5V
+5VPCU
TPDATA(29)
CN9
CN9
8
6
5
4
3
2
1
7
TP_LED_ON(29)
+3V
C618
C618
BT@0.1u/10V_4
BT@0.1u/10V_4
12/06 REV_3A Mount C618
BL123-10R-TAND-10P-L-BU1
BL123-10R-TAND-10P-L-BU1
Power board
CN4
CN4
12
1
2
3
4
5
6
7
8
9
10
11
+5V_TP TPDATA_1
C78
C78
C79
C79
4.7u/10V_8
4.7u/10V_8
0.1u/10V_4
0.1u/10V_4
L6 BLM18PG181SN1DL6 BLM18PG181SN1D
1 2
R56 0_4R56 0_4
R57 0_4R57 0_4
TPCLK(29)
+3VPCU
R619
R619
10K_4
10K_4
1 3
R620
R620
*0_4
*0_4
+5VPCU
NBSWON#(29)
PWRLED#(29)
10/25 REV_A1 Swap net and change footprint
Main strem
+3VPCU
+5VPCU
KEY_INT(29)
3ND_MBDATA(19,21,29)
3ND_MBCLK(19,21,29)
10/25 REV_A1 Swap net and change footprint
1
TPCLK_1
C81
C81
*10p_4
*10p_4
+5V_TP
TPDATA_1
TPCLK_1
TP_LED_ON_C
BATLED1#(29)
BATLED0#(29)
PWRLED#(29)
SUSLED_EC(29)
IDE_LED#(22)
ACIN(29,30)
TP_XD_LED(23)
10/26 Del R64
BATLED1#
BATLED0#
PWRLED#
SUSLED_EC
SATA_LED#
ACIN
TP_XD_LED
BL121-14R-TAND-14P-L-BU1
BL121-14R-TAND-14P-L-BU1
GND
2
C80
C80
*10p_4
*10p_4
R618
R618
330_4
330_4
Q52
Q52
MMBT3904
MMBT3904
TP_LED_ON_C
10/29 Add
CN5
CN5
1
2
3
6
4 5
BL123-04R-4P-R-BL5
BL123-04R-4P-R-BL5
10/19 REV_A1 Change footprint
TOP View pin1 at left
BL123-06R-6P-R-BL5
BL123-06R-6P-R-BL5
7
1
2
3
4
5
6
8
CN3
CN3
10/19 REV_A1 Modify pin count
FFC Cable 1.0mm Pitch
10/24 REV_A1 Swap net
+5VPCU
CN8
CN8
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
C17
C17
*0.1u/10V_4
*0.1u/10V_4
CN12
+NEW_3V
2
4
RP48
RP48
NEW@4.7KX2_4
Q20
Q20
SDATA(2,16,21,25)
SCLK(2,16,21,25)
A A
SDATA NEW_SMDATA
NEW@2N7002E
NEW@2N7002E
SCLK
NEW@2N7002E
NEW@2N7002E
+3V_S5
C290
C290
NEW@0.1u/10V_4
NEW@0.1u/10V_4
5
2
3
+NEW_3V
Q19
Q19
2
3
1
3
1
1
C321
C321
NEW@0.1u/10V_4
NEW@0.1u/10V_4
NEW@4.7KX2_4
NEW_SMCLK
C319
C319
0.1u/10V_4
0.1u/10V_4
+1.5V+3V
C286
C286
NEW@0.1u/10V_4
NEW@0.1u/10V_4
C284
C284
NEW@0.1u/10V_4
NEW@0.1u/10V_4
NEW CARD'S POWER SWITCH
CPPE# : ( Internal Pull Up , active low when card support PCIE )
CPUSB# : ( Internal Pull Up , active low when card support USB )
SHDN# : ( Internal Pull Up )
3.3VIN
3.3VIN
AUXIN
1.5VIN
1.5VIN
SYSRST#
SHDN#
RCLKEN
NC
GND
OZ27C10LN-B1
OZ27C10LN-B1
C283
C283
NEW@0.1u/10V_4
NEW@0.1u/10V_4
H=0.8mm
3.3VOUT
3.3VOUT
AUXOUT
1.5VOUT
1.5VOUT
STBY#
CPPE#
CPUSB#
PERST#
OC#
3
5
15
11
13
1
10
9
8
19
C326
C326
NEW@4.7u/10V_8
NEW@4.7u/10V_8
U10
U10
PLTRST#
T48T48
2
4
17
12
14
6
20
18
16
7
+3V
+3V_S5
+1.5V
PLTRST#(15,16,20,21,22,24,25,29)
RCLKEN
T43T43
4
+NEW_3V
+NEW_3VAUX
+NEW_1.5V
CPPE#
CPUSB#
R263
R263
R260 NEW@47K_4R260 NEW@47K_4
C315
C315
NEW@0.1u/10V_4
NEW@0.1u/10V_4
T51T51
NEW@28.7K/F
NEW@28.7K/F
+3V_S5
C320
C320
NEW@0.1u/10V_4
NEW@0.1u/10V_4
3
PCIE_TXP4(15)
PCIE_TXN4(15)
PCIE_RXP4(15)
PCIE_RXN4(15)
Q21
Q21
NEW@*DTC144EU
NEW@*DTC144EU
13
4
2
CLK_PCIE_NEW(2)
CLK_PCIE_NEW#(2)
NEW_CLKREQ#(2)
+3V
3 5
NEW_CLKREQ#_RR
1
2
R605 *NEW@0_4R605 *NEW@0_4
09/26 REV_A1 Add
USBP6+(15)
USBP6-(15)
R604 NEW@10K_4R604 NEW@10K_4
R489 NEW@10K_4R489 NEW@10K_4
3
2
Q43
Q43
1
NEW@2N7002E
NEW@2N7002E
+3V_S5
2
PERST#PERST#_R
C302
C302
NEW@3300p_4
NEW@3300p_4
PCIE_WAKE#
09/26 REV_A1 Add
C285
C285
NEW@0.1u/10V_4
NEW@0.1u/10V_4
R284
R284
NEW@0_4
NEW@0_4
NEW_CLKREQ#
U40
U40
NEW@NC7SZ32P5X
NEW@NC7SZ32P5X
PCIE_WAKE#(16,24,25)
+NEW_1.5V+NEW_3V+NEW_3VAUX
C293
C293
NEW@4.7u/10V_8
NEW@4.7u/10V_8
New card (BTO)
R257 NEW@0_4R257 NEW@0_4
R256 NEW@0_4R256 NEW@0_4
RCLKEN
CPPE#
NEW_CLKREQ#_RR
+NEW_3V
PERST#
+NEW_3VAUX
+NEW_1.5V
NEW_SMDATA
NEW_SMCLK
CPUSB#
+3V_S5
12/07 REV_A1 Change footprint
+3V_S5
10/19 REV_A1 Change footprint
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : BL5S Santa Rosa
New Card/Keyboard/WTB
New Card/Keyboard/WTB
New Card/Keyboard/WTB
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
USBP6+_R
3
USBP6-_R
2
1
NEW@NCARD-13180151-T-26P-L
NEW@NCARD-13180151-T-26P-L
1
CN12
GND1
PETp0
PETn0
GND2
PERp0
PERn0
GND3
REFCLK+
REFCLKÂCPPE#
CLKREQ#
+3.3V1
+3.3V2
PERST#
+3.3VAUX
WAKE#
+1.5V1
+1.5V2
SMB_DATA
SMB_CLK
RESERVED1
RESERVED2
CPUSB#
USB_D+
USB_DÂGND4
GND29
GND30
28 37Tuesday, January 22, 2008
28 37Tuesday, January 22, 2008
28 37Tuesday, January 22, 2008
29
30
1A
1A
1A
of
of
of
5
D D
C C
SMBUS Table
SMBUS
1 Battery
2
3
To: Battery connector
To: Battery connector
To: CPU Thermal Sensor, 3D Sensor, EC EEPROM
To: CPU Thermal Sensor, 3D Sensor, EC EEPROM
To: VGA Board Thermal Sensor, Touch Sensor
To: VGA Board Thermal Sensor, Touch Sensor
To: AMD CPU (Output)
+5V
B B
R99 10K_4R99 10K_4
R98 10K_4R98 10K_4
PCLK_591
R28
R28
*22_4
*22_4
C36
C36
*10p_4
*10p_4
To: Back light control circuit (Output)
To: HDMI (Input)
C137
C137
10u/10V_8
10u/10V_8
To: USB power switch (Output)
09/29 REV_A1 Modify
Devices
CPU Thermal Sensor
3D Sensor
EC EEPROM
VGA Board Thermal Sensor
Touch Sensor
10/26 REV_A1 Modify
To: Touch PAD
To: Touch PAD
TPCLK
To: Finger Printer Con (output)
TPDATA
To: Internal KB LED (output)
To: Felica Con (output)
C105
C105
C51
C51
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
LFRAME#(14,25)
LAD0(14,25)
LAD1(14,25)
LAD2(14,25)
LAD3(14,25)
PCLK_591(2)
CLKRUN#(16,23)
GATEA20(14)
RCIN#(14)
SCI#(16)
EC_FPBACK#(18)
CEC_EC_HP(21)
PLTRST#(15,16,20,21,22,24,25,28)
USB_EN#(19)
SERIRQ(16,25)
USB_EN#1(19)
2ND_MBCLK(3)
2ND_MBDATA(3)
3ND_MBCLK(19,21,28)
3ND_MBDATA(19,21,28)
10/22 REV_A1 Modify
FP_PWRON(28)
FN_F10(28)
FELICA_PWRON(28)
R93 20M_6R93 20M_6
Y1
4 1
C125
C125
15p_4
15p_4
32.768KHZY132.768KHZ
C57
C57
C38
C38
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
0.1u/10V_4
D4
BAS316D4BAS316
MX0(28)
MX1(28) LID591# (18)
MX2(28)
MX3(28)
MX4(28)
MX5(28)
MX6(28)
MX7(28)
MY0(28)
MY1(28)
MY2(28)
MY3(28)
MY4(28)
MY5(28)
MY6(28)
MY7(28)
MY8(28)
MY9(28)
MY10(28)
MY11(28)
MY12(28)
MY13(28)
MY14(28)
MY15(28)
MY16(28)
MY17(28)
MBCLK(30)
MBDATA(30)
T4T4
TPCLK(28)
TPDATA(28)
CHG-EN(30)
8768_32KX1
8768_32KX2
R94
R94
33K/F_6
33K/F_6
23
C126
C126
15p_4
15p_4
8769AGND
+3VPCU
SCI#_uR
HWPG
4
L9
L9
BLM18AG601SN1_6
BLM18AG601SN1_6
C109
C109
0.1u/10V_4
0.1u/10V_4
3
126
127
128
1
2
8
121
122
29
6
124
7
123
125
9
54
55
56
57
58
59
60
61
53
52
51
50
49
48
47
43
42
41
40
39
38
37
36
35
34
33
70
69
67
68
119
120
24
28
72
71
10
11
12
13
77
79
U1
U1
EC
EC
+A3VPCU
19
46
76
88
115
102
VCC1
VCC2
VCC3
VCC4
VCC5
LFRAME
LAD0
LAD1
LAD2
LAD3
LCLK
CLKRUN/GPIO11
GA20
KBRST
ECSCI/GPIO54
LDRQ/GPIO24
LPCPD/GPIO10
LRESET
PWUREQ/GPIO67
SERIRQ
SMI/GPIO65
KBSIN0
KBSIN1
KBSIN2
KBSIN3
KBSIN4
KBSIN5
KBSIN6
KBSIN7
KBSOUT0/JENK
KBSOUT1/TCK
KBSOUT2/TMS
KBSOUT3/TDI
KBSOUT4/JEN0
KBSOUT5/TDO
KBSOUT6/RDY
KBSOUT7
KBSOUT8
KBSOUT9
KBSOUT10
KBSOUT11
KBSOUT12/GPIO64
KBSOUT13/GPIO63
KBSOUT14/GPIO62
KBSOUT15/GPIO61/XOR_OUT
KBSOUT16/GPIO60
KBSOUT17/GPIO57
SCL1/GPIO17
SDA1/GPIO22
SCL2/GPIO73
SDA2/GPIO74
SCL3/GPIO23
SDA3/GPIO31
SCL4/GPO47
SDA4/GPIO53
PSCLK1/GPIO37
PSDAT1/GPIO35
PSCLK2/GPIO26
PSDAT2/GPIO27
PSCLK3/GPIO25
PSDAT3/GPIO12
32KX1/32KCLKIN
32KX2
AVCC
GND1
GND2
5
18
45
L10
L10
HZ0603B601R-00_6
HZ0603B601R-00_6
+3V
C66
C66
0.1u/10V_4
0.1u/10V_4
8769AGND
H=1.6mm
A/D
A/D
D/A
D/A
LPC
LPC
PWM
PWM
KB
KB
TIMER
TIMER
SPI
SPI
SMB
SMB
FIU
FIU
PS/2
PS/2
GND3
GND4
GND5
GND6
78
89
116
8769AGND
R26
R26
10K_4
10K_4
C116
C116
10u/10V_8
10u/10V_8
AD0/GPI90
AD1/GPI91
AD2/GPI92
AD3/GPI93
AD4/GPIO05
AD5/GPIO04
AD6/GPIO03
AD7/GPIO07
DA0/GPI94
DA1/GPI95
DA2/GPI96
DA3/GPI97
GPIO41(VBAT)
GPIO
GPIO
GPIO42/TCK
GPIO43/TMS
wake-up
wake-up
GPIO44/TDI
capability
capability
GPIO50/TDO
CIRTX2/GPIO52/RDY
no wake-up
no wake-up
GPO82/TRIS
capability
capability
GPO84/BADDR0
SOUT_CR/GPO83/BADDR1
SIN_CR/CIRRX/GPIO87
SER
SER
A_PWM/GPIO15
B_PWM/GPIO21
C_PWM/GPIO13
D_PWM/GPIO32
E_PWM/GPIO45
F_PWM/GPIO40/CLKIN48
G_PWM/GPIO66
H_PWM/GPIO33
TA1/GPIO56
TB1/GPIO14
TA2/GPIO20
TB2/GPIO01
TA3/GPIO51
TB3/GPIO36
SPI_DI/GPIO77
SPI_DO/GPO76/SHBM
SPI_SCK/GPIO75
IRRX1/GPIO72/SIN2
FIR
FIR
IRRX2_IRSL0/GPIO70
IRTX/GPIO71/SOUT2
CIRRXM/GPIO46/TRST
GPIO34/CIRRXL
CIR
CIR
CIRTX1/GPIO16
CIRTX2/GPIO30
F_SDI/F_SDIO1
F_SDO/SDIO0
CLKOUT/GPIO55
VCC_POR
VCORF
AGND
44
103
VCORF_uR
C50
C50
1u/10V_6
1u/10V_6
3
10/26 REV_A1 Add R64,R73,R176
R25
EC_VDD
C35
C35
C37
C37
10u/10V_8
10u/10V_8
0.1u/10V_4
0.1u/10V_4
GPIO06
GPIO81
F_CS0
F_SCK
VREF
4
VDD
97
98
99
100
108
96
95
94
101
105
106
107
80
17
20
21
25
27
110
112
111
113
93
32
118
62
65
22
16
81
66
31
63
117
64
26
15
84
83
82
DNBSWON#_uR
91
75
73
74
23
14
114
109
86
87
90
92
30
85
104
WPC8763LDG:
WPC8769LDG:
WPCE775L:
WPCE775C:
EC_VBAT
BADDR0
RSMRST#_uR
PWROK_EC
SPI_SDI_uR
SPI_SDO_uR
SPI_CS0#_uR
SPI_SCK_uR
VCC_POR#
For WPC8763
EC_VBAT
USBOC#0
R85 10K_4R85 10K_4
USBOC#0
D9 BAS316D9 BAS316
R100 0_4R100 0_4
R97 4.7K_4R97 4.7K_4
R55 0_4R55 0_4
AL008763B00
AJ087690F08
AJ007750F00
AJ007750F01
+3V
0_6
0_6
R80 *10K_4R80 *10K_4
R1010_4 R1010_4
R110 *0_4R110 *0_4
R95 0_4R95 0_4
DNBSWON#_uR
DIGVOL_UP
DIGVOL_DN
+3VPCU
TEMP_MBAT (30)
USBOC#0 (15,19)
FN0# (28)
FN1# (28)
DIGVOL_UP (27)
DIGVOL_DN (27)
NBSWON# (28)
SUSB# (16)
CC-SET (30)
VFAN (3)
CV-SET (30)
SUSLED_EC (28)
RF_LED (22)
AMP_MUTE# (26)
ID (30)
D/C# (30)
DISPON (22)
LED_LOGO (22)
BT_EN (28)
CRT_SENSE# (15,18)
CONTRAST (18)
KILL_SW (22)
BATLED0# (28)
BATLED1# (28)
SUSON (34,35)
MAINON (19,33,34,35)
TP_LED_ON (28)
PWRLED# (28)
10/24 REV_A1 Add
T5T5
FANSIG (3)
LOM_DISABLE (24)
ACIN (28,30)
S5_ON (31)
VRON (32)
T61T61
RF_EN (25)
CELL-SET (30)
DNBSWON# (16)
RSMRST# (16)
SUSC# (16)
ECPWROK (16)
KEY_INT (28)
CIRRX2
NUMLED (28)
CAPSLED (28)
09/20 REV_A1 Modify
USBOC#1 (15,19)
+3VPCU
+A3VPCUVREF_uR
+A3VPCU
C74
C74
*0.1u/10V_4
*0.1u/10V_4
For WPCE775
C60
C60
*0.1u/10V_4
*0.1u/10V_4
+3VPCU
BATLED1#
BATLED0#
PWRLED#
R176 10K_4R176 10K_4
R73 10K_4R73 10K_4
R64 10K_4R64 10K_4
C107
C107
*0.1u/10V_4
*0.1u/10V_4
09/20 REV_A1 Modify
To: Battery Connector (Input)
To: Media Board (Input)
To: Media Board (Input)
To: Volume Wheel (Input)
To: Volume Wheel (Input)
To: HW Power Button (Input)
To: South Bridge (Input)
To: Battery Charger (Output)
To: FAN Control IC (Output)
To: Battery Charger (Output)
To: SUS LED circuit (Output)
To: RF LED (Output)
To: Mute Audio AMP (Output)
To: Battery Connector (Input)
To: Select VIN is from DC or Battery (Output)
01/08 REV_3B Add to control MMB LED
To: Logo LED (Output)
10/22 REV_A1 Modify
To: Enable BT module (Output)
To: CRT connector and South Bridge (Input)
To: MR sensor (Input)
To: Control Panel brightness (Output)
To: Enable/Disable WiFi and BT (Input)
To: Battery LED--Full charge (Output)
To: Battery LED--Charging (Output)
To: Control S3 power (Output)
To: Control S1 power (Output)
To: Touch PAD Connector (Output)
To: Power ON LED (Output)
To: AMD PWM (Output)
To: FAN connector (Input)
To: LOM_DISABLE (Output)
To: ACIN LED and AC detect circuit (Input)
To: Control S5 power (Output)
To: CPU Vcc core PWM IC (Output)
10/22 REV_A1 Modify
To: Enable WiFi (Output)
To: Battery Charger (Output)
To: South Bridge (Output)
To: South Bridge (Output)
To: South Bridge (Input)
To: South Bridge, be careful the timing (Output)
To: Touch Sensor Board Con. (Input)
To: CIR (Input)
To: Internal KB LED (output)
To: Internal KB LED (output)
CCD_POWERON (18)
To: CCD Power Switch (Output)
2
C106
C106
*0.1u/10V_4
*0.1u/10V_4
SM BUS PU
MBCLK
MBDATA
2ND_MBCLK
2ND_MBDATA
FN0#
FN1#
3ND_MBCLK
3ND_MBDATA
CRT_SENSE#
R83 4.7K_4R83 4.7K_4
R79 4.7K_4R79 4.7K_4
R63 4.7K_4R63 4.7K_4R25
R70 4.7K_4R70 4.7K_4
R72 4.7K_4R72 4.7K_4
R65 4.7K_4R65 4.7K_4
R34 4.7K_4R34 4.7K_4
R32 4.7K_4R32 4.7K_4
R111 4.7K_4R111 4.7K_4
I/O Base Address
BADDR1-0
0 0
0 1
1 0
1 1
SHBM=0: Enable shared memory with host BIOS
BADDR0
BADDR1
SHBM
12/05 REV_3A R38 DNI,R47 mount
Disabled ('1') if using FWH device on LPC.
Enabled ('0') if using SPI flash for both system BIOS and EC firmware
ID
2ND_MBCLK
2ND_MBDATA
SPI FLASH
SPI_SDI_uR
R155 33_4R155 33_4
SPI_SDO_uR
R132 33_4R132 33_4
SPI_SCK_uR
R131 33_4R131 33_4
SPI_CS0#_uR
R154 10K_4R154 10K_4
+3VPCU
Index
XOR TREE TEST MODE
CORE DEFINED
2Eh 2Fh
164Eh
BADDR0
BT_EN
RF_EN
MY0
R52 10K_4R52 10K_4
I/O Address
R38 *10K_4R38 *10K_4
R47 10K_4R47 10K_4
R96 10K_4R96 10K_4
U3
6
SCL
5
SDA
7
WP
24LC08BT-IU324LC08BT-I
ADDRESS: A0H
SPI_SDI
SPI_SDO
SPI_SCK
Data
164Fh
H=1.75mm
H=2.16mm
2
5
6
1
INTERNAL KEYBOARD STRIP SET
CIR (Copy from PB2A)
Only for 8769/775C
CIRRX2
+5VPCU+3VPCU
R595 0_4R595 0_4
R594 *0_4R594 *0_4
+5VPCU
R596
R596
*10K_4
*10K_4
C661 0.1u/10V_4C661 0.1u/10V_4
CIR_VCC
1
+3VPCU
+3V
1
A0
2
A1
3
A2
8
VCC
4
GND
U2
U2
SO
SI
HOLD
SCK
CE
W25X80VSSIG
W25X80VSSIG
+3VPCU
U38
U38
3
VCC
1
OUT
2
GND
4
GND
IR-FM-9038SM-5CN
IR-FM-9038SM-5CN
+3VPCU
C170
C170
0.1u/10V_4
0.1u/10V_4
+3VPCU
8
VDD
WP
VSS
C165
C165
7
0.1u/10V_4
0.1u/10V_4
3
4
A A
5
GFXPG(19)
HWPG_1.25V(35)
SYS_HWPG(31)
HWPG_1.05V(33)
HWPG_1.8V(34)
HWPG_1.5V(35)
D14 BAS316D14 BAS316
D12 BAS316D12 BAS316
D23 BAS316D23 BAS316
D3 BAS316D3 BAS316
D2 BAS316D2 BAS316
D13 BAS316D13 BAS316
4
HWPG
3
2
10/19 REV_A1 Change footprint
10/21 REV_A1 Change pin define
12/07 REV_3A Change P/N
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : BL5S Santa Rosa
EC-WPCE775C
EC-WPCE775C
EC-WPCE775C
1
29 37Tuesday, January 22, 2008
29 37Tuesday, January 22, 2008
29 37Tuesday, January 22, 2008
of
of
of
1A
1A
1A
5
PF1
PL2
PF1
PR80
PR80
*10K/F_6
*10K/F_6
PF1
BUS-10A-1206
BUS-10A-1206
1 2
PC58
PC58
2200p/50V_6
2200p/50V_6
ACIN_1
PCN1
PCN1
4
3
2
D D
20277-04XX-4P-L
20277-04XX-4P-L
1
ACIN(28,29)
PC56
PC56
PC57
PC57
0.1u/50V_6
0.1u/50V_6
0.1u/50V_6
0.1u/50V_6
NC PR78,79,80 and PD6 12/05
PR79
PR79
*6.8K/F_6
*6.8K/F_6
Input sense resistor and Constant power setting table
C C
R1
R2
R3
PF1
B B
ADDRESS: 16H
+3VPCU +3VPCU
A A
1
PD2
PD2
3
*DA204U
*DA204U
2
UMA Discrete
20m Ohm 20m Ohm
CS+020AGM00
10K Ohm
CS+020AGM00
2.43K Ohm
CS22433F913CS31003F949
10K Ohm
CS31003F949
10K Ohm
CS31003F949
DKA00VFU000 DKA00VFU000
+3VPCU
PR1
PR1
*100K_4
*100K_4
CN18
CN18
10
1
2
ID
3
11
12
13
SUYIN BATTERY
SUYIN BATTERY
ID TEMP_MBAT
B/I
4
TEMP_MBAT
5
6
7
8
9
1
PD1
PD1
3
*DA204U
*DA204U
2
PR128
PR128
100_4
100_4
47p/50V_6
47p/50V_6
2 1
5
PR4
PR4
10K_6
10K_6
PC1
PC1
PD9
PD9
ZD3.6V
ZD3.6V
PR131
PR131
100_4
100_4
10A10A
PC93
PC93
100p/50V_6
100p/50V_6
ADD PR173, PD13 12/05
MBAT+
ID (29)
12
PC95
PC95
PC2
PC2
0.1u/50V_6
0.1u/50V_6
47p/50V_6
47p/50V_6
MBDATA (29)
MBCLK (29)
PD10
PD10
ZD3.6V
ZD3.6V
2 1
PL2
HI0805R800R-00_8
HI0805R800R-00_8
PL1
PL1
HI0805R800R-00_8
HI0805R800R-00_8
PD6
PD6
2 1
*ZD12V
*ZD12V
PR78
PR78
*10K/F_6
*10K/F_6
Add PR167,PR168 10/24
TEMP_MBAT
PF2
PF2
1 2
BUS-15A-1206
BUS-15A-1206
PR2
PR2
100K/F_6
100K/F_6
PR8
PR8
0_6
0_6
12
PC3
PR3
PR3
*100K/F_6
*100K/F_6
PC3
.01u/50V_6
.01u/50V_6
4
VA
PC52
PC52
0.1u/50V_6
0.1u/50V_6
PD5
PD5
SW1010CPT
SW1010CPT
PQ39
PQ39
DMN601K-7
DMN601K-7
PR168
PR168
0_6
0_6
6251EN
PR167
PR167
100K/F_6
100K/F_6
PR5
PR5
10/F_6
10/F_6
EN PR133,134 12/05
TEMP_MBAT (29)
HI0805R800R-00_8
HI0805R800R-00_8
PL5
PL5
PL6
PL6
HI0805R800R-00_8
HI0805R800R-00_8
+3VPCU
6251CELLS_1
CELL-SET(29)
CELL-SET = Hi ----> Cells = VDD ---->4S
CELL-SET = Low ----> Cells = GND ---->3S
4
PD12
PD12
PDS1040S-13
PDS1040S-13
1
2
PC54
PC54
0.1u/50V_6
0.1u/50V_6
PD11
PD11
P4SMAJ20A
P4SMAJ20A
+3VPCU
PR172
PR172
4.7K/F_6
4.7K/F_6
PR171
PR171
100K/F_6
3
1
CHG-EN (29)
100K/F_6
ACPRN
2
EN PR167,168 12/05
PR11
PR11
20/F_6
20/F_6
6251LR
47n/25V_6
47n/25V_6
BAT-V
PR7
PR7
20/F_6
20/F_6
PR134
PR134
82.5K/F_6
82.5K/F_6
PR133
PR133
10K/F_6
10K/F_6
NC PR6 12/05
BAT-V
ISL6251_VDD
PR126
PR126
*10K/F_6
*10K/F_6
3
2
PR130
PR130
*100K/F_6
*100K/F_6
*DMN601K-7
*DMN601K-7
1
3
2 1
Add PR171,172 and PQ39 12/05
PC6
PC6
PR6
PR6
*10K/F_6
*10K/F_6
PR129
PR129
*10K/F_6
*10K/F_6
PQ26
PQ26
3
0.02_7520
0.02_7520
PR159
PR159
12/06 REV_3A Change footprint
1 2
VA2
R1
PC34
PC34
0.1u/50V_6
0.1u/50V_6
PR18
PC14
PC14
0.1u/50V_6
0.1u/50V_6
CSIP
19
CSIP
PU1
PU1
ISL6251A
ISL6251A
ICOMP5VCOMP
6
6251ICOMP
6251VCOMP1
PC13
PC13
3
PR18
20/F_6
20/F_6
CSIN
20
CSIN
ICM7CHLIM
PR139
PR139
3.3K/F_6
3.3K/F_6
6251VCOMP2
PC105
PC105
.01u/50V_6
.01u/50V_6
PR24
PR24
2.2/F_6
2.2/F_6
CSOP
21
CSOP
1 2
CSON
22
CSON
ACPRN
23
PC5
PC5
0.1u/50V_6
0.1u/50V_6
6251ACSET
6251CELLS_2
ACPRN
DCIN
24
DCIN
2
ACSET
3
EN
CELLS
4
6251EN VREF
6251CELLS_1
3
PC8
PC8
.01u/50V_6
.01u/50V_6
2
PQ25
PQ25
*DMN601K-7
*DMN601K-7
PR127
PR127
*100K/F_6
*100K/F_6
1
*100p/50V_6
*100p/50V_6
PR43
PR43
220K/F_6
220K/F_6
PR39
PR39
220K/F_6
220K/F_6
ISL6251_VDD
1
15
VDD
VDDP
BOOT
UGATE
PHASE
LGATE
PGND
GND
VADJ
ACLIM
VRFE
9
8
PR25
PR25
*100_4
*100_4
1 6
2
3
PC4
PC4
2.2u/10V_8
2.2u/10V_8
1 2
PR41
PR41
4.7_6
4.7_6
ISL6251_VDDP
6251B_2
16
17
18
14
13
12
11
10
PC21
PC21
100p/50V_6
100p/50V_6
ICMNT
1 2
PC16
PC16
*3300p/50V_4
*3300p/50V_4
2
PQ28
PQ28
FDD6685
FDD6685
43
1
PC29
PC29
1 2
PD3
PD3
RB500V
RB500V
PC22
PC22
R2
VADJ
ACLIM
R3
PR33 0_6PR33 0_6
PQ38
PQ38
FDS6690AS
FDS6690AS
PR34
PR34
10K/F_6
10K/F_6
PR38
PR38
10K/F_6
10K/F_6
578
PQ36
PQ36
FDS8878
FDS8878
3 6
241
578
3 6
241
VREF
VREF
PR37
PR37
*514K/F_6
*514K/F_6
Float = 4.2V / CELL
PR36 *0_6PR36 *0_6
PR35
PR35
*514K/F_6
*514K/F_6
5
4
PQ2
PQ2
IMD2AT108
IMD2AT108
4.7u/10V_8
4.7u/10V_8
PR31
PR31
.1u/25V_8
.1u/25V_8
2.7_6
2.7_6
6251B_1
ISL6251_UGATE
ISL6251_PHASE
ISL6251_LGATE
CC-SET (29)
ICMNT
LIM = (1/R2)*(((0.05/VREF=2.39)VACLM)+0.050)
CURRNT LIMIT POINT =(90w/19v)*0.85= 4.026A
4.026A=(1/0.02)((0.05/2.365)Vaclm+0.05)
Vaclm=((33//152)/(33//152+19.6//152))*Vref
R2=adapter current sense resistnece
2
VIN
PC98
PC98
0.1u/50V_6
0.1u/50V_6
D/C# (29)
PL8
PL8
HI0805R800R-00_8
VA3
PC122
PC122
0.1u/50V_6
0.1u/50V_6
PC121
PC121
2200p/50V_6
2200p/50V_6
Change footprint and P/N 12/05
PL12
PL12
6R8uH
6R8uH
12
PR161
PR161
2.2_6
2.2_6
PC133
PC133
2200p/50V_6
2200p/50V_6
HI0805R800R-00_8
PC118
PC118
10u/25V_1206
10u/25V_1206
PR152
PR152
0.03_3720
0.03_3720
6251LR
1 2
6251LR
BAT-V
CV-SET (29)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
CHARGER (ISL6251A)
CHARGER (ISL6251A)
CHARGER (ISL6251A)
Date: Sheet
Date: Sheet
Date: Sheet
1
PQ29
PQ29
FDD6685
FDD6685
43
PR14
PR14
PC99
PC99
2200p/50V_6
2200p/50V_6
DMN601K-7
DMN601K-7
VIN
PC112
PC112
2200p/50V_6
2200p/50V_6
10u/25V_1206
10u/25V_1206
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
33K_6
33K_6
1
PQ1
PQ1
PC113
PC113
2
1
PR15
PR15
10K_6
10K_6
3
1
BAT-V
PC94
PC94
10u/25V_1206
10u/25V_1206
30 37Tuesday, January 22, 2008
30 37Tuesday, January 22, 2008
30 37Tuesday, January 22, 2008
PC120
PC120
.01u/50V_6
.01u/50V_6
of
of
of
1A
1A
1A
MAIND
SUSD
5
MAIND (34,35)
SUSD (35)
4
3
2
1
PQ11
PQ11
1 2
PR114
PR114
0_4
0_4
PC76
PC76
8
7
LDO
LDOREFIN
ISL6237
ISL6237
BST117DL118PVCC19NC20GND21PGND22DL223BST2
PAD33PAD34PAD
PC78
PC78
+3VPCU
578
3 6
241
VL
1 2
5
6
VIN
PU5
PU5
12
PQ6
PQ6
FDS8884
FDS8884
1 2
4
NC
PR103
PR103
*39K_4
*39K_4
ONLDO
+3V
PC81
PC81
4.7u/10V_8
4.7u/10V_8
PR102
PR102
0_4
0_4
1 2
1
3
REF
TON2VCC
PGOOD2
24
PR89 *0_6PR89 *0_6
PC70
PC70
0.1u/50V_6
0.1u/50V_6
REF
PR98 *0_6PR98 *0_6
REFIN2
ILIM2
OUT2
SKIP#
EN2
DH2
LX2
1 2
PR100
PR100
0_6
0_6
PC73
PC73
1u/10V_6
1u/10V_6
REFIN2
32
31
1 2
30
SKIP
29
DDPWRGD_R
28
3V5V_EN
27
26
25
PC69
PC69
0.1u/50V_6
0.1u/50V_6
PR97
PR97
1/F_6
1/F_6
PR175
PR175
*0_6
*0_6
NC PR175 12/05
REFIN2
S5D
PR99
PR99
0_4
0_4
1 2
3V_DH
PR90
PR90
196K/F_6
196K/F_6
3V_DL
SKIP REF
OCP:8A
L(ripple current)
=(19-3.3)*3.3/(2.2u*0.5M*19)
~2.48A
Iocp=8-(2.48/2)=6.67A
Vth=6.67A*15mOhm=100.05mV
R(Ilim)=(100.05mV*10)/5uA
~200.1K
3
3V_LX
FDS6690AS
FDS6690AS
+3VPCU
578
578
PQ9
PQ9
PR93 *0_6PR93 *0_6
PR94 0_6PR94 0_6
65241
PQ7
PQ7
FDC653N_NL
FDC653N_NL
3 6
241
3 6
241
DDPWRGD_R
+3V_S5
PQ10
PQ10
FDS8878
FDS8878
0.1u/50V_6
0.1u/50V_6
2R2uH-5.8mR
2R2uH-5.8mR
12
PR88
PR88
*2.2_6
*2.2_6
PC63
PC63
*2200p/50V_6
*2200p/50V_6
+3VPCU
PC67
PC67
PL3
PL3
SUSD
PR95
PR95
*10K_6
*10K_6
PC68
PC68
2200p/50V_4
2200p/50V_4
+3VPCU
PR92
PR92
0_6
0_6
PR91
PR91
*0_6
*0_6
PR96 0_6PR96 0_6
+3VPCU
2
PC65
PC65
10u/25V_1206
10u/25V_1206
PC64
PC64
0.1u/50V_6
0.1u/50V_6
3
PQ20
PQ20
DMN601K-7
DMN601K-7
1
OCP : 8A
+3VSUS
VL
PR104
PR104
390K_4
12
PR109
PR109
39K/F_4
39K/F_4
5V_DH
5V_LX
5V_DL
PQ13
PQ13
FDS6690AS
FDS6690AS
PC83
PC83
+15V_ALWP
+5VPCU
3
3V5V_EN
65241
0.1u/50V_6
0.1u/50V_6
PQ12
PQ12
FDC653N_NL
FDC653N_NL
+5V
578
3 6
241
578
12
3 6
241
0.1u/50V_6
0.1u/50V_6
PR101
PR101
22_8
22_8
MAIND
390K_4
PC77
PC77
0.1u/50V_6
0.1u/50V_6
PR106
PR106
150K_4
150K_4
1 2
PR108 178K/F_6PR108 178K/F_6
PC84
PC84
DDPWRGD_R
3V5V_EN
1 2
ADD PR174 12/05
PC82
3
PD8
PD8
1PS302
1PS302
3
PD7
PD7
1PS302
1PS302
PC82
0.1u/50V_6
0.1u/50V_6
1 2
PR105
PR105
*200K_4
*200K_4
2
1
2
1
PC71
PC71
0.1u/50V_6
0.1u/50V_6
+5VPCU
PR111
PR111
1/F_6
1/F_6
MAIND
9
10
11
12
13
14
15
16
37
36
PR174
PR174
0_6
0_6
PC79
PC79
0.1u/50V_6
0.1u/50V_6
*.01u/16V_4
*.01u/16V_4
BYP
OUT1
FB1
ILIM1
PGOOD1
EN1
DH1
LX1
PAD
PAD
35
VL
1u/16V_6
1u/16V_6
VIN
+3VPCU
+
+
PC66
PC66
330u/6.3V_6X5.7
330u/6.3V_6X5.7
SYS_HWPG (29)
SYS_SHDN#(3)
VIN
D D
+
+
PC85
PC74
PC74
PC75
PC92
PC92
100U/25V_6X7.7
100U/25V_6X7.7
OCP: 8A
+5VPCU
C C
10u/25V_1206
10u/25V_1206
PC90
PC90
0.1u/50V_6
0.1u/50V_6
+5VPCU
+
+
330u/6.3V_6X5.7
330u/6.3V_6X5.7
PC75
2200p/50V_6
2200p/50V_6
*10u/25V_1206
*10u/25V_1206
01/22 REV_3B Change value
PR107
PR107
64.9K/F_4
64.9K/F_4
PC89
PC89
PC80
PC80
PR112
PR112
10K/F_4
10K/F_4
0.1u/50V_6
0.1u/50V_6
PC72
PC72
1 2
1 2
PC85
10u/25V_1206
10u/25V_1206
2R2uH-5.8mR
2R2uH-5.8mR
2200p/50V_6
2200p/50V_6
FDS8878
FDS8878
PL4
PL4
PR118
PR118
2.2_6
2.2_6
PC88
PC88
OCP:8A
L(ripple current)
=(19-5)*5/(2.2u*0.4M*19)
B B
S5_ON(29)
A A
~4.18A
Iocp=8-(4.18/2)=5.91A
Vth=5.91A*15mOhm=88.65mV
R(Ilim)=(88.65mV*10)/5uA
~177.3K
PR124
PR124
1M_6
1M_6
PR123
PR123
1M_6
1M_6
+15V
2
2
PQ22
PQ22
DTC144EU
DTC144EU
VIN
1 3
S5D
3
1
PR122
PR122
1M_6
1M_6
2
PQ24
PQ24
DMN601K-7
DMN601K-7
+5VPCU
3
1
PQ14
PQ14
DMN601K-7
DMN601K-7
+5V_S5
+15V
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
SYSTEM 5V/3V (ISL6237)
SYSTEM 5V/3V (ISL6237)
SYSTEM 5V/3V (ISL6237)
1
1A
1A
1A
of
of
of
31 37Tuesday, January 22, 2008
31 37Tuesday, January 22, 2008
31 37Tuesday, January 22, 2008
5
4
3
2
1
+3VPCU +3VPCU
PR71
PR72
PR72
*0_6
*0_6
D D
H_VID6
12
PR42 4.99K/F_6PR42 4.99K/F_6
PC33
PC33
0.1u/50V_6
0.1u/50V_6
PSI#(3)
PR32 0_8PR32 0_8
PR71
*0_6
*0_6
PGD_INPWR_MON
12
PSI#
Close to Phase 1 Inductor
VR_ON
PC31
PC31
H_VID0(4)
H_VID1(4)
H_VID2(4)
H_VID3(4)
H_VID4(4)
H_VID5(4)
H_VID6(4)
VRON(29)
PR27
PR27
255/F_4
255/F_4
PR142 97.6K/F_4PR142 97.6K/F_4
PC24
PC24
220P/50V_4
220P/50V_4
Throttling temp.
105 degree C
PR149 4.02K/F_4PR149 4.02K/F_4
1 2
PR56 0_4PR56 0_4
PR57 499/F_4PR57 499/F_4
PR58 0_4PR58 0_4
PR59 0_4PR59 0_4
PR19 1K/F_4PR19 1K/F_4
1 2
PC15
PC15
1000p/50V_6
1000p/50V_6
PC114 470p/50V_4PC114 470p/50V_4
12
+3V_S5
C C
PR40
PR40
*10K/F_4
*10K/F_4
H_PROCHOT#(3)
Panasonic
ERT-J0EV474J
PSI#_1
PR157
PR157
*0_6
*0_6
DPRSLPVR
B B
VR_ON
PR169
PR169
10K/F_6
10K/F_6
PR145 470K_4 NTCPR145 470K_4 NTC
.01u/16V_4
.01u/16V_4
PM_DPRSLPVR(6,16)
ICH_DPRSTP#(3,6,14)
VR_PWRGD_CK410#(16)
Add PR169 10/24
A A
5
PR70
PR70
*0_6
*0_6
PR147
PR147
10/F_6
10/F_6
PC117
PC117
1u/25V_8
1u/25V_8
PR44 0_4PR44 0_4
PR153 *0_4PR153 *0_4
PR151 147K/F_6PR151 147K/F_6
H_VID0
H_VID1
H_VID2
H_VID3
H_VID4
H_VID5
H_VID6
CLKEN#
PR26 1K/F_4PR26 1K/F_4
12
PR148 6.81K/F_4PR148 6.81K/F_4
1 2
PC119 1000p/50V_6PC119 1000p/50V_6
+5V_S5
0.1u/50V_6
0.1u/50V_6
1 2
PSI#_1PSI#
PGD_IN
PC28
PC28
12
0.022u/50V_6
0.022u/50V_6
VR_ON
DPRSLPVR
.01u/16V_4
.01u/16V_4
PC110
PC110
.01u/16V_4
.01u/16V_4
PC115
PC115
PC20
PC20
PR65
PR65
*0_6
*0_6
1 2
21
49
37
38
39
40
41
42
43
44
45
46
47
13
12
11
10
10/F_6
10/F_6
2
3
4
5
6
7
9
VIN
PR144
PR144
12
22
GND
GND_T
PSI#
PGD_IN
RBIAS
VR_TT#
NTC
SOFT
VID0
VID1
VID2
VID3
VID4
VID5
VID6
VR_ON
DPRSLPVR
DPRSTP#
CLK_EN#
VDIFF
FB2
FB
COMP
VW
4
PR62
PR62
*0_6
*0_6
PR51
PR51
10_4
10_4
12
PC39
PC39
0.1u/50V_6
0.1u/50V_6
20
VIN
VCC
PU2
PU2
ISL6262A
ISL6262A
VSEN
RTN
14
15
12
.01u/16V_4
.01u/16V_4
1 2
+3V
12
48
3V3
UGATE1
BOOT1
PHASE1
LGATE1
PGND1
ISEN1
UGATE2
BOOT2
PHASE2
LGATE2
PGND2
ISEN2
OCSET
VSUM
DROOP
16
PR23
PR23
3.48K/F_4
3.48K/F_4
PC11 180p/50V_4PC11 180p/50V_4
PC109
PC109
PR21 0_4PR21 0_4
PR20 0_4PR20 0_4
PVCC
1
NC
VO
17
12
PR55
PR55
*0_6
*0_6
PGOOD
DFB
H_VID0H_VID3 H_VID2H_VID5 H_VID4 H_VID1
PR47
PR47
1.91K/F_4
1.91K/F_4
35
PR48 2.2_6PR48 2.2_6
36
1 2
0.22u/25V_8
0.22u/25V_8
34
32
33
24
31
1 2
27
PR30 2.2_6PR30 2.2_6
26
1 2
28
30
29
23
25
8
19
12
18
ISL6262_VO
Parallel
PC32
PC32
4.7u/25V_8
4.7u/25V_8
0.22u/25V_8
0.22u/25V_8
12
PC111
PC111
0.22u/10V_6
0.22u/10V_6
PR28
PR28
1K/F_4
1K/F_4
PR52
PR52
*0_6
*0_6
PC35
PC35
PC26
PC26
VSUM
PC108
PC108
68n/25V_6
68n/25V_6
12
ISEN1
0.22u/25V_6
0.22u/25V_6
+5V_S5
12
ISEN2
0.22u/25V_6
0.22u/25V_6
PC27 1000p/50V_4PC27 1000p/50V_4
12
PR143 13.3K/F_4PR143 13.3K/F_4
PR137
PR137
11K/F_4
11K/F_4
12
PC12
PC12
0.22u/25V_6
0.22u/25V_6
DELAY_VR_PWRGOOD (3,6,16)
6262A_UG1
6262A_PH1
6262A_LG1
12
PC17
PC17
6262A_UG2
6262A_LG2
12
PC18
PC18
PR135
PR135
2.7K/F_4
2.7K/F_4
PR146
PR146
10K _6 NTC
10K _6 NTC
Panasonic
ERT-J1VR103J
Close to Phase 1 Inductor
VCCSENSE (4)
VSSSENSE (4)
3
PQ37
PQ37
TPCA8023-H
TPCA8023-H
PQ35
PQ35
TPCA8019-H
TPCA8019-H
VSUM
ISEN2
PQ27
PQ27
TPCA8023-H
TPCA8023-H
6262A_PH2
PQ30
PQ30
TPCA8019-H
TPCA8019-H
VSUM
ISEN1
4
4
4
4
5
213
5
213
PR22 3.65K/F_6PR22 3.65K/F_6
PR29 10K/F_6PR29 10K/F_6
PR16 1/F_6PR16 1/F_6
PR138 *0_6PR138 *0_6
PR10
PR10
2.2_6
2.2_6
5
213
5
213
PR9 3.65K/F_6PR9 3.65K/F_6
PR136 10K/F_6PR136 10K/F_6
PR17 1/F_6PR17 1/F_6
PR140 *0_6PR140 *0_6
12
PR64
PR64
2.2_6
2.2_6
PC46
PC46
2200p/50V_6
2200p/50V_6
12
PR63
PR63
2.2_6
2.2_6
PC45
PC45
2200p/50V_6
2200p/50V_6
1 2
10u/25V_1206
10u/25V_1206
PC9
PC9
2200p/50V_6
2200p/50V_6
12
PR132
PR132
2.2_6
2.2_6
2200p/50V_6
2200p/50V_6
PC103
PC103
2200p/50V_6
2200p/50V_6
12
PC131
PC131
PC97
10u/25V_1206
10u/25V_1206
2
12
PC100
PC100
12
PC41
PC41
10u/25V_1206
10u/25V_1206
VIN
12
PC101
PC101
10u/25V_1206
10u/25V_1206
VIN
0.1u/50V_6
0.1u/50V_6
+
+
12
PC91
PC91
100U/25V_6X7.7
100U/25V_6X7.7
PL10 0.36uHPL10 0.36uH
1 2
3
4
+
+
PC40
PC40
330u/2V_7343
330u/2V_7343
PR46
PR46
PR45
PR45
0_6
0_6
0_6
0_6
12
PC129
PC129
2200p/50V_6
2200p/50V_6
PC130
PC130
PL7 0.36uHPL7 0.36uH
1 2
3
4
+
+
PR13
PR13
PR12
PR12
0_6
0_6
0_6
0_6
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
CPU CORE(ISL6262A)
CPU CORE(ISL6262A)
CPU CORE(ISL6262A)
Date: Sheet
Date: Sheet
Date: Sheet of
VIN
PC104
PC104
0.1u/50V_6
0.1u/50V_6
VCC_CORE
+
+
PC30
PC30
*560U/2V_7
*560U/2V_7
VIN
+
+
PC59
PC7
PC7
330u/2V_7343
330u/2V_7343PC97
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
PC59
*560U/2V_7
*560U/2V_7
1
1A
1A
32 37Tuesday, January 22, 2008
32 37Tuesday, January 22, 2008
32 37Tuesday, January 22, 2008
1A
of
of
1
A A
2
3
4
5
PR160
PR160
10_6
10_6
PC36
PU3
PU3
BOOT
UGATE
PHASE
VDDP
LGATE
PGND
TPAD
21
PC36
*0.1u/50V_6
*0.1u/50V_6
OC
13
12
11
10
9
8
7
17
PR68
PR68
1M_6
PC51
PC51
1M_6
15
EN/DEM
16
TON
1
VOUT
2
VDD
RT8202
RT8202
3
FB
4
PGOOD
6
GND
5
NC
12
12
PC50
PC50
.01u/50V_6
.01u/50V_6
14
NC
GND18GND19GND20GND
B B
MAINON(19,29,34,35)
HWPG_1.05V(29)
C C
PR67 47K_6PR67 47K_6
+3V
PR53
PR53
*10K_6
*10K_6
PC127
PC127
1u/16V_6
1u/16V_6
PC49
PC49
0.1u/50V_6
0.1u/50V_6
*1000p/50V_6
*1000p/50V_6
TON=3.85p*RTON*Vout/(Vin-0.5)
Frequency=Vout/(Vin*TON)
+5V_S5
PD4
PD4
RB500V
RB500V
12
PC37
PC37
4.7u/10V_8
PC43
PC43
.1u/25V_8
.1u/25V_8
UGATE-1.05V
PHASE-1.05V
LGATE-1.05V
4.7u/10V_8
PR66
PR66
0_6
0_6
PR54 2.8K/F_6PR54 2.8K/F_6
Rds*OCP=RILIM*20uA
AOL1412 Rds=4.6mOhm
12.17A OCP --- OC=2.8K
SI7636 Rds=4.8mOhm
4
PQ33
PQ33
TPCA8019-H
TPCA8019-H
578
3 6
PQ32
PQ32
FDS8878
FDS8878
241
5
213
2200p/50V_6
2200p/50V_6
12
PR158
PR158
2.2_6
2.2_6
PC128
PC128
2200p/50V_6
2200p/50V_6
PC25
PC25
2200p/50V_6
2200p/50V_6
PL11
PL11
2R2uH-5.8mR
2R2uH-5.8mR
560u/2.5V_6X5.7
560u/2.5V_6X5.7
1.05V_FB
PC23
PC23
PC19
12
+
+
PC132
PC132
PC19
0.1u/50V_6
0.1u/50V_6
10u/10V_8
10u/10V_8
PC136
PC136
PC10
PC10
10u/25V_1206
10u/25V_1206
VOUT=(1+R2/R3)*0.75
PR61
PR61
4.02K/F_6
4.02K/F_6
PR60
PR60
10K/F_6
10K/F_6
PC106
PC106
10u/25V_1206
10u/25V_1206
PC42
PC42
33p/50V_6
33p/50V_6
VIN
OCP: 12.17A
+1.05V
11.67A OCP --- OC=2.8K
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
1
2
3
4
Date: Sheet
PROJECT : BL5S Santa Rosa
VTT 1.05V (RT8202)
VTT 1.05V (RT8202)
VTT 1.05V (RT8202)
5
1A
1A
1A
of
of
of
33 37Tuesday, January 22, 2008
33 37Tuesday, January 22, 2008
33 37Tuesday, January 22, 2008
5
D D
4
3
2
1
+1.8VSUS
PC47
PC47
10u/10V_1206
10u/10V_1206
+SMDDR_VTERM
PC53
PC55
PC55
10u/10V_8
10u/10V_8
C C
+SMDDR_VREF
+1.8VSUS
PR163 *0_6PR163 *0_6
PR164 0_6PR164 0_6
PR162
PR162
0_6
0_6
DIS_MODE
PC53
10u/10V_8
10u/10V_8
PC135
PC135
0.033u/50V_6
0.033u/50V_6
5VIN
Modify to EN 10/24
FOR DDR II
5VIN
PR75
PR75
0_6
0_6
R2
B B
R1
R1=(100*Vout-R2)K
PU4
PU4
TPS51116
TPS51116
1
VLDOIN
2
VTT
4
VTTSNS
5
GND
3
VTTGND
6
MODE
7
VTTREF
8
COMP
9
VDDSNS
10
VDDQSET
+5VPCU
PR74
PR74
*110K/F_6
*110K/F_6
PR73
PR73
*76.8K/F_6
*76.8K/F_6
Modify to NC 10/24
DRVH
VBST
DRVL
PGND
V5IN
PGOOD
GND21GND22GND23GND24GND25GND26GND
27
*1000p/50V_6
*1000p/50V_6
PR50
PR50
0_6
0_6
19
20
18
LL
17
16
S3_1.8VDIS_MODE
11
S3
S5_1.8V
12
S5
5VIN
14
13
15
CS
PC126
PC126
5VIN
S3_1.8V S5_1.8V
12
PC125
PC125
4.7u/6.3V_6
4.7u/6.3V_6
PR49
PR49
5.1K/D_6
5.1K/D_6
PR156
PR156
100K/F_6
100K/F_6
PC44
PC44
*0.1u/50V_6
*0.1u/50V_6
PC38 0.1u/50V_6PC38 0.1u/50V_6
PR154
PR154
0_6
0_6
PR155
PR155
0_6
0_6
+3VPCU
PC123
PC123
*0.1u/50V_6
*0.1u/50V_6
MAINON (19,29,33,35)
SUSON (29,35)
+3VPCU
HWPG_1.8V (29)
578
PQ31
PQ31
FDS8878
FDS8878
3 6
241
5
4
213
PQ34
PQ34
TPCA8019-H
TPCA8019-H
PR141
PR141
*2.2/F_6
*2.2/F_6
PC116
PC116
*2200p/50V_6
*2200p/50V_6
2R2uH-5.8mR
2R2uH-5.8mR
PR150
PR150
*2.2/F_6
*2.2/F_6
PC124
PC124
*2200p/50V_6
*2200p/50V_6
2200p/50V_6
2200p/50V_6
PL9
PL9
PC107
PC107
PC102
PC102
10u/25V_1206
10u/25V_1206
PC134
PC134
560u/2.5V_6X5.7
560u/2.5V_6X5.7
PC96
PC96
10u/25V_1206
10u/25V_1206
+
+
PC48
PC48
10u/10V_8
10u/10V_8
(10u*PR35)/Rdson+Delta_I/2=Iocp
VIN
OCP: 12.44A
+1.8VSUS
if tune Vout PR38 un-mount, PR156 PR165 mount
MAIND
A A
5
MAIND (31,35)
MAIND
+1.8VSUS
65241
PQ8
3
4
PQ8
FDC653N_NL
FDC653N_NL
+1.8V
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
DDR 1.8V(TPS51116)
DDR 1.8V(TPS51116)
DDR 1.8V(TPS51116)
1
1A
1A
1A
of
of
of
34 37Tuesday, January 22, 2008
34 37Tuesday, January 22, 2008
34 37Tuesday, January 22, 2008
5
4
3
2
1
+1.8VSUS
PU7
PU7
+5V_S5
1 2
PC137
PC137
5
9
8
6
100K/F_4
100K/F_4
D D
MAINON(19,29,33,34)
PR82
PR82
100K_4
100K_4
PC144
PC144
PC145
10u/6.3V_8
10u/6.3V_8
PR84
PR84
12
0_6
0_6
PC145
PC60
PC60
*0.1u/50V_6
*0.1u/50V_6
0.1u/10V_4
0.1u/10V_4
1u/10V_4
1u/10V_4
VIN
VIN1
EN
VCNTL
PR165
PR165
APL5913
APL5913
POK
GND
VOUT
VOUT
FB
2
Vout =0.8(1+R1/R2)
=1.25V
C C
PC62
PC62
0.1u/50V_6
0.1u/50V_6
MAINON
VIN
SUSON(29,34)
PR170
PR170
*100K_4
*100K_4
B B
12
DTC144EU
DTC144EU
PQ16
PQ16
2
1 3
PR120
PR120
1M_6
1M_6
SUS_ON_G
PR116
PR116
1M_6
1M_6
+SMDDR_VREF
PR69
PR69
22_8
22_8
3
2
1
2
PQ3
PQ3
DMN601K-7
DMN601K-7
+1.8VSUS
3
1
PR76
PR76
22_8
22_8
PQ4
PQ4
DMN601K-7
DMN601K-7
+15V
PR115
PR115
1M_6
1M_6
SUSD
3
2
PQ15
PQ15
DMN601K-7
DMN601K-7
1
PC87
PC87
*2200p/50V_4
*2200p/50V_4
SUSD (31)
+1.8VSUS
PC146
PC146
10u/4V_8
10u/4V_8
+5V_S5
PU6
PU6
G966-25ADJF1UF
G966-25ADJF1UF
PC61
PC61
*0.1u/50V_6
*0.1u/50V_6
4
2
3
8
9
PR83
PR83
10K/F_6
10K/F_6
PC142
PC142
0.1u/50V_6
0.1u/50V_6
Vout =0.8(1+R1/R2)
=1.25V
VPP
VEN
VIN
GND
GND
PGOOD
ADJ
7
VO
NC
7
1
3
4
88.7K/F_4
88.7K/F_4
1 2
47n/50V_4
47n/50V_4
1
6
5
PR166
PR166
PC138
PC138
0.8V
+3V_S5
12
+3V_S5
12
10u/6.3V_8
10u/6.3V_8
PR81
PR81
100K_4
100K_4
PR87
PR87
100K_4
100K_4
+1.5V
PC141
PC141
PR86
PR86
19.6K/F_6
19.6K/F_6
PR85
PR85
34K/F_6
34K/F_6
HWPG_1.5V (29)
PC140
PC140
10u/6.3V_8
10u/6.3V_8
HWPG_1.25V (29)
PC139
PC139
10u/10V_8
10u/10V_8
+1.5V (4,9,17,25,28)
2.8A
PC143
PC143
0.1u/10V_4
0.1u/10V_4
+1.25V
2A
NC PR170 12/05
VIN
PR77
PR121
PR121
1M_6
1M_6
A A
MAINON(19,29,33,34)
2
PQ17
PQ17
DTC144EU
DTC144EU
5
1 3
PR117
PR117
1M_6
1M_6
PR119
PR119
22_8
22_8
3
2
PQ21
PQ21
DMN601K-7
DMN601K-7
1
PR125
PR125
22_8
22_8
3
2
PQ23
PQ23
DMN601K-7
DMN601K-7
1
PR77
22_8
22_8
3
2
PQ5
PQ5
DMN601K-7
DMN601K-7
1
4
+1.8V
PR113
PR113
22_8
22_8
3
2
PQ19
PQ19
DMN601K-7
DMN601K-7
1
+15V+5V+3V +SMDDR_VTERM
PR110
PR110
1M_6
1M_6
MAINDMAINON_ON_G
3
2
PQ18
PQ18
DMN601K-7
DMN601K-7
1
PC86
PC86
*2200p/50V_4
*2200p/50V_4
3
MAIND (31,34)
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
PROJECT : BL5S Santa Rosa
Discharge (1.25V/1.5V)
Discharge (1.25V/1.5V)
Discharge (1.25V/1.5V)
1
1A
1A
35 37Tuesday, January 22, 2008
35 37Tuesday, January 22, 2008
35 37Tuesday, January 22, 2008
1A
of
of
of
5
4
3
2
1
Model
BL5S
D D
C C
REV
00
1A
20070824
20070914
FIRST RELEASED : 20070824
FIRST RELEASED : E200709-2519
CHANGE LIST
NOTEDATE
B B
A A
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
Change List
Change List
Change List
1
1A
1A
36 37Tuesday, January 22, 2008
36 37Tuesday, January 22, 2008
36 37Tuesday, January 22, 2008
1A
of
of
of
5
4
3
2
1
ISL6262A
P.33
AC
D D
DC
System
Charger
ISL6237
P.31
RT8202
P.33
C C
TPS51116
P.34
VCC_CORE
VRON enable
+5VPCU
AC/DC Insert enable
+3VPCU
AC/DC Insert enable
+1.05V
MAINON enable
+SMDDR_VTERM
SUSON enable
+SMDDR_VREF
SUSON enable
+1.8VSUS
SUSON enable
DMN601K
P.31
FDC653N_NL
P.31
FDS8884
P.31
FDC653N_NL
P.31
DMN601K
P.31
FDC653N_NL
P.34
+5V_S5
S5_ON enable
+5V
MAINON enable
+3V
MAINON enable
+3V_S5
S5_ON enable
+3VSUS
SUSON enable
+1.8V
MAINON enable
RT9025-25PSP
P.35
APL5913
P.35
+1.25V
MAINON enable
+1.5V
MAINON enable
Power Distribution List
Power
VCC_CORE
+5VPCU
+3VPCU
+1.5V
B B
+1.8VSUS GMCH, DDR
+SMDDR_VREF GMCH, DDR
+SMDDR_VTERM DDR
+1.05V
+5V_S5
+5V
+3V
+3V_S5
+3VSUS ICH8M, FP
+1.8V HDMI, Cardreader (OZ129T)
+1.25V CLK, GMCH, ICH8M
A A
Distribution
CPU
ICH8M, RJ45/USB /B, USB/eSATA, Satellite LED, CIR
RTC, HALL SENSOR, KB, TP/FP/LED /B, Power /B, Kill SW, EC, ID, SPI Flash, CIR
CPU, GMCH, ICH9M, Mini Card, New Card
CPU, CLK, Thermal Trip, GMCH, ICH8M
ICH8M, G-SENSOR, Felica, USB/eSATA
CPU, ICH8M, VGA, Camera, CRT, HDMI, SATA HDD, PATA ODD, PCMCIA, TP/FP/LED /B, EC, Speaker, Headphone
CLK, CPU Thermal Monitor, FAN, GMCH, DDR, ICH8M, VGA, LCD/LED Panel, HALL SENSOR, CRT, HDMI, SATA HDD, PATA ODD, PCMCIA, Cardreader (OZ129T)
Mini Card, KB, TP/FP/LED /B, RJ45/USB /B, Bluetooth, MMB, New Card, PC BEEP, EC, Codec (CX20561), VR, Headphone, MDC
ICH8M, Mini Card, RJ45/USB /B, New Card
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT : BL5S Santa Rosa
PROJECT : BL5S Santa Rosa
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : BL5S Santa Rosa
Change List
Change List
Change List
1
1A
1A
37 37Tuesday, January 22, 2008
37 37Tuesday, January 22, 2008
37 37Tuesday, January 22, 2008
1A
of
of
of
Loading...
